ORIGINAL RESEARCH article
Sec. Cancer Endocrinology
Volume 14 - 2023 | https://doi.org/10.3389/fendo.2023.1164692
A bibliometric and visualized research on global trends of immune checkpoint inhibitors related complications in melanoma, 2011–2021
- 1Department of Plastic Surgery, Shanghai East Hospital, Tongji University School of Medicine, Shanghai, China
- 2Department of Breast Surgery, Yangpu Hospital, Tongji University School of Medicine, Shanghai, China
- 3Hepatopancreatobiliary Center, The Second Affiliated Hospital of Nanjing Medical University, Nanjing, Jiangsu, China
- 4Department of Biotechnology, The China-US (Henan) Hormel Cancer Institute, Zhengzhou, China
- 5Department of General Surgery, Fuyang Hospital of Anhui Medical University, Fuyang, China
Background: Melanoma is a malignant tumor that originates from the canceration of melanocytes with a high rate of invasiveness and lethality. Immune escape has been regarded as an important mechanism for tumor development, while the treatment of immune checkpoint inhibitors (ICIs) is beneficial in restoring and enhancing the body’s anti-tumor immune response to kill tumor cells. To date, ICIs therapy has achieved remarkable efficacy in treating melanoma patients. Despite the significant clinical benefits of ICIs, multiple complications such as rashes, thyroiditis, and colitis occur in melanoma patients. In this study, we aim to explore the development process and trends in the field of ICIs-related complications in melanoma, analyze current hot topics, and predict future research directions.
Methods: We screened the most relevant literatures on ICIs-related complications in melanoma from 2011 to 2021 in the Web of Science Core Collection (WoSCC). Using VOSviewer, CiteSpace and R language packages, we analyzed the research trends in this field.
Results: A total of 1,087 articles were screened, and the USA had the highest number of publications (publications = 454, citations = 60,483), followed by Germany (publications = 155, citations = 27,743) and Italy (publications = 139, citations = 27,837). The Memorial Sloan Kettering Cancer Center had the most publications, but the Angeles Clinic and Research Institute had the highest average citation rate. Lancet oncology (IF, 2021 = 54.43) was the most prominent of all journals in terms of average citation rate. Reference and keyword cluster analysis revealed that anti-tumor efficacy, adjuvant treatment, clinical response, clinical outcome, etc. were the hotspots and trends of research in recent years.
Conclusions: This study offers a comprehensive summary and analysis of global research trends on ICIs-related complications in melanoma. Over the past decade, there has been a significant increase in the number of publications on this topic. However, the safety and benefits of retreatment after the recovery of ICIs-related complications remain unknown. Therefore,the establishment of related prediction models, as well as the immunotherapy of melanoma with ICIs in combination with other adjuvant therapies, are future research hotspots.
Melanoma is a type of cancer that arises from the malignant transformation of melanocytes, which occurs in the skin mucosa and skin pigmentation (1). Despite accounting for only 1% of skin tumors, the mortality rate of melanoma ranks first in skin tumors (2). Currently, surgery is the preferred treatment for stage I-II melanoma, with up to 80% of patients surviving for 5 years. However, for advanced and distantly metastatic malignant melanoma, the 5-year survival rate is less than 10%, making it the leading cause of melanoma-related deaths (3). Melanoma is extremely insensitive to radiotherapy, so chemotherapy has been the mainstay of treatment for surgically unresectable or advanced melanoma. However, the low therapeutic efficiency and serious toxic side effects of chemotherapeutic drugs have greatly limited their use (4, 5).
Immune checkpoints are cell surface molecules that regulate the strength and quality of the body’s immune response, including checkpoint molecules that upregulate the immune response, such as CD28 and OX-40, and inhibitory checkpoint molecules that downregulate the immune response, such as CTLA- 4 and PD-1 (6–8). Immune checkpoints play a crucial role in immune tolerance, allowing tumor cells to escape surveillance by the host immune system (9). Tumor immune escape mechanisms are extremely crucial to the development of tumorigenesis (9). Thus, the use of immune checkpoint inhibitors (ICIs) is beneficial in restoring and enhancing the body’s anti-tumor immune response to eliminate tumor cells. To date, ICIs such as the CTLA-4 inhibitor (ipilimumab), the PD-1 inhibitor (nivolumab and pembrolizumab) have been approved by the U.S. Food and Drug Administration for the treatment of metastatic melanoma and have demonstrated significant efficacy (10–12).
Despite the significant clinical benefits of ICIs, they are associated with a range of adverse effects that can affect multiple organs throughout the body (13). For example, gastrointestinal adverse reactions are more common with CTLA-4 inhibitors, and pneumonia and thyroiditis are more common with PD-1 inhibitors. Furthermore, the incidence of adverse events in immunocombination therapy is significantly higher than that in monotherapy (10, 14, 15). Numerous studies have been reported on complications related to ICIs in melanoma, but no reverent studies have analyzed the overall trend of complications.
Bibliometric analysis combines mathematics and statistics to quantitatively describe the current state of scientific research, research topics, and research trends based on unique parameters of published literature, such as country, institution, author, etc. (16). As such, this study provides a comprehensive quantitative and qualitative evaluation of studies on ICIs-related complications in melanoma over the last 10 years using bibliometrics. The aim of this analysis is to continuously explore hot topics and research trends in this field and provide directions for future research.
2 Materials and methods
2.1 Data collection
The Web of Science Core Collection (WoSCC) was performed to collect data on ICIs related complications in melanoma from 2011 to 2021. Search strategies were set as follows: TS (title/abstract) = (ICI* OR immune-checkpoint inhibitor* OR immune checkpoint inhibitor* OR immune-checkpoint blockade* OR immune checkpoint blockade* OR checkpoint inhibitor* OR CPI* OR ipilimumab OR nivolumab OR pembrolizumab OR toripalimab OR lambrolizumab OR atezolizumab OR avelumab OR durvalumab) AND TS (title/abstract) = (adverse event* OR complication* OR side effect*) AND TS (title/abstract) = (melanoma OR chronic melanoma OR metastatic melanoma OR malignant melanoma OR advanced melanoma) AND Publication Date = (2011-01-01 to 2021-12-31) AND Language = (English). Subsequently, the studies most relevant to ICIs related complications in melanoma were manually screened. The detail of the search process and included studies was shown in Figure 1 and Supplementary Material S1. All literature searches were conducted within one day (03 July 2022) to avoid bias related to database updates. The types of original article and review publication were screened to include them. The first and second authors independently retrieved data and all data, including the number of publications and citations, titles, countries/regions, affiliations, etc., were downloaded from WoSCC for further analyses.
2.2 Bibliometric analysis
The bibliometric analysis was performed by using Microsoft Excel 2021, VOSviewer (version 1.6.17), CiteSpace V (version 6.1.2) and R language package from the online tool website (http://www.bioinformatics.com.cn/srplot). Based on the data downloaded from the WoSCC, the annual of publications and citation was performed by Microsoft Excel 2021; The bibliometric network or density map of intercountry and organisation cooperation, linkage of journal, and cooccurrence of keywords was visualised by VOSviewer. In term of the county/region and journal analysis, the minimum threshold of inclusion criteria was set as 5, 33 countries and 49 journals were included and visualized, respectively. In term of organization, author and keyword analysis, the minimum threshold of inclusion criteria was set as 10 with 83 organizations, 69 authors and 162 keywords included and visualized, respectively; The cooperation among authors, cluster analysis and bursts of references and keywords were employed by CiteSpace V; The geographical distribution of publications worldwide, the radar charts of the top 10 productive institutions, and journals were used by using R language packages. The latest impact factors (IF) and zoning were obtained from the newest edition of the Journal Citation Report (JCR, 2021).
3.1 Overall distribution and global contributions
A total of 890 original articles and 197 reviews associated with complications related complications in melanoma were selected. The annual trend of the publication and citation has been increasing steadily since 2011 (publications = 16, citations = 98), with citations peaking in 2021 (publications = 221, citations = 14, 182), although publications are slightly decrease in 2018 (publications = 135, citations = 8, 775) and 2020 (publications = 172, citations = 14, 060) (Figure 2A). The rapid growth in the number of publications and citations means that more researchers are investing and paying attention to this field.

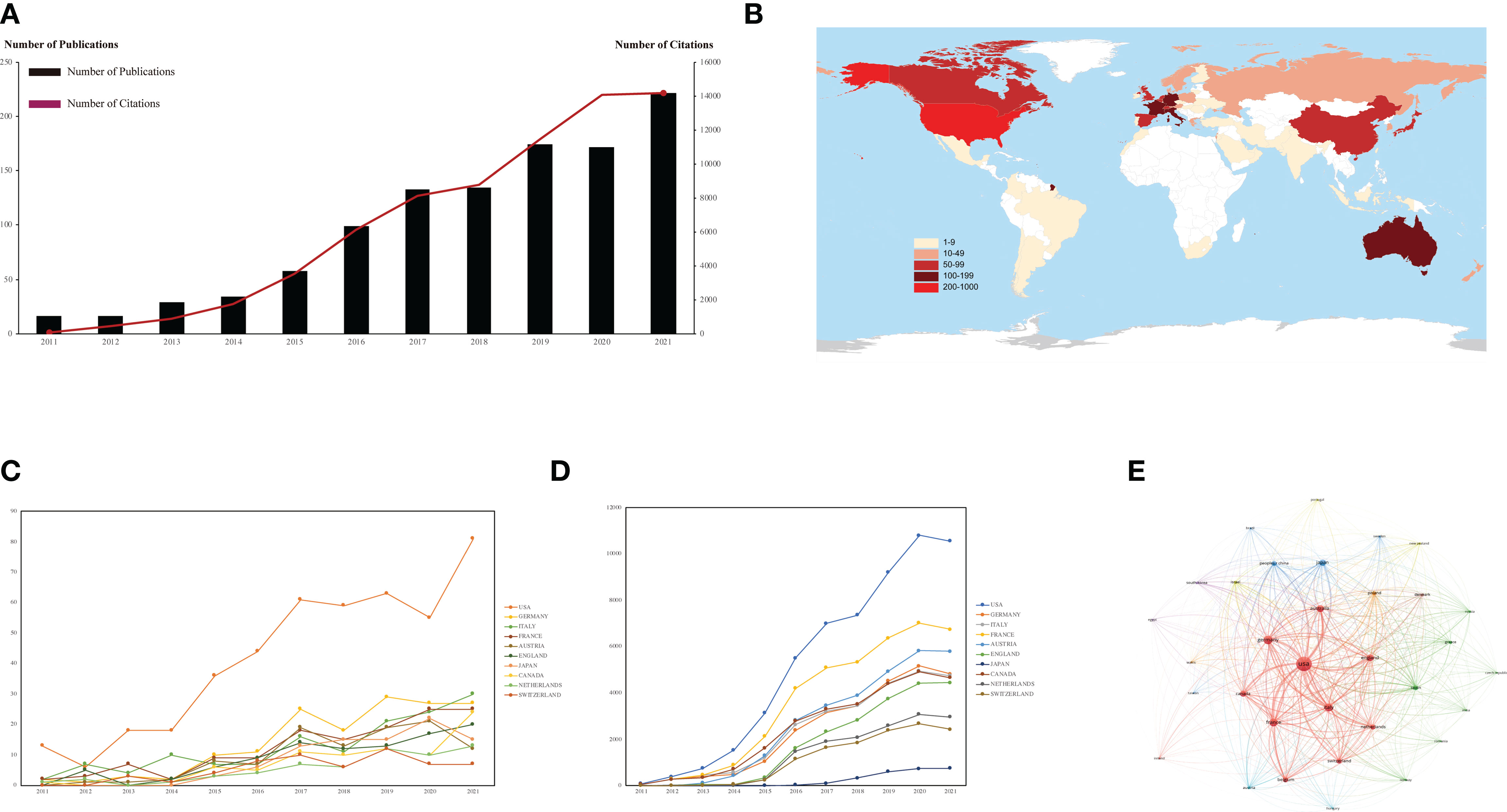

Figure 2 Publications distribution about ICIs related complications in melanoma worldwide. (A) Global annual publication and citation status of ICIs related complications in melanoma. (B) Geographical distribution of global publications. (C) Annual publication trends in top 10 country/region with the most publications. (D) Annual citation trends in top 10 country/region with the most publications. (E) The cluster network visualization of the country/region by VOSviewer.
Based on the publishing number, as shown in the country/region distribution map (Figure 2B) and top 10 most productive countries/regions were listed in Table 1, the top 3 countries were USA (n = 454, 41.77%), Germany (n = 155, 14.26%) and Italy (n = 139, 12.79%), respectively. The annual trend for publications and citations in the United States from 2012 to 2021 has been steadily increasing and consistently well above other countries (Figures 2C, D). At the peak of publications in 2021, the number of publications in the USA (publications = 81) was 2.7 times that of the second-placed Italy (publications = 30); at the peak of citations in 2020, the number of citations in the USA (citations = 10, 559) was 2.09 times that of the second-placed Germany (citations = 5, 161). The annual trend of publications in top 10 most productive countries except the USA is generally upward, but there are small fluctuations from year to year. The annual trend of citations for the top 10 most productive countries, all with significant year-over-year increases through 2021. Furthermore, an extensive network of cooperation between countries is shown in Figure 2E. The United States is located at the central node of the cooperation network and has close cooperation with many countries such as England, France, Canada, and Australia. It can be seen that the USA is the leader in the field of ICIs-related complications in melanoma, with a much higher number of publications and citations than any other country.
3.2 Analysis of institutions and authors
A total of 1, 919 institutions have conducted studies on ICIs-related complications in melanoma. The top 10 institutions with the most publications were listed in Table 2. Memorial Sloan Kettering Cancer Center (n = 69) is the most productive institution, followed by Dana-Farber Cancer Institute (n = 55) and H. Lee Moffitt Cancer Center and Research Institute (n = 41) (Figure 3A). VOSviewer was then used to analyze and visualize the extensive network and density map of cooperation between institutions (Figures 3B, C). Memorial Sloan Kettering Cancer Center, Dana-Farber Cancer Institute, University of Texas MD Anderson Cancer Center and Sydney University were the hottest publication centers with the strongest ties to other institutions.

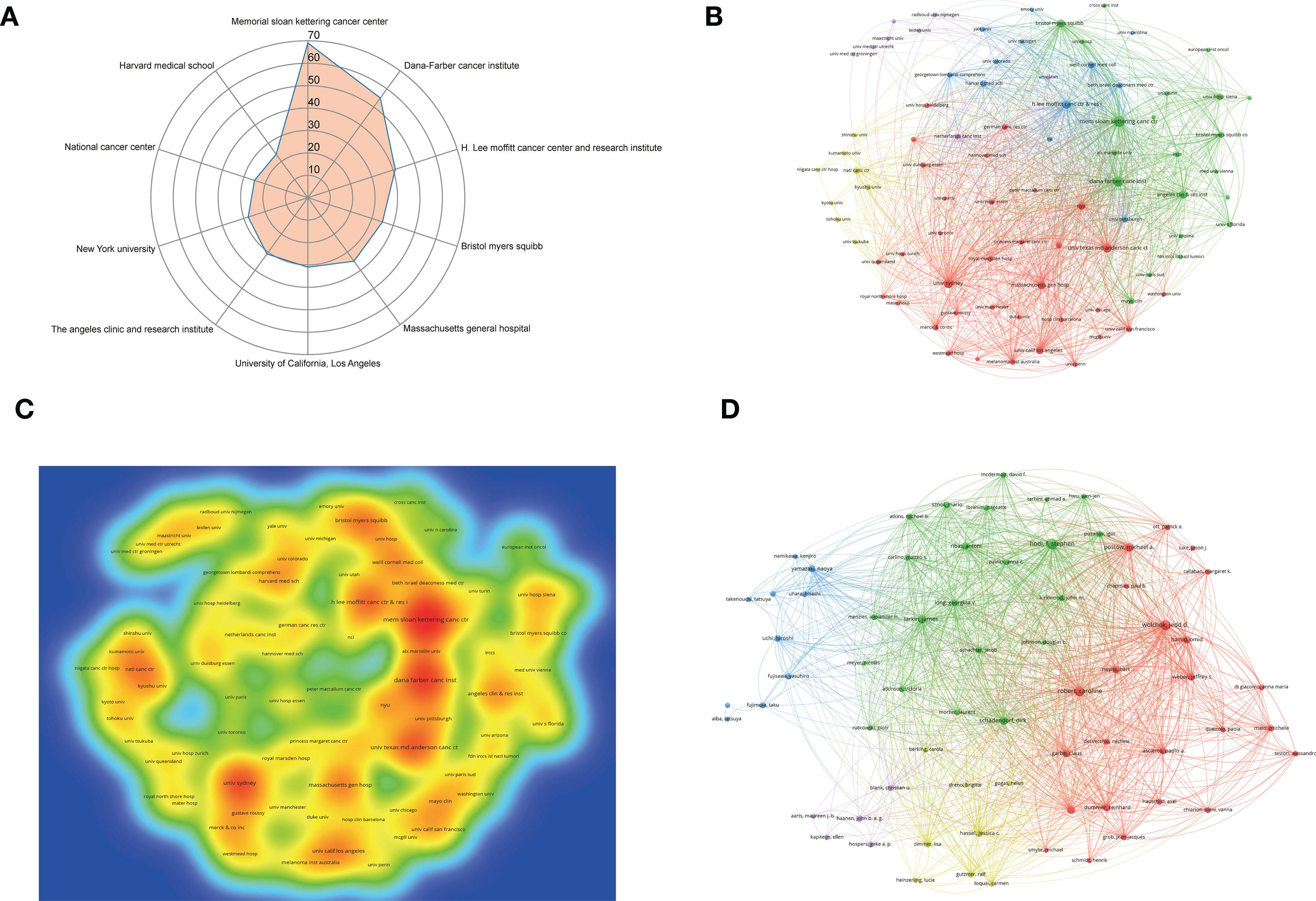

Figure 3 Visualization analysis of institutions and authors. (A) Radar map of the top 10 productive institutions. (B) The cluster network visualization of cooperation among institutions. (C) Density map of cooperation among institutions. (D) The cluster network visualization of authors.
A total of 6, 140 authors have published articles on ICIs-related complications in melanoma, with the top 10 authors listed in Table 3. Hodi, F. Stephen was the most productive author with 41 publications, followed by Wolchok, Jedd D. with 40 publications, and Robert, Caroline with 35 publications. Based on the number of citations, Wolchok, Jedd D. was the most influential author with 17, 191 citations, followed by Robert, Caroline with 15, 984 citations and Postow, Michael A. with 10, 104 citations (publications = 29). The extensive network of cooperation between authors showed that the number of author publications determines, to a certain extent, the closeness of cooperation between authors (Figure 3D).
3.3 Analysis of journals
A total of 325 journals accepted and published articles on ICIs-related complications in melanoma, with the top 10 journals listed in Table 4. Melanoma research (IF = 3.20) was the most productive journal with 79 publications, followed by Journal for Immunotherapy of Cancer (IF = 12.47) with 62 publications and Cancer Immunology Immunotherapy (IF = 6.63) with 31 publications (Figure 4A). The extensive network and density map of cooperation between journals were analyzed (Figures 4B, C), which showed that Melanoma Research and Journal for Immunotherapy of Cancer were the most thermal publication centers with the strongest ties to other journals.

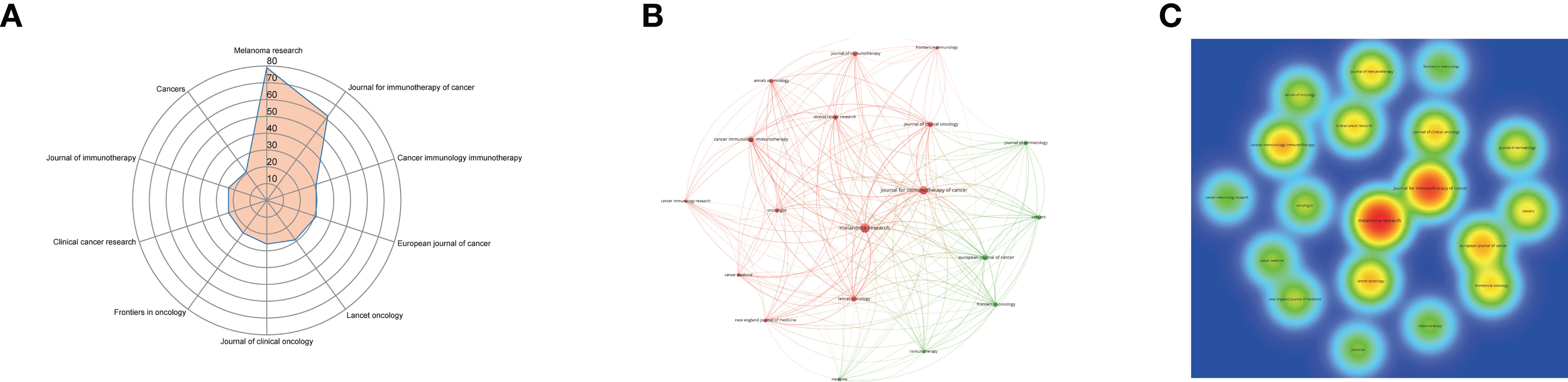

Figure 4 Visualization analysis of journals. (A) Radar map of the top 10 productive journals. (B) The cluster network visualization of journals. (C) Density map of journals.
3.4 Analysis of cited and co-cited references
Citation and co-citation analysis of the literature can help understand the most influential research in the field and guide the basic direction of future research. The top 10 publications with the most citations are listed in Table 5, and the top 10 publications with the most co-citations are presented in Table 6. The article with most citation (n = 5, 104) and co-citation (n = 293) was published by Larkin J et al. (14) in 2015 who revealed that compared to ipilimumab, Nivolumab alone or in combination with ipilimumab in patients with previously untreated metastatic melanoma significantly improved progression-free survival by enabling complementary activity between PD-1 and CTLA-4 blockade. Followed by Robert C et al. (17) in 2015 (citation = 3, 602, co-citation = 267) who revealed that pembrolizumab significantly prolongs progression-free survival and overall survival in patients with advanced melanoma and has less high-grade toxicity than ipilimumab.
Based on the cocitation network, a reference burst analysis was performed, and the top 25 cocited references with the strongest citation bursts are shown in Figure 5A. The article with highest bursts strength (49.15) was published by Robert C et al. (18) in 2011 who revealed that the combination of ipilimumab with dacarbazine significantly improved overall survival in patients with previously untreated metastatic melanoma, but increased the incidence of hepatic impairment. Then, a title cluster analysis was performed to summarize the references in the co-citation network to understand the frontier directions. Thirteen different clusters were divided from the cocitation network of references, including the expanded access programme, antitumour efficacy, adjuvant treatment, motor polyradiculopathy, adjuvant therapy, clinical response, current systemic therapy, review of the literature, clinical outcome, brain metastases of melanoma, metastatic uveal melanoma, targeted nanoparticles and targeting cancer-associated fibroblast (Figure 5B). According to the clustering display of the timeline (Figure 5C), anti-tumor efficacy, adjuvant treatment, clinical response, literature review, clinical outcome and metastatic uveal melanoma were recent research topics of strong concerned to researchers.

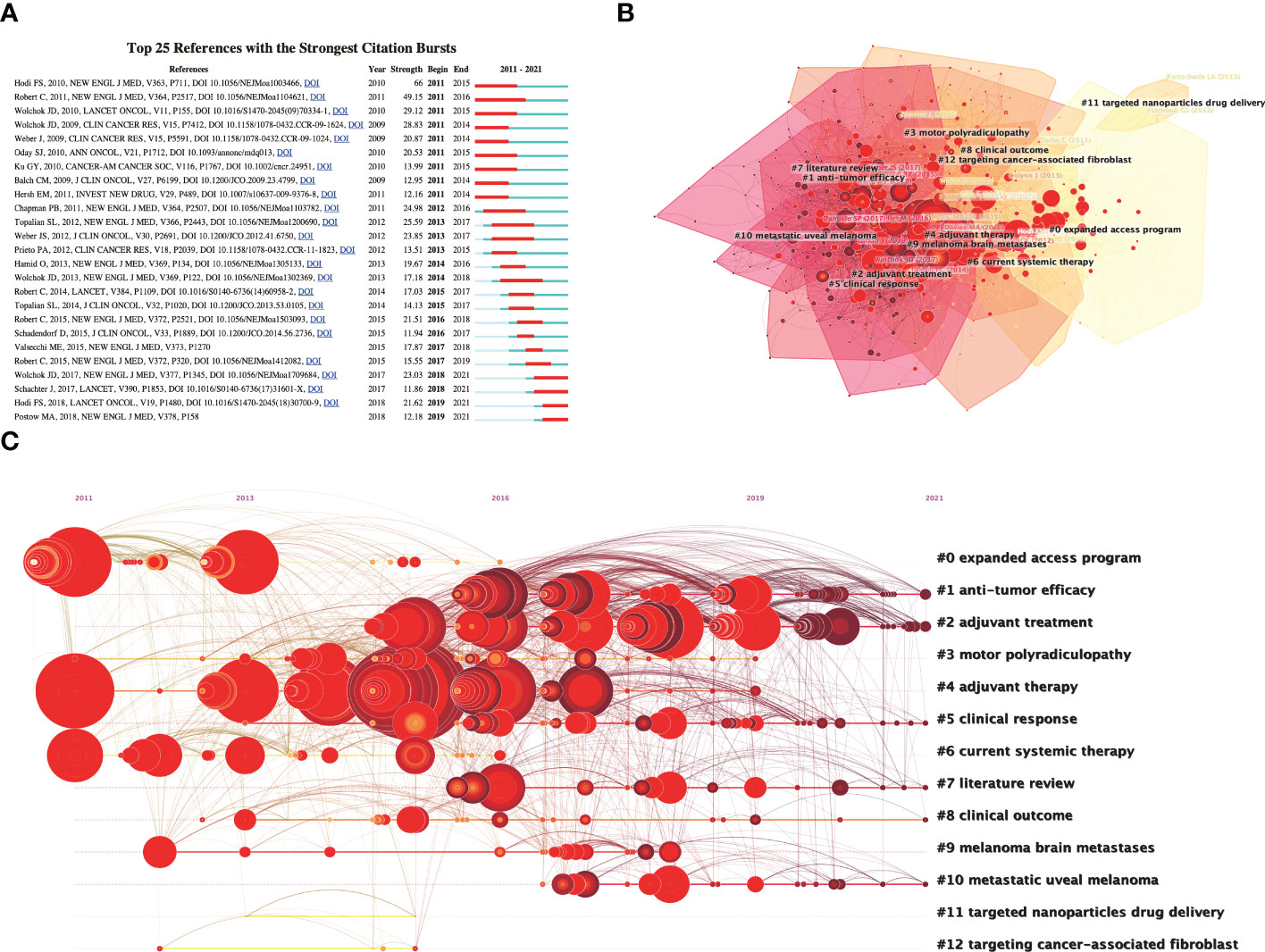

Figure 5 Visualization analysis of cited and co-cited references. (A) The top 25 co-cited references with the strongest citation bursts. (B) Cluster analysis of co-cited references. (C) Timeline visualization of co-cited references cluster analysis result from 2011 to 2021.
3.5 Analysis of keywords
Keywords are a generalization of the central idea of the research, and keyword co-occurrence analysis is helpful to understand the internal relationship between keywords in the field of ICIs related complications in melanoma. The extensive network of co-occurrence keywords was visualized by VOSviewer (Figure 6A). Ipilimumab, metastatic melanoma, survival, nivolumab, pembrolizumab and adverse event were the most co-occurrence keywords with the strongest ties to other keywords. Based on the keyword co-occurrence network, a keyword burst analysis was performed, and the top 25 keyword co-occurrence with the strongest citation bursts are shown in Figure 6B. It showed that the keywords with the highest burst strength were untreated melanoma (15.93), followed by safety (11.13) and phase II (8.15). Then, a cluster analysis of keywords was performed, and nine different clusters were divided from the co-occurrence network of keywords, including checkpoint blockade, adjuvant therapy, antibody, dabrafenib, immune checkpoint inhibitors, phase I, pd-1 and expanded access (Figure 6C). According to the timeline clustering display (Figure 6D), checkpoint blockade, adjuvant therapy, antibody, dabrafenib, pd-1, and expanded access were the key points of research that researchers have been paying close attention to since 2011.
Figure 6 Visualization analysis of keywords. (A) The cluster network visualization of keywords. (B) The top 25 keywords with the strongest citation bursts. (C) Cluster analysis of keywords. (D) Timeline visualization of keywords cluster analysis result from 2011 to 2021.
Melanoma ranks first in invasiveness and lethal type of skin tumors, and its incidence is increasing (19). While over 95% of early-stage melanomas go into remission with surgical treatment, but the prognosis for advanced and metastatic melanoma is extremely poor, with a median survival of 6-9 months and an overall survival rate of less than 10% at 5 years (2). Therefore, the development of drugs for the treatment of progressive or advanced melanoma has always been a hot research topic.
Immune escape has been regarded as an important mechanism for tumor development (9). Tumor cells suppress T-cell immune function for immune escape by activating immune checkpoints and blocking the antigen-presenting function in the tumor immune process (20). Tumor immunotherapy is a treatment method that recognizes and kills tumor cells by mobilizing the immune system to activate adaptive or innate immunity (21–23). Among these methods, ICIs therapy has achieved remarkable efficacy in the treatment of melanoma patients (24). Despite its significant clinical benefits of ICIs, multiple complications such as rashes, thyroiditis, and colitis occur in melanoma patients (25). To date, numerous studies have been reported on ICIs-related complications in melanoma, but no reverent studies have analyzed the overall trend of complications. In order to explore the development process and trends in the field of ICIs-related complications in melanoma, analyze current hot topics and predict future research directions, a bibliometric analysis of relevant literatures from 2011 to 2021 was conducted.
A bibliometric analysis of global publications and citations in the field of ICIs related complications in melanoma over the past 10 years found that the number of articles and citations in the last decade showed an overall increasing trend, although the number of papers published in 2020 has declined slightly compared with 2019 (Figure 2A). Interestingly, to exclude the interference of publication volume on being cited, we calculated the annual of average citation rate, which was much higher in 2020 (81.74) than in 2019 (66.01) and 2021 (64.17). Then, the annual and overall trend of publications and citations in top 10 most productive countries were analyzed and showed that the USA is significantly higher than other countries in all aspects. This result is consistent with the institution analysis, where 90% of the top 10 most productive institutions are located in the USA (Table 2). In particular, although Canada has only 83 publications, its average citation rate (342.19) is much higher than that of the USA (133.22), followed by France (307.01). It is evident that although the USA is a leader in the field of ICIs-related complications in melanoma, it still needs to pay attention to improving the overall quality of its publications.
In terms of author distribution (Table 3), Hodi, F. Stephen (Dana-Farber cancer institute) from USA is the most productive and has a certain number of citations. Wolchok, Jedd D. (Memorial Sloan Kettering Cancer Center) from USA ranked second in the number of published papers, but has the most citations among the top publishing authors. Robert, Caroline (Institut Gustave Roussy) from France ranked third in the number of publications and citations, but has the most average citation rate among the top publishing authors. Robert, Caroline team found that nivolumab significantly improved overall and progression-free survival compared to dacarbazine in previously untreated patients with metastatic melanoma without BRAF mutations (26). However, the study found that the combination of nivolumab and ipilimumab increased the incidence of grade 3-4 adverse events, with colitis, diarrhea, and elevated alanine aminotransferase being the most common (26). This result is consistent with the findings of Larkin, James team (14). In the same year, Robert, Caroline team found that pembrolizumab significantly prolongs progression-free survival and overall survival in patients with advanced melanoma and has less high-grade toxicity than ipilimumab (17). Among them, the most common immune-related adverse events with pembrolizumab were hypothyroidism and hyperthyroidism, and colitis and hypophysitis with ipilimumab (17). It is evident that the efficacy of combination therapy with ICIs is superior to that of monotherapy, but with a significantly higher incidence of associated adverse events.
Based on the references burst analysis and keywords burst analysis, the highest bursts strength in recent years (23.03) article was published by Wolchok JD et al. (27) in 2017 who revealed that the combination of nivolumab with ipilimumab or with nivolumab alone significantly improved overall survival compared with ipilimumab alone in patients with advanced melanoma. However, the study found that the combination of nivolumab and ipilimumab increased the incidence of adverse events, with select adverse events being the most common with skin-related adverse events; grade 3-4 adverse events were most common with gastrointestinal adverse events (27). Similarly, combined nivolumab is the keyword with the highest burst strength (7.12) that has appeared in recent years. A title cluster analysis of the references and a keyword co-occurrence cluster analysis of the publications were performed to analyze the current hot topics of ICIs related complications in melanoma. For the grouping analysis of references on the timeline (Figure 5C), researchers seemed to focus more on antitumour efficacy, adjuvant treatment, clinical response, literature review, clinical outcome, and metastatic uveal melanoma. For instance, identification of biomarkers in patients benefiting from ICIs is a current research priority, and adverse events associated with ICIs are considered as a potential clinical biomarker. Das S et al. (28) found a correlation between immune-related adverse events and antitumor efficacy of immune checkpoint inhibitors, with patients experiencing adverse events showing significant improvements in progression-free survival, overall survival, and overall response rate. For the cluster analysis of keywords on the timeline (Figure 6D), it is not difficult to find that ICIs in combination with other adjuvant therapies for the immunotherapy of melanoma are a current research hotspot.
This study identified the relevant publications on ICIs related complications in melanoma in the WoSCC database in the past 10 years, and comprehensively analyzes the current hotspot trend. However, this study still has some limitations. For example, we only included publications in English, which will result in the exclusion of many non-English quality publications. Therefore, a multicentre collaboration with researchers from other countries could be followed up to conduct a broader and more in-depth study.
In summary, this study offers a thorough quantitative and qualitative evaluation of studies about complications related to ICIs in melanoma from 2011 to 2021. Over the past decade, there has been a substantial increase in the number of publications on this topic. ICIs-related complications can be used as clinical markers for the anti-tumor efficacy of ICIs, thus the establishment of related prediction models and the immunotherapy of melanoma with ICIs in combination with other adjuvant therapies are the future research hotspots.
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding authors.
JX and FJ designed the study. LJ and JY performed and drafted the experiment. HZ, RG, XZ, YS, and YC revised the manuscript, and all authors approved the final version of the manuscript. All authors contributed to the article and approved the submitted version.
This study was supported by the Scientific Research Fund of Anhui Medical University (NO.2020xkj057).
We thank WOS for the inclusion and summary of relevant literature, as well as authors from various countries and institutions for their research and contributions in this field.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fendo.2023.1164692/full#supplementary-material
1. Xiong J, Xue Y, Xia Y, Zhao J, Wang Y. Identification of key microRNAs of plasma extracellular vesicles and their diagnostic and prognostic significance in melanoma. Open Med (Wars) (2020) 15:464–82. doi: 10.1515/med-2020-0111
2. Owens B. Melanoma. Nature (2014) 515:S109. doi: 10.1038/515S109a
3. Coit DG, Thompson JA, Algazi A, Andtbacka R, Bichakjian CK, Carson WE 3rd, et al. Melanoma, version 2.2016, NCCN clinical practice guidelines in oncology. J Natl Compr Canc Netw (2016) 14:450–73. doi: 10.6004/jnccn.2016.0051
4. Yang AS, Chapman PB. The history and future of chemotherapy for melanoma. Hematol Oncol Clin North Am (2009) 23:583–97. doi: 10.1016/j.hoc.2009.03.006
5. Atkins MB, Lotze MT, Dutcher JP, Fisher RI, Weiss G, Margolin K, et al. High-dose recombinant interleukin 2 therapy for patients with metastatic melanoma: analysis of 270 patients treated between 1985 and 1993. J Clin Oncol (1999) 17:2105–16. doi: 10.1200/JCO.1922.214.171.1245
6. Byrne EH, Fisher DE. Immune and molecular correlates in melanoma treated with immune checkpoint blockade. Cancer (2017) 123:2143–53. doi: 10.1002/cncr.30444
7. Callahan MK. Immune checkpoint therapy in melanoma. Cancer J (2016) 22:73–80. doi: 10.1097/PPO.0000000000000183
8. Ott PA, Hodi FS, Robert C. CTLA-4 and PD-1/PD-L1 blockade: new immunotherapeutic modalities with durable clinical benefit in melanoma patients. Clin Cancer Res (2013) 19:5300–9. doi: 10.1158/1078-0432.CCR-13-0143
9. Spranger S, Gajewski TF. Impact of oncogenic pathways on evasion of antitumour immune responses. Nat Rev Cancer (2018) 18:139–47. doi: 10.1038/nrc.2017.117
10. Hodi FS, O'Day SJ, McDermott DF, Weber RW, Sosman JA, Haanen JB, et al. Improved survival with ipilimumab in patients with metastatic melanoma. N Engl J Med (2010) 363:711–23. doi: 10.1056/NEJMoa1003466
11. Ribas A, Puzanov I, Dummer R, Schadendorf D, Hamid O, Robert C, et al. Pembrolizumab versus investigator-choice chemotherapy for ipilimumab-refractory melanoma (KEYNOTE-002): a randomised, controlled, phase 2 trial. Lancet Oncol (2015) 16:908–18. doi: 10.1016/S1470-2045(15)00083-2
12. Weber JS, D'Angelo SP, Minor D, Hodi FS, Gutzmer R, Neyns B, et al. Nivolumab versus chemotherapy in patients with advanced melanoma who progressed after anti-CTLA-4 treatment (CheckMate 037): a randomised, controlled, open-label, phase 3 trial. Lancet Oncol (2015) 16:375–84. doi: 10.1016/S1470-2045(15)70076-8
13. Wolchok JD, Weber JS, Hamid O, Lebbé C, Maio M, Schadendorf D, et al. Ipilimumab efficacy and safety in patients with advanced melanoma: a retrospective analysis of HLA subtype from four trials. Cancer Immun (2010) 10:9.
14. Larkin J, Chiarion-Sileni V, Gonzalez R, Grob JJ, Cowey CL, Lao CD, et al. Combined nivolumab and ipilimumab or monotherapy in untreated melanoma. N Engl J Med (2015) 373:23–34. doi: 10.1056/NEJMoa1504030
15. Topalian SL, Hodi FS, Brahmer JR, Gettinger SN, Smith DC, McDermott DF, et al. Safety, activity, and immune correlates of anti-PD-1 antibody in cancer. N Engl J Med (2012) 366:2443–54. doi: 10.1056/NEJMoa1200690
16. Qiu H, Guo R, Zhang Y, Ying J, Yan Y, Xiong J. A bibliometric analysis of the hotspots concerning stem cell extracellular vesicles for diabetes in the last 5 years. Front Public Health (2022) 10:868440. doi: 10.3389/fpubh.2022.868440
17. Robert C, Schachter J, Long GV, Arance A, Grob JJ, Mortier L, et al. Pembrolizumab versus ipilimumab in advanced melanoma. N Engl J Med (2015) 372:2521–32. doi: 10.1056/NEJMoa1503093
18. Robert C, Thomas L, Bondarenko I, O'Day S, Weber J, Garbe C, et al. Ipilimumab plus dacarbazine for previously untreated metastatic melanoma. N Engl J Med (2011) 364:2517–26. doi: 10.1056/NEJMoa1104621
19. Rastrelli M, Tropea S, Rossi CR, Alaibac M. Melanoma: epidemiology, risk factors, pathogenesis, diagnosis and classification. In Vivo (2014) 28:1005–11.
20. Tie Y, Tang F, Wei YQ, Wei XW. Immunosuppressive cells in cancer: mechanisms and potential therapeutic targets. J Hematol Oncol (2022) 15:61. doi: 10.1186/s13045-022-01282-8
21. Hoos A. Development of immuno-oncology drugs - from CTLA4 to PD1 to the next generations. Nat Rev Drug Discovery (2016) 15:235–47. doi: 10.1038/nrd.2015.35
22. Papaioannou NE, Beniata OV, Vitsos P, Tsitsilonis O, Samara P. Harnessing the immune system to improve cancer therapy. Ann Transl Med (2016) 4:261. doi: 10.21037/atm.2016.04.01
23. Peterson JJ, Steele-Moses SK. Update on new therapies with immune checkpoint inhibitors. Clin J Oncol Nurs (2016) 20:405–10. doi: 10.1188/16.CJON.405-410
24. Hamanishi J, Mandai M, Matsumura N, Abiko K, Baba T, Konishi I. PD-1/PD-L1 blockade in cancer treatment: perspectives and issues. Int J Clin Oncol (2016) 21:462–73. doi: 10.1007/s10147-016-0959-z
25. Postow MA, Chesney J, Pavlick AC, Robert C, Grossmann K, McDermott D, et al. Nivolumab and ipilimumab versus ipilimumab in untreated melanoma. N Engl J Med (2015) 372:2006–17. doi: 10.1056/NEJMoa1414428
26. Robert C, Long GV, Brady B, Dutriaux C, Maio M, Mortier L, et al. Nivolumab in previously untreated melanoma without BRAF mutation. N Engl J Med (2015) 372:320–30. doi: 10.1056/NEJMoa1412082
27. Wolchok JD, Chiarion-Sileni V, Gonzalez R, Rutkowski P, Grob JJ, Cowey CL, et al. Overall survival with combined nivolumab and ipilimumab in advanced melanoma. N Engl J Med (2017) 377:1345–56. doi: 10.1056/NEJMoa1709684
28. Das S, Johnson DB. Immune-related adverse events and anti-tumor efficacy of immune checkpoint inhibitors. J Immunother Cancer (2019) 7:306. doi: 10.1186/s40425-019-0805-8
Keywords: immune checkpoint inhibitor, immunotherapy, complication, melanoma, bibliometric analysis
Citation: Zhang H, Shi Y, Ying J, Chen Y, Guo R, Zhao X, Jia L, Xiong J and Jiang F (2023) A bibliometric and visualized research on global trends of immune checkpoint inhibitors related complications in melanoma, 2011–2021. Front. Endocrinol. 14:1164692. doi: 10.3389/fendo.2023.1164692
Received: 13 February 2023; Accepted: 31 March 2023;
Published: 20 April 2023.
Edited by:Houjuan Zhu, Institute of Materials Research and Engineering (A*STAR), Singapore
Reviewed by:Haibo Jin, Ningbo University, China
Qinghua Huang, Chinese Academy of Medical Sciences and Peking Union Medical College, China
Caii Junr, Southern Medical University, China
Copyright © 2023 Zhang, Shi, Ying, Chen, Guo, Zhao, Jia, Xiong and Jiang. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Jiachao Xiong, firstname.lastname@example.org; Lingling Jia, email@example.com; Fei Jiang, firstname.lastname@example.org
†These authors have contributed equally to this work
