A Numerical Model for Determining Deep Methane Flux Linked to the Free Gas Zone: Application to the Ocean Drilling Program Site 995 and Implications for Regional Deep Methane Flux at the Blake Ridge

Introduction

Natural gas hydrates precipitate in submarine sediments under suitable thermodynamic conditions of low temperature and high pressure (Kvenvolden, 1993; Sloan and Koh, 2008). These factors restrict a maximum suitable interval for hydrate stability, which is called the gas hydrate stability zone (GHSZ) (Xu and Ruppel, 1999). However, the amount of methane in the GHSZ limits the methane hydrate occurrence to a finite region below the seafloor, often referred to as the actual hydrate occurrence zone (GHOZ) (Zatsepina and Buffett, 1997; Bhatnagar et al., 2007; Malinverno, 2010; Malinverno and Goldberg, 2015. Methane can be generated by such as in situ methanogenesis, or supplied by upward advection of methane-bearing fluids and free gas flow (Chen and Cathles, 2003, 2005; Cao et al., 2013; Vanderbeek and Rempel, 2018; Dhakal and Gupta, 2021). The mode of methane supply by the advection of methane-bearing fluids has been demonstrated in various hydrate deposits globally, such as the Blake Ridge (Hyndman and Davis, 1992; Liu and Flemings, 2007; Malinverno et al., 2008; You et al., 2019). This deep methane source is produced in the deep subsurface sediments and subsequently migrated into the GHSZ by upward fluid flow. Numerous studies confirmed the existence of an external dissolved methane source at the Blake Ridge through porosity and capillary pressure analyses as well as the calculation of in situ methane production and geochemical data simulations (Davie and Buffett, 2003a,b; Flemings et al., 2003; Wallmann et al., 2006). In addition, the age of the pore fluids dated via radioisotope ¹²⁹I was significantly older than the surrounding sediments. The older age and the elevated bromide and iodide concentrations also suggest a deep fluid source at the Blake Ridge (Egeberg and Dickens, 1999; Fehn et al., 2000).

The effect of these deep methane-bearing fluids on hydrate formation depends on the flow velocity and the methane concentration in rising fluids. The velocity of the fluid flow can be estimated by investigating the measured pore water chloride profiles (Davie and Buffett, 2003a,b; Torres et al., 2004; Bhatnagar et al., 2008, 2011). However, the composition of this deep methane source is not well constrained. For simplification, numerous quantitative studies assumed the methane solubility at the BHSZ (base of the GHSZ) or a certain value inferred from gas distribution characteristics as the methane concentration in the rising fluids (Davie and Buffett, 2003b; Torres et al., 2004; Garg et al., 2008; Haacke et al., 2008). The model developed by Bhatnagar et al. (2007) has emphasized the significance of an accurate methane flux value for quantifying methane hydrate accumulation. Results suggest that a certain minimum methane flux is required to form hydrates in a hydrate system which is dominated by a deep methane source (Xu and Ruppel, 1999; Bhatnagar et al., 2007). If methane supplied from depth exceeds this minimum value, methane hydrate would extend to the BHSZ at a steady state due to the sedimentation (Burwicz and Haeckel, 2020). But more time is required to achieve this steady state if the methane concentration in the rising fluids is low. Therefore, the evolution of the methane hydrate deposits can be observed only if an accurate deep-sourced methane flux is obtained.

In addition to its influence on hydrate accumulation and distribution, this deep methane source significantly affects the formation and properties of the free-gas zone (FGZ) beneath the BHSZ (Pecher et al., 2001; Haacke et al., 2008). Haacke et al. (2007, 2008) adopted an methane concentration of the rising fluid that is approximately equivalent to the half the equilibrium solubility at the BHSZ to model the evolution of FGZ in the west Svalbard and suggested that the deep dissolved methane flux was a primary factor in controlling the gaseous methane occurrence and distribution in the FGZ (Haacke et al., 2007, 2008). Upward methane flux from depth toward the BHSZ affects pore-water methane concentration and resulting inter-conversion between the gaseous methane and dissolved methane as it moves upwards. Therefore, the deep dissolved methane flux is closely linked to gas bubbles distribution in the FGZ.

Here, a numerical model was constructed to quantify the upward methane flux based on methane mass conservation in the FGZ. This model was then applied to ODP Site 995 at the Blake Ridge where methane sourced from depth dominates the hydrate accumulation. Unlike previous work, our model established a relationship between the deep dissolved methane flux and gas bubbles saturation (gas volume fraction) and provides an approach for calculating the flux of deep methane. We subsequently combined our results at Site 995 with previous results about methane flux at nearby sites and yielded an integrated picture of regional methane flux patterns along the Blake Ridge drilling transect. This model for quantifying deep methane flux is complementary to the current hydrate accumulation model.

Model Formulation

Conceptual Model

In porous media of the GHSZ, methane can be present in aqueous, gaseous and hydrate phases (You et al., 2019). A Bottom Simulating Reflector (BSR) often marks the boundary between the base of the GHSZ and the underlying FGZ (Stoll et al., 1971; Shipley et al., 1979; Wood and Ruppel, 2000; Westbrook and Thatcher, 2009). The model domain in this study extended from the BHSZ to a few hundred meters below the BHSZ. Two spatial domains below the BHSZ were defined: the free gas domain (Domain 1) and the methane undersaturated domain (Domain 2). This conceptual model was illustrated in Figure 1. Domain 1 extended from the BHSZ to the base of the FGZ (BFGZ), and Domain 2 represented the section below the BFGZ (Figure 1). In Domain 1 where gas bubbles existed, gas and water were in equilibrium. The methane concentration in Domain 1 was equal to the gas-liquid solubility, which was regulated by local thermodynamic conditions (Duan et al., 1992; Davie et al., 2004). In contrast, in Domain 2, the dissolved methane concentration in pore water is less than its solubility. Therefore, only dissolved methane was expected (Figure 1).

FIGURE 1

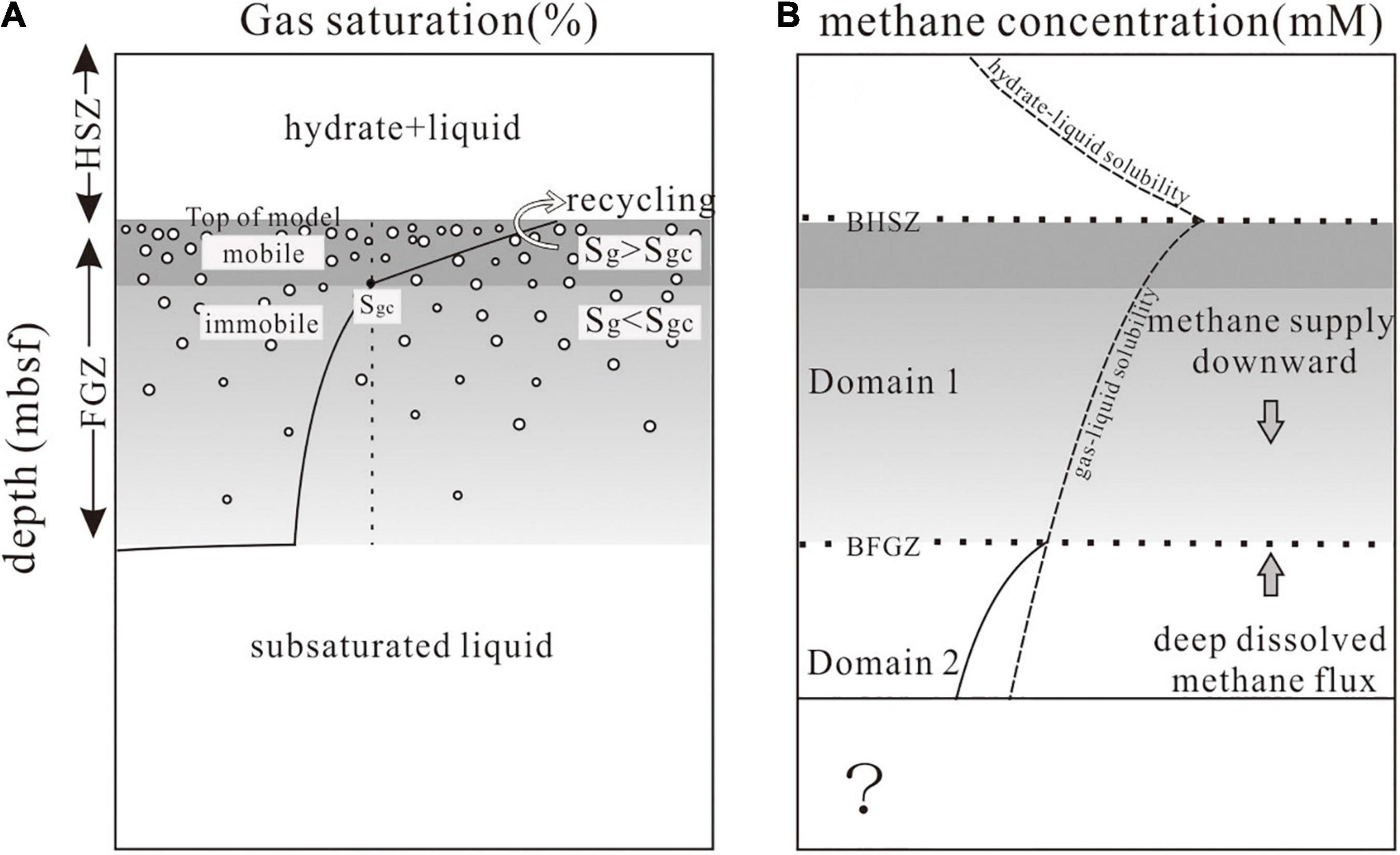

Figure 1. Conceptual illustration of the free gas system below the BHSZ. (A) The region below the top of model (BHSZ) is divided into two domains. The mobile free gas shown in shaded dark gray was produced through hydrate dissociation, accumulated at the BHSZ or moved upward due to the buoyancy and left a certain gas which equals to the residual gas saturation (S_gc). These mobile gas bubbles occupy an extremely thin layer compared with the large gas distribution zone that controlled by the sedimentation and shown in shaded light gray. This model neglects the upward gas bubbles. (B) Dotted lines represent the BHSZ and BFGZ. Dashed lines represent hydrate-liquid and gas-liquid solubility curves. The downward gaseous methane and diffused methane and the upward flow of unsaturated fluid collectively affect the amount of methane in pore water, which results in inter-conversion between the gaseous methane and dissolved methane. The gas bubbles no longer exist below the BFGZ because gaseous methane at the BFGZ compensates the deep unsaturated dissolved methane. The methane concentration profile represented by black solid line in Domain 2 is plotted according to the deep methane flux. The question mark represents the possibility of the gas bubble occurrence beneath Domain 2 since the gas-liquid solubility tends to decrease with depth. The gas bubbles would exist if the methane concentration exceeds the gas-liquid solubility.

The methane hydrate tended to dissociate and produce free gas and water when being buried out of the GHSZ (Xu, 2004; Figure 1). The hydrate burial may result in a thin region with three-phase coexisting beneath the BHSZ (Liu and Flemings, 2011). A fraction of the gas bubbles moved upwards due to buoyancy. They were recycled into the GHSZ through overcoming the capillary forces or accumulated below the BHSZ as a thin horizon (Haacke et al., 2008; Figure 1). We did not take into account these migrating gas bubbles toward the BHSZ since they appeared to be only important in hydrate accumulation which was dominated by gaseous methane recycling (Mogollon et al., 2009). Besides these mobile gas, there are some gases trapped in sediments which are unable to migrate freely. In fact, these residual gas bubbles exerted a significant control on the characteristics of the FGZ (Haacke et al., 2008). We focused on these residual gas bubbles that moved downward with sedimentation and their behavior within the sediment column which was influenced by the deep methane flux (Minshull and White, 1989; Haacke et al., 2008; Figure 1). As gas bubbles move downward via sedimentation, the mass transfer between gas and aqueous phases occurred. Because the methane concentration in the pore water is affected by the advection of methane-carrying pore fluids and diffusion of dissolved methane. This methane phase transfer is dependent on the in situ methane concentration: if unsaturated, gas bubbles represent a methane source for the aqueous phase; and if oversaturated, gas bubbles represents a methane sink (Mogollon et al., 2009). Therefore, the deep methane-carrying fluids controls the methane concentration in the pore water and further affects gas dissolution and formation (Su and Chen, 2007; Archer et al., 2012). The characteristics of gas bubbles distribution can be visualized through seismic imaging. Hence, the relationship between the gas bubbles distribution and the deep methane-carrying fluids enables the calculation of the deep methane flux as a function of gas bubble saturation and the depth of BFGZ.

The gaseous methane profile was controlled by physical processes including advection of methane-carrying pore fluids, diffusion of dissolved methane, and burial of the gas bubbles. We derived the gas control equation in the FGZ based on conservation of methane mass and obtained the gas distribution characteristics (Figure 1). Under the steady-state condition, the gaseous methane at the BFGZ exactly compensates the upward unsaturated dissolved methane, rendering the absence of gas below the BFGZ. Therefore, the mass balance of methane at the BFGZ can be used to calculate the deep methane flux. Furthermore, we established the methane mass balance equation to generate the dissolved methane profile in Domain 2 using the computed dissolved methane flux from depth. The curvature of the methane concentration profile in Domain 2 could reflect the flux of this deep methane.

Before introducing the numerical representations, several assumptions need to be made to build the mass balance equations: (1) the residual gas bubbles are trapped at the BHSZ and transported downwards with sediment burial (Davie and Buffett, 2003b); (2) the immobile gas is assumed to be distributed in a homogeneous mixture of water and gas, and (3) in-situ methanogenesis is neglected considering its extremely low contribution where FGZ develops (Haacke et al., 2008); (4) the salinity remains constant (3.5% seawater value), and its influence on solubility is neglected (Davie and Buffett, 2001); (5) the sediment-grain density and porosity are assumed to be constant (Wallmann et al., 2006).

Numerical Model

Domain 1: Existence of Interval With Free Gas

In Domain 1, the governing equation of the free gas is constructed. Fluid advection and diffusion are two mechanisms of dissolved methane transport through the liquid phase, which are represented by two terms on the right-hand side of Equation 1. This aqueous transport controls the gas bubble distribution in Domain 1 as discussed before. Simultaneously, the formed gas bubbles are transported by sedimentation, which is represented by the second term in Equation 1 (Xu and Ruppel, 1999; Davie and Buffett, 2001). The phase transfer occurs during this process. The volume fraction of methane gas becomes the primary dependent variable across Domain 1. The two-phase mass balance equation for gas bubbles in Domain 1 is as follows:

$\frac{\partial }{\partial t}\left[\mathrm{\varphi }{\mathrm{\rho }}_g{S}_g\right]+\frac{\partial }{\partial z}\left[u_s\mathrm{\varphi }{\mathrm{\rho }}_g{S}_g\right]=\frac{\partial }{\partial z}\left[\frac{D_m}{{\mathrm{\theta }}^2}{\mathrm{\rho }}_w\mathrm{\varphi }\frac{\partial C_m^w}{\partial z}{M}_g\right]-\frac{\partial }{\partial z}\left[q_w{C}_m^w{M}_g\right](1)$

where t is time; z (mbsf) is the depth below the seafloor defined as positive downwards;ρ_w (kg/m³) (1,030 kg/m³) and ρ_g (kg/m³) are the densities of pore water and methane in the immobile gaseous phase, respectively; S_g denotes gaseous methane saturation (volume fraction of pore space); D_m(m²/a) (0.028 m²/a) is the diffusion coefficient of methane in free water; ϕ is porosity; θ is tortuosity, which can be calculated using Archie’s law: θ² = ϕ⁻¹(Torres et al., 2004); $C_m^w$ (mol/kg) is the concentration of aqueous methane; M_g is the relative molecular mass of methane (16 g/mol); q_w is the mass flux of pore water; and u_s (m/a) is the burial rate of gas bubbles with sediments, given in terms of u₀ (sedimentation rate at the seafloor) by Equation (2) (Davie and Buffett, 2001):

$u_s=\frac{1-{\mathrm{\varphi }}_0}{1-\mathrm{\varphi }}{u}_0(2)$

where ϕ₀ is the porosity of the seafloor. The sedimentation rate in Domains 1 and 2 remains constant, considering assumption (6). The influence of this simplification on the results will be assessed in the “Discussion” section.

The density of gaseous methane is calculated using Duan et al. (1992) and can be written as:

${\mathrm{\rho }}_g=\frac{P}{\text{ZR}T}{M}_{\text{g}}(3)$

where P and T are the pressure and temperature at depth z, R is the universal gas constant (8.314 J/mol/k), and Z is the compressibility factor, which can be calculated using Duan et al. (1992).

Equation (1) can be rearranged to:

$\frac{d}{dt}\left[\mathrm{\varphi }{\mathrm{\rho }}_g{S}_g\right]=\frac{\partial }{\partial z}\left[\frac{D_m}{{\mathrm{\theta }}^2}{\mathrm{\rho }}_w\mathrm{\varphi }\frac{\partial C_m^w}{\partial z}{M}_g\right]-\frac{\partial }{\partial z}\left[q_w{C}_m^w{M}_g\right]=A_g(4)$

where $\frac{d(\mathrm{\varphi }{\mathrm{\rho }}_g{S}_g)}{dt}$ represents the gas mass growth rate of a specific layer and is marked as A_g (kg/m³/a). Integrating Equation (4) yields

$\mathrm{\varphi }{\mathrm{\rho }}_g{S}_g={\int }_{t_0}^0{A}_g\mathit{d}t+\mathrm{\varphi }{\mathrm{\rho }}_g{S}_{g,t=t_0,z=z_0}={\int }_{t_0}^0\frac{A_g}{u_s}dz+\mathrm{\varphi }{\mathrm{\rho }}_g{S}_{g,t=t_0,z=z_0}\mathit{\hspace{1em}}(z\le BEGZ)(5)$

where $\mathrm{\varphi }\mathrm{\rho }{}_{g}S_g{}_{,t=t_0}{}_{,z=z_0}$ is the initial gaseous methane mass of a specific layer at the initial depth z₀ (BHSZ) and the initial time t₀. $S_g{}_{,t=t_0}{}_{,z=z_0}$ is the residual gas beneath the BHSZ that transported downwards with sediments, and its saturation is a boundary condition in this model (Firoozabadi et al., 1992; Haacke et al., 2008). ${\int }_{t_0}^0{A}_g\mathit{d}t$ represents the change in gaseous methane mass in the pore media of a specific layer from t₀ (initial time) to 0 (present time), that is, from z₀ (initial depth) toz (present depth), ϕρ_gS_g is the present mass of methane gas in a specific layer. Rearranging Equation (5), the gas saturation profile in Domain 1 is obtained as follows:

$S_g=\frac{M_g}{u_s\mathrm{\varphi }{\mathrm{\rho }}_g}[F(z)-F(BHSZ)]+S_g{}_{t=t_0},z=z_0(6)$

where

$F(\mathrm{\nu })=-q_w{C}_m^w(v)+\frac{D_m}{{\mathrm{\theta }}^2}\mathrm{\varphi }{\mathrm{\rho }}_w\frac{\partial C_m^w(v)}{\partial v}(7)$

Boundary Between Domains 1 and 2

In the steady state, the flux value of the unsaturated dissolved methane migrating to the BFGZ from below can be calculated through the methane flux above the BFGZ. The downward gas bubbles at the BFGZ is compensated exactly by the deep unsaturated methane-bearing fluid. Therefore, methane mass conservation is carried out in two vanishingly thin volumes above and below the BFGZ, respectively. These two flux values are equal in these two volumes. The methane flux in the upper thin volume includes contributions from advection of methane in the fluid, the diffusion of methane through the pore fluid, and the gaseous phases. For a unit surface area, the flux from the upper volume is:

$F_{m,z=BFGZ}^{+}=-\frac{D_m}{{\mathrm{\theta }}^2}\mathrm{\varphi }{\mathrm{\rho }}_w\frac{\partial C_m^{w+}}{\partial z}+q_w{C}_m^{w+}+\frac{u_s\mathrm{\varphi }{\mathrm{\rho }}_g{S}_g^{+}}{Mg}(8)$

where $F_{m,z=BFGZ}^{+}$ is the methane flux in the upper volume (positive downward) and $C_m^{w+}$ denotes the methane concentration in the pore water at the BFGZ. $S_g^{+}$ is the gas volume fraction of the pore space at the BFGZ which can be calculated through Equation (6).

Simultaneously, the value of methane flux in the lower volume that is transported toward the BFGZ is:

$F_{m,z=BFGZ}^{-}=-\frac{D_m}{{\mathrm{\theta }}^2}\mathrm{\varphi }{\mathrm{\rho }}_w\frac{\partial C_m^{w-}}{\partial z}+q_w{C}_m^{w-}(9)$

where $F_{m,z=BFGZ}^{-}$ is the flux value of methane bearing fluid that migrating upward to the BFGZ. For a vanishingly thin volume, $F_{m,z=BFGZ}^{-}$ is equal to$F_{m,z=BFGZ}^{+}$. Of note, the methane concentration in pore water $C_m^{w-}$ is equal to the value of $C_m^{w+}$. So far, the deep methane flux has been obtained.

Domain 2: Interval With Only Dissolved Methane

$F_{m,z=BFGZ}^{-}$ was performed using the above analysis. No free gas exists in Domain 2. The dissolved methane profile in the steady state here can be calculated according to the $F_{m,z=BFGZ}^{-}$ (Equation 9). Therefore, the dissolved methane profiles in Domain 2 could reflect the value of the $F_{m,z=BFGZ}^{-}$. If the methane fluxes from depth ($F_{m,z=BFGZ}^{-}$) were different, the methane profiles in Domain 2 would also be different. As only dissolved methane exists here, the transport of dissolved methane by the advection-dispersion equation can be described:

$\frac{\partial }{\partial t}\left[\mathrm{\varphi }{\mathrm{\rho }}_w{C}_m^w\right]=\frac{\partial }{\partial z}\left[\frac{D_m}{{\mathrm{\theta }}^2}{\mathrm{\rho }}_w\mathrm{\varphi }\frac{\partial C_m^w}{\partial z}\right]-\frac{\partial }{\partial z}\left[q_w{C}_m^w\right](10)$

The dissolved methane curve in Domain 2 in the steady state is obtained by assuming the time derivative of Equation (10) to zero and proceeding with the boundary conditions (the deep methane flux) obtained above.

Application to Blake Ridge Ocean Drilling Program Site 995

Background

The Blake Ridge, located offshore in the southeast United States, contains abundant methane and gas hydrate (Paull et al., 1996; Dickens et al., 1997). The Ocean Drilling Program (ODP) Leg 164 drilled at the Blake Ridge has greatly enhanced our understanding of the effect of deep methane sources on methane hydrate accumulation (Bhatnagar et al., 2007; Frederick and Buffett, 2011; Burwicz and Rüpke, 2019). Three sites were drilled along the Blake Ridge transect with distinct BSR characteristics: the edge flank site without a BSR (Site 994), the flank site with a BSR (Site 995), and the site located on the crest of the drift deposit with a well-developed BSR (Site 997) (Figure 2a; Paull et al., 1996, 2000). The gas saturation at Site 995 is smaller than 1%, which is close to that of the residual gas bubbles in sediments (Paull et al., 1996, 2000; Holbrook, 2001; Reagan and Moridis, 2007). The occurrence of thick gas layer with low gas saturation made Site 995 appropriate for our model application because the gas bubble distribution here is obviously not affected by migrating gas bubbles formed by rapid hydrate dissociation. In addition, Site 995 is characterized by two gas-bearing zones that are detected by seismic profiles and downhole logging data (Figure 2b; Paull et al., 1996, 2000; Holbrook, 2001). The results computed from the upper gas interval could be verified through the lower gas interval. This is because that the second gas interval would be reproduced if the methane concentration beneath the BFGZ deriving from Equation 10 is reliable (Figure 1; Xu and Ruppel, 1999). Therefore, applying to Site 995 made the model convenient to be verified.

FIGURE 2

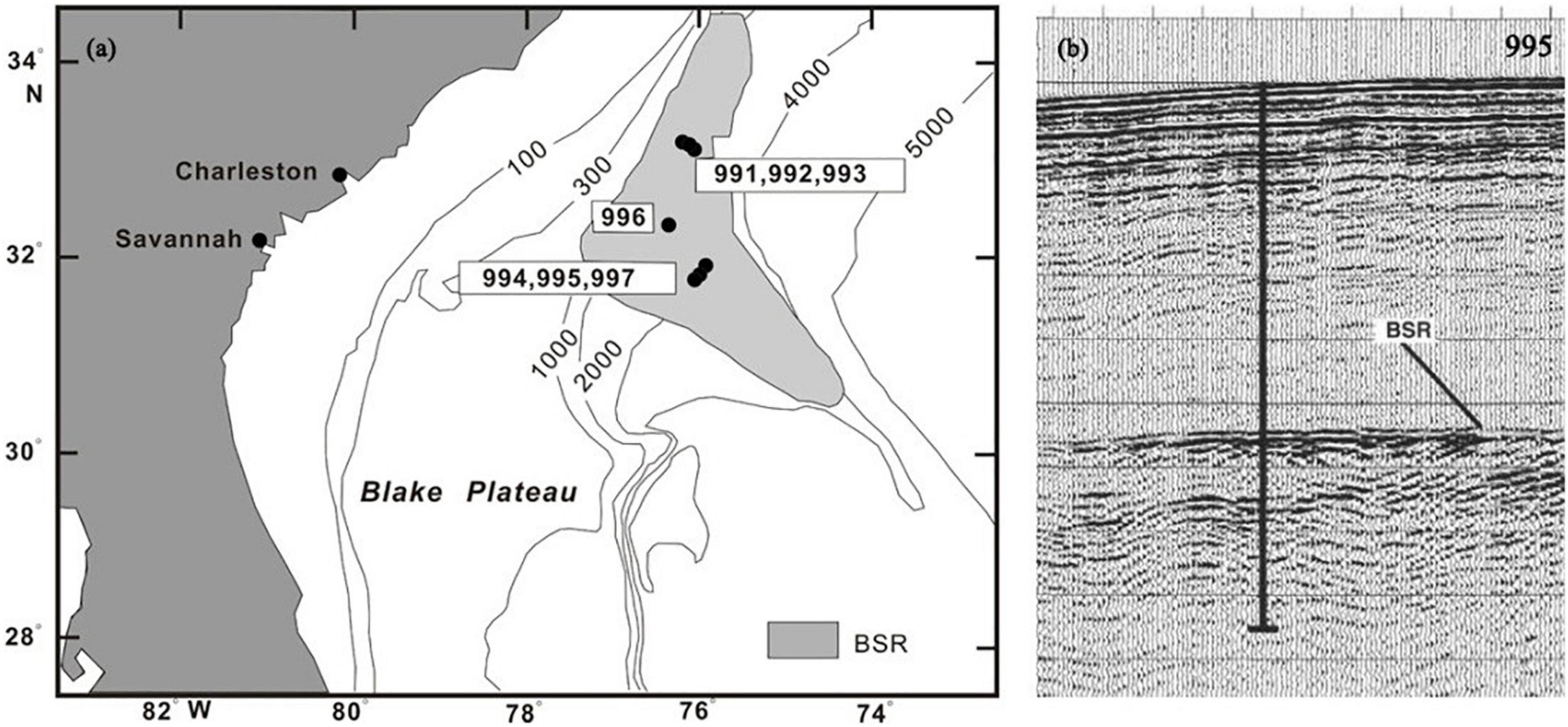

Figure 2. (a) Map showing the location of the ODP Leg 164 and the BSR area in gray. (b) Seismic reflection profile across Site 995 showing the location of BSR (Paull et al., 1996).

Parameterization

The basic parameters used in this model have been listed in Table 1. Some site-specific parameters needed to be stated before application to Site 995 include the fluid flow rate, the porosity, the sedimentation rate and the density of the gas bubbles. The rate of upward fluid flow was predicted by fitting the computed chloride profiles to the chloride measurements at ODP Site 995 (Paull et al., 1996; Dickens, 2001; Zheng et al., 2020). Accordingly, the value of the flow rate was determined to be 0.125 kg/m²/a, which was described as the mass flux. This result is roughly consistent with the interstitial fluid velocity at the nearby Site 997 which was obtained by Davie and Buffett (2003b). The porosity profile (ϕ) as a function of depth was determined by fitting an empirical exponential function to the measurement data (Zheng et al., 2020). Finally, the porosity exhibits a limited variation in Domains 1 and 2, which represents a nearly complete compaction below BHSZ. Therefore, we assume a constant porosity value beneath the BHSZ (Table 1). Another parameter of particular importance is the sedimentation rate. Nannofossil biostratigraphy at Site 995 indicated that the recovered sequence was mainly continuous. An average sedimentation rate of 60 m/Ma at the seafloor was documented using log and core data (Paull et al., 1996). Combing with the assumption of a constant porosity, the burial velocity of the gas bubbles beneath the BHSZ was calculated as 28 m/Ma by Equation 2. The density of the gas bubbles (ρ_g) was calculated using Equation 3 on the basis of parameters in Table 1 and finally it showed few changes in Domains 1 and 2. Meanwhile, the minor influence of the density value on gas saturation results has been mentioned before (Haacke et al., 2007, 2008; Mogollon et al., 2009). Therefore, the bubble density in this study was assumed to be constant (Table 1).

TABLE 1

Table 1. Site-specific parameters used for the ODP Site 995 and fitted values.

The numerical model relates the deep dissolved methane flux to the residual methane gas distribution characteristics in the FGZ. The residual gas saturation and the depth of BFGZ are another two important gas distribution related parameters. Below, we opted to discuss their effects on the deep methane flux. With the exception of these two values, all model parameters required for the simulation are listed in Table 1.

Results and Discussion

Relationship Between Free Gas Distribution and Methane Flux

For the results that will be presented, the depth of BSR is assumed as where the top of the free gas interval occurs (Paull et al., 1996, 2000). And the influence of two parameters describing the free gas properties on results have been explored. Three BFGZ depths of 470, 480, and 490 mbsf were simulated to explore their effects on the model results (Figure 3A). The residual gas saturation is defined as 0.5%, given the local amount of gas bubbles. The gas is transported downwards with sediments and ceases at the BFGZ where the deep unsaturated methane compensates, as discussed in the Conceptual Model. The results show that a shallower BFGZ depth corresponds to more gas bubbles being buried (higher gas saturation) at the BFGZ, as well as a more unsaturated methane-bearing fluid migrating upward from the deep source (Figures 3A,B). The computed upward methane fluxes were 0.0229, 0.0230, and 0.0231 mol/m²/a in these three scenarios. These unequal dissolved methane fluxes from deep can be distinguished by three methane concentration profiles with different gradients in Domain 2 (Equation 10) (Figure 3A).

FIGURE 3

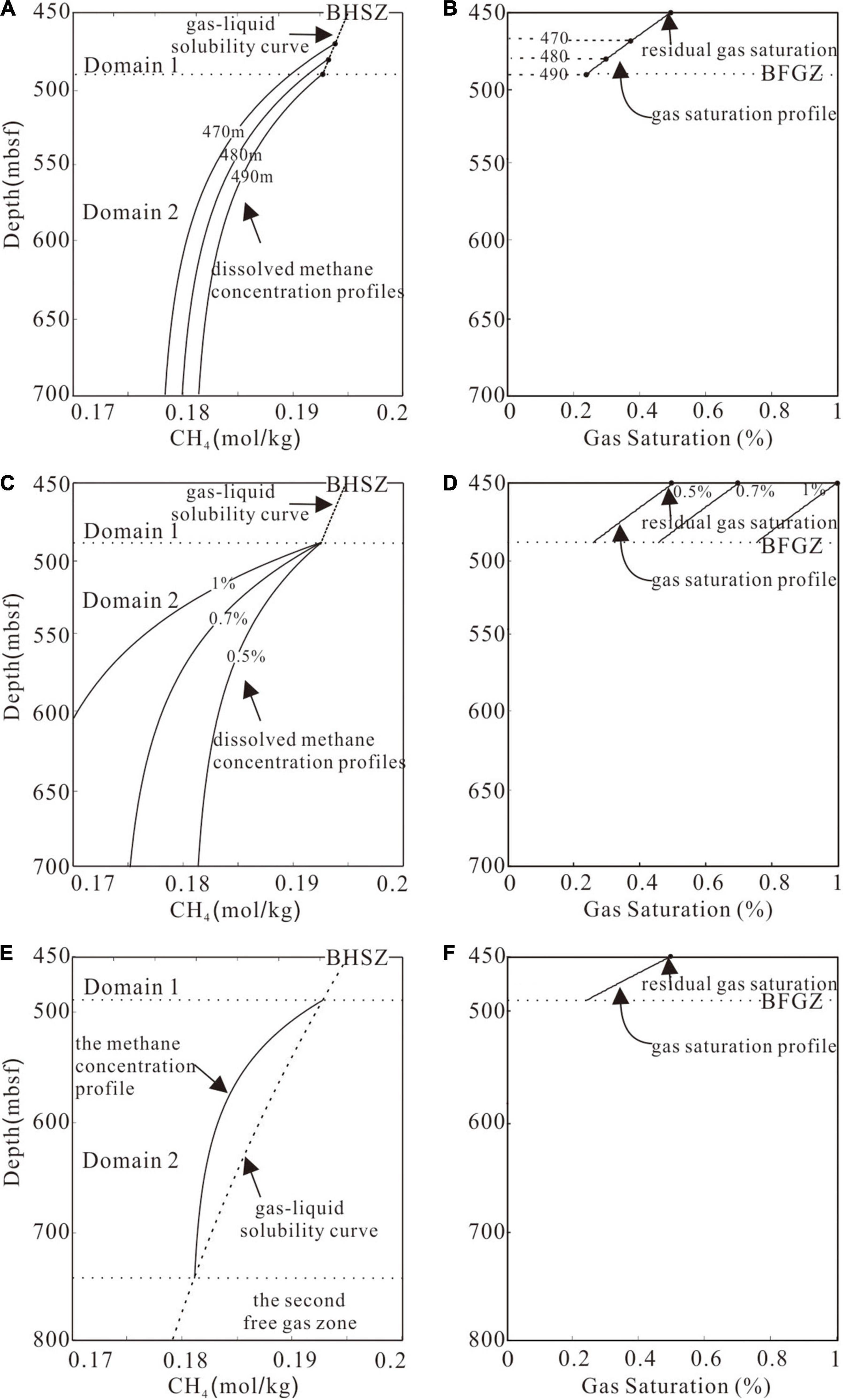

Figure 3. (A) Black solid dots in Domain 1 correspond to BFGZ depth of 470, 480, and 490 mbsf, respectively. Dashed line in Domain 1 depicts the methane gas–liquid solubility curve. Three different FGZ thicknesses correspond to three methane concentration profiles, which indicate different values of methane fluxes from depth. (B) Methane gas saturation profiles according to the same residual gas saturation but different BFGZ depths. (C) Different dissolved methane fluxes from deep are represented by three lines with different slopes in Domain 2, corresponding to three distinct residual gas saturations of 0.5, 0.7, and 1%, respectively. (D) Three gas bubble profiles based on different residual gas saturations but the same BFGZ depth. (E) The dissolved methane concentration in Domain 2 is computed through the deep dissolved methane flux at Site 995 (Equation 10). The methane concentration is lower than the gas-liquid solubility in Domain 2. The deep methane flux satisfies a second gas interval occurs, which begins at approximately 740 mbsf. (F) Gas bubbles saturation profile at Blake Ridge Site 995.

We next considered the impact of the residual gas saturation in sediments on the calculation results, with BFGZ assumed to be 490 mbsf. Unequal residual gas bubbles beneath the BHSZ are transported downwards with sediments and are trapped at the BFGZ with different amounts of gas bubbles. A larger residual gas saturation at the top of model corresponds to more gas bubbles (higher gas saturation) at the BFGZ (Figures 3C,D). The computed upward methane fluxes were 0.0231, 0.0227, and 0.0221 mol/m²/a when the residual gas saturations were defined as 0.5, 0.7, and 1%, respectively.

Site-Specific Results

The above analysis show that the amount of gas bubbles in the sediments could reflect the flux of deep dissolved methane. The gas bubble distribution at Site 995 need to be constrained first to quantify the deep dissolved methane flux here. In this study, the average gas hydrate saturation at the BHSZ at Site 995 was estimated to be 5% of the pore volume (Holbrook et al., 1996; Paull et al., 1996). The methane hydrate in this saturation would produce a maximum amount of gaseous methane in approximately 2.7% of the pore volume if it is completely dissociated (Haacke et al., 2008; Daigle et al., 2020). However, any gas in excess of the residual gas saturation tends to migrate upward into the GHSZ (Claypool and Kvenvolden, 1983; Haacke et al., 2008). In other words, the residual gas that moves with sediments from the BHSZ is estimated to be less than 2.7% (Daigle et al., 2020). The values of the residual volume fraction of methane gas are often assumed to be about 1% in modeling studies (Firoozabadi et al., 1992; Reagan and Moridis, 2007; Archer et al., 2012). For example, Haacke et al. (2007, 2008) assumed a value of 0.4% as the residual gas volume in sediments to investigate the free gas evolution in the west Svalbard. Consequently, we assumed a low residual gas saturation of 0.5% in this model, which is in agreement with drilling data and previous investigations (Holbrook et al., 1996; Paull et al., 1996; Holbrook, 2001). Furthermore, the layer occupied by recycling gas bubbles with a high gas saturation has not been observed neither by downhole log-inferred nor seismic analysis (Paull et al., 1996; Holbrook, 2001). Therefore, it can be concluded that the recycling gas bubbles occupy a thin region comparing with the immobile free gas beneath the GHSZ at Site 995. The influence of the recycling gas thickness on the entire free gas thickness has been neglected. Analyses of seismic studies by Holbrook (2001) and downhole log inference by Paull et al. (2000) suggest that the depth of BFGZ at ODP Site 995 is approximately 490 mbsf. Therefore, 490 mbsf was adopted as the BFGZ depth, which was another parameter that characterizes gas distribution.

The obtained dissolved methane flux from deep at Site 995 was 0.0231 mol/m²/a (Figures 3E,F), which resulted in a second free-gas interval that occurs at approximately 740 mbsf. This depth is in agreement with those reported by Paull et al. (1996, 2000) and Holbrook (2001). The occurrence of second gas layer at 740 mbsf predicted by our model confirmed the reliability of the estimated deep methane flux.

Influence of Sedimentation Rate Variation

The sedimentation rate was assumed to be constant in Domains 1 and 2 (Table 1). Therefore, we opted to discuss the influence of this assumption. The second term on the left of Equation (1) ($\frac{\partial }{\partial z}\left[u_s\mathrm{\varphi }{\mathrm{\rho }}_g{S}_g\right]$) can be divided into two parts and expressed as $u_s\frac{\partial }{\partial z}\left[\mathrm{\varphi }{\mathrm{\rho }}_g{S}_g\right]+\mathrm{\varphi }{\mathrm{\rho }}_g{S}_g\frac{\partial u_s}{\partial z}$. In the conversion from Equations (1) to (4), the latter phase ($\mathrm{\varphi }{\mathrm{\rho }}_g{S}_g\frac{\partial u_s}{\partial z}$) was ignored because of the assumption of a constant sedimentation rate. Hence, we should compare the values of $\frac{\partial }{\partial z}\left[u_s\mathrm{\varphi }{\mathrm{\rho }}_g{S}_g\right]$ and $\mathrm{\varphi }{\mathrm{\rho }}_g{S}_g\frac{\partial u_s}{\partial z}$. The magnitude of $\mathrm{\varphi }{\mathrm{\rho }}_g{S}_g\frac{\partial u_s}{\partial z}$ is computed using the porosity function (Equation 2) and the parameters listed in Table 1. However, the value of $\frac{\partial }{\partial z}\left[u_s\mathrm{\varphi }{\mathrm{\rho }}_g{S}_g\right]$ should be computed indirectly. The variation in the u_sϕρ_gS_g value through Domain 1 is equivalent to the methane flux variation between the top and bottom of Domain 1, which can be calculated using Equation 8. Eventually, the value of $\frac{\partial }{\partial z}\left[u_s\mathrm{\varphi }{\mathrm{\rho }}_g{S}_g\right]$ is proven to be several orders of magnitude greater than that of $\mathrm{\varphi }{\mathrm{\rho }}_g{S}_g\frac{\partial u_s}{\partial z}$. Therefore, the change in the sedimentation rate has only a minor influence on the simulation results.

Regional Upward Methane Flux

Previously, the methane concentration in deep rising fluids was commonly assumed to be the methane concentration at BHSZ. In fact, the methane concentration in the deep fluid is lower than this value; otherwise, the pores of the sediments below BHSZ would all be occupied by gas bubbles as methane solubility decreases with depth beneath the BHSZ. Therefore, we first quantified the deep dissolved methane flux and applied the model at Site 995. We also explored the influence of a low deep methane flux on hydrate accumulation. A minimum methane flux from depth is required for hydrate formation in hydrate systems with deep methane sources (Xu and Ruppel, 1999; Bhatnagar et al., 2007). A larger deep methane flux causes the hydrate system to reach steady-state more rapidly. However, we applied a lower upward methane flux (0.015 mol/m²/a) comparing with that at Site 995 on hydrate accumulation and found that the methane hydrate occurrence was extremely difficult to extend to the BHSZ, despite the evolution time is long enough. The detailed model system for hydrate accumulation is described by Zheng et al. (2020). Finally, the actual hydrate occurrence thickness was thinner than that of the GHSZ. Site 994, a hydrate system with a thin zone of hydrate occurrence, might be attributed to the low methane flux from deep. This finding explains the discrepancy in hydrate distribution between Sites 994 and 995. Meanwhile, ODP Site 997 is located on the topographic crest of the Blake Ridge, 6.7 km northeast of Site 995. Numerous studies have shown that the methane hydrate deposit at Site 997 may be attributed to methane bubble migration along the fractured regions, suggesting a large deep methane flux (Flemings et al., 2003; Wallmann et al., 2006; Bhaumik and Gupta, 2007). Comparisons among Sites 994, 995, and 997 demonstrate that the deep methane flux is likely to increase along this drilling transect. Notably, the drilling report has also indicated that the hydrate occurrence discrepancy may be caused by variations in fluid composition (Paull et al., 1996). Therefore, we showed that along the Blake Ridge drilling transect the estimated deep methane fluxes decrease with increasing distance from the crest of the ridge (Figure 4). Previous studies have shown that a strong BSR is linked to elevated methane flux in deep layers (Pecher et al., 2001). Therefore, the regularly variable BSR characteristics at the Blake Ridge correspond well with our speculation.

FIGURE 4

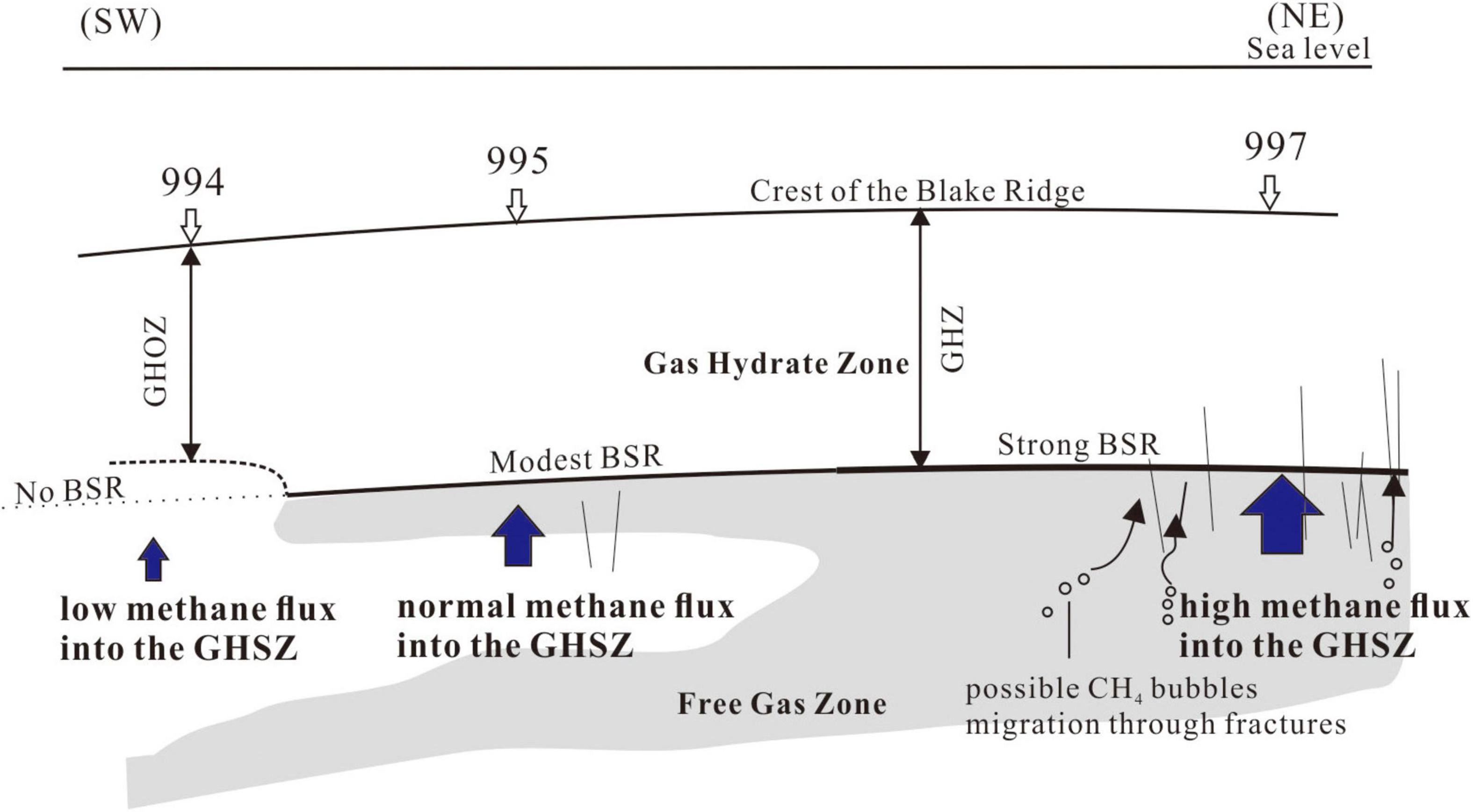

Figure 4. Conceptual representation of the methane hydrate reservoir system at the Blake Ridge. From flank Site 994 to flank Site 995 and finally to crest Site 997, the deep methane flux (dark blue arrow) is changeable from low to high, corresponding to no BSR to strong BSR occurrence. FGZ (light gray) is beneath the BSRs. The methane hydrate-bearing zone at Site 994 (GHOZ) does not extend to the BSRs depth. However, thicker hydrate occurrences (GHZ) appear at Sites 995 and 997, which both extend to the BSRs.

In general, our numerical model provides a simple tool for estimating the value of deep methane flux. However, some caveats must be noted before the application. Our new approach is applicable to the system where the residual gas saturation has been determined or a low gas saturation is detected below the BHSZ. In such cases, methane gas originating from hydrate dissociation does not interfere with the FGZ.

Conclusion

With the aim of determining the deep dissolved methane flux transported into the GHSZ, we developed a numerical model based on the one-dimensional mass balance for methane to relate the characteristics of gas bubble distribution to the deep upward unsaturated methane-bearing fluid. Our calculations show that the methane flux in deep-sourced systems could be reflected by the volume fraction of residual methane gas in sediments and the FGZ thickness.

To the best of our knowledge, this is the first study that quantified the deep dissolved methane flux in a gas hydrate system with well-characterized FGZ beneath the BGHZ. The model-derived upward methane flux at Site 995 was 0.0231 mol/m²/a. This result indicates the existence of a second free-gas interval at approximately 740 mbsf, which is consistent with the seismic data and further verifies our results. The hydrate occurrence is extremely difficult to extend to the BHSZ in a low methane flux scenario, such as Blake Ridge Site 994. Therefore, by combining these results and previous estimation of high deep methane flux at nearby Site 997, we showed that along the Blake Ridge drilling transect the estimated deep methane fluxes decrease with increasing distance from the crest of the ridge.

Data Availability Statement

Publicly available datasets were analyzed in this study. This data can be found here: http://www-odp.tamu.edu/publications/pubs.htm.

Author Contributions

ZZ: conceptualization, methodology, data analysis, and writing-original manuscript. YC: conceptualization, methodology, funding acquisition, writing-review and editing. WX: methodology and writing-review. DC: writing-review and funding acquisition. All authors contributed to manuscript preparation.

Funding

This work was supported by the National Key Research and Development Program of China (No. 2018YFC0310001), the NSF of China (Nos. 41776050, 91858208, and 41730528), and the China Geological Survey Project (No. DD20190230).

Conflict of Interest

WX was employed by the Independent Consultant.

The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
