CASE REPORT article

Front. Med., 02 February 2023
Sec. Intensive Care Medicine and Anesthesiology

Case report: Resuscitative endovascular balloon occlusion after iatrogenic injury of the common iliac artery during neurosurgical dorsal lumbar microdiscectomy

\r\nMascha O. Fiedler*Mascha O. Fiedler1*Dittmar BcklerDittmar Böckler2Henrik GieseHenrik Giese3Erik PoppErik Popp1Felix C. F. SchmittFelix C. F. Schmitt1Markus A. WeigandMarkus A. Weigand1Philipp ErhartPhilipp Erhart2
  • 1Department of Anesthesiology, Heidelberg University Hospital, Heidelberg, Germany
  • 2Department of Vascular and Endovascular Surgery, Heidelberg University Hospital, Heidelberg, Germany
  • 3Department of Neurosurgery, Heidelberg University Hospital, Heidelberg, Germany

Introduction and importance: This case report describes resuscitative endovascular balloon occlusion (REBOA) of the aorta in a patient with life-threatening iatrogenic bleeding of the right common iliac artery during elective dorsal lumbar spine surgery. REBOA is an emergency procedure for temporary intra-aortic balloon occlusion being increasingly reported and published since its inauguration in 1954. The interdisciplinary management of hemorrhage and technical notes for a successful REBOA procedure will be presented.

Case presentation: A 53-year-old female patient was admitted to the neurosurgery clinic suffering from left-sided L5 radiculopathy. During surgery, the anterior longitudinal ligament was perforated and an arterial vessel was lacerated. The patient became hemodynamically unstable demanding prompt supine repositioning and cardiopulmonary resuscitation (CPR). REBOA enabled cardiovascular stabilization after 90 min of CPR and laparotomy with vascular reconstruction and contributed to the survival of the patient without major clinical deficits. The patient was discharged from the ICU after 7 days.

Clinical discussion: Resuscitative endovascular balloon occlusion of the aorta is an emergency procedure to control life-threatening hemorrhage. REBOA should be available on-scene and applied by well-trained vascular surgery personnel to control vascular complications or extend to emergency laparotomy and thoracotomy with aortic cross-clamping in case of in-hospital non-controllable hemorrhages. In case of ongoing CPR, we recommend surgical groin incision, open puncture of the pulseless common femoral artery, and aortic balloon inflation in REBOA zone I. Hereby, fast access and CPR optimization for heart and brain perfusion are maintained.

Conclusion: Training for REBOA is the decisive factor to control selected cases of in-house and outpatient massive arterial abdominal bleeding complications.

1. Introduction

Resuscitative endovascular balloon occlusion of the aorta (REBOA) is an emergency procedure for temporary intra-aortic balloon occlusion being increasingly reported and published since its inauguration by Hughes (1). The objective is to achieve hemodynamic stabilization, reduction in blood loss, and consequently to improve cerebral and coronary perfusion in cases of life-threatening traumatic and non-traumatic hemorrhages. REBOA procedures carrying life-threatening risks such as arterial access complications, organ ischemia, vascular trauma, and time loss (2) should be critically evaluated in addition to resuscitative laparotomy, thoracotomy with aortic cross-clamping, or manual aortic compression.

Iatrogenic vascular injury is an unusual (0.02–0.06%) fatal complication of orthopedic or neurosurgical lumbar-disk procedures (3) demanding immediate availability of a trained multidisciplinary team of emergency specialists and vascular and endovascular surgeons. This study is in accordance with the SCARE 2020 criteria (4).

2. Presentation of case

A 53-year-old female patient American Society of Anesthesioloy (ASA) I classified without relevant comorbidities or medication was admitted to the neurosurgery clinic suffering from left-sided L5 radiculopathy. She presented with left foot and big toe elevator paresis. The MRI scan showed a mediolateral disc herniation at the level of L4/5 compressing the left L5 nerve root. Unilateral interlaminar fenestration with microdiscectomy at the level of L4/5 was performed. During surgery, the anterior longitudinal ligament was accidentally perforated and an arterial vessel was lacerated. The patient became hemodynamically unstable demanding prompt supine repositioning and cardiopulmonary resuscitation (CPR). The initial rhythm was a pulseless electrical activity. CPR started at 7:10 p.m. The abdomen appeared tense and massive arterial bleeding was assumed. The vascular surgery team was alerted. Under persistent CPR, the left groin was opened by a specialized vascular surgeon and the left common femoral artery was exposed within 7 min at 07:35 p.m. After the puncture and introduction of a short 6Fr sheath, a 0.035-inch wire (Glidewire Advantage® Terumo Medical Corporation, Tokyo, Japan) was introduced without the availability of X-ray fluoroscopy. The 6Fr sheath was replaced over the wire by a 90-cm long, 12-French sheath (Destination, Terumo) using the Seldinger technique. The length from the groin to the thoracic aorta was assessed ex situ and a Reliant™ stent graft balloon catheter (Medtronic, Santa Rosa, CA, USA), used routinely for intraoperative temporary aortic occlusion in rAAA, was introduced and placed at the level of the proximal thoracic aorta (REBOA zone I). Transesophageal echocardiography confirmed adequate positioning of the wire, sheath, and total balloon occlusion within the thoracic aorta. Balloon occlusion at 07:40 p.m. resulted in a bleeding control but cardiovascular arrest with brief periods of sinus rhythm persisted. A sustained resuscitation situation developed and the patient developed ventricular fibrillation. After three defibrillations, a return of spontaneous circulation (ROSC) was finally achieved at around 8:40 p.m.

Massive transfusion (in total: 13 red cell concentrates, 5 fresh frozen plasma, and 4 platelet concentrates) and the clinical shock protocol (5, 6) were simultaneously initiated. Balloon occlusion was sporadically released in agreement with the anesthetist in order to maintain arterial perfusion of the renal and visceral arteries. Intermitted chest compression was necessary to stabilize the patient under aortic balloon occlusion periods. The cumulative time of CPR was 90 min. Meanwhile, a shock catheter into the right internal jugular vein, radial arterial cannulation, and a central venous catheter into the left internal jugular vein were established. After further stabilization, CPR could be terminated and laparotomy was performed at 08:45 p.m. with the inflated aortic balloon in place. Manual compression and cross-clamping of the infrarenal aorta leads to additional bleeding control and detection of active bleeding from the right common iliac artery (CIA). The vessel perforation was sutured after selective clamping of the CIA and blood supply to the right lower limb was restored. The abdomen was temporally packed and closed by V.A.C.® therapy.

Cranial, thoracic, and abdominal computed tomography (CT) angiography was performed to rule out irreversible complications. Despite restoring sufficient cardiac ejection function under ongoing massive transfusion, the 12Fr sheath and the deflated aortic balloon catheter were left in place to enable further aortic occlusion if necessary. An additional arterial blood pressure measurement was established during the CT diagnostic via the 12Fr sheath. Blood pressure was equal between the sheath and radial arterial blood pressure measurement. Cranial CT ruled out global brain ischemia. Figure 1 illustrates the CT imaging of the 12Fr sheath and the aortic balloon occlusion catheter at the level of the proximal thoracic aorta (REBOA zone I). Correct balloon positioning was confirmed and CT diagnostics excluded collateral damages after emergency REBOA intervention.

FIGURE 1
www.frontiersin.org

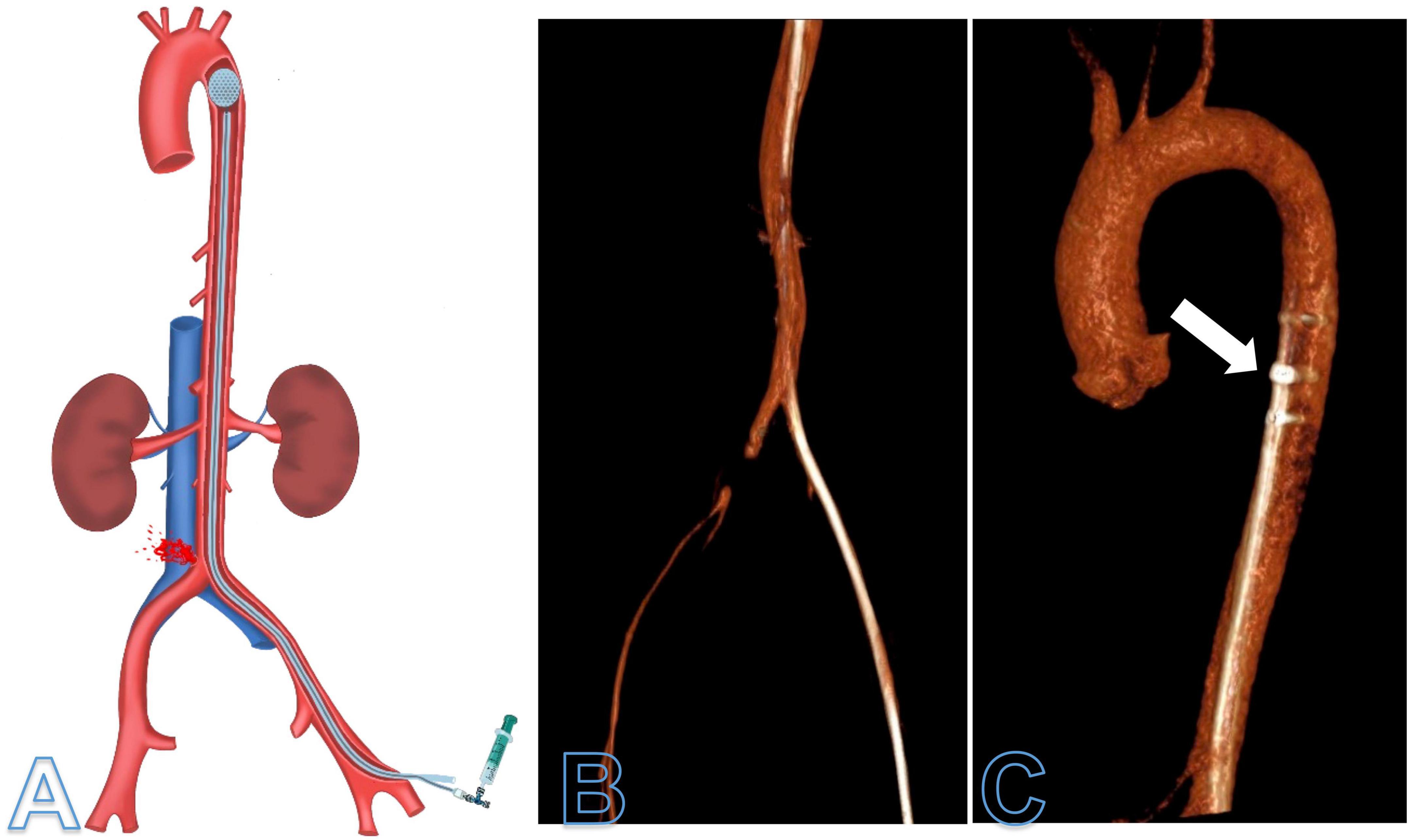

Figure 1. Illustration (A) and computed tomography angiography (CTA) reconstruction (B,C) of the deflated resuscitative endovascular balloon occlusion (REBOA) balloon in REBOA zone I (C). CTA was performed after surgical bleeding control of the right common iliac artery was achieved. The 12Fr sheath and deflated aortic balloon were kept within the thoracic aorta (arrow) to enable additional aortic occlusion at any time during diagnostics.

The abdomen was secondary closed and the sheath was removed from the left common femoral artery 3 h after the index procedure.

After intensive care stabilization, a secondary fasciotomy was necessary to decompress reperfusion compartment syndrome of the right calf. The initial left-sided foot drop weakness persisted, and a small asymptomatic subdural hematoma was demonstrated on a cranial follow-up CT. The patient survived without neurological sequela and was transferred to rehabilitation 3 weeks after surgery.

3. Discussion

This case report illustrates the importance of the trained interdisciplinary use of REBOA in life-threatening bleeding complications. REBOA should be available on-scene and applied by well-trained vascular surgery personnel to control vascular complications or extend to emergency laparotomy and thoracotomy with aortic cross-clamping in case of in-hospital non-controllable hemorrhages.

Resuscitative endovascular balloon occlusion of the aorta is an emergency procedure to control life-threatening hemorrhage. Side effects such as inadequate puncture attempts or inappropriate balloon insertions are considerably high (2).

The block balloon can be placed either in the infrarenal aorta (REBOA zone III) or in the descending aorta (REBOA zone I), depending on the indication or the suspected bleeding location (7). Aortic ballooning should be avoided in REBOA zone II to preserve gastrointestinal perfusion. In case of ongoing CPR, we recommend surgical groin incision, open puncture of the pulseless common femoral artery, and aortic balloon inflation in REBOA zone I. Based on bleeding location and imaging-guided vs. blind REBOA placement methods, different REBOA-related complications and mortality rates are described (8). Hereby, fast access and CPR optimization for heart and brain perfusion are maintained. As overall survival decreases after 30 min of continuous aortic balloon occlusion (9), partial-REBOA with temporary deflation periods is recommended to maintain blood supply to the visceral organs. From animal studies, it is presumed that ischemia-related mortality occurs after 60 min in REBOA zone 1 and after 90 min in REBOA zone III (10).

In the reported setting, a standard over-the-wire aortic balloon and long 12Fr sheath were used. Even though easily applicable REBOA balloons are available, we recommend over-the-wire placements and a long sheath for positioning control of the inflated balloon as pulse propagation may lead to unwanted migration of the REBOA balloon distally.

Whenever possible, REBOA should be performed under fluoroscopy in order to guarantee correct balloon positioning. In addition, fluoroscopy angiography can detect bleeding localization, and subsequently covered stent graft deployment may treat exsanguinations.

In a recently published “real world” case series of seven REBOA maneuvers, the time for REBOA establishment was 7–40 min (9). Fast decision-making and experience in vascular access strategies are essential. We recommend preparing and holding all REBOA materials available in emergency rooms (refer to Table 1). This case report encourages training in REBOA maneuvers.

TABLE 1
www.frontiersin.org

Table 1. Resuscitative endovascular balloon occlusion (REBOA) sequences and material for an emergency over-the-wire in-house application.

In this case, iliac artery injury was the cause of bleeding being a rare complication of lumbar spine surgery with life-threatening consequences.

4. Conclusion

Resuscitative endovascular balloon occlusion should be applicable and trained at any surgical center not only in the context of trauma care but also to control surgical in-house bleeding complications.

Data availability statement

The original contributions presented in this study are included in this article/supplementary material, further inquiries can be directed to the corresponding author.

Ethics statement

Ethical review and approval was not required for the study on human participants in accordance with the local legislation and institutional requirements. Written informed consent was obtained from the patient for publication of this case report and any accompanying images.

Author contributions

MF, PE, and HG contributed to the study concept, data collection, data analysis, and writing the manuscript, and final editing of the manuscript. DB, MW, and EP revised the manuscript. MF, EP, FS, and PE approved the final version of the manuscript. MF was a guarantor. All authors contributed to the article and approved the submitted version.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Abbreviations

ASA, american society of anesthesioloy; CPR, cardiopulmonary resuscitation; CTA, computed tomography angiography; Fr, french; ICU, intensive care unit; REBOA, resuscitative endovascular balloon occlusion.
