Simulated Variation Characteristics of Oceanic CO2 Uptake, Surface Temperature, and Acidification in Zhejiang Province, China

Introduction

Atmospheric CO₂ concentration has reached 410.07 ± 0.10 ppm (parts per million) by 2019, and increased by 46% since preindustrial time, which is primarily resulting from human activities of fossil fuel burning and land use changes [1]. Observational-based estimates showed that during 1750–2019, total anthropogenic CO₂ emissions were 700 ± 75 Pg C (1 Pg C = 10¹⁵ g of carbon) [1]. About 41% of these emissions stayed in the atmosphere, whereas about 24% of these emissions were absorbed by the ocean, which is considered as a main sink of atmospheric CO₂ [1]. Besides, the ocean also plays an important role in regulating climate by key air–sea interaction processes [2–6].

Increased atmospheric CO₂ causes global warming (GW) through the greenhouse effect. Global warming has become one of the most challenging global issues and the core issue of global change [7–11]. Carbon capture and sequestration is a major player in reducing atmospheric CO₂ concentrations and the resultant global warming. However, the absorption of anthropogenic CO₂ by the ocean would also decrease seawater pH, causing ocean acidification and having important effects on the oceanic carbon cycle and ecosystem [12]. Therefore, it is important to investigate the response mechanisms of oceanic carbon cycle and climate system to oceanic CO₂ sequestration. In addition, owing to the inhomogeneous physical and biogeochemical features in different oceanic basins or areas, vulnerability assessment of different oceanic areas under the impacts of climate change has become a forefront topic of international scientific research [13–16].

Besides GW, ocean acidification is another significant impact induced by greenhouse gas emissions [12, 17, 18]. With the increased annual CO₂ emissions, ocean acidification has been exacerbated in recent years [19]. The main concern of ocean acidification originates from its potentially adverse effects of CaCO₃ saturation state (Ω) reductions on marine calcifying organisms. Reduced Ω would decrease the calcification rate and increase the CaCO₃ dissolution rate of calcifying organisms, making their skeletons or shells vulnerable [20–23]. For instance, aragonite is the main constituent of corals’ calcareous endoskeleton; therefore, corals surrounded by seawater which is undersaturated with respect to aragonite (Ω_A < 1) could encounter adverse effects. There are intriguing evidences that CaCO₃ could also dissolve even in supersaturated seawater [24, 25].

Marine organisms in the China seas are ecologically and economically important. China is known as one of the most important countries of ocean aquaculture industry, where more than 70% of the major cities and 50% of the populations are concentrated in the eastern and southern coastal regions. Maintaining sustainable development of resources and environment in offshore and coastal regions is an urgent strategic requirement for the future development of the country [26, 27]. Zhejiang is a highly developed province in East China, which takes a leading position in the national marine economic development strategy. Therefore, it is necessary to assess the variation characteristics of oceanic climate, carbon cycle, and acidification in Zhejiang offshore. However, due to the lack of historical observational data in oceanic physical and chemical fields, uncertainties exist in assessing changes in oceanic climate, acidification, and biogeochemical processes in regional areas.

In this study, the variation characteristics of oceanic CO₂ uptake, SST, and ocean acidification in historical times and future trends in Zhejiang offshore are quantified. In order to acquire reasonable assessments, reanalysis data and numerical simulated results are used. The data and model used are introduced in Data and Method section, changes in oceanic carbon cycle and climate system are analyzed in Results section, and the summary and advice for adapting to climate change and ocean acidification are in Conclusion and Discussion section.

Data and Modeling

Data and Method

The historical SST data used in this article are from ERA-Interim high-precision reanalysis data published by the ECMWF (European Center for Medium-Range Weather Forecasts) [28]. The time span is 1980–2019, and the resolution is 0.125° × 0.125°.

Seawater pH is a measurement to quantify the degree of ocean acidification [29]. The increased hydrogen ion concentration tended to reduce carbonate ion concentration (${[\text{CO}}_3^{2-}]$) via the following:

${\mathrm{H}}^{\mathrm{+}}\mathrm{+\; C}{\mathrm{O}}_{\mathrm{3}}^{\mathrm{2-}}\to \mathrm{HC}{\mathrm{O}}_{\mathrm{3}}^{\mathrm{-}}(1)$

Model and Simulations

The University of Victoria Earth System Climate Model (UVic ESCM) version 2.9 used in this study is an intermediate complexity Earth system model [30]. The UVic model is composed of an energy–moisture balance atmospheric model, a 3-D ocean general circulation model, a thermodynamic/dynamic sea ice model, and land and ocean carbon cycle models [31–34]. The model’s horizontal resolution is 1.8° (latitude)×3.6° (longitude), which is similar to most coupled atmosphere–ocean general circulation models (AOGCMs). The ocean model of UVic is the modular ocean model (MOM) version 2.2 developed by the Geophysical Fluid Dynamics Laboratory (GFDL), which has a vertical resolution of 19 levels [35].

First, the UVic model was spun up for 10,000 model years with a fixed preindustrial CO₂ concentration of 280 ppm to reach a quasi-equilibrium state of carbon cycle and the climate system. Then, this preindustrial state was used as an initial condition for the calendar year of 1800, 300-years transient simulations were performed (i.e., from 1800 to 2100) [36, 37]. From 1800 to 2019, atmospheric CO₂ concentration data were taken from observation-based estimates [38], and after 2019, CO₂ concentrations were taken from the Representation Concentration Pathway scenarios (RCPs) and their extensions up to 2100. The four scenarios used are RCP2.6, RCP4.5, RCP6.0, and RCP8.5, based on different mitigation policies for greenhouse gases [39, 40]. The numbers after “RCP” represent that by 2100, the radiative forcing reaches 2.6, 4.5, 6.0, and 8.5 W m⁻², respectively.

Analysis of Marine Chemistry Fields

In this study, we calculate ocean carbonate chemistry fields, such as pH, based on equations in the Ocean Carbon-Cycle Model Intercomparison Project phase 3 (OCMIP-3, http://ocmip5.ipsl.jussieu.fr/OCMIP/). UVic-simulated ocean temperature, salinity, DIC (dissolved inorganic carbon), ALK (alkalinity), and data-based estimates of ocean silicate and phosphate concentrations from the GLODAP (Global Ocean Data Analysis Project) [41] are used. The calculations are shown as follows [42].

Thermodynamic carbonate chemistry fields generally include the following six variables: DIC, ALK, [H⁺], [CO₂], [CO₃^2-], and [HCO₃⁻]. Here, [CO₂] represents the sum of aqueous carbon dioxide concentrations and H₂CO₃ (carbonate acid); [HCO₃⁻] denotes bicarbonate ion concentration. Equilibrium expressions for H₂CO₃ dissociation are as follows:

${\mathrm{K}}_{\mathrm{1}}^{\mathrm{*}}=\frac{\left[\mathrm{HC}{\mathrm{O}}_3^{-}\right]\left[{\mathrm{H}}^{+}\right]}{\left[\mathrm{C}{\mathrm{O}}_{\mathrm{2}}\right]}(2)$

${\mathrm{K}}_{\mathrm{2}}^{\mathrm{*}}=\frac{\left[\mathrm{C}{\mathrm{O}}_3^{2-}\right]\left[{\mathrm{H}}^{+}\right]}{\left[\mathrm{HC}{\mathrm{O}}_{\mathrm{3}}^{-}\right]}(3)$

Expressions for DIC and ALK are as follows:

$\mathrm{DIC}=\left[\mathrm{C}{\mathrm{O}}_2\right]+\left[\mathrm{HC}{\mathrm{O}}_3^{-}\right]+\left[\mathrm{C}{\mathrm{O}}_3^{2-}\right](4)$

$\mathrm{ALK}\approx \left[\mathrm{HC}{\mathrm{O}}_3^{-}\right]+2\left[\mathrm{C}{\mathrm{O}}_3^{2-}\right]+\left[\mathrm{O}{\mathrm{H}}^{-}\right]-\left[{\mathrm{H}}^{+}\right](5)$

Based on the above six variables (DIC, ALK, [H⁺], [CO₂], [CO₃^2-], and [HCO₃⁻]) and four equations (Eqs 2–5), and given two known variables, we can calculate the rest of the four variables [43].

Regions of Interest

This study investigates historical and future variation characteristics of oceanic CO₂ uptake, SST, and ocean acidification in Zhejiang offshore, China. Our regions of interest include the oceanic area of 27.0°–31.0° latitude and 120.0°–124.2° longitude (Figure 1). Zhejiang offshore locates in North West of the East China Sea, the subtropical humid climate zone [44]. In addition to the atmospheric circulation system, including East Asian monsoon, the climate system in Zhejiang offshore could also be affected by the continental climate system and oceanic currents, such as the Kuroshio and coastal upwelling currents [45]. Zhejiang is a highly developed province in East China, which takes a leading position in national marine economic development strategy. Changes in oceanic carbon cycle and climate system in Zhejiang offshore could have drastic effects on millions of people who depend on marine resources.

FIGURE 1

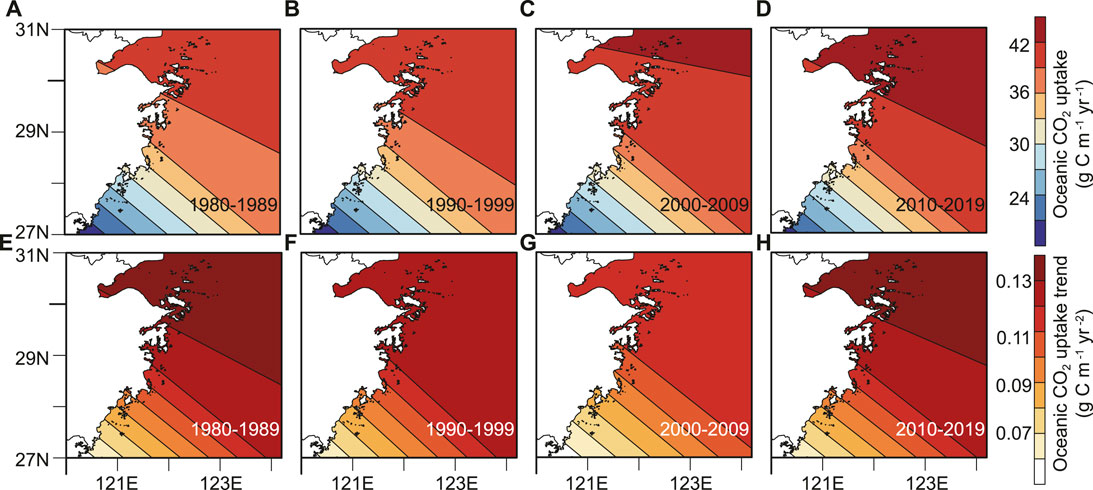

FIGURE 1. Spatial distributions of simulated decadal mean (A–D) oceanic CO₂ uptake and (E–H) trends of oceanic CO₂ uptake in Zhejiang offshore. Results are shown for (A,E) 1980–1989, (B,F) 1990–1999, (C,G) 2000–2009, and (D,H) 2010–2019.

Results

Model-simulated historical oceanic CO₂ uptake for the global ocean is consistent with observation-based estimates reported by IPCC AR5 (Intergovernmental Panel on Climate Change Fifth Assessment Report) [46]. For example, UVic-simulated cumulative oceanic CO₂ uptake during preindustrial time to 2011 was 147 Pg C, which compares well with the observational range of 155 ± 30 Pg C reported by IPCC AR5 (Table 1). Model-simulated averaged oceanic CO₂ uptake during 2002 to 2011 was 2.4 Pg C yr⁻¹, within the observed value of 2.4 ± 0.7 Pg C yr⁻¹ (Table 1).

TABLE 1

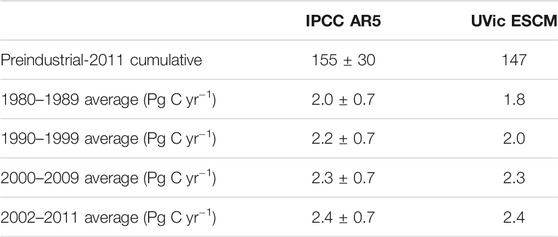

TABLE 1. Model-simulated global oceanic CO₂ uptake compared with observation-based estimates reported by IPCC AR5, which show uncertainties as 90% confidence intervals [46].

Model-simulated key carbon-related tracers are also compared with observation-based estimates from the GLODAP [46]. As shown in Figure 2, simulated vertical profiles of DIC and ALK for Zhejiang offshore largely agree with observed estimates. In addition, UVic-simulated large-scale distributions of key variables in the oceanic carbon cycle [45–47], climate [48–50], and historical oceanic uptake of carbon and its isotopes [42] also compare well with observation-based estimates.

FIGURE 2

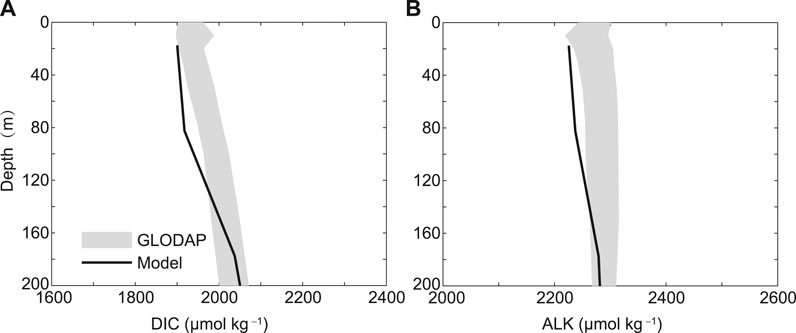

FIGURE 2. Modeled mean vertical profiles for Zhejiang offshore of (A) dissolved inorganic carbon (DIC) and (B) alkalinity (ALK) (1990–1999 average) compared with observed estimates from GLODAP data (gray shaded areas denote estimated uncertainties) [41].

SST and Ocean Acidity of Zhejiang Offshore in the Last 40 Years

Zhejiang offshore SST ranges from 19 to 22°C, with higher SST farther offshore at the same latitude. From 1980 to 2019, the hottest season in Zhejiang offshore sea surface is summer, with SST mainly in the range of 25–28°C, whereas the coldest season is winter, with SST in the 13–17°C range. Across the four seasons, SST spatial gradient is larger in spring and winter, and the smallest in summer.

Observation-based estimates show that during 1980–2019, atmospheric CO₂ concentration increased from 339 to 410 ppm. The increment of atmospheric CO₂ concentration led to rising SST through the enhanced greenhouse effect (Figure 3). During 1980–2019, SST of Zhejiang offshore increased at a rate of 0.16°C/10a, which reached its highest level in 1998 (21.8°C), and the lowest in 1981 (20.5°C) (Figure 3). From the perspective of interdecadal change, SST of Zhejiang offshore mainly increased from 1980s to late 1990s, decreased at the beginning of the 21st century, and increased again in the 2010s. Annual mean SST of Zhejiang offshore reached 21.5°C in 2019.

FIGURE 3

FIGURE 3. Annual mean variation and linear trend of SST in Zhejiang offshore from 1980 to 2019.

In addition to rising seawater temperatures, another important impact of CO₂ emissions on marine environment is ocean acidification. With the increasing of atmospheric CO₂ concentration, the ocean, as an important carbon sink, continuously absorbs anthropogenic CO₂ from the atmosphere (Figures 1, 4). For instance, simulated results show that during 1980–2019, cumulative oceanic CO₂ uptake in Zhejiang offshore is 0.3 Pg C. The increase of annual oceanic CO₂ uptake in Zhejiang offshore is largely related to the rise of atmospheric CO₂ concentration. Continuous oceanic CO₂ uptake would lead to ocean acidification, resulting in the rise of seawater hydrogen ion concentration, reducing the calcification rate of marine organisms, making their skeletons or shells vulnerable, and consequently, having adverse impacts on the marine ecosystem.

FIGURE 4

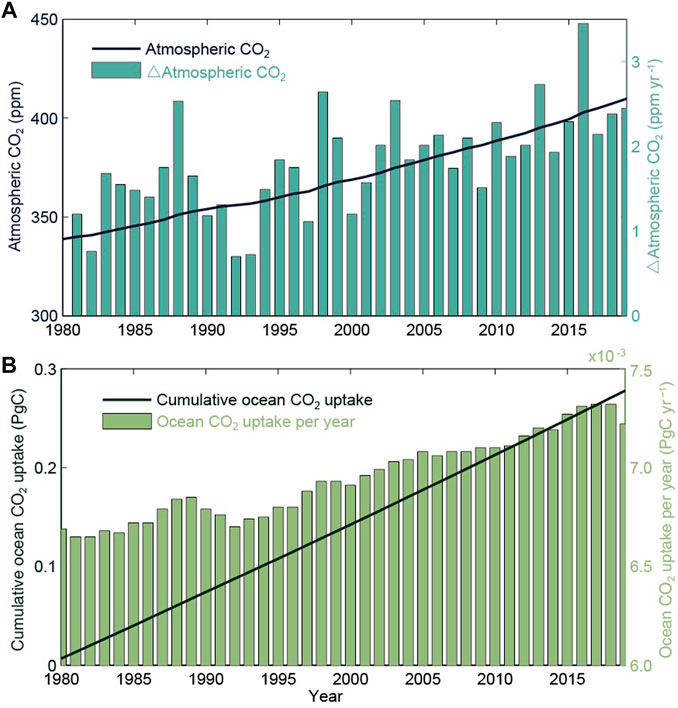

FIGURE 4. (A) Prescribed atmospheric CO₂ concentration and (B) model-simulated time series of annual cumulative oceanic CO₂ uptake in Zhejiang offshore (lines). Changes of atmospheric CO₂ concentration relative to the previous year and oceanic CO₂ uptake per year are also shown by the boxes.

In the last 40 years, atmospheric CO₂ concentration increased by 21%. Simulated results show that the decrease rate of pH in Zhejiang sea surface is closely related to the increasing rate of atmospheric CO₂ concentration and oceanic CO₂ uptake. With the increase of atmospheric CO₂, the ocean’s continuous absorption of CO₂ leads to the exacerbation of ocean acidification in Zhejiang offshore (Figures 1, 4-6).

FIGURE 5

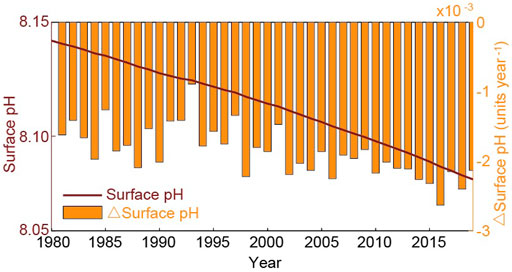

FIGURE 5. Model-simulated time series of annual mean sea surface pH in Zhejiang offshore (line). Changes of surface pH relative to the previous year are also shown by the boxes.

FIGURE 6

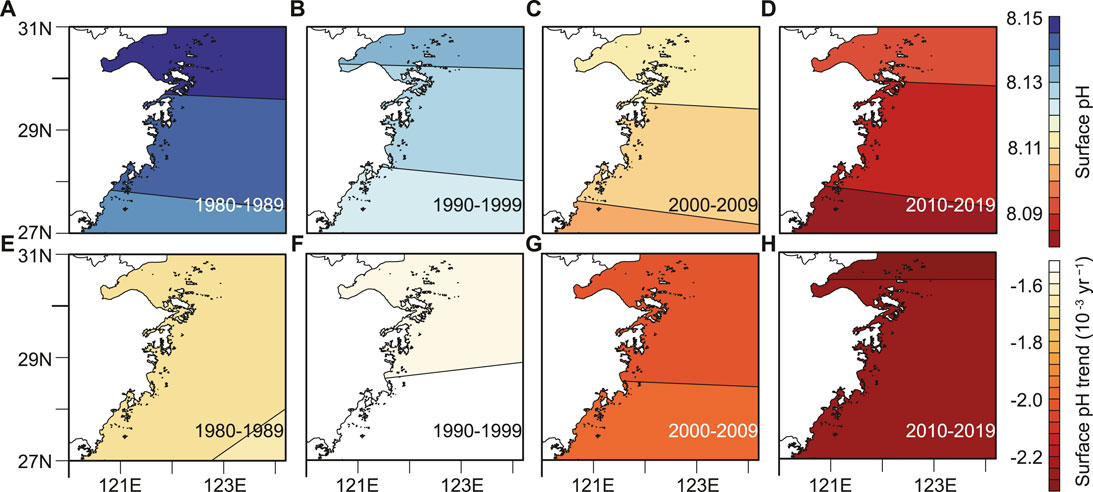

FIGURE 6. Spatial distributions of simulated decadal mean (A–D) sea surface pH and (E–H) trends of sea surface pH in Zhejiang offshore. Results are shown for (A,E) 1980–1989, (B,F) 1990–1999, (C,G) 2000–2009, and (D,H) 2010–2019.

Compared with low- and high-latitude sea surface, sea surface of Zhejiang offshore, which is located in the mid-latitude, suffered greater acidification. During 1980–2019, sea surface pH at low and high latitudes decreased by 0.06 units, while that at Zhejiang offshore decreased by 0.08 units, 23% greater than the decrease rate of sea surface pH in the global ocean. As atmospheric CO₂ increases, the acidification rate of seawater also accelerates. For the past 20 years, especially the last 10 years (2010–2019), the reduction rate of Zhejiang offshore sea surface pH significantly accelerated compared to 1980–1999. The pH reduction rate increased from 0.017/10a in 1980–1989 to 0.023/10a in 2010–2019 (accelerated by 35%, Figure 6).

Zhejiang offshore is the habitat of a large number of marine organisms, where fisheries amount to about 220,000 km². The main fishery products include fish, shrimp, crab, shellfish, and other calcified organisms. The total allowable catch in Zhejiang offshore ranks the first in China, and in recent years, the annual production all reached three million tons. By conducting pCO₂/pH perturbation experiments, Wu and Gao concluded that, the effects of ocean acidification and solar UV changes would also suppress photosynthesis in the China seas [51]. Physiology, morphology, and behavior of some marine organisms (e.g., cnidarians and molluscs) would also be influenced by seawater acidification [52]. Therefore, ocean acidification would have important effects on the basic biochemical processes and ecosystem in Zhejiang offshore, leading to reductions in fisheries and aquaculture production, resulting in economic losses and important impacts on millions of people depending on seafood and other marine resources. Meanwhile, acidified seawater could accelerate the corrosion of building materials, having adverse impacts on the quality of marine constructions, causing economic losses.

SST Changes and Ocean Acidification of Zhejiang Offshore in the Next 20 Years

The UVic model was used to quantify changes in SST and ocean acidification in Zhejiang offshore from 2020 to 2040, under different greenhouse gas emission scenarios (RCP2.6, RCP4.5, RCP6.0, and RCP8.5). Under four RCP scenarios, atmospheric CO₂ concentration would increase by 28–74 ppm in the next 20 years, resulting in a rise of 0.3–0.5°C in Zhejiang offshore SST (Figures 7A,C).

FIGURE 7

FIGURE 7. (A) Prescribed atmospheric CO₂ concentration and model-simulated time series of annual mean (B) cumulative oceanic CO₂ uptake, sea surface (C) temperature, and (D) pH in Zhejiang offshore. Results are shown for the four simulations using the four RCP scenarios depicted in the Data and Modeling section.

With the continuing increases in atmospheric CO₂ content, Zhejiang offshore keeps absorbing atmospheric CO₂, resulting in continuous acidification of seawater. During 2020–2040, under different RCP scenarios, simulated cumulative CO₂ uptakes of Zhejiang offshore are 0.150–0.165 Pg C (Figure 7B). Under RCP8.5, from 2020 to 2040, Zhejiang sea surface pH decreases by 0.07, corresponding to an increase of 17% in hydrogen ion concentration, while under the RCP2.6 scenario, Zhejiang sea surface pH decreases by 0.03, corresponding to an increase of 7% in hydrogen ion concentration (Figure 7D). Therefore, in the next 20 years, resulting from the rises in atmospheric CO₂ concentration, Zhejiang offshore SST would rise continuously, and risks of ocean acidification would further increase. Consequently, further studies would be needed to develop a better understanding of the effects of climate change on the marine ecosystem; meanwhile, the capacity of climate change adaptation in Zhejiang should be improved.

The Nonlinear Relationship Between Atmospheric CO₂ Scenario and Oceanic Carbon Cycle

Simulated results under different scenarios show that the relationships among the atmospheric CO₂ scenario used, oceanic climate, and carbon cycle fields in Zhejiang offshore are nonlinear (Figure 8). First, the RCP scenario of high CO₂ emissions does not necessarily correspond to high atmospheric CO₂ concentration. For example, during 2020–2040, atmospheric CO₂ concentration of RCP4.5 is higher than that of RCP6.0. Therefore, the RCP scenario of higher CO₂ emissions does not necessarily lead to larger oceanic CO₂ uptake, higher SST, or lower surface pH. For instance, at 2040, simulated oceanic CO₂ uptake in Zhejiang offshore is larger under RCP4.5 than that under RCP6.0 (0.0076 Pg C in RCP4.5 and 0.0074 Pg C in RCP6.0, respectively). In 2040, Zhejiang offshore seawater would experience greater warming and acidification under RCP4.5 than under RCP6.0 (Figures 8B,C). In addition, the RCP scenario of higher CO₂ emissions not necessarily leads to faster change of oceanic CO₂ uptake, SST, or surface pH. For example, at 2040, Δsurface pH/ΔCO₂ is faster under RCP4.5 than that under RCP6.0 (−0.40 units/100 ppm in RCP4.5 versus −0.37 units/100 ppm in RCP6.0, Figure 9).

FIGURE 8

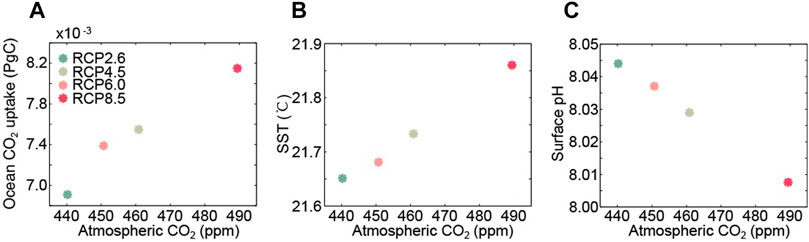

FIGURE 8. Prescribed atmospheric CO₂ concentration against model-simulated (A) oceanic CO₂ uptake, (B) sea surface temperature, and (C) sea surface pH in Zhejiang offshore at 2040. Results are shown for the four simulations using the four RCP scenarios depicted in the Data and Modeling section, revealing the nonlinearity relationships among the atmospheric CO₂ scenario used, oceanic climate, and carbon cycle fields.

FIGURE 9

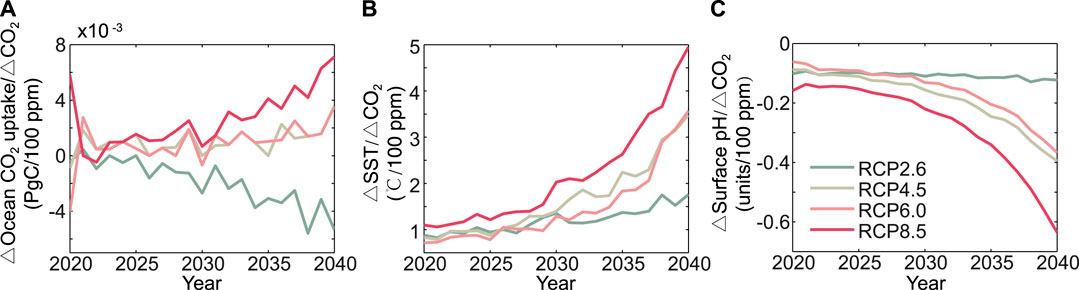

FIGURE 9. Model-simulated time series of (A) Δoceanic CO₂ uptake/ΔCO₂, (B) Δsea surface temperature/ΔCO₂, and (C) Δsea surface pH/ΔCO₂ in Zhejiang offshore. Results are shown for the four simulations using the four RCP scenarios depicted in the Data and Modeling section.

Second, the relationship among atmospheric CO₂ concentration, ocean climate, and carbon cycle fields in Zhejiang offshore is nonlinear. For instance, at 2040, for Zhejiang offshore sea surface pH, ΔpH _{RCP8.5-RCP4.5}/ΔCO_{2RCP8.5-RCP4.5} = -0.0749 units/100 ppm, ΔpH _{RCP4.5-RCP6.0}/ΔCO_{2RCP4.5-RCP6.0} = -0.0796 units/100 ppm, while ΔpH _{RCP6.0-RCP2.6}/ΔCO_{2RCP6.0-RCP2.6} = -0.0803 × 10⁻⁴ units/100 ppm, indicating faster acidification rates under scenarios of lower atmospheric CO₂ concentration. In comparison, the relationships among atmospheric CO₂ concentration, oceanic CO₂ uptake, and SST are far more nonlinear (Figures 8A,B). For example, at 2040, for SST in Zhejiang offshore, ΔSST _{RCP8.5-RCP4.5}/ΔCO_{2RCP8.5-RCP4.5} = -0.44°C/100 ppm, ΔSST _{RCP4.5-RCP6.0}/ΔCO_{2RCP4.5-RCP6.0} = -0.52°C/100 ppm, while ΔSST _{RCP6.0-RCP2.6}/ΔCO_{2RCP6.0-RCP2.6} = -0.35°C/100 ppm. The nonlinearity between atmospheric CO₂ concentration and ocean acidification is noteworthy because it hints that if we aim to mitigate ocean acidification in Zhejiang offshore under a high emission scenario, deeper reductions of anthropogenic CO₂ emission may be needed.

Conclusion and Discussion

Under the background of greenhouse gas emissions and GW, it is an important issue to analyze the variation characteristics in ocean climate and carbon cycle fields, which determines the capacity of the ocean to capture atmospheric CO₂ [53–55]. In this article, changes of oceanic CO₂ uptake, SST, and acidification in Zhejiang offshore in last 40 years are assessed. Future changes in the next 20 years are also simulated by the UVic Earth system model. In addition, we also quantify the differences of oceanic carbon cycle under different RCP scenarios, which contributes to develop a better understanding of oceanic carbon capture and climate adaptation.

Our results show that over the past 40 years, with the increasing atmospheric CO₂ content, SST in Zhejiang offshore increased at a rate of 0.16°C/10a. Meanwhile, the increase of annual oceanic CO₂ uptake in Zhejiang offshore is also closely related to the rise of atmospheric CO₂ concentration, which results in an increase of 20% in sea surface hydrogen ion concentration over the past 40 years, and accelerated acidification over the past 10 years.

Previous projects and studies also reported data-based estimates of changes in oceanic climate and seawater acidity. For instance, Kennedy et al. announced an increase in global SST of 0.124 ± 0.030°C/10a in 1979–2012 by using observation-based HadSST3 data [56]. Smith et al. reported an increase in global SST of 0.105 ± 0.031°C/10a in 1979–2012 by using ERSSTv3b data [57]. These assessed SST growth rates are relatively slower than our result of 0.16°C/10a for Zhejiang offshore. Ishii et al. analyzed observations in the coast of western North Pacific, reporting a decrease rate of 0.020 ± 0.007 units/10a in surface pH during 1994–2008 [58], consistent with our simulated results, faster than central Pacific of 0.014 ± 0.002 units/10a in 1998–2007 [59] and Eastern North Atlantic Ocean of 0.015 ± 0.002 units/10a in 1995–2004 [60]. Therefore, Zhejiang offshore is one of the most vulnerable areas to climate change and ocean acidification.

Four CO₂ emission scenarios are used to simulate oceanic CO₂ uptake, SST, and pH in Zhejiang offshore during 2020–2040. By 2040, with the rise of atmospheric CO₂ concentration under four RCP scenarios, SST in Zhejiang offshore increases by 0.3–0.5°C, whereas cumulative oceanic CO₂ uptake is 0.150–0.165 Pg C, leading to a decrease of sea surface pH by 0.03–0.07. Compared to RCP2.6, the decrease of surface pH in Zhejiang offshore is doubled under RCP8.5. In addition, the relationship between the CO₂ scenario used and oceanic carbon cycle is nonlinear, which is important because if we want to mitigate ocean acidification in Zhejiang offshore under a higher CO₂ concentration scenario, more effective anthropogenic CO₂ emission reductions may be needed.

This study has investigated the variation characteristics of oceanic climate and carbon cycle fields in Zhejiang offshore on timescales of decades by using an Earth system model. Some processes or feedbacks that are not considered in this study may also have impacts on the ocean carbon cycle and climate system. For instance, ocean acidification tends to decrease the calcification rate of some ocean calcifying organisms, increasing sea surface alkalinity, promoting oceanic CO₂ sequestration, and mitigating ocean acidification. Moreover, this study has not included the interactive effects between ocean acidification and CaCO₃ in the sediments, which is considered to mitigate the chemistry change in the deep ocean on millennia timescales.

Until now, although Zhejiang has taken steps to develop climate change adaptation and emission reduction policies, more meteorological and climatological measures still need to be adopted to reduce the impacts of extreme climate events on coastal regions, for example, 1) strengthening the monitoring and early warning system for marine disasters in Zhejiang province; 2) paying more attention to the adverse impacts of future climate change on marine fisheries, aquaculture, ecosystems, major infrastructure constructions, and city planning in coastal regions; and 3) investigating innovations to cope with the adverse effects of marine disasters, which is crucial for the sustainable development of the oceans. In addition, further observational and modeling studies would be required to develop a better understanding of the response of oceanic carbon cycle and the climate system to oceanic carbon sequestration, which is vital for more reliable projections of future climate and marine ecosystem changes.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material; further inquiries can be directed to the corresponding author.

Author Contributions

All authors contributed to this research in collaboration. KW and HZ wrote the manuscript, GF proposed the conceptualization, ZL, ZY, and PL provided substantial help with the paper schedule and gave advice on the experiment and supervised. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the Natural Science Foundation of Zhejiang Province (LQ20D050003), the Natural Science Foundation of China (42005027 and 41605049), the Key R&D Program of Zhejiang Province (2021C02036), Fund for Meteorological Science and Technology of Zhejiang Province, China (2019YB03 and 2020YB04), the Natural Science Basic Research Program of Shaanxi (2021JQ-957), and the Talent Cultivation Project of Zhejiang Association for Science and Technology in 2020 (CTZB-2020080127).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
