Abstract
Learning physical properties of a quantum system is essential for the developments of quantum technologies. However, Heisenberg’s uncertainty principle constrains the potential knowledge one can simultaneously have about a system in quantum theory. Aside from its fundamental significance, the mathematical characterization of this restriction, known as ‘uncertainty relation’, plays important roles in a wide range of applications, stimulating the formation of tighter uncertainty relations. In this work, we investigate the fundamental limitations of variance-based uncertainty relations, and introduce several ‘near optimal’ bounds for incompatible observables. Our results consist of two morphologically distinct phases: lower bounds that illustrate the uncertainties about measurement outcomes, and the upper bound that indicates the potential knowledge we can gain. Combining them together leads to an uncertainty interval, which captures the essence of uncertainties in quantum theory. Finally, we have detailed how to formulate lower bounds for product-form variance-based uncertainty relations by employing entropic uncertainty relations, and hence built a link between different forms of uncertainty relations.
1 Introduction
Uncertainty principle, originally introduced by Heisenberg [1], clearly sets quantum theory apart from our classical world. Formally, it states that it is impossible to predict the outcomes of incompatible measurements simultaneously, such as the position and momentum of a particle. The corresponding mathematical formulation for position and momentum are given by Kennard in Ref. [2] (see also Ref. [3]). Later, a general form of uncertainty relation has been established by Robertson [4], and has been further improved by Schrödinger in Ref. [5], which is expressed in terms of commutator and anticommutator of obserables:where the quantity (resp. V(B)) stands for the variance of observable A (resp. B), the operator is defined as A− ⟨A⟩, and the expectation value ⟨ ⟩ is over the quantum state |Ψ⟩. Another way to demonstrate the joint uncertainty associated with incompatible observables is through the summation, namely V(A) + V(B) [6–9], which highlights an advantage in the parameter estimation of quantum system [10–13].
Riding the waves of information theory, entropies have been used to quantify the uncertainties associated with quantum measurements [14]. For instance, the entropies of probability distributions of canonically conjugate variables obey Białynicki-Birula-Mycielski uncertainty relation [15]. It is noteworthy that Heisenberg’s uncertainty relation follows from Ref. [15] as a special case. The entropic uncertainty relation for any pair of bounded observables is established by Deutsch in Ref. [16]. An improved expression was subsequently conjectured by Kraus [17] and then had been proved by Maassen and Uffink [18]. With access to a memory system, the conventional entropic uncertainty relations have been further generalized to entanglement-assisted formalism [19]. Soon afterwards, several improvements and extensions, including the cases of multiple measurements, universal uncertainty regions and quantum processes, have been proposed in Refs. [20–25]. Recently, beyond inertial frames, the uncertainty trade-off occurred near the event horizon of a Schwarzschild black hole [26] and the relativistic protocol of an uncertainty game in the presence of localized fermionic quantum fields inside cavities [27] have also been demonstrated.
Aside from their theoretical significance [28], these uncertainty relations support a variety of applications and have been widely used in current quantum technologies, such as analyzing the security of quantum key distribution protocols [19], witnessing quantum correlations [29–32], and even inferring causality from quantum dynamics [33]. Thus, pushing the boundary of uncertainty relation will not only deepen our understanding of quantum foundations, but also has impact on practical applications.
In this work, we focus on the case of variance-based uncertainty relations, with the forms of both product and summation, and introduce the concept of uncertainty interval. The formulation of such an interval can of course be subdivided into two, namely finding the lower bound and upper bounds for joint uncertainties. To do so, we establish the partial Cauchy-Schwarz inequality, which generalizes the standard Cauchy-Schwarz inequality, and use this toolkit to construct near-optimal bounds for variance-based uncertainty relations. Numerical results highlight the advantages of our framework.
2 Product-Form Variance-Based Uncertainty Relations
Throughout this paper, we consider quantum systems acting on finite-dimensional Hilbert space. Let us start with a pair of incompatible observables A and B, and denote their spectral decompositions as A = ∑iai|ai⟩⟨ai| and B = ∑ibi|bi⟩⟨bi| respectively. On the other hand, assume the alternative observable and have the following spectral decompositions; that are and . Remark that, here all the eigenvalues are real numbers, i.e. . Now for any given orthonormal basis {|ψi⟩}, we can re-express and as ∑iαi|ψi⟩ and ∑iβi|ψi⟩ respectively. It is worth mentioning that in general both and are unnormalized, and hence the vectors (αi) and (βi) do not forms probability distributions. Then, by defining the absolute value of αi and βi as xi and yi respectively, the variance of observables A and B can be rewritten asand thus we haveIt now follows from Cauchy-Schwarz inequality immediately that
We note that such a choice of xi and yi leads directly to the main results presented in a recent formulation of strong uncertainty relation [34]. Clearly, this is not the only choice of xi and yi. By setting xi as and yi as , we re-obtain another part of results constructed in Ref. [34]. Here, for simplicity, we further denote the Uhlmann’s fidelity between |Ψ⟩ and |ai⟩ (|bi⟩) as , which are
A key observation in this work is that any improvement over the well-known Cauchy-Schwarz inequality will give us a better bound of variance-based uncertainty relation, with the same amount of information required in Eq. (4). To this end, we investigate the intrinsic connection between the arithmetic-geometric mean (AM-GM) inequality and the Cauchy-Schwarz inequality. We start by writing down the product of and ,
Above inequality is a result of n (n − 1)/2 rounds of AM-GM inequalities for with different indexes. Therefore, the equality condition holds if and only if xiyj = xjyi for all i ≠ j. By defining the quantity Ik aswe can write the left-hand-side of Eq. 4 aswhich is precisely the product-form joint uncertainty. On the other hand, the previous known bound in Ref. [34], i.e. right-hand-side quantity of Eq. 4, can be reformatted as
Now we introduce a chain of inequalities that outperform Cauchy-Schwarz inequality. More precisely, we have.
For anyn-dimensional real vectors,with non-negative components, andIkdefined inEq. 7, we have
Actually, for any index k it follow from the AM-GM inequality thatas required. Algebraically, the inequality is obtained by applying AM-GM inequality to the first k components of both and , and hence can be viewed as a partial Cauchy-Schwarz inequality. More importantly, such a partial Cauchy-Schwarz inequality, see Eq. 10, provides n − 2 tighter lower bounds for V(A)V(B) compared with the main result of [34], namely I0 = V(A)V(B) ≥ In. In particular, we can insert more terms in the above descending chain by selecting arbitrary (i < j). For example, the inequality I0 ≥ In−1 obtained from our Thm. One immediately leads to a tighter bound. More precisely, Eq. 4 can be improved towhich offers a stronger bound than that of
Note that the method of constructing bounds presented here for variance-based uncertainty relations requires the same amount of information, i.e. the fidelity between quantum state and the eigenvector of observables, needed in previous works, such as the one considered in Ref. [34], but provable tighter.
We now move on to further strengthening the bounds of uncertainty relations by considering the action of symmetric group . For any two permutations , we define
It is straightforward to check that the quantity I0 is stable under the action of . Writing everything out explicitly, we have.
For any permutations, we have
Optimizing over the symmetric group , a stronger version of the variance-based uncertainty relations is obtained.
For any permutations, we have
Mathematically, above inequalities are tighter than the result in Thm. 1, since holds for any permutations. Physically, the action of symmetric group works well since the overlaps between quantum state and the eigenvectors of observables are not uniformly distributed.
3 Sum-Form Variance-Based Uncertainty Relations
In this section we turn our attention to the sum-form variance-based uncertainty relations. Before doing so, let us recall the rearrangement inequality first. Let (xi) and (yi) be two n-tuple of real positive numbers arranged in non-increasing order, namely xi ≥ xi+1 and yi ≥ yi+1, with their direct sum, random sum and reverse sum between xi and yi being defined as
Then the following lemma characterizes the relationship among these quantities; that is.
Lemma(Rearrangement inequality) For any two non-increasingn-tuplesxandyof nonnegative numbers, we haveFrom the parallelogram law, the summation of variances can be re-expressed asCombining with the rearrangement inequality we obtain the following result.
For any two permutations, we have
Remark that, by setting π1 = (1), our newly constructed uncertainty relation outperforms similar results of sum-form variance-based uncertainty relation considered in Ref. [34]. We denote by the bound of Thm. Four corresponding to the choice of π1 = (1), π2 = (1 2 … n), , , which will be used in Sec. V.
4 Uncertainty Intervals
Quantum theory does not only impose restrictions on the lower bounds of uncertainties, but also sets limitations on the upper bounds of uncertainties [34], which are known as reverse uncertainty relations in the literature. In this section, we investigate the reverse uncertainty relations for both the product-form and sum-form uncertainty relations, and introduce several tighter bounds. Consequently, our lower bounds presented in previous sections together with the results obtained in this section lead to intervals for joint uncertainty, which are referred as uncertainty intervals.
For index 1 ≤ i ≤ n, we defineUsing the rearrangement inequality, we thus see that
By taking minimum over all permutations , we obtain a tighter upper bound for V(A)V(B):which proves that the joint uncertainty of incompatible observables A and B (for the product-form) is restricted within the interval , i.e. . In other words, is an uncertainty interval for V(A)V(B).
On the other hand, using the fact and , one derive an upper bound on the sum of variances of incompatible observables A and B as
Recalling the definitions and , we have that
Denote the right-hand (RHS) of (25) by . Thus we have obtained a uncertainty interval for V(A) + V(B): . We remark that is not always better than the bound obtained by [34], but it provides a complementary one. The comparison will be discussed by examples in the next section.
5 Numerical Examples and Conclusion
In this section we provide numerical examples to show how the bounds obtained in this work outperform previous strong results [34]. First of all, let us consider the spin-1 particle with the state |Ψ(θ)⟩ = cos θ|1⟩ − sin θ|0⟩, where the state |0⟩ and |1⟩ are eigenstates of the angular momentum Lz. We investigate the uncertainty associated with angular momentum operators for spin-1 particle, namely A = Lx and B = Ly. To formulate bounds for uncertainty relations, we choose and (similar for and ).
In Figure 1, our bound has been compared with that of [34] in the product-form for the family of spin-1 particles |Ψ(θ)⟩. As shown in our numerical results, the bound (in blue) provides the best estimation and is almost optimal. As a supplement, we also compare our result with Schrödinger’s uncertainty relation (in orange). In Figure 2, we plot lower bounds for the sum-form variance-based uncertainty relation for the family of the spin-1 particles |Ψ(θ)⟩, which highlights the advantage of our method.
FIGURE 1
Lower bounds of V(A)V(B) for a family of spin-1 particles |Ψ(θ)⟩: the product-form uncertainty relation V(A)V(B), the bound of Eq. 12, the bound of Ref. [34], and the bound of Schrödinger uncertainty relation [5] are depicted in red, blue, green, and orange respectively.

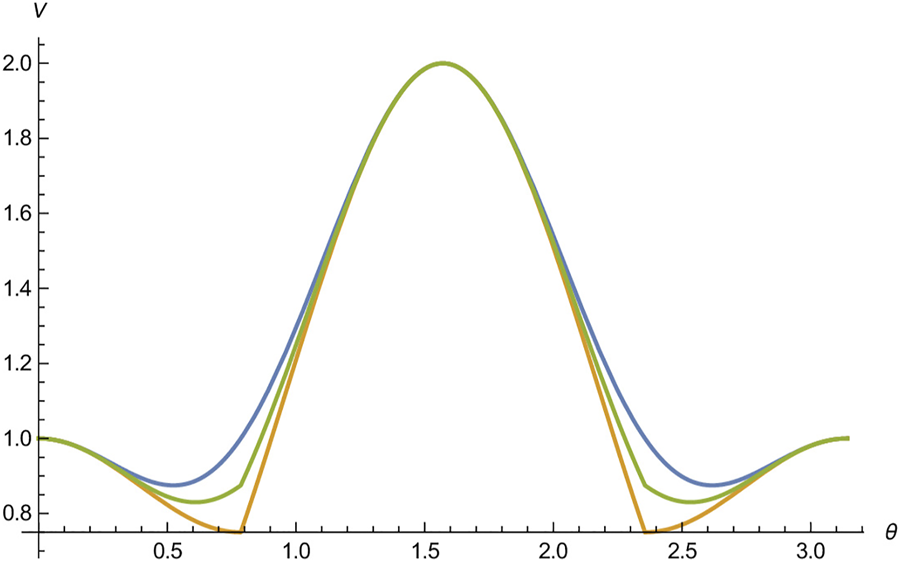

FIGURE 2
Lower bounds of V(A) + V(B) for a family of spin-1 particles |Ψ(θ)⟩: the sum-form uncertainty relation V(A) + V(B), our bound of Eq. 20, and the bound of Ref. [34] are depicted in blue, green, and yellow respectively.
Let us move on to considering the spin- particle with the following density matrixwhere the two incompatible observables are taken as A = σx and B = σz. In Figure 3, it has been shown that our upper bound provides the best estimation for the product of two variances and typically outperforms the upper bound from Ref. [34]. Note that our bound is almost optimal, as it is almost identical to the optimal value. However, our upper bound for the sum of variances V(A) + V(B) for states ρ(θ) is not always tighter than that of Ref. [34]. Nevertheless, it still provides an improvements for most of the time. See Figure 4 for an illustration.
FIGURE 3
Upper bounds of V(A)V(B) for a family of spin-1/2 particles ρ(θ): the product-form uncertainty relation V(A)V(B), our bound of Eq. 23, and the bound of Ref. [34] are depicted in red, blue, and orange respectively.

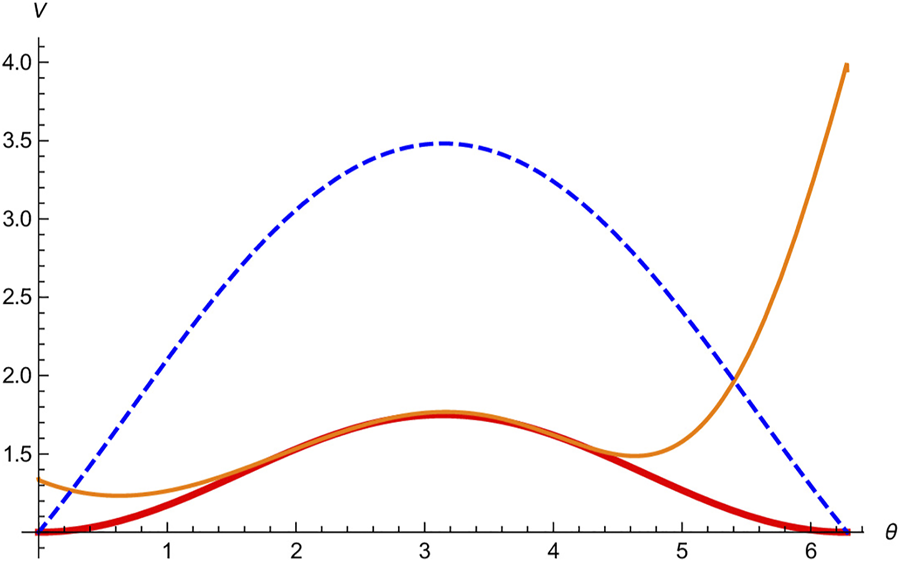

FIGURE 4
Upper bounds of V(A) + V(B) for a family of spin-1/2 particles ρ(θ): the sum-form uncertainty relation V(A)V(B), our bound of Eq. 25, and the bound of Ref. [34] are depicted in red, blue, and orange respectively.
Apart from constructing stronger uncertainty relations, our method introduced in Sec. II also helps to fill up the gap between product-form variance-based uncertainty relations and entropic uncertainty relations. Following Ref. [35], we havewhere H (⋅) stands for the Shannon entropy and c is a state-independent constant. Using Thm. 1, it is straightforward to check that
On the one hand, the term appeared above forms a so-called weighted uncertainty relation [7]. Notice that we can always assume in the numerical calculation, since V (rA)V(B) = r2V(A)V(B). Thus, Eq. 28 can be bounded as
Therefore both the incompatibility between observables and mixness of the quantum state will affect the variance-based uncertainty relations. Moreover, any entropic uncertainty relation can be employed to construct a lower bound for product-form variance-based uncertainty relation.
To summarize, we have introduced several variance-based uncertainty relations both in the sum and product forms. Our results contain both the lower bounds and the upper bounds, which leads to the concept of uncertainty intervals. Numerical experiments illustrate the advantages of our bounds, and in some cases our bounds are near optimal. Quite remarkable, our method in deriving stronger variance-based uncertainty relations also fills the gap between the product-form variance-based uncertainty relations and the entropic uncertainty relations. Beside the results present here, our framework can also be used in formulating unitary uncertainty relations. For more details, see our follow-up work [36].
