Analytical results for phase bunching in the pendulum model of wave-particle interactions

1 Introduction

Cyclotron-resonant interactions with whistler mode waves are of major importance for the dynamics of radiation belt electrons (Bortnik and Thorne, 2007). Many numerical studies of test particles interacting with coherent, monochromatic waves in an inhomogeneous background magnetic field have demonstrated that cyclotron-resonant interactions lead to changes in particle energy and pitch angle, due to the breaking of an adiabatic invariant (Chang and Inan, 1983; Bortnik et al., 2008). For sufficiently small amplitude waves these changes are diffusive, associated with a random wave-particle phase (Albert, 2010), but larger waves induce systematic, asymmetric changes, whose detailed behavior can be described in terms of phase bunching and phase trapping (Albert, 1993). Estimates of the associated energy and pitch angle ranges of such electrons have been given by, e.g., Albert (2002) and Albert et al. (2021). These processes are in turn deeply connected to nonlinear wave generation or growth (Omura et al., 2008).

For electrons interacting with parallel-propagating whistler mode waves, phase trapping causes a sustained increase in particle energy and pitch angle, while phase bunching (that is, without trapping) causes these quantities to decrease; the lost particle energy can feed wave growth. Theory and simulation indicate that for representative wave and particle parameters, phase bunching has much higher probability than phase trapping in each resonant interaction. Typical particle trajectories showing phase bunching, obtained with a Hamiltonian formulation to be discussed below, are shown in Figures 1, 2. The variables P and q, defined in Section 3, are related, respectively, to the first adiabatic invariant I and its conjugate phase ξ, which are reviewed in Section 2.

FIGURE 1

FIGURE 1. Trajectories of 120 particles from numerical integration of the equations of motion specified by the Hamiltonian of Eq. 11, with inhomogeneity parameter R = 0.1 and wave amplitude parameter A = 0.25. Left: P vs. t, showing systematic decrease associated with phase bunching at resonance. In this case, all values of ΔP are negative. Right: Change in P vs. the value of q at resonance. The dotted and dashed vertical lines show the calculated values q_turn and q_x + 2π, respectively, as discussed in the text.

FIGURE 2

FIGURE 2. Trajectories of 120 particles from numerical integration of the equations of motion specified by the Hamiltonian of Eq. 11, with inhomogeneity parameter R = 0.2 and wave amplitude parameter A = 0.25. Left: P vs. t, showing systematic decrease associated with phase bunching at resonance. In this case, most but not all values of ΔP are negative. Right: Change in P vs. the value of q at resonance. The dotted and dashed vertical lines show the calculated values q_turn and q_x + 2π, respectively, as discussed in the text.

Albert (1993) obtained an analytical estimate of the change in the first adiabatic invariant (and therefore energy and pitch angle) caused by phase bunching in the highly nonlinear limit, though the dependence on resonant wave-particle phase seen in numerical simulations was not accounted for. A more detailed expression can be written formally as an explicit but infinite and intractable integral, which must still be evaluated numerically; however, averaging over the appropriate phase and interchanging integrals leads to a much more manageable expression (Neishtadt, 1999); this is presented in Section 4. Furthermore, the very general treatment of adiabatic invariant changes of Cary et al. (1986) can be applied to this problem, leading to a detailed and reliable approximation that retains the phase dependence in closed form. This treatment quantitiatively captures the numerical observation that phase bunching-induced changes exhibit a spread of values, including some that are in fact in the positive direction. This is discussed in Section 5. Depending on the parameters used, adiabatic invariant increase may be physically significant yet too infrequent to detect from direct numerical simulation with a small number of particles.

2 Hamiltonian formulation

Albert (1993) and Albert (2000) derived a Hamiltonian $\mathcal{K}(I,\xi ,z)$ appropriate for motion near a resonance. Recapping the definitions and results of those papers, equations of motion for the normalized first adiabatic invariant $I\approx {(p_{\perp }/mc)}^2(\omega /2\mathrm{\Omega })$ and the canonically conjugate angle ξ (a combination of wave phase and particle gyrophase) issue from a Hamiltonian $\mathcal{K}$, given by

$\begin{array}{ll}\hfill \mathcal{K}& ={\mathcal{K}}_0\left(I,z\right)+{\mathcal{K}}_1\left(I,z\right)\sin \xi ,\hfill \\ \hfill {\mathcal{K}}_0& ={\eta }_z\left(I-c_2\right)-{\sigma }_{z}s\ell P_0\left(I,z\right),\hfill \\ \hfill P_0& =\sqrt{{\left(\frac{I-c_2}{s\ell }\right)}^2-1-2\frac{\mathrm{\Omega }}{\omega }I}.\hfill \end{array}(1)$

The distance z along the field line plays the role of time, so that $d\xi /dz=\partial \mathcal{K}/\partial z$ and $dI/dz=-\partial \mathcal{K}/\partial \xi$. Here ω is the wave frequency, Ω is the (local, unsigned, nonrelativistic) electron gyrofrequency, s is the sign of the particle charge, ℓ is the resonant harmonic number, and η_z is the parallel wave refractive index, k_∥c/ω. P₀ is the normalized magnitude of p_∥, where p_⊥ and p_∥ are components of the physical momentum relative to the background magnetic field. The sign of p_∥ is given by σ_z = ±1. The constant of motion c₂ relates I and the particle kinetic energy E through

$c_2=I-s\ell \gamma ,(2)$

where γ is the relativistic factor 1 + E/mc². ${\mathcal{K}}_1$ is proportional to the wave amplitude; it is given in detail by Eqs. A2, A4 of Albert (2000), and for the special case of a parallel-propagating wave by Eqs. 2, 3 of Albert et al. (2021). As given in Appendix C of Albert (2000), changes in energy E and equatorial pitch angle α₀ are related to small resonant changes in I by

$\frac{\mathrm{\Delta }E}{m{c}^2}=\frac{\mathrm{\Delta }I}{s\ell },\mathrm{\Delta }{\alpha }_0=\frac{{\mathrm{\Omega }}_{eq}/\omega -\left(\gamma /s\ell \right){\sin }^2{\alpha }_0}{{\left(p/mc\right)}^2\sin {\alpha }_0\cos {\alpha }_0}\mathrm{\Delta }I,(3)$

where ℓ ≠ 0, and Ω_eq is the equatorial value of Ω.

At a given location z, the resonant value of I is determined to lowest order by $\partial {\mathcal{K}}_0/\partial I=0$, which corresponds to the standard resonance condition

$\omega -k_{\parallel }{v}_{\parallel }=s\ell \mathrm{\Omega }/\gamma .(4)$

This yields

$\begin{array}{ll}\hfill I_{\mathit{res}}& =c_2+{\left(s\ell \right)}^2\frac{\mathrm{\Omega }}{\omega }+{\sigma }_{z}s\ell {\eta }_z{P}_{0,res},\hfill \\ \hfill P_{0,res}& =\frac{1}{\sqrt{{\eta }_z^2-1}}\sqrt{1+2\frac{\mathrm{\Omega }}{\omega }{c}_2+{\left(\frac{s\ell \mathrm{\Omega }}{\omega }\right)}^2},\hfill \end{array}(5)$

which generalize Eqs. 5, 6 of Albert et al. (2021) to arbitrary values of sℓ. The z dependence of I_res is characterized by ∂I_res/∂Ω, which can be written as

$\frac{\partial I_{\mathit{res}}}{\partial \mathrm{\Omega }}=s\ell {\sigma }_z\frac{{\eta }_z{I}_{\mathit{res}}-s\ell {\sigma }_z{P}_{0,res}}{\omega \left({\eta }_z^2-1\right)P_{0,res}}.(6)$

For the prototype situation of an electron (s = −1) in primary resonance (ℓ = −1) and heading toward the equator (σ_z = −1), as considered here, this quantity is always negative; both z and the gyrofrequency Ω decrease and I_res increases. The correspondence between Eq. 1 and the gyro-averaged Lorentz equations of motion was investigated by Albert et al. (2022).

3 Pendulum hamiltonian

A Taylor expansion of ${\mathcal{K}}_0$ in Eq. 1 gives the pendulum-like form

$M\left(I,\xi ,z\right)=\frac{G_r}{2}{\left(I-I_{\mathit{res}}\right)}^2+F_r\sin \xi (7)$

where $G_r={\partial }^2{\mathcal{K}}_0/\partial I^2$ and $F_r={\mathcal{K}}_1$, both evaluated at resonance. Albert (2000) obtained the estimate

$G_r\approx \frac{{\eta }_z^2-1}{s\ell {\sigma }_z{P}_0}.(8)$

It is convenient to define σ_F and σ_G as the signs of F_r and G_r, respectively, so that F = σ_FF_r and G = σ_GG_r are positive. Then Eq. 7 can be brought into the same form as Equation 72 of Cary et al. (1986) by changing variables to

$\tau ={\sigma }_{G}z,P=GI,q=\xi -{\sigma }_F{\sigma }_G\frac{\pi }{2}.(9)$

The equations of motion in these variables are then given by the Hamiltonian

$H\left(P,q,\tau \right)=\frac{1}{2}{\left(P-P_{\mathit{res}}\right)}^2-2A{\sin }^2\left(q/2\right),(10)$

with P_res = GI_res and A = FG. Typical contours at fixed P_res(τ) are shown in Figure 3. For the prototype configuration (with s = ℓ = σ_z = −1) G_r is negative, so dP_res/dτ = σ_GG(dI_res/dz) is positive. Albert et al. (2021) and Artemyev et al. (2021) considered a more general version of Eq. 7 which retains a factor of $\sqrt{I}$ in the wave term, which can distort the separatrix shape in order to maintain I > 0. This can lead to “positive phase bunching” for particles with small initial values of I (Kitahara and Katoh, 2019; Gan et al., 2020). However, as seen in Figure 2, this can occur even in the pendulum approximation.

FIGURE 3

FIGURE 3. Contours of the pendulum Hamiltonian H(P, q) given by Eq. 10, with A = 0.25. If the inhomogeneity parameter R is small but positive, the separatrix (shown in black) slowly rises. At resonance near the X-point, particles cross from red contours to blue (phase bunching) or green (phase trapping) contours.

Transforming from P to p = P − P_res in Eq. 10 gives

$K\left(p,q,\tau \right)=\frac{p^2}{2}-A\left(1-\cos q-Rq\right),(11)$

where both A and the inhomogeneity parameter R = (dP_res/dτ)/A are positive and will be taken as constant. This idealization eliminates the possibility of phase trapping, which involves expansion of the Hamiltonian separatrix to engulf neighboring trajectories.

Trajectories of 120 particles from numerical integration of the equations of motion specified by the Hamiltonian of Eq. 11 are shown in Figure 1, with inhomogeneity parameter R = 0.1 and wave amplitude parameter A = 0.25. In this case, all values of ΔP are negative. In Figure 2 the wave amplitude parameter A is the same but the inhomogeneity parameter has been increased to R = 0.2, resulting in positive ΔP for some values of q at resonance.

4 Integral expression for changes in invariant

Contours of K, from Eq. 11, are shown in the top panel of Figure 4. The linearly unstable X-point obeys $\tan q_x=R/\sqrt{1-R^2}$ and the stable O-point obeys $\tan q_o=R/(-\sqrt{1-R^2})$, with the branch choices − 2π < q_x < − 3π/2 and − 3π/2 < q_o < − π. The value q_turn is the second location where the curve through an X-point crosses p = 0, with q_x < q_o < q_turn < q_x + 2π. Finally, q_* refers to where a general trajectory crosses p = 0, with q_turn < q_* < q_x + 2π.

FIGURE 4

FIGURE 4. Top: Contours of K(p, q) for parameters R = 0.2 and A = 0.25, color-coded by q_* (the value of q at p = 0). Middle: The function appearing in the integral of Eq. 13. Bottom: The colored symbols show ΔP vs. q_* from numerical evaluation of Eq. 13, which is negative for most but not all values of q_*. The horizontal dashed line shows the averaged value, and the horizontal dotted line shows the value $-(8/\pi )\sqrt{A}$ applicable to R = 0. The black symbols show the values from Figure 2.

The change in P can be expressed as

$\begin{array}{ll}\hfill \mathrm{\Delta }P& =\int dq\frac{dP/d\tau }{dq/d\tau }=\int dq\frac{-\partial H/\partial q}{\partial K/\partial p}\hfill \\ \hfill & =\int \frac{A\sin qdq}{\sqrt{2[K+A\left(1-\cos q-Rq\right)]}}.\hfill \end{array}(12)$

The integral over q is taken from − ∞ to the value q_* and then back to q = −∞, where q_* is the value of q as the curve crosses p = 0. It is sufficient to integrate from − ∞ to q_* and double the result. It is convenient to define h = (K + A)/AR and a = 1/R, so that

$\mathrm{\Delta }P=\sqrt{\frac{2A}{R}}{\int }_{-\infty }^{q_{\ast }}\frac{\sin qdq}{\sqrt{h-a\cos q-q}}.(13)$

Note that h(p, q + 2π) = h(p, q) + 2π.

This infinite, oscillatory integral is carried out along contours of h(p, q). The middle panel shows values of the integrand, and indicates that a wide range of q values contribute to the total integral. The bottom panel shows numerical evaluations (in color), which are generally negative but can be positive near q_∗ = q_turn or q_∗ = q_x + 2π. Also shown, as black symbols, are the values from the simulations of Figure 2. The excellent agreement is expected since Eq. 13 and the equations of motion from Eq. 11 should be exactly equivalent.

4.1 Average value of ΔP

The integral for ΔP cannot be carried out in closed form, but it can be averaged with respect to q_* analytically. Averaging with respect to q_* is equivalent to averaging with respect to h (Cary et al., 1986; Itin et al., 2000), with the range q_turn to q_x + 2π corresponding to the range h_x to h_x + 2π (since h_turn = h_x). Following Neishtadt (1999) and Artemyev et al. (2018), the curves are integrated separately over the ranges q < q_x (region 1) and q > q_x (region 2), with the latter combined with the (p, q) island (region 3). For region 1,

$\begin{array}{ll}\hfill I_1& ={\int }_{h_x}^{h_x+2\pi }dh{\int }_{-\infty }^{q_x}\frac{\sin qdq}{\sqrt{h-a\cos q-q}}\hfill \\ \hfill & ={\int }_{-\infty }^{q_x}2dq\sin q\left[\sqrt{h_x+2\pi -a\cos q-q}-\sqrt{h_x-a\cos q-q}\right]\hfill \\ \hfill & =-{\int }_{q_x-2\pi }^{q_x}2dq\sin q\sqrt{h_x-a\cos q-q}.\hfill \end{array}(14)$

Next, noting that along the q axis h ≡ h₀ = a cos q + q,

$\begin{array}{ll}\hfill I_2+I_3& ={\int }_{q_x}^{q_x+2\pi }dq{\int }_{h_0}^{h_x+2\pi }dh\frac{\sin q}{\sqrt{h-a\cos q-q}}\hfill \\ \hfill & ={\int }_{q_x}^{q_x+2\pi }2dq\sin q\sqrt{h_x+2\pi -a\cos q-q}.\hfill \end{array}(15)$

Thus I₁ + I₂ + I₃ = 0. Finally, I₃ can be expressed as

$\begin{array}{ll}\hfill I_3& ={\int }_{q_x}^{q_{\mathit{turn}}}dq{\int }_{h_0}^{h_x}dh\frac{\sin q}{\sqrt{h-a\cos q-q}}\hfill \\ \hfill & ={\int }_{q_x}^{q_{\mathit{turn}}}2dq\sin q\sqrt{h_x-a\cos q-q}.\hfill \end{array}(16)$

Writing sin q = (a sin q − 1)/a + 1/a leads to I₃ = S/a, with

$S={\int }_{q_x}^{q_{\mathit{turn}}}2dq\sqrt{h_x-a\cos q-q},(17)$

which is the area of the (p, q) island. The average of ΔP over regions 1 and 2 is then

$⟨\mathrm{\Delta }P⟩=-\frac{\sqrt{2AR}}{2\pi }S,(18)$

which becomes $-(8/\pi )\sqrt{A}$ as R → 0, in agreement with the estimate obtained by Albert (1993).

5 Two-lobe hamiltonian

Cary et al. (1986) (hereafter CET) gives a comprehensive treatment of adiabatic invariant breaking due to crossing the separatrix of a Hamiltonian $\mathcal{H}(\mathrm{\Pi },Q)$ with the form

$\mathcal{H}\left(\mathrm{\Pi },Q,t\right)=\omega \frac{{\mathrm{\Pi }}^2-Q^2}{2}+\delta H\left(\mathrm{\Pi },Q,ϵt\right),(19)$

where Π and Q are a pair of action-angle variables and the small quantity ϵ indicates that the crossing is slow. This form is chosen to facilitate analysis of motion near the X-point, but Appendix A of CET shows how an arbitrary Hamiltonian may be put into this form to arbitrary order in ϵ (the several typesetting errors in Eq. 10 notwithstanding). The phase portrait of this Hamiltonian has two lobes; typical contours of Eq. 19 are shown in Figure 5.

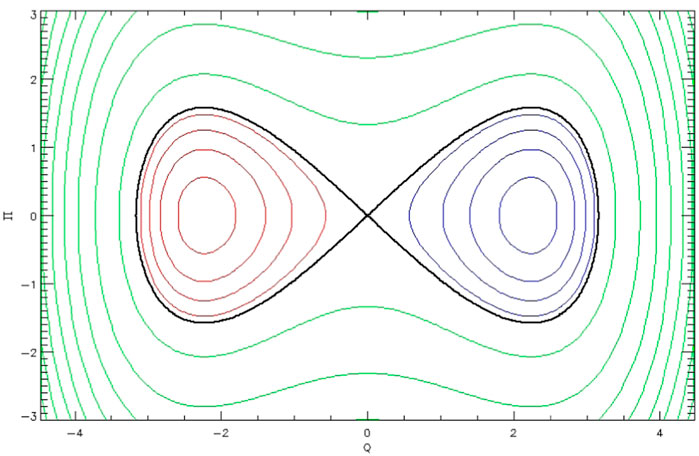

FIGURE 5

FIGURE 5. Contours of a two-lobe Hamiltonian of the form of Eq. 19. The contour colors correspond to those of Figure 3.

Following a very complex sequence of calculations based on Eq. 19, two special cases are considered, described as symmetric and antisymmetric (which refer to the growth rates of the two lobes shown in 5, not their shapes). The symmetric case was applied to drift orbit bifurcation by Öztürk and Wolf (2007). The antisymmetric case applies to the pendulum Hamiltonian of Eq. 7 and its transformed version Eq. 11, which are of the same form as, respectively, Equation 72 and the subsequent one of CET. With a minor typesetting correction, Equation 84 of CET gives

$\begin{array}{ll}\hfill \mathrm{\Delta }P& =-\frac{8}{\pi }{A}^{1/2}-\frac{h_0}{\pi A^{1/2}}\log \left|\frac{32A}{h_0}\right|\hfill \\ \hfill & -2R{A}^{1/2}\left\{\left(\frac{1}{2}+\mu \right)\log |\mu |-\log \left|\frac{\mathrm{\Gamma }\left(1+\mu \right)}{\sqrt{2\pi }}\right|\right\},\hfill \end{array}(20)$

where Equation 75 of CET has been used, and the notation

$\mu =\frac{h_0}{2\pi RA}(21)$

has been introduced. Related expressions were presented by Neishtadt (1987). The leading term of Eq. 20 is the same as the estimate of Albert (1993).

To evaluate h₀ and μ in terms of K(p, q, τ) of Eq. 11, it is necessary to shift K by a constant:

$h_0\left(q_{\ast }\right)=K\left(p=0,q_{\ast },\tau \right)-K\left(p=0,q_x+2\pi ,\tau \right),(22)$

so that h₀(q_x + 2π) = 0 for consistency with the derivation. It can be shown that K(q_*) is an increasing function of q_* between q_turn and q_x + 2π, so h₀ ≤ 0, and that μ correspondingly increases from − 1 to 0. Eq. 9 of Tennyson et al. (1986), which was written in terms of m_d = |μ|, is equivalent if A = ω = 1.

Evaluation of Eq. 20 is shown in color in Figure 6. Also shown, as a black curve, are the values from Eq. 13. These two formulations are not exactly equivalent, but are in excellent agreement.

FIGURE 6

FIGURE 6. The colored symbols show ΔP vs. q_∗ from Eq. 20, which is negative for most but not all values of q_*. The solid horizontal line shows the averaged value, and the red dashed horizontal line shows the value from Eq. 18. The black symbols show the values from Figure 2. The dotted and dashed vertical lines show the calculated values q_turn and q_x + 2π, respectively, as discussed in the text.

Equation 20 can be approximated near μ = 0 as

$\mathrm{\Delta }P\approx -\frac{8}{\pi }{A}^{1/2}+R{A}^{1/2}\log \left|\frac{1}{2\pi \mu }\right|,(23)$

and near μ = −1 as

$\mathrm{\Delta }P\approx -\frac{8}{\pi }{A}^{1/2}+2R{A}^{1/2}\log \left|\frac{16}{R\sqrt{2{\pi }^3}}\left(\frac{1}{1+\mu }-{\gamma }_0\right)\right|,(24)$

where γ₀ ≈ 0.5772 is the Euler constant. For small values of R, these estimates are positive only for very narrow ranges of μ, approximately

$|\mu |<\frac{1}{2\pi }{e}^{-8/\pi R}(25)$

or

$1+\mu <\frac{2}{R}{e}^{-4\pi /R},(26)$

respectively. For R = 0.5, these values are approximately 10⁻³ and 0.3, while for R = 0.2 they are 5 × 10⁻⁷ and 0.02, respectively. Thus ΔP > 0 only for particles with μ near − 1 or extremely near μ = 0.

Equation 20 can be averaged over μ, giving

$⟨\mathrm{\Delta }P⟩=-\frac{8}{\pi }{A}^{1/2}\left[1-\frac{\pi R}{8}\left(1+\log \frac{16}{\pi R}\right)\right].(27)$

This value is shown as the thick black line in Figure 6, and agrees very well with Eq. (18), shown as the dashed red line.

Finally, comparing Eqs. 27, 18 gives the estimate

$S=\frac{16}{\sqrt{2R}}\left[1-\frac{\pi R}{8}\left(1+\log \frac{16}{\pi R}\right)\right],(28)$

which should be useful in situations where R is slowly changing, and the probability of phase trapping is proportional to the rate of change of S (Artemyev et al., 2018).

6 Summary

Wave-particle interactions are frequently treated with a pendulum Hamiltonian equivalent to Eq. 11. With the wave amplitude parameter A and the inhomogeneity parameter R held constant, phase trapping does not occur, and changes in adiabatic invariant P due to phase bunching are formally expressible by the integral in Eq. 13. This result depends on the wave-particle phase q at resonance; positive values can occur but are uncommon. Averaging over that phase gives the more tractable expression 18, which is always negative.

Equation 20, which is a special case of a detailed analysis of the two-lobe Hamiltonian of Eq. 19, gives the change in P as an explicit function of q at resonance. Its average value, Eq. 27, agrees very well with Eq. 18, and it also accurately reproduces the numerically observed dependence on q, including positive values of ΔP (see Figure 6). Analytical estimates of the fraction of particles with these positive values were obtained, which are exponentially small for small values of R. Finally, combining the two treatments gives a good analytical approximation to the area bounded by the pendulum separatrix, whose rate of increase determines the probability of phase trapping.
