Abstract
The thalamic rostral intralaminar nuclei (rILN) are a contiguous band of neurons that include the central medial, paracentral, and central lateral nuclei. The rILN differ from both thalamic relay nuclei, such as the lateral geniculate nucleus, and caudal intralaminar nuclei, such as the parafascicular nucleus, in afferent and efferent connectivity as well as physiological and synaptic properties. rILN activity is associated with a range of neural functions and behaviors, including arousal, pain, executive function, and action control. Here, we review this evidence supporting a role for the rILN in integrating arousal, executive and motor feedback information. In light of rILN projections out to the striatum, amygdala, and sensory as well as executive cortices, we propose that such a function enables the rILN to modulate cognitive and motor resources to meet task-dependent behavioral engagement demands.
Introduction
The mammalian thalamus can be parcellated into ~60 nuclei defined by cytoarchitecture and connectivity properties (Jones, ). Examination of afferent and efferent connections reveals several organizational themes among the nuclei. The first, and perhaps most studied, grouping is the first-order sensory relay nuclei. These regions receive inputs from peripheral sensory systems and faithfully transmit information to the corresponding primary sensory cortical region through direct glutamatergic synapses. The lateral geniculate nucleus of the thalamus, for example, relays visual information from the retina to the primary visual cortex.
A second class of thalamic nuclei are referred to as higher-order association nuclei. These relay nuclei are noted for being innervated by a primary sensory cortical area and, in turn, project to the corresponding secondary sensory cortical region. For example, a primary target of the visual cortex is the thalamic pulvinar nucleus which, in turn, serially innervates higher order visual cortical areas to facilitate spatial attention through synchronization of visual cortical areas (Saalmann et al., 2012). Other proposals for the function of such cortico-thalamo-cortical (or trans-thalamic) pathways suggest roles in entraining otherwise isolated cortical regions, providing efference copies to subcortical systems, or serving as a coincidence detector for parallel cortico-cortical signaling (Sherman, 2016). Another example of higher-order association nuclei in the thalamus is the reticular nucleus. Enveloping the lateral boundary of the thalamus, this GABAergic cellular group receives axon collaterals from passing thalamo-cortical and cortico-thalamic projections and innervates nearly all thalamic nuclei. These circuits enable feedforward and feedback inhibitory circuits to modulate thalamocortical signaling, as well as exert lateral inhibition across otherwise disconnected thalamic nuclei with limited inhibitory microcircuitry (Crabtree, ).
The final group of thalamic nuclei are located on the midline or nestled within the internal medullary lamina. This grouping is referred to as the “non-specific” thalamus for the long-held, but since, challenged view that these nuclei globally activate the cortex (Groenewegen and Berendse, ). Along the midline are the paraventricular, intermediodorsal, paratenial, reuniens, rhomboid, and in primates, subfascicular nuclei (Jones, ). More caudally, the medullary lamina splits and contains the parafascicular nucleus (Pf), and more laterally, the centré median nucleus (referred to here as CeM). The boundary distinguishing these two nuclei is undetectable in rodents and other smaller mammals; thus, the posterior intralaminar nuclei are referred to solely as the Pf in these species with the consideration that the lateral component of this nucleus is homologous to the CeM (Jones, ). Located anteriorly within the lamina are the rostral intralaminar nuclei (rILN): the central lateral (CL), paracentral (PC), and central medial (CM) nuclei. In the rodent, these three nuclei are parceled from a continuous band of neurons spanning from the midline, curving around the ventrolateral boundary of the mediodorsal nucleus and terminating ventral to the hippocampal dentate gyrus and lateral to the lateral habenula (Figure 1) (Franklin and Paxinos, ). Delineating the boundaries of the PC is difficult, which is usually defined by the more flattened appearance of cells compared to the adjacent medially-located CM and dorsally-positioned CL. This general structure of the rILN is preserved in the cat but disrupted and discontinuous in the primate (Jones, ).

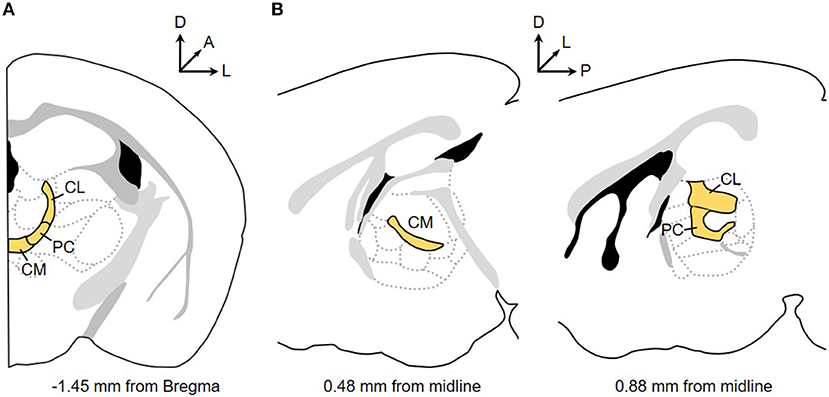

Figure 1
In the following sections we review rILN anatomical connectivity, examine how these connections confer roles for these nuclei within specific functional domains, and assess potential involvement of the rILN in multi-system disease states. Finally, we present a conceptual framework describing how these thalamic nuclei contribute to a wide array of behavioral functions. Our review primarily draws from studies conducted in rodents. However, we note findings derived from other species where appropriate.
rILN Anatomical Connectivity
Like the relay thalamic nuclei, the intralaminar nuclei are primarily composed of glutamatergic projection neurons. A notable difference from thalamic relay nuclei, however, is the breadth of afferents that arise from sensory, motor, and limbic modalities to innervate the rILN (Figure 2). The rILN (and Pf) are predominately innervated by subcortical areas. Major excitatory afferents to the rILN include the superior colliculus, hypothalamic supramammillary nucleus, reticular formation, parabrachial nucleus, and deep cerebellar nuclei, as well as several first- and higher- order thalamic nuclei (Krout and Loewy, ; Krout et al., , ). Whereas both the rILN and the Pf receive input from the cortex, the rILN are notably innervated by a wider range of cortical regions including cingulate, retrosplenial, parietal, insula, prefrontal, somatosensory, supplementary motor, auditory, and visual cortices (Van der Werf et al., 2002; Prasad et al., 2020). In contrast, only the frontal and parietal cortices innervate the Pf (Cornwall and Phillipson, ).
Figure 2
Inhibitory inputs to the rILN arise from the substantia nigra pars reticulata, habenula, zona incerta, thalamic reticular nucleus, and the external segment of the globus pallidus (Carter and Fibiger,
Examination of rILN efferents reveals a pattern of projections distinct from that of both thalamocortical relay neurons and the Pf. Whereas, the thalamic relay nuclei generally target cortical regions related to a specific sensory or functional modality and the Pf weakly projects to a restricted number of cortical areas, the rILN defy cortical functional boundaries and innervate widely. Neural circuit-specific investigation reveals subtle differences in innervation patterns between the rILN nuclei that are most apparent when comparing the CL and CM (Figure 2). Collectively, these nuclei send excitatory projections to cingulate, agranular insula, lateral orbital, parietal, retrosplenial, entorhinal, frontal eye field, gustatory, visceral, auditory, visual, motor, and somatosensory cortices (Yanagihara et al., 1987; Berendse and Groenewegen,
The intralaminar nuclei also differ from the thalamic relay nuclei in their innervation of subcortical regions. In particular, these nuclei densely innervate the striatum. All three nuclei of the rILN project to the entirety of the striatal complex (Van der Werf et al., 2002). These projections are loosely topographically organized with the laterally-positioned CL most densely innervating the dorsolateral striatum and the medially-located CM targeting the dorsomedial striatum. Although the nucleus accumbens receives denser input from adjacent midline paraventricular and intermediodorsal nuclei, both the CM and PC innervate this ventral region as well (Van der Werf et al., 2002). The caudally-lying Pf, in comparison, innervates the striatum more densely (Mandelbaum et al., 2019). Whereas projections generally span the majority of the striatum, the Pf more strongly innervates the dorsolateral striatum and nucleus accumbens (Sadikot et al., 1992; Van der Werf et al., 2002).
How does rILN anatomical connectivity compare to that of the other non-specific thalamic nuclei? The rhomboid and reuniens nuclei are notably reciprocally connected with the medial prefrontal cortex and hippocampus, suggesting roles in higher-order cognitive processes (Cassel et al.,
rILN afferent and efferent connectivity reveal additional anatomical patterns that may inform function. First, examination of thalamocortical and thalamostriatal projections shows that the rILN innervate striatal areas that are also targeted by cortical regions that the rILN also directly innervate and/or receive cortico-thalamic projections (Hunnicutt et al.,
rILN projections exhibit notable differences in cortical synaptic targets, as compared to the thalamic relay nuclei. First-order thalamic relay axons terminate in middle cortical layers whereas higher-order nuclei innervate superficial layers (Jones,
In the striatum, comparison of rILN and Pf afferent synaptic morphology reveals striking differences between the two thalamic projections. rILN terminals form axo-spinous synapses on striatal medium spiny neurons (MSNs) (Raju et al., 2006) that induce large facilitative AMPA receptor -mediated responses (Ellender et al.,
Physiological Features of the rILN
The extensive connectivity of the rILN with brainstem, basal ganglia, and cortical regions distinguishes these nuclei from the primarily unimodal thalamic relay nuclei. Further distinguishing the rILN are unique physiological features. In awake monkeys, cats, and mice, rILN neurons exhibit tonic single-spike firing at 6–8 Hz (Glenn and Steriade,
rILN firing activity is governed by sleep-wake states. During non-REM sleep or under anesthesia, tonic firing diminishes as rILN neurons predominately fire in short infrequent bursts (3–6 spikes at 300–600 Hz with inter-burst intervals of 3–10 Hz) that correspond with cortical slow wave activity at relatively hyperpolarized membrane potentials (Glenn and Steriade,
A distinct population of neurons was identified in the cat dorsal CL characterized by larger cell bodies and significantly faster sleep-associated firing frequencies of 800–1,000 Hz spike bursts. Moreover, this bursting activity is largely preserved in REM sleep and awake states (Steriade et al., 1993). These faster firing rates notably correlate with optimal CL stimulation frequencies to induce wakefulness in primates (Redinbaugh et al., 2020) and rats (Liu et al.,
Functional Attributes of the rILN
Given their extensive anatomical connectivity, it is not surprising that the rILN are associated with a wide range of behavioral functions. Broadly, these nuclei are implicated in consciousness, sensory and pain processing, executive function, and action control. We review the anatomical and behavioral evidence for each of these functions below.
Consciousness and Arousal
Heavily innervated by the reticular formation, the rILN were historically considered to serve as a continuation of the ascending reticular activating system (ARAS): the series of brainstem-located nuclei responsible for regulating sleep-wake states. rILN neuronal activity shifts from tonic to burst firing in the transition from sleep to wake states (Glenn and Steriade,
Abnormal regulation of arousal by the rILN may underlie other pathological conditions. Individuals with temporal lobe epilepsy, the most common form of epilepsy, exhibit increased connectivity between the rILN and ARAS brain structures and the occipital lobe (González et al.,
Cognition
Learning
The high connectivity of the rILN with brain structures comprising the limbic system enables these nuclei to influence cognitive processes (Yanagihara et al., 1987; Vertes et al., 2015). Assessments of rILN contributions to learning reveal conflicting results. For example, rodents with rILN lesions show intact learning ability in finding a hidden platform over multiple trials in the Morris water maze in one study (Lopez et al., 2009), but exhibited significant impairments in another (Mair et al., 1998) despite similar experimental parameters. Manipulations specifically inhibiting the rILN to striatum pathway demonstrate intact ability to learn a two-lever appetitive operant task, but pronounced impairments in reversal learning (Kato et al.,
Memory
Matching-to-sample or position tasks assess sensory discrimination with versions that implement a delay prior to the response period to test working memory. Lesioning the rILN produces impairments on delayed spatial or olfactory discrimination tests indicating a deficit in working memory, but not sensory discrimination (Mair et al., 1998; Zhang et al., 1998). Moreover, electrical rILN stimulation improves performance when delivered during the delay or response period of the delayed matching-to-position task, further implicating the rILN in working memory and retrieval processes (Mair and Hembrook, 2008). rILN-lesioned rats successfully complete radial arm mazes in the presence of spatial cues but show significant deficits when forced to use an egocentric navigation strategy (Mair et al., 1998; Mitchell and Dalrymple-Alford, 2006). Together, these experiments demonstrate a consistent role for the rILN in working memory. This functional process is likely mediated through rILN projections to the cortex, as selective elimination of the rILN thalamostriatal pathway does not impair spatial working memory (Kato et al.,
The rILN contribute to other memory processes. High frequency rILN stimulation enhances object recognition memory following a 2-hour delay between first object interaction and re-testing for recognition of that object and induces transcription of zif268, an immediate early gene upregulated during long-term potentiation, in the anterior cingulate cortex and hippocampal dentate gyrus (Shirvalkar et al., 2006). In an assessment of spatial long-term memory function, rILN-lesioned rats successfully recall the location of a hidden platform in the visual-cued Morris water maze 5 days, but not 25 days, following acquisition (Lopez et al., 2009). Whether this deficit in remote spatial memory is due to impaired memory formation or retrieval remains unclear.
The rILN are also susceptible to pathology in cognitive disorders marked by memory impairment. Alpha-synuclein deposits form in the rILN in individuals with Parkinson's disease or Lewy Body Dementia (Brooks and Halliday,
Sensory-Related Attention
The involvement of the rILN in arousal naturally extends to attentional processes. Abnormal rILN connectivity with ARAS-regulating brainstem structures correlates with deficits in visuospatial attention in humans (González et al.,
The rILN receive glutamatergic input from the intermediate and deep layers of the superior colliculus (Krout et al.,
Pain
In addition to sensory-evoked activity, rILN neurons fire in response to a range of noxious stimuli with large receptive fields (Zhang and Zhao, 2010; Deng et al.,
The rILN are hypothesized to mediate the emotional and motivational aspects of pain (Sewards and Sewards, 2002) and may potentially do so through reciprocal connectivity with the basolateral and central amygdala (Krettek and Price,
Clinical Correlates of rILN Function
The extensive anatomical connectivity and involvement of the rILN in a range of behaviors suggest that these nuclei may participate in disorders spanning multiple functional systems. Schizophrenia presents a constellation of symptoms encompassing sensory, motor, and cognitive dysfunction (Delevoye-Turrell et al.,
The rILN are innervated by motor centers including the reticular formation and cortical supplementary motor area and, in turn, project to both the primary motor cortex and striatum. High frequency rILN stimulation produces general increases in locomotion (Shirvalkar et al., 2006). Conversely, lesions result in delayed initiation of goal-directed actions (Burk and Mair,
Recent studies report that the rILN evoke dopamine release in the striatum through a di-synaptic circuit involving striatal cholinergic interneurons. Specifically, activation of rILN terminals synapsing on striatal cholinergic interneurons results in local striatal dopamine release (Cover et al.,
Discussion
In vivo recordings demonstrate that the rILN are driven by ARAS activity. Accordingly, rILN firing activity and rILN-induced cortical activation are strongly modulated by sleep and wake arousal states. However, the rILN are not a simple continuation of ARAS; rILN reciprocal connectivity with cortical regions and the basal ganglia elevates this thalamic center to a higher-order integration center. This is supported by the behavioral evidence that rILN activation globally enhances consciousness, memory function, and perceptual decision-making. Conversely, negatively modulating rILN activity broadly impairs motor function, sensory perception, and cognitive ability (Figure 3B). Together, these findings suggest that rILN function, spanning from minimal activity (e.g., unconsciousness) to maximal activity (i.e., optimized task engagement), provides a continuum of effective behavioral responses required of a particular task. Thus, we propose that t the rILN facilitate degrees of behavioral engagement, which we define as the application of cognitive, affective, and motor faculties required to achieve a goal (Figure 3A).

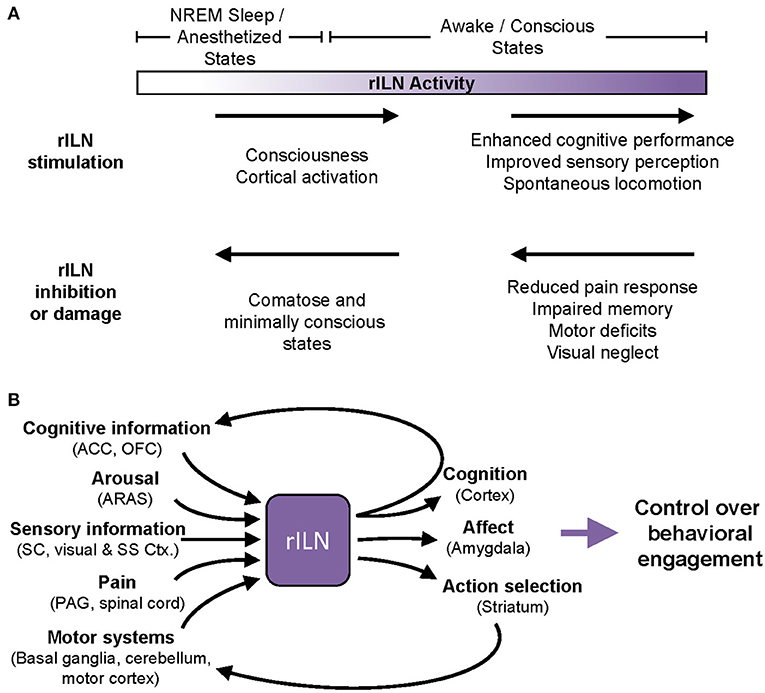

Figure 3

A proposal for modulation of cognitive and behavioral engagement by the rILN. (A) Clinical and experimental evidence demonstrate that rILN activity modulates behavioral processes. Minimal rILN activity (left) occurs during sleep or under anesthesia, whereas heightened rILN function (right) is associated with consciousness and optimal attentional states. Within this spectrum of activity, modulations to rILN function induce bi-directional changes in sensory perception, executive function, and motor control. (B) The rILN are anatomically positioned to regulate behavioral engagement. The rILN receive information related to cognitive control and decision-making, arousal, sensory information, pain, and motor function (left). Integrating these diverse signals, the rILN may drive task-relevant gains in cognitive and action control through excitation of efferent processes including cognitive networks, affective responses, and action execution (right). ACC, anterior cingulate cortex; ARAS, ascending reticular arousal system; Ctx, cortex; NREM, non-REM; OFC, orbitofrontal cortex; SC, superior colliculus; SS, somatosensory.
An essential component to our model of rILN function is the integration of sensory, motor, cognitive, and ARAS inputs. We propose that this culmination of afferents enables the rILN to drive behavioral engagement in a manner sensitive to changing task demands. For example, heightened rILN activity correlates to successful performance on tasks that prompt transition from low to high arousal states or require prolonged attentional engagement (Kinomura et al.,
Through their innervation by cognitive cortical regions and re-entrant basal ganglia circuits, the rILN may exert a gain control function for cognitive and action engagement commensurate with task or goal relevance (e.g., driven by salience, internal state, and reward value). In this way, the rILN may appear to participate in attentional allocation. Traditional models describe attention as a causal filter for enhancing relevant sensory information (Broadbent,
This conceptual framework leads to the following testable predictions:
Interoception: rILN activity increases with enhanced goal valuation due to interoceptive factors (e.g., unlocking a door to access a food reward in the face of hunger).
Pain: rILN activity increases with enhanced goal valuation due to pain (e.g., unlocking a door required to escape fire).
Social cognition: rILN activity increases with enhanced goal valuation due to complex external factors (e.g., unlocking a door to avoid an argumentative individual).
Action expression: The rILN are engaged for both goal-directed and habitual action strategies as long as the internal or external factors driving reward acquisition are of sufficient incentive salience.
Action learning and reinforcement: As an animal learns that a particular action leads to reward, rILN activity increases lead to further engagement in that behavior.
Attention: Measures of executive and selective attention paid to goal-relevant cues will positively scale with increasing reward value and rILN activity.
Conscious awareness: Increasing rILN activity correlates with decreases in attention paid to goal-irrelevant cues.
Cognitive control: rILN inhibition evokes more pronounced deficits in tasks that require greater attentional effort or cognitive load as compared to easier versions that can be successfully completed with less engagement.
Our conceptual framework suggests that global enhancement of function is achieved through the coordinated activation of rILN efferents. Therefore, the results of manipulations to select rILN projections may occlude functional contributions mediated through multiple efferent targets. For example, selectively activating rILN cortical or striatal projections during sensorimotor learning may individually produce negligible or modest enhancements in performance. Activating all rILN projection neurons, however, may significantly improve learning through simultaneous excitation of striatal and cortical targets.
We predict that rILN activity manipulations may manifest in a variety of ways depending on the task. For instance, rILN activity may closely correlate with performance measures such as reaction time or accuracy, indicating fine-tuned sensitivity to behavioral outcome. Determining how the rILN activates for a particular task, in a rILN output pathway -specific manner, is poised to provide clarity for the extant data that indicates rILN signaling correlates with a range of behaviors, from saccades to reversal learning. Testing the predictions proposed here stands to elucidate the extent and limits of rILN involvement in behaviors spanning functional modality, skill-level, and attentional demand.
Conclusion
Inspection of rILN anatomical connectivity and behavioral contributions reveals the distinct involvement of the rILN in an extensive number of functional systems. We herein propose that the rILN support a gain modulation function for adjustable engagement in goal-relevant tasks. Dysfunction in this system then would, unsurprisingly, implicate rILN pathology in a range of disorders. Future study of this system presents challenges, however. Neuroimaging resolution constraints limit investigation of the rILN in humans. In vivo recordings or manipulations in animals generally favor targeting of the more accessible CL nucleus. However, the robust behavioral findings from the limited interrogations of the rILN should encourage future investigation, which would benefit from rILN output-specific functional interrogation particularly centering on the understudied CM.
The high degree of integration that the rILN exhibit with many neural systems positions this area to be relevant to affective, cognitive, and action-related neuropathologies. Supporting the functional hypothesis for rILN in behavioral engagement described herein, pathological rILN activation would facilitate an overly-engaged behavioral state with a particular reward or goal, such as is the case with methamphetamine craving (Li et al.,
