Abstract
Homologous recombination DNA repair (HR) is a complex DNA damage repair pathway and an attractive target of inhibition in anti-cancer therapy. To help guide the development of efficient HR inhibitors, it is critical to identify compensatory HR sub-pathways. In this study, we describe a novel synthetic interaction between RAD51AP1 and RAD54L, two structurally unrelated proteins that function downstream of the RAD51 recombinase in HR. We show that concomitant deletion of RAD51AP1 and RAD54L further sensitizes human cancer cell lines to treatment with olaparib, a Poly (adenosine 5′-diphosphate-ribose) polymerase inhibitor, to the DNA inter-strand crosslinking agent mitomycin C, and to hydroxyurea, which induces DNA replication stress. We also show that the RAD54L paralog RAD54B compensates for RAD54L deficiency, although, surprisingly, less extensively than RAD51AP1. These results, for the first time, delineate RAD51AP1- and RAD54L-dependent sub-pathways and will guide the development of inhibitors that target HR stimulators of strand invasion.
Introduction
Homologous recombination (HR) is an essential DNA damage repair pathway critical for genome stability and tumor suppression. HR is altered in many different tumor types and has become an attractive target for the development of new anti-cancer therapies (; ; ). Accurate HR is restricted to S- and G2- phases of the cell cycle, and the sister chromatid is used as the template for the restoration of lost sequence information at the damaged DNA site. At the DNA break, a 3′-single-stranded (ss)DNA overhang is generated and protected by the ssDNA-binding protein RPA (; ). RPA is replaced by the RAD51 recombinase, a rate-limiting step in the HR reaction that is facilitated by multiple recombination mediators (; ; ; ; Zhao et al., 2015; ; ). The RAD51-ssDNA nucleoprotein filament then catalyzes the capture of the DNA template and initiates the formation of a displacement loop (D-loop) with the assistance of several RAD51-associated proteins (; ; ; ; ; Zhao et al., 2017).
RAD51AP1 and RAD54L are two RAD51-associated proteins that co-operate with the RAD51 filament in the capture of the DNA donor molecule and in formation of the D-loop (; ; ; ; ; Zhao et al., 2017). RAD51AP1 may have evolved in response to the higher complexities of vertebrate genomes (). In contrast, RAD54L is highly conserved across eukaryotes (; ; ; ; ). RAD51AP1 functions in the protection of cells from genotoxic agents, in maintaining genome stability, in the HR-mediated alternative lengthening of telomeres (ALT) pathway and promotes HR when local transcription is active (; ; ; ; ). Similarly, RAD54L maintains HR capability, cell survival after treatment with chemotherapeutic agents, and ALT activity (; ; ; ; ). Strikingly, in human cells, loss of either RAD51AP1 or RAD54L engenders only mild HR deficiency (; ; ; ; ; ).
The RAD51AP1 and RAD54L proteins are unrelated structurally, but both upregulate RAD51 activity by enhancing the ability of the RAD51 filament to engage with the homologous double-stranded (ds)DNA donor (i.e., in synapsis) and in strand invasion (; ; ; ; ; ; ). In these steps of the HR reaction, RAD51AP1 may serve as an anchor between the two DNA molecules undergoing exchange (; ; ). In contrast, RAD54L belongs to the SWI2/SNF2 protein family of DNA-dependent ATPases () and utilizes its ATPase activity to convert the synaptic complex into a D-loop (; ), and to translocate along the DNA (; ) whereby chromatin is remodeled and the turnover of RAD51 is facilitated (; ; ; ).
The mild phenotype of RAD54L-deficient human cells has been attributed to the existence of RAD54B, a RAD54L paralog (). Human RAD54L and RAD54B share 48% identity and 63% similarity (; ). Although less well understood than RAD54L, existing evidence implicates RAD54B in the core mechanisms of HR (; ; ; ; ). Compared to RAD54L, RAD54B was identified as the weaker ATPase, and these results suggest that RAD54B may fulfil a backup role for RAD54L ().
In this study, we show that loss of RAD54L in human cells is compensated for by the RAD51AP1 protein. We show that simultaneous deletion of the RAD54L and RAD51AP1 genes further sensitizes human cancer cell lines to treatment with the DNA inter-strand crosslinking agent mitomycin C (MMC), to prolonged exposure to replication stalling by hydroxyurea (HU), and to Poly (adenosine 5′-diphosphate-ribose) polymerase inhibition (PARPi). We also show that the RAD54L paralog RAD54B can substitute for RAD54L activity, but, surprisingly, to a lesser degree than RAD51AP1. Based on these results, we conclude that the activities of RAD51AP1 and RAD54L can underpin two major, mechanistically distinct routes for the completion of HR in human cells.
Results
Deletion of Both RAD54L and RAD51AP1 Further Sensitizes Human Cancer Cell Lines to MMC and Olaparib
To investigate the genetic interaction between RAD51AP1 and RAD54L, we generated RAD54L/RAD51AP1 double knockout (DKO) HeLa cell lines and compared the phenotypes of these DKO cells to HeLa cells deleted for either RAD51AP1 or RAD54L (; ). To generate RAD54L/RAD51AP1 DKO cells we targeted RAD54L by CRISPR/Cas9-nic in RAD51AP1 KO cells and selected two of several RAD54L/RAD51AP1 DKO clones for the experiments described below. We verified the loss of protein expression by Western blot analysis (Figure 1A, lanes 5–6). PCR was performed across exon 8, and amplicons were sequenced across the Cas9-nic cleavage sites in RAD54L to confirm mutagenesis (Supplementary Figure S1A; Supplementary Tables S1, S6). Immunocytochemistry was used to monitor the loss of RAD54L foci formation after γ-irradiation (Supplementary Figure S1B).

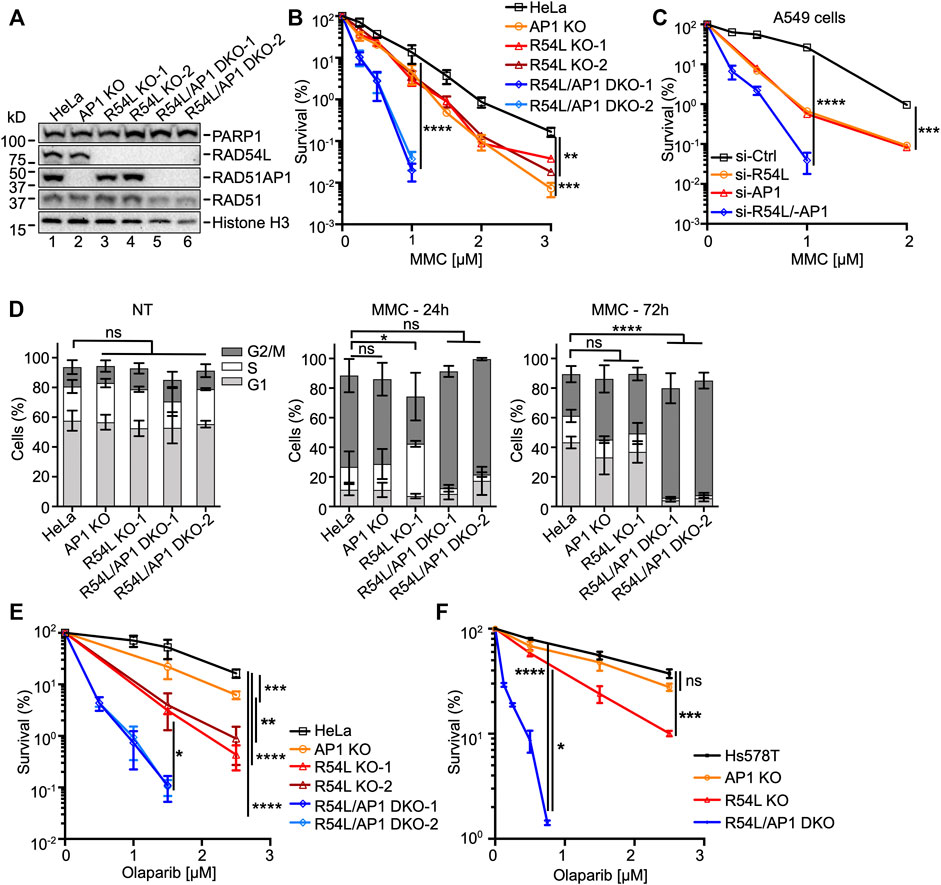

FIGURE 1
We determined the growth rates of all HeLa cell derivatives (i.e., single KO and DKO cells) and detected no significant differences in population doubling times (Supplementary Figure S1C). In fractionated protein extracts from unperturbed cells, we noted higher levels of RAD54L protein in RAD51AP1 KO cells (Supplementary Figure S1D, lanes 2 and 8) and higher levels of RAD51AP1 protein in RAD54L KO cells (Supplementary Figure S1D, lanes 9–10).
Next, we tested the sensitivity to MMC of single KO and DKO cells in clonogenic cell survival assays. In accord with published results by us and others (; ; ), we show that RAD51AP1 and RAD54L single KO cells are moderately sensitized to the cytotoxic effects of MMC (Figure 1B). Deletion of both RAD51AP1 and RAD54L, however, further sensitized HeLa cells to MMC (Figure 1B; Supplementary Table S2), in support of a non-epistatic relation between RAD51AP1 and RAD54L. To exclude that this effect was specific to HeLa cells, we depleted RAD51AP1 and/or RAD54L in A549 lung cancer cells (Supplementary Figure S1E). A549 cells depleted for either RAD51AP1 or RAD54L showed similarly increased sensitivities to MMC, while loss of both RAD51AP1 and RAD54L synergistically sensitized A549 cells to MMC (Figure 1C; Supplementary Table S2). Collectively, these results reveal compensation between RAD51AP1 and RAD54L for the protection of human cancer cell lines from MMC-induced DNA damage.
We used U2OS-DRGFP cells (; ) to assess the effects of RAD51AP1 and/or RAD54L depletion on gene conversion. Depletion of both RAD51AP1 and RAD54L downregulated the levels of gene conversion at DRGFP ∼10-fold (p < 0.001; Supplementary Figures S1F,G), while single knockdown of either RAD51AP1 or RAD54L impaired gene conversion ∼2-fold, as previously shown (; ).
Next, we assessed cell cycle progression upon MMC exposure of single and RAD54L/RAD51AP1 DKO cells and compared the results to HeLa cells. In the absence of MMC, all cell lines progressed similarly through the cell cycle (Figure 1D, left panel, and Supplementary Figure S1H). Twenty-four hours after release from MMC, all cell lines remained arrested in cell cycle progression (Figure 1D, middle panel, and Supplementary Figure S1H). At 72 h post release from MMC, HeLa cells, RAD51AP1 KO, and RAD54L KO cells regained the capacity to proceed through mitosis and enter the following cell cycle. Both RAD54L/RAD51AP1 DKO cell lines, however, remained arrested in G2/M phase (p < 0.0001; Figure 1D, right panel, and Supplementary Figure S1H), likely due to their higher fraction of unresolved or mis-repaired DNA damage.
HR deficiency selectively confers sensitivity to PARPi (; ). Hence, we asked if single KO and RAD54L/RAD51AP1 DKO cells were sensitive to treatment with the PARPi olaparib. Compared to HeLa cells, RAD51AP1 KO cells showed increased sensitivity to olaparib (p < 0.001; Figure 1E), as expected from earlier studies (; ). The two RAD54L KO cell lines were more sensitive (p < 0.05 and p < 0.01 for KO-1 and KO-2 compared to RAD51AP1 KO cells, respectively), and combined loss of both RAD51AP1 and RAD54L synergistically sensitized HeLa cells to olaparib (p < 0.05 for RAD54L/RAD51AP1 DKO-1 and DKO-2 compared to the RAD54L KO cells; Supplementary Table S2). To exclude that this effect was specific to HeLa cells, we generated RAD54L/RAD51AP1 single KO and DKO cells in the Hs578T breast cancer cell line [(); Supplementary Figure S1I; Supplementary Table S1] and tested these cells in olaparib cell survival assays. As in HeLa cells, RAD54L single KO Hs578T cells showed significantly increased sensitivity to olaparib (p < 0.001), and combined loss of both RAD51AP1 and RAD54L synergistically sensitized Hs578T cells to olaparib exposure (p < 0.05 for RAD54L/RAD51AP1 DKO cells compared to RAD54L KO cells; Figure 1F; Supplementary Table S2). These results demonstrate compensatory activities between RAD51AP1 and RAD54L in protecting human cancer cell lines from olaparib-induced DNA damage.
RAD54L Deficiency Is Rescued by Ectopic RAD54L
Ectopic expression of HA-tagged RAD54L in RAD54L/RAD51AP1 DKO HeLa cells reverted their response to MMC to the level of RAD51AP1 KO cells (Figures 2A,D). As expected, cell cycle progression after MMC of RAD54L/RAD51AP1 DKO cells with ectopic RAD54L became similar to that of RAD51AP1 KO cells (Figure 2B; Supplementary Figure S1H). Moreover, RAD54L/RAD51AP1 double KO cells with ectopic RAD54L formed RAD54L foci after γ-irradiation (Supplementary Figure S1B). Ectopic expression of RAD54L also rescued the sensitivity to MMC of single RAD54L KO cells (Supplementary Figures S2A,B) and RAD54L foci formation after γ-irradiation (Supplementary Figure S1B). These results show that the phenotypes associated with RAD54L deficiency in RAD54L/RAD51AP1 DKO and RAD54L single KO cells stem from the loss of RAD54L. However, ectopic expression of high amounts of RAD54L in RAD51AP1 KO cells (Figure 2D, lanes 3–4) did not rescue their sensitivity to MMC (Figure 2C), demonstrating that defined attributes of the RAD51AP1 protein cannot be compensated for by RAD54L.
FIGURE 2
Deletion of Both RAD51AP1 and RAD54L Sensitizes HeLa Cells to Replication Stress
We treated all HeLa cell derivatives with 4 mM HU for 5 h, which blocks DNA synthesis and stalls replication fork movement (). To understand the fate of stalled replication forks in single KO and DKO cells, we monitored the recovery of cells from stalled replication using the single-molecule DNA fiber assay. We pulse-labeled cells with the thymidine analog 5-Chloro-2′-deoxyuridine (CldU) first, then replenished cells with HU-containing medium prior to pulse-labeling with 5-Iodo-2′-deoxyuridine (IdU) (Figure 3A). We determined the ability of all cell lines to restart DNA replication by measuring the lengths of IdU tracts of CldU-labeled DNA fibers (Figure 3B; Supplementary Figure S3B; Supplementary Table S3). RAD51AP1 KO cells showed no significant defect in fork restart compared to HeLa cells. In contrast, RAD54L KO cells restarted forks significantly faster than HeLa cells (p < 0.0001), possibly related to the role of RAD54L in catalyzing fork regression (). Interestingly, in comparison to both HeLa and single KO cells, RAD54L/RAD51AP1 DKO cells were significantly impaired in fork restart (p < 0.0001; Figure 3B; Supplementary Table S3). Collectively, these results show that the efficient restart from stalled DNA replication relies on RAD54L in RAD51AP1 KO HeLa cells. The results also suggest that the RAD54L protein suppresses accelerated fork restart after HU, an attribute not shared by RAD51AP1.

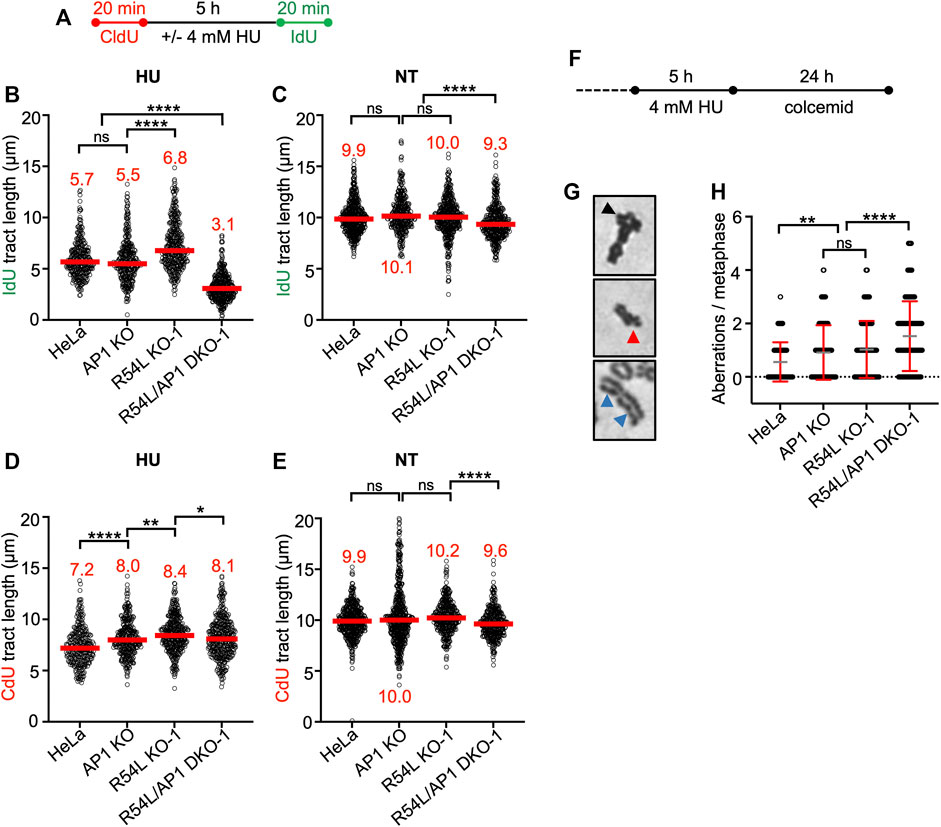

FIGURE 3
In unperturbed cells, DNA replication progressed slower in RAD54L/RAD51AP1 DKO cells than in HeLa cells or the single KOs, suggesting that endogenous obstacles to fork progression may impede replication in the absence of both RAD54L and RAD51AP1 (p < 0.0001; Figure 3C; Supplementary Table S3).
In response to replication stress, replication forks reverse into four-way junctions through annealing of the nascent DNA strands (Zellweger et al., 2015). Fork reversal is mediated by RAD51 and several DNA motor proteins and serves to bypass obstacles encountered by the replisome (; ; ; Zellweger et al., 2015). Reversed forks must be protected from nucleolytic attack to prevent fork attrition (; ; ; ; ). To assess if RAD54L and/or RAD51AP1 function in the protection of replication forks from unprogrammed nuclease degradation, CldU tracts in cells exposed to HU were measured and compared to the CldU tract lengths in untreated cells. CldU tracts after HU were shorter than those in unperturbed cells for all cell lines tested (Figures 3D,E; Supplementary Table S3). Overall, however, CldU tracts in HU-treated RAD51AP1 KO, RAD54L KO, and RAD54/RAD51AP1 DKO cells were not shorter than those in HU-treated HeLa cells (Figure 3D; Supplementary Figure S3B; Supplementary Table S3). These results suggest that RAD54L and RAD51AP1 largely function independently of the protection mechanism of reversed forks in overcoming replication stress in HeLa cells. We infer that replication forks in HeLa and KO cells are degraded as part of the normal cellular physiology in response to prolonged fork stalling by HU (), and that the recruitment of proteins involved in the protection of nascent DNA at replication forks likely proceeds normally in RAD54L/RAD51AP1 single KO and DKO cells.
Concomitant Loss of RAD51AP1 and RAD54L Exacerbates Genome Instability
Next, we tested the consequences of HU-induced replication stress to cells with impaired replication restart. To this end, we determined chromatid gaps and breaks, and complex chromosome aberrations (i.e., radials) in HeLa, single KO and RAD54L/RAD51AP1 DKO cells after treatment with HU (Figures 3F–H). Exposure to HU led to 0.56 ± 0.73 mean aberrations per metaphase in HeLa cells and to a significant increase in mean aberrations per metaphase in both RAD51AP1 (0.91 ± 1.02; p < 0.01) and RAD54L single KO cells (1.03 ± 1.07; p < 0.0001; Figure 3H). As expected, in RAD54L/RAD51AP1 DKO cells, the mean number of aberrations per metaphase was further increased compared to the single KOs (1.53 ± 1.30; p < 0.0001). These results show that replication stress leads to genome instability most prominently in RAD54L/RAD51AP1 DKO cells, which also show the most pronounced defect in fork restart.
RAD54B Compensates for RAD54L in the Presence of RAD51AP1
In human cells, the role of RAD54B in HR is not well understood. In mice, however, the contribution of RAD54B to HR was discovered in the absence of RAD54L (). To investigate the impact of RAD54B on the protection of human cells from MMC-induced DNA damage, we depleted RAD54B in HeLa, single KO, and RAD54L/RAD51AP1 DKO cells (Supplementary Figure S4A) and performed MMC cell survival assays. Depletion of RAD54B in HeLa and RAD51AP1 KO cells had no effect on their sensitivity to MMC (Figure 4A). Similarly, depletion of RAD54B in RAD54L/RAD51AP1 DKO cells did not increase MMC cytotoxicity. In contrast, depletion of RAD54B in RAD54L KO cells further sensitized RAD54L KO cells to MMC (p = 0.044; Figure 4A; Supplementary Table S2). These results show that the activity of RAD54B is critical for the protection of human cells from MMC cytotoxicity in the absence of RAD54L. In HeLa, RAD51AP1 KO, and RAD54L/RAD51AP1 DKO cells, however, RAD54B appears to play no detectable role in the protection of cells from MMC-induced DNA damage.
FIGURE 4
To exclude the possibility that the mild increase in MMC sensitivity of RAD54L KO cells depleted for RAD54B was the result of incomplete RAD54B knockdown, we generated RAD54L/RAD54B DKO HeLa cells (Supplementary Figure S4B; Supplementary Table S1) and compared their response to MMC to that of the RAD54L/RAD51AP1 DKOs. As observed after RAD54B knockdown, two independently isolated RAD54L/RAD54B DKO cells lines were significantly more resistant to MMC than RAD54L/RAD51AP1 DKO cells (p = 0.037 and p = 0.007 for RAD54/RAD54B KO-1 and KO-2, respectively; Figure 4B). These results show that in the absence of RAD54L, human cells more heavily rely on RAD51AP1 than on RAD54B to resist MMC cytotoxicity.
RAD54B Co-Precipitates in RAD51AP1 Complexes
Since knockdown of RAD54B did not further increase the sensitivity to MMC of RAD51AP1 single KO and RAD54L/RAD51AP1 DKO cells, we hypothesized that this—in part—could be the result of RAD54B and RAD51AP1 acting in unity during the protection of cells from MMC-induced cytotoxicity. As such, we asked if RAD51AP1 may function in conjunction with RAD54B in human cells, and if a complex between these two proteins could be identified. Using the purified proteins, we previously showed that RAD51AP1 and RAD54L physically interact, and that both proteins compete in binding to RAD51 (). Based on these results, we first tested if endogenous RAD54L would co-precipitate in anti-RAD51AP1 complexes of RAD51AP1 KO cells stably expressing FLAG-tagged RAD51AP1. Our results show that RAD54L co-precipitates with FLAG-RAD51AP1 under unperturbed conditions (Supplementary Figure S4C, lane 4).
Next, we tested the association between RAD51AP1 and RAD54B in human cells. As RAD54B activity is more prevalent in the absence of RAD54L (Figures 4A,B), we used RAD54L/RAD51AP1 DKO cells with transiently expressed eGFP-tagged RAD51AP1. Both RAD51 and RAD54B were present in anti-eGFP precipitates from RAD54L/RAD51AP1 DKO cells expressing eGFP-RAD51AP1 (Supplementary Figure S4D, lane 7); in contrast, RAD54B was absent in anti-eGFP precipitates from RAD54L/RAD54B DKO cells expressing eGFP-RAD51AP1 (Supplementary Figure S4D, lane 8). We then prepared protein lysates from RAD54L/RAD51AP1 DKO cells transiently expressing eGFP-RAD51AP1 under unperturbed conditions (NT), and at 4 and 20 h after release from a 2-h treatment with 0.5 µM MMC. RAD54B was present in anti-eGFP complexes from both untreated and MMC-treated cells (Figure 4C, lanes 5–6, and Supplementary Figure S4E, lanes 7–8). These results show that endogenous RAD54B can associate with ectopically expressed RAD51AP1 in RAD54L/RAD51AP1 DKO cells in the absence and in the presence of MMC-induced DNA damage.
To determine if RAD54B and RAD51AP1 physically interact, we performed a FLAG pull-down assay with the purified proteins (Supplementary Figure S4F). RAD54B co-precipitated with RAD51AP1-FLAG on anti-FLAG beads (Figure 4D, lane 5), indicating that RAD54B directly interacts with RAD51AP1.
Deletion of Both RAD54L and RAD54B Sensitizes HeLa Cells to Replication Stress
To understand the consequences of concomitant RAD54L and RAD54B loss on replication fork dynamics, we used the DNA fiber assay, as described above (for schematic of the protocol see Figure 4E). As shown in Figure 3C and herein determined independently, replication progressed significantly more slowly in RAD54L/RAD51AP1 DKO cells than in HeLa cells under unperturbed conditions (p < 0.0001; Figure 4F; Supplementary Figure S3B; Supplementary Table S3). Fork progression in unperturbed RAD54L/RAD54B DKO-1 and DKO-2 cells was faster than in RAD54L/RAD51AP1 DKO cells (Figure 4F; Supplementary Table S3). After HU, fork restart was significantly slower in RAD54L/RAD51AP1 DKO cells than in RAD54L/RAD54B DKO cells (p < 0.0001; Figure 4G; Supplementary Table S3). These results show that, in response to stalled DNA replication in the absence of RAD54L, the activities of both RAD51AP1 and RAD54B are important to efficiently restart replication forks. However, concomitant loss of RAD54L and RAD51AP1 is more detrimental to the recovery from stalled replication than concomitant loss of RAD54L and RAD54B.
As observed earlier (Figure 3D), CldU tracts after HU in HeLa and RAD54L/RAD51AP1 DKO cells were shorter than in unperturbed cells (Supplementary Figures S4G,H; Supplementary Table S3). In the RAD54L/RAD54B DKOs, however, CldU tract lengths were not affected by treatment of cells with HU (p = 0.635 (Mann-Whitney test); Supplementary Figures S4G,H; Supplementary Table S3), suggesting that, in response to prolonged fork stalling by HU, RAD54L/RAD54B DKO HeLa cells are less sensitive to fork degradation.
Deletion of RAD54B in RAD54L KO Cells Further Sensitizes HeLa Cells to Olaparib
Next, we compared the cytotoxicity of olaparib to RAD54L/RAD51AP1 and RAD54L/RAD54B DKO cells. Surprisingly, treatment with olaparib decreased the survival of both RAD54L/RAD51AP1 and RAD54L/RAD54B DKO cells to similar extent (p < 0.0001 compared to HeLa cells; Figure 5A). We also generated a RAD51AP1/RAD54B DKO cell line (Supplementary Figure S5A; Supplementary Table S3) and tested these cells for their sensitivity to olaparib. We found that RAD51AP1 single KO cells and RAD51AP1/RAD54B DKO cells exhibit identical sensitivities to olaparib (Supplementary Figure S5B). Collectively, these results suggest that RAD51AP1 and RAD54B largely function within the same HR sub-pathway upon treatment of cells with olaparib. This sub-pathway compensates RAD54L deficiency.
FIGURE 5
Under unperturbed conditions and after a 1-day incubation of cells in 10 µM olaparib, endogenous RAD54L co-precipitated with transiently expressed eGFP-RAD51AP1 in RAD51AP1 KO cells (Figure 5B, lanes 6 and 7, respectively). Similarly, endogenous RAD54B co-precipitated with transiently expressed eGFP-RAD51AP1 in RAD54L/RAD51AP1 DKO cells under unperturbed conditions and upon treatment of cells with olaparib (Figure 5C, lanes 6 and 7, respectively). These results show that RAD54L or RAD54B can be part of a larger protein complex involving RAD51AP1 and RAD51, and that for both RAD54L and RAD54B complex formation with RAD51AP1 is enhanced upon treatment of cells with olaparib.
We analyzed the dynamics of replication fork progression by DNA fiber assay after a 1-day incubation of cells in 10 µM olaparib (Figure 5D). Compared to untreated cells, fiber tracts were longer in HeLa cells after olaparib (Figures 5E,F; Supplementary Figure S5D; Supplementary Table S3), consistent with the results from an earlier study (). After olaparib, in RAD51AP1 and RAD54L single KO and in RAD54L/RAD51AP1 and RAD54L/RAD54B DKO cells, fiber tracts were significantly longer than in HeLa cells (p < 0.0001; Figure 5F; Supplementary Table S3), indicative of the further increased defects of the KO cell lines in restraining fork progression. Compared to the lengths of fiber tracts obtained under unperturbed conditions (Figure 5E), median fiber tracts were 16% longer in HeLa cells, 45% longer in RAD51AP1 KO cells, 29% longer in RAD54L KO cells and 69% and 44% longer in RAD54L/RAD51AP1 and RAD54L/RAD54B DKO cells, respectively. Collectively, these results show that HR-proficient HeLa cells restrain accelerated fork elongation more effectively than any of the KO cell lines. Moreover, while a 1-day exposure to olaparib is associated with increased levels of DSBs in all cell lines investigated, COMET assays revealed significantly more DSBs in RAD54L/RAD51AP1 and RAD54/RAD54B DKO cells than in HeLa cells and the single KOs (p < 0.0001; Supplementary Figure S5G; Supplementary Table S4). These results suggest that fork stability is particularly compromised when fork movement is accelerated in RAD54L/RAD51AP1 and RAD54L/RAD54B DKO cells, and that the stress to replication forks, as determined by COMET assay, is similar in both DKOs.
Discussion
In this study, we have shown that the HR function of RAD54L can largely be compensated for by the RAD51AP1 protein. Surprisingly, in the context of stalled and collapsed DNA replication (after HU or MMC), the compensatory activity of RAD51AP1 is greater than that of the RAD54L paralog RAD54B (Figure 6A). After treatment of cells with olaparib, however, RAD51AP1 and RAD54B are equally important in substituting for RAD54L (Figure 6B).

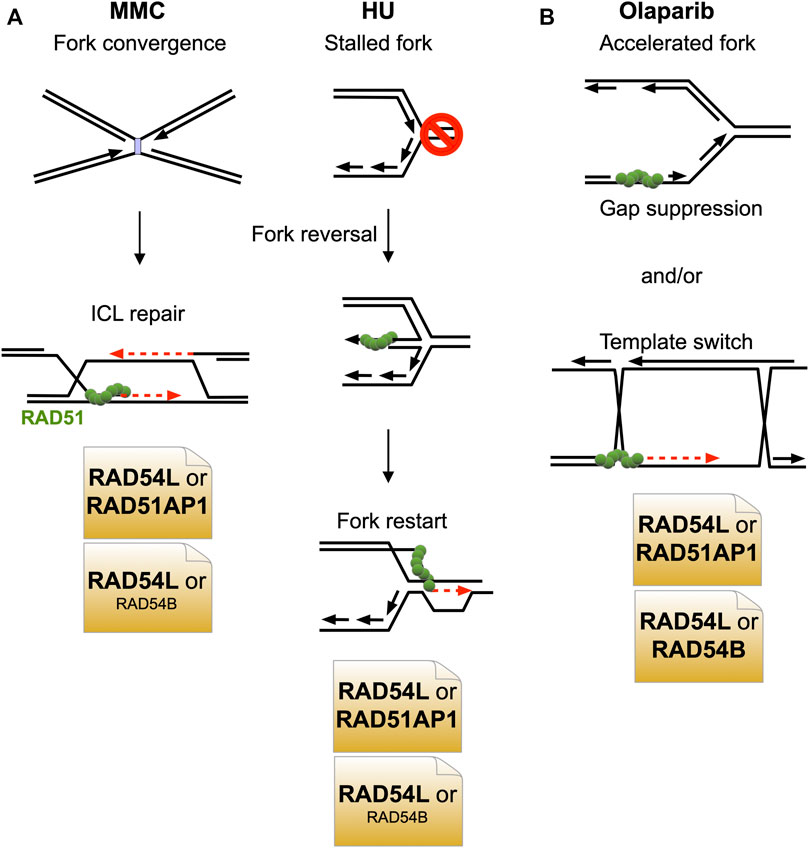

FIGURE 6
Given that RAD54B and RAD51AP1 physically interact (this study), evidence of physical interaction and functional cooperation between RAD54B and RAD51 (; ), and of an indirect association between human RAD54B and RAD51 in the context of chromatin and in cells (; Zhang et al., 2007), it is possible that in select stages of the HR reaction, within a certain context of the genome, or in response to specific types of DNA damage, RAD51AP1 functions cooperatively with RAD54B, possibly bridging RAD54B to RAD51. As RAD54L KO cells with RAD54B knockdown show increased sensitivity to MMC but RAD54B-depleted RAD54L/RAD51AP1 double KO cells do not, this may be further evidence of RAD54B functioning in conjuncture with RAD51AP1. Nonetheless, RAD54L/RAD51AP1 double KO cells are significantly more sensitive to MMC than RAD54L/RAD54B double KO cells, which argues that RAD51AP1 has additional function(s) aside from working with RAD54B in repairing MMC-induced DNA damage. This could be together with another and yet to be identified translocase, or within transcriptionally active, decondensed regions of the genome in which RAD51AP1 was shown to promote HR ().
In contrast, an only epistatic relation between RAD51AP1 and RAD54B appears to exist in upon treatment of cells with olaparib, suggesting that both proteins function within the same pathway in response to replication stress induced by faster fork progression (). Olaparib leads to the formation of replication associated ssDNA gaps (; ). Gap suppression mechanisms and HR-mediated post-replicative repair serve to restrict and eliminate ssDNA replication gaps (; ; ; ). Concomitant loss of RAD54L and either RAD51AP1 or RAD54B may exacerbate ssDNA gap formation and thereby inhibit nascent DNA strand annealing (), resulting in the similar degree of Olaparib cytotoxicity in RAD54L/RAD51AP1 and RAD54L/RAD54B DKO cells (Figure 6B).
RAD51AP1 expression is increased in different breast cancer subtypes and other cancers and inversely associated with overall survival (; ; ; ; ; ; ; ; ; Zhao et al., 2020; Zhuang et al., 2020). Moreover, Rad51ap1 deficiency abrogates tumor growth and metastasis in a breast cancer mouse model (), suggesting that the RAD51AP1 protein may be a promising target of inhibition in anti-cancer therapy. Given our results showing extensive compensation between RAD51AP1 and RAD54L, we surmise that the simultaneous inactivation of both RAD51AP1 and RAD54L could be a viable strategy to treat cancer in the context of induced DNA damage. Targeting RAD51AP1 together with RAD54L may be particularly effective against tumors with overactive HR (; Xu et al., 2005; ; ), cancerous cells maintaining their telomeres by the ALT pathway (; ; ), and BRCA1/2-mutant tumors that have regained HR proficiency and are resistant to PARPi (; ).
Materials and Methods
Cell Culture, Transfection and siRNAs
HeLa and A549 cells were obtained from ATCC and were maintained as recommended. HeLa cells in which either RAD51AP1 or RAD54L is deleted were maintained as described previously (; ). Hs578T cells were a gift from Dr. Joe Gray (OHSU) and maintained as described (). The siRNAs used were described previously (; ) and obtained from Qiagen (Supplementary Table S7). SiRNA forward transfections with Lipofectamine RNAiMAX (Invitrogen) were performed on two consecutive days. The concentration of siRNAs in transfections was 20 nM each. Cells were treated with drugs at 96 h after the first transfection.
Generation of RAD54L/RAD51AP1 and RAD54L/RAD54B DKO HeLa Cells
RAD51AP1 knockout (KO) and RAD54L KO HeLa cells, that we described previously (; ), were used to generate RAD54L/RAD51AP1 and RAD54L/RAD54B DKO cells. Briefly, a combination of two RAD54L or RAD54B CRISPR/Cas9-nic (D10A) KO plasmids each containing one of two different sgRNAs (i.e., sgRNA (54)-A and sgRNA (54)-B; sgRNA (54B)-A and sgRNA (54B)-B; Supplementary Table S5) was purchased from Santa Cruz Biotechnology (sc-401750-NIC for RAD54L; sc-403794-NIC-2 for RAD54B) and used to transfect single KO cells as described (). Disruption of RAD54L and RAD54B was validated by sequence analysis after genomic DNA was isolated from a selection of edited and non-edited clonal isolates using DNeasy Blood & Tissue Kit (Qiagen). RAD54L and RAD54B genomic DNA sequences were amplified by PCR using primer pairs flanking the sgRNA target sites (Supplementary Table S6). PCR products were gel purified, cloned into pCR4-TOPO (Invitrogen) and transformed into TOP10 competent E. coli. Plasmid DNA was prepared using ZR Plasmid Miniprep-Classic Kit (Zymo Research) and submitted for sequencing. For each KO cell line, 15–20 individually cloned amplicons were analyzed by Sanger sequencing (Supplementary Table S1).
Generation of RAD51AP1 and RAD54L Single KO and DKO Hs578T Cells
The RAD54L CRISPR/Cas9-nic (D10A) KO plasmids described above (Supplementary Table S5) were used to generate Hs578T RAD54L KO cells. Hs578T cells and RAD54L KO cells then were transfected with a cocktail of three different CRISPR/Cas-9 knockout plasmids (Santa Cruz Biotechnology; sc-408187) each encoding Cas9 nuclease and one of three different RAD51AP1-specific gRNAs targeting exons 2, 3 or 5/6 (Supplementary Table S5). Clonal isolates were expanded and disruption of RAD54L and RAD51AP1 was validated by sequence analysis, as described above. For each KO cell line, 15–20 individually cloned amplicons were analyzed by Sanger sequencing (Supplementary Table S1).
Generation of RAD54L-Expressing RAD51AP1 and/or RAD54L KO HeLa Cells
The plasmid containing the C-terminally HA-tagged full-length human RAD54L cDNA has been described (). A KpnI to NotI digest was performed to clone RAD54L-HA into pENTR1A (Invitrogen), followed by transfer into pLentiCMV/TO DEST#2 () using Gateway LR Clonase II (Invitrogen) for the production of lentiviral particles in HEK293FT cells (Invitrogen), as described (). Lentivirus was used to transduce RAD51AP1 KO, RAD54L KO, and RAD54L/RAD51AP1 DKO cells in 6 μg/ml polybrene, as described ().
Clonogenic Cell Survival Assays and Western Blot Analysis
Clonogenic cell survival assays after mitomycin C (MMC; Sigma) were performed, as described (). To assess cellular sensitivity to olaparib (AZD2281; Selleck Chemicals), cells were chronically exposed to 0.5–4 μM olaparib in regular growth medium for 12–14 days, as described (). Cells were fixed and stained with crystal violet to determine the fraction of cells surviving.
Western blot analyses were performed according to our standard protocols (). The following primary antibodies were used: α-RAD51AP1 (; 1:6,000), α-RAD54L (F-11; sc-374598; Santa Cruz Biotechnology; 1:1,000); α-RAD51 (Ab-1; EMD Millipore; 1:3,000), α-PARP1 (ab6079; Abcam; 1:2,000), α-β-Actin (ab8226; Abcam; 1:1,000), α-Tubulin (DM1A; Santa Cruz Biotechnology; 1:3,000), α-HA.11 (MMS-101R; BioLegend; 1:1,000), α-Histone H3 (ab1791; Abcam; 1:10,000) and α-RAD54B (; 1:1,000). HRP-conjugated goat anti-rabbit or goat anti-mouse IgG (Jackson ImmunoResearch; 1:10,000) were used as secondaries. Western blot signals were acquired using a Chemidoc XRS+ gel imaging system and ImageLab software version 5.2.1 (BioRad).
Cell Cycle Analysis and Flow Cytometry
Cell cycle analysis and flow cytometry were performed as described (), except that exponentially growing cells were treated with 0.5 μM MMC for 2 h, washed twice with warm PBS and incubated in fresh growth medium for the times indicated prior to pulse-labeling with 10 μM EdU.
Metaphase Spreads
For the assessment of chromosomal aberrations, 2 × 105 cells were seeded in 6-well tissue culture plates and incubated at 37°C for 24 h before exposure to 4 mM hydroxyurea (HU; Sigma) in regular growth medium for 5 h, as described (). After HU treatment, cells were washed in warm PBS and incubated in medium containing 0.1 μg/ml colcemid (SERVA) for 24 h. Cells were detached and allowed to swell in 0.075 M KCl at 37°C for 30 min and fixed in methanol:acetic acid (3:1), as described (). Cells were dropped onto wet slides, air dried and stained in 3% Giemsa in Sorensen buffer (0.2 M Na2HPO4/NaH2PO4, pH 7.3) at room temperature for 10 min. Images were acquired using Zeiss Axio-Imager.Z2 microscope equipped with Zen Blue software (Carl Zeiss Microscopy) using a 63× oil objective. One hundred metaphases were assessed per sample.
DNA Fiber Assay
DNA replication progression was assessed by the single-molecule DNA fiber assay and essentially as described previously (; ; ). Briefly, exponentially growing cells were pulse-labelled in regular growth medium containing 25 μM CldU for 20 min, followed by a 5-hour incubation in regular growth medium with 4 mM HU, after which the cells were pulse-labelled in regular growth medium containing 250 μM IdU for 20 min. Cells were detached from the cell culture dish by scraping in ice-cold PBS, adjusted to 4 × 105 cell/ml and processed for fiber spreading as described (). In a modified version of this assay, cells were exposed for 24 h in 10 μM olaparib, followed by two consecutive rounds of 20 min each in CldU first and then in IdU (). Images were acquired using Zeiss Axio-Imager.Z2 microscope equipped with Zen Blue software (Carl Zeiss Microscopy) using a 63× oil objective. Per sample and condition 200 fiber tracts were measured using ImageJ software (https://imagej.net).
Co-Immunoprecipitations
The peGFP-RAD51AP1 expression vector is based on peGFP-C1 (Clontech) and has been described previously (). RAD51AP1 single or RAD54L/RAD51AP1 double KO cells were transfected with peGFP-C1 or peGFP-RAD51AP1 and Lipofectamine2000 (Invitrogen). Twenty-four hours after transfection, cells were subjected to a medium change, treated with 0.5 µM MMC for 2 h or 10 µM olaparib for 24 h. Cells were washed twice with warm PBS, fresh medium was added, and cells were incubated for the times indicated. Cells were lysed in chilled lysis buffer containing 50 mM Tris-HCl, pH 7.5, 300 mM NaCl, and 0.5% NP-40, supplemented with EDTA-free protease inhibitor cocktail (Roche) and HALT phosphatase inhibitors (Thermo Fisher Scientific). For 1.5 × 106 cells, 25 μl of GFP-Trap® dynabeads (ChromoTek) were used to trap the ectopic proteins. Protein lysates were diluted to 50 mM Tris-HCl, pH 7.5, 150 mM NaCl, 0.1% NP-40, and 0.1 unit DNase I (Gold Biotechnology) per µg protein, and mixed with the equilibrated beads at 4°C for 1 h with gentle rotation. The GFP-Trap® dynabeads were washed three times with 500 µl binding buffer, bound protein complexes were eluted in 40 µl 2× LDS buffer (Thermo Fisher Scientific) and fractionated on 7% NuPAGE Tris-Acetate gels (Thermo Fisher Scientific) and for Western blot analysis.
Purification of Recombinant Proteins and FLAG Pull-Downs
Expression of (His)6-RAD51AP1-FLAG in E. coli and its purification were carried out as described previously (). RAD54B was expressed in High Five insect cells transduced with a RAD54B baculovirus and purified as described ().
FLAG pull-downs were performed essentially as described (). Briefly, anti-FLAG M2 affinity resin was equilibrated in binding buffer (50 mM Tris-HCl, pH7.5, 150 mM NaCl, 0.1% Triton X-100, and 100 μg/ml BSA). (His)6-RAD51AP1-FLAG (100 nM) or no protein were incubated with the equilibrated resin at 4°C for 1 h. Unbound protein was removed by centrifugation at 3,000 rpm for 3 min RAD54B (100 nM) was added to the washed resin in 100 µl binding buffer and incubated at 4°C for 1 h with gentle agitation in the presence of DNase I (1 U/µg protein). Supernatant was removed and RAD54B (100 nM) was added in a final volume of 100 µl and further incubated for 1 h at 4°C. The resin was washed three times in 200 µl binding buffer each, and bound protein was eluted in binding buffer containing 150 ng/μl 3× FLAG peptide (Sigma). Eluted protein was fractionated by 10% SDS-PAGE, transferred onto a PVDF membrane and detected by Western blot analysis.
Statistics and Reproducibility
GraphPad Prism 9 software was used to perform statistical analyses on data obtained from two to five independent experiments, as indicated. To assess statistical significance two-way or one-way ANOVA tests were performed. p ≤ 0.05 was considered significant.
Statements
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.
Author contributions
CW and PSu conceptualized the study. PSe, NS, MU, JK, YK, and CW performed the formal analyses. PSe, NS, MU, JK, and YK performed the investigations. The original draft was written by CW, PSe, NS, PSu, and YK. The revised draft was written by CW. The funding was secured by CW and PSu. PSe, NS, MU, JK, and YK did the methodology. All authors contributed to the article and approved the submitted version.
Funding
This work was supported by a CSU CVMBS College Research Grant and by National Institutes of Health Grants R01 ES021454, R56 ES021454, and R03 ES029206 (to CW) and R01 ES007061 and R35 CA241801 (to PSu). PSu is the recipient of a CPRIT REI Award (RR180029) and holder of the Robert A. Welch Distinguished Chair in Chemistry (AQ-0012).
Acknowledgments
The authors wish to thank the CSU Flow Cytometry and Cell Sorting Facility for their help in method optimization and sample analyses.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fcell.2022.866601/full#supplementary-material
