Abstract
The respiratory tract is the major site of infection by SARS-CoV-2, the virus causing COVID-19. The pulmonary infection can lead to acute respiratory distress syndrome (ARDS) and ultimately, death. An excessive innate immune response plays a major role in the development of ARDS in COVID-19 patients. In this scenario, activation of lung epithelia and resident macrophages by the virus results in local cytokine production and recruitment of neutrophils. Activated neutrophils extrude a web of DNA-based cytoplasmic material containing antimicrobials referred to as neutrophil extracellular traps (NETs). While NETs are a defensive strategy against invading microbes, they can also serve as a nidus for accumulation of activated platelets and coagulation factors, forming thrombi. This immunothrombosis can result in occlusion of blood vessels leading to ischemic damage. Herein we address evidence in favor of a lung-centric immunothrombosis and suggest a lung-centric therapeutic approach to the ARDS of COVID-19.
Introduction
SARS-CoV-2, the coronavirus responsible for COVID-19, initially infects the nasal, bronchial and alveolar epithelial cells (; ; Zhu et al., 2020). Resident immune cells such as macrophages and dendritic cells are also infected, albeit to a lesser extent (; ; Yang et al., 2020). The SARS-CoV-2 pulmonary tropism is manifested in the clinical features of COVID-19 (e.g., cough, dyspnea). The clinical course of SARS-CoV-2 infection is subdivided into three outcomes. Most patients will be asymptomatic or display minor respiratory symptoms and recover without hospitalization. Roughly 10-20% of affected individuals will advance to pneumonia/hypoxia and require hospitalization, but will eventually recover (; ). Only a small fraction (5 - 10%) of COVID-19 patients will progress to acute respiratory distress syndrome (ARDS) and require aggressive treatment in intensive care units (e.g., mechanical ventilation) (; ). Some of these patients will eventually succumb to the disease with the major cause of death being respiratory failure (; ; ). Autopsy findings indicate that the lungs bear the greatest pathologic burden, characterized by diffuse alveolar damage, inflammatory cell infiltrates and thrombosis (; ; ; ). Of note, organs remote from the initial site of infection such as the heart and kidneys are not spared. Histopathologic features in autopsy specimens of these remote organs include the presence of microvascular thrombi adjacent to regions of necrosis (; ; ). Thus, in severe COVID-19 there is evidence indicative of an hypercoagulative state and multiorgan dysfunction.
A dysregulated immune response to SARS-CoV-2 infection is believed to play a major role in the pathogenesis of COVID-19. Specifically, there is an impaired antiviral response in conjunction with an excessive inflammatory response (; ). Lymphopenia is common and may be coupled to markers of T cell exhaustion in the circulation and decreased numbers in lymphoid tissues (; ; ; ; ; Zhao et al., 2020; Zheng et al., 2020; ). An inadequate lymphocyte-mediated antiviral response would protract the viral infection and thereby exacerbate the inflammatory response (; ; ; ).
Lung-Centric Inflammation
Analyses of bronchoalveolar lavage fluid (BALF) of COVID-19 patients indicate a pro-inflammatory environment within the lungs (; ; ; ; ). Their BALF is enriched in pro-inflammatory chemokines and cytokines as well as activated macrophages and neutrophils. Chemokines (e.g., IL-8) dominate the BALF profile in moderate cases of COVID-19, whereas cytokines (e.g., TNF-α, IL-6) are prevalent in more severe cases ().
A major cytokine involved in initiation and progression of the inflammatory response is IL-1β, the activation of which is dependent on the NLRP3 inflammasome (; ; Zhao and Zhao, 2020). In brief, detection of viral material (e.g., PAMPs) by alveolar macrophages activates the NFκB transcription pathway, resulting in the generation of nascent pro-IL-1β as well as components of the NLRP3 inflammasome (Figure 1). Subsequently, the inflammasome is assembled and serves as a platform for caspase-mediated cleavage of pro-IL-1β to the mature form. IL-1β lacks a signal sequence and is retained in the cytoplasm until an exit portal is created in the plasma membrane. To this end, gasdermins, also activated by the caspases, enter the plasma membrane and oligomerize to form pores (). IL-1β and other pro-inflammatory material (e.g., DAMPs) exit via these gasdermin pores. Collectively, the released mediators amplify the local inflammatory response via feed-forward mechanisms, including cytokine-induced cytokine release and recruitment of additional innate immune cells (e.g., neutrophils).
Figure 1
The NFκB pathway and the NLRP3 inflammasome appear to be operative in COVID-19 patients (
Lung-Centric “Cytokine Storm”
The cytokines and chemokines generated within the lungs in response to infection can spill into the general circulation, a convenient sampling reservoir for both clinical and experimental purposes. Based on elevated circulating levels of cytokines, the term “cytokine storm” has been used as a descriptor of the hyperinflammatory response involved in the pathogenesis of COVID-19 (

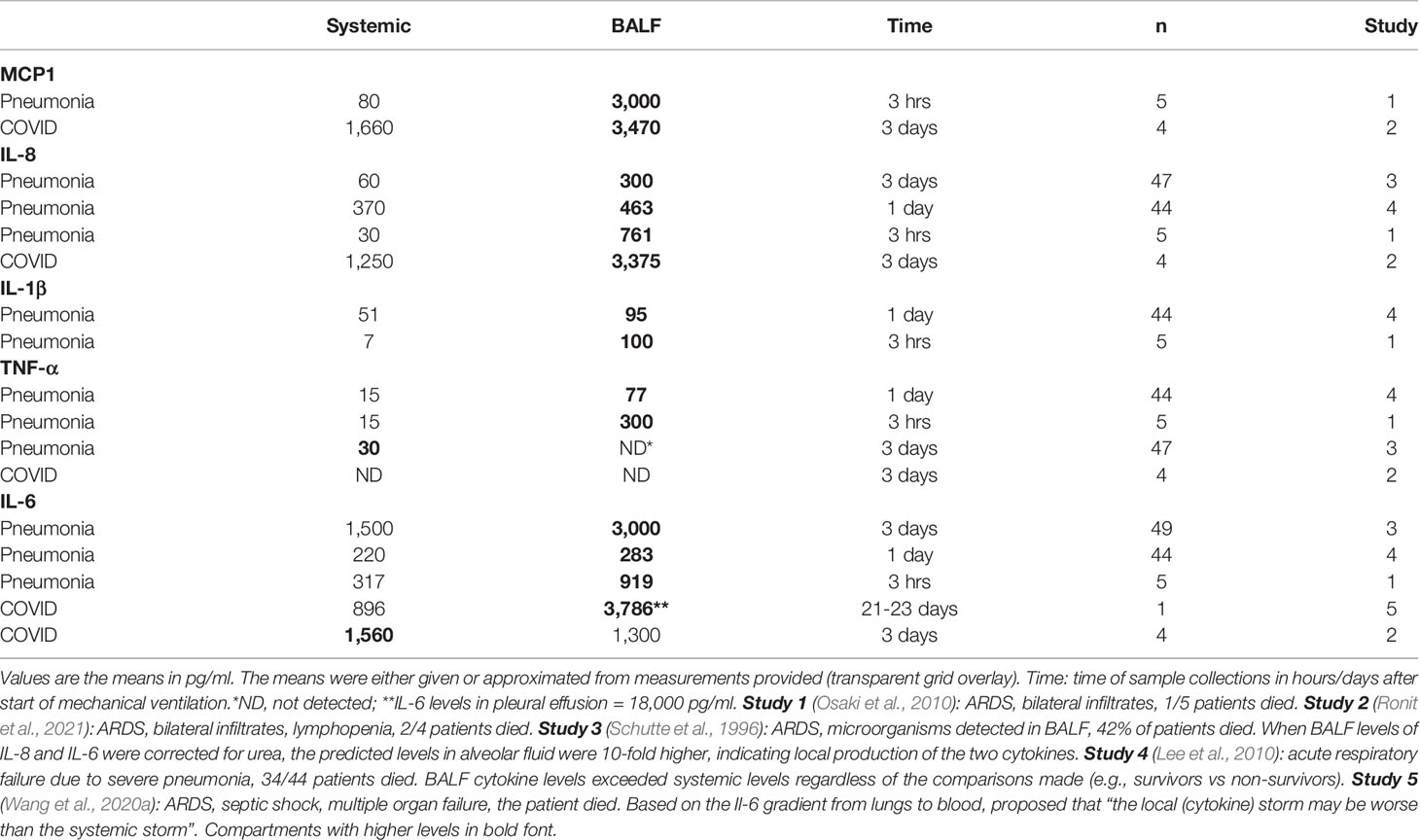

Table 1
| Systemic | BALF | Time | n | Study | |
|---|---|---|---|---|---|
| MCP1 | |||||
| Pneumonia | 80 | 3,000 | 3 hrs | 5 | 1 |
| COVID | 1,660 | 3,470 | 3 days | 4 | 2 |
| IL-8 | |||||
| Pneumonia | 60 | 300 | 3 days | 47 | 3 |
| Pneumonia | 370 | 463 | 1 day | 44 | 4 |
| Pneumonia | 30 | 761 | 3 hrs | 5 | 1 |
| COVID | 1,250 | 3,375 | 3 days | 4 | 2 |
| IL-1β | |||||
| Pneumonia | 51 | 95 | 1 day | 44 | 4 |
| Pneumonia | 7 | 100 | 3 hrs | 5 | 1 |
| TNF-α | |||||
| Pneumonia | 15 | 77 | 1 day | 44 | 4 |
| Pneumonia | 15 | 300 | 3 hrs | 5 | 1 |
| Pneumonia | 30 | ND* | 3 days | 47 | 3 |
| COVID | ND | ND | 3 days | 4 | 2 |
| IL-6 | |||||
| Pneumonia | 1,500 | 3,000 | 3 days | 49 | 3 |
| Pneumonia | 220 | 283 | 1 day | 44 | 4 |
| Pneumonia | 317 | 919 | 3 hrs | 5 | 1 |
| COVID | 896 | 3,786** | 21-23 days | 1 | 5 |
| COVID | 1,560 | 1,300 | 3 days | 4 | 2 |
Systemic and bronchoalveolar lavage fluid (BALF) cytokines in ARDS of pulmonary origin.
Values are the means in pg/ml. The means were either given or approximated from measurements provided (transparent grid overlay). Time: time of sample collections in hours/days after start of mechanical ventilation.*ND, not detected; **IL-6 levels in pleural effusion = 18,000 pg/ml. Study 1 (

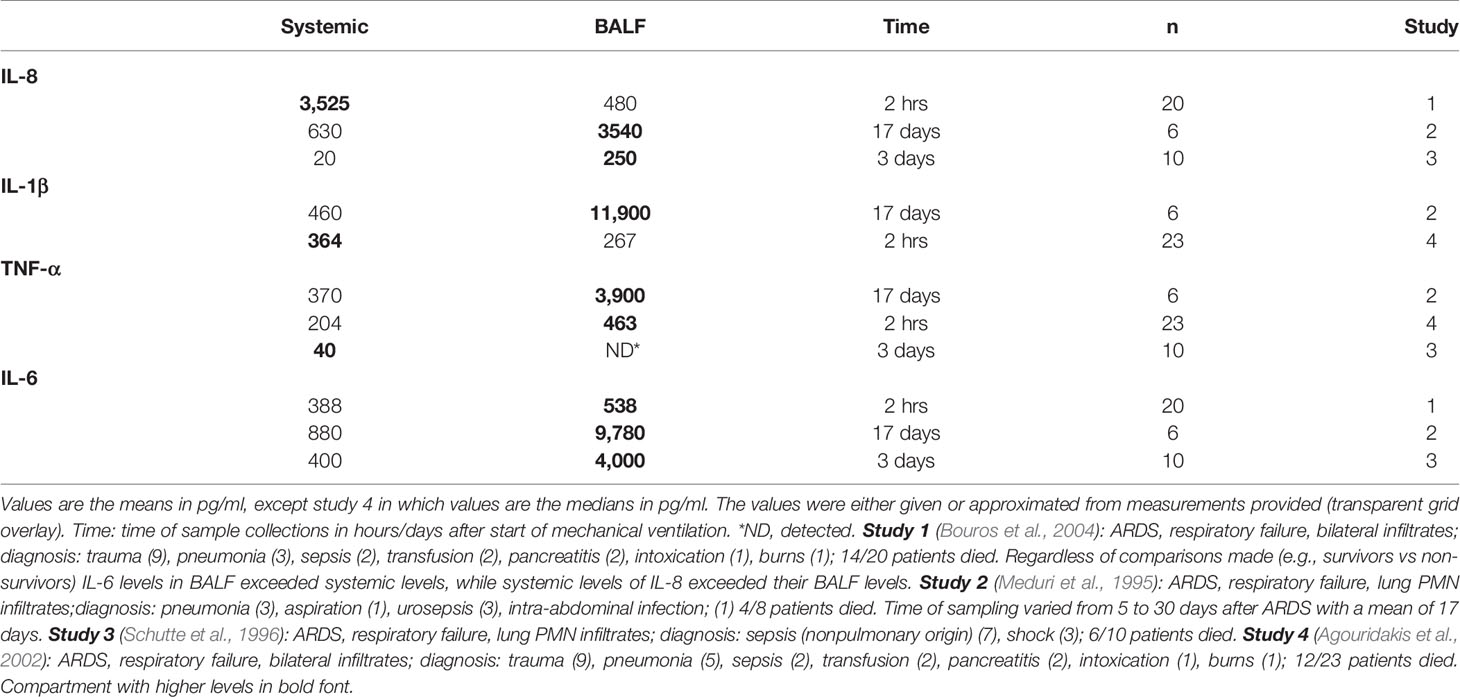

Table 2
| Systemic | BALF | Time | n | Study | |
|---|---|---|---|---|---|
| IL-8 | |||||
| 3,525 | 480 | 2 hrs | 20 | 1 | |
| 630 | 3540 | 17 days | 6 | 2 | |
| 20 | 250 | 3 days | 10 | 3 | |
| IL-1β | |||||
| 460 | 11,900 | 17 days | 6 | 2 | |
| 364 | 267 | 2 hrs | 23 | 4 | |
| TNF-α | |||||
| 370 | 3,900 | 17 days | 6 | 2 | |
| 204 | 463 | 2 hrs | 23 | 4 | |
| 40 | ND* | 3 days | 10 | 3 | |
| IL-6 | |||||
| 388 | 538 | 2 hrs | 20 | 1 | |
| 880 | 9,780 | 17 days | 6 | 2 | |
| 400 | 4,000 | 3 days | 10 | 3 | |
Systemic and bronchoalveolar lavage fluid (BALF) cytokines in ARDS of non-pulmonary origin.
Values are the means in pg/ml, except study 4 in which values are the medians in pg/ml. The values were either given or approximated from measurements provided (transparent grid overlay). Time: time of sample collections in hours/days after start of mechanical ventilation. *ND, detected. Study 1 (
Table 1 presents data from ARDS of pulmonary origin, while Table 2 presents data from extrapulmonary causes. Of note, none of the studies specifically addressed a potential lung-to-systemic cytokine gradient. Further, the sample sizes are rather small, particularly for the two COVID-19 cases in Table 1. Finally, no attempt is made to establish statistical differences. Despite these limitations, there is a notable trend for higher levels of inflammatory cytokines in BALF than plasma of ARDS patients in which the inciting event was of pulmonary origin (Table 1). This lung-to-systemic gradient is not as evident in ARDS of non-pulmonary origin (Table 2). Analogous results are obtained in experimental models of lung inflammation and injury. When the inciting factor is a direct insult to the lungs, the BALF levels of cytokines exceed their blood levels (Table 3). Of note, dismantling of NETs within the airspace (intratracheal DNase), reduces LPS-induced alveolar damage. This maneuver decreases the cytokine levels in both compartments, while maintaining a BALF-to-lung cytokine gradient (Table 3). By contrast, when lung inflammation/injury is a result of an indirect insult (e.g., peritonitis), a BALF-to-blood cytokine gradient is not evident (Table 4). Collectively, a BALF-to-blood cytokine gradient is noted in ARDS and animal models when the inciting event is of lung origin. Thus, despite the limited data from COVID-19 cases, it seems likely that a lung-centric cytokine storm may characterize the ARDS of COVID-19.
Table 3
| ` | Systemic | BALF | Time | n | Study |
|---|---|---|---|---|---|
| IL-8 | |||||
| Acid | 330 | 6,700** | 6 hrs | 10 | 1 |
| MIP-2 | |||||
| VILI | ND* | 200 | 2 hrs | 4 | 2 |
| IL-1β | |||||
| VILI | ND | 30 | 2 hrs | 4 | 2 |
| IL-6 | |||||
| LPS | 2,125 | 3,050 | 24 hrs | 16 | 3 |
| DNase/LPS | 270 | 1,670 | 24 hrs | 6 | 3 |
| TNF-α | |||||
| VILI | ND | ND | 2 hrs | 4 | 2 |
| LPS | 450 | 1,460 | 24 hrs | 6 | 3 |
| DNase/LPS | 280 | 500 | 24 hrs | 6 | 3 |
Systemic and bronchoalveolar lavage fluid (BALF) cytokines in animal models of direct lung injury.
Values are means in pg/ml. The values were either given or approximated from measurements provided (transparent grid overlay). Time: time of sample collections in hours after direct insult to lungs. *ND, not detected. **Samples from distal small bronchi, presumed to represent alveolar fluid, contained 40,500 pg/ml IL-8. Study 1 (
Table 4
| Systemic | BALF | Time | n | Study | |
|---|---|---|---|---|---|
| MCP-1 | |||||
| DH | 600 | 25 | 12hrs | 7 | 1 |
| KC | |||||
| DH | 1500 | 100 | 12hrs | 7 | 1 |
| IL-6 | |||||
| CLP | 20,000 | 20,000 | 24 hrs | 6 | 3 |
| CLP | 9,000 | 5,000 | 6 hrs | 6 | 2 |
| IL-1β | |||||
| CLP | 90 | 180 | 24 hrs | 6 | 3 |
| CLP | 50 | 60 | 6 hrs | 6 | 2 |
| TNF-α | |||||
| CLP | 280 | 220 | 24 hrs | 6 | 3 |
| CLP | 50 | 25 | 6 hrs | 6 | 2 |
Systemic and bronchoalveolar lavage fluid (BALF) cytokines in animal models of indirect lung injury.
Values are means in pg/ml. The values were either given or approximated from measurements provided (transparent grid overlay). Time: time of sample collections in hours after insult. Study 1 (
Inherent in experimental models of lung inflammation/injury is a defined time interval from insult to assessment of endpoints. Chemokines (e.g., IL-8, MIP-2) are detected as early as 2 – 6 hours after direct injury to the lungs, exceeding plasma levels by at least 20-fold (Table 3). Further, the acid-induced lung injury (pulmonary edema and impaired oxygenation) is associated with the presence of neutrophils in the BALF (
There are a few issues of relevance to COVID-19 that warrant attention. When BALF and plasma samples are obtained early after admission to ICU, a lung-to-blood gradient for the chemokines, IL-8 is detected (Table 1); correspondingly, the BALF also contains activated monocytes and neutrophils (
Lung-Centric Immunothrombosis
The recruitment and activation of neutrophils can result in the formation of neutrophil extracellular traps, or NETs (Figure 1). NETs are an extruded web of decondensed chromatin DNA decorated with granule-derived proteases and antimicrobials (
As a caveat, the formation of thrombi may occlude the affected microvasculature and result in ischemic injury (
Circulating DNases can degrade the DNA backbone of NETs and may serve as an endogenous regulatory mechanism to limit immunothrombosis (
In fatal cases of COVID-19 microvascular thrombi and necrotic injury in organs remote from the lungs have been noted on autopsies (
Potential Lung-Centric Therapy
The lung-centric inflammatory response prompts consideration of the potential clinical utility of bronchoscopy and BALF. BALF analyses are currently used to provide a microbiological diagnosis of COVID-19 in suspected cases, but in which nasopharyngeal swabs are negative for viral RNA (
The possibility of directly targeting cytokines generated within the lungs of COVID-19 patients is attractive for at least two reasons. First, based on the lung-centric cytokine storm, reducing lung cytokines or their activity would also reduce corresponding circulating levels and their effects on remote organs. Second, intrapulmonary therapeutics would be less prone to off-target systemic effects. Ideally, an initial assessment of the BALF levels of cytokines in COVID-19 patients should be made as soon as possible after diagnosis. This would allow for therapeutic targeting of relevant cytokines. While early intervention would maximize patient benefit, limiting lung inflammation even in advanced cases is desirable.
The rapidly expanding repertoire of animal models of COVID-19 (
Statements
Author contributions
Conceptualization: PK and HF. Literature search: PK, HF, and SK. Data analysis and interpretation: PK and HF. Drafting the article: PK and HF. Critical revision of the article: PK, HF, SK, AY, EA-M, and KA-K. All authors contributed to the article and approved the submitted version.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
