Abstract
Heterobasidion annosum is one of the most aggressive pathogens of Pinus forests in Europe, causing considerable economic losses. To detect H. annosum for disease diagnosis and control, we developed a loop-mediated isothermal amplification (LAMP) reaction with a primer set designed from the glyceraldehyde 3-phosphate dehydrogenase (GAPDH) DNA sequences of H. annosum. In our study, this LAMP assay was found to be capable of efficiently amplifying the target gene within 60 min at 63°C. In specificity tests, H. annosum was positively detected, and other species were negative. The detection limit of this assay was found to be 100 pg·μL-1, and the assay was also successfully tested for use with basidiospore suspensions and wood samples. This study provides a rapid method for diagnosing root and butt rot caused by H. annosum, which will be of use in port surveillance of logs imported from Europe.
Introduction
Heterobasidion annosum (Fr.) Bref. sensu lato (s.l.) has been studied intensively over several decades, with interfertility studies showing that H. annosum s.l. is a species complex (Korhonen, 1978; Dai and Korhonen, 1999; Dai et al., 2003). Recently, species of Heterobasidion have been divided into three groups using multilocus phylogenetic approaches; furthermore, the pathogenic species H. annosum sensu stricto (s.s.) has been found to be a sister to H. irregulare Garbel. & Otrosina. Most taxa of H. annosum s.l. are distributed in the conifer forests of the northern hemisphere (Chen et al., 2015; Dai et al., 2021a, b; Yuan et al., 2021; Wu et al., 2022).
Heterobasidion annosum is one of the most aggressive pathogens in the destruction of pine plantations in Europe (Edmonds et al., 1989; Woodward et al., 1998; Dai and Korhonen, 1999). The root and butt rot caused by Heterobasidion s.l. species can destroy the most valuable part of the tree (Korhonen and Stenlid, 1998; Niemelä and Korhonen, 1998; Seifert, 2007), depreciating the usability of the timber (Aza et al., 2021) and lowering the tree’s resistance to strong winds (Oliva et al., 2008). Furthermore, H. annosum s.l. may remain active in residual stumps and roots for decades until the next rotation (Rishbeth, 1951; Greig and Pratt, 1976). Significantly, H. annosum s.l. grows more quickly in dead trees than in living trees (Bendz-Hellgren et al., 1999). Hence, poor thinning and logging operations may increase the incidence of annosum-related rot (Shaw et al., 1995; Morrison and Johnson, 1999). Dai et al. (2021a) proposed that the most aggressive conifer pathogens, H. abietinum, H. annosum s. s., H. irregulare, H. occidentale, and H. parviporum, should be identified as quarantine fungi, as they are not found in China. Therefore, effective detection of annosum-related rot is important.
Over the past several decades, various methods for H. annosum detection have been developed, mainly focusing on morphological characters, mating tests, and molecular strategies. Traditionally, morphological identification of H. annosum has relied on macroscopic and microscopic observations (Rishbeth, 1951; Greig and Pratt, 1976; Tokuda et al., 2009; Aberg et al., 2016). However, once the basidiomata can be observed, it is already too late to protect the trees in question from decay (Garbelotto and Gonthier, 2013). Although mating tests are a relatively reliable method to determine compatibility with known species, they take time (Korhonen, 1978; Mitchelson and Korhonen, 1998; Dai and Korhonen, 1999; Dai et al., 2002). In fact, as all the classical diagnostic methods are complicated, time-consuming, and require professional skill, researchers have been investigating molecular methods of assay. A potential polymerase chain reaction (PCR) method offers great promise for detection of pathogenic fungi because of its speed and specificity (Schulze, 1999). Multiplex real-time PCR assay, with better resolution than traditional technology, has already been conducted by several researchers (Hietala et al., 2003; Ioos et al., 2019), and qPCR technology has been used to measure the distribution of species of Heterobasidion (Oliva et al., 2017).
Although PCR technology has already been applied in detection of H. annosum due to its sensitivity and specificity, long periods of time and expensive laboratory instruments are still required for these procedures. These intrinsic disadvantages prevent this method from being used in resource-limited regions. Loop-mediated isothermal amplification (LAMP) is an alternative method that amplifies target DNA sequences with high sensitivity and specificity under isothermal conditions (Notomi et al., 2000). The technology has previously been applied in pathogen detection (Sillo et al., 2017; Kong et al., 2020; Vettraino et al., 2021). So far, LAMP technology has been widely used in the medical field (Parida et al., 2005; Parida et al., 2007; Santiago, 2021), food science (Petersen et al., 2021), and plant protection (Franco Ortega et al., 2019; Enicks et al., 2020). The North American species H. irregulare Garbel. & Otrosina was detected by LAMP using a HirrSC3 gene within cytochrome P450 monooxygenase (Sillo et al., 2017). However, methods for rapid detection of H. annosum have rarely been reported.
LAMP utilizes a Bst DNA polymerase with stand-displacement activity, along with two inner primers (FIP, BIP) and two outer primers (F3, B3) that recognize six separate regions within a target DNA sequence (Notomi et al., 2000). Correct recognition of all six regions by the primers ensures the specificity of the assay. Positive reactions can be examined in the products, as follows: turbidity of magnesium phosphate increases (Mori et al., 2001); ladder-like bands can be observed on gel electrophoresis; and color changes can be induced in the reaction system through the addition of DNA-intercalating dyes (Goto et al., 2009). The metal ion hydroxynaphthol blue (HNB) is a reliable indicator of DNA amplification because of the low risk of cross-contamination along with sensitivity equivalent to that of SYBR green, and the results can easily be judged with the naked eye (Goto et al., 2009).
In this study, we aimed to develop a simple LAMP detection method for specific identification of H. annosum and to evaluate its accuracy in detecting wood decay caused by H. annosum.
Materials and methods
Culture conditions and DNA extraction
This study used forty-five cultures and specimens which were maintained at the Institute of Microbiology, the Beijing Forestry University (BJFC, Beijing, P.R. China), Jiangsu Vocational College of Agriculture and Forestry (JSAFC), and the Natural Resources Institute, Finland (Luke, Helsinki, Finland) (Table 1). Fungal strains were cultured on potato dextrose agar (PDA) (Caten and Jinks, 1968; Gams et al., 1998) in 90 mm petri dishes at 25°C for 28 days. In order to obtain abundant mycelia, fungal strains were cultured on potato dextrose agar for 7 days.

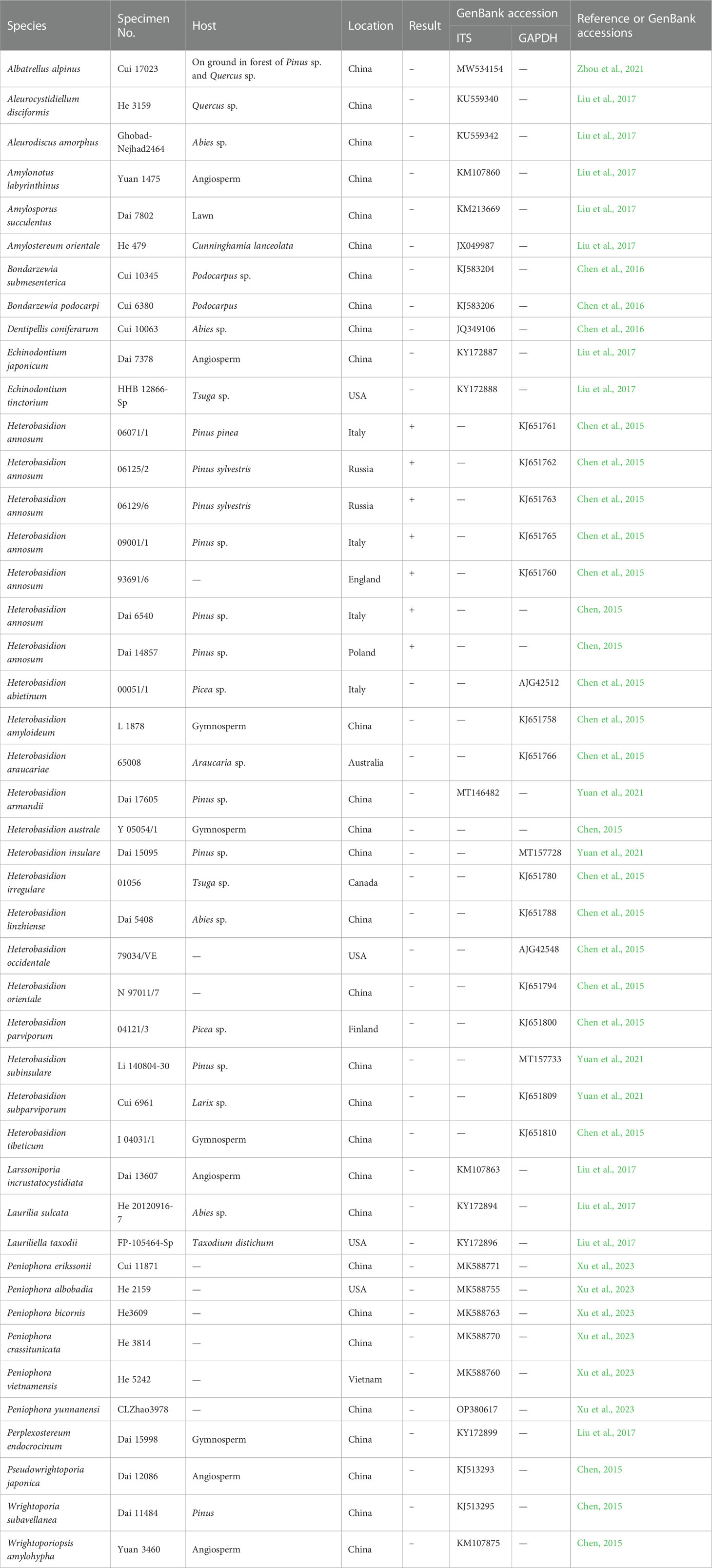

Table 1
| Species | Specimen No. | Host | Location | Result | GenBank accession | Reference or GenBank accessions | |
|---|---|---|---|---|---|---|---|
| ITS | GAPDH | ||||||
| Albatrellus alpinus | Cui 17023 | On ground in forest of Pinus sp. and Quercus sp. | China | – | MW534154 | — | Zhou et al., 2021 |
| Aleurocystidiellum disciformis | He 3159 | Quercus sp. | China | – | KU559340 | — | Liu et al., 2017 |
| Aleurodiscus amorphus | Ghobad-Nejhad2464 | Abies sp. | China | – | KU559342 | — | Liu et al., 2017 |
| Amylonotus labyrinthinus | Yuan 1475 | Angiosperm | China | – | KM107860 | — | Liu et al., 2017 |
| Amylosporus succulentus | Dai 7802 | Lawn | China | – | KM213669 | — | Liu et al., 2017 |
| Amylostereum orientale | He 479 | Cunninghamia lanceolata | China | – | JX049987 | — | Liu et al., 2017 |
| Bondarzewia submesenterica | Cui 10345 | Podocarpus sp. | China | – | KJ583204 | — | Chen et al., 2016 |
| Bondarzewia podocarpi | Cui 6380 | Podocarpus | China | – | KJ583206 | — | Chen et al., 2016 |
| Dentipellis coniferarum | Cui 10063 | Abies sp. | China | – | JQ349106 | — | Chen et al., 2016 |
| Echinodontium japonicum | Dai 7378 | Angiosperm | China | – | KY172887 | — | Liu et al., 2017 |
| Echinodontium tinctorium | HHB 12866-Sp | Tsuga sp. | USA | – | KY172888 | — | Liu et al., 2017 |
| Heterobasidion annosum | 06071/1 | Pinus pinea | Italy | + | — | KJ651761 | Chen et al., 2015 |
| Heterobasidion annosum | 06125/2 | Pinus sylvestris | Russia | + | — | KJ651762 | Chen et al., 2015 |
| Heterobasidion annosum | 06129/6 | Pinus sylvestris | Russia | + | — | KJ651763 | Chen et al., 2015 |
| Heterobasidion annosum | 09001/1 | Pinus sp. | Italy | + | — | KJ651765 | Chen et al., 2015 |
| Heterobasidion annosum | 93691/6 | — | England | + | — | KJ651760 | Chen et al., 2015 |
| Heterobasidion annosum | Dai 6540 | Pinus sp. | Italy | + | — | — | Chen, 2015 |
| Heterobasidion annosum | Dai 14857 | Pinus sp. | Poland | + | — | — | Chen, 2015 |
| Heterobasidion abietinum | 00051/1 | Picea sp. | Italy | – | — | AJG42512 | Chen et al., 2015 |
| Heterobasidion amyloideum | L 1878 | Gymnosperm | China | – | — | KJ651758 | Chen et al., 2015 |
| Heterobasidion araucariae | 65008 | Araucaria sp. | Australia | – | — | KJ651766 | Chen et al., 2015 |
| Heterobasidion armandii | Dai 17605 | Pinus sp. | China | – | MT146482 | — | Yuan et al., 2021 |
| Heterobasidion australe | Y 05054/1 | Gymnosperm | China | – | — | — | Chen, 2015 |
| Heterobasidion insulare | Dai 15095 | Pinus sp. | China | – | — | MT157728 | Yuan et al., 2021 |
| Heterobasidion irregulare | 01056 | Tsuga sp. | Canada | – | — | KJ651780 | Chen et al., 2015 |
| Heterobasidion linzhiense | Dai 5408 | Abies sp. | China | – | — | KJ651788 | Chen et al., 2015 |
| Heterobasidion occidentale | 79034/VE | — | USA | – | — | AJG42548 | Chen et al., 2015 |
| Heterobasidion orientale | N 97011/7 | — | China | – | — | KJ651794 | Chen et al., 2015 |
| Heterobasidion parviporum | 04121/3 | Picea sp. | Finland | – | — | KJ651800 | Chen et al., 2015 |
| Heterobasidion subinsulare | Li 140804-30 | Pinus sp. | China | – | — | MT157733 | Yuan et al., 2021 |
| Heterobasidion subparviporum | Cui 6961 | Larix sp. | China | – | — | KJ651809 | Yuan et al., 2021 |
| Heterobasidion tibeticum | I 04031/1 | Gymnosperm | China | – | — | KJ651810 | Chen et al., 2015 |
| Larssoniporia incrustatocystidiata | Dai 13607 | Angiosperm | China | – | KM107863 | — | Liu et al., 2017 |
| Laurilia sulcata | He 20120916-7 | Abies sp. | China | – | KY172894 | — | Liu et al., 2017 |
| Lauriliella taxodii | FP-105464-Sp | Taxodium distichum | USA | – | KY172896 | — | Liu et al., 2017 |
| Peniophora erikssonii | Cui 11871 | — | China | – | MK588771 | — | Xu et al., 2023 |
| Peniophora albobadia | He 2159 | — | USA | – | MK588755 | — | Xu et al., 2023 |
| Peniophora bicornis | He3609 | — | China | – | MK588763 | — | Xu et al., 2023 |
| Peniophora crassitunicata | He 3814 | — | China | – | MK588770 | — | Xu et al., 2023 |
| Peniophora vietnamensis | He 5242 | — | Vietnam | – | MK588760 | — | Xu et al., 2023 |
| Peniophora yunnanensi | CLZhao3978 | — | China | – | OP380617 | — | Xu et al., 2023 |
| Perplexostereum endocrocinum | Dai 15998 | Gymnosperm | China | – | KY172899 | — | Liu et al., 2017 |
| Pseudowrightoporia japonica | Dai 12086 | Angiosperm | China | – | KJ513293 | — | Chen, 2015 |
| Wrightoporia subavellanea | Dai 11484 | Pinus | China | – | KJ513295 | — | Chen, 2015 |
| Wrightoporiopsis amylohypha | Yuan 3460 | Angiosperm | China | – | KM107875 | — | Chen, 2015 |
Fungal isolates and basidiomata used in this study.
Mycelia and basidiomata were ground in liquid nitrogen and subsequently collected in 1.5-mL microfuge tubes. Genomic DNA was extracted using the CTAB rapid plant genome extraction kit (Aidlab Biotechnologies Co., Ltd., Beijing, China) according to the manufacturer’s instructions, with some modifications (Chen et al., 2015). The concentration of the extracted DNA was evaluated using a Nanodrop spectrophotometer (Thermo Fisher Scientific, USA) following Kong et al. (2020); this was then diluted in 10-fold serial dilutions to produce concentrations from 10 ng·μL-1 to 10 fg·μL-1 and stored at –20°C. The cultures and specimens used were identified by morphological examination, and/or by sequencing Glyceraldehyde-3-phosphate dehydrogenase (GAPDH) (Chen et al., 2015) or the internal transcribed spacer (ITS) (Table 1).
Optimization of the LAMP reaction
The LAMP reaction was performed according to previously described methods (Niu et al., 2012; Duan et al., 2014; Kong et al., 2020; Vettraino et al., 2021). The final LAMP reaction (26 μL volume) was performed by combining 2.5 μL 10 × ThermoPol buffer, 1.6 μmol·L-1 forward inner primer (FIP) and backward inner primer (BIP), 0.2 μmol·L-1 B3 and F3 primers, 0.8 μmol·L-1 LB and LF primers, 5 mmol·L-1 Mg2+, 0.8 mol·L-1 betaine, 1.4 mmol·L-1 dNTPs, 300 μmol·L-1 HNB, 8 U of Bst DNA polymerase, and 2 μL DNA template.
The LAMP reaction mixtures were heated at a range of reaction temperatures (viz., 61°C, 62°C, 63°C, 64°C, and 65°C) for 60 min to select the optimal temperature (Figure S1). Additionally, LAMP reactions were performed at the optimal reaction temperature (63°C) for 15 min, 30 min, 60 min, and 90 min in order to select the shortest viable reaction time (Figure S2). Runs were performed with positive controls (H. annosum), negative controls (14 Heterobasidion spp. and 24 other fungi), and controls consisting of distilled water without DNA. The assays were evaluated by observation of the HNB color change from violet to blue, which denotes positive amplification, while a negative assay remains violet. The optimum temperature and shortest viable time were identified as 63°C for 60 min. Each condition was repeated at least three times.
DNA extraction from basidiospore suspensions
Basidiospore suspensions were prepared by scraping four-week-old PDA-cultured mycelium with sterile distilled water. The concentration was determined using a hemacytometer and then adjusted in sterile water to obtain the desired final concentrations, containing 104, 103, 102, 50, 10, and 0 basidiospores per 1 μL. DNA was extracted from these basidiospore suspensions in order to evaluate the effectiveness of the LAMP assay in detecting basidiospores of H. annosum.
LAMP assay on wood samples
In order to evaluate the ability of LAMP to detect H. annosum in wood, trials were conducted following Li (2014). Pinus sylvestris, a cultivar highly susceptible to Heterobasidion spp., was selected for this experiment. Six pieces of P. sylvestris almost 20 cm long and 30–35 cm in diameter were prepared for this assay. Each piece was disinfected with 75% ethanol, wiped with distilled water, and air dried. Three pieces of wood were inoculated with strains of H. annosum; the other three were sprayed only with sterile distilled water. The pieces of wood were incubated in a partially darkened room for five weeks, with the surface kept moist during this period. DNA was extracted from each piece of wood and stored at –80°C until used.
Results
Design of LAMP primers
The primers were designed using the PRIMEREXPLORER V5 software program (http://primerexplorer.jp/lampv5e/index.html) based on GAPDH. Sequences were aligned using MAFFT 7 (https://mafft.cbrc.jp/alignment/server/). Regions conserved among all tested H. annosum populations but differentiating between closely related fungal species were selected for the design of LAMP primers (Figure 1). We designed a set of four primers to identify six regions of the target DNA, consisting of two inner primers (a forward inner primer FIP and a backward inner primer BIP) and two outer primers (a forward primer F3 and an outer backward primer B3). Additionally, we designed a loop forward primer (LF) and a loop backward primer (LB) to expedite the LAMP reaction. These primers were synthesized by Sangon Biotech. Nineteen sets of primers were designed for H. annosum; the set deemed suitable are listed in Table 2.

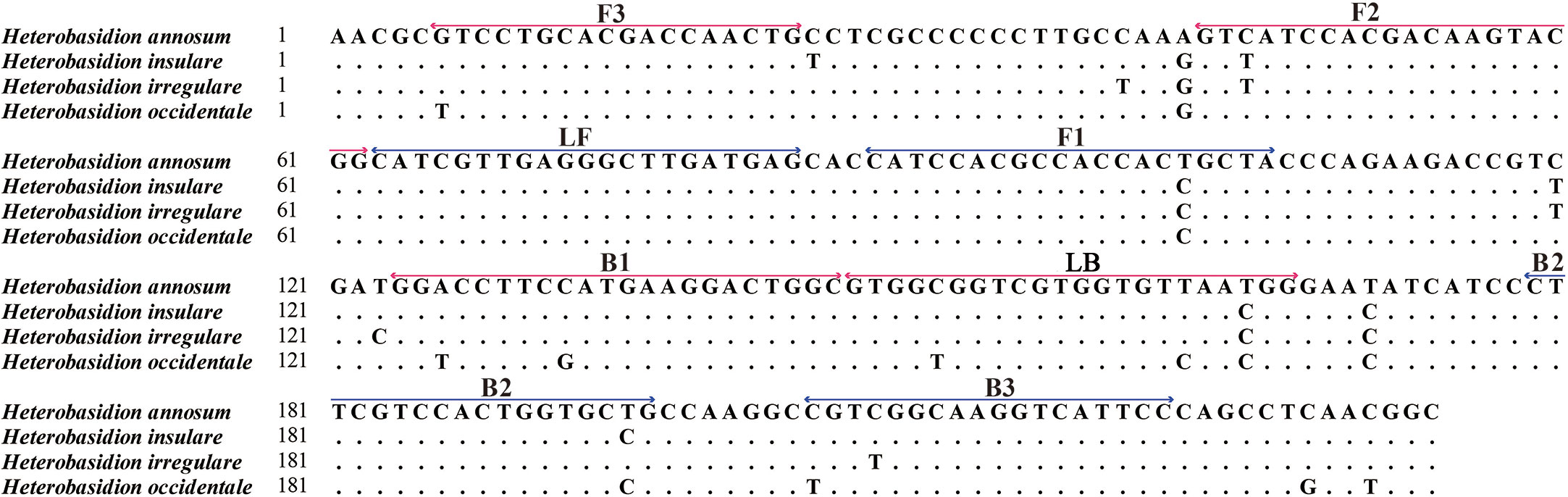

Figure 1
Genomic alignment between Heterobasidion annosum and H. insulare, H. irregulare, and H. occidentale at the locus selected for design of the LAMP primer sets. The locations of the designed primers (F3–B3) are shown: forward primer FIP includes the F1 and F2 regions; backward primer BIP includes the B1 and B2 regions; and loop primers include the LB and LF regions. (Red color represents the forward primers, and blue color represents the reverse primers).

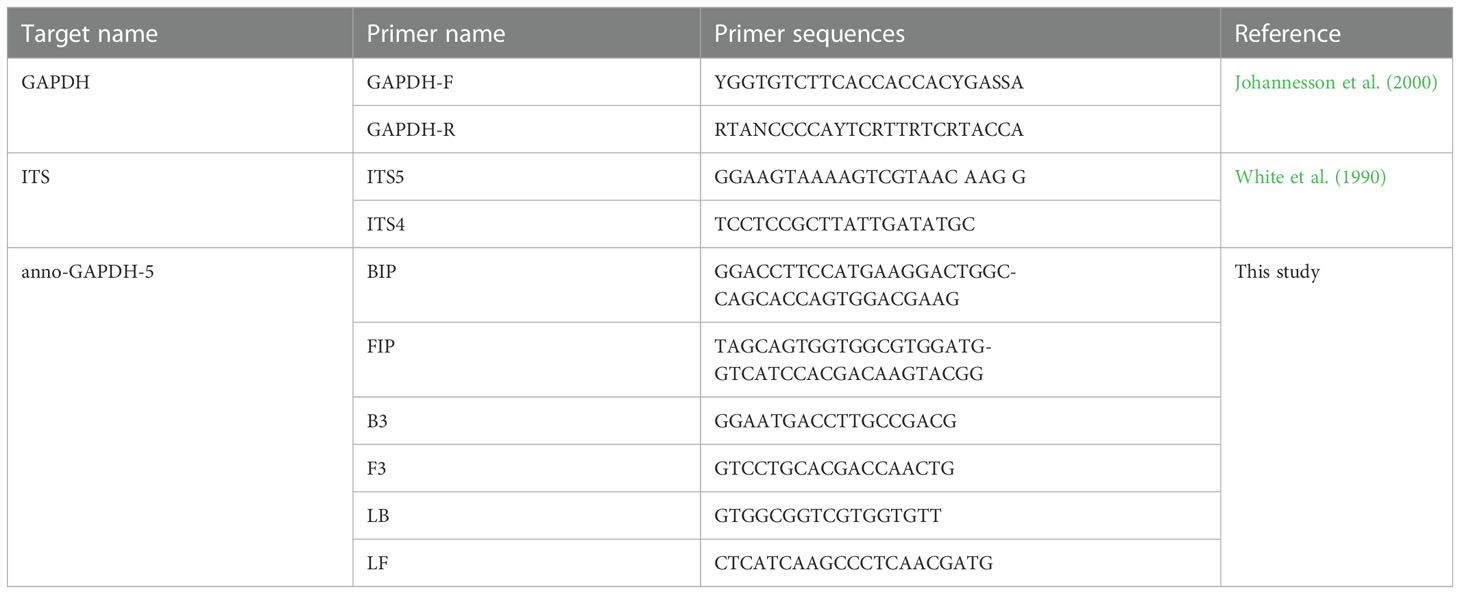

Table 2
| Target name | Primer name | Primer sequences | Reference |
|---|---|---|---|
| GAPDH | GAPDH-F | YGGTGTCTTCACCACCACYGASSA | Johannesson et al. (2000) |
| GAPDH-R | RTANCCCCAYTCRTTRTCRTACCA | ||
| ITS | ITS5 | GGAAGTAAAAGTCGTAAC AAG G | White et al. (1990) |
| ITS4 | TCCTCCGCTTATTGATATGC | ||
| anno-GAPDH-5 | BIP | GGACCTTCCATGAAGGACTGGC- CAGCACCAGTGGACGAAG |
This study |
| FIP | TAGCAGTGGTGGCGTGGATG- GTCATCCACGACAAGTACGG |
||
| B3 | GGAATGACCTTGCCGACG | ||
| F3 | GTCCTGCACGACCAACTG | ||
| LB | GTGGCGGTCGTGGTGTT | ||
| LF | CTCATCAAGCCCTCAACGATG |
Primers used in this study.
Specificity of the LAMP assay
DNA from the isolates and specimens of Heterobasidion and others, as listed in Table 1, were used to validate the specificity of the assay. The LAMP primers were found to detect the species of H. annosum accurately. A positive reaction is indicated by a color change from violet to blue in the presence of the HNB indicator (Figure 2). GAPDH primers were able to distinguish H. annosum from other Heterobasidion species, along with fungi commonly detected in wood samples. Based on visual detection using HNB, only samples of H. annosum displayed a blue color (Figure 3).

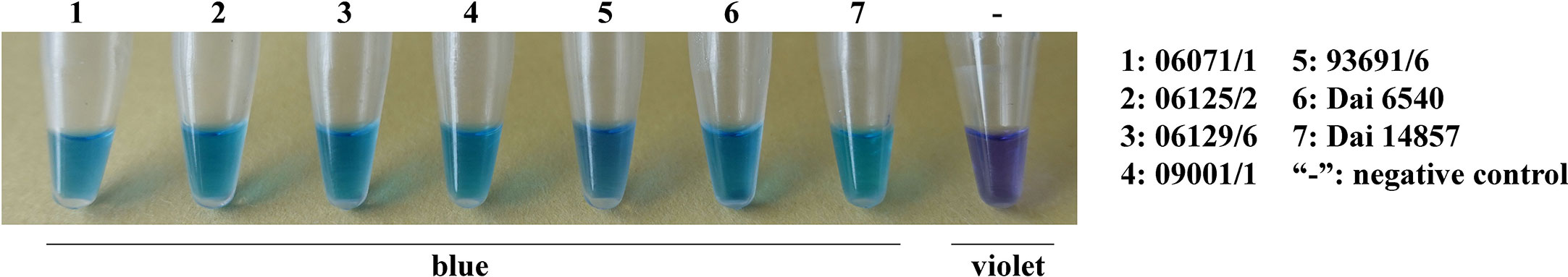

Figure 2
LAMP detection of the GAPDH gene in different isolates of Heterobasidion annosum. 1–7: H. annosum strains; “-”: negative control.

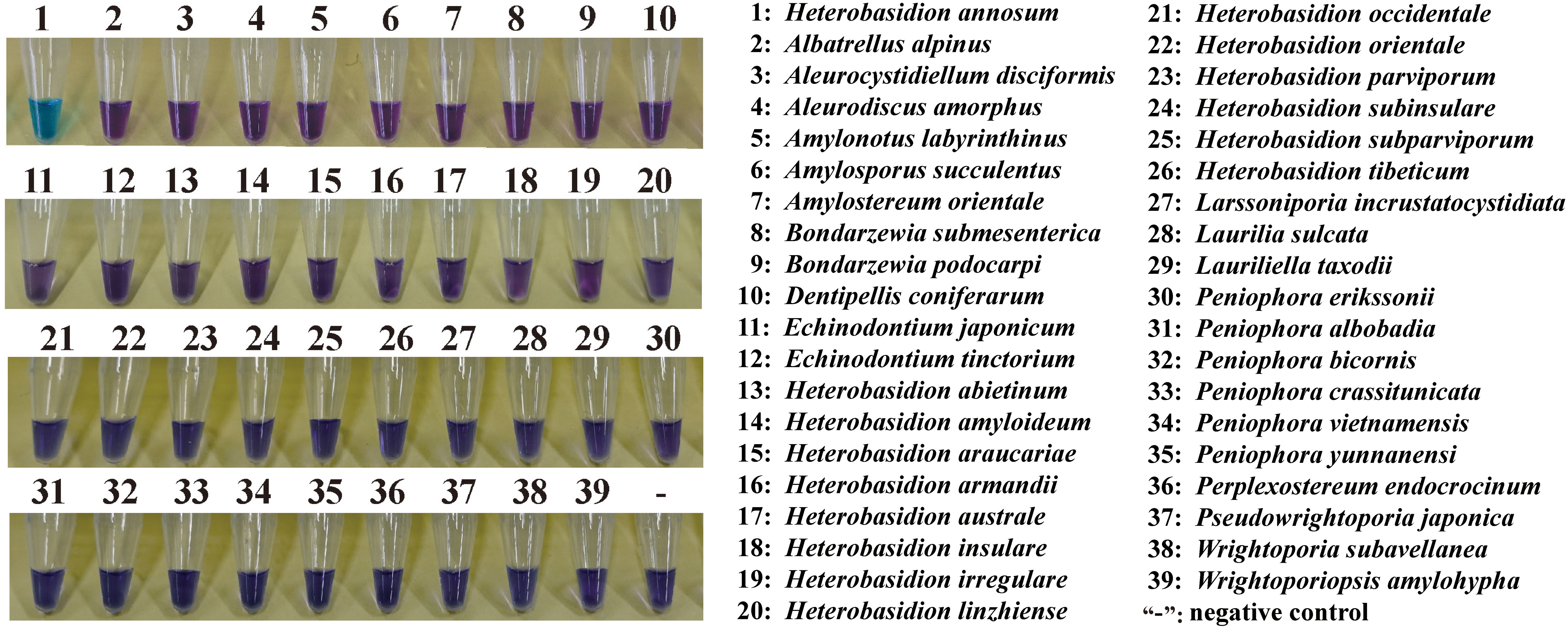

Figure 3
Ability of the LAMP assay to distinguish H. annosum from other species in Russulales. “-”: negative control.
Sensitivity of the LAMP assay
LAMP sensitivity was tested using 10-fold serial dilutions of target genomic DNA prepared with distilled water (10 ng·μL-1, 1 ng·μL-1, 100 pg·μL-1, 10 pg·μL-1, 1 pg·μL-1, 100 fg μL-1, 10 fg·μL-1). A Nanodrop spectrophotometer was used to measure DNA concentration. The results showed that a blue color could be detected up to the point where the DNA concentration was as low as 100 pg·μL-1. However, the color remained violet when the DNA concentration was reduced further to 10 pg·μL-1, 1 pg·μL-1, 100 fg μL-1, or 10 fg·μL-1 (Figure 4).

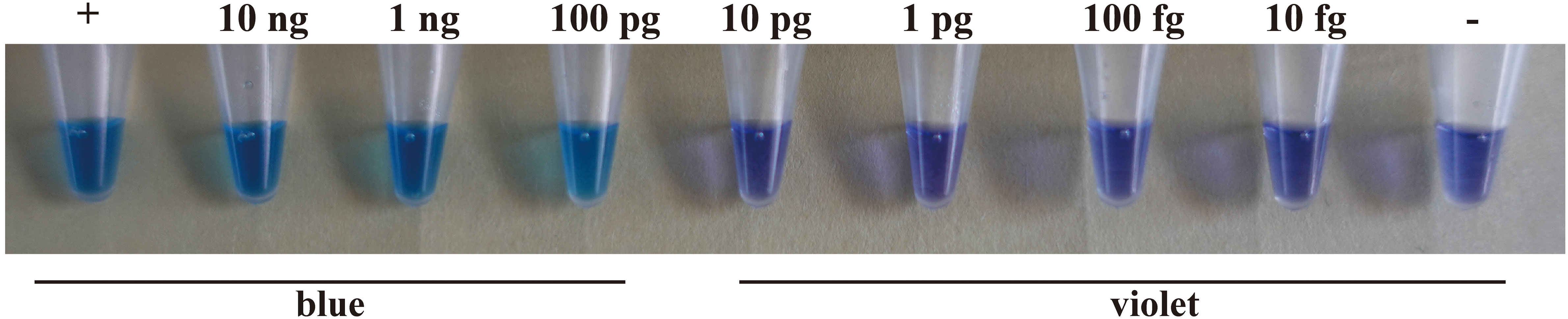

Figure 4
The sensitivity of the LAMP assay using a H. annosum s.s. 93961/6 DNA concentration gradient. “+”: positive control; “-”: negative control.
LAMP assay for basidiospore suspensions
The color changed from violet to blue in the suspension of basidiospores from the positive control and other treatments containing 104, 103, 102, 50, or 10 basidiospores per 1 μL. However, in the case of the treatment without basidiospores and the negative control, the color remained violet. This pattern indicated that the LAMP assay could detect the presence of at least ten basidiospores of H. annosum per 1 μL in suspension (Figure 5).

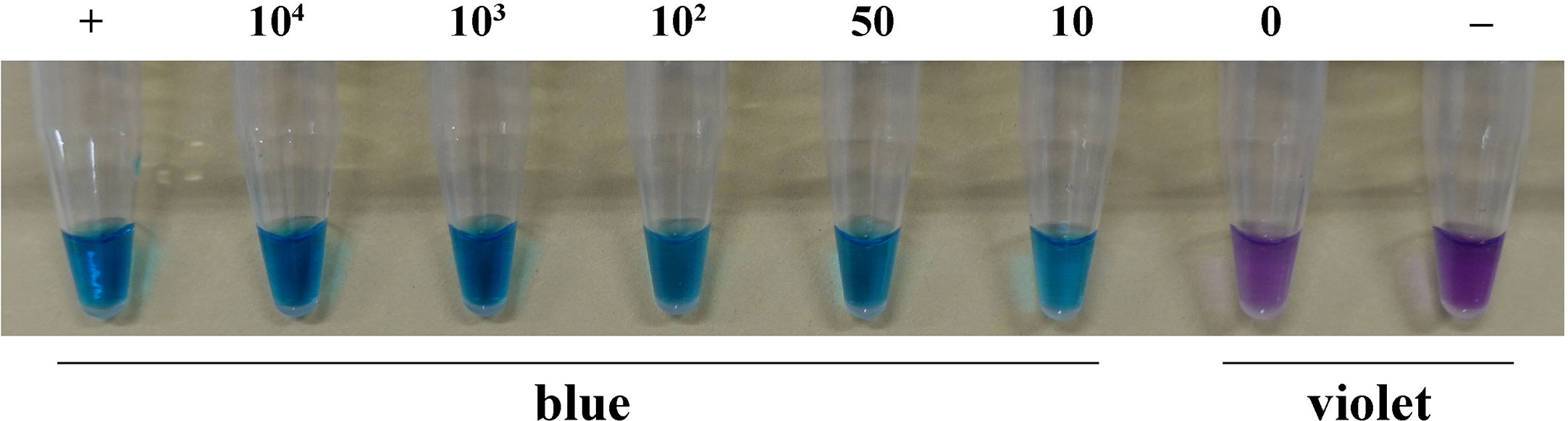

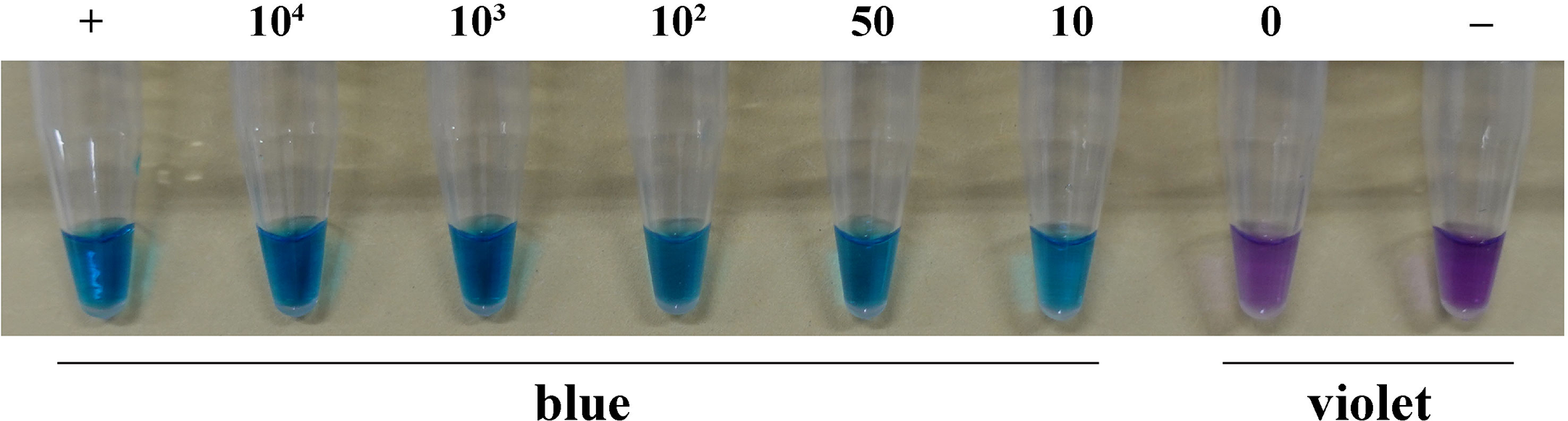

Figure 5
LAMP assay detection of H. annosum in basidiospore suspensions containing different numbers of basidiospores. “+”: positive control; “-”: negative control.
Detection in wood
The LAMP assay was applied to samples of wood infected with H. annosum. DNA was extracted from diseased pieces of wood under simulated field conditions; as shown in Figure 6, H. annosum was successfully detected in diseased wood samples.

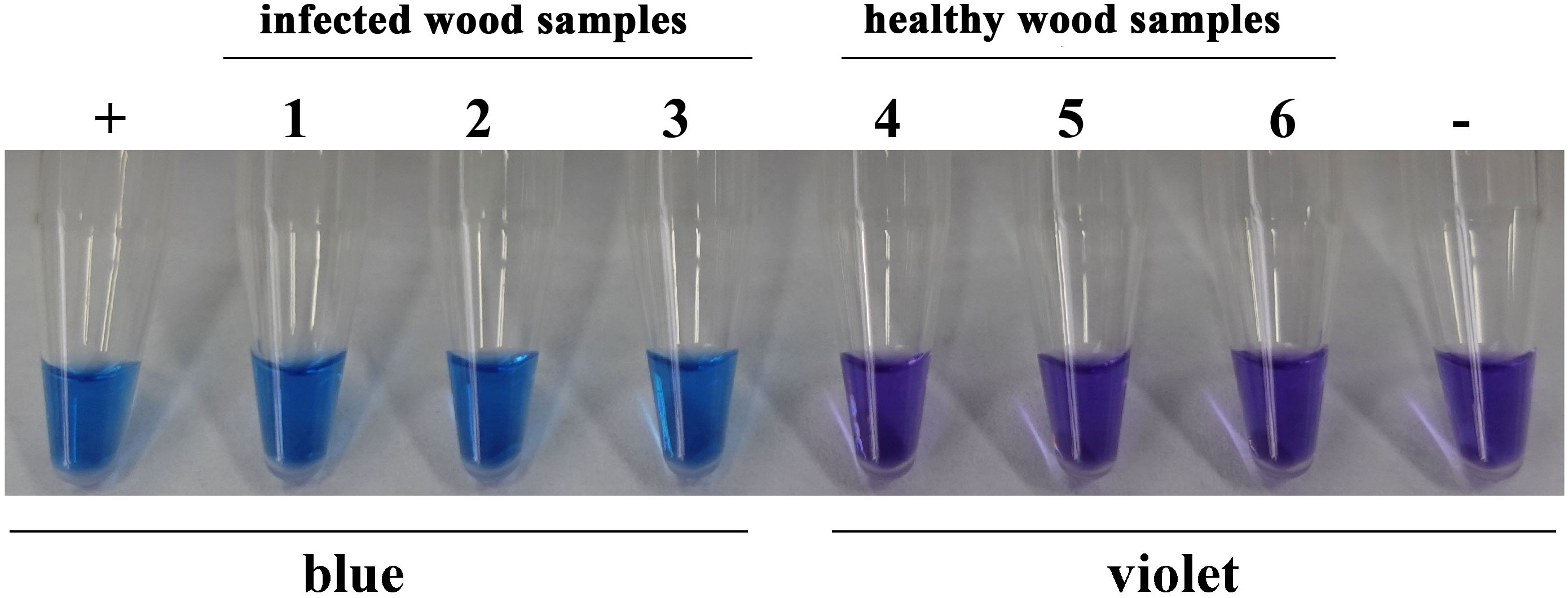

Figure 6
LAMP assay detection of H. annosum in wood samples. ”+”: positive control; “-”: negative control.
Discussion
Detection of wood decay based on symptoms is relatively difficult. Trees are usually asymptomatic for decades after infection by butt rot, much less for root rot. The external symptoms mostly occur after the sapwood of the tree has decayed (Greig, 1998). Omdal et al. (2004) suggested that aboveground variables can be used as reasonable indicators of root disease. However, the detection of infections caused by slow-growing wood pathogens and with less obvious outer symptoms, such as H. annosum, often requires considerable professional knowledge, especially to distinguish closely related species.
Several fragments of genes have been described for detection of species of Heterobasidion (Fabritius and Karjalainen, 1993; Kasuga and Mitchelson, 1993; Kasuga et al., 1993; Johannesson and Stenlid, 2003; Linzer et al., 2008; Chen et al., 2014, Chen, 2015; Shamoun et al., 2019; Pellicciaro et al., 2021; Yuan et al., 2021). Although the use of PCR techniques is more successful as a method of detection, it still requires specialized equipment and highly trained personnel, and it is difficult and time-consuming to implement the technique in remote areas and ports. A delay in the identification of wood pathogens causes a major threat to wood production and international trade in timber. We have developed a rapid, specific, and sensitive method of detecting wood decay caused by H. annosum, based on GAPDH sequences; furthermore we have evaluated the accuracy of this method in detecting this fungus directly on wood samples. The LAMP method is far more convenient and effective for detecting H. annosum in time- and resource- limited conditions. This fungus mostly infects pine (Pinus spp.), especially Pinus sylvestris (Chen et al., 2015), but also it can be associated with other conifer forests, such as Abies sp., Larix sp., and Picea sp. (Korhonen, 1978). Genetic evidence has confirmed the major significance of stump infection by H. annosum s.l. (Swedjemark and Stenlid, 1993) in managed forests. The fungus infects freshly cut stumps through the spores and then progresses to the roots, and is able to spread to adjacent trees through root contact (Rishbeth, 1951; Wallis, 1962; Garbelotto and Gonthier, 2013). Thus, our assay may have value during thinning periods in conifer forests.
In general, most PCR amplifications are carried out with a DNA concentration of 20 ng/μL. Conventional PCR amplifications used to detect Heterobasidion species are carried out with a DNA concentration of 20 pg/μL (Shamoun et al., 2019). However, the LAMP assay tested in our study was found to detect H. annosum with a DNA concentration of 100 pg/μL. With adjustments to the temperature and time, the sensitivity of LAMP assay for detection of H. annosum failed to increase. This point necessitates further analysis.
When wood is infected with H. annosum, the pathogen may remain active in residual stumps and roots for decades until the next rotation (Rishbeth, 1951; Greig and Pratt, 1976). Significantly, H. annosum s.l. grows more quickly in dead trees than living trees. Thus, the method presented here is applicable to the analysis of samples stored for long periods or sent over long distances.
China is one of the biggest timber importers in the world, especially in regard to logs. Conifer logs account for a large proportion of wood imports, and this proportion has climbed from 68.8% to 78.5% since 2017 (Han, 2021). Economic losses to wood decay caused by H. annosum should not be ignored, and our LAMP assay provides a quarantine tool for reducing such losses through accurate testing of wood samples.
Statements
Data availability statement
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary Material.
Author contributions
Design of the research: ZH-M, YJ, CJ-J; performance of the research: ZH-M, LY; data analysis and interpretation: ZH-M, CJ-J, YJ; collect the materials: DY-C, YY, WC-P; writing and revising the manuscript: ZH-M, CJ-J, YJ, DY-C. All authors contributed to the article and approved the submitted version.
Funding
The research was supported by the National Natural Science Foundation of China (32161143013 & 32070022), the Science Fund of the Jiangsu Vocational College of Agriculture and Forestry (2020kj003 & 2021kj91), and the Natural Science Foundation of the Jiangsu Higher Education Institutions of China (20KJB220003).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fcimb.2023.1134921/full#supplementary-material
SUPPLEMENTARY FIGURE 1The LAMP assay at different temperatures. The negative control was performed at 63°C for 60 min.
SUPPLEMENTARY FIGURE 2The LAMP assay at different times. The negative control was performed at 63°C for 60 min.
