Abstract
Tailoring the structure and properties of lignin is an important step toward electrochemical applications. In this study, lignin/polypyrrole (PPy) composite electrode films with microporous and mesoporous structures were designed effectively by electrostatic spinning, carbonization, and in situ polymerization methods. The lignin can not only reduce the cost of carbon fiber but also increase the specific surface area of composite films due to the removal of carbonyl and phenolic functional groups of lignin during carbonization. Besides, the compact three-dimensional (3D) conductive network structures were constructed with PPy particles densely coated on the lignin nanofibers, which was helpful to improve the conductivity and fast electron transfer during the charging and discharging processes. The synthesized lignin carbon fibers/PPy anode materials had good electrochemical performance in 1 M H2SO4 electrolyte. The results showed that, at a current density of 1 A g−1, the lignin carbon nanofibers/PPy (LCNFs/PPy) had a larger specific capacitance of 213.7 F g−1 than carbon nanofibers (CNFs), lignin carbon nanofibers (LCNFs), and lignin/PPy fiber (LPAN/PPy). In addition, the specific surface area of LCNFs/PPy reached 872.60 m2 g−1 and the average pore size decreased to 2.50 nm after being coated by PPy. Therefore, the independent non-binder and self-supporting conductive film is expected to be a promising electrode material for supercapacitors with high performance.
Introduction
Supercapacitors rely on electrode materials for charge storage, so electrode materials are the key part of the performance of supercapacitors (; WulanSeptiani et al., 2020; ; Xu et al., 2021b; Liu et al., 2021a; Liu et al., 2021b; Du et al., 2022). Carbon materials, such as porous carbon (), graphene (Zhou et al., 2020), carbon nanotubes (), and ordered mesoporous carbon (), are considered the most suitable electrode materials for supercapacitors due to their high specific surface area, developed pore structure, high electronic conductivity, and excellent stability (; ; Xu et al., 2020c). Unfortunately, strong van der Waals forces between graphene sheets tend to cause graphene sheets to accumulate and agglomerate (Xiong et al., 2020). And the biggest problem in the preparation of carbon nanotube composites is that carbon nanotubes are difficult to disperse effectively into the polymer matrix (). Also, the process of ordered mesoporous carbon is complicated due to the use of various templates (). However, porous carbon has gained wide raw material sources, low cost, well-developed pores, and an easy-to-control structure (). Moreover, the large amount of oxygen functional groups such as -OH and -COOH in these materials as another advantage provided interesting attention for better superior charge storage (). Like the latest report, Xu et al. (2022) prepared dung beetle forewing carbon materials with a hierarchical porous structure, self-doped nitrogen, oxygen, and a large specific surface area, which obtained a specific capacitance of 348 F g−1. ) converted waste peach gum as a raw material into layered porous carbon doped with N, P, and O through impregnation and carbonization. The electrode exhibited excellent electrochemical performance (490 F g−1 under 1 A g−1) due to the synergistic effects of high specific surface area and multiple heteroatomic co-doping amounts.
Therefore, more and more attention has been paid to the preparation of porous carbon electrode materials for supercapacitors using biomass as precursors (; Zhu et al., 2018; Yang et al., 2019; Liu et al., 2021g). Lignocellulosic biomass is one of the most abundant resources, which is a promising source of renewable energy (Du et al., 2019; Liu et al., 2020a; Liu et al., 2020b; Wang et al., 2020; Liu et al., 2021d; Xu et al., 2021a; Zhang et al., 2021a). Lignocellulosic biomass is mainly composed of cellulose,hemicelluloses, and lignin (Liu et al., 2021e; Liu et al., 2021f; Xu et al., 2020b; Liu et al., 2021h; Wang et al., 2021a). Among them, lignin as a kind of biomass carbon precursor is considered with broad application prospects due to its high carbon yield, large space for molecular structure modification, and abundant industrial sources (Dai et al., 2019; Li et al., 2019b; Chen et al., 2020b; Chen et al., 2020c; Dai et al., 2020; Xu et al., 2020a; Zhou et al., 2021; ). In addition, researchers are committed to designing and manufacturing advanced lignin carbon fibers with high specific surface area, controllable porosity, and appropriate pore size using electrostatic spinning technology, and this technique has obvious advantages over other preparation methods in controlling the fiber inner diameter, surface morphology, and orientation degree (; ). However, pure lignin has a low molecular weight and is not easily spinnable into fibers in practical applications (An et al., 2019). Therefore, high-molecular-weight polymers such as polyacrylonitrile (), poly(vinyl pyrrolidone) (), polyethylene oxide (), and polyvinyl alcohol () need to be added to the lignin solution to improve the viscosity and spinnability of the fiber preparation spinning solution. Furthermore, the mechanical strength of spun fibers can be improved by using high-molecular-weight polymers. Meanwhile, the introduction of conductive polymer into carbon fiber can generate more electrochemical active sites for a rapid charge–discharge conversion reaction, thus further improving the electrochemical performance (Zhang et al., 2017). Polypyrrole (PPy) is one of the most widely studied conductive polymers, which has a broad application prospect in supercapacitors due to its excellent energy storage capacity, easy synthesis, and high conductivity (; Du et al., 2021; Yuan and Ma, 2021). Unfortunately, PPy as a supercapacitor electrode undergoes continuous expansion and contraction during the doping/de-doping process, which reduces its cyclic stability and electrochemical performance (). Therefore, researchers used the strategy of depositing PPy on carbon-based materials to obtain enhanced capacitance performance in practical applications (). For example, Li et al. () fabricated graphene/graphite/PPy composite fibers using a vertical alignment method, and the 3D microelectrode was helpful to improve electrochemical performance. Zhan et al. (2021) developed electrode materials with high capacitance (5,299 mF cm−2) and mechanical flexibility by synthesizing PPy in situ in cellulose nanofiber/sulfonated carbon nanotube composite hydrogel. In the literature, our group reviewed multifunctional lignin-based composite materials and nano-lignin materials for emerging applications (; ). Moreover, we prepared the flexible N-doped carbon nanotubes/MXene/PAN nanocomposite films with improved electrochemical properties via the electrostatic spinning method ().
In this paper, the method of preparing PPy-coated lignin carbon fiber composite films by electrostatic spinning, in situ chemical polymerization, and carbonization was proposed. Electrostatic spinning combining carbonization has the advantages of large specific surface area, uniform pore distribution, and low density, compared with the vacuum filtration method. In a three-electrode system, the high capacitance of the composite films electrode was 213.7 F g−1 at a current density of 1 A g−1. More importantly, biomass lignin provided a possibility as a low-cost self-supporting electrode material for energy storage devices.
Experimental Section
Materials
Lignin was purchased from Shandong Longli Biotechnology Co., Ltd. Pyrrole, polyacrylonitrile (PAN) (Mw = 150,000), and N,N-dimethylformamide (DMF) were purchased from Shanghai Macklin Biochemical Co., Ltd. Ammonium persulfate ((NH4)2S2O8) and urea (CH4N2O) were purchased from Beijing Chemical Plant Co., Ltd. All other chemicals were of analytical grade.
Preparation of Electrospinning Solution
The spinning solution was obtained by stirring lignin and PAN (ratio: 0:1 and 1:4) in DMF solvent for 24 h at room temperature until completely dissolved. The precursory solution was transferred into a 5 ml syringe for electrospinning by using a voltage in the range of 15–17 kV and a distance of 13–15 cm from the needle tip to the aluminum foil collector. After spinning, the fibers were collected, and the two kinds of electrospun fiber membranes were named “PAN” and “LPAN,” respectively.
Preparation of Lignin/PPy Filament Fiber
The PPy-coated nanofiber films were prepared using a simple in situ chemical polymerization. The above electrospun nanofiber LPAN film was dipped into a beaker containing an aqueous solution of 25 ml pyrrole (5 g L−1), which had been stirred for several minutes in advance. Then, after soaking for 3 h, 25 ml of (NH4)2S2O8 (0.2 moL L−1) solution was added dropwise, and holding at 0°C for 4 h. The sample was removed from the solution and rinsed with deionized water to remove PPy particles and residual reactants and dried in an oven for 4 h. The film containing PPy was named “LPAN/PPy.”
Preparation of Lignin-Based Carbon Fiber/PPy Composites
The freestanding carbonized composites were fabricated as follows. Pyrolysis of polymer fibers was performed in a tubular furnace under the following condition: The heating rate was 1°C min−1 from room temperature to 250°C. The temperature was set constant at 250°C for 1 h and from 250 to 900°C with 5°C min−1 by blowing N2 gas. Then, the setup was maintained at that temperature for 2 h and cooled to room temperature. The preparation of lignin-based carbon fiber/PPy composites is shown in Scheme 1, which are named “LCNFs/PPy.” For comparison, the electrospun lignin-free carbon fiber film was prepared and marked as CNFs. In addition, the composites without adding PPy were prepared and marked as LCNFs.

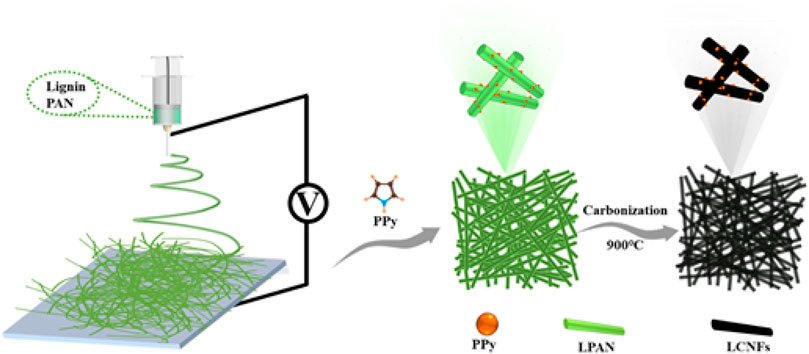

SCHEME 1
Material Characterization
The morphologies of the electrospun fiber membranes, lignin/PPy filament fibers, and lignin-based carbon fiber/PPy composites were characterized via scanning electron microscopy (SEM, SU8010, Hitachi, Japan). X-ray diffractometry (XRD, Ultima IV, Rigaku, Japan) was carried out to study the crystallographic information of the sample. TG-DTA (TG209F3, Netzsch, Germany) was tested under air to analyze the composition ration of the samples. The chemical groups were characterized with a PerkinElmer Frontier Fourier transform infrared (FT-IR) spectrometer.
Electrochemical Measurements
All electrochemical tests were performed on an electrochemical workstation (CHI 660D) using a three-electrode configuration using a 1 M H2SO4 aqueous solution as the electrolyte at room temperature. A Pt mesh electrode and an Hg/HgCl2 electrode were used as the counter and reference electrodes, respectively. The cyclic voltammetry (CV) curves were plotted in a potential range between 0 and 1 V at different scan rates from 5 to 500 mV s−1. The EIS experiments in the frequency range of 1 MHz–0.01 Hz were executed at 5 mV AC amplitude. And the specific capacitance was calculated from galvanostatic charge/discharge (GCD) curves according to the following equation ():where Cs (F g−1) is the specific capacitance, I (A g−1) is the discharge current, ∆t (s) is the discharge time, ∆U (V) represents the potential window, and m (g) is the electrode material mass.
Results and Discussion
Figure 1 shows the SEM images of the PAN, LPAN, PPy, and LPAN/PPy films prepared by electrostatic spinning and in situ chemical polymerization, which could intuitively reflect the microscopic morphology and structural differences of the precursor fibers. As shown in Figure 1A, the pure PAN fiber morphology was regular without beading or bending, which had uniform thickness and a diameter of about 289 nm. When the lignin:PAN ratio was 1:4, part of the fiber beaded and fractured (Figure 1B), and the fiber diameter was within the range of 248 nm. The interaction between lignin and PAN may contribute to the agglomerated, beading, and defective fibers. In addition, some lignin groups changed the polarity of the spinning solution, inducing the phenomenon of large fluctuation in the process of high-pressure spinning, which further affected the regularity of fiber diameter (Wang et al., 2013). Figure 1C shows the SEM image of PPy particles prepared by the chemical oxidation method. Besides, as shown in Figure 1D, the electrospinning fibers were coated with PPy evenly, and the diameter was mainly distributed at about 200–300 nm.
FIGURE 1
Compared with lignin-based filament fibers prepared by the electrospinning method, the diameter of carbon fibers after pre-oxidation and high-temperature carbonization was significantly smaller, and part of the fiber showed a state of curvature and connection. It could be more intuitively observed from the digital image in Figure 2A that the sample area had a certain contraction after carbonization at 900°C. This could be attributed to the fracture, removal, and cyclization of lignin groups in the fiber (; Ma et al., 2020). The LCNFs (Figure 2C) exhibited a smaller diameter than CNFs (Figure 2B), which increased the specific surface area and porosity, thereby improving the cyclic stability and specific capacitance. On the contrary, the carbon nanofibers connect and bridge with each other to form a highly conductive network structure that facilitated rapid electron transfer during charging and discharging processes, thus improving the rate capacity. In addition, PPy on the surface of carbon fiber was closely attached (Figure 2D), which also contributed to the improvement of electrochemical properties.
FIGURE 2
FT-IR was performed to determine the chemical structure of the prepared samples (Figure 3A). The peak at 3,433 cm−1 was attributed to N-H in PAN, and O-H in the aromatic ring of lignin. In addition, the peaks of PAN at 2,937 and 2,243 cm−1 were attributed to C-H and C≡N, respectively (Si et al., 2009; Xu et al., 2021c). It was noted that the O-H peak increased with the increase of lignin content and had a trend of low-wavelength shift, and C≡N cyanine peaks gradually weakened. And the peaks at 1,183 and 1,077 cm−1 were C-N and C-H in a PPy long chain, respectively (Si et al., 2008; Wang et al., 2015). The results showed that the pyrrole rings were mainly connected by an α-α bond after the composite PPy on the surface of the filament. The FT-IR spectra of carbon fibers displayed three emblematic bands at 3,430 (N-H stretching), 1,610 (C=C stretching), and 1,370 cm−1 (-CH3 bending), respectively (Si et al, 2013; Ma et al., 2021b). After calcination at 900°C, the groups (cyanogenic C≡N in PAN) of the filament basically disappear, which was due to the decomposition of organic compounds at high temperature and the formation of amorphous carbon. The XRD patterns of carbon fibers are demonstrated in Figure 3B. The carbon peak position had been located at 26.6° and 44°, which corresponded to the (002) and (100) diffraction planes of disordered stacking of graphite structures (). It was also confirmed that the linear structure of the fiber was transformed into a heat-resistant trapezoidal structure during the pre-oxidation process, and the graphitization crystal structure could provide good structural stability, which was advantageous to improve the capacitive performance. In addition, a large specific surface area provided more active sites for charge storage, which improved the electrochemical performance of supercapacitors. The N2 adsorption–desorption isotherms and pore-size distribution of composite carbon fibers are illustrated in Figures 3C,D, respectively. According to IUPAC classification, the N2 adsorption–desorption isotherms of the three samples all exhibited a mixed type Ⅰ curve and type IV curve with a steep increase of N2 adsorbed at low pressure and a distinct hysteresis loop at high-pressure regions (0.4 < P/P0 < 1.0), indicating the coexistence of microporous and mesoporous structures (; ). The micropores increased the specific surface area of the material, increasing the active site of pseudo-capacitance reaction, and the mesopores provided a smooth channel to help electrolyte ions quickly enter the reaction interface of the material bulk phase. Therefore, the existence of these pores directly affected the specific capacity of the electrode material. Compared to CNFs (519.81 m2 g−1 and 3.55 nm), the BET surface area and pore diameter of LCNFs were 746.37 m2 g−1 and 2.76 nm, respectively. It was noted that the specific surface area of LCNFs/PPy reached 872.60 m2 g−1 and the average pore size decreased to 2.50 nm after the composite by PPy, which may be caused by the filling of the fiber gap with PPy to form smaller pores.
FIGURE 3
To explore the electrochemical capacitive properties of carbon fibers at different temperatures, after that, the stabilized lignin/PAN fiber film was carbonized by heating to 600°C as the control sample, denoted as LCNFs-600. The capacitive properties of LCNF and LCNF-600 electrodes were measured in 1 M H2SO4 using a three-electrode system. From the electrode under different scan rate cyclic voltammetry (CV) curves, it is found that the curve area of the LCNFs (Figure 4A) was larger than that of the LCNFs-600 (Figure 4B). And at low scanning rates, the CV curves of LCNFs were closer to rectangles. These results clearly showed that the calcination temperature was 900°C and the graphitization and amorphous area of carbon fibers increased, further improving the specific surface area for better permeation H+ to access more active sites. Furthermore, at different current densities of 1–20 A g−1, the GCD curves of the LCNFs were near the isosceles triangle shapes (Figure 4C). Compared to LCNFs-600, the LCNF electrode had an ideal capacitance and ion adsorption/desorption mode during the energy storage process (Figure 4D).
FIGURE 4
Figure 5A shows the CV curves of composite electrode materials at 5 mV s−1. It was evident that the LCNF/PPy composite films approximated rectangles, which showed good electrochemical reversibility. Compared with LCNF composite films without PPy composite, the area was larger and the specific capacitance was higher, indicating that the addition of conductive polymer PPy could improve the specific capacitance of carbon fibers. In addition, with the addition of lignin, the charge storage capacity of the material significantly enhanced. This was attributed to the natural pore structure and complex functional groups of lignin, which enhanced the specific surface area and electrochemical reversibility of carbon fibers after calcination (). In order to better compare the electrochemical performance, chronopotentiograms are drawn for the samples at a constant current density of 1 A g−1 in Figure 5B. It could be observed that the LCNF/PPy composite film had a visibly larger discharging time (Δt) than the other samples. The relationships between specific capacitances and current densities of these five samples are shown in Figure 5C. The highest specific capacitance of 213.7 F g−1 was obtained for the LCNF/PPy electrode at a current density of 1 A g−1, compared with specific capacitances of 193.8 F g−1, 132.8 F g −1 117.3 F g−1, and 82.3 F g−1 for LCNFs, CNFs, LPAN/PPy, and LCNFs-600, respectively. And the LCNF/PPy electrode also showed a higher specific capacitance, compared with other recently reported lignin and PPy composite electrodes (Table 1). To further verify the excellent properties, EIS measurements were performed in the frequency range from 1 MHz to 0.01 Hz, as shown in Figure 5D. The series resistance of the LCNFs/PPy was only 2.7 Ω, and the small semicircle reveals the low charge transfer resistance (Rct). Moreover, it showed a high slope in the high-frequency region, which indicated good ion diffusion process and double-layer behavior in the electrochemical reaction process. Furthermore, the four-probe method was used to test the conductivity of the composite films, and the results are shown in Figure 5E. The addition of PPy into LCNFs has been demonstrated to be an effective strategy to reduce resistivity. The low resistivity of LCNFs/PPy (5.58 Ω cm−1) is also demonstrated in the small bulb test in Figure 5F. Moreover, the poor conductivity of the calcined sample at 600°C should be caused by its low graphitization degree and long charge diffusion path.
FIGURE 5
TABLE 1
| Electrode material | Specific capacitance | Electrolyte | Refs. |
|---|---|---|---|
| Lignin/PAN | 148.0 F g−1 (50 mV s−1) | 0.5 M KOH | |
| Lignin/LaMnO3 | 95.2 F g−1 (1 A g−1) | 6 M KOH | |
| Lignin/KHCO3 | 114.0 F g−1 (0.5 A g−1) | 2.5 M KNO3 | |
| Lignin | 197.3 F g−1 (0.2 A g−1) | 6 M KOH | |
| Lignin | 155.0 F g−1 (0.5 A g−1) | 6 M KOH | |
| Alkali lignin | 168.3 F g−1 (10 mV s−1) | 3 M KCl | |
| PPy-thieno[3,4-b]thiophene | 28.1 F g−1 (0.1 mA cm−2) | 2 M LiCl | Wang et al. (2021b) |
| N,B-codoped graphene/PPy | 160.3 F g−1 (0.5 A g−1) | 1 M H2SO4 | Xin et al. (2021) |
| PPy/birnessite | 183.0 F g−1 (0.5 A g−1) | 1 M Na2SO4 | Zhuang et al. (2021) |
| Lignin/PPy | 213.7 F g−1 (1 A g−1) | 1 M H2SO4 | This work |
Comparison of supercapacitive performance of recently reported lignin-based and PPy-based composite electrodes.
To further clarify the electrochemical behavior of LCNF/PPy films, the complete CV curves and GCD curves of the SCs are plotted in Figures 6A,B, respectively. The results in Figure 6A showed that all CV curves maintain the similar shape at different scanning rates, demonstrating well capacitance performance and relatively good rate capability. Subsequently, the GCD curves of the LCNFs/PPy are displayed in Figure 6B. The curves had a shape of a symmetrical triangle that showed good capacitive behavior. It was important to assess the long-cycle stability of LCNF/PPy positive material by repeating the GCD test at 4 A g−1. Figure 6C shows a well stability of about 77% after 1,000 cycles. For further understanding the charge storage process of LCNFs/PPy, the electrochemical dynamics of electrode composite films were studied. The capacitance C could be calculated by ()where T is the discharge time of the GCD test, k1 corresponds to the surface capacitance effect (usually from the double-layer capacitance, T→0), and k2T1/2 corresponds to the capacitance effect of diffusion control (affected by the charge and discharge rates, T→∞). Figure 6D shows the relationship between specific capacitance and discharge time of LCNFs/PPy. When T→0, the intercept was k1, representing the specific capacitance contributed by the double-layer effect. The double-layer capacitance of LCNFs/PPy reached 148.7 F g−1, accounting for 69.6% of the total capacitance, which showed that the capacitance effect mainly came from double-layer adsorption (). In addition, the capacitance control and diffusion control in total charge storage could be further calculated and quantified by (Zhang et al., 2021b)
FIGURE 6
In short, at a certain voltage (v), the current response (i) consisted of two parts, wherein k1v and k2v1/2 corresponded to the surface control process (pseudo-capacitance and double-layer capacitance) and the diffusion control process, respectively (). As could be seen from Figures 6E,F, the capacitance contribution of the LCNF/PPy positive electrode film enlarged from 7 to 70% with the increase of scanning rate, which was caused by the relatively low ion diffusion rate at large scanning rates.
Conclusion
In summary, carbon fiber precursors with lignin and PAN (ratio 1:4) were prepared by the electrostatic spinning method, and PPy was in situ polymerized to improve electrochemical performance. In addition, lignin/PPy composite films were produced without the use of any crosslinking agents and physical/chemical activation during thermal stabilization and carbonization. Lignin/PPy composite films with microporous and mesoporous structures were designed as the positive materials of the supercapacitor. Among them, the LCNF/PPy electrode had a large specific surface area, high pore volume, and the specific capacitance of 213.7 F g−1 at the current density of 1 A g−1. This work has the potential to use lignin to produce carbon fibers as a low-cost electrode material for high-performance supercapacitors.
Statements
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material, and further inquiries can be directed to the corresponding authors.
Author contributions
Z-RH, D-DL, and M-GM investigated the data and wrote the original draft. T-HK, M-SK, TX, M-GM, S-EC, and CS supervised the work and reviewed and edited the paper.
Funding
The financial support from the Innovation and Entrepreneurship Training Program for College Students (No. G201910022053) is gratefully acknowledged, and this work was also partially supported by the R&D Program for Forest Science Technology (2019151D10-2223-0301) provided by the Korea Forest Service (Korea Forestry Promotion Institute) and Technology Development Program (S3030198) funded by the Ministry of SMEs and Startups (MSS, South Korea) to S-EC.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
1
AnL.SiC.WangG.SuiW.TaoZ. (2019). Enhancing the Solubility and Antioxidant Activity of High-Molecular-Weight Lignin by Moderate Depolymerization via In Situ Ethanol/acid Catalysis. Ind. Crops Prod.128, 177–185. 10.1016/j.indcrop.2018.11.009
2
BaiZ.LiuS.ChenP.ChengG.WuG.LiH.et al (2020). Nickel Nanoparticles Embedded in Porous Carbon Nanofibers and its Electrochemical Properties. Nanotechnology31, 305705. 10.1088/1361-6528/ab8594
3
CamiréA.EspinasseJ.ChabotB.LajeunesseA. (2020). Development of Electrospun Lignin Nanofibers for the Adsorption of Pharmaceutical Contaminants in Wastewater. Environ. Sci. Pollut. Res.27, 3560–3573. 10.1007/s11356-018-3333-z
4
CaoM.ChengW.NiX.HuY.HanG. (2020). Lignin-based Multi-Channels Carbon Nanofibers @ SnO2 Nanocomposites for High-Performance Supercapacitors. Electrochimica Acta345, 136172. 10.1016/j.electacta.2020.136172
5
CaoQ.ZhuM.ChenJ.SongY.LiY.ZhouJ. (2020). Novel Lignin-Cellulose-Based Carbon Nanofibers as High-Performance Supercapacitors. ACS Appl. Mater. Inter.12, 1210–1221. 10.1021/acsami.9b14727
6
ChenL.YuH.LiZ.ChenX.ZhouW. (2021a). Cellulose Nanofiber Derived Carbon Aerogel with 3D Multiscale Pore Architecture for High-Performance Supercapacitors. Nanoscale13, 17837–17845. 10.1039/d1nr04838d
7
ChenQ.JinJ.SongM.ZhangX.LiH.ZhangJ.et al (2021b). High-energy Aqueous Ammonium-Ion Hybrid Supercapacitors. Adv. Mater., e2107992. 10.1002/adma.202107992
8
ChenS.QiuL.ChengH.-M. (2020a). Carbon-based Fibers for Advanced Electrochemical Energy Storage Devices. Chem. Rev.120, 2811–2878. 10.1021/acs.chemrev.9b00466
9
ChenS.WangG.SuiW.ParvezA. M.DaiL.SiC. (2020b). Novel Lignin-Based Phenolic Nanosphere Supported Palladium Nanoparticles with Highly Efficient Catalytic Performance and Good Reusability. Ind. Crops Prod.145, 112164. 10.1016/j.indcrop.2020.112164
10
ChenS.WangG.SuiW.ParvezA. M.SiC. (2020c). Synthesis of Lignin-Functionalized Phenolic Nanosphere Supported Ag Nanoparticles with Excellent Dispersion Stability and Catalytic Performance. Green. Chem.22, 2879–2888. 10.1039/c9gc04311j
11
ChoiC.AshbyD. S.ButtsD. M.DeBlockR. H.WeiQ.LauJ.et al (2020). Achieving High Energy Density and High Power Density with Pseudocapacitive Materials. Nat. Rev. Mater.5, 5–19. 10.1038/s41578-019-0142-z
12
DaiL.MaM.XuJ.SiC.WangX.LiuZ.et al (2020). All-Lignin-Based Hydrogel with Fast pH-Stimuli Responsiveness for Mechanical Switching and Actuation. Chem. Mater.32, 4324–4330. 10.1038/s41578-019-0142-z
13
DaiL.ZhuW.LuJ.KongF.SiC.NiY.et al (2019). A Lignin-Containing Cellulose Hydrogel for Lignin Fractionation. Green. Chem.21, 5222–5230. 10.1039/c9gc01975h
14
DallmeyerI.KoF.KadlaJ. F. (2010). Electrospinning of Technical Lignins for the Production of Fibrous Networks. J. Wood Chem. Tech.30, 315–329. 10.1080/02773813.2010.527782
15
DengJ.SunS.-F.ZhuE.-Q.YangJ.YangH.-Y.WangD.-W.et al (2021). Sub-micro and Nano-Lignin Materials: Small Size and Rapid Progress. Ind. Crops Prod.164, 113412. 10.1016/j.indcrop.2021.113412
16
DingR.WuH.ThungaM.BowlerN.KesslerM. R. (2016). Processing and Characterization of Low-Cost Electrospun Carbon Fibers from Organosolv Lignin/polyacrylonitrile Blends. Carbon100, 126–136. 10.1016/j.carbon.2015.12.078
17
DingY.HuangS.SunY.LiY.ZhuL.WangS. (2021). Preparation of Nitrogen and Sulfur Co‐doped and Interconnected Hierarchical Porous Biochar by Pyrolysis of Mantis Shrimp in CO 2 Atmosphere for Symmetric Supercapacitors. ChemElectroChem8, 3745–3754. 10.1002/celc.202101151
18
DuH.LiuW.ZhangM.SiC.ZhangX.LiB. (2019). Cellulose Nanocrystals and Cellulose Nanofibrils Based Hydrogels for Biomedical Applications. Carbohydr. Polym.209, 130–144. 10.1016/j.carbpol.2019.01.020
19
DuH.ParitM.LiuK.ZhangM.JiangZ.LiT.-S.et al (2021). Multifunctional Cellulose Nanopaper with superior Water-Resistant, Conductive, and Antibacterial Properties Functionalized with Chitosan and Polypyrrole. ACS Appl. Mater. Inter.13, 32115–32125. 10.1021/acsami.1c06647
20
DuH.ZhangM.LiuK.ParitM.JiangZ.ZhangX.et al (2022). Conductive PEDOT:PSS/cellulose Nanofibril Paper Electrodes for Flexible Supercapacitors with superior Areal Capacitance and Cycling Stability. Chem. Eng. J.428, 131994. 10.1016/j.cej.2021.131994
21
FanL.-Q.LiuG.-J.WuJ.-H.LiuL.LinJ.-M.WeiY.-L. (2014). Asymmetric Supercapacitor Based on Graphene Oxide/polypyrrole Composite and Activated Carbon Electrodes. Electrochimica Acta137, 26–33. 10.1016/j.electacta.2014.05.137
22
FanL.-Q.TuQ.-M.GengC.-L.HuangJ.-L.GuY.LinJ.-M.et al (2020). High Energy Density and Low Self-Discharge of a Quasi-Solid-State Supercapacitor with Carbon Nanotubes Incorporated Redox-Active Ionic Liquid-Based Gel Polymer Electrolyte. Electrochimica Acta331, 135425. 10.1016/j.electacta.2019.135425
23
FuQ.HaoS.MengL.XuF.YangJ. (2021). Engineering Self-Adhesive Polyzwitterionic Hydrogel Electrolytes for Flexible Zinc-Ion Hybrid Capacitors with superior Low-Temperature Adaptability. ACS Nano15, 18469–18482. 10.1021/acsnano.1c08193
24
GangH.-E.ParkG.-T.JeonH.-B.KimS.-Y.JeongY. G. (2021). PAN/lignin and LaMnO3-Derived Hybrid Nanofibers for Self-Standing High-Performance Energy Storage Electrode Materials. J. Mater. Sci.56, 19636–19650. 10.1007/s10853-021-06528-3
25
HeD.TangF.JiangH.HirunpinyopasW.CetinkayaT.LiZ. (2021). The Vertically Aligned graphene/graphite/PPy Composites Electrode and its PPy Thickness-dependent Electrochemical Performance. Electrochimica Acta399, 139426. 10.1016/j.electacta.2021.139426
26
JayachandranM.Kishore BabuS.MaiyalaganT.RajaduraiN.VijayakumarT. (2021). Activated Carbon Derived from Bamboo-Leaf with Effect of Various Aqueous Electrolytes as Electrode Material for Supercapacitor Applications. Mater. Lett.301, 130335. 10.1016/j.matlet.2021.130335
27
LiD.-D.YuanQ.HuangL.-Z.ZhangW.GuoW.-Y.MaM.-G. (2021). Preparation of Flexible N-Doped Carbon Nanotube/MXene/PAN Nanocomposite Films with Improved Electrochemical Properties. Ind. Eng. Chem. Res.60, 15352–15363. 10.1021/acs.iecr.1c03182
28
LiJ.WangY.XuW.WangY.ZhangB.LuoS.et al (2019a). Porous Fe2O3 Nanospheres Anchored on Activated Carbon Cloth for High-Performance Symmetric Supercapacitors. Nano Energy57, 379–387. 10.1016/j.nanoen.2018.12.061
29
LiX.XuR.YangJ.NieS.LiuD.LiuY.et al (2019b). Production of 5-hydroxymethylfurfural and Levulinic Acid from Lignocellulosic Biomass and Catalytic Upgradation. Ind. Crops Prod.130, 184–197. 10.1016/j.indcrop.2018.12.082
30
LiZ.HanafyH.ZhangL.SellaouiL.Schadeck NettoM.OliveiraM. L. S.et al (2020). Adsorption of congo Red and Methylene Blue Dyes on an Ashitaba Waste and a walnut Shell-Based Activated Carbon from Aqueous Solutions: Experiments, Characterization and Physical Interpretations. Chem. Eng. J.388, 124263. 10.1016/j.cej.2020.124263
31
LianY. M.NiM.ZhouL.ChenR. J.YangW. (2018). Synthesis of Biomass‐Derived Carbon Induced by Cellular Respiration in Yeast for Supercapacitor Applications. Chem. Eur. J.24, 18068–18074. 10.1002/chem.201803836
32
LinT.ChenI.-W.LiuF.YangC.BiH.XuF.et al (2015). Nitrogen-doped Mesoporous Carbon of Extraordinary Capacitance for Electrochemical Energy Storage. Science350, 1508–1513. 10.1126/science.aab3798
33
LiuH.DuH.ZhengT.LiuK.JiX.XuT.et al (2021a). Cellulose Based Composite Foams and Aerogels for Advanced Energy Storage Devices. Chem. Eng. J.426, 130817. 10.1016/j.cej.2021.130817
34
LiuH.XuT.LiuK.ZhangM.LiuW.LiH.et al (2021b). Lignin-based Electrodes for Energy Storage Application. Ind. Crops Prod.165, 113425. 10.1016/j.indcrop.2021.113425
35
LiuH.ZhuJ.LiZ.ShiZ.ZhuJ.MeiH. (2021c). Fe2O3/N Doped rGO Anode Hybridized with NiCo LDH/Co(OH)2 Cathode for Battery-like Supercapacitor. Chem. Eng. J.403, 126325. 10.1016/j.cej.2020.126325
36
LiuK.DuH.LiuW.LiuH.ZhangM.XuT.et al (2021d). Cellulose Nanomaterials for Oil Exploration Applications. Polym. Rev.10.1080/15583724.2021.2007121
37
LiuK.DuH.ZhengT.LiuH.ZhangM.ZhangR.et al (2021e). Recent Advances in Cellulose and its Derivatives for Oilfield Applications. Carbohydr. Polym.259, 117740. 10.1016/j.carbpol.2021.117740
38
LiuK.DuH.ZhengT.LiuW.ZhangM.LiuH.et al (2021f). Lignin-containing Cellulose Nanomaterials: Preparation and Applications. Green Chem.23, 9723–9746. 10.1039/d1gc02841c
39
LiuS.DuH.LiuK.MaM.KwonY.-E.SiC.et al (2021g). Flexible and Porous Co3O4-Carbon Nanofibers as Binder-free Electrodes for Supercapacitors. Adv. Compos. Hybrid. Mater.4, 1367–1383. 10.1007/s42114-021-00344-8
40
LiuW.DuH.LiuH.XieH.XuT.ZhaoX.et al (2020a). Highly Efficient and Sustainable Preparation of Carboxylic and Thermostable Cellulose Nanocrystals via FeCl3-Catalyzed Innocuous Citric Acid Hydrolysis. ACS Sustain. Chem. Eng.8, 16691–16700. 10.1021/acssuschemeng.0c06561
41
LiuW.DuH.LiuK.LiuH.XieH.SiC.et al (2021h). Sustainable Preparation of Cellulose Nanofibrils via Choline Chloride-Citric Acid Deep Eutectic Solvent Pretreatment Combined with High-Pressure Homogenization. Carbohydr. Polym.267, 118220. 10.1016/j.carbpol.2021.118220
42
LiuW.DuH.ZhangM.LiuK.LiuH.XieH.et al (2020b). Bacterial Cellulose-Based Composite Scaffolds for Biomedical Applications: A Review. ACS Sustain. Chem. Eng.8, 7536–7562. 10.1021/acssuschemeng.0c00125
43
MaC.KimT.-H.LiuK.MaM.-G.ChoiS.-E.SiC. (2021a). Multifunctional Lignin-Based Composite Materials for Emerging Applications. Front. Bioeng. Biotechnol.9, 708976. 10.3389/fbioe.2021.708976
44
MaC.MaM.SiC.JiX.WanP. (2021b). Flexible MXene-Based Composites for Wearable Devices. Adv. Funct. Mater.31, 2009524. 10.1002/adfm.202009524
45
MaC.YuanQ.DuH.MaM.SiC.WanP. (2020). Multiresponsive MXene (Ti3C2Tx)-Decorated Textiles for Wearable Thermal Management and Human Motion Monitoring. ACS Appl. Mater. Inter.12, 34226–34234. 10.1021/acsami.0c10750
46
MutumaB. K.SyllaN. F.BubuA.NdiayeN. M.SantoroC.BrilloniA.et al (2021). Valorization of Biodigestor Plant Waste in Electrodes for Supercapacitors and Microbial Fuel Cells. Electrochimica Acta391, 138960. 10.1016/j.electacta.2021.138960
47
ParkG.-T.JeonH.-B.KimS.-Y.GangH.-E.JeongY. G. (2022). Flexible and Self-Standing Polyimide/lignin-Derived Carbon Nanofibers for High-Performance Supercapacitor Electrode Material Applications. Mater. Sci. Eng. B275, 115530. 10.1016/j.mseb.2021.115530
48
QuW.YangJ.SunX.BaiX.JinH.ZhangM. (2021). Towards Producing High-Quality Lignin-Based Carbon Fibers: A Review of Crucial Factors Affecting Lignin Properties and Conversion Techniques. Int. J. Biol. Macromolecules189, 768–784. 10.1016/j.ijbiomac.2021.08.187
49
RoisM. F.WidiyastutiW.SetyawanH.RahmatikaA. M.OgiT. (2021). Preparation of Activated Carbon from Alkali Lignin Using Novel One-step Process for High Electrochemical Performance Application. Arabian J. Chem.14, 103162. 10.1016/j.arabjc.2021.103162
50
RongK.WeiJ.WangY.LiuJ.QiaoZ.-A.FangY.et al (2021). Deep Eutectic Solvent Assisted Zero-Waste Electrospinning of Lignin Fiber Aerogels. Green. Chem.23, 6065–6075. 10.1039/d1gc01872h
51
SahooN. G.RanaS.ChoJ. W.LiL.ChanS. H. (2010). Polymer Nanocomposites Based on Functionalized Carbon Nanotubes. Prog. Polym. Sci.35, 837–867. 10.1016/j.progpolymsci.2010.03.002
52
SchneidermannC.JäckelN.OswaldS.GiebelerL.PresserV.BorchardtL. (2017). Solvent-free Mechanochemical Synthesis of Nitrogen-Doped Nanoporous Carbon for Electrochemical Energy Storage. ChemSusChem10, 2416–2424. 10.1002/cssc.201700459
53
ShangZ.AnX.ZhangH.ShenM.BakerF.LiuY.et al (2020). Houttuynia-derived Nitrogen-Doped Hierarchically Porous Carbon for High-Performance Supercapacitor. Carbon161, 62–70. 10.1016/j.carbon.2020.01.020
54
SiC.JiangJ.LiuS.HuH.RenX.YuG.et al (2013). A new lignan glycoside and phenolics from the branch wood of Pinus banksiana Lambert. Holzforschung67, 357–363. 10.1515/hf-2012-0137
55
SiC.KimJ. K.BaeY. S.LiS. M. (2009). Phenolic compounds in the leaves of Populus ussuriensis and their antioxidant activities. Planta Med.75, 1165–1167. 10.1055/s-0029-1185476
56
SiC.LiuZ.KimJ. K.BaeY. S. (2008). Structure elucidation of phenylethanoid glycosides from Paulownia tomentosa Steud. var. tomentosa wood. Holzforschung62, 197–200. 10.1515/HF.2008.047
57
SimaG.GanL. H.ChangL. J.CuiY.KankalaR. K. (2021). Efficient Fabrication of Ordered Mesoporous Carbon Derived from Lignin via Deep Eutectic Solvent Pretreatment for Supercapacitors. Microp. Mesop. Mater. 10.1016/j.micromeso.2021.111192
58
SzabóL.MilotskyiR.UedaH.TsukegiT.WadaN.TakahashiK. (2021). Controlled Acetylation of Kraft Lignin for Tailoring Polyacrylonitrile-Kraft Lignin Interactions towards the Production of Quality Carbon Nanofibers. Chem. Eng. J.405, 126640. 10.1016/j.cej.2020.126640
59
ThongsaiN.HrimchumK.AussawasathienD. (2021). Carbon Fiber Mat from palm-kernel-shell Lignin/polyacrylonitrile as Intrinsic-Doping Electrode in Supercapacitor. Sust. Mater. Tech.30, e00341. 10.1016/j.susmat.2021.e00341
60
TianW.LiY.ZhouJ.WangT.ZhangR.CaoJ.et al (2021). Implantable and Biodegradable Micro-supercapacitor Based on a Superassembled Three-Dimensional Network Zn@PPy Hybrid Electrode. ACS Appl. Mater. Inter.13, 8285–8293. 10.1021/acsami.0c19740
61
TianY.YangC.SongX.LiuJ.ZhaoL.ZhangP.et al (2019). Engineering the Volumetric Effect of Polypyrrole for Auto-Deformable Supercapacitor. Chem. Eng. J.374, 59–67. 10.1016/j.cej.2019.05.153
62
WangH.DuH.LiuK.LiuH.XuT.ZhangS.et al (2021a). Sustainable Preparation of Bifunctional Cellulose Nanocrystals via Mixed H2SO4/formic Acid Hydrolysis. Carbohydr. Polym.266, 118107. 10.1016/j.carbpol.2021.118107
63
WangH.XieH.DuH.WangX.LiuW.DuanY.et al (2020). Highly Efficient Preparation of Functional and Thermostable Cellulose Nanocrystals via H2SO4 Intensified Acetic Acid Hydrolysis. Carbohydr. Polym.239, 116233. 10.1016/j.carbpol.2020.116233
64
WangJ.-G.LiuH.SunH.HuaW.WangH.LiuX.et al (2018). One-pot Synthesis of Nitrogen-Doped Ordered Mesoporous Carbon Spheres for High-Rate and Long-Cycle Life Supercapacitors. Carbon127, 85–92. 10.1016/j.carbon.2017.10.084
65
WangL. L.LiX. J.HuangX.HanS.JiangJ. B. (2022). Activated green Resources to Synthesize N, P Co-doped O-Rich Hierarchical Interconnected Porous Carbon for High-Performance Supercapacitors. J. All. Comp. 10.1016/j.jallcom.2021.161908
66
WangM.MengY.SunG.MaS.QianM.DuanM. (2021b). Designing Cross‐linked Pyrrole‐thieno [3,4‐ B ] Thiophene Copolymer to Push Forward Electrochemical Performance and Access Flexible Micro‐supercapacitor with Ultra‐long Cycling Stability. Int. J. Energ. Res.45, 20878–20890. 10.1002/er.7144
67
WangN.LiG.YuZ.ZhangX.QiX. (2015). Conductive Polypyrrole/viscose Fiber Composites. Carbohydr. Polym.127, 332–339. 10.1016/j.carbpol.2015.03.076
68
WangS.-X.YangL.StubbsL. P.LiX.HeC. (2013). Lignin-derived Fused Electrospun Carbon Fibrous Mats as High Performance Anode Materials for Lithium Ion Batteries. ACS Appl. Mater. Inter.5, 12275–12282. 10.1021/am4043867
69
Wulan SeptianiN. L.KanetiY. V.FathoniK. B.WangJ.IdeY.YuliartoB.et al (2020). Self-assembly of Nickel Phosphate-Based Nanotubes into Two-Dimensional Crumpled Sheet-like Architectures for High-Performance Asymmetric Supercapacitors. Nano Energy67, 104270. 10.1016/j.nanoen.2019.104270
70
XinQ.YuJ.LinJ.ZangY. (2021). Fabrication of N,B‐codoped Graphene Aerogel/PPy Composites for Asymmetric Supercapacitor. Chemistryselect6, 11569–11576. 10.1002/slct.202102995
71
XiongC.LiM.ZhaoW.DuanC.NiY. (2020). Flexible N-Doped Reduced Graphene Oxide/carbon Nanotube-MnO2 Film as a Multifunctional Material for High-Performance Supercapacitors, Catalysts and Sensors. J. Materiomics6, 523–531. 10.1016/j.jmat.2020.03.008
72
XuJ.LiC.DaiL.XuC.ZhongY.YuF.et al (2020a). Biomass Fractionation and Lignin Fractionation towards Lignin Valorization. ChemSusChem16, 4284–4295. 10.1002/cssc.202001491
73
XuP.TongJ.ZhangL.YangY.ChenX.WangJ.et al (2022). Dung Beetle Forewing-Derived Nitrogen and Oxygen Self-Doped Porous Carbon for High Performance Solid-State Supercapacitors. J. Alloys Comp.892, 162129. 10.1016/j.jallcom.2021.162129
74
XuR.DuH.LiuC.LiuH.WuM.ZhangX.et al (2021a). An Efficient and Magnetic Adsorbent Prepared in a Dry Process with Enzymatic Hydrolysis Residues for Wastewater Treatment. J. Clean. Prod.313, 127834. 10.1016/j.jclepro.2021.127834
75
XuR.LiuK.DuH.LiuH.CaoX.ZhaoX.et al (2020b). Falling Leaves Return to Their Roots: A Review on the Preparation of γ-Valerolactone from Lignocellulose and its Application in the Conversion of Lignocellulose. ChemSusChem13, 6461–6476. 10.1002/cssc.202002008
76
XuT.DuH.LiuH.LiuW.ZhangX.SiC.et al (2021b). Advanced Nanocellulose-Based Composites for Flexible Functional Energy Storage Devices. Adv. Mater.2021, 2101368. 10.1002/adma.202101368
77
XuX.YangT.ZhangQ.XiaW.DingZ.EidK.et al (2020c). Ultrahigh Capacitive Deionization Performance by 3D Interconnected MOF-Derived Nitrogen-Doped Carbon Tubes. Chem. Eng. J.390, 124493. 10.1016/j.cej.2020.124493
78
XuY.ChenS.ZhuM.LiuY. (2021c). Novel Silicon‐contained Lignin‐based Carbon Fibers Derived from Bamboo Pulping Black Liquor with Improved Electrochemical Performance for Supercapacitors. J. Appl. Polym. Sci.138, 51321. 10.1002/app.51321
79
YangH.YeS.ZhouJ.LiangT. (2019). Biomass-derived Porous Carbon Materials for Supercapacitor. Front. Chem.7. 10.3389/fchem.2019.00274
80
YuanQ.MaM.-G. (2021). Conductive Polypyrrole Incorporated nanocellulose/MoS2 Film for Preparing Flexible Supercapacitor Electrodes. Front. Mater. Sci.15, 227–240. 10.1007/s11706-021-0549-5
81
ZhanY.HuY.ChenY.YangQ.ShiZ.XiongC. (2021). In-situ Synthesis of Flexible Nanocellulose/carbon Nanotube/polypyrrole Hydrogels for High-Performance Solid-State Supercapacitors. Cellulose28, 7097–7108. 10.1007/s10570-021-03998-1
82
ZhangJ.SuL.MaL.ZhaoD.QinC.JinZ.et al (2017). Preparation of Inflorescence-like ACNF/PANI/NiO Composite with Three-Dimension Nanostructure for High Performance Supercapacitors. J. Electroanalytical Chem.790, 40–49. 10.1016/j.jelechem.2017.02.047
83
ZhangP.DuH.LiuK.NieS.XuT.ZhangX.et al (2021a). Fabrication and Applications of Cellulose-Based Nanogenerators. Adv. Compos. Hybrid. Mater.4, 865–884. 10.1007/s42114-021-00312-2
84
ZhangP.WangM.LiuY.YangS.WangF.LiY.et al (2021b). Dual-redox-sites Enable Two-Dimensional Conjugated Metal-Organic Frameworks with Large Pseudocapacitance and Wide Potential Window. J. Am. Chem. Soc.143, 10168–10176. 10.1021/jacs.1c03039
85
ZhouB.LiZ.LiuW.ShaoY.RenX.LvC.et al (2021). Hierarchical Porous Carbon/kraft Lignin Composite with Significantly Improved superior Pseudocapacitive Behavior. Electrochimica Acta398, 139307. 10.1016/j.electacta.2021.139307
86
ZhouY.MaleskiK.AnasoriB.ThostensonJ. O.PangY.FengY.et al (2020). Ti3C2Tx MXene-Reduced Graphene Oxide Composite Electrodes for Stretchable Supercapacitors. ACS Nano14, 3576–3586. 10.1021/acsnano.9b10066
87
ZhuY.ChenM.ZhangY.ZhaoW.WangC. (2018). A Biomass-Derived Nitrogen-Doped Porous Carbon for High-Energy Supercapacitor. Carbon140, 404–412. 10.1016/j.carbon.2018.09.009
88
ZhuangY.NiuQ. Q.WuW. J.YanD.HuangJ. J.PengS. L.et al (2021). Enhanced Supercapacitive Properties of Hydrohausmannite by Iin-Ssitu Polymerization of Polypyrrole. Electrochim. Acta. 10.1016/j.electacta.2021.137989
