ORIGINAL RESEARCH article

Front. Endocrinol., 17 July 2024

Sec. Thyroid Endocrinology

Volume 15 - 2024 | https://doi.org/10.3389/fendo.2024.1382009

Clinicopathological features affecting the efficacy in 131I ablation therapy of papillary thyroid carcinoma with lymph node metastasis

  • 1. Department of Geriatrics, The Affiliated Hospital of Qingdao University, Qingdao, China

  • 2. Department of Endocrinology and Metabolism, The Affiliated Hospital of Qingdao University, Qingdao, China

  • 3. Department of Nuclear Medicine, The Affiliated Hospital of Qingdao University, Qingdao, China

  • 4. Department of Endocrinology, Lanling County People’s Hospital of Linyi, Linyi, China

Abstract

Background:

Lymph node metastasis is the major cause of increased recurrence and death in patients with papillary thyroid carcinoma (PTC). We evaluate the clinicopathologic factors affecting excellent response (ER) in patients with PTC with lymph node metastasis following operation and 131I ablation therapy.

Methods:

A total of 423 patients with PTC with lymph node metastasis who underwent thyroidectomy and postoperative 131I ablation therapy were enrolled. The relationship between clinicopathological factors affecting ER achievement was analyzed.

Results:

Multivariate analysis showed that the foci diameter (≤1 cm), unifocal, combination with Hashimoto’s thyroiditis (HT), lymph node metastases rate (LR) (≤40%), no postoperative lymph node metastasis, low preablative stimulated thyroglobulin (ps-Tg) level (≤3.87 ng/mL), and the time of 131I ablation therapy (one time) were positively correlated with the ER achievement [odds ratio (OR): 1.744, 3.114, 3.920, 4.018, 2.074, 9.767, and 49.491, respectively; all p < 0.05]. The receiver operating characteristic (ROC) curves showed that the cutoff values of ps-Tg and LR were 4.625 ng/mL and 50.50%, respectively. The AUC of ROC of ps-Tg and LR for predicting ER achievement was 0.821 and 0.746, respectively. The Tg and the cumulative risk of non-ER elevated with the increase of LR, especially for the high-level ps-Tg (>4.625 ng/mL) group.

Conclusion:

The foci diameter and number, combination with HT, LR, and ps-Tg level are independent factors for ER. Ps-Tg level and LR are valid predictive factors for the efficacy of 131I therapy in patients with PTC. The predictive value of the cumulative risk of non-ER can be improved by the combination of ps-Tg and LR.

1 Introduction

The incidence of papillary thyroid carcinoma (PTC) has increased over the past decades. The disease-related mortality is relatively low (<5%), but the recurrence rate reaches 30% (). The rate of lymph node metastasis is approximately 20%–90% (, ), which is the major cause of recurrence and death in PTC (). Relapse and prognosis of PTC depend on genetic and environmental interactions, including clinicopathological factors and genetic characteristics, particularly BRAF and TERT promoter mutations () and germline polymorphisms in the VEGF pathway (). The synergistic prognostic effect between BRAF mutations and clinicopathological features has been identified. In addition, Marotta et al. also demonstrated that germline polymorphism of the VEGF pathway is a predictor of recurrence of non-advanced differentiated thyroid cancer (DTC) (). Therefore, the 2015 American Thyroid Association (ATA) guidelines suggest a personalized non-categorical model including a wider range of variables to fit individual features (, ). The assessment of recurrence and prognosis of PTC relies on dynamic evaluation. Predictors with robust positive predictive value (PPV) are needed to elevate the PTC recurrence. Previously, the prediction of recurrence and mortality risk was mostly based on postoperative pathological features. However, because of the limitations of using pathological features alone, the ATA Guidelines for the first time proposed the response-to-therapy assessment system (RTAS) to assess the prognosis by monitoring thyroglobulin (Tg) and imaging examinations after 131I ablation (). Studies suggest that the recurrence rate of patients with PTC with excellent response (ER) in the system is only 1%–4%, and the risk of tumor-related death is less than 1% (), indicating that ER patients have a better prognosis.

Recent studies have shown that several clinicopathologic features may affect ER (). However, those results are not consistent, and there is no clear optimal cutoff value as an indicator to predict ER and support treatment decision-making (). Therefore, in this study, we investigated the potential impact of clinicopathologic features on ER after 131I ablation in patients with PTC with lymph node metastasis and evaluated the predictive value for ER and the cumulative risk of non-ER.

2 Participants and methods

2.1 Study design

A total of 423 patients with PTC who underwent total thyroidectomy and postoperative 131I ablation at the Affiliated Hospital of Qingdao University from January 2017 to October 2020 were enrolled. The inclusion criteria were as follows: (1) patients aged 20 to 80 years old who underwent total thyroidectomy, (2) postoperative pathological diagnosis confirmed as PTC, (3) patients received 131I radioiodine therapy at least one time, (4) no distant metastasis was confirmed by imaging and pathology, and (5) patients finished 2 years of follow-up. The participants with the following conditions were excluded: (1) pathologically confirmed as other types of thyroid carcinoma, (2) other underlying diseases including other malignant tumors or autoimmune disorders, and (3) positive thyroglobulin antibody (TgAb). Chest and abdominal computed tomography (CT) scan were performed before 131I ablation. The initial dosage of 131I ablation was set based on the recurrence risk stratification according to the 2015 ATA Guidelines (). For low- and moderate-risk patients, the initial 131I ablation dose was 50–100 mCi. For high-risk patients with extraglandular invasion (larynx, trachea, esophagus, recurrent laryngeal nerve, striated muscle, etc.), the initial 131I ablation therapeutic dose was 120–180 mCi (, ). The patients achieved the goal of TSH > 30 mU/L after L-evothyroxine withdrawal and followed a low-iodine diet for 3–4 weeks. The patients were administrated L-T4 at day 3 after 131I ablation. The whole-body scan (Rx-WBS) and single-photon emission computed tomography/computed tomography (SPECT/CT) were performed within 1 week after 131I ablation ().

During the 2-year follow-up, the first evaluation was performed at 3 months after initial 131I ablation therapy, and then dynamic evaluation was performed every 6 months during follow-up. Dynamic evaluation involved both serological and imaging measurements, including serum Tg levels, TgAb, thyroid function especially TSH level, and neck ultrasound. 131I diagnostic scanning (Dx-WBS), chest CT scan or 18F-FDG positron emission tomography (PET)-CT scanning, and fine needle aspiration (FNA) biopsy were also used if necessary.

Preablative stimulated thyroglobulin (ps-Tg) was defined as the Tg levels when TSH > 30 IU/mL as patients stopped taking L-T4 before 131I ablation (). The diagnosis of Hashimoto’s thyroiditis (HT) was identified based on postoperative pathological analysis. Pre-operative lymph node metastasis was diagnosed by FNA (cytopathological diagnosis of PTC, or elevated Tg washout measurement) before surgery, or postoperative pathological analysis. Postoperative lymph node metastasis referred to the presence of metastatic lymph nodes detected by 131I-WBS or ultrasound and confirmed by FNA after surgery. Lymph node metastasis rate (LR) referred to the rate of involved lymph nodes, indicating the number of involved lymph nodes/total number of resected lymph nodes, based on postoperative pathological analysis.

2.2 Indication for thyroidectomy and lymph node dissection

In this study, patients with PTC with lymph node metastasis underwent total thyroidectomy according to the 2015 ATA Guidelines (). Total thyroidectomy was performed for tumor diameter >4 cm. For the tumor diameter <4 cm (including diameter ≤1 cm), total thyroidectomy was performed under the following conditions: (1) bilateral foci; (2) lymph node metastasis in the lateral cervical area or lymph node metastasis number ≥5 or diameter ≥3 cm; (3) extracapsular invasion and metastatic lymph node invasion of surrounding tissues and organs, such as peripheral fat tissue, muscles, trachea, esophagus, laryngeal reentry nerve, and invaded blood vessels; and (4) high-risk factors such as head and neck radiotherapy history over the course of childhood and adolescence, and thyroid carcinoma family history.

The lymph node dissection was performed as follows: (1) central lymph node dissection: the therapeutic and prophylactic central-compartment lymph node dissection is routinely performed by experienced and skilled surgeons and the surrounding tissues were adequately protected; (2) lateral lymph node dissection: for PTC with lateral lymph node metastases confirmed by preoperative FNA or intraoperative frozen pathological examination, therapeutic lateral lymph node dissection was performed. The prophylactic lateral lymph node dissection is not routinely performed.

2.3 Efficacy evaluation criteria

According to the 2015 ATA Guidelines (), the response to treatment was categorized into ER, indeterminate response (IDR), biochemical incomplete response (BIR), and structural incomplete response (SIR), based on Tg level and imaging examination. Based on the follow-up at 2 years, the recruited patients were divided into two groups, the ER group and the non-ER group. Patients with IR, BIR, and SIR were assigned as the non-ER group (). Recurrence risk stratification and TNM staging were determined based on the 2015 ATA Guidelines () and the 8th edition TNM staging system of the American Joint Committee on Cancer (AJCC) ().

2.4 Statistical analysis

Statistical analysis was performed using the SPSS 26.0 software. Categorical variables were presented as frequencies and percentages, and two-group comparison was performed by the χ2 test. Partial distributed data were presented as the median value and comparisons between two groups were performed using the Mann–Whitney U test. Logistic regression analysis was used to analyze the factors affecting the achievement of ER. Prognostic receiver operating characteristic (ROC) curves were applied to obtain the optimal threshold for estimating ER achievement, and the prediction of the cumulative risk of non-ER was performed using the Kaplan–Meier model. The statistical significance was p < 0.05 compared between two groups. The comparison among the three groups and four groups was p < 0.017 and p < 0.008, which were considered statistically significant, respectively.

3 Results

3.1 Clinicopathologic features of patients with PTC

A total of 423 patients with PTC with lymph node metastasis were enrolled, with age ranging from 20 to 78 years (average age, 43.82 ± 11.85 years old). The male-to-female ratio was 1:2.18. The follow-up time was 24–32 months. The maximum diameter of tumor foci was 0.1–5.5 cm, averaging 1.57 ± 1.06 cm. The number of foci was one to eight (average foci number was 1.81 ± 1.09). The number of lymph node metastasis was 1–36, with a median of 4. Lymph node metastasis rate (% of involved metastatic lymph nodes/total number of resected lymph nodes) was 5%–100%, with a median of 40%. There were 226 cases (53.43%) with extracapsular invasion, including 146 cases (34.52%) in the strap muscles, 44 cases (10.43%) with recurrent laryngeal nerve invasion, 18 cases (4.25%) with tracheal invasion, 6 cases (1.41%) with esophageal invasion, 6 cases (1.41%) with blood vessel (internal jugular vein, common carotid artery, and transverse cervical artery) invasion, and 6 cases (1.41%) with surrounding soft tissue invasion. The clinicopathologic features are shown in Table 1.

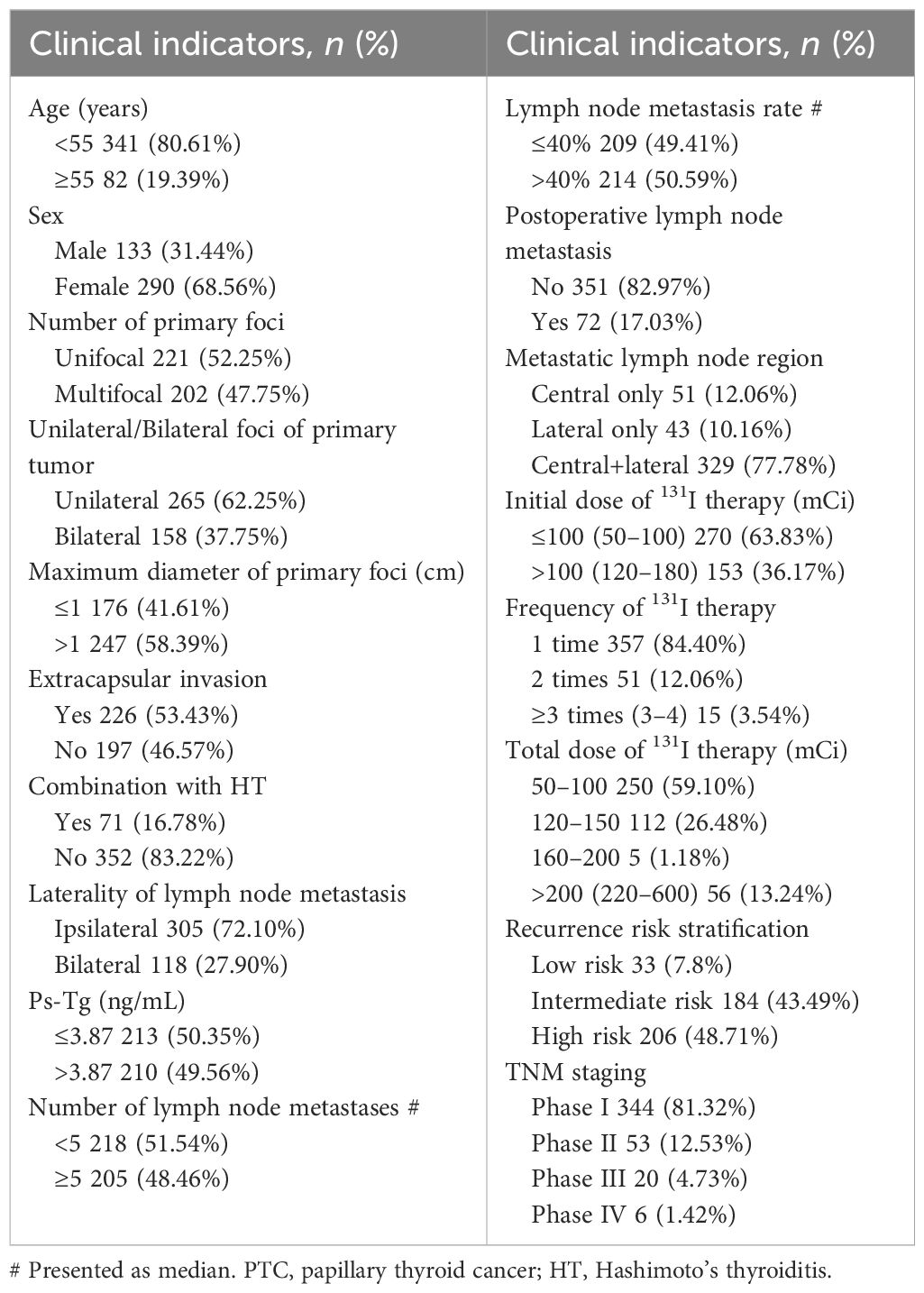

Table 1

Clinical indicators, n (%)Clinical indicators, n (%)
Age (years)
 <55 341 (80.61%)
 ≥55 82 (19.39%)
Sex
 Male 133 (31.44%)
 Female 290 (68.56%)
Number of primary foci
 Unifocal 221 (52.25%)
 Multifocal 202 (47.75%)
Unilateral/Bilateral foci of primary tumor
 Unilateral 265 (62.25%)
 Bilateral 158 (37.75%)
Maximum diameter of primary foci (cm)
 ≤1 176 (41.61%)
 >1 247 (58.39%)
Extracapsular invasion
 Yes 226 (53.43%)
 No 197 (46.57%)
Combination with HT
 Yes 71 (16.78%)
 No 352 (83.22%)
Laterality of lymph node metastasis
 Ipsilateral 305 (72.10%)
 Bilateral 118 (27.90%)
Ps-Tg (ng/mL)
 ≤3.87 213 (50.35%)
 >3.87 210 (49.56%)
Number of lymph node metastases #
 <5 218 (51.54%)
 ≥5 205 (48.46%)
Lymph node metastasis rate #
 ≤40% 209 (49.41%)
 >40% 214 (50.59%)
Postoperative lymph node metastasis
 No 351 (82.97%)
 Yes 72 (17.03%)
Metastatic lymph node region
 Central only 51 (12.06%)
 Lateral only 43 (10.16%)
 Central+lateral 329 (77.78%)
Initial dose of 131I therapy (mCi)
 ≤100 (50–100) 270 (63.83%)
 >100 (120–180) 153 (36.17%)
Frequency of 131I therapy
 1 time 357 (84.40%)
 2 times 51 (12.06%)
 ≥3 times (3–4) 15 (3.54%)
Total dose of 131I therapy (mCi)
 50–100 250 (59.10%)
 120–150 112 (26.48%)
 160–200 5 (1.18%)
 >200 (220–600) 56 (13.24%)
Recurrence risk stratification
 Low risk 33 (7.8%)
 Intermediate risk 184 (43.49%)
 High risk 206 (48.71%)
TNM staging
 Phase I 344 (81.32%)
 Phase II 53 (12.53%)
 Phase III 20 (4.73%)
 Phase IV 6 (1.42%)

Clinicopathologic data of enrolled patients with PTC.

# Presented as median. PTC, papillary thyroid cancer; HT, Hashimoto’s thyroiditis.

3.2 Comparison of clinicopathologic features between ER and non-ER groups

Based on the response to 131I ablation after 2 years of follow-up, 314 patients with PTC achieved ER with an ER rate of 74.2%. The patients with PTC were divided into ER and non-ER groups. The results showed that the proportion of female patients, unifocal, primary foci ≤1 cm in diameter, no extracapsular invasion, combination with HT, low ps-Tg level (≤3.87 ng/mL), and low risk of recurrence risk stratification were significantly higher in the ER group than in the non-ER group (all p < 0.05). However, age, laterality of tumor foci, and TNM staging did not show significant difference between two groups (all p > 0.05) (Table 2).

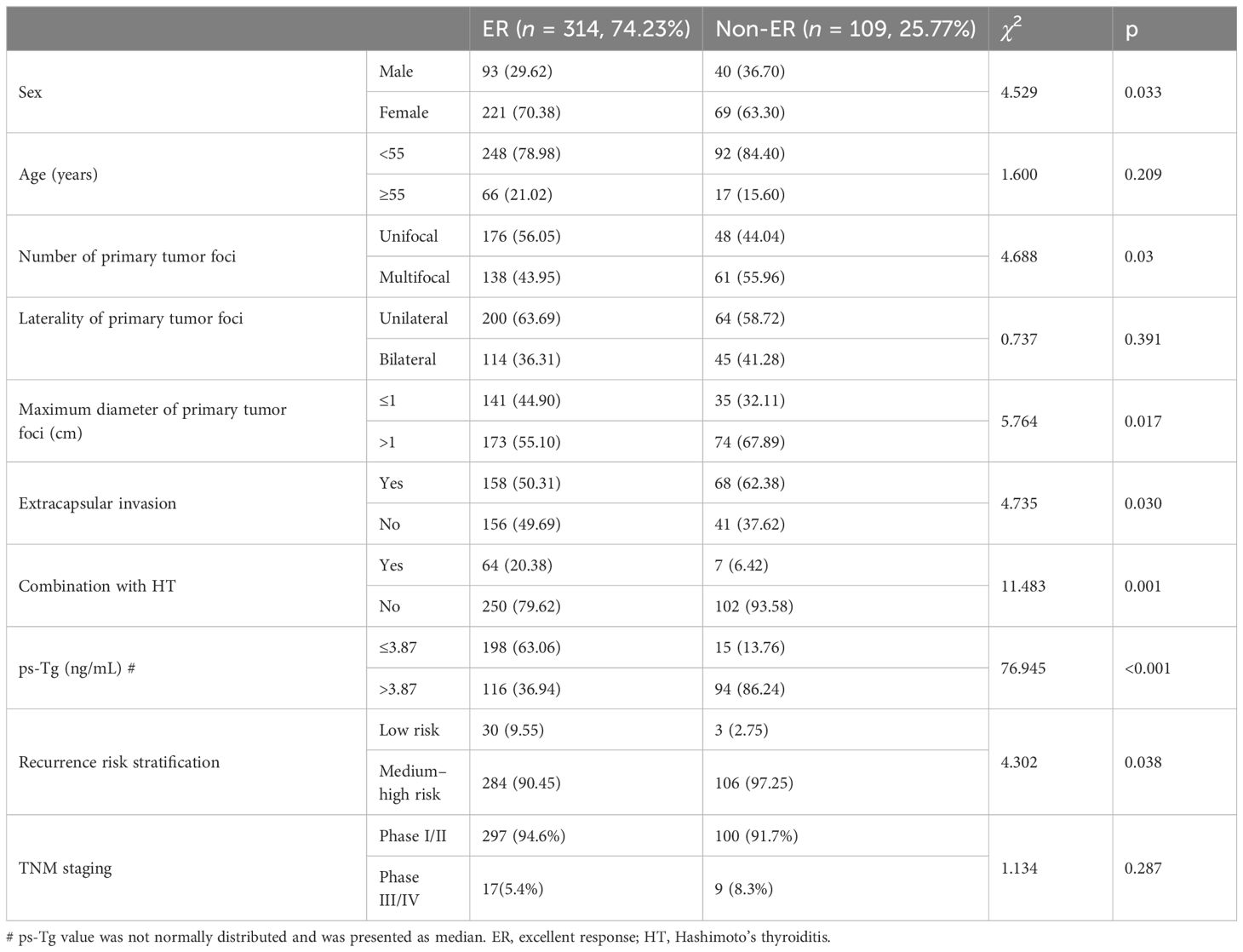

Table 2

ER (n = 314, 74.23%)Non-ER (n = 109, 25.77%)χ2p
SexMale93 (29.62)40 (36.70)4.5290.033
Female221 (70.38)69 (63.30)
Age (years)<55248 (78.98)92 (84.40)1.6000.209
≥5566 (21.02)17 (15.60)
Number of primary tumor fociUnifocal176 (56.05)48 (44.04)4.6880.03
Multifocal138 (43.95)61 (55.96)
Laterality of primary tumor fociUnilateral200 (63.69)64 (58.72)0.7370.391
Bilateral114 (36.31)45 (41.28)
Maximum diameter of primary tumor foci (cm)≤1141 (44.90)35 (32.11)5.7640.017
>1173 (55.10)74 (67.89)
Extracapsular invasionYes158 (50.31)68 (62.38)4.7350.030
No156 (49.69)41 (37.62)
Combination with HTYes64 (20.38)7 (6.42)11.4830.001
No250 (79.62)102 (93.58)
ps-Tg (ng/mL) #≤3.87198 (63.06)15 (13.76)76.945<0.001
>3.87116 (36.94)94 (86.24)
Recurrence risk stratificationLow risk30 (9.55)3 (2.75)4.3020.038
Medium–high risk284 (90.45)106 (97.25)
TNM stagingPhase I/II297 (94.6%)100 (91.7%)1.1340.287
Phase III/IV17(5.4%)9 (8.3%)

Comparison of clinicopathologic features between ER and non-ER groups at 2 years follow-up (n, %).

# ps-Tg value was not normally distributed and was presented as median. ER, excellent response; HT, Hashimoto’s thyroiditis.

Comparison of the pathologic characteristics of metastatic lymph nodes between ER and non-ER groups was analyzed. The ER group had a lower number and rate of lymph node metastases, less postoperative lymph node metastases, and a significantly lower proportion of lymph nodes located in the central and cervical lateral region than the non-ER group (all p < 0.05) (Table 3).

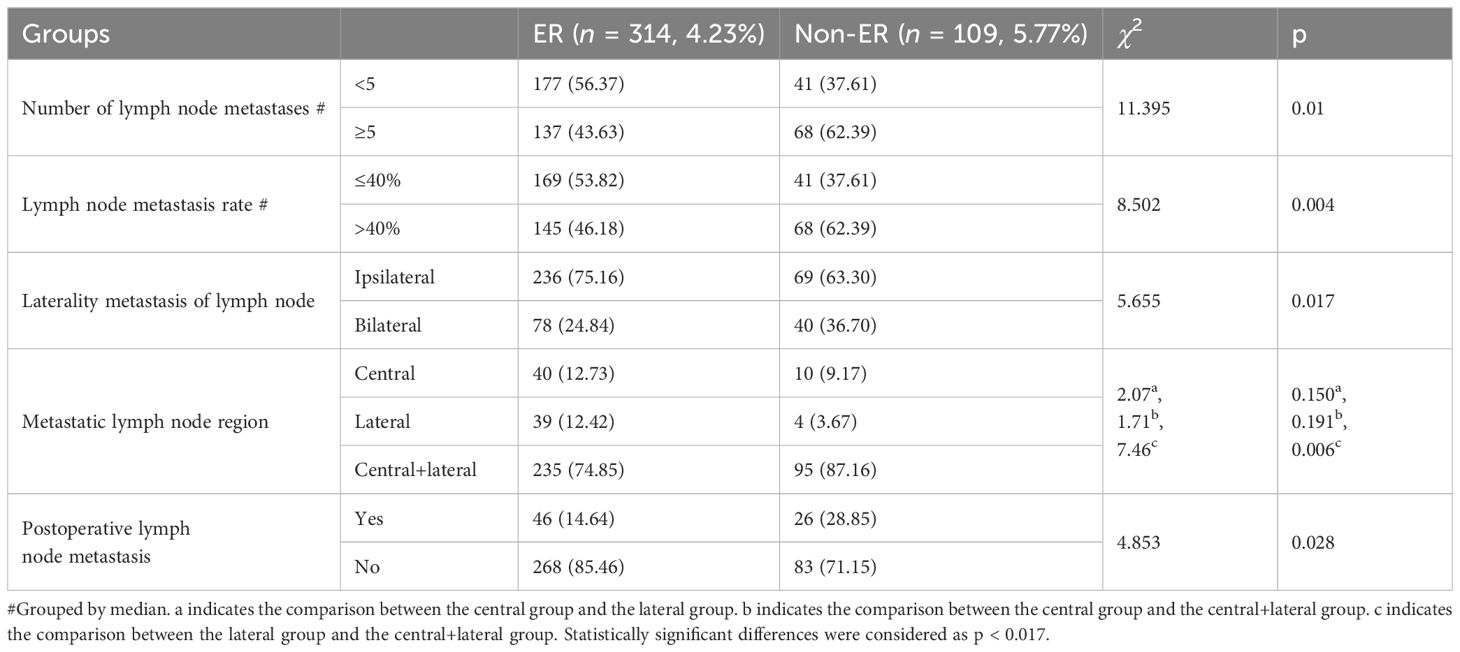

Table 3

GroupsER (n = 314, 4.23%)Non-ER (n = 109, 5.77%)χ2p
Number of lymph node metastases #<5177 (56.37)41 (37.61)11.3950.01
≥5137 (43.63)68 (62.39)
Lymph node metastasis rate #≤40%169 (53.82)41 (37.61)8.5020.004
>40%145 (46.18)68 (62.39)
Laterality metastasis of lymph nodeIpsilateral236 (75.16)69 (63.30)5.6550.017
Bilateral78 (24.84)40 (36.70)
Metastatic lymph node regionCentral40 (12.73)10 (9.17)2.07a,
1.71b,
7.46c
0.150a,
0.191b,
0.006c
Lateral39 (12.42)4 (3.67)
Central+lateral235 (74.85)95 (87.16)
Postoperative lymph node metastasisYes46 (14.64)26 (28.85)4.8530.028
No268 (85.46)83 (71.15)

Comparison of pathologic features of metastatic lymph nodes between ER and non-ER groups (n, %).

#Grouped by median. a indicates the comparison between the central group and the lateral group. b indicates the comparison between the central group and the central+lateral group. c indicates the comparison between the lateral group and the central+lateral group. Statistically significant differences were considered as p < 0.017.

In this study, the ER group had an increased rate of HT. Therefore, we further analyzed the relationship between HT and clinicopathological features. The results showed that female patients (female patients 84.50% vs. male patients 15.50%) and non-extracapsular invasion (non-extracapsular invasion 61.97% vs. extracapsular invasion 38.03%) in the HT group (71 cases, 16.78%) were significantly higher than those in the non-HT group (352 cases, 83.22%) (all p < 0.05), while age, number of primary tumor foci, the maximum diameter of primary foci, unilateral/bilateral foci, number of lymph node metastases, LR, and postoperative lymph node metastasis showed no difference between HT and non-HT groups.

To analyze the relationship between frequency/dosage of 131I ablation and ER, we found that the ER rate in the 1 time 131I ablation therapy group was higher than that in the 2 times and ≥3 times 131I ablation therapy group (all p < 0.017). In addition, the ER rate in the low initial 131I ablation dose ≤100 (50–100) mCi group was significantly higher than that in the high-dose >100 (120–180) mCi group (p < 0.05). We further divided the patients into four groups based on the total dose of 131I therapy. The results showed that the ER rate of the 131I therapy total dose 50–100 mCi group was significantly higher than that of the 120–150 mCi group, as well as the >200–(220–600) mCi group (all p < 0.008) (Table 4).

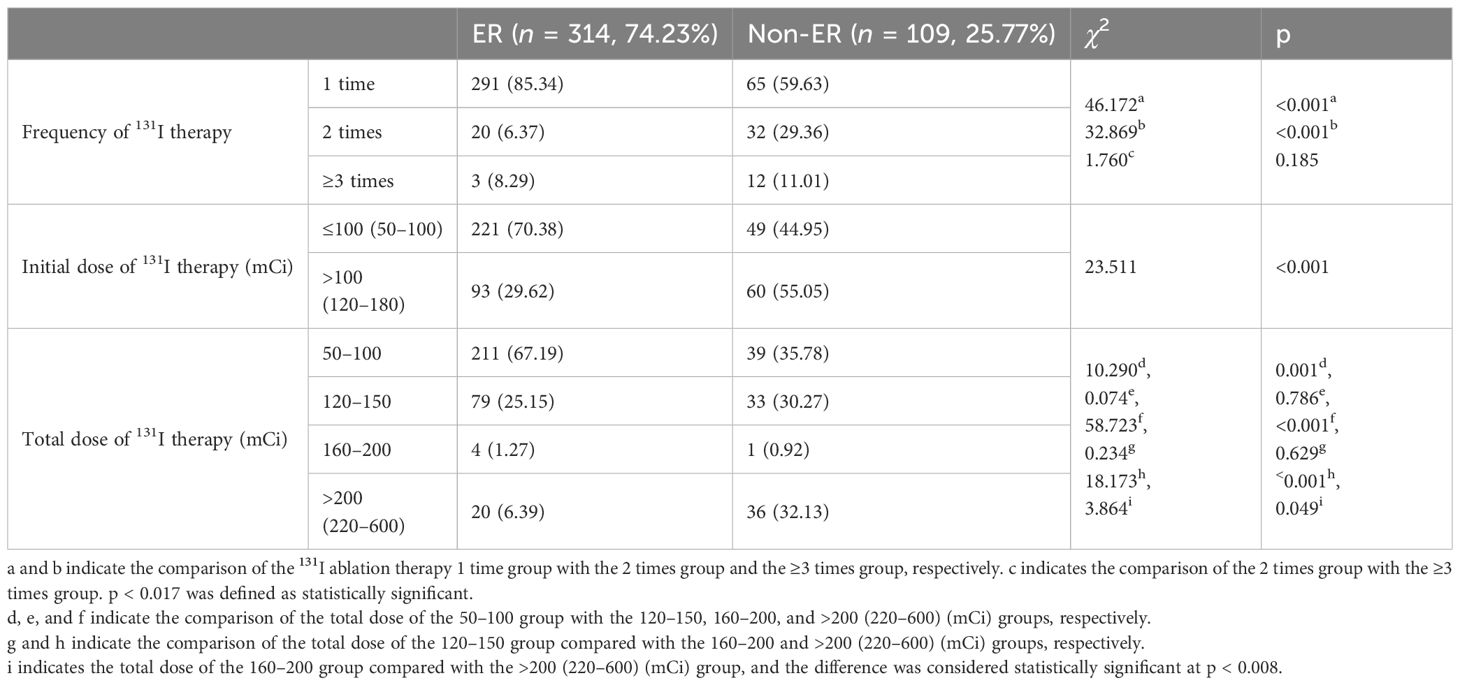

Table 4

ER (n = 314, 74.23%)Non-ER (n = 109, 25.77%)χ2p
Frequency of 131I therapy1 time291 (85.34)65 (59.63)46.172a
32.869b
1.760c
<0.001a
<0.001b
0.185
2 times20 (6.37)32 (29.36)
≥3 times3 (8.29)12 (11.01)
Initial dose of 131I therapy (mCi)≤100 (50–100)221 (70.38)49 (44.95)23.511<0.001
>100 (120–180)93 (29.62)60 (55.05)
Total dose of 131I therapy (mCi)50–100211 (67.19)39 (35.78)10.290d,
0.074e,
58.723f,
0.234g
18.173h,
3.864i
0.001d,
0.786e,
<0.001f,
0.629g
<0.001h,
0.049i
120–15079 (25.15)33 (30.27)
160–2004 (1.27)1 (0.92)
>200 (220–600)20 (6.39)36 (32.13)

Comparison of times and dosage of 131I ablation therapy between ER and non-ER groups in patients with PTC.

a and b indicate the comparison of the 131I ablation therapy 1 time group with the 2 times group and the ≥3 times group, respectively. c indicates the comparison of the 2 times group with the ≥3 times group. p < 0.017 was defined as statistically significant.

d, e, and f indicate the comparison of the total dose of the 50–100 group with the 120–150, 160–200, and >200 (220–600) (mCi) groups, respectively.

g and h indicate the comparison of the total dose of the 120–150 group compared with the 160–200 and >200 (220–600) (mCi) groups, respectively.

i indicates the total dose of the 160–200 group compared with the >200 (220–600) (mCi) group, and the difference was considered statistically significant at p < 0.008.

3.3 The independent risk factors affecting ER achievement after 131I therapy

Multivariate logistic regression analysis was performed to analyze the factors associated with ER after 131I therapy. The results revealed that the maximum diameter of tumor foci (≤1 cm), unifocal, combination with HT, lymph node metastases rate (≤40%), no postoperative lymph node metastasis, lower level of ps-Tg (≤3.87 ng/mL), and the frequency of 131I therapy (one time) were independent risk factors that positively correlated with the ER achievement (OR: 1.744, 3.114, 3.920, 4.018, 2.074, 9.767, and 49.491, respectively; all p < 0.05). There was no correlation between ER and the number of metastatic lymph nodes, laterality of lymph node metastasis, extracapsular invasion, or initial dose and total dose of 131I therapy (all p > 0.05) (Table 5).

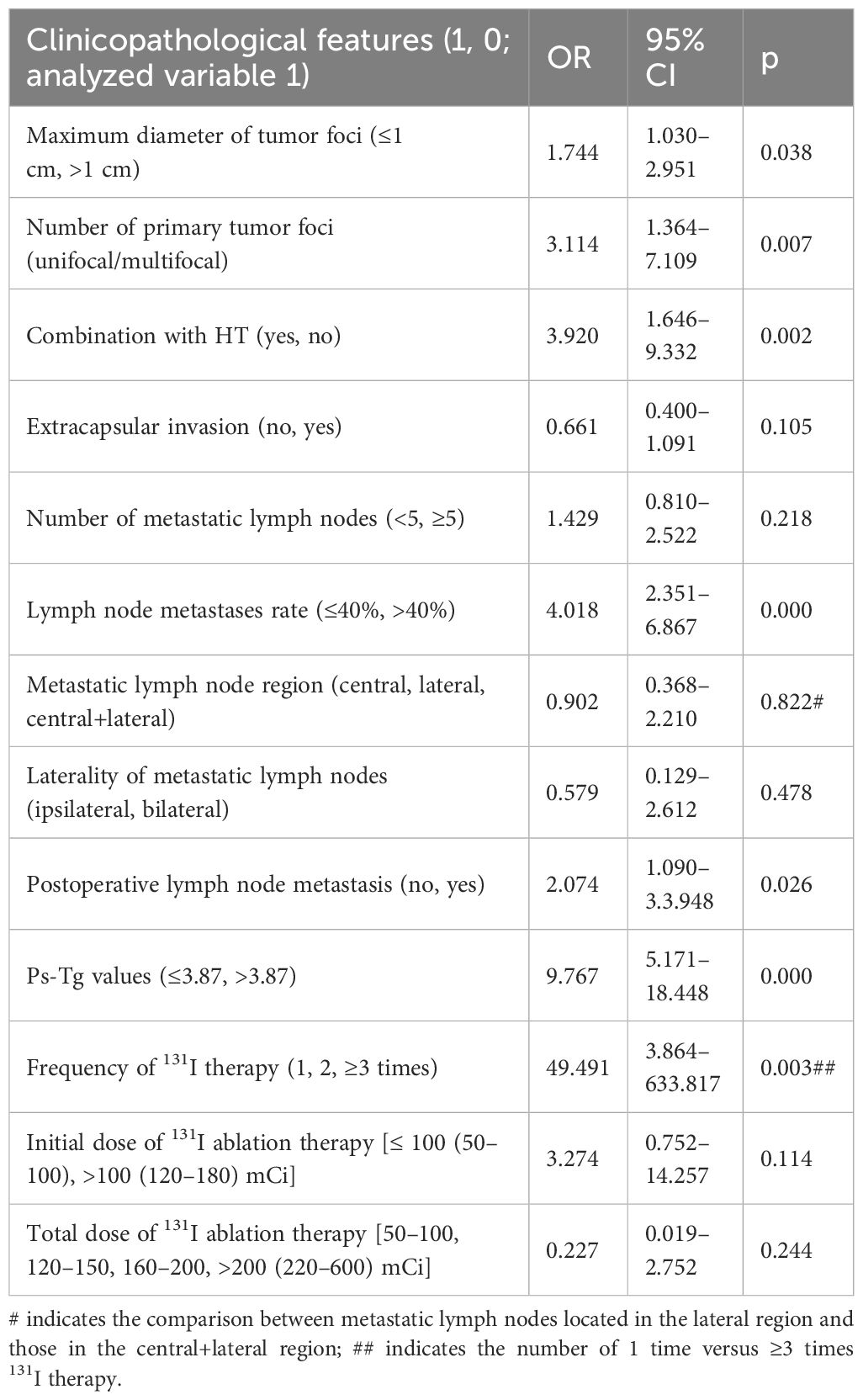

Table 5

Clinicopathological features (1, 0; analyzed variable 1)OR95% CIp
Maximum diameter of tumor foci (≤1 cm, >1 cm)1.7441.030–2.9510.038
Number of primary tumor foci (unifocal/multifocal)3.1141.364–7.1090.007
Combination with HT (yes, no)3.9201.646–9.3320.002
Extracapsular invasion (no, yes)0.6610.400–1.0910.105
Number of metastatic lymph nodes (<5, ≥5)1.4290.810–2.5220.218
Lymph node metastases rate (≤40%, >40%)4.0182.351–6.8670.000
Metastatic lymph node region (central, lateral, central+lateral)0.9020.368–2.2100.822#
Laterality of metastatic lymph nodes (ipsilateral, bilateral)0.5790.129–2.6120.478
Postoperative lymph node metastasis (no, yes)2.0741.090–3.3.9480.026
Ps-Tg values (≤3.87, >3.87)9.7675.171–18.4480.000
Frequency of 131I therapy (1, 2, ≥3 times)49.4913.864–633.8170.003##
Initial dose of 131I ablation therapy [≤ 100 (50–100), >100 (120–180) mCi]3.2740.752–14.2570.114
Total dose of 131I ablation therapy [50–100, 120–150, 160–200, >200 (220–600) mCi]0.2270.019–2.7520.244

Multi-factorial analysis of clinicopathological features affecting therapy response to 131I ablation therapy.

# indicates the comparison between metastatic lymph nodes located in the lateral region and those in the central+lateral region; ## indicates the number of 1 time versus ≥3 times 131I therapy.

3.4 Predictive value of ps-Tg and LR in ER achievement

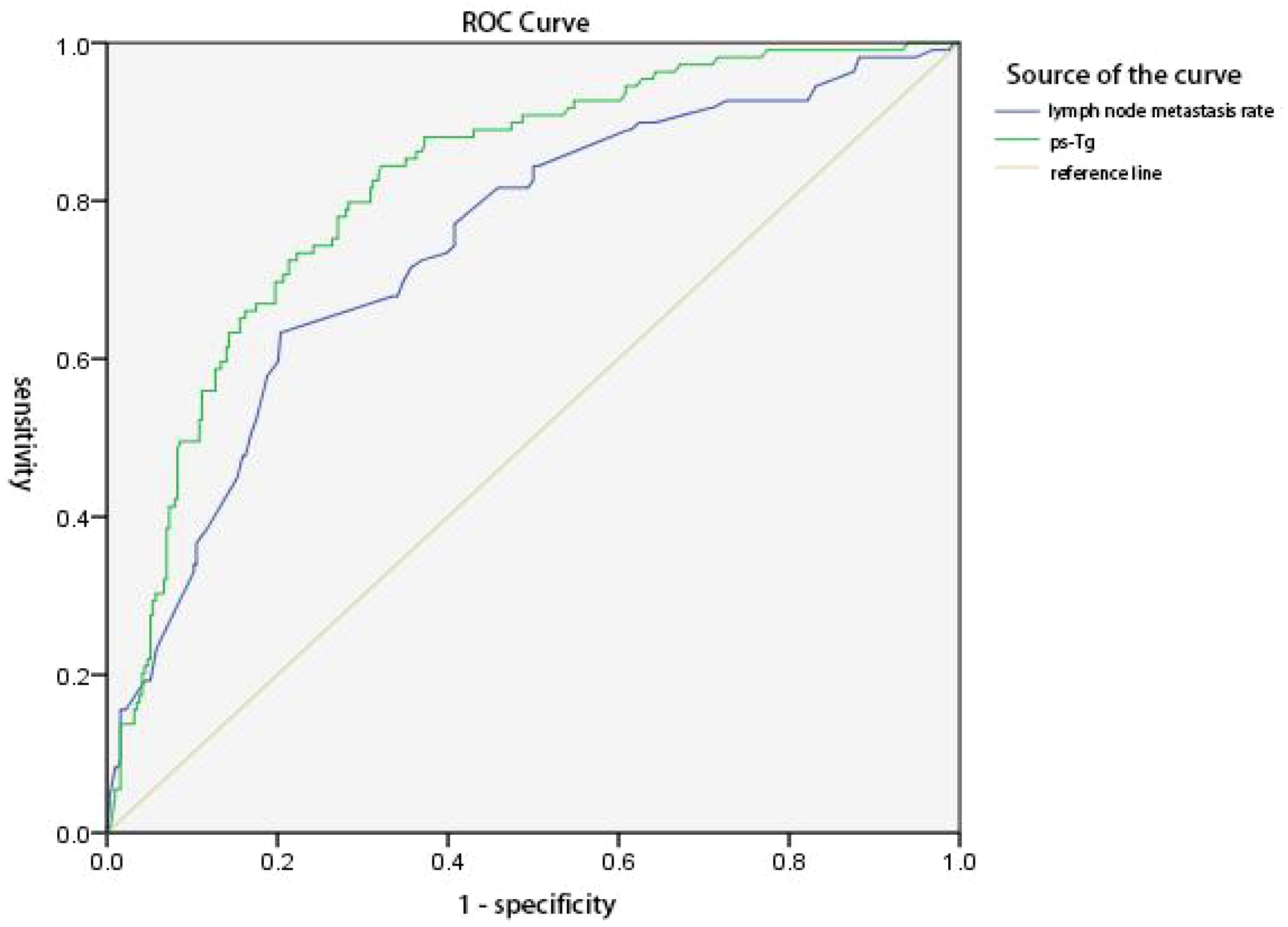

The predictive value of ps-Tg level and LR in ER achievement was analyzed, respectively. The results showed that the maximum area under the curve (AUC) of the ROC curve was 0.821 (95% CI 0.777–0.865) and 0.746 (95% CI 0.691–0.800). The best cutoff values were 4.625 ng/mL for ps-Tg and 50.50% for LR, with corresponding sensitivities of 84.4% and 63.3%, specificities of 67.8% and 79.6%, PPVs of 92.6% and 86.2%, and negative predictive values of 48.7% and 51.8%, respectively. Results indicate that ps-Tg ≤ 4.625 ng/mL and LR ≤ 50.50% are effective factors for predicting ER achievement (Figure 1).

Figure 1

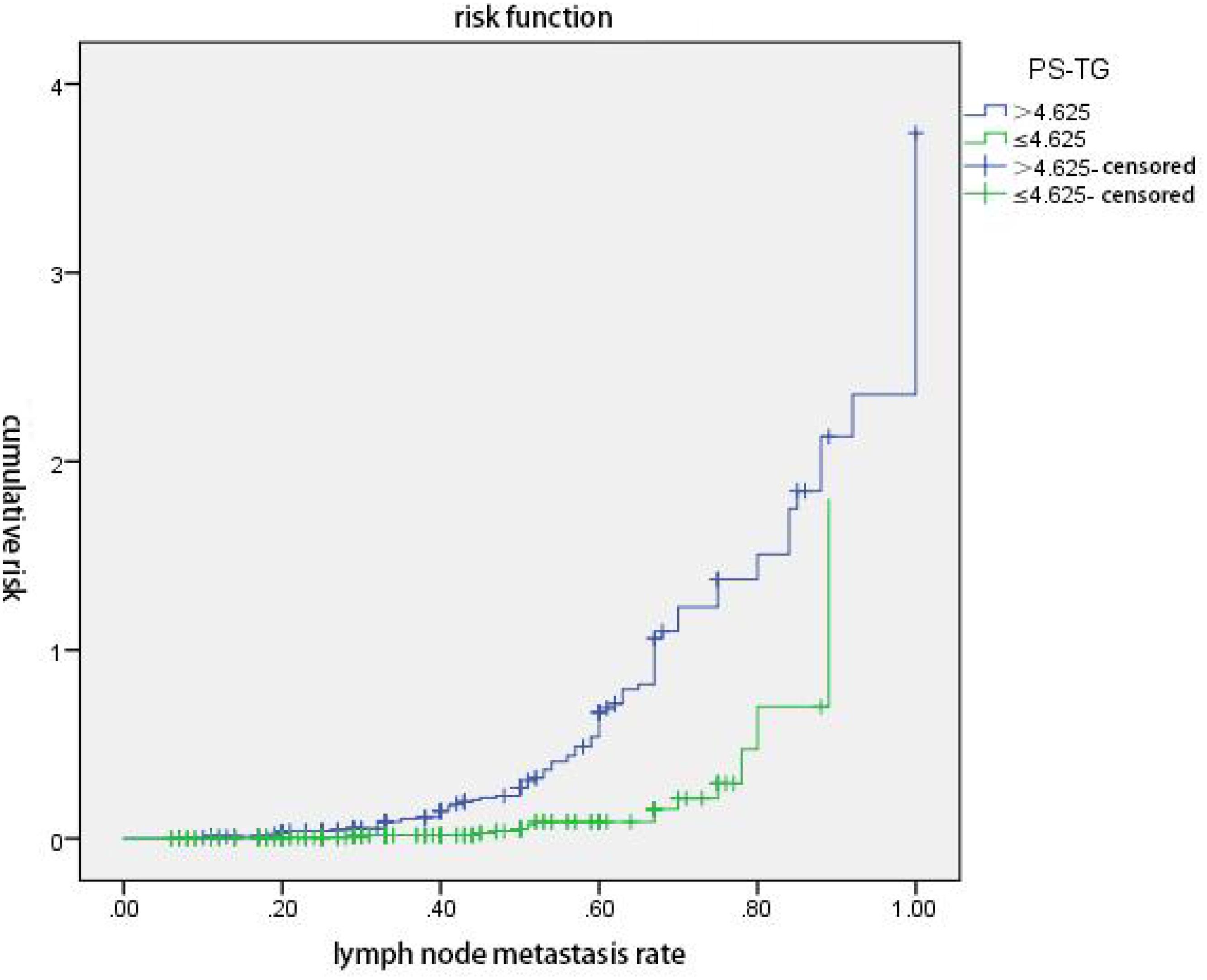

The ps-Tg value and LR were analyzed for the joint prediction of the cumulative risk for non-ER. The results revealed that regardless of whether the ps-Tg value was at low level (≤4.625 ng/mL) or high level (>4.625 ng/mL), the cumulative risk of non-ER elevated with the increase of LR, especially for the high-level ps-Tg group, whereas at the same LR, the cumulative risk of non-ER was higher in the high-level ps-Tg group than the low-level ps-Tg group (both p < 0.05) (Figure 2).

Figure 2

4 Discussion

Although most patients with PTC have a good prognosis with low mortality and long survival, the recurrence rate can be up to 30% due to the presence of lymph node metastasis (). Therefore, active and rationalized treatment strategies and dynamic follow-up for assessment of PTC with lymph node metastasis are important.

131I ablation therapy as an adjuvant treatment for PTC with lymph node metastasis has been widely applied. Several studies have reported that the effectiveness of 131I ablation therapy in patients with PTC with lymph node metastasis can reach up to 71.4%–88.07% (, ). Previously, Gao et al. analyzed the data from low- and intermediate-risk patients with PTC and showed an ER rate of 93.7% and 78.2% after 131I treatment (), while Zhao et al. showed a 54.5%–73.2% ER achievement, which differed from high–low TSH level stratification (). In our study, we found that the overall ER rate was 74.2%, which was comparable to the results of previous studies.

In recent years, several studies revealed the factors influencing the clinical outcome after postoperative 131I ablation in patients with PTC. The ps-Tg level has been proven to be the predictor of recurrence risk and prognosis (, ). Li et al. () reported that low ps-Tg level was more likely to achieve ER in moderate-risk patients with PTC. Wang et al. () also concluded that a higher level of ps-Tg was associated with a lower ER rate of the initial 131I ablation. However, there were controversies regarding the relationship between ER and the diameter and number of tumor foci, extracapsular invasion, and the number and rate of lymph node metastasis. Several studies revealed that tumor size, number of lymph nodes, LR, and lymph node size were significantly associated with ER achievement after 131I ablation therapy (, , ). However, Shangguan et al. () reported that the LR did not correlate with ER. In this study, we investigated the relationship between clinicopathological factors and ER. The results showed that tumor diameter (≤1 cm), unifocal, combination with HT, low lymph node metastases rate (≤40%), the absence of postoperative lymph node metastasis, and the low level of ps-Tg (≤3.87 ng/mL) were independent factors positively correlated with the ER achievement.

The ROC of ps-Tg and LR showed high sensitivity and PPV for ER achievement. Based on the significance of ps-Tg in predicting ER and recurrence or metastasis (, , ), ps-Tg level was used as an important serological indicator in the evaluation system in guiding the individualized follow-up and treatment of patients with PTC. However, there is variability in the thresholds of ps-Tg level as indicators in different studies, which may be related to the different clinicopathologic characteristics of the selected patients, the area of operation, the dosage and frequency of 131I ablation, and the criteria for evaluating the efficacy, the follow-up frequency.

In clinical practice, patients with PTC usually exhibit two or more malignant pathologic features at the same time, which undoubtedly aggravates the progression and reduces the likelihood of achieving ER. We revealed that serum ps-Tg and lymph node metastasis rate are important indicators to predict ER achievement in this study, and further results showed that the cumulative risk of non-ER elevated with the increase of lymph node metastasis rate, regardless of ps-Tg level (low level ≤4.625 ng/mL or high level >4.625 ng/mL). Moreover, the increase of cumulative risk was more prominent in the high ps-Tg level group. Hence, the prediction of non-ER achievement can be improved by a combination of evaluating ps-Tg and LR, which can avoid the limitation of assessment by a single factor. A combination of ps-Tg and LR could predict the efficacy of 131I ablation in advance, potentially useful for individualized therapeutic assessment.

Regarding the studies on the relationship between HT and PTC, HT is associated with the development of PTC and is widely recognized as a pre-disease state of PTC (). However, the effect of HT on the pathological features of PTC is inconsistent (, ). Studies suggested that HT is a “double-edged sword” in patients with PTC, which increases the risk of PTC but is a protective factor against progression (), and lymphocyte infiltration and cytokines derived from lymphocytes may attenuate tumor invasiveness and proliferation (, ). In contrast, some studies indicated that HT promotes PTC development progression, which is associated with both the endocrine mechanism by promoting TSH increasing and immune mechanism via the reduced expression of major histocompatibility complex (MHC)-I molecules, leading to the upregulation of immunosuppressive components and immune escape (, ). Several studies showed that there was no correlation between combined HT and ER (, ), while a report from Lim et al. suggested that patients with PTC combined with HT had a low ER rate after 131I ablation (). A large-scale prospective multicenter study analyzed the relationship between autoimmune thyroiditis and DTC outcomes. The results showed that patients with autoimmune thyroiditis were more frequently categorized as low and intermediate risk. The biochemical persistence was more frequent in autoimmune thyroiditis patients, but no association between AT and structural persistence of disease. Patients with autoimmune thyroiditis had a more frequently indeterminate response. These findings may be explained by the presence of a residual thyroid tissue (). Of note, our data differed from the above finding, showing that combination with HT is an independent factor of ER achievement, and a higher proportion of patients have an absence of extracapsular extension in the combination with the HT group (61.97% vs. 38.03%) and are positively correlated with ER, suggesting that PTC combined with HT is less invasive, which may contribute to ER achievement. The variability of the findings in different studies may be related to several factors, such as regional differences in the study populations, varying iodine nutritional status, and different genetic backgrounds.

In addition, our study revealed that less time of 131I ablation therapy (only one time) was correlated with ER outcomes, indicating that patients with mild disease have a better outcome. We also found a higher proportion of low risk of recurrence in the ER group, suggesting that the frequency and intensity of follow-up could be reduced.

We acknowledge some limitations of our study. Since the patients were from a single medical center and retrospective study, selection bias could not be ruled out. Second, we cannot exclude the influence of lifestyle (such as iodine content in diet and smoking) or hereditary factors of the enrolled patients. Third, considering the inert nature of PTC, further studies with a long-term follow-up are needed.

In summary, we have found that the diameter of tumor foci ≤1 cm, unifocal, combination with HT, the absence of postoperative lymph node metastasis, lower LR, and a lower level of ps-Tg were independent factors correlated with the ER achievement. The ps-Tg and LR had a predictive value for ER achievement. The predictive value of the cumulative risk of non-ER can be improved by a combination of evaluating ps-Tg and LR.

Statements

Data availability statement

The original contributions presented in the study are included in the article/supplementary material. Further inquiries can be directed to the corresponding authors.

Ethics statement

The ethics committee of the Affiliated Hospital of Qingdao University approved this study. The studies were conducted in accordance with the local legislation and institutional requirements. The participants provided their written informed consent to participate in this study.

Author contributions

XX: Formal analysis, Investigation, Writing – original draft. CL: Formal analysis, Investigation, Project administration, Writing – original draft. XY: Investigation, Methodology, Writing – original draft. GW: Methodology, Writing – original draft. YG: Data curation, Formal analysis, Methodology, Writing – original draft. HN: Data curation, Investigation, Writing – original draft. WZ: Conceptualization, Supervision, Writing – review & editing. YW: Conceptualization, Resources, Supervision, Writing – review & editing. BD: Conceptualization, Funding acquisition, Investigation, Project administration, Supervision, Visualization, Writing – original draft, Writing – review & editing.

Funding

The author(s) declare financial support was received for the research, authorship, and/or publication of this article. The study was funded by the Natural Science Foundation of Shandong Province (Grant No. ZR2023MH243) and the Taishan Scholar Program of Shandong Province (No. tsqn202312383) to the corresponding author BD.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

  • 1

    ShahaAR. Prognostic factors in papillary thyroid carcinoma and implications of large nodal metastasis. Surgery. (2004) 135:237. doi: 10.1016/j.surg.2003.08.023

  • 2

    ChowSMLawSCChanJKAuSKYauSLauWH. Papillary microcarcinoma of the thyroid—Prognostic significance of lymph node metastasis and multifocality. Cancer. (2003) 98:3140. doi: 10.1002/cncr.11442

  • 3

    VaismanFTalaHGrewalRTuttleRM. In differentiated thyroid cancer, an incomplete structural response to therapy is associated with significantly worse clinical outcomes than only an incomplete thyroglobulin response. Thyroid. (2011) 21:1317–22. doi: 10.1089/thy.2011.0232

  • 4

    MarottaVSciammarellaCColaoAFaggianoA. Application of molecular biology of differentiated thyroid cancer for clinical prognostication. Endocr Relat Cancer. (2016) 23:R499–515. doi: 10.1530/ERC-16-0372

  • 5

    MarottaVSciammarellaCCapassoMTestoriAPivonelloCChiofaloMGet al. Germline polymorphisms of the VEGF pathway predict recurrence in nonadvanced differentiated thyroid cancer. J Clin Endocrinol Metab. (2017) 102:661–71. doi: 10.1210/jc.2016-2555

  • 6

    HaugenBRAlexanderEKKeithCBDohertyGMMandelSJNikiforovYEet al. 2015 American thyroid association management guidelines for adult patients with thyroid nodules and differentiated thyroid cancer: the American thyroid association guidelines task force on thyroid nodules and differentiated thyroid cancer. Thyroid. (2016) 26:1133. doi: 10.1089/thy.2015.0020

  • 7

    TuttleRMAlzahraniAS. Risk stratification in differentiated thyroid cancer: from detection to final follow-up. J Clin Endocrinol Metab. (2019) 104:4087–100. doi: 10.1210/jc.2019-00177

  • 8

    LiYXRaoMHZhengCXHuangJFangDXiongYet al. Analysis of factors influencing the clinical outcome after surgery and 131I therapy in patients with moderate-risk thyroid papillary carcinoma. Front Endocrinol (Lausanne). (2022) 13:1015798. doi: 10.3389/fendo.2022.1015798

  • 9

    WangCDiaoHCRenPWangXWangYZhaoWet al. Efficacy and affecting factors of 131I thyroid remnant ablation after surgical treatment of differentiated thyroid carcinoma. Front Oncol. (2018) 8:640. doi: 10.3389/fonc.2018.00640

  • 10

    JuNTHouLYSongHJQiuZWangYSunZet al. TSH ≥30 mU/L may not be necessary for successful 131I remnant ablation in patients with differentiated thyroid cancer. Eur Thyroid J. (2023) 12:e220219. doi: 10.1530/ETJ-22-0219

  • 11

    CooperDSDohertyGMHaugenBRKloosRTLeeSLMandelSJet al. Revised American thyroid association management guidelines for patients with thyroid nodules and differentiated thyroid cancer. Thyroid. (2009) 19:1167–214. doi: 10.1089/thy.2009.0110

  • 12

    TuttleRMHaugenBPerrierND. Updated American joint committee on cancer/tumor-node-metastasis staging system for differentiated and anaplastic thyroid cancer (Eighth edition): what changed and why? Thyroid. (2017) 27:751–6. doi: 10.1089/thy.2017.0102

  • 13

    HundahlSAPhillipsJLMenckHR. The National Cancer Data Base report on poor survival of U.S. gastric carcinoma patients treated with gastrectomy: Fifth edition American Joint Committee on Cancer staging, proximal disease, and the “different disease” hypothesis. Cancer. (2000) 88:921–32. doi: 10.1002/(ISSN)1097-0142

  • 14

    RusinekDChmielikEKrajewskaJJarzabMOczko-WojciechowskaMCzarnieckaAet al. Current advances in thyroid cancer management. Are we ready for the epidemic rise of diagnoses? Int J Mol Sci. (2017) 18:1817. doi: 10.3390/ijms18081817

  • 15

    ScheffelRSZanellaABAntunesDDoraJMMaiaAL. Low recurrence rates in a cohort of differentiated thyroid carcinoma patients: A referral center experience. Thyroid. (2015) 25:883–9. doi: 10.1089/thy.2015.0077

  • 16

    HeYPanMZHuangJM. Iodine-131: an effective method for treating lymph node metastases of differentiated thyroid cancer. Med Sci Monitor Int Med J Exp Clin Res. (2016) 22:4924–8. doi: 10.12659/MSM.899028

  • 17

    YangYGanMYiKHanSLinZShiYet al. Guiding the postoperative radioactive iodine-131 therapy for patients with papillary thyroid carcinoma according to the prognostic risk groups: a SEER-based study. J Cancer Res Clin Oncol. (2023) 149:17147–57. doi: 10.21203/rs.3.rs-2835496/v1

  • 18

    GaoHYHuangJYQingJDaiQJ. Radioiodine (131I) treatment decision-making for low- and intermediate-risk differentiated thyroid cancer. Arch Endocrinol Metab. (2023) 67:197205. doi: 10.20945/2359-3997000000538

  • 19

    ZhaoTLiangJGuoZLiTLinY. In patients with low- to intermediate-risk thyroid cancer, a preablative thyrotropin level of 30 μIU/mL is not adequate to achieve better response to 131I therapy. Clin Nucl Med. (2016) 41:454–8. doi: 10.1097/RLU.0000000000001167

  • 20

    YangXLiangJLiTJYangKLiangDQYuZet al. Postoperative stimulated thyroglobulin level and recurrence risk stratification in differentiated thyroid cancer. Chin Med J (Engl). (2015) 128:1058–64. doi: 10.4103/0366-6999.155086

  • 21

    GonzalezCAulinasAColomCTundidorDMendozaLCorcoyRet al. Thyroglobulin as early prognostic marker topredict remission at 18–24 months in differentiated thyroid carcinoma. Clin Endocrinol (Oxf). (2014) 80:301–6. doi: 10.1111/cen.12282

  • 22

    YinYXuXShenLZhaoWDiaoHLiC. Influencing factors and cumulative risk analysis of cervical lymph node metastasis of papillary thyroid microcarcinoma. Front Oncol. (2021) 11:644645. doi: 10.3389/fonc.2021.644645

  • 23

    ShangguanLFangSZhangPHanSShenXGengYet al. Impact factors for the outcome of the first 131I radiotherapy in patients with papillary thyroid carcinoma after total thyroidectomy. Ann Nucl Med. (2018) 33:177–83. doi: 10.1007/s12149-018-01321-w

  • 24

    SzujoSBajnokLBodisBNagyZNemesORuczKet al. The prognostic role of postablative non-stimulated thyroglobulin in differentiated thyroid cancer. Cancers (Basel). (2021) 13:310. doi: 10.3390/cancers13020310

  • 25

    CoutoJSAlmeidaMFOTrindadeVCGMaroneMMSScalissiNMCuryANet al. A cutoff thyroglobulin value suggestive of distant metastases in differentiated thyroid cancer patients. Braz J Med Biol Res. (2020) 53:e9781. doi: 10.1590/1414-431x20209781

  • 26

    LeeJHKimYChoiJWKimYS. The association between papillary thyroid carcinoma and histologically proven Hashimoto's thyroiditis: a meta-analysis. Eur J Endocrinol. (2013) 168:343–9. doi: 10.1530/EJE-12-0903

  • 27

    MazokopakisEETzortzinisAADalieraki-OttEITsartsalisANSyrosPKKarefilakisCMet al. Coexistence of Hashimoto's thyroiditis with papillary thyroid carcinoma. A retrospective study. Hormones (Athens Greece). (2010) 9:312–7. doi: 10.14310/horm.2002.1149

  • 28

    DelRCataldoSSommarugaLConcioneLArcuriMFSianesiM. The association between papillary carcinoma and chronic lymphocytic thyroiditis: does it modify the prognosis of cancer? Minerva Endocrinol. (2008) 33:15.

  • 29

    XuJDingKMuLHuangJYeFPengYet al. Hashimoto's thyroiditis: A "Double-edged sword" in thyroid carcinoma. Front Endocrinol (Lausanne). (2022) 13:801925. doi: 10.3389/fendo.2022.801925

  • 30

    HanLTHuJQMaBWenDZhangTTLuZWet al. IL-17A increases MHC class I expression and promotes T cell activation in papillary thyroid cancer patients with coexistent Hashimoto's thyroiditis. Diagn Pathol. (2019) 14:52. doi: 10.1186/s13000-019-0832-2

  • 31

    WangTShiJLiLZhouXZhangHZhangXet al. Single-cell transcriptome analysis reveals inter-tumor heterogeneity in bilateral papillary thyroid carcinoma. Front Immunol. (2022) 13:840811. doi: 10.3389/fimmu.2022.840811

  • 32

    CarvalhoMSRosarioPWMourãoGFCalsolariMR. Chronic lymphocytic thyroiditis does not influence the risk of recurrence in patients with papillary thyroid carcinoma and excellent response to initial therapy. Endocrine. (2017) 55:954–8. doi: 10.1007/s12020-016-1185-1

  • 33

    JeongJSKimHKLeeCRParkSParkJHKangSWet al. Coexistence of chronic lymphocytic thyroiditis with papillary thyroid carcinoma: clinical manifestation and prognostic outcome. J Korean Med Sci. (2012) 27:883–9. doi: 10.3346/jkms.2012.27.8.883

  • 34

    LimESShahSGWaterhouseMAkkerSDrakeWPlowmanNet al. Impact of thyroiditis on 131I uptake during ablative therapy for differentiated thyroid cancer. Endocrine connections. (2019) 8:571–8. doi: 10.1530/EC-19-0053

  • 35

    De LeoSD'EliaSGraniGDondiFBertagnaFPuxedduEet al. A prospective multicenter study examining the relationship between thyroid cancer treatment outcomes and the presence of autoimmune thyroiditis. Thyroid. (2023) 33:1318–26. doi: 10.1089/thy.2023.0052

Summary

Keywords

Papillary thyroid carcinoma (PTC), lymph node metastasis, 131I ablation, excellent response (ER), cumulative risk

Citation

Xu X, Li C, Yu X, Wang G, Guo Y, Ni H, Zhao W, Wang Y and Dong B (2024) Clinicopathological features affecting the efficacy in 131I ablation therapy of papillary thyroid carcinoma with lymph node metastasis. Front. Endocrinol. 15:1382009. doi: 10.3389/fendo.2024.1382009

Received

04 February 2024

Accepted

24 June 2024

Published

17 July 2024

Volume

15 - 2024

Edited by

Vincenzo Marotta, AOU S. Giovanni di Dio e Ruggi D’Aragona, Italy

Reviewed by

Daniele Barbaro, UO Endocrinologia ASL nord ovest Toscana, Italy

Shilpi Sharma, Narayana Superspeciality Hospital, Gurugram, India

Updates

Copyright

*Correspondence: Bingzi Dong, ; ; Yangang Wang,

†ORCID: Bingzi Dong, orcid.org/0000-0003-2446-0725

Disclaimer

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.

Outline

Figures

Cite article

Copy to clipboard


Export citation file


Share article

Article metrics
