Abstract
Graves’ disease (GD), rheumatoid arthritis (RA), systemic lupus erythematosus (SLE) and systemic sclerosis (SSc) are complex autoimmune diseases sharing common clinical, genetic and pathogenetic features. However, the commonalities of the DNA methylation profiles for these diseases are still unknown. We conducted an integrative analysis of the multiple-autoimmune disease methylation dataset including GD, RA, SLE, and SSc samples, to identify the common methylation patterns of autoimmune diseases. We identified 15,289 differentially methylated sites between multiple-autoimmune disease patients and controls in CD4+ T cells. We found that the most significant differentially methylated sites had a remarkable enrichment in type I interferon (IFN) pathway genes. Similarly, we identified 9,295 differentially methylated sites between GD/SSc patients and controls in CD8+ T cells. The overall IFN-related gene panel annotated by gene ontology (GO) showed an excellent diagnostic capacity in CD4+ T cells (Sensitivity = 0.82, specificity = 0.82 and AUC = 0.90), while IFI44L, another IFN-related gene not annotated by GO, showed high prediction ability in both CD4+ (AUC = 0.86) and CD8+ (AUC = 0.75) T cells. In conclusion, our study demonstrated that hypomethylation of IFN-related genes is a common feature of GD/RA/SLE/SSc patients in CD4+ T cells, and the DNA methylation profile of IFN-related genes could be promising biomarkers for the diagnosis of GD, RA, SLE, and SSc.
Introduction
Autoimmune diseases are multifactorial complex diseases characterized by loss of immunologic tolerance to self-antigens, inappropriate activation of autoimmune responses and damage of target organ systems (). Currently, over 100 types of autoimmune diseases affect 5–10% of the population worldwide and are one of the key causes of morbidity and mortality. Moreover, the economic burden of autoimmune diseases is enormous due to high rates of disability and comorbidity as well as increasing treatment costs (). However, the understanding of autoimmune diseases is still limited; the exact etiology and pathogenesis remains unclear. Recently, multiple studies have suggested that there are a lot of commonalities in the pathogenesis of different types of autoimmune diseases. Therefore, the integrative analysis across different autoimmune diseases may reveal more clues about the pathogenesis.
Graves’ disease (GD), rheumatoid arthritis (RA), systemic lupus erythematosus (SLE) and systemic sclerosis (SSc) are all typical autoimmune diseases. They share commonalities of occurring more often in women than in men (), the production of autoantibodies (; Weetman, 2000; ; ; ), the triggering of immune abnormalities in CD4+ or CD8+ T cells (; ; ; ; ) and multiple risk loci for the diseases (). Thus, research across these autoimmune diseases may reveal similarities in their pathogenesis.
Epigenetics refers to the study of heritable changes in gene function without alterations in DNA sequence (). A number of environmental risk factors could wield influence over the pathogenesis of autoimmune diseases through epigenetic mechanisms (Zhang and Zhang, 2015), which provide a crucial link between environmental and genetic risk factors of the diseases. DNA methylation is one of the major epigenetic mechanisms, and it plays an important role in determining gene function (). Recently, multiple lines of evidence have shown that dysregulated DNA methylation plays a critical part in the onset of autoimmune diseases, including GD, RA, SLE and SSc (; ). Hence, further exploration of the DNA methylation patterns of these diseases can help to elucidate the underlying pathogenesis.
In the present study, we report the integrative analysis of genome-wide DNA methylomes in CD4+ T cells of GD, RA, SLE, SSc patients, as well as in CD8+ T cells of GD, SSc patients. Autoimmune responses mediated by CD4+ and CD8+ T cells play a key role in the diseases mentioned above (; ). Commonalities of DNA methylation in these autoimmune diseases were identified. Specific DNA methylation signatures were also evaluated for the potential diagnostic value of these autoimmune diseases.
Materials and Methods
Sample and Data Collection
DNA methylation microarray data of GD/RA/SLE patients and corresponding control individuals were acquired from the GEO database [GSE71957 (), GSE71841 () and GSE59250 ()], while raw data of SSc patients and matched controls were sourced from our previous study (). All data collected were based on Illumina Methylation 450K array platform. The clinical and demographic information of the patients and healthy subjects is summarized in Supplementary Table 1.
Preprocessing of Methylation Data
Initial quality control and preprocessing of raw data in the form of IDAT files were conducted in R () with the Bioconductor package RnBeads (). The IDAT files were processed separately for each study. Probes whose last three bases of the target sequence overlap with SNP and cross-hybridizing probes whose sequence maps to multiple genomic coordinates were removed before further analysis. The “greedycut” procedure was conducted to filter out the probes with a detection P-value > 0.05 in any of the samples. In addition, probes located on sex chromosomes and probes with many missing values were also filtered out. Then, the “noob” method was used to perform background subtraction. Finally, beta-mixture quantile normalization (BMIQ) of the methylation beta values was conducted to adjust the deviation caused by different types of probes (type I and type II).
Data Integration and Batch Normalization
Preprocessed data of the diseases were adjusted to a unified format. Methylation beta values of samples from multiple disease datasets were then integrated together in both CD4+ and CD8+ sample subsets. Batch normalization was conducted with the SVA package () to remove batch effect among arrays used for samples of different diseases.
Differential Methylation Analysis
P-values of the probes involved in the integrated methylation data were computed with a linear regression model, including gender, age and ethnicity as covariates. Benjamini and Hochberg false discovery rate (FDR) () was employed to adjust the raw P-values for multiple testing. CpG sites with P-values after FDR of < 0.01 were defined as differentially methylated sites (DMS). Further gene ontology (GO) analysis was conducted with g:Profiler () using CpGs with the most significant methylation difference (N = 50).
Gene and CpG Island Features of Methylation Sites
Location of the methylation sites in relation to gene and CpG island subregions were annotated based on the annotation files provided by Illumina. Gene-associated features TSS1500, TSS200, 5′ UTR and 1st exon were collectively referred to as promoter regions. CpG sites that were located in different parts of these genes were counted separately.
ANOVA and Clustering Analysis
One-way ANOVA (analysis of variance) was used for multiple comparisons of methylation beta values among patients with different diseases. The analysis was not carried out in CD8+ samples since there were only two patient groups. Hierarchical clustering analysis was performed on the top 50 CpG sites showing the largest variation across all the patient groups based on one-way ANOVA to examine the relatedness among methylation patterns of the diseases. Clustering analysis was also conducted for the most significant DMS (N = 50) and DMS at type I IFN-related genes across all samples, respectively. Heat maps were generated to visualize the results of clustering analysis.
Meta-Analysis
Sample sizes, means and standard deviations of single CpG site’s methylation beta values for patient and control groups were worked out in all the diseases and consolidated together. Meta-analysis was then conducted with the metafor package (). The data were pooled and calculated using the DerSimonian and Laird random effects model.
Binary Prediction Analysis and ROC Evaluation
Binary logistic regression model was selected to fit the ROC (receiver operating characteristic) curve. The area under the ROC curve (AUC) was calculated.
Results
In order to recognize the commonalities of different autoimmune diseases, including GD, RA, SLE, and SSc, we collected Illumina Methylation 450K microarray data of 116 patients with GD/RA/SLE/SSc and 117 corresponding controls in CD4+ T cells. Similarly, the methylation data of 61 patients with GD/SSc and 55 control individuals in CD8+ T cells were also collected. The data were acquired from public database and our previous work. The detailed clinical characteristics of patients and healthy controls are described in Supplementary Table 1. Stringent quality filtering, exclusion of cross-hybridizing and SNP-containing CpGs, and normalization for batches (as described in Materials and methods) were conducted before further analysis.
Genome-Wide DNA Methylation Profiling of Autoimmune Diseases
To identify the common epigenetic changes associated with the above autoimmune diseases, we performed genome-wide DNA methylation analysis of the patients and controls in both CD4+ and CD8+ T cell subsets. After stringent quality control and differential methylation analysis, we identified 15,289 and 9,295 DMS in CD4+ and CD8+ T cells, respectively (Supplementary Tables 2, 3 and Figure 1). In the CD4+ T cell methylation dataset, 7,889 of these sites were hypomethylated and 7,400 were hypermethylated, with more hypomethylated sites than hypermethylated sites, which is quite different from the pattern observed in cancer (e.g., more hyper- than hypo-methylated sites were observed in gastric cancer and colorectal cancer) (Zouridis et al., 2012; ), while in line with the proportion in GD, RA and SLE (over 50% of the differentially methylated CpGs identified, respectively, were hypomethylated) (; ; ); 5,471 and 3,824 probes were hypermethylated and hypomethylated in CD8+ T cells of patients. We also found that DMS were mainly located within genes and outside of CpG islands (Supplementary Figure 1). Over 40% of the DMS were identified within intragenic (body) regions, and more than 30% of the DMS were observed in promoter regions. In relation to CpG islands, only a small proportion (<10%) of all identified DMS were associated with well-defined CpG island regions. In the comparative analysis of two cell subsets’ methylation patterns, we found 5,129 of the DMS were shared between CD4+ and CD8+ T cells, while 10,160 DMS were unique to CD4+ T cells and 4,166 DMS to CD8+ T cells (Supplementary Figure 2). Altogether, we identified 6,027 and 4,358 differentially methylated genes (DMG) in CD4+ and CD8+ T cells, respectively (Table 1), with 2,645 DMG shared between these two subtypes.

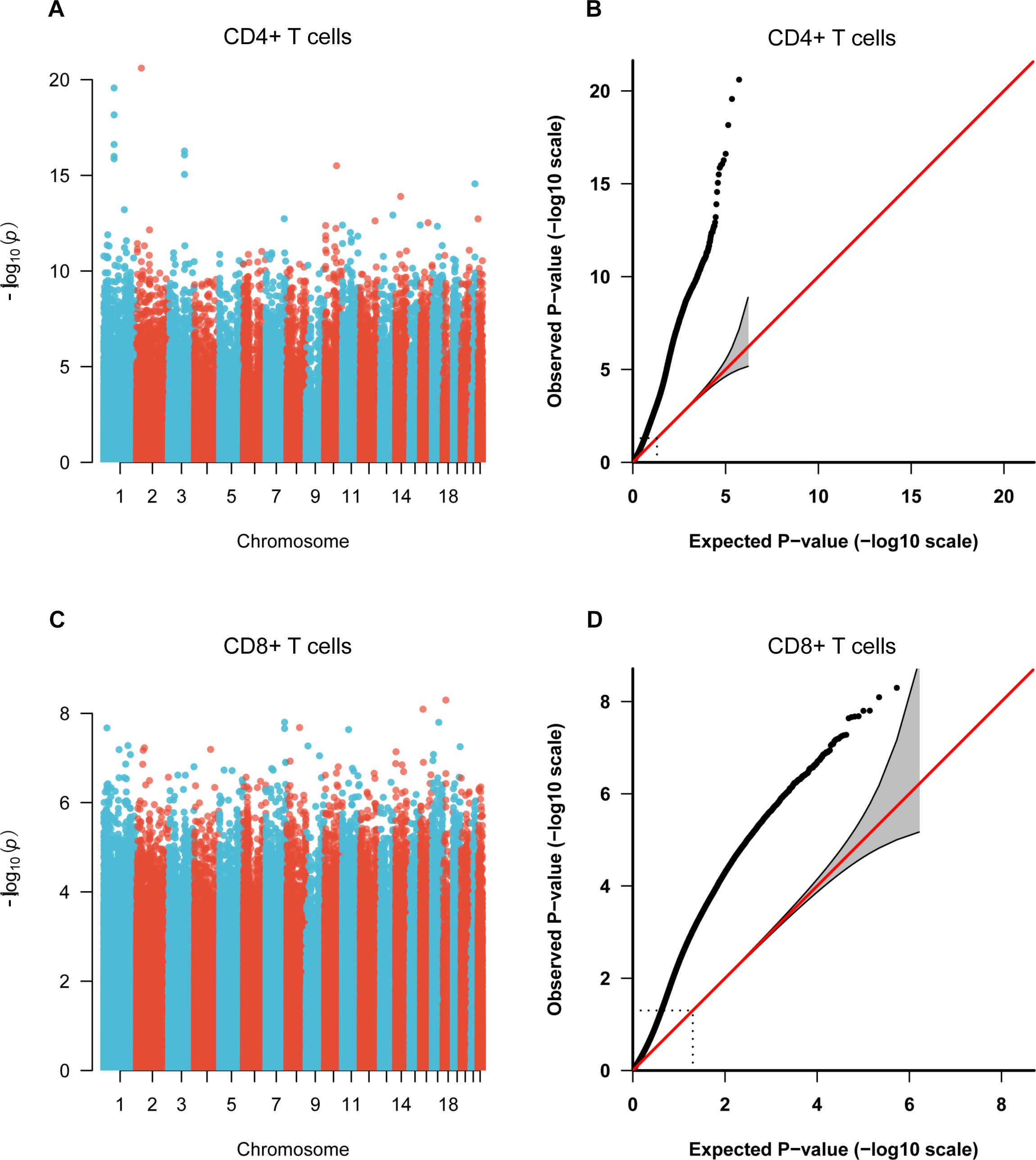

FIGURE 1

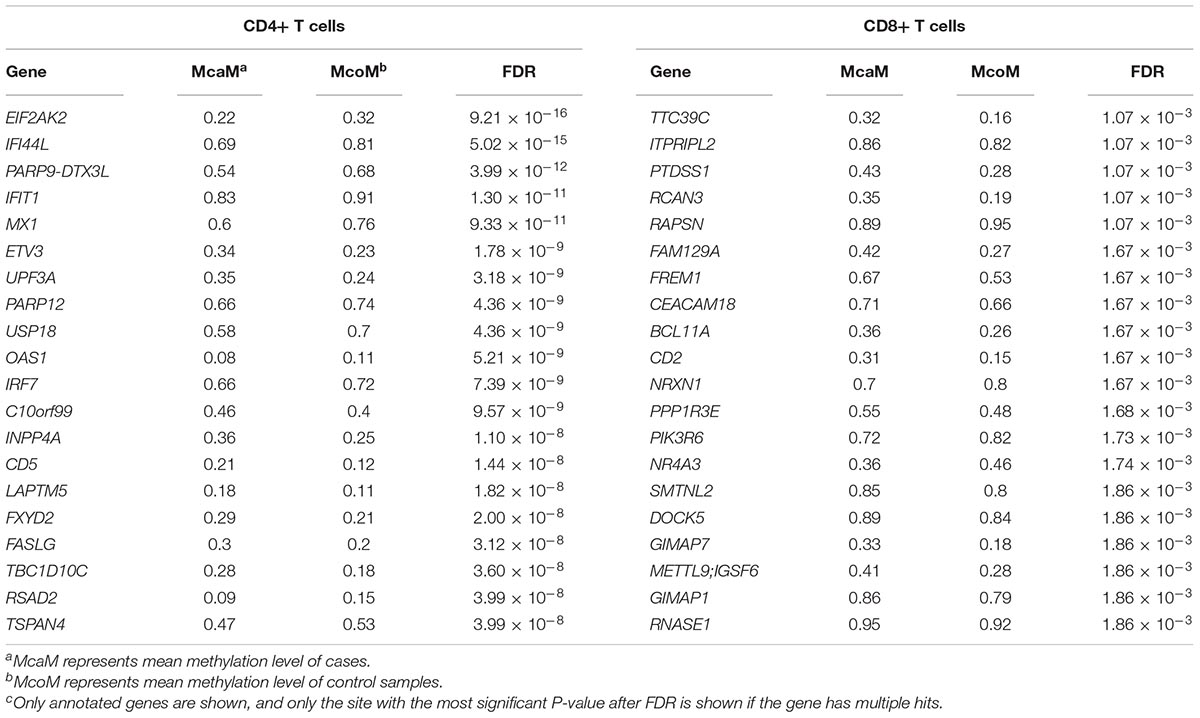

Table 1
| CD4+ T cells | CD8+ T cells | ||||||
| Gene | McaMa | McoMb | FDR | Gene | McaM | McoM | FDR |
| EIF2AK2 | 0.22 | 0.32 | 9.21 × 10-16 | TTC39C | 0.32 | 0.16 | 1.07 × 10-3 |
| IFI44L | 0.69 | 0.81 | 5.02 × 10-15 | ITPRIPL2 | 0.86 | 0.82 | 1.07 × 10-3 |
| PARP9-DTX3L | 0.54 | 0.68 | 3.99 × 10-12 | PTDSS1 | 0.43 | 0.28 | 1.07 × 10-3 |
| IFIT1 | 0.83 | 0.91 | 1.30 × 10-11 | RCAN3 | 0.35 | 0.19 | 1.07 × 10-3 |
| MX1 | 0.6 | 0.76 | 9.33 × 10-11 | RAPSN | 0.89 | 0.95 | 1.07 × 10-3 |
| ETV3 | 0.34 | 0.23 | 1.78 × 10-9 | FAM129A | 0.42 | 0.27 | 1.67 × 10-3 |
| UPF3A | 0.35 | 0.24 | 3.18 × 10-9 | FREM1 | 0.67 | 0.53 | 1.67 × 10-3 |
| PARP12 | 0.66 | 0.74 | 4.36 × 10-9 | CEACAM18 | 0.71 | 0.66 | 1.67 × 10-3 |
| USP18 | 0.58 | 0.7 | 4.36 × 10-9 | BCL11A | 0.36 | 0.26 | 1.67 × 10-3 |
| OAS1 | 0.08 | 0.11 | 5.21 × 10-9 | CD2 | 0.31 | 0.15 | 1.67 × 10-3 |
| IRF7 | 0.66 | 0.72 | 7.39 × 10-9 | NRXN1 | 0.7 | 0.8 | 1.67 × 10-3 |
| C10orf99 | 0.46 | 0.4 | 9.57 × 10-9 | PPP1R3E | 0.55 | 0.48 | 1.68 × 10-3 |
| INPP4A | 0.36 | 0.25 | 1.10 × 10-8 | PIK3R6 | 0.72 | 0.82 | 1.73 × 10-3 |
| CD5 | 0.21 | 0.12 | 1.44 × 10-8 | NR4A3 | 0.36 | 0.46 | 1.74 × 10-3 |
| LAPTM5 | 0.18 | 0.11 | 1.82 × 10-8 | SMTNL2 | 0.85 | 0.8 | 1.86 × 10-3 |
| FXYD2 | 0.29 | 0.21 | 2.00 × 10-8 | DOCK5 | 0.89 | 0.84 | 1.86 × 10-3 |
| FASLG | 0.3 | 0.2 | 3.12 × 10-8 | GIMAP7 | 0.33 | 0.18 | 1.86 × 10-3 |
| TBC1D10C | 0.28 | 0.18 | 3.60 × 10-8 | METTL9;IGSF6 | 0.41 | 0.28 | 1.86 × 10-3 |
| RSAD2 | 0.09 | 0.15 | 3.99 × 10-8 | GIMAP1 | 0.86 | 0.79 | 1.86 × 10-3 |
| TSPAN4 | 0.47 | 0.53 | 3.99 × 10-8 | RNASE1 | 0.95 | 0.92 | 1.86 × 10-3 |
Top 20 differentially methylated genes in CD4+ and CD8+ T cells between patients and controls.
aMcaM represents mean methylation level of cases.
bMcoM represents mean methylation level of control samples.
cOnly annotated genes are shown, and only the site with the most significant P-value after FDR is shown if the gene has multiple hits.
To compare the methylation patterns of the autoimmune diseases mentioned above, we preformed hierarchical clustering analysis based on the top 50 CpG sites showing the largest variation across all patient groups (Supplementary Table 4) in CD4+ samples. We found that samples from the four diseases cannot be explicitly distinguished from each other (Figure 2A) (clustering analysis based on the top 50 CpG sites showing the largest variation across all patient and control groups in CD4+ samples is also presented in Supplementary Figure 3). Furthermore, clustering analysis of the top 50 DMS across all samples in CD4+ cells also demonstrated that there is no significant distinction among the methylation signatures of these autoimmune diseases, while different from control individuals (Figure 2B). These results indicate that GD, RA, SLE and SSc patients possess similar methylation patterns, which provided further evidence for the commonalities in the pathogenesis of these diseases.

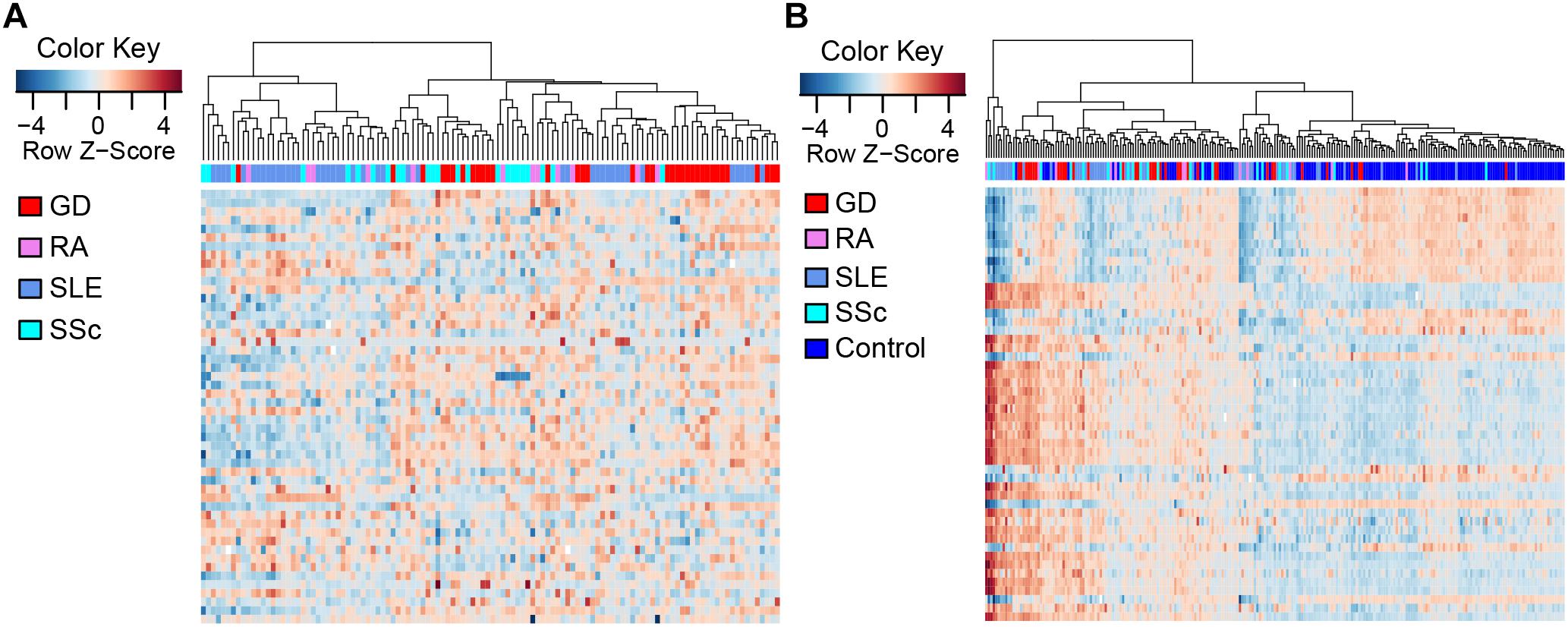

FIGURE 2
Functional Enrichment of the Most Significant Differentially Methylated Genes
To identify common functional characteristics of the DMG, we performed a GO analysis on genes annotated to the most significant DMS (N = 50) in each cell type. Interestingly, analysis of CD4+ dataset revealed that the type I interferon signaling pathway, response to type I interferon and cellular response to type I interferon (P-value after FDR = 1.98 × 10-6) were the most significantly enriched GO terms (Table 2), indicating that type I interferon (IFN) -related genes in CD4+ T cells might play a role in the pathogenesis of autoimmune diseases including GD, RA, SLE and SSc. Specifically, we selected the type I IFN-related genes which differed significantly between diseases and control samples (among top 50 DMS) and also applied meta-analysis simultaneously to further observe the methylation status of these genes when the diseases were pooled together as well as in each disease alone (meta-analyses of all methylation sites from the microarray data were also conducted, with results shown in Supplementary Tables 5, 6). Most of the genes identified (5 out of 6) also presented significant methylation difference between patients and controls. Although we did not observe the differential methylation of each gene in all of the diseases, the overall methylation levels of these genes are significantly lower in GD, RA, SLE and SSc, indicating that hypomethylation signature of type I IFN is shared by different autoimmune diseases (Figure 3 and Supplementary Figure 4). Clustering analysis based on the DMS at type I IFN-related genes showed that most patient samples can be discriminated from controls (Figure 4A). In contrast, functional analysis of CD8+ T cells did not show significant enrichment, and the most enriched GO terms were related to more general biological processes, including regulation of leukocyte activation, regulation of cell adhesion and regulation of T cell activation. Of note, most of the top-ranking terms (6 out of 10) were related to immune system processes (Table 2).

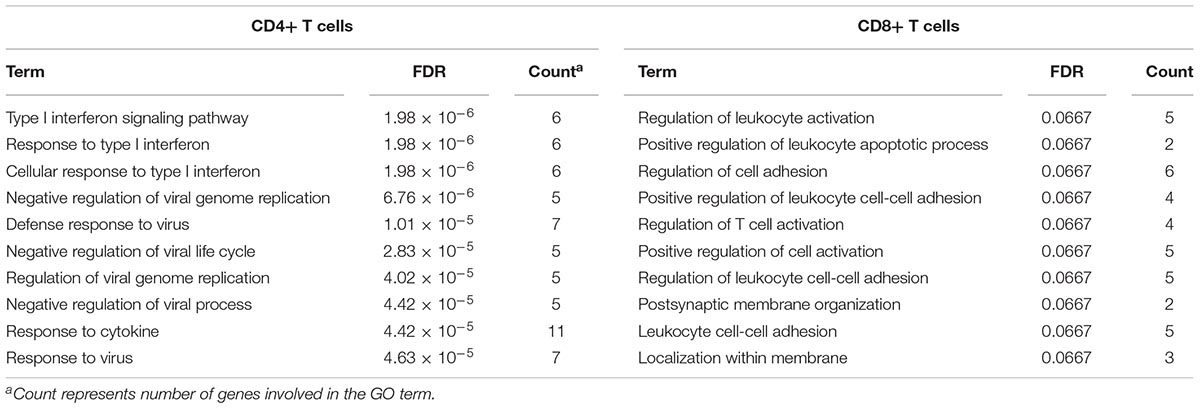

Table 2
| CD4+ T cells | CD8+ T cells | ||||
| Term | FDR | Counta | Term | FDR | Count |
| Type I interferon signaling pathway | 1.98 × 10-6 | 6 | Regulation of leukocyte activation | 0.0667 | 5 |
| Response to type I interferon | 1.98 × 10-6 | 6 | Positive regulation of leukocyte apoptotic process | 0.0667 | 2 |
| Cellular response to type I interferon | 1.98 × 10-6 | 6 | Regulation of cell adhesion | 0.0667 | 6 |
| Negative regulation of viral genome replication | 6.76 × 10-6 | 5 | Positive regulation of leukocyte cell-cell adhesion | 0.0667 | 4 |
| Defense response to virus | 1.01 × 10-5 | 7 | Regulation of T cell activation | 0.0667 | 4 |
| Negative regulation of viral life cycle | 2.83 × 10-5 | 5 | Positive regulation of cell activation | 0.0667 | 5 |
| Regulation of viral genome replication | 4.02 × 10-5 | 5 | Regulation of leukocyte cell-cell adhesion | 0.0667 | 5 |
| Negative regulation of viral process | 4.42 × 10-5 | 5 | Postsynaptic membrane organization | 0.0667 | 2 |
| Response to cytokine | 4.42 × 10-5 | 11 | Leukocyte cell-cell adhesion | 0.0667 | 5 |
| Response to virus | 4.63 × 10-5 | 7 | Localization within membrane | 0.0667 | 3 |
Gene ontology analysis of genes annotated to differentially methylated sites (top 50) for GD/RA/SLE/SSc CD4+ T cell and GD/SSc CD8+ T cell datasets.
aCount represents number of genes involved in the GO term.

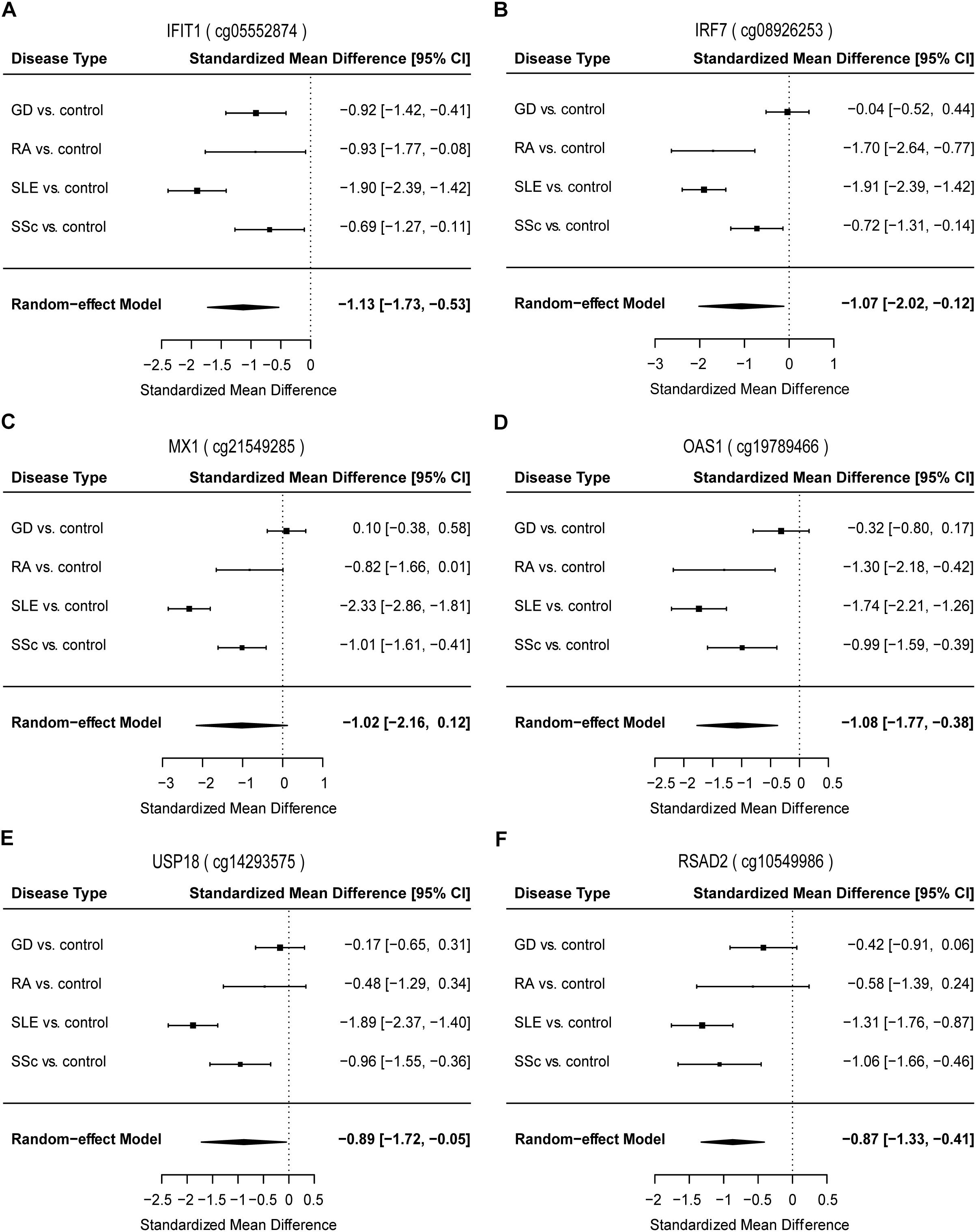

FIGURE 3
Diagnostic Value of Type I Interferon-Related Genes Annotated by Gene Ontology for GD, RA, SLE, and SSc in CD4+ T Cells
Our study has revealed significant hypomethylation of type I IFN-related genes annotated by GO (IFIT1, IRF7, MX1, OAS1, USP18, RSAD2, Table 2) in CD4+ T cells of GD/RA/SLE/SSc patients compared with controls, and we wanted to further evaluate their ability to distinguish the patients from healthy individuals to see if methylation levels of these genes can be of diagnostic value. Thus, we performed the logistic regression analysis based on the methylation status of type I IFN-related genes in CD4+ T cells. ROC curve analyses were conducted of all the DMS found on type I IFN-related genes between patients and matched controls. The methylation levels of the 21 DMS showed high AUC value of 0.90, with sensitivity and specificity of 0.82 (Figure 4B and Supplementary Table 7). In patients with RA, SSc and SLE (compared with healthy controls), the AUCs were even higher, 1.00, 1.00, and 0.98, respectively, while the AUC in GD patients (compared with healthy controls) was also 0.90 (Supplementary Figures 5A–D and Supplementary Table 7).

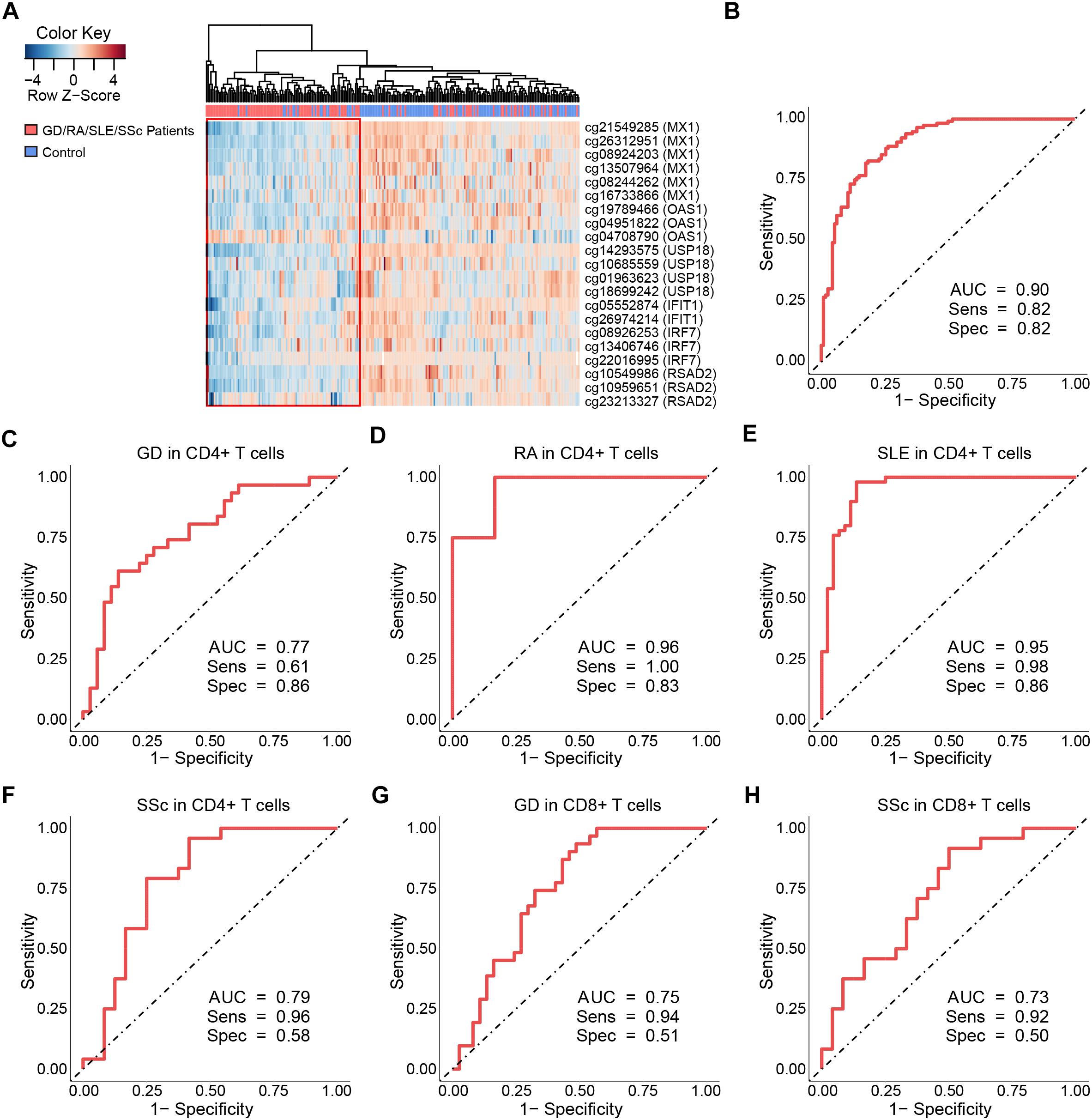

FIGURE 4
To further explore the diagnostic value of each type I IFN-related gene identified, we constructed the ROC curves for DMS found on IFIT1, IRF7, MX1, OAS1, USP18 and RSAD2, respectively. In the analysis of IFIT1, the AUC value of the 2 DMS in GD/RA/SLE/SSc patients in comparison with healthy controls was 0.82 (sensitivity: 0.84, specificity: 0.71) (Supplementary Figure 6A and Supplementary Table 7). In patients with SLE (compared with control individuals), the AUC was much higher, 0.89; while the AUCs for GD, SSc and RA patients (compared with control individuals) were relatively lower, 0.79, 0.75, and 0.68, respectively (Supplementary Figure 7 and Supplementary Table 7). In the analysis of IRF7, AUC value of the 3 DMS in GD/RA/SLE/SSc patients in comparison with healthy controls was 0.78 (sensitivity: 0.74, specificity: 0.75) (Supplementary Figure 6B and Supplementary Table 7). In patients with SLE and RA (compared with control individuals), the AUCs were much higher, 0.92 and 0.88, respectively, while the AUCs for SSc and GD patients (compared with control individuals) were relatively lower, 0.73 and 0.66, respectively (Supplementary Figure 8 and Supplementary Table 7). In the analysis of MX1, AUC value of the 6 DMS in GD/RA/SLE/SSc patients in comparison with healthy controls was 0.80 (sensitivity: 0.72, specificity: 0.78) (Supplementary Figure 6C and Supplementary Table 7). In patients with SLE, RA and SSc (compared with control individuals), the AUCs were much higher, 0.92, 0.87, and 0.86, respectively, while the AUC for GD patients (compared with control individuals) was relatively lower, 0.73 (Supplementary Figure 9 and Supplementary Table 7). In the analysis of OAS1, the AUC value of the 3 DMS in GD/RA/SLE/SSc patients in comparison with healthy controls was 0.80 (sensitivity: 0.82, specificity: 0.66) (Supplementary Figure 6D and Supplementary Table 7). In patients with SLE, RA and SSc (compared with control individuals), the AUCs were higher, 0.89, 0.84, and 0.82, respectively, while the AUC for GD patients (compared with control individuals) was relatively lower, 0.63 (Supplementary Figure 10 and Supplementary Table 7). In the analysis of USP18, AUC value of the 4 DMS in GD/RA/SLE/SSc patients in comparison with healthy controls was 0.78 (sensitivity: 0.87, specificity: 0.62) (Supplementary Figure 6E and Supplementary Table 7). In patients with RA and SLE (compared with control individuals), the AUCs were much higher, 0.92 and 0.89, respectively, while the AUC for SSc and GD patients (compared with control individuals) were the same or relatively lower, 0.78 and 0.62 (Supplementary Figure 11 and Supplementary Table 7). In the analysis of RSAD2, AUC value of the 3 DMS in GD/RA/SLE/SSc patients in comparison with healthy controls was 0.81 (sensitivity: 0.83, specificity: 0.69) (Supplementary Figure 6F and Supplementary Table 7). In patients with SLE and RA (compared with control individuals), the AUCs were higher, 0.88 and 0.84, respectively, while the AUCs for SSc and GD patients (compared with control individuals) were relatively lower, 0.77 and 0.75 (Supplementary Figure 12 and Supplementary Table 7).
The results of our analysis imply that DNA methylation levels of type I IFN-related genes identified can be useful biomarkers in the evaluation and diagnosis of GD, RA, SLE, and SSc, and the biomarker panel with all DMS found on the genes involved (IFIT1, IRF7, MX1, OAS1, USP18, and RSAD2) demonstrate the best diagnostic capacity compared to each single type-I IFN related gene, which can correctly discriminate between RA or SSc patients and healthy controls.
Diagnostic Value of IFI44L for GD, RA, SLE, and SSc
Our integrated analysis also found that IFI44L, another type I IFN-related gene, is significantly hypomethylated in autoimmune diseases (Supplementary Table 2), although it was not annotated by GO in type I IFN-associated terms. A previous study has identified that the methylation status of IFI44L could be utilized as a biomarker for diagnosis of autoimmune disease (Zhao et al., 2016). Therefore, to further assess the diagnostic value of IFI44L in GD, RA, SLE and SSc, logistic regression analysis based on the methylation status of IFI44L were conducted in CD4+ and CD8+ T cells, respectively. We constructed the ROC curves in both T cell subsets to depict the diagnostic ability of cg06872964 for the above autoimmune diseases, which is the hypomethylated CpG site mentioned in that study (Zhao et al., 2016). The results revealed that the AUC value of the site in GD/RA/SLE/SSc patients in comparison with control individuals for the CD4+ subset was 0.80 (sensitivity: 0.78, specificity: 0.74) (Supplementary Figure 13A and Supplementary Table 8). In patients with SLE (compared with healthy controls), the AUC was much higher, 0.89; while the AUCs for SSc, RA and GD patients (compared with healthy controls) were relatively lower, 0.78, 0.78, and 0.58, respectively (Supplementary Figures 14A–D and Supplementary Table 8). The result for the CD8+ subset showed that the AUC value of the site in GD/SSc patients in comparison with control individuals was 0.65 (sensitivity: 0.93, specificity: 0.34) (Supplementary Figure 13B and Supplementary Table 8). In patients with SSc and GD, the AUCs were 0.73 and 0.61, respectively (Supplementary Figures 14E,F and Supplementary Table 8).
To further assess the diagnostic value of IFI44L methylation levels in GD, RA, SLE and SSc, we performed ROC curve analyses of all the DMS found on IFI44L between patients and matched controls in CD4+ and CD8+ T cells, respectively. The ROC curve analysis for GD/RA/SLE/SSc patients as compared with healthy controls in CD4+ subset revealed that the methylation levels of the 6 DMS (including cg06872964) had a high AUC value of 0.86, with sensitivity of 0.81 and specificity of 0.80 (Supplementary Figure 15A and Supplementary Table 8). In patients with RA and SLE (compared with control individuals), the AUCs were even higher, 0.96 and 0.95, respectively, while the AUCs for SSc and GD patients (compared with control individuals) were relatively lower, 0.79 and 0.77, respectively (Figure 4C–F). In the ROC curve analysis for GD/SSc patients as compared with healthy controls in the CD8+ subset, the methylation levels of the 2 DMS (P-value after FDR of cg06872964 was 0.031, which is higher than our definition of DMS, and thus not included) showed AUC value of 0.75, with sensitivity of 0.89 and specificity of 0.52 (Supplementary Figure 15B and Supplementary Table 8). In patients with GD and SSc (compared with control individuals), the analysis showed AUCs of 0.75 and 0.73, respectively (Figure 4G,H).
The results of our study suggest that aberrant DNA methylation of IFI44L is a common signature of autoimmune diseases. GD, RA, SLE, SSc show similar DNA methylation signatures in CD4+ subset; and GD, SSc show similar DNA methylation signatures in CD8+ subset. IFI44L methylation may be a promising diagnostic biomarker for GD, RA, SLE and SSc patients, with a biomarker panel including all the DMS found on IFI44L between patients and matched controls potentially presenting better diagnostic ability than the single CpG site (cg06872964) reported in the previous research.
Discussion
In our study, we integrated differential methylation analysis and hierarchical clustering analysis to determine the commonalities across various autoimmune diseases including GD, RA, SLE and SSc in both CD4+ and CD8+ T cells. We found that GD, RA, SLE and SSc patients possess similar DNA methylation signatures. Furthermore, 15,289 and 9,295 DMS were identified between GD/RA/SLE/SSc patients and controls in CD4+ and CD8+ T cells, respectively. Moreover, we identified widespread hypomethylation status of CpG sites located at genes involved in type I IFN signaling in CD4+ T cells, indicating that GD/RA/SLE/SSc patients might be hypersensitive to type I IFN. In addition, methylation status of type I IFN-related genes was revealed as a promising diagnostic biomarker for diagnosis of GD, RA, SLE and SSc.
Aberrant type I IFN function has recently been implicated in several autoimmune diseases, including GD, RA, SLE, and SSc (; ). A study by reported that increased amounts of IFN-α derived from self-reactive immunoglobulin E-activated plasmacytoid dendritic cells and the excessive IFN responses triggered were capable of exacerbating self-destructive autoimmune responses in SLE patients. Another study demonstrated that expression of IFN type I regulated genes in RA patients was significantly elevated compared with healthy individuals (). In addition, more than half of SSc patients showed up-regulation of type I IFN-related genes in both whole blood and peripheral blood mononuclear cells (; York et al., 2007). Moreover, three hepatitis C patients with no known history of familial or personal thyroid disease developed GD after treatment with IFN-α therapy, implicating the strong correlation between type I IFN and GD (). Furthermore, multiple type I IFN-related genes were found to be related to the pathogenesis of one or more of the autoimmune diseases mentioned above from genetic association studies, including STAT4, IRF5, IFIH1, and PLZF (; ; ). In summary, a dysfunctional type I IFN-related pathway is involved in the pathogenesis and progression of GD, RA, SLE, and SSc. Besides, previous published analysis of the methylation dataset for SLE and SSc (; ) we adopted in this study also implied hypomethylated genes’ enrichment in type I IFN signaling. In accordance with previous studies, we identified the hypomethylation of type I IFN-related genes annotated by GO, including IFIT1, IRF7, MX1, OAS1, USP18, and RSAD2 [which were also identified in SLE before ()] at the epigenetic level in CD4+ T cells of GD/RA/SLE/SSc patients, indicating the aberration of DNA methylation profiles of these genes might play a role in the pathogenesis of the autoimmune diseases in this study.
IFIT1 is one of the most strongly induced IFN stimulated genes, which preferentially recognizes 2′-O unmethylated RNA or uncapped non-self-viral mRNA and inhibits translation initiation or blocks the RNA from the actively replicating pool (). An increased expression of IFIT1 was found in established RA patients, suggesting its potential association of viral infections with autoimmune diseases (). IRF7 is a crucial regulator of type I IFN against pathogenic infections, it is predominantly activated by TLR7 in plasmacytoid dendritic cells with pathogenic nucleic acids recognized by pathogen recognition receptors (). A microarray study revealed up-regulation of IRF7 mRNA level in peripheral blood cells of SSc patients with early disease (Wu and Assassi, 2013). MX1 is a key downstream gene of type I IFN and plays a part in mediating the IFN-induced antiviral response against a large variety of viruses (). We and others have reported the up-regulation of MX1 in SLE and SSc (; ). OAS1 is an IFN-induced antiviral enzyme that can defend against the viral infections by recognizing viral dsRNA (). It is shown to be upregulated in the peripheral blood of SLE patients and overexpressed in SSc skin, compared with normal individuals (Ye et al., 2007; ). USP18 is an IFN-inducible protein, which can deconjugate the ubiquitin-like IFN-stimulated gene 15 (ISG15) from target proteins (), and was found to inhibit IFN-induced JAK–STAT signaling at the level of the IFN receptor (). Significant overexpression of USP18 was observed in CD4+ T cells from SLE patients, indicating its role in the pathogenesis of autoimmune diseases (). RSAD2 is also an IFN-inducible protein that inhibits the replication of a broad spectrum of DNA and RNA viruses (). Earlier studies have shown that expression of RSAD2 is dramatically elevated in patients with RA and SLE, compared to healthy individuals (; ). Previous research has revealed increased expression of IFIT1, IRF7, MX1, OAS1, USP18, and RSAD2 in one or more of the four autoimmune diseases, which is consistent with an inverse correlation between gene expression and methylation (Wilson et al., 2007), thus providing further evidence for DNA methylation’s involvement in the regulation of these genes.
Moreover, our study implies that methylation of type I IFN-related genes annotated by GO may be helpful in the evaluation and diagnosis of GD, RA, SLE, and SSc. AUCs of all DMS found on the genes involved were particularly high, and RA and SSc patients could be distinguished from healthy controls via their methylation signatures. Methylation levels of DMS on individual type I IFN-related gene also showed high diagnostic potential, with AUCs all around 0.80.
In addition to the genes mentioned above, IFI44L was found to be a hypomethylated type I IFN-related gene in the autoimmune diseases in this work, as well as in primary Sjögren’s syndrome (), although it was not annotated by GO in type I IFN-associated terms. Our analysis suggests that the DNA methylation level of IFI44L may facilitate the evaluation and diagnosis of GD, RA, SLE, and SSc, with higher diagnostic ability in CD4+ T cells than CD8+ T cells. AUC, sensitivity and specificity of IFI44L methylation (especially with all DMS found on the gene) for RA and SLE compared with matched controls in CD4+ T cells are particularly high, demonstrating that RA and SLE patients can be well discriminated from healthy controls through the methylation differences in IFI44L. Our finding for SLE is also in line with a previous biomarker study conducted in SLE peripheral blood (Zhao et al., 2016), which provides further proof for the diagnostic value of IFI44L.
Conclusion
In conclusion, we performed, for the first time, an integrative study of multiple autoimmune diseases’ genome-wide DNA methylation patterns in GD, RA, SLE, and SSc. We identified the similarity of methylation profiles across these diseases and the common hypomethylation signature of type I IFN-related genes in CD4+ T cells of GD/RA/SLE/SSc patients, which may underpin the known association of type I IFN with autoimmune diseases. However, since the Illumina Human Methylation 450K BeadChip covers only about 2% of all the CpG sites in the human genome, we could only quantify the methylation profiles of a limited number of CpG sites presented for each gene. Besides, traditional GWAS/EWAS analysis requires the independence of the variables and which is corrected for SNP-based association, methylation status of CpG sites in the promoter of same gene in methylation 450K are usually highly correlated and it is the most important reason of the relatively strong genomic inflation for Human Methylation 450K array based association study, though uncontrolled confounding factors might also be a driver. Age and gender distribution are also a little different among multiple studies, caused by the disease characteristics, as the male-female ratio for SLE, SSc, GD and RA are 1:6∼10, 1:3∼6, 1:6, 1:3, respectively, etc. Nevertheless, the identification of commonalities among various autoimmune diseases’ DNA methylation patterns will help to facilitate the understanding of the pathogenesis of these diseases, especially the effect of type I IFN, and provide reference for future research. Moreover, potential diagnostic value of type I IFN-related genes were presented in our study, indicating tracking the methylation level of these genes as biomarkers may be useful for monitoring disease progression and response to therapy. However, the data was not separated into training and test data set when carrying out ROC analysis due to limited sample size, which might lead to inflation of AUC. Therefore, with these early stage findings, further exploration in larger sample size will be required to confirm the diagnostic utility of these biomarkers.
Statements
Author contributions
JW, LJ, and SC contributed to the conception, design and final approval of the submitted version. SC, WP, and SG contributed to the integrative analysis of multiple methylation datasets. DH generated RA dataset for the study and provided suggestion to the idea and data interpretation. SC and SG drafted the manuscript. All authors read and approved the final manuscript.
Funding
This study was partially supported by grants from the National Natural Science Foundation of China (81770066, 81774114, 31521003, and 81470254), Shanghai Municipal Science and Technology Commission Major Project (2017SHZDZX01), International S&T Cooperation Program of China (2013DFA30870), and the 111 Project (B13016) from Ministry of Education. SG was supported by an NLM training grant to the Computation and Informatics in Biology and Medicine training program (NLM 5T15LM007359). DH was supported by the National Natural Science Funds of China (81774114), Shanghai clinical base construction of traditional Chinese medicine (ZY3-LCPT-1-1009 and ZY-LCPT-1), Shanghai intensive entity construction of integrated traditional and western medicine rheumatoid arthritis (ZXBZ2012-05), Shanghai clinical intensive subject construction of traditional Chinese medicine-traditional Chinese rheumatology (ZYXK2012012), and Shanghai Municipal Planning Commission of Science and Research Fund.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fgene.2019.00223/full#supplementary-material
References
1
AbsherD. M.LiX.WaiteL. L.GibsonA.RobertsK.EdbergJ.et al (2013). Genome-wide DNA methylation analysis of systemic lupus erythematosus reveals persistent hypomethylation of interferon genes and compositional changes to CD4+ T-cell populations.PLoS Genet.9:e1003678. 10.1371/journal.pgen.1003678
2
AssassiS.SwindellW. R.WuM.TanF. D.KhannaD.FurstD. E.et al (2015). Dissecting the heterogeneity of skin gene expression patterns in systemic sclerosis.Arthr. Rheumatol.673016–3026. 10.1002/art.39289
3
AssenovY.MullerF.LutsikP.WalterJ.LengauerT.BockC. (2014). Comprehensive analysis of DNA methylation data with RnBeads.Nat. Methods111138–1140. 10.1038/nmeth.3115
4
BenjaminiY.HochbergY. (1995). Controlling the false discovery rate - a practical and powerful approach to multiple testing.J. R. Stat. Soc. Ser. B Methodol.57289–300. 10.1111/j.2517-6161.1995.tb02031.x
5
BirdA. (2007). Perceptions of epigenetics.Nature447396–398. 10.1038/nature05913
6
BohbotN. L.YoungJ.OrgiazziJ.BuffetC.FrançoisM.Bernard-ChabertB.et al (2006). Interferon-α-induced hyperthyroidism: a three-stage evolution from silent thyroiditis towards Graves’ disease.Eur. J. Endocrinol.154367–372. 10.1530/eje.1.02104
7
CaiT. T.MuhaliF. S.SongR. H.QinQ.WangX.ShiL. F.et al (2015). Genome-wide DNA methylation analysis in Graves’ disease.Genomics105204–210. 10.1016/j.ygeno.2015.01.001
8
Castaneda-DelgadoJ. E.Bastian-HernandezY.Macias-SeguraN.Santiago-AlgarraD.Castillo-OrtizJ. D.Aleman-NavarroA. L.et al (2017). Type I interferon gene response is increased in early and established rheumatoid arthritis and correlates with autoantibody production.Front. Immunol.8:285. 10.3389/fimmu.2017.00285
9
ChenK.LiuJ.CaoX. (2017). Regulation of type I interferon signaling in immunity and inflammation: a comprehensive review.J. Autoimmun.831–11. 10.1016/j.jaut.2017.03.008
10
CoitP.JeffriesM.AltorokN.DozmorovM. G.KoelschK. A.WrenJ. D.et al (2013). Genome-wide DNA methylation study suggests epigenetic accessibility and transcriptional poising of interferon-regulated genes in naive CD4+T cells from lupus patients.J. Autoimmun.4378–84. 10.1016/j.jaut.2013.04.003
11
CovasM. I.EsquerdaA.Garcia-RicoA.MahyN. (1992). Peripheral blood T-lymphocyte subsets in autoimmune thyroid disease.J. Investig. Allergol. Clin. Immunol.2131–135.
12
CrispinJ. C.LiossisS. N.Kis-TothK.LiebermanL. A.KyttarisV. C.JuangY. T.et al (2010). Pathogenesis of human systemic lupus erythematosus: recent advances.Trends Mol. Med.1647–57. 10.1016/j.molmed.2009.12.005
13
DiamondM. S. (2014). IFIT1: a dual sensor and effector molecule that detects non-2’-O methylated viral RNA and inhibits its translation.Cytokine Growth Factor Rev.25543–550. 10.1016/j.cytogfr.2014.05.002
14
DingW.PuW.WangL.JiangS.ZhouX.TuW.et al (2018). Genome-wide DNA methylation analysis in systemic sclerosis reveals hypomethylation of IFN-associated genes in CD4+ and CD8+ T cells.J. Invest. Dermatol.1381069–1077. 10.1016/j.jid.2017.12.003
15
FiresteinG. S. (2003). Evolving concepts of rheumatoid arthritis.Nature423356–361. 10.1038/nature01661
16
GenainC. P.CannellaB.HauserS. L.RaineC. S. (1999). Identification of autoantibodies associated with myelin damage in multiple sclerosis.Nat. Med.5170–175. 10.1038/5532
17
Ghodke-PuranikY.NiewoldT. B. (2015). Immunogenetics of systemic lupus erythematosus: a comprehensive review.J. Autoimmun.64125–136. 10.1016/j.jaut.2015.08.004
18
GuoS.ZhuQ.JiangT.WangR.ShenY.ZhuX.et al (2017). Genome-wide DNA methylation patterns in CD4+ T cells from Chinese Han patients with rheumatoid arthritis.Mod. Rheumatol.27441–447. 10.1080/14397595.2016.1218595
19
HallerO.KochsG. (2011). Human MxA protein: an interferon-induced dynamin-like GTPase with broad antiviral activity.J. Interferon Cytokine Res.3179–87. 10.1089/jir.2010.0076
20
HedrichC. M.TsokosG. C. (2011). Epigenetic mechanisms in systemic lupus erythematosus and other autoimmune diseases.Trends Mol. Med.17714–724. 10.1016/j.molmed.2011.07.005
21
HenaultJ.RiggsJ. M.KarnellJ. L.LiarskiV. M.LiJ.ShirinianL.et al (2016). Self-reactive IgE exacerbates interferon responses associated with autoimmunity.Nat. Immunol.17196–203. 10.1038/ni.3326
22
HusseinM. R.HassanH. I.HofnyE. R.ElkholyM.FatehyN. A.Abd ElmoniemA. E.et al (2005). Alterations of mononuclear inflammatory cells, CD4/CD8+ T cells, interleukin 1beta, and tumour necrosis factor alpha in the bronchoalveolar lavage fluid, peripheral blood, and skin of patients with systemic sclerosis.J. Clin. Pathol.58178–184. 10.1136/jcp.2004.019224
23
Imgenberg-KreuzJ.SandlingJ. K.AlmlofJ. C.NordlundJ.SignerL.NorheimK. B.et al (2016). Genome-wide DNA methylation analysis in multiple tissues in primary Sjogren’s syndrome reveals regulatory effects at interferon-induced genes.Ann. Rheumat. Dis.752029–2036. 10.1136/annrheumdis-2015-208659
24
KochiY. (2016). Genetics of autoimmune diseases: perspectives from genome-wide association studies.Int. Immunol.28155–161. 10.1093/intimm/dxw002
25
KristiansenH.GadH. H.Eskildsen-LarsenS.DespresP.HartmannR. (2011). The oligoadenylate synthetase family: an ancient protein family with multiple antiviral activities.J. Interferon Cytokine Res.3141–47. 10.1089/jir.2010.0107
26
LeekJ. T.JohnsonW. E.ParkerH. S.JaffeA. E.StoreyJ. D. (2012). The sva package for removing batch effects and other unwanted variation in high-throughput experiments.Bioinformatics28882–883. 10.1093/bioinformatics/bts034
27
LimbachM.SaareM.TserelL.KisandK.EglitT.SauerS.et al (2016). Epigenetic profiling in CD4+ and CD8+ T cells from Graves’ disease patients reveals changes in genes associated with T cell receptor signaling.J. Autoimmun.6746–56. 10.1016/j.jaut.2015.09.006
28
MalakhovaO. A.KimK. I.LuoJ. K.ZouW. G.KumarK. G. S.FuchsS. Y.et al (2006). UBP43 is a novel regulator of interferon signaling independent of its ISG15 isopeptidase activity.EMBO J.252358–2367. 10.1038/sj.emboj.7601149
29
McFarlandH. F.MartinR. (2007). Multiple sclerosis: a complicated picture of autoimmunity.Nat. Immunol.8913–919. 10.1038/ni1507
30
NaumovV. A.GenerozovE. V.ZaharjevskayaN. B.MatushkinaD. S.LarinA. K.ChernyshovS. V.et al (2013). Genome-scale analysis of DNA methylation in colorectal cancer using infinium humanmethylation450 BeadChips.Epigenetics8921–934. 10.4161/epi.25577
31
NingS.PaganoJ. S.BarberG. N. (2011). IRF7: activation, regulation, modification and function.Genes Immun.12399–414. 10.1038/gene.2011.21
32
O’GarraA.SteinmanL.GijbelsK. (1997). CD4+ T-cell subsets in autoimmunity.Curr. Opin. Immunol.9872–883. 10.1016/S0952-7915(97)80192-6
33
PotuH.SgorbissaA.BrancoliniC. (2010). Identification of USP18 as an important regulator of the susceptibility to IFN-alpha and drug-induced apoptosis.Cancer Res.70655–665. 10.1158/0008-5472.CAN-09-1942
34
R Core Team (2013). R: A Language and Environment for Statistical Computing.Vienna: R Foundation for Statistical Computing.
35
ReimandJ.ArakT.AdlerP.KolbergL.ReisbergS.PetersonH.et al (2016). g:Profiler-a web server for functional interpretation of gene lists (2016 update).Nucleic Acids Res.44W83–W89. 10.1093/nar/gkw199
36
SeoJ. Y.YanevaR.CresswellP. (2011). Viperin: a multifunctional, interferon-inducible protein that regulates virus replication.Cell Host Microbe10534–539. 10.1016/j.chom.2011.11.004
37
ShererY.GorsteinA.FritzlerM. J.ShoenfeldY. (2004). Autoantibody explosion in systemic lupus erythematosus: more than 100 different antibodies found in SLE patients.Semin. Arthr. Rheumat.34501–537. 10.1016/j.semarthrit.2004.07.002
38
ShoenfeldY.SelmiC.ZimlichmanE.GershwinM. E. (2008). The autoimmunologist: geoepidemiology, a new center of gravity, and prime time for autoimmunity.J. Autoimmun.31325–330. 10.1016/j.jaut.2008.08.004
39
SteenV. D. (2005). Autoantibodies in systemic sclerosis.Semin. Arthr. Rheum.3535–42. 10.1016/j.semarthrit.2005.03.005
40
StefanM.WeiC. G.LombardiA.LiC. W.ConcepcionE. S.InabnetW. B.et al (2014). Genetic-epigenetic dysregulation of thymic TSH receptor gene expression triggers thyroid autoimmunity.Proc. Natl. Acad. Sci. U.S.A.11112562–12567. 10.1073/pnas.1408821111
41
TanF. K.ZhouX.MayesM. D.GourhP.GuoX.MarcumC.et al (2006). Signatures of differentially regulated interferon gene expression and vasculotrophism in the peripheral blood cells of systemic sclerosis patients.Rheumatology45694–702. 10.1093/rheumatology/kei244
42
van BoekelM. A.VossenaarE. R.Van den HoogenF. H.van VenrooijW. J. (2001). Autoantibody systems in rheumatoid arthritis: specificity, sensitivity and diagnostic value.Arthr. Res. Ther.4:87.
43
van der Pouw KraanT. C.WijbrandtsC. A.van BaarsenL. G.VoskuylA. E.RustenburgF.BaggenJ. M.et al (2007). Rheumatoid arthritis subtypes identified by genomic profiling of peripheral blood cells: assignment of a type I interferon signature in a subpopulation of patients.Ann. Rheum. Dis.661008–1014. 10.1136/ard.2006.063412
44
ViechtbauerW. (2010). Conducting meta-analyses in R with the metafor package.J. Stat. Softw.361–48. 10.18637/jss.v036.i03
45
WalterU.SantamariaP. (2005). CD8+ T cells in autoimmunity.Curr. Opin. Immunol.17624–631. 10.1016/j.coi.2005.09.014
46
WandstratA.WakelandE. (2001). The genetics of complex autoimmune diseases: non-MHC susceptibility genes.Nat. Immunol.2802–809. 10.1038/ni0901-802
47
WeetmanA. P. (2000). Graves’ disease.N. Engl. J. Med.3431236–1248. 10.1056/NEJM200010263431707
48
WilsonA. S.PowerB. E.MolloyP. L. (2007). DNA hypomethylation and human diseases.Biochim. Biophys. Acta1775138–162. 10.1016/j.bbcan.2006.08.007
49
WuM.AssassiS. (2013). The role of type 1 interferon in systemic sclerosis.Front. Immunol.4:266. 10.3389/fimmu.2013.00266
50
YeS.GuoQ.TangJ. P.YangC. D.ShenN.ChenS. L. (2007). Could 2’5’-oligoadenylate synthetase isoforms be biomarkers to differentiate between disease flare and infection in lupus patients? A pilot study.Clin. Rheumatol.26186–190. 10.1007/s10067-006-0260-z
51
YorkM. R.NagaiT.ManginiA. J.LemaireR.van SeventerJ. M.LafyatisR. (2007). A macrophage marker, Siglec-1, is increased on circulating monocytes in patients with systemic sclerosis and induced by type I interferons and toll-like receptor agonists.Arthr. Rheumat.561010–1020. 10.1002/art.22382
52
ZhangZ.ZhangR. (2015). Epigenetics in autoimmune diseases: pathogenesis and prospects for therapy.Autoimmun. Rev.14854–863. 10.1016/j.autrev.2015.05.008
53
ZhaoM.ZhouY.ZhuB. C.WanM. J.JiangT. T.TanQ. Q.et al (2016). IFI44L promoter methylation as a blood biomarker for systemic lupus erythematosus.Ann. Rheum. Dis.751998–2006. 10.1136/annrheumdis-2015-208410
54
ZouridisH.DengN.IvanovaT.ZhuY.WongB.HuangD.et al (2012). Methylation subtypes and large-scale epigenetic alterations in gastric cancer.Sci. Transl. Med.4:156ra140. 10.1126/scitranslmed.3004504
