Abstract
CD38 is overexpressed by multiple myeloma cells and has emerged as a target for therapeutic antibodies. Nanobodies are soluble single domain antibody fragments derived from the VHH variable domain of heavy chain antibodies naturally occurring in camelids. We previously identified distinct llama nanobodies that recognize three non-overlapping epitopes of the extracellular domain of CD38. Here, we fused these VHH domains to the hinge, CH2, and CH3 domains of human IgG1, yielding highly soluble chimeric llama/human heavy chain antibodies (hcAbs). We analyzed the capacity of these hcAbs to mediate complement-dependent cytotoxicity (CDC) to CD38-expressing human multiple myeloma and Burkitt lymphoma cell lines. Combinations of two hcAbs that recognize distinct, non-overlapping epitopes of CD38 mediated potent CDC, in contrast to the hcAb monotherapy with only weak CDC capacity. Similarly, combining daratumumab with a hcAb that recognizes a non-overlapping epitope resulted in dramatically enhanced CDC. Further, introducing the E345R HexaBody mutation into the CH3 domain strongly enhanced the CDC potency of hcAbs to CD38-expressing cells. Exploiting their high solubility, we genetically fused two distinct nanobodies into heteromeric dimers via a flexible peptide linker and then fused these nanobody dimers to the hinge, CH2 and CH3 domains of human IgG1, yielding highly soluble, biparatopic hcAbs. These biparatopic hcAbs elicited CDC toward CD38-expressing myeloma cells more effectively than daratumumab. Our results underscore the advantage of nanobodies vs. pairs of VH and VL domains for constructing bispecific antibodies. Moreover, the CD38-specific biparatopic heavy chain antibodies described here represent potential new powerful therapeutics for treatment of multiple myeloma.
Introduction
CD38 is overexpressed by multiple myeloma and other hematological tumors and has attracted interest as a target for therapeutic antibodies (–). CD38 is a cell surface ecto-enzyme that metabolizes NAD+ released from damaged cells in inflammation (). In concert with CD203 and CD73, CD38 contributes to the conversion of NAD+ to immunosuppressive adenosine in the tumor microenvironment (, ). By suppressing effector T cell responses, CD38 may thereby promote tumor growth (, ). The conventional CD38-specific monoclonal antibody daratumumab was generated from CD38-immunized transgenic mice that carry genomic loci encoding human IgH and IgL (). Daratumumab has proven high therapeutic efficacy in multiple myeloma (, ).
Complement-dependent cytotoxicity (CDC) is an important mechanism for the killing of tumor cells (–). CDC is initiated when complement factor 1 (C1q) binds to antibodies on the cell surface. It has been recognized that monospecific IgG antibodies are generally ineffective at inducing CDC, while IgM and combinations of non-crossreactive IgG molecules induce potent CDC (–). Modeling and mutagenesis studies suggest that IgG hexamer formation facilitates efficient binding and activation of C1q (). Amino acid substitutions in the CH3 domain of daratumumab that enhanced the formation of IgG hexamers were found to enhance the binding of C1q to CD38 on the cell surface. These so called HexaBody mutations also enhanced CDC by daratumumab (, ).
The variable domain of heavy chain antibodies that naturally occur in camelids is called VHH or nanobody (Nanobody® is a trademark of Ablynx). Nanobodies exhibit several advantages over conventional antibodies (–24). The single domain format of nanobodies greatly facilitates the construction of bispecific and biparatopic dimers by genetically linking two nanobodies with a flexible peptide linker (25–30). Genetic fusion of a nanobody to the hinge, CH2 and CH3 domains of human IgG1 yields highly soluble llama/human chimeric heavy chain antibodies (hcAbs) (31–33). At half the size of a conventional antibody (75 vs. 150 kDa), hcAbs may penetrate tissues better than conventional antibodies (32). To date, more than 2,000 patients and healthy subjects have received nanobodies in clinical studies without any adverse side effects (34–36). The European Commission recently granted marketing authorization for the first nanobody-based drug, Caplacizumab (Cablivi™), a nanobody-dimer directed against von Willebrand factor, for the treatment of acquired thrombotic thrombocytopenic purpura (aTTP), a rare blood clotting disorder (37).
The goal of this study was to assess the capacity of CD38-specific hcAbs to induce CDC to CD38-expressing multiple myeloma cells. Our results show that the combination of two CD38 hcAbs elicits potent CDC, provided the two hcAbs recognize distinct epitopes. We sought to exploit the high solubility of nanobodies to construct highly soluble biparatopic nanobody-based hcAbs that contain a tandem pair of CD38-specific nanobodies recognizing non-overlapping epitopes. Remarkably, these biparatopic hcAbs show higher CDC potency than daratumumab and therefore hold promise as novel therapeutics for the treatment of multiple myeloma.
Results
Individual CD38-specific hcAbs induce little if any CDC
In order to generate CD38-specific heavy chain antibodies, we genetically fused the nanobody coding sequence to the coding sequence for the hinge, CH2, and CH3 domains of human IgG1 (Figure 1). We tested the capacity of individual CD38-specific hcAbs to induce CDC to CD38-expressing LP-1 or CA-46 tumor cells in the presence of human serum as a source of complement (Figure 2). After 1 h incubation at 37°C cells were analyzed by flow cytometry for uptake of the DNA-staining dye propidium iodide as a marker for cell death. The results reveal that individual hcAbs show little if any capacity to induce CDC (Figure 2A).
Figure 1
Figure 2
Combinations of two hcAbs recognizing non-overlapping epitopes of CD38 are potent inducers of CDC
It has been shown that combinations of non-crossreactive IgG antibodies can induce potent CDC (–). We therefore tested whether combinations of two distinct CD38-specific hcAbs could induce CDC. Indeed, certain combinations of hcAbs induced potent CDC, whereas other hcAb combinations were as ineffective as individual hcAbs (Figures 2B,C). Pre-incubating the serum for 30 min at 56°C abrogated cytotoxicity, indicating that killing was dependent on active complement components.
We had previously assigned the 22 nanobodies to one of three distinct epitopes of CD38 on the basis of cross-blockade and sequential binning analyses (38). Taking these epitope assignments into consideration, a clear pattern emerges: Any combination of two hcAbs that recognize non-overlapping epitopes elicits very potent CDC whereas any combination of two hcAbs that recognize overlapping epitopes elicits little if any CDC (Table 1).

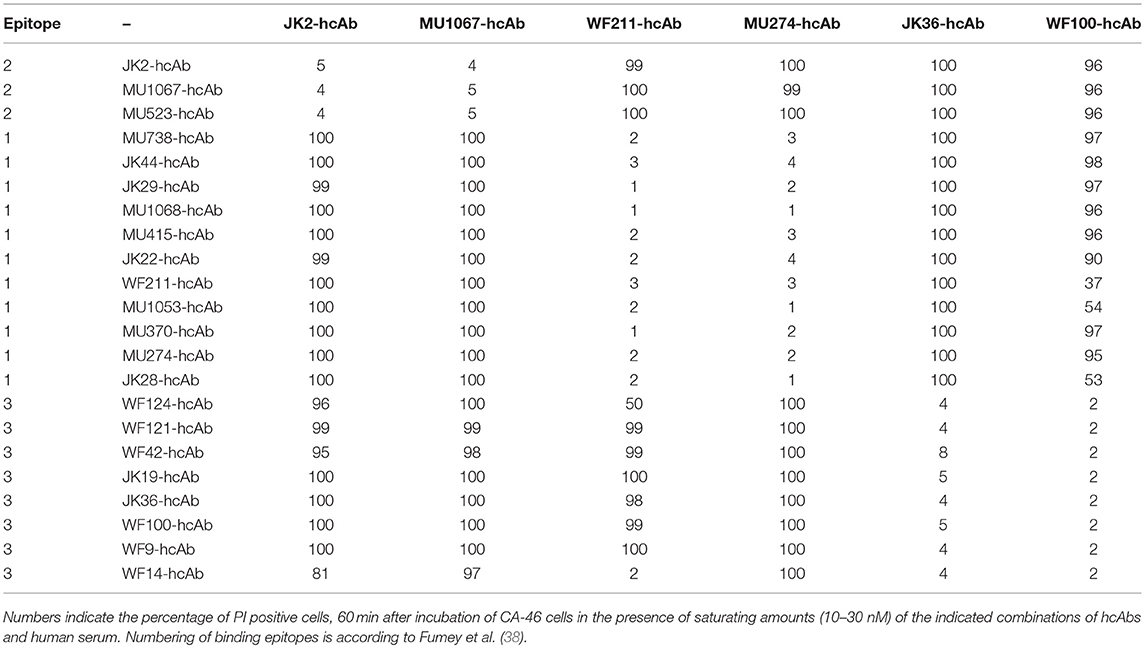

Table 1
| Epitope | – | JK2-hcAb | MU1067-hcAb | WF211-hcAb | MU274-hcAb | JK36-hcAb | WF100-hcAb |
|---|---|---|---|---|---|---|---|
| 2 | JK2-hcAb | 5 | 4 | 99 | 100 | 100 | 96 |
| 2 | MU1067-hcAb | 4 | 5 | 100 | 99 | 100 | 96 |
| 2 | MU523-hcAb | 4 | 5 | 100 | 100 | 100 | 96 |
| 1 | MU738-hcAb | 100 | 100 | 2 | 3 | 100 | 97 |
| 1 | JK44-hcAb | 100 | 100 | 3 | 4 | 100 | 98 |
| 1 | JK29-hcAb | 99 | 100 | 1 | 2 | 100 | 97 |
| 1 | MU1068-hcAb | 100 | 100 | 1 | 1 | 100 | 96 |
| 1 | MU415-hcAb | 100 | 100 | 2 | 3 | 100 | 96 |
| 1 | JK22-hcAb | 99 | 100 | 2 | 4 | 100 | 90 |
| 1 | WF211-hcAb | 100 | 100 | 3 | 3 | 100 | 37 |
| 1 | MU1053-hcAb | 100 | 100 | 2 | 1 | 100 | 54 |
| 1 | MU370-hcAb | 100 | 100 | 1 | 2 | 100 | 97 |
| 1 | MU274-hcAb | 100 | 100 | 2 | 2 | 100 | 95 |
| 1 | JK28-hcAb | 100 | 100 | 2 | 1 | 100 | 53 |
| 3 | WF124-hcAb | 96 | 100 | 50 | 100 | 4 | 2 |
| 3 | WF121-hcAb | 99 | 99 | 99 | 100 | 4 | 2 |
| 3 | WF42-hcAb | 95 | 98 | 99 | 100 | 8 | 2 |
| 3 | JK19-hcAb | 100 | 100 | 100 | 100 | 5 | 2 |
| 3 | JK36-hcAb | 100 | 100 | 98 | 100 | 4 | 2 |
| 3 | WF100-hcAb | 100 | 100 | 99 | 100 | 5 | 2 |
| 3 | WF9-hcAb | 100 | 100 | 100 | 100 | 4 | 2 |
| 3 | WF14-hcAb | 81 | 97 | 2 | 100 | 4 | 2 |
Combinations of two CD38-specific hcAbs recognizing distinct epitopes induce potent CDC.
Numbers indicate the percentage of PI positive cells, 60 min after incubation of CA-46 cells in the presence of saturating amounts (10–30 nM) of the indicated combinations of hcAbs and human serum. Numbering of binding epitopes is according to Fumey et al. (38).
Combination of daratumumab with a CD38-specific hcAb that binds a distinct epitope of CD38 enhances it's CDC potency
We next tested whether any of our CD38-specific hcAbs could elicit potent CDC also in combination with the benchmark therapeutic antibody daratumumab (Figure 3). The results show that only certain hcAbs complement daratumumab to induce potent CDC. Considering our previous assignment of nanobody epitopes relative to that of daratumumab (38), a similar clear pattern again emerges: CD38-specific hcAbs carrying a nanobody that binds independently of daratumumab elicit potent CDC when combined with daratumumab. In contrast, CD38-specific hcAbs carrying a nanobody that binds an epitope overlapping with daratumumab elicit little if any CDC when combined with daratumumab (Table 2).
Figure 3

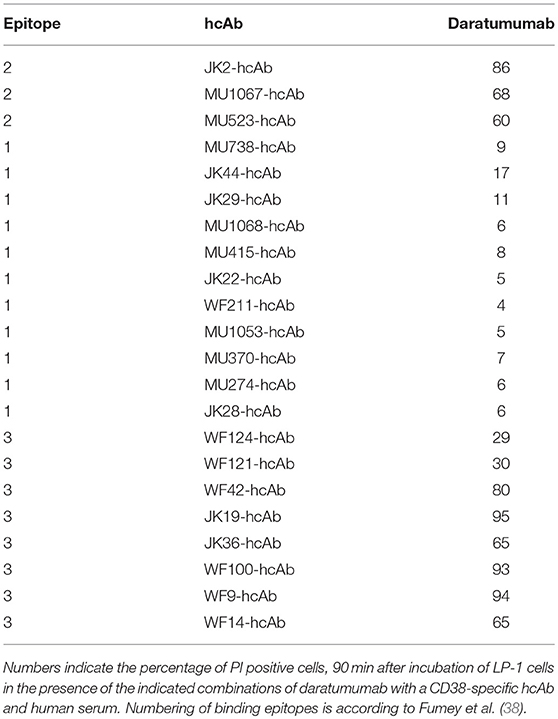

Table 2
| Epitope | hcAb | Daratumumab |
|---|---|---|
| 2 | JK2-hcAb | 86 |
| 2 | MU1067-hcAb | 68 |
| 2 | MU523-hcAb | 60 |
| 1 | MU738-hcAb | 9 |
| 1 | JK44-hcAb | 17 |
| 1 | JK29-hcAb | 11 |
| 1 | MU1068-hcAb | 6 |
| 1 | MU415-hcAb | 8 |
| 1 | JK22-hcAb | 5 |
| 1 | WF211-hcAb | 4 |
| 1 | MU1053-hcAb | 5 |
| 1 | MU370-hcAb | 7 |
| 1 | MU274-hcAb | 6 |
| 1 | JK28-hcAb | 6 |
| 3 | WF124-hcAb | 29 |
| 3 | WF121-hcAb | 30 |
| 3 | WF42-hcAb | 80 |
| 3 | JK19-hcAb | 95 |
| 3 | JK36-hcAb | 65 |
| 3 | WF100-hcAb | 93 |
| 3 | WF9-hcAb | 94 |
| 3 | WF14-hcAb | 65 |
Combinations of daratumumab with a hcAb recognizing a distinct epitope induce potent CDC.
Numbers indicate the percentage of PI positive cells, 90 min after incubation of LP-1 cells in the presence of the indicated combinations of daratumumab with a CD38-specific hcAb and human serum. Numbering of binding epitopes is according to Fumey et al. (38).
In analogy to the nanobody-based heavy chain antibodies, we also constructed a hcAb version of daratumumab by fusing the VH and VL domains of daratumumab via a flexible Gly-Ser linker and further fusing this scFv to the hinge, CH2 and CH3 domains of human IgG1. In CDC assays, the same hcAbs that enhanced the CDC potency of daratumumab also enhanced the CDC potency of this dara-hcAb (Figure 3B).
Introduction of the E345R HexaBody mutation enhances the CDC potency of CD38-specific hcAbs
It has been shown that certain amino acid substitutions in the C1q binding face of daratumumab enhance the tendency of daratumumab to spontaneously form hexamers (). These so called HexaBody mutations enhanced the CDC potency of daratumumab (). We aimed to determine whether a HexaBody mutation would similarly enhance the CDC potency of CD38-specific hcAbs. We therefore introduced the E345R mutation into the CH3 domain of our hcAbs and analyzed the capacity of these HexaBody hcAbs to induce CDC. The results, indeed, reveal an enhanced CDC potency of the HexaBody hcAbs over their parental counterparts (Figure 4). LP-1 cells in which the CD38 gene had been inactivated by CRISPR/Cas9 technology were resistant to CDC by HexaBody hcAbs, indicating that binding to CD38 is essential for induction of CDC.
Figure 4
Combining nanobodies directed to two distinct epitopes on CD38 in a biparatopic hcAb induces potent CDC
The soluble nature of nanobodies allows easy reformatting of nanobodies into homo- and heteromeric dimers by linking the C-terminus of one nanobody to the N-terminus of another nanobody by a flexible peptide linker [e.g., (G4S)n]. Moreover, such nanobody dimers can be fused to the hinge, CH2, and CH3 domains of human IgG1 to generate tetravalent bispecific or biparatopic hcAbs (32). In order to determine whether the potent CDC induction capacity of certain hcAb combinations could be combined into a single molecule, we constructed biparatopic hcAbs containing two nanobodies that recognize distinct epitopes of CD38. These biparatopic hcAbs were produced at high yield as soluble proteins in transiently transfected HEK-6E cells. The results of CDC assays reveal that biparatopic hcAbs indeed induce potent CDC as single reagents (Figure 5).
Figure 5
Biparatopic CD38-specific hcAbs have higher CDC potency than daratumumab
In order to further compare the CDC potencies of daratumumab and our biparatopic hcAbs, we performed CDC-assays with titrated amounts of antibodies (Figure 6). The results show that the biparatopic hcAbs are much more potent than daratumumab at inducing CDC.
Figure 6
Discussion
Our results confirm the finding that combinations of two distinct, non-crossreactive IgG antibodies induce CDC more potently than monospecific IgG (–) and provide further insight into the molecular mechanism of this phenomenon. The schematic diagrams shown in Figure 7 present hypothetical models that need to be tested in more detail: Binding of a monospecific hcAb, moAb, or a combination of Abs that recognize an overlapping epitope of CD38 can maximally crosslink two CD38 molecules on the cell surface (Figure 7A). Addition of a second hcAb that binds to an epitope distinct from that of the first hcAb can crosslink two or more CD38 dimers connected by the first hcAb, thereby facilitating the formation of C1q-activating oligomers (Figure 7B). The E345R HexaBody mutation () enhances the CDC potency of hcAbs by facilitating formation of hexamers on the cell surface (Figure 7C). It is not known whether HexaBody hcAbs are also effective when binding monovalently as has been demonstrated for daratumumab (). Remarkably, fusing two CD38-specific nanobodies that recognize distinct epitopes of CD38 into a biparatopic hcAb also results in potent CDC, likely reflecting the capacity of such biparatopic hcAbs to efficiently induce the formation of clusters (Figure 7D).
Figure 7
Biparatopic hcAbs have several inherent advantages over conventional bispecific antibodies (bsAbs) (Figure 8). Evolution has shaped a remarkably high stability and solubility of camelid VHH domains in the absence of a paired light chain (, 24, 39). Our study shows that this unique biochemical property can be exploited to construct highly soluble, stable CD38-specific biparatopic hcAbs that induce potent CDC. Owing to their excellent solubility, nanobody-based biparatopic hcAbs are easier to construct, produce and purify at high yield than corresponding constructs based on conventional H + L chain antibodies. Biparatopic hcAbs are composed of two copies of a single polypeptide chain (Figure 8A). In contrast, conventional bsAbs are typically composed of two or more distinct polypeptide chains (Figures 8B,C) (40). The latter requires careful titration of two or more expression vectors and/or the use of dual cassette vectors in order to ensure expression in the appropriate molar ratios. In contrast, production of a biparatopic hcAb requires transfection of cells with only a single vector encoding a single heavy chain composed entirely of naturally highly soluble protein domains. A key structural advantage of a biparatopic heavy chain antibody over symmetric bsAbs (Figure 8B) lies in the high solubility of each VHH vs. the inherent instability of VH-VL pairing. For the proper assembly of bsAbs in the regular IgG format (Figure 8C), it is necessary to introduce mutations into the CH3 domains to promote pairing of two distinct H chains, resulting in asymmetric antibodies. Similarly, mutations need to be introduced into the CH1 and CL domains to promote the proper paring of H and L chains (41–43).
Figure 8
A potential advantage of biparatopic hcAbs and symmetric bsAbs over asymmetric bsAbs is their higher valency. Biparatopic hcAbs are tetravalent, i.e., they carry four antigen binding modules, each composed of a single highly soluble Ig-domain (Figure 8A). In contrast, bsAbs in the regular IgG format are bivalent, i.e., they carry only two antigen binding modules, each composed of two or more Ig-domains (Figure 8C). It is likely that oligomers are induced more effectively by tetravalent than by bivalent Abs.
Biparatopic hcAbs also have inherent advantages over HexaBody mutants. A mutated Fc domain carries a higher risk of inducing an antibody response than the parental WT IgG. Moreover, some HexaBody mutants show a tendency to spontaneously assemble into hexamers (). Such spontaneous aggregation could result in enhanced uptake of these complexes by the reticuloendothelial system, thereby reducing their in vivo half-life. Therefore, HexaBody mutants E430G and E345K that do not induce any hexamerization in solution and whose hexamerization is fully dependent on target binding were selected for clinical use ().
Our study has potential clinical relevance for multiple myeloma patients: The observation that circulating myeloma cells in patients that develop resistance to daratumumab express increased levels of complement inactivating cell surface proteins (CD55, CD59), suggests that CDC is an important tumor cytotoxic mechanism in vivo (44). Indeed, the finding that daratumumab displays higher CDC-inducing potency than other CD38-specific moAbs accelerated its path to clinical use (, ). Here, we demonstrate that the CDC-potency of daratumumab can be enhanced by complementation with a CD38-specific hcAb, provided that the latter recognizes a distinct, non-overlapping epitope of CD38. Future studies are needed to assess whether this enhancing effect by a CD38-specific hcAb also renders myeloma cells of patients that have become refractory to daratumumab susceptible to CDC. Moreover, we demonstrate that CD38-specific biparatopic hcAbs recognizing two distinct epitopes of CD38 display more potent CDC than daratumumab.
A potential limitation for biparatopic hcAbs with increased complement activation potential is the risk for killing CD38-expressing normal cells and for generating off-target cytotoxicity. CD38 is highly expressed by multiple myeloma plasma cells and a small subpopulation of regulatory T cells (Tregs) (45). CD38 is also found on natural killer (NK) cells, monocytes, B cells, and T cells of healthy donors (45). Treatment with daratumumab results in a preferential depletion of CD38+ immunosuppressive cells, with a concomitant increase in functional T-helper and cytotoxic T cells. It will be important to determine whether biparatopic hcAbs can mediate similar beneficial effects by preferentially killing CD38+ immunosuppressive cells.
In conclusion, our results underscore the advantages of using a heavy chain format with soluble nanobodies rather than pairs of VH and VL domains in antibody engineering. Moreover, our study highlights two new strategies for improving the benchmark antibody therapy of multiple myeloma: (1) complementing daratumumab with monospecific hcAbs, and (2) using biparatopic hcAbs as alternative therapeutics, e.g., in combination with other anti-myeloma drugs.
Methods
Cells
Human cell lines were obtained from the Leibniz-Institute DSMZ-German Collection of Microorganisms and Cell Cultures, Braunschweig, Germany (LP-1, ACC 41; CA-46, ACC 73). The CD38 gene was inactivated in LP-1 cells using CRISPR/Cas9 technology using a commercial double nickase plasmid (Santa Cruz sc-401117-NIC). CD38-negative cells were sorted on a FACS AriaII (Becton Dickinson).
Construction of monospecific and biparatopic hcAbs
The coding region of selected nanobodies (WO 2017/081211) was subcloned using NcoI/PciI and NotI upstream of the coding region either for the hinge, CH2 and CH3 domains of human IgG1 (UniProt P01857) or hexahistidine and c-myc tags in pCSE2.5 vectors (46) (kindly provided by Thomas Schirrmann, Braunschweig). The amino acid sequence of the VHH-IgG1 junction is: VTVSSEPKTPKPQP-AAA-SDKTHTCPPCPAP where AAA is encoded by the NotI site. Biparatopic heavy chain antibodies were constructed by gene synthesis, fusing nanobodies WF211 and WF121 via a G4S2 linker, MU1067 and JK36 via a G4S3 linker and MU1068 and MU1067 via a G4S7 linker. Each nanobody dimer was flanked by NcoI and NotI and cloned as described above into the hIgG1 pCSE2.5 vector. Similarly, daratumumab scFv was generated by gene synthesis by fusing the VH domain and the VL domain (WO 2011/154453) via a G4S3 linker, flanked by NcoI and NotI sites and cloning into the hIgG1 pCSE2.5 vector.
Construction of E345R HexaBody hcAbs
The E345R mutation was introduced into hcAbs by PCR-mediated mutagenesis. The mutation was verified by sequencing. In order to ensure that no other mutations were introduced into the vector, the human IgG Fc fragment encoding the E345R mutation was recloned into the pCSE2.5 vector using flanking restriction sites (NotI and XbaI).
Production and purification of hcAbs
HcAbs were expressed in transiently transfected HEK-6E cells cultivated in serum-free medium (26, 47). Six days post transfection, supernatants were harvested and cleared by centrifugation. Recombinant proteins in cell supernatants were quantified by SDS-PAGE and Coomassie staining relative to marker proteins of known quantities: 10 μl samples of the supernatant were size fractionated side by side with standard proteins: m/M (amount loaded per lane in μg) bovine serum albumin (1/4), IgH (0.5/2), IgL (0.25/1), hen egg lysozyme (0.1/0.4). Yields of recombinant hcAbs typically ranged from 0.5–3 μg/10 μl. HcAbs were purified by affinity chromatography using protein G sepharose (GE healthcare).
Complement-dependent cytotoxicity assays
Cells were incubated for 10–20 min at 4°C with hcAbs or moAbs before addition of human serum (10–15% v/v) and were then further incubated for 30–90 min at 37°C. Cells were washed and resuspended in PBS/0.2% BSA/propidium iodide before FACS analysis.
C1Q binding assay
Cells were preincubated for 10–20 min at 4°C with hcAbs or moAbs before addition of human serum (10–15% v/v) and further incubation for 30 min at 4°C. Cells were washed and bound C1q was detected with FITC-conjugated rabbit anti-C1q (DAKO F0254) before FACS analysis.
Statements
Author contributions
PB and FK-N conceived the project. FK-N wrote the manuscript. All authors established experimental procedures, performed experiments, reviewed, and approved the manuscript.
Acknowledgments
Supported by grants from the Wilhelm Sander-Stiftung to PB and FK-N, from the Werner Otto Stiftung to WF, from the Jose-Carreras Leukämie Stiftung and the DGHO to KP, and from the DFG to FH and FK-N (SFB1328-Z2).
Conflict of interest
CS is an employee of Ablynx NV, a Sanofi company, and owns shares and/or stock options with Ablynx/Sanofi. FH and FK-N receive a share of antibody sales via MediGate GmbH, a wholly owned subsidiary of the University Medical Center Hamburg-Eppendorf. PB, WF, LS, KS, SM, CS, and FK-N are co-inventors on a patent application on CD38-specific nanobodies. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
