Abstract
Dendritic epidermal T cells (DETC) are a group of immune cells expressing canonical γδ TCR in the murine epidermis. Similar to γδ T cells in the human epidermis, DETC serve an important barrier cell in the skin and participate in skin immune surveillance, immune regulation, skin homeostasis, tissue protection, and other activities. Since its discovery in 1983, research on DETC has grown rapidly and unevenly. To evaluate DETC research trends and map the DETC knowledge structure, we have applied bibliometric methods and techniques. A total of 384 DETC-related articles obtained from the Scopus database published between 1983 and 2019 were analyzed using indicators of publication and citation metrics, country and international cooperation, author and co-authorship, and keyword co-occurrence cluster. The present research status, the emerging global trends and the future development direction are also visualized and discussed. In summary, this study provides novel and useful data for the DETC research scientific community, and will help researchers explore DETC more intuitively and effectively.
Introduction
Dendritic epidermal T cells (DETC or DETCs), which are restricted to the murine epidermis and bear a canonical γδ TCR, are the first T cells to develop in the embryonic thymus (). As one of the constituent cells that act as an important barrier in the skin, DETC are involved in skin homeostasis, immune surveillance, immune regulation, protection of tissues, and other physiological and pathological activities, and also play an important role in pathogen invasion resistance, wound healing, malignancy, and autoimmune diseases (, ).

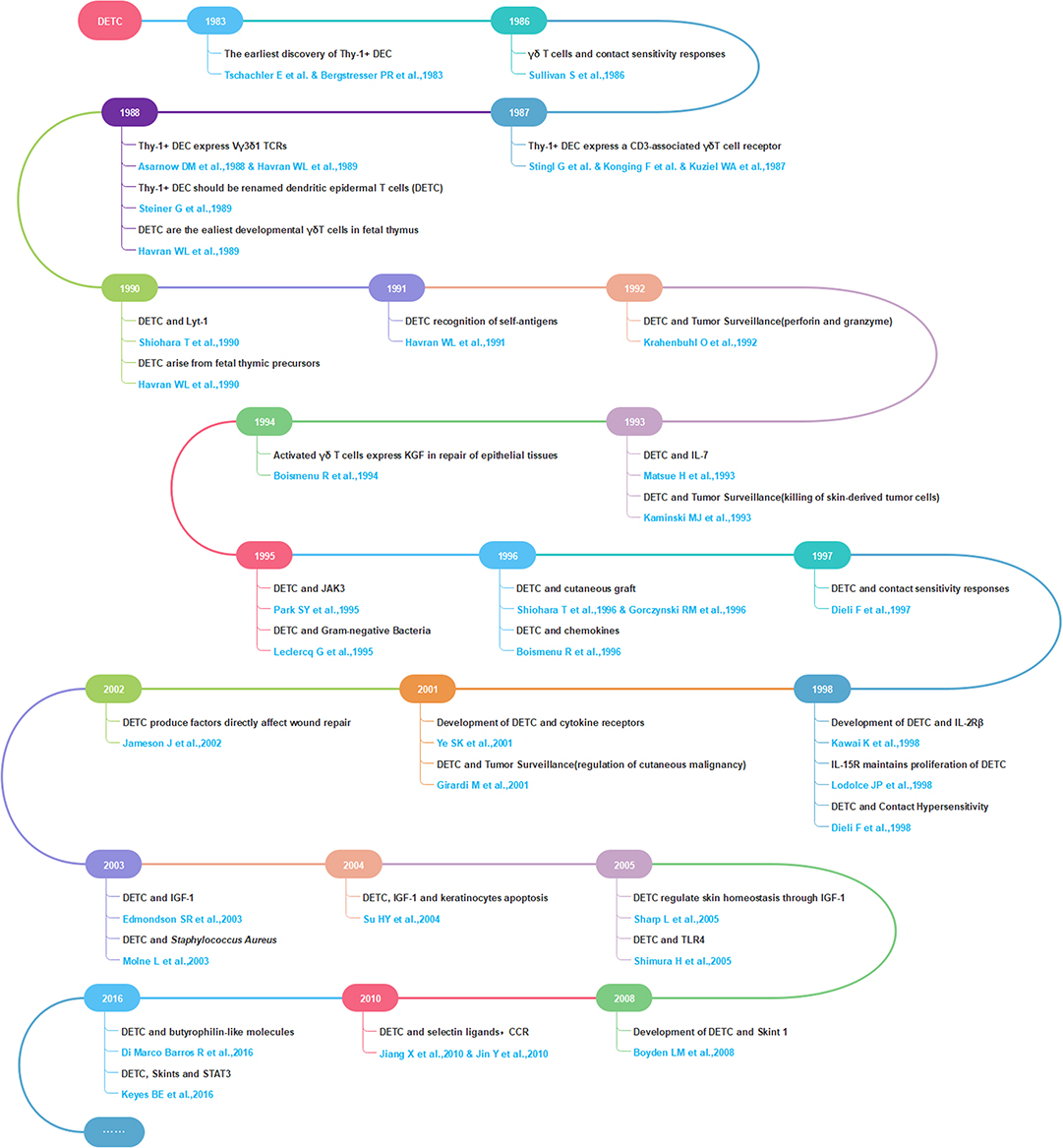

Research on DETC has been ongoing for nearly four decades, with the important milestones for the field shown in Figure 1. Since Tschachler et al., and Bergstresser et al., simultaneously first encountered previously unrecognized Thy-1+ dendritic epidermal cells within murine epidermis, named Thy-1+ EC or Thy-1+ DEC (, ) in 1983, an increasing number of studies have been performed to better understand the characteristics and functions of Thy-1+ dendritic epidermal cells, which were renamed DETCs in 1988 (). In 1987, Stingl et al., Konging et al., and Kuziel et al., found that Thy-1+ DEC express a CD3-associated γδ T cell receptor (–). Subsequently, additional research has led to a more clear understanding of DETC, including on expressing a canonical Vγ3+ Vδ1+ TCR [Garman nomenclature (); alternative Heilig and Tonegawa nomenclature, Vγ5+ Vδ1+ ()] (, ); important cell surface markers (); DETC development, maturation, migration, and participating related receptors and ligands (, –); and the connections between DETC and epidermal homeostasis (–), inflammation (–), microbial infection (–), contact hypersensitivity (–), transplantation (–), tumor surveillance (–), and wound healing (, ). Hence, DETC are also considered to be a potentially ideal model for studying skin-resident γδ T cells in humans and other mammals.
Figure 1
To date, DETC have attracted considerable attention from various research fields, and in turn, publications on DETC have increased rapidly. However, few studies have focused on understanding DETC research in a comprehensive manner through longitudinal and global perspectives. Therefore, it is necessary and essential to apply a scientific and advanced information visualization method to reveal the progress and trends in DETC research.
Bibliometric analysis, a novel and scientific information visualization method used worldwide to evaluate the knowledge structure, development, and trends within a topic both quantitatively and qualitatively, is now widely used in a variety of fields (, ). The use of bibliometric analysis is still in the early stage in the immunology field and not many articles using it have been published outside of the tumor immunotherapy, microbiome, sepsis, and vaccine fields (–). Here, we apply a bibliometric analysis of DETC research publications (prior to September 17 2019) in terms of numbers of publications and citations, journal, country, and international cooperation, author and co-authorship and keyword co-occurrence cluster. Our aims are to help more scientists in related areas gain a better understanding of the past, present, and future of DETC, leading to more efficient and effective exploration of the frontiers, hotspots, and trends of DETC research.
Methods
Source Database
The publication search was performed using Scopus (https://www.scopus.com/), one of the most comprehensive databases of scientific peer-reviewed literature that includes different types of documents together with sufficient relevant information essential to our study ().
Search Design
We decided to search for documents related to DETC research of all types by their titles, abstracts, and keywords. In order to cover as many results that met our requirements as possible, the search query string was designed as described below.
After studying all our references, we found that DETC was first discovered as dendritic cells expressing Thy-1 antigen in murine epidermis (, ). After that, as further research was conducted, these cells were also commonly referred to by their cellular classification as Vγ3+ Vδ1+ T cells (Garman nomenclature) or Vγ5+ Vδ1+ T cells (Heilig and Tonegawa nomenclature) that exist in the skin of mice and rats (, ), or even γδ T cells located in murine epidermal in many articles.
Considering various wording and writing formats, we also studied the rules that govern the Scopus search system. All words in a term automatically include both their plurals and spelling variants (if any) at the same time and return the results altogether. Furthermore, lowercase and uppercase letters are blended when searching, and a Greek alphabet is recognized the same as its English spelling form (only when it appears alone, uncombined with other letters or words). All punctuation, hyphens, and more than one blank in a term are ignored (as one blank) in both terms and results, which means the use of alternative forms such as “Vγ3-Vδ1”, “Vγ3/Vδ1”, “Vγ3 Vδ1”, and “Vγ3+ Vδ1+” will not make a difference, but the combination caused by deletion between words like “Vγ3Vδ1” and the insertion within a word like “Vγ-3 Vδ-1” will yield different results. We found that the harmonization does not deal with a Greek letter or its English spelling form combined with other letters or words (Vγ3 and Vgamma3 will not be harmonized as the same, for example), and plurals of an abbreviation (such as DETCs) are not automatically included. Thus, we had to list all these possible situations as exhaustively as we could think of in the search formula.
According to Scopus rules, phrases enclosed in double quotes are marked as a whole (ex, “dendritic epidermal T cell”) in which words must appear together in the exact order while Boolean operators AND and OR are used to combine separate words depending on certain logical relationship. Moreover, operators (enclosed in brackets) are processed following the precedence order of OR (must contain at least one of the terms) prior to AND (both terms must be contained whenever they appear separately or together) when searching. Wildcard (*), like when used in *epiderm* for example, will return words such as epidermal, epidermis, intraepidermal, etc.

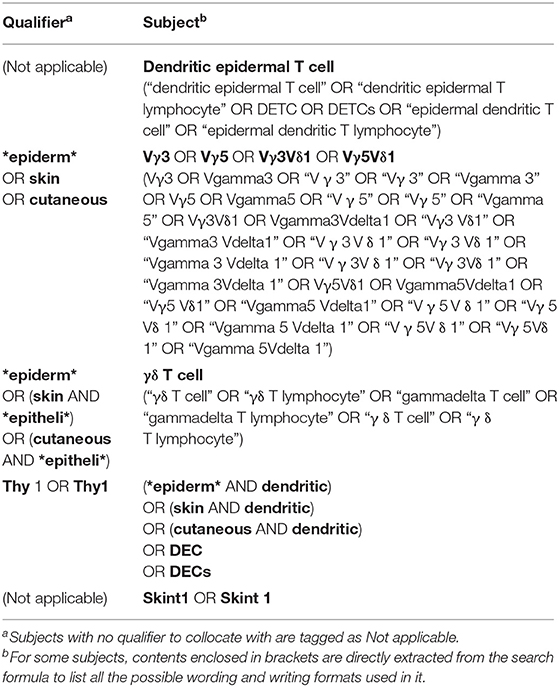

Search terms about Vγ3+ Vδ1+ T cell, Vγ5+ Vδ1+ T cell, γδ T cell, and Thy-1+ dendritic cell need to be confined to work in the skin or epidermis of mice or rats. To do this, qualifiers were used, with more information provided in Table 1. In addition, Skint1, a gene recently identified as essential for DETC development, was added as a search term for results related to the selection and upkeep of the cell (, ).
Table 1
| Qualifiera | Subjectb |
|---|---|
| (Not applicable) | Dendritic epidermal T cell (“dendritic epidermal T cell” OR “dendritic epidermal T lymphocyte” OR DETC OR DETCs OR “epidermal dendritic T cell” OR “epidermal dendritic T lymphocyte”) |
| *epiderm* OR skin OR cutaneous | Vγ3 OR Vγ5 OR Vγ3Vδ1 OR Vγ5Vδ1 (Vγ3 OR Vgamma3 OR “V γ 3” OR “Vγ 3” OR “Vgamma 3” OR Vγ5 OR Vgamma5 OR “V γ 5” OR “Vγ 5” OR “Vgamma 5” OR Vγ3Vδ1 OR Vgamma3Vdelta1 OR “Vγ3 Vδ1” OR “Vgamma3 Vdelta1” OR “V γ 3 V δ 1” OR “Vγ 3 Vδ 1” OR “Vgamma 3 Vdelta 1” OR “V γ 3V δ 1” OR “Vγ 3Vδ 1” OR “Vgamma 3Vdelta 1” OR Vγ5Vδ1 OR Vgamma5Vdelta1 OR “Vγ5 Vδ1” OR “Vgamma5 Vdelta1” OR “V γ 5 V δ 1” OR “Vγ 5 Vδ 1” OR “Vgamma 5 Vdelta 1” OR “V γ 5V δ 1” OR “Vγ 5Vδ 1” OR “Vgamma 5Vdelta 1”) |
| *epiderm* OR (skin AND *epitheli*) OR (cutaneous AND *epitheli*) | γδT cell (“γδ T cell” OR “γδ T lymphocyte” OR “gammadelta T cell” OR “gammadelta T lymphocyte” OR “γ δ T cell” OR “γ δ T lymphocyte”) |
| Thy 1 OR Thy1 | (*epiderm* AND dendritic) OR (skin AND dendritic) OR (cutaneous AND dendritic) OR DEC OR DECs |
| (Not applicable) | Skint1 OR Skint 1 |
Collocation of qualifiers and subjects in the search formula.
Subjects with no qualifier to collocate with are tagged as Not applicable.
For some subjects, contents enclosed in brackets are directly extracted from the search formula to list all the possible wording and writing formats used in it.
Ultimately, the search formula used was as follows: TITLE-ABS-KEY (“dendritic epidermal T cell” OR “dendritic epidermal T lymphocyte” OR DETC OR DETCs OR “epidermal dendritic T cell” OR “epidermal dendritic T lymphocyte”) OR TITLE-ABS-KEY (*epiderm* OR skin OR cutaneous AND Vγ3 OR Vgamma3 OR “V γ 3” OR “Vγ 3” OR “Vgamma 3” OR Vγ5 OR Vgamma5 OR “V γ 5” OR “Vγ 5” OR “Vgamma 5” OR Vγ3Vδ1 OR Vgamma3Vdelta1 OR “Vγ3 Vδ1” OR “Vgamma3 Vdelta1” OR “V γ 3 V δ 1” OR “Vγ 3 Vδ 1” OR “Vgamma 3 Vdelta 1” OR “V γ 3V δ 1” OR “Vγ 3Vδ 1” OR “Vgamma 3Vdelta 1” OR Vγ5Vδ1 OR Vgamma5Vdelta1 OR “Vγ5 Vδ1” OR “Vgamma5 Vdelta1” OR “V γ 5 V δ 1” OR “Vγ 5 Vδ 1” OR “Vgamma 5 Vdelta 1” OR “V γ 5V δ 1” OR “Vγ 5Vδ 1” OR “Vgamma 5Vdelta 1”) OR TITLE-ABS-KEY (*epiderm* OR (skin AND *epitheli*) OR (cutaneous AND *epitheli*) AND “γδ T cell” OR “γδ T lymphocyte” OR “gammadelta T cell” OR “gammadelta T lymphocyte” OR “γ δ T cell” OR “γ δ T lymphocyte”) OR TITLE-ABS-KEY (Thy1 OR “Thy 1” AND (*epiderm* OR skin OR cutaneous AND dendritic) OR DEC OR DECs) OR TITLE-ABS-KEY (“skint1” OR “skint 1”) AND (LIMIT-TO (LANGUAGE, “English”)). The limitation, (LIMIT-TO (LANGUAGE, “English”)), at the end of the formula was added in the data filtration process (explained in greater detail in section Data Filtration).
Data Collection
All results were searched on Scopus using the formula above and exported together with as much relevant information as possible in CSV format. The search was performed all within 1 day, September 17, 2019, in case of changes brought about by update of the database.
Data Filtration
Only results of documents published in English were exported. This was accomplished by directly limiting the results to English only when searching. Then, manual filtration was performed by viewing each title, abstract, keywords, and full text, to judge whether there was a clear correlation with DETC in this content. A total of 629 unrelated results were excluded among the 1,092 exported results, most of which were on γδ T cells but not in murine or rat epidermis, while others are articles that came up in the results due to multiple meanings that are sometimes ascribed to acronyms, such DETC(s), in the search terms. In total, 463 results were identified as valid after comparing and discussing both outcomes of filtration made by two authors independently (Figure 2A, Supplementary Table 1).
Figure 2
As shown in the pie chart in Figure 2B, most of the publications are articles, making up 83% (384) of the total; this is followed by reviews, which, at 8%, make up almost half of the remaining portion. Other types of documents, in order of quantity, were conference papers (15, 3%), short surveys (10, 2%), book chapters (8, 2%), letters (), notes (), and editorials (), each of which made up only a small amount of the total, with no more than 4% individually. The following analysis was restricted to articles only (Supplementary Table 2).
Data Analysis
The filtered database file was imported into Microsoft Excel 2016 for analysis, and included the following information: authors, title, year of publications, source journals, affiliations, citations, DOI, and keywords. GraphPad Prism 8 was also applied to create charts.
In addition to many of the self-explanatory indicators used in this paper, we employed four specialized metrics (extracted from Scopus): CiteScore, SJR, SNIP, and h-index. Each metric is explained below.
CiteScore is a new metric of journal citation impact powered by Scopus. CiteScore is the number of citations received by a journal in 1 year to documents published in the 3 previous years, divided by the number of documents indexed in Scopus published in those same 3 years ().
Calculated by SCImago Lab and developed from Scopus data, SJR (SCImago Journal Rank) measures weighted citations received by a serial. The value of a citation is based on the subject field, quality, and reputation of the citing serial ().
SNIP (Source Normalized Impact per Paper) was created by Professor Henk Moed at the Centre for Science and Technology Studies (CTWS), University of Leiden. It measures contextual citation impact by weighting citations based on the total number of citations in a subject field. The effect of a single citation is given a higher value for subject areas where citations are less likely and vice versa. Unlike the well-known journal impact factor, SNIP corrects for differences in citation practices between scientific fields, thereby allowing for more accurate inter-field comparisons of citation impact. CWTS Journal Indicators also provide stability intervals that indicate the reliability of the SNIP value of a journal ().
H-index, proposed by Hirsch (), attempts to measure both the productivity and impact of the published work of a scientist, journal, or country. The value of the index is h if a measured object has h papers that have received at least h citations each, while the rest of the papers have no more than h citations each.
Visualization Maps
Visualization tools, like VOSviewer, Citespace, Bicomb, and BibExcel, enable researchers to create knowledge maps, evaluate the latest research progress, and identify hotspots in a research field (). Co-authorship, co-citation, and co-occurrence analyses are the most frequently used methods. In our research, we use country co-authorship, author co-authorship, author co-citation, and author keyword co-occurrence analyses. Country co-authorship analysis provides information about collaborative relationships between authors in various countries. Cooperation preferences of authors from various countries can be used to improve cooperation with foreign authors. Author co-authorship analysis reveals collaborative relationships between authors, which can help researchers understand the relationships between researchers in a field and identify potential collaborators. For example, if some authors appear together often, they may have a closer relationship than others. Author co-citation analysis looks for a co-citation relationship between two papers, both of which are cited by a third article. Citations can provide important insight into what is already known; thus, this relationship can help identify outstanding authors. This can help new researchers to better understand the basics and progress within the field, and identify research hotspots, and other bibliometric information. Author keyword co-occurrence analysis helps researchers identify central issues and developments in a subject. Frequent co-occurrence of two keywords in an article normally suggests a closer relationship between them than other keywords, which may inspire a new research idea. In addition, it can prompt trending author keywords of each year (, ).
Bibliographic database files were imported into VOSviewer 1.6.12 to build network visualization maps of scientific publications, scientific journals, researchers, research organizations, countries, keywords, or terminology. Items in these networks can be connected by co-authors, co-occurrences, citations, bibliographic couplings, or co-citation links. Finally, co-authorship, co-citation, and co-occurrence analyses are presented in the form of network visualization maps.
Research Ethics
The study was conducted as a bibliometric analysis. All data sources were available on the Internet; thus, no animal or human subject was involved, eliminating the need for permission from an ethics committee.
Results
Analysis of the Number of Publications and Citations
The number of articles published annually and the summed total citations of annual articles related to DETC research are shown in Figure 3. Similar trends can be seen from both sets of data, although the one for annual publications is more regular and can be easily divided into three stages (Stage 1, from 1983 to 1996; Stage 2, from 1997 to 2009; Stage 3, after 2010). It is interesting to note that the line for summed citations changes approximately in synchrony with the annual publication number.
Figure 3
Stage 1 lasts for approximately 14 years, during which the amount of annual publications roughly increases over the years, forming a positively sloped line. Since its discovery in 1983 (, ), the number of articles published on DETC increased rapidly, and quickly reached 15 publications in 1988, implying that researchers were quite sensitive to the emergence of a new field. Moreover, the corresponding citation line in this stage shows two peaks, with the highest one (1,745 citations) in 1995, which was slightly delayed compared to the publication peak in 1993 (25 articles).
After the explosion of Stage 1, however, both metrics showed a sudden and significant fall in 1997. Since then, the annual publication number has remained below 10 throughout the entirety of Stage 2. During this stage, the average annual publication (5.8 articles) was less than a half of it was in Stage 1 (14.8 articles).
In Stage 3, there was a slight uptick in the number of annual publication, fluctuating right above 10 for the majority of the period. Total citation of these articles is declining, which we hypothesize to be mainly a matter of time, as these articles are newly published. It should be noted that the statistics for 2019 are incomplete, but we predict that it will still follow this pattern of Stage 3 for years to come. However, there still exists the possibility for a new phase of significant development, like what was observed in Stage 1. It is likely that, with the accumulation of steady progress and technological advances, this field is likely to take another leap forward in the near future.
By dividing the total citations of all articles by the total publication number, we found that each article was cited an average of 51.1 times. Figure 4 shows a histogram depicting the distribution of citations across DETC articles. The frequency declines so sharply as the number of citations increases that a severely differentiated distribution can be readily observed. One hundred seventeen articles (30.5%) are cited fewer than 10 times each. Among them, 68 articles have been cited fewer than five times each, including 12 articles that have gone uncited. Eighteen articles (4.7%) have been cited more than 200 times each, spanning a wide range of citation counts from 211 to 759. This histogram indicates that there could be many underutilized sources of information; thus, their potential value needs to be sought out.
Figure 4

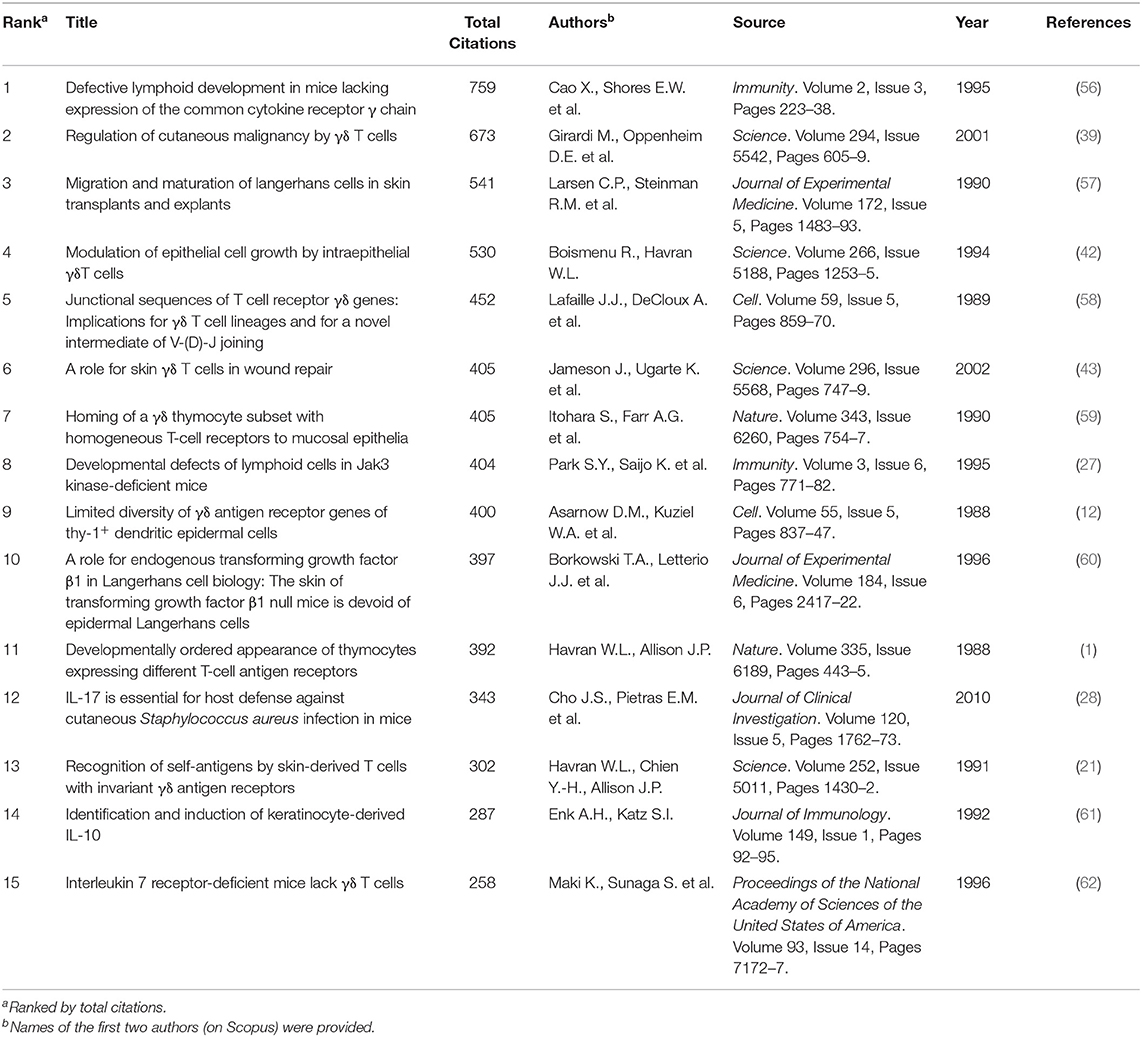

The top 15 most highly cited articles are shown in Table 2. Twelve articles were published before 2000 (including 9 in the 1990s and 3 in the 1980s), while the remaining three were published later. Further analysis revealed that all 15 articles were published in only eight journals, all of which are in the top 20 journals for publishing the highest number of DETC articles (Table 3), and some of the authors can also be found among the list of the most productive authors (Table 5). Most of the articles in this table focused on the development, migration, regulation, or surface markers of DETC. Since these are the most frequently cited articles, we can conclude that these subjects attract a significant amount of attention within this field. Unfortunately, as we discussed above, quite a few publications have not been fully utilized, including articles on less popular subjects. We believe that this underutilization will decrease with the integration of knowledge processing, as the whole field advances in size and scope.
Table 2
| Ranka | Title | Total Citations | Authorsb | Source | Year | References |
|---|---|---|---|---|---|---|
| 1 | Defective lymphoid development in mice lacking expression of the common cytokine receptor γ chain | 759 | Cao X., Shores E.W. et al. | Immunity. Volume 2, Issue 3, Pages 223–38. | 1995 | () |
| 2 | Regulation of cutaneous malignancy by γδ T cells | 673 | Girardi M., Oppenheim D.E. et al. | Science. Volume 294, Issue 5542, Pages 605–9. | 2001 | () |
| 3 | Migration and maturation of langerhans cells in skin transplants and explants | 541 | Larsen C.P., Steinman R.M. et al. | Journal of Experimental Medicine. Volume 172, Issue 5, Pages 1483–93. | 1990 | () |
| 4 | Modulation of epithelial cell growth by intraepithelial γδT cells | 530 | Boismenu R., Havran W.L. | Science. Volume 266, Issue 5188, Pages 1253–5. | 1994 | () |
| 5 | Junctional sequences of T cell receptor γδ genes: Implications for γδ T cell lineages and for a novel intermediate of V-(D)-J joining | 452 | Lafaille J.J., DeCloux A. et al. | Cell. Volume 59, Issue 5, Pages 859–70. | 1989 | (58) |
| 6 | A role for skin γδ T cells in wound repair | 405 | Jameson J., Ugarte K. et al. | Science. Volume 296, Issue 5568, Pages 747–9. | 2002 | () |
| 7 | Homing of a γδ thymocyte subset with homogeneous T-cell receptors to mucosal epithelia | 405 | Itohara S., Farr A.G. et al. | Nature. Volume 343, Issue 6260, Pages 754–7. | 1990 | (59) |
| 8 | Developmental defects of lymphoid cells in Jak3 kinase-deficient mice | 404 | Park S.Y., Saijo K. et al. | Immunity. Volume 3, Issue 6, Pages 771–82. | 1995 | () |
| 9 | Limited diversity of γδ antigen receptor genes of thy-1+ dendritic epidermal cells | 400 | Asarnow D.M., Kuziel W.A. et al. | Cell. Volume 55, Issue 5, Pages 837–47. | 1988 | () |
| 10 | A role for endogenous transforming growth factor β1 in Langerhans cell biology: The skin of transforming growth factor β1 null mice is devoid of epidermal Langerhans cells | 397 | Borkowski T.A., Letterio J.J. et al. | Journal of Experimental Medicine. Volume 184, Issue 6, Pages 2417–22. | 1996 | (60) |
| 11 | Developmentally ordered appearance of thymocytes expressing different T-cell antigen receptors | 392 | Havran W.L., Allison J.P. | Nature. Volume 335, Issue 6189, Pages 443–5. | 1988 | () |
| 12 | IL-17 is essential for host defense against cutaneous Staphylococcus aureus infection in mice | 343 | Cho J.S., Pietras E.M. et al. | Journal of Clinical Investigation. Volume 120, Issue 5, Pages 1762–73. | 2010 | () |
| 13 | Recognition of self-antigens by skin-derived T cells with invariant γδ antigen receptors | 302 | Havran W.L., Chien Y.-H., Allison J.P. | Science. Volume 252, Issue 5011, Pages 1430–2. | 1991 | () |
| 14 | Identification and induction of keratinocyte-derived IL-10 | 287 | Enk A.H., Katz S.I. | Journal of Immunology. Volume 149, Issue 1, Pages 92–95. | 1992 | (61) |
| 15 | Interleukin 7 receptor-deficient mice lack γδ T cells | 258 | Maki K., Sunaga S. et al. | Proceedings of the National Academy of Sciences of the United States of America. Volume 93, Issue 14, Pages 7172–7. | 1996 | (62) |
Top 15 DETC-related articles with the most citations.
Ranked by total citations.
Names of the first two authors (on Scopus) were provided.

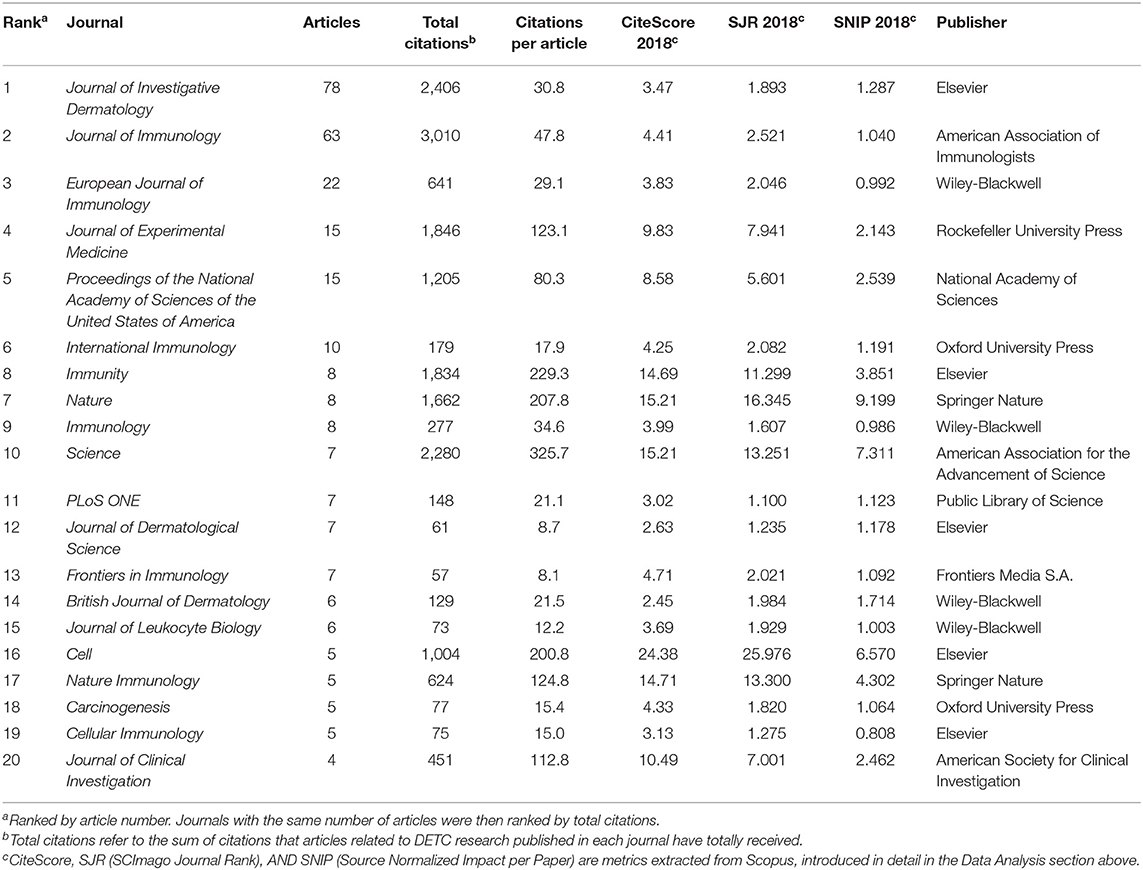

Table 3
| Ranka | Journal | Articles | Total citationsb | Citations per article | CiteScore 2018c | SJR 2018c | SNIP 2018c | Publisher |
|---|---|---|---|---|---|---|---|---|
| 1 | Journal of Investigative Dermatology | 78 | 2,406 | 30.8 | 3.47 | 1.893 | 1.287 | Elsevier |
| 2 | Journal of Immunology | 63 | 3,010 | 47.8 | 4.41 | 2.521 | 1.040 | American Association of Immunologists |
| 3 | European Journal of Immunology | 22 | 641 | 29.1 | 3.83 | 2.046 | 0.992 | Wiley-Blackwell |
| 4 | Journal of Experimental Medicine | 15 | 1,846 | 123.1 | 9.83 | 7.941 | 2.143 | Rockefeller University Press |
| 5 | Proceedings of the National Academy of Sciences of the United States of America | 15 | 1,205 | 80.3 | 8.58 | 5.601 | 2.539 | National Academy of Sciences |
| 6 | International Immunology | 10 | 179 | 17.9 | 4.25 | 2.082 | 1.191 | Oxford University Press |
| 8 | Immunity | 8 | 1,834 | 229.3 | 14.69 | 11.299 | 3.851 | Elsevier |
| 7 | Nature | 8 | 1,662 | 207.8 | 15.21 | 16.345 | 9.199 | Springer Nature |
| 9 | Immunology | 8 | 277 | 34.6 | 3.99 | 1.607 | 0.986 | Wiley-Blackwell |
| 10 | Science | 7 | 2,280 | 325.7 | 15.21 | 13.251 | 7.311 | American Association for the Advancement of Science |
| 11 | PLoS ONE | 7 | 148 | 21.1 | 3.02 | 1.100 | 1.123 | Public Library of Science |
| 12 | Journal of Dermatological Science | 7 | 61 | 8.7 | 2.63 | 1.235 | 1.178 | Elsevier |
| 13 | Frontiers in Immunology | 7 | 57 | 8.1 | 4.71 | 2.021 | 1.092 | Frontiers Media S.A. |
| 14 | British Journal of Dermatology | 6 | 129 | 21.5 | 2.45 | 1.984 | 1.714 | Wiley-Blackwell |
| 15 | Journal of Leukocyte Biology | 6 | 73 | 12.2 | 3.69 | 1.929 | 1.003 | Wiley-Blackwell |
| 16 | Cell | 5 | 1,004 | 200.8 | 24.38 | 25.976 | 6.570 | Elsevier |
| 17 | Nature Immunology | 5 | 624 | 124.8 | 14.71 | 13.300 | 4.302 | Springer Nature |
| 18 | Carcinogenesis | 5 | 77 | 15.4 | 4.33 | 1.820 | 1.064 | Oxford University Press |
| 19 | Cellular Immunology | 5 | 75 | 15.0 | 3.13 | 1.275 | 0.808 | Elsevier |
| 20 | Journal of Clinical Investigation | 4 | 451 | 112.8 | 10.49 | 7.001 | 2.462 | American Society for Clinical Investigation |
Top 20 journals with the most DETC-related articles published.
Ranked by article number. Journals with the same number of articles were then ranked by total citations.
Total citations refer to the sum of citations that articles related to DETC research published in each journal have totally received.
CiteScore, SJR (SCImago Journal Rank), AND SNIP (Source Normalized Impact per Paper) are metrics extracted from Scopus, introduced in detail in the Data Analysis section above.
Again, it is important to be aware that citation does not perfectly reflect the quality of an article (particularly for new publications or publications in areas that are less popular during particular time period), nor is it the only measure. Regardless, we suggest an increased amount of multidisciplinary work and the discovery of new applications for DETC will allow each article to be fully recognized for its achievements.
Analysis of Journal
The top 20 journals, as ranked by number of articles related to DETC research, are listed in Table 3. We used this metric instead of using the total citations of these articles for the reasons mentioned above, though this information is shown in Table 3, along with the CiteScore and SJR from Scopus as an indicator of impact. For authors, articles related to DETC research are more likely to be accepted by these journals, as they have previously shown significant interest in publishing DETC-related work. Some of the listed journals, like Frontiers in Immunology, Nature Immunology, and PLoS ONE, are newly founded, and have shown passionate interest in DETC since their establishment.
Although not shown in the table, we found that Journal of Investigative Dermatology, which ranks at the top of the list, is almost the only journal that published DETC-related articles prior to 1986 and published the first articles declaring the discovery of DETC (, ). While the 20 journals listed cover 76% of DETC articles overall, this journal alone contributes 20% of the publications.
Analysis of Country and International Cooperation
Articles analyzed were produced by 25 countries from around the world (articles co-authored by more than one country are counted repeatedly by VOSviewer). However, most are concentrated in the United States, which contributed 205 articles, exceeding the average of all 25 countries (19.3) by a significant amount. Unlike the journal analysis (Table 3) discussed above, citations per article did not vary much between countries, with an average of 49.6 for all 25 countries, although gaps in publications and total citations are still significant between some countries (Table 4). This may have something to do with the scientific and economic environment in each country, as well as the access to international resources.

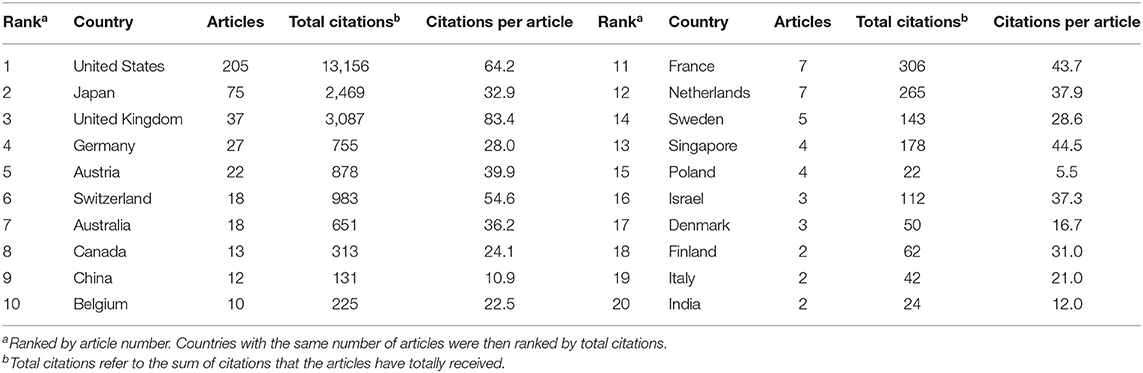

Table 4
| Ranka | Country | Articles | Total citationsb | Citations per article | Ranka | Country | Articles | Total citationsb | Citations per article |
|---|---|---|---|---|---|---|---|---|---|
| 1 | United States | 205 | 13,156 | 64.2 | 11 | France | 7 | 306 | 43.7 |
| 2 | Japan | 75 | 2,469 | 32.9 | 12 | Netherlands | 7 | 265 | 37.9 |
| 3 | United Kingdom | 37 | 3,087 | 83.4 | 14 | Sweden | 5 | 143 | 28.6 |
| 4 | Germany | 27 | 755 | 28.0 | 13 | Singapore | 4 | 178 | 44.5 |
| 5 | Austria | 22 | 878 | 39.9 | 15 | Poland | 4 | 22 | 5.5 |
| 6 | Switzerland | 18 | 983 | 54.6 | 16 | Israel | 3 | 112 | 37.3 |
| 7 | Australia | 18 | 651 | 36.2 | 17 | Denmark | 3 | 50 | 16.7 |
| 8 | Canada | 13 | 313 | 24.1 | 18 | Finland | 2 | 62 | 31.0 |
| 9 | China | 12 | 131 | 10.9 | 19 | Italy | 2 | 42 | 21.0 |
| 10 | Belgium | 10 | 225 | 22.5 | 20 | India | 2 | 24 | 12.0 |
Top 20 countries with the most DETC-related articles.
Ranked by article number. Countries with the same number of articles were then ranked by total citations.
Total citations refer to the sum of citations that the articles have totally received.
We cannot ignore the fact that the ranking has been performed using articles only published in English, which means there are quite a few articles in other languages that have not been counted (shown in Figure 2A). If added, they might make a significant difference in the ranking; as China (20 search results in Chinese) and Russia (14 search results in Russian) in particular could have the potential to rank higher. Therefore, it seems that more work should be done on document translation to promote the sharing of resources and information, which will provide many benefits to researchers.

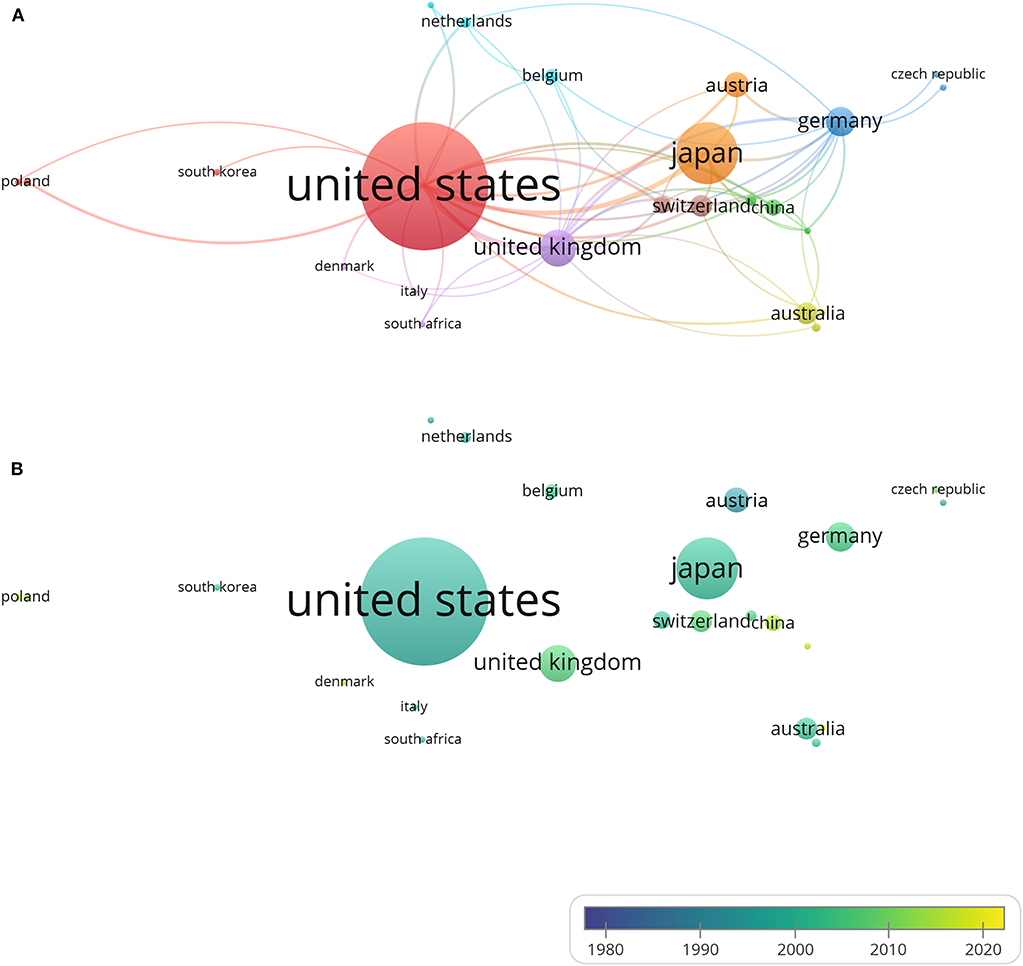

We used VOSviewer to analyze the co-authorship between different countries and produced two international co-authorship (international cooperation) visualization maps of publications for countries that have published more than one document. Country co-authorship maps can help researchers to understand existing partnerships and identify potential collaborators. The largest set of connected countries consists of 25 countries in nine clusters. Figure 5A illustrates the country co-authorship network. Clusters are grouped by the frequency of shared co-occurrence terms that represent each country. Closely related terms are grouped into the same cluster with the same color. The more publications a country has produced, the larger the size of its circle will be; the larger the scale of the cooperation is, the thicker the connecting line will be. For example, the link strength (a measure of collaboration) between United States and United Kingdom is 13, and they are connected by a thick line. The United States has the highest degree of cooperation with other countries, with a total link strength of 58. Researchers from the United Kingdom and Japan collaborate the most with American researchers. Figure 5B depicts the country co-authorship overlay. The color of a country is based on its average publication year. The United States, for example, with an average publication year of 1997.8 for its 205 articles, is shown in cyan. This does not mean that the United States issued the most documents in 1997 though; in fact, the United States published documents every year for the period from 1983 to 2019, making its average publication year 1997.8. As can be seen from the figure, Austria is blue (with an average publication year of 1992.8), indicating that Austrian researchers were more active at the start of DETC research; China, Singapore, and Denmark are yellow (with average publication years of 2013.7, 2015.3, and 2015.7, respectively), indicating that they are newly active in this field. The differences in the average publication years for DETC between countries and regions reflect their uneven scientific levels. National development strategies and initiatives in these countries in science and technology are enabling a strengthening of their scientific practices.
Figure 5
Analysis of Author and Co-authorship

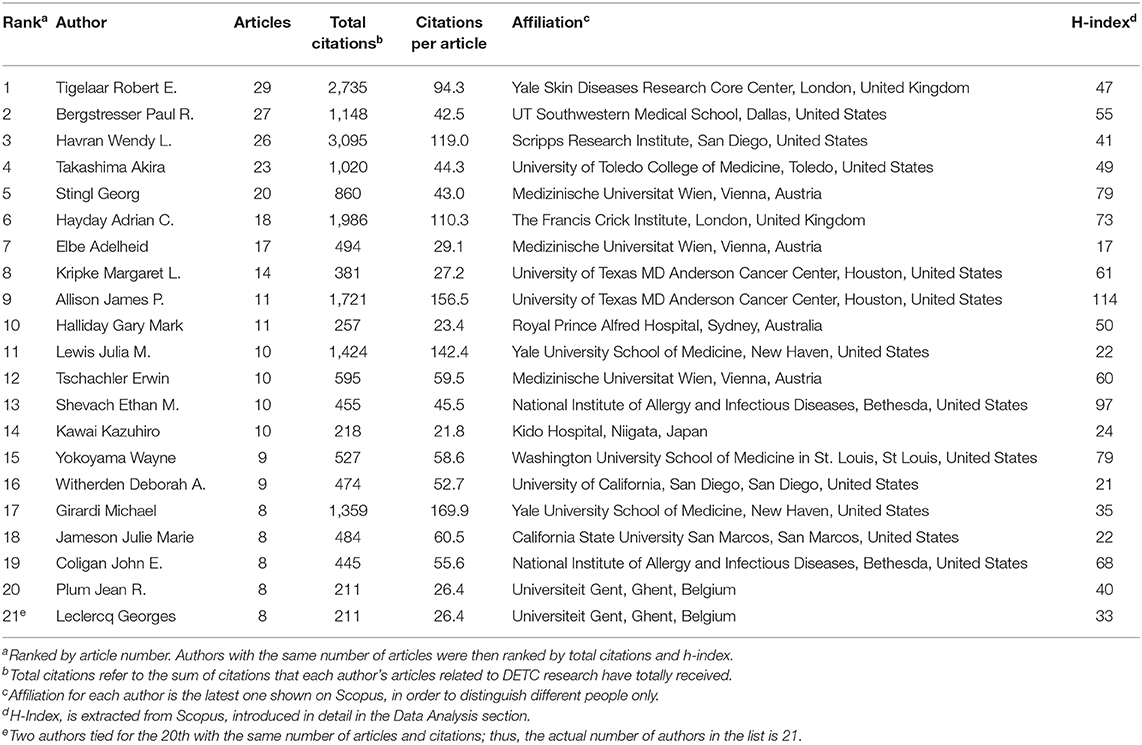

A total of 1,394 authors are involved in the articles analyzed here. The 21 most productive authors are listed in Table 5 (with two authors tied for 20th). Articles drafted by multiple authors are counted multiple times by VOSviewer. The author affiliations listed in this table are the latest one shown on Scopus and are only used to distinguish different people.
Table 5
| Ranka | Author | Articles | Total citationsb | Citations per article | Affiliationc | H-indexd |
|---|---|---|---|---|---|---|
| 1 | Tigelaar Robert E. | 29 | 2,735 | 94.3 | Yale Skin Diseases Research Core Center, London, United Kingdom | 47 |
| 2 | Bergstresser Paul R. | 27 | 1,148 | 42.5 | UT Southwestern Medical School, Dallas, United States | 55 |
| 3 | Havran Wendy L. | 26 | 3,095 | 119.0 | Scripps Research Institute, San Diego, United States | 41 |
| 4 | Takashima Akira | 23 | 1,020 | 44.3 | University of Toledo College of Medicine, Toledo, United States | 49 |
| 5 | Stingl Georg | 20 | 860 | 43.0 | Medizinische Universitat Wien, Vienna, Austria | 79 |
| 6 | Hayday Adrian C. | 18 | 1,986 | 110.3 | The Francis Crick Institute, London, United Kingdom | 73 |
| 7 | Elbe Adelheid | 17 | 494 | 29.1 | Medizinische Universitat Wien, Vienna, Austria | 17 |
| 8 | Kripke Margaret L. | 14 | 381 | 27.2 | University of Texas MD Anderson Cancer Center, Houston, United States | 61 |
| 9 | Allison James P. | 11 | 1,721 | 156.5 | University of Texas MD Anderson Cancer Center, Houston, United States | 114 |
| 10 | Halliday Gary Mark | 11 | 257 | 23.4 | Royal Prince Alfred Hospital, Sydney, Australia | 50 |
| 11 | Lewis Julia M. | 10 | 1,424 | 142.4 | Yale University School of Medicine, New Haven, United States | 22 |
| 12 | Tschachler Erwin | 10 | 595 | 59.5 | Medizinische Universitat Wien, Vienna, Austria | 60 |
| 13 | Shevach Ethan M. | 10 | 455 | 45.5 | National Institute of Allergy and Infectious Diseases, Bethesda, United States | 97 |
| 14 | Kawai Kazuhiro | 10 | 218 | 21.8 | Kido Hospital, Niigata, Japan | 24 |
| 15 | Yokoyama Wayne | 9 | 527 | 58.6 | Washington University School of Medicine in St. Louis, St Louis, United States | 79 |
| 16 | Witherden Deborah A. | 9 | 474 | 52.7 | University of California, San Diego, San Diego, United States | 21 |
| 17 | Girardi Michael | 8 | 1,359 | 169.9 | Yale University School of Medicine, New Haven, United States | 35 |
| 18 | Jameson Julie Marie | 8 | 484 | 60.5 | California State University San Marcos, San Marcos, United States | 22 |
| 19 | Coligan John E. | 8 | 445 | 55.6 | National Institute of Allergy and Infectious Diseases, Bethesda, United States | 68 |
| 20 | Plum Jean R. | 8 | 211 | 26.4 | Universiteit Gent, Ghent, Belgium | 40 |
| 21e | Leclercq Georges | 8 | 211 | 26.4 | Universiteit Gent, Ghent, Belgium | 33 |
Top 20 authors with the most DETC-related articles.
Ranked by article number. Authors with the same number of articles were then ranked by total citations and h-index.
Total citations refer to the sum of citations that each author's articles related to DETC research have totally received.
Affiliation for each author is the latest one shown on Scopus, in order to distinguish different people only.
H-Index, is extracted from Scopus, introduced in detail in the Data Analysis section.
Two authors tied for the 20th with the same number of articles and citations; thus, the actual number of authors in the list is 21.
Notably, the author with the highest h-index was awarded the Nobel Prize in Physiology or Medicine along with Tasuku Honjo in 2018, for their discovery of cancer therapy via the inhibition of negative immune regulation. Because of the hard work of the researchers in this field, and the fascinating discoveries they made, DETC has certainly become a more attractive field that many talented researchers are eager to join.

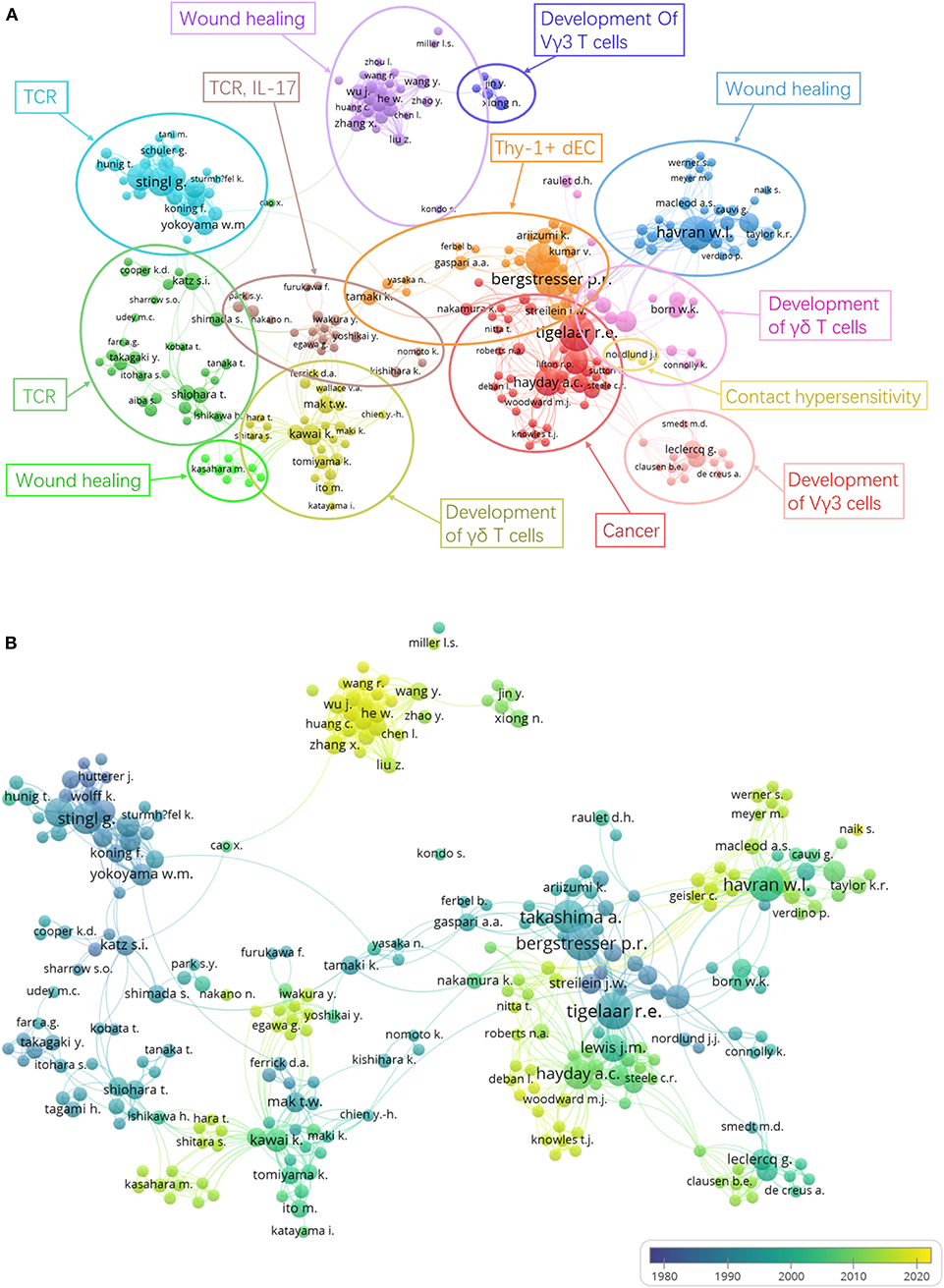

For co-authorship analysis (Figure 6A), authors in a cluster represent a closely connected group and are labeled in the same color. The size of a circle represents the number of publications of an author, and the thickness of a line represents the scale of collaboration between authors. After analyzing the articles from each cluster, we manually and subjectively defined the main research area of each cluster. There still exist several independent clusters in the same area, however. As can be seen from Figure 6A, these clusters are related to “TCR” (), “Wound healing” (), “Cancer” (), “Development” (63), etc. These publications are listed in our references and they have made a significant contribution to each of these research areas. Figure 6B depicts the co-authorship overlay, and can provide valuable information. Authors' colors are based on their average publication year. Havran and Hayday are shown in aquamarine on the map, indicating that they have been working on DETC since the initiation of this field. In many countries, as they become more developed economically, they also began to dedicate more attention and funding to scientific research to stay competitive or even lead the frontiers nowadays. This has led to the active participation of more scientists from a wider range of countries in recent years, as can be seen in the DETC field. These newer researchers are shown in yellow. He, the pioneer of DETC research in mainland China who has made many important contributions, is among them. It can be concluded from the figure that Chinese researchers, shown in yellow to indicate their newness, are enthusiastic and strongly connected with each other, but they are lacking the connections to researchers from other countries. We believe that the trend of increasing globalization will benefit researchers significantly and multinational cooperation will bring about unexpected changes to DETC research.
Figure 6

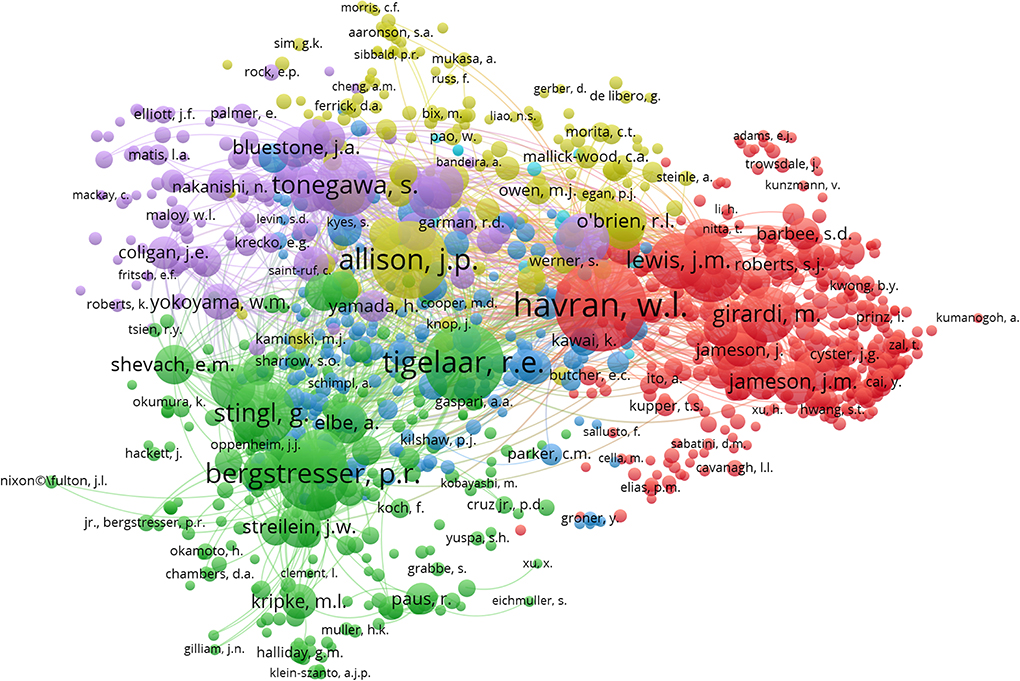

In the author co-citation analysis (Figure 7), the relevance of authors is determined by the number of times that their articles are referenced by the same article. Each node represents an author with at least seven citations. The analysis includes 17,260 authors, all of whom appear in the references lists of the 384 articles that were analyzed for this paper, and 1,106 of them have published articles no fewer than seven times. The largest set of authors with the highest total link strength consisted of 1,106 people in six clusters. In this case, the same color represents authors that are within the same topic of interest, while authors in the same cluster represent a closely connected group based on co-citation relationships. Authors who are closely related often work in the same field and have contributed to the establishment and development of the field. In addition, the size of each circle represents the number of citations of the author, with more citations generating a larger circle. This is different from the perspective provided in Table 5, as this figure provides a very intuitive picture of the academic status and influence of scientists in the DETC field. Because the number of citations is related to the length of the research years and the study of certain research hotspots, young scientists who are currently in a small circle may become big players in this field in the future.
Figure 7
Analysis of Keyword Co-occurrence Cluster

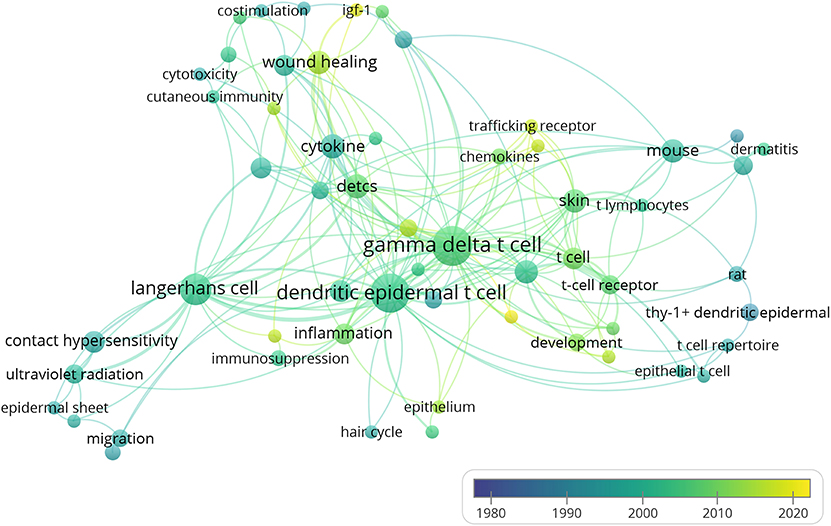

Keyword co-occurrence analysis details the topics covered in a DETC study with author keywords assigned to each article. Keywords are standardized texts or terms selected from the title and the text to express the subject matter of a paper, so the information can be more easily archived. Keywords provide a reasonable description of research hotspots and are very effective in bibliometric analysis when studying knowledge structures in scientific field. In the VOSviewer keyword co-occurrence visualization map, author keywords are marked in different colors according to their average publication years. For example, “Migration” (1995) and “Keratinocytes” (1995) were mainly found in the early years, in comparison with keywords such as “IL-17” (2014) and “Wound healing” (2013), which show up in more recent years (Figure 8). Keywords such as “Development,” “TCR,” “Trafficking receptor,” and “Wound healing” are yellow-green, indicating that these fields have become popular in recent years and may become hot topics in the future. In our analysis, we found that Nielsen et al. mentioned that the ligands recognized by the DETC-associated TCR are still unknown, with information such as how the DETC-Skint interaction induces and regulates the activation of DETC and how it affects wound healing still unclear. Issues like these may become popular topics for future research (64). In the DETC field, some problems remain unsettled or have only recently been undertaken, including understanding the specific molecular mechanisms of wound healing, skin immunology, transplant rejection, and microbiological interactions. However, progress is being made in these areas. High-quality articles, like the one published in 2016 by the Fuchs lab entitled “Impaired Epidermal to Dendritic T Cell Signaling Slows Wound Repair in Aged Skin,” come out every year (65). We expect there to be more breakthroughs in wound healing, skin immunology, and cell receptor function. As shown in Figure 8, research has yet to elucidate the connection between DETC and many other immune cells (NK cell, NKT cell, Th cell, CTL, ILC, B cell, myeloid cells, etc.), and therefore, we can expect to see future work dissecting these relationships, leading to many more important discoveries.
Figure 8
Discussions
During this present information explosion, scientific researchers are often concerned with how to manage their knowledge. Our paper seeks to provide an innovative way to manage knowledge and visualize knowledge structures. Our study provides the most up-to-date analysis of global scientific publications related to DETC research from 1983 to 2019. This is the first report to use bibliometric indicators, visualization information tools, and techniques to reveal the knowledge map of the development, evolution, and major trends of DETC research in an intuitive manner.
The number of articles in a research area can reflect the topic's productivity and development over the years (66). The development of DETC research over the past 37 years was an uneven process, as determined in our study. The number of annual publications and citations indicate that, from 1983 to 1996, there was an upsurge period. However, later in 1997, the number of publications suddenly dropped and related progress appeared to slow. This was likely because much of the interest in immunology shifted to T cells and antiviral immunity. Despite this shift, DETC was back in the spotlight in 2010 when more in-depth studies on the pathological role that DETC plays in wound healing, cancer, infection, and inflammation were carried out. Since then, annual publication has remained at a substantial level (Figure 3). We believe the changes driven by the interplay between immunology and newer disciplines such as epigenetics and proteomics in 2010, as well as the functional characteristics of T cell subsets and hot topics like microRNA, have helped to move forward theoretical and practical research on DETC.
The number of times an article is cited reflects the extent of its dissemination and influence, and thus may partly reflect its quality as well (67, 68). According to the citation analysis (Figure 4), 30.5% of the DETC articles we analyzed have been cited no more than 10 times, indicating that there are plenty of information sources that may not be utilized to the fullest extent. On one hand, the rareness of high-impact articles may be due to the limitation of work, funds, and time for a given author; on the other hand, the lack of citations may also result from a lack of attention to some subjects within the DETC field. Regardless, such underutilization is not expected; thus, we suggest more work be done on the integration of knowledge, particularly as the DETC field continues to grow. The most cited article has acquired 759 citations thus far, and the top 9 most cited articles (cited no fewer than 400 times) were published in Immunity (, ), Science (, , ), Journal of Experimental Medicine (), Cell (, 58), and Nature (59), respectively (Table 2).
Popular journals and other trends in a research area during a certain period can be easily identified and can provide a reliable reference for researchers (69). Furthermore, core journals provide a significant amount of information, which is helpful, especially when searching for documents or submitting research achievements (70, 71). Among the journals in which DETC-related articles were published, the Journal of Investigative Dermatology has published the most articles, while articles in the Journal of Immunology have obtained the most total citations, and Science ranks first by citations per article (Table 3). Newly founded journals listed in the table, such as Frontiers in Immunology, Nature Immunology, and PLoS ONE, also deserve the attention of researchers. Their active performance indicates their potential to improve their rank with the publishing of more high-quality DETC-related articles in the future.
A number of national studies on research productivity have been conducted in recent years, primarily in order to help judge the science policy of a country and thereby adjust their science funding (72). Visualization tools like VOSviewer, Citespace, Bicomb, and BibExcel enable researchers to create knowledge maps (). With the help of the co-authorship visualization map made by VOSviewer, a co-authorship analysis of countries was performed (, , 73, 74). The map showed that the US, Japan, and the UK are the most involved in DETC research, with the US far ahead of the others, as it has been the most productive DETC research contributor since 1983. Still, with the improvement of academic standards and research funding in recent years, DETC-related studies are launching in countries including China, Singapore, and Denmark. There has been widespread international cooperation among DETC researchers, mainly led by countries like the US, Japan, and the UK (Figure 5). These developed countries have invested significant money, manpower, and material resources in scientific research. Thus, not surprisingly, they have emerged as worldwide leaders in DETC research. Meanwhile, in developing countries, especially some Asian countries like China, policies and circumstances have shifted, leading to increased support for scientific research, suggesting that these countries will become more significant players in the DETC field in the future.
In order to determine the most productive authors, we ranked authors based on their total number of DETC-related articles and performed the analysis together with other indicators to provide a more comprehensive view (75, 76). Based on the data extracted from Scopus, we found that, of the top 20 most productive authors, 12 are from the US, 3 are from Austria, 2 are from the UK, 2 are from Belgium, and the other 2 authors come from Japan and Australia (Table 5). In addition, the author co-authorship network visualization map produced by VOSviewer can also be applied to the analysis of author productivity and active period (77) (Figure 6). Notably, researchers Wendy L. Havran (3rd in Table 5) and Adrian C. Hayday (6th in Table 5) have been committed to this field from its initiation. Meanwhile, the Nobel Prize winner James P. Allison has published just 11 DETC-related articles so far, though his citation rate per article has already reached 156.5, indicating his strong influence in this area. Regardless of which aspect is evaluated (the academic level, contribution, or influence of researchers in the DETC field), the information shown in Figures 6, 7 and Table 5 all overlap to some extent, without being completely identical. This reflects dynamic changes related to the time period and hotspots in DETC research. Because of the undeniable contributions of the academic pioneers and emerging young researchers highlighted in these figures, the DETC field has been able to attract a broad group of talented researchers to join in.
In recent studies, some researchers have tried using keyword co-occurrence networks for knowledge mapping (, 78–83). According to the VOSviewer keyword co-occurrence analysis, the early stage of DETC research was focused on the development, migration, and surface marker of these cells; then, it turned to topics such as contact hypersensitivity, ultraviolet radiation, skin cancer, immunosuppression, inflammation, cytokines, and chemokines. It appears that topics such as wound healing, skin immunology, and cell receptor function are likely to attract more attention in the future (Figure 8). Some areas of DETC biology remain unsolved or have made minimal progress, including elucidation of the specific molecular mechanisms underlying wound healing, skin immunology, transplant rejection, and microbiological interactions, as well as the interactions between DETC and other immune cells. However, our analysis reveals that scientists are still actively exploring the uncharted territory of DETC. High-quality articles published by the Hayday (84) and Fuchs labs (65) have gained significant attention and recognition in recent years. We expect to see more breakthroughs in skin immunology, immune metabolism, wound healing, and cell receptor function in the future.
Currently, there are fewer researchers involved in DETC studies than in other immune cell studies worldwide, and there still exist plenty of unresolved questions regarding DETC. We hope this bibliometric analysis provides a beneficial reference on the main points, as well as the future trends, of DETC research, not only for researchers who have already been working in this field, but also for new researchers preparing to become active members of this field.
Statements
Data availability statement
Datasets generated for this study will be made available by the authors, to any qualified researcher on request.
Author contributions
TW designed the study. TW, ZD, and HW performed the search and wrote the paper. TW, ZD, HW, and ZC analyzed the data.
Funding
This work was supported by the National Natural Science Foundation of China (81000738 to TW), the National Undergraduate Innovation Funding of Huazhong University of Science and Technology (201910487117 to TW, 2019A0199 to TW), and the Teaching Reform Funding of Huazhong University of Science and Technology (2018122 to TW).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fimmu.2020.00259/full#supplementary-material
References
1.
HavranWLAllisonJP. Developmentally ordered appearance of thymocytes expressing different T-cell antigen receptors. Nature. (1988) 335:443–5. 10.1038/335443a0
2.
MacleodASHavranWL. Functions of skin-resident γδ T cells. Cell Mol Life Sci. (2011) 68:2399–408. 10.1007/s00018-011-0702-x
3.
RamirezKWitherdenDAHavranWL. All hands on DE(T)C: Epithelial-resident γδ T cells respond to tissue injury. Cell Immunol. (2015) 296:57–61. 10.1016/j.cellimm.2015.04.003
4.
BergstresserPRTigelaarREDeesJHStreileinJW. Thy-1 antigen-bearing dendritic cells populate murine epidermis. J Invest Dermatol. (1983) 81:286–8. 10.1111/1523-1747.ep12518332
5.
TschachlerESchulerGHuttererJLeiblHWolffKStinglG. Expression of Thy-1 antigen by murine epidermal cells. J Invest Dermatol. (1983) 81:282–5. 10.1111/1523-1747.ep12518326
6.
SteinerGKoningFElbeATschachlerEYokoyamaWMShevachEMet al. Characterization of T cell receptors on resident murine dendritic epidermal T cells. Eur J Immunol. (1988) 18:1323–8. 10.1002/eji.1830180904
7.
KoningFStinglGYokoyamaWMYamadaHMaloyWLTschachlerEet al. Identification of a T3-associated gamma delta T cell receptor on Thy-1+ dendritic epidermal cell lines. Science. (1987) 236:834–7. 10.1126/science.2883729
8.
KuzielWATakashimaABonyhadiMBergstresserPRAllisonJPTigelaarREet al. Regulation of T-cell receptor γ-chain RNA expression in murine Thy-1+ dendritic epidermal cells. Nature. (1987) 328:263–6. 10.1038/328263a0
9.
StinglGKoningFYamadaHYokoyamaWMTschachlerEBluestoneJAet al. Thy-1+ dendritic epidermal cells express T3 antigen and the T-cell receptor gamma chain. Proc Natl Acad Sci USA. (1987) 84:4586–90. 10.1073/pnas.84.13.4586
10.
GarmanRDDohertyPJRauletDH. Diversity, rearrangement, and expression of murine T cell gamma genes. Cell. (1986) 45:733–42. 10.1016/0092-8674(86)90787-7
11.
HeiligJSTonegawaS. Diversity of murine gamma genes and expression in fetal and adult T lymphocytes. Nature. (1986) 322:836–40. 10.1038/322836a0
12.
AsarnowDMKuzielWABonyhadiMTigelaarRETuckerPWAllisonJP. Limited diversity of γδ antigen receptor genes of Thy-1+ dendritic epidermal cells. Cell. (1988) 55:837–47. 10.1016/0092-8674(88)90139-0
13.
HavranWLGrellSDuweGKimuraJWilsonAKruisbeekAMet al. Limited diversity of T-cell receptor gamma-chain expression of murine Thy-1+ dendritic epidermal cells revealed by V gamma 3-specific monoclonal antibody. Proc Natl Acad Sci USA. (1989) 86:4185–9. 10.1073/pnas.86.11.4185
14.
BoydenLMLewisJMBarbeeSDBasAGirardiMHaydayACet al. Skint1, the prototype of a newly identified immunoglobulin superfamily gene cluster, positively selects epidermal γδ T cells. Nat Genet. (2008) 40:656–62. 10.1038/ng.108
15.
HavranWLAllisonJP. Origin of Thy-1+ dendritic epidermal cells of adult mice from fetal thymic precursors. Nature. (1990) 344:68–70. 10.1038/344068a0
16.
JiangXCampbellJJKupperTS. Embryonic trafficking of γδ T cells to skin is dependent on E/P selectin ligands and CCR4. Proc Natl Acad Sci USA. (2010) 107:7443–8. 10.1073/pnas.0912943107
17.
JinYXiaMSunASaylorCMXiongN. CCR10 is important for the development of skin-specific γδ T cells by regulating their migration and location. J Immunol. (2010) 185:5723–31. 10.4049/jimmunol.1001612
18.
KawaiKSuzukiHTomiyamaKMinagawaMMakTWOhashiPS. Requirement of the IL-2 receptor β chain for the development of Vγ3 dendritic epidermal T cells. J Invest Dermatol. (1998) 110:961–5. 10.1046/j.1523-1747.1998.00214.x
19.
YeSKMakiKLeeHCItoAKawaiKSuzukiHet al. Differential roles of cytokine receptors in the development of epidermal γδ T cells. J Immunol. (2001) 167:1929–34. 10.4049/jimmunol.167.4.1929
20.
EdmondsonSRThumigerSPWertherGAWraightCJ. Epidermal homeostasis: the role of the growth hormone and insulin-like growth factor systems. Endocr Rev. (2003) 24:737–64. 10.1210/er.2002-0021
21.
HavranWLChienYHAllisonJP. Recognition of self antigens by skin-derived T cells with invariant gamma delta antigen receptors. Science. (1991) 252:1430–2. 10.1126/science.1828619
22.
LodolceJPBooneDLChaiSSwainREDassopoulosTTrettinSet al. IL-15 receptor maintains lymphoid homeostasis by supporting lymphocyte homing and proliferation. Immunity. (1998) 9:669–76. 10.1016/S1074-7613(00)80664-0
23.
SharpLLJamesonJMCauviGHavranWL. Dendritic epidermal T cells regulate skin homeostasis through local production of insulin-like growth factor 1. Nat Immunol. (2005) 6:73–9. 10.1038/ni1152
24.
SuHYChengWTChenSCLinCTLienYYLiuHJet al. Mouse keratinocytes express c98, a novel gene homologous to bcl-2, that is stimulated by insulin-like growth factor 1 and prevents dexamethasone-induced apoptosis. Biochim Biophys Acta. (2004) 1676:127–37. 10.1016/j.bbaexp.2003.11.006
25.
BoismenuRFengLXiaYYChangJCHavranWL. Chemokine expression by intraepithelial gamma delta T cells. Implications for the recruitment of inflammatory cells to damaged epithelia. J Immunol. (1996) 157:985–92.
26.
MatsueHCruzPDJrBergstresserPRTakashimaA. Profiles of cytokine mRNA expressed by dendritic epidermal T cells in mice. J Invest Dermatol. (1993) 101:537–42. 10.1111/1523-1747.ep12365917
27.
ParkSYSaijoKTakahashiTOsawaMAraseHHirayamaNet al. Developmental defects of lymphoid cells in Jak3 kinase-deficient mice. Immunity. (1995) 3:771–82. 10.1016/1074-7613(95)90066-7
28.
ChoJSPietrasEMGarciaNCRamosRIFarzamDMMonroeHRet al. IL-17 is essential for host defense against cutaneous Staphylococcus aureus infection in mice. J Clin Invest. (2010) 120:1762–73. 10.1172/JCI40891
29.
LeclercqGPlumJ. Stimulation of TCR V gamma 3 cells by gram-negative bacteria. J Immunol. (1995) 154:5313–9.
30.
MolneLCorthayAHolmdahlRTarkowskiA. Role of gamma/delta T cell receptor-expressing lymphocytes in cutaneous infection caused by Staphylococcus aureus. Clin Exp Immunol. (2003) 132:209–15. 10.1046/j.1365-2249.2003.02151.x
31.
ShimuraHNitaharaAItoATomiyamaKItoMKawaiK. Up-regulation of cell surface Toll-like receptor 4-MD2 expression on dendritic epidermal T cells after the emigration from epidermis during cutaneous inflammation. J Dermatol Sci. (2005) 37:101–10. 10.1016/j.jdermsci.2004.11.006
32.
DieliFAshersonGLSireciGDominiciRGervasiFVendettiSet al. γδ cells involved in contact sensitivity preferentially rearrange the Vγ3 region and require interleukin-7. Eur J Immunol. (1997) 27:206–14. 10.1002/eji.1830270131
33.
DieliFPtakWSireciGRomanoGCPotestioMSalernoAet al. Cross-talk between V β 8+ and γδ+ T lymphocytes in contact sensitivity. Immunology. (1998) 93:469–77. 10.1046/j.1365-2567.1998.00435.x
34.
PtakWAskenasePW. Gamma delta T cells assist alpha beta T cells in adoptive transfer of contact sensitivity. J Immunol. (1992) 149:3503–8.
35.
SullivanSBergstresserPRTigelaarREStreileinJW. Induction and regulation of contact hypersensitivity by resident, bone marrow-derived, dendritic epidermal cells: langerhans cells and Thy-1+ epidermal cells. J Immunol. (1986) 137:2460–7.
36.
GorczynskiRMChenZHoangYRossi-BergmanB. A subset of γδ T-cell receptor-positive cells produce T-helper type-2 cytokines and regulate mouse skin graft rejection following portal venous pretransplant preimmunization. Immunology. (1996) 87:381–9. 10.1046/j.1365-2567.1996.481554.x
37.
ShioharaTMoriyaNGotohCHayakawaJIshikawaHSaizawaKet al. Loss of epidermal integrity by T cell-mediated attack induces long term local resistance to subsequent attack. II. Thymus dependency in the induction of the resistance. J Immunol. (1990) 145:2482–8.
38.
ShioharaT., Moriya N., Hayakawa J., Itohara S., Ishikawa H. Resistance to cutaneous graft-vs.-host disease is not induced in T cell receptor delta gene-mutant mice. J Exp Med. (1996) 183:1483–9. 10.1084/jem.183.4.1483
39.
GirardiMOppenheimDESteeleCRLewisJMGlusacEFillerRet al. Regulation of cutaneous malignancy by γδ T cells. Science. (2001) 294:605–9. 10.1126/science.1063916
40.
KaminskiMJCruzPDJrBergstresserPRTakashimaA. Killing of skin-derived tumor cells by mouse dendritic epidermal T-cells. Cancer Res. (1993) 53:4014–9.
41.
KrahenbuhlOGattescoSTschoppJ. Murine Thy-1+ dendritic epidermal T cell lines express granule-associated perforin and a family of granzyme molecules. Immunobiology. (1992) 184:392–401. 10.1016/S0171-2985(11)80596-6
42.
BoismenuRHavranWL. Modulation of epithelial cell growth by intraepithelial gamma delta T cells. Science. (1994) 266:1253–5. 10.1126/science.7973709
43.
JamesonJUgarteKChenNYachiPFuchsEBoismenuRet al. A role for skin γδ T cells in wound repair. Science. (2002) 296:747–9. 10.1126/science.1069639
44.
AggarwalALewisonGIdirSPetersMAldigeCBoerckelWet al. The state of lung cancer research: a global analysis. J Thorac Oncol. (2016) 11:1040–50. 10.1016/j.jtho.2016.03.010
45.
RomeroLPortillo-SalidoE. Trends in sigma-1 receptor research: a 25-year bibliometric analysis. Front Pharmacol. (2019) 10:564. 10.3389/fphar.2019.00564
46.
FernandesSJitMBozzaniFGriffithsUKScottJAGBurchettHED. A bibliometric analysis of systematic reviews on vaccines and immunisation. Vaccine. (2018) 36:2254–61. 10.1016/j.vaccine.2018.02.049
47.
LuKYuSYuMSunDHuangZXingHet al. Bibliometric analysis of tumor immunotherapy studies. Med Sci Monit. (2018) 24:3405–14. 10.12659/MSM.910724
48.
WanRLiLXingCPengRGaoL. Worldwide scientific productions with immunotherapy of sepsis: a bibliometric analysis. PeerJ. (2019) 7:e7116. 10.7717/peerj.7116
49.
ZyoudSHSmaleSWaringWSSweilehWMAl-JabiSW. Global research trends in microbiome-gut-brain axis during 2009-2018: a bibliometric and visualized study. BMC Gastroenterol. (2019) 19:158. 10.1186/s12876-019-1076-z
50.
SutohYMohamedRHKasaharaM. Origin and evolution of dendritic epidermal T cells. Front Immunol. (2018) 9:1059. 10.3389/fimmu.2018.01059
51.
FalagasMEKouranosVDArencibia-JorgeRKarageorgopoulosDE. Comparison of SCImago journal rank indicator with journal impact factor. FASEB J. (2008) 22:2623–8. 10.1096/fj.08-107938
52.
Villasenor-AlmarazMIslas-SerranoJMurataCRoldan-ValadezE. Impact factor correlations with Scimago Journal Rank, Source Normalized Impact per Paper, Eigenfactor Score, and the CiteScore in Radiology, Nuclear Medicine & Medical Imaging journals. Radiol Med. (2019) 124:495–504. 10.1007/s11547-019-00996-z
53.
HirschJE. An index to quantify an individual's scientific research output. Proc Natl Acad Sci USA. (2005) 102:16569–72. 10.1073/pnas.0507655102
54.
ChenC. Searching for intellectual turning points: progressive knowledge domain visualization. Proc Natl Acad Sci USA. (2004) 101:5303–10. 10.1073/pnas.0307513100
55.
Chinchilla-RodríguezZZacca-GonzálezGVargas-QuesadaBMoya-AnegónF. Latin American scientific output in Public Health: combined analysis using bibliometric, socioeconomic and health indicators. Scientometrics. (2015) 102:609–28. 10.1007/s11192-014-1349-9
56.
CaoXShoresEWHu-LiJAnverMRKelsallBLRussellSMet al. Defective lymphoid development in mice lacking expression of the common cytokine receptor γ chain. Immunity. (1995) 2:223–38. 10.1016/1074-7613(95)90047-0
57.
LarsenCPSteinmanRMWitmer-PackMHankinsDFMorrisPJAustynJM. Migration and maturation of Langerhans cells in skin transplants and explants. J Exp Med. (1990) 172:1483–93. 10.1084/jem.172.5.1483
58.
LafailleJJDeClouxABonnevilleMTakagakiYTonegawaS. Junctional sequences of T cell receptor γδ genes: implications for γδ T cell lineages and for a novel intermediate of V-(D)-J joining. Cell. (1989) 59:859–70. 10.1016/0092-8674(89)90609-0
59.
ItoharaSFarrAGLafailleJJBonnevilleMTakagakiYHaasWet al. Homing of a γδ thymocyte subset with homogeneous T-cell receptors to mucosal epithelia. Nature. (1990) 343:754–7. 10.1038/343754a0
60.
BorkowskiTALetterioJJFarrAGUdeyMC. A role for endogenous transforming growth factor β1 in langerhans cell biology: the skin of transforming growth factor β1 null mice is devoid of epidermal langerhans cells. J Exp Med. (1996) 184:2417–22. 10.1084/jem.184.6.2417
61.
EnkAHKatzSI. Identification and induction of keratinocyte-derived IL-10. J Immunol. (1992) 149:92–5.
62.
MakiKSunagaSKomagataYKodairaYMabuchiAKarasuyamaHet al. Interleukin 7 receptor-deficient mice lack gammadelta T cells. Proc Natl Acad Sci USA. (1996) 93:7172–7. 10.1073/pnas.93.14.7172
63.
De CreusAVan BenedenKStevenaertFDebackerVPlumJLeclercqG. Developmental and functional defects of thymic and epidermal V γ 3 cells in IL-15-deficient and IFN regulatory factor-1-deficient mice. J Immunol. (2002) 168:6486–93. 10.4049/jimmunol.168.12.6486
64.
NielsenMMWitherdenDAHavranWL. γδ T cells in homeostasis and host defence of epithelial barrier tissues. Nat Rev Immunol. (2017) 17:733–45. 10.1038/nri.2017.101
65.
KeyesBELiuSAsareANaikSLevorseJPolakLet al. Impaired epidermal to dendritic T cell signaling slows wound repair in aged skin. Cell. (2016) 167:1323–38.e14. 10.1016/j.cell.2016.10.052
66.
DurieuxVGevenoisPA. Bibliometric indicators: quality measurements of scientific publication. Radiology. (2010) 255:342–51. 10.1148/radiol.09090626
67.
MunizFWMGCelesteRKOballeHJRRosingCK. Citation analysis and trends in review articles in dentistry. J Evid Based Dent Pract. (2018) 18:110–8. 10.1016/j.jebdp.2017.08.003
68.
SeglenPO. Citations and journal impact factors: questionable indicators of research quality. Allergy. (1997) 52:1050–6. 10.1111/j.1398-9995.1997.tb00175.x
69.
ZhuangYJiangNWuZLiQChiuDKWHuH. Efficient and robust large medical image retrieval in mobile cloud computing environment. Inf Sci. (2014) 263:60–86. 10.1016/j.ins.2013.10.013
70.
SmithDR. Citation analysis and impact factor trends of 5 core journals in occupational medicine, 1985-2006. Arch Environ Occup Health. (2008) 63:114–22. 10.3200/AEOH.63.3.114-122
71.
WangXGuoJGuDYangYYangXZhuK. Tracking knowledge evolution, hotspots and future directions of emerging technologies in cancers research: a bibliometrics review. J Cancer. (2019) 10:2643–53. 10.7150/jca.32739
72.
FialaD. Bibliometric analysis of CiteSeer data for countries. Inf Process Manag. (2012) 48:242–53. 10.1016/j.ipm.2011.10.001
73.
GuoYMHuangZLGuoJLiHGuoXRNkeliMJ. Bibliometric analysis on smart cities research. Sustainability. (2019) 11:3606. 10.3390/su11133606
74.
Tabatabaei-MalazyORamezaniAAtlasiRLarijaniBAbdollahiM. Scientometric study of academic publications on antioxidative herbal medicines in type 2 diabetes mellitus. J Diabetes Metab Disord. (2016) 15:48. 10.1186/s40200-016-0273-3
75.
MerigóJMYangJB. A bibliometric analysis of operations research and management science. Omega. (2017) 73:37–48. 10.1016/j.omega.2016.12.004
76.
PodsakoffPMMacKenzieSBPodsakoffNPBachrachDG. Scholarly influence in the field of management: a bibliometric analysis of the determinants of university and author impact in the management literature in the past quarter century. J Manag. (2008) 34:641–720. 10.1177/0149206308319533
77.
KamdemJPDuarteAELimaKRRRochaJBTHassanWBarrosLMet al. Research trends in food chemistry: a bibliometric review of its 40 years anniversary (1976-2016). Food Chem. (2019) 294:448–57. 10.1016/j.foodchem.2019.05.021
78.
ChenC. CiteSpace II: detecting and visualizing emerging trends and transient patterns in scientific literature. J Am Soc Inf Sci Technol. (2006) 57:359–77. 10.1002/asi.20317
79.
LiangLXieC. Investigation of China's nanotechnology study based on frequency analysis of key words. Stud Sci Sci. (2003) 21:138–42. 10.16192/j.cnki.1003-2053.2003.02.006
80.
RadhakrishnanSErbisSIsaacsJAKamarthiS. Novel keyword co-occurrence network-based methods to foster systematic reviews of scientific literature. PLoS ONE. (2017) 12:e0172778. 10.1371/journal.pone.0172778
81.
SpenceDPOwensKC. Lexical co-occurrence and association strength. J Psycholinguist Res. (1990) 19:317–30. 10.1007/BF01074363
82.
WatadABragazziNLAdawiMAmitalHKivitySMahroumNet al. Is autoimmunology a discipline of its own? A big data-based bibliometric and scientometric analyses. Autoimmunity. (2017) 50:269–74. 10.1080/08916934.2017.1305361
83.
ZhangJXieJHouWTuXXuJSongFet al. Mapping the knowledge structure of research on patient adherence: knowledge domain visualization based co-word analysis and social network analysis. PLoS ONE. (2012) 7:e34497. 10.1371/journal.pone.0034497
84.
Di Marco BarrosRRobertsNADartRJVantouroutPJandkeANussbaumerOet al. Epithelia Use Butyrophilin-like molecules to shape organ-specific γδ T cell compartments. Cell. (2016) 167:203–218.e17. 10.1016/j.cell.2016.08.030
Summary
Keywords
DETC, gamma delta T cells, bibliometrics, Scopus, VOSviewer
Citation
Deng Z, Wang H, Chen Z and Wang T (2020) Bibliometric Analysis of Dendritic Epidermal T Cell (DETC) Research From 1983 to 2019. Front. Immunol. 11:259. doi: 10.3389/fimmu.2020.00259
Received
03 December 2019
Accepted
31 January 2020
Published
12 March 2020
Volume
11 - 2020
Edited by
Jianlei Hao, Jinan University, China
Reviewed by
Song Zhang, Nankai University, China; Julie Marie Jameson, California State University San Marcos, United States; Zheng Xiang, The University of Hong Kong, Hong Kong
Updates
Copyright
© 2020 Deng, Wang, Chen and Wang.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Ting Wang wangting139@hust.edu.cn
This article was submitted to T Cell Biology, a section of the journal Frontiers in Immunology
†These authors share first authorship
Disclaimer
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
