Abstract
For oxides with octahedron ligand field, such as perovskite, spinel, and mullite, unit occupancy of eg orbital plays a key role in governing the catalytic performance of oxygen redox in the application of renewable energy storage and conversion. The magnetic configurations greatly influence the eg occupancy of these oxides. In this work, using the perovskite LaCoO3 as an example, we use density functional theory (DFT) calculations to achieve an intermediate spin configuration corresponding to unit-like eg occupancy via strain schemes. We determined that the introduction of strain by changing lattice constants effectively tailors electronic configurations. The low-spin (), intermediate-spin (), and high-spin () configurations are obtained with the strain γ < 1.0%, 1.0% ≤ γ < 4.0%, and γ ≥ 4.0%, respectively. To obtain the eg unit occupancy practically, Ba with a larger ionic radius relative to La is inserted into A site to replace La elements, introducing tensile strain to the pristine LaCoO3. The Ba substitution of La leads to the desirable spin configuration with the unit-like eg occupancy. These findings provide a scenario on how to precisely control the unit occupancy of eg via defect induced strain.
Introduction
The development of oxygen catalysts plays a significant role in accelerating the oxygen redox reaction in energy storage and conversion devices. In relation to the discovery of highly efficient non-precious catalysts like oxide, one needs to perform in-depth access with regard to the relation between the crystal structure and the catalytic property. Electronic structures are the fundamental origin of excellent catalytic performances of materials (; ; ; ; Wang et al., 2019a; Zhang et al., 2019; Xu et al., 2020). For perovskites, eg orbital occupancy is one of the effective descriptors in illustrating catalytic behavior. In the 1970s, first proposed that eg orbital features in bulk transition metal oxides could reflect the catalytic trend of oxygen reduction reaction (ORR). They pointed out that the formation and filling of a σ∗ band due to the interaction between eg orbital of transition metal ion and oxygen molecular orbital greatly affects the ORR activity (, ). To date, this bulk descriptor has been widely used to understand and predict the catalytic performance of oxides. For instance, Wei et al. (2017) demonstrated that eg occupancy of the active cation in octahedral sites is an efficient descriptor for the ORR/OER activities of spinel. They proposed that a moderate eg filling (eg ≈ 1) at the octahedral site can optimize ORR/OER activity. A similar conclusion in terms of eg filling was further drawn in double perovskites ().
In 2010, Shao-Horn and colleagues presented research that confirmed that the eg filling of transition metal ions in surface accounts for the ORR/OER activity of perovskites (, ). They found that maximum activity can be achieved when eg orbital is occupied by a single electron for OE(R)R reaction. In contrast to traditional band theory, they assumed that a localized eg electron in an orbital directed toward an O2 molecule from the surface B cations is essential for ORR/OER. The use of the surface eg filling promotes the accurate prediction of catalytic activities for ORR/OER over oxides. The probe of surface eg filling is very challenging even to date. Compared with hard X-ray absorption spectroscopy (XAS), the soft XAS in principle enables one to access the surface properties depending on the incident energy and the corresponding modes. Shao-Horn and colleagues () claimed that the eg occupancy in their previous studies (, ) was estimated on the basis of the oxidation state and spin state derived from bulk-sensitive measurements, i.e., hard X-ray absorption and magnetometry. In 2018, in their other review (), they also mentioned that the values of eg fillings were estimated from ex situ measurements or obtained from computed binding energies of oxygenated species on the surface. Therefore, the surface eg descriptor in current reports fails to be solid. It could be more reasonable to be a bulk descriptor. In any case, the importance of Shao-Horn’s work reveals the relation between the eg unit filling of bulk materials and the catalytic properties, even if the relation between bulk and surface remains inaccessible so far. Therefore, the eg unit filling of bulk, rather than the surface, is the key to ensure high catalytic efficiency.
Perovskite oxides contain different spin configurations in a given system. For instance, LaCoO3 exhibits three spin configurations of low (), intermediate (), and high spin (). For , the unit occupancy contributes to a moderate hybridization between dz^2 and oxygen 2p orbital to achieve an optimized catalytic activity. To date, much effort has been paid to improve the catalytic activity of LaCoO3 by tuning its electronic structures. For example, the spin state of Co was adjusted by changing particle sizes of LaCoO3 or doping Fe atom at Co sites to boost the catalytic performance (Zhou et al., 2016; ). However, the precise control of the specific intermediate spin configuration is still challenging. In principle, strain technology, defects, and interfacing are alternative schemes (Zhao et al., 2018, 2019, 2020a), among which the strain technology is one of the widely adopted schemes to tune electronic properties and thereby tailor the reactivity of materials. proposed that the strain changes the reactivity of transition metal surface by shifting the d-band center; this model is general and suitable for a number of metal surfaces to successfully explain chemical behaviors of materials under strain (, ; ; ; ; ). In addition, for the widely used platinum catalyst, a compressive strain of 1% can induce activity enhancement of more than 300% for ORR (; ; ; ). Wang et al. (2019b) found that the control of the thickness of two-dimensional transition metal at atomic level can achieve fine-tuning intrinsic strain. Moreover, the activity of oxygen reduction and hydrogen evolution reactions can be improved by more than an order of magnitude relative to corresponding nanoparticle counterparts. For oxides, strain primarily impacts the orbital characteristics, like energy level arrangement of the d subset and its occupancy, and consequently, the catalytic properties. The different strain along in-plane and out-of-plain direction can remove degenerate of eg orbital, and alter the occupancy of dz^2 (; ).
Although strain technology has been proven to be effective, the physics behind it remains inaccessible, and the modulation of eg occupancy is not explored yet. Here, we use cubic LaCoO3 as a model catalyst to systematically investigate the effect of strain on electronic configurations closely relevant for catalytic performance, such as d-band center and electron spin arrangements. We focus on the strain induced by modifying lattice in the absence of octahedral distortions. When the uniform strains were applied, the magnetic moment of Co atom showed step-like behavior versus strain (γ < 1.0%, MagCo: 0.0 μB; 1.0% ≤ γ < 4.0%, MagCo: 1.406 μB; γ ≥ 4.0%, MagCo: 2.561 μB). The substitution of La by large-radius Ba introduces strain leading to the eg unit-like occupancy. Significantly, the lower oxidation state of Ba compared with La leads to a magnetic moment localized at the Co atom in Ba substitution-modified LaCoO3 larger than that of the equivalent strained defect-free LaCoO3. This work provides insights into the precise control of eg unit occupancy via defect induced strain.
Computational Models and Setups
All calculations are performed in the framework of spin-polarized density functional theory (DFT), using the projector-augmented wave (PAW) method (), as implemented in VASP code (). The exchange–correlation interaction is treated in the generalized gradient approximation (GGA) of Perdew, Burke, and Ernzerhof (PBE) (). To describe the electronic correlation effect of 3d electrons of Co element, the DFT+U method () with a Ueff of 2.8 eV was employed. The energy cutoff for the plane–wave basis is set to be 550 eV. The calculated lattice parameters of LaCoO3 are a = b = c = 3.811 Å, which agree well with previous theoretical and experimental results (; ; ). A Monkhorst-Pack Γ-centered 11 × 11 × 11 k-point mesh was used for Brillouin zone sampling. Accordingly, for the 2 × 2 × 2 supercell, the 7 × 7 × 7 k-point mesh was adopted. The magnitude of the force acting on each atom to be allowed to relax is less than 0.01 eV/Å.
The substitutional energy per Ba atom in La1–xBaxCoO3 with different composition x is defined as
where ELa_1–x Ba_x CoO_3and ELaCoO_3 are the total energy of Ba substitution-modified LaCoO3 and pristine LaCoO3. , , and EO_2 are the energy of bulk La2O3, bulk BaO, and oxygen gas, respectively.
Results and Discussion
Electronic and Elastic Properties of LaCoO3
Prior to exploring the effect of strain on the electronic properties of bulk LaCoO3, it is necessary to first calculate the electronic structures with effective on-site coulomb-exchange interaction parameter Ueff varying from 1.0 to 4.6 eV. Figure 1 presents the calculated bandgap of bulk LaCoO3 (see Figure 2A) under different Ueff. It is found that the bulk LaCoO3 exhibits metallic properties for Ueff < 1.8 eV. And, with the Ueff increasing beyond 1.8 eV, the bandgap occurs. When Ueff value of 2.8 eV was employed, a bandgap of 0.441 eV was observed which is in good consonance with experimental results (; ; ). Therefore, we adopted the Ueff of 2.8 eV in the following discussions. As shown in Figure 2B, the degenerate 3d orbitals of the free Co atom are split into t2g and eg bands under the restriction of cubic symmetry of LaCoO3. The valence bands and the conduction bands are attributed to t2g and eg, respectively. This indicates that six d electrons of trivalent Co ion fully occupied t2g orbitals, agreeing well with non-magnetic ground states of LaCoO3 (). Besides, there is significant hybridization O-2p and Co-3d, suggesting a strong covalent bond between Co and O. The empty states at the energy of 4.0 eV above Fermi level are the La 4f states. The Bader charge analysis suggests that the calculated charge transfer of La is +2.071e, close to its formal charges of +3e. The charge transfer of Co and O atom is +1.355e and −1.142e, respectively. This deviation of the charge transfer from the corresponding formal charges +3e and −2e further confirms the covalent feature of Co–O bond. In our DFT analysis for the effect of strain on the spin arrangement of LaCoO3, the strain is achieved by equally changing lattice parameters along with a, b, and c directions. The strain is evaluated by γ = (as−a)/a×100%, where as and a are the lattice constants of strained and strain-free structure, respectively. The corresponding strain energy of LaCoO3 is defined as ΔE = Es−E, where Es and E denote the total energy of strained and strain-free structure, respectively. Figure 2C shows the curve of the strain energy ΔE of LaCoO3 versus γ. The minimum ΔE occurs at γ = 0, corresponding to the unstrained system.

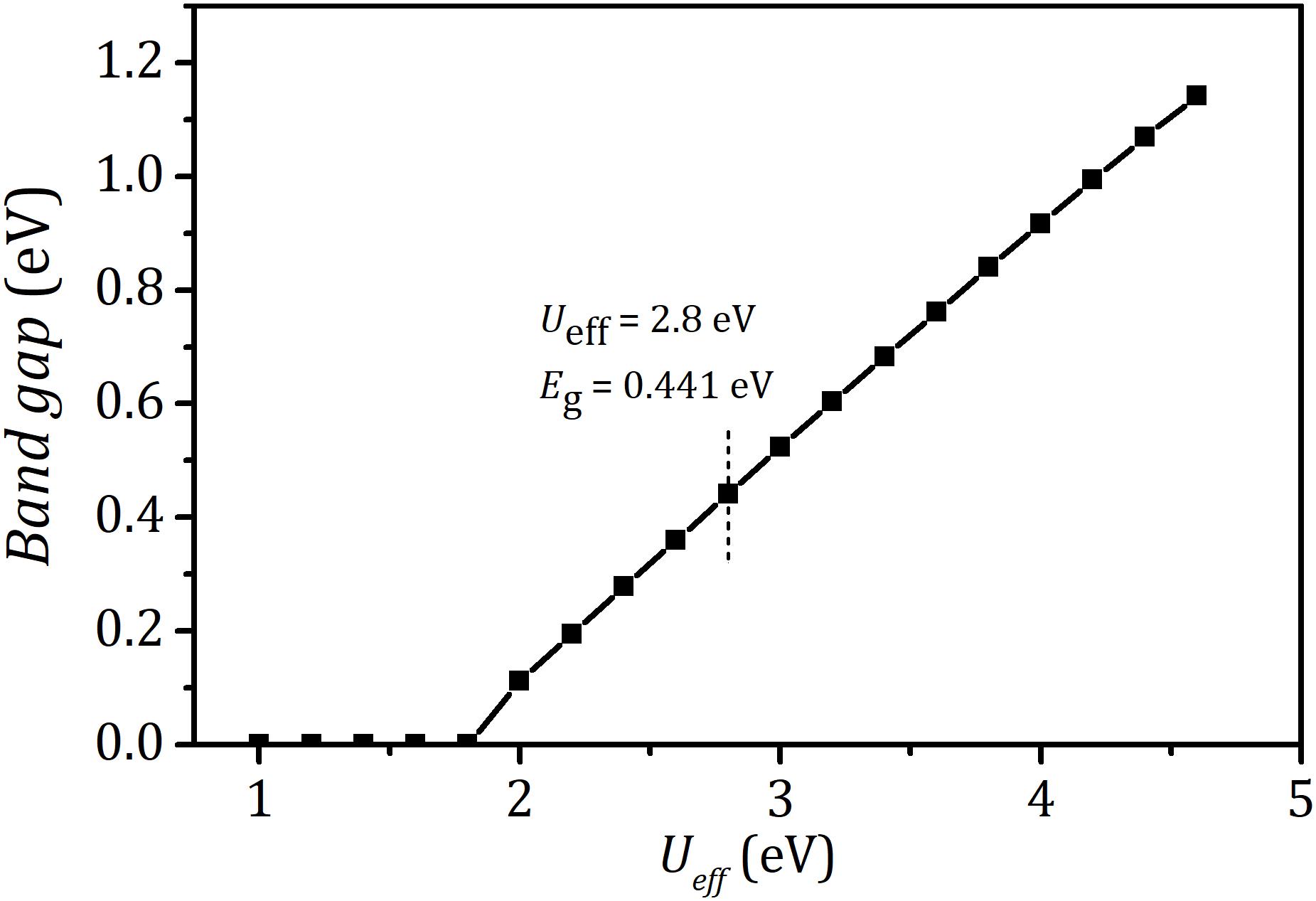

FIGURE 1

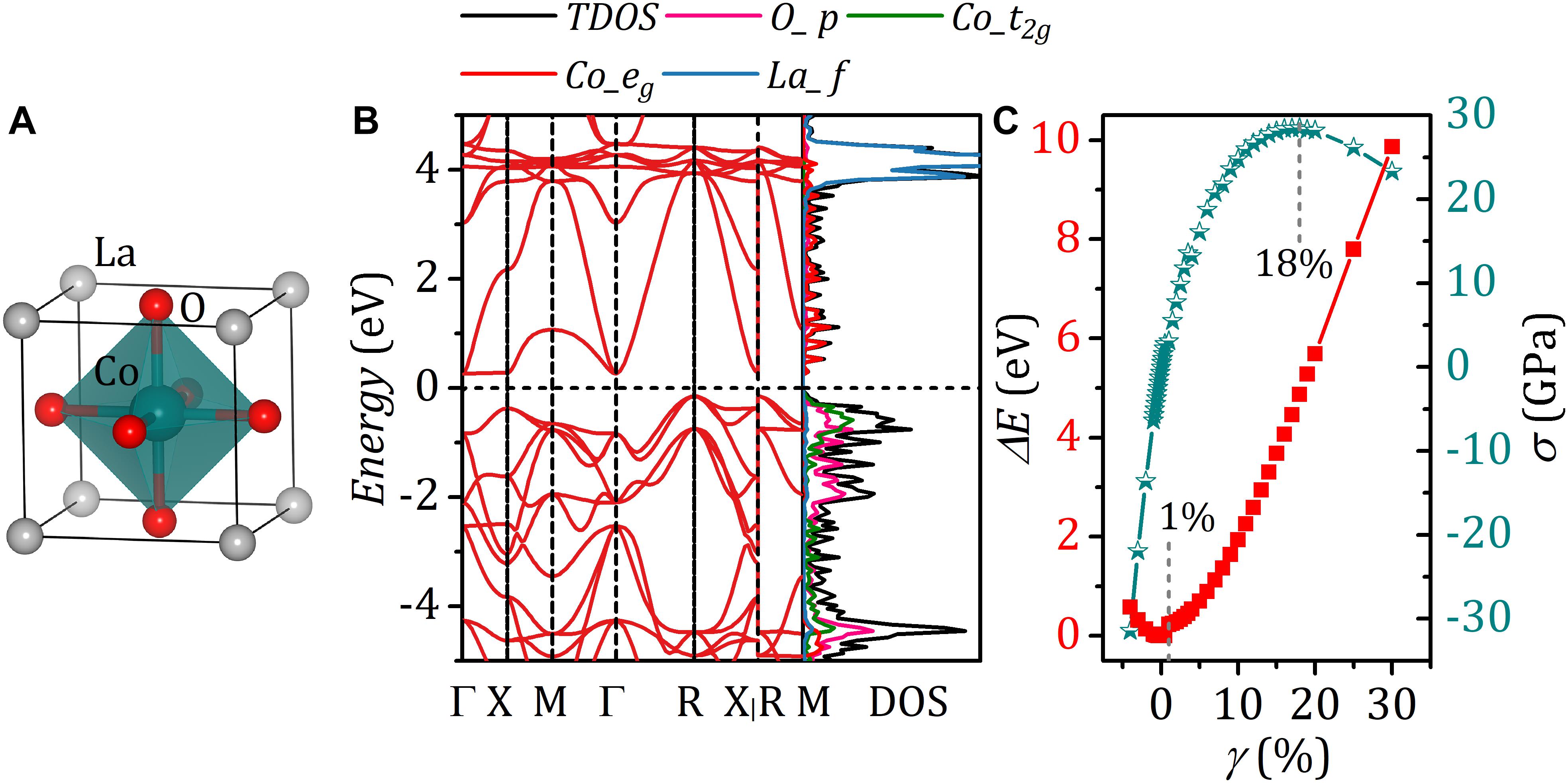

FIGURE 2
To assess the strain effect on electronic configurations within a reasonable strain range, we first determined the ultimate strain of LaCoO3 by calculating the strain–stress curve. It is evident that stress increases with strain and reaches a peak at 18%, as shown in Figure 2C. The ultimate strain of 18% suggests a good resistance to stress for LaCoO3, which makes it possible to synthesize multicomponent perovskites by partially substituting La or Co, reflecting the diversity of perovskite-type oxides (; ). When the strain becomes larger than ultimate strain, the system is subject to attack by vacancy defects or high-temperature effects, etc., and the consequent collapse of crystal structures (Topsakal et al., 2010; ).
Strain-Driven Spin-Arrangement Transition in LaCoO3
Magnetic behaviors of materials arise from its spin arrangement. The results for the magnetic moment localized at Co atom (MagCo) under various strain (γ) are shown in Figure 3A and Supplementary Tables S1, S2. The main feature of the curve is that MagCo exhibits step-like change with strain in the calculated range from γ = −4.0 to 30%, reflecting low, intermediate, and high spin configurations. For strained LaCoO3 with intermediate- and high-spin configurations, the magnetic moment of Co increases with strain. This positive correlation between magnetic moment and strain is a general behavior, which was observed in various materials (; ; Zhao et al., 2020b). Given the slight variation in the magnetic moment over each terrace, we take the average values over the corresponding strain range as the DFT calculated MagCo, listed in Table 1. From Figure 3A, for γ < 1.0%, system manifests non-magnetic behavior. As strain increases (γ ≥ 1.0%), LaCoO3 becomes ferromagnetic. Within γ = 1.0–4.0%, the values of MagCo maintain at around 1.406 μB. When γ ≥ 4.0%, the average MagCo is 2.561 μB. Owing to the dependence of magnetic moment on the Ueff parameter of the DFT+U method (; ), the calculated magnetic moments and actual magnetization values differ. Although a large Ueff value can be used to obtain the magnetic moment consistent with the experimental value, this would lead to the wrong estimation of the ground state energy (). To ensure the accuracy of results, we calculated the magnetic moments localized at Co atoms with Ueff = 3.0, 3.3, 3.5, 3.8, and 4.0 eV, for γ = 0.0, 2.0, and 8.0% (Supplementary Table S1). It is found that there is only a slight variation in the magnetic moment localized Co atom within the reasonable range of Ueff values (more information, see Supplementary Table S1), indicating the accuracy of our conclusion on the spin configuration transition. Furthermore, the previous theoretical investigation has shown that the strained LaCoO3 has an intermediate-spin and high-spin configuration at a strain of 3 and 11%, respectively, which is consistent with the results in this work ().

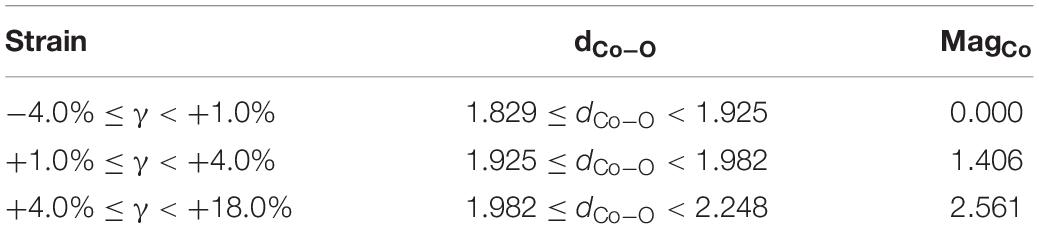

TABLE 1
| Strain | dCo–O | MagCo |
| −4.0%≤γ < + 1.0% | 1.829≤dCo−O < 1.925 | 0.000 |
| + 1.0%≤γ < + 4.0% | 1.925≤dCo−O < 1.982 | 1.406 |
| + 4.0%≤γ < + 18.0% | 1.982≤dCo−O < 2.248 | 2.561 |
Bond length, dCo–O in Å and magnetic moment localized at Co atom, MagCo in μB of LaCoO3.

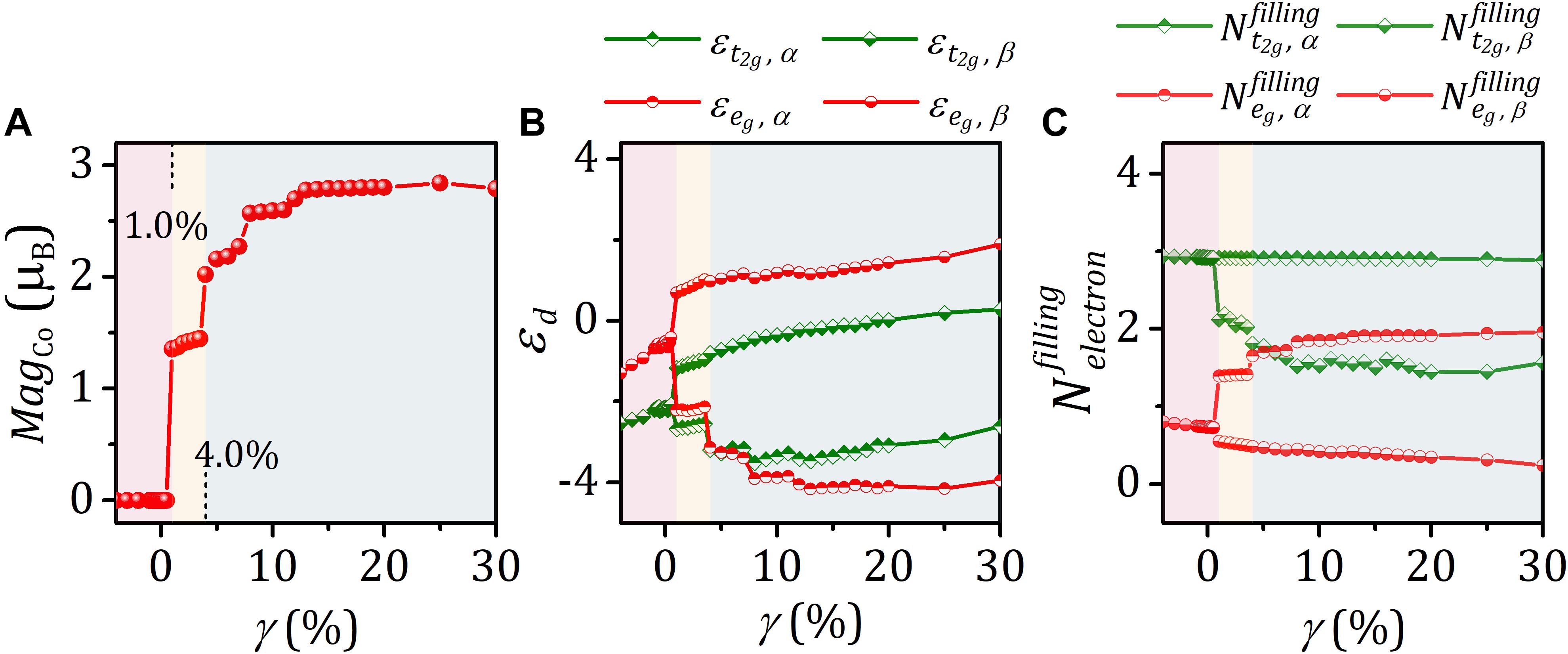

FIGURE 3
To seek the physical origin of the step-like dependence of MagCo on the strain, we analyze the electronic structures by calculating the d-band center and corresponding orbital occupancy (Figures 3B,C; for detailed data, see Supplementary Tables S2, S3). It is observed that t2g and eg bands are spin-degenerate for γ < 1.0% (Figure 3B). However, in the case of γ ≥ 1.0%, the spin degeneracy is lifted, and the degenerate d bands split into two bands. The corresponding spin splitting is estimated by the gap of d-band center between the majority α-spin and minority β-spin, presented in Figure 3B. The spin splitting increases with γ. As compared with the t2g band, the degree of spin splitting is significantly larger in eg, which is accompanied by the change of the octahedral field splitting. The octahedral field splitting is assessed by the gap of d-band center between the t2g and eg with same spin states. It is noted that the predominant change of the octahedral field split concentrates in majority α–spin d orbitals. The majority α–spin t2g and eg band centers show step-like descent as γ increases. Especially, the majority α–spin eg-band center becomes lower than the t2g-band center when γ ≥ 4.0%. This indicates the smallest octahedral field splitting occurs within γ ≥ 4.0% compared with that in γ < 1.0% and 1.0% ≤ γ < 4.0%. These changes of crystal field splitting and spin splitting would affect orbital occupancy and accordingly magnetic moment. The fundamental origin of the change of octahedral field splitting is the change of the electrostatic interaction between Co and O with different Co–O bond length (dCo–O). The low-spin, intermediate-spin, and high-spin configurations are in the range dCo–O < 1.925 Å, 1.925 Å ≤ dCo–O < 1.982 Å, and dCo–O ≥ 1.982 Å, respectively (Table 1).
We further quantify the d band-filling numbers by integrating the projected densities of states with respect to energy up to the Fermi level. , , , and were used to denote t2g and eg filling in different spin states. The corresponding data are listed in Supplementary Table S3. Figure 3C reveals that increases with strain. In contrast, the minority β-spin t2g bands exhibit a reverse filling trend. The rise of majority α–spin eg band-filling number results in the enhancement of magnetic moment and the transition of spin configuration. and under strain were observed to be roughly constant. This follows from 3d6 electron configuration of trivalent Co ion and the d-orbital splitting under the octahedral field. The projected density of states of Co atoms (Figures 4a–e) indicates that with strain increasing the minority β–spin t2g states shift upward with relative to Fermi level, whereas electrons gradually fill majority α–spin eg states. Based on the analysis of the octahedral field, spin splitting, and d-orbital filling, we obtained low-spin, intermediate-spin, and high-spin arrangements in the corresponding octahedral field, illustrated in Figures 4f–h.

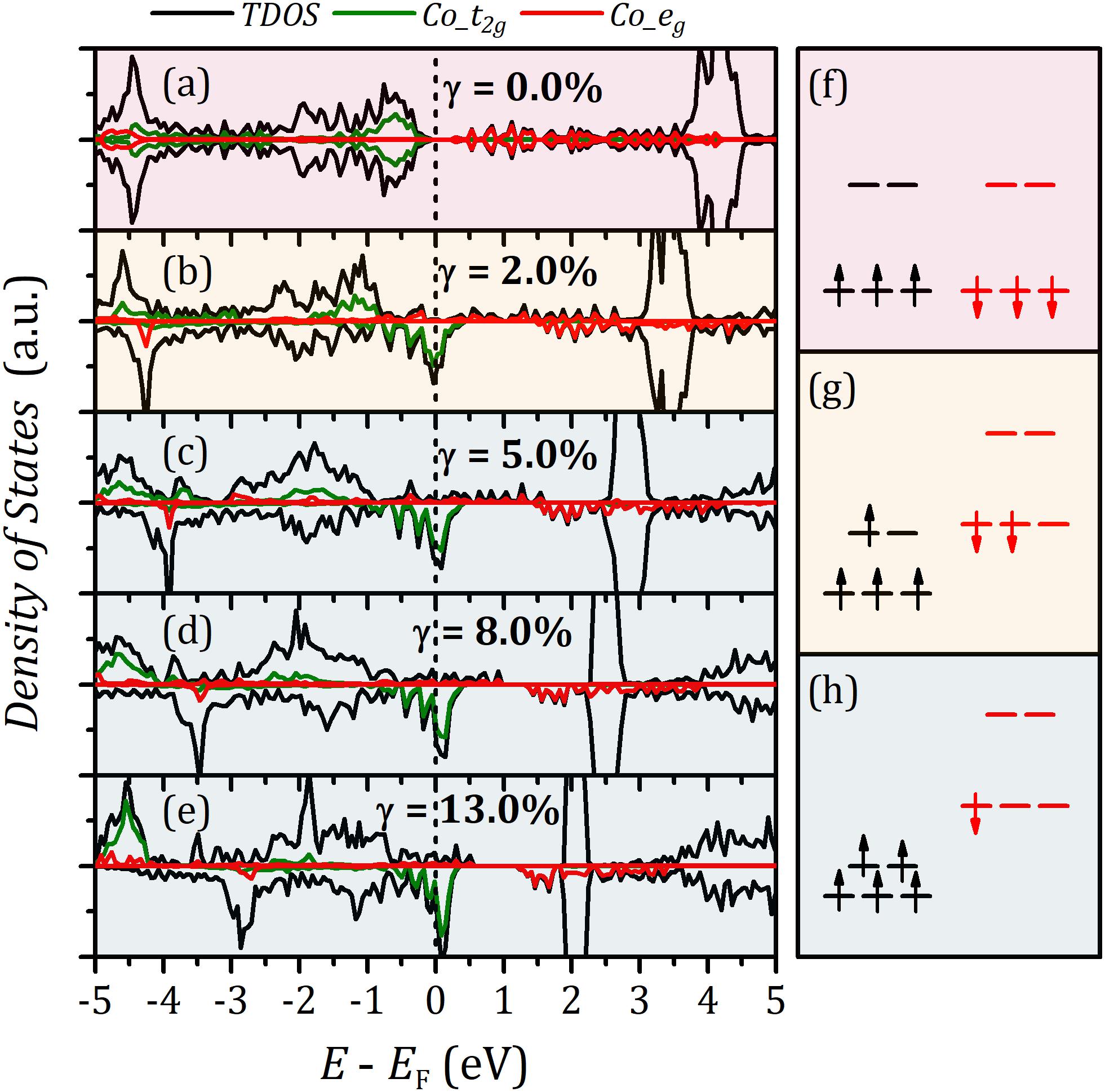

FIGURE 4
Effect of Ba Substitution in LaCoO3 on Magnetic Properties
Strain could be achieved through introduction of defect or epitaxial substrate, etc. To apply tensile strain in LaCoO3, we used Ba with a larger radius than La to partially replace La atom of LaCoO3 (Ba2+: 1.61 Å, La3+: 1.36 Å) (). Nine possible configurations were considered based on the Ba content and the locations of Ba atoms: La0.875Ba0.125CoO3 (Bac), La0.75Ba0.25CoO3 (Bac+b), La0.75Ba0.25CoO3 (Bac+f1, Bac+f2, Bac+e1, Bac+e2), La0.625Ba0.375CoO3 (Bac+f1+f3, Bac+b+f1), and La0.5Ba0.5CoO3(Bac+f1+f2+f3) (see Figure 5). Here, c, b, f, and e denote corner, body center, face center, and edge center sites, respectively. Bac, Bac+b, and Bac+f1+f2+f3 denote Ba occupying the dispersive La sites to form Ba uniform-distributed structures (Figure 5). Other Ba substitutional defects distributed unevenly instead. The Ba substitutions can be formed due to the small substitutional energies of −0.356, −1.076, −1.083, −1.418, −1.415, −0.766, −1.076, 0.402, and 0.071 eV. The overall substitutional energies manifest the stability of the structure, reflecting the possibility of substituted perovskite compounds with the formula of A1–xA′xB1–xB′xO3 (). In experiments, various R1–xAxCoO3 (R = La, Pr, and Nd; A = Ba, Sr, and Ca), with x ranging from 0 to 0.5, have been successfully synthesized (; ; ; ). For our investigated Ba substitution-modified LaCoO3, the charge transfer of Ba is +1.552 to +1.577e, close to its formal charges of +2e (Table 2). The charge transfer of La approaches to its formal charge (+3e) with a value of about +2.0 e.

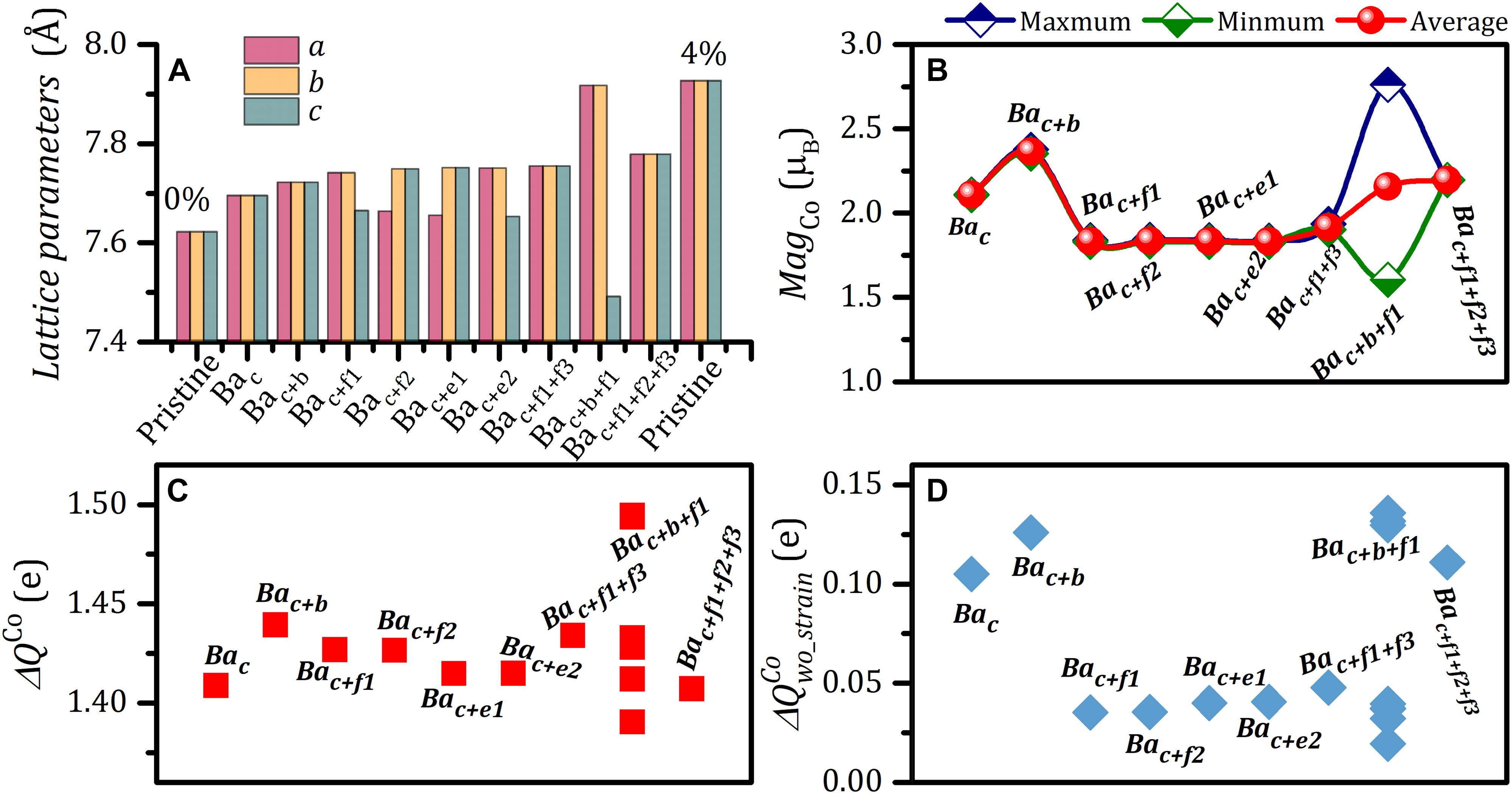

FIGURE 5

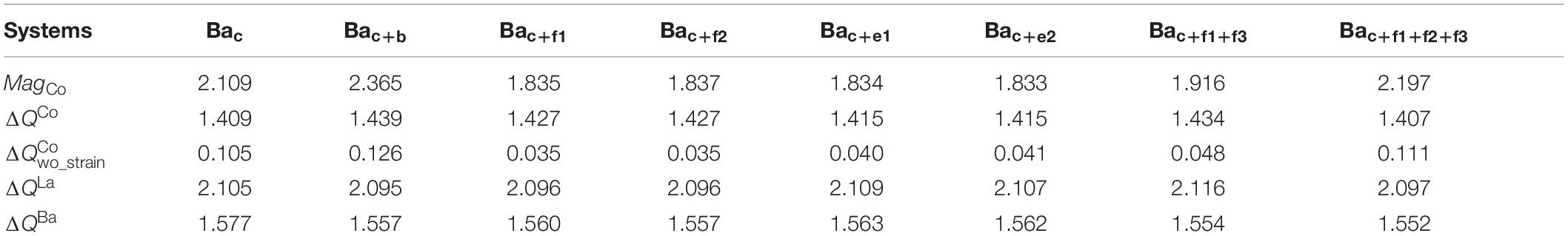

TABLE 2
| Systems | Bac | Bac+b | Bac+f1 | Bac+f2 | Bac+e1 | Bac+e2 | Bac+f1+f3 | Bac+f1+f2+f3 |
| MagCo | 2.109 | 2.365 | 1.835 | 1.837 | 1.834 | 1.833 | 1.916 | 2.197 |
| ΔQCo | 1.409 | 1.439 | 1.427 | 1.427 | 1.415 | 1.415 | 1.434 | 1.407 |
| 0.105 | 0.126 | 0.035 | 0.035 | 0.040 | 0.041 | 0.048 | 0.111 | |
| ΔQLa | 2.105 | 2.095 | 2.096 | 2.096 | 2.109 | 2.107 | 2.116 | 2.097 |
| ΔQBa | 1.577 | 1.557 | 1.560 | 1.557 | 1.563 | 1.562 | 1.554 | 1.552 |
The magnetic moment localized at Co atom, MagCo in μB, charge transfer of Co atom, ΔQCo, in e, and the charge transfer of La and Ba atom, ΔQLa, ΔQBa in e, for Bac, Bac+b, Bac+f1, Bac+f2, Bac+e1, Bac+e2, Bac+f1+f3, and Bac+f1+f2+f3 defective systems ( is the charge transfer of Co atom in defective LaCoO3 due to the difference of electronic configuration between Ba and La).
The consequence of the introduction of Ba substitution at La site causes the lattice expansions. In this work, the uniform distribution of Ba atoms promotes homogeneous elongation of lattice constants along with a, b, and c directions (Bac: as = bs = cs = 0.96%; Bac+b: as = bs = cs = 1.31%; Bac+f1+f3: as = bs = cs = 1.74%; Bac+f1+f2+f3: as = bs = cs = 2.05%) (Figure 6A). For the systems with uneven distributions of Ba atoms (Bac+f1, Bac+f2, Bac+e1, Bac+e2, and Bac+b+f1), especially Bac+b+f1, the structures derivate away from cubic symmetry (see Figure 6A), resulting in anisotropic physical properties of Co atoms. The lattice expansion-induced strain corresponds to the intermediate-spin strain range of defect-free LaCoO3 (1.0–4.0%) (Figure 6A). The corresponding magnetic moments of each Co atoms are listed in Table 2 and Supplementary Table S4. For Bac+b+f1 substitutional defect modified LaCoO3, the magnetic moments of Co atom are largely different, with an average value of 2.157 μb ranging from 1.606 to 2.761 μb (Supplementary Table S4 and Figure 6B). In the case of slight deviation from cubic structures (Bac+f1/f2/e1/e2), Co atoms have the same magnetic moments (Bac+f1: 1.834 μb; Bac+f2: 1.836 μb; Bac+e1: 1.834 μb; Bac+e2: 1.833 μb) (Figure 6B and Table 2). For the systems with uniform Ba distribution, Bac, Bac+b, Bac+f1+f3, and Bac+f1+f2+f3, eight Co atoms in each structure are equivalent and possess the same magnetic moment (Bac: 2.111 μb; Bac+b: 2.377 μb; Bac+f1+f3: 1.936 μb; Bac+f1+f2+f3: 2.197 μb). Although the strain induced by Ba introduction is within the strain range of intermediate spin of defect-free LaCoO3, the magnetic moments localized at Co atoms deviate from ∼1.5 μb of the intermediate spin structures.
FIGURE 6
To uncover the fundamental origin of the difference of magnetic moments between Ba-substituted LaCoO3 and defect-free intermediate-spin LaCoO3, we further analyze the charge states of Co atoms in Ba substitution modified LaCoO3. Figures 6C,D outline the total charge transfer of Co to adjacent O atoms, ΔQCo and the charge transfer of Co owing to the valence electronic configuration difference between Ba2+ and La3+, , excluding the charge change resulting from lattice relaxation. The total charge transfer of Co atoms varies from +1.40 to +1.45e, differing from the value in strain-free LaCoO3 (+1.335 e) (Figure 6C]. The Ba valence states indeed induced the variation in charge transfer of Co (Figure 6D). Specifically, for Bac, Bac+b, and Bac+f1+f2+f3 substitution modified LaCoO3, is 0.105, 0.126, and 0.111 e, respectively. As a comparison to these structures with uniform distribution of Ba atom, in the defective systems with Bac+f1, Bac+f2, Bac+e1, and Bac+e2 substitutions, dramatically decreases by 67–75% with values of 0.035–0.041e. It is a clear indication that the is proportional to MagCo (e.g., Bac+b: = 0.126e, MagCo = 2.365 μb; Bac+f1: = 0.035e, MagCo = 1.835 μb) (Figures 6B,D and Supplementary Figure S1). Correspondingly, for Bac+f1+f3 substitution modified LaCoO3, the small MagCo of 1.916 μb is accompanied by a small of 0.048 e. For Bac,f1/f2/e1/e2 and Bac+f1+f3, the extremely small of about 0.04e results in MagCo of ∼1.8 μb, which is well consistent with 1.5-μb magnetic moment of the pristine intermediate-spin configuration.
This effect of on MagCo is further verified by the results of Bac+b+f1 substitutional defect-modified LaCoO3. For example, the large on Co2, Co5, and Co8 in Bac+b+f1 substitution-modified LaCoO3 (upper case digits on Co represent the different Co sites; see Supplementary Figure S2 for details), are accompanied by large MagCo of 2.059, 2.757, and 2.758 μb (Supplementary Table S4). Meanwhile, the small MagCo of 1.781, 1.783, 1.606, and 1.752 μb are observed on Co1, Co4, Co6, and Co7 atoms associating with the corresponding small of 0.037, 0.040, 0.037, and 0.020e. However, Co3 atom in Bac+b+f1-modified LaCoO3 is an abnormal case. The magnetic moment localized at Co3 site is 2.761 μb despite the small of 0.032e. Further analysis suggests that the charge transfer of Co3 site, using the charge state of Co atom of pristine strain-free LaCoO3 as benchmark, is 0.036e, which is almost the same as . Therefore, the valence state of Ba dominates the charge transfer in Co3 site, eventually leads to large magnetic moment localized at Co3 site. Overall, the Ba substitutional defect-modified LaCoO3 possesses intermediate-spin configurations. The values of magnetic moments localized at Co atoms deviating from the 1.5 μb of pristine strained intermediate spin LaCoO3 results from the different electronic configurations between Ba and La. And, the degree of deviation depends on the magnitude of the charge transfer of Co atoms following from the different valence states between Ba and La.
The projected density of states of Co atom reveals that the systems with Bac, Bac+b, and Bac+f1+f2+f3 substitutional defect hold similar orbital occupations, which differs from Bac+f1+f3 substitution modified LaCoO3 (Figures 7A–D). The d-orbital filling exhibit that, for Bac+f1+f3, the minority β-spin t2g filling increases accompanied by reducing majority α–spin eg filling, compared with the defective LaCoO3 including Bac, Bac+b, and Bac+f1+f2+f3 substituents (Supplementary Figure S3), which contributes to the small magnetic moment. The defective systems with a small magnetic moment, Bac+f1, Bac+f2, Bac+e1, and Bac+e2, have similar d-orbital occupation as Bac+f1+f3 (Supplementary Figure S4). All these features of d-orbital occupation are found in different Co atoms of Bac+f1+f3 substitution modified LaCoO3 (Supplementary Figure S5). Ba substitutional defects induce a unit-like eg occupancy resulting in a moderate interaction between Co active center and oxygen-related adsorbates, which contributes to the reduction of the OER/ORR thermodynamic overpotential. Therefore, Ba substitution defect modified LaCoO3 is promising for oxygen redox catalytic reactions.

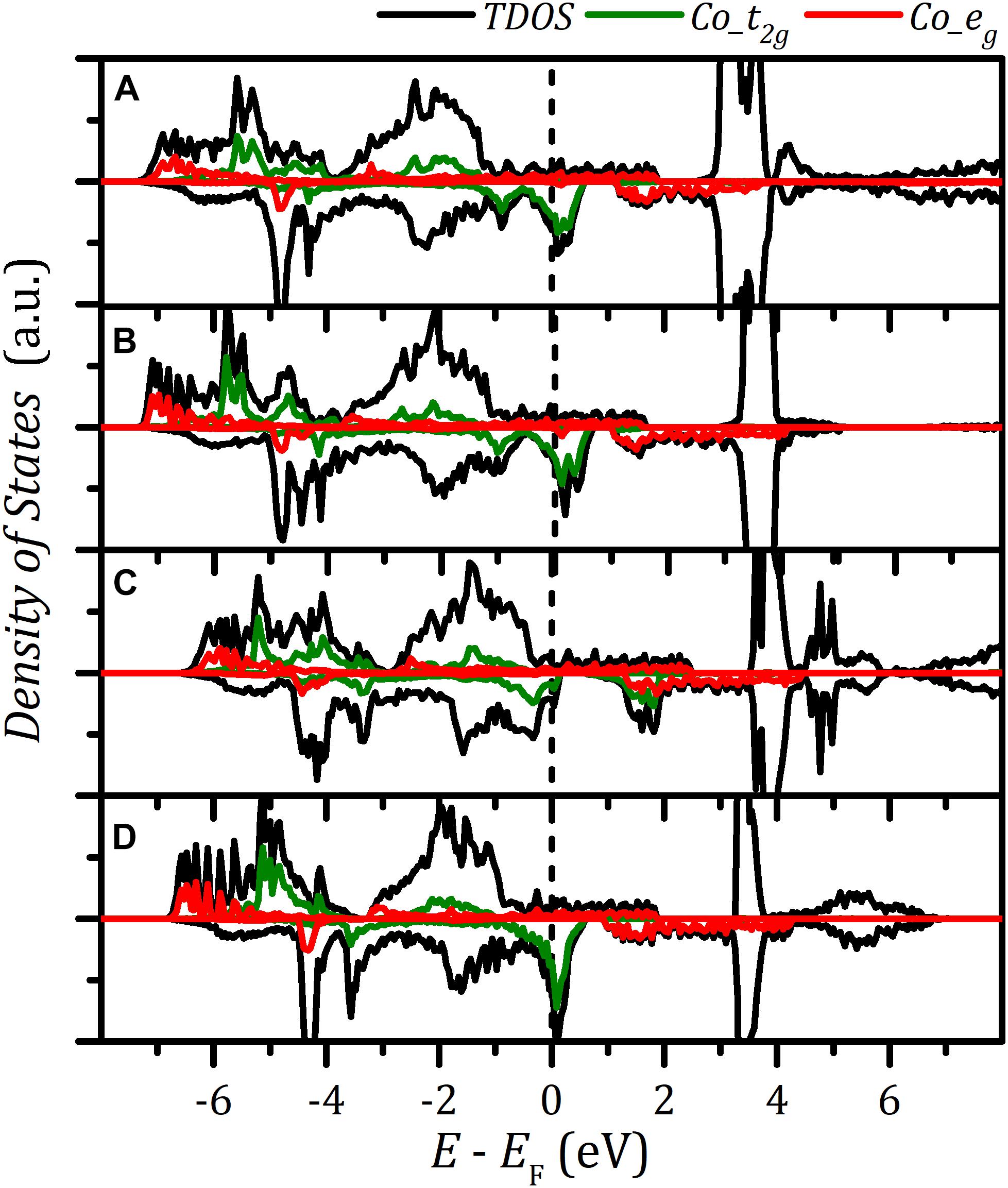

FIGURE 7
Conclusion
In summary, we explored the dependence of spin configurations on strain in LaCoO3 via DFT calculations. We found that strain by manipulation lattice constants can tune crystal field splitting and spin splitting, resulting in the transition of spin arrangement. The important eg unit occupancy was achieved via applying tri-axial uniform strain ranging from 1.0 to 4.0%. To achieve the strain effects practically, the substitution of La by Ba with larger ionic radius effectively introduces strain, leading to the unit-like occupancy of eg. Notably, there is larger magnetic moment localized at Co atom in Ba substitution modified LaCoO3 relative to the equivalent strained defect-free LaCoO3, due to the lower oxidation state of Ba than La. The response of spin configuration on strain induced by defect enables precise control of the unit occupancy of eg during the catalyst design process.
