Abstract
Environmental pollution and energy shortage make the development of clean energy more and more urgent. As a kind of clean renewable energy, hydrogen has attracted more attention recently. WO3-based materials have emerged as one of the most promising candidates for electrocatalytic hydrogen evolution reaction (HER) due to their attractive electrocatalytic activity, low cost, as well as electrochemical durability. In this minireview, we systematically provide an overview of WO3-based materials applied for HER, including pure WO3, doped WO3, and WO3-based composite materials. Furthermore, the strategies to enhance their electrocatalytic performance are summarized and discussed, such as morphological engineering, doping, as well as compositing with other materials. Finally, the limitation and challenges of WO3-based materials for HER and their prospects for future research are proposed. We believe that this minireview will be favorable for scientists to seek more promising HER electrocatalysts.
Introduction
Nowadays, the discovery and use of fossil fuels (such as coal and petroleum) have made great contributions to the development of human society (Wang Y. et al., 2018; ; ; ; Yu et al., 2020). However, the fast development of human society brought excessive emission of carbon dioxides and overuse of non-renewable resources, resulting in many serious problems, such as global warming, climate change, sharp decline in energy reserves, and so on (; Zhao et al., 2019; Wang W. et al., 2020; Zou et al., 2020). Recently, a series of renewable energy resources such as wind energy, solar energy, tidal energy, and hydropower have been intensively studied and emerged as alternatives for fossil fuels (; Liu G. et al., 2018). Meanwhile, electrochemical energy store (; ; Wang et al., 2019e; Wang R. et al., 2020; ; Yuan et al., 2019; ; ; ), electrocatalysis (; ; Wang et al., 2019c, Wang et al., 2019d; Xiao et al., 2019), and other new energy technologies have also developed rapidly in recent years (, ; Zhang et al., 2014, 2018; ; ; Zheng et al., 2020). It is worth noting that hydrogen fuel is of great concern because of its high energy density and abundant natural resources. Moreover, the product of hydrogen combustion is water, which is pollution-free and can effectively reduce the emission of greenhouse gases and toxic gases (Yu et al., 2019).
At present, the production of hydrogen by electrochemical water splitting has caught extensive attention because of its simple and flexible operation (Zou and Zhang, 2015). However, hydrogen production is hindered by the high overpotential of the hydrogen evolution reaction (HER) and the low hydrogen production rate (). Therefore, in order to overcome these defects and promote the production of H2, it is urgent to introduce efficient electrocatalysts. Platinum is acknowledgedly regarded as one of the best electrocatalysts for HER (); nevertheless, further application is limited by its high price. Therefore, it is necessary to explore proper non-noble metals for electrocatalytic hydrogen evolution.
As a transition metal oxide, tungsten oxide (WO3) is expected to be a hopeful candidate to substitute Pt as an electrocatalyst for efficient HER due to its outstanding redox capability, low cost, and high stability (; Wang et al., 2019b). Hence, more and more attention has been paid to investigating WO3-based materials for electrocatalytic HER. For example, reported an article about crumpled graphene/tungsten disulfide/tungsten trioxide with high electrocatalytic HER performance. And recently, reported unique highly dispersed Pt atom clusters on WO3@CFC (carbon fiber cloth) as superior electrocatalysts for HER. Furthermore, gave a comprehensive review on recent progress in WO3-based materials as photoanodes for water oxidation. However, to the best of our knowledge, a critical review that exclusively puts a spotlight on WO3-based materials for electrocatalytic HER has not been reported.
In this minireview, we will give a comprehensive description of WO3-based materials, mainly including stoichiometric WO3, non-stoichiometric WO3–x, doped WO3, and WO3-based composite materials with their application in the field of electrocatalytic HER in recent years. Their micro/nanostructures and electrocatalytic performances for HER are systematically summarized, as shown in Supplementary Table S1. Furthermore, we also present some rational proposals to facilitate breakthroughs in the future. We hope that this minireview could draw more attention to WO3-based electrocatalysts and boost their practical applications.
Nanostructured Tungsten Oxide
Stoichiometric WO3
In recent years, the electrocatalytic performances of WO3 have been greatly enhanced by utilizing nano/micrometer-sized WO3, mainly due to their high surface area to volume ratio. The nanostructured stoichiometric WO3 with different morphologies as electrocatalysts for HER includes nanorods (), nanowires (NWs) (), nanoplates (; ), nanoparticles (), and so on.
For example, developed a facile hydrothermal method to prepare monoclinic WO3 (m-WO3) nanoplates and nanorods (Supplementary Figures S1A,B). The cyclic voltammetry results show the decent stability of m-WO3 nanoplates and nanorods for HER (Supplementary Figures S1C,D). When they are tested at −0.2 V in 1 M H2SO4, m-WO3 nanoplates and nanorods shows cathodic current densities of 17.58 and 23.86 mA cm–2, respectively (Supplementary Figure S1E), and the Tafel slopes of m-WO3 nanoplates (122 mV dec–1) or nanorods (113 mV dec–1) are lower than those of commercial bulk m-WO3 (135 mV dec–1), indicating superior performances for HER (Supplementary Figure S1F). employed a novel microwave-assisted hydrothermal (MH) method to fabricate 1D hexagonal WO3 NWs (hex-WO3). The as-synthesized hex-WO3 samples display different morphology and sizes when the MH time was adjusted from 3 to 12 h (Supplementary Figures S2A–D). The specific activity for HER of hex-WO3 NWs fabricated by MH at −0.1 V is far higher than that of hex-WO3 NWs fabricated by conventional hydrothermal method (CH) and commercial WO3 (Supplementary Figure S2E). Furthermore, the Tafel slope and the exchange current density of hex-WO3 NWs by MH are 116 mV dec–1 and 6.61 mA cm–2, respectively, elucidating better electrocatalytic kinetics of hex-WO3 than those of commercial WO3 (157 mV dec–1 and 0.27 mA cm–2) (Supplementary Figure S2F). The performance enhancement of hex-WO3 NW samples can be attributed to their high aspect ratio and crystallinity.
Non-stoichiometric WOx<3
The performances of tungsten oxide can also be adjusted and controlled by defects in its architecture (; Zheng et al., 2017). Several oxygen-deficient WOx<3 nanomaterials have been reported to promote the electrocatalytic HER efficiencies, such as mesoporous WO2.83 (), WO3–x/Ni foam (NF) (Yi et al., 2018), and monoclinic WO3–x (). For instance, Zheng et al. (2017) synthesized two-dimensional WO3 nanosheets with rich O vacancies via a liquid exfoliation method. The structure of the O vacancies model was built based on WO3 (010) (√2 × √2) R45° slab with the surface of all terminal oxygen atoms as well as one bridging oxygen atom removed (Figure 1A). At 10 mA cm–2, the overpotential of as-synthesized sample is 38 mV and the Tafel slope is also 38 mV dec–1, which is close to the optimal performances of benchmarking electrochemical catalyst Pt/C (Figure 1B). Unique O vacancies were verified by density-functional-theory (DFT) calculation on WO3 to bring in gap states around the Fermi level, which obviously increased hydrogen absorption and reduced H2 adsorption free energy (ΔGH*) (Figure 1C).
FIGURE 1
Hetero-atom Doped WO3
Besides the method of introducing O vacancies in WO3, hetero-atom doping with a metallic element is also an efficient way to promote electron transfer and shorten proton diffusion paths.
In 2014, Xie et al. (2014) reported nanostructured Ta-doped WO3 as an efficient electrocatalyst for HER. The as-prepared Ta-doped WO3 NWs show excellent performance. Later, metallic element doping in WO3 for electrocatalytic HER was further developed, and the mechanism was demonstrated by . They prepared Mn-doped WO3 and V-doped WO3 via the hydrothermal route, and the particle sizes are 50–70 and 20–30 nm, respectively (Figure 1D). The electrochemical results indicate that the V-doped WO3 (3 wt.% denoted as VW-S2) exhibits the optimal performance for HER. The overpotential of VW-S2 at 10 mA cm–2 is 38 mV versus the reversible hydrogen electrode (RHE) (Figure 1E). Moreover, the Tafel slope is 41 mV per decade, which is lower than that of Mn-doped WO3 (MW-S2) (68 mV dec–1) and undoped WO3 (121 mV dec–1), close to the benchmarking Pt/C (32 mV dec–1) (Figure 1G). Additionally, the value of free energy ΔGH* under the circumstances shown in Figure 1F is ideal (0.08 eV at Ob sites), which gains significant reduction (Figure 1H). DFT calculation indicates that band gap reduction in WO3 is on account of V doping, resulting in great conductivity, and the high HER activity could be ascribed to the V element bonding with terminal oxygen in the lattice of WO3.
WO3-Based Binary Composites
To further enhance electrocatalytic properties for HER, WO3 has been composited with other materials, such as carbon (Wondimu et al., 2018a, b), metals (; ), and metal-based compounds (Yang et al., 2016; ).
WO3/Carbon Composites
Carbon materials are often utilized as conductive materials due to their superior electronic conductivity and outstanding chemical durability (Wu et al., 2019). Hence, compositing WO3 with carbon materials is an efficient way to improve the HER performances (Wondimu et al., 2018a, b; ). For example, Wondimu et al. (2018a) developed novel electrocatalyst tungsten oxide NWs with rich O vacancies supported by nitrogen doped-reduced graphene oxide (N-rGO) (denoted as WOxNWs/N-rGO), which exhibits better HER performance than Fe-WOxP/rGO approaching to Pt/C. The overpotential as well as the Tafel slope are only 40 mV at 10 mA cm–2 and 38.2 mV dec–1, respectively, which are close to the state-of-the-art Pt/C. The superior performance could be mainly put down to O vacancies and the network between the WOxNWs and N-rGO.
Not only could the rGO assist the WO3-based materials to be more excellent and efficient, but also other carbon materials could increase the conductivity and further enhance the electrocatalytic properties for HER, such as WO3/C (Zheng and Mathe, 2011), WO3/Carbon nanotube (CNT) (), and WO3–x@nitrogen-doped carbon (NC) (). More details on the electrocatalytic performances could be found in Supplementary Table S1.
WO3/Metal-Based Material Composites
Besides carbon materials, construction of WO3 with metal and metal-based materials is regarded as another effective way to enhance the charge transfer and promote the synergistic effect between them (Wang et al., 2019a, b). Up to now, many metal-based materials have been composited with WO3, such as Pt (; ), Ag (), WX2 (X = S) (Yang et al., 2016; ), Se (), and Al2O3 (Zou et al., 2019). For instance, Yang et al. (2016)in situ synthesized WO3⋅2H2O/WS2 hybrid electrocatalyst for HER with superior electrocatalytic properties through a facile anodizing treatment. Furthermore, to minimize the use of precious metals, fabricated an effective low-Pt electrocatalyst with high oxygen vacancies in WO3@CFC (carbon fiber cloth) denoted as Pt/def-WO3@CFC. Firstly, the WO3 nanoplates were grown on carbon fiber cloth through a hydrothermal method, followed by heat treatment under the atmosphere of 5 vol.% H2 and 95 vol.% Ar to produce O vacancies on WO3. And the Pt/def-WO3@CFC was obtained after Pt nanoclusters dispersed on the defect of WO3 via thermal reduction (Figure 2A). The lattice fringe spacing are 0.374 and 0.365 nm, corresponding to the (002) and (020) planes of WO3, respectively (Figure 2B). And the spherical aberration-corrected high-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) image shows that the number of O vacancies is relatively low (Figure 2C). But after the loading of Pt, an obvious decrease in intensity is seen with a reduction in the electron spin resonance (ESR) peak, indicating the substitution of O vacancies by Pt clusters. The HER performance shows a Tafel slope of 61 mV dec–1 and an overpotential of 42 mV at 10 mA cm–2 in 0.5 M H2SO4 (Figure 2D), which are comparable to those of the state-of-the-art commercial Pt/C catalyst (η10 = 34 mV, Tafel slope = 46 mV dec–1). And it is worthy to mention that the activity of low-Pt catalyst Pt/def-WO3@CFC is 3.3 times that of commercial Pt/C, which could be attributed to the synergistic effect between the Pt and defective WO3 (Figure 2D). Pt atoms are tightly tied in the position of O vacancies, hindering their aggregation or growing during the period of hydrogen evolution, which definitely reveals the significant functions of defect-rich nanostructures (; Zhu et al., 2019).

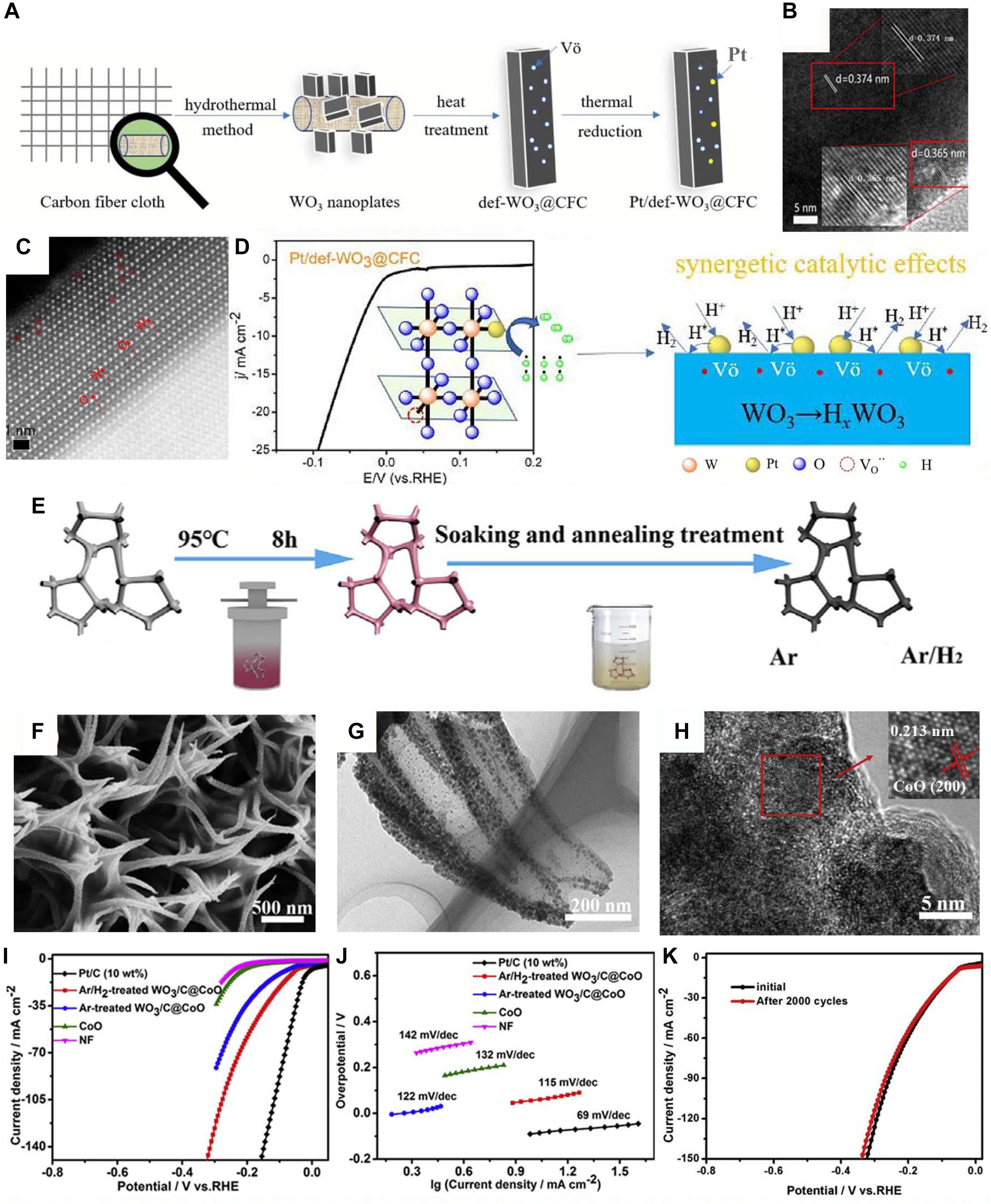

FIGURE 2
Others
Besides the above mentioned, there are still some WO3-based composite electrocatalysts with enhanced HER performance. The electrocatalyst SiO2/WO3–x nanofacets calcined in situ at 500°C for 5 h (denote as 500-5) by exhibits an overpotential of 170 mV owing to the interaction between them. And nano-zeolite with 3 wt.% WO3 prepared via the work of Anis and Hashaikeh (2018) is also a promising candidate for HER with a lower Tafel slope of 31.9 mV dec–1 due to the high surface areas and decent durability brought by zeolites. However, their specific mechanisms need deep insight on the assistance of DFT calculation.
WO3-Based Ternary Composites
Recently, WO3-based ternary composite electrocatalysts for HER receive more and more attention due to the great synergy effect between the components (; ). For instance, synthesized WO3/C@CoO on NF observed as octopus tentacles via facile hydrothermal treatment as well as following thermal treatment. As shown in Figure 2E, a CoO NWs precursor grows on NF after hydrothermal treatment. The SEM and TEM images (Figures 2F–H) showed the morphology of the WO3/C@CoO nanostructure. When it is measured as an electrocatalyst for HER, the overpotential at 10 mA cm–2 is tested as 55 mV (Figure 2I). The Tafel slope is 115 mV–dec–1 (Figure 2J), which is smaller than that of argon-treated WO3/C@CoO/NF (122 mV dec–1) and CoO NWs (132 mV dec–1). And the outstanding HER stability is still maintained after 2,000 cycles (Figure 2K). The excellent electrocatalytic performance is mainly due to the distinctive structure and robust synergistic effect among WO3, CoO, and NF. Another ternary CoSe2/WSe2/WO3 hybrid NWs on carbon cloth (CC) were synthesized by . The high performance indicates the significant functions of unique nanostructure and strong synergistic effects, which prompts Ar/H2-treated WO3/C@CoO/NF and CoSe2/WSe2/WO3 NWs/CC to become remarkable electrocatalysts for HER ().
Conclusion and Outlooks
In summary, we briefly review the recent developments of WO3-based materials for electrocatalytic HER. The essential synthetic methods and processes, various nanostructures, and robust performances are generally discussed. From these studies, it is clear that the strategies mentioned above are useful and meaningful for optimizing the electrocatalytic performance of WO3. However, we should recognize that the practical application of WO3-based electrocatalysts for HER is still in early stage and is facing many challenges. First, the majority of works are focusing on the nanostructure morphology and electrocatalytic performances, but the understanding of mechanism is not seriously taken. Second, the latest modern characterization techniques, such as in situ X-ray technique, in situ electron microscopy, and in situ scanning probe technology, should be well used to explore the working mechanisms. Third, DFT calculation is also an efficient way for us to gain insight into the nanostructure–composition–performance relationships, which may be important in the development of catalysts in the future. In addition, among these recent advances, the electrocatalysts introduced O vacancies that almost exhibit outstanding performances close to those of the benchmarking Pt/C. Decent electrical conductivity, appropriate Gibbs free energy ΔGH*, and large active surface areas will possibly render the introduction of O vacancies as a promising strategy and the orientation for better HER process. Last, the electrocatalytic stability should also be seriously considered. We hope this minireview will be helpful and will inspire more innovative ideas for WO3-based or even transition metal oxide materials as electrocatalysts for HER.
Statements
Author contributions
YL, WZ, and SW conceived the idea. YXL and XZ wrote the draft. All authors contributed to the writing, discussion, and revision of the final version of the manuscript.
Funding
This work was supported by Nature Science Foundation of Guangdong Province (No. 2018A030313779). This work was also supported by the Program for Changjiang Scholars and Innovative Research Team in University (IRT_16R21), the Chinese 02 Special Fund (2017ZX02408003), the Scientific and Technological Project of Henan Province (182102210297), Open Fund of National Joint Engineering Research Center for abrasion control and molding of metal materials (HKDNM201807), Scientific Research Starting Foundation for Ph.D. of Henan University of Science and Technology (13480065), Science Foundation for Youths of Henan University of Science and Technology (2013QN006), and the Student Research Training Plan of Henan University of Science and Technology (2019031).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmats.2020.00105/full#supplementary-material
References
1
AnisS. F.HashaikehR. (2018). Electrochemical water splitting using nano-zeolite Y supported tungsten oxide electrocatalysts.J. Nanopart. Res.20:47. 10.1007/s11051-018-4153-2
2
ChandrasekaranS.ZhangP.PengF.BowenC.HuoJ.DengL. (2019). Tailoring the geometric and electronic structure of tungsten oxide with manganese or vanadium doping toward highly efficient electrochemical and photoelectrochemical water splitting.J. Mater. Chem. A76161–6172. 10.1039/c8ta12238e
3
ChekinF.BagheriS.Abd HamidS. B. (2013). Synthesis of tungsten oxide nanorods by the controlling precipitation reaction: application for hydrogen evolution reaction on a wo3 nanorods/carbon nanotubes composite film modified electrode.J. Chin. Chem. Soc.60447–451. 10.1002/jccs.201200298
4
ChenH.LiuJ.LiuP.WangY.XiaoH.YangQ.et al (2019a). Carbon-confined magnesium hydride nano-lamellae for catalytic hydrogenation of carbon dioxide to lower olefins.J. Catal.379121–128. 10.1016/j.jcat.2019.09.022
5
ChenH.LiuP.LiJ.WangY.SheC.LiuJ.et al (2019b). MgH2/CuxO Hydrogen Storage Composite with Defect-Rich Surfaces for Carbon Dioxide Hydrogenation.ACS Appl. Mater. Interf.1131009–31017. 10.1021/acsami.9b11285
6
ChenJ.YangH.SangX.SuZ.LiD.WangQ. (2018). Oxygen vacancy rich tungsten oxide with nitrogen doped mesoporous carbon as matrix for overall water splitting and 4-nitrophenol reductive removal.Solid State Sci.8323–30. 10.1016/j.solidstatesciences.2018.06.010
7
ChenY.RenR.WenZ.CiS.ChangJ.MaoS.et al (2018). Superior electrocatalysis for hydrogen evolution with crumpled graphene/tungstendisulfide/tungsten trioxide ternary nanohybrids.Nano Energy4766–73. 10.1016/j.nanoen.2018.02.023
8
ChengH.KlapprothM.SagaltchikA.LiS.ThomasA. (2018). Ordered mesoporous WO2.83: selective reduction synthesis, exceptional localized surface plasmon resonance and enhanced hydrogen evolution reaction activity.J. Mater. Chem. A62249–2256. 10.1039/c7ta09579a
9
ChengN.ZhaoJ.FanL.LiuZ.ChenS.DingH.et al (2019). Sb-MOFs derived Sb nanoparticles@porous carbon for high performance potassium-ion batteries anode.Chem. Commun.5512511–12514. 10.1039/c9cc06561j
10
ChoudharyR.PatraS.MadhuriR.SharmaP. K. (2017). Cow Dung Derived PdNPs@WO3 Porous Carbon Nanodiscs as Trifunctional Catalysts for Design of Zinc-Air batteries and overall water splitting.ACS Sustain. Chem. Eng.59735–9748. 10.1021/acssuschemeng.7b01541
11
DuH.KongR.-M.GuoX.QuF.LiJ. (2018). Recent progress in transition metal phosphides with enhanced electrocatalysis for hydrogen evolution.Nanoscale1021617–21624. 10.1039/c8nr07891b
12
FominskiV. Y.GrigorievS. N.RomanovR. I.VolosovaM. A.GruninA. I.TeterinaG. D. (2016). The formation of a hybrid structure from tungsten selenide and oxide plates for a hydrogen-evolution electrocatalyst.Technic. Phys. Lett.42555–558. 10.1134/s1063785016060055
13
GanesanR.GedankenA. (2008). Synthesis of WO(3) nanoparticles using a biopolymer as a template for electrocatalytic hydrogen evolution.Nanotechnology19025702–025702. 10.1088/0957-4484/19/02/025702
14
GuoX.ZhangY.-Z.ZhangF.LiQ.AnjumD. H.LiangH.et al (2019). A novel strategy for the synthesis of highly stable ternary SiOx composites for Li-ion-battery anodes.J. Mater. Chem. A715969–15974. 10.1039/c9ta04062e
15
HamD. J.PhuruangratA.ThongtemS.LeeJ. S. (2010). Hydrothermal synthesis of monoclinic WO3 nanoplates and nanorods used as an electrocatalyst for hydrogen evolution reactions from water.Chem. Eng. J.165365–369. 10.1016/j.cej.2010.09.00
16
HaoX.ZhaoQ.SuS.ZhangS.MaJ.ShenL.et al (2019). Constructing multifunctional interphase between Li1.4Al0.4Ti1.6(PO4)(3) and Li Metal by magnetron sputtering for highly stable solid-state lithium metal batteries.Adv. Energy Mater.9:1901604. 10.1002/aenm.201901604
17
HuG.LiJ.LiuP.ZhuX.LiX.AliR. N.et al (2019). Enhanced electrocatalytic activity of WO3@NPRGO composite in a hydrogen evolution reaction.Appl. Surf. Sci.463275–282. 10.1016/j.apsusc.2018.08.227
18
HuW.-H.HanG.-Q.DongB.LiuC.-G. (2015). Facile Synthesis of Highly Dispersed WO3 center dot H2O and WO3 nanoplates for electrocatalytic hydrogen evolution.J. Nanomater.2015:346086. 10.1155/2015/346086
19
HuangJ.YueP.WangL.SheH.WangQ. (2019). A review on tungsten-trioxide-based photoanodes for water oxidation.Chin. J. Catalysis401408–1420. 10.1016/S1872-2067(19)63399-1
20
KetpangK.KimM.KimS.ShanmugamS. (2013). High performance catalyst for electrochemical hydrogen evolution reaction based on SiO2/WO3-x nanofacets.Int. J. Hydrogen Energy389732–9740. 10.1016/j.ijhydene.2013.05.112
21
LeiY.WangY.LiuY.SongC.LiQ.WangD.et al (2020). Realizing the atomic active center for hydrogen evolution electrocatalysts.Angewandte Chem.10.1002/anie.201914647[Epub ahead of print].
22
LiM.FengW.WangX. (2020). Complex hollow structures of Cobalt(II) sulfide as a cathode for Lithium-Sulfur batteries.Int. J. Electrochem. Sci.15526–534. 10.20964/2020.01.77
23
LiW.HuZ.-Y.ZhangZ.WeiP.ZhangJ.PuZ.et al (2019). Nano-single crystal coalesced PtCu nanospheres as robust bifunctional catalyst for hydrogen evolution and oxygen reduction reactions.J. Catalysis375164–170. 10.1016/j.jcat.2019.05.031
24
LiY.XuY.LiuY.PangH. (2019). Exposing {001} Crystal Plane on Hexagonal Ni-MOF with Surface-Grown Cross-Linked Mesh-structures for electrochemical energy storage.Small157317–7321. 10.1002/smll.201902463
25
LiuG.CuiJ.LuoR.LiuY.HuangX.WuN.et al (2019). 2D MoS2 grown on biomass-based hollow carbon fibers for energy storage.Appl. Surf. Sci.469854–863. 10.1016/j.apsusc.2018.11.067
26
LiuY.WangH.YangK.YangY.MaJ.PanK.et al (2019). Enhanced electrochemical performance of Sb2O3 as an Anode for Lithium-Ion batteries by a stable cross-linked binder.Appl. Sci. Basel9:2677. 10.3390/app9132677
27
LiuG.LiM.WuN.CuiL.HuangX.LiuX.et al (2018). Single-crystalline particles: an effective way to Ameliorate the Intragranular cracking, thermal stability, and capacity fading of the LiNi0.6Co0.2Mn0.2O2 Electrodes.J. Electrochem. Soc.165A3040–A3047. 10.1149/2.0491813jes
28
LiuG. L.WuH. H.MengQ. Q.ZhangT.SunD.JinX. Y.et al (2020). Role of the anatase/TiO2(B) heterointerface for ultrastable high-rate lithium and sodium energy storage performance.Nanoscale Horizons5150–162. 10.1039/c9nh00402e
29
LvY.LiuY.ChenC.WangT.ZhangM. (2018a). Octopus tentacles-like WO3/C@CoO as high property and long life-time electrocatalyst for hydrogen evolution reaction.Electrochim. Acta2811–8. 10.1016/j.electacta.2018.05.145
30
LvY.LiuY.LiuY.ChenZ.ZhangM. (2018b). CoSe2/WSe2/WO3 hybrid nanowires on carbon cloth for efficient hydrogen evolution reaction.J. Alloys Compounds768889–895. 10.1016/j.jallcom.2018.07.285
31
MaJ.MaZ.LiuB.WangS.MaR.WangC. (2019). Composition of Ag-WO3 core-shell nanostructures as efficient electrocatalysts for hydrogen evolution reaction.J. Solid State Chem.271246–252. 10.1016/j.jssc.2018.12.020
32
MaJ.RenF.WangG.XiongY.LiY.WenJ. (2017). Electrochemical performance of melt-spinning Al-Mg-Sn based anode alloys.Int. J. Hydrogen Energy4211654–11661. 10.1016/j.ijhydene.2017.02.185
33
MaJ.WenJ.LiQ.ZhangQ. (2013). Electrochemical polarization and corrosion behavior of Al-Zn-In based alloy in acidity and alkalinity solutions.Int. J. Hydrogen Energy3814896–14902. 10.1016/j.ijhydene.2013.09.046
34
MaJ. L.ZhangY.QinC. H.RenF. Z.WangG. X. (2020). Effects of polystyrene sulfonate/graphene and Mn3O4/graphene on property of aluminum(zinc)-air batteries.Int. J. Hydrogen Energy45, 13025–13034. 10.1016/j.ijhydene.2020.02.222
35
NayakA. K.VermaM.SohnY.DeshpandeP. A.PradhanD. (2017). Highly active Tungsten Oxide nanoplate electrocatalysts for the hydrogen evolution reaction in acidic and near neutral electrolytes.ACS Omega27039–7047. 10.1021/acsomega.7b01151
36
PengT.HouX.LiuC.YuQ.LuoR.YanH.et al (2017). Controlled synthesis of hierarchical CoMn2O4 nanostructures for flexible all-solid-state battery-type electrodes.J. Solid State Electrochem.211579–1587. 10.1007/s10008-017-3516-4
37
PhuruangratA.HamD. J.HongS. J.ThongtemS.LeeJ. S. (2010). Synthesis of hexagonal WO3 nanowires by microwave-assisted hydrothermal method and their electrocatalytic activities for hydrogen evolution reaction.J. Mater. Chem.201683–1690. 10.1039/b918783a
38
RoyerS.DuprezD.CanF.CourtoisX.Batiot-DupeyratC.LaassiriS.et al (2014). Perovskites as substitutes of noble metals for heterogeneous catalysis: dream or reality.Chem. Rev.11410292–10368. 10.1021/cr500032a
39
ShangX.RaoY.LuS.-S.DongB.ZhangL.-M.LiuX.-H.et al (2017). Novel WS2/WO3 heterostructured nanosheets as efficient electrocatalyst for hydrogen evolution reaction.Mater. Chem. Phys.197123–128. 10.1016/j.matchemphys.2017.05.027
40
SharmaL.KumarP.HalderA. (2019). Phase and vacancy modulation in tungsten oxide: electrochemical hydrogen evolution.Chemelectrochem63420–3428. 10.1002/celc.201900666
41
SongC.FengW.WangX.ShiZ. (2020). Enhanced electrochemical performance of Li1.2Mn0.54Ni0.13Co0.13O2 cathode material with bamboo essential oil.Ionics26661–672. 10.1007/s11581-019-03233-9
42
SuiD.XuL.ZhangH.SunZ.KanB.MaY.et al (2020). A 3D cross-linked graphene-based honeycomb carbon composite with excellent confinement effect of organic cathode material for lithium-ion batteries.Carbon157656–662. 10.1016/j.carbon.2019.10.106
43
TianH.CuiX.ZengL.SuL.SongY.ShiJ. (2019). Oxygen vacancy-assisted hydrogen evolution reaction of the Pt/WO3 electrocatalyst.J. Mater. Chem. A76285–6293. 10.1039/c8ta12219a
44
WangF.LiuY.ZhaoY.WangY.WangZ.ZhangW.et al (2018). Facile Synthesis of Two-Dimensional Porous MgCo2O4 Nanosheets as Anode for Lithium-Ion batteries.Appl. Sci.8:22. 10.3390/app8010022
45
WangY.WangZ.LeiD.LvW.ZhaoQ.NiB.et al (2018). Spherical Li Deposited inside 3D Cu skeleton as anode with ultrastable performance.ACS Appl. Mater. Interf.1020244–20249. 10.1021/acsami.8b04881
46
WangG.ChenY.ChenC.KangX.YangC.WangF.et al (2019a). Self-stabilized and strong-Adhesive Supramolecular polymer protective layer enables ultrahigh-rate and large-capacity Lithium-Metal Anode.Angewandte Chemie592055–2060. 10.1002/anie.201913351
47
WangG.XiongX.ZouP.FuX.LinZ.LiY.et al (2019b). Lithiated zinc oxide nanorod arrays on copper current collectors for robust Li metal anodes.Chem. Eng. J.378:122243. 10.1016/j.cej.2019.122243
48
WangJ.XiaoX.LiuY.PanK.PangH.WeiS. (2019c). The application of CeO2-based materials in electrocatalysis.J. Mater. Chem. A717675–17702. 10.1039/c9ta04804a
49
WangP.PuZ.LiW.ZhuJ.ZhangC.ZhaoY.et al (2019d). Coupling NiSe2-Ni2P heterostructure nanowrinkles for highly efficient overall water splitting.J. Catalysis377600–608. 10.1016/j.jcat.2019.08.005
50
WangX.YangC.XiongX.ChenG.HuangM.WangJ.-H.et al (2019e). A robust sulfur host with dual lithium polysulfide immobilization mechanism for long cycle life and high capacity Li-S batteries.Energy Storage Mater.16344–353. 10.1016/j.ensm.2018.06.015
51
WangR.CaoX.ZhaoD.ZhuL.XieL.LiuJ.et al (2020). Wet-chemistry synthesis of Li4Ti5O12 as anode materials rendering high-rate Li-ion storage.Int. J. Energy Res.444211–4223. 10.1002/er.5020
52
WangW.SunK.LiuH. (2020). Effects of different aluminum sources on morphologies and properties of ceramic floor tiles from red mud.Construct. Build. Mater.241:118119. 10.1016/j.conbuildmat.2020.118119
53
WondimuT. H.ChenG.-C.ChenH.-Y.KabtamuD. M.BayehA. W.WangK.-C.et al (2018a). High catalytic activity of oxygen- vacancy- rich tungsten oxide nanowires supported by nitrogendoped reduced graphene oxide for the hydrogen evolution reaction.J. Mater. Chem. A619767–19774. 10.1039/c8ta07000h
54
WondimuT. H.ChenG.-C.KabtamuD. M.ChenH.-Y.BayehA. W.HuangH.-C.et al (2018b). Highly efficient and durable phosphine reduced iron-doped tungsten oxide/reduced graphene oxide nanocomposites for the hydrogen evolution reaction.Int. J. Hydrog. Energy436481–6490. 10.1016/j.ijhydene.2018.02.080
55
WuN.ShenJ.SunL.YuanM.ShaoY.MaJ.et al (2019). Hierarchical N-doped graphene coated 1D cobalt oxide microrods for robust and fast lithium storage at elevated temperature.Electrochim. Acta31070–77. 10.1016/j.electacta.2019.04.115
56
XiaoX.ZhangG.XuY.ZhangH.GuoX.LiuY.et al (2019). A new strategy for the controllable growth of MOF@PBA architectures.J. Mater. Chem. A717266–17271. 10.1039/c9ta05409j
57
XieX.MuW.LiX.WeiH.JianY.YuQ.et al (2014). Incorporation of tantalum ions enhances the electrocatalytic activity of hexagonal WO3 nanowires for hydrogen evolution reaction.Electrochim. Acta134201–208. 10.1016/j.electacta.2014.04.122
58
YangL.ZhuX.XiongS.WuX.ShanY.ChuP. K. (2016). Synergistic WO3 center dot 2H(2)O Nanoplates/WS2 Hybrid catalysts for high-efficiency hydrogen evolution.ACS Appl. Mater. Interf.813966–13972. 10.1021/acsami.6b04045
59
YiL.ZhiC.YongkangL.TaihongW.ZhangM. (2018). Oxygen vacancy improves the hydrogen evolution reaction property of WO3-x nanosheets.Nano Struct. Nano Obj.15114–118. 10.1016/j.nanoso.2017.08.017
60
YuM.YinZ.YanG.WangZ.GuoH.LiG.et al (2020). Synergy of interlayer expansion and capacitive contribution promoting sodium ion storage in S, N-Doped mesoporous carbon nanofiber.J. Power Sources449:227514. 10.1016/j.jpowsour.2019.227514
61
YuP.WangF.ShifaT. A.ZhanX.LouX.XiaF.et al (2019). Earth abundant materials beyond transition metal dichalcogenides: a focus on electrocatalyzing hydrogen evolution reaction.Nano Energy58244–276. 10.1016/j.nanoen.2019.01.017
62
YuanM.GuoX.LiuY.PangH. (2019). Si-based materials derived from biomass: synthesis and applications in electrochemical energy storage.J. Mater. Chem. A722123–22147. 10.1039/c9ta06934h
63
ZhangD.YanH.LuY.QiuK.WangC.ZhangY.et al (2014). NiCo2O4 nanostructure materials: morphology control and electrochemical energy storage.Dalton Trans.4315887–15897. 10.1039/c4dt02276a
64
ZhangD.ZhangY.LuoY.ZhangY.LiX.YuX.et al (2018). High-performance asymmetrical supercapacitor composed of rGO-enveloped nickel phosphite hollow spheres and N/S co-doped rGO aerogel.Nano Res.111651–1663. 10.1007/s12274-017-1780-3
65
ZhaoQ.HaoX.SuS.MaJ.HuY.LiuY.et al (2019). Expanded-graphite embedded in lithium metal as dendrite-free anode of lithium metal batteries.J. Mater. Chem. A715871–15879. 10.1039/c9ta04240g
66
ZhengH.MatheM. (2011). Hydrogen evolution reaction on single crystal WO(3)/C nanoparticles supported on carbon in acid and alkaline solution.Int. J. Hydrogen Energy361960–1964. 10.1016/j.ijhydene.2010.11.052
67
ZhengT.SangW.HeZ.WeiQ.ChenB.LiH.et al (2017). Conductive Tungsten oxide nanosheets for highly efficient hydrogen evolution.Nano Lett.177968–7973. 10.1021/acs.nanolett.7b04430
68
ZhengZ.LiP.HuangJ.LiuH.ZaoY.HuZ.et al (2020). High performance columnar-like Fe2O3@carbon composite anode via yolk@shell structural design.J. Energy Chem.41126–134. 10.1016/j.jechem.2019.05.009
69
ZhuY.ZhangZ.LiW.LeiZ.ChengN.TanY.et al (2019). Highly exposed active sites of defect-Enriched Derived MOFs for Enhanced Oxygen reduction reaction.ACS Sustain. Chem. Eng.717855–17862. 10.1021/acssuschemeng.9b04380
70
ZouP.LinZ.FanM.WangF.LiuY.XiongX. (2020). Facile and efficient fabrication of Li3PO4-coated Ni-rich cathode for high-performance lithium-ion battery.Appl. Surf. Sci.504:144506. 10.1016/j.apsusc.2019.144506
71
ZouX.ZhangY. (2015). Noble metal-free hydrogen evolution catalysts for water splitting.Chem. Soc. Rev.445148–5180. 10.1039/c4cs00448e
72
ZouY.XiS.BoT.ZhouX.MaJ.YangX.et al (2019). Mesoporous amorphous Al2O3/crystalline WO3 heterophase hybrids for electrocatalysis and gas sensing applications.J. Mater. Chem. A721874–21883. 10.1039/c9ta08633a
