Abstract
Using nanoscience to solve the issues that limit the development of a sustainable society is one of the most important topics at present. Sustainable polymers play an important role in the construction of a sustainable society, but its large-scale application is usually limited by the poor mechanical and shape-memory properties of the commonly used epoxy resin. The utilization of nanoarchitectures to improve the shape-memory performance of composite materials is an effective approach. Graphene, among the used reinforcement materials for epoxy resin, is undoubtedly a fascinating example. In this paper, the shape-memory and mechanical properties of graphene-modified epoxy resins are described respectively for different response types. In this mini-review, we present an overview of the research results of graphene nanoarchitectonics in the modification of shape-memory epoxy resin composites. Besides, this paper has reviewed the properties of different types of graphene/epoxy composites, looking forward to the development of graphene/epoxy composites and future prospects.
Introduction
A sustainable polymer is a kind of material that can change shape and recover under certain conditions, such as heat, light, water, pH, and other external stimuli (; ). Shape-memory characteristics have broad application prospects in aerospace, biomedical, and other fields (; ; ). Among the sustainable polymer series materials, epoxy (EP) resin has attracted considerable attention both scholarly and popularly due to their excellent shape-memory properties, thermal properties, and mechanical properties ().
Related researches pointed out that the interaction between nanoparticles and polymer matrix can accelerate the movement of molecular chains, improving the shape-memory performance of materials (). Graphene has been considered as an irreplaceable reinforcing material because of its special structure and excellent properties and has great application value in the field of composite modification. introduced graphene into EP–cyanate ester nanocomposites, and the results confirmed that graphene could promote the shape recovery of EP cyanate nanocomposites. It should be noted that the doped size, surface modification, and dispersion of graphene as a filler will have a significant impact on the performance of composite materials (). For instance, functionalized graphene (FG) can obtain good bonding with the matrix, thereby enhancing the role of graphene as reinforcing filler (). A novel slippery film with tunable wettability based on a shape-memory graphene sponge was presented by . The shape-memory polymer was coated on the surface of porous graphene sponge, which was used to lock in inert lubricant and to construct a smooth surface to achieve good hydrophobicity. The superelasticity, high strength, and good conductivity of graphene sponge endow graphene/polymer hybrid films with good shape-memory properties. In fact, in addition to graphene, its derivatives, such as graphene oxide (GO) and thermally reduced graphene, are often used as fillers to modify composite materials (). At present, the use of graphene to modify shape-memory EP resins to prepare shape-memory graphene/EP resin composites with better shape-memory and mechanical properties has been widely investigated by scholars. Table 1 shows the literature summary of graphene-modified shape-memory EP resin. It can be seen from the table that different doping processes and dosage can improve the mechanical properties of shape-memory EP resin to a different extent. For different types of shape-memory EP resin, different graphene content can change its recovery performance correspondingly.

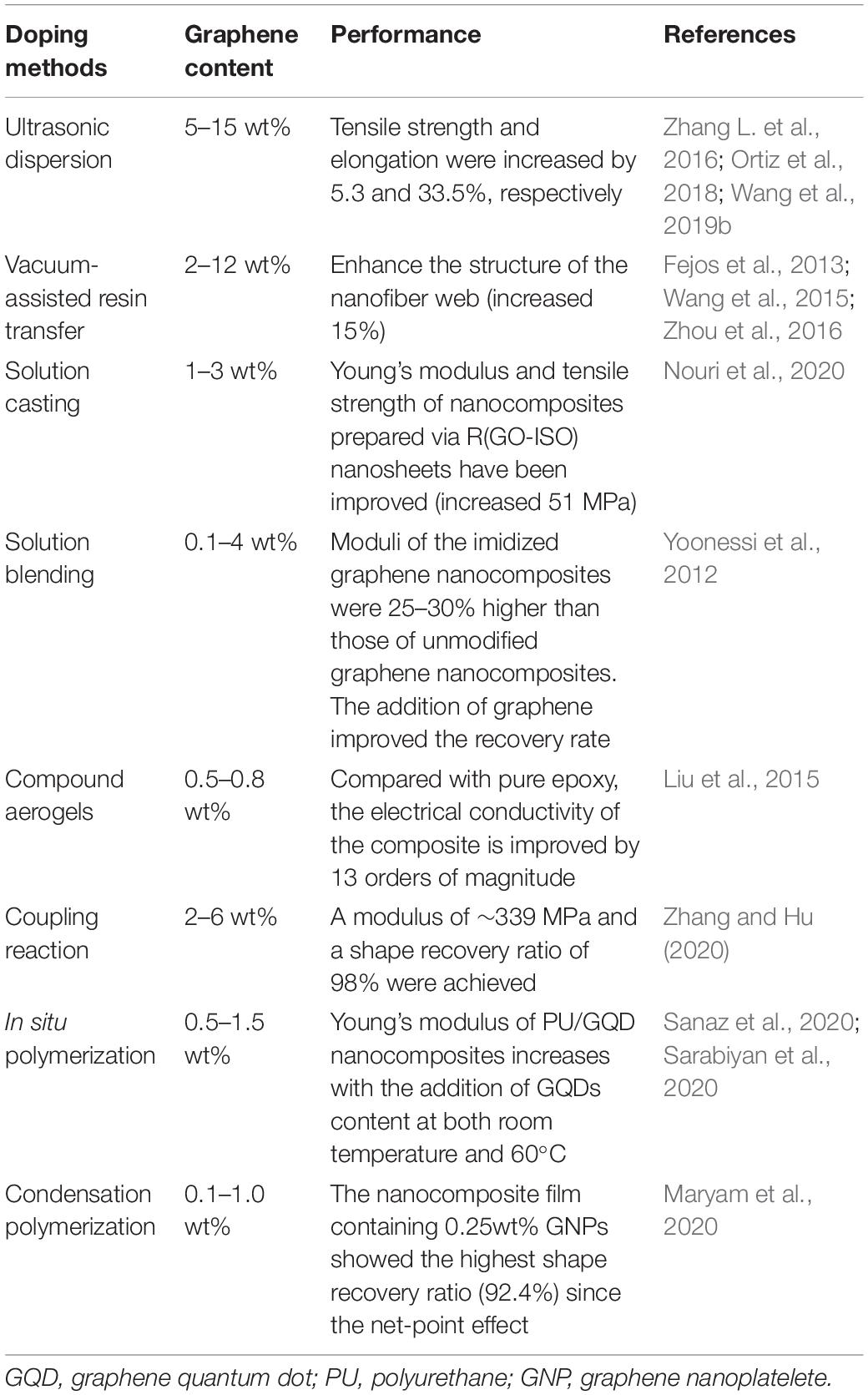

TABLE 1
| Doping methods | Graphene content | Performance | References |
| Ultrasonic dispersion | 5–15 wt% | Tensile strength and elongation were increased by 5.3 and 33.5%, respectively | ; ; |
| Vacuum-assisted resin transfer | 2–12 wt% | Enhance the structure of the nanofiber web (increased 15%) | ; ; |
| Solution casting | 1–3 wt% | Young’s modulus and tensile strength of nanocomposites prepared via R(GO-ISO) nanosheets have been improved (increased 51 MPa) | |
| Solution blending | 0.1–4 wt% | Moduli of the imidized graphene nanocomposites were 25–30% higher than those of unmodified graphene nanocomposites. The addition of graphene improved the recovery rate | |
| Compound aerogels | 0.5–0.8 wt% | Compared with pure epoxy, the electrical conductivity of the composite is improved by 13 orders of magnitude | |
| Coupling reaction | 2–6 wt% | A modulus of ∼339 MPa and a shape recovery ratio of 98% were achieved | |
| In situ polymerization | 0.5–1.5 wt% | Young’s modulus of PU/GQD nanocomposites increases with the addition of GQDs content at both room temperature and 60°C | ; |
| Condensation polymerization | 0.1–1.0 wt% | The nanocomposite film containing 0.25wt% GNPs showed the highest shape recovery ratio (92.4%) since the net-point effect |
Overview of shape-memory and mechanical properties of widely used graphene.
GQD, graphene quantum dot; PU, polyurethane; GNP, graphene nanoplatelete.
In this article, we summarized the recent developments of graphene nanoarchitectonics in a reinforcement of shape-memory polymers under various external stimuli like thermal, electrical, and other stimulations and discussed the problems of graphene in limiting the application of composites (Figure 1).
FIGURE 1
Thermo-Active Graphene/Epoxy Composites
Thermo-induced shape-memory materials are the most widely studied type of shape-memory polymers. The shape-memory EP can be divided into the stationary phase and reversible phase, in which the stationary phase is used for shape-memory and recovery. When the temperature rises above the glass transition temperature (Tg), the material can deform under the effect of external load, and the reversible phase molecular chain is frozen when cooled, to obtain a stable morphology. When the temperature rises above Tg again, the reversible phase molecular chain recovers its activity and releases the stored strain energy, and the material returns to its original state gradually under the recovery of the stationary phase (; ).
Recently, studies have shown that carbon nanomaterials can improve the thermally activated shape-memory properties of materials (; ). prepared a photocurable shape-memory EP/thiol-ene/graphene nanoplatelete (GNP) composites that can be cured by light. By increasing the concentration of GNP and polythioethers in the co-network, the thermal conductivity increases almost linearly. According to the experimental data, the thermal conductivity of the sample with a concentration of polythioether (40% mol) and graphene (15 wt%) reaches the maximum, which is 0.39 W/m K. They also studied the shape-memory properties of the material, and the results showed that samples with 10% of GNP at all thiol-ene concentrations presented the best results in both shape recovery and shape fixity value, which was in the range of 95–99%. Meanwhile, the experimental results also found that the presence of soft domains (such as polythioethers) in the cross-linked co-network helps to enhance the shape-memory characteristics of GNP nanocomposites. GO/waterborne EP shape-memory composites were prepared by . In the experiments, they found that as the content of GO increases, the storage modulus of the material increases. The study showed that the addition of GO would improve the shape recovery rate and fixation rate of shape-memory EP materials and would increase the thermal response speed. Also, compared with pure WEP, the mechanical properties of the material have also improved. Subsequently, they also prepared GO/carbon nanotube (CNT)/WEP ternary hybrid polymeric shape-memory composites. The results show that GO and CNT show excellent synergistic enhancement effects in many aspects.
To solve the brittleness of the EP resin matrix, used polyurethane (PU)/EP interpenetrating polymer network material as the matrix and introduced FG to prepare PU/FG/EP composites. The experimental results show that the FG has a strong binding force with the matrix. When 0.8 wt% FG was added, the tensile strength and elongation at break of the material were increased by 5.3 and 33.5%, respectively, and with the increase of FG load, the shape-memory property was enhanced continuously. When the FG content is 1.0 wt%, the values of shape fixity and shape recovery reach maximum, which are 96 and 94%, respectively. With the increasing of FG load, the shape-memory performance of the material decreased. This may be due to the agglomeration of high-content graphene and the interference of the increasing of graphene content on the fluidity of polymer in slender nanofibers. Other researchers have found similar phenomena (; ; ). Graphene agglomeration is the result of van der Waals forces. Many processes have been proven to help avoid filler agglomeration and improve the dispersion of graphene ().
In addition to the dual shape-memory effect, the triple-shape-memory composite materials have also attracted great interest from researchers. Triple-shape-memory polymers refer to shape-memory polymers capable of memorizing two temporary shapes in one shape-memory cycle (; ; ). used graphene nanosheets to reinforce polycaprolactone (PCL) nanofiber webs and then infiltrated EP into nanofiber webs by vacuum-assisted resin transfer molding to prepare triple-shape-memory EP/PCL system. The experimental results show that graphene filling can effectively enhance the structure of the nanofiber web, but it will also destroy the shape-memory properties of the PCL phase.
Electro-Active Graphene/Epoxy Composites
Thermal-active shape-memory polymer materials are limited by the direct heating temperature when excited, whereas electro-active shape-memory polymer is motivated by applying voltage, so it is more convenient to use than thermal-active shape-memory polymer materials (; ). Electromechanical shape-memory polymers use Joule heat generated by electrical current to trigger the shape-memory effect. However, due to the insulating properties of most polymers, researchers have introduced graphene into shape-memory material systems and improved the electrical conductivity of materials by building conductive paths to improve the electro-active shape-memory effect (; ; ).
prepared three-dimensional PU-based graphene foam/EP/CNT (PGEC) shape-memory composites using shape-memory EP as a matrix, PU sponges as the stent, and graphene and CNTs as a conductive network. The conductivity of materials with different graphene contents is not the same. As the graphene content increases, a three-dimensional graphene network structure is gradually formed, and the electrical conductivity of the material is sharply increased. When the graphene content is 12 wt%, the average conductivity of the material reaches 3.33 S/m. A shape recovery test was performed on a PGEC composite containing 8% graphene and 3% CNTs. It was found that the shape fixation rate of the material was 98%. At 100 V, the sample almost restored its original shape in 150 s, with the shape recovery rate reaching 96%. prepared a reduced GO paper/EP-based shape-memory composite by using a resin transfer molding method to coat shape-memory-reduced GO paper on the surface of a shape-memory EP resin. Bending experiments tested the shape-memory performance of the material, and the surface temperature was detected with an infrared imager. The experimental results showed that when the voltage of 6 V is applied, the material is heated uniformly and can reach 98% shape recovery rate within 5 s. CNTs and graphene compound aerogels were prepared first, and then, nano-aerogel/shape-memory EP composites were obtained by impregnation with monomer EP resin by . Compared with pure EP, the electrical conductivity of the composite is improved by 13 orders of magnitude, reaching a maximum of 5.2 S/m. In the shape-memory performance test, there was a shape recovery process of the compound aerogel (the weight ratio of CNTs to graphene is 3:5)/EP resin composite at 60 V. In the first 20 s, the recovery rate was only 0.5 degrees per second; subsequently, it gradually increased to 2.1 degrees per second. Finally, in the last 30 s, the recovery rate decreased to about 0 degrees, due to most of the stress released at an early stage.
Other Types of Graphene/Epoxy Composites
Shape-memory materials that can be remotely and wirelessly driven have broad application prospects in space engineering, which has attracted widespread attention. Microwave-active shape-memory material is one of them. Microwaves can trigger this kind of shape-memory materials because the dipoles in the materials are oriented and polarized under the action of microwaves. During the deformation process, there will be friction loss and heat generation during the excitation of the microwave-responsive shape-memory material (; ). However, the microwave absorption capacity of general shape-memory materials is very low, so it is necessary to introduce enhanced absorbing fillers to improve the orientation polarization performance (; ; ).
prepared shape-memory nanocomposites using EP-based shape-memory polymer (ESMP) as the matrix. This shape-memory nanomaterial is filled with zero-dimensional carbon black, one-dimensional multiwalled CNTs (MWCNT-COOH), two-dimensional graphene nanosheets (GNPs), and three-dimensional functional graphene sheets (FGSs). The nanofiller content was 2.15 wt% in all nanocomposites. The results of microwave heating experiments showed that GNP/ESMP nanocomposites heat the fastest under the same microwave power. In the shape-memory test, the shape fixation rate of the four nanocomposites was above 97% under 60 W microwave radiation. Except for MWCNT-COOH/ESMP nanometers, the shape recovery rate of other composite materials can reach 100% in 10-min microwave heating, and the FGS/ESMP nanocomposite material requires the shortest time, only 250 ± 15 s. This is because FGS/ESMP nanocomposites have the fastest heating speed.
In addition to microwave-active shape-memory materials, photo/thermal-active shape-memory material is also one of the materials that facilitate remote driving (; ; ; ). Photo/thermal actuators are made by doping fillers in a photo/thermal-active shape-memory polymer matrix (; ). prepared bisphenol A diglycidyl ether-functionalized GO (DGEBA-f-GO)-based PU/EP nanocomposites, and the photo/thermal behavior and shape-memory of the performance of the material were investigated. The research results show that with the increase of the content of DGEBA-f-GO, the shape recovery performance of the material under the driving of infrared laser is continuously improved. The shape recovery rate of 2.0 wt% DGEBA-f-GO reaches 98%, and the DGEBA-f-GO nanocomposites still exhibit good shape-memory performance after repeated cycles.
Conclusion
In summary, recent researches on graphene/EP composites have brought up a great deal of government and social attention and support. The research results showed that graphene/EP composite material is an intelligent material with important application potential. In addition to its excellent shape-memory function, it also has the characteristics of high strength, wide adjustable range of stiffness, and easy processing and forming. However, the current research on shape-memory graphene/EP composites also has many problems that need to be solved:
- •
The content of graphene has a great influence on the shape-memory performance of the material. Improper content of graphene can agglomerate in the shape-memory materials, and the aggregation of graphene significantly reduces the strengthening effect of graphene. Therefore, improving the dispersibility of graphene in EP resin and the interface compatibility of shape-memory composites is still a technical problem that needs to be urgently solved.
- •
To accurately realize the specific deformation of the shape-memory polymer structure in practical applications, according to the special properties of the shape-memory composite material, the thickness dimension of the shape-memory graphene/EP resin should be limited. In the design of the shape-memory material structure, to prevent the fiber-reinforced material from falling off the resin matrix due to the irrational dimensional structure when the structure is deformed, it is necessary to limit the parameters such as outer size, thickness, and bending radius. Therefore, the application range of shape-memory composites will inevitably be affected.
- •
At present, the researches on shape-memory graphene/EP resin only focus on the static properties of the material. The dynamic changes of parameters such as glass transition temperature, elastic modulus, and thermal expansion coefficient caused by the preparation method and the graphene doping process are ignored. Also, the temperature change rate and temperature decrease rate in the preparation process may also have a certain effect on the memory performance of the material. Therefore, studying the properties of composite materials under dynamic conditions is also a problem that researchers need to solve.
Shape-memory graphene/EP composites still have a broad development space. If the previously discussed problems can be effectively solved, the application of shape-memory graphene/EP composites will be more extensive in the future.
Statements
Author contributions
LC and YZ produced and wrote the manuscript. LC and WL edited the manuscript. LC and ZL edited the manuscript and supervised. All authors read and approved the manuscript.
Funding
This work was supported by the 13th Five-Year Plan Equipment Pre-Research Fund under Grant No. 61402060404, the Natural Foundation of Shandong Province under Grant No. ZR2019BEE068, the State Key Laboratory of Mechanical System and Vibration under Grant No. MSV-2019-13, and the Fundamental Research Funds of Shandong University under Grant No. 2018GN034.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
References
1
AtifR.InamF. (2016). Reasons and remedies for the agglomeration of multilayered graphene and carbon nanotubes in polymers.Beilstein J. Nanotech.71174–1196. 10.3762/bjnano.7.109
2
AtifR.ShyhaI.InamF. (2016). Mechanical, thermal, and electrical properties of graphene-epoxy nanocomposites -a review.Polymers8:281. 10.3390/polym8080281
3
BabaahmadiM.SabziM.MandaviniaG. R.KeramatiM. (2017). Preparation of amorphous nanocomposites with quick heat triggered shape memory behavior.Polymer11226–34. 10.1016/j.polymer.2017.01.074
4
ChenG.WuK.ZhangQ.ShiY.LuM. (2019). Dual-responsive shape memory and thermally reconfigurable reduced graphene oxide-vitrimer composites.Macromol. Res.27526–533. 10.1007/s13233-019-7080-x
5
ChenL.LiuY.LengJ. (2018). Microwave responsive epoxy nanocomposites reinforced by carbon nanomaterials of different dimensions.J. Appl. Polym. Sci.135:45676. 10.1002/app.45676
6
ChoiJ. T.DaoT. D.OhK. M.LeeH. I.JeongH. M.KimB. K. (2012). Shape memory polyurethane nanocomposites with functionalized graphene.Smart Mater. Struct.21:075017. 10.1088/0964-1726/21/7/075017
7
DasR.BanerjeeS. L.KunduP. P. (2016). Fabrication and characterization of in situ graphene oxide reinforced high-performance shape memory polymeric nanocomposites from vegetable oil.RSC Adv.627648–27658. 10.1039/c5ra25744a
8
DuH.LiuL.ZhangF.LengJ.LiuY. (2019). Triple-shape memory effect in a styrene-based shape memory polymer: characterization, theory and application.Compos. Part B-Eng.173:106905. 10.1016/j.compositesb.2019.106905
9
DuH.LiuX.YuY.XuY.WangY.LiangZ. (2016). Microwave-induced poly(ionic liquid)/poly(vinyl alcohol) shape memory composites.Macromol. Chem. Phys.2172626–2634. 10.1002/macp.201600379
10
DuH.SongZ.WangJ.LiangZ.ShenY.YouF. (2015). Microwave-induced shape-memory effect of silicon carbide/poly(vinyl alcohol) composite.Sensor. Actuat. A-Phys.2281–8. 10.1016/j.sna.2015.01.012
11
FabrizioQ.LoredanaS.AnnaS. E. (2012). Shape memory epoxy foams for space applications.Mater. Lett.6920–23. 10.1016/j.matlet.2011.11.050
12
FatemehK.IsmaeilG.MassimoM.et al (2017). Nanocomposites based on poly(L-lactide)/poly(ε-caprolactone) blends with triple-shape memory behavior: effect of the incorporation of graphene nanoplatelets (GNps).Compos. Sci. Technol.151219–227. 10.1016/j.compscitech.2017.08.021
13
FejosM.MolnarK.Karger-KocsisJ. (2013). Epoxy/polycaprolactone systems with triple-shape memory effect: electrospun nanoweb with and without graphene versus co-continuous morphology.Materials64489–4504. 10.3390/ma6104489
14
HerathM.EpaarachchiJ.IslamM.YanC.ZhangF.LengJ. (2019). Effects of selectively triggered photothermal particles on shape memory polymer composites: an investigation on structural performance, thermomechanical characteristics and photothermal behavior.J. Intel. Mat. Syst. Str.303124–3135. 10.1177/1045389X19879998
15
HuangC.PengJ.ChengY.ZhaoQ. (2019). Ultratough nacre-inspired epoxy–graphene composites with shape memory properties.J. Mat. Chem. A72787–2794. 10.1039/C8TA10725D
16
JiuH.JiaoH.ZhangL.ZhangS.ZhaoY. (2016). Graphene-crosslinked two-way reversible shape memory polyurethane nanocomposites with enhanced mechanical and electrical properties.J. Mater. Sci.-Mater. El.2710720–10728. 10.1007/s10854-016-5173-2
17
KangS.KangT.KimB.et al (2019). 2D reentrant micro-honeycomb structure of graphene-CNT in polyurethane: high stretchability, superior electrical/thermal conductivity, and improved shape memory properties Compo.Part B Eng.162580–588. 10.1016/j.compositesb.2019.01.004
18
KausarA. (2019). Shape memory polyurethane/graphene nanocomposites: structures, properties, and applications.J. Plast. Film Sheet36:875608791986529. 10.1177/8756087919865296
19
LiC.AdamcikJ.MezzengaR. (2012). Biodegradable nanocomposites of amyloid fibrils and graphene with shape-memory and enzyme-sensing properties.Nat. Nanotechnol.7421–427. 10.1038/nnano.2012.62
20
LiC.QiuL.ZhangB.LiD.LiuC. (2016). Robust vacuum-/air-dried graphene aerogels and fast recoverable shape-memory hybrid foams.Adv. Mater.281510–1516. 10.1002/adma.201504317
21
LiS.JinX.ShaoY.QiX.YangJ.WangY. (2019). Gold nanoparticle/reduced graphene oxide hybrids for fast light-actuated shape memory polymers with enhanced photothermal conversion and mechanical stiffness.Eur. Polym. J.116302–310. 10.1016/j.eurpolymj.2019.04.029
22
LikitapornC.MoraP.TiptipakornS.RimdusitS. (2018). Recovery stress enhancement in shape memory composites from silicon carbide whisker–filled benzoxazine-epoxy polymer alloy.J. Intel. Mat. Syst. Str.29388–396. 10.1177/1045389X17708041
23
LiuX.LiH.ZengQ.ZhangY.KangH.DuanH.et al (2015). Electro-active shape memory composites enhanced by flexible carbon nanotube/graphene aerogels.J. Mater. Chem. A311641–11649. 10.1039/c5ta02490k
24
LiuY.HanC.TanH.DuX. (2010). Thermal, mechanical and shape memory properties of shape memory epoxy resin.Mat. Sci. Eng. A-Struct.5272510–2514. 10.1016/j.msea.2009.12.014
25
LiuY.ZhaoJ.ZhaoL.LiW.ZhangH.YuX.et al (2016). high performance shape memory epoxy/carbon nanotube nanocomposites.ACS Appl. Mater. Inter.8311–320. 10.1021/acsami.5b08766
26
LuH.GouJ. (2012). Fabrication and electroactive responsive behavior of shape–memory nanocomposite incorporated with self-assembled multiwalled carbon nanotube nanopaper.Polym. Advan. Technol.231529–1535. 10.1002/pat.2074
27
LuH.YaoY.HuangW.LengJ.HuiD. (2014). Significantly improving infrared light-induced shape recovery behavior of shape memory polymeric nanocomposite via a synergistic effect of carbon nanotube and boron nitride.Compos. Part B-Eng.62256–261. 10.1016/j.compositesb.2014.03.007
28
MaryamZ.BabakK.JózefT. H.LukaszP. (2020). Shape memory thin films of Polyurethane: does graphene content affect the recovery behavior of Polyurethane nanocomposites?Polym. Compos.10.1002/pc.25627
29
MengH.LiG. (2013). A review of stimuli-responsive shape memory polymer composites.Polymer542199–2221. 10.1016/j.polymer.2013.02.023
30
NouriN.RezaeiM.SoflaM. L. R.BabaieA. (2020). Synthesis of reduced octadecyl isocyanate-functionalized graphene oxide nanosheets and investigation of their effect on physical, mechanical, and shape memory properties of polyurethane nanocomposites.Comp. Sci. Tech.194:108170. 10.1016/j.compscitech.2020.108170
31
OrtizR. A.ValdezA. E. G.ArguelloG. S.PadillaG. M.BerlangaO. A. (2018). Photocurable shape-memory polyether-polythioether/graphene nanocomposites and the study of their thermal conductivity.J. Polym. Res.25:160. 10.1007/s10965-018-1552-0
32
ParkJ.DaoT.LeeH.JeongH. M.KimB. K. (2014). Properties of graphene/shape memory thermoplastic polyurethane composites actuating by various methods.Materials71520–1538. 10.3390/ma7031520
33
PunethaV. D.HaY. M.KimY. O.JungY. C.ChoJ. W. (2019). Interaction of photothermal graphene networks with polymer chains and laser-driven photo-actuation behavior of shape memory polyurethane/epoxy/epoxy-functionalized graphene oxide nanocomposites.Polymer181:121791. 10.1016/j.polymer.2019.121791
34
SabziM.BabaahmadiM.SamadiN.MahdaviniaG. R.KeramatiM.NikfarjamN. (2016). Graphene network enabled high speed electrical actuation of shape memory nanocomposite based on poly(vinyl acetate).Polym. Int.66665–671. 10.1002/pi.5303
35
SanazS.AminB.MassoumehB.MostafaR.FarhangA.AshkanS. (2020). Effects of graphene quantum dot (GQD) on photoluminescence, mechanical, thermal and shape memory properties of thermoplastic polyurethane nanocomposites.Polym. Advan. Technol.10.1002/pat.4948
36
SarabiyanN.BabaieA.BagheriM.RezaeiM.AbbasiF.ShomaliA. (2020). Effects of graphene quantum dot (GQD) on photoluminescence, mechanical, thermal and shape memory properties of thermoplastic polyurethane nanocomposites.Polym. Advan. Technol.10.1016/j.compscitech.2020.108170
37
SoflaR. L. M.RezaeiM.BabaieA.NasiriM. (2019). Preparation of electroactive shape memory polyurethane/graphene nanocomposites and investigation of relationship between rheology, morphology and electrical properties.Compos. Part B-Eng.175:107090. 10.1016/j.compositesb.2019.107090
38
WangE.DongY.IslamM. Z.YuL.LiuF.ChenS.et al (2019a). Effect of graphene oxide-carbon nanotube hybrid filler on the mechanical property and thermal response speed of shape memory epoxy composites.Compos. Sci. Technol.169209–216. 10.1016/j.compscitech.2018.11.022
39
WangE.WuY.IslamM. Z.DongY.ZhuY.LiuF.et al (2019b). A novel reduced graphene oxide/epoxy sandwich structure composite film with thermo-, electro- and light-responsive shape memory effect.Mater. Lett.23854–57. 10.1016/j.matlet.2018.11
40
WangJ.SunL.ZouM.GaoW.LiuC.ShangL.et al (2017). Bioinspired shape-memory graphene film with tunable wettability.Sci. Adv.31–7. 10.1126/sciadv.1700004
41
WangW.LiuD.LiuY.LengJ.BhattacharyyaD. (2015). Electrical actuation properties of reduced graphene oxide paper/epoxy-based shape memory composites.Compos. Sci. Technol.10620–24. 10.1016/j.compscitech.2014.10.016
42
WangY.MaT.TianW.YeJ.WangX.JiangX. (2018). Electroactive shape memory properties of graphene/epoxy-cyanate ester nanocomposites.Pigm. Resin. Technol.4772–78. 10.1108/PRT-04-2017-0037
43
WillianH.CristinaT. (2020). The role of graphene on thermally induced shape memory properties of poly(lactic acid) extruded composites.J. Therm. Anal. Calorim.10.1007/s10973-020-09402-7
44
YaoY.LuoY.XuY.WangB.LiJ.DengH.et al (2018). Fabrication and characterization of auxetic shape memory composite foams.Compos. Part B-Eng.1521–7. 10.1016/j.compositesb.2018.06.027
45
YiD. H.YooH. J.MahapatraS. S.KimY. A.ChoJ. W. (2014). The synergistic effect of the combined thin multi-walled carbon nanotubes and reduced graphene oxides on photothermally actuated shape memory polyurethane composites.J. Colloid Interf. Sci.432128–134. 10.1016/j.jcis.2014.06.060
46
YoonessiM.ShiY.ScheimanA. D.Lebron-ColonM.TigelaarD. M.WeissR. A.et al (2012). Graphene polyimide nanocomposites; thermal, mechanical, and high-temperature shape memory effects.ACS Nano67644–7655. 10.1021/nn302871y
47
YuK.LiuY.LengJ. (2014). Shape memory polymer/CNT composites and their microwave induced shape memory behaviors.RSC Adv.42961–2968. 10.1039/c3ra43258k
48
ZhangF.ZhouT.LiuY.LengJ. (2015). Microwave synthesis and actuation of shape memory polycaprolactone foams with high speed.Sci. Rep.5:11152. 10.1038/srep11152
49
ZhangL.JiaoH.JiuH.ChangJ.ZhangS.ZhaoY. (2016). Thermal, mechanical and electrical properties of polyurethane/ (3-aminopropyl) triethoxysilane functionalized graphene/epoxy resin interpenetrating shape memory polymer composites.Compos. Part A-Appl. S90286–295. 10.1016/j.compositesa.2016.07.017
50
ZhangQ.WeiH.LiuY.LengJ.DuS. (2016). Triple-shape memory effects of bismaleimide based thermosetting polymer networks prepared via heterogeneous crosslinking structures.RSC Adv.610233–10241. 10.1039/c5ra24247a
51
ZhangY.HuJ. (2020). Isocyanate modified go shape-memory polyurethane composite.Polymer12:118. 10.3390/polym12010118
52
ZhaoQ.QiH.XieT. (2015). Recent progress in shape memory polymer: new behavior, enabling materials, and mechanistic understanding.Prog. Polym. Sci.479–120. 10.1016/j.progpolymsci.2015.04.001
53
ZhaoW.LiuL.ZhangF.LengJ.LiuY. (2019). Shape memory polymers and their composites in biomedical applications.Mat. Sci. Eng. C-Mater.97864–883. 10.1016/j.msec.2018.12.054
54
ZhouJ.LiH.LiuW.DugnaniR.TianR.XueW.et al (2016). A facile method to fabricate polyurethane based graphene foams/epoxy/carbon nanotubes composite for electro-active shape memory application.Compos. Part A-Appl. S91292–300. 10.1016/j.compositesa.2016.10.021
Summary
Keywords
graphene, nanoarchitectonics, composites, sustainability, polymers
Citation
Chen L, Zhang Y, Liu W and Liu Z (2020) Graphene Nanoarchitectonics: A New Material Horizon for Reinforcement of Sustainable Polymers. Front. Mater. 7:276. doi: 10.3389/fmats.2020.00276
Received
21 April 2020
Accepted
24 July 2020
Published
18 August 2020
Volume
7 - 2020
Edited by
Brahim Aissa, MPB Technologies & Communications, Canada
Reviewed by
Adnan Ali, Qatar Foundation, Qatar; Mahyar Mohammadnezhad, Université du Québec, Canada
Updates
Copyright
© 2020 Chen, Zhang, Liu and Liu.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Long Chen, 812612937@qq.com
This article was submitted to Smart Materials, a section of the journal Frontiers in Materials
Disclaimer
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
