In the original article, there were some errors in Figures 4, 8–11 as published. The tobermorite contents of sample 90d-FS-1 and sample 90d-FS-2 were plugged incorrectly in the line plots (Figure 8 and Figure 11). The mass absorption coefficient (MAC) was not corrected when calculating the phase compositions of the sample 180d-FS-1 (Figures 4, 8–11). The corrected Figures 4, 8–11 and their captions appear below.

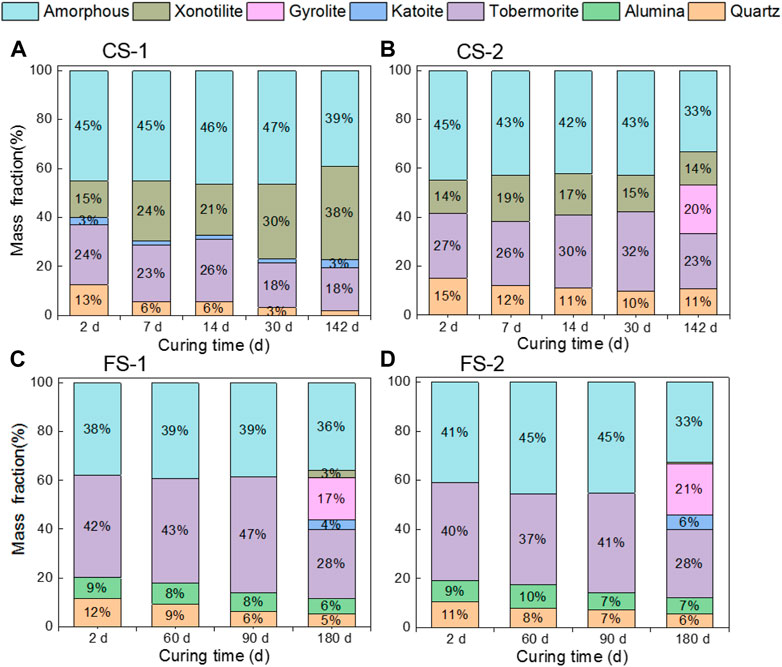

FIGURE 4

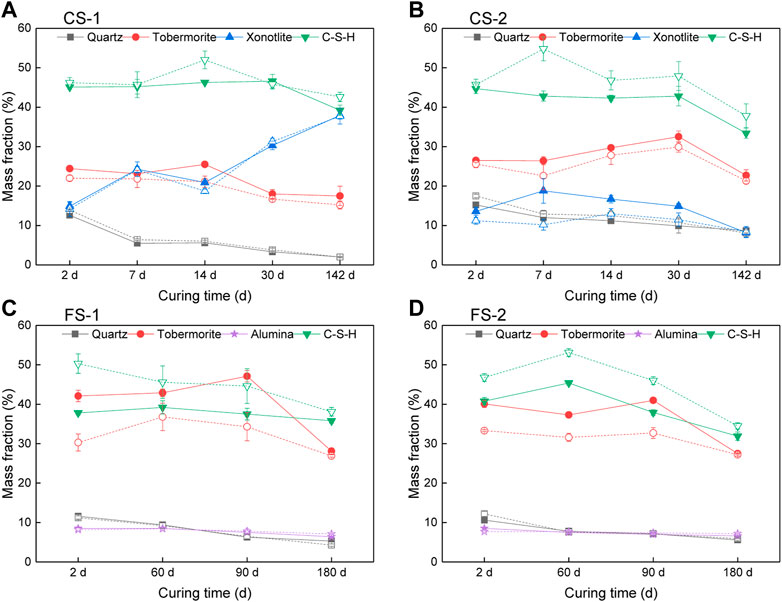

FIGURE 8

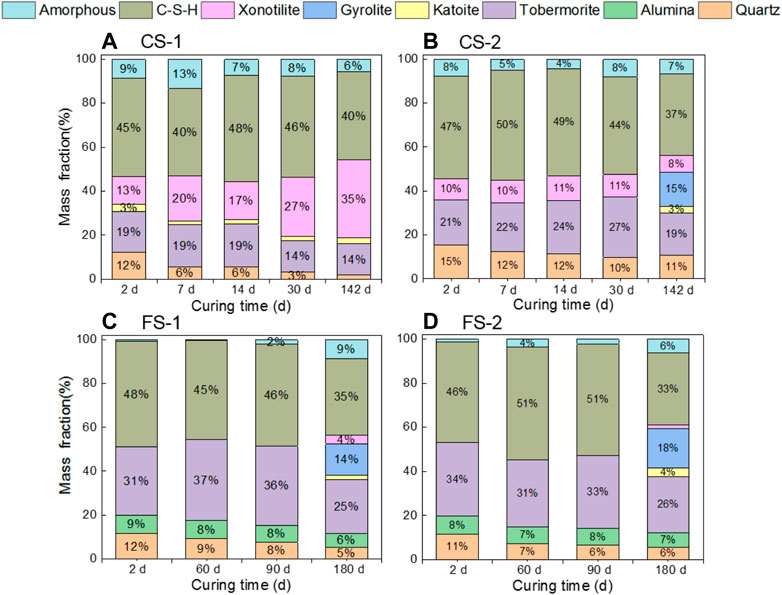

FIGURE 9

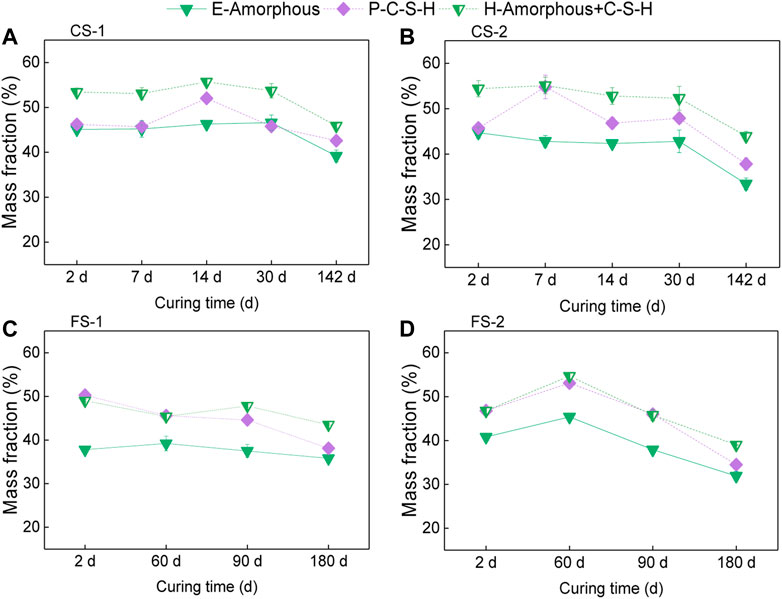

FIGURE 10

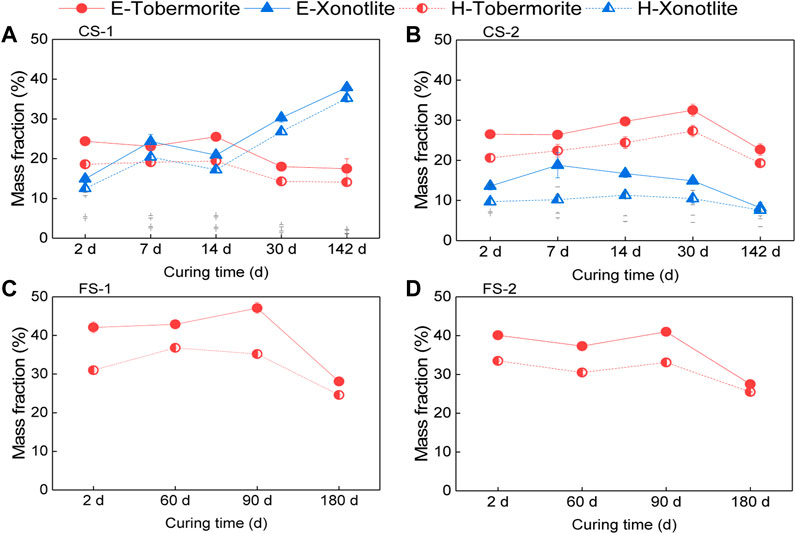

FIGURE 11
The authors apologize for these errors and state that this does not change the scientific conclusions of the article in any way because these changes are relatively small. The original article has been updated.
Statements
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Summary
Keywords
quantitative X-ray diffraction analysis, external standard, partial or no known crystal structure, strength retrogression, oil well cement
Citation
Qin J, Pang X, Li H and Zhang Z (2022) Corrigendum: Mechanism of long-term strength retrogression of silica-enriched Portland cement assessed by quantitative X-ray diffraction analysis. Front. Mater. 9:1101881. doi: 10.3389/fmats.2022.1101881
Received
18 November 2022
Accepted
30 November 2022
Published
16 December 2022
Approved by
Frontiers Editorial Office, Frontiers Media SA, Switzerland
Volume
9 - 2022
Updates
Copyright
© 2022 Qin, Pang, Li and Zhang.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Xueyu Pang, x.pang@upc.edu.cn
This article was submitted to Polymeric and Composite Materials, a section of the journal Frontiers in Materials
Disclaimer
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
