Abstract
Following a traumatic spinal cord injury, a 53-year-old male developed a central cord syndrome with at-level neuropathic pain. Magnetic resonance imaging revealed a classical “snake eye” appearance myelopathy, with marked hyperintensities at C5-C7. Clinical examination revealed intact pinprick sensation coupled with lost or diminished thermal/heat sensation. This dissociation could be objectively confirmed through multi-modal neurophysiological assessments. Specifically, contact heat evoked potentials were lost at-level, while pinprick evoked potentials were preserved. This pattern corresponds with that seen after surgical commissural myelotomy. To our knowledge, this is the first time such a dissociation has been objectively documented, highlighting the diagnostic potential of multi-modal neurophysiological assessments. In future studies, a comprehensive assessment of different nociceptive modalities may help elucidate the pathophysiology of neuropathic pain.
Introduction
The spinothalamic system transmits noxious and innocuous thermal and noxious mechanical information. While the assessment of thermo-nociceptive pathways using contact heat evoked potentials (CHEPs) is well-established for the diagnosis of incomplete spinal cord lesions (, ), objective readouts for pinprick evoked pain (pinprick evoked potentials [PEPs]) are novel ().
Examination of the different modalities of nociception is recommended for a comprehensive assessment of spinothalamic integrity (). Moreover, residual sparing of specific modalities in discomplete spinal cord lesions has been related to the development of central neuropathic pain (). In the present case study, multi-modal electrophysiological testing, including CHEPs and PEPs, were performed in a patient with a cervical “snake eye” appearance myelopathy.
The specific aim was to compare segmental outcomes, neuroimaging, and clinical signs and symptoms.
Case Presentation
A 53-year-old male with a posttraumatic incomplete spinal cord injury (AIS D, sub C4) was examined during his neurological rehabilitation at the Spinal Cord Injury Center at Balgrist University Hospital, Switzerland. The study was approved by the “Kantonale Ethikkommission Zürich” (EK-04/2006 / PB_2016-02051, clinicaltrial.gov number: NCT02138344) and written informed consent for publication was obtained from the patient.
The patient presented clinically with a central cord syndrome, and at-level neuropathic pain with mechanical allodynia (i.e., brush allodynia) on both forearms. Light touch was normal within the cervical segments, and sharp dull discrimination was preserved while the intensity of the pinprick stimulus was only mildly attenuated. The upper extremity motor score (left: 11/25, right: 11/25) showed a profound weakness of elbow extensors, and no voluntary muscle activity in the finger flexors and abductors bilaterally. The lower extremity motor score was normal (left: 25/25, right: 25/25). Biceps and brachioradialis reflexes, as well as knee-jerk and ankle-jerk reflexes were bilaterally exaggerated. The Babinski sign was negative. Muscle tone was normal without signs of spasticity. Coordination and gait showed discrete signs of ataxia. Magnetic resonance images revealed a multi-segmental (C5-C7), longitudinal “snake eye” appearance myelopathy (Figure 1A). Ulnar somatosensory evoked potentials (SEPs) and sensory nerve conduction studies were normal (Figure 1D).

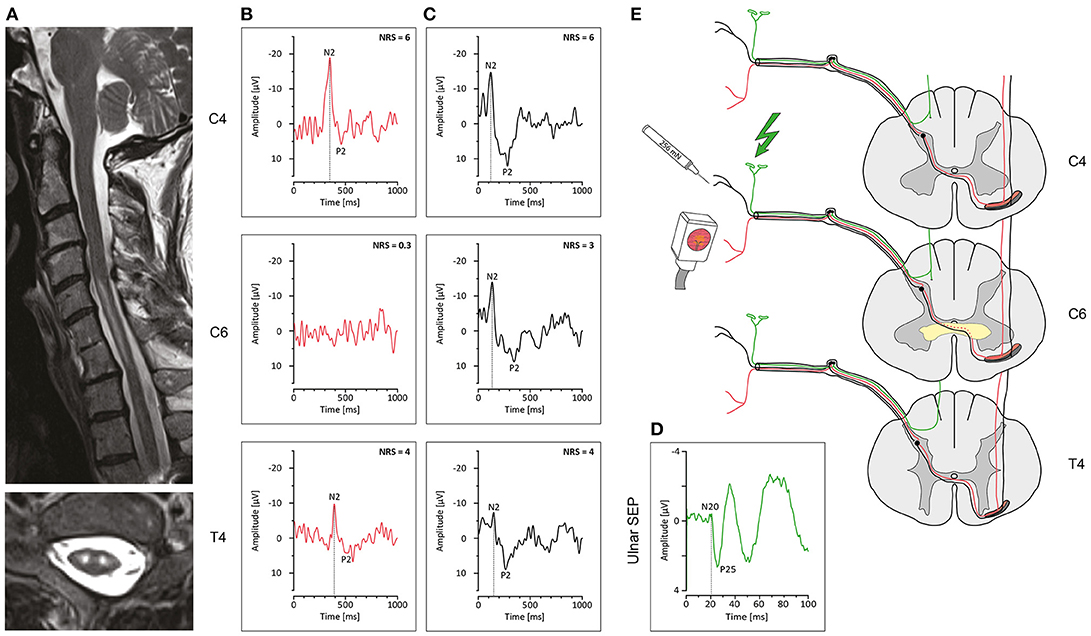

Figure 1
The CHEP recording was performed according to an established protocol (, ). Noxious mechanical stimuli were applied with a 256 mN pinprick stimulator (MRC Systems, Heidelberg, Germany). Stimulus application was performed in a slow fashion in order to favor recruitment of A-delta fibers (). The skin was stimulated 20 times from a distance of 1 cm within 1 s. The experimenter was trained prior to the experiment to guarantee the stimuli are uniformly applied.
CHEPs were normal at C4 and T4 with high pain ratings to the heat stimulation, but almost complete loss of painful heat sensation and absent CHEPs at the level of C6 (Figure 1B). In contrast, PEPs remained preserved at all segments (Figure 1C).
Discussion
The patient presented with signs and symptoms of a posttraumatic central cord syndrome including at-level mechanical allodynia. MRI findings indicated a “snake eye” appearance myelopathy with bilateral high intensity signal changes in the central gray matter from below C5 down to C7. Corresponding with radiographic findings, the patient showed a clinical dissociation of normal light touch (corresponding to normal ulnar SEPs) but mildly impaired pinprick sensation. However, cervical CHEPs revealed a distinct impairment of noxious heat sensation, while mechanically evoked potentials (i.e., PEPs) remained normal throughout all tested segments. Below the level of the focal central myelopathy heat sensation and CHEPs remained normal.
Collectively, these observations confirm pathology in decussating spinothalamic afferents conveying heat sensation, coupled with preserved integrity in the antero-lateral quadrant and dorsal columns (Figure 1E). Unlike CHEPs, PEPs were preserved in all spinal segments (i.e., above, at, and below level) and the findings reveal discrete centro-medullary pathology involving the anterior commissure related to “snake eye” myelopathy.
A previously published case determined that PEPs are conducted in the antero-lateral system, abolished alongside laser evoked potentials in a patient with a selective lesion of the contralateral anterolateral quadrant ().
Corresponding sensory deficits associated with antero-lateral cordotomy include the loss of both pinprick and temperature sensations (). Midline damage of the spinal cord, interrupting conduction in decussating spinothalamic afferents bound for the contralateral antero-lateral tracts (i.e., through commissural myelotomy), yields similar sensory deficits, including the loss of temperature sensation. Interestingly, however, pinprick sensation often remains intact ().
The patient reported herein presented with sensory deficits consistent with midline spinal cord damage (i.e., loss of temperature sensation and preserved pinprick and light touch sensation). These findings were confirmed by neuroimaging and through the application of multi-modal electrophysiological testing—the latter demonstrating objective signs of preserved pinprick and absent temperature sensation at C6. Based on damage localized to the centro-medullary cord in this patient, one potential explanation for the dissociation between temperature and pinprick sensation is a distinct topographical organization within the decussating spinothalamic pathways. Afferents conveying temperature sensation are positioned posterior to those afferents conveying pinprick sensation (Figure 1E). This would, in principal, correspond with the representation of mechanical and temperature pain in the ascending antero-lateral tracts (), and allow pinprick afferents to bypass the centro-medullary spinal cord pathology.
The present case highlights the application of multi-modal neurophysiological assessments combined with conventional neuroimaging to improve the characterization of spinal cord damage beyond conventional clinical examination. Their combined application may also play an important role in elucidating novel mechanisms underlying the development of neuropathic pain.
