Abstract
COVID-19 has been announced pandemic by WHO and over 17,000,000 people infected (Till April 21st 2020). The disease is currently under control in China, with a curative rate of 86.8%. Chloroquine (CQ) is an old anti-malarial drug with good tolerability, which had proved to be effective in previous SARS-coronavirus, which spread and disappeared between 2002-2003. In vitro studies demonstrated the efficacy of CQ in curing COVID-19. Consequently, via analytical PBPK modeling, a further preliminary clinical trial has proved the efficacy and safety of CQ in China., and multiple clinical trials were registered and approved to investigate the activity of other analogs of CQ against COVID-19. We have listed all the clinical trials and made a meta-analysis of published data of hydroxychloroquine (HCQ). HCQ could increase the CT improvement and adverse reactions (ADRs) significantly though there was considerable heterogeneity among current researches. Actually, CQ and its analogs have unique pharmacokinetic characteristics, which would induce severe side effects in some circumstances. We have then summarized pharmacological considerations for these drugs so as to provide to the busy clinicians to avoid potential side effects when administered CQ or its analogs to COVID-19 patients, especially in the elderly, pediatrics, and pregnancies.
Introduction
COVID-19 (coronavirus disease 2019) has been pandemic around the world by WHO, with millions of people infected currently and causes 5–10% of patients’ deaths. COVID-19 was first reported in December 2019, and the pathogen was firstly isolated on January 7th, 2020 and then named SARS-CoV-2 by International Committee on Taxonomy of Viruses (ICTV), as it shares great similarity in genomics with the previous emerged SARS-CoV. Chloroquine (CQ) was firstly found to be effective in vitro and then showed promising activity against SARS-CoV-2 infection (). Basically, CQ is a classic anti-malarial drug with an immunosuppressive effect as well. Due to the long half-life, it is more prone to be accumulated in vivo and cause various side effects, which may hinder the treatment of COVID-19. Here, we aim to provide rational suggestions to busy clinicians to avoid potential side effects that CQ or its analogs if prescribed to treat COVID-19.
CQ and its analogs were used as anti-malarial agents for decades, and they were derivatives of 4-quinoline, whose origin is quinine. Actually, the anti-malarial agents of quinine were found as early as 1639, and researchers successfully extracted and separated in 1820 (Figure 1). Currently, CQ and hydroxychloroquine (HCQ) were used widely in anti-malarial and in the fields of SLE treatment. The differences between CQ and HCQ were the presence of a hydroxyl group in the side chain in HCQ (Figure 2). Though the lack of large-scale clinical trials, the efficacy and the safety were approximately identical for CQ and HCQ. It is reported that CQ was prone to be more often associated with retinopathy, especially in SLE patients, who were believed to go on a longer course of HCQ treatment (). It is noteworthy that CQ and HCQ were reported to have the antiviral activity inagainst SARS [severe acute respiratory syndrome (SARS)] and MERS [Middle East respiratory syndrome (MERS)] in vitro, and clinical research in MERS coronavirus (MERS-CoV) confirmed the efficacy (; ; ; Wang et al., 2020). As COVID-19 is pandemic around the world, it is of great importance to explore the promising drugs and nconfirm the efficacy. As SARS-CoV-2 shares a similar structure and target of SARS-CoV, CQ’s antiviral activity has been confirmed quickly in vitro models by Chinese scientists, and multiple clinical trials were still going on. On March 20th 2020, FDA has approved CQ as sympathetic medication for COVID-19 patients (; ). However, besides their striking activity, CQ and its analogs had many side effects, which should be taken into consideration in clinical practice. The FDA cautions against use of HCQ/CQ for COVID-19 outside of the hospital setting or a clinical trial due to risk of heart rhythm problems (). Here, we summarized the latest developments and pharmacological concerns for CQ and its analogs in order to provide rational consideration for their rational clinical application.
Figure 1
Figure 2
The Pharmacological Mechanism of CQ Against Coronavirus Infection
Basically, CQ is the first 4-aminoquinolones reported to be effective in treating coronavirus infection in vitro. The infection of SARS-CoV-2 to target cells is mediated through the interaction of angiotensinconverting enzyme 2 (ACE2) and the viral spike protein (; ). As shown in Figure 3, CQ could elevate the endosomal pH and interfere with terminal glycosylation of ACE2, which thus negatively affect the virus-receptor binding and abrogate the infection. When it comes to SARS-CoV-2, CQ could on the one hand block the interaction between virus “S” protein and host ACE2 protein through influence ACE2 terminal glycosylation and also increase the cytoplasmic PH, which thus inhibit the virus entry and replication (Figure 3) (; ; ). CQ restriked public hope as the in vitro studies showed its EC50 for SARS-CoV-2 is 1.13 µM, half-cytotoxic concentration CC50 > 100 µM, with the selectivity index of 88.50, the result of which show high SI of CQ when treat COVID-19 and indicate desired safety (Wang et al., 2020). A preliminary clinical trial enrolled over 100 COVID-19 patients proved the efficacy and safety of CQ, and the seventh edition of Chinese Clinical Guidance for COVID-19 recommended the dosage of CQ as follows: 18–65 kg adults with a body weight of >50 kg, 500 mg orally twice daily, continuing for 7 days; body weight of <50 kg patients, taken 500 mg of CQ twice daily for the first 2 days and then followed by 500 mg once daily for the other 5 days ().
Figure 3
The structure of CQ and its analogs was shown in Figure 2. HCQ has the identical structure of CQ, while piperaquine (PQ) possesses the bisquinolines, which is trapped in the acidic digestive vacuole because of their four positive charges (Reuter et al., 2015). Here, we summerized the pharmacology parameters and concerns for these drugs and provide rational consideration for the clinical practitioners.
Clinical Trials and Systematic Review of CQ and Its Analogs Against COVID-19
In fact, the activity of CQ against coronavirus has been noticed as early as 2004, as CQ has been proved to be effective to SARS-CoV in vitro, whose disappearance resulted in limited further research. In vitro research confirmed the efficacy of CQ against SARS-CoV-2 as well as remdesivir. The two compounds remdesivir (EC50, 0.77 µM; CC50 > 100 µM; SI > 129.87) and chloroquine (EC50, 1.13 µM; CC50 > 100 µM; SI > 88.50) potently blocked virus infection at low-micromolar concentration and showed high SI (Wang et al., 2020). Shortly afterward, Chinese researchers confirmed the antiviral activity of HCQ against SARS-CoV-2 and established [physiologically based pharmacokinetic (PBPK) models] PBPK models to optimize the dosage regimen. Xueting Yao et al. found HCQ (EC50 = 0.72 µM) was more potent than chloroquine (EC50 = 5.47 µM) in vitro and simulated PBPK model based on the above in vitro studies (Yao et al., 2020). According to their results, a loading dose of 400 mg twice daily of HCQ orally, followed by a maintenance dose of 200 mg twice daily for 4 days was recommended for COVID-19 patients, as it reached three times the potency of CQ 500 mg twice daily. Till now, there have been 14 clinical trials registered and approved in China to further investigate and compare the efficacy and safety of CQ or HCQ against COVID-19 (
Table 1
| No. | Registered no. | Title | Date of registration | Description for medicine or protocol of treatment in detail (number of enrolled subjects) | Primary sponsor |
|---|---|---|---|---|---|
| 1 | ChiCTR2000030718 | Randomized controlled trial for Chloroquine Phosphate in the Treatment of novel coronavirus pneumonia (COVID-19) | 2020/3/11 | chloroquine phosphate(40); Control group(40) | Zhongnan Hospital of Wuhan University |
| 2 | ChiCTR2000030054 | A prospective, open label, randomized, control trial for chloroquine or hydroxychloroquine in patients with mild and common novel coronavirus pulmonary (COVIP-19) | 2020/2/22 | Hydroxychloroquine sulfate 0.2g bid x 14 days a day(40): The first dose of chloroquine phosphate was 1gx2 days, and the third day was 0.5g x 12 days (40): Recommended treatment plan for novel coronavirus pneumonia diagnosis and treatment plan (20) | Zhongshan Hospital Affiliated to Xiamen University |
| 3 | ChiCTR2000029992 | A prospective, randomized, open label, controlled trial for chloroquine and hydroxychloroquine in patients with severe novel coronavirus pneumonia (COVID-19) | 2020/2/18 | Hydroxychloroquine sulfate 0.2g bid x 14 days a day(40): The first dose of chloroquine phosphate was 1g x 2 days, and the third day was 0.5gx12 days (40): Recommended treatment plan for novel coronavirus pneumonia diagnosis and treatment plan (20) | Zhongshan Hospital Affiliated to Xiamen University |
| 4 | ChiCTR2000029988 | Clinical Study of Chloroquine Phosphate in the Treatment of Severe Novel Coronavirus Pneumonia (COVID-19) | 2020/2/18 | Experimental group(40): Chloroquine phosphate; control group(40): No | Zhongnan Hospital of Wuhan University |
| 5 | ChiCTR2000029939 | A Single-blind, Randomized, Controlled Clinical Trial for Chloroquine Phosphate in the treatment of Novel Coronavirus Pneumonia 2019 (COVID-19) | 2020/2/16 | Control group (50): The conventional treatment group will be treated according to the guidance of the “Diagnosis and Treatment Scheme of COVID-19” published by the National Health Commission; Intervention group (50): conventional treatment combined with chloroquine phosphate. | HwaMei Hospital, University of Chinese Academy of Sciences |
| 6 | ChiCTR2000029935 | A Single-arm Clinical Trial for Chloroquine Phosphate in the treatment of Novel Coronavirus Pneumonia 2019 (COVID-19) | 2020/2/16 | Treated with conventional treatment combined with chloroquine phosphate (100) | HwaMei Hospital, University of Chinese Academy of Sciences |
| 7 | ChiCTR2000029899 | Evaluation the Efficacy and Safety of Hydroxychloroquine Sulfate in Comparison with Phosphate Chloroquine in Mild and Commen Patients with Novel Coronavirus Pneumonia (COVID-19): a Randomized, Open-label, Parallel, Controlled Trial | 2020/2/16 | CQ: Day1: first dose: 6 tablets(0.1g/table); second dose: 6 tablets (0.1g/table)after 6 h; day 2–5: 2 tablets (0.1g/table), BID vs. HCQ: Days 1–3: 500 mg BID; days 4–5: 250 mg BID | Peking University Third Hospital |
| 8 | ChiCTR2000029898 | Evaluation the Efficacy and Safety of Hydroxychloroquine Sulfate in Comparison with Phosphate Chloroquine in Severe Patients with Novel Coronavirus Pneumonia (COVID-19): a Randomized, Open-Label, Parallel, Controlled Trial | 2020/2/16 | Experiment group (50): Day 1: first dose: 6 tablets(0.1g/table); second dose: 6 tablets (0.1g/table)after 6 h; days 2–5: 2 tablets (0.1g/table); BID vs. control group (50): Days 1–3: 500 mg BID; days 4–5: 250 mg BID | Peking University Third Hospital |
| 9 | ChiCTR2000029868 | Hydroxychloroquine treating novel coronavirus pneumonia (COVID-19): a multicenter, randomized controlled trial | 2020/2/15 | Treatment group(100): standard treatment according to the guideline recommendation combined with: Day 1 to day 3: oral hydroxychloroquine sulfate tablets (100mg/tablet), 4 tablets each time, 3 times a day; days 4 to 14: oral hydroxychloroquine sulfate tablets (100 mg/tablet), 4 tablets each time, 2 times a day. Control group (100): standard treatment according to the guideline recommendation. | Ruijin Hospital, Shanghai Jiaotong University School of Medicine |
| 10 | ChiCTR2000029803 | A prospective, randomized, open-label, controlled clinical study to evaluate the preventive effect of hydroxychloroquine on close contacts after exposure to the Novel Coronavirus Pneumonia (COVID-19) | 2020/2/14 | Hydroxychloroquine, small dose (80); hydroxychloroquine, high dose (80);abidol hydrochloride, small dose (80); abidol hydrochloride, high dose (80) | Renmin Hospital of Wuhan University |
| 11 | ChiCTR2000029741 | Efficacy of Chloroquine and Lopinavir/Ritonavir in mild/general novel coronavirus (CoVID-19) infections: a prospective, open-label, multicenter randomized controlled clinical study | 2020/2/11 | Chloroquine phosphate 56 vs. Lopinavir/Ritonavir 56 | The Fifth Affiliated Hospital Sun Yat-Sen University |
| 12 | ChiCTR2000029609 | A prospective, open-label, multiple-center study for the efficacy of chloroquine phosphate in patients with novel coronavirus pneumonia (COVID-19) | 2020/2/6 | 1. Chloroquine phosphate tablet, 0.25 g per pill, which contains chloroquine 0.155 g; 2. Lopinavir/ritonavir tablet, each pill containing 200 mg of lopinavir and 100 mg of ritonavir mild-moderate chloroquine group 59 vs. mild-moderate Lopinavir/ritonavir group 59 vs. mild-moderate combination group 59; severe-chloroquine group14 vs. severe- Lopinavir/ritonavir group14 | The Fifth Affiliated Hospital of Sun Yat-Sen University |
| 13 | ChiCTR2000029559 | Therapeutic effect of hydroxychloroquine on novel coronavirus pneumonia (COVID-19) | 2020/2/4 | Hydroxychloroquine 0.1 oral 2/day;Hydroxychloroquine 0.2 oral 2/day vs. Starch pill oral 2/day | Renmin Hospital of Wuhan University |
| 14 | ChiCTR2000029542 | Study for the efficacy of chloroquine in patients with novel coronavirus pneumonia (COVID-19) | 2020/2/3 | For the intervention group, oral chloroquine will be given on the basis of conventional management: the dosage is 0.5 g every time, twice a day for a 10-day course. For the control group, conventional treatment will be given. | Sun Yat sen Memorial Hospital of Sun Yat sen University |

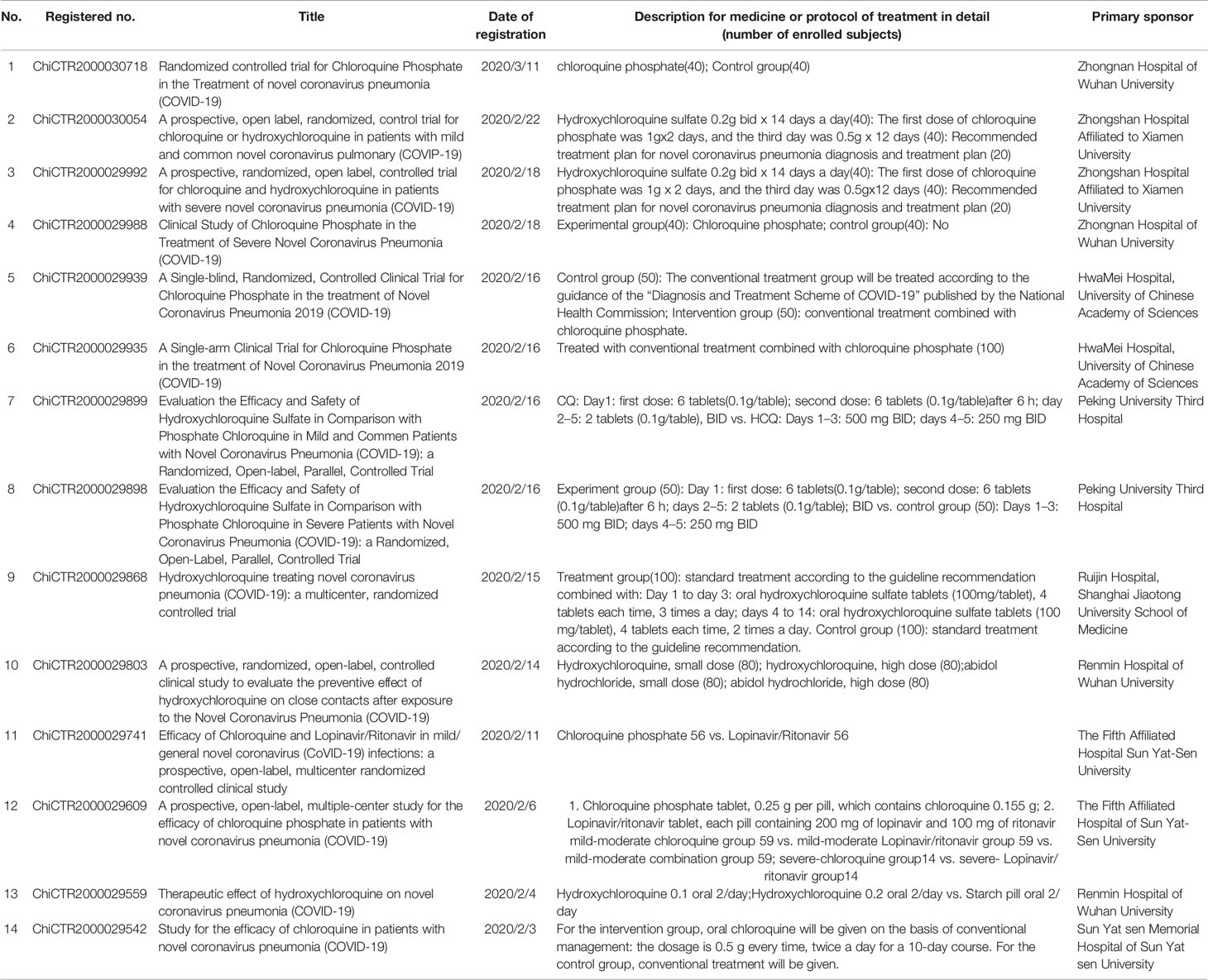

Registered clinical trial of CQ and its analogs on treatment of COVID-2019.
We made database search and analyzed clinical study of HCQ treatment in COVID-19 worldwide and made a meta-analysis up to 4th May, 2020. Supplementary Figure 1 showed our study selection process. Finally, six papers included in our meta-analysis study. Characteristics of HCQ studies included in our meta-analysis were presented in Table 2 (
Table 2
| Study | Country | Design of the study | No. of patients (HCQ vs non-HCQ) | Median age | Treatment regimen in HCQ cohorts | Treatment regimen in non-HCQ cohorts |
|---|---|---|---|---|---|---|
| China | Open, ramdomized | 14/15 | NA | 400 mg qd for 5 days plus standard care | Standard care | |
| China | Ramdomized | 31/31 | 44.7(± 15.3) | 400 mg qd for 5 days plus standard care | Standard care | |
| Tang et al. (2020) | China | Open, ramdomized | 70/80 | 46.1 ± 14.7 | 1200 mg loading for 3 days followed by a maintained dose of 800 mg for another 2–3 weeks | Standard of care |
| Yu et al. (2020) | China | Retrospective study | 48/568 | 68(57–76) | 400 mg (200 mg bid) for 7–10 days plus basic therapy | Basic therapy |
| France | Open, non-ramdomiazed | 26/16 | 45.1(± 22) | 600 mg of HCQ/d with or without azithromycin | Standard of care | |
| United States | Retrospective study | 210/158 | 70(59–75) | HCQ (dosage and duration unknown) | Standard of care |

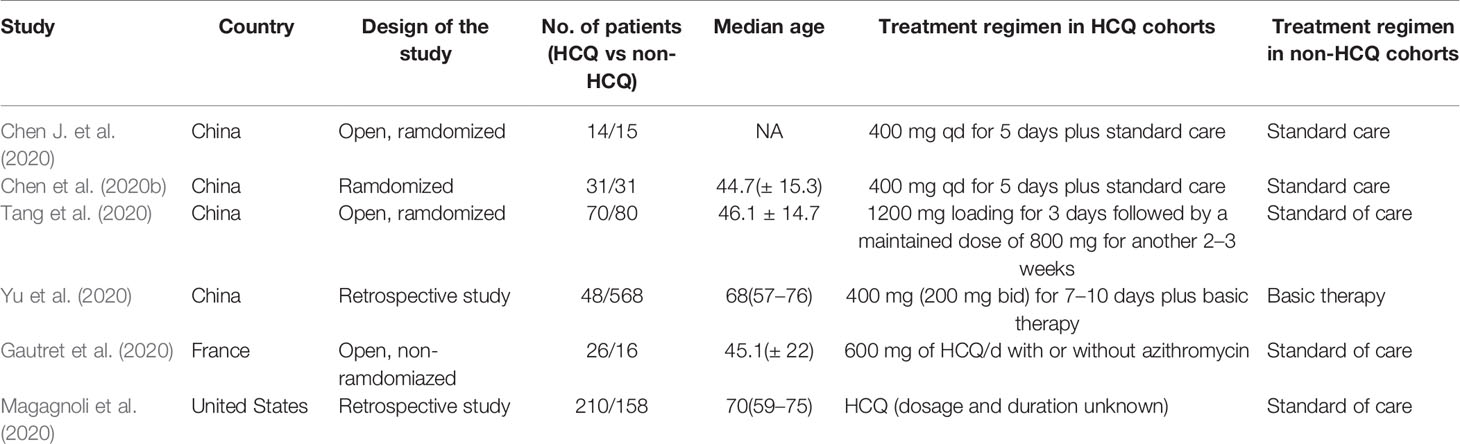

Characteristics of studies included in the meta-analysis.
Figure 4

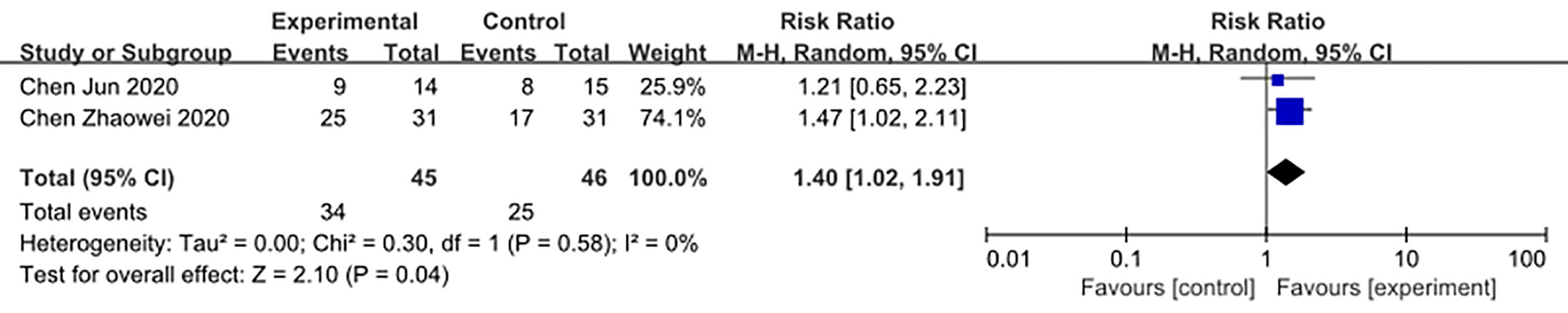

Forest plots of CT improvement.
Figure 5

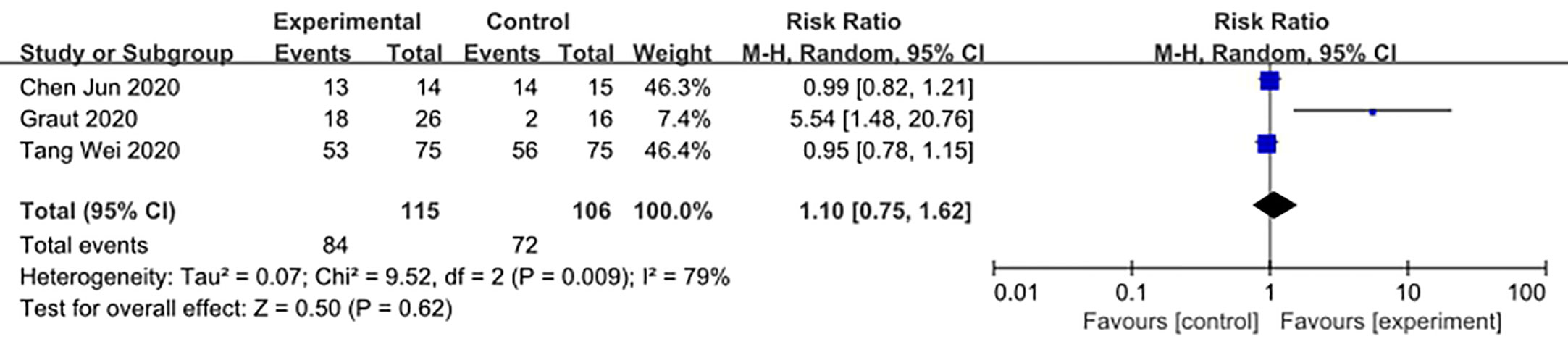

Forest plots of Virology negative conversion rate.
Figure 6

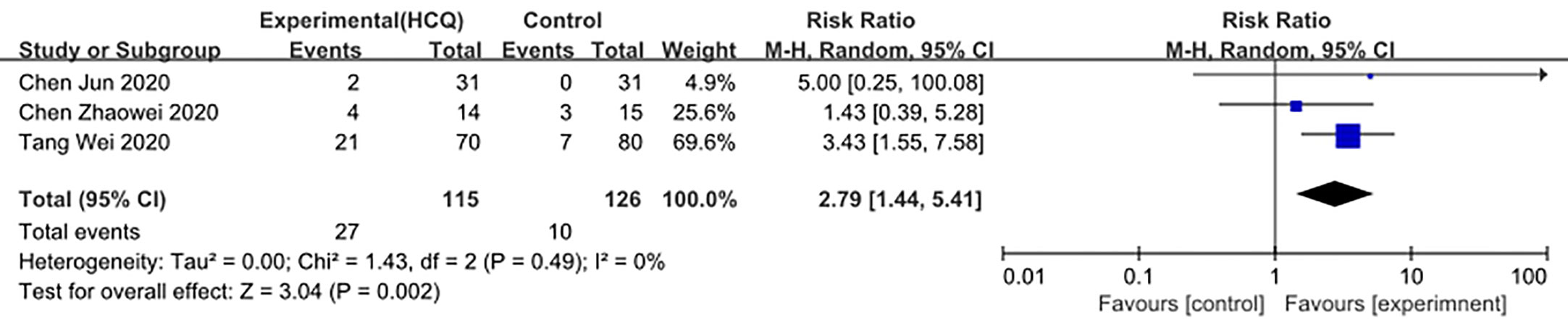

Forest plots of adverse reaction.
Figure 7

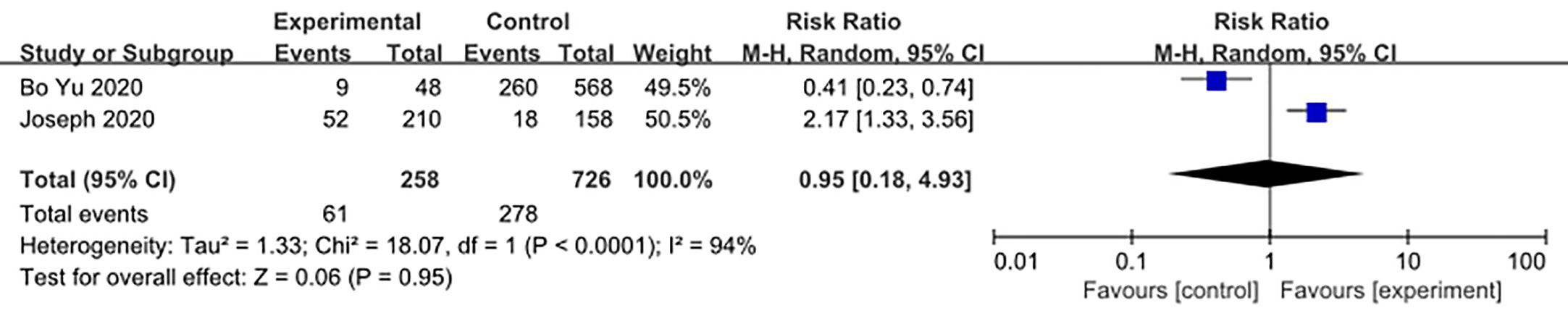

Forest plots of mortality.
Dosage Recommendations of CQ and Its Analogs
Basically, the approved uses of CQ is prophylaxis and treatment of malaria, non-intestinal amebic infection and sarcoidosis (
HCQ has raised attention as it shares the identical parent structure of CQ and, most importantly, was reported to be less toxic. In the previous SARS outbreak, HCQ was reported to have anti-SARS-CoV activity in vitro as well (
Though there is not a yet direct evidence for dihydroartemisinin-PQ (DHA/PQ) in antiviral therapy, we could predict it would have an identical activity as CQ, since PQ is the most active representative of bisquinolines, which used to overcome CQ resistance in malaria therapy (
Pharmacokinetic of CQ andIts Analogs
Orally taking CQ is rapidly and almost completely absorbed from the gastrointestinal tract (
Additionally, there was also a clinical trial registered in China considering the application of DHA/PQ against COVID-19, though canceled due to lack of patients in the end (ChiCTR2000030082). Identical with CQ, DHA/PQ is mainly absorbed after taken orally, with peak plasma concentrations reached within 3–6 h for PQ and 1–3 h for DHA. PQ is then extensively distributed throughout the body, with a higher protein binding activity (more than 99% bound to plasma proteins). Besides, DHA has a smaller volume of distribution and plasma protein binding of 44–93%. The half-life of PQ was reported to be around (13.5–28days), while the elimination of DHA is much more rapid (with a half-life of ~1 h) (
Additionally, high-fat and high-calorie food intake could significantly increase the AUC and bioavailability of this drug, especially PQ, which may increase the risks of side effects. Consequently, it is recommended that DHA/PQ not be administered within ± 3 h of food consumption, especially for patients consuming a typical Western diet or taken with a low fat content of standard meals when co-administered with DHA/PQ (Tarning et al., 2008). The pharmacokinetic parameters of CQ and its analogs were shown in Table 3.
Table 3
| CQ and its analogs | Primary isoforms | Major metabolite |
|---|---|---|
| CQ | CYP2C8, CYP3A4/3A5, CYP2D6 | Desethly derivative |
| HCQ | CYP2D6 | Desethly derivative |
| Dihydroartemisin | UGT1A9, UGT2B7, CYP1A2 | DHA-glucuronide |
| Piperaquine | CYP2E1, CYP3A4, CYP3A5, CYP2C19 | Carboxyl acid cleavage product and mono-N-oxidated product |
Pharmacogenomics of CQ and its analogs (Roos et al., 2002;
Pharmacogenomics and Clinical Outcomes
With the development of genomics, the association of pharmacogenomics and anti-malarial drug metabolism have analyzed in recent years. CQ mainly metabolized by CYP3A4/CYP3A5 and CYP2C8 and CYP2D6, while only CYP2C8 SNPs were reported to influence clinical outcomes (Reuter, 2015). Additionally, CYP2D6 SNPs could influence the blood levels of HCQ (
Table 4
| Parameter | Drug | |||
|---|---|---|---|---|
| Chloroquine | Hydroxychloroquine | Piperaquine | Dihydroartemisinin | |
| Bioavailability | 89% | 74.6% | ~50%, fat food would increase the bioavailability | NA |
| Cmax (ng/mL) | 283–1430 | 14(34.3 ± 9.5) | 71.6–730 | 350(252–485) |
| Tmax (h) | 2.7–6.9 | 4(3.65 ± 1.14) | 1.48–5.7 | 3(2–60) |
| AUC (µg.h/mL) | 8.2–140 | 1819 ± 417 | 24.1–49.5 | |
| Elimination T1/2 (h) | 108–291 | 13.5–28 days | 332(174–631) | |
| CL/F (L/h per kg) | 0.23–0.8 | 0.85–1.85 | ||
| Vd/F (L/kg) | 31.8–262 | 529–877 | ||
| Protein binding: | Approximately 55% | NA | Piperaquine is bound to human plasma proteins more than 99%, and dihydroartemisinin is 44 to 93% bound | |
| Renal excretion | One-fourth as desethylchloroquine, slightly more than half as unchanged drug ( | Renal: 16 to 62% unchanged | NA | NA |
| Day 7 concentration (ng/mL) | 22.7–64 | |||
PK parameters of CQ and its analogs.
Safety
Adverse Effects
CQ is generally well tolerated at therapeutic doses. Basically, liver function is the core element that guarantees the safety of all drugs (including CQ and its analogs). However, hepatotoxicity was not unusual in CQ treatment patients, even under the 10-days course treatment of COVID-19, which calls for careful monitoring liver function. That may due to the oxidative stress induced by CQ, which would elevate SDH, ATPase and ALKase activities (Yao et al., 2020) and thus lead to accumulation of CQ and induce various side effects.
Generally, the risk of side effects develops with the dosage of CQ accumulation in vivo. Pruritus is a common side-effect and is more severe in dark-skinned patients in previous anti-malarial and rheumatoid arthritis applications. Besides, headache, hepatitis, elevated liver enzyme, various skin eruptions, and gastrointestinal disturbances, such as nausea, vomiting, and diarrhea were also reported. Taking CQ with food helps to avoid gastrointestinal intolerance. The most severe side effects of CQ is cardiac toxicity, which was irreversible in some patients. Though more considerable doses accumulation was more frequently associated with cardiac side effects, patients with low dosage also reported having a quinidine-like effect arising from a severe valvular insufficiency (
Additionally, some researchers seem to agree that CQ/HCQ-related cardiotoxicity was identical with Fabry disease (FD), as dysfunction of the lysosomal enzyme was also observed in CQ/HCQ-related cardiotoxicity (Roos et al., 2002; Putko et al., 2015). Roos et al. found clinicopathologic features of CQ/HCQ shared lots of similarity with FD, and the presence of curvilinear bodies was only found in CQ cardiotoxicity (
Besides, as renin-angiotensin system (RAS) inhibitors may elevate the expression of ACE2 in pulmonary, there is worrried about the disease of patients co-administered with RAS inhibitors aggravated. The research work done by Li et al. Demonstrate there was no association of severity or risk of deaths in COVID-19 patients with hypertension co-administered RAS inhibitors (
Retinopathy is another common side effect induced by CQ, with the incidence of HCQ lower than CQ (66.7% vs. 9.5%) (
Nguyen et al. pointed out if CQ is over 2.3 mg∙kg-1 daily dosage[g] or HCQ is over 5 mg∙kg-1 daily dose (
As regimens of large dosages and short durations CQ/HCQ was registered in some clinical trials, the retinopathy should be carefully monitored, and CQ should not be used in patients with histories of retinopathy or vision decline.
Neurologic toxicities including primarily headache, dizziness, and sleep disturbance were reported. Though central nervous system toxicity such as convulsions and mental changes occurred more rarely, it should not to be neglected. Systematic review done by Sandipan suggests that CQ may not increase the risk of seizure (
Figure 8

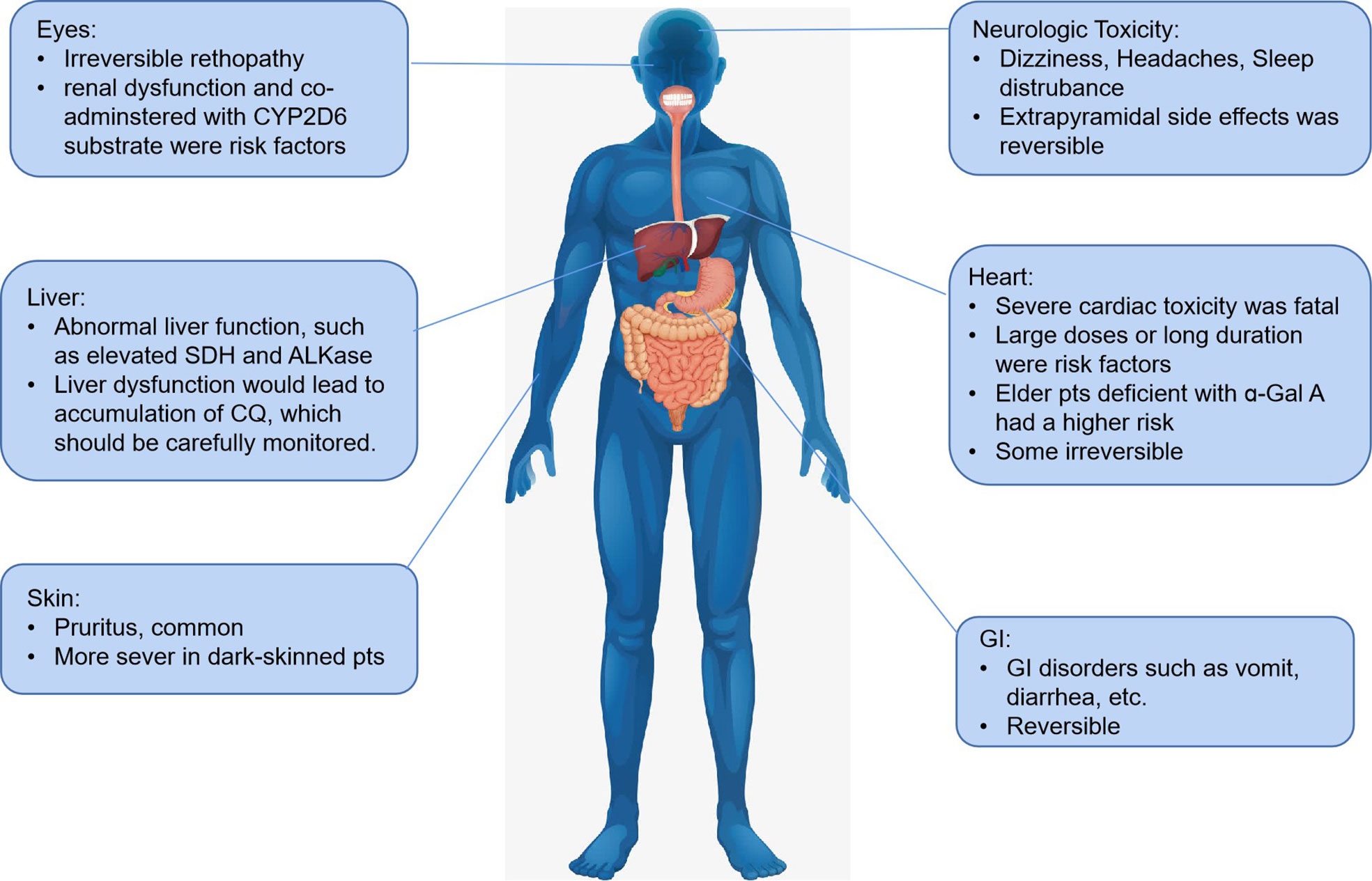

Adverse effects induced by CQ/HCQ.
When it comes to HCQ, basically HCQ is less toxic to CQ, especially the retinopathy incidence. Higher or long treatment (e.g., treatment duration longer than 5 years for anti-malarial treatment) could emerge side effects. A systematic review reported HCQ could cause cardiac disorder, especially in high doses or accumulated high doses, which may provoke potentially irreversible damage and death (Xu et al., 2016). Ingestion of 8–22 g by adults has caused life-threatening toxicity (e.g., dysrhythmias, hypotension, and coma). Considering the long elimation half-life and cumulative effect, side effects should be monitored carefully.
Generally, DHA/PQ was reported to be well tolerated in previous research, though adverse drug reaction such as gastrointestinal complaints (nausea, diarrhoea, and vomiting, as well as anorexia) and nervous system side effects (dizziness, headache, sleep disturbance, etc) was not uncommon (Yam and Kwok, 2006;
In conclusion, as CQ and its analogs were the inhibitors or substrate of various CYP450 enzymes and could cause lethal cardiac toxicity in large accumulated doses, it is recommended not to co-administered drugs that may have cardiac side effects (such as moxifloxacin) with CQ and its analogs. Demonstrated drug interactions were shown in Table 5. Additionally, if the treatment courses of CQ to COVID-19 are longer than malaria, then the potential side effects should be monitored carefully so as to avoid adverse drug interactions. Besides, as CQ and its analogs could inhibit the activity of CYP3A4/3A5, the blood concentration of immunosuppressants, such as tacrolimus and cyclosporin, should be monitored more frequently in COVID-19 patients with solid organ transplantation history. Last but most important, as liver damage occurred especially in critical severe COVID-2019 infected patients (
Table 5
| Antimalarial drug | Demonstrated interactions | Potential interactions |
|---|---|---|
| Chloroquine | Increased plasma concentration with paracetamol Reduced metabolism and clearance with cimetidine Reduced absorption with antacids and kaolin Reduced bioavailability of ampicillin and praziquantel; Reduced therapeutic effect of thyroxine; Increased plasma concentration of cyclosporine; Reduced plasma concentration of methotrexate; Reduced antibody response to primary immunization with intradermal human diploid-cell rabies vaccine | Increased convulsions with mefloquine; Increased risk for acute dystonic reactions with metronidazole; Antagonises effects of antiepileptics |
| Hydroxychloroquine | Increase risk of QT-interval prolongation; QT interval prolonging drugs (mesoridazine\thioridazine); Increase risk of torsades de pointes: amisulpride Increase risk of blood dyscrasias: aurothioglucose Increase serum digoxin concentrations: Digoxin Reduce bioavailability of antimalarials: Lanthanum carbonate | |
| Dihydroartemisinin | Reduced plasma concentration when artesunate or artemether is given with ritonavir | May result in slight decrease in CYP1A2 activity |
| Piperaquine | Piperaquine thtraphosphate/dihydroartemisinin: Increase exposure of piperaquine and CYP3A4 substrates: CYP3A4 inhibitors (abiraterone acetate\alprazolam) Decreased exposure of piperaquine: CYP3A4 inducer (amprenavir\armodafinil) Decrease exposure of CYP2E1 substrates: CYP2E1 inducer(acetaminophen\chlorzoxazone) Increase exposure of CYP2C19 substrates: CYP2C19 inhibitor(amitriptyline\carisoprodol) Increase risk of QT-interval prolongation: QT interval prolonging drugs(alfuzosin\anagrelide) Increase exposure of CYP1A2 substrate: aminophylline Increase risk of fatal arhythmias: amisulpride | Increased plasma concentration and potential increased toxicity with verapamil, indinavir, lopinavir + ritonavir, HMG-CoA reductase inhibitors (statins) and cyclosporina In-vitro metabolism by CYP3A4 increased (60) and thus reduced plasma concentration and potentially reduced effectiveness with barbiturates, chronic alcohol use, rifampicin, efavirenz, nevirapine, phenytoin or carbamazepinea Increased risk for cardiac events with drugs that prolong the QTc intervala |
Demonstrated interactions of CQ and its analogs (
Dosage Considerations for Other Patients
Elderly
Chineses scientists have dedicated themselves to rescuing COVID-19 patients, and Li Xiaochen et al. found age above 45, hypertension, high lactose dehydrogenase, and D-dimer level were risk factors for severity and mortality in adult COVID-19 patients (
Angiotensin-converting enzyme inhibitors (ACEI) and angiotensin II receptor blockers (ARB) could upregulate the expression of the ACE-2 receptor, which was the critical receptor that the SARS-CoV-2 virus utilized to enter human cells (
Pediatrics
According to epidemiological research of COVID-19 among pediatrics in China, children of all ages were susceptible to COVID-19, though clinical manifestations were generally less severe, young children, particularly infants, were more vulnerable to SARS-CoV-2 infection (
Pregnancy
CQ and other 4-aminoquinolones could cross the placenta. Although there is reported that at the labeled doses (
As malformations were not reported in animals administered PQ, PQ may be safe in reasonable dosage ranges. However, delay of delivery, which may induce neonatal mortality, was reported during peri- and postnatal development studies with 80 mg/kg of PQ. The safety of DHA is controversial, as embryo lethality and teratogenicity have been reported in animals administered DHA, although recent systematic review showed the effect of DHA/PQ (especially monthly) on low birth weight and adverse birth outcomes was minimal (Xu et al., 2016;
Breast-Feeding
CQ and HCQ have been found in low amounts in breast milk, and several studies have reported no adverse effects of this drug in infants exposed during the lactation period. Although the benefits of breastfeeding outweigh the theoretical risk to the infant, the nursing infant should always be monitored for adverse effects (
Conclusion
Since COVID-19 is warned by WHO as a pandemic around the world, it is of great importance to explore active drugs. CQ and its several analogs, especially HCQ, showed promising antiviral activity in vitro and preliminary clinical studies confirmed its efficacy. Nevertheless, adverse effects induced by CQ or its analogs should not be ignored due to their long half-lives and are lethal in large accumulated doses. As CQ or its analogs were inhibitors or substrate of CYP450, we suggest clinicians to assess the drug-to-drug interactions before use so as to avoid severe side effects, such as cardiac toxicity, liver damage, ocular toxicity, etc. Though CQ or HCQ had not shown significant advantages in virology conversion, the immuno-regulatory effect may help the body to combat the COVID-19. When it comes to the special population, such as the elderly, pregnant women, it should be carefully weighed the potential benefits of drug treatment against potential risks before prescribing. The metabolism of the elderly and the pediatric patients varied from the adults, which should be taken into full consideration. Additionally, patients with cardiac disease should be ruled out and monitored the side effects more carefully.
Recently, the US FDA has revoked the emergency use authorization (EUA) that allowed for CQ and HCQ to treat certain hospitalized patients with COVID-19 due to the emerging scientific data. The US FDA announced that “In light of ongoing serious cardiac adverse events and other potential serious side effects, the known and potential benefits of CQ/HCQ no longer outweigh the known and potential risks for the authorised use;” however, the efficacy and safety of CQ/HCQ in COVID-19 is controversial. The Lancet journal has retracted a large study of HCQ after finding flaws in the dataset, which published on 22 May. The study found the drug did not help treat COVID-19. Chinese scientists Nanshan et al. reported their study compared the efficacy of CQ in COVID-19 treatment (
Above all, high-quality, large-scale clinical research still need to be done to assess the potential benefits and risks for different patients, and PBPK modeling may help optimize the clinical dosing design. It is of great importance for all the clinical participants or coordinates together to overcome the COVID-19 crisis.
Statements
Author contributions
HP, ZC, SR, JW, MZ, CZ, LD, YZ, and LC prepared the manuscript and do the literature research. HP, ZC, TX, and XL wrote the manuscript. JH, XW, and TH did the article review and the corresponding author TH and XW approved the final version. All authors contributed to the article and approved the submitted version.
Acknowledgments
The authors thank all the doctors, nurses, pharmacists and other peers who devoted themselves for the drug discovery, treatment, control, and prevention of COVID-19.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fphar.2020.554172/full#supplementary-material
