Introduction
Purinergic signaling comprises a network of extracellular nucleosides and nucleotides, cell surface adenosine (P1) and nucleotide (P2) receptors, and ecto-enzymes that together participate in cell-to-cell communication (). This network plays key roles in many physiological processes () including inflammation and immunity, as recently illustrated by members of the Italian Purine Club (; ; ; ) and others (). Much of this understanding has been obtained from studies of cells expressing endogenous or recombinant purinergic molecules, rodent models of health and disease, and human tissue samples (). Humanized mice provide a complementary approach to investigate purinergic signaling in inflammation and immunity and are valuable tools to translate findings from mice to humans. However, the use of humanized mice in this context is only in its infancy. In this opinion article, we will briefly provide a description of humanized mice. Then, using recent studies from our groups, we illustrate how a humanized mouse model has been used to advance our understanding of purinergic signaling in the inflammatory immune disorder, graft-versus-host disease (GVHD). Finally, directions for the future use of humanized mouse models to investigate purinergic signaling in inflammation and immunity and other systems will be briefly outlined.
Humanized Mice
Humanized mice can be classified into two groups. The first involves the expression of specific human gene products within mice including cases in which a given mouse gene is replaced by the human ortholog (Stripecke et al., 2020). Examples of mice incorporating transgenes of human purinergic molecules include the overexpression of human CD39 (ENTPD1) (), as well as the substitution of the mouse gene with the corresponding human gene for the adenosine A3 receptor (ADORA3) (Yamano et al., 2005), P2X7 receptor (P2RX7) () or a Gln460Arg P2X7 receptor variant (). The second group of humanized mice, so called xenogeneic mouse models, involves the transfer of human cells into mice, which are typically immunodeficient (Stripecke et al., 2020). It is this group which forms the focus of the remaining article.
Humanized mice resulting from the engraftment of human cells have been important pre-clinical tools for three decades (). As such, there are a large number of humanized mouse models including those of relevance to inflammation and immunity, in which immunodeficient mice are engrafted with human peripheral blood mononuclear cells (PBMCs), hematopoietic cells or tissues to form functional human immune systems (). A brief history of the development of humanized mice, including a list of the current mouse platforms available and potential sources of human tissue, is provided elsewhere ().
The humanized mouse model most commonly used to investigate purinergic signaling in inflammation and immunity involves the injection of human PBMCs into non-irradiated NOD.Cg-PrkdcscidIL2rgtm1Wjl (NSG) mice (Hu-PBMC-NSG mice) (), a model established by . NSG mice readily engraft human cells due to naturally occurring and engineered mutations resulting in: impaired development of T and B cells and natural killer cells, preventing immune-mediated rejection of human cells; and enhanced mouse SIRPα-human CD47 interactions, promoting engraftment of human hematopoietic cells (). NODShi.Cg-PrkdcscidIL2rgtm1Sug (NOG) mice are similar to NSG mice except they encode a truncated, rather than a null, form of the IL-2 receptor γ-chain and can also engraft human PBMCs (). Thus, studies of NOG mice engrafted with human PBMCs provide supplementary information when seeking to understand immune mechanisms in Hu-PBMC-NSG mice. Studies of humanized NOG mice in relation to purinergic signaling are yet to be reported.
A number of features need to be considered when studying purinergic signaling pathways in Hu-PBMC-NSG mice. First, despite readily engrafting human T cells, the engraftment of human B cells and myeloid cells in these mice is limited (), presumably due to species-specific factors (). Second, these factors are likely to disrupt the engraftment of other human leukocyte subsets, such as the observed decline of human T regulatory cells in these mice over time (). Third, NSG mice display defects in other immune pathways such as the complement pathway (Verma et al., 2017) limiting the scope of studying some inflammatory and immune processes. Fourth, disparities between murine MHC class I and II molecules and human T cell receptors may yield sub-optimal human immune responses (). Fifth, NSG mice display higher rates of antibody clearance compared to other strains () reducing the efficacy of functional monoclonal antibodies in this model. Finally, Hu-PBMC-NSG mice develop lethal GVHD from 4 weeks (; ), limiting long-term studies in these mice. This last feature however affords a valuable pre-clinical model of this disease, which we have utilized to investigate the role of purinergic signaling pathways in GVHD (Figure 1).

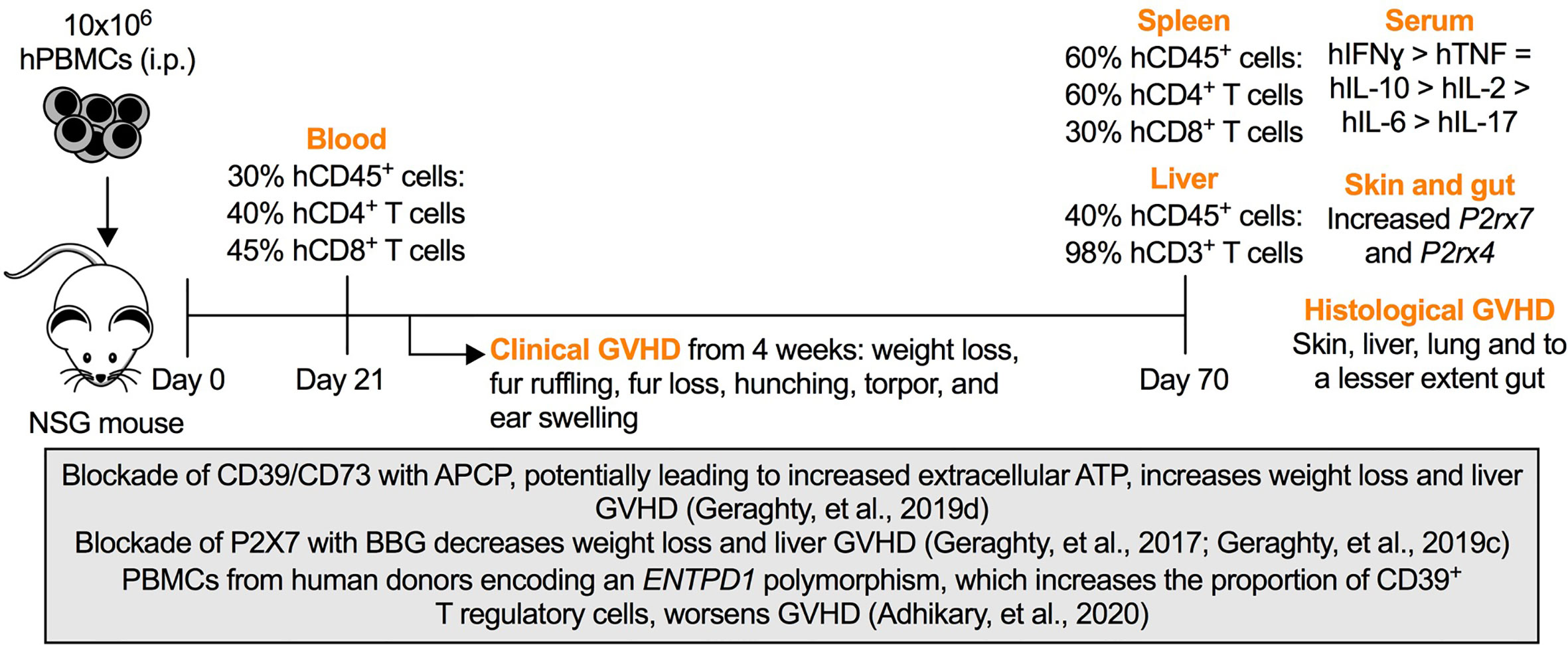

Figure 1
Purinergic Signaling in GVHD in Humanized NSG Mice
Allogeneic hematopoietic stem cell transplantation (HSCT) is a curative therapy in people with malignant and other blood disorders (). However, GVHD, in which donor immune cells damage and destroy host tissues occurs in up to 30% of HSCT recipients, leading to severe morbidity and high rates of death (Zeiser and Blazar, 2017). GVHD typically occurs in the skin, intestines, liver and lungs, but can extend to the eyes, ovaries and brain (Zeiser and Blazar, 2017). As such, new and additional treatments are needed to further decrease the impact and incidence of GVHD in HSCT recipients.
Studies from allogeneic mouse models of GVHD, in which donor leukocytes from one mouse strain are transplanted into a second mouse strain, have revealed important roles for purinergic signaling pathways in GVHD development, identifying new potential therapeutic targets in preventing this disease in humans. Using small molecule antagonists/agonists and knockout mice of purinergic molecules, these studies have revealed that ATP is released at sites of inflammation and that P2X7 receptor activation on host antigen presenting cells contributes to the stimulation of donor effector T cells to promote GVHD progression (Wilhelm et al., 2010). Moreover, P2Y2 receptor activation on host cells contributes to this disease by directing monocytes to sites of inflammation and causing the apoptotic loss of intestinal cells (). Conversely, adenosine A2A receptor activation by CD73-generated adenosine limits GVHD progression (; Tsukamoto et al., 2012), an effect mediated in part by the expansion of donor T regulatory cells (). Collectively, these data suggest a working paradigm in which extracellular ATP activates P2 receptors to promote inflammation and GVHD, while extracellular adenosine activates adenosine receptors to limit inflammation and GVHD.
To determine if the above paradigm is relevant to human GVHD, our groups have investigated the roles of purinergic signaling in Hu-PBMC-NSG mice using small molecule antagonists/agonists of purinergic molecules and PBMCs from human donors encoding natural variants of the P2RX7 and ENTPD1 genes (Figure 1). Collectively, this data supports the role of extracellular ATP () and the subsequent activation of the P2X7 receptor (; ) in promoting GVHD, most notably liver GVHD, in this humanized mouse model. This effect appeared to be due to activation of host P2X7 receptors, as PBMCs from human donors encoding either loss-of-function or gain-of-function P2RX7 gene variants resulted in similar rates and severity of GVHD (). In contrast, a role for CD73-derived adenosine and A2a receptor activation in preventing GVHD in Hu-PBMC-NSG mice could not be established (). Use of the adenosine A2a receptor agonist, CGS 21680, suggested a role for this receptor in preventing GVHD progression, but this result was confounded by this agonist increasing weight loss in Hu-PBMC-NSG mice (). Further complicating an immunosuppressive role for adenosine in this model, is our observation that engraftment of human PBMCs with a polymorphic variant of the ENTPD1 gene, that results in increased CD39+ T regulatory cells, worsens GVHD (). Finally, our studies have revealed increased expression of murine P2rx7 and P2rx4 in GVHD tissues from Hu-PBMC-NSG mice compared to those from non-engrafted NSG mice () and the presence of functional murine P2X7 receptors in NSG mice (), whilst both human P2RX7 and ADORA2 are detected in Hu-PBMC-NSG mice (). Collectively, this data suggests Hu-PBMC-NSG mice provide a pre-clinical model of GVHD in which new therapeutics aimed at inhibiting P2X7 receptor activation can be tested, whilst the potential use of this model to test new therapeutics aimed at activating A2A receptors remains to be established. Moreover, through the use of species-specific biologics (), Hu-PBMC-NSG mice afford new opportunities to delineate the role of donor (human) and host (murine) purinergic molecules in GVHD. One caveat in using Hu-PBMC-NSG mice to study purinergic signaling in GVHD is that the use of purinergic antagonists/agonists in these mice are typically less effective in modifying disease outcomes than in allogeneic mouse models of GVHD. This difference most likely reflects the greater disparity in MHC molecules between species than between mouse strains resulting in more severe forms of GVHD in Hu-PBMC-NSG mice compared to allogeneic mice.
Conclusions and Future Directions
Due to the development of lethal GVHD in Hu-PBMC-NSG other studies of purinergic signaling in inflammatory and immune processes in these mice remain limited. Nevertheless, given these mice readily engraft human T cells, these mice present opportunities to study the role of purinergic molecules in human T cell activation, differentiation, migration and survival in vivo for up to 4 weeks prior to clinical GVHD development. Moreover, the above studies of purinergic signaling in GVHD in Hu-PBMC-NSG mice serve as a proof-of-concept to consider studying the roles of purinergic signaling in inflammatory and immune processes in other humanized mouse models. In this regard, recent advances, such as the expression of transgenes for human growth factors and use of human progenitor cells, have facilitated the engraftment of human T cells and other human leukocytes in the absence of GVHD (Stripecke et al., 2020). Other advances have assisted the study of human T cell responses in vivo. For example, expression of human MHC class I and II transgenes in NSG mice has facilitated the study of CD8+ and CD4+ T cell responses in graft-versus-leukemia immunity () and colitis (), respectively, in Hu-PBMC-NSG mice. Thus, purinergic investigators seeking to employ humanized mice need to consider the purinergic pathway(s) and cell type(s) of interest in selecting the most appropriate humanized mouse model available, including the development of new humanized mouse models to address aims.
In wanting to employ humanized mice, investigators also need to consider the ethical implications and constraints of using animals and human tissues, including the generation of human–mice chimeras and the source of human cells (), with some humanized mouse models requiring human fetal liver tissue (). Nevertheless, given the range of humanized mouse models emerging (Stripecke et al., 2020), humanized mice provide new and exciting opportunities for the study of purinergic signaling in inflammation and immunity, as well as in other physiological and pathophysiological settings. For example, von Willebrand factor mutant mice, which support human but not murine platelet-induced thrombosis, have been used to study the P2Y12 receptor antagonist clopidogrel in vivo (). Additionally, given the roles of purinergic signaling in cancer progression and metastasis, as highlighted by members of the Italian Purine Club (; ; ), human tumor xenograft models will support the future study of such pathways in this disease. Humanized mouse models also afford opportunities to develop personalized medicine relating to purinergic targets in disease, as illustrated by the use of human tumor xenografts (so called patient-derived xenograft or PDX models) in tailoring therapies for people with cancer (). Finally, investigators are directed to recent standardized reporting guidelines concerning the use of humanized mice aimed at enhancing rigor and reproducibility (Stripecke et al., 2020).
