Abstract
The widespread distribution of insects over many ecological niches owes much to evolution of multiple mechanisms to defend against environmental stress, especially because their ectothermic nature and small body size render them particularly susceptible to extremes in temperature and water availability. In this review, we will summarize the latest information describing a single, multifunctional cytokine family that is deployed by six orders of insect species to combat a diverse variety of environmental stresses. The originating member of this peptide family was identified in Mythimna (formerly called Pseudaletia) separata armyworm; the cytokine was named growth-blocking peptide (GBP), reflecting its actions in combating parasitic invasion. The peptide’s name has been retained, though the list of its regulatory activities has greatly expanded. All members of this family are small peptides, 19–25 amino acid residues, whose major source is fat body. They are now known to regulate embryonic morphogenesis, larval growth rates, feeding activities, immune responses, nutrition, and aging. In this review, we will describe recent developments in our understanding of the mechanisms of action of the GBP family, but we will also highlight remaining gaps in our knowledge.
Introdution
Growth-blocking peptide (GBP) was initially found as a peptidergic factor which blocks JH esterase activation in the hemolymph of early last instar larvae of host Mythimna (formerly called Pseudaletia) separata armyworm upon infection by the parasitic wasp Cotesia kariyai (). GBP-induced suppression of hemolymph JH esterase is a protective measure that delays larval growth and development (). Although the mechanism by which M. separata (Ms) GBP suppresses hemolymph JH esterase activation is still unknown, this initial observation led us to focus on its hormone-like function (). Further characterization of MsGBP signaling elucidated that it elevates dopamine concentrations in the hemolymph through enhanced expression of tyrosine hydroxylase and DOPA decarboxylase in the integument and the brain (, ). This up-regulation of gene expression was subsequently attributed to MsGBP-induced activation of phospholipase C (PLC), release of inositol triphosphate (IP3), and the elevation of cytoplasmic Ca2+ concentrations (; ). Although the relationship between dopamine elevation and JH esterase repression has not been yet clarified, both events have negative impact on the growth rates of insect larvae ().
In the years since the discovery of MsGBP, over 10 GBP orthologous peptides have been found in several lepidopteran species (, ). They all consist of 23–25 amino acids, and they share more than 70% sequence identity, yet they show diverse functions: paralysis induction, plasmatocyte spreading, and cardioacceleration. However, to date, the only known receptor for a GBP is that identified in Drosophila-Mthl10 (see below). MsGBP itself was demonstrated to have this multifunctionality (). Subsequent studies established further functions of the GBP family such as cell growth activator, early morphogenetic mediator, and humoral immune mediator (; , ). Nevertheless, as is common practice, this cytokine family is still named after its originating function as a growth-blocking peptide ().
Nonlepidopteran GBP
Many GBP orthologous peptides had been reported in Lepidoptera, but it was not until 2012 that the first nonlepidopteran GBP was discovered (). To identify their primary structures, hemolymph peptides that induce cell growth and plasmatocyte spreading activities were purified from Tenebrionid and bluebottle fly larvae (; ). The functional orthologs identified by these studies comprised 19–24 amino acids, and subsequent homology searches expanded the presence of GBP-like peptides to five orders. Comparisons of these peptides enabled us to extract the consensus motif C-x(2)-G-x(4,6)-G-x(1,2)-C-[KR] (). More recently, this motif has been found in Locusta migratoria and Schistocerca gregaria GBPs (). Here, we describe the phylogenetic relationship derived from precursor protein sequences of all known members of the GBP family and GBP orthologs which were identified by homology searches (Figure 1). It is interesting that the GBP motif shares a significant similarity with the portion of the mammalian epidermal growth factor (EGF) motif (Figure 2) that forms the C-terminal region, in which Arg41 and Leu47 have been reported to be crucial for binding to the EGF receptor (). NMR analysis demonstrated that the GBP motif core structure (residues 7–22) is predicted to show an EGF-like fold stabilized by a disulfide bond and a short ß-hairpin turn (). This characteristic tertiary structure has been reported to be common in lepidopteran GBP orthologs which had been previously referred as to “ENF-peptide” that was named after the consensus N-terminal amino acid sequence (; ).

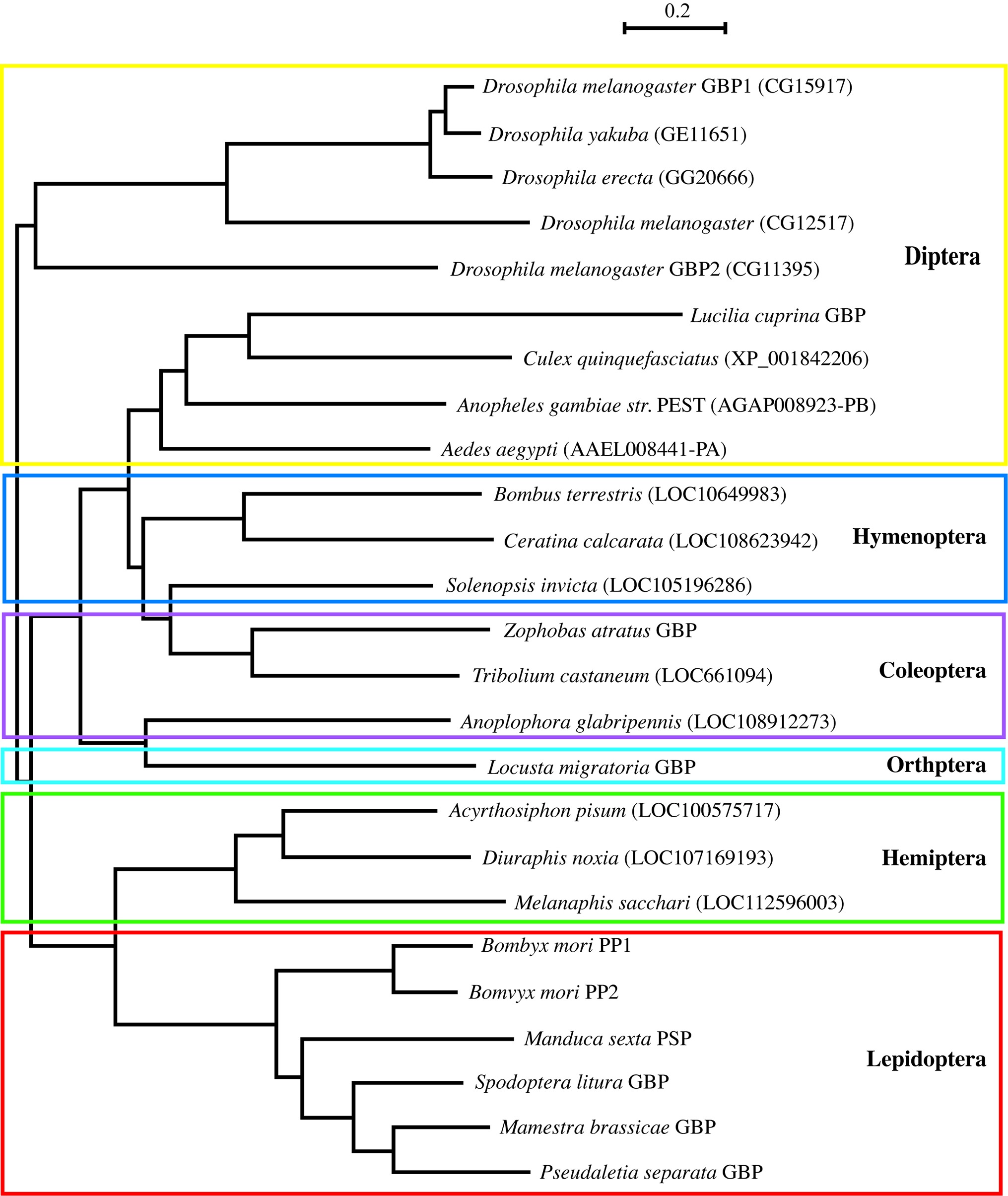

Figure 1
Figure 2

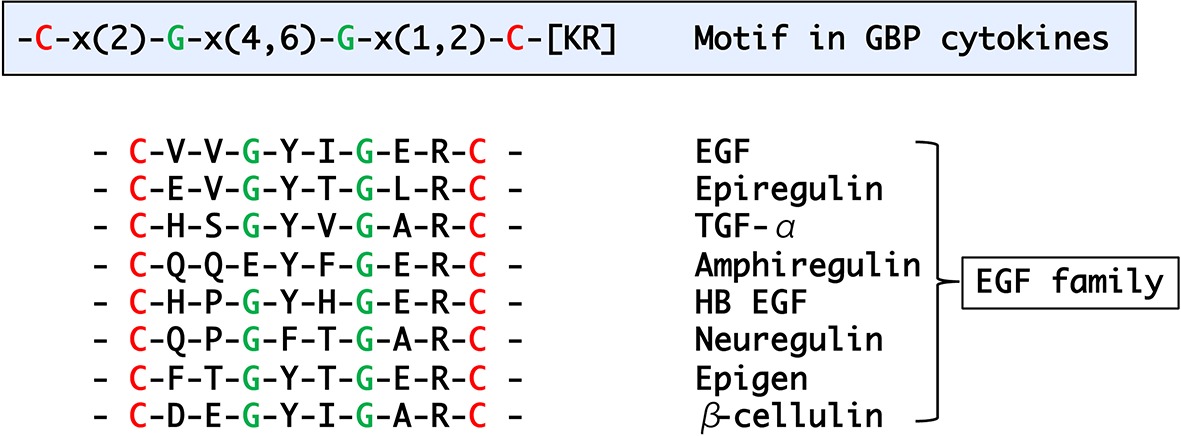

A motif found in the active peptide regions of GBP/GBP-like genes and alignment of mammalian EGF peptide family.
Although several other insect cytokines, such as Spätzle (
Drosophila GBP
Following on from the identification of DmGBP, three major developments have been made concerning its functions and signaling mechanisms as follows. First, DmGBP was demonstrated to elevate anti-microbial peptide (AMP) expression independently of the canonical receptors that at that time were known to be associated with the inflammatory pathways mediated by Toll- and IMD-dependent pathways (
Second, it was demonstrated that DmGBP activates an IP/Ca2+ signaling cascade that dictates the timing and the intensity of the separate cellular and humoral components of the innate immune response which, moreover, are reciprocally regulated (
Third, by screening a dsRNA library that targets genes encoding membrane proteins, the DmGBP receptor has been determined to be the G-protein-coupled receptor Methuselah-like 10 (Mthl10) (
It was recently reported that DmGBP regulates the release of insulin-like peptides (ILPs) from the brain depending on nutrient levels in the hemolymph through target of rapamycin (TOR) in Drosophila (
GBP Signaling and its Regulation
In mammals, the cytokine TNF triggers the production of proinflammatory cytokines such as IL-1ß and IL-6 (
Another mode of GBP signaling regulation is the control of its hemolymph concentrations by GBP-binding protein (GBP-BP) that functions as a scavenger of MsGBP in the armyworm (
Future Investigations of GBP Signaling
There remain many important questions regarding GBP multifunctionality and their regulation. For example, it has been demonstrated that GBP serves its immunological and metabolic functions as described above. Furthermore, GBP functions as a cell growth factor (
When DmGBP (CG15917) was first identified, four other Drosophila genes encoding the proGBP-like peptide were also found: CG11395, CG12517, CG14069, and CG17244. Koyama and Mirth recently found that the CG11397 gene product regulated the release of ILPs from the brain in the similar manner of GBP (CG15917) and they named CG15917 and CG11397 for GBP1 and GBP2, respectively (
Conclusions
Although the multiple functionalities of MsGBP and DmGBP have been clearly demonstrated, it remains unclear to what extent the GBP-signaling pathways and functionalities are conserved in other insects. For example, it is not yet known if Mthl10 orthologous gene occurs in the armyworm. Moreover, SRP and GBP-BP have been examined only in the armyworm. It will be important to identify all these essential components for GBP-signaling function and regulation in broad insect species, so as to identify species-, development-, and stage-specific expression of such components. Elucidating commonality and difference of such GBP-associated factors in insects may hint at the conservation of some of these important homeostatic mechanisms in mammals.
Statements
Author contributions
All authors listed have made a substantial, direct and intellectual contribution to the work, and approved it for publication.
Funding
This research was supported by the Intramural Research Program of the NIH, National Institutes of Environmental Health Sciences (SS) and by a Grant-in-Aid for Scientific Research (A) (Grant number: 16H0259) from JSPS (YH).
Acknowledgments
We appreciate the contribution of Dr. Hitoshi Matsumoto (Saga University) in drawing the phylogenetic tree.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
References
1
AizawaT.FujitaniN.HayakawaY.OhnishiA.OhkuboT.KumakiY.et al. (1999). Solution structure of an insect growth factor, growth-blocking peptide. J. Biol. Chem.274, 1887–1890. doi: 10.1074/jbc.274.4.1887
2
AizawaT.HayakawaY.OhnishiA.FujitaniN.ClarkK. D.StrandM. R.et al. (2001). Structure and activity of the insect cytokine growth-blocking peptide. Essential regions for mitogenic and hemocyte-stimulating activities are separate. J. Biol. Chem.276, 31813–31818. doi: 10.1074/jbc.M105251200
3
Barat-HouariM.HilliouF.JoussetF. X.SoferL.DeleuryE.RocherJ.et al. (2006). Gene expression profiling of Spodoptera frugiperda hemocytes and fat body using cDNA microarray reveals polydnavirus-associated variations in lepidopteran host genes transcript levels. BMC Genomics7:160. doi: 10.1186/1471-2164-7-160
4
ChevignonG.CambierS.Da SilvaC.PoulainJ.DrezenJ. M.HuguetE.et al. (2015). Transcriptomic response of Manduca sexta immune tissues to parasitization by the bracovirus associated wasp Cotesia congregata. Insect Biochem. Mol. Biol.62, 86–99. doi: 10.1016/j.ibmb.2014.12.008
5
CunhaF. Q.LorenzettiB. B.PooleS.FerreiraS. H. (1991). Interleukin-8 as a mediator of sympathetic pain. Br. J. Pharmacol.104, 765–767. doi: 10.1111/j.1476-5381.1991.tb12502.x
6
DeLottoY.DeLottoR. (1998). Proteolytic processing of the Drosophila Spatzle protein by easter generates a dimeric NGF-like molecule with ventralising activity. Mech. Dev.72, 141–148. doi: 10.1016/S0925-4773(98)00024-0
7
DuressaT. F.BoonenK.HayakawaY.HuybrechtsR. (2015). Identification and functional characterization of a novel locust peptide belonging to the family of insect growth blocking peptides. Peptides74, 23–32. doi: 10.1016/j.peptides.2015.09.011
8
ElenkovI. J.ChrousosG. P. (2002). Stress hormones, proinflammatory and antiinflammatory cytokines, and autoimmunity. Ann. N. Y. Acad. Sci.966, 290–303. doi: 10.1111/j.1749-6632.2002.tb04229.x
9
GoldsteinI.PaakinahoV.BaekS.SungM. H.HagerG. L. (2017). Synergistic gene expression during the acute phase response is characterized by transcription factor assisted loading. Nat. Commun.8:1849. doi: 10.1038/s41467-017-02055-5
10
HayakawaY. (1990). Juvenile hormone esterase activity repressive factor in the plasma of parasitized insect larvae. J. Biol. Chem.265, 10813–10816. PMID:
11
HayakawaY. (1991). Structure of a growth-blocking peptide present in parasitized insect hemolymph. J. Biol. Chem.266, 7981–7984.
12
HayakawaY. (1992). A putative new juvenile peptide hormone in lepidopteran insects. Biochem. Biophys. Res. Commun.185, 1141–1147. doi: 10.1016/0006-291X(92)91745-C
13
HayakawaY. (1995). Growth-blocking peptide: an insect biogenic peptide that prevents the onset of metamorphosis. J. Insect Pysiology41, 1–6.
14
HayakawaY. (2006). Insect cytokine growth-blocking peptide (GBP) regulates insect development. Appl. Entomol. Zool.41, 545–554. doi: 10.1303/aez.2006.545
15
HayakawaY.OhnishiA. (1998). Cell growth activity of growth-blocking peptide. Biochem. Biophys. Res. Commun.250, 194–199. doi: 10.1006/bbrc.1998.8959
16
HuZ. G.ChenK. P.YaoQ.GaoG. T.XuJ. P.ChenH. Q. (2006). Cloning and characterization of Bombyx mori PP-BP a gene induced by viral infection. Yi Chuan Xue Bao. Acta Gene. Sin.33, 975–983. doi: 10.1016/S0379-4172(06)60132-7
17
KarstenP.HaderS.ZeidlerM. P. (2002). Cloning and expression of Drosophila SOCS36E and its potential regulation by the JAK/STAT pathway. Mech. Dev.117, 343–346. doi: 10.1016/S0925-4773(02)00216-2
18
KhanY. M.KirkhamP.BarnesP. J.AdcockI. M. (2014). Brd4 is essential for IL-1beta-induced inflammation in human airway epithelial cells. PLoS One9:e95051. doi: 10.1371/journal.pone.0095051
19
KoyamaT.MirthC. K. (2016). Growth-blocking peptides as nutrition-sensitive signals for insulin secretion and body size regulation. PLoS Biol.14:e1002392. doi: 10.1371/journal.pbio.1002551
20
LavineM. D.StrandM. R. (2002). Insect hemocytes and their role in immunity. Insect Biochem. Mol. Biol.32, 1295–1309. doi: 10.1016/S0965-1748(02)00092-9
21
LorenzettiB. B.VeigaF. H.CanettiC. A.PooleS.CunhaF. Q.FerreiraS. H. (2002). Cytokine-induced neutrophil chemoattractant 1 (CINC-1) mediates the sympathetic component of inflammatory mechanical hypersensitivitiy in rats. Eur. Cytokine Netw.13, 456–461. PMID:
22
MatsumotoH.TsuzukiS.Date-ItoA.OhnishiA.HayakawaY. (2012). Characteristics common to a cytokine family spanning five orders of insects. Insect Biochem. Mol. Biol.42, 446–454. doi: 10.1016/j.ibmb.2012.03.001
23
MatsumotoY.OdaY.UryuM.HayakawaY. (2003). Insect cytokine growth-blocking peptide triggers a termination system of cellular immunity by inducing its binding protein. J. Biol. Chem.278, 38579–38585. doi: 10.1074/jbc.M305986200
24
MatsumuraT.NakanoF.MatsumotoH.UryuO.HayakawaY. (2018). Identification of a cytokine combination that protects insects from stress. Insect Biochem. Mol. Biol.97, 19–30. doi: 10.1016/j.ibmb.2018.04.002
25
MoonM. R.ParikhA. A.PrittsT. A.KaneC.FischerJ. E.SalzmanA. L.et al. (2000). Interleukin-1beta induces complement component C3 and IL-6 production at the basolateral and apical membranes in a human intestinal epithelial cell line. Shock13, 374–378. doi: 10.1097/00024382-200005000-00005
26
MorenoE.YanM.BaslerK. (2002). Evolution of TNF signaling mechanisms: JNK-dependent apoptosis triggered by Eiger, the Drosophila homolog of the TNF superfamily. Curr. Biol.12, 1263–1268. doi: 10.1016/S0960-9822(02)00954-5
27
NinomiyaY.HayakawaY. (2007). Insect cytokine, growth-blocking peptide, is a primary regulator of melanin-synthesis enzymes in armyworm larval cuticle. FEBS J.274, 1768–1777. doi: 10.1111/j.1742-4658.2007.05724.x
28
NinomiyaY.KurakakeM.OdaY.TsuzukiS.HayakawaY. (2008). Insect cytokine growth-blocking peptide signaling cascades regulate two separate groups of target genes. FEBS J.275, 894–902. doi: 10.1111/j.1742-4658.2008.06252.x
29
NiyonsabaF.UshioH.NakanoN.NgW.SayamaK.HashimotoK.et al. (2007). Antimicrobial peptides human beta-defensins stimulate epidermal keratinocyte migration, proliferation and production of proinflammatory cytokines and chemokines. J. Invest. Dermatol.127, 594–604. doi: 10.1038/sj.jid.5700599
30
NoguchiH.HayakawaY.DownerR. (1995). Elevation of dopamine levels in parasitized insect larvae. Insect Biochem. Mol. Biol.25, 197–201. doi: 10.1016/0965-1748(94)00054-L
31
NoguchiH.TsuzukiS.TanakaK.MatsumotoH.HirumaK.HayakawaY. (2003). Isolation and characterization of a dopa decarboxylase cDNA and the induction of its expression by an insect cytokine, growth-blocking peptide in Pseudaletia separata. Insect Biochem. Mol. Biol.33, 209–217. doi: 10.1016/S0965-1748(02)00192-3
32
OgisoH.IshitaniR.NurekiO.FukaiS.YamanakaM.KimJ. H.et al. (2002). Crystal structure of the complex of human epidermal growth factor and receptor extracellular domains. Cell110, 775–787. doi: 10.1016/S0092-8674(02)00963-7
33
OhnishiA.HayakawaY.MatsudaY.KwonK. W.TakahashiT. A.SekiguchiS. (1995). Growth-blocking peptide titer during larval development of parasitized and cold-stressed armyworm. Insect Biochem. Mol. Biol.25, 1121–1127. doi: 10.1016/0965-1748(95)00054-2
34
OhnishiA.OdaY.HayakawaY. (2001). Characterization of receptors of insect cytokine, growth-blocking peptide, in human keratinocyte and insect Sf9 cells. J. Biol. Chem.276, 37974–37979. doi: 10.1074/jbc.M104856200
35
ParkJ. A.KimY. (2012). Toll recognition signal activates oenocytoid cell lysis via a crosstalk between plasmatocyte-spreading peptide and eicosanoids in response to a fungal infection. Cell. Immunol.279, 117–123. doi: 10.1016/j.cellimm.2012.11.005
36
SaitouN.NeiM. (1987). The neighbor-joining method: a new method for reconstructing phylogenetic trees. Mol. Biol. Evol.4, 406–425. doi: 10.1093/oxfordjournals.molbev.a040454
37
SasibhushanS.C. G. P. R.PonnuvelK. M. (2013). Genome wide microarray based expression profiles during early embryogenesis in diapause induced and non-diapause eggs of polyvoltine silkworm Bombyx mori. Genomics102, 379–387. doi: 10.1016/j.ygeno.2013.07.007
38
ShafeeT. M.LayF. T.PhanT. K.AndersonM. A.HulettM. D. (2017). Convergent evolution of defensin sequence, structure and function. Cell. Mol. Life Sci.74, 663–682. doi: 10.1007/s00018-016-2344-5
39
ShelbyK. S.PophamH. J. (2009). Analysis of ESTs generated from immune-stimulated hemocytes of larval Heliothis virescens. J. Invertebr. Pathol.101, 86–95. doi: 10.1016/j.jip.2009.05.002
40
StrandM. R.HayakawaY.ClarkK. D. (2000). Plasmatocyte spreading peptide (PSP1) and growth blocking peptide (GBP) are multifunctional homologs. J. Insect Pysiol.46, 817–824.
41
SungE. J.RyudaM.MatsumotoH.UryuO.OchiaiM.CookM. E.et al. (2017). Cytokine signaling through Drosophila Mthl10 ties lifespan to environmental stress. Proc. Natl. Acad. Sci. U. S. A.114, 13786–13791. doi: 10.1073/pnas.1712453115
42
TsuzukiS.MatsumotoH.FurihataS.RyudaM.TanakaH.SungE. J.et al. (2014). Switching between humoral and cellular immune responses in Drosophila is guided by the cytokine GBP. Nat. Commun.5:4628. doi: 10.1038/ncomms5628
43
TsuzukiS.OchiaiM.MatsumotoH.KurataS.OhnishiA.HayakawaY. (2012). Drosophila growth-blocking peptide-like factor mediates acute immune reactions during infectious and non-infectious stress. Sci. Rep.2:210. doi: 10.1038/srep00210
44
TsuzukiS.SekiguchiS.KamimuraM.KiuchiM.HayakawaY. (2005). A cytokine secreted from the suboesophageal body is essential for morphogenesis of the insect head. Mech. Dev.122, 189–197. doi: 10.1016/j.mod.2004.10.005
45
Vanha-AhoL. M.ValanneS.RametM. (2016). Cytokines in Drosophila immunity. Immunol. Lett.170, 42–51. doi: 10.1016/j.imlet.2015.12.005
46
VolkmanB. F.AndersonM. E.ClarkK. D.HayakawaY.StrandM. R.MarkleyJ. L. (1999). Structure of the insect cytokine peptide plasmatocyte-spreading peptide 1 from Pseudoplusia includens. J. Biol. Chem.274, 4493–4496. doi: 10.1074/jbc.274.8.4493
47
WeberA. N.Tauszig-DelamasureS.HoffmannJ. A.LelievreE.GascanH.RayK. P.et al. (2003). Binding of the Drosophila cytokine Spatzle to Toll is direct and establishes signaling. Nat. Immunol.4, 794–800. doi: 10.1038/ni955
48
YamaguchiK.MatsumotoH.OchiaiM.TsuzukiS.HayakawaY. (2012). Enhanced expression of stress-responsive cytokine-like gene retards insect larval growth. Insect Biochem. Mol. Biol.42, 183–192. doi: 10.1016/j.ibmb.2011.11.009
49
YangH.KronhamnJ.EkstromJ. O.KorkutG. G.HultmarkD. (2015). JAK/STAT signaling in Drosophila muscles controls the cellular immune response against parasitoid infection. EMBO Rep.16, 1664–1672. doi: 10.15252/embr.201540277
50
YuX. Q.PrakashO.KanostM. (1999). Structure of a paralytic peptide from an insect, Manduca sexta. J. Pept. Res.54, 256–261.
51
ZeidlerM. P.PerrimonN.StruttD. I. (1999). Polarity determination in the Drosophila eye: a novel role for unpaired and JAK/STAT signaling. Genes Dev.13, 1342–1353. doi: 10.1101/gad.13.10.1342
52
ZhouY.WuS.WangH.HayakawaY.BirdG. S.ShearsS. B. (2012). Activation of PLC by an endogenous cytokine (GBP) in Drosophila S3 cells and its application as a model for studying inositol phosphate signalling through ITPK1. Biochem. J.448, 273–283. doi: 10.1042/BJ20120730
53
ZhuoX. R.ChenL.WangG. J.LiuX. S.WangY. F.LiuK.et al. (2018). 20-Hydroxyecdysone promotes release of GBP-binding protein from oenocytoids to suppress hemocytic encapsulation. Insect Biochem. Mol. Biol.92, 53–64. doi: 10.1016/j.ibmb.2017.11.006
Summary
Keywords
cytokine, growth-blocking peptide (GBP), stress-responsive peptide (SRP), Mthl10, hormesis
Citation
Shears SB and Hayakawa Y (2019) Functional Multiplicity of an Insect Cytokine Family Assists Defense Against Environmental Stress. Front. Physiol. 10:222. doi: 10.3389/fphys.2019.00222
Received
24 August 2018
Accepted
21 February 2019
Published
22 March 2019
Volume
10 - 2019
Edited by
Sylvia Anton, Institut National de la Recherche Agronomique (INRA), France
Reviewed by
Christian Wegener, Universität Würzburg, Germany; Davide Malagoli, University of Modena and Reggio Emilia, Italy
Updates

Check for updates
Copyright
© 2019 Shears and Hayakawa.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Stephen B. Shears, shears@niehs.nih.govYoichi Hayakawa, hayakayo@cc.saga-u.ac.jp
This article was submitted to Invertebrate Physiology, a section of the journal Frontiers in Physiology
Disclaimer
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
