Geometric modeling of phase ordering for the isotropic–smectic A phase transition

Abstract

Background:

Liquid crystal (LC) mesophases have an orientational and positional order that can be found in both synthetic and biological materials. These orders are maintained until some parameter, mainly the temperature or concentration, is changed, inducing a phase transition. Among these transitions, a special sequence of mesophases has been observed, in which priority is given to the direct smectic liquid crystal transition. The description of these transitions is carried out using the Landau–de Gennes (LdG) model, which correlates the free energy of the system with the orientational and positional order.

Methodology:

This work explored the direct isotropic-to-smectic A transition studying the free energy landscape constructed with the LdG model and its relation to three curve families: (I) level-set curves, steepest descent, and critical points; (II) lines of curvature (LOC) and geodesics, which are directly connected to the principal curvatures; and (III) the Casorati curvature and shape coefficient that describe the local surface geometries resemblance (sphere, cylinder, and saddle).

Results:

The experimental data on 12-cyanobiphenyl were used to study the three curve families. The presence of unstable nematic and metastable plastic crystal information was found to add information to the already developed smectic A phase diagram. The lines of curvature and geodesics were calculated and laid out on the energy landscape, which highlighted the energetic pathways connecting critical points. The Casorati curvature and shape coefficient were computed, and in addition to the previous family, they framed a geometric region that describes the phase transition zone.

Conclusion and significance:

A direct link between the energy landscape’s topological geometry, phase transitions, and relevant critical points was established. The shape coefficient delineates a stability zone in which the phase transition develops. The methodology significantly reduces the impact of unknown parametric data. Symmetry breaking with two order parameters (OPs) may lead to novel phase transformation kinetics and droplets with partially ordered surface structures.

1 Introduction

Synthetic and biological liquid crystals (LCs) are anisotropic soft materials with partial degrees of orientational and positional order, conveying fluidity as viscous liquids and anisotropy as in the crystalline order (Rey and Denn, 2002; Donald et al., 2006; Rey, 2010; Sonnet and Virga, 2012; Petrov, 2013; Lagerwall, 2016; Selinger, 2016; Collings and Goodby, 2019; Stewart, 2019; Zannoni, 2022). Importantly, possible LC mesogens include rod-, board-, disk-, and screw-like molecules with flexibilities ranging from semi-flexible to rigid, involving monomers or main/side-chain polymers and colloids (Donald et al., 2006; Demus et al., 2008b; Demus et al., 2011). The synthesis and formation of these mesophase materials follow equilibrium self-assembly processes driven by temperature (thermotropic), concentration (lyotropic), or both (Bowick et al., 2017; Wang et al., 2023b). The presence of multiple components, as in nanoparticle-loaded mesophases, gives rise to couplings between self-assembly and phase separation with states that can combine the crystallinity (positional order) of one component with the liquid crystallinity (various degrees of positional and orientational order) of the other (Soulé et al., 2012a; Soulé et al., 2012b; Soulé et al., 2012c; Soule and Rey, 2012; Milette et al., 2013; Gurevich et al., 2014). Various external fields (flow, electromagnetic, and thermal) can be used to generate self-organized structures not seen in purely equilibrium self-assembly. The natural setting to describe self-assembly starts with the energy landscape and its geometrical properties (curvatures, cusps, domes, etc.), while for non-equilibrium organization, the natural setting will include the entropy production landscape and its defining geometric measures. In this paper, we present a widely applicable geometry-based methodology for describing self-assembly in anisotropic soft matter and target one specific transition that exhibits complex ordering processes. Without ambiguity, for convenience and brevity, below we refer to self-assembly as phase ordering and/or phase transition, as we do not include phase separation and conserved quantities. In addition, we refer to the degree of quench as the equivalent of the thermodynamic driving force for phase ordering.

The spectrum of self-assembly processes is significantly enriched when considering the sequence of phase transformations. This progression follows an increase in order as the magnitude of the thermodynamic driving force is increased, corresponding to a decrease in temperature for thermotropes or an increase in concentration for lyotropes. The sequence then goes from a high-symmetry isotropic state to an orientationally ordered (nematic) state. This state is then followed by the addition of the positional order (smectic). Then, the crystalline organization is reached with a further increase in the driving force. The usual sequence of isotropic–orientational–positional phase ordering (Oswald and Pieranski, 2005a; Jákli and Saupe, 2006; Blinov, 2011) is sometimes reordered to a direct isotropic–positional/orientational ordering, as observed in monomeric thermotropes (certain cyano-biphenyls (CB) and oxy-cyanobiphenyls (OCB)) (Oh, 1977; Idziak et al., 1996; Oswald and Pieranski, 2005b; Donald et al., 2006; Abukhdeir and Rey, 2008; Chahine et al., 2010; Gudimalla et al., 2021; Nesrullajev, 2022) and biological liquid crystals (BLCs) such as collagen mesophase precursors in the mussel byssus (Knight and Vollrath, 1999; Viney, 2004; Donald et al., 2006; Rey, 2010; Rey and Herrera-Valencia, 2012; Rey et al., 2013; Renner-Rao et al., 2019; Manolakis and Azhar, 2020; Harrington and Fratzl, 2021; Berent et al., 2022). This important and non-classical behavior is the focus of this paper: the direct isotropic-to-smectic A (I-SmA) LC phase transition, where SmA denotes the simplest smectic phase. A collection of compounds exhibiting this scheme can be found (Hawkins and April 1983; Idziak et al., 1996; Lenoble et al., 2007; Abukhdeir and Rey, 2008; Mohieddin Abukhdeir and Rey, 2008a; Li et al., 2009; Wojcik et al., 2009; Chahine et al., 2010; Pouget et al., 2011; Salamonczyk et al., 2016; Bradley, 2019; Renner-Rao et al., 2019; Gudimalla et al., 2021; Jackson et al., 2021; Jehle et al., 2021; Khadem and Rey, 2021; Nesrullajev, 2022), which is largely driven by attractive forces in thermotropic LCs [e.g., cyanobiphenyl family (n-CB, n > 10) (Bellini et al., 2002)] and excluded volume interactions in BLCs (e.g., collagen in mussel byssus and Ff phages). In both cases, a common geometric feature is the presence of rigid or semi-rigid rod-like cores and sufficiently long semi-flexible ends. Currently, the best-characterized materials that follow the direct I-SmA are low-molar mass thermotropic LCs, such as 10CB and 12CB (Collings, 1997; Urban et al., 2005; Demus et al., 2008a; Li et al., 2009; Chahine et al., 2010; Gudimalla et al., 2021; Zaluzhnyy et al., 2022). To avoid introducing a plethora of unknown parameters and material data, we focus on them as model systems. In the future, our ultimate goal is to expand the findings to lyotropic polymeric and colloidal smectics that are found in collagen precursors of the mussel byssus (Renner-Rao et al., 2019; Jehle et al., 2021; Waite and Harrington, 2022). It is noted that even though we only consider thermotropic LCs in the current manuscript, using correspondence principles such as those provided in the following references (Picken, 1990; Soule and Rey, 2011; Golmohammadi and Rey, 2009; Doi, 1981), we can, in the future, use the current findings for collagen-based LCs.

A key feature of the I-SmA transition is the strong coupling of the positional and orientational order parameters (OPs) (Pikin, 1991; Gorkunov et al., 2007; Blinov, 2011; Turek et al., 2020; Gurin et al., 2021), which results in the enhancement of the orientational OP over and above what a nematic phase could show at these conditions of temperature or concentration. A practical consequence of this, as we know from synthetic liquid crystal polymers (LCPs), is that in the solid state, the enhanced orientational order parameter has a strong impact on the mechanical properties (e.g., Young modulus) that can be seen in LCP fibers (Ward, 1993; Ziabicki, 1993; Donald et al., 2006; Turek et al., 2020; Bunsell et al., 2021). This order parameter coupling decreases the free energy of the system to result in a smectic A phase at minimal quenches from the stable disordered state. Polymeric and biological liquid-crystalline materials, being part of the lyo/thermotropic spectrum, also share the preferred native mode of fiber-formation, as seen in their in vivo and in vitro states (Matthews et al., 2002; Viney, 2004; Dierking and Al-Zangana, 2017; Renner-Rao et al., 2019; Deng et al., 2021; Harrington and Fratzl, 2021; Tortora and Jost, 2021; Cai et al., 2023; Zhang et al., 2023), which reinforces the hypothesis of smecticity enhancing the material’s mechanical properties through increased alignment.

Previous works have excellently characterized these mesophases and phase transitions, including phase diagrams, orientation distribution function profiles, bifurcation analysis, and the use of imaging techniques, calorimetry characterization, and dynamic simulations, accentuating the thermodynamic I-SmA phase transition perspective (Palffy-Muhoray, 1999; Dogic and Fraden, 2001; Mukherjee et al., 2001; Larin, 2004; Urban et al., 2005; Biscari et al., 2007; Das and Mukherjee, 2009; Chahine et al., 2010; Nandi et al., 2012; Izzo and De Oliveira, 2019; Gudimalla et al., 2021; Khan and Mukherjee, 2021; Mukherjee, 2021). Given that the first four key issues are essentially anchored in the spatial features of the energy landscape, we develop, implement, and validate a novel geometric methodology. The use of geometric methods to characterize thermodynamics, phase transitions, and energy landscapes has been widely recognized as a useful and complementary set of tools (Miller, 1925; Hormann and Zimmer, 2007; Quevedo et al., 2011; Wales, 2018; Wang et al., 2020; Demirci and Holland, 2022; Liu et al., 2022; Quevedo et al., 2022). These approaches rely on establishing a proper thermodynamic surface in terms of variables such as pressure, temperature, and chemical potential. Here, we extend and generalize these geometric-thermodynamic methods for self-assembly in anisotropic soft matter in general and phase ordering in the I-SmA transition. The methodology is summarized in Figure 1. The triangle’s center is the key focus of this paper, the direct isotropic-SmA transition, as characterized by an energy landscape given by the Landau free energy as a function of the positional and orientational order parameters for a given temperature . Importantly, the surface parametrization is explicit and known as Monge parameterization, and it is the starting point for the geometric methodology developed in this paper.

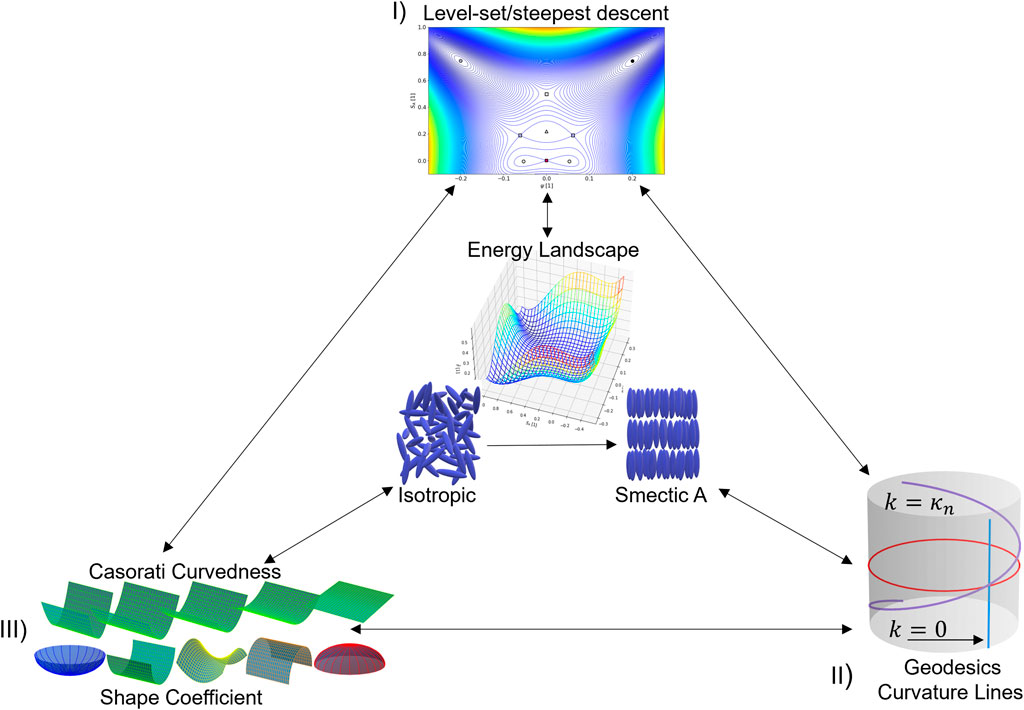

FIGURE 1

In (I), at the upper vertex from Figure 1, the critical points (dots) of the surface (maxima, minima, and saddles) are determined as a function of changes in temperature using level-set curves and curves of the steepest descent. The closed loops in the former allow the detection of minima/maxima and saddles, and the signs of the gradient curves differentiate the stable from the unstable. In addition, saddles in the level sets are unstable points. These calculations are guided and validated using the powerful index theorem of polynomials, yielding a conservation equation for the number of maxima , the number of minima , and the number of saddles . At a high temperature for a stable isotropic phase, the landscape is simple and , but for low quenches with a stable SmA phase, the landscape is complex, as we find and . In (II), at the lower right vertex, the geodesic lines of the energy landscape are found using accurate ordinary differential equation (ODE) solvers. Importantly, the lack of torsion in the geodesic lines correlates with the energy heights of the maxima and minima. In (II), we also compute the lines of curvature (LOC) that define an orthogonal grid on the energy surface and indicate the maximum or minimum directional curvature flow. In (III), the shape coefficient, or shape index , relates a given value with a shape that comes from the spectrum for up/down half-spheres (cup and cap, respectively), for up/down cylinders (rut and ridge, respectively), and for saddle-like shapes; the positive scalar curvedness Casorati curvature (surface deviation from planarity) of the energy landscape and its critical points are identified to determine aspects of the minima and maxima, such as anisotropy, the presence or absence of umbilic points, and the degree of curvedness (magnitude of Casorati curvature), and detect maxima/minima/saddles in a fast and efficient way.

Describing the shape using the dimensionless normalized shape coefficient avoids co-mingling properties associated with shape with those associated with curvedness, such as when using the classical differential geometry descriptions based on Gaussian , mean , and deviatoric curvatures. The shape coefficient–Casorati curvedness method has been successfully applied to several soft-matter materials and equilibrium and dissipative processes (Wang et al., 2020; Wang et al., 2022b; Wang et al., 2022a; Wang et al., 2023b). For example, for a saddle point, the classical approach yields . On the other hand, the method detects a saddle simply when and its curvedness is . Finally, the arrows on the triangle side and toward the center denote the integration of the methods to shed new light on the I-SmA transition.

The remainder of this paper is organized as follows: Section 2 presents the OPs, Landau free energy (Section 2.1), geometric thermodynamics (Section 2.2), and computational methods (Section 2.3). Section 3 presents the results and discussion. Section 4 summarizes the key findings, their significance, and the novelty of the geometric approach.

2 Methodology

2.1 Order parameters and Landau model

2.1.1 Nematic and smectic A phases: orientational and positional order parameters

The SmA LC phase has partial 1D positional and orientational order. Two order parameters, the orientational order parameter Q and the positional order parameter , are used for this mesophase characterization. These parameters capture the average molecular order by the establishment of distinctive moduli at the transition, with the moduli for the orientation and for the position (Oswald and Pieranski, 2005b; Rey, 2010; Mukherjee, 2014; Vitral et al., 2020).

The theoretical characterization of the partial orientational alignment in LCs is described by an orientation distribution function, the tensor order parameter Q (De Gennes and Prost, 1993), which is as follows:where n, m, and l are the molecular unit vectors and I is the unit tensor. The Q tensor is expressed in terms of the orthonormal director triad (n, m, and l), which are the eigenvectors of Q that describe the molecular axes and the scalar moduli that measure the magnitude of the average molecular orientation (De Luca and Rey, 2006; Coles and Strazielle, 2011). The Q tensor is symmetric and traceless, i.e., and , and it has five independent components. It is comprised of uniaxial and biaxial contributions. The uniaxial contribution corresponds to the major eigenvalue/eigenvector, and the biaxial contribution corresponds to the minor eigenvalues/eigenvectors. A free-energy expansion near the nematic transition, as per the Landau formalism, was defined, yielding an LdG free-energy expression for nematic orientational alignment (de Gennes and Prost, 1993), truncated up to the fourth-order term with respect to as follows:where is the energy of the isotropic state, , is the critical nematic phase transition temperature, and , are experimentally measured material parameters.

In addition to the orientational organization, due to its lamellar configuration and the periodic structure of the uniaxial SmA phase, a one-dimensional positional order parameter is required, and the complex wave vector has been widely used for this purpose (Mukherjee et al., 2001; Abukhdeir and Rey, 2009c; Vitral et al., 2020). It is typified by the phase , and its modulus characterizes a one-dimensional density wave used to describe such a layered nature as follows:

Then, a free-energy functional of the smectic positional order, , is introduced, accounting for positional ordering, and the material-dependent parameters are and around the critical smectic transition temperature .

In the simplest case, the I-SmA transition is captured by the free-energy contributions of the form , where is the coupling free-energy term, which is given as follows:

2.1.2 Landau model for the isotropic–smectic A transition

The well-established models have been formulated and used to describe the I-SmA transition, including non-direct transitions (Pleiner et al., 2000; Abukhdeir and Rey, 2009b; Nandi et al., 2012; Pevnyi et al., 2014; Izzo and De Oliveira, 2019; Mukherjee, 2021; Paget et al., 2022). These models include the nematic and smectic contributions (Eqs. 2.2, 2.4, and 2.5) and consolidate the final total free-energy density using coupling terms () that favor one phase over the other and terms that account for the energy cost from the coexistence of the positional ordering ():

Considering Equation 2.6, assuming a spatially homogenous system, and performing reparameterization (see Supplementary Appendix A1), we find the following governing free energy density :where is the nematic contribution, is the smectic contribution, and is the crucial coupling contribution between the positional and orientational OPs that are in their expanded form. In this paper, we evaluate the OPs in their extended domain of dependence to fully capture the important phenomena at the nematic axis and the smectic axis ; we note that negative nematic OP states (molecular alignment normal to the director orientation) are usually considered in nematostatics (Golmohammadi and Rey, 2010), but in the particular equilibrium spatially homogeneous I-SmA transitions considered in this study, these orientation states play no role.

The possible states are obtained by the minimization of the homogeneous free energy in Equation 2.7 concerning the two non-conserved OPs . This yields a system of ODEs (see Supplementary Appendix A1). Then, at a given temperature , different phases arise according to the ordering contributions. As mentioned in the introduction, positional and orientational ordering define an LC state, which varies in accordance with the combination of these order parameters. In this paper, we consider the following:

The isotropic-liquid state is characterized by the absence of positional and orientational orders, the nematic LC possesses only average molecular orientation, the plastic crystal phase (characterized by the density wave) describes a material with positional order and very small-to-none orientational order, and the smectic A LC exhibits positional and orientational orders (Oswald and Pieranski, 2005a; Oswald and Pieranski, 2005b; De Gennes, 2007; Demus et al., 2008a; DiLisi, 2019; Mukherjee, 2021). We note that the density wave behavior, designated as the plastic crystal state in this study, has been reported even for some rod-like systems (Kyrylyuk et al., 2011; Liu et al., 2014; Sato et al., 2023). In this work, the metastable plastic crystal emerges at deep quenches when the isotropic state becomes unstable, the nematic and coupling energies vanish, and the stable phase is SmA. Similarly, since and for the SmA state in Equation 2.7, the important coupling term promotes the emergence of SmA with the positional and orientational order.

2.2 Geometric thermodynamics for phase ordering in the isotropic–smectic A transition

In this section, we investigate the surface geometry of the energy landscape , with a particular emphasis on understanding and characterizing the essential nature of all the critical points. These critical points, derived from Equation 2.7, include the local maxima, local minima, and saddle points. As mentioned at the end of the introduction, their significance extends across many research fields in liquid crystals, such as self-assembly, kinematics, and thermodynamics of these systems.

Next, we briefly mention the basic argument to keep all critical points, forgoing complex mathematical details. For instance, the time-dependent Ginzburg–Landau model (Popa-Nita, 1999) provides a quantitative study of the spatiotemporal evolution of thermodynamic behaviors on a non-conserved OPs vector .where is the elastic energy dependent on the deformation; note that is the OP vector for the smectic A phase. A special solution of Equation 2.9 describes a front propagation that could describe growing smectic droplets in an isotropic matrix. For example, the wave-like property has been intensively studied by De Luca and Rey (2004) for the case of chiral nematic fronts propagating into an unstable isotropic phase. In our present smectic model, the wave-like solution ; with constant velocity simplifies Eq. 2.9 to a more compact form, , where all the coefficients are not included for clarity. At , the critical points lay inside the kernel of the linear map defined by the velocity . The polynomial decomposition of (see Eq. 2.7 for the quartic polynomial expression in two variables ) then gives the governing equation for phase transformation, , where are the critical points at critical points and is the product function that expresses the polynomial . The phase transformation depends on the polynomial decomposition of the free energy involving all the critical points. Given the significance of all the critical points on growth, kinematics, and interfaces, we explore their behavior in this section.

2.2.1 Polynomial index theorem and critical points of the -energy landscape

Since the two-OP model considered in this study is of quartic order in each of the parameters, a proliferation of critical points and a complex energy landscape are expected. Hence, tools that set upper limits on the number and type of critical points are essential to achieving or enhancing tractability. In this section, we formulate an approach tailored to the I-SmA transition, keeping the complex mathematics to a minimum.

Let be a polynomial of degree . Then, has a critical point , if , where the following notation is adopted for partial derivatives of a given function with respect to k. The number of critical points is then defined by . In general, for a given polynomial in two variables of degree and , respectively, we expect at most critical points (Durfee et al., 1993). Thus, the computation of and from the solution of the ODEs (see Supplementary Appendix A2) that minimize the free energy will yield at most critical points and at least one critical point . These points include the degenerate and nondegenerate points that follow the well-known nondegeneracy criteria, which are as follows:

The number of critical points is bound by the Poincaré–Hopf index theorem (Knill, 2012). The index of the gradient vector is computed based on the nondegeneracy of all critical points of , which assigns a value of (+1) to a maximum or minimum and a value of () to a saddle (Durfee et al., 1993) in the following definition:

Here, the index of the free-energy polynomial of Equation 2.7 was computed as in an area homeomorphic to a disk, which importantly puts a cap on the number of saddles . Thus, from the index theorem, we conclude that saddles play a crucial role in this transformation across various temperature ranges.

2.2.2 Level-set and steepest descent

In addition to the index , the gradient vector stores the information required to compute the directional derivative of for any direction at any point , which provides the rate of change in as it approaches . This directional derivative is just the inner product of the gradient and the direction of a certain vector :

The gradient then contains the direction of the greatest change of , known as the steepest descent, or ascent, as the opposite direction that may be computed with . Contrary to this, a vector orthogonal to will point toward a zero change in . These are vectors that lie on the tangent plane and are normal to a surface that can be constructed by the level set of the scalar-valued function . These are cross-sections of the -frame, individually representing its different levels c and containing any real solution of .

The energy landscape is a surface whose main features are characterized by the shape of the level-set curves, the direction of the steepest descent curves, and the location and nature of the critical points. For a given set of critical point locations, the level sets and steepest descent indicate how and if local minima can be reached. For example, local minima (maxima) on the energy surface are characterized by ellipses, and the steepest descent curves are converging (diverging) splay curves (see Figure 2). This is similar to the minimum energy path (MEP) approach (Massi and Straub, 2001; Liu et al., 2022), which seeks to locate and characterize the conformation changes between chemical states based on their relationship with their characteristic energy hypersurface (Fischer and Karplus, 1992; Wang et al., 1996; Liu et al., 2022) that describes the thermodynamic equilibrium and self-assembly process.

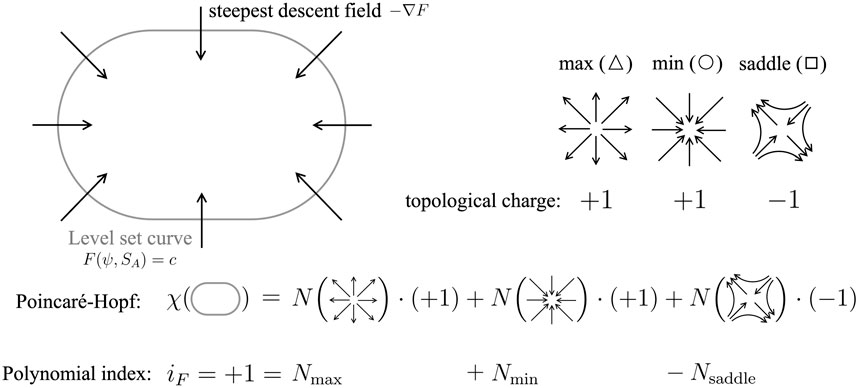

FIGURE 2

Figure 2 presents the connection between the polynomial index and the level set and steepest descent curves. By assigning topological charges to the critical points based on their nondegeneracy, the polynomial index is constructed. Each nondegenerate point is then linked to the expected local behavior of the gradient vector.

2.2.3 Lines of curvature and geodesics

The lines of curvature are computed by solving a set of equations defined by the coefficients of the first (g) and second (b) fundamental forms, as shown in Supplementary Appendix A2 (Maekawa, 1996; Farouki, 1998). The LOC have been used to describe the relationship between entropy production in membranes and interfaces (Wang et al., 2020) and the curvature of isotropic–smectic interfaces under self-organization (equilibrium) and self-assembly (dynamic) states (Vitral et al., 2019) using an orthonormal network. These LOC applied to the free-energy landscape describe the change in the order parameters with respect to the arc-length , following the principal direction of the tangent vectors (Eq. A.6) along , where is a line of curvature. Thus,orwhere represents the principal curvatures , , and are the coefficients of the first and second fundamental forms (see Supplementary Appendix A2) and are non-zero coefficients defined by

Under our free-energy framework , the geodesic lines indicate the shortest path between two points in the thermodynamic equilibrium state (Do Carmo, 2016; Wang et al., 2020), which can also show the self-assembly path connecting the phases expected in the I-SmA energy landscape. This is similar to what is found in the analysis of the geometry of thermodynamic stable states of ideal gases (Quevedo et al., 2008). This is described by a curve with the smallest arc length connecting two points on a given surface, and it is given by the following equation (Do Carmo, 2016; Wang et al., 2020):where E, A, and G are the first fundamental form coefficients, are the Christoffel symbols, and the geodesic curve is for the ith component of the quantities that define the free-energy parametrized surface (see Supplementary Appendix A3).

2.2.4 Casorati curvature and shape coefficient

In this section, we provide details of the Casorati curvature and shape coefficient given in the introduction and Figure 1 (lower left vertex). A method presented by Wang et al. (2020) redefines a thermodynamic hypersurface into a Monge shape-curvedness surface patch for the characterization of entropy production in LC membranes and interfaces. As mentioned above, in this paper, we use this methodology to describe the local geometry of the I-SmA phase transition energy landscape using a normalized shape coefficient that distinguishes between three primary shapes: cup/cap (spherical), rut/ridge (cylindrical), and saddle, and the Casorati curvature for the curvature magnitude measurement (Koenderink and van Doorn, 1992; Aguilar Gutierrez and Rey, 2018). This requires the reparameterization of the energy landscape into a Monge patch (Abbena et al., 2017) comprised of the shape coefficient and Casorati curvature .

Classical curvature concepts, in addition to the Casorati curvature and shape coefficient (Wang et al., 2023a), are used in the description of the curvedness and shape, such as the (i) mean , (ii) deviatoric , and (iii) Gaussian curvature (see Supplementary Appendix A2), whose information is stored in the surface gradient of the surface unit normal , where is the surface gradient and is the gradient operator. From this, the symmetric curvature tensor is defined as , where are its eigenvalues (see Figure 1II) characterizing the principal curvatures (Aguilar Gutierrez and Rey, 2018). The Casorati curvature is defined by , the mean curvature by , the deviatoric curvature by , and the Gaussian curvature by , for which the principal curvatures are assumed to follow (Wang et al., 2020).

The non-dimensionality of the shape coefficient condenses information that allows it to classify the local shape into simple geometries within the normalized range . The Casorati curvature, however, quantifies how curved a surface is (Aguilar Gutierrez and Rey, 2018; Wang et al., 2020) (see Supplementary Appendix A2)

The primary fundamental shapes are then generalized with , assigning the values to a saddle (0), a rut , a ridge , a cup , and a cap , where the sign defines if it is a concave-up (negative) or concave-down (positive) patch (see Figure 1.III). It is important to notice that these are primary shapes and a continuous spectrum is contained within the normalized parameter interval. The Casorati curvature varies within , defining a flat surface with no curvature and a curved surface , respectively. Figure 1 (III) shows a schematic representation of the Casorati curvature (upper set) and the shape coefficient spectrum (lower set).

2.3 Computational methods

In this work, we sought detailed information of the phase ordering as the quenching degree increases from the highest possible temperature for the existence of the SmA phase. We found that it is possible to classify the ordering and geometry by defining three quenching regimes: shallow quench, middle quench, and deep quench (with three temperatures corresponding to each of them, as listed in Table 2). As the degree of quenching increased, the isotropic phase lost stability, while the SmA gained stability, and a number of saddle nodes and supercritical bifurcations emerged at the boundaries of these quench regimes. Given the nonlinearities and OP couplings in the energy density and the differential geometry quantities, high-performance computational techniques were developed, applied, and tested when exact data were available, and high fidelity was demonstrated. Stability, accuracy, and dispersion criteria were implemented according to the standard numerical methods. The validation of our results was established using previous studies (Urban et al., 2005; Abukhdeir and Rey, 2008; Coles and Strazielle, 2011). As mentioned in the introduction, a well-characterized member of the n-cyanobiphenyl family (12CB) has been chosen as the study case for its I-SmA transition behavior (see Supplementary Appendix A4).

The calculation sequence was as follows: (1) level sets and steepest descent curves were obtained with (i) the complete solution of Equation 2.7 at different temperatures for the phases in Equation 2.8 using the stability criteria in Section 2.2.1, which categorizes the critical points that are bound by the number and the I-SmA LdG free-energy index in Equation 2.12 and (ii) the orthogonal pair of steepest descent and level-set curves from Section 2.2.2. (2) Geodesics/LOC calculations in Section 2.2.3 involved coupled nonlinear second-order stiff ODEs, which are numerically unstable depending on the step size taken, especially the system of equations defined by the discretization of the geodesics (Equation 2.19) (see Supplementary Appendix A2). Boundary conditions must be provided to solve the geodesic. We used the shooting method, which requires the definition of a starting point, chosen in our case study to be the stable isotropic/smectic A phases. In addition to equation stiffness, it is also worth noting that the model is arc-length parametrized, meaning that the arc length was computed for every step. In the LOC case, the sets of Equations 2.15–2.16 while seeming analogous, are in reality distinct instances of the principal directions that depend on the arc length. The sign of the proceeding direction at a given point must be adjusted according to the local surface geometry, meaning that the system solved was switched from one to another depending on the maximum and minimum principal curvatures (Farouki, 1998; Wang et al., 2020). For this, we followed a very robust algorithm developed for computing LOC (Maekawa, 1996; Farouki, 1998), which generates a pair of orthogonal curves at following the criterion: Equation 2.15 is solved if , and Equation 2.16 is used otherwise. Then, a curvature network was constructed with the orthogonal LOC by solving the ODE system at a point along the length defined by the energy landscape for a sufficiently small step-size that balances out resolution, solution stability, and computational time. (3) For obtaining the Casorati and shape coefficient in Section 2.2.4, we computed the first fundamental forms and the principal curvatures of the free-energy landscape (see Supplementary Appendix A2).

3 Results and discussion

In this paper, we present a complete description and characterization of the energy landscape of the isotropic–smectic A transition using a two-non-conserved order parameter version of the Landau–de Gennes model for the following reasons: (i) the kinetics of phase transformations for non-conserved order parameters is dependent on stable, metastable, and unstable critical points of free energy (Tuckerman and Bechhoefer, 1992; De Luca and Rey, 2003; De Luca and Rey, 2004); this point is briefly elaborated at the beginning of Section 2.2; (ii) in the case of phase transformation by propagating fronts, where a stable phase replaces an unstable phase, non-monotonic ordering structures appear at the interface due to the presence of various critical points (Tuckerman and Bechhoefer, 1992); (iii) in the case of drop formation of a stable phase in a metastable matrix, one can expect thin film-like layers with intermediate degrees of order between the droplet phase and matrix (Abukhdeir and Rey, 2009a); (iv) interfacial processes as in a LC drop couple shape-bulk and surface structure-size due to orientational order (Rey, 2000; Rey and Denn, 2002; Rey, 2004a; Rey, 2004b; Rey, 2006). In view of these phenomena, we do not neglect metastable and unstable ordering states, such as nematic or plastic (density wave) phases, as previously suggested (Saunders et al., 2007). How exactly they will manifest themselves under nucleation and growth and spinodal transformation of the isotropic phase into the SmA phase will be examined in future work and is outside the scope of this paper.

3.1 Quench zones and critical points and their stability

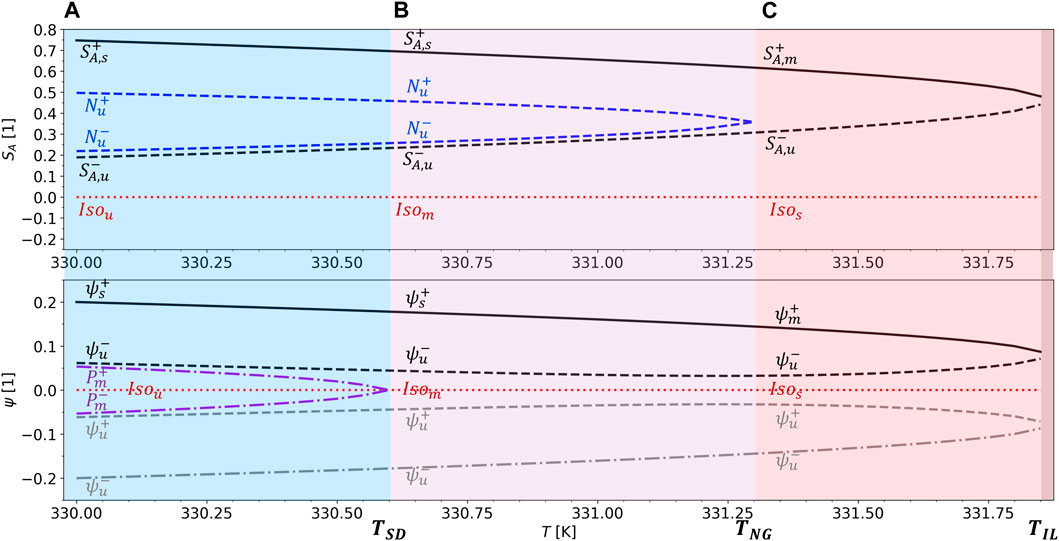

Figure 3 presents the orientational and positional order phase diagram as a function of temperature T obtained by solving Equation 2.7 with 12CB material parameters (Supplementary Appendix A4). Subscripts on the OPs denote stable (s), unstable (u), and metastable (m); superscripts denote larger and smaller values. The line style (full, dashed, and doted) identifies the phase (see Eq. 2.8). The figure frames the three quenches (see Table 2) delimited by key temperatures: the deep quench for (light blue), the middle quench for (light purple), and the shallow quench for (light red). Here, is the spinodal decomposition temperature, is the nucleation and growth temperature, and is the maximum temperature for the existence of any smectic order phase, as explained below. Using quenching measures, we can characterize the critical point features and determine whether they are stable, unstable, or metastable, depending on the quench zone. To fully characterize the nature of all the sources and sinks at the nematic axis , we include solutions. These non-physical solutions arise from the mirror symmetry of the free energy but assist in characterizing transitions and bifurcations that occur at the axis. In describing and classifying results, we focus on the I-SmA transition, and the quench depth refers to a temperature decrease from the highest temperature at which the metastable SmA arises. Thus, reference to nucleation and growth mode, NG, indicates the temperature interval in which the isotropic (SmA) phase is metastable (stable), and when referring to spinodal decomposition, SD, the isotropic (SmA) phase is unstable (stable). The challenges regarding the location of the critical points at a given quench, their stability, and the other possible states when considering the entirety of the points, which were introduced at the beginning of the paper, are addressed below.

FIGURE 3

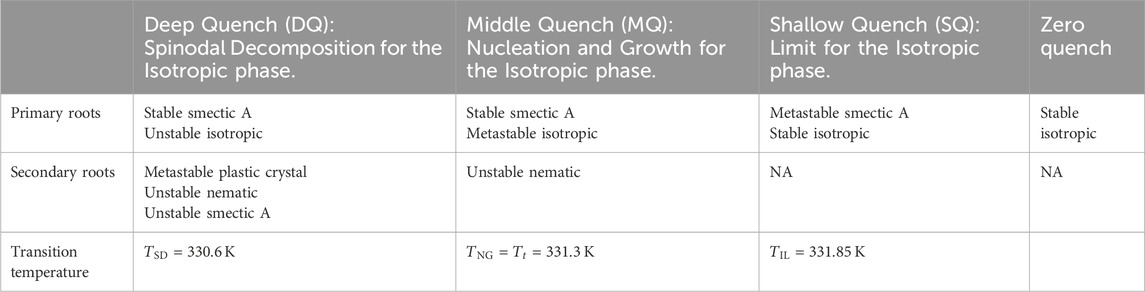

Abukhdeir and Rey, 2008; Coles and Strazielle, 2011) are as follows: , , , , , , , , , , , and . The results are fully consistent with Figure 4 of Abukhdeir and Rey (2008). Key temperatures: , , and are listed in Table 2.

Here, the SD region exhibits an unstable isotropic state and a stable SmA. In addition, we find a metastable plastic region. This region exists for . Thus, we expect that quenching an isotopic phase into the spinodal region will transform the phase into a stable SmA phase, but the presence of unstable smectic and metastable plastic crystal states introduces complexities to the energy landscape.

In the ND region, the isotropic state is metastable and SmA is stable, as in the SD region, in addition to the unstable smectic and nematic phases. However, the density wave is no longer present as it vanishes at the temperature , and the isotropic phase becomes metastable. This region exists . Thus, we expect that quenching an isotropic phase into the NG region will transform the phase into a stable SmA phase by droplet growth.

At shallow quenches, the isotropic phase is now stable, while SmA is only metastable. In addition, the unstable smectic state remains, but the nematic loop closes and vanishes at the temperature T_NG. This region is then defined by . Quenching from the NG triggers a phase transition at temperature , as obtained with the solution of Equation 2.7 for a temperature at which ; thus, a temperature higher than the isotropic limit will lead to a disordered state.

The deep quench is characterized by the strong stability and presence of the expected smectic A phase and by a supercritical bifurcation (Oswald and Pieranski, 2005a) or plastic loop since it belongs to the metastable plastic crystal phase, where mirror symmetry is broken at the temperature . The nematic order effect is seen in the orientational order parameter diagram, with the presence of the nematic loop in the deep- and middle-quench zones. This marks the entrance of the shallow quench and the stability change of the SmA phase. A summary of these key temperatures and regions is given in Table 1.

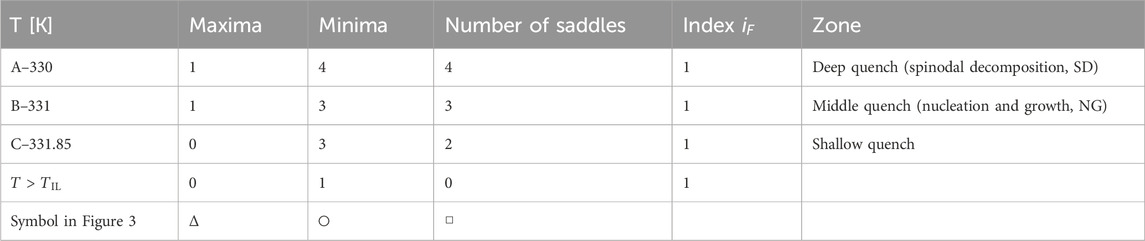

The computed energy landscape has a critical root population that decreases exactly as predicted by the polynomial index theorem (Eq. 2.12; Figure 2) as the temperature increases. This is summarized in Table 2, where the number of nondegenerate points is included along with their type and the index value for each quench zone (see (2.12)).

The bounds in Equations 2.10–2.11 provide stability boundaries that do not necessarily mean a phase transition line but present the possible real physical phases that can be displayed within that range given the first-order nature of this transition (Mukherjee et al., 2001). Thus, the phase transition line was found by looking for a metastability–stability exchange of the I-SmA phases using level sets and computing the temperature at which both phases present the same energy level. This temperature, , happened to be around the limit at which the nematic unstable loop vanished, going from deep quench (DQ) to middle quench (MQ), as seen in Figure 2, agreeing with the experimental transition temperature of 331.3 K (Coles and Strazielle, 2011).

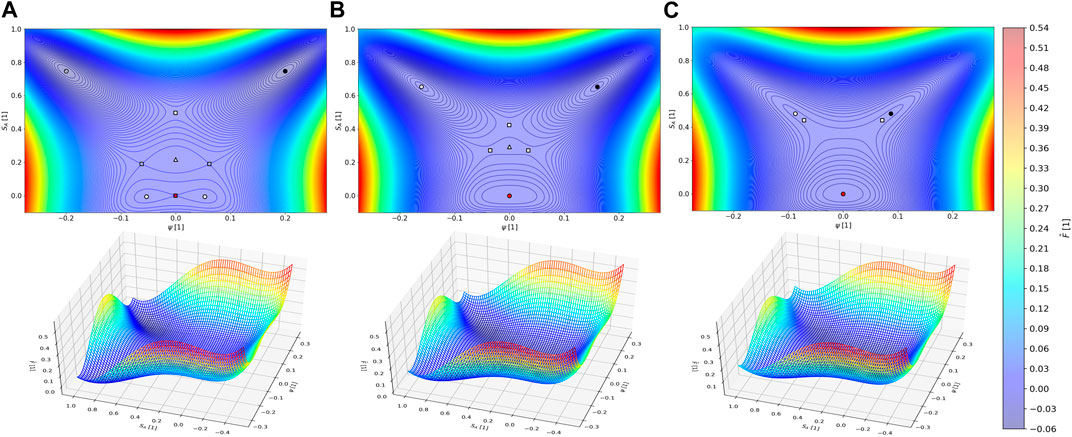

Figure 4 represents the dimensionless free-energy landscape 2D projection for the LdG model using the parameters in Figure 2, with its corresponding 3D energy landscape at a given temperature. We have expanded the -axis to negative values to emphasize the mirror symmetry along the positional order. The level-set curves have been included with all the critical points at three different temperatures in Table 2, which are representative of each quench zone. As quench depth decreases (temperature increases), the critical point population density decreases , which corresponds to the merging and vanishing of the nondegenerate points, as seen in Figure 2. Increasing from the spinodal region, the plastic loop eventually converges at a supercritical bifurcation (Han and Rey, 1993; Rey, 1995) at , which is a process that replaces two minima and one saddle with a single minimum . Entering the NG quench region with three saddles and four nodes (i.e., maximum or minimum), a further increase in eventually leads to saddle-node bifurcation (Rey, 1995), with the elimination of a nematic saddle and a node. The shallow quench now has three minima and two saddles, which, after another saddle-node bifurcation of smectic phases, eventually leads to a planar surface with no order. It is noteworthy that the sequence of saddle number elimination as increases and order decreases is multi-stepwise: . Likewise, the sequence of local minima elimination as increases and order multi-stepwise decreases is . On the other hand, the elimination of the maxima follows a single step: . This shows that for shallow quench, local maxima play no role, and for deep quench, saddles and minima are equal in number.

FIGURE 4

3.2 Level-set curves and steepest descent lines

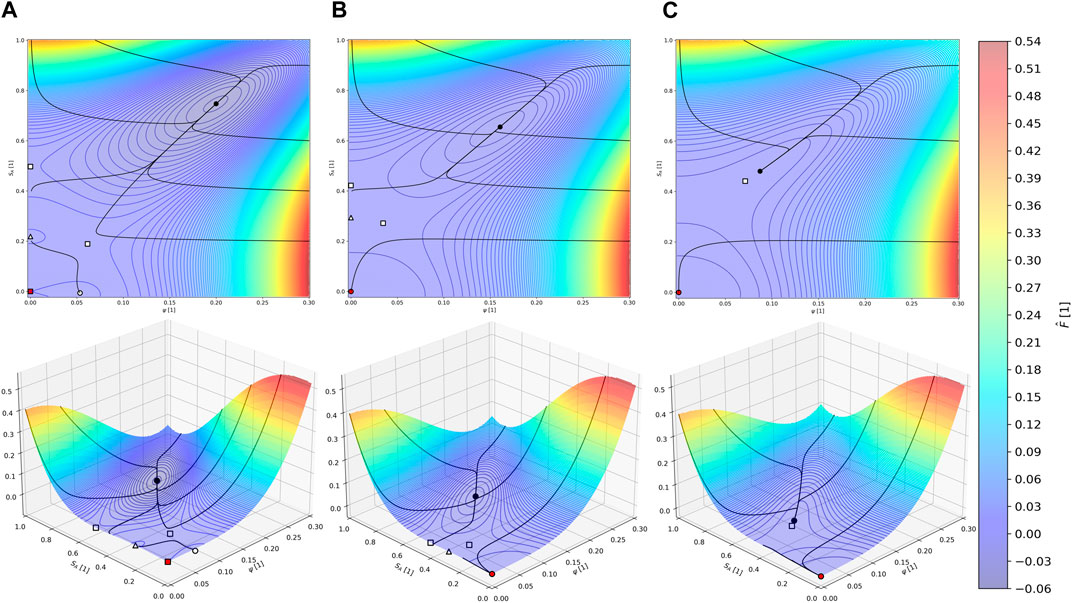

Figure 5 presents the level-set curves and the steepest descent lines (see Section 2.2.2), including the critical points projected on the dimensionless energy surface for the three quench regimes listed in Table 1. The blue (red) region corresponds to lower (higher) energy. It is seen that the steepest descent and level-set curves are members of an orthogonal family, where the level-set curves indicate a constant free-energy value and the steepest descent presents a path leading to primary roots that come from the minimization of the LdG model. The pair of roots (isotropic and smectic A phases) are divided by a set of maximums, minima, and saddles that discretely disappear as the quench depth decreases. In the deep-quench region, (A) the main feature is the family of elliptical rings around the stable SmA state (black dot), whose largest axes are oriented toward the unstable phases. The level sets identify the nematic saddle and nematic maximum as well as the metastable plastic root. The principal steepest descent line connects the unstable smectic (white square) with the stable isotropic state (black dot) and defines a collecting manifold with nearly horizontal, constant values. In the middle quench, nucleation, and growth, (B) the region of elliptical trajectories surrounding the SmA phase moves toward the isotropic state, causing the horizontal band of steepest descent lines to narrow. Furthermore, the steepest descent inverted L shows how energy states near the energetically high region end at the isotropic state (red dot). In (C), the metastability of SmA is shown by a lack of elliptical trajectories and the stability of the isotropic state.

FIGURE 5

In partial summary, the level-sets/steepest descent lines show the main features of the energy landscape; the number, location, and type of critical points; and the basin of attraction of SmA under spinodal and nucleation and growth conditions.

3.3 Lines of curvature and geodesics

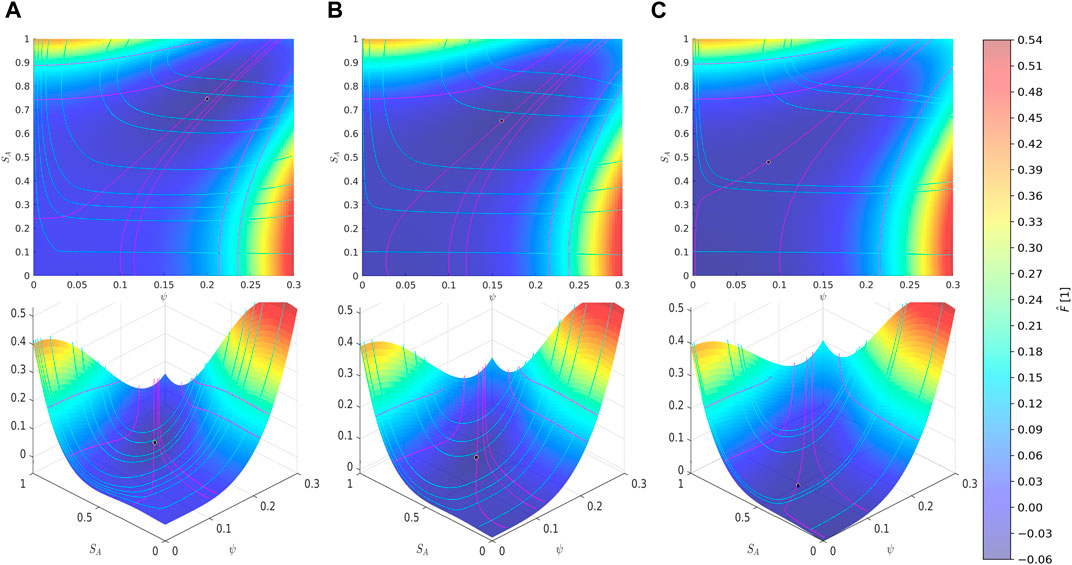

Figure 6 shows the 2D projection and 3D plot of the LOC network on the energy landscape generated with the algorithm described in Section 2. It consists of orthogonal curve pairs that follow the minimum and maximum curvatures (cyan and magenta, respectively) at a given point on the surface. It also includes the primary roots shown in Table 1.

FIGURE 6

The maximum curvature (magenta) lines on the top left and bottom right closely follow the energy contours, corresponding to high –low and vice versa, while along the downward diagonal, they funnel out consistently in accordance with the energy landscape. The minimum curvature (cyan) lines form a set of nearly parallel L-lines, which are nearly vertical along the nematic axis and nearly horizontal close to the smectic axis. This is consistent with the fact that most critical points are around the diagonal region, as shown in Figure 5. Furthermore, since the energy surface envelope is roughly a concave-up expanding cylinder with flat edges, it follows that we must find circular curvature lines (as in the circular lines of a cylinder) and diverging straight lines (like in an expanding cone).

Figure 7 shows the projected geodesic lines of the energy landscape, computed by solving Equation 2.19 for the temperatures belonging to the three quench zones listed in Table 1 with the method provided in Supplementary Appendix A2. The geodesic family origin is the isotropic state that changes stability from unstable (A) to metastable (B) to stable (C), as seen in Figure 4. The lines minimize the path length and are therefore significant directions for phase changes. These lines show an expanding funnel whose centerline (purple) connects the two primary I-SmA phases. This line, which resembles the MEP introduced in Section 2.2.2, follows the minimum-curvature tendency designated in Figure 6 by the magenta lines. In addition, this phase-connecting geodesic becomes straighter as the depth quench is increased, achieving essentially a straight line in (A), and it starts to bend in the direction of a greater change in energy as the shallow quench (C) is reached. Another important observation is that the change in shape, direction, and bending are reflected in the LOC as the quench regime changes, as opposed to what the geodesics show in this figure.

FIGURE 7

3.4 Shape coefficient and Casorati curvature

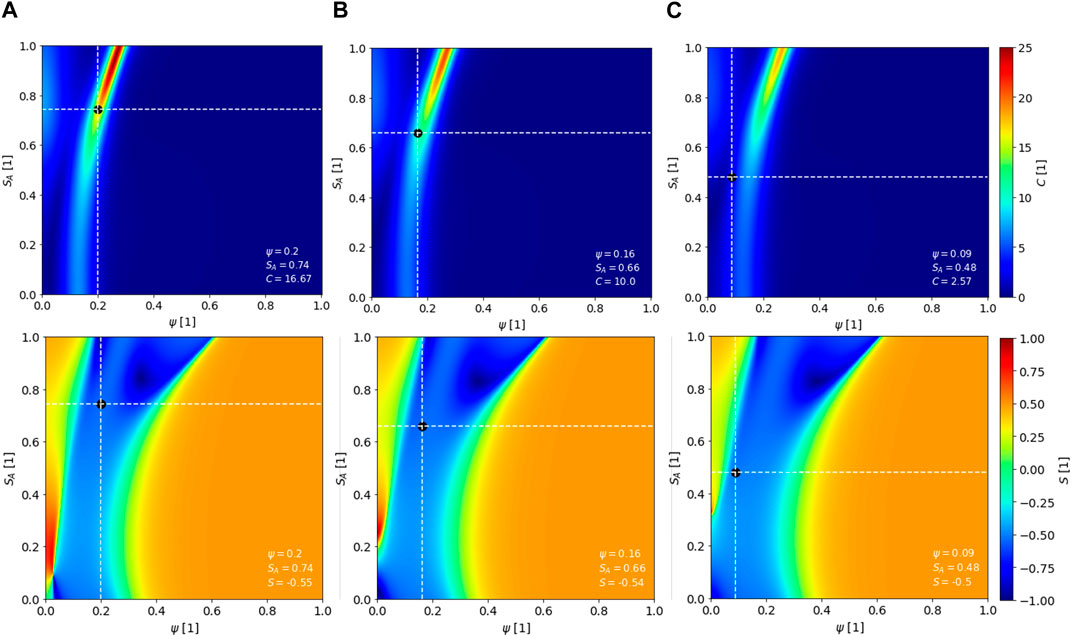

Figure 8 shows the Casorati curvature (top) and shape coefficient (bottom) heatmaps as a function of the OPs coordinates. The Casorati curvature and shape coefficient were computed using Equation 2.20 and the definitions in Supplementary Appendix A2 at the temperatures listed in Table 1 for the three representative quench zones. The primary root that corresponds to the most stable phase at each temperature was included in the bottom-right corner of each plot containing the Casorati curvature and shape coefficient values at those coordinates.

FIGURE 8

The Casorati curvature presents major activity along the zone where the critical points move as the temperature varies. It can be noted that the Casorati curvature decreases as the quench depth decreases, which follows a trend toward the isotropic transition, where both order parameters are zero and the energy surface is planar and, hence, . The crucial feature of the computed is the presence of a bent vertical tubular region of higher values in a matrix of low . Within this high tube, the curvedness increases as we move toward and beyond the SmA phase in the SD and NG zones. In the shallow quench, the increase is attenuated as the energy surface evolves toward planarity. Interestingly, an approximate scaling for the high tube is a power law ; ; more accurate fittings require parameters, but the important point is that smectic ordering produces a large increase in orientational ordering along the high tube. Furthermore, if we compare Figure 8A (top right) with the energy landscape of Figure 5 (bottom left) in the spinodal mode, we see that the axis of the high tube follows the steepest descent line that starts at the metastable plastic crystal and traverses the stable SmA phase to end at the higher energy states . Hence, the tube is another distinguishing feature of the energy landscape.

Figure 8 (bottom) shows another distinguishing feature of the shape index, with the blue concave-up (ridge) domain describing a bent channel that narrows and widens as the order increases. The outer red domains indicate unstable or concave-down (cap) states, and the green boundaries are saddle-like shapes. Hence, the shape landscape for smectic phases follows the previously established rules (Wang et al., 2020) of shape coexistence, where moving from left to right in each panel from Figure 8 (bottom), we find the following:where saddles are needed to separate minima from maxima, which is in agreement with the polynomial theorem for critical point index given in Table 2 and Equation 2.12.

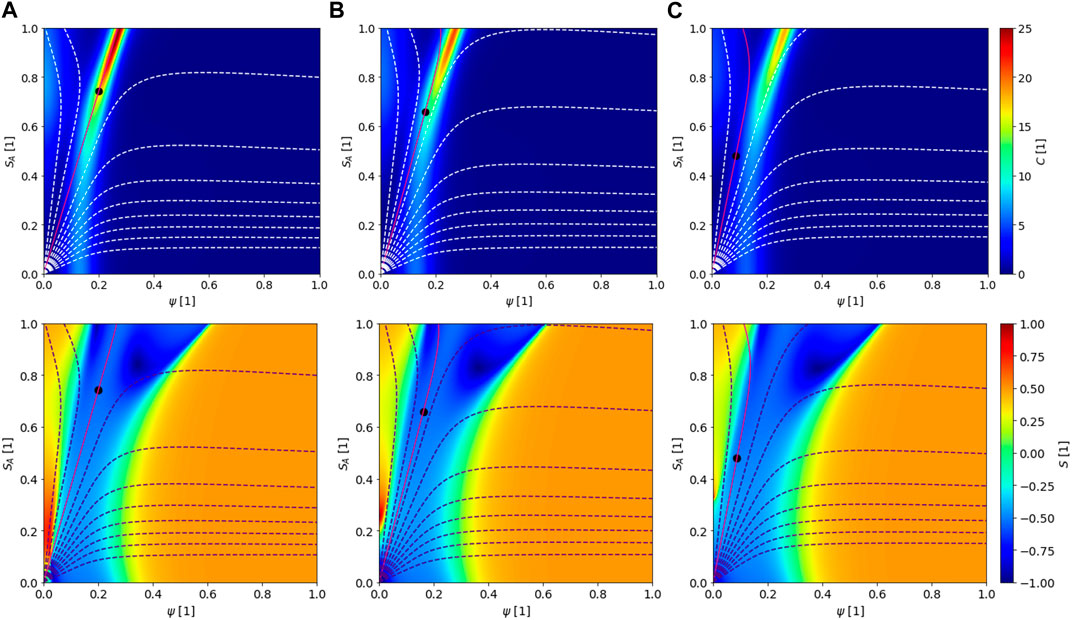

Figure 9 takes the geodesics presented in Figure 7 and projects them on the Casorati and shape coefficient heatmaps from Figure 8 for each temperature according to the three quenching zones listed in Table 1.

FIGURE 9

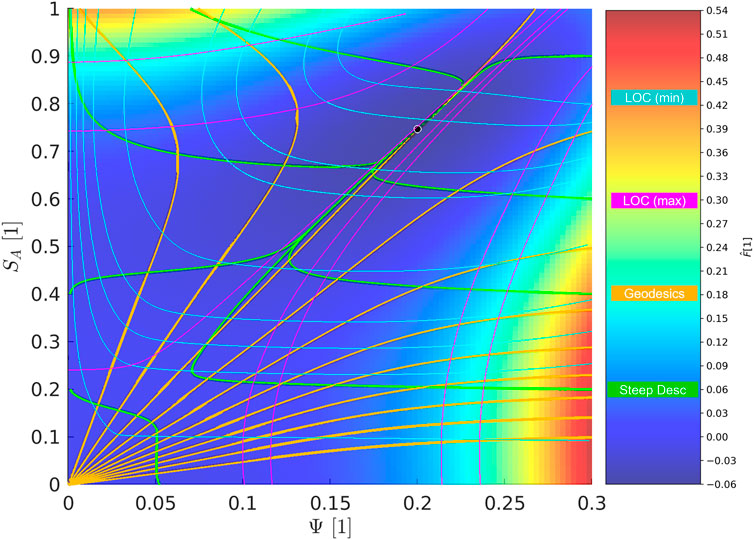

Figure 10 integrates the curve families on the energy landscape corresponding to the SD quench regime , the stable SmA phase (black dot), and an unstable isotropic phase. It presents the steepest descent lines, LOC, and geodesics on the -energy landscape. The linear diagonal geodesic connecting the isotropic (unstable)-to-smectic A (stable) phases partitions the rut and trough region and serves as an attracting manifold for maximal LOC and curves of the steepest descent; the congruence of these three lines indicates why, at this temperature, SmA is the attractor. On the bottom right high-energy area, the congruence is now between minimal LOC, curves of steepest descent, and curved geodesics, indicating a repelling landscape.

FIGURE 10

4 Conclusion

The combination of parameter-free predictions from polynomial theorems with the computational geometry of the free-energy landscape contributes to the evolving understanding and characterization of the isotropic-to-smectic A transition, which is of high interest to biological colloidal liquid crystals, such as in the precursors to the mussel byssus (Renner-Rao et al., 2019; Harrington and Fratzl, 2021; Jehle et al., 2021) through droplet nucleation/growth and colloidal impingement. We demonstrated that the presence of two non-conserved order parameters creates challenges in equilibrium spatially homogeneous simulations, but how time-dependent processes such as droplet growth resolve the couplings of shape–size–structure–interface remains to be elucidated in future work by building on the present results and methods.
