Abstract
Objective:
To retrospectively evaluate the feasibility and effectiveness of vertebroplasty using Spinejack implantation for the treatment and stabilization of painful vertebral compression fractures, in patients diagnosed with Multiple Myeloma (MM), to allow both an effective pain reduction and a global structural spine stabilization.
Materials and Methods:
From July 2017 and May 2022 thirty-nine patients diagnosed MM, with forty-nine vertebral compression fractures underwent percutaneous Vertebroplasty using Spinejack Implants. We analyzed the feasibility and complications of the procedure, the decrease in pain using visual analogue scale (VAS) and Functional Mobility Scale (FMS).
Results:
The technical success rate was 100%. No procedure-related major complications or death occurred. In the 6-month follow-up, the mean VAS score decreased from 5.4 ± 1.0 to 0.2 ± 0.5 with a mean reduction of 96.3%. FMS decreased from 2.3 ± 0.5 vs. 1.2 ± 0.4 with a mean reduction of −47.8%. There were no major complications related to incorrect positioning of the Expandable Titanium SpineJack Implants. In five patients, a cement leak was observed with no associated clinical manifestations. The average length of hospital stay was 6–8 Hours6.6 ± 1.2 h. No new bone fractures or local disease recurrence occurred during a median contrast-enhanced CT follow-up of 6 months.
Conclusions:
Our results suggest that vertebroplasty, using Spinejack implantation for the treatment and stabilization of painful vertebral compression fractures, secondary to Multiple Myeloma is a safe and effective procedure with long - term pain relief and restoration of vertebral height.
Introduction
Multiple myeloma (MM) is a clonal plasma cell proliferative disorder characterized by the abnormal increase of monoclonal immunoglobulins that can ultimately evolve to specific end-organ damage.
MM represents about 1.8% of all new cancer cases diagnosed in the United States each year with a median age of about 70 years and is slightly more commonly seen in males than females (1.4:1).
Bone lesions are seen in 80% of patients with MM which are complicated frequently by skeletal-related events (SRE) such as hypercalcemia, bone pain, pathological fractures, vertebral collapse, and spinal deformities.
The most commonly used therapies in treatment of MM are radiotherapy (RT), antiresorptive therapies (bisphosphonates, denosumab) and Systemic Anti-Myeloma Treatments (Proteasome Inhibitors, Immunomodulatory Drugs (IMiDs).
Pharmacological treatment options for vertebral fractures include bisphosphonates, denosumab, teriparatide, and estrogen therapy. These medications have been shown to increase bone density and reduce the risk of subsequent fractures. In addition, bisphosphonates and denosumab have been shown to reduce the risk of vertebral fractures in patients with multiple myeloma.
Non-invasive treatments for vertebral fractures include bracing, physical therapy, and pain management. Bracing has been shown to improve pain and reduce the risk of further fractures in patients with acute vertebral fractures. Physical therapy can improve mobility and reduce pain in patients with chronic vertebral fractures. Pain management can be achieved through a variety of methods, including non-steroidal anti-inflammatory drugs (NSAIDs), opioids, and nerve blocks (1).
Interventional radiology plays a fundamental role in this pathology, especially in the treatment of pain associated with secondary vertebral fractures, mainly with the use of percutaneous kyphoplasty (KPT) and vertebroplasty (VPT) as indicated in 2017 CIRSE guidelines (1, 2).
Vertebral deformity and the development of adjacent level fractures at and above these osteoporotic fractures are significant long-term complications related to VPT and KPT (3, 4).
Although VPT allows a good reduction of pain both in the short and long term, normally does not allow an adequate restoration of the vertebral height and the kyphotic angle, often determining a vertebral deformity and alteration of the kyphotic angle which predisposes to adjacent vertebral fractures (5, 6).
Various Percutaneous Implant Techniques (PITs) were introduced in order to reduce the secondary loss of vertebral body height associated with PKP after balloon deflation and till cementation and to allow persistent restoration of vertebral height and restoration of a normal kyphotic angle (7).
Despite the literature supporting the efficacy of SpineJack [SJ] implant for treatment of vertebral post-traumatic compression fractures (8), no reports exist documenting its use in the treatment of compression fractures in multiple myeloma patients.
Our goal was to evaluate, for the first time, the feasibility and technical effectiveness of vertebroplasty with SJ implantation for the treatment of painful vertebral compression fracture, secondary to MM, to allow both an effective and prolonged pain reduction, restoration of vertebral height and ensure the biomechanical stability of the spine.
Materials and methods
In this retrospective study, thirty- nine patients (19 women and 20 men; mean age, 64 with a range of 39–85 years) with MM who underwent VPT with SJ implantation between July 2017 and May 2022 were included (Table 1).

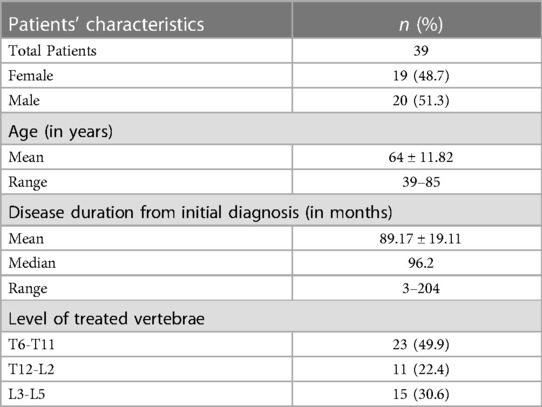

Table 1
| Patients’ characteristics | n (%) |
|---|---|
| Total Patients | 39 |
| Female | 19 (48.7) |
| Male | 20 (51.3) |
| Age (in years) | |
| Mean | 64 ± 11.82 |
| Range | 39–85 |
| Disease duration from initial diagnosis (in months) | |
| Mean | 89.17 ± 19.11 |
| Median | 96.2 |
| Range | 3–204 |
| Level of treated vertebrae | |
| T6-T11 | 23 (49.9) |
| T12-L2 | 11 (22.4) |
| L3-L5 | 15 (30.6) |
Demographic characteristics of patients.
A total of 49 vertebrae were treated with the implantation of 98 SJs.
The inclusion criteria were: back pain associated with the presence of a vertebral compressive fracture diagnosticated by a Computed Tomography (CT) scan or a Magnetic Resonance Imaging (MRI) scan.
The exclusion criteria were: extensive epidural and spinal canal infiltration (more than a third of the extension of the circumference of the epidural space), severe canal stenosis and moderate and severe neurologic deficits.
A systemic chemo-immunotherapy was previously performed to treat the neoplastic malignancy, and the vertebral augmentation was considered as a supportive therapy to reach a rapid relief of the pain.
All patients were previously treated with radiotherapy with persistent pain.
The pre-operative evaluation consisted of a combined oncological-radiological interventional clinical visit and the severity of pain was measured using the visual analog scale (VAS) and Functional Mobility Scale (FMS).
VAS score was evaluated at 1-week and 1- 3- 6-month follow-up.
FMS was recorded 1 month after the treatment to assess the effect of treatment on level of mobility and ability to walk. A 4-point FMS classification was used: 4, bedridden; 3, use of wheelchair; 2, limited painful ambulation; 1, normal ambulation.
Technique
Vertebroplasty with SpineJack Implants was performed under dual CT (system: SOMATOM Sensation, Siemens, AG, Forchheim, Germany) and fluoroscopy guidance to monitor the correct visualization, advancement, and expansion of the implants, control potential posterior wall protrusion and monitor any leaks during cement injection.
All interventions were performed under conscious sedation with continuous intravenous infusion of fentanyl citrate (0.1 mg/2 ml diluted 1:10 with saline) and received local anesthesia with subcutaneous injection of lidocaine hydrochloride at 2% anesthesia.
Antibiotic prophylaxis (single dose of cefazolin, 2 g, intravenously) was performed in all patients.
Two 10-gauge bone trocars (Stryker) were inserted into the vertebral body via a bilateral transpedicular approach in the lumbar spine or via a costotransverse approach in the thoracic spine.
A blunt guide wire was placed bilaterally and through these a designed drill, mounted on a working cannula, was gently advanced manually and coaxially into the vertebral body, until the desired position of the implant to create the vertebral space for the implants.
After preparation of both sides, the two SpineJack® (Stryker Corp, Kalamazoo, MI) implants were inserted into the vertebral body and were gradually and simultaneously deployed until height restoration and kyphosis reduction were judged satisfactory.
After implant detachment Poly-Methyl-Methacrylate (PMMA) bone cement (SpinePlex® radiopaque bone cement - Stryker Corp, Kalamazoo, MI) was slowly injected, under real time fluoroscopy, through the same working cannula used to insert the implants into the vertebral body until satisfactory vertebral filling was obtained.
If leaks of cement appear, the procedure has been interrupted.
An immediate post-procedure no contrast-enhanced CT was performed to evaluate the results and any complications (Figures 1–3).
Figure 1
Figure 2
Figure 3
According to clinical follow-up, contrast-enhanced CT scans were acquired 6 months after the procedure.
Statistical analysis
For the purposes of this study, continuous variables were shown as mean ± standard deviation (SD). Differences between the average VAS score at 1 week, 1, 3 and 6 months and FMS at 1 month after the procedure were evaluated by means of Student'st test or Fisher's exact test as appropriate. A p value less than 0.05 was taken as significant. Statistical analysis was performed using OpenStat software.
Results
A total of 98 expandable Titanium SpineJack Implants were inserted into 49 vertebrae (49 bilateral procedures).
In 6 patients the Spinejack implants were implanted bilaterally in two vertebrae in the same operative session due to the presence of a double active fracture (Patients 2-4-7-20-21-34 in Table 2).

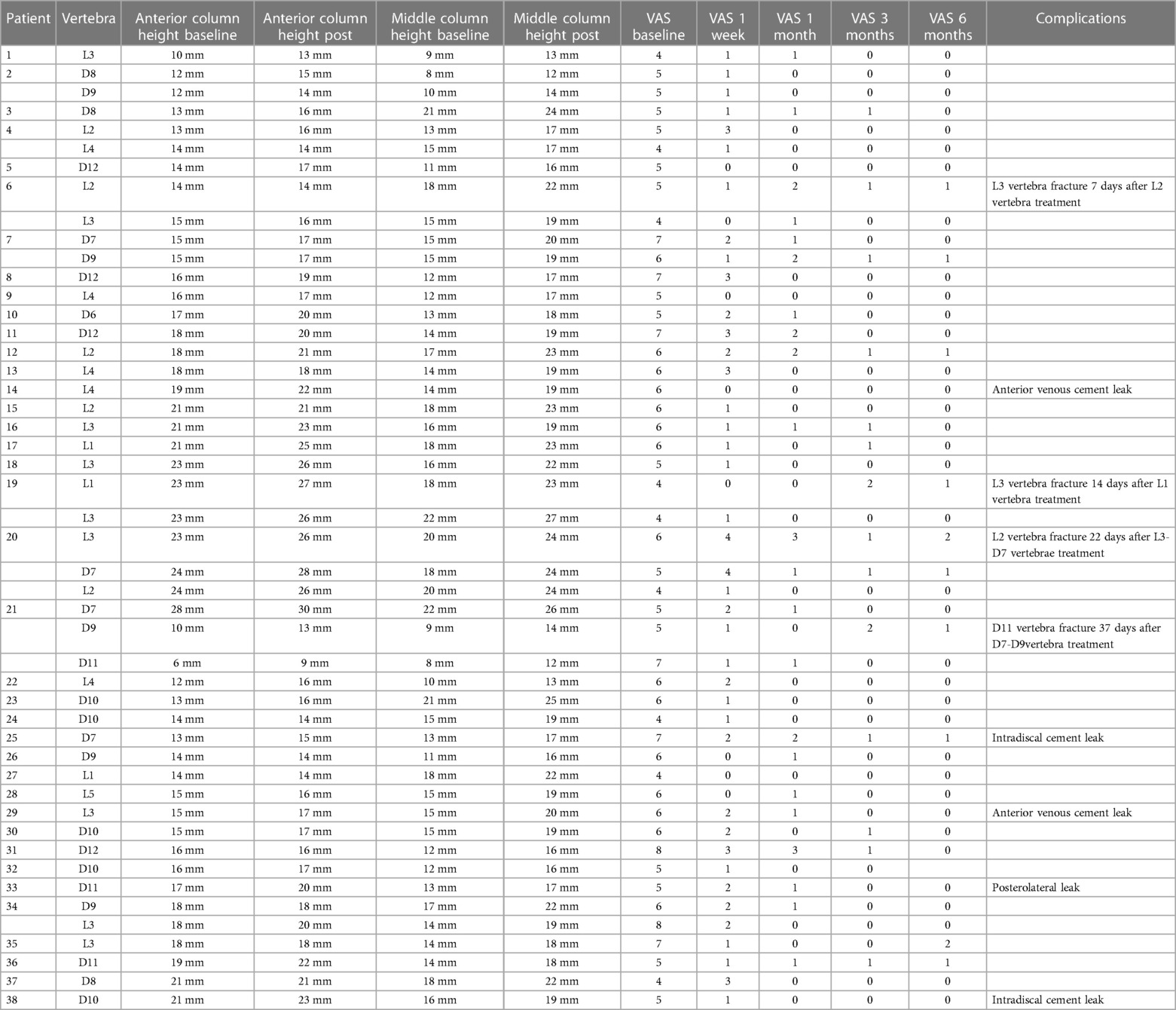

Table 2
| Patient | Vertebra | Anterior column height baseline | Anterior column height post | Middle column height baseline | Middle column height post | VAS baseline | VAS 1 week | VAS 1 month | VAS 3 months | VAS 6 months | Complications |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | L3 | 10 mm | 13 mm | 9 mm | 13 mm | 4 | 1 | 1 | 0 | 0 | |
| 2 | D8 | 12 mm | 15 mm | 8 mm | 12 mm | 5 | 1 | 0 | 0 | 0 | |
| D9 | 12 mm | 14 mm | 10 mm | 14 mm | 5 | 1 | 0 | 0 | 0 | ||
| 3 | D8 | 13 mm | 16 mm | 21 mm | 24 mm | 5 | 1 | 1 | 1 | 0 | |
| 4 | L2 | 13 mm | 16 mm | 13 mm | 17 mm | 5 | 3 | 0 | 0 | 0 | |
| L4 | 14 mm | 14 mm | 15 mm | 17 mm | 4 | 1 | 0 | 0 | 0 | ||
| 5 | D12 | 14 mm | 17 mm | 11 mm | 16 mm | 5 | 0 | 0 | 0 | 0 | |
| 6 | L2 | 14 mm | 14 mm | 18 mm | 22 mm | 5 | 1 | 2 | 1 | 1 | L3 vertebra fracture 7 days after L2 vertebra treatment |
| L3 | 15 mm | 16 mm | 15 mm | 19 mm | 4 | 0 | 1 | 0 | 0 | ||
| 7 | D7 | 15 mm | 17 mm | 15 mm | 20 mm | 7 | 2 | 1 | 0 | 0 | |
| D9 | 15 mm | 17 mm | 15 mm | 19 mm | 6 | 1 | 2 | 1 | 1 | ||
| 8 | D12 | 16 mm | 19 mm | 12 mm | 17 mm | 7 | 3 | 0 | 0 | 0 | |
| 9 | L4 | 16 mm | 17 mm | 12 mm | 17 mm | 5 | 0 | 0 | 0 | 0 | |
| 10 | D6 | 17 mm | 20 mm | 13 mm | 18 mm | 5 | 2 | 1 | 0 | 0 | |
| 11 | D12 | 18 mm | 20 mm | 14 mm | 19 mm | 7 | 3 | 2 | 0 | 0 | |
| 12 | L2 | 18 mm | 21 mm | 17 mm | 23 mm | 6 | 2 | 2 | 1 | 1 | |
| 13 | L4 | 18 mm | 18 mm | 14 mm | 19 mm | 6 | 3 | 0 | 0 | 0 | |
| 14 | L4 | 19 mm | 22 mm | 14 mm | 19 mm | 6 | 0 | 0 | 0 | 0 | Anterior venous cement leak |
| 15 | L2 | 21 mm | 21 mm | 18 mm | 23 mm | 6 | 1 | 0 | 0 | 0 | |
| 16 | L3 | 21 mm | 23 mm | 16 mm | 19 mm | 6 | 1 | 1 | 1 | 0 | |
| 17 | L1 | 21 mm | 25 mm | 18 mm | 23 mm | 6 | 1 | 0 | 1 | 0 | |
| 18 | L3 | 23 mm | 26 mm | 16 mm | 22 mm | 5 | 1 | 0 | 0 | 0 | |
| 19 | L1 | 23 mm | 27 mm | 18 mm | 23 mm | 4 | 0 | 0 | 2 | 1 | L3 vertebra fracture 14 days after L1 vertebra treatment |
| L3 | 23 mm | 26 mm | 22 mm | 27 mm | 4 | 1 | 0 | 0 | 0 | ||
| 20 | L3 | 23 mm | 26 mm | 20 mm | 24 mm | 6 | 4 | 3 | 1 | 2 | L2 vertebra fracture 22 days after L3-D7 vertebrae treatment |
| D7 | 24 mm | 28 mm | 18 mm | 24 mm | 5 | 4 | 1 | 1 | 1 | ||
| L2 | 24 mm | 26 mm | 20 mm | 24 mm | 4 | 1 | 0 | 0 | 0 | ||
| 21 | D7 | 28 mm | 30 mm | 22 mm | 26 mm | 5 | 2 | 1 | 0 | 0 | |
| D9 | 10 mm | 13 mm | 9 mm | 14 mm | 5 | 1 | 0 | 2 | 1 | D11 vertebra fracture 37 days after D7-D9vertebra treatment | |
| D11 | 6 mm | 9 mm | 8 mm | 12 mm | 7 | 1 | 1 | 0 | 0 | ||
| 22 | L4 | 12 mm | 16 mm | 10 mm | 13 mm | 6 | 2 | 0 | 0 | 0 | |
| 23 | D10 | 13 mm | 16 mm | 21 mm | 25 mm | 6 | 1 | 0 | 0 | 0 | |
| 24 | D10 | 14 mm | 14 mm | 15 mm | 19 mm | 4 | 1 | 0 | 0 | 0 | |
| 25 | D7 | 13 mm | 15 mm | 13 mm | 17 mm | 7 | 2 | 2 | 1 | 1 | Intradiscal cement leak |
| 26 | D9 | 14 mm | 14 mm | 11 mm | 16 mm | 6 | 0 | 1 | 0 | 0 | |
| 27 | L1 | 14 mm | 14 mm | 18 mm | 22 mm | 4 | 0 | 0 | 0 | 0 | |
| 28 | L5 | 15 mm | 16 mm | 15 mm | 19 mm | 6 | 0 | 1 | 0 | 0 | |
| 29 | L3 | 15 mm | 17 mm | 15 mm | 20 mm | 6 | 2 | 1 | 0 | 0 | Anterior venous cement leak |
| 30 | D10 | 15 mm | 17 mm | 15 mm | 19 mm | 6 | 2 | 0 | 1 | 0 | |
| 31 | D12 | 16 mm | 16 mm | 12 mm | 16 mm | 8 | 3 | 3 | 1 | 0 | |
| 32 | D10 | 16 mm | 17 mm | 12 mm | 16 mm | 5 | 1 | 0 | 0 | ||
| 33 | D11 | 17 mm | 20 mm | 13 mm | 17 mm | 5 | 2 | 1 | 0 | 0 | Posterolateral leak |
| 34 | D9 | 18 mm | 18 mm | 17 mm | 22 mm | 6 | 2 | 1 | 0 | 0 | |
| L3 | 18 mm | 20 mm | 14 mm | 19 mm | 8 | 2 | 0 | 0 | 0 | ||
| 35 | L3 | 18 mm | 18 mm | 14 mm | 18 mm | 7 | 1 | 0 | 0 | 2 | |
| 36 | D11 | 19 mm | 22 mm | 14 mm | 18 mm | 5 | 1 | 1 | 1 | 1 | |
| 37 | D8 | 21 mm | 21 mm | 18 mm | 22 mm | 4 | 3 | 0 | 0 | 0 | |
| 38 | D10 | 21 mm | 23 mm | 16 mm | 19 mm | 5 | 1 | 0 | 0 | 0 | Intradiscal cement leak |
Levels of the treated vertebrae, vertebral height variations,changes in VAS score and complications.
The technical success rate was 100% (98/98) without major complications.
Minimal leakage of cement occurred in 5 procedures (10%), 2 anterior venous leakages, 1 posterolateral, and 2 intradiscal leakages, without clinical repercussions.
Four patients developed a secondary vertebral fracture in a caudal segment respectively 7,14,22 and 37 days after procedure.
The SJ procedure had a mean procedure duration of 23 ± 4 min.
Adjacent fractures were successfully treated with implantation of SpineJack implants (Patient 6,19,20 and 21 Table 2).
Vertebral height restoration was observed in 30 vertebrae (61%), with a mean anterior column height restoration of 2.0 mm (baseline 16.9 ± 4.3 mm vs. immediately postoperative 19.1 ± 3.6 mm p < 0.001); a mean middle column height restoration of 4.2 mm (baseline 14.9 ± 3.5 mm vs. immediately postoperative 19.1 ± 3.6 mm p < 0.001).
All patients were discharged 6–8 h after treatment in stable and uncomplicated conditions.
No patients were lost to follow-up at 6 months.
Mean VAS score of pain evaluation on the day before treatment was 5.4 ± 1.0 (range 4–8).
One week after treatment the median VAS score of pain was 1.5 ± 1.2 (range, 0–6) with a mean reduction of 72.2% (5.4 ± 1.0 vs. 1.5 ± 1.2; p < 0.000; Figure 4).

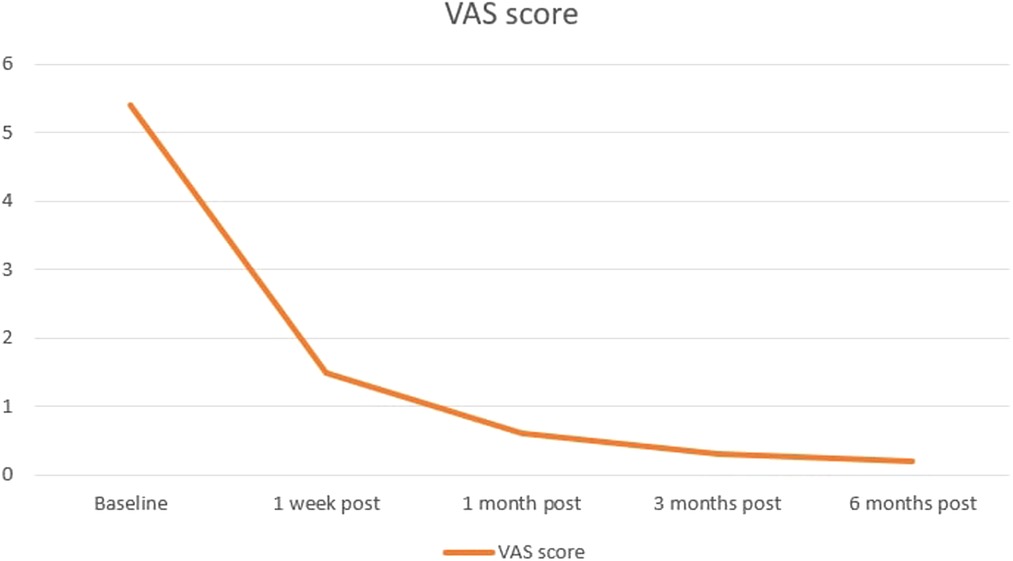

Figure 4
One month after treatment the median VAS score of pain was 0.6 ± 0.8 (range, 0–3) with a mean reduction of 88.89% (5.4 ± 1.0 vs. 0.6 ± 0.8; p < 0.000; Figure 4) compared with baseline evaluation.
At the 3-month evaluation, the median VAS score for pain was 0.3 ± 0.5 (range 0–2) with a mean reduction of 94.44% (5.4 ± 1.0 vs. 0.6 ± 0.8; p < 0.000;Figure 4) compared with baseline evaluation.
At the 6-month evaluation, the median VAS score for pain was 0.2 ± 0.5 (range 0–2) with a mean reduction of 96.3% (5.4 ± 1.0 vs. 0.2 ± 0.5; p < 0.000;Figure 4) compared with baseline evaluation.
The levels of the treated vertebrae, vertebral height variations, VAS scores and complications are described in Table 2.
Mean FMS on the day before treatment was 2.3 ± 0.5. (range 2–4).
One month after treatment the median FMS of disability was 1.2 ± 0.4 (range, 1–3) with a mean reduction of −47.8% (2.3 ± 0.5 vs 1.2 ± 0.4; p < 0.000;) compared with baseline evaluation.
During follow-up, no infectious complications were observed.
Contrast-enhanced CT or MRI scans performed 6 months after the procedure showed no local recurrence, implant displacement or new fractures in the treated site.
Discussion
Our study demonstrates that SpineJack implant followed by VPT is a feasible and safe procedure that allows to reduce back pain due to vertebral involvement in MM and at the same time allows to re-establish vertebral height, allowing persistent spinal stability.
MM in 90% of cases presents bone involvement and frequently affects the vertebral column and causes vertebral fractures and collapses, acute pain and possible associated secondary neurological deficit (9).
Although it is a highly radiosensitive tumor and radiotherapy often allows a significant reduction of pain, it does not allow the restoration of the vertebral height and the correct kyphotic angle, and the consequent deformity of the spine can increase mortality and morbidity associated with this disease (10).
Stereotactic radiotherapy (SR) is also associated with up to 18% of adjacent post-treatment vertebral fractures (11).
Kado et al. showed that in older women with vertebral fractures, hyperkyphosis predicts increased risk of death, independent of underlying spinal osteoporosis and the extent and severity of vertebral fractures (12).
As evidenced on human specimen models, endplate depression after associated with an osteoporotic vertebral fracture, impairs the ability of the disc to distribute load evenly to the adjacent segments.
Load concentration on the anterior portion of the adjacent vertebrae may contribute to increased subsequent fracture risk after an osteoporotic vertebral fracture which may be associated with increased morbidity and mortality in these patients (13).
This secondary alteration of the biomechanics of the spine can be reduced by a realignment of the vertebral endplates, restoring normal disk mechanics and load sharing, through KPT or PITs (14).
Since 1996 percutaneous VPT (15) and since 2002 KPT (16) have been used in the treatment of vertebral fractures associated with MM with good results in terms of pain reduction and with greater efficacy of KPT in the prevention of early adjacent fractures.
In a recent systematic review and meta-analysis, which retrospectively evaluated about 2 million patients, it was confirmed that the execution of VPT and KPT reduced by at least 22% the 10-year mortality after compression fracture.
KPT provided mortality benefits over VPT, with reported hazard ratios of 0.77 (95% CI: 0.77, 0.78; p < .001) and 0.87 (95% CI: 0.87, 0.88; p < .001), respectively (17).
Consensus statement from the International Myeloma Working Group (IMWG) concluded that “Cement augmentation is a very effective way of stabilizing the anterior and middle spinal columns without the need for metalwork fixation” (18).
In 2017 CIRSE guidelines, VPT, KPT and percutaneous implant techniques (PIT) are indicated in the treatment of painful vertebrae with extensive osteolysis due to malignant infiltration by multiple myeloma, lymphoma and metastasis (2).
Despite the good short-term efficacy, various studies have highlighted two main problems in the follow-up of KPT: loss of the initial vertebral height correction with subsequent angulation and an increased incidence of fractures, mostly at the superior adjacent vertebra (19–21).
For this reason it appears necessary to evaluate the use of vertebral implants as a therapeutic option since they allow an effective and persistent reduction of the deformity.
SpineJack (Stryker, Kalamazoo, Michigan) is an expandable titanium intravertebral implant that restores vertebral height and maintains a correct kyphotic angle of the spine resulting in a more balanced distribution of axial load on fractured vertebrae, a restoration of intervertebral disc function, both in the pathological segment and throughout the spine (22).
Its use has been mainly studied in the treatment of acute vertebral compression fractures with good results in terms of pain reduction and preservation of spine stability in short and long-term follow-up (23–27).
Comparative studies between SJ and KPT have shown that the use of SJ is associated with less spinal deformity; the incidence of adjacent fractures consequently is significantly lower when using the SJ (3% to 5%) than 15%–20% with KPT (28, 29).
While SpineJack has been shown to be effective in the treatment of vertebral compression fractures, there are potential complications associated with the procedure.
One potential complication is cement leakage, which occurs when the bone cement used to stabilize the fracture leaks into surrounding tissues.
However, studies have shown that the incidence of cement leakage with SpineJack is relatively low compared to other vertebral augmentation procedures (23–27).
Another potential complication of SpineJack is vertebral refracture, which can occur when the treated vertebrae are subjected to additional stress and fracture again. The risk of refracture can be reduced with appropriate patient selection criteria and post-procedure rehabilitation.
In addition, there is a risk of infection with any invasive procedure, including SpineJack.
Other potential complications associated with SpineJack include bleeding, nerve injury, and device failure. However, these complications are rare and can usually be managed through appropriate monitoring and intervention (23–29).
Only one study has been published that evaluated the use of the SJ in the treatment of vertebral pathological compression fractures secondary to bone metastases, with good results in terms of pain relief and reduction of complications (30).
To date, this is the first study analyzing the efficacy of SJ in the treatment of vertebral fractures secondary to MM.
Our preliminary experience coincides with the study by Cornelis et al. (30) highlighting a good reduction in pain associated up to 6 months with an excellent recovery of physical activity.
Furthermore, vertebral height was significantly increased both anteriorly and centrally a homogeneous cement distribution with a small and not clinically significant percentage of cement leaks.
We believe that the advantage of using the combined CT-Fluoroscopy technique is especially evident in patients in whom the spine has significant pre-existing deformity and the CT guide has allowed us easier access to the vertebra and greater precision in positioning the implants.
The fluoroscopic guidance allowed us a real-time synchronous opening of the implants, with excellent control of the restoration of the vertebral height, the preservation of the posterior wall and finally the correct distribution of the cement (Supplementary Video S1).
An important factor was the use of mild sedation which allowed a rapid postoperative recovery of the patient, control of vital functions and a consequent rapid discharge, significantly reducing hospitalization times.
We also believe that this innovative methodology could represent a further therapeutic option to be taken into consideration in some cases, selected in a multidisciplinary context, even before radiotherapy, in order to prevent post-irradiation fractures.
Our study has limitations, being a single-center, retrospective study based on a small cohort of patients and short follow-up.
Prospective comparative studies with long follow-up between the use of KPT and SJ in patients with MM are also needed to highlight the effective superiority of SJ in terms of reduction of complications secondary to spine instability.
Nevertheless, our preliminary study shows that this technique is feasible and safe also in the treatment of vertebral compression fractures secondary to MM with a good reduction of pain, restoration of mobility and increase of spinal stability.
Conclusions
This preliminary study highlights that the use of bilateral expandable titanium SpineJack implants, followed by vertebroplasty, is a safe and effective procedure for the treatment of vertebral fracture from pathological compression secondary to MM, allowing an adequate restoration of the vertebral height and a correct distribution of the craniocaudal load forces on the vertebral column.
We observed a rapid and persistent improvement from the pain, resulting in a rapid improvement in the patient's mobility and ambulation.
Statements
Data availability statement
The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.
Ethics statement
The studies involving human participants were reviewed and approved by Internal Review Board Azienda Ospedaliera "G. Brotzu". The patients/participants provided their written informed consent to participate in this study. Written informed consent was obtained from the individual(s) for the publication of any potentially identifiable images or data included in this article.
Author contributions
DD, MS and PC conceived the study. PC, BN and ZS performed the procedures. Statistical study made by ML, MS, FE and PC drafted the manuscript, which was critically revised by DD. PC and MS designed the research project. DD collected and analyzed the data. PC, ZS, BN and MS performed the interventions. CP, LM, and NB wrote the manuscript. All authors contributed to the article and approved the submitted version.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at https://www.frontiersin.org/articles/10.3389/fsurg.2023.1121981/full#supplementary-material
SUPPLEMENTARY VIDEO S1
70-year-old female with a diagnosed MM with dorsal pain.Fluoroscopic stages of insertion, opening and cementation of jack plug implants.
References
1.
MukkamallaSKRMalipeddiD. Myeloma bone disease: a comprehensive review. Int J Mol Sci. (2021) 22(12):6208. 10.3390/ijms22126208
2.
TsoumakidouGTooCWKochGCaudrelierJCazzatoRLGarnonJet alCIRSE Guidelines on percutaneous vertebral augmentation. Cardiovasc Intervent Radiol. (2017) 40(3):331–42. 10.1007/s00270-017-1574-8
3.
MartikosKGreggiTFaldiniCVommaroF. Scarale A: osteoporotic thoracolumbar compression fractures:long- term retrospective comparison between vertebroplasty and conservative treatment. Eur Spine J. (2018) 27:244–7. 10.1007/s00586-018-5605-1
4.
LiXYangHTangTQuinZChenLZhnagZ. Comparison of kyphoplasty and vertebroplasty for treatment of painful osteoporotic vertebral compression fractures: twelve-month follow-up in a prospective nonrandomized comparative study. J Spinal Disorder Tech. (2012) 25:142–9. 10.1097/BSD.0b013e318213c113
5.
TengMHWeiCJWeiLCLuoCBLirngJFChangFCet alKyphosis correction and height restoration effects of percutaneous vertebroplasty. Amer J Neurorad. (2003) 24:1893–900.
6.
OhHSKimTWKimHGParkKH. Gradual height decrease of augmented vertebrae after vertebroplasty at the thoracolumbar junction. Korean J Neurotrauma. (2016) 12:16–21. 10.13004/kjnt.2016.12.1.18
7.
CornelisFHJolyQNouri-NeuvilleMBen-AmmarMKastlerBKastlerAet alInnovative spine implants for improved augmentation and stability in neoplastic vertebral compression fracture. Medicina (Kaunas). (2019) 55(8):426. 10.3390/medicina55080426
8.
EnglandRWGongALiTBotrosDManupipatpongSPangSet alClinical outcomes and safety of the SpineJack vertebral augmentation system for the treatment of vertebral compression fractures in a United States patient population. J Clin Neurosci. (2021) 89:237–42. 10.1016/j.jocn.2021.04.031
9.
ZamagniECavoMFakhriBVijRRoodmanD. Bones in multiple myeloma: imaging and therapy. Am Soc Clin Oncol Educ Book. (2018) 38:638–46. 10.1200/EDBK_205583
10.
TalamoGDimaioCAbbiKKPandeyMKMalyszJCreerMHet alCurrent role of radiation therapy for multiple myeloma. Front Oncol. (2015) 5:40. 10.3389/fonc.2015.00040
11.
MillerJABalagamwalaEHChaoSTEmchTSuhJHDjemilTet alSpine stereotactic radiosurgery for the treatment of multiple myeloma. J Neurosurg Spine. (2017) 26(3):282–90. 10.3171/2016.8.SPINE16412
12.
KadoDMLuiLYEnsrudKEFinkHAKarlamanglaAS. Cummings SR; study of osteoporotic fractures. Hyperkyphosis predicts mortality independent of vertebral osteoporosis in older women. Ann Intern Med. (2009) 150(10):681–7. 10.7326/0003-4819-150-10-200905190-00005
13.
TzermiadianosMNRennerSMPhillipsFMHadjipavlouAGZindrickMRHaveyRMet alAltered disc pressure profile after an osteoporotic vertebral fracture is a risk factor for adjacent vertebral body fracture. Eur Spine J. (2008) 17(11):1522–30. 10.1007/s00586-008-0775-x
14.
RennerSMTsitsopoulosPPDimitriadisATVoronovLIHaveyRMCarandangGet alRestoration of spinal alignment and disk mechanics following polyetheretherketone wafer kyphoplasty with StaXx FX. AJNR Am J Neuroradiol. (2011) 32(7):1295–300. 10.3174/ajnr.A2484
15.
CottenADewatreFCortetBAssakerRLeblondDDuquesnoyBet alPercutaneous vertebroplasty for osteolytic metastases and myeloma: effects of the percentage of lesion filling and the leakage of methyl methacrylate at clinical follow-up. Radiology. (1996) 200(2):525–30. 10.1148/radiology.200.2.8685351
16.
DudeneySLiebermanIHReinhardtMKHusseinM. Kyphoplasty in the treatment of osteolytic vertebral compression fractures as a result of multiple myeloma. J Clin Oncol. (2002) 20(9):2382–7. 10.1200/JCO.2002.09.097
17.
HindeKMaingardJHirschJAPhanKAsadiHChandraRV. Mortality outcomes of vertebral augmentation (vertebroplasty and/or balloon kyphoplasty) for osteoporotic vertebral compression fractures: a systematic review and meta-analysis. Radiology. (2020) 295(1):96–103. 10.1148/radiol.2020191294
18.
KyriakouCMolloySVrionisFAlbericoRBastianLZonderJAet alThe role of cement augmentation with percutaneous vertebroplasty and balloon kyphoplasty for the treatment of vertebral compression fractures in multiple myeloma: a consensus statement from the International Myeloma Working Group (IMWG). Blood Cancer J. (2019) 9(3):27. 10.1038/s41408-019-0187-7
19.
JacobsonREPaleaOGranvilleM. Progression of vertebral compression fractures after previous vertebral augmentation: technical reasons for recurrent fractures in a previously treated vertebra. Cureus. (2017) 9:e1776. 10.7759/cureus.1776
20.
FrankelBMMonroeTWangC. Percutaneous vertebral augmentation: an elevation in adjacent-level fracture risk in kyphoplasty as compared with vertebroplasty. Spine J. (2007) 7:575–82. 10.1016/j.spinee.2006.10.020
21.
MajdMEFarleySHoltRT. Preliminary outcomes and efficacy of the first 360 consecutive kyphoplasties for the treatment of painful osteoporotic vertebral compression fractures. Spine J. (2005) 5:244–55. 10.1016/j.spinee.2004.09.013
22.
NoriegaDMaestrettiGRenaudCFrancavigliaNOuld-SlimaneMQueinnecSet alClinical performance and safety of 108 SpineJack implantations: 1-year results of a prospective multicentre single-arm registry study. Biomed Res Int. (2015) 2015:173872. 10.1155/2015/173872
23.
HartmanJGranvilleMJacobsonRE. Treatment of a high-risk thoracolumbar compression fracture using bilateral expandable Titanium SpineJack implants. Cureus. (2019) 11(5):e4701. 10.7759/cureus.4701
24.
Muñoz MontoyaJETorresCFerrerERMuñoz RodríguezEE. A Colombian experience involving SpineJack®, a consecutive series of patients experiencing spinal fractures, percutaneous approach and anatomical restoration 2016-2017. J Spine Surg. (2018) 4(3):624–9. 10.21037/jss.2018.07.08
25.
PrematKVande PerreSCormierÉShotarEDegosVMorardetLet alVertebral augmentation with the SpineJack® in chronic vertebral compression fractures with major kyphosis. Eur Radiol. (2018) 28(12):4985–91. 10.1007/s00330-018-5544-6
26.
AnselmettiGCMancaATuttonSChiaraGKelekisAFacchiniFRet alPercutaneous vertebral augmentation assisted by PEEK implant in painful osteolytic vertebral metastasis involving the vertebral wall: experience on 40 patients. Pain Physician. (2013) 16:E397–404. 10.36076/ppj.2013/16/E397
27.
RenaudC. Treatment of vertebral compression fractures with the craniocaudal expandable implant SpineJack®: technical note and outcomes in 77 consecutive patients. Orthop Traumatol Surg Res. (2015) 101:857–9. 10.1016/j.otsr.2015.08.009
28.
NoriegaDMarciaSTheumannNBlondelBSimonAHasselFet alA prospective, international, randomized, noninferiority study comparing an implantable titanium vertebral augmentation device versus balloon kyphoplasty in the reduction of vertebral compression fractures (SAKOS study). Spine J. (2019) 19(11):1782–95. 10.1016/j.spinee.2019.07.009
29.
NoriegaDCRodrίguez-MonsalveFRamajoRSánchez-LiteIToribioBArduraF. Long-term safety and clinical performance of kyphoplasty and SpineJack® procedures in the treatment of osteoporotic vertebral compression fractures: a pilot, monocentric, investigator-initiated study. Osteoporos Int. (2019) 30(3):637–45. 10.1007/s00198-018-4773-5. Erratum in: Osteoporos Int. 2019 Jan 18.
30.
CornelisFHRazakamanantsoaLBen AmmarMNajdawiMGardavaudFEl-MouhadiSet alExpandable intravertebral implant in cancer-related vertebral compression fractures: a retrospective review of 36 implantations. J Vasc Interv Radiol. (2022) 33(1):14–8. 10.1016/j.jvir.2021.10.002
Summary
Keywords
expandable titanium spineJack implants, interventional radiology, percutaneous therapies, multiple myeloma, vertebroplasty
Citation
Pusceddu C, Faiella E, Derudas D, Ballicu N, Melis L, Zedda S and Marsico S (2023) Re-expansion of vertebral compression fractures in patients with multiple myeloma with percutaneous vertebroplasty using spinejack implants: a preliminary and retrospective study. Front. Surg. 10:1121981. doi: 10.3389/fsurg.2023.1121981
Received
12 December 2022
Accepted
04 May 2023
Published
23 May 2023
Volume
10 - 2023
Edited by
Alessandro Gozzetti, University of Siena, Italy
Reviewed by
Gil Cunha De Santis, Hemocentro Foundation of Ribeirão Preto, Brazil Gabriele Buda, University of Pisa, Italy
Updates
Copyright
© 2023 Pusceddu, Faiella, Derudas, Ballicu, Melis, Zedda, Marsico.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Marsico Salvatore salvatore.marsico@hotmail.it
Disclaimer
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
