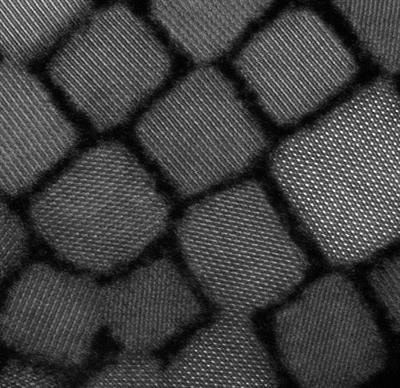

Cover image for Research Topic "Recent Advances and Challenges in Electron Microscopy Characterizations of Radiation-Sensitive Nanoparticles"
38kviews
Editorial02 March 2023
Editorial: Recent advances and challenges in electron microscopy characterizations of radiation-sensitive nanoparticles

The review by Xue et al. summarizes the different mechanisms of radiation damage by high energy electrons and discusses the experimental parameters to consider for limiting radiation damage in cryo-electron tomography. Tomography reconstructs the 3-dimensional (3D) structure of an individual object (non-averaging) using a set of its projections from different angles. As such, the technique is highly dose-intensive as the sample is subjected to many exposures to the electron beam as projections at different angles are acquired. The reward is that unique objects can be reconstructed. Indeed, with the data collection strategies and image analysis algorithms developed in the Ren group and described in the review, 3D structures of individual particles of radiation sensitive biomaterials have been reconstructed with subnanometer resolution (Zhang and Ren 2012;Lei et al. 2018).The mini-review by Ogawa and Putaux highlights electron microscopy on carbohydrate nanoparticles, which are ubiquitous and versatile but have little structural information to date. For example, cellulose forms structural building blocks whereas starch granules make efficient fuel storage. Yet, little is known of their structural organization or the effects of additives or defects. Structural studies, which have been limited by the radiation sensitivity of these organic particles, can reveal the local structure that determines their physical properties. As carbohydrate nanoparticles are nontoxic, biodegradable, and renewable, they are very attractive for a wide range of applications, from medicine to food packaging (Feng et al. 2021). Recent advances in electron microscopy will surely accelerate the understanding of carbohydrate nanoparticle structure and the development of their applications.The research article by Duong et al. examines the practice of high-resolution electron microscopy on CsPbBr3 nanoparticles. These perovskite nanocrystals are inorganic but their highly ionic nature renders them radiation sensitive. They have exceptional optical and electronic properties and have great potential in many applications, including light-emitting devices and photoreduction. Their structural studies had been controversial due to their susceptibility to radiation damage. Duong and colleagues demonstrate that the native structure of these nanocrystals can be revealed by direct imaging or diffraction by combining the use of a hybridpixel detector, low temperature imaging, low-dose image acquisition, and graphene sample support film. Lessons learned from these studies can evidently be applied to electron microscopy studies of other radiation sensitive materials.Diverging from the above works, which orient towards materials with technological applications, Kouchi et al. investigate a rare phase of ice important to planetary science. The formation of this ice phase is sensitive to the type as well as the intensity of the radiation. To investigate the transition to this ice phase, Kouchi and colleagues describe the instrumentation necessary for the studies, including an ultrahigh vacuum microscope and ports for the deposition of ice as well as for the controlled ultraviolet irradiation. A special liquid-He cooled holder was also used. Besides using techniques to ensure that the imaging electron beam does not interfere with the experiment of the radiation sensitive ice phase transition, the article also describes techniques for measuring the ice thickness. Readers will find rich information on how an electron microscope can be tailored for the studies of special samples.From space science, we get to the most futuristic article in this collection, which describes AIassisted experiment monitoring and data collection. Katsuno et al. use machine learning to detect nucleation events. Nucleation is stochastic and determines the crystallinity and thus the physical properties of the resulting crystal. Nucleation is important in all branches of science and technological developments. The classical nucleation theory has been the general understanding but has been challenged in recent years (Van Driessche et al 2021). To study nucleation, cryoelectron microscopy has been used to capture snapshots of the events (Van Driessche et al 2022). Although this method can give important insights, success is not assured in each experiment. Nuclei are not necessarily captured due to the stochastic nature of nucleation and also due to the sample reduction during the vitrification process. In their experiments, instead of contending to mitigate radiation damage, Katsuno et al. exploit the energy from the electron beam to induce nucleation. The nucleation events are then detected by the early detection system trained by machine learning. The tools developed in this study will definitely benefit the study of nucleation and other dynamical events in liquid-cell electron microscopy.Though our research topic comprises a small number of articles, these articles span a wide range of samples and perspectives on electron microscopy and radiation sensitive materials. The nice assortment testifies to the interdisciplinarity of the topic. As technology involves more and more organic and biomaterials, we hope that the information in this collection can be applied to diverse disciplines and contribute to the advancement of various fields of science.The Resolution Revolution, KÜHLBRANDT, W., 2014, Science Vol 343, Issue 6178 pp. 1443-1444DOI: 10.1126

3,506 views

1 citations

REVIEW
30 August 2022
Cryo-electron tomography related radiation-damage parameters for individual-molecule 3D structure determination
Han Xue, 3 more and Gang Ren
Cryo-electron tomography related radiation-damage parameters for individual-molecule 3D structure determination
To understand the dynamical structure-function relationship of soft- and bio-molecules, the determination of the three-dimensional (3D) structure of each individual molecules (non-averaged structure) in its native state is sought-after. Cryo-electron tomography (cryo-ET) is a unique tool for imaging an individual object from a series of tilted views. However, due to radiation damage from the incident electron beam, the tolerable electron dose limits image contrast and the signal-to- ratio (SNR) of the data, preventing the 3D structure determination of individual molecules, especially at high-resolution. Although recently developed technologies and techniques, such as the direct electron detector, phase plate and computational algorithms, can partially improve image contrast/SNR at the same electron dose, the high-resolution structure, such as tertiary structure of individual molecules, has not yet been resolved. Here, we review the cryo-electron microscopy (cryo-EM) and cryo-ET experimental parameters to discuss how these parameters affect the extent of radiation damage. This discussion can guide us in optimizing the experimental strategy to increase the imaging dose or improve image SNR without increasing the radiation damage. With a higher dose, a higher image contrast/SNR can be achieved, which is crucial for individual-molecule 3D structure. With 3D structures determined from an ensemble of individual molecules in different conformations, the molecular mechanism through their biochemical reactions, such as self-folding or synthesis, can be elucidated in a straightforward manner.
