Spontaneous Neuronal Activity in Developing Neocortical Networks: From Single Cells to Large-Scale Interactions
- 1Institute of Physiology, University Medical Center of the Johannes Gutenberg University Mainz, Mainz, Germany
- 2Institute of Pathophysiology, University Medical Center of the Johannes Gutenberg University Mainz, Mainz, Germany
Neuronal activity has been shown to be essential for the proper formation of neuronal circuits, affecting developmental processes like neurogenesis, migration, programmed cell death, cellular differentiation, formation of local and long-range axonal connections, synaptic plasticity or myelination. Accordingly, neocortical areas reveal distinct spontaneous and sensory-driven neuronal activity patterns already at early phases of development. At embryonic stages, when immature neurons start to develop voltage-dependent channels, spontaneous activity is highly synchronized within small neuronal networks and governed by electrical synaptic transmission. Subsequently, spontaneous activity patterns become more complex, involve larger networks and propagate over several neocortical areas. The developmental shift from local to large-scale network activity is accompanied by a gradual shift from electrical to chemical synaptic transmission with an initial excitatory action of chloride-gated channels activated by GABA, glycine and taurine. Transient neuronal populations in the subplate (SP) support temporary circuits that play an important role in tuning early neocortical activity and the formation of mature neuronal networks. Thus, early spontaneous activity patterns control the formation of developing networks in sensory cortices, and disturbances of these activity patterns may lead to long-lasting neuronal deficits.
Neuronal populations have the ability to self-organize into networks that promote the generation of spontaneous, correlated neuronal activity already at earliest developmental stages. Isolated cortical neurons in dissociated cultures generate after a few days in vitro spontaneous action potentials and intracellular calcium transients at irregular intervals (Ramakers et al., 1990; Opitz et al., 2002; Sun et al., 2010). With the developmental shift from electrical to chemical synaptic transmission and increasing axonal connectivity, developing neuronal cultures generate repetitive burst discharges, which are then synchronized over large fractions of the culture. At this developmental stage, spontaneous activity is organized in repetitive spike patterns, with a subgroup of neocortical neurons exhibiting a high degree of synaptic inputs and outputs (“hub” neurons; Sun et al., 2010). A similar maturation of spontaneous burst activity can be also observed in organotypic neocortical slice cultures (Gorba et al., 1999; Baker et al., 2006). Intriguingly, these activity patterns generated autonomously by the self-organization of networks from isolated cortical neurons resemble many basic properties of spontaneous network activity observed in the immature neocortex in vivo.
In vivo, the early postnatal development of spontaneous activity in sensory neocortical areas has been studied in various mammalian species, including mice, rats, ferrets, monkeys and humans. The patterns of spontaneous synchronized network activity in these different species show surprising similarities when the developmental status of the neocortical network is taken into account (for review see Khazipov and Luhmann, 2006). Since rodents offer the advantage of a rich repertoire of experimental manipulations and read-outs, experimental studies in these species provided a better understanding of the early development of physiological and pathophysiological properties of the cerebral cortex in humans. At the same time, these studies offer the opportunity to obtain evidence for the causal relationship between network activity and the structural and functional development of the cerebral cortex.
Both in vitro and in vivo results strongly suggest that spontaneous synchronized burst activity represents a functional hallmark of developing neocortical networks. In addition, theoretical considerations, experimental evidence and clinical findings suggest that such spontaneous, correlated activity is fundamental for the functional maturation of sensory cortices (Thivierge, 2009; Ben-Ari and Spitzer, 2010; Kirkby et al., 2013; Rahkonen et al., 2013; Levin, 2014). This review aims to provide an update on the properties of spontaneous activity patterns in sensory neocortical areas during early stages of development and how these patterns are generated. Subsequently, we will discuss the physiological relevance of these early activities and how pathophysiological disturbances in spontaneous activity may alter the maturation of cortical networks. Since the developing cerebral cortex shows prominent anatomical and physiological changes during late prenatal and early postnatal stages, we will first briefly summarize the structure of the developing cerebral cortex.
The Structure of the Developing Cerebral Cortex
Although the overall structural and functional development of the cerebral cortex during early stages is similar in different mammalian species ranging from mouse to human, the time points and periods of distinct developmental processes (e.g., neurogenesis, migration, differentiation, synaptogenesis, apoptosis) differ due to large differences in gestation periods (for review see Molnár et al., 2006; Molnár and Clowry, 2012). In most species the six-layered cerebral cortex is generated during prenatal and early postnatal stages following an inside first—outside last pattern. Thus, neurons in layer (L) 6 are born first in the ventricular zone (VZ) and migrate to the pial surface to split the primordial plexiform layer (PPL) into the superficial marginal zone (MZ) and the profound subplate (SP; Figure 1). Neurons in L3 and L2 are generated later and migrate through the lower layers, which are populated with postmigratory neurons that display more mature properties. Two populations of very early generated and transient neurons fulfill important roles in corticogenesis (for review see Luhmann, 2013): (1) Cajal-Retzius neurons (CRNs) are located in the MZ (which later becomes L1), and control radial neuronal migration (for review see Kirischuk et al., 2014); and (2) subplate neurons (SPNs) are located between the White matter (WM) and L6, playing important roles in early thalamocortical circuits and the maturation of the neocortical architecture (for review see Kanold and Luhmann, 2010). CRNs as well as SPNs are among the earliest generated forebrain neurons and show relatively mature functional properties in the newborn rodent cortex, such as repetitive action potential discharges and prominent synaptic inputs. It has been suggested that highly connected SPNs may act as amplifiers and hub neurons in early neocortical networks (Luhmann et al., 2009; Kanold and Luhmann, 2010). When all neocortical layers have been generated (in rodents at postnatal day [P] 4–5, in full-term human infants shortly before birth), most CRNs and a substantial fraction of SPNs disappear and the developing neocortical networks undergo extensive experience-dependent reorganization during the subsequent critical period for the different sensory systems. While virtually all CRN have been shown to perish by apoptosis (Chowdhury et al., 2010), the fate of SPN is a matter of discussion (Marx et al., 2015).
Figure 1. Schematic diagram illustrating the basic principles of neocortical development. The earliest cohort of generated neurons forms the primordial plexiform layer (PPL), which includes Cajal-Retzius (CR) and subplate neurons (SPNs). Later generated neurons migrate along the processes of radial glial cells and split the PPL into the superficial marginal zone (MZ) and the SP. Later born neurons migrate toward the pial surface and detach from radial glial processes at the border of the MZ into the cortical plate (CP), thus establishing the inside first—outside last orientation of the neocortex. IZ, Intermediate zone; VZ, Ventricular zone; SVZ, Subventricular zone; WM, White matter. Neocortical layers are numbered by 1–6.
Spontaneous Neocortical Activity at Prenatal and Early Postnatal Stages
Prominent spontaneous activity can be observed in the neocortex at surprisingly early developmental stages, both at the single cell level as well as at the network level (Figure 2). Spontaneous calcium transients have been reported in mouse neocortical slices already at embryonic day (E) 16 (Corlew et al., 2004), i.e., 4–5 days before natural birth of the mouse and at a time point when the six neocortical layers have not even been formed. This low frequency (<1 min−1) activity is correlated between a large set of neurons, is sensitive to tetrodotoxin (TTX, a blocker of voltage-gated sodium channels), and relies on voltage-gated calcium channels, indicating that electrical activity with subsequent calcium influx is essential for its occurrence (Corlew et al., 2004). At this developmental stage spontaneous calcium transients can also be observed in the proliferative epithelium of the VZ (Figure 2A). These calcium transients are independent of electrical activity, glutamate or GABA receptors and require calcium release from intracellular stores (Owens et al., 2000). They are most probably representing spatially restricted, slowly propagating calcium waves, which are mediated by connexin hemichannels and purinoceptors (Weissman et al., 2004).

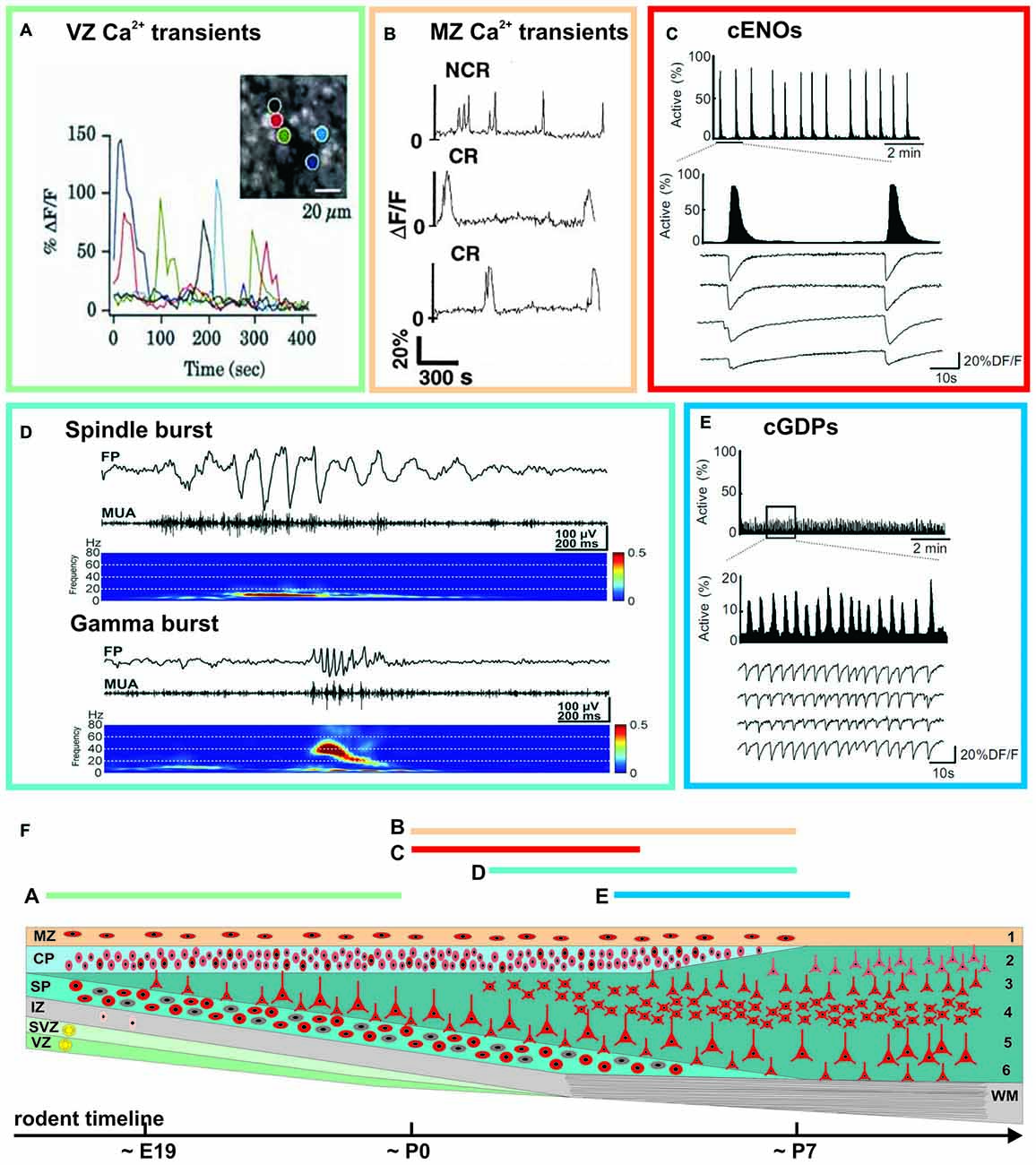

Figure 2. Examples of spontaneous activity patterns at specific early ontogenetic stages (A–E) and schematic illustration of the developmental trajectory (F). Rodent timescale included below based on Ignacio et al. (1995). The approximate occurrence of these events is indicated by the color-coded bars and corresponding letters. (A) Correlated and uncorrelated slow calcium transients occurring in the VZ of a E15 rat cortex (modified from Owens et al., 2000). (B) Spontaneous calcium transients of CR and non-Cajal-Retzius (NCR) neurons in the MZ of a postnatal rat neocortex (modified from Schwartz et al., 1998). (C) Calcium imaging reveals spontaneous cortical early network oscillations (cENOs) in P3 rat neocortical neurons. (D) Both spindle and gamma bursts occurring spontaneously in the somatosensory cortex (S1) of a P3 rat (modified from Yang et al., 2009). (E) In P6 rat neocortical slices, cENOs are replaced by cortical giant depolarizing potentials (cGDPs; C and E modified from Allène et al., 2008). See main text for details.
Already at the first postnatal day (P0), a repertoire of large scale network events appear in the immature neocortex. The so-called cortical early network oscillations (cENOs) have been found in neocortical slice preparations of newborn rats (Figure 2C). These spontaneous and TTX-sensitive cENOs usually start in the posterior cerebral cortex, occur approximately every 2 min and propagate with ~2 mm/s over the whole cortex to the anterior pole (Garaschuk et al., 2000). At all ages cENOs are completely and reversibly blocked by AMPA and NMDA receptor antagonists. Using large acute brain slice preparations Namiki et al. (2013) demonstrated that a comparable activity pattern in P1–P6 rats is triggered by a population of L3 neurons, that are autonomously active. Spontaneous calcium waves (reflecting the correlated activity of a few thousand cells, and resembling the in vitro cENOs) have been also observed in vivo under non-anesthetized conditions (Adelsberger et al., 2005).
Using calcium imaging in combination with single-cell and field potential recordings, Allène et al. (2008) demonstrated by using somatosensory neocortical slices from E20 to P9 rats that cENOs are developmentally followed by another distinct spontaneous activity pattern, the so-called cortical giant depolarizing potentials (cGDPs, Figure 2E). They appear around P4–P5 and differ from cENOs by: (1) their higher occurrence (~8 min−1); (2) their substantially faster kinetics; and (3) they are only partially affected by AMPA/NMDA receptor antagonists, but depend mainly on depolarizing GABAA receptor-mediated transmission (Allène et al., 2008). GDPs have been initially observed and extensively studied in the hippocampus of newborn rodents (Ben-Ari et al., 1989), and later also in hippocampal slices from fetal monkeys (Khazipov et al., 2001; for review see Ben-Ari, 2014). As a conclusion it has been postulated that, in the neocortex, spontaneous cGDPs synchronize localized neuronal assemblies.
At a later developmental stage, at around P10–P11, so-called slow activity transients (SATs) have been recorded in the visual cortex of non-anesthetized rats before eye opening (Colonnese and Khazipov, 2010). SATs are long (~10 s) and large [>1 mV in local field potential (LFP) recording] spontaneous events produced by the summation of rapid oscillatory bursts (15–30 Hz). In the cerebral cortex SATs spread horizontally and locally synchronize network activity via the rapid oscillations. SATs have been also recorded with direct current (DC) coupled EEG recordings from sleeping preterm human babies (Vanhatalo et al., 2005). These SATs, which in humans are mostly confined to the prenatal stage, are slow and large (up to 0.8 mV) voltage deflections which nest oscillatory activity up to 30 Hz (Tolonen et al., 2007).
Whereas the events described so far mainly cover activity patterns which propagate over large-scales, in vivo electrophysiological recordings from rodent cortex revealed local and distinct spontaneous activity patterns synchronizing only confined neuronal networks (Figure 2D). A typical example of such local spontaneous activity in the newborn (~P3) rodent cerebral cortex are gamma oscillations, which appear spontaneously every 10–30 s, have a duration of 100–300 ms and a frequency of 30–40 Hz (Yang et al., 2009; Minlebaev et al., 2011; for review see Khazipov et al., 2013). Gamma oscillations are restricted to local functional columns. Inhibitory synaptic transmission plays only a minor role in their generation, suggesting that they are functionally distinct from the typical gamma oscillation observed in mature neocortex (Khazipov et al., 2013). A second typical pattern is the spindle bursts, i.e., local and short network oscillations in a frequency range of 10–20 Hz (Figure 2D), which have been recorded in visual and somatosensory cortical areas of newborn rats (Khazipov et al., 2004; Hanganu et al., 2006; Minlebaev et al., 2007; Yang et al., 2009, 2013; for review see Yang et al., 2016). They occur spontaneously every ~10 s and have a duration of 0.5–3 s.
In addition to these activity patterns described mainly in the cortical plate (CP) and/or cortical layers 2–6, correlated network activity has been also found in the MZ of rodent perinatal neocortex (Figure 2B). In this layer spontaneous calcium transients occur at a low frequency (<0.5 min−1) and are uncorrelated, but yet reveal an underlying network of connected neurons (Schwartz et al., 1998). The correlation between individual neurons is abolished in the presence of TTX and by inhibition of AMPA, NMDA or GABA-A receptors (Aguiló et al., 1999).
In summary, electrophysiological and imaging studies in different neocortical areas of various mammalian species have revealed a rich repertoire of spontaneous activity patterns, which are present during distinct phases of late prenatal and early postnatal development (Figure 2F). Notably, these patterns mostly develop from repetitive activity (cENOs and cGDPs) to more complex activity motives. In the next paragraphs, we will review our current understanding on the cellular elements and the mechanisms underlying these neocortical activity patterns.
Cellular Elements Underlying Spontaneous Neocortical Activity at Prenatal and Early Postnatal Stages
A number of reports identified specific neuronal populations that are suited to generate these spatially and temporally distinct activity patterns in the developing neocortex. Spontaneous calcium transients in the proliferative epithelium of the VZ shown in acute cortical preparations from embryonic rats and mice are probably generated in proliferating radial glial cells (Owens et al., 2000; Weissman et al., 2004). Already at E16 some neurons in the mouse neocortex show high-frequency repetitive action potential discharges and spontaneous glutamatergic and GABAergic synaptic inputs (see Figure 4 in Kilb et al., 2011). Such early pioneer populations may underlie the occurrence of TTX-sensitive activity transients in the embryonic neocortex (Corlew et al., 2004).
The cellular mechanisms underlying the activation of the MZ has been studied in tangential slice and whole-hemisphere preparations of newborn rat cerebral cortex using optical imaging and patch-clamp recordings. These experiments showed that the major neuronal class involved in these activity transients are CRNs (Schwartz et al., 1998; Aguiló et al., 1999). Pharmacological experiments revealed that the correlation between individual CRNs observed during spontaneous calcium transients is abolished in the presence of TTX and by inhibition of AMPA, NMDA or GABA-A receptors, indicating their dependence on synaptic transmission (Aguiló et al., 1999). On the other hand, the frequency of these spontaneous calcium transients is unaffected by TTX or inhibition of GABA and glutamate receptors (Schwartz et al., 1998; Aguiló et al., 1999), suggesting that additional mechanisms drive these events. One possible candidate is the nonsynaptically released neurotransmitter taurine, which has been shown to mediate the propagation of excitation in the MZ via glycine receptors (Qian et al., 2014) and which excites CRNs (Kilb et al., 2002). A similar role of taurine has been described in the CP, where taurine selectively excites GABAergic interneurons in the CP, which enhance network excitability by excitatory GABAergic postsynaptic potentials (Sava et al., 2014). However, as the synaptic targets of neocortical CRNs have not been functionally identified yet (Kirischuk et al., 2014), the role of CRNs in the generation or transmission of spontaneous activity remains unclear.
Another transient cell population which drives the activity in the developing neocortical network are SPNs. It is well documented in different species and in various sensory neocortical areas that during early development SPNs receive a strong thalamocortical synaptic input mediated by AMPA and NMDA receptors (Friauf et al., 1990; Friauf and Shatz, 1991; Hanganu et al., 2001, 2002; Hirsch and Luhmann, 2008; Zhao et al., 2009). Furthermore, SPNs receive different neuromodulatory (e.g., cholinergic) inputs and are well integrated in a dense network of intracortical connections (for review see Kanold and Luhmann, 2010). Activation of nicotinic receptors (Hanganu and Luhmann, 2004), muscarinic receptors of predominantly m1/m5-subtype (Hanganu et al., 2009), glycine receptors (Kilb et al., 2008) and GABA-A receptors (Hanganu et al., 2001, 2002) causes an excitation of SPNs, which may elicit a local and transient network oscillation in a frequency range of 10–20 Hz (Dupont et al., 2006; Hanganu et al., 2009). This activity pattern, related to spindle bursts at the network level, depends on an intact functional SP (Dupont et al., 2006; Yang et al., 2009; Tolner et al., 2012). Since SPNs neurons are capable to intrinsically discharge at 10–20 Hz when activated by cholinergic mechanisms (Hanganu et al., 2009) and are electrically coupled in a columnar manner to neighboring and developing CP neurons via neuronal, connexin-36 containing gap junctions (Dupont et al., 2006), it has been suggested that SPNs act as local amplifiers of this early cortical activity (for review see Luhmann et al., 2009). The interplay between phasic and tonic synaptic activation elicits a 10–20 Hz oscillatory response in SPNs, which synchronizes the activity of a local, columnar network, thereby producing spindle bursts.
Generation of Spontaneous Neocortical Activity—More Than One Circuit and One Brain Region!
The question how and where early neocortical activity patterns are generated is still debated. Clearly, the mechanisms underlying network activity critically depend on the developmental stage, and in rodents, which show a fast development during the perinatal phase, the mechanisms of activity generation change within 2–3 days (for review see Allene and Cossart, 2010; Kilb et al., 2011). Synchronized network activity may either be triggered by a specific brain region, circuit or a discrete subset of pacemaker neurons, or may emerge during early development as an intrinsic property of the network.
Pacemaker properties within cortical networks have been identified in slice cultures of the mouse neocortex, which reveal synchronized spontaneous activity propagating as a wave from a ventrolateral pacemaker region (Lischalk et al., 2009). However, activity originating from this ventrolateral region is itself often triggered by preceding activity in the septal nuclei (Conhaim et al., 2010). These spontaneous waves occur in organotypic slice cultures between E18 and P12 and show prominent developmental changes in their transmitter dependence and propagation patterns (Conhaim et al., 2011). Both in vitro and in vivo studies have shown that synchronized spontaneous activity in the neocortex during the late embryonic and early postnatal phase often depends on gap junctional coupling (Yuste et al., 1995; Kandler and Katz, 1998; Owens and Kriegstein, 1998; Sun and Luhmann, 2007; Yang et al., 2009) with a contribution of neuronal, connexin-36 containing electrical synapses (Dupont et al., 2006; Wagner and Luhmann, 2006; Hanganu et al., 2009; for review see Uhlén et al., 2015). A role of gap junctions, including connexin-36, has also been demonstrated recently in the generation of spontaneous depolarizations in human fetal cortex during the second trimester of gestation (Moore et al., 2014). Computational studies have shown that gap junction-coupled networks can produce a wide range of spontaneous activity patterns (Kepler et al., 1990; Sherman and Rinzel, 1992; Bennett and Zukin, 2004; Tseng et al., 2008; Uhlén et al., 2015). However, for the interpretation of experimental studies using gap junction blockers it should be noted that some compounds are not very specific and have a number of side effects, such as inhibiting NMDA receptors (Chepkova et al., 2008) or voltage-gated calcium channels (Vessey et al., 2004).
It remains to be studied in more detail whether developing neocortical neurons possess intrinsic pacemaker properties to generate and drive distinct synchronized activity patterns (Luhmann et al., 2003; Sun et al., 2012). Hyperpolarization-activated cyclic nucleotide-gated (HCN) channels constituting the molecular substrate of hyperpolarization-activated current (Ih) could potentially fulfil an important functional role (for review see Bender and Baram, 2008), as e.g., clearly demonstrated for thalamic relay neurons expressing HCN channels (for review see Pape, 1996).
Some early generated neocortical neurons may have the intrinsic capability to function as pacemakers. CRNs in newborn rodent cerebral cortex are functionally characterized by a prominent Ih (Kilb and Luhmann, 2000) and a low voltage-activated calcium channel (Kirmse et al., 2005). However, CRNs are insufficiently connected with other neocortical neurons to drive and synchronize early activity patterns (for review see Kirischuk et al., 2014; Luhmann et al., 2014). Further, in CRNs Ih does not contribute to spontaneous membrane potential shifts (Kilb and Luhmann, 2000). More likely, highly connected neurons with widespread axonal connectivity play a key role in synchronizing the activity of developing neocortical neurons. Such hub neurons, consisting of a subpopulation of GABAergic interneurons, have been found in developing hippocampal networks (Bonifazi et al., 2009; for review see Cossart, 2014). In developing cultured neocortical networks, synchronous oscillatory activity is driven by highly connected, large GABAergic preplate neurons, resembling SPNs (Voigt et al., 2001). Experimental data obtained from in vitro slice and in vivo preparations indicate that SPNs are capable to drive early synchronized network in newborn rodent cortex (Dupont et al., 2006; Hanganu et al., 2009; Tolner et al., 2012; Moore et al., 2014). SPNs may “amplify” their synaptic inputs and transmit the resulting oscillatory burst activity in a local columnar manner to the developing CP above (for review see Luhmann et al., 2009; Figure 3). Experiments in which the ablation of the SP by p75-immunotoxin abolished spontaneous spindle bursts and the columnar organization of the barrel cortex provided additional evidence for a causal role of SPNs in the generation of spontaneous oscillations and the neocortical architecture (Tolner et al., 2012).

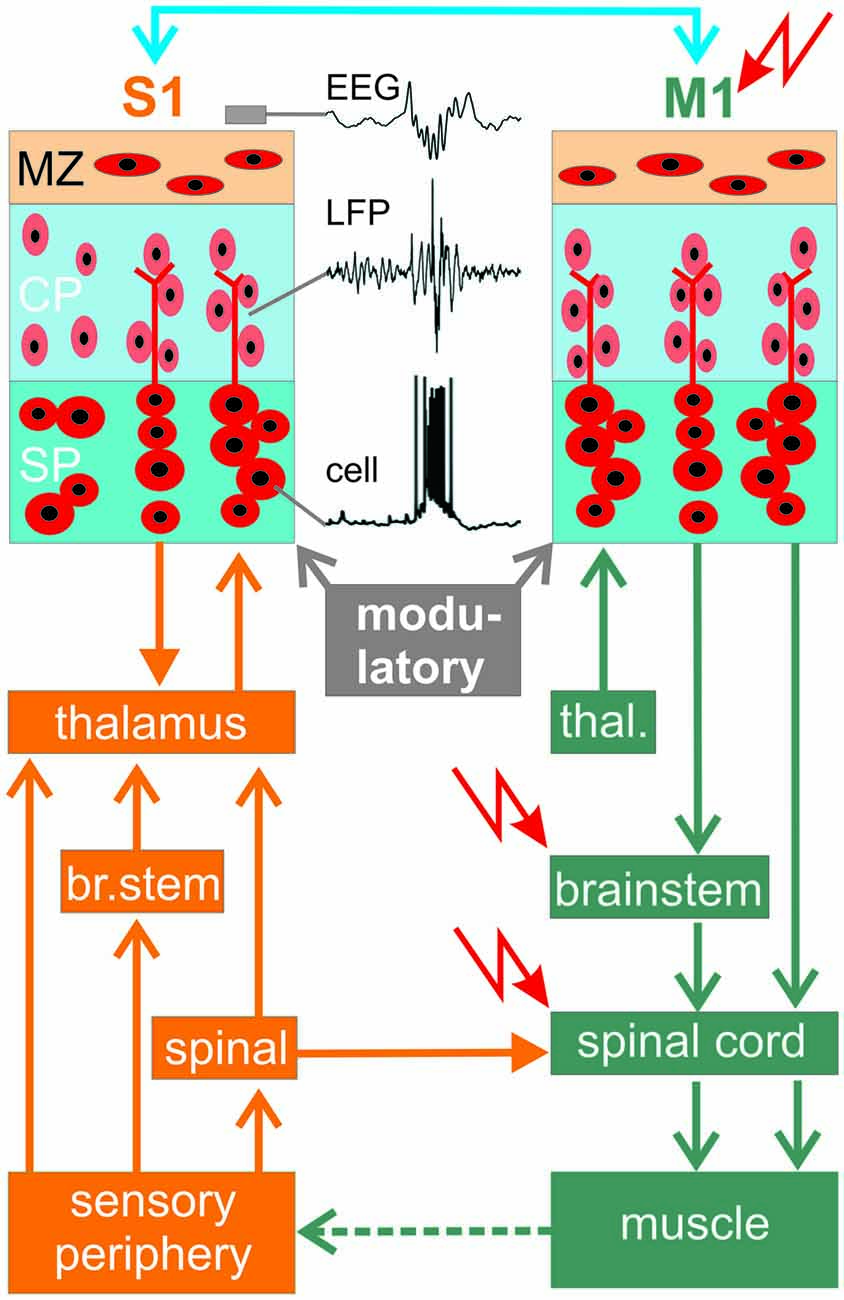

Figure 3. Summary diagram showing connectivity between primary motor cortex (M1) and a primary sensory cortex area (here primary somatosensory cortex, S1) during early development. Location of potential central pattern generators (CPGs) are indicated by . Traces in S1 illustrate spontaneous activity of a SP neuron, local field potential (LFP) activity in the CP and EEG recording on the cortical surface. Blue line at top indicates reciprocal corticocortical connections between S1 and M1.
However, SPNs are probably not the generators of the spontaneous neocortical activity, as demonstrated in diverse species and different cortical areas. For example, in vivo recordings in newborn rats have shown that spindle bursts in visual cortex are driven by spontaneous activity in the retina, the so-called retinal waves (Hanganu et al., 2006). Similar results have been obtained in the barrel cortex of newborn rats in vivo, where spontaneous spindle bursts and gamma oscillations are both reduced in their occurrence by about 50% when the electrical activity in the sensory periphery is silenced by injection of lidocaine into the contralateral whisker pad (Yang et al., 2009). Not only in newborn rats, but also in premature human neonates the spontaneous activity in sensory cortical areas is driven by activity of the sensory periphery (for review see Colonnese and Khazipov, 2012). SATs synchronize 87% of the spontaneous activity in the visual cortex and are eliminated following enucleation (Colonnese and Khazipov, 2010), providing further support that retinal waves drive the spontaneous activity in the very immature visual cortex. In mice, Zhang et al. (2011) used optogenetic techniques to directly manipulate retinal activity in vivo and demonstrated that the synchrony and precise temporal pattern of retinal activity is required for the development of eye-specific segregation and retinotopy. It is less clear whether activity in the sensory periphery also triggers early network activity in the auditory cortex. Inner hair cells in the cochlea of mice can generate spontaneous calcium action potentials as early as E17 (Marcotti et al., 2003). This early spontaneous activity of cochlear hair cells is triggered by a fluid secretion mechanism in adjacent glia-like support cells (Wang et al., 2015). The output of neighboring inner hair cells is synchronized via ATP-dependent signaling and triggers a theta-like burst of action potentials in auditory nerve fibers (Tritsch et al., 2007). In vivo recordings in the auditory brainstem suggest that inner hair cells act as pacemakers for spontaneous burst activity in more central auditory neurons before hearing onset (Tritsch et al., 2010). Taken together, these observations indicate that a substantial proportion of spontaneous activity observed in the developing sensory neocortex is caused by events in the sensory periphery or intermediary relay stations.
The activity from the sensory periphery (retina, cochlea) is transmitted to the cortex via direct connections to the thalamus (e.g., retino-geniculate in the visual system) or indirectly via the midbrain or brainstem (as in the auditory and somatosensory system, respectively; Figure 3). However, spontaneous activity arising from the sensory periphery lacks rapid oscillations, suggesting that the typical frequency of spindle bursts and gamma oscillations arise centrally. In the somatosensory system of newborn rodents, both activity patterns with their typical frequencies can be recorded already in the thalamus and synchronize a single thalamic barreloid with the corresponding neocortical barrel (Minlebaev et al., 2011; Yang et al., 2013). A corticothalamic feedback loop then modulates the thalamic network activity as demonstrated in newborn rats (Yang et al., 2013) and developing ferrets (Weliky, 1999).
Whereas the origin of spontaneous activity in the visual and auditory cortices may arise in the retina and sound-insensitive cochlea, respectively, the situation in the somatosensory system is more complex, because somatosensation (e.g., pain perception) is already present at birth (Mazzuca et al., 2011) and somatosensory activity is closely associated with motor activity. Newborn rats show during active (or REM) sleep, a behavioral state that predominates in early human infancy, hundreds of thousands of skeletal muscle twitches each day, which may be triggered by spontaneous activity in the spinal cord, brainstem or motor cortex (M1). The somatosensory feedback resulting from these spontaneous movements subsequently activates the somatosensory cortex (S1; Figure 3). In the somatosensory system of the neonatal rat in vivo, spatially confined spindle bursts in primary S1 are selectively triggered in a somatotopic manner by spontaneous muscle twitches (Khazipov et al., 2004). In human fetal development, spontaneous movements can be observed by ultrasound in utero already at the beginning of the second trimester, at a time point when the neocortical network has not been formed and is governed by a prominent SP (for review see Kostovic and Judas, 2010; Judaš et al., 2013). As an experimental model to study the development and the relationship between the sensory periphery and the cerebral cortex the whisker-to-barrel-cortex pathway in rodents proved to be most valuable, since here each whisker is represented in a somatotopic manner in the contralateral barrel cortex (for review see Feldmeyer et al., 2013). Rapid and asynchronous whisker movements in neonatal rats appear during active sleep and are related to cortical barrel-specific activity (Tiriac et al., 2012, 2014). These spontaneous whisker twitches appear before they are needed for behavior (active whisking during exploration) and are generated by central pattern generators (CPGs) located in the spinal cord, brainstem or primary M1 (red arrows in Figure 3).
Spontaneous activity is already present in the embryonic spinal cord and characterized by highly rhythmic episodes of motor neuron bursting activity that may drive muscle contractions. In the spinal cord of the mouse, spontaneous activity appears at E12.5, in the rat at E13 (for review see Moody and Bosma, 2005). During early stages, spontaneous activity depends on the excitatory action of GABA and glycine in embryonic spinal cord networks (for review see Sibilla and Ballerini, 2009). At this stage, developing spinal motor circuits are highly sensitive to the frequency and pattern of spontaneous activity, and drugs that alter this activity may cause developmental defects (Kastanenka and Landmesser, 2010). The excitatory action of both neurotransmitters is developmentally downregulated by a decrease in the expression levels of the neuron-specific potassium-chloride co-transporter type 2 (KCC2), reducing the intracellular chloride concentration and leading to a shift of equilibrium potential for chloride ions towards more negative values (Stil et al., 2011). Beside the spinal cord, the brainstem is another candidate to function as a potential CPG for spontaneous motor activity and movements during embryonic development (for review see Nakamura and Katakura, 1995; Figure 3). Facial motor neurons evoking rhythmic whisker movements have been detected in the brainstem and are part of a whisking CPG (Hattox et al., 2003). These whisking motor neurons receive synaptic inputs from the whisker representation in neocortical M1 (Hattox et al., 2002; Haiss and Schwarz, 2005; Cramer and Keller, 2006; Friedman et al., 2006), suggesting that more than one circuit and more than one brain region control the motor activity and the generation of movements. Interestingly, in this network electrical stimulation of even a single pyramidal cell in L5 of M1, or a single neuron in the facial nucleus, can elicit whisker movements (Brecht et al., 2004). Whereas activity in M1 activates brainstem reticular nuclei containing whisker premotor neurons mediating whisker protraction, activity in S1 excites premotor neurons in brainstem spinal nucleus trigeminalis interpolaris inducing a whisker retraction (Matyas et al., 2010; for review see Petersen, 2014).
However, these observations on the motor control of whisker movements have been obtained in adult rodents and it is less clear whether the M1 can elicit movements and subsequently an activation of the somatosensory system also in neonatal cortex. Anatomical studies in rodents have demonstrated the presence of corticomotor neuronal projections to the spinal cord before birth, but whether M1 drives muscle activity (e.g., in the form of twitches) in newborns is less clear. Direct electrophysiological proof for the functional role of this pathway comes from in vivo studies on newborn rats. Focal electrical stimulation of L5 in M1 at frequencies resembling the gamma oscillations (40 Hz) and spindle bursts (10 Hz) reliably elicited movements (An et al., 2014). About one quarter of the spontaneous gamma oscillations and spindle bursts in M1 triggered movements, which subsequently elicited gamma and spindle activity in S1 (An et al., 2014). This activity is most likely generated by the M1—brainstem/spinal cord—peripheral sensor—S1 pathway (Figure 3). A substantial proportion (~40%) of the spontaneous movements preceded the activity in M1 and blockade of the periphery by local lidocaine injection reduced the occurrence of gamma and spindle bursts by ~40% (An et al., 2014), indicating that motor-sensory interactions contribute to gamma and spindle burst activity in M1 of newborn rodents.
It has been shown in the mouse whisker system that the functional interaction between M1 and S1 does not depend on thalamic connections (Zagha et al., 2013), suggesting direct corticocortical connections between M1 and S1 (blue in Figure 3). Neuroanatomical tracing studies have demonstrated reciprocal connections between S1 and M1 (Aronoff et al., 2010; Mao et al., 2011). In preterm neonates simultaneous EEG and EMG measurements followed by Granger causality analysis have shown that M1 drives muscle activity, suggesting that corticomuscular communication in humans begins to develop during the late prenatal and neonatal stage (Kanazawa et al., 2014). As in developing neuronal networks of rodents, it is suggested that spontaneous activity in immature human cerebral cortex at some time point also depends on a high intracellular chloride concentration and an excitatory GABA action. SATs in human cerebral cortex show a decline by the time of normal birth. In age-matched fetal brain tissue, this decrease in SATs is correlated with a developmental up-regulation of KCC2 (Vanhatalo et al., 2005). Whether GABA may also have an inhibitory action at this early developmental stage, as recently suggested by Kirmse et al. (2015), remains to be studied in more detail in newborn awake animals by the use of non-invasive techniques addressing the influence of GABA on single cell firing and on network activity.
Physiological Role of Spontaneous Activity and Pathological Consequences of Disturbances in Early Network Activity
An increasing amount of experimental data strongly indicates that spontaneous activity during very early ontogenetic stages is not simply an epiphenomenon of developing neuronal networks when they become electrically active, but rather plays important roles in various physiological processes in embryonic and early postnatal neocortical networks. One of the first developmental processes influenced by spontaneous neuronal activity is neurogenesis. Spontaneous retinal waves drive synchronized activity in the embryonic visual cortex of mice and modulate corticogenesis. Pharmacological inhibition of retinal waves increases neurogenesis and causes alterations in neocortical layering (Bonetti and Surace, 2010). Calcium waves in neuroproliferative radial glial cells in the VZ may be also directly involved in the regulation of neurogenesis, as: (i) the number of cells involved in them as well as the frequency and amplitude of calcium waves directly correlate to the proliferation in the VZ; and (ii) suppression of calcium waves drastically reduces proliferation in the VZ (Weissman et al., 2004). Further, even very basic morphogenic factors like sonic hedgehog are directly regulated by electrical activity (Belgacem and Borodinsky, 2015). Finally, the neurotransmitter identity of neurons can also be altered by electrical activity (Borodinsky et al., 2004). These examples indicate, that electrical activity strongly influences the generation and identity of neurons (for review see Kilb et al., 2011; Yamamoto and López-Bendito, 2012).
The overall number of neurons in the brain is determined by the number of generated neurons in relation to the number of dying neurons. Cell death is a fundamental physiological process in the developing brain (for review see Kuan et al., 2000) and is also modified by electrical activity. Already 6 h of spontaneous activity blockade induces a 2.5-fold increase in the number of neurons undergoing programmed cell death in neocortical cultures and organotypic slice cultures (Heck et al., 2008). Pharmacological interference with glutamatergic receptors has a similar impact on apoptosis, and blockade of GABA-A receptors causes a ~50% increase in cell death (Ikonomidou et al., 1999; Heck et al., 2008). Drugs that increase GABA-A receptor function (ethanol, antiepileptic drugs) also cause a prominent rise in apoptosis during early development (Ikonomidou et al., 2000; Ikonomidou and Turski, 2010). Lebedeva et al. (2015) recently demonstrated in rats that between P4 and P7, at the peak of ethanol-induced apoptosis, ethanol not only strongly suppressed spontaneous gamma and spindle bursts, but also sensory-evoked bursts and motor activity. These data indicate that any drug that modifies physiological activity patterns during early development may have an immediate impact on apoptosis.
The effect of GABA on apoptosis is cell type specific, as recent experiments revealed that inhibition of depolarizing GABAergic responses prevented apoptosis of CR neurons, while death rates of CP neurons were unaltered under this condition (Blanquie et al., 2016). Direct proof that the pattern of spontaneous activity controls the extent of programmed cell death comes from in vitro studies using multi-electrode arrays (MEAs) to record the activity in developing neocortical cultures. A reduction or delay in caspase-3 dependent apoptosis and an overall increase in neuronal survival could be observed in cultures showing high-frequency burst activity (Golbs et al., 2011), indicating that the physiological activity patterns observed in perinatal cerebral cortex in vivo have an impact on the control of cell survival vs. cell death. Brain-derived neurotrophic factor (BDNF) and activation of phosphatidylinositol 3-kinase (PI3K) and its downstream effector Akt are key downstream elements in the activity-dependent control of apoptosis (Wagner-Golbs and Luhmann, 2012). But also other survival-promoting pathways can be activated depending on the pattern of electrical activity or the site of calcium entry (for review see Hardingham and Bading, 2010; Bell and Hardingham, 2011). The ratio between cell death and cell survival determines brain volume. Studies in the developing human brain using EEG and quantitative magnetic resonance imaging have documented that an increased brain activity in the first postnatal days correlates with a faster growth of brain structures during subsequent months until term age. Particularly subcortical structures grew faster in babies with more SAT events (Benders et al., 2015).
Neuronal migration is another important process occurring in the cerebral cortex mostly during embryonic and early postnatal development (dependent on the species). Neuronal migration in the developing neocortex depends critically on the appropriate level of spontaneous activity (Bando et al., 2016). Spontaneous rhythmic intracellular calcium transients control neuronal migration (for review see Komuro and Kumada, 2005) and the two main cortical neurotransmitters, GABA and glutamate, have both a strong influence on migration (for review see Luhmann et al., 2015). The growth and differentiation of neuronal dendrites and axonal projections is also influenced by spontaneous activity (for review see Chen and Ghosh, 2005; Zheng and Poo, 2007; Yamamoto and López-Bendito, 2012). In neocortical cultures spontaneous synchronous network activity converts within a few minutes silent synapses to active synapses by incorporating AMPA receptors into the postsynaptic membrane (Voigt et al., 2005). Although a complex spatio-temporal pattern of transcription factors and intercellular communication mediated by constitutive secretion of transmitters or growth factors play an important role in the early development of thalamocortical axonal connections (for review see Molnár et al., 2003), spontaneous activity clearly contributes to the formation and refinement of topographic maps (for review see Hanganu-Opatz, 2010). A close interaction between spontaneous electrical activity and the expression of transcription factors has been demonstrated in the embryonic spinal cord, where blocking or slowing of bursting activity induces a downregulation of LIM homeodomain transcription factors (Hanson and Landmesser, 2004). In the mouse retinotectal system spontaneous retinal activity controls ephrinA-mediated responses and is required for the development of the retinotopic map and the elimination of exuberant retinal axons (Nicol et al., 2007).
Blocking spontaneous retinal activity in ferrets, which are born in a very immature state, during very early stages of development (P1–P10) caused a persistent disorganization of ocular dominance columns and a pronounced increase in receptive field size of neurons in primary visual cortex (Huberman et al., 2006). These data suggest that spontaneous retinal activity present before the onset of vision is required for the normal development of the columnar architecture (for review see Ackman and Crair, 2014). In newborn rat S1, spindle bursts and gamma oscillations originating from thalamic relay neurons synchronize local neocortical network in functional pre-columns (Minlebaev et al., 2011; Yang et al., 2013), indicating that these patterns of early activity might play an instructive role for the generation of the neocortical columnar architecture. This suggestion was corroborated by the observation that the attenuation of oscillatory activity after an ablation of SPNs affect the formation of barrels in the S1 (Tolner et al., 2012).
Neuronal activity, including spontaneous and sensory evoked activity, directly regulates axon myelination (Demerens et al., 1996; Barrera et al., 2013). This effect is partly mediated by an activity dependent differentiation of oligodendrocyte precursor cells via activation of adenosine receptors (Stevens et al., 2002). In addition, a vesicular, extrasynaptic release of the neurotransmitter glutamate from active axons can directly induce myelin formation in differentiated oligodendrocytes (Wake et al., 2015), via an NMDA receptor mediated and Fyn-kinase dependent release of translational repression (White and Krämer-Albers, 2014). Finally, in the early postnatal period it was recently shown that peripheral-driven neuronal activity also regulates vessel development and patterning in the developing rodent brain (Lacoste et al., 2014; Whiteus et al., 2014).
Further evidence for an important function of spontaneous activity in developing neocortical networks also comes from clinical studies. In humans, abnormal neocortical activity patterns recorded during perinatal stages predict the further development and the outcome in the following years. In extremely low gestational age infants, abnormalities in magneto-encephalography recorded somatosensory evoked magnetic fields at term age are associated with adverse neurodevelopment at 2 years of age (Rahkonen et al., 2013). Recently, Vanhatalo et al. (2005) have demonstrated that spontaneous bursts recorded with EEG in preterm infants exhibit scale-free properties and provide prognostic value of brain activity in the subsequent days (Iyer et al., 2015). A pilot study from the same group addressed the important question whether SATs in preterm babies are affected by drugs (phenobarbital, fentanyl, theophylline) that are routinely used in neonatal intensive care units. Although the visual EEG interpretation did not reveal any drug effects, advanced time-series analyses demonstrated that all drugs examined had an effect on spontaneous brain activity and may interfere with further development (Malk et al., 2014). In this context it is intriguing to note that both in vitro and in vivo experiments in rodents demonstrated that experimentally induced inflammation induces a rapid modification in the properties of spontaneous (spindle and gamma burst) activity, which subsequently causes an increase in programmed cell death (Nimmervoll et al., 2013). This study provides first evidence that altered neuronal activity may also contribute to the deleterious effects of inflammatory events in the immature human brain (Hagberg and Mallard, 2005).
Current Challenges and Future Directions
Spontaneous activity in immature neocortical networks plays important roles during early and subsequent development. Although experimental animal studies and clinical data from preterm infants provided over the last decade a large amount of interesting and important results, a number of key questions remain to be addressed in the near future:
1. Does spontaneous neocortical activity fulfill a more general role in controlling activity-dependent processes or does a specific activity pattern have a distinct role during a certain stage of development in controlling a specific process?
2. What is the impact of disturbances in spontaneous activity caused by genetic, intrinsic (e.g., intrauterine infection, inflammation, hypoxia) or extrinsic factors (e.g., maternal medication or drug abuse) on different activity-dependent processes during corticogenesis? What are the long-term effects of these disturbances?
3. What are the characteristics of the normal spontaneous neocortical activity in the EEG recorded from full-term neonates and preterm infants? Which parameters can be extracted from the EEG to evaluate and quantify the spontaneous activity patterns? We need this information to evaluate the (patho-)physiological neuronal state of newborn and particular preterm babies during critical stages of their development.
HJL, AS, J-WY, VR-P, MCS, SK and WK wrote the article and generated the figures.
We particularly thank our coworkers and the funding agencies, especially the Deutsche Forschungsgemeinschaft, for their continuous support.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
The authors thank all colleagues, who contributed to our knowledge on developmental neurophysiology. We apologize that we were not able to include all relevant publications on this topic due to space limitations.
Aguiló, A., Schwartz, T. H., Kumar, V. S., Peterlin, Z. A., Tsiola, A., Soriano, E., et al. (1999). Involvement of Cajal-Retzius neurons in spontaneous correlated activity of embryonic and postnatal layer 1 from wild-type and reeler mice. J. Neurosci. 19, 10856–10868.
Allène, C., Cattani, A., Ackman, J. B., Bonifazi, P., Aniksztejn, L., Ben-Ari, Y., et al. (2008). Sequential generation of two distinct synapse-driven network patterns in developing neocortex. J. Neurosci. 28, 12851–12863. doi: 10.1523/JNEUROSCI.3733-08.2008
Allene, C., and Cossart, R. (2010). Early NMDA receptor-driven waves of activity in the developing neocortex: physiological or pathological network oscillations? J. Physiol. 588, 83–91. doi: 10.1113/jphysiol.2009.178798
Aronoff, R., Matyas, F., Mateo, C., Ciron, C., Schneider, B., and Petersen, C. C. (2010). Long-range connectivity of mouse primary somatosensory barrel cortex. Eur. J. Neurosci. 31, 2221–2233. doi: 10.1111/j.1460-9568.2010.07264.x
Baker, R. E., Corner, M. A., and van Pelt, J. (2006). Spontaneous neuronal discharge patterns in developing organotypic mega-co-cultures of neonatal rat cerebral cortex. Brain Res. 1101, 29–35. doi: 10.1016/j.brainres.2006.05.028
Bando, Y., Irie, K., Shimomura, T., Umeshima, H., Kushida, Y., Kengaku, M., et al. (2016). Control of spontaneous Ca2+ transients is critical for neuronal maturation in the developing neocortex. Cereb. Cortex 26, 106–117. doi: 10.1093/cercor/bhu180
Barrera, K., Chu, P., Abramowitz, J., Steger, R., Ramos, R. L., and Brumberg, J. C. (2013). Organization of myelin in the mouse somatosensory barrel cortex and the effects of sensory deprivation. Dev. Neurobiol. 73, 297–314. doi: 10.1002/dneu.22060
Belgacem, Y. H., and Borodinsky, L. N. (2015). Inversion of Sonic hedgehog action on its canonical pathway by electrical activity. Proc. Natl. Acad. Sci. U S A 112, 4140–4145. doi: 10.1073/pnas.1419690112
Ben-Ari, Y., Cherubini, E., Corradetti, R., and Gaiarsa, J.-L. (1989). Giant synaptic potentials in immature rat CA3 hippocampal neurones. J. Physiol. 416, 303–325. doi: 10.1113/jphysiol.1989.sp017762
Bender, R. A., and Baram, T. Z. (2008). Hyperpolarization activated cyclic-nucleotide gated (HCN) channels in developing neuronal networks. Prog. Neurobiol. 86, 129–140. doi: 10.1016/j.pneurobio.2008.09.007
Benders, M. J., Palmu, K., Menache, C., Borradori-Tolsa, C., Lazeyras, F., Sizonenko, S., et al. (2015). Early brain activity relates to subsequent brain growth in premature infants. Cereb. Cortex 25, 3014–3024. doi: 10.1093/cercor/bhu097
Blanquie, O., Liebmann, L., Hübner, C. A., Luhmann, H. J., and Sinning, A. (2016). NKCC1-mediated GABAergic signaling promotes postnatal cell death in neocortical cajalgÇôretzius cells. Cereb. Cortex doi: 10.1093/cercor/bhw004 [Epub ahead of print].
Bonifazi, P., Goldin, M., Picardo, M. A., Jorquera, I., Cattani, A., Bianconi, G., et al. (2009). GABAergic hub neurons orchestrate synchrony in developing hippocampal networks. Science 326, 1419–1424. doi: 10.1126/science.1175509
Borodinsky, L. N., Root, C. M., Cronin, J. A., Sann, S. B., Gu, X., and Spitzer, N. C. (2004). Activity-dependent homeostatic specification of transmitter expression in embryonic neurons. Nature 429, 523–530. doi: 10.1038/nature02518
Brecht, M., Krauss, A., Muhammad, S., Sinai-Esfahani, L., Bellanca, S., and Margrie, T. W. (2004). Organization of rat vibrissa motor cortex and adjacent areas according to cytoarchitectonics, microstimulation and intracellular stimulation of identified cells. J. Comp. Neurol. 479, 360–373. doi: 10.1002/cne.20306
Chepkova, A. N., Sergeeva, O. A., and Haas, H. L. (2008). Carbenoxolone impairs LTP and blocks NMDA receptors in murine hippocampus. Neuropharmacology 55, 139–147. doi: 10.1016/j.neuropharm.2008.05.001
Chowdhury, T. G., Jimenez, J. C., Bomar, J. M., Cruz-Martin, A., Cantle, J. P., and Portera-Cailliau, C. (2010). Fate of Cajal-Retzius neurons in the postnatal mouse neocortex. Front. Neuroanat. 4:10. doi: 10.3389/neuro.05.010.2010
Colonnese, M. T., and Khazipov, R. (2010). “Slow activity transients” in infant rat visual cortex: a spreading synchronous oscillation patterned by retinal waves. J. Neurosci. 30, 4325–4337. doi: 10.1523/JNEUROSCI.4995-09.2010
Conhaim, J., Cedarbaum, E. R., Barahimi, M., Moore, J. G., Becker, M. I., Gleiss, H., et al. (2010). Bimodal septal and cortical triggering and complex propagation patterns of spontaneous waves of activity in the developing mouse cerebral cortex. Dev. Neurobiol. 70, 679–692. doi: 10.1002/dneu.20797
Conhaim, J., Easton, C. R., Becker, M. I., Barahimi, M., Cedarbaum, E. R., Moore, J. G., et al. (2011). Developmental changes in propagation patterns and transmitter dependence of waves of spontaneous activity in the mouse cerebral cortex. J. Physiol. 589, 2529–2541. doi: 10.1113/jphysiol.2010.202382
Demerens, C., Stankoff, B., Logak, M., Anglade, P., Allinquant, B., Couraud, F., et al. (1996). Induction of myelination in the central nervous system by electrical activity. Proc. Natl. Acad. Sci. U S A 93, 9887–9892. doi: 10.1073/pnas.93.18.9887
Dupont, E., Hanganu, I. L., Kilb, W., Hirsch, S., and Luhmann, H. J. (2006). Rapid developmental switch in the mechanisms driving early cortical columnar networks. Nature 439, 79–83. doi: 10.1038/nature04264
Friedman, W. A., Jones, L. M., Cramer, N. P., Kwegyir-Afful, E. E., Zeigler, H. P., and Keller, A. (2006). Anticipatory activity of motor cortex in relation to rhythmic whisking. J. Neurophysiol. 95, 1274–1277. doi: 10.1152/jn.00945.2005
Golbs, A., Nimmervoll, B., Sun, J. J., Sava, I. E., and Luhmann, H. J. (2011). Control of programmed cell death by distinct electrical activity patterns. Cereb. Cortex 21, 1192–1202. doi: 10.1093/cercor/bhq200
Gorba, T., Klostermann, O., and Wahle, P. (1999). Development of neuronal activity and activity-dependent expression of brain-derived neurotrophic factor mRNA in organotypic cultures of rat visual cortex. Cereb. Cortex 9, 864–877. doi: 10.1093/cercor/9.8.864
Haiss, F., and Schwarz, C. (2005). Spatial segregation of different modes of movement control in the whisker representation of rat primary motor cortex. J. Neurosci. 25, 1579–1587. doi: 10.1523/JNEUROSCI.3760-04.2005
Hanganu, I. L., and Luhmann, H. J. (2004). Functional nicotinic acetylcholine receptors on subplate neurons in neonatal rat somatosensory cortex. J. Neurophysiol. 92, 189–198. doi: 10.1152/jn.00010.2004
Hanganu, I. L., Okabe, A., Lessmann, V., and Luhmann, H. J. (2009). Cellular mechanisms of subplate-driven and cholinergic input-dependent network activity in the neonatal rat somatosensory cortex. Cereb. Cortex 19, 89–105. doi: 10.1093/cercor/bhn061
Hanganu-Opatz, I. L. (2010). Between molecules and experience: role of early patterns of coordinated activity for the development of cortical maps and sensory abilities. Brain Res. Rev. 64, 160–176. doi: 10.1016/j.brainresrev.2010.03.005
Hanson, M. G., and Landmesser, L. T. (2004). Normal patterns of spontaneous activity are required for correct motor axon guidance and the expression of specific guidance molecules. Neuron 43, 687–701. doi: 10.1016/j.neuron.2004.08.018
Heck, N., Golbs, A., Riedemann, T., Sun, J. J., Lessmann, V., and Luhmann, H. J. (2008). Activity-dependent regulation of neuronal apoptosis in neonatal mouse cerebral cortex. Cereb. Cortex 18, 1335–1349. doi: 10.1093/cercor/bhm165
Hirsch, S., and Luhmann, H. J. (2008). Pathway-specificity in N-methyl-d-aspartate receptor-mediated synaptic inputs onto subplate neurons. Neuroscience 153, 1092–1102. doi: 10.1016/j.neuroscience.2008.01.068
Huberman, A. D., Speer, C. M., and Chapman, B. (2006). Spontaneous retinal activity mediates development of ocular dominance columns and binocular receptive fields in v1. Neuron 52, 247–254. doi: 10.1016/j.neuron.2006.07.028
Ignacio, M. P., Kimm, E. J., Kageyama, G. H., Yu, J., and Robertson, R. T. (1995). Postnatal migration of neurons and formation of laminae in rat cerebral cortex. Anat. Embryol. (Berl) 191, 89–100. doi: 10.1007/bf00186782
Ikonomidou, C., Bittigau, P., Ishimaru, M. J., Wozniak, D. F., Koch, C., Genz, K., et al. (2000). Ethanol-induced apoptotic neurodegeneration and fetal alcohol syndrome. Science 287, 1056–1060. doi: 10.1126/science.287.5455.1056
Ikonomidou, C., Bosch, F., Miksa, M., Bittigau, P., Vöckler, J., Dikranian, K., et al. (1999). Blockade of NMDA receptors and apoptotic neurodegeneration in the developing brain. Science 283, 70–74. doi: 10.1126/science.283.5398.70
Iyer, K. K., Roberts, J. A., Hellström-Westas, L., Wikström, S., Hansen-Pupp, I., Ley, D., et al. (2015). Cortical burst dynamics predict clinical outcome early in extremely preterm infants. Brain 138, 2206–2218. doi: 10.1093/brain/awv129
Judaš, M., Sedmak, G., and Kostović, I. (2013). The significance of the subplate for evolution and developmental plasticity of the human brain. Front. Hum. Neurosci. 7:423. doi: 10.3389/fnhum.2013.00423
Kanazawa, H., Kawai, M., Kinai, T., Iwanaga, K., Mima, T., and Heike, T. (2014). Cortical muscle control of spontaneous movements in human neonates. Eur. J. Neurosci. 40, 2548–2553. doi: 10.1111/ejn.12612
Kastanenka, K. V., and Landmesser, L. T. (2010). In vivo activation of channelrhodopsin-2 reveals that normal patterns of spontaneous activity are required for motoneuron guidance and maintenance of guidance molecules. J. Neurosci. 30, 10575–10585. doi: 10.1523/JNEUROSCI.2773-10.2010
Khazipov, R., Sirota, A., Leinekugel, X., Holmes, G. L., Ben-Ari, Y., and Buzsáki, G. (2004). Early motor activity drives spindle bursts in the developing somatosensory cortex. Nature 432, 758–761. doi: 10.1038/nature03132
Kilb, W., Hanganu, I. L., Okabe, A., Sava, B. A., Shimizu-Okabe, C., Fukuda, A., et al. (2008). Glycine receptors mediate excitation of subplate neurons in neonatal rat cerebral cortex. J. Neurophysiol. 100, 698–707. doi: 10.1152/jn.00657.2007
Kilb, W., Ikeda, M., Uchida, K., Okabe, A., Fukuda, A., and Luhmann, H. J. (2002). Depolarizing glycine responses in Cajal-Retzius cells of neonatal rat cerebral cortex. Neuroscience 112, 299–307. doi: 10.1016/s0306-4522(02)00071-4
Kirischuk, S., Luhmann, H. J., and Kilb, W. (2014). Cajal-retzius cells: update on structural and functional properties of these mystic neurons that bridged the 20th century. Neuroscience 275, 33–46. doi: 10.1016/j.neuroscience.2014.06.009
Kirmse, K., Grantyn, R., and Kirischuk, S. (2005). Developmental downregulation of low-voltage-activated Ca2+ channels in Cajal-Retzius cells of the mouse visual cortex. Eur. J. Neurosci. 21, 3269–3276. doi: 10.1111/j.1460-9568.2005.04171.x
Kirmse, K., Kummer, M., Kovalchuk, Y., Witte, O. W., Garaschuk, O., and Holthoff, K. (2015). GABA depolarizes immature neurons and inhibits network activity in the neonatal neocortex in vivo. Nat. Commun. 6:7750. doi: 10.1038/ncomms8750
Lacoste, B., Comin, C. H., Ben-Zvi, A., Kaeser, P. S., Xu, X. Y., Costa Lda, F., et al. (2014). Sensory-related neural activity regulates the structure of vascular networks in the cerebral cortex. Neuron 83, 1117–1130. doi: 10.1016/j.neuron.2014.07.034
Lebedeva, J., Zakharov, A., Ogievetsky, E., Minlebaeva, A., Kurbanov, R., Gerasimova, E., et al. (2015). Inhibition of cortical activity and apoptosis caused by ethanol in neonatal rats in vivo. Cereb. Cortex doi: 10.1093/cercor/bhv293 [Epub ahead of print].
Lischalk, J. W., Easton, C. R., and Moody, W. J. (2009). Bilaterally propagating waves of spontaneous activity arising from discrete pacemakers in the neonatal mouse cerebral cortex. Dev. Neurobiol. 69, 407–414. doi: 10.1002/dneu.20708
Luhmann, H. J. (2013). “Cajal-retzius and subplate cells–transient cortical neurons and circuits,” in Comprehensive Developmental Neuroscience: Cellular Migration and Formation of Neuronal Connections, eds J. L. R. Rubenstein and P. Rakic (Amsterdam: Academic Press), 843–856.
Mao, T. Y., Kusefoglu, D., Hooks, B. M., Huber, D., Petreanu, L., and Svoboda, K. (2011). Long-range neuronal circuits underlying the interaction between sensory and motor cortex. Neuron 72, 111–123. doi: 10.1016/j.neuron.2011.07.029
Marcotti, W., Johnson, S. L., Holley, M. C., and Kros, C. J. (2003). Developmental changes in the expression of potassium currents of embryonic, neonatal and mature mouse inner hair cells. J. Physiol. 548, 383–400. doi: 10.1113/jphysiol.2002.034801
Marx, M., Qi, G., Hanganu-Opatz, I. L., Kilb, W., Luhmann, H. J., and Feldmeyer, D. (2015). Neocortical layer 6B as a remnant of the subplate—a morphological comparison. Cereb. Cortex doi: 10.1093/cercor/bhv279 [Epub ahead of print].
Mazzuca, M., Minlebaev, M., Shakirzyanova, A., Tyzio, R., Taccola, G., Janackova, S., et al. (2011). Newborn analgesia mediated by oxytocin during delivery. Front. Cell. Neurosci. 5:3. doi: 10.3389/fncel.2011.00003
Minlebaev, M., Ben-Ari, Y., and Khazipov, R. (2007). Network mechanisms of spindle-burst oscillations in the neonatal rat barrel cortex in vivo. J. Neurophysiol. 97, 692–700. doi: 10.1152/jn.00759.2006
Molnár, Z., Metin, C., Stoykova, A., Tarabykin, V., Price, D. J., Francis, F., et al. (2006). Comparative aspects of cerebral cortical development. Eur. J. Neurosci. 23, 921–934. doi: 10.1111/j.1460-9568.2006.04611.x
Moody, W. J., and Bosma, M. M. (2005). Ion channel development, spontaneous activity and activity-dependent development in nerve and muscle cells. Physiol. Rev. 85, 883–941. doi: 10.1152/physrev.00017.2004
Moore, A. R., Zhou, W. L., Sirois, C. L., Belinsky, G. S., Zecevic, N., and Antic, S. D. (2014). Connexin hemichannels contribute to spontaneous electrical activity in the human fetal cortex. Proc. Natl. Acad. Sci. U S A 111, E3919–E3928. doi: 10.1073/pnas.1405253111
Namiki, S., Norimoto, H., Kobayashi, C., Nakatani, K., Matsuki, N., and Ikegaya, Y. (2013). Layer III neurons control synchronized waves in the immature cerebral cortex. J. Neurosci. 33, 987–1001. doi: 10.1523/JNEUROSCI.2522-12.2013
Nicol, X., Voyatzis, S., Muzerelle, A., Narboux-Nême, N., Südhof, T. C., Miles, R., et al. (2007). cAMP oscillations and retinal activity are permissive for ephrin signaling during the establishment of the retinotopic map. Nat. Neurosci. 10, 340–347. doi: 10.1038/nn1842
Nimmervoll, B., White, R., Yang, J. W., An, S., Henn, C., Sun, J. J., et al. (2013). LPS-induced microglial secretion of TNF-α increases activity-dependent neuronal apoptosis in neonatal cerebral cortex. Cereb. Cortex 23, 1742–1755. doi: 10.1093/cercor/bhs156
Opitz, T., De Lima, A. D., and Voigt, T. (2002). Spontaneous development of synchronous oscillatory activity during maturation of cortical networks in vitro. J. Neurophysiol. 88, 2196–2206. doi: 10.1152/jn.00316.2002
Qian, T. Z., Chen, R. Q., Nakamura, M., Furukawa, T., Kumada, T., Akita, T., et al. (2014). Activity-dependent endogenous taurine release facilitates excitatory neurotransmission in the neocortical marginal zone of neonatal rats. Front. Cell. Neurosci. 8:33. doi: 10.3389/fncel.2014.00033
Rahkonen, P., Nevalainen, P., Lauronen, L., Pihko, E., Lano, A., Vanhatalo, S., et al. (2013). Cortical somatosensory processing measured by magnetoencephalography predicts neurodevelopment in extremely low-gestational-age infants. Pediatr. Res. 73, 763–771. doi: 10.1038/pr.2013.46
Ramakers, G. J., Corner, M. A., and Habets, A. M. (1990). Development in the absence of spontaneous bioelectric activity results in increased stereotyped burst firing in cultures of dissociated cerebral cortex. Exp. Brain Res. 79, 157–166. doi: 10.1007/bf00228885
Sava, B. A., Chen, R. Q., Sun, H. Y., Luhmann, H. J., and Kilb, W. (2014). Taurine activates GABAergic networks in the neocortex of immature mice. Front. Cell. Neurosci. 8:26. doi: 10.3389/fncel.2014.00026
Schwartz, T. H., Rabinowitz, D., Unni, V., Kumar, V. S., Smetters, D. K., Tsiola, A., et al. (1998). Networks of coactive neurons in developing layer 1. Neuron 20, 541–552. doi: 10.1016/s0896-6273(00)80993-9
Sibilla, S., and Ballerini, L. (2009). GABAergic and glycinergic interneuron expression during spinal cord development: dynamic interplay between inhibition and excitation in the control of ventral network outputs. Prog. Neurobiol. 89, 46–60. doi: 10.1016/j.pneurobio.2009.06.001
Stevens, B., Porta, S., Haak, L. L., Gallo, V., and Fields, R. D. (2002). Adenosine: a neuron-glial transmitter promoting myelination in the cns in response to action potentials. Neuron 36, 855–868. doi: 10.1016/S0896-6273(02)01067-X
Stil, A., Jean-Xavier, C., Liabeuf, S., Brocard, C., Delpire, E., Vinay, L., et al. (2011). Contribution of the potassium-chloride co-transporter KCC2 to the modulation of lumbar spinal networks in mice. Eur. J. Neurosci. 33, 1212–1222. doi: 10.1111/j.1460-9568.2010.07592.x
Sun, J. J., Kilb, W., and Luhmann, H. J. (2010). Self-organization of repetitive spike patterns in developing neuronal networks in vitro. Eur. J. Neurosci. 32, 1289–1299. doi: 10.1111/j.1460-9568.2010.07383.x
Sun, J. J., and Luhmann, H. J. (2007). Spatio-temporal dynamics of oscillatory network activity in the neonatal mouse cerebral cortex. Eur. J. Neurosci. 26, 1995–2004. doi: 10.1111/j.1460-9568.2007.05819.x
Sun, H. Y., Luhmann, H. J., and Kilb, W. (2012). Resonance properties of different neuronal populations in the immature mouse neocortex. Eur. J. Neurosci. 36, 2753–2762. doi: 10.1111/j.1460-9568.2012.08196.x
Tolner, E. A., Sheikh, A., Yukin, A. Y., Kaila, K., and Kanold, P. O. (2012). Subplate neurons promote spindle bursts and thalamocortical patterning in the neonatal rat somatosensory cortex. J. Neurosci. 32, 692–702. doi: 10.1523/JNEUROSCI.1538-11.2012
Tolonen, M., Palva, J. M., Andersson, S., and Vanhatalo, S. (2007). Development of the spontaneous activity transients and ongoing cortical activity in human preterm babies. Neuroscience 145, 997–1006. doi: 10.1016/j.neuroscience.2006.12.070
Tritsch, N. X., Rodríguez-Contreras, A., Crins, T. T., Wang, H. C., Borst, J. G., and Bergles, D. E. (2010). Calcium action potentials in hair cells pattern auditory neuron activity before hearing onset. Nat. Neurosci. 13, 1050–1052. doi: 10.1038/nn.2604
Vanhatalo, S., Palva, J. M., Andersson, S., Rivera, C., Voipio, J., and Kaila, K. (2005). Slow endogenous activity transients and developmental expression of K+-Cl- cotransporter 2 in the immature human cortex. Eur. J. Neurosci. 22, 2799–2804. doi: 10.1111/j.1460-9568.2005.04459.x
Vessey, J. P., Lalonde, M. R., Mizan, H. A., Welch, N. C., Kelly, M. E., and Barnes, S. (2004). Carbenoxolone inhibition of voltage-gated Ca channels and synaptic transmission in the retina. J. Neurophysiol. 92, 1252–1256. doi: 10.1152/jn.00148.2004
Voigt, T., Opitz, T., and de Lima, A. D. (2005). Activation of early silent synapses by spontaneous synchronous network activity limits the range of neocortical connections. J. Neurosci. 25, 4605–4615. doi: 10.1523/jneurosci.3803-04.2005
Wagner, J., and Luhmann, H. J. (2006). Activation of metabotropic glutamate receptors induces propagating network oscillations in the intact cerebral cortex of the newborn mouse. Neuropharmacology 51, 848–857. doi: 10.1016/j.neuropharm.2006.05.034
Wagner-Golbs, A., and Luhmann, H. J. (2012). Activity-dependent survival of developing neocortical neurons depends on PI3K signalling. J. Neurochem. 120, 495–501. doi: 10.1111/j.1471-4159.2011.07591.x
Wake, H., Ortiz, F. C., Woo, D. H., Lee, P. R., Angulo, M. C., and Fields, R. D. (2015). Nonsynaptic junctions on myelinating glia promote preferential myelination of electrically active axons. Nat. Commun. 6:7844. doi: 10.1038/ncomms8844
Wang, H. C., Lin, C. C., Cheung, R., Zhang-Hooks, Y., Agarwal, A., Ellis-Davies, G., et al. (2015). Spontaneous activity of cochlear hair cells triggered by fluid secretion mechanism in adjacent support cells. Cell 163, 1348–1359. doi: 10.1016/j.cell.2015.10.070
Weissman, T. A., Riquelme, P. A., Ivic, L., Flint, A. C., and Kriegstein, A. R. (2004). Calcium waves propagate through radial glial cells and modulate proliferation in the developing neocortex. Neuron 43, 647–661. doi: 10.1016/j.neuron.2004.08.015
Weliky, M. (1999). Recording and manipulating the in vivo correlational structure of neuronal activity during visual cortical development. J. Neurobiol. 41, 25–32. doi: 10.1002/(SICI)1097-4695(199910)41:1<25::AID-NEU5>3.0.CO;2-#
Yang, J. W., An, S., Sun, J. J., Reyes-Puerta, V., Kindler, J., Berger, T., et al. (2013). Thalamic network oscillations synchronize ontogenetic columns in the newborn rat barrel cortex. Cereb. Cortex 23, 1299–1316. doi: 10.1093/cercor/bhs103
Yang, J. W., Hanganu-Opatz, I. L., Sun, J. J., and Luhmann, H. J. (2009). Three patterns of oscillatory activity differentially synchronize developing neocortical networks in vivo. J. Neurosci. 29, 9011–9025. doi: 10.1523/JNEUROSCI.5646-08.2009
Zagha, E., Casale, A. E., Sachdev, R. N. S., McGinley, M. J., and McCormick, D. A. (2013). Motor cortex feedback influences sensory processing by modulating network state. Neuron 79, 567–578. doi: 10.1016/j.neuron.2013.06.008
Keywords: development, cerebral cortex, subplate, spontaneous activity, somatosensory cortex, columnar organization, rodent, human
Citation: Luhmann HJ, Sinning A, Yang J-W, Reyes-Puerta V, Stüttgen MC, Kirischuk S and Kilb W (2016) Spontaneous Neuronal Activity in Developing Neocortical Networks: From Single Cells to Large-Scale Interactions. Front. Neural Circuits 10:40. doi: 10.3389/fncir.2016.00040
Received: 17 March 2016; Accepted: 06 May 2016;
Published: 24 May 2016.
Edited by:Kazuo Imaizumi, Broad Institute of MIT and Harvard, USA
Reviewed by:Rustem Khazipov, Institut National de la Santé et de la Recherche Médicale, France
Yuji Ikegaya, The University of Tokyo, Japan
Copyright © 2016 Luhmann, Sinning, Yang, Reyes-Puerta, Stüttgen, Kirischuk and Kilb. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution and reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Heiko J. Luhmann, firstname.lastname@example.org
