Abstract
Understanding plasticity of neural networks is a key to comprehending their development and function. A powerful technique to study neural plasticity includes recording and control of pre- and post-synaptic neural activity, e.g., by using simultaneous intracellular recording and stimulation of several neurons. Intracellular recording is, however, a demanding technique and has its limitations in that only a small number of neurons can be stimulated and recorded from at the same time. Extracellular techniques offer the possibility to simultaneously record from larger numbers of neurons with relative ease, at the expenses of increased efforts to sort out single neuronal activities from the recorded mixture, which is a time consuming and error prone step, referred to as spike sorting. In this mini-review, we describe recent technological developments in two separate fields, namely CMOS-based high-density microelectrode arrays, which also allow for extracellular stimulation of neurons, and real-time spike sorting. We argue that these techniques, when combined, will provide a powerful tool to study plasticity in neural networks consisting of several thousand neurons in vitro.
Introduction
The understanding of neural circuits and their activities is to a major extent based on measurements with extracellular electrodes. This is due to the fact that extracellular recordings are relatively easy to perform and very well established. In contrast to single cell measurements with intracellular recording techniques, extracellular electrodes pick up the action potentials (spikes) of all neurons in their vicinity. This is a blessing as well as a curse. An advantage is that in principle several neurons can be measured simultaneously using a single extracellular electrode, but the price to pay is the need to assign single spikes to their putative neuronal sources. This problem is referred to as spike sorting and it is known to be difficult and error-prone (Lewicki, ), and spike sorting often involves a highly time consuming, manual component.
Depending on the experiment, time consuming spike sorting can be regarded as a mere inconvenience, and many studies have focused on the development of spike sorting algorithms for the offline analysis of the recordings after performing the experiment (see e.g., Letelier and Weber, ; Shoham and Fellows, ; Delescluse and Pouzat, ). For real-time closed-loop experiments and brain machine interfaces (BMI), however, it is absolutely necessary to obtain spike trains already during the recording so that time consuming spike sorting is not only a problem but essentially prohibits performing such experiments. Therefore, spike sorting is usually avoided in those experiments by detecting just the presence of action potentials, e.g., by applying a voltage threshold, which can be relatively easy and efficiently implemented also in hardware (Guillory and Normann, ). Real-time spike detection allows for studying closed-loop feedback of neural activity, for example, through the implementation of visual feedback to an awake monkey (Fetz, ), or by applying electrical stimulation to neurons in an awake animal (Jackson et al., ). Electrical stimulation of neurons that depends on the activity of other neurons (see also Figure 1) was also successfully used in neural cultures on top of multi-electrode arrays (MEAs): electrical feedback stimuli have been used to control the bursting activity of cultured neurons in Wagenaar et al. () and the connection strengths between neurons in Müller et al. (in review). The closed-loop approach can also be used to connect a neural network to a robot (Bontorin et al., ; Potter, ). For a review of real-time closed-loop electrophysiology see, e.g., Arsiero et al. (). These studies, however, were all realized without using spike sorting, either by limiting the number of single neurons that were recorded from (by trying to detect only one specific neuron per electrode), or by using multi-unit activities.

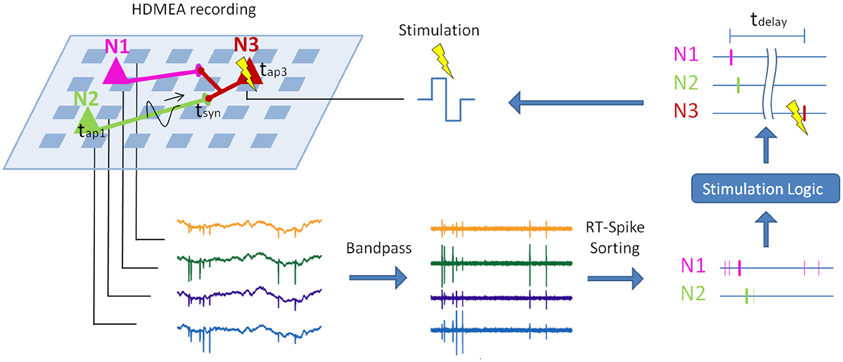

Figure 1
Recent developments in measurement techniques and in spike sorting algorithms make it now possible to overcome some of the limitations of extracellular recordings. A possible setup using spike sorting for closed-loop stimulation of specific neurons is shown in Figure 1. To use the closed loop, e.g., to investigate spike-timing-dependent plasticity, the real-time spike-sorting-induced latency may not exceed a few milliseconds. In the following, we will review the advances in MEA recording technology with a special focus on high-density MEAs and show that the high-density of the electrodes provides unprecedented signal quality that holds the promise to enable clear and reliable assignment of single spikes to putative neurons (Litke et al., ; Prentice et al., ; Jäckel et al., ).
MEA recording technology
Planar MEAs are two-dimensional arrangements of recording electrodes for in vitro extracellular measurements of cultured neuronal cells or slice preparations. They allow for recording of electrical activity simultaneously on many electrodes at high temporal resolution. Thus, they represent an important tool to study the dynamics in neuronal networks (e.g., Potter et al., ; Bontorin et al., ; Chao et al., ; Rolston et al., ; Müller et al., in review).
An important parameter of MEAs is the inter-electrode distance (IED). For multi-electrode arrangements on shafts of needles, such as tetrode configurations (Eckhorn and Thomas, ; O'Keefe and Recce, ), this distance is small enough (less than 20 μm) that a single action potential can be simultaneously detected on several electrodes. The maximal distance between a neuron and an electrode, at which the action potentials of the neuron can be still measured, is assumed to be smaller than 50–70 μm although this greatly depends on the recording setup and the respective preparation (Buzsáki, ; Frey et al., ). For traditional, commercially available MEAs, however, the IED was usually much larger [100–200 μm IED and 60–200 metal electrodes on a glass substrate (Stett et al., )] so that MEA recordings constituted, in principle, multiple simultaneous single-electrode recordings. In other words, the distance between the electrodes was too large to detect activity of the same single neuron on multiple electrodes.
From the signal processing point of view, this is an unfavorable recording situation, as recording the same action potential with more than one electrode was shown to strongly increase spike sorting performance (Gray et al., ). Furthermore, many neurons will lie in between electrodes and not be measured at all. To ensure that neurons lie close to the electrodes, additional measures can be taken during the preparation of the cultures, such as patterning the cells at electrode locations (Shein et al., ), but this adds complexity to the experimental procedure.
Recent advances in microtechnology, especially the realization of MEAs in complementary metal–oxide–semiconductor (CMOS) technology (Berdondini et al., ; Lambacher et al., ; Hierlemann et al., ), made it possible to greatly increase the number of electrodes per MEA, for example to 4096 in Berdondini et al. (), 11,011 in Frey et al. () or 16,384 in Lambacher et al. (), while decreasing the IED to less than 20 μm, a distance comparable to that of the previously mentioned electrode ensembles on needles (e.g., tetrodes). Additionally, this technology provides increased signal quality through on-chip amplification and digitization circuits. Using on-chip multiplexing schemes, high-density MEAs (HDMEA) systems have been realized, which enable to read out large numbers of electrodes, arranged at high spatial density (Eversmann et al., ; Berdondini et al., ; Hutzler et al., ; Frey et al., ).
The closely spaced microelectrodes of HDMEAs enable that virtually every neuron on the array is detected by multiple electrodes. Along with the additional information where the signal originated from, the high electrode density greatly improves spike sorting (Gray et al., ; Harris et al., ; Einevoll et al., ; Prentice et al., ). Figure 2 shows an example of such a recording.

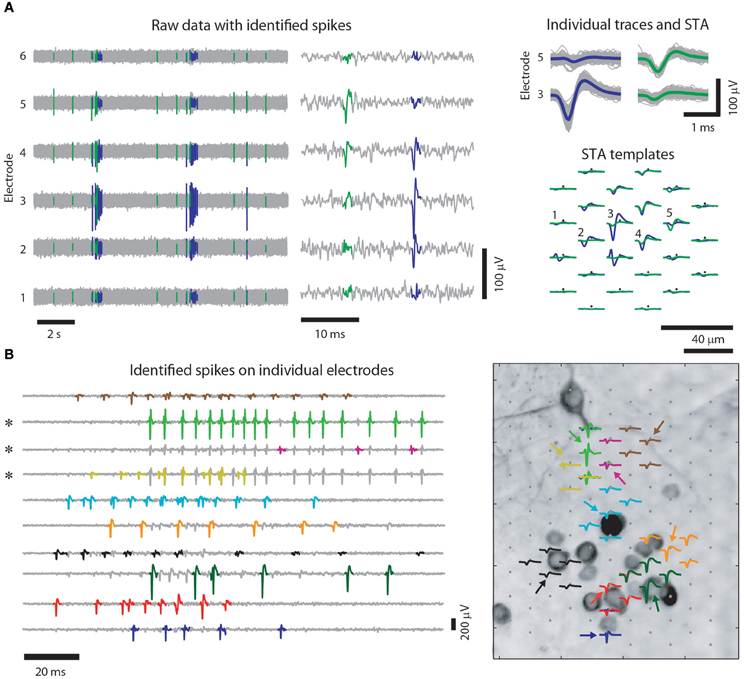

Figure 2
However, HDMEAs do not only improve recording but also stimulation capabilities. Localized, reliable stimulation of single cells (Hottowy et al., ) is a powerful tool for plasticity experiments (Müller et al., in review). Indeed, sub-cellular sized electrodes have been shown to provide reliable stimulation of individual neurons in vitro. This has been demonstrated using MEAs with particularly high electrode densities that feature only stimulation capabilities, such as (Braeken et al., ; Lei et al., ). Procedures how to optimally stimulate a given neuron by using multiple electrodes and complex stimulation patterns are currently under investigation.
HDMEAs featuring recording and stimulation circuitry (Frey et al., ; Eversmann et al., ) combine the advantages of reliable spike sorting and localized single neuron stimulation, which paves the way to truly bidirectional experiments on single-cell level within the network context.
Real-time spike sorting algorithms
The overall spike sorting process consists of a number of non-trivial processing steps (for a schematic of the spike sorting process see, e.g., Einevoll et al., ). First, spikes need to be detected in the noisy signals. For multi-electrode-shaft and HDMEA recordings, a single action potential can be detected on multiple electrodes. Then, a short piece of data is usually cut out around the detected events (potentially on multiple electrodes) and structured into a vector in a high dimensional space. Spike features are then extracted from this piece using, e.g., principle component analysis (Lewicki, ). This step aims at reducing the dimension of the vector space in order to keep dimensions that carry most information about the origin of the spikes and to remove dimensions that only carry noise. The goal of the feature space representation and dimensionality reduction is that spikes from the same neuron, i.e., appear to be similar to each other, are located closely together while being distant from spikes of other neurons. The most demanding step, achieved by using a clustering routine, is to determine how many neurons were recorded from, and which spike was produced by which neuron. Since most standard spike sorting procedures (e.g., Harris et al., ; Shoham and Fellows, ; Quiroga et al., ) need to store all individual spikes before the clustering step, they are not applicable for online spike sorting with the notable exceptions of Öhberg et al. (), where a neural network is used for real-time spike sorting, and (Rutishauser and Schuman, ), where the clusters are formed in an online procedure. The output of the spike sorting consists of the number of neurons, the individual neuronal spike trains, and the prototypic spike waveforms (called templates) for every neuron.
Since some data from a certain preparation can already be recorded and stored prior to a specific experiment, templates can be pre-computed using an offline spike sorter. This way, fast and efficient classifiers can be designed based on stored templates that are able to sort spikes in real-time. It does not come as a surprise that almost all research efforts in the direction of real-time spike sorting follow this approach (Friedman, ; Mishelevich, ; Roberts and Hartline, ; Stein et al., ; Salganicoff et al., ; Yang and Shamma, ; Gozani and Miller, ; Santhanam et al., ; Asai et al., ; Takahashi and Sakurai, ; Vollgraf et al., ; Biffi et al., ; Franke, ), although not all of these approaches explicitly make use of templates to derive spike classifiers.
So far, real-time spike sorting was mainly achieved by deriving simple hardware-implementable decision rules, based on the spike templates. One such rule is to check, if the spike voltage sample at a given time lies between a lower and an upper threshold relative to the peak of the spike waveform (a so called hoop), as described in Santhanam et al. (). Such decision rules are also used in commercially available recording systems and were individually applied to single electrodes (Nicolelis et al., ; Wessberg et al., ; Taylor et al., ; Guenther et al., ).
However, there have been only few applications of these approaches to multielectrode arrays in real-time scenarios, such as Takahashi and Sakurai (), where independent-component analysis was used to separate individual neuronal activities. The information of several recording channels must be efficiently combined for multi-electrode recordings. Extending a spike sorting method that works for single electrodes to multi-electrodes is not a trivial task and might not be possible for all methods.
As already discussed, HDMEAs impose even higher demands on the methods due to the large overall number of simultaneously recorded neurons and the large number of electrodes that are available per single neuron. There are a number of approaches to spike sorting of HDMEA data (Meister et al., ; Litke et al., ; Jäckel et al., , ; Prentice et al., ; Fiscella et al., ) but none of those has been evaluated with respect to low latency real-time spike sorting so far. There is also no commercial system with real-time spike sorting available, and it is currently unclear how effective the application of the “hoop”-approach (Santhanam et al., ) is. Another ICA-based real-time approach has been described in Takahashi and Sakurai (), but the performance of ICA to separate all neurons of HDMEA data sets was found to be limited (Jäckel et al., ).
Linear filters for spike sorting
Linear-filter-based spike sorting approaches rely on linear filters that preferentially respond to one template that is considered to represent spikes from a single neuron (Roberts and Hartline, ; Stein et al., ; Gozani and Miller, ; Vollgraf and Obermayer, ; Franke et al., ; Franke, ). Spikes can then be detected by thresholding the filter outputs. An alternative method was suggested in Vollgraf et al. (), where a preprocessing filter was designed to be tuned to the average spike waveform of all spikes. However, detected spikes have subsequently to be clustered in the filter output space, which introduces a complex problem after the filtering. Filter-based methods hold the promise to be suitable even for low-latency real-time spike sorting of MEA: linear filters can be efficiently implemented in hardware and they scale well with the number of recording electrodes. Firstly, all electrodes can be processed in parallel, and, secondly, if spikes of one neuron cannot be detected on a given electrode, this electrode can be ignored for the corresponding filter (Jäckel et al., ).
It was argued that linear-filter-based spike sorting provides only moderate performance in terms of sorting quality (Wheeler and Heetderks, ; Lewicki, ; Guido et al., ), but it was shown more recently that this could be due to the fact that the candidate filters have been derived in the frequency domain, which was shown to be non-optimal (Vollgraf and Obermayer, ).
Real-time implementation
Numeric computations behind linear filters are based on multiply-accumulate (MAC) operations. For every recording electrode, a set of filter coefficients has to be multiplied with the most recent samples of the recordings, and all multiplications over all electrodes are then summed up. Since multiplications are independent of each other, they can be done in parallel on a digital signal processor (DSP) as a single processing step. DSPs are well suited for implementing MAC-based algorithms, but filter-based spike sorting algorithms can consist of more complex operations [like buffering the filter outputs, thresholding, and estimation of the filter with the maximal output (Franke, )], which requires more flexibility than provided by DSPs. Such more complex operations can, however, be implemented by using field-programmable gate arrays (FPGAs). The digital interface of a MEA can be controlled by these fast and reprogrammable microcontrollers. By integrating data analysis modules, as well as stimulation logics directly on the FPGA, the complete closed-loop experiment can be realized in “programmable hardware” (Hafizovic et al., ). This obviates the necessity to route the signal path through a PC, which would increase latency and jitter. Another advantage of FPGAs is the relatively large available memory to store filter coefficients.
Overlapping spikes
When two spikes occur nearly at the same time, they can cause problems for the spike sorting: The overlapping signals could be detected as a single spike instead of being recognized as two spikes, and the distorted overall waveform can lead to misclassifications. With multi-electrode recordings, there can be two different types of spike overlaps: (1) temporal overlaps include spikes that occur nearly at the same time but on different electrodes, while (2) spatio-temporal overlaps occur nearly at the same time and also on the same electrodes. Purely temporal overlaps do not cause any problems for filter-based methods, as the filters corresponding to one neuron can be made “blind” to the electrodes of another neuron and can be treated separately. Spatio-temporal overlaps (see Figure 2), however, will distort the filter outputs of both filters. A way to solve this problem is to remove the corresponding waveform from the data, once a spike was detected, and to then re-compute the filter outputs (Gozani and Miller, ; Franke, ). This approach is not well suited for a challenging real-time implementation, since it will generate a larger delay for overlapping spikes than for non-overlapping ones. The realization of an efficient overlap resolution technique for high-electrode-density data of real-time applications is still an open issue.
Discussion/outlook
A number of issues in implementing real-time spike sorting still remain unsolved. It would be desirable to make the linear filters as short as possible to achieve the smallest possible delay (the delay of a causal filter is directly related to its length) (Vollgraf and Obermayer, ). However, it was not investigated yet, how short the filters for HDMEA recordings can be, while still ensuring a high spike sorting quality. Furthermore, the filters described in Roberts and Hartline () are, in principle, more powerful than a simple matched filter (Vollgraf et al., ; Franke, ), since they try to suppress spikes from other neurons. This may be useful to resolve overlapping spikes but comes at a price: the filters might be less robust to noise, since they are under stronger constraints. Additionally, spike waveforms of two different neurons may not necessarily be linearly independent, which poses a problem for this kind of linear filters.
Given the high spatial resolution of HDMEAs, it will be interesting to investigate, how the quality of the results obtained by using simple spike sorting algorithms compares to that of more complex ones. Promising algorithms for use with high electrode density include the aforementioned “hoop”-approach (Santhanam et al., ), or a sorting that is solely based on the identities of the electrodes, on which a spike was detected.
An important issue for spike sorting is the occurrence of bursts. Here, a neuron produces potentially many spikes with successively decreasing amplitudes and, possibly, varying waveforms (Fee et al., ). For most algorithms, it is not known, how the spike sorting error rate is affected by bursts. HDMEAs seem to offer the potential to correctly sort spikes according to their relative amplitude distribution over many electrodes, which may be a robust feature also preserved during bursts (Rinberg et al., ).
HDMEAs are a valuable tool to study neural networks, and in combination with real-time spike sorting, hold great promise for new closed-loop experiments to study, e.g., neural plasticity. We have discussed the potential applicability of spike-sorting algorithms for this purpose and come to the conclusion that the combination of hardware-optimized algorithms with HDMEA recordings may possibly enable high performance spike sorting of more than hundred neurons with latencies in the range that is required to stimulate and control synaptic plasticity (Feldman, ). This may allow for experiments similar to those reported in Fetz (); Jackson et al. (); Bontorin et al. (); Rebesco et al. (), however, with the possibility to use sophisticated feedback stimuli upon occurrence of defined signature signals of single neurons within a local population.
Conflict of interest statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Statements
Acknowledgments
This work was financially supported by the European Community through the ERC Advanced Grant 267351, “NeuroCMOS” and the Swiss National Science Foundation through the Ambizione Grant PZ00P3_132245. Felix Franke acknowledges individual support through an EU-funded Marie Curie Training Network of FP6: CT 2006-035854, CELLCHECK.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
References
1
ArsieroM.LüscherH.-R.GiuglianoM. (2007). Real-time closed-loop electrophysiology: towards new frontiers in in vitro investigations in the neurosciences. Arch. Ital. Biol. 145, 193–209.
2
AsaiY.AksenovaT. I.VillaA. E. P. (2005). On-line real-time oriented application for neuronal spike sorting with unsupervised learning. Lect. Notes Comput. Sci. 3696, 109–114.
3
BerdondiniL.ImfeldK.MaccioneA.TedescoM.NeukomS.Koudelka-HepM.et al. (2009). Active pixel sensor array for high spatio-temporal resolution electrophysiological recordings from single cell to large scale neuronal networks. Lab Chip9, 2644–2651. 10.1039/b907394a
4
BerdondiniL.van der WalP. D.GuenatO.de RooijN. F.Koudelka-HepM.SeitzP.et al. (2005). High-density electrode array for imaging in vitro electrophysiological activity. Biosens. Bioelectron. 21, 167–174. 10.1016/j.bios.2004.08.011
5
BiffiE.GhezziD.PedrocchiA.FerrignoG. (2010). Development and validation of a spike detection and classification algorithm aimed at implementation on hardware devices. Comput. Intell. Neurosci. 2010:659050. 10.1155/2010/659050
6
BontorinG.RenaudS.GarenneA.AlvadoL.Le MassonG.TomasJ. (2007). A real-time closed-loop setup for hybrid neural networks. Conf. Proc. IEEE Eng. Med. Biol. Soc. 2007, 3004–3007. 10.1109/IEMBS.2007.4352961
7
BraekenD.HuysR.LooJ.BarticC.BorghsG.CallewaertG.et al. (2010). Localized electrical stimulation of in vitro neurons using an array of sub-cellular sized electrodes. Biosens. Bioelectron. 26, 1474–1477. 10.1016/j.bios.2010.07.086
8
BuzsákiG. (2004). Large-scale recording of neuronal ensembles. Nat. Neurosci. 7, 446–451. 10.1038/nn1233
9
ChaoZ. C.BakkumD. J.PotterS. M. (2007). Region-specific network plasticity in simulated and living cortical networks: comparison of the center of activity trajectory (CAT) with other statistics. J. Neural Eng. 4, 294–308. 10.1088/1741-2560/4/3/015
10
DelescluseM.PouzatC. (2006). Efficient spike-sorting of multi-state neurons using inter-spike intervals information. J. Neurosci. Methods150, 16–29. 10.1016/j.jneumeth.2005.05.023
11
EckhornR.ThomasU. (1993). A new method for the insertion of multiple microprobes into neural and muscular tissue, including fiber electrodes, fine wires, needles and microsensors. J. Neurosci. Methods49, 175–179.
12
EinevollG. T.FrankeF.HagenE.PouzatC.HarrisK. D. (2011). Towards reliable spike-train recordings from thousands of neurons with multielectrodes. Curr. Opin. Neurobiol. 27, 1–7. 10.1016/j.conb.2011.10.001
13
EversmannB.JenknerM.HofmannF.PaulusC.BrederlowR.HolzapflB.et al. (2003). A 128 x 128 cmos biosensor array for extracellular recording of neural activity. IEEE J. Solid-State Circ. 38, 2306–2317.
14
EversmannB.LambacherA.GerlingT.KunzeA.FromherzP.ThewesR. (2011). A neural tissue interfacing chip for in-vitro applications with 32k recording/stimulation channels on an active area of 2.6 mm2, in Proceedings ESSCIRC (Helsinki), 211–214. Available online at: http://ieeexplore.ieee.org/xpls/abs_all.jsp?arnumber=6044902&tag=1
15
FeeM. S.MitraP. P.KleinfeldD. (1996). Variability of extracellular spike waveforms of cortical neurons. J. Neurophysiol. 76, 3823–3833.
16
FeldmanD. E. (2012). The spike-timing dependence of plasticity. Neuron75, 556–571. 10.1016/j.neuron.2012.08.001
17
FetzE. E. (1969). Operant conditioning of cortical unit activity. Science163, 955–958. 10.1126/science.163.3870.955
18
FiscellaM.FarrowK.JonesI. L.JäckelD.MüllerJ.FreyU.et al. (2012). Recording from defined populations of retinal ganglion cells using a high-density CMOS-integrated microelectrode array with real-time switchable electrode selection. J. Neurosci. Methods211, 103–113. 10.1016/j.jneumeth.2012.08.017
19
FrankeF. (2011). Real-Time Analysis of Extracellular Multielectrode Recordings. PhD Thesis, Technische Universität Berlin, Berlin.
20
FrankeF.NatoraM.BoucseinC.MunkM. H. J.ObermayerK. (2010). An online spike detection and spike classification algorithm capable of instantaneous resolution of overlapping spikes. J. Comput. Neurosci. 29, 127–148. 10.1007/s10827-009-0163-5
21
FreyU.EgertU.HeerF.HafizovicS.HierlemannA. (2009a). Microelectronic system for high-resolution mapping of extracellular electric fields applied to brain slices. Biosens. Bioelectron. 24, 2191–2198. 10.1016/j.bios.2008.11.028
22
FreyU.EgertU.JackelD.SedivyJ.BalliniM.LiviP.et al. (2009b). Depth recording capabilities of planar high-density microelectrode arrays, in 2009 4th International IEEE/EMBS Conference on Neural Engineering (Antalya: IEEE), 207–210.
23
FreyU.SedivyJ.HeerF.PedronR.BalliniM.MuellerJ.et al. (2010). Switch-matrix-based high-density microelectrode array in CMOS technology. IEEE J. Solid-State Circ. 45, 467–482.
24
FriedmanD. H. (1968). Detection of Signals by Template Matching. Baltimore, MD: Johns Hopkins Press.
25
GozaniS. N.MillerJ. P. (1994). Optimal discrimination and classification of neuronal action potential waveforms from multiunit, multichannel recordings using software-based linear filters. IEEE Trans. Biomed. Eng. 41, 358–372. 10.1109/10.284964
26
GrayC. M.MaldonadoP. E.WilsonM.McNaughtonB. (1995). Tetrodes markedly improve the reliability and yield of multiple single-unit isolation from multi-unit recordings in cat striate cortex. J. Neurosci. Methods63, 43–54.
27
GuentherF. H.BrumbergJ. S.WrightE. J.Nieto-CastanonA.TourvilleJ. A.PankoM.et al. (2009). A wireless brain-machine interface for real-time speech synthesis. PloS ONE4:e8218. 10.1371/journal.pone.0008218
28
GuidoR. C.SlaetsJ. F. W.KöberleR.AlmeidaL. O. B.PereiraJ. C. (2006). A new technique to construct a wavelet transform matching a specified signal with applications to digital, real time, spike, and overlap pattern recognition. Digit. Signal Process. 16, 24–44.
29
GuilloryK. S.NormannR. A. (1999). A 100-channel system for real time detection and storage of extracellular spike waveforms. J. Neurosci. Methods91, 21–29.
30
HafizovicS.HeerF.UgniwenkoT.FreyU.BlauA.ZieglerC.et al. (2007). A CMOS-based microelectrode array for interaction with neuronal cultures. J. Neurosci. Methods164, 93–106. 10.1016/j.jneumeth.2007.04.006
31
HarrisK. D.HenzeD. A.CsicsvariJ.HiraseH.BuzsákiG. (2000). Accuracy of tetrode spike separation as determined by simultaneous intracellular and extracellular measurements. J. Neurophysiol. 84, 401–414.
32
HierlemannA.FreyU.HafizovicS.HeerF. (2011). Growing cells atop microelectronic chips: interfacing electrogenic cells in vitro with CMOS-based microelectrode arrays. Proc. IEEE99, 252–284.
33
HottowyP.SkoczeñA.GunningD. E.KachiguineS.MathiesonK.SherA.et al. (2012). Properties and application of a multichannel integrated circuit for low-artifact, patterned electrical stimulation of neural tissue. J. Neural Eng. 9:066005. 10.1088/1741-2560/9/6/066005
34
HutzlerM.LambacherA.EversmannB.JenknerM.ThewesR.FromherzP. (2006). High-resolution multitransistor array recording of electrical field potentials in cultured brain slices. J. Neurophysiol. 96, 1638–1645. 10.1152/jn.00347.2006
35
JäckelD.MullerJ.KhalidM. U.FreyU.BakkumD.HierlemannA. (2011). High-density microelectrode array system and optimal filtering for closed-loop experiments. in 2011 16th International Solid-State Sensors, Actuators and Microsystems Conference (IEEE), (Beijing, China), 1200–1203.
36
JacksonA.MavooriJ.FetzE. E. (2006). Long-term motor cortex plasticity induced by an electronic neural implant. Nature444, 56–60. 10.1038/nature05226
37
JäckelD.FreyU.FiscellaM.FrankeF.HierlemannA. (2012). Applicability of independent component analysis on high-density microelectrode array recordings. J. Neurophysiol. 108, 334–348. 10.1152/jn.01106.2011
38
LambacherA.VitzthumV.ZeitlerR.EickenscheidtM.EversmannB.ThewesR.et al. (2010). Identifying firing mammalian neurons in networks with high-resolution multi-transistor array (MTA). Appl. Phys. A102, 1–11.
39
LeiN.RamakrishnanS.ShiP.OrcuttJ. S.YusteR.KamL. C.et al. (2011). High-resolution extracellular stimulation of dispersed hippocampal culture with high-density CMOS multielectrode array based on non-Faradaic electrodes. J. Neural Eng. 8, 044003. 10.1088/1741-2560/8/4/044003
40
LetelierJ. C.WeberP. P. (2000). Spike sorting based on discrete wavelet transform coefficients. J. Neurosci. Methods101, 93–106. 10.1016/S0165-0270(00)00250-8
41
LewickiM. S. (1998). A review of methods for spike sorting: the detection and classification of neural action potentials. Network9, R53–R78.
42
LewickiM. S. (1994). Bayesian modeling and classification of neural signals. Neural Comput. 6, 1005–1030.
43
LitkeA. M.BezayiffN.ChichilniskyE. J.CunninghamW.DabrowskiW.GrilloA. A.et al. (2004). What does the eye tell the brain?: development of a system for the large-scale recording of retinal output activity. IEEE Trans. Nucl. Sci. 51, 1434–1440.
44
MeisterM.PineJ.BaylorD. A. (1994). Multi-neuronal signals from the retina: acquisition and analysis. J. Neurosci. Methods51, 95–106. 10.1016/0165-0270(94)90030-2
45
MishelevichD. J. (1970). On-line real-time digital computer separation of extracellular neuroelectric signals. IEEE. Trans. Biomed. Eng. 17, 147–150.
46
NicolelisM. A.GhazanfarA. A.FagginB. M.VotawS.OliveiraL. M. (1997). Reconstructing the engram: simultaneous, multisite, many single neuron recordings. Neuron18, 529–537.
47
ÖhbergF.JohanssonH.BergenheimM.PedersenJ.DjupsjöbackaM. (1996). A neural network approach to real-time spike discrimination during simultaneous recording from several multi-unit nerve filaments. J. Neurosci. Methods64, 181–187. 10.1016/0165-0270(95)00132-8
48
O'KeefeJ.RecceM. L. (1993). Phase relationship between hippocampal place units and the EEG theta rhythm. Hippocampus3, 317–330. 10.1002/hipo.450030307
49
PotterS. M. (2010). Closing the loop between neurons and neurotechnology. Front. Neurosci. 4:15. 10.3389/fnins.2010.00015
50
PotterS. M.WagenaarD. A.DeMarseT. B. (2006). Closing the loop: stimulation feedback systems for embodied MEA cultures, in Advances in Network Electrophysiology (New York, NY: Springer), 215–242.
51
PrenticeJ. S.HomannJ.SimmonsK. D.TkačikG.BalasubramanianV.NelsonP. C. (2011). Fast, scalable, Bayesian spike identification for multi-electrode arrays. PloS ONE6:e19884. 10.1371/journal.pone.0019884
52
QuirogaR. Q.NadasdyZ.Ben-ShaulY. (2004). Unsupervised spike detection and sorting with wavelets and superparamagnetic clustering. Neural Comput. 16, 1661–1687. 10.1162/089976604774201631
53
RebescoJ. M.StevensonI. H.KördingK. P.SollaS. A.MillerL. E. (2010). Rewiring neural interactions by micro-stimulation. Front. Syst. Neurosci. 4:39. 10.3389/fnsys.2010.00039
54
RinbergD.DavidowitzH.TishbyN. (1999). Multi-electrode spike sorting by clustering transfer functions, in Advances in Neural Information Processing Systems 11: Proceedings of the 1998 Conference (Cambridge, MA: MIT Press), 146–152.
55
RobertsW. M.HartlineD. K. (1975). Separation of multi-unit nerve impulse trains by a multi-channel linear filter algorithm. Brain Res. 94, 141–149. 10.1016/0006-8993(75)90883-5
56
RolstonJ. D.GrossR. E.PotterS. M. (2010). Closed-loop, open-source electrophysiology. Front. Neurosci. 4:31. 10.3389/fnins.2010.00031
57
RutishauserU.SchumanE. (2006). Online detection and sorting of extracellularly recorded action potentials in human medial temporal lobe recordings, in vivo. J. Neurosci. 154, 204–224. 10.1016/j.jneumeth.2005.12.033
58
SalganicoffM.SarnaM.SaxL.GersteinG. L. (1988). Unsupervised waveform classification for multi-neuron recordings: a real-time, software-based system. I. Algorithms and implementation. J. Neurosci. Methods25, 181–187.
59
SanthanamG.SahaniM.RyuS. I.ShenoyK. V. (2004). An extensible infrastructure for fully automated spike sorting during online experiments, in Engineering in Medicine and Biology Society, 2004. IEMBS'04. 26th Annual International Conference of the IEEE (IEEE), (San Francisco, CA), 4380–4384. 10.1109/IEMBS.2004.1404219
60
SheinM.GreenbaumA.GabayT.SorkinR.David-PurM.Ben-JacobE.et al. (2009). Engineered neuronal circuits shaped and interfaced with carbon nanotube microelectrode arrays. Biomed. Microdevices11, 495–501. 10.1007/s10544-008-9255-7
61
ShohamS.FellowsM. (2003). Robust, automatic spike sorting using mixtures of multivariate t-distributions. J. Neurosci. Methods172, 112–121.
62
SteinR. B.AndreassenS.OguztöreliM. N. (1979). Mathematical analysis of optimal multichannel filtering for nerve signals. Biol. Cybern. 32, 19–24.
63
StettA.EgertU.GuentherE.HofmannF.MeyerT.NischW.et al. (2003). Biological application of microelectrode arrays in drug discovery and basic research. Anal. Bioanal. Chem. 377, 486–495. 10.1007/s00216-003-2149-x
64
TakahashiS.SakuraiY. (2005). Real-time and automatic sorting of multi-neuronal activity for sub-millisecond interactions in vivo. Neuroscience134, 301–315. 10.1016/j.neuroscience.2005.03.031
65
TaylorD. M.TilleryS. I. H.SchwartzA. B. (2002). Direct cortical control of 3D neuroprosthetic devices. Science296, 1829–1832. 10.1126/science.1070291
66
VollgrafR.MunkM. H. J.ObermayerK. (2005). Optimal filtering for spike sorting of multi-site electrode recordings. Network16, 85–113.
67
VollgrafR.ObermayerK. (2006). Improved optimal linear filters for the discrimination of multichannel waveform templates for spike-sorting applications. IEEE Signal Process. Lett. 13, 121–124.
68
WagenaarD. A.MadhavanR.PineJ.PotterS. M. (2005). Controlling bursting in cortical cultures with closed-loop multi-electrode stimulation. J. Neurosci. 25, 680–688. 10.1523/JNEUROSCI.4209-04.2005
69
WessbergJ.StambaughC. R.KralikJ. D.BeckP. D.LaubachM.ChapinJ. K.et al. (2000). Real-time prediction of hand trajectory by ensembles of cortical neurons in primates. Nature408, 361–365. 10.1038/35042582
70
WheelerB. C.HeetderksW. J. (1982). A comparison of techniques for classification of multiple neural signals. IEEE Trans. Biomed. Eng. 29, 752–759. 10.1109/TBME.1982.324870
71
YangX. W.ShammaS. A. (1988). A totally automated system for the detection and classification of neural spikes. IEEE Trans. Biomed. Eng. 35, 806–816. 10.1109/10.7287
