Abstract
How we perceive the world as stable despite the frequent disruptions of the retinal image caused by eye movements is one of the fundamental questions in sensory neuroscience. Seemingly convergent evidence points towards a mechanism which dynamically updates representations of visual space in anticipation of a movement (Wurtz, ). In particular, receptive fields (RFs) of neurons, predominantly within oculomotor and attention related brain structures (Duhamel et al., ; Walker et al., ; Umeno and Goldberg, ), are thought to “remap” to their future, post-movement location prior to an impending eye movement. New studies (Neupane et al., ,) report observations on RF dynamics at the time of eye movements of neurons in area V4. These dynamics are interpreted as being largely dominated by a remapping of RFs. Critically, these observations appear at odds with a previous study reporting a different type of RF dynamics within the same brain structure (Tolias et al., ), consisting of a shrinkage and shift of RFs towards the movement target. Importantly, RFs have been measured with different techniques in those studies. Here, we measured V4 RFs comparable to Neupane et al. (,) and observe a shrinkage and shift of RFs towards the movement target when analyzing the immediate stimulus response (Zirnsak et al., ). When analyzing the late stimulus response (Neupane et al., ,), we observe RF shifts resembling remapping. We discuss possible causes for these shifts and point out important issues which future studies on RF dynamics need to address.
Introduction
Investigating visual representations around the time of saccadic eye movements, Neupane et al. (,) argue that receptive fields (RFs) of neurons within area V4 predominately exhibit a certain type of dynamics, consisting of a shift of RFs to their post-movement location (Duhamel et al., ; Walker et al., ; Umeno and Goldberg, ), referred to as “future field (FF) remapping”. These observations appear to be at odds with an earlier study, in which Tolias et al. () reported a different type of V4 RF dynamics, consisting of a shrinkage and shift of RFs towards the saccade target (ST), referred to as “saccade target shifts”. Importantly, whereas the observed RF dynamics reported by Neupane et al. (,) occur long after the offset of the eye movement, the observed RF dynamics reported by Tolias et al. () occur just around the onset of the movement.
Another difference between the studies is the way RFs were measured. Whereas Tolias et al. () measured the RFs with visual probes continuously present throughout the period of the eye movement, Neupane et al. (,) measured RFs by briefly flashing visual probes shortly before the movement. Furthermore, the latter analysis of RF dynamics seems to neglect the immediate neuronal responses evoked by the probe, and instead focuses on responses with unusually high latencies (>100 ms; Schmolesky et al., ) occurring well after the completion of the eye movement.
We measured V4 RFs with a protocol comparable to Neupane et al. (,). For the immediate, early neuronal responses to presaccadic visual probes we observed a shrinkage and shift of RFs towards the ST consistent with Tolias et al. (). For the later, post-movement part of the responses we observed RF changes resembling FF shifts consistent with Neupane et al. (,). We discuss possible causes for these observed RF shifts.
Materials and Methods
All animal procedures complied with the National Institutes of Health Guide for Care and Use of Laboratory Animals and were approved by the Harvard Medical Area Standing Committee on Animals.
We recorded responses of neurons within extrastriate cortex (V4) of the macaque monkey (Macaca mulatta) from a permanently implanted 96-channel multielectrode array (Utah array, Blackrock Microsystems, Salt Lake City, UT, USA). For each channel we set a voltage threshold and stored the times when the voltage crossed the threshold. We analyzed multi-unit activity from channels that were responsive to the probe stimulus during fixation (n = 71/96 units).
The flashed probe stimuli, white disks (0.5° diameter, 15 cd/m2), were presented against a gray background (1.2 cd/m2; Figure 1A) on a CRT screen with a 75 Hz refresh rate, positioned 75 cm in front of the animal in a normally illuminated room. The animal received a reward for successfully fixating at the fixation point (FP; red disk, 0.1° diameter), then performing a saccade to the ST (red disk, 0.1° diameter; step task), which was positioned 2.75° to the right and 0.25° above the FP resulting in a nominal saccade amplitude of 2.76° (average empirical saccade amplitude was 2.65°), comparable to Neupane et al. (). During a trial, we presented three probes (see below). The ST location was chosen to dissociate FF shifts and ST shifts by 90° (Hamker et al., ; Zirnsak et al., , ). The probe was presented for one monitor frame (13.3 ms) at one of 70 locations tiling the space surrounding the recorded units’ RFs. The probes were arranged in a 7 × 10 rectangular grid with the longer dimension parallel to the saccade vector. Note, for the sake of clarity, all figures, display methods, and results after rotated by 5.2° as if the saccades were made purely horizontally.

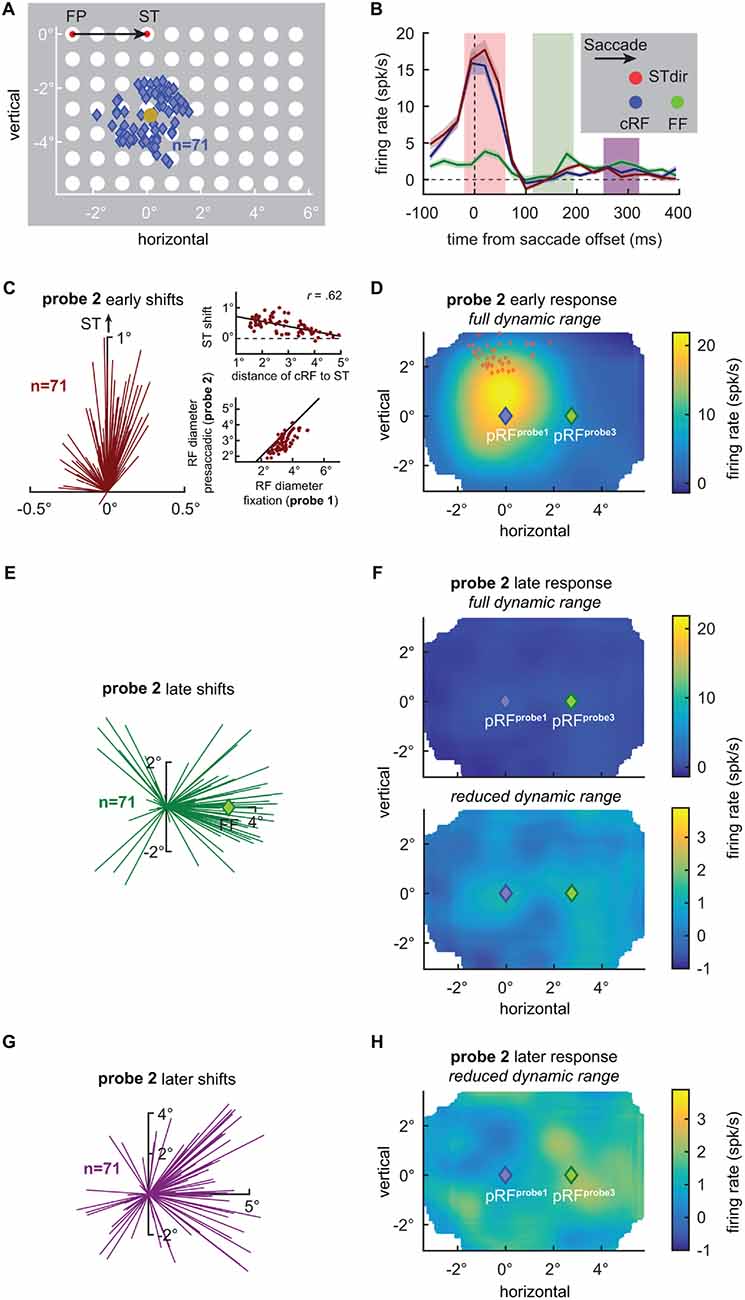

Figure 1
We analyzed the responses to the probes long before (<−500 ms, probe 1), immediately before (−100 ms to 0 ms, probe 2), and long after (>500 ms, probe 3) a saccadic eye movement, as in Neupane et al. (,). The first probe in that sequence was randomly flashed between 200 ms and 400 ms after the initial fixation, the movement cue (step) was given randomly 900–1400 ms after initial fixation, and the last probe 3 was flashed 1700–2400 ms after initial fixation. Saccade onset and offset were detected using Friedman and Priebe () latency estimation adjusted for eye movements, visually inspected for accuracy, and corrected by the measured latency (14 ms) of the optical eye tracker (ISCAN, Woburn, MA, USA). We estimated response maps for each unit by summing the spikes recorded for various time bins. To estimate RF location and size, we fit two-dimensional Gaussian functions to the response map. Each Gaussian function had six parameters: x and y location, x and y size (sigma), peak firing rate and baseline firing rate. These fits provide an RF center estimate unbiased by changes in baseline activity. Note, all reported results hold true when using a center of mass method to estimate RF centers as in Neupane et al. (,). We also computed an average population activity map (pRF). For each individual unit, we linearly interpolated a given response map and aligned it to the cRF center. We averaged the aligned maps of all units, excluding map locations where less than half the units contributed firing rate estimates.
Results
First, we compared the RFs as measured long before a saccade (probe 1) to the RFs as measured long after a saccade (probe 3). To do so, we choose a time window of 53–106 ms, including the majority of the visually evoked response, after probe onset, to estimate the RFs of the two fixation conditions. As expected for V4 neurons, RFs followed a retinocentric organization between fixations, with an average distance (2.70°) between the RF centers close to the true displacement (2.76°) of the FP (Figures 2A,D,G,H). In contrast, Neupane et al. () estimates for the RF displacement between the two fixation conditions seem to be considerably less than the actual displacement of the FP (20°), with an average of only about 13°–14° judging by their figures two and three. This underestimation might be indicative of a systematic tendency of the RF center estimate in Neupane et al. () towards the center of the probe grid (below).

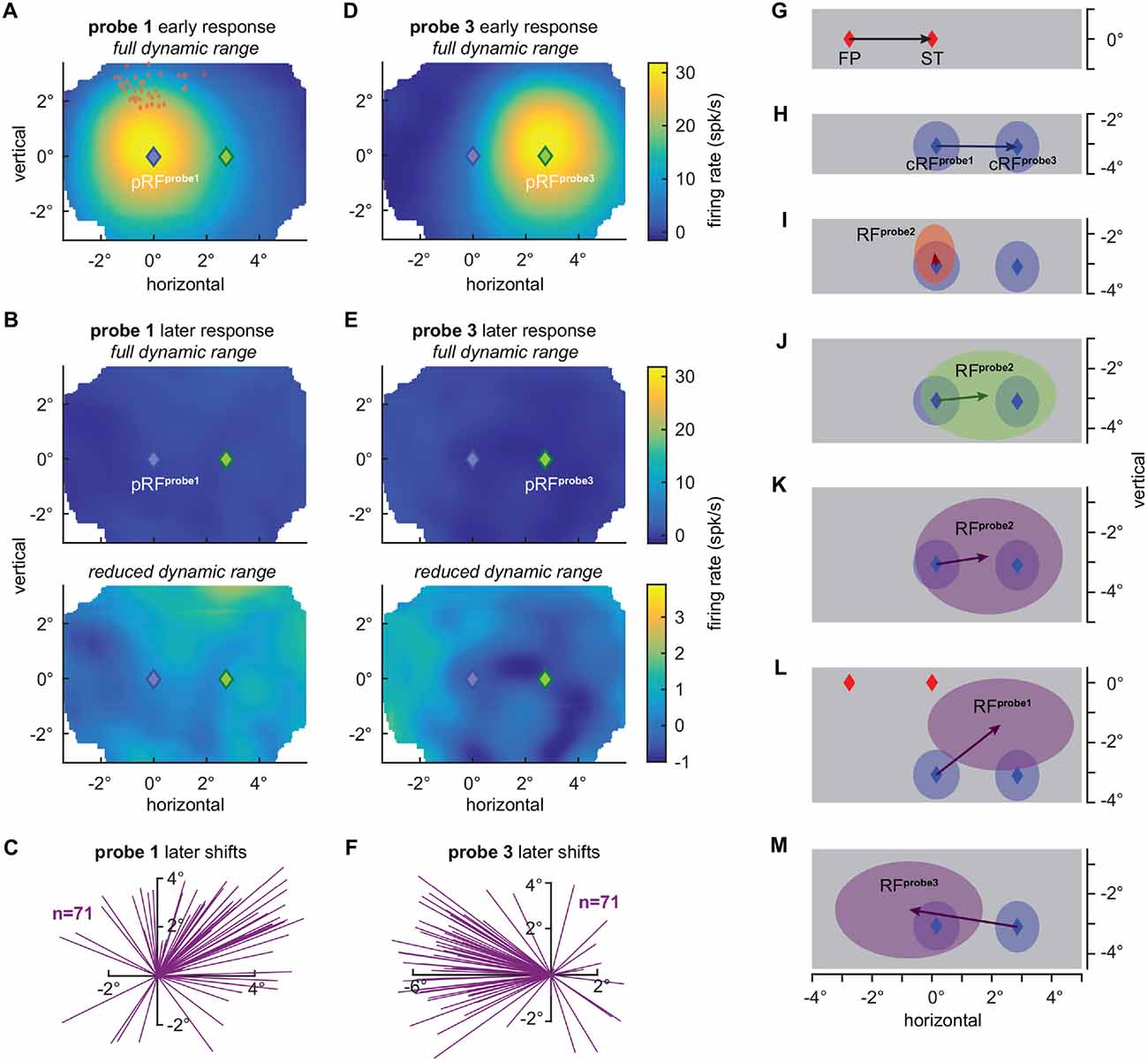

Figure 2
Second, to investigate RF shifts at the time of the eye movement, we calculated the response maps for the time window from −20 ms to 60 ms aligned to the saccade offset which included most of the stimulus evoked responses. Note, given the stimulation protocol as described above and the range of visual latencies of V4 neurons (e.g., Schmolesky et al., ) the majority of the neuronal activity evoked by a presaccadic probe is expected to occur after the movement onset. We found that the immediate visual responses evoked by the probe presented before the movement (probe 2) were stronger for probes presented closer to the ST when compared with the response to a probe presented at the cRF center as measured long before the saccade (probe 1; Figure 1B, red line above blue line, p < 0.02, Wilcoxon rank test) as predicted by models of perisaccadic visual processing (Hamker and Zirnsak, ; Hamker et al., ) and consistent with the notion that attention is locked at the ST before movement onset (reviewed in Zhao et al., ; Moore and Zirnsak, ). Furthermore, RF centers estimated for the visually evoked response right around the time of the saccade shifted towards the ST (Figure 1C; p < 10−10, Rayleigh test; Figures 1D, 2H) consistent with Tolias et al. (). The size of this shift depended on the cRF center distance to the ST (Figure 1C, upper inset). The average RF shift amplitude of 0.41° (p < 10−10, Wilcoxon rank test) amounted to 38% of the average RF shift reported by Tolias et al. () and to 150% of the average RF shift reported by Connor et al. (), who measured V4 RF shifts during covert attention, when accounting for the cRF diameter. In addition to the RF shift, and consistent with observations by Tolias et al. (), we also observed a significant shrinkage of RFs (14.5%, p < 10−10, Wilcoxon signed rank test; Figure 1C, lower inset). This average shrinkage amounts to 80% of the average RF shrinkage reported by Tolias et al. (). We wondered whether a potential bias of RF center estimates towards the center of the probe grid (see above) might have obscured shifts towards the ST for RFs based on the early visual evoked responses in Neupane et al. (,). Moreover, the extremely high contrast of the probes used in the majority of their measurements might have prevented Neupane et al. (,) from observing changes of RFs based on the immediate probe responses as well. That is, perisaccadic RF changes have been linked to gain modulation mechanisms (Hamker and Zirnsak, ) which might be ineffective for extremely high contrast probes (Hamker et al., ). Neupane et al. (,) used white probes with a luminance of 22.5 cd/m2 relative to a dark background with a luminance of <0.01 cd/m2. These luminance values result in a peak stimulus contrast of >2249 (Weber) and of >99.9% (Michelson). Neupane et al. (,) report a reduction of the probe luminance, delivered by a CRT video projector, of 99% 6 ms after the nominal probe offset. This means a residual probe luminance of 0.225 cd/m2, roughly 300–1000 times the reported luminance detection threshold of dark adapted observers (Georg et al., ), which equals a probe contrast of >21.5 (Weber) and >91.5% (Michelson). These residual probe contrasts in Neupane et al. (,) are higher than the peak values used in our measurements (11.5 Weber, 85.2% Michelson).
Finally, we tested for RF shifts long after the saccade, as reported by Neupane et al. (,). At roughly 100–200 ms after saccade offset we observed higher responses to probes presented inside the FF, as compared to the cRF and the STdir probe location (p < 0.005, Wilcoxon rank test; Figure 1B). Furthermore, although much smaller in size as compared to the earlier responses (Figures 1B,F) and based on significantly poorer fits (p < 10−10, Wilcoxon rank test; mean R2 = 0.13, min R2 = 0.07, max R2 = 0.70 compared to mean R2 = 0.86, min R2 = 0.68, max R2 = 0.94 of the RF fits based on the early responses), estimates of RF centers based on the late response lead to a systematic bias (p < 10−4, Rayleigh test) towards the FF (Figures 1E, 2J), with an average size of 1.75° (p < 10−6, Wilcoxon signed rank test). These observations are consistent with Neupane et al. (,). However, although the contrast of our stimuli was considerably lower than the contrast of the stimuli used by Neupane et al. (,) to map RFs, we cannot rule out an influence of a stimulation artifact on these late responses and RF shifts. That is, these late shifts are based on responses long after the completion of the eye movement at a time where V4 neurons have been reported to be responsive again to stimuli presented within their postsaccadic RF, that is the presaccdic FF (Tolias et al., ). This means that a decaying phosphor trace (stimulation was done by means of a CRT as in Neupane et al., ,; see above) of presaccadic probes presented at the FF location could have fallen inside the RF after the eye movement and stimulated the neurons postsaccadically (see also Jonides et al., , ). This possibility would lead to observations resembling late FF shifts. For even later parts of the response with respect to saccade offset, Neupane et al. () reported an increasing tendency of RF shifts towards the ST. We failed to find this later ST shift in our data. Instead the activity for responses later than 250 ms after saccade offset still exhibited a bias towards the right part of the probe grid and RF centers are on average mainly shifted into the saccade direction with an amplitude of 1.77° (p < 10−6, Wilcoxon signed rank test; Figures 1G,H, 2K). Interestingly, however, we also observe a FF shift (probe 1) during stable fixation (FP) in the absence of any eye movements. This FF shift is caused by a reversal of the late responses resulting in a “negative RF” (Figures 2B,C,L) and is reversed, based on the geometry of our stimulus grid, for RFs measured during stable fixation at the ST (probe 3; Figures 2E,F,M).
Discussion
In summary, when analyzing RFs based on the immediate response to probes presented briefly before a saccade, we observed a shrinkage and shift of RFs towards the ST, consistent with the observations reported by Tolias et al. (), and consistent with models of perisaccadic visual processing (Hamker and Zirnsak, ; Hamker et al., ; Zirnsak et al., ). When analyzing RFs based on late responses well after saccade offset as in Neupane et al. (,), we observed RF shifts in the direction of the FF. Importantly, these shifts occurred at a time when V4 neurons are observed to already respond to stimuli located in their postsaccadic RF when using continuous visual stimulation (Tolias et al., ). Thus, and as stated above, given our stimulation protocol we cannot exclude an influence of a decaying phosphor trace of the stimulus on these late responses, which could have stimulated the RF after the movement offset. Finally, we also observed a shift of RFs towards the FF in the absence of any eye movements. This observation was driven by a reversal of the later part of the visual responses of V4 neurons and the exact direction of the shift depended on the geometry of our probe grid.
In conclusion, two types of RF dynamics have been proposed to play an important part in maintaining a stable perception across eye movements: FF shifts and ST shifts. Future studies addressing the nature and function of those RF dynamics will be crucial in elucidating the neural basis of naturalistic vision in primates (Wurtz, ; Zirnsak and Moore, ). These studies also must eliminate alternative explanations of the observed RF dynamics.
Funding
This work was supported by US National Institutes of Health grants T32 NS007484 and F32 EY025523 (TSH), T32 MH020017 (MM), R01 EY011379, the Core Grant for Vision Research P30 EY12196, BMBF 01GQ1409 (FHH), and R01 EY014924 (TM).
Statements
Author contributions
TSH and MM designed and performed the experiment. TSH, MZ and MM designed and performed analyses. TSH, MZ, TM, FHH and MM wrote the manuscript.
Acknowledgments
We thank Richard T. Born, John H. R. Maunsell and Bram-Ernst Verhoef for facilitating the experiments.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
References
1
ConnorE. C.PreddieD. C.GallantJ. L.Van EssenD. C. (1997). Spatial attention effects in macaque area V4. J. Neurosci. 17, 3201–3214.
2
DuhamelJ. R.ColbyC. L.GoldbergM. E. (1992). The updating of the representation of visual space in parietal cortex. Science255, 90–92. 10.1126/science.1553535
3
FriedmanH. S.PriebeC. E. (1998). Estimating stimulus response latency. J. Neurosci Methods. 83, 185–194. 10.1016/s0165-0270(98)00075-2
4
GeorgK.HamkerF. H.LappeM. (2008). Influence of adaptation state and stimulus luminance on peri-saccadic localization. J. Vis.8:15. 10.1167/8.1.15
5
HamkerF. H.ZirnsakM. (2006). V4 receptive field dynamics as predicted by a systems-level model of visual attention using feedback from the frontal eye field. Neural Netw.19, 1371–1382. 10.1016/j.neunet.2006.08.006
6
HamkerF. H.ZirnsakM.CalowD.LappeM. (2008). The peri-saccdic perception of objects and space. PLoS Comput. Biol.4:e31. 10.1371/journal.pcbi.0040031
7
JonidesJ.IrwinD. E.YantisS. (1982). Integrating information from successive fixations. Science215, 192–194. 10.1126/science.7053571
8
JonidesJ.IrwinD. E.YantisS. (1983). Failure to integrate information from successive fixations. Science222:188. 10.1126/science.6623072
9
MooreT.ZirnsakM. (2017). Neural mechanisms of selective visual attention. Ann. Rev. Psychol. 108, 47–72. 10.1146/annurev-psych-122414-033400
10
NeupaneS.GuittonD.PackC. C. (2016a). Two distinct types of remapping in primate cortical area V4. Nature Commun. 7:10402. 10.1038/ncomms10402
11
NeupaneS.GuittonD.PackC. C. (2016b). Dissociation of forward and convergent remapping in primate visual cortex. Curr. Biol. 26, 491–492. 10.1016/j.cub.2016.04.050
12
SchmoleskyM. T.WangY.HanesD. P.ThompsonK. G.LeutgebS.SchallK. D.et al. (1998). Signal timing across the macaque visual system. J. Neurophysiol.79, 3272–3278.
13
ToliasA. S.MooreT.SmirnakisS. M.TehovnikE. J.SiapasA. G.SchillerP. H. (2001). Eye movements modulate visual receptive fields of V4 neurons. Neuron29, 757–767. 10.1016/s0896-6273(01)00250-1
14
UmenoM. M.GoldbergM. E. (1997). Spatial processing in the monkey frontal eye field. I. Predictive visual responses. J. Neurophysiol.78, 1373–1383.
15
WalkerM. F.FitzgibbonE. J.GoldbergM. E. (1995). Neurons in the monkey superior colliculus predict the visual result of impending saccadic eye movements. J. Neurophysiol.73, 1988–2003.
16
WurtzR. H. (2008). Neuronal mechanisms of visual stability. Vision Res.48, 2070–2089. 10.1016/j.visres.2008.03.021
17
ZhaoM.GerschT. M.SchnitzerB. S.DosherB. A.KowlerK. (2012). Eye movements and attention: the role of pre-saccadic shifts of attention in perception, memory and the control of saccades. Vision Res.74, 40–60. 10.1016/j.visres.2012.06.017
18
ZirnsakM.LappeM.HamkerF. H. (2010). The spatial distribution of receptive field changes in a model of peri-saccadic perception: predictive remapping and shifts towards the saccade target. Vision Res.50, 1328–1337. 10.1016/j.visres.2010.02.002
19
ZirnsakM.MooreT. (2014). Saccades and shifting receptive fields: anticipating consequences or selecting targets. Trends Cogn Sci.18, 621–628. 10.1016/j.tics.2014.10.002
20
ZirnsakM.SteinmetzN. A.NoudoostB.XuK. Z.MooreT. (2014). Visual space is compressed in prefrontal cortex before eye movements. Nature507, 504–507. 10.1038/nature13149
