Volume of Amygdala Subregions and Clinical Manifestations in Patients With First-Episode, Drug-Naïve Major Depression

Introduction

Although the pathophysiology of major depression (MD) remains unclear, recent brain imaging studies using MRI have provided some interesting insights (Schmaal et al., 2016, 2017). For example, previous studies of the amygdala and hippocampus have reported reduced volume as a potential biomarker of depression (Roddy et al., 2019; Sheline et al., 2019). According to 12 studies reported so far, a 5.2% decrease in the left amygdala and a 7.4% decrease in the right amygdala have been reported in depression (Nolan et al., 2020). Notwithstanding, there are fewer reports on amygdala volume than on hippocampal volume, and there is a lack of assessment of the amygdala in relation to depression. One of the reasons for this is that the amygdala nuclei have been difficult to classify and identify. Additionally, the amygdala has different functions depending on its region (Maras and Petrulis, 2010; Alarcón et al., 2015). Therefore, it is meaningful to investigate the relationship between the amygdala subregional volume and clinical symptoms of depression, and the change in the amygdala subregional volume may become a new marker of depressive state.

Therefore, we investigated the amygdala subregional volume in patients with a first depressive episode and in healthy subjects using image analysis that can measure the amygdala subregional volume.

Materials and Methods

Participants

The patients with MD were recruited from the University hospital of University of Occupational and Environmental Health, Japan. All patients were diagnosed by using the full Structured Clinical Interview from the Diagnostic and Statistical Manual for Mental Disorders-5 (American Psychiatric Association, 2013; Cía, 2013). The severity of the depressive state was evaluated using the 17-item Hamilton Rating Scale for Depression (HAMD) (Hamilton, 1960). Patients who met the following criteria were enrolled in the study: (a) a diagnosis of MD, (b) a HAMD score of ≥ 14, (c) first episode and drug-naïveté MD. Thus, a total of 76 first-episode and drug-naïve patients with MD were included. Seventy-seven control participants were also recruited using the Structured Clinical Interview for DSM-5. None of them were applicable for any psychiatric diseases and had a history of serious medical and neurological diseases or a family history of major psychiatric or neurological diseases among their first-degree relatives. Details for the participants enrolled the present study were described in Table 1. Information for smoking status, and Brinkman index were, however, lacked over half of participants. All participants were not met with abuse and dependence with alcohol and substance use.

TABLE 1

Table 1. Background factors in MD patients and healthy control.

The subjects in the present study overlapped with those in our published study (Kakeda et al., 2020; Nguyen et al., 2020; Watanabe et al., 2020), however, no study analyzed the amygdala. The study protocol was approved by the Ethics Committee of the University of Occupational and Environmental Health, Japan. Written informed consent was obtained from all patients who participated in this study, which was conducted in accordance with the Declaration of Helsinki.

MRI Acquisition

MRI data were obtained on a 3T MR system (Signa EXCITE 3T; GE Healthcare, Waukesha, WI) with an 8-channel brain phased-array coil. Images were acquired by three-dimensional fast-spoiled gradient recalled acquisition (3D-FSPGR). The acquisition parameters were: repetition time/echo time, 10/4.1 ms; flip angle, 10°; field of view, 24 cm; and resolution, 0.9 × 0.9 × 1.2 mm. All images were corrected for image distortion due to gradient non-linearity using the “Grad Warp” software program (Jovicich et al., 2006).

Amygdala Subregion and Hippocampal Subfield Volume

FreeSurfer v7.1.1¹ (Fischl, 2012) was used for evaluation of Amygdala subregion volumes. This amygdala subregion segmentation technique based on a prior probabilistic atlas and the Bayesian modeling approach is fully automatic (Saygin et al., 2017). Bilateral Amygdala were generated in each subject for the basal, lateral, accessory basal, central, medial, cortical, and paralaminar nuclei as well as the corticoamygdaloid transition area, anterior amygdaloid area, and the whole amygdala. Left and right substructures were analyzed separately. In addition, we simultaneously calculated the hippocampal subfields volume. The hippocampus was generated for the hippocampal tail, subiculum-body, cornus ammonis (CA)1-body, subiculum-head, hippocampal (HP)-fissure, presubiculum-head, CA1-head, presubiculum-body, parasubiculum, molecular-layer-HP-head, molecular-layer-HP-body, granule cell (GC)- molecular layer (ML)- dentate gyrus (DG)-head, CA3-body, GC-ML-DG-body, CA4-head, CA4-body, fimbria, CA3-head, hippocampus-amygdala-transition-area (HATA), Whole_hippocampal_body, Whole_hippocampal_head. Further, the estimated intracranial volume was also calculated using the “aseg segmentation.”

Assessment of Depressive State

Depression was assessed using the 17-item Hamilton Depression Rating Scale (HAMD). To elucidate the features of depressive symptoms, we classified the HAMD into 5 subscales as HAMD core (items 1, 2, 7, 8, 10, and 13), HAMD sleep (items 4, 6), HAMD activity (items 7, 8), HAMD psychic (items 9, 10), and HAMD somatic anxiety (items 11, 13) (Serretti et al., 1999).

Statistical Analysis

Covariate-adjusted linear regression was performed to compare amygdala subregion volumes between depressed and normal groups, and to examine the association between amygdala subregion volumes and the HAMD total and the HAMD subscale scores as measures of depression severity. Covariates were adjusted for age, gender, and estimated total intracranial volume. p-values less than 0.05 were considered statistically significant. All statistical analyses were performed using EZR software version 4.0.2, which was used to calculate R.

Results

Analyses were conducted in 76 patients with first-episode depression and 77 healthy subjects. The background factors are shown in Table 1.

Amygdala Subregion Analysis

Amygdala subregions were shown in Figure 1. A comparison between the normal group and the depressed group is shown in Tables 2, 3 and Figure 2. There was no difference between the normal and depressed groups. Within the depressed group, the relationship between the amygdala subregion volume and the severity of depression was examined (Table 3A). In the left amygdala, there was no association between amygdala subregion volume and depression severity. In the right amygdala, on the other hand, there was an inverse linear association between the HAMD total and the HAMD core scores and lateral nucleus and anterior-amygdaloid-regions. Furthermore, there was an inverse linear association between the HAMD psychic and lateral nucleus, anterior-amygdaloid-regions, transition, and whole amygdala (Tables 3A,B).

FIGURE 1

Figure 1. Representative images of the amygdala subregions. The mask of each region overlaid on sagittal T1-weighted images from mid side to lateral side.

TABLE 2

Table 2. A comparison between the MD patient group and healthy control group in nuclei of amygdala.

TABLE 3A

Table 3A. The HAMD scores and amygdala subregions.

FIGURE 2

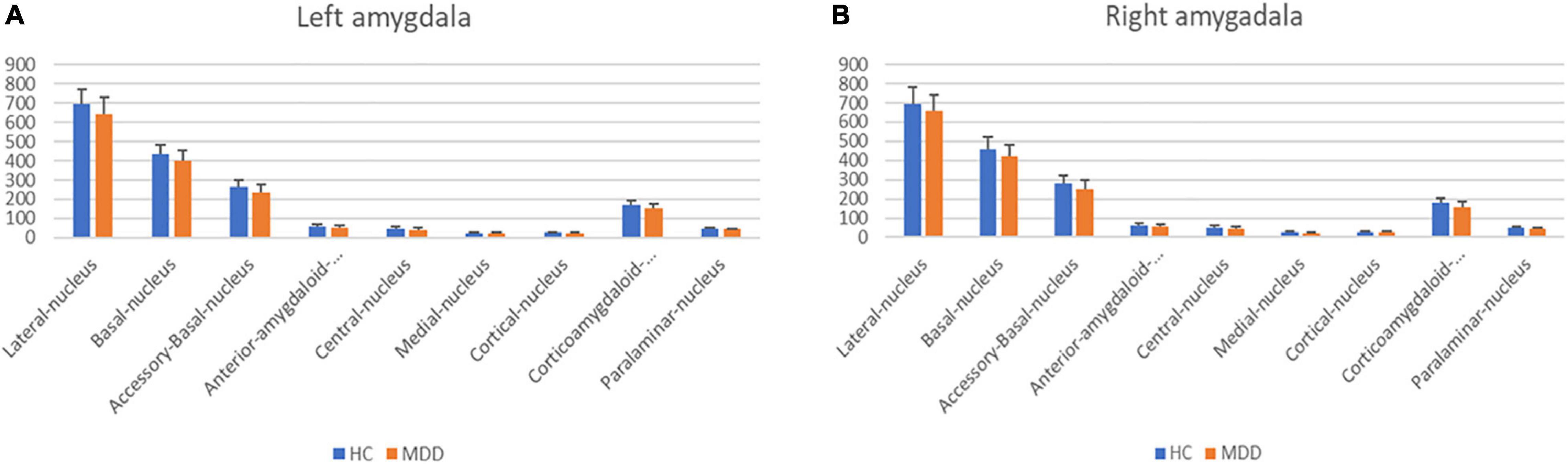

Figure 2. Subregion volumes in amygdala at left (A) and right (B). Bar charts show the mean amygdala subregion volumes (mm³) of 77 HC (Blue) and 76 MDD (Orange). Vertical bars mean standard deviations. Linear regression analyses showed no significant difference in all subregions between HC and MDD adjusted for total intracranial volume, age, and sex (p > 0.05). HC, healthy controls; MDD, Major depressive disorders.

TABLE 3B

Table 3B. The HAMD scores and amygdala subregions (Heat Map).

Hippocampal Subfields Analysis

Table 4 and Figure 3 also showed a comparison between the normal group and the depressed group in the hippocampal subfields. The depressed group showed significantly decreased volumes of the right subiculum-body and parasubiculum (p < 0.01, 0.04, respectively). In the analysis with depression severity (Tables 5A,B), there were some significant inverse linear associations; (1) the HAMD total and the right HATA and left CA3-head, (2) The HAMD core and the right HATA, left CA3-head, and left GC-ML-DG-head, (3) The HAMD activity and the right HATA and left CA3-head, (4) The HAMD psychic and the right HATA. On the other hand, the HAMD sleep showed positive correlation with the left subiculum-head, parasubiculum-head, and HATA.

TABLE 4

Table 4. A comparison between the MD patient group and healthy control group in Hippocampal subfields.

FIGURE 3

Figure 3. Subfield volumes in hippocampus at left (A) and right (B). Bar charts show the mean hippocampal subfields volumes (mm³) of 77 HC (Blue) and 76 MDD (Orange). Vertical bars mean standard deviations. Asterisks show statistically significance (p < 0.05). Linear regression analyses showed significant difference between HC and MDD only in the right presubiculum-body and right parasubiculum adjusted for total intracranial volume, age, and sex (p < 0.01 and p = 0.04, respectively). There was no significance in other subfields (p > 0.05). HC, healthy controls; MDD, Major depressive disorders.

TABLE 5A

Table 5A. The HAMD scores and hippocampus subfields.

TABLE 5B

Table 5B. The HAMD scores and hippocampus subfields (Heat Map).

Discussion

In the present study, no differences in amygdala subregion volumes were observed between the healthy and depressed groups. However, examination of the relationship between the amygdala subregion volume and the severity of depression in the depressed group found that the greater the severity of the whole depressive symptom and the core symptoms of depression, the smaller the lateral nucleus and anterior-amygdaloid-regions in the right amygdala, and the greater the severity of anxiety and agitation, the smaller the lateral nucleus, anterior-amygdaloid-regions, transition, and whole amygdala. The finding that the right amygdala is associated with the severity of depression is consistent with a previous report (Gaffrey et al., 2011). In our results, the lateral nucleus and anterior-amygdaloid-regions were strongly related to the HAMD total score in depression. In terms of neural circuits involved in fear conditioning, both conditioned and unconditioned stimuli are sent to the lateral nucleus of the amygdala, which is thought to be responsible for the association between conditioned and unconditioned stimuli exploring the molecular mechanisms of learning and memory (LeDoux, 2000, 2007; Johansen et al., 2011). Although three pathways from the lateral nucleus to the medial central nucleus have been postulated (Pape and Pare, 2010), they are important relay sites for both stimulus input and output. Therefore, these regions may be sensitive to stressful stimuli. Li et al. (2021) investigated structural and functional alterations of amygdala subregions among with anxious major depressive disorder patients, non-anxious major depressive disorder patients, and healthy controls using structural MRI and resting-state functional MRI. The authors fond that there were no significant differences in the gray matter volume among the three groups. Kim et al. (2021) reported that volumes of right whole amygdala, right lateral nucleus, right anterior amygdala were lower in patients with major depressive disorder than in healthy controls. The authors also found that no significant associations between subregion volumes of amygdala and antidepressant use, illness duration, or depressive severity. The result of our study that no differences in amygdala subregions volumes between the healthy controls and MD patients was in accordance with the result of Li et al. (2021). The discrepancy existed regarding the associations of the amygdala subregions and the HAMD scores in our results and the results of Kim et al. (2021). The reasons for the discrepancy remain unknown. It has been reported that amygdala volume was negatively related to illness duration, suggesting volume loss with disease progression (Zavorotnyy et al., 2018). A meta-analysis (Hamilton et al., 2008) found that medicated amygdala volume was significantly increased in medicated depressive patients relative to healthy persons, whereas, unmedicated depressed patients showed a reliable decrease in amygdala volume. Lithium, a mood stabilizer increased amygdala volume in depressed patients (Savitz et al., 2010). A significant inverse correlation between amygdala volume and the number of preceding depressive episodes (Kronenberg et al., 2009). Moreover, psychotic but not non-psychotic depression was associated with reduced amygdala volume (Keller et al., 2008). From these findings into account, several factors including duration of illness, medications such as antidepressants and lithium, depressive phenotype, i.e., anxious depression, non-anxious depression, psychotic depression, or non-psychotic depression might influence the results. Also, the results of amygdala volume in MD are controversial because of the heterogeneity of the disease. It is well known projection from basolateral amygdala to central nucleus of the amygdala as critical circuit elements for anxiety in the mammalian brain (Tye et al., 2011). The circuitry of the extended amygdala, including the central and basolateral nuclei of the amygdala and the bed nucleus of the stria terminalis is associated with anxiety (Weis et al., 2019). Recent study reported that projection from basolateral amygdala to olfactory tubercle or central nucleus of the amygdala are associated with positive- or negative-valence of emotion (Zhang et al., 2021).

Additionally, focusing on the HAMD psychic (items 9 and 10) scores rather than the HAMD total scores in depression, the increased number of amygdala subregions suggests that agitation and anxiety psychic, that is, agitation and mental anxiety, may have a profound effect on the neural circuits in the brain, especially in the amygdala. Previous studies have suggested that the amygdala plays a central role in anxiety disorders, and there has been a report that local administration of SSRIs or serotonin1A receptor agonists around the lateral nucleus of the bilateral amygdala produced anxiolytic effects (Izumi et al., 2008). It has also been reported that polymorphisms in the serotonin transporter gene are involved in the sensitivity of the amygdala, and in individuals with the S allele, there was a correlation with activation of the right amygdala. This result indicates that the function of the serotonin transporter is involved in the formation of negative emotions (Heinz et al., 2005). In a comparison of children and adults with depression and anxiety disorders with normal controls, it was reported that children and adults with anxiety disorders showed higher activity in the right amygdala in response to phobic symptoms (Thomas et al., 2001). This suggests that increased activity in the networks controlling anxiety, fear, and avoidance may already be present in childhood. As mentioned above, there are many previous studies that have shown a relationship between agitation and anxiety and the right amygdala (Gaffrey et al., 2011), and the present results are consistent with these studies. It has been reported that depression can be classified into two types: one with anxiety symptoms in the foreground and the other without anxiety symptoms, and that those with anxiety symptoms do not respond well to antidepressants. MD may be classified into two subtypes: one in which the amygdala plays a major role, and the other in which it does not. Furthermore, subtyping of MD using the amygdala as a state marker may lead to the prediction and prognosis of depression, as well as to the individualization of treatment strategies for drug therapy.

Regarding the hippocampal subfields analysis, the right subiculum body and parasubiculum volume were significantly decreased in depressed group. In previous studies, the highest changes in the subiculum and CA1, followed by the CA2-3, were reported not only in first-episode MD (Isikli et al., 2013), but also in elderly depression (Ballmaier et al., 2008). The subiculum, in which the anterior region, is associated with emotional functioning (Moser and Moser, 1998), plays an important role in the pathophysiology of MD. On the other hand, there was no significant volume reduction in the amygdala subregions. The decreased volumes of both hippocampus and amygdala in first episode MD have been well reported (van Erp et al., 2016). However, in the resent-onset MD, the enlarged amygdala volume and reduced hippocampal volume can exist (Lange and Irle, 2004). The decreased hippocampal subfield volume and little change amygdala subregion volume may be the process which the amygdala changes from enlarged to reduced volume. In the analysis with severity of depression, inversed relationships were shown mainly in the right HATA and left CA3-head. The HATA is a part of the hippocampus—amygdala circuitry, more specifically it represents one of the targets of the hippocampal- amygdala projection (Fudge et al., 2012; p. 6). However, it has not been well investigated in MD. The CA3 appear to be rich in glucocorticoid receptors and vulnerable to excess cortisol (Magariños et al., 2011). Therefore, the CA3 was considered to be associated with brain damage in MD. Interestingly, the hippocampal subfields that did not show a significant volume reduction correlated with the severity of depression, similar to the amygdala subregion analysis. One possible explanation is that some MD patients showed the slight volume reduction in the CA3 or HATA and more severe symptoms, but the mean volume of CA3 or HATA was not significantly decreased in all MD patients. Regarding the HAMD sleep, the left subiculum-head, parasubiculum-head, and HATA were positively correlated, not negatively correlated. Future studies are needed to elucidate the relationship between the hippocampal subfields and depression severity.

Limitations

There are several limitations to this study. First, most of the healthy subjects were related to our university, and many of them were doctors, nurses, and other medical professionals. Therefore, the generalizability of the results is uncertain. In addition, the number of cases is limited because the study was conducted on first-episode depression patients without pharmacotherapy.

Second, the severity of depression was determined only by the HAMD, assessing other rating scale such as Montgomery-Asberg Depression Rating Scale might reinforce the accuracy in the severity of depression (Montgomery and Asberg, 1979).

Third, because this was a cross-sectional study, the temporal relationship between depressive symptoms and amygdala subregion volume is unknown.

Fourth, there was no difference between the healthy and depressed groups, which raises questions about the relationship between depression severity and amygdala subregion volume. It is possible that some subjects in the normal group were in a depressive state but did not seek medical attention.

Conclusion

The present study suggests that the subregional volume of the right amygdala is associated with total severity of depression and the severity of items such as anxiety/agitation. Since there are only a few reports on depression and the amygdala, data accumulation is necessary for further verification.

Data Availability Statement

The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding author/s.

Ethics Statement

The studies involving human participants were reviewed and approved by the Ethics Committee of the University of Occupational and Environmental Health, Japan. The patients/participants provided their written informed consent to participate in this study.

Author Contributions

HT, KW, SK, and RY conceived and designed the experiments. HT, KW, SK, AI, NO, and RY performed the experiments. HT, KW, and NO analyzed the data. HT, KW, and RY composed the manuscript. HT, KW, AI, SK, and RY provided expertise and edited the manuscript. All authors read the manuscript and are solely and jointly responsible for its content.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
