Sec. Cardiac Electrophysiology
Volume 3 - 2012 | https://doi.org/10.3389/fphys.2012.00245
Effects of n−3 polyunsaturated fatty acids on cardiac ion channels
- Instituto de Investigaciones Biomédicas “Alberto Sols” (CSIC-UAM), Madrid, Spain
Dietary n−3 polyunsaturated fatty acids (PUFAs) have been reported to exhibit antiarrhythmic properties, and these effects have been attributed to their capability to modulate ion channels. In the present review, we will focus on the effects of PUFAs on a cardiac sodium channel (Nav1.5) and two potassium channels involved in cardiac atrial and ventricular repolarization (Kv) (Kv1.5 and Kv11.1). n−3 PUFAs of marine (docosahexaenoic, DHA and eicosapentaenoic acid, EPA) and plant origin (alpha-linolenic acid, ALA) block Kv1.5 and Kv11.1 channels at physiological concentrations. Moreover, DHA and EPA decrease the expression levels of Kv1.5, whereas ALA does not. DHA and EPA also decrease the magnitude of the currents elicited by the activation of Nav1.5 and calcium channels. These effects on sodium and calcium channels should theoretically shorten the cardiac action potential duration (APD), whereas the blocking actions of n−3 PUFAs on Kv channels would be expected to produce a lengthening of cardiac action potential. Indeed, the effects of n−3 PUFAs on the cardiac APD and, therefore, on cardiac arrhythmias vary depending on the method of application, the animal model, and the underlying cardiac pathology.
Omega-3 (n−3) polyunsaturated fatty acids (PUFAs) are essential nutrients that must be acquired from the diet and that are required for normal development and cellular function. n−3 PUFAs are derived from two sources: (1) ALA (18:3 n−3), which is found in vegetable oils (such as flaxseed, canola, and soybean oils) and walnuts, and (2) EPA (20:5 n−3) and DHA (22:6 n−3), which are found in oily fish, fish oil, and seafood (Figure 1). After the Industrial Revolution, the dramatic increase in the n−6-to-n−3 ratio in the diets of the populations of Western countries has, at least in part, contributed to the rise in cardiovascular disease (CVD; De Caterina et al., 2003; Leaf et al., 2003). Sinclair et al. described the rarity of CVD in Greenland Eskimos, who consumed a diet rich in n−3 PUFAs (whale, seal, and fish; Sinclair, 1953, 1956). Since that time, a large amount of evidence from cellular, animal studies (Billman et al., 1997, 1999; Leifert et al., 2000), and from clinical trial outcomes (Burr et al., 1989; GISSI-Prevenzione Investigators, 1999; Tanaka et al., 2008; Tavazzi et al., 2008) has suggested that an increased intake of fish oil fatty acids has favorable effects on cardiovascular health. Analyses of these trials have concluded that these beneficial effects mainly occur through the prevention of sudden cardiac death (SCD), which is often preceded by ventricular arrhythmias, indicating that n−3 PUFAs are antiarrhythmic (GISSI-Prevenzione Investigators, 1999; Marchioli et al., 2002). However, not all studies have demonstrated the cardioprotective effects on CVD of PUFA consumption. Proarrhythmic actions have been described for n−3 PUFAs in animal models during acute regional myocardial ischemia (Coronel et al., 2007). Moreover, the recent Alpha OMEGA and OMEGA randomized trials, involving patients who had suffered a myocardial infarction, did not show any improvement in the clinical results following n−3 PUFAs supplementation (Kromhout et al., 2010; Rauch et al., 2010), and a deleterious effect due to an increased risk of cardiac death was reported in men with stable angina (without myocardial infarction) who were advised to eat fish (Burr et al., 2003), and in patients with implantable cardioverter defibrillators (ICDs; Raitt et al., 2005). These differences could be explained by the fact that a diet rich in fish oil could be pro- or antiarrhythmic depending on the underlying arrhythmogenic mechanism.

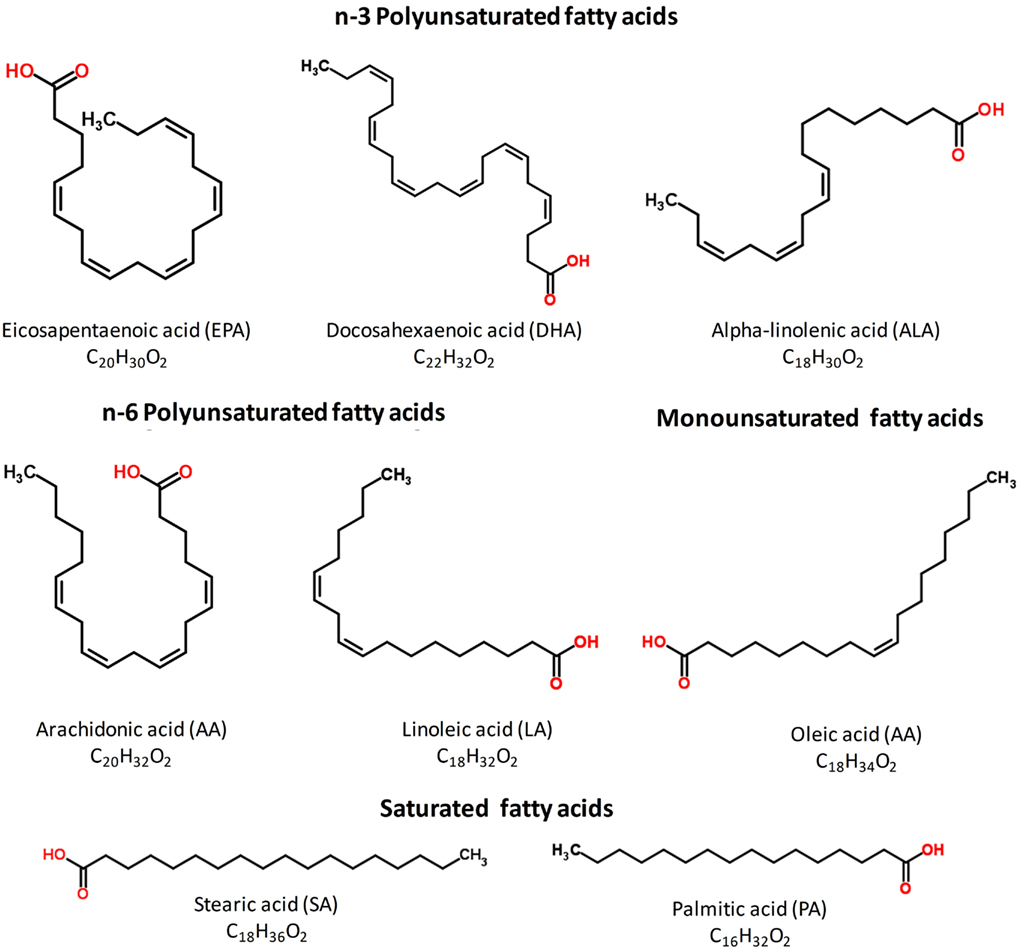

Figure 1. Structure of the main n− 3 (EPA, DHA, and ALA), n− 6 (AA and LA), monounsaturated (OA), and saturated (SA and PA) PUFAs present in the human diet. Taken from the free ChemSpider Database (http://www.chemspider.com/).
In any case, the mechanism underlying the anti- or pro-arrhythmic effect after n−3 supplementation is thought to be related to the modulation of the cardiac ion channels involved in the genesis and/or maintenance of cardiac action potentials (APs). n−3 PUFAs inhibit the fast sodium current (INa), ultrafast activating delayed outward potassium current (IKur), transient outward potassium current (Ito), rapidly activating delayed rectifying outward potassium current (IKr) L-type calcium inward current (ICa), and Na+-Ca2+ exchange current (INCX), and enhanced slowly activating delayed rectifying outward potassium current (IKs) and inward rectifying potassium current (IK1; Honoré et al., 1994; Xiao et al., 1995, 1997; Doolan et al., 2002; Jude et al., 2003; Guizy et al., 2005, 2008; Verkerk et al., 2006; Dujardin et al., 2008). Because the configuration and duration of the cardiac AP are highly relevant for arrhythmogenesis, in the present review, we summarize the acute and chronic effects of n−3 PUFAs on the INa, IKur, and IKr (Figure 2) and we will relate these effects with the pro- and antiarrhythmic effects on different animal models of arrhythmia, as well as to the results observed in the clinical trials.

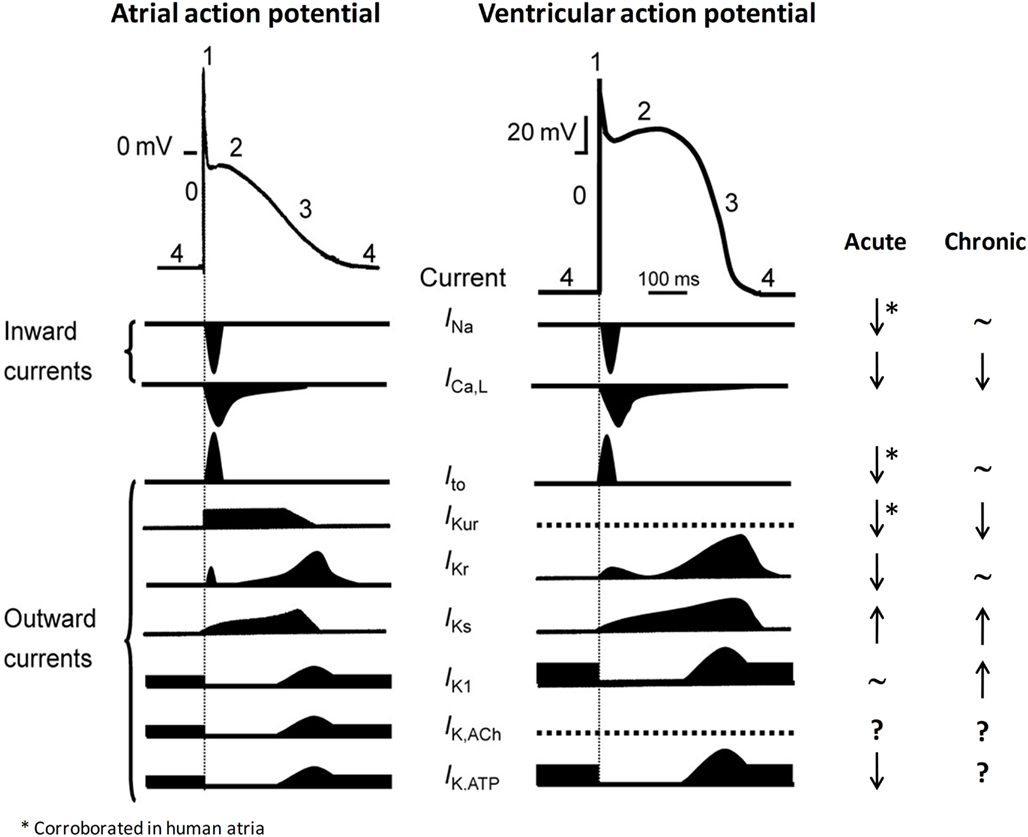

Figure 2. Cardiac AP, ionic currents involved in its genesis and maintenance, and the effects of n− 3 PUFAs on each current under acute and chronic conditions. ↑, Increase; ↓, decrease; or ∼, no changes in the current amplitude. *Studied in human atria. ?, Not tested. With permission from Ravens and Cerbai (2008).
Effects of n−3 PUFAs on Sodium Channels
The fast inward cardiac sodium current is responsible for the genesis of the AP (phase 0) in most cells of excitable tissues and plays a pivotal role in impulse conduction. Thus, the ability of agents to modulate INa may constitute an important factor to prevent, terminate, or exacerbate cardiac arrhythmias (Echt et al., 1991).
In 1995, it was reported that EPA reduced membrane electrical excitability of heart myocytes, increased the threshold for the genesis of the cardiac AP and hyperpolarized the resting membrane potential (Kang et al., 1995). As it was expected, when the effects of EPA were studied on the fast sodium current in isolated neonatal rat cardiac myocytes (Xiao et al., 1995) or in the current generated after activation of cloned human Nav1.5 expressed in a mammalian cell line (Xiao et al., 1998), an inhibition of the INa occurred. These effects on sodium channels were concentration-, time-, and voltage-dependent with an IC50 of 4.8 and 0.5 μM respectively. These IC50 values are within the n−3 PUFAs physiological plasma range in the human being (Burtis et al., 1999). EPA shifted the inactivation curve toward more negative potentials by ∼20 mV whereas the activation kinetics of the channel was unaffected. EPA slightly hyperpolarized the resting membrane potential (likely due to an enhancement of IK1) and made more positive the threshold for the activation of Nav1.5 channel. In addition, the transition from the rested to the inactivated state was markedly accelerated in the presence of EPA but the recovery from inactivation was only slightly prolonged (Xiao et al., 1998; Dujardin et al., 2008). This effect could account for the greater relative refractory period-action potential duration (APD) ratio. Other n−3 (DHA and ALA), n−6 PUFAs (AA), and monounsaturated fatty acid (oleic acid, OA) reduced INa being the n−3 PUFAs the more potent ones.
In adult rat cardiomyocytes, sodium current was also inhibited by EPA, DHA, and ALA, DHA being the most potent n−3 PUFA blocking sodium channels (IC50 of 6 μM), followed by EPA (IC50 of 16 μM) and ALA (IC50 of 27 μM). Similarly to that observed in INa recorded in neonatal cardiomyocytes; DHA, EPA, and ALA shifted the voltage dependence of inactivation toward more negative potentials (∼20–23 mV). However, and in contrast to the effects on the sodium channels of neonatal cardiomyocytes, these three PUFAs shifted the voltage dependence of activation toward more positive potentials (∼8–12 mV; Leifert et al., 1999). In contrast with the acute effects, peak INa was unaffected by incorporated n−3 PUFAs in ventricular myocytes isolated from pigs and rats that were fed a diet rich in fish oil (Leifert et al., 2000; Verkerk et al., 2006). In both studies voltage dependence of activation remained unaltered, whereas a shift (<8 mV) in the inactivation toward more negative potentials was observed.
It is not clear how PUFAs modulate the activity of ion channels, if they modify the current through indirect effects on the lipid bilayer or if they directly interact with the channel protein. The dominant view is that n−3 PUFAs directly interact with the protein of the ion channel. A very useful technique used to establish an interacting site is to introduce single directed point mutations in the wild type protein and to determine whether the substitution modifies the expected action of the ligand. Due to the striking similarities between the n−3 PUFAs effects and those induced by local anesthetics, the effects of n−3 PUFAs were analyzed on Nav1.5 channels carrying point amino acid mutations that have been shown to modify the action of local anesthetics (Xiao et al., 2001). Interestingly, the substitution of an asparagine by a lysine at position 406 (N406K) at the segment 6 of the domain 1 of Nav1.5 channel significantly reduced the potency of EPA to inhibit INa, mimicking bupivacaine effects and suggesting a direct interaction with this protein (Nau et al., 2000; Xiao et al., 2001). Also, the effects of n−3 PUFAs on the sodium current generated by the activation of Nav1.5 channels expressed in HEK293 cells were modified by the cotransfection with accessory β subunits (Xiao et al., 2000).
On the basis of these results, sodium channel blockade produced by n−3 PUFAs is responsible, at least in part, for the antiarrhythmic or proarrhythmic effects observed in clinical trials. In the clinics, class I antiarrhythmic drugs, such as flecainide, are useful in the treatment of atrial fibrillation (Fuster et al., 2011). Thus, we can speculate that the sodium current inhibition properties of n−3 PUFAs can account for the beneficial effects observed in clinical trials focused on atrial fibrillation (Calo et al., 2005). Conversely, blockade of the cardiac sodium channel can be deleterious under certain pathological conditions in which arrhythmias are based on reentrant activity, such as during acute myocardial ischemia. Sodium channel blockade by acute administration of n−3 PUFAs, likely facilitates reentry by slowing conduction velocity and incorporated n−3 PUFAs shorten APD and effective refractory period (ERP), because these conditions favor a reentrant circuit to arise. In fact, an increase in the risk of cardiac events has been reported in patients with acute ischemia (e.g., angina pectoris) and in patients with histories of sustained ventricular tachycardia or ventricular fibrillation, as well as arrhythmias triggered by reentry (Burr et al., 2003; Brouwer et al., 2009).
Effects of n−3 PUFAs on Repolarizing Currents
The ultrarapid activated outward potassium current is the native counterpart to Kv1.5 channels in human atria and contribute to the repolarization process of the atrial AP (Fedida et al., 1993; Snyders et al., 1993). Since the early nineties, it is known that Kv1.5 current is inhibited by the acute exposition to n−3 (DHA), and n−6 PUFAs (AA), but not by monounsaturated (OA) and saturated fatty acids (palmitic acid, PA and stearic acid, SA) in stably expressing Kv1.5 mammalian cells (Honoré et al., 1994). The inhibition was time- and concentration-dependent and occurred at physiological concentrations (IC50 for AA and DHA ∼20–30 μM) only when these PUFAs were applied from the external side of the membrane. Both n−6 and n−3 fatty acid shifted the activation curve toward more negative potentials ∼16 mV and accelerated the activation process. All these results are indicative of an open channel mechanism of block. The same characteristic block was induced by DHA and AA on the IKur current in mouse neonatal cardiomyocytes, in rat embryonic ventricular cells (Honoré et al., 1994) and, more interestingly, in human atrial myocytes (IC50 for EPA and DHA 17.5 and 4.3 μM, respectively; Li et al., 2009).
Guizy et al. (2008) compared acute versus chronic effects of the plant derived n−3 PUFA ALA on the inhibition of Kv1.5 channels. The acute ALA blocking properties resembles to those previously described by Honoré et al. (1994) for DHA and AA. However, in the case of ALA, the Kv1.5 inhibition was also voltage-dependent. The chronic effects on the channel function and on its protein expression levels were assessed by incubating the cells with ALA 10 μM for 24 and 48 h. The effects of ALA on the Kv1.5 current were similar to those obtained when the cells were acutely exposed to ALA. EPA and DHA, but not ALA, reduced the steady-state levels of Kv1.5 protein in a concentration-dependent manner at concentrations higher than 30 μM. However, it has also described that chronic treatment with EPA at low concentrations (∼1 μM) stabilizes Kv1.5 channel protein in the endoplasmic reticulum and Golgi apparatus thereby enhancing the Kv1.5 channel current on the cell membrane (Koshida et al., 2009).
As mentioned above, Kv1.5 inhibition was observed when they were added to the external side of the membrane. This fact strongly suggests an interaction between n−3 PUFAs and ion channel, unlike the non-specific lipid-protein interactions proposed for marine n−3 PUFAs (Leaf and Xiao, 2001). This hypothesis was tested by measuring changes in the fluorescence anisotropy of the lipophilic dye PA-DPH on the membrane of Ltk− cells in the presence of ALA or DHA. The PA-DPH molecule has an anion polar head and a lipid hydrocarbon chain that resembles membrane lipids. It is incorporated and anchored into the bilayer of the plasmalemma and its motion reflects the wobbling of its lipidic components. It was found that DHA but not ALA, modifies the PA-DPH motion in the Ltk− cell membrane. From these experiments it was concluded that the apparent viscosity and the order of the membrane rather than the mobility of the bilayer components are not affected by ALA, but increased in cells incubated with DHA (Leifert et al., 1999; Guizy et al., 2008). These results do not permit us to exclude an effect of DHA on the biophysics of the lipid bilayer, besides its direct effects on ion channels. In fact, it has also been reported that n−3 PUFAs are able to change the composition of membrane microdomains (Basiouni et al., 2012; Turk and Chapkin, 2012).
The ultra rapid activating delayed rectifier potassium current IKur, together with Ito, repolarizes the cardiomyocyte membrane in human atria during the AP (Wang et al., 1993) but does not play a role in the ventricle even though its mRNA and protein are also present in that tissue (Mays et al., 1995). Thus, inhibition of IKur prolongs atrial but not ventricular APD and refractoriness. This finding indicates that IKur blockers can be useful in the treatment of supraventricular arrhythmias such as AF without the risk of ventricular pro-arrhythmia (Tamargo et al., 2004). Some of the cardioprotective effects attributed to n−3 PUFAs may be mediated by the inhibition of Kv1.5 current. This could be particularly relevant on the treatment of AF. This arrhythmia is associated with rapid shortening of APD and ERP. In fact, recent epidemiological studies points out an important role of n−3 PUFAs in the prevention of AF after coronary by-pass surgery (Calo et al., 2005; Mariscalco et al., 2010).
While atrial repolarization is mostly carried out by Ito and IKur, ventricular repolarization is developed by the slowly activating delayed rectifier (IKs) and the rapidly activating delayed rectifier (IKr) currents. The IKr is the native counterpart of Kv11.1 channels present in the human myocardium (Sanguinetti and Jurkiewicz, 1991; Sanguinetti et al., 1995) and its activity determines the duration of the QT interval of the electrocardiogram (ECG) and therefore the refractory period (Li et al., 1996).
In 2002 it was demonstrated, for the first time, the inhibitory effects of DHA on IK current (composed by IKs and IKr) in ferret myocytes. The extracellular application of DHA (10 μM) inhibited IK on atrial and ventricular ferret myocytes with an IC50 of ∼20 μM. Kv11.1 blockade was concentration- but not voltage-dependent. Other PUFAs like the n−3 ALA and the n−6 linoleic acid also decreases the IK magnitude whereas monounsaturated (OA) and saturated fatty acids (SA) did not (Xiao et al., 2002).
The same n−3 PUFA concentration (10 μM) was tested in another work to characterize the effects of DHA and AA on Kv11.1 human cloned channels (Guizy et al., 2005). Both, AA and DHA reduced the Kv11.1 current at the end of long depolarizing pulses and, to a greater extent, at the peak of the deactivation tail current, DHA being more potent. Also, Kv11.1 block was voltage-, time-, and use-dependent. AA and DHA: (1) shifted the activation curve toward more negative membrane potentials (−5 and −11 mV, respectively) and shifted the inactivation curve toward more positive potentials (∼12 mV); (2) accelerated the activation and the deactivation kinetics; (3) at high rate frequencies, the Kv11.1 peak current was exponentially reduced; and (4) did not modify the onset, the inactivation kinetics nor the recovery process. All these results suggest that AA and DHA preferentially bind to the open state of the channel (Guizy et al., 2005).
The effects of incorporated n−3 PUFAs were also evaluated on pig ventricular myocytes fed with a diet rich in n−3 PUFAs for 8 weeks. In this study, no changes on the amplitude and the properties of IKr were noticed, thus suggesting different effects of n−3 PUFAs after acute exposition than after feeding animals (i.e., chronic conditions; Verkerk et al., 2006).
n−3 PUFAs, like most antiarrhythmic drugs, modulate sodium, potassium, and calcium channels, as well as α- and β-adrenoceptors (Honoré et al., 1994; Xiao et al., 1995, 1997; Hondeghem et al., 2001; Jude et al., 2003; Guizy et al., 2005). EPA and DHA block sodium, calcium, and potassium currents with the exception of IKs and IK1 (Xiao et al., 1995, 1997; Doolan et al., 2002; Verkerk et al., 2006). Since n−3 PUFAs inhibit INa, ICa, and enhance IKs (effects that would shorten the cardiac action potential), but also inhibit Ito, IKur, and IKr (that should produce a lengthening of the APD), the result should be a modest effect on the time of repolarization. Besides these effects on the APD, it should be stated that its inhibitory effects on sodium, calcium, and several potassium channels (Kv4, and Kv11.1 channels) would result in a lengthening of the refractory period and a decrease of cardiac excitability, thus contributing to its antiarrhythmic effects.
The clinical consequences of the effects produced by n−3 PUFAs on Kv11.1 channels are likely dependent on the underlying pathology; but we cannot state any conclusion from the data available in the literature.
Effects of n−3 PUFAs on Arrhythmias Animal Models
In addition to the studies concerning the role of n−3 PUFAs on ion channels, several cellular, and animal models of induced arrhythmia have been created to better understand the mechanism by which n−3 PUFAs protect or exacerbate certain arrhythmias (Rosen et al., 1991; Members of the Sicilian Gambit, 2001). Traditional antiarrhythmic drug trials have yielded disappointing results, probably due to the inclusion of heterogeneous patient populations with different arrhythmogenic substrate. This led to the international cardiology community to focus their interest on the design of new rational approaches to study the effects of antiarrhythmic drugs based on mechanism- and disease-specific fashion. So, during the last years, the pro- or antiarrhythmic effects of n−3 PUFAs have been studied on different animal models with distinct underlying mechanisms of arrhythmia (triggered activity or reentry).
Animal Models Based on Arrhythmias Produced by Triggered Activity
The effects of EPA and DHA upon APD, triangulation, reverse use dependence, instability and dispersion (TRIaD) were studied in female rabbit fed with food enriched with n−3 PUFA (Dujardin et al., 2008). In this study, n−3 PUFAs significantly prolonged APD and ERP without triangulation. This apparent discrepancy with another studies (Verkerk et al., 2006; Den Ruijter et al., 2010) can be related to the fact that this study was performed in female rabbit hearts, whose repolarization is known to be slower and is modulated in a different manner (Gaborit et al., 2010; Lowe et al., 2012). This prolongation of APD resulted in a significant prolongation of the ERP. At baseline, n−3 PUFAs pre-treatment had no effects on TRIaD and on ectopic activity compared with control hearts. By exposing the rabbit heart to increasing dofetilide concentrations (1–100 nM) torsades de pointes (TdP, polymorphic ventricular arrhythmia due to triggered activity) was induced. It was studied whether the n−3 PUFA pre-treatment could prevent the proarrhythmic actions of dofetilide by decreasing TRIaD, and by suppressing the appearance of TdP. In control hearts, dofetilide-induced TdP in five of the six rabbit hearts, but none in the hearts from the n−3 PUFAs group. Hence, dofetilide-induced TRIaD was attenuated by pre-treatment with dietary supplements of n−3 PUFAs (Dujardin et al., 2008). Thus, a diet rich in n−3 PUFAs reduce the incidence of early afterdepolarizations (EADs) that could be also benefit in the treatment of long QT syndrome and other arrhythmias developed by triggered activity (e.g., EADs; Den Ruijter et al., 2006; Dujardin et al., 2008).
It has been described the beneficial effects of n−3 PUFAs in arrhythmias associated to heart failure. These beneficial effects have been reported when n−3 PUFAs are administrated acutely or as a diet supplementation. The acute administration of fish oil in cardiac myocytes from rabbits with volume- and pressure-overload-induced heart failure and of patients with end-stage heart failure inhibited triggered arrhythmias by lowering intracellular calcium and decreasing the response to noradrenaline (Den Ruijter et al., 2008). In this study, it is also reported a shortening of the cardiac APD induced by n−3 PUFAs. Recently, in the same animal model the authors demonstrate that supplementation of the diet with n−3 PUFAs reduces hypertrophy. They also describe a shortening of the cardiac action potential due to an increase in the magnitude of Ito and IK1, a decrease of the Ca2+ transients and of the incidence of delayed afterdepolarizations. Thus, n−3 PUFAs prevented electric remodeling associated with heart failure, leading to a reduced susceptibility of arrhythmias (Den Ruijter et al., 2012).
Animal Models Based on Reentrant Arrhythmias
Dietary n−3 fatty acids decreased the incidence of fatal heart disease relative to placebo (GISSI-Prevenzione Investigators, 1999). However, n−3 PUFAs tended to increase the risk of SCD in patients with angina pectoris (without myocardial infarction; Burr et al., 2003). Coronel et al. (2007) demonstrated in a pig ischemia model (produced by occluding the left anterior descending artery) that the supplementation of the diet with n−3 PUFAs during 8 weeks, did not modified ERP or the conduction velocity (neither longitudinal or transversal), although increased the incidence of arrhythmias. This study reports that those animals fed with n−3 PUFAs enriched diet show a reduced excitability, likely due to their effects on sodium channels, the main determinant of the substrate of ischemia-induced reentrant arrhythmias.
New Insights of the Beneficial PUFAs Properties: PUFAs Metabolites Effects
In addition, genetic, pharmacologic, and biochemical studies are providing increasing mechanistically relevant explanations for the salutatory actions of EPA and DHA. n−3 and n−6 PUFAs are metabolized to lipoxins, resolvins, maresins (Serhan et al., 2008; Bannenberg and Serhan, 2010). These EPA- and DHA-derived lipid mediators (collectively termed Specific Pro-resolving Mediators, SPMs) are active, as anti-inflammatory agents, at very low concentrations (picomolar to nanomolar range), and are degraded locally by specific inactivating enzymes, characteristic for the bioactivity of autacoids. These SPMs can also slow the progression of diabetic onset, CVD, and aging-associated pathologies through the regulation of innate and adaptive immune responses. It has been described that lipoxins modulate CRAC channels after binding to the lipoxin receptor (Li et al., 2008). The effects of SPMs in the progression of several CVDs, involving inflammation (i.e., heart failure, diabetes, coronary heart disease) can be associated to the beneficial observed effects with n−3 PUFAs in the clinical trials. However, the cardiac electrophysiological effects of these SPMs are unknown at the present time. Thus, further studies focused on the analysis of their effects on cardiac ion channels and arrhythmias are necessary to better understanding the pro- or antiarrhythmic effects of n−3 PUFAs.
n−3 PUFAs have diverse effects (increasing and decreasing) on cardiac ion currents. These differences appeared to depend on whether the n−3 PUFAs were applied to the cells or incorporated in the membranes modifying its composition and, thus, the effects on cell signaling and, therefore, in ion channel function. However, we cannot rule out PUFAs direct effects on ion channels, since once incorporated, n−3 PUFAs can also be released and there will arise an equilibrium between incorporated and circulating. n−3 PUFAs modulate cardiac ion currents, leading to a shortening of the cardiac APD. This effect can be beneficial or harmful, depending on the underlying pathology. Thus, during acute ischemia, in which the duration of the cardiac APD is already shortened (Behrens et al., 1997), a further decrease should be proarrhythmic. However, the APD shortening should be beneficial in preventing those arrhythmias caused by triggered activity. These differences can account, at least partially, with discrepancies observed in the clinical and epidemiological studies. Future studies analyzing the electrophysiological effects on cardiac ion channels and different models of arrhythmia of the n−3 metabolites are needed to better understanding the action of n−3 PUFAs.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
This work was supported by SAF2010-14916 and FIS-RECAVA RD06/0014/0025. RECAVA is funded by the Instituto de Salud Carlos III. Cristina Moreno and Ángela Prieto hold FPI fellowships. Álvaro Macías is a JAE-Predoc fellow. Alicia de la Cruz and Teresa González hold a RECAVA and a Ramón y Cajal contract, respectively. We thank the editorial assistance of American Journal Experts.
Bannenberg, G., and Serhan, C. N. (2010). Specialized pro-resolving lipid mediators in the inflammatory response: an update. Biochim. Biophys. Acta 1801, 1260–1273.
Basiouni, S., Stockel, K., Fuhrmann, H., and Schumann, J. (2012). Polyunsaturated fatty acid supplements modulate mast cell membrane microdomain composition. Cell. Immunol. 275, 42–46.
Behrens, S., Li, C., and Franz, M. R. (1997). Effects of myocardial ischemia on ventricular fibrillation inducibility and defibrillation efficacy. J. Am. Coll. Cardiol. 29, 817–824.
Billman, G. E., Kang, J. X., and Leaf, A. (1997). Prevention of ischemia-induced cardiac sudden death by n-3 polyunsaturated fatty acids in dogs. Lipids 32, 1161–1168.
Billman, G. E., Kang, J. X., and Leaf, A. (1999). Prevention of sudden cardiac death by dietary pure omega-3 polyunsaturated fatty acids in dogs. Circulation 99, 2452–2457.
Brouwer, I. A., Raitt, M. H., Dullemeijer, C., Kraemer, D. F., Zock, P. L., Morris, C., Katan, M. B., Connor, W. E., Camm, J. A., Schouten, E. G., and McAnulty, J. (2009). Effect of fish oil on ventricular tachyarrhythmia in three studies in patients with implantable cardioverter defibrillators. Eur. Heart J. 30, 820–826.
Burr, M. L., Ashfield-Watt, P. A., Dunstan, F. D., Fehily, A. M., Breay, P., Ashton, T., Zotos, P. C., Haboubi, N. A., and Elwood, P. C. (2003). Lack of benefit of dietary advice to men with angina: results of a controlled trial. Eur. J. Clin. Nutr. 57, 193–200.
Burr, M. L., Fehily, A., Gilbert, J. F., Rogers, S., Holliday, R. M., Sweetnam, P. M., Elwood, P. C., and Deadman, N. M. (1989). Effects of changes in fat, fish, and fibre intakes on death and myocardial reinfarction: diet and reinfarction trial (DART). Lancet 2, 757–761.
Burtis, C. A., Ashwood, E. R., and Tietz, N. W. (1999). Textbook of Clinical Chemistry. Philadelphia: W.B. Saunders.
Calo, L., Bianconi, L., Colivicchi, F., Lamberti, F., Loricchio, M. L., De Ruvo, E., Meo, A., Pandozi, C., Staibano, M., and Santini, M. (2005). N-3 fatty acids for the prevention of atrial fibrillation after coronary artery bypass surgery: a randomized, controlled trial. J. Am. Coll. Cardiol. 45, 1723–1728.
Coronel, R., Wilms-Schopman, F. J., Den Ruijter, H. M., Belterman, C. N., Schumacher, C. A., Opthof, T., Hovenier, R., Lemmens, A. G., Terpstra, A. H., Katan, M. B., and Zock, P. (2007). Dietary n-3 fatty acids promote arrhythmias during acute regional myocardial ischemia in isolated pig hearts. Cardiovasc. Res. 73, 386–394.
De Caterina, R., Madonna, R., Zucchi, R., and La Rovere, M. T. (2003). Antiarrhythmic effects of omega-3 fatty acids: from epidemiology to bedside. Am. Heart J. 146, 420–430.
Den Ruijter, H. M., Berecki, G., Verkerk, A. O., Bakker, D., Baartscheer, A., Schumacher, C. A., Belterman, C. N., de, J. N., Fiolet, J. W., Brouwer, I. A., and Coronel, R. (2008). Acute administration of fish oil inhibits triggered activity in isolated myocytes from rabbits and patients with heart failure. Circulation 117, 536–544.
Den Ruijter, H. M., Verkerk, A. O., Berecki, G., Bakker, D., van Ginneken, A. C., and Coronel, R. (2006). Dietary fish oil reduces the occurrence of early afterdepolarizations in pig ventricular myocytes. J. Mol. Cell. Cardiol. 41, 914–917.
Den Ruijter, H. M., Verkerk, A. O., and Coronel, R. (2010). Incorporated fish oil fatty acids prevent action potential shortening induced by circulating fish oil fatty acids. Front. Physiol. 1:149. doi:10.3389/fphys.2010.00149
Den Ruijter, H. M., Verkerk, A. O., Schumacher, C. A., Houten, S. M., Belterman, C. N., Baartscheer, A., Brouwer, I. A., van, B. M., de, R. B., and Coronel, R. (2012). A diet rich in unsaturated Fatty acids prevents progression toward heart failure in a rabbit model of pressure and volume overload. Circ. Heart Fail. 5, 376–384.
Doolan, G. K., Panchal, R. G., Fonnes, E. L., Clarke, A. L., Williams, D. A., and Petrou, S. (2002). Fatty acid augmentation of the cardiac slowly activating delayed rectifier current (IKs) is conferred by hminK. FASEB J. 16, 1662–1664.
Dujardin, K. S., Dumotier, B., David, M., Guizy, M., Valenzuela, C., and Hondeghem, L. M. (2008). Ultrafast sodium channel block by dietary fish oil prevents dofetilide-induced ventricular arrhythmias in rabbit hearts. Am. J. Physiol. Heart Circ. Physiol. 295, H1414–H1421.
Echt, D. S., Liebson, P. R., Mitchell, L. B., Peters, R. W., Obias-Manno, D., Barker, A. H., Arnsberg, D., Baker, A., Friedman, L., Greene, H. L., Huther, M. L., and Richardson, D. W. (1991). Mortality and morbidity in patients receiving encainide, flecainide and placebo. N. Engl. J. Med. 324, 781–788.
Fedida, D., Wible, B., Wang, Z., Fermini, B., Faust, F., Nattel, S., and Brown, A. M. (1993). Identity of a novel delayed rectifier current from human heart with a cloned K+ channel current. Circ. Res. 73, 210–216.
Fuster, V., Ryden, L. E., Cannom, D. S., Crijns, H. J., Curtis, A. B., Ellenbogen, K. A., Halperin, J. L., Kay, G. N., Le Huezey, J. Y., Lowe, J. E., Olsson, S. B., Prystowsky, E. N., Tamargo, J. L., and Wann, L. S. (2011). 2011 ACCF/AHA/HRS focused updates incorporated into the ACC/AHA/ESC 2006 Guidelines for the management of patients with atrial fibrillation: a report of the American College of Cardiology Foundation/American Heart Association Task Force on Practice Guidelines developed in partnership with the European Society of Cardiology and in collaboration with the European Heart Rhythm Association and the Heart Rhythm Society. J. Am. Coll. Cardiol. 57, e101–e198.
Gaborit, N., Varro, A., Le, B. S., Szuts, V., Escande, D., Nattel, S., and Demolombe, S. (2010). Gender-related differences in ion-channel and transporter subunit expression in non-diseased human hearts. J. Mol. Cell. Cardiol. 49, 639–646.
GISSI-Prevenzione Investigators. (1999). Dietary supplementation with n-3 polyunsaturated fatty acids and vitamin E after myocardial infarction: results of the GISSI-Prevenzione trial. Gruppo Italiano per lo Studio della Sopravvivenza nell’Infarto miocardico. Lancet 354, 447–455.
Guizy, M., Arias, C., David, M., Gonzalez, T., and Valenzuela, C. (2005). ω-3 and ω-6 polyunsaturated fatty acids block HERG channels. Am. J. Physiol. Cell Physiol. 289, C1251–C1260.
Guizy, M., David, M., Arias, C., Zhang, L., Cofan, M., Ruiz-Gutierrez, V., Ros, E., Lillo, M. P., Martens, J. R., and Valenzuela, C. (2008). Modulation of the atrial specific Kv1.5 channel by the n-3 polyunsaturated fatty acid, alpha-linolenic acid. J. Mol. Cell. Cardiol. 44, 323–335.
Hondeghem, L. M., Carlsson, L., and Duker, G. (2001). Instability and triangulation of the action potential predict serious proarrhythmia, but action potential duration prolongation is antiarrhythmic. Circulation 103, 2004–2013.
Honoré, E., Barhanin, J., Attali, B., Lesage, F., and Lazdunski, M. (1994). External blockade of the major cardiac delayed-rectifier K+ channel (Kv1.5) by polyunsaturated fatty acids. Proc. Natl. Acad. Sci. U.S.A. 91, 1937–1941.
Jude, S., Bedut, S., Roger, S., Pinault, M., Champeroux, P., White, E., and Le Guennec, J. Y. (2003). Peroxidation of docosahexaenoic acid is responsible for its effects on I TO and I SS in rat ventricular myocytes. Br. J. Pharmacol. 139, 816–822.
Kang, J. X., Xiao, Y. F., and Leaf, A. (1995). Free, long-chain, polyunsaturated fatty acids reduce membrane electrical excitability in neonatal rat cardiac myocytes. Proc. Natl. Acad. Sci. U.S.A. 92, 3997–4001.
Koshida, S., Kurata, Y., Notsu, T., Hirota, Y., Kuang, T. Y., Li, P., Bahrudin, U., Harada, S., Miake, J., Yamamoto, Y., Hoshikawa, Y., Igawa, O., Higaki, K., Soma, M., Yoshida, A., Ninomiya, H., Shiota, G., Shirayoshi, Y., and Hisatome, I. (2009). Stabilizing effects of eicosapentaenoic acid on Kv1.5 channel protein expressed in mammalian cells. Eur. J. Pharmacol. 604, 93–102.
Kromhout, D., Giltay, E. J., and Geleijnse, J. M. (2010). n-3 fatty acids and cardiovascular events after myocardial infarction. N. Engl. J. Med. 363, 2015–2026.
Leaf, A., Kang, J. X., Xiao, Y. F., and Billman, G. E. (2003). Clinical prevention of sudden cardiac death by n-3 polyunsaturated fatty acids and mechanism of prevention of arrhythmias by n-3 fish oils. Circulation 107, 2646–2652.
Leaf, A., and Xiao, Y. F. (2001). The modulation of ionic currents in excitable tissues by n-3 polyunsaturated fatty acids. J. Membr. Biol. 184, 263–271.
Leifert, W. R., Jahangiri, A., Saint, D. A., and McMurchie, E. J. (2000). Effects of dietary n-3 fatty acids on contractility, Na+ and K+ currents in a rat cardiomyocyte model of arrhythmia. J. Nutr. Biochem. 11, 382–392.
Leifert, W. R., McMurchie, E. J., and Saint, D. A. (1999). Inhibition of cardiac sodium currents in adult rat myocytes by n-3 polyunsaturated fatty acids. J. Physiol. (Lond.) 520(Pt 3), 671–679.
Li, G. R., Feng, J., Yue, L., Carrier, M., and Nattel, S. (1996). Evidence for two components of delayed rectifier K+ current in human ventricular myocytes. Circ. Res. 78, 689–696.
Li, G. R., Sun, H. Y., Zhang, X. H., Cheng, L. C., Chiu, S. W., Tse, H. F., and Lau, C. P. (2009). Omega-3 polyunsaturated fatty acids inhibit transient outward and ultra-rapid delayed rectifier K+currents and Na+current in human atrial myocytes. Cardiovasc. Res. 81, 286–293.
Li, Y. S., Wu, P., Zhou, X. Y., Chen, J. G., Cai, L., Wang, F., Xu, L. M., Zhang, X. L., Chen, Y., Liu, S. J., Huang, Y. P., and Ye, D. Y. (2008). Formyl-peptide receptor like 1: a potent mediator of the Ca2+ release-activated Ca2+ current ICRAC. Arch. Biochem. Biophys. 478, 110–118.
Lowe, J. S., Stroud, D. M., Yang, T., Hall, L., Atack, T. C., and Roden, D. M. (2012). Increased late sodium current contributes to long QT-related arrhythmia susceptibility in female mice. Cardiovasc. Res.. [Epub ahead of print]. doi:10.1093/cvr/cvs160.
Marchioli, R., Barzi, F., Bomba, E., Chieffo, C., Di, G. D., Di, M. R., Franzosi, M. G., Geraci, E., Levantesi, G., Maggioni, A. P., Mantini, L., Marfisi, R. M., Mastrogiuseppe, G., Mininni, N., Nicolosi, G. L., Santini, M., Schweiger, C., Tavazzi, L., Tognoni, G., Tucci, C., Valagussa, F., GISSI-Prevenzione Investigators. (2002). Early protection against sudden death by n-3 polyunsaturated fatty acids after myocardial infarction: time-course analysis of the results of the Gruppo Italiano per lo Studio della Sopravvivenza nell’Infarto Miocardico (GISSI)-Prevenzione. Circulation 105, 1897–1903.
Mariscalco, G., Sarzi, B. S., Banach, M., Borsani, P., Bruno, V. D., Napoleone, M., Vitale, C., Piffaretti, G., Pedretti, R. F., and Sala, A. (2010). Preoperative n-3 polyunsatured fatty acids are associated with a decrease in the incidence of early atrial fibrillation following cardiac surgery. Angiology 61, 643–650.
Mays, D. J., Foose, J. M., Philipson, L. H., and Tamkun, M. M. (1995). Localization of the Kv1.5 K+ channel protein in explanted cardiac tissue. J. Clin. Invest. 96, 282–292.
Members of the Sicilian Gambit. (2001). New approaches to antiarrhythmic therapy, part I: emerging therapeutic applications of the cell biology of cardiac arrhythmias. Circulation 104, 2865–2873.
Nau, C., Wang, S. Y., Strichartz, G. R., and Wang, G. K. (2000). Block of human heart hH1 sodium channels by the enantiomers of bupivacaine. Anesthesiology 93, 1022–1033.
Raitt, M. H., Connor, W. E., Morris, C., Kron, J., Halperin, B., Chugh, S. S., McClelland, J., Cook, J., MacMurdy, K., Swenson, R., Connor, S. L., Gerhard, G., Kraemer, D. F., Oseran, D., Marchant, C., Calhoun, D., Shnider, R., and McAnulty, J. (2005). Fish oil supplementation and risk of ventricular tachycardia and ventricular fibrillation in patients with implantable defibrillators: a randomized controlled trial. JAMA 293, 2884–2891.
Rauch, B., Schiele, R., Schneider, S., Diller, F., Victor, N., Gohlke, H., Gottwik, M., Steinbeck, G., Del, C. U., Sack, R., Worth, H., Katus, H., Spitzer, W., Sabin, G., Senges, J., OMEGA Study Group. (2010). OMEGA, a randomized, placebo-controlled trial to test the effect of highly purified omega-3 fatty acids on top of modern guideline-adjusted therapy after myocardial infarction. Circulation 122, 2152–2159.
Ravens, U., and Cerbai, E. (2008). Role of potassium currents in cardiac arrhythmias. Europace 10, 1133–1137.
Rosen, M. R., Schwartz, P. J., for Task Force of the Working Group on Arrhythmias of the European Society of Cardiology. (1991). The Sicilian Gambit. A new approach to the classification of antiarrhythmic drugs based on their actions on arrhythmogenic mechanism. Circulation 84, 1831–1851.
Sanguinetti, M. C., Jiang, C., Curran, M. E., and Keating, M. T. (1995). A mechanistic link between an inherited and an acquired cardiac arrhythmia: HERG encodes the IKr potassium channel. Cell 81, 299–307.
Sanguinetti, M. C., and Jurkiewicz, N. K. (1991). Delayed rectifier outward K+ current is composed of two currents in guinea pig atrial cells. Am. J. Physiol. 260, H393–H399.
Serhan, C. N., Yacoubian, S., and Yang, R. (2008). Anti-inflammatory and proresolving lipid mediators. Annu. Rev. Pathol. 3, 279–312.
Sinclair, H. M. (1953). The diet of Canadian Indian Eskimos. Proc. Nutr. Soc. 12, 69–82.
Sinclair, H. M. (1956). Deficiency of essential fatty acids and atherosclerosis, etcetera. Lancet 270, 381–383.
Snyders, D. J., Tamkun, M. M., and Bennett, P. B. (1993). A rapidly activating and slowly inactivating potassium channel cloned from human heart. Functional analysis after stable mammalian cell culture expression. J. Gen. Physiol. 101, 513–543.
Tamargo, J., Caballero, R., Gomez, R., Valenzuela, C., and Delpon, E. (2004). Pharmacology of cardiac potassium channels. Cardiovasc. Res. 62, 9–33.
Tanaka, K., Ishikawa, Y., Yokoyama, M., Origasa, H., Matsuzaki, M., Saito, Y., Matsuzawa, Y., Sasaki, J., Oikawa, S., Hishida, H., Itakura, H., Kita, T., Kitabatake, A., Nakaya, N., Sakata, T., Shimada, K., Shirato, K., and JELIS Investigators, Japan. (2008). Reduction in the recurrence of stroke by eicosapentaenoic acid for hypercholesterolemic patients: subanalysis of the JELIS trial. Stroke 39, 2052–2058.
Tavazzi, L., Maggioni, A. P., Marchioli, R., Barlera, S., Franzosi, M. G., Latini, R., Lucci, D., Nicolosi, G. L., Porcu, M., and Tognoni, G. (2008). Effect of n-3 polyunsaturated fatty acids in patients with chronic heart failure (the GISSI-HF trial): a randomised, double-blind, placebo-controlled trial. Lancet 372, 1223–1230.
Turk, H. F., and Chapkin, R. S. (2012). Membrane lipid raft organization is uniquely modified by n-3 polyunsaturated fatty acids. Prostaglandins Leukot. Essent. Fatty Acids.
Verkerk, A. O., van Ginneken, A. C., Berecki, G., Den Ruijter, H. M., Schumacher, C. A., Veldkamp, M. W., Baartscheer, A., Casini, S., Opthof, T., Hovenier, R., Fiolet, J. W., Zock, P. L., and Coronel, R. (2006). Incorporated sarcolemmal fish oil fatty acids shorten pig ventricular action potentials. Cardiovasc. Res. 70, 509–520.
Wang, Z., Fermini, B., and Nattel, S. (1993). Delayed rectifier outward current and repolarization in human atrial myocytes. Circ. Res. 73, 276–285.
Xiao, Y. F., Gomez, A. M., Morgan, J. P., Lederer, W. J., and Leaf, A. (1997). Suppression of voltage-gated L-type Ca2+ currents by polyunsaturated fatty acids in adult and neonatal rat ventricular myocytes. Proc. Natl. Acad. Sci. U.S.A. 94, 4182–4187.
Xiao, Y. F., Kang, J. X., Morgan, J. P., and Leaf, A. (1995). Blocking effects of polyunsaturated fatty acids on Na+ channels of neonatal rat ventricular myocytes. Proc. Natl. Acad. Sci. U.S.A. 92, 11000–11004.
Xiao, Y. F., Ke, Q., Wang, S. Y., Auktor, K., Yang, Y., Wang, G. K., Morgan, J. P., and Leaf, A. (2001). Single point mutations affect fatty acid block of human myocardial sodium channel alpha subunit Na+ channels. Proc. Natl. Acad. Sci. U.S.A. 98, 3606–3611.
Xiao, Y. F., Morgan, J. P., and Leaf, A. (2002). Effects of polyunsaturated fatty acids on cardiac voltage-activated K(+) currents in adult ferret cardiomyocytes. Sheng Li Xue Bao 54, 271–281.
Xiao, Y. F., Wright, S. N., Wang, G. K., Morgan, J. P., and Leaf, A. (1998). Fatty acids suppress voltage-gated Na+ currents in HEK293t cells transfected with the alpha-subunit of the human cardiac Na+ channel. Proc. Natl. Acad. Sci. U.S.A. 95, 2680–2685.
Xiao, Y. F., Wright, S. N., Wang, G. K., Morgan, J. P., and Leaf, A. (2000). Coexpression with beta(1)-subunit modifies the kinetics and fatty acid block of hH1(alpha) Na(+) channels. Am. J. Physiol. Heart Circ. Physiol. 279, H35–H46.
Keywords: n−3 PUFAs, atrial fibrillation, arrhythmias, heart failure
Citation: Moreno C, Macías Á, Prieto Á, de la Cruz A, González T and Valenzuela C (2012) Effects of n−3 polyunsaturated fatty acids on cardiac ion channels. Front. Physio. 3:245. doi: 10.3389/fphys.2012.00245
Received: 15 March 2012; Accepted: 14 June 2012;
Published online: 09 July 2012.
Edited by:George E. Billman, The Ohio State University, USA
Reviewed by:Ruben Coronel, Academic Medical Center Amsterdam, Netherlands
Hester M. Den Ruijter, University of Amsterdam, Netherlands
Copyright: © 2012 Moreno, Macías, Prieto, de la Cruz, González and Valenzuela. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits use, distribution and reproduction in other forums, provided the original authors and source are credited and subject to any copyright notices concerning any third-party graphics etc.
*Correspondence: Cristina Moreno and Carmen Valenzuela, Instituto de Investigaciones Biomédicas “Alberto Sols” (CSIC-UAM), Arturo Duperier 4, 28029 Madrid, Spain. e-mail: email@example.com; firstname.lastname@example.org
