Zebrafish: a novel research tool for cardiac (patho)electrophysiology and ion channel disorders
- 1Department of Anatomy, Embryology, and Physiology, Academic Medical Center, University of Amsterdam, Amsterdam, Netherlands
- 2Department of Experimental Cardiology, Academic Medical Center, University of Amsterdam, Amsterdam, Netherlands
The zebrafish is a cold-blooded tropical freshwater teleost with two-chamber heart morphology. A major advantage of the zebrafish for heart studies is that the embryo is transparent, allowing for easy assessment of heart development, heart rate analysis and phenotypic characterization. Moreover, rapid and effective gene-specific knockdown can be achieved using morpholino oligonucleotides. Lastly, zebrafish are small in size, are easy to maintain and house, grow fast, and have large offspring size, making them a cost-efficient research model. Zebrafish embryonic and adult heart rates as well as action potential (AP) shape and duration and electrocardiogram morphology closely resemble those of humans. However, whether the zebrafish is truly an attractive alternative model for human cardiac electrophysiology depends on the presence and gating properties of the various ion channels in the zebrafish heart, but studies into the latter are as yet limited. The rapid component of the delayed rectifier K+ current (IKr) remains the best characterized and validated ion current in zebrafish myocytes, and zebrafish may represent a valuable model to investigate human IKr channel-related disease, including long QT syndrome. Arguments against the use of zebrafish as model for human cardiac (patho)electrophysiology include its cold-bloodedness and two-chamber heart morphology, absence of t-tubuli, sarcoplamatic reticulum function, and a different profile of various depolarizing and repolarizing ion channels, including a limited Na+ current density. Based on the currently available literature, we propose that zebrafish may constitute a relevant research model for investigating ion channel disorders associated with abnormal repolarization, but may be less suitable for studying depolarization disorders or Ca2+-modulated arrhythmias.
To date, genetically modified mice have been predominantly used to investigate and model human cardiac diseases, including patho-electrophysiological conditions. Although mouse models have provided valuable insight into the role of many ion channels in healthy and diseased state, they also have limitations due to their intrinsic basal high heart rate and extremely fast and large phase-1 repolarization which results in a short action potential (AP) with a very negative plateau phase potential. Furthermore, in vivo investigation of mouse models often requires invasive imaging and monitoring techniques. Finally, generation and maintenance of mouse lines is time-consuming and expensive.
In the last decade, the zebrafish (Danio rerio), a tropical freshwater teleost, has been increasingly used for various human-related disease studies (Beis and Stainier, 2006; Williams, 2010). Despite its cold-bloodedness and two-chamber heart morphology, the zebrafish has been suggested as a useful model for studies of human heart development and cardiac (patho)electrophysiology. A major advantage of the zebrafish for heart studies is it that the embryo is transparent, allowing for easy assessment of heart development, heart rate analysis and phenotypic characterization by direct visual inspection (Baker et al., 1997; Bakkers, 2011). Furthermore, using optogenetics combined with transgenic expression of light-gated ion channels in zebrafish hearts, cardiac pacemaker cells can be located and quickly and reversibly activated and deactivated in various sub-compartments of the cardiac conduction system, enabling investigations into the effects of disturbed heart rhythms on cardiac performance (Arrenberg et al., 2010). An additional advantage is that an intact blood circulation is not required for proper function of fish embryos and hearts, since diffusion of nutrients is sufficient for their survival. Therefore, in vivo and ex vivo functional studies can be performed easily without complications due to nutritional deficiency or secondary deterioration (Baker et al., 1997; Peal et al., 2011). Moreover, rapid and effective gene-specific antisense knockdown using morpholino oligonucleotides allows for relatively quick in vivo functional characterization of the activity and function of genes of interest (Bedell et al., 2011). Lastly, zebrafish are small in size, are easy to maintain and house, grow fast, and have large offspring size, making them a cost-efficient research model.
Today, zebrafish whole heart electrical activity is routinely recorded using in vivo electrocardiography (ECG) (Leong et al., 2010). In addition, various non-invasive microscopic video analysis methods have been developed to determine heart rate (Chan et al., 2009; Yoshida et al., 2009), to quantify ventricular fractional shortening [a measure of systolic contractile function (Denvir et al., 2008; Fink et al., 2009)], and to analyse blood flow dynamics by tracking movement of erythrocytes or fluorescent molecules introduced into the circulation (Schwerte and Pelster, 2000; Hove et al., 2003). For assessment of cardiac conduction and excitability, Ca2+-sensitive fluorescent dyes (Ebert et al., 2005; Langenbacher et al., 2005; Milan et al., 2006) or a fluorescent Ca2+indicator transgene [Tg(cmlc2:gCaMP)] (Chi et al., 2008) can be used, and transmembrane APs may be evaluated using voltage-sensitive dyes (Panáková et al., 2010). Application of these voltage-sensitive dyes during so-called optical mapping may also enable detailed investigation of cardiac conduction velocity, activation patterns, and arrhythmias. These high resolution imaging techniques are powerful tools for the study of zebrafish physiology (Jou et al., 2010), but these methods require the complete absence of cardiac contraction. Jou and colleagues (Jou et al., 2010) found that the excitation-contraction uncoupler blebbistatin, but not butanedione monoxime (BDM), abolished contractility without significantly altering AP morphology or of spontaneous APs generation.
The zebrafish as model for studies into human heart development, heart regeneration, and human cardiomyopathy diseases has recently been reviewed in detail (Poss, 2007; Bakkers, 2011). The embryonic and adult zebrafish heart is proposed as an efficient platform for testing of drugs with potential electrophysiological effects on cardiomyocytes (Mittelstadt et al., 2008; Tsai et al., 2011) and for investigating human ion channel function in healthy and diseased state (Milan and Macrae, 2008). However, whether the zebrafish is truly an attractive alternative model for human cardiac electrophysiology depends on the presence and gating properties of the various ion channels in the zebrafish heart. Here we review the available data and literature addressing the suitability of the zebrafish as a research model for human cardiac electrophysiology.
ECG Parameters in Zebrafish
The zebrafish heart is a tubular structure with a single atrium and ventricle. Despite its two-chambered heart morphology, the ECG of the zebrafish is very similar to that of human. Basal heart rate of adult zebrafish is close to that of humans, with a frequency of 120–130 beats/min at 28°C (Barrionuevo and Burggren, 1999; Nemtsas et al., 2010; Tsai et al., 2011), which is the optimal water temperature for this tropical freshwater fish. The heart rate decreases at 25°C and increases at 31°C (Barrionuevo and Burggren, 1999). Pacemaker activity in the zebrafish heart starts in the sinoatrial node located at the sinus venosus (Sedmera et al., 2003). The AP propagates uniformly though the atria with average atrial activation times of ≈20 ms. After a delay of ≈50 ms due to slow propagation in the atrioventricular canal, the ventricle becomes activated first in the apical region. This similarity in propagation of the AP in zebrafish and human hearts mirrors the similarity of ECG morphology (Leong et al., 2010). Like human, zebrafish show a distinct P-wave, QRS-complex, and T-wave on ECG recording (Milan et al., 2006), suggesting that depolarization and repolarization in the zebrafish heart is comparable to that in humans (Leong et al., 2010). The mean QT interval and optically mapped ventricular AP duration is ≈300 ms as shown in Figure 1A (adapted from Tsai et al., 2011). Thus, the QTc interval is slightly shorter than that in humans. However, it must be noted that zebrafish ECG and AP values are obtained at lower temperatures as compared to human, and that human atrial and ventricular APs significantly prolong at lower temperatures (Amos et al., 1996).

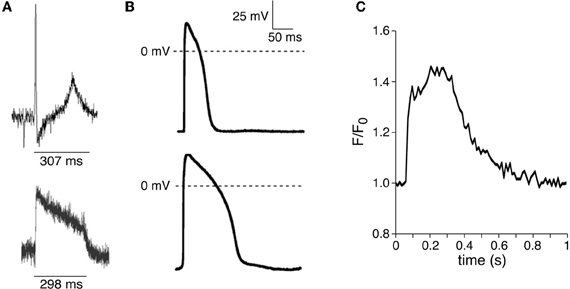

Figure 1. (A) Typical ECG recording (top) and optically mapped action potential (bottom) in adult zebrafish heart. Adapted from Tsai et al. (2011), with the permission of Elsevier. (B) Typical atrial (top) and ventricular (bottom) action potentials recorded from spontaneously beating intact zebrafish hearts. Adapted from Nemtsas et al. (2010), with the permission of Elsevier. (C) Typical intracellular Ca2+ transient measured within a Fluo-4-loaded isolated ventricular myocyte. Adapted from Zhang et al. (2011), with the permission of the American Physiological Society.
Cardiac APs of zebrafish may be recorded from the intact heart through use of micro-electrodes (Nemtsas et al., 2010), patch-clamp technology (Jou et al., 2010), and voltage-sensitive dyes (Panáková et al., 2010; Wythe et al., 2011). Nemtsas and colleagues (Nemtsas et al., 2010) recorded both atrial and ventricular monophasic APs from intact adult zebrafish hearts that were beating spontaneously at the physiological temperature of 28°C (see Figure 1B for typical examples). They observed a rapid AP upstroke in zebrafish myocardium, but the maximum AP upstroke velocity was substantially lower in zebrafish atria and ventricle than in human and mouse myocardium. The resting membrane potential was similar in zebrafish and human, indicating that the differences in upstroke velocity between species were not due to differences in Na+ channel availability. In zebrafish, the AP upstroke was followed by a long-lasting plateau phase that was shorter in atrial than in ventricular tissue, and ended with a phase of rapid terminal repolarization. APs from excised hearts from 48 hours-old zebrafish larvaes displayed similar long-lasting plateau phases, with shorter atrial APs compared to ventricular (Jou et al., 2010; Wythe et al., 2011). In human, atrial and ventricular AP also have a prominent plateau phase with a shorter AP in atria (Koumi et al., 1995; Amos et al., 1996). Nemtsas et al. (2010) concluded that the overall shape of the adult ventricular zebrafish AP is comparable to that of the human heart, and that human APs appear more similar to zebrafish APs than mouse APs. It must be kept in mind, however, that in large mammals (such as human) AP morphology is heterogeneous within both atria and ventricle, and between left and right sides of the heart (see Beuckelmann et al., 1993; Wang et al., 1993; Bénardeau et al., 1996; Näbauer et al., 1996; Gong et al., 2008; Verkerk et al., 2009b; Verkerk et al., and primary references cited therein).
For recording of cardiac APs in isolated cardiomyocytes, Ca2+ tolerant cells need to be isolated through enzymatic dissociation (Brette et al., 2008; Nemtsas et al., 2010; Zhang et al., 2011). Isolated ventricular (Brette et al., 2008) and atrial (Figure 2A) zebrafish myocytes appear rod-shaped, but it is evident from Figure 2A that the zebrafish myocyte is quite narrow compared to that of the human myocyte. It has previously been estimated that freshly isolated ventricular zebrafish myocytes are ≈100 by ≈5 by ≈6 μm in size (length × width × height; Brette et al., 2008). These morphological characteristics of zebrafish myocytes are in contrast with findings in human, where myocytes are much wider. The smaller size of zebrafish myocytes is also evident from their much smaller membrane capacitance. Zebrafish atrial and ventricular myocyte capacitance is ≈26 and ≈30 pF, respectively (Nemtsas et al., 2010), while that of human is ≈90–150 pF (Amos et al., 1996; Verkerk et al., 2007) and ≈165–285 pF (Amos et al., 1996; Li et al., 1998), respectively. It is likely that due to the more narrow shape of the zebrafish myocyte, the relative amount of intercalated disc area is also lower. In mammalian myocytes, intercalated discs, important for AP propagation, are not only found at the cell ends, but also along the lateral sides of the myocyte (Peters et al., 1993). The narrow shape of the zebrafish myocytes may thus influence impulse propagation importantly, but further studies are needed to address this topic in detail.

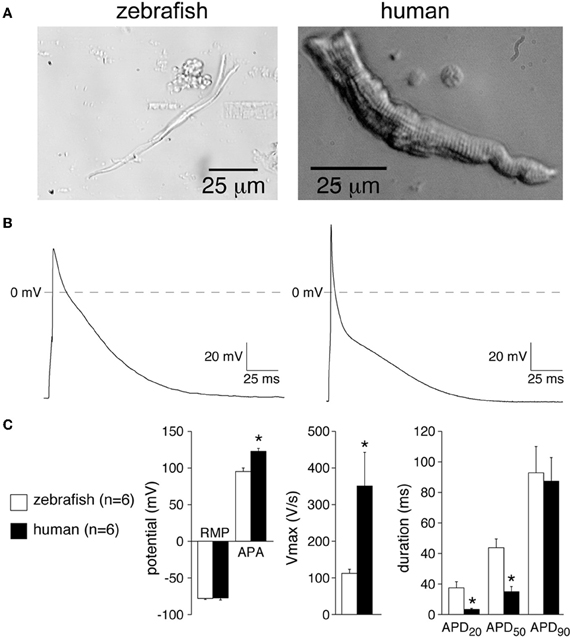

Figure 2. (A) Photographs of atrial myocytes of zebrafish and human enzymatically isolated as described in detail previously (Verkerk et al., 2009a), except that the isolation temperature in the zebrafish procedure was decreased to 28°C. (B) Typical action potentials (APs) of a single zebrafish and human atrial myocyte measured at 1 Hz. Zebrafish and human atrial APs were recorded at 28 and 36°C, respectively [See Verkerk et al., 2009a (zebrafish) and Verkerk et al., 2007 (human) for solutions used]. (C) Average AP characteristics of zebrafish and human atrial myocyte recorded at 1 Hz. RMP, resting membrane potential; APA, AP amplitude; Vmax, maximal AP upstroke velocity; APD20, APD50, and APD90, AP duration at 20, 50, and 90% repolarization, respectively. Values are mean ± SEM; *P < 0.05 (t-test).
By patch-clamp analysis, it has been demonstrated that freshly isolated atrial (Figures 2B,C) and ventricular (Brette et al., 2008) myocytes of adult zebrafish display APs with a clear plateau phase. Figure 2B shows typical atrial APs of a zebrafish and human myocyte recorded at 1 Hz; average AP characteristics are summarized in Figure 2C. Compared to human, zebrafish myocytes display a slower AP upstroke velocity resulting in a lower AP amplitude. Zebrafish AP duration during the early phases of repolarization appear longer than in human, but the AP durations at 90% repolarization (APD90) are similar (Figure 2C). In isolated ventricular myocytes of adult zebrafish, APD90 is ≈150 ms at 0.1 Hz, and it decreases at higher stimulus frequencies. While the frequency dependency is similar to findings in isolated human atrial and ventricular myocytes (Le Grand et al., 1994; Li et al., 2004), the AP duration in single ventricular zebrafish myocytes is much shorter than in isolated human ventricular myocytes (O'Hara et al., 2011).
Thus, embryonic and adult ventricular myocytes of zebrafish show APs with a clear plateau phase and an AP configuration closely resembling that of ventricular myocytes of large mammals, notably human. However, not the AP configuration itself, but the underlying membrane currents will determine whether the zebrafish is suitable as a model for human cardiac electrophysiology.
Using patch-clamp analysis and specific ion channel blockers, the presence and function of various inward and outwardly directed membrane currents have previously been investigated in zebrafish cardiomyocytes.
Two orthologs of the cardiac Na+ channel have been identified in zebrafish (scn5Laa and scn5Lab), which both encode and form typical voltage-gated Na+ channels/currents (Novak et al., 2006; Chopra et al., 2010). Furthermore, a Na+ current (INa) has been observed in both cultured embryonic and freshly isolated adult zebrafish myocytes (Baker et al., 1997; Warren et al., 2001). In single adult atrial myocytes, INa has a more negative voltage-dependency of inactivation as compared to single adult ventricular myocytes (Warren et al., 2001). Similarly, INa displays distinct biophysical properties in atrial versus ventricular myocytes in mammalians, with again a more negative voltage-dependency of inactivation (Burashnikov et al., 2007). According to studies by Warren and colleagues (Warren et al., 2001), zebrafish cardiomyocyte INa density may be up to 4-fold smaller than in mammalian cardiac myocytes, which likely explains the slower AP upstroke velocity found in zebrafish (Nemtsas et al., 2010). Consistent with the importance of INa in determining AP upstroke (Berecki et al., 2010; and primary refs cited therein), the INa blocker tetrodotoxin (100 nM) substantially reduced both atrial and ventricular AP upstroke velocity in intact adult hearts (Nemtsas et al., 2010). In contrast, AP duration was not affected by tetrodotoxin, suggesting that a sustained (non-inactivating) INa is not present under normal conditions. Thus, although similarities with human INa exists, the limited INa density and consequent slow AP upstroke velocity in zebrafish may render it less suitable as research model for depolarization disorders.
It has been demonstrated that cultured embryonic and adult freshly isolated zebrafish myocytes display both the T-type and L-type Ca2+ current (ICa,T and ICa,L, respectively) (Baker et al., 1997; Nemtsas et al., 2010). In isolated atrial and ventricular myocytes of adult zebrafish, ICa,L showed a typical bell-shaped current-voltage (I-V) relationship with a maximum around 0 mV (Brette et al., 2008; Nemtsas et al., 2010; Zhang et al., 2011). In adult zebrafish, the ICa,L blocker nifedipine significantly shortened the plateau phase and consequently the AP duration in both atria and ventricles (Nemtsas et al., 2010). The ICa,L activator BayK8644 prolonged QTc interval in a dose-dependent manner (Tsai et al., 2011). These experiments demonstrate that the requirement of ICa,L for shaping AP duration is conserved between zebrafish and mammals (Nemtsas et al., 2010). The presence of ICa,T in zebrafish myocytes contrasts with findings in adult human working myocardium (Ono and Iijima, 2005). The effects of ICa,T blockers on zebrafish AP configuration has not yet been investigated, and the functional relevance of ICa,T in zebrafish myocytes thus remains unclear.
Patch-clamp experiments and drug studies have indicated the presence of various K+ currents in both cultured and freshly isolated zebrafish myocytes.
Rapid component of the delayed rectifier K+ current (IKr)
IKr has been observed in both cultured embryonic (Baker et al., 1997) and adult freshly isolated myocytes from zebrafish (Nemtsas et al., 2010). In adult hearts, the IKr blocker E4031 prolonged zebrafish atrial and ventricular APs (Nemtsas et al., 2010) and QTc interval in a dose-dependent manner (Tsai et al., 2011). These observations are in agreement with findings in humans (Jost et al., 2005). In addition, E4031 decreased heart rate, suggesting a role for IKr in zebrafish pacemaker formation (Tsai et al., 2011), consistent with findings in mammalian studies (Ono and Ito, 1995)
Scholz et al. (2009) analyzed in Xenopus oocytes the biophysical properties of heterologously expressed cloned zebrafish orthologue (zERG) of the human ether-à-go-go-related gene hERG, encoding the pore-forming subunit of IKr. zERG conduct rapidly activating and inactivating K+ currents. However, compared to hERG, the half-maximal activation voltage of zERG is shifted toward more positive potentials and the half-maximal steady-state inactivation voltage is shifted toward more negative potentials. zERG activation is slowed while deactivation is accelerated significantly, but the time course of zERG during AP clamp experiments is highly similar to that of hERG. Therefore, the authors concluded that zebrafish represent a valuable model to investigate human IKr channel-related diseases (Scholz et al., 2009). Indeed, a number of studies have applied zebrafish for investigations into human syndromes associated with both loss and gain of IKr (see below).
Slow component of the delayed rectifier K+ current (IKs)
In their voltage clamp experiments on isolated adult myocytes, Nemtsas et al. (2010) observed no effect of the IKs blocker HMR1556 on membrane currents, suggesting that IKs is absent in zebrafish myocytes. During AP measurements in intact zebrafish hearts, they observed an unexpected prolongation of AP duration by HMR1556 due to a reduction in ICa,T (Nemtsas et al., 2010). In contrast, Tsai et al. (2011) mentioned expression of the KCNQ1 transcript (which underlies part of IKs) in zebrafish myocardium, and found that the IKs blocker chromanol 293B prolonged both QTc interval and AP duration in a dose-dependent manner in isolated adult zebrafish hearts. In addition, chromanol 293B was also able to decrease heart rate in this study (Tsai et al., 2011). In human ventricular myocytes, IKs is present but IKs blockade only results in significant AP prolongation when the “repolarization reserve” is attenuated or under conditions of sympathetic activation (Jost et al., 2005). Clearly, further studies are needed to elucidate the contrasting findings of IKs blockade on the zebrafish AP.
Ultrarapid component of the delayed rectifier K+ current (IKur)
Baker et al. (1997) mentioned as “unpublished work” the presence of a K+ current with the properties of IKur in cultured embryonic zebrafish myocytes. However, no other studies have as yet provided evidence of IKur in zebrafish myocytes. IKur and IKur-related channel proteins are absent/small in human ventricular myocytes, but is the major repolarizing current in atrial myocytes (Amos et al., 1996; Wettwer et al., 2004; Ordög et al., 2006). Additional studies are thus required to address the presence and function of IKur in zebrafish myocytes.
Inward rectifier K+ current (IK1)
Nemtsas et al. (2010) measured IK1 during depolarizing ramp pulses as Ba2+ sensitive current. IK1 was observed in both isolated adult atrial and ventricular myocytes, but IK1 was ≈5 times larger in ventricular myocytes. These observations are consistent with findings in mammals (Koumi et al., 1995; Amos et al., 1996; Panama et al., 2007). IK1 regulates the late phase of AP repolarization and stabilizes the resting membrane potential, thus atria of zebrafish hearts may be more susceptible to diastolic depolarization compared to ventricle. Indeed, diastolic depolarization is observed in atria, but not in the ventricle, of intact zebrafish embryonic hearts (Jou et al., 2010).
Transient outward K+ current (Ito1)
Again, the presence of a K+ current with the properties of Ito1 in cultured embryonic zebrafish myocytes has so far only been mentioned as “unpublished work” by Baker et al. (1997), and no other studies have provided evidence of Ito1 in zebrafish myocytes. Since Ito1 is a prominent current determining human atrial and ventricular AP morphology (Shibata et al., 1989; Amos et al., 1996), further studies are essential to investigate the presence and function of this current in zebrafish heart.
Acetylcholine-activated K+ current (IK,ACh)
In intact adult zebrafish hearts, atrial but not ventricular APs are abbreviated upon exposure to carbachol, an agonist for IK,ACh (Nemtsas et al., 2010). Thus, atrial myocytes of zebrafish display functional IK,ACh in agreement with findings in human (Dobrev et al., 2001). In human, acetylcholine activates IK,AChin both atrial and ventricular myocytes, with however a three-times smaller current and a greater half-maximal stimulation concentration in atrial myocytes (Koumi and Wasserstrom, 1994). Additional detailed studies in zebrafish are required to excluded the presence of IK,ACh in zebrafish ventricular myocytes.
Hyperpolarization-Activated “Funny” Current
Patch-clamp analysis of cultured myocytes from zebrafish embryos (Baker et al., 1997) and isolated adult myocytes (Warren et al., 2001) reveals the prominent presence of the hyperpolarization-activated “funny” current (If), also known as the pacemaker current (Ih). In adult zebrafish myocytes, If has chamber-specific properties, i.e., the atrial If density is larger than the ventricular If density (Warren et al., 2001). The clear presence of If in atrial and ventricular zebrafish myocytes contrasts with findings in human, where If is mainly found in cells of the conduction system (Han et al., 2002; Verkerk et al., 2007), is small in atrial myocytes (Hoppe and Beuckelmann, 1998), and only observed in ventricular myocytes during pathophysiological conditions such as heart failure (Cerbai et al., 2001). Nevertheless, a functional role for If in sinoatrial pacemaking and heart rate regulation has also been described in zebrafish (see below; Baker et al., 1997; Warren et al., 2001).
Na+-Ca2+ Exchange Current (INCX)
Patch-clamp analysis of the Na+-Ca2+ exchange current (INCX) has not yet been performed in zebrafish myocytes. However, Langenbacher et al. (2005) have reported the presence of a NCX1 zebrafish homologue (i.e., NCX1h) in the heart of zebrafish, and knockdown studies indicate a functional role for NCX1 in maintaining normal Ca2+ homeostasis in the zebrafish heart, as discussed below.
The zebrafish heart displays clearly visible contractions and these are frequently used to assess the beating rate of the whole heart. Isolated myocytes of adult zebrafish show clear cross-striations, indicating the presence of sarcomeres (Brette et al., 2008; Nemtsas et al., 2010), but zebrafish ventricular myocytes lack t-tubules (Brette et al., 2008). The latter observation contrasts with ventricular myocytes from mammals. It is thought that t-tubules allow the excitation wave to spread from the cell surface deep into the muscle fibers for efficient release of Ca2+ from the sarcoplasmic reticulum (SR) (for review, see Brette and Orchard, 2003). The lack of t-tubules thus may have consequences for Ca2+ transients, but it is also possible that due to the small diameter of the zebrafish myocytes, t-tubules are not required.
Experimentally, Ca2+ transients can be visualized and measured in both single adult myocytes (Zhang et al., 2011) and whole embryonic hearts (Jou et al., 2010). Figure 1C shows a typical example of a Ca2+ transient recorded in an isolated ventricular myocyte (Figure adapted from (Zhang et al., 2011)). In the intact embryonic heart, Ca2+ transients are shorter in atria then in ventricle, and this correlates with the time course of atrial and ventricular APs (Jou et al., 2010; Nemtsas et al., 2010; Wythe et al., 2011). The exact pattern and mechanisms of excitation-contraction coupling in zebrafish myocytes has not yet been studied in detail. In the mammalian myocardium, Ca2+ released from the SR is the main source for generating Ca2+ transients. Compared to mammals, however, the SR in lower vertebrates is underdeveloped, has a lower ability to store and release Ca2+, and has less importance in excitation-contraction coupling [see Xie et al. (2008), and primary refs cited therein]. To assess the role of SR function in generating Ca2+ transients in zebrafish myocytes, Xie and colleagues (2008) recorded Ca2+ transients before and after the addition of caffeine in embryonic hearts. The caffeine-induced depletion of SR Ca2+ increased diastolic Ca2+ levels, as well as Ca2+ transient amplitudes. However, caffeine did not halt the repetitive Ca2+ transients, implying that Ca2+ entry across the sarcolemmal membrane is sufficient for a relatively synchronous and uniform rise in whole cell intracellular Ca2+ concentration. These data thus indicate the presence of a functional SR in zebrafish myocytes, although the effects of caffeine were relatively modest. More recently, Zhang and co-workers (Zhang et al., 2011) performed simultaneous recordings of ICa,L, intracellular Ca2+, and/or measurements of cell shortening in adult zebrafish myocytes. Their findings suggest that ICa,L is the major contributor to the activation of contraction at membrane voltages below 10 mV, whereas the contribution of reversed Na+-Ca2+ exchange becomes increasingly more important at membrane potentials above 10 mV. Crucially, the apparent lesser importance of the SR for excitation-contraction coupling may also make zebrafish myocytes less susceptible to the occurrence of Ca2+ aftertransients and subsequent delayed afterdepolarizations. Indeed, morpholino-mediated knockdown of Serca2-activity caused embryonic lethality in zebrafish embryos due to defects in cardiac contractility and morphology, but no arrhythmias were observed (Ebert et al., 2005). Thus, zebrafish may not be ideal for investigations into Ca2+-modulated arrhythmias, including catecholaminergic polymorphic ventricular tachycardias.
Zebrafish Models of Cardiac (Patho)Electrophysiology
Several studies have investigated the functional effects of altered gene expression of ion channel genes in zebrafish hearts. These mutations were either spontaneously occurring or were identified from large mutagenesis screens or generated through targeted specific knockdown of the gene in question.
Na+ Channels and Cardiac Development
Antisense morpholino knockdown of either of the two cardiac Na+ channel orthologs identified in zebrafish (scn5Laa and scn5Lab) has been shown to severely disrupt early cardiac development in zebrafish (Chopra et al., 2010). Interestingly, pharmacological Na+ current blockade did not affect cardiac morphology, suggesting a possible structural role for Na+ channels in heart development (Chopra et al., 2010). Similarly, knockdown of brain-type Na+ channel ∝- and ß-subunits affects nervous system and motoneuron development in embryonic zebrafish (Pineda et al., 2006; Fein et al., 2008).
ERG or KCNH2 Related Models
Langheinrich and co-workers studied zERG encoding the pore-forming subunit of IKr in zebrafish (Langheinrich et al., 2003). Morpholino antisense oligonucleotides targeting zERG as well as pharmacological inhibition of zERG both elicited dose-dependent bradycardia and arrhythmia in zebrafish embryos, including atrioventricular 2:1 block. Moreover, they identified a mutation in a regulatory domain of the zERG channel in the previously identified breakdance mutant (bre), which is also characterized by a 2:1 atrioventricular block (Chen et al., 1996; Langheinrich et al., 2003). The authors concluded that zebrafish are useful for studying ERG function and modulation, and may also be suitable for testing potential QT prolongating effect of drugs. Similary, Arnaout et al. (2007) investigated two recessive Kcnh2 zebrafish mutants identified with ventricular asystole. Both Kcnh2 mutations encoded non-functional IKr channels, and Kcnh2 mutant zebrafish embryos displayed ventricular AP prolongation, QT interval prolongation, and increased sensitivity to QT prolonging drugs, thus constituting a potential research model for human long QT syndrome (Arnaout et al., 2007). In contrast, the reggae mutation (reg) was found to reside within the voltage sensor of zERG and caused a gain-of-function of IKr due to defective channel inactivation (Hassel et al., 2008). Accordingly, reg mutant adult zebrafish displayed shortened QT intervals, and this mutation has been proposed as a relevant research model for human short QT syndrome type 1 (SQT1; Hassel et al., 2008).
L-Type Ca2+ Channels and Cardiac Proliferation
One of the first zebrafish mutants displaying a clear cardiac phenotype was island beat (isl), which presented with a silent and non-contractile ventricle and an asynchronously beating atrium resembling atrial fibrillation (Rottbauer et al., 2001). The Isl locus was subsequently found to encode the cardiac L-type Ca2+ channel. Interestingly, the atrium of Isl mutants was structurally normal, but the ventricle was small and contained relatively few cardiomyocytes. These findings indicate a possible uncharacterized role for L-type Ca2+ channels in cardiac proliferation (Rottbauer et al., 2001).
The Slow Mo Gene
A spontaneous mutation in this gene was identified in a particular strain of zebrafish, and it was found that adult zebrafish with a homozygous mutation in the slow mo gene were bradycardic (Baker et al., 1997). Through patch-clamp analysis, it was revealed that most cardiac ion currents, including Na+, K+, and Ca2+ currents were unaffected by the recessive slow mo mutation. In contrast, it became apparent that the If was defective (Baker et al., 1997; Warren et al., 2001). Although the exact underlying genetic defect remains unknown, these studies in slow mo mutants clearly indicate a functional role for If in zebrafish sinoatrial pacemaker formation.
Na+-Ca2+ Exchanger and Rhythmicity
Langenbacher et al. (2005) reported the presence of a NCX1 homologue (NCX1h) in the atrial and ventricular myocardium of zebrafish. Using morpholino knockdown assay and positional cloning of the zebrafish tremblor (tre) locus, the authors demonstrated that defective NCX1h activity results in chaotic cardiac movements and dys-synchronized cardiac contractions due to abnormal Ca2+ transients (Langenbacher et al., 2005). Another study on tre mutants demonstrated dysregulation of atrial rhythmicity (including fibrillation), a silent ventricle, and severe disruptions in sarcomere assembly (Ebert et al., 2005). Results from these studies thus indicate that NCX1h is required for normal development and rhythmicity in the zebrafish heart.
Zebrafish embryonic and adult heart rates as well as AP and ECG morphology closely resemble those of humans. However, whether the zebrafish is truly an attractive alternative model for human cardiac electrophysiology depends on the presence and gating properties of the various ion channels in the zebrafish heart. The rapid component of the delayed rectifier potassium current (IKr) remains the best characterized and validated ion current in zebrafish myocytes, and zebrafish may represent a valuable model to investigate human IKr channel-related disease, including long and short QT syndromes. Arguments against the use of zebrafish as model for human cardiac (patho)electrophysiology include its cold-bloodedness and two-chamber heart morphology, absence of t-tubuli, limited SR function, presence of ICa,T and If, absence of Ito1 and IKur, and lowINa density. Based on the currently available literature, we propose that the zebrafish may constitute a relevant research model for investigating ion channel disorders associated with abnormal repolarization, but may be less suitable for studying depolarization disorders or Ca2+-modulated arrhythmias.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
This work was supported by the InterUniversity Cardiology Institute of the Netherlands (ICIN; 061.02) and the Division for Earth and Life Sciences (ALW) with financial aid from the Netherlands Organization for Scientific Research (NWO; 836.09.003).
Amos, G. J., Wettwer, E., Metzger, F., Li, Q., Himmel, H. M., and Ravens, U. (1996). Differences between outward currents of human atrial and subepicardial ventricular myocytes. J. Physiol. 491, 31–50.
Arnaout, R., Ferrer, T., Huisken, J., Spitzer, K., Stainier, D. Y., Tristani-Firouzi, M., and Chi, N. C. (2007). Zebrafish model for human long QT syndrome. Proc. Natl. Acad. Sci. U.S.A. 104, 11316–11321.
Bénardeau, A., Hatem, S. N., Rücker-Martin, C., Le Grand, B., Macé, L., Dervanian, P., Mercadier, J.-J., and Coraboeuf, E. (1996). Contribution of Na+/Ca2+ exchange to action potential of human atrial myocytes. Am. J. Physiol. 271, H1151–H1161.
Berecki, G., Wilders, R., de Jonge, B., van Ginneken, A. C., and Verkerk, A. O. (2010). Re-evaluation of the action potential upstroke velocity as a measure of the Na+ current in cardiac myocytes at physiological conditions. PLoS ONE 5:e15772. doi: 10.1371/journal.pone.0015772
Brette, F., Luxan, G., Cros, C., Dixey, H., Wilson, C., and Shiels, H. A. (2008). Characterization of isolated ventricular myocytes from adult zebrafish (Danio rerio). Biochem. Biophys. Res. Commun. 374, 143–146.
Burashnikov, A., Di Diego, J. M., Zygmunt, A. C., Belardinelli, L., and Antzelevitch, C. (2007). Atrium-selective sodium channel block as a strategy for suppression of atrial fibrillation: differences in sodium channel inactivation between atria and ventricles and the role of ranolazine. Circulation 116, 1449–1457.
Cerbai, E., Sartiani, L., DePaoli, P., Pino, R., Maccherini, M., Bizzarri, F., DiCiolla, F., Davoli, G., Sani, G., and Mugelli, A. (2001). The properties of the pacemaker current If in human ventricular myocytes are modulated by cardiac disease. J. Mol. Cell. Cardiol. 33, 441–448.
Chen, J. N., Haffter, P., Odenthal, J., Vogelsang, E., Brand, M., van Eeden, F. J., Furutani-Seiki, M., Granato, M., Hammerschmidt, M., Heisenberg, C. P., Jiang, Y. J., Kane, D. A., Kelsh, R. N., Mullins, M. C., and Nüsslein-Volhard, C. (1996). Mutations affecting the cardiovascular system and other internal organs in zebrafish. Development 123, 293–302.
Chi, N. C., Shaw, R. M., Jungblut, B., Huisken, J., Ferrer, T., Arnaout, R., Scott, I., Beis, D., Xiao, T., Baier, H., Jan, L. Y., Tristani-Firouzi, M., and Stainier, D. Y. (2008). Genetic and physiologic dissection of the vertebrate cardiac conduction system. PLoS Biol. 6:e109. doi: 10.1371/journal.pbio.0060109
Chopra, S. S., Stroud, D. M., Watanabe, H., Bennett, J. S., Burns, C. G., Wells, K. S., Yang, T., Zhong, T. P., and Roden, D. M. (2010). Voltage-gated sodium channels are required for heart development in zebrafish. Circ. Res. 106, 1342–1350.
Dobrev, D., Graf, E., Wettwer, E., Himmel, H. M., Hála, O., Doerfel, C., Christ, T., Schüler, S., and Ravens, U. (2001). Molecular basis of downregulation of G-protein-coupled inward rectifying K+ current (IK, ACh) in chronic human atrial fibrillation: decrease in GIRK4 mRNA correlates with reduced IK, ACh and muscarinic receptor-mediated shortening of action potentials. Circulation 104, 2551–2557.
Ebert, A. M., Hume, G. L., Warren, K. S., Cook, N. P., Burns, C. G., Mohideen, M. A., Siegal, G., Yelon, D., Fishman, M. C., and Garrity, D. M. (2005). Calcium extrusion is critical for cardiac morphogenesis and rhythm in embryonic zebrafish hearts. Proc. Natl. Acad. Sci. U.S.A. 102, 17705–17710.
Fein, A. J., Wright, M. A., Slat, E. A., Ribera, A. B., and Isom, L. L. (2008). Scn1bb, a zebrafish ortholog of SCN1B expressed in excitable and nonexcitable cells, affects motor neuron axon morphology and touch sensitivity. J. Neurosci. 28, 12510–12522.
Fink, M., Callol-Massot, C., Chu, A., Ruiz-Lozano, P., Izpisua Belmonte, J. C., Giles, W., Bodmer, R., and Ocorr, K. (2009). A new method for detection and quantification of heartbeat parameters in Drosophila, zebrafish, and embryonic mouse hearts. Biotechniques 46, 101–113.
Gong, D., Zhang, Y., Cai, B., Meng, Q., Jiang, S., Li, X., Shan, L., Liu, Y., Qiao, G., Lu, Y., and Yang, B. (2008). Characterization and comparison of Na+, K+ and Ca2+ currents between myocytes from human atrial right appendage and atrial septum. Cell. Physiol. Biochem. 21, 385–394.
Hassel, D., Scholz, E. P., Trano, N., Friedrich, O., Just, S., Meder, B., Weiss, D. L., Zitron, E., Marquart, S., Vogel, B., Karle, C. A., Seemann, G., Fishman, M. C., Katus, H. A., and Rottbauer, W. (2008). Deficient zebrafish ether-à-go-go-related gene channel gating causes short-QT syndrome in zebrafish reggae mutants. Circulation 117, 866–875.
Hove, J. R., Köster, R. W., Forouhar, A. S., Acevedo-Bolton, G., Fraser, S. E., and Gharib, M. (2003). Intracardiac fluid forces are an essential epigenetic factor for embryonic cardiogenesis. Nature 421, 172–177.
Jost, N., Virág, L., Bitay, M., Takács, J., Lengyel, C., Biliczki, P., Nagy, Z., Bogáts, G., Lathrop, D. A., Papp, J. G., and Varró, A. (2005). Restricting excessive cardiac action potential and QT prolongation: a vital role for IKs in human ventricular muscle. Circulation 112, 1392–1399.
Jou, C. J., Spitzer2 Spitzer, K. W., and Tristani-Firouzi, M. (2010). Blebbistatin effectively uncouples the excitation-contraction process in zebrafish embryonic heart. Cell. Physiol. Biochem. 25, 419–424.
Koumi, S.-I., Backer, C. L., and Arentzen, C. E. (1995). Characterization of inwardly rectifying K+ channel in human cardiac myocytes. Alterations in channel behavior in myocytes isolated from patients with idiopathic dilated cardiomyopathy. Circulation 92, 164–174.
Langenbacher, A. D., Dong, Y., Shu, X., Choi, J., Nicoll, D. A., Goldhaber, J. I., Philipson, K. D., and Chen, J. N. (2005). Mutation in sodium-calcium exchanger 1 (NCX1) causes cardiac fibrillation in zebrafish. Proc. Natl. Acad. Sci. U.S.A. 102, 17699–17704.
Langheinrich, U., Vacun, G., and Wagner, T. (2003). Zebrafish embryos express an orthologue of HERG and are sensitive toward a range of QT-prolonging drugs inducing severe arrhythmia. Toxicol. Appl. Pharmacol. 193, 370–382.
Leong, I. U., Skinner, J. R., Shelling, A. N., and Love, D. R. (2010). Zebrafish as a model for long QT syndrome: the evidence and the means of manipulating zebrafish gene expression. Acta Physiol. (Oxf.) 199, 257–276.
Li, G.-R., Lau, C.-P., Leung, T.-K., and Nattel, S. (2004). Ionic current abnormalities associated with prolonged action potentials in cardiomyocytes from diseased human right ventricles. Heart Rhythm 1, 460–468.
Milan, D. J., Jones, I. L., Ellinor, P. T., and MacRae, C. A. (2006). In vivo recording of adult zebrafish electrocardiogram and assessment of drug-induced QT prolongation. Am. J. Physiol. Heart Circ. Physiol. 291, H269–H273.
Näbauer, M., Beuckelmann, D. J., Überfuhr, P., and Steinbeck, G. (1996). Regional differences in current density and rate-dependent properties of the transient outward current in subepicardial and subendocardial myocytes of human left ventricle. Circulation 93, 168–177.
O'Hara, T., Virág, L., Varró, A., and Rudy, Y. (2011). Simulation of the undiseased human cardiac ventricular action potential: model formulation and experimental validation. PLoS Comput. Biol. 7:e1002061. doi: 10.1371/journal.pcbi.1002061
Ordög, B., Brutyó, E., Puskás, L. G., Papp, J. G., Varró, A., Szabad, J., and Boldogkói, Z. (2006). Gene expression profiling of human cardiac potassium and sodium channels. Int. J. Cardiol. 111, 386–393.
Peters, N. S., Green, C. R., Poole-Wilson, P. A., and Severs, N. J. (1993). Reduced content of connexin43 gap junctions in ventricular myocardium from hypertrophied and ischemic human hearts. Circulation 88, 864–875.
Pineda, R. H., Svoboda, K. R., Wright, M. A., Taylor, A. D., Novak, A. E., Gamse, J. T., Eisen, J. S., and Ribera, A. B. (2006). Knockdown of Nav1.6a Na+ channels affects zebrafish motoneuron development. Development 133, 3827–3836.
Rottbauer, W., Baker, K., Wo, Z. G., Mohideen, M. A., Cantiello, H. F., and Fishman, M. C. (2001). Growth and function of the embryonic heart depend upon the cardiac-specific L-type calcium channel alpha1 subunit. Dev. Cell 1, 265–275.
Scholz, E. P., Niemer, N., Hassel, D., Zitron, E., Bürgers, H. F., Bloehs, R., Seyler, C., Scherer, D., Thomas, D., Kathöfer, S., Katus, H. A., Rottbauer, W. A., and Karle, C. A. (2009). Biophysical properties of zebrafish ether-à-go-go related gene potassium channels. Biochem. Biophys. Res. Commun. 381, 159–164.
Sedmera, D., Reckova, M., de Almeida, A., Sedmerova, M., Biermann, M., Volejnik, J., Sarre, A., Raddatz, E., McCarthy, R. A., Gourdie, R. G., and Thompson, R. P. (2003). Functional and morphological evidence for a ventricular conduction system in zebrafish and Xenopus hearts. Am. J. Physiol. Heart Circ. Physiol. 284, H1152–H1160.
Tsai, C.-T., Wu, C.-K., Chiang, F.-T., Tseng, C.-D., Lee, J.-K., Yu, C.-C., Wang, Y.-C., Lai, L.-P., Lin, J.-L., and Hwang, J.-J. (2011). In-vitro recording of adult zebrafish heart electrocardiogram – A platform for pharmacological testing. Clin. Chim. Acta 412, 1963–1967.
Verkerk, A. O., den Ruijter, H. M., Bourier, J., Boukens, B. J., Brouwer, I. A., Wilders, R., and Coronel, R. (2009a). Dietary fish oil reduces pacemaker current and heart rate in rabbit. Heart Rhythm 6, 1485–1492.
Verkerk, A. O., den Ruijter, H. M., de Jonge, N., and Coronel, R. (2009b). Fish oil curtails the human action potential dome in a heterogeneous manner: implication for arrhythmogenesis. Int. J. Cardiol. 132, 138–140.
Verkerk, A. O., Wilders, R., van Borren, M. M. G. J., Peters, R. J., Broekhuis, E., Lam, K., Coronel, R., de Bakker, J. M. T., and Tan, H. L. (2007). Pacemaker current (If) in the human sinoatrial node. Eur. Heart J. 28, 2472–2478.
Wettwer, E., Hála, O., Christ, T., Heubach, J. F., Dobrev, D., Knaut, M., Varró, A., and Ravens, U. (2004). Role of IKur in controlling action potential shape and contractility in the human atrium: influence of chronic atrial fibrillation. Circulation 110, 2299–2306.
Wythe, J. D., Jurynec, M. J., Urness, L. D., Jones, C. A., Sabeh, M. K., Werdich, A. A., Sato, M., Yost, H. J., Grunwald, D. J., Macrae, C. A., and Li, D. Y. (2011). Hadp1, a newly identified pleckstrin homology domain protein, is required for cardiac contractility in zebrafish. Dis. Model. Mech. 4, 607–621.
Xie, Y., Ottolia, M., John, S. A., Chen, J.-N., and Philipson, K. D. (2008). Conformational changes of a Ca2+-binding domain of the Na+/Ca2+ exchanger monitored by FRET in transgenic zebrafish heart. Am. J. Physiol. Cell Physiol. 295, C388–C393.
Keywords: action potential, arrhythmia, cardiac electrophysiology, ion channel, ion channelopathy, patch-clamp, zebrafish
Citation: Verkerk AO and Remme CA (2012) Zebrafish: a novel research tool for cardiac (patho)electrophysiology and ion channel disorders. Front. Physio. 3:255. doi: 10.3389/fphys.2012.00255
