Opinion ARTICLE

Front. Physiol., 27 January 2014 | https://doi.org/10.3389/fphys.2014.00016

Calcium homeostasis in red blood cells of dialysis patients in dependence of erythropoietin treatment

Jue Wang1, Kai van Bentum2, Urban Sester3 and Lars Kaestner1*
  • 1Research Centre for Molecular Imaging and Screening, School of Medicine, Institute for Molecular Cell Biology, Saarland University, Homburg/Saar, Germany
  • 2Ambulatory Health Care Center Saarpfalz, Homburg/Saar, Germany
  • 3Internal Medicine IV, School of Medicine, Saarland University, Homburg/Saar, Germany

Previous studies provided evidence for a massively increased intracellular Ca2+ concentration in red blood cells (RBCs) of patients with end-stage renal disease (ESRD) (Paschen et al., 1971; Gafter et al., 1989), whereas the dialysis procedure itself led in average to an even slightly decreased RBC's Ca2+ content (Paschen et al., 1971; Długaszek et al., 2008). Based on a single cell approach we could qualitatively confirm these results (Figure 1A, 2 leftmost columns), although the extend of the Ca2+ increase was smaller compared to the cited investigations, which is presumably caused by differences in the methodology.

FIGURE 1
www.frontiersin.org

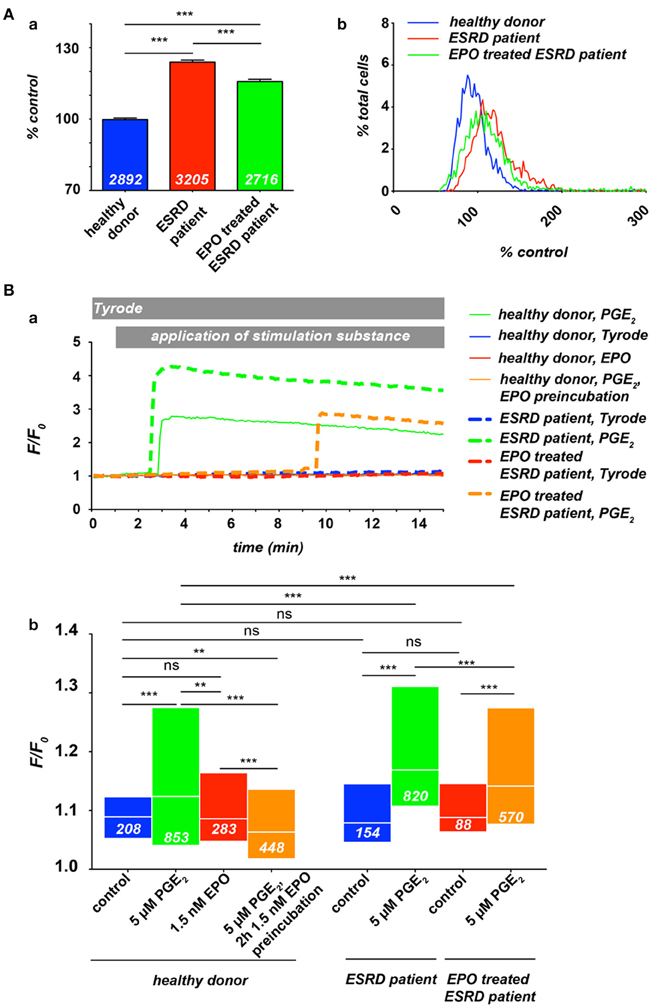

Figure 1. Ca2+ in RBCs of healthy donors and end-stage renal disease (ESRD) patients with a renal anaemia. If patients were under EPO treatment, the last EPO administration was within 5 days of blood sampling. All experimental procedures are previously described in detail (Wang et al., 2013). (A) Resting Ca2+ in terms of relative Fluo-4 fluorescence intensity of RBCs suspended in plasma. (Aa) Statistical analysis of RBC Ca2+ of at least 3 individuals in each group. The white numbers indicate the number of cells analyzed and the error bars represent standard error of mean. (Ab) Histograms of the relative fluorescence intensity distribution of the measurements presented in (Aa). (B) Intracellular Ca2+-traces in RBCs under different conditions: control (Tyrode solution containing in mM: 135 NaCl, 5.4 KCl, 10 glucose, 1 MgCl2, 1.8 CaCl2 and 10 HEPES; the pH was adjusted to 7.35 using NaOH) or stimulation with 5 μM PGE2 and/or 1.5 nM EPO. (Ba) Typical example traces of Fluo-4 fluorescence intensity over time for all conditions tested. Traces were chosen due to their typical intensity of response, which are analyzed in (Bb). Differences in the onset of the response were equally distributed over a wide range for all conditions tested (data not shown). However, it is worthwhile to mention that in case of stimulation only a limited number of cells are responders (Kaestner et al., 2004), which explains the difference in normalized fluorescence intensity (F/Fo) between the example traces and the statistical analysis of the entire cell population measured. The white numbers indicate the number of cells analyzed. For the statistical evaluation a Mann–Whitney test was performed and the following convention was used: ***p < 0.001, **p < 0.01, and ns p > 0.05.

There is a good knowledge of Ca2+ related processes in RBCs (Bogdanova et al., 2013). Additionally, an increased intracellular free Ca2+ concentration in RBCs has been proposed as a trigger for intracellular aggregation (Andrews and Low, 1999; Kaestner and Bernhardt, 2002) as well as for endothelium-RBC adhesion (Hebbel et al., 1980; Mohandas and Evans, 1985) and experimental evidence has been provided (Noh et al., 2010; Steffen et al., 2011; Borst et al., 2012; Kaestner et al., 2012).

The molecular identity of Ca2+- and non-selective cation channels in the RBC membrane is steadily increasing (Kaestner, 2011) and comprise of, e.g., the CaV2.1 (Andrews et al., 2002), the TRPC6 (Foller et al., 2008), the NMDA-receptor (Makhro et al., 2013), and the Piezo1 (Zarychanski et al., 2012).

The effect of erythropoietin (EPO) on RBCs ion homeostasis is controversially discussed. The group of Florian Lang found an inhibition of non-selective cation channels by EPO with a decreased number of eryptotic RBCs if patients were treated with EPO (Myssina et al., 2003). However, once Ca2+ entered the RBC, EPO has no beneficial effect toward the eryptotic symptoms caused by Ca2+ (Vota et al., 2013). In contrast to RBCs, hematopoietic progenitor cells display an increased cation-channel activity upon EPO exposure (Cheung et al., 1997; Tong et al., 2008). Because of its hematopoiesis stimulating properties, EPO became a widely used medication for treatment of anemic patients, including chronic renal disease, hematologic disorders, and acquired immune deficiency syndrome (Palmer et al., 2010; Goodnough and Shander, 2013). However, several studies highlighted the problem of an increased risk of thrombus formation, especially venous thromboembolism, in patients undergoing EPO therapy (Singbartl, 1994; Kliger et al., 2012; Goodnough and Shander, 2013).

Therefore we investigated the free Ca2+ concentration in RBCs from ESRD (dialysis) patients under EPO treatment. Blood samples from healthy donors, ESRD patients and EPO treated ESRD patients were analyzed by fluorescence live cell imaging as previously described (Wang et al., 2013) (Figure 1). As depicted in Figure 1A, at rest, RBCs from ESRD patients show higher Ca2+ concentration compared with healthy donors, while EPO treatment let to a slightly decreased free internal Ca2+ concentration, indicating an inhibition of constitutively active channels in resting RBCs. Although the histograms (Figure 1Ab) give an impression of the distribution, the method lacks quantitative information concerning the Ca2+ concentration (Kaestner et al., 2006). However, when compared to control conditions, the width of the distribution of Ca2+ content is wider in ESRD patients or EPO-treated ESRD patients, leading to the conclusion that the cellular heterogeneity is greater in patients than in healthy subjects. In a further step we investigated the Ca2+ influx in RBC from healthy donors and ESRD patients after hormonal stimulation in dependence of EPO treatment (Figure 1B). As a stimulation substance we selected prostaglandin E2 (PGE2), which is released from activated platelets (Smith et al., 1973) but can also be released from RBCs themselves when they pass small capillaries (Oonishi et al., 1998). The curves in Figure 1Ba present typical example traces for Ca2+ curves in RBCs, while Figure 1Bb shows the statistical analysis. Healthy patients show an increase in Ca2+ after PGE2 stimulation as we have previously shown (Kaestner et al., 2004). EPO treatment prevents Ca2+ entry resulting in Ca2+ levels below control conditions confirming the results of the Lang group (Myssina et al., 2003). However, pretreatment with EPO even suppressed the Ca2+ entry provoked by PGE2. In ESRD patients, PGE2 stimulation leads to a Ca2+ increase, which is significantly higher than in RBCs of healthy donors. In EPO treated ESRD patients the PGE2 induced Ca2+ increase was significantly suppressed compared to RBCs of non-treated patients even in the putative absence of EPO during the experiment.

The results of Figure 1 suggest that the clinically observed thrombotic complications in patients treated with EPO seem not to be primarily caused by an elevated Ca2+ content of RBCs of these patients. However, it is hypothesized that EPO causes thrombosis as a result of inflammation (Tobu et al., 2004). The elevated basal Ca2+ level in RBCs of ESRD patients (Paschen et al., 1971; Gafter et al., 1989; Figure 1A) may enhance a blood clotting once initiated by an inflammation processes. It is a substantial finding that the response of RBC to hormonal stimulation or other treatments, like the dialysis itself, in terms of Ca2+ entry shows a wide variation between RBC within a population, but also between different individuals (Paschen et al., 1971; Wang et al., 2013; Figure 1Ba).

In light of the above statements concerning the thrombotic events and the molecular players, the perspective of medical treatment must be based on a personalized diagnosis followed by a personalized medication. This applies to ESRD patients as well as for treatments of other anemias. Techniques and procedures allowing such an individualized approach presumably based on the combination of RBC population measurements and single cell techniques (Minetti et al., 2013) need urgently to be developed.

Acknowledgments

The research leading to these results has received funding from the European Seventh Framework Program under grant agreement number 602121.

References

Andrews, D. A., and Low, P. S. (1999). Role of red blood cells in thrombosis. Curr. Opin. Hematol. 6, 76–82. doi: 10.1097/00062752-199903000-00004

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

Andrews, D. A., Yang, L., and Low, P. S. (2002). Phorbol ester stimulates a protein kinase C-mediated agatoxin-TK-sensitive calcium permeability pathway in human red blood cells. Blood 100, 3392–3399. doi: 10.1182/blood.V100.9.3392

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

Bogdanova, A., Makhro, A., Wang, J., Lipp, P., and Kaestner, L. (2013). Calcium in red blood cells-a perilous balance. Int. J. Mol. Sci. 14, 9848–9872. doi: 10.3390/ijms14059848

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

Borst, O., Abed, M., Alesutan, I., Towhid, S. T., Qadri, S. M., Foller, M., et al. (2012). Dynamic adhesion of eryptotic erythrocytes to endothelial cells via CXCL16/SR-PSOX. Am. J. Physiol. Cell Physiol. 302, C644–C651. doi: 10.1152/ajpcell.00340.2011

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

Cheung, J. Y., Zhang, X. Q., Bokvist, K., Tillotson, D. L., and Miller, B. A. (1997). Modulation of calcium channels in human erythroblasts by erythropoietin. Blood 89, 92–100.

Pubmed Abstract | Pubmed Full Text

Długaszek, M., Szopa, M., Rzeszotarski, J., and Karbowiak, P. (2008). Magnesium, calcium and trace elements distribution in serum, erythrocytes, and hair of patients with chronic renal failure. Magnes. Res. 21, 109–117. doi: 10.1684/mrh.2008.0135

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

Foller, M., Kasinathan, R. S., Koka, S., Lang, C., Shumilina, E. V., Birnbaumer, L., et al. (2008). TRPC6 contributes to the Ca(2+) leak of human erythrocytes. Cell. Physiol. Biochem. 21, 183–192. doi: 10.1159/000113760

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

Gafter, U., Malachi, T., Barak, H., Djaldetti, M., and Levi, J. (1989). Red blood cell calcium homeostasis in patients with end-stage renal disease. J. Lab. Clin. Med. 114, 222–231.

Pubmed Abstract | Pubmed Full Text

Goodnough, L. T., and Shander, A. (2013). Update on erythropoiesis-stimulating agents. Best Pract. Res. Clin. Anaesthesiol. 27, 121–129. doi: 10.1016/j.bpa.2012.11.006

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

Hebbel, R. P., Yamada, O., Moldow, C. F., Jacob, H. S., White, J. G., and Eaton, J. W. (1980). Abnormal adherence of sickle erythrocytes to cultured vascular endothelium: possible mechanism for microvascular occlusion in sickle cell disease. J. Clin. Invest. 65, 154–160. doi: 10.1172/JCI109646

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

Kaestner, L. (2011). Cation channels in erythrocytes - historical and future perspective. Open Biol. J. 4, 27–34. doi: 10.2174/1874196701104010027

CrossRef Full Text

Kaestner, L., and Bernhardt, I. (2002). Ion channels in the human red blood cell membrane: their further investigation and physiological relevance. Bioelectrochemistry 55, 71–74. doi: 10.1016/S1567-5394(01)00164-5

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

Kaestner, L., Steffen, P., Nguyen, D. B., Wang, J., Wagner-Britz, L., Jung, A., et al. (2012). Lysophosphatidic acid induced red blood cell aggregation in vitro. Bioelectrochemistry 87, 89–95. doi: 10.1016/j.bioelechem.2011.08.004

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

Kaestner, L., Tabellion, W., Lipp, P., and Bernhardt, I. (2004). Prostaglandin E2 activates channel-mediated calcium entry in human erythrocytes: an indication for a blood clot formation supporting process. Thromb. Haemost. 92, 1269–1272. doi: 10.1160/TH04-06-0338

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

Kaestner, L., Tabellion, W., Weiss, E., Bernhardt, I., and Lipp, P. (2006). Calcium imaging of individual erythrocytes: problems and approaches. Cell Calcium 39, 13–19. doi: 10.1016/j.ceca.2005.09.004

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

Kliger, A. S., Fishbane, S., and Finkelstein, F. O. (2012). Erythropoietic stimulating agents and quality of a patient's life: individualizing anemia treatment. Clin. J. Am. Soc. Nephrol. 7, 354–357. doi: 10.2215/CJN.11961111

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

Makhro, A., Hanggi, P., Goede, J., Wang, J., Bruggemann, A., Gassmann, M., et al. (2013). (NMDA) receptors in human erythroid precursor cells and in circulating red blood cells contribute to the intracellular calcium regulation. Am. J. Physiol. Cell. Physiol. 305, C1123–C1138. doi: 10.1152/ajpcell.00031.2013

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

Minetti, G., Egée, S., Mörsdorf, D., Steffen, P., Makhro, A., Achilli, C., et al. (2013). Red cell investigations: art and artefacts. Blood Rev. 27, 91–101. doi: 10.1016/j.blre.2013.02.002

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

Mohandas, N., and Evans, E. (1985). Sickle erythrocyte adherence to vascular endothelium. Morphologic correlates and the requirement for divalent cations and collagen-binding plasma proteins. J. Clin. Invest. 76, 1605–1612. doi: 10.1172/JCI112144

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

Myssina, S., Huber, S. M., Birka, C., Lang, P. A., Lang, K. S., Friedrich, B., et al. (2003). Inhibition of erythrocyte cation channels by erythropoietin. J. Am. Soc. Nephrol. 14, 2750–2757. doi: 10.1097/01.ASN.0000093253.42641.C1

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

Noh, J.-Y., Lim, K.-M., Bae, O.-N., Chung, S.-M., Lee, S.-W., Joo, K.-M., et al. (2010). Procoagulant and prothrombotic activation of human erythrocytes by phosphatidic acid. Am. J. Physiol. Heart Circ. Physiol. 299, H347–H355. doi: 10.1152/ajpheart.01144.2009

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

Oonishi, T., Sakashita, K., Ishioka, N., Suematsu, N., Shio, H., and Uyesaka, N. (1998). Production of prostaglandins E1 and E2 by adult human red blood cells. Prostaglandins Other Lipid Mediat. 56, 89–101. doi: 10.1016/S0090-6980(98)00045-8

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

Palmer, S. C., Navaneethan, S. D., Craig, J. C., Johnson, D. W., Tonelli, M., Garg, A. X., et al. (2010). Meta-analysis: erythropoiesis-stimulating agents in patients with chronic kidney disease. Ann. Intern. Med. 153, 23–33. doi: 10.7326/0003-4819-153-1-201007060-00252

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

Paschen, K., Henning, H. V., Quellhorst, E., and Scheler, F. (1971). Veränderungen der calcium- und magnesiumkonzentrationen im plasma und in erythrocyten während der hämodialyse. Klin. Wochenschr. 49, 1314–1318. doi: 10.1007/BF01495517

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

Singbartl, G. (1994). Adverse events of erythropoietin in long-term and in acute/short-term treatment. Clin. Investig. 72, S36–43.

Pubmed Abstract | Pubmed Full Text

Smith, J. B., Ingerman, C., Kocsis, J. J., and Silver, M. J. (1973). Formation of prostaglandins during the aggregation of human blood platelets. J. Clin. Invest. 52, 965–969. doi: 10.1172/JCI107262

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

Steffen, P., Jung, A., Nguyen, D. B., Müller, T., Bernhardt, I., Kaestner, L., et al. (2011). Stimulation of human red blood cells leads to Ca2+-mediated intercellular adhesion. Cell Calcium 50, 54–61. doi: 10.1016/j.ceca.2011.05.002

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

Tobu, M., Iqbal, O., Fareed, D., Chatha, M., Hoppensteadt, D., Bansal, V., et al. (2004). Erythropoietin-induced thrombosis as a result of increased inflammation and thrombin activatable fibrinolytic inhibitor. Clin. Appl. Thromb. Hemost. 10, 225–232. doi: 10.1177/107602960401000304

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

Tong, Q., Hirschler-Laszkiewicz, I., Zhang, W., Conrad, K., Neagley, D. W., Barber, D. L., et al. (2008). TRPC3 is the erythropoietin-regulated calcium channel in human erythroid cells. J. Biol. Chem. 283, 10385–10395. doi: 10.1074/jbc.M710231200

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

Vota, D. M., Maltaneri, R. E., Wenker, S. D., Nesse, A. B., and Vittori, D. C. (2013). Differential erythropoietin action upon cells induced to eryptosis by different agents. Cell. Biochem. Biophys. 65, 145–157. doi: 10.1007/s12013-012-9408-4

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

Wang, J., Wagner-Britz, L., Bogdanova, A., Ruppenthal, S., Wiesen, K., Kaiser, E., et al. (2013). Morphologically homogeneous red blood cells present a heterogeneous response to hormonal stimulation. PLoS ONE 8:e67697. doi: 10.1371/journal.pone.0067697

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

Zarychanski, R., Schulz, V. P., Houston, B. L., Maksimova, Y., Houston, D. S., Smith, B., et al. (2012). Mutations in the mechanotransduction protein PIEZO1 are associated with hereditary xerocytosis. Blood 120, 1908–1915. doi: 10.1182/blood-2012-04-422253

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

Keywords: erythrocyte, end-stage renal disease, calcium, EPO, haemodialysis, thrombotic events

Citation: Wang J, van Bentum K, Sester U and Kaestner L (2014) Calcium homeostasis in red blood cells of dialysis patients in dependence of erythropoietin treatment. Front. Physiol. 5:16. doi: 10.3389/fphys.2014.00016

Received: 01 November 2013; Accepted: 09 January 2014;
Published online: 27 January 2014.

Edited by:

Anna Bogdanova, University of Zurich, Switzerland

Reviewed by:

Joan-LLuis V. Corrons, University of Barcelona, Spain
Stéphane Egee, Station Biologique CNRS-UPMC, France

Copyright © 2014 Wang, van Bentum, Sester and Kaestner. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: lars_kaestner@me.com
