ORIGINAL RESEARCH article
Application of dGNSS in Alpine Ski Racing: Basis for Evaluating Physical Demands and Safety
- 1Department of Physical Performance, Norwegian School of Sport Sciences, Oslo, Norway
- 2St. Moritz Health and Innovation Foundation, Center of Alpine Sports Biomechanics, St. Moritz, Switzerland
- 3Department of Sport Science and Kinesiology, University of Salzburg, Hallein, Austria
- 4Department of Orthopedics, Balgrist University Hospital, University of Zurich, Zurich, Switzerland
- 5Group for Snowsports, WSL - Institute for Snow and Avalanche Research SLF, Davos, Switzerland
External forces, such as ground reaction force or air drag acting on athletes' bodies in sports, determine the sport-specific demands on athletes' physical fitness. In order to establish appropriate physical conditioning regimes, which adequately prepare athletes for the loads and physical demands occurring in their sports and help reduce the risk of injury, sport-and/or discipline-specific knowledge of the external forces is needed. However, due to methodological shortcomings in biomechanical research, data comprehensively describing the external forces that occur in alpine super-G (SG) and downhill (DH) are so far lacking. Therefore, this study applied new and accurate wearable sensor-based technology to determine the external forces acting on skiers during World Cup (WC) alpine skiing competitions in the disciplines of SG and DH and to compare these with those occurring in giant slalom (GS), for which previous research knowledge exists. External forces were determined using WC forerunners carrying a differential global navigation satellite system (dGNSS). Combining the dGNSS data with a digital terrain model of the snow surface and an air drag model, the magnitudes of ground reaction forces were computed. It was found that the applied methodology may not only be used to track physical demands and loads on athletes, but also to simultaneously investigate safety aspects, such as the effectiveness of speed control through increased air drag and ski–snow friction forces in the respective disciplines. Therefore, the component of the ground reaction force in the direction of travel (ski–snow friction) and air drag force were computed. This study showed that (1) the validity of high-end dGNSS systems allows meaningful investigations such as characterization of physical demands and effectiveness of safety measures in highly dynamic sports; (2) physical demands were substantially different between GS, SG, and DH; and (3) safety-related reduction of skiing speed might be most effectively achieved by increasing the ski–snow friction force in GS and SG. For DH an increase in the ski–snow friction force might be equally as effective as an increase in air drag force.
The physical demands on athletes in sport are primarily driven by the external forces acting in the interface between the athlete and the athlete's physical surroundings. In sport, the surroundings typically include the field of play where interaction forces occur between the athlete and the ground, sports apparatus (for example, high bars in gymnastics), sports gear (such as rackets in tennis) or fluids, such as air and water (water sports) (Knudson and White, 1989; Kolmogorov and Duplishcheva, 1992; Gastin et al., 2013). Hence, to quantify physical demands in sports, we first need to quantify the external forces acting on athletes. The validity of physical demand is therefore strongly related to the validity of the quantification of force. Validity of force measurement has two aspects; internal and external validity (Atkinson and Nevill, 2001). To maximize external validity the forces need to be captured in the natural sporting setting, preferably during competition, using measurement devices that provide minimal obstruction to athletes in the execution of their sport. Internal validity is achieved if precision and repeatability of force measurement is maximized. Alpine ski racing is an example of a sport that challenges both types of validity to a significant degree. The sport is executed in rough surroundings, athletes move at high speed over large distances (Kraemer et al., 2002; Kröll et al., 2016c), and safety and external validity aspects limit the force measurement equipment that can be mounted on athletes. Hence, the measurement of force is a difficult but important challenge in alpine skiing research and practice. Ground reaction forces are most commonly measured using pressure insoles or force plates (Mote, 1987; Lüthi et al., 2004; Federolf et al., 2008; Stricker et al., 2010; Nakazato et al., 2011; Kröll et al., 2016b; Falda-Buscaiot et al., 2017). Air drag force has been analyzed using wind tunnel testing (Luethi and Denoth, 1987; Savolainen, 1989; Thompson et al., 2001; Barelle et al., 2004; Meyer et al., 2011). However, to gain a holistic understanding of the external forces acting in skiing, these external forces need to be determined simultaneously and under field conditions. Since the measurement of ground reaction forces alone does not describe the entire physical demand, air drag force needs to be determined at the same time. Therefore, modeling has been applied to kinematic data to simultaneously derive air drag force and ground reaction forces in on-snow skiing for SL and GS (Brodie et al., 2008; Reid, 2010; Meyer et al., 2011; Supej et al., 2012; Gilgien et al., 2013). Such analysis has not so far been conducted for SG and DH, since methodologic limitations have not allowed for the measurement of skier kinematics over large capture volumes; hence, such knowledge is very limited in the speed disciplines (Gerritsen et al., 1996; Schiestl et al., 2006; Gilgien, 2014; Gilgien et al., 2014a, 2015a,b, 2016; Heinrich et al., 2014; Schindelwig et al., 2014; Yamazaki et al., 2015).
Recent advances in wearable measurement technology have allowed the reconstruction of skier kinematics across large capture volumes. These new methods combine differential global navigation satellite system technology (dGNSS) (Lachapelle et al., 2009; Andersson et al., 2010; Supej and Holmberg, 2011; Gilgien et al., 2014b) with digital terrain models (DTM) (Supej et al., 2012; Gilgien et al., 2013, 2015c; Nemec et al., 2014) or with inertial measurement technology (Brodie et al., 2008; Supej, 2010; Zorko et al., 2015; Fasel et al., 2016). Applying kinetic models to the captured kinematic data, both air drag force and ground reaction force and its components can be calculated simultaneously (Supej et al., 2012; Gilgien et al., 2013) without obstructing the athletes and thus ensuring high external validity (Atkinson and Nevill, 2001; Thomas et al., 2005), since skiers only wear a dGNSS unit on the body. This type of wearable technology allows the determination of skier kinematics and kinetics in skiing competitions across large capture volumes, such as entire SG and DH races, over several kilometers. The application of this new methodology is illustrated in computation of the physical demands with respect to adequate conditioning and an example taken from injury prevention for GS SG and DH.
Physical Demands and Appropriate Physical Preparation
To prepare athletes for a certain sport the athlete's physical training needs to meet the coordinative affinity of the sport in competition (Muller et al., 2000). Specifically, the extent and magnitude athletes engage in static and dynamic muscular work and the nature of this muscular work need to correspond between training and competition. To ensure coordinative affinity between training and competition the prevalence, magnitude and the time–force pattern of the external forces need to be quantified and compared for the specific sport in training and competition. The physiological responses to alpine skiing in training and competition was assessed quite broad (Andersen and Montgomery, 1988; Neumayr et al., 2003; Turnbull et al., 2009; Ferguson, 2010). The scientific knowledge of the physical demands in alpine ski racing is limited to the technical disciplines slalom (SL) and giant slalom (GS) (Reid, 2010; Spörri et al., 2012b; Kröll et al., 2014, 2016c; Supej et al., 2014). Hence, to allow coaches and athletes to target their physical training specifically to the speed disciplines, the prevalence, magnitude and time–force patterns of the external forces need to be quantified for the speed disciplines SG and DH.
External Forces and Injury Prevention
The ability to withstand external forces in alpine ski racing is not only beneficial from a performance perspective (Raschner et al., 2012); if external forces exceed those an athlete's body can withstand, they lead to injuries. Therefore, the external forces acting in alpine skiing were not primarily examined with respect to physical demands on the athletes, but as a cause of injury (Mote, 1987; Bally et al., 1989; Quinn and Mote, 1992; Read and Herzog, 1992; Herzog and Read, 1993; Gerritsen et al., 1996; Yee and Mote, 1997; Hame et al., 2002; Raschner et al., 2012; Spörri et al., 2015). To prevent injuries, a good understanding is first needed of the contribution of external forces, and second of the consequences of changes in external factors, such as course setting and equipment, on external forces and injuries. Investigations were therefore conducted into how external forces are related to injury rates in the ski racing disciplines GS, super-G (SG) and downhill (DH) (Gilgien et al., 2014a), and how changes in ski geometry (Zorko et al., 2015; Gilgien et al., 2016; Kröll et al., 2016a,b; Spörri et al., 2016), course setting (Reid, 2010; Spörri et al., 2012c; Gilgien et al., 2014a, 2015a,b) and terrain (Supej et al., 2014; Gilgien et al., 2015a,b; Falda-Buscaiot et al., 2017) alter speed and external forces in these alpine skiing disciplines. However, one possibility for reducing speed and external forces, which was suggested by expert stakeholders in the ski racing community (Spörri et al., 2012a), was not investigated scientifically: increasing air drag by raising the air drag coefficient through changes in the materials used in athletes' clothing. An increase in air drag may increase the air drag force and the share of mechanical energy that is dissipated to the skier's surroundings, which in turn has the potential to lead to a reduction in skier speed (Bardal and Reid, 2014). Reduced skier speed might reduce the risk of injuries, especially in the case of high-impact accidents (Gilgien et al., 2014a, 2016). Therefore, we need to understand to what extent the braking forces in skiing, which are the air drag force and the ski–snow friction force, contribute to energy dissipation to the surroundings and subsequent speed reduction. Knowing the relative contributions of air drag and ski–snow friction forces to energy dissipation will allow us to understand whether an increase in air drag force or in ski–snow friction force is more effective in reducing speed and impact forces in accidents in each skiing discipline.
In the current study a new, validated and wearable dGNSS measurement-based method (Gilgien et al., 2013, 2015c) was applied to capture the external forces acting on forerunners skiing World Cup (WC) races in GS, SG and DH. The collected data were applied to illustrate the potential of such technology to enhance knowledge for scientists and practitioners on the physical demands of alpine skiing and injury prevention. For the first time, (i) the physical demands on the athletes in alpine skiing were assessed for GS, SG, and DH; and (ii) the effectiveness of energy dissipation and hence the ability to reduce skier speed was assessed for both air drag and ski–snow friction forces for GS, SG, and DH.
During the WC seasons 2010/11 and 2011/12, one male forerunner was equipped with a wearable dGNSS in various races. The forerunner was part of the official forerunner group and started directly prior to the respective WC races. Seven male WC giant slalom (GS) races—in total 14 runs—(Sölden (twice), Beaver Creek, Adelboden (twice), Hinterstoder, Crans Montana), 5 super-G (SG) races—in total 5 runs—[Kitzbühel, Åre, Hinterstoder, Crans Montana (twice)] and 5 downhill (DH) races—in total 16 runs including training runs—(Lake Louise, Beaver Creek, Wengen, Kitzbühel, Åre) were included in the analysis. In GS, each single competition run, and in DH, all training and competition runs were measured and analyzed. The forerunners were former male WC or current European Cup racers (age: 25.1 ± 3.6 years, mass: 86.1 ± 10.0 kg). This study was approved by the Ethics Committee of the Department of Sport Science and Kinesiology at the University of Salzburg and the athletes were informed of the investigation's purpose and procedures and signed written informed consent.
Data Collection Methodology
The forerunner's head trajectory was captured using kinematic dGNSS with the antenna (G5Ant-2AT1, Antcom, Canada) mounted on the helmet, and a GPS/GLONASS dual frequency (L1/L2) receiver (Alpha-G3T, Javad, USA) was carried in a small cushioned backpack (Figure 1). The total weight of the measurement equipment carried by the skier was 940 g (receiver 430 g, backpack 350 g, antenna 160 g). Differential kinematic carrier phase position solutions of the skier's trajectory were computed at 50 Hz using the data from two base stations consisting of antennas (GrAnt-G3T, Javad, USA) and receivers (Alpha-G3T, Javad, USA) mounted on tripods. The geodetic post-processing software GrafNav (NovAtel Inc., Canada) was used to compute differential kinematic carrier phase position solutions (Gilgien et al., 2014b).

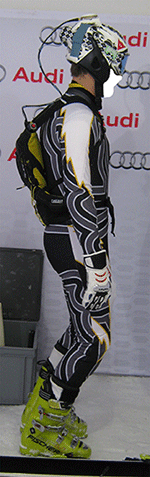

Figure 1. A forerunner equipped with a differential global navigation satellite system antenna on the helmet and a receiver in the cushioned backpack that was carried below a number bib during racing.
The entire course width of the snow surface geomorphology was captured from start to finish using static dGNSS (Alpha-G3T receivers with GrAnt-G3T antenna, Javad, USA) and a Leica TPS 1230+ (Leica Geosystems AG, Switzerland). The number of points captured to describe the snow surface was dependent on the uniformity of the terrain. The less uniform the terrain, the more points were captured per area (in average on the entire course 0.3 points per m2). Based on the surveyed snow surface points a DTM was computed by applying Delaunay triangulation (de Berg et al., 2008) and smoothing using bi-cubic spline functions (Gilgien, 2014; Gilgien et al., 2015a,b).
Computation of the External Forces
The antenna trajectory of the skier and the DTM were used as input parameters in a mechanical model (Gilgien et al., 2013) from which the ground reaction force (FSKI) and its component in the tangential direction to the skiers' trajectory (FSKI-FRICTION) were computed. The model also derived the air drag force (FAIR−DRAG). For a detailed description of the force computations (see Gilgien et al., 2013). FAIR−DRAG was derived using body extension derived from the GNSS antenna position, a pendulum model attache to the antenna and the DTM, from skier speed which was derived from position data and a air drag cefficient model. The derivation of FSKI and FSKI−FRICTION was based on 1) the reconstruction of the center of mass position from the antenna position, the pendulum model attached to the antenna, and the DTM, 2) from the center of mass position the resultant force was calculated using time derivatives and mass of the athlete 3) FSKI and FSKI−FRICTION were calculated as the difference from the resultant force, FAIR−DRAG and gravity.
Characterization of the Physical Demands
For characterization of the physical demands, FSKI was considered. The maximum FSKI (FSKIMAX) was calculated for each turn as the average of the highest 10% of FSKI for GS and SG, according to the method of Gilgien et al. (2014a). To approximate the fraction of time skiers were doing work in extended or crouched positions, the time in which skiers were skiing in a tucked position was approximated using the following criteria: (1) the CoM turn radius was larger than 125 m, and (2) the shortest distance from the GNSS antenna (which was mounted on the skier's helmet) position to the local terrain surface was less than the distance: 0.6 • body length + 6 cm. The time skiers were turning was defined as the periods when the CoM turn radius was smaller than 125 m. The time skiers were skiing straight but in an upright body posture (non-turning and non-tucked) was calculated as the difference between the sum of the time in tucked position and the time skiers were turning, as a percentage. CoM turn radius and distance to local DTM were computed according to the methods of Gilgien et al. (2015a,b,c).
To characterize the timing of FSKI through a turn cycle in GS and SG for each turn and averaged across all turns, the time for the following sections (phases) were calculated: from turn transition at the beginning of the turn (switch1) to gate passage; from switch1 to the time of FSKIMAX; from gate passage to turn transition at the end of the turn (switch2); and the overall turn cycle time (from switch1 to switch2). Turn transition was calculated as the deflection point of the CoM trajectory between turns (Gilgien et al., 2015a,b). Run time is a rough estimation of total workload, while impulse (the integration of air drag and ground reaction force over the run time), is a measure of the total workload. Impulse and run time were calculated according to the methods of Gilgien et al. (2014a).
Contribution of External Forces to Energy Dissipation
The instantaneous energy dissipation due to ski–snow friction, EDISSSKI and energy dissipation due to air drag, EDISSAIR were computed according to Equations (1) and (2). The relative contributions of EDISSSKI and EDISSAIR to the total instantaneous energy dissipation (sum of EDISSSKI and EDISSAIR) were expressed as percentages of total instantaneous energy dissipation.
Normality of instantaneous data from all races in each discipline was tested using a Lilliefors test (α = 0.05). No parameter was found to be normally distributed, so non-parametric statistics were applied to compare all parameters between disciplines. Median and inter-quartile range (IQR) were computed for all parameters and disciplines. The relative sizes of parameters for GS and SG compared to DH were computed from the medians of each discipline and were expressed as percentages of DH medians. In addition, mean and standard deviation were calculated for the time skiers were in tucked position, the time skiers were turning, the time spent skiing in non-turning and non-tucked position, impulse, and run time for all disciplines. The medians of the disciplines were tested using an ANOVA, Kruskal–Wallis test (p = 0.01), followed by a Friedman's test (p = 0.01) if significant differences were found in the ANOVA.
For GS and SG mean and standard deviations were also computed for turn cycle time characteristics, number of direction changes and FSKIMAX. For FSKI, turn cycle means were computed for each 10% increment of the time-normalized turn cycles for SG and GS.
Overview of External Forces
The median, IQR and the percentage values for GS and SG in relation to DH are given in Table 1. The medians were significantly different (p = 0.01) between disciplines for all forces. Figure 2 illustrates the differences in forces [expressed in body weight ([BW)] between disciplines in histograms. The median FSKI was 22% larger for GS and 15% larger for SG compared to DH. The IQRs were largest for GS, followed by SG and DH. In GS and SG skiers skied for about 40% of the time with FSKI values larger than 1.5 BW, while in DH values above 1.5BW were achieved for less than 20% of the time. FSKI−FRICTION median was doubled for GS compared to DH and 52% larger for SG compared to DH. The IQR was largest for GS, followed by SG and DH. The median FAIR−DRAG was largest for DH, followed by SG and GS, and was approximately twice as large for DH as for GS. IQR was largest for DH, followed by SG and GS. In DH, FAIR−DRAG was larger than 0.2 BW for ~25% of the time, while this magnitude occurred for less than 2% of the time in GS.
Table 1. Median and interquartile range (IQR) of the absolute values for all disciplines and the relative values for Giant slalom and Super-G compared to Downhill.
Figure 2. Histograms of the force distributions within and between disciplines for ground reaction force (FSKI), air drag force (FAIR−DRAG), and ski–snow friction force (FSKI−FRICTION). Giant slalom is plotted in black, Super-G in gray and Downhill in white.
Characterization of the Physical Demands
The measures for total load on athletes, run time and impulse had showed the highest values for all measures in DH, followed by SG and GS (Table 2). The percentage of total run time in which athletes were turning was longest in GS, followed by SG and DH. The total time athletes were in tucked position was longest in DH, followed by SG and GS. The time when skiers were not turning and were in an upright position did not differ between disciplines. For results see Table 2.
Table 2. Mean and standard deviation for run time, impulse per run; percentage of time skiers are turning per run; percentage of time skiers are not turning but are not in tucked position per run; percentage of time skiers are in tucked position per run for all disciplines.
An SG run consisted of 41 turns, while GS consisted of 51 turns, which indicates that SG consists of a highly cyclic turn pattern where skiers turn for 79.4% of the run time while in GS they turn for 92.8% of the run time (Table 2). Force-time characteristics are illustrated in Figure 3 and Tables 3, 4. Figure 3 shows the FSKI and COM turn radius as a function of mean turn time for GS and SG with the mean drawn in solid lines and standard deviations in dashed lines for FSKI. To allow quantitative reconstruction of the FSKI—turn cycle time relationships in GS and SG these are provided as 10% turn cycle time increments in Table 3. Turn timing characteristics, along with the number of direction changes and FSKIMAX characteristics, are provided in Table 4.
Figure 3. Turn cycle characteristics for ground reaction force (FSKI) for Giant slalom in black and Super-G in gray as a function of mean turn cycle time. Instantaneous mean in solid line, Standard deviations in thin line.
Table 3. Mean and standard deviation for ground reaction force in BW for 10%-wise increments of the turn cycle for Giant slalom and Super-G.
Contribution of External Forces to Energy Dissipation
For the dissipative forces FAIR−DRAG and FSKI−FRICTION, median energy dissipation to the surroundings was not significantly different between GS and SG for EDISSSKI. All other skiing discipline median values were significantly different between disciplines for both energy dissipation types (Table 5). The median EDISSSKI was 41% (GS) and 42% (SG) larger than for DH. The median for EDISSAIR was found to be 41% (GS) and 71% (SG) of the median for DH. DH had also the largest IQR. The relative contributions of energy dissipation (median) due to air drag and ski–snow friction were found to be 23% (EDISSAIR) and 77% (EDISSSKI) in GS, 35% (EDISSAIR) and 65% (EDISSSKI) in SG and 51% (EDISSAIR) and 49% (EDISSSKI) in DH.
Table 5. Median and interquartile range (IQR) of the absolute values for all disciplines and the relative values for Giant slalom and Super-G compared to Downhill.
Figure 4 illustrates the relative contribution of FAIR−DRAG and FSKI−FRICTION to the total energy dissipation (EDISS) as a percentage contribution of EDISSAIR to total energy dissipation for GS, SG and DH. The horizontal axis shows the contribution of EDISSAIR as a percentage of total energy dissipation, while the vertical axis shows the frequency of occurrence of these contribution patterns. The percentage contribution of EDISSSKI to total energy dissipation was complementary to the percentage contribution of EDISSAIR to total EDISS, since FSKI−FRICTION and FAIR−DRAG are the only sources for EDISS. For more than 80% of the time EDISSSKI had a larger contribution to total EDISS than EDISSAIR in GS, while in DH the contribution of EDISSSKI was larger than the contribution of EDISSAIR to total EDISS for less than 40% of the run time.
Figure 4. Histogram illustrating the percentage contribution of air drag to total energy dissipation for Giant slalom, Super-G and Downhill. Giant slalom is plotted in black, Super-G in gray and Downhill in white. The horizontal axis shows the contribution of energy dissipation due to air drag as a percentage of total energy dissipation, while the vertical axis shows how often these contributions were present (frequency).
The study revealed that: (1) the method was effectively applied to capture external force data from WC races; (2) the physical demands in alpine ski racing were mainly characterized by fluctuations in the ground reaction force, which followed a cyclic pattern and was most pronounced for GS, followed by SG and DH; and (3) injury prevention measures using an increase in air drag would be about equally effective as measures that cause an increase in ski–snow friction for DH, while for GS and SG measures that cause an increase in ski–snow friction would be most effective.
The Application of dGNSS Technology to Capture External Force Data From WC Races in Alpine Skiing
It has been shown that if high-end dGNSS devices are carefully applied, antenna position accuracy to less than 5 cm can be reached even in highly dynamic sports such as alpine skiing (Gilgien et al., 2014b, 2015c). It has also been shown that the position accuracy of a dGNSS allows valid derivation of velocity and of the external forces acting on skiers simultaneously (Gilgien et al., 2013, 2015c). The present study showed that the high validity of the wearable technology allowed detailed investigation of aspects of physical fitness and injury prevention that are relevant for practitioners of a sport where athletes move at high speed through rough surroundings and over large distances. Also, the method proved to be valid and practicable to be applied in a large number of WC races.
Characterization of the Physical Demands
To get a rough idea of the physical demands of a sport or a discipline the total physical load may serve as a good indication. Run time provides limited information, since the intensity of the work done is not measured. Measuring impulse—the integration of the external forces FAIR−DRAG and FSKI over the run time—might describe the total load better. Comparing the three disciplines, impulse was highest in DH, followed by SG and GS if only one run was considered in GS (Gilgien et al., 2014a). In GS, athletes actually ski two runs, if they qualify for the second run. Hence, the impulse for the first run, the 3 h break between the two runs and the warm-up to the second run define the demands for physical recovery between runs for that discipline.
To understand the total physical load on athletes in more detail, we need to compare the factors contributing to the impulse. These are run time, FAIR−DRAG and FSKI. Run time was longest in DH followed by SG and GS, while the sum of median FAIR−DRAG and FSKI was highest for GS (1.53 BW), followed by SG (1.51 BW) and DH (1.34 BW). Hence, despite the higher external forces in GS and SG compared to DH, run time seems to have a major impact and lead to higher impulses and total physical loads per run for the speed disciplines compared to GS.
Comparing the type of work between the disciplines there is an obvious difference between GS and SG compared to DH. Inspecting the histogram for FSKI in Figure 2, FSKI is overrepresented in the small and high force ranges for GS and SG compared to DH. This might be a consequence of more pronounced repeated loading-unloading patterns and higher peak forces in GS and SG compared to DH. DH consists of longer sections of straight skiing, while SG and GS consist of more or less continuous turning. In GS, skiers turned for 92.8% of the run time, in SG for 79.4% of the run time, and in DH skiers turned for only 54.8% of the run time (Table 2). These differences in the amount of direction alteration in skier trajectory are reflected in the higher median FSKI for GS and SG compared to DH, and also indicate substantial differences in the type of physical work athletes conduct in the different disciplines. GS consists of 51 direction changes (Table 4), meaning that GS involves 51 body extension-contraction cycles, while SG consists of 41 direction changes and extension-contraction cycles. Therefore, GS and SG consist of more or less continuous turning and dynamic muscular work, while in DH skiers ski straight for about 45% of the run time and spend 36.8% of the run time in a tucked position (Table 2). The amount of skiing in the tucked position might be a consequence of both the extent of sections in which skiers can ski straight, and also the higher speed compared to the other disciplines, which increases the significance of air drag force as a dissipative force (Table 5 and Figure 4). Therefore, skiers try to reduce the time skiing in upright body posture, since this is likely to increase the drag area exposed to wind and increase air drag (Barelle et al., 2004; Supej et al., 2012). Hence, in DH skiers try to reduce speed loss through energy dissipation by air drag force. Because of the lower number of direction changes, skiers spend more of the total run time in the tucked position undertaking work of a more static nature with less pronounced and less frequent unloading phases, over a longer period compared to GS for instance. An earlier comparative study on SG, GS and SL revealed that a more static nature of movement in SG results in deeper knee angle and is accompanied with significantly higher EMG activity (Berg and Eiken, 1999) compared to GS and SL. While the EMG activity during SG depicted for the quadriceps muscle values of 120% muscular voluntary contraction in GS and SL only values in the order of 70% MVC were observed. Hence, tucked body position is associated with more static muscular work and increased muscular activity.
Comparing GS and SG, which consist of more or less consecutive turning (Gilgien et al., 2014a, 2015a,b), with 51 turns, or 51 loading-unloading cycles in GS compared to 41 in SG, the duration of an average turn cycle in SG (2.28 s) is about 55% longer than in GS (1.47 s). However, mean FSKI and FSKIMAX are lower in SG compared to GS. Therefore, in SG athletes need to withstand a lower FSKI but over a longer period of time. Figure 3 shows that the mean FSKI is larger than 1.5 BW for 1.18 s (from 0.50 to 1. 68 s after switch1) in SG, while in GS mean FSKI is larger than 1.5 BW for 0.81s (from 0.47 to 1. 31 s after switch1). In short, in SG athletes need to withstand a force larger than 1.5 BW for 0.37 s longer than in GS. In both disciplines, FSKIMAX occurs at gate passage and the time from turn initiation (switch1) to gate and time to the occurrence of FSKIMAX is longer than from gate to turn completion (switch2). This means that building up the maximal force occurs over a longer period of time than turn completion for both disciplines. The time to build up FSKIMAX is substantially shorter in GS compared to SG. Therefore, athletes face a substantially more pronounced loading–unloading pattern than in SG, with a higher FSKI but a shorter time to the next unloading phase. The loading–unloading pattern is even more pronounced in slalom, where the loading–unloading time is shortest and highest FSKI compared to the other disciplines (Reid, 2010; Kröll et al., 2016a). These substantial differences in FSKI characteristics between probably need different physical preparation to maximize performance and minimize injury risk. The FSKI and turn cycle timing information might be useful for coaches and athletes in adapting dryland training to the discipline-specific FSKI–time pattern, since dryland training that simulates the physical demands of competitive skiing might lead to an adequate physiological adaptation (Kraemer et al., 2002; Kröll et al., 2016c). In order to imitate the physical demands of alpine skiing in dryland training, skiing simulators (Nourrit et al., 2003; Deschamps et al., 2004; Hong and Newell, 2006; Teulier et al., 2006; Panizzolo et al., 2013; Moon et al., 2015; Lee et al., 2016) and skiing carpets (Fasel et al., 2017) are used to a certain extent. The data provided in this study might help to adapt these devices to the physical demands of competitive on-snow skiing with respect to the discipline-specific force–time pattern.
Contribution of External Forces to Energy Dissipation
The analysis of the dissipative forces contributing to total EDISS (Figure 4) confirmed the finding from another study (Supej et al., 2012) that EDISS in GS is mainly determined by FSKI−FRICTION. In SG, FSKI−FRICTION was still clearly the major contributor to EDISS, while the contributions of FSKI−FRICTION and FAIR−DRAG were approximately balanced in DH. Hence, for slalom (Reid, 2010), GS and SG, a certain percentage increase of FSKI−FRICTION would have a larger effect on performance than a corresponding increase of FAIR−DRAG, while in DH the effect of an increase in the dissipative forces, FSKI−FRICTION and FAIR−DRAG by an increase in air drag coefficient through clothing would be about equal. Comparing DH with speed skiing, the contribution of FAIR−DRAG to total EDISS seems clearly smaller in DH than in the discipline speed skiing, where skiers do not turn, but ski straight along the fall line to reach maximal speed, FAIR−DRAG contributes up to 80% of total EDISS when maximal speed is reached (Thompson et al., 2001). Hence, for the alpine ski racing disciplines, an increase in FAIR−DRAG might only be an option for DH.
One potential drawback of the applied method is that ground reaction forces cannot be determined for single legs, but only for the sum of both legs. In addition, high frequency force components cannot be determined with the method used in this study. However, the method was chosen since it allows the measurement of all external forces and their components at the same time, allowing unique insight in their relationship as shown in this study. The applied method does not measure, but rather models the external forces based on kinematic data and was validated against the gold standard for GS (Gilgien et al., 2013, 2015c). Therefore, comparison of the findings from this study with previous findings reported in the literature, where forces were obtained with other methods, are of interest with respect to validity. An experimental GS study using a video-based photogrammetric method to compute skier kinematics, from which forces were derived in steep terrain (26°), found mean turn FSKI s values of between 1.52 and 1.56 BW (Spörri et al., 2016). The maximal FSKI values found in that study ranged from 2.01 to 2.11 BW (Spörri et al., 2016), while a comparable study in 23° inclined terrain found a range of 2.32–2.44 BW for the maximal FSKI using pressure insoles to measure FSKI (Kröll et al., 2016a). Comparing these FSKI values with the FSKI values obtained in the current study for GS, we conclude that the FSKI values are comparable to those found for competitive skiing in previous studies and obtained with different methods. This finding increases confidence in the kinetic method applied in this study for SG and DH, where no FSKI data are available in the literature with which to compare our results for SG and DH. The applied method does not allow to analyze the distribution of FSKI between legs. This might be interesting for the speed disciplines, since previous studies found that the distribution changes from SL to GS (Kröll et al., 2016c).
This study (1) illustrated that the validity of high-end dGNSS systems allows meaningful investigations such as characterization of physical demands and safety measures in highly dynamic sports; and (2) showed that the physical demands were substantially different between GS, SG and DH (specifically, the ground reaction force fluctuations followed a cyclic pattern, which was most pronounced for GS, followed by SG and DH, while median and peak ground reaction forces were highest for GS, followed by SG and DH); and (3) revealed that safety-related reduction of skiing speed might be most effectively achieved by increasing the ski–snow friction force in GS and SG. For DH an increase in the ski–snow friction force might be equally as effective as an increase in air drag force.
MG, JK, JS, and EM designed the study. MG, JK, JS collected the data. MG and PC analyzed the data. All authors contributed to the writing.
This study was financially supported by the International Ski Federation (FIS) Injury Surveillance System (ISS). The funding source had no involvement in the study design, the collection, analysis and interpretation of the data, the writing of the report or the decision to submit this article for publication.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
We would like to thank Julien Chardonnens, Geo Boffi, the organizers of the World Cup alpine ski races and the International Ski Federation for their support. Parts of the present manuscript were included in the PhD thesis of the first author (Gilgien, 2014).
Andersson, E., Supej, M., Sandbakk, O., Sperlich, B., Stoggl, T., and Holmberg, H. C. (2010). Analysis of sprint cross-country skiing using a differential global navigation satellite system. Eur. J. Appl. Physiol. 110, 585–595. doi: 10.1007/s00421-010-1535-2
Bally, A., Boreiko, M., Bonjour, F., and Brown, C. (1989). “Modelling forces on the anterior cruciate knee ligament during backward falls while skiing,” in Skiing Trauma and Safety: Seventh International Symposium, eds M. Binet, C. D. Mote, and R. J. Johnson (Philadelphia, PA: American Society for Testing and Materials), 267–276.
Brodie, M., Walmsley, A., and Page, W. (2008). Fusion motion capture: a prototype system using IMUs and GPS for the biomechanical analysis of alpine ski racing. J. Sports Technol. 1, 17–28. doi: 10.1080/19346182.2008.9648447
Deschamps, T., Nourrit, D., Caillou, N., and Delignieres, D. (2004). Influence of a stressing constraint on stiffness and damping functions of a ski simulator's platform motion. J. Sports Sci. 22, 867–874. doi: 10.1080/02640410410001675478
Falda-Buscaiot, T., Hintzy, F., Rougier, P., Lacouture, P., and Coulmy, N. (2017). Influence of slope steepness, foot position and turn phase on plantar pressure distribution during giant slalom alpine ski racing. PLoS ONE 12:e0176975. doi: 10.1371/journal.pone.0176975
Fasel, B., Spörri, J., Gilgien, M., Boffi, G., Chardonnens, J., Müller, E., et al. (2016). Three-dimensional body and centre of mass kinematics in alpine ski racing using differential GNSS and inertial sensors. Remote Sens. 8:671. doi: 10.3390/rs8080671
Fasel, B., Sporri, J., Schutz, P., Lorenzetti, S., and Aminian, K. (2017). Validation of functional calibration and strap-down joint drift correction for computing 3D joint angles of knee, hip, and trunk in alpine skiing. PLoS ONE 12:e0181446. doi: 10.1371/journal.pone.0181446
Federolf, P., Scheiber, P., Rauscher, E., Schwameder, H., Luthi, A., Rhyner, H., et al. (2008). Impact of skier actions on the gliding times in alpine skiing. Scand. J. Med. Sci. Sports 18, 790–797. doi: 10.1111/j.1600-0838.2007.00745.x
Gastin, P. B., McLean, O., Spittle, M., and Breed, R. V. P. (2013). Quantification of tackling demands in professional Australian football using integrated wearable athlete tracking technology. J. Sci. Med. Sport 16, 589–593. doi: 10.1016/j.jsams.2013.01.007
Gerritsen, K. G. M., Nachbauer, W., and van den Bogert, A. J. (1996). Computer simulation of landing movement in downhill skiing: anterior cruciate ligament injuries. J. Biomech. 29, 845–854. doi: 10.1016/0021-9290(95)00167-0
Gilgien, M. (2014). Characterisation of Skiers' Mechanics, Course Setting and Terrain Geomorphology in World Cup Alpine Skiing Using Global Navigation Satellite Systems: Injury Risk, Performance and Methodological Aspects. Doctoral dissertation, Norwegian School of Sport Sciences.
Gilgien, M., Crivelli, P., Spoerri, J., Kroell, J., and Muller, E. (2015a). Characterization of course and terrain and their effect on skier speed in world cup alpine ski racing. PLoS ONE 10:e0118119. doi: 10.1371/journal.pone.0118119
Gilgien, M., Crivelli, P., Spörri, J., Kröll, J., and Müller, E. (2015b). Correction: characterization of course and terrain and their effect on skier speed in world cup alpine ski racing. PLoS ONE 10:e0128899. doi: 10.1371/journal.pone.0128899
Gilgien, M., Spörri, J., Chardonnens, J., Kröll, J., Limpach, P., and Müller, E. (2015c). Determination of the centre of mass kinematics in alpine skiing using differential global navigation satellite systems. J. Sports Sci. 33, 960–969. doi: 10.1080/02640414.2014.977934
Gilgien, M., Spörri, J., Chardonnens, J., Kröll, J., and Müller, E. (2013). Determination of external forces in alpine skiing using a differential global navigation satellite system. Sensors 13, 9821–9835. doi: 10.3390/s130809821
Gilgien, M., Spörri, J., Kröll, J., Crivelli, P., and Müller, E. (2014a). Mechanics of turning and jumping and skier speed are associated with injury risk in men's World Cup alpine skiing: a comparison between the competition disciplines. Br. J. Sports Med. 48, 742–747. doi: 10.1136/bjsports-2013-092994
Gilgien, M., Sporri, J., Kroll, J., and Muller, E. (2016). Effect of ski geometry and standing height on kinetic energy: equipment designed to reduce risk of severe traumatic injuries in alpine downhill ski racing. Br. J. Sports Med. 50, 8–13. doi: 10.1136/bjsports-2015-095465
Gilgien, M., Spörri, J., Limpach, P., Geiger, A., and Müller, E. (2014b). The effect of different global navigation satellite system methods on positioning accuracy in elite alpine skiing. Sensors 14, 18433–18453. doi: 10.3390/s141018433
Hame, S. L., Oakes, D. A., and Markolf, K. L. (2002). Injury to the anterior cruciate ligament during alpine skiing: a biomechanical analysis of tibial torque and knee flexion angle. Am. J. Sports Med. 30, 537–540. doi: 10.1177/03635465020300041301
Heinrich, D., Van den Bogert, A. J., and Nachbauer, W. (2014). Relationship between jump landing kinematics and peak ACL force during a jump in downhill skiing: a simulation study. Scand. J. Med. Sci. Sports 24, e180–e187. doi: 10.1111/sms.12120
Kolmogorov, S. V., and Duplishcheva, O. A. (1992). Active drag, useful mechanical power output and hydrodynamic force coefficient in different swimming strokes at maximal velocity. J. Biomech. 25, 311–318. doi: 10.1016/0021-9290(92)90028-Y
Kraemer, W. J., Adams, K., Cafarelli, E., Dudley, G. A., Dooly, C., Feigenbaum, M. S., et al. (2002). American college of sports medicine position stand on progression models in resistance training for healthy adults. Med. Sci. Sports Exerc. 34, 364–380. doi: 10.1097/00005768-200202000-00027
Kröll, J., Spörri, J., Fasel, B., Müller, E., and Schwameder, H. (2014). “Type of muscle control in elite alpine skiing – is it still the same than in 1995?” in Science and Skiing VI, eds E. Müller, J. Kröll, S. Lindinger, J. Pfusterschmied, and T. Stoggl (Maidenhead: Meyer and Meyer Sport), 56–64.
Kröll, J., Spörri, J., Gilgien, M., Schwameder, H., and Müller, E. (2016a). Effect of ski geometry on aggressive ski behaviour and visual aesthetics: equipment designed to reduce risk of severe traumatic knee injuries in alpine giant slalom ski racing. Br. J. Sports Med. 50, 20–25. doi: 10.1136/bjsports-2015-095433
Kröll, J., Spörri, J., Gilgien, M., Schwameder, H., and Müller, E. (2016b). Sidecut radius and kinetic energy: equipment designed to reduce risk of severe traumatic knee injuries in alpine giant slalom ski racing. Br. J. Sports Med. 50, 26–31. doi: 10.1136/bjsports-2015-095463
Kröll, J., Spörri, J., Kandler, C., Fasel, B., Müller, E., and Schwameder, H. (2016c). “Kinetic and kinematic comparison of alpine ski racing disciplines as a base for specific conditioning regimes,”in 33rd International Conference on Biomechanics in Sports (Poitiers: ISBS-Conference Proceedings Archive), 3:2016.
Lee, H. T., Roh, H. L., and Kim, Y. S. (2016). Cardiorespiratory endurance evaluation using heart rate analysis during ski simulator exercise and the Harvard step test in elementary school students. J. Phys. Therapy Sci. 28, 641–645. doi: 10.1589/jpts.28.641
Lüthi, A., Federolf, P., Fauve, M., Oberhofer, K., Rhyner, H., Amman, W., et al. (2004). “Determination of forces in carving using three independent methods,” in 3rd International Congress on Skiing and Science (Aspen, CO: St. Cloud State University).
Moon, J., Koo, D., Kim, K., Shin, I., Kim, H., and Kim, J. (2015). Effect of ski simulator training on kinematic and muscle activation of the lower extremities. J. Phys. Ther. Sci. 27, 2629–2632. doi: 10.1589/jpts.27.2629
Nakazato, K., Scheiber, P., and Müller, E. (2011). A comparison of ground reaction forces determined by portable force-plate and pressure-insole systems in alpine skiing. J. Sports Sci. Med. 10, 754–762.
Neumayr, G., Hoertnagl, H., Pfister, R., Koller, A., Eibl, G., and Raas, E. (2003). Physical and physiological factors associated with success in professional alpine skiing. Int. J. Sports Med. 24, 571–575. doi: 10.1055/s-2003-43270
Nourrit, D., Delignieres, D., Caillou, N., Deschamps, T., and Lauriot, B. (2003). On discontinuities in motor learning: a longitudinal study of complex skill acquisition on a ski-simulator. J. Mot. Behav. 35, 151–170. doi: 10.1080/00222890309602130
Raschner, C., Platzer, H., Patterson, C., Werner, I., Huber, R., and Hildebrandt, C. (2012). The relationship between ACL injuries and physical fitness in young competitive ski racers: a 10-year longitudinal study. Br. J. Sports Med. 46, 1065–1071. doi: 10.1136/bjsports-2012-091050
Schiestl, M., Kaps, P., Mossner, M., and Nachbauer, W. (2006). “Calculation of friction and reaction forces during an alpine world cup downhill race,” in The engineering of sport 6, eds E. F. Moritz and S. Haake (New York, NY: Springer), 269–274.
Spörri, J., Kröll, J., Amesberger, G., Blake, O., and Müller, E. (2012a). Perceived key injury risk factors in world cup alpine ski racing an explorative qualitative study with expert stakeholders. Br. J. Sports Med. 46, 1059–1064. doi: 10.1136/bjsports-2012-091048
Spörri, J., Kröll, J., Gilgien, M., and Müller, E. (2016). Sidecut radius and the mechanics of turning-equipment designed to reduce risk of severe traumatic knee injuries in alpine giant slalom ski racing. Br. J. Sports Med. 50, 14–19. doi: 10.1136/bjsports-2015-095737
Spörri, J., Kröll, J., Haid, C., Fasel, B., and Müller, E. (2015). Potential mechanisms leading to overuse injuries of the back in alpine ski racing: a descriptive biomechanical study. Am. J. Sports Med. 43, 2042–2048. doi: 10.1177/0363546515588178
Spörri, J., Kröll, J., Schwameder, H., and Müller, E. (2012b). Turn characteristics of a top world class athlete in giant slalom: a case study assessing current performance prediction concepts. Int. J. Sports Sci. Coach. 7, 647–660. doi: 10.1260/1747-95220.127.116.117
Spörri, J., Kröll, J., Schwameder, H., Schiefermüller, C., and Müller, E. (2012c). Course setting and selected biomechanical variables related to injury risk in alpine ski racing: an explorative case study. Br. J. Sports Med. 46, 1072–1077. doi: 10.1136/bjsports-2012-091425
Stricker, G., Scheiber, P., Lindenhofer, E., and Muller, E. (2010). Determination of forces in alpine skiing and snowboarding: validation of a mobile data acquisition system. Eur. J. Sport Sci. 10, 31–41. doi: 10.1080/17461390903108141
Supej, M., Hebert-Losier, K., and Holmberg, H. C. (2014). Impact of the steepness of the slope on the biomechanics of world cup slalom skiers. Int. J. Sports Physiol. Perform. 10, 361–368. doi: 10.1123/ijspp.2014-0200
Supej, M., and Holmberg, H. C. (2011). A new time measurement method using a high-end global navigation satellite system to analyze alpine skiing. Res. Q. Exerc. Sport 82, 400–411. doi: 10.1080/02701367.2011.10599772
Supej, M., Saetran, L., Oggiano, L., Ettema, G., Saarabon, N., Nemec, B. C., et al. C. (2012). Aerodynamic drag is not the major determinant of performance during giant slalom skiing at the elite level. Scand. J. Med. Sci. Sports 23, 38–47. doi: 10.1111/sms.12007
Yamazaki, J., Gilgien, M., Kleiven, S., McIntosh, A. S., Nachbauer, W., Müller, E., et al. (2015). Analysis of a severe head injury in world cup alpine skiing. Med. Sci. Sports Exerc. 47, 1113–1118. doi: 10.1249/MSS.0000000000000511
