^{1}Department of Architecture and Building Science, School of Engineering, Tohoku University, Sendai, Japan^{2}Earthquake Engineering Laboratory, International Research Institute of Disaster Science, Tohoku University, Sendai, Japan^{3}Department of Environmental Engineering and Architecture, Graduate School of Environmental Studies, Nagoya University, Nagoya, Japan^{4}Dynamics Research Group, Department of Mechanical Engineering, University of Sheffield, Sheffield, United Kingdom

Recent massive earthquakes have raised concerns that megathrust earthquakes with magnitude 9 can occur in the near future. This article discusses the critical behavior of structures involving torsion caused by extreme ground motions. Unlike factors such as mass and stiffness eccentricity and accidental torsion in a structure that induce torsion, torsional buckling can occur in a moment-resisting frame (MRF) when all beam ends in the longitudinal and transverse directions yield in the lower stories, even if the frame is well designed and its eccentricity is negligibly small. In this study, the theoretically predicted buckling load was presented and validated via numerical analyses. This article shows that excluding the P-Delta effect resulted not only in underestimated deformation but also in overlooked torsional buckling. This study suggests that a high-rise MRF designed in accordance with modern seismic design codes can suffer torsional collapse when the beam ends of the lower stories yield owing to extreme ground motion. Based on these findings, we recommend considering the P-Delta effect when examining the critical behavior of high-rise buildings so as not to overlook the brittle failure mode.

## 1 Introduction

Recent massive earthquakes caused numerous buildings of various sizes, ages, and constructions to collapse, making us aware of seismic risks that exist worldwide. For example, several low-to-mid-rise buildings collapsed during the 2023 Turkey-Syria Earthquake. According to the reports on ground motion records provided at an early stage, this earthquake generated very intense ground motions with long-period directivity pulses and fling steps exceeding the peak ground acceleration of a return period of 476 years in 1.4% of Turkey’s land area (Baltzopoulos et al., 2023). In 2016 in Kumamoto, Japan, a mainshock of moment magnitude (Mw) 7.1 followed a foreshock of Mw 6.1 that had occurred the day before (Bhattacharya et al., 2018). This was the first event in which another destructive earthquake followed an earthquake greater than Mw 6 in the recorded history of Japan. The Great East Japan Earthquake in 2011 caused a tsunami that affected vast areas of the country. The long-period ground motion generated by the earthquake traveled all the way to Osaka, approximately 800 km away from the epicenter (Takewaki et al., 2011). Further, this motion was amplified by the soft surface subsoil in the Osaka Bay area, causing a high-rise steel building in Osaka to resonate with a 1.4 m maximum amplitude at the top. The resonance of structures with ground motion can lead to structural collapse, as observed in the Pino Suárez building group during the 1985 Mexico Earthquake (Osteraas and Krawinkler, 1989; Ger et al., 1993). There are growing concerns about the occurrence of massive earthquakes of magnitude 9, such as the potential Cascadia and Nankai Megathrust Earthquakes, in the near future (Marafi et al., 2020; Fukushima et al., 2023).

Many previous studies have focused on understanding the critical behavior of structures subjected to massive earthquakes to implement measures for protecting lives and properties from major disasters. Uetani and Tagawa (1998) reported that the yield of beam ends in a two-dimensional planer frame can lead to an undesirable collapse mode referred to as “deformation concentration in lower stories.” A similar phenomenon was also observed by Bernal (1992, 1998) in the study that estimated the response of a multi-DOF system using an equivalent single-DOF system, which was further developed by Adam et al. (2004). Efforts were made to track the progressive collapse (Kiakojouri et al., 2020; Kiakojouri et al., 2021) accurately and efficiently (Scott and Fenves, 2010; Lin et al., 2018), including experiments on full-scale four-story and reduced-scale eighteen-story specimens using E-Defense, which is the largest shake table in the world (Nakashima et al., 2018; Nishi et al., 2023).

Torsional collapse continues to be a challenge in understanding the critical behavior of building frames. Torsional irregularities and accidental torsion are commonly considered in structural design; however, torsional vibrations are often underestimated when the eccentricity is very small (Flores et al., 2018). Jenning and Husid, (1968), Wilson and Habibullah (1987), Osteraas and Krawinkler (1989), Ger et al. (1993), Uetani and Tagawa (1998), and Bernal (1992, 1998) revealed the influence of P-Delta effects on the behavior of structures subjected to severe earthquakes. Flores et al. (2018) reported that the P-Delta (P-Theta) effect accelerated torsion caused by other factors such as eccentricity and uncertainty when bidirectional ground motion was considered. Kohiyama and Yokoyama (2018) noted that the geometric nonlinearity of frame stiffness induced a parametric resonance in torsional vibration, which was designated as Q-Delta resonance. Later, their research works were further developed by Mizutori and Kohiyama (2021), Kohiyama et al. (2022), Kohiyama and Maki (2023), and Kohiyama and Kai (2023). Hong (2013) designated the second-order effect caused by instantaneous load eccentricities due to the motion of the center of mass as the A-Delta effect and noted that ignoring the A-Delta effect might underestimate seismic displacement. Furthermore, rotational components of ground motions can introduce significant influence including torsional response. Zhang et al. (2020) examined the seismic response of transmission towers considering the rocking and torsion components of the ground motion and noted that the rotational ground motion components should not be neglected. Zhang et al. (2021) realized that the nonuniformity and multidimensionality of ground motion can increase the seismic response of a large-span spatial structure; thus, the seismic response may be underestimated when only translational components of the ground motion are considered.

The inelastic torsional buckling examined in this study is different than any other known phenomena involving torsion (Uetani, 2018; Fukuda and Ikago, 2019; 2020; Fukuda et al., 2023). In this study, a numerical example demonstrated that a simple three-dimensional symmetric moment-resisting frame (MRF) model subjected to a horizontal load suffered from significant torsional deformation even though a horizontal load was applied to the centroid of the roof slab. Therefore, this study suggests that a well-designed high-rise building without eccentricity can suffer non-negligible torsional deformation in the lower stories when all beam ends of the lower stories in the longitudinal and transverse frames yield under severe bidirectional ground motion.

The remainder of this article is organized as follows. Section 2 discusses the similarity between the inelastic buckling theory of a simple three-dimensional frame and Shanley’s column theory (Shanley, 1947). In Section 3, a prediction of the column axial load that causes torsional buckling is derived from the condition that the uniqueness of the solution of governing equations is violated. In Section 4, numerical analyses are shown to validate the theoretically derived prediction of buckling load. Section 5 presents conclusions and recommendations.

## 2 Inelastic torsional buckling theory for a simple moment resisting frame

### 2.1 Inelastic three-dimensional moment resisting frame

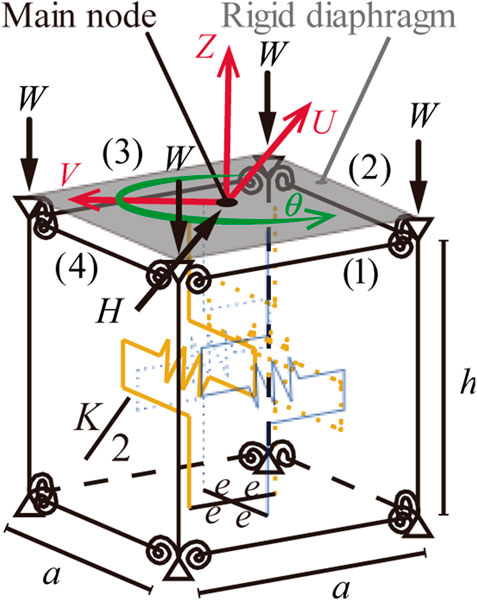

Figure 1 shows the three-dimensional MRF model employed in this study. The model comprises four columns whose tops and bottoms are connected via beams, thereby forming a rectangular parallelepiped. The bottoms of the columns are supported by pins, and the beams and columns are rigid bars. The vertical planes formed by the MRFs are labeled (1), (2), (3), and (4), as shown in Figure 1. The column tops and bottoms are connected to the beams via elastoplastic hinges with the moment–rotation angle relationship shown in Figure 2.

*e* from the centroid to impart horizontal and rotational stiffness. A static vertical load *W* acts on the top of each column.

### 2.2 Review of inelastic buckling theory for a column subjected to axial load

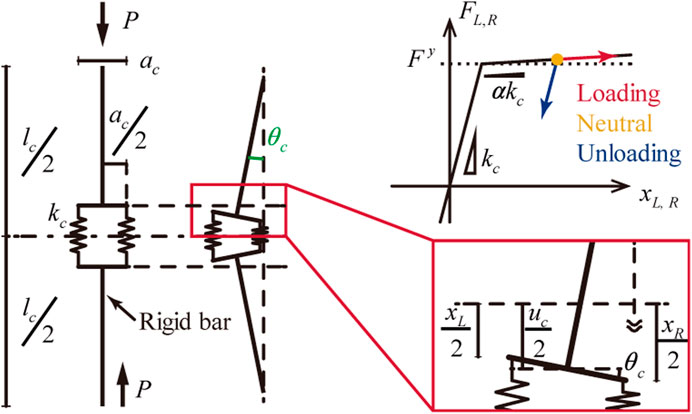

Figure 3 shows a simple model of a column subjected to axial load

**FIGURE 3**. Shanley column (Shanley, 1947).

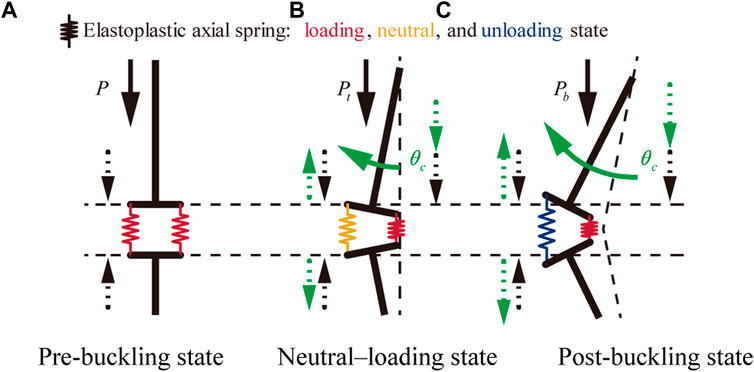

Figure 4 shows the bifurcation process in a Shanley column subjected to increasing axial loading. Both springs are in the loading state because the axial force increases immediately before buckling. When bifurcation occurs, the elongation and shrinkage caused by the rotation and the increasing axial force cancel each other, resulting in a neutral loading state of the left-hand side spring, while the spring on the right-hand side maintains the loading state. Strain reversal occurs on the left side of the spring after the column buckles. Thus, the Shanley column does not involve strain reversal under buckling, implying that replacing the elastic modulus with the tangent modulus in Euler’s formula yields a better prediction of the inelastic buckling load than by replacing it with the reduced modulus (von Kármán, 1910) when an increase in the axial load is considered during buckling.

**FIGURE 4**. Bifurcation process in Shanley column. **(A)** Pre-buckling state **(B)** Neutral–loading state **(C)** Post-buckling state.

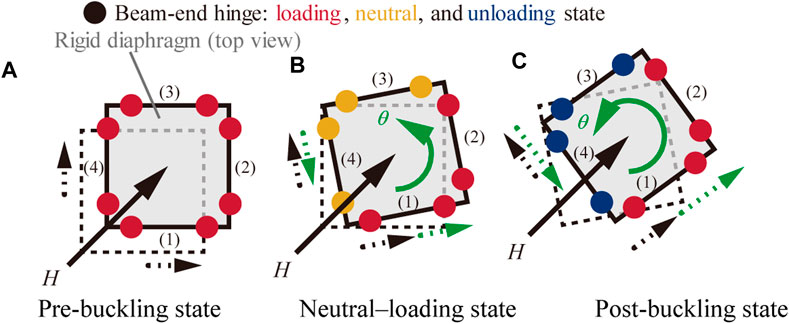

Figure 5 shows the top view of the bifurcation process of a simple MRF subjected to increasing horizontal loading in the diagonal direction. All beam ends are in the loading state immediately before torsional buckling. When torsion occurs, a counterclockwise rotation

**FIGURE 5**. Bifurcation process in simple three-dimensional MRF. **(A)** Pre-buckling state **(B)** Neutral–loading state **(C)** Post-buckling state.

## 3 Prediction of the column axial force for torsional buckling

The relationships between the story drift angle of the

when we assume that the following approximations hold:

The shear force of the

The equilibrium equations with respect to the

where

The second terms on the righthand side of the above equations represent geometrical stiffnesses derived from the P-Delta effect.

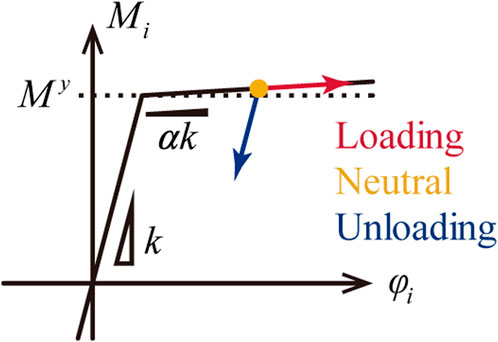

The constitutive law of the beam-end hinges is given as

where

### 3.1 Uniqueness of the rate solution on the fundamental path

In this study, the path in which no buckling occurred is referred to as the fundamental path. Let the superscript

**Compatibility condition**

**Equilibrium equations**

**Constitutive law**

Let superscript

**Compatibility condition**

**Equilibrium equations**

**Constitutive law**

Let us define

Multiplying Eqs. (14), (15), and (16) by

Here, let us define vector

Then, Eq. (17) reduces to

The above equation holds if the rate solution of the equilibrium equation is not unique and a rate solution

**Sufficient condition for the uniqueness of the rate solution**

We introduce a virtual hinge element that is always in a loading state to simplify the evaluation of

**Constitutive law for comparison hinge**

This virtual hinge element (hereafter, comparison hinge) corresponds to the comparison solid (Sewell, 1973) proposed by Hill (Hill, 1956a, 1956b, 1957a, 1957b, 1958). Replacing the beam-end hinges with the comparison hinge enables simplifying the function

Because the above inequality holds,

The equality holds if and only if

Thus, the following condition is sufficient for uniqueness.

The above inequality is expanded as

If the following equations hold, the above condition is violated.

Eqs. (28) and (29) indicate that the post-yielding stiffnesses in the horizontal and rotational directions, respectively, become negative because of the geometric stiffness.

Here, we consider the case in which only Eq. (29) holds because torsional buckling is considered exclusively. Thus, we assume that

Solving Eqs. (29) and (30) with respect to

where

### 3.2 Post buckling behavior

When we assume that Eq. (31) is satisfied, torsional buckling can occur when all beam-end hinges yield. We assume that the displacement perpendicular to the horizontal loading

This section demonstrates that MRFs (3) and (4) turn to the unloading state after torsional buckling occurs with

The shear forces

where superscript

Substituting Eq. (33) into Eq. (4) yields

The equilibrium equation with respect to the

Eq. (37) contradicts the assumption that

In the following, we assume that

When

Substituting Eq. (39) into Eq. (4) yields

The equilibrium equation with respect to the

Upon substituting Eq. (41) into the upper part of Eq. (40), we obtain

where

If

Provided that

The above condition yields the upper bound of column axial force

By combining the conditions in Eqs. (31) and (46), the condition for torsional buckling can be modified as

## 4 Numerical analysis

### 4.1 Analytical model

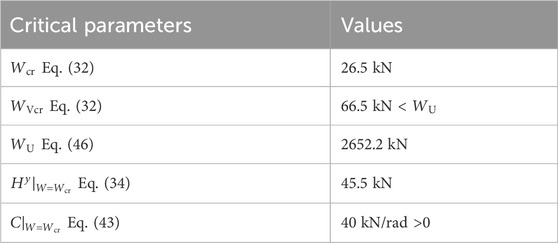

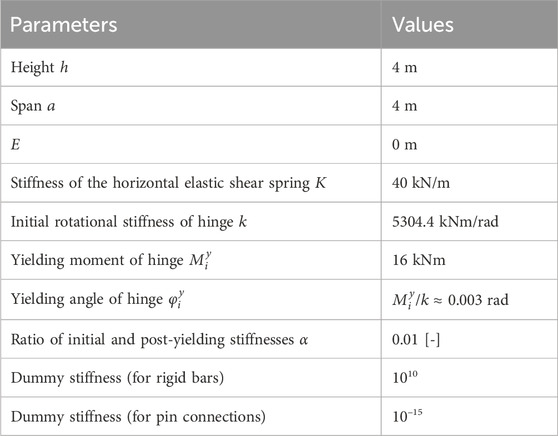

Tables 1 and 2 summarize the specifications of the analytical model and its critical vertical loads and constants. Further details regarding the modeling and analytical options are presented in the Supplementary Appendix.

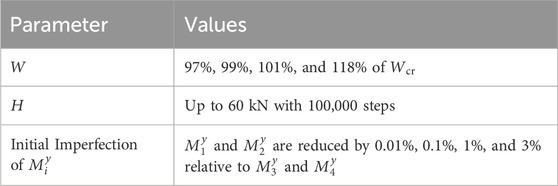

Table 3 lists the values of the vertical and horizontal loads (

### 4.2 Analytical result

#### 4.2.1 Verification of the theoretical buckling load and the relationship between the horizontal load and rotational angle

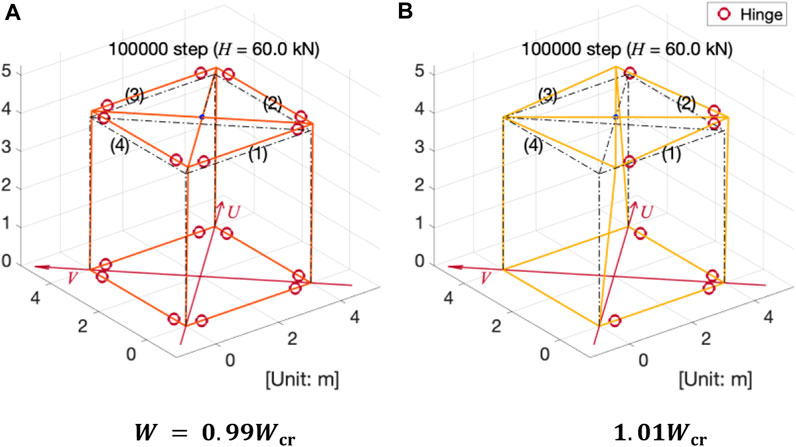

Figures 6A,B show the deformation of the MRF model at the end of the analysis for

**FIGURE 6**. Comparison of overall deformation at the end of the analysis (Initial imperfection: 0.01%) **(A)** **(B)**

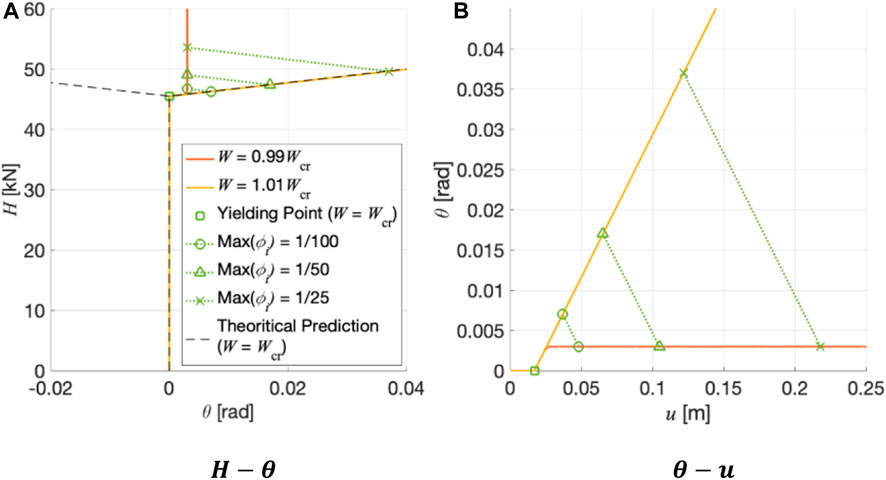

Figures 7A,B show the

**FIGURE 7**. **(A)** **(B)**

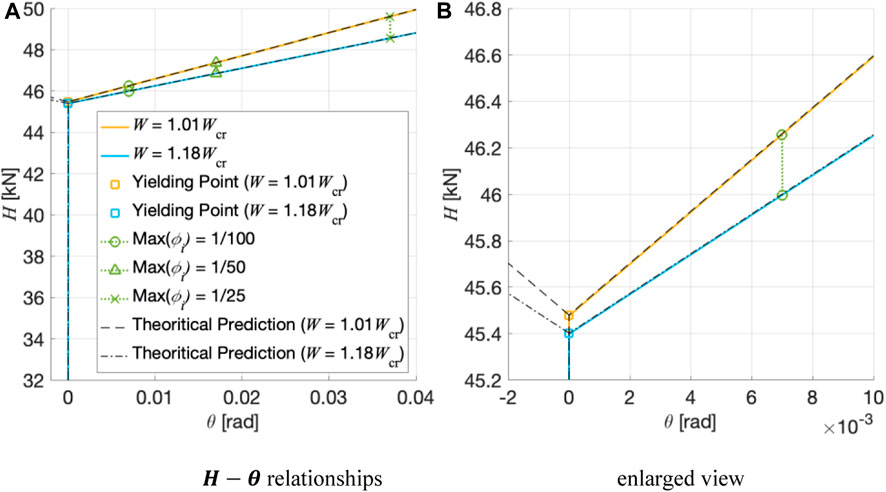

An additional analysis was conducted for the case with a vertical load of

**FIGURE 8**. **(A)** **(B)** enlarged view.

#### 4.2.2 Sensitivity analysis with respect to the initial imperfection

The analytical results suggested that the buckling load

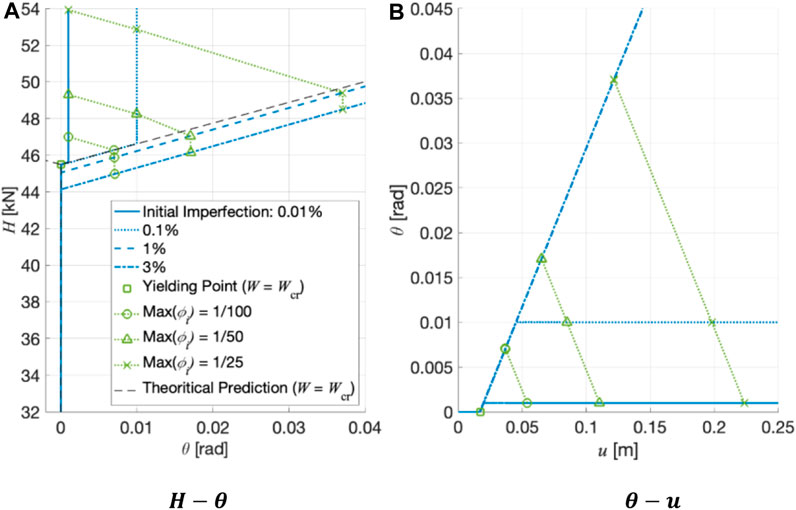

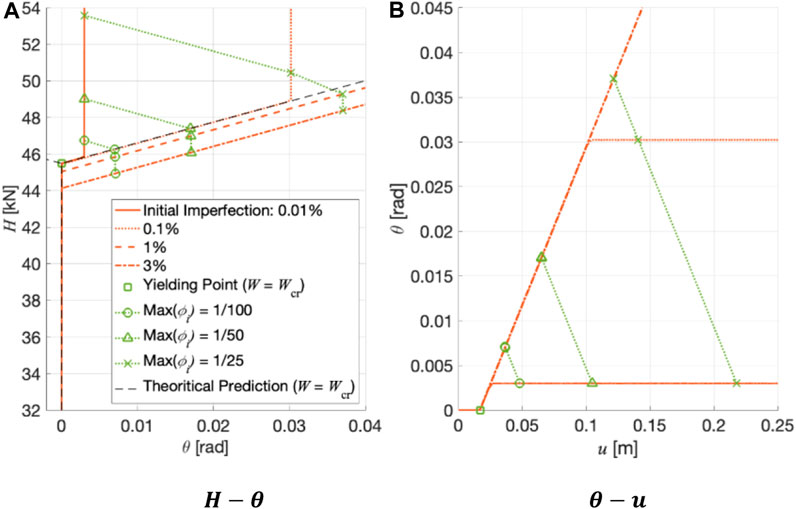

Figures 9 and 10 show

**FIGURE 9**. **(A)** **(B)**

**FIGURE 10**. **(A)** **(B)**

In cases where imperfections are very small (0.01% and 0.1%) and the vertical load is very close to the buckling load, the

#### 4.2.3 Comparison of the analytical results with and without considering the P-Delta effect

The *PDelta* and *Linear Transformation* options for *geometric transformation* command in OpenSees are specified in the numerical model for cases with and without the P-Delta effect, respectively (Denavit and Hajjar, 2013). The static vertical load acting on each column and the initial imperfection were

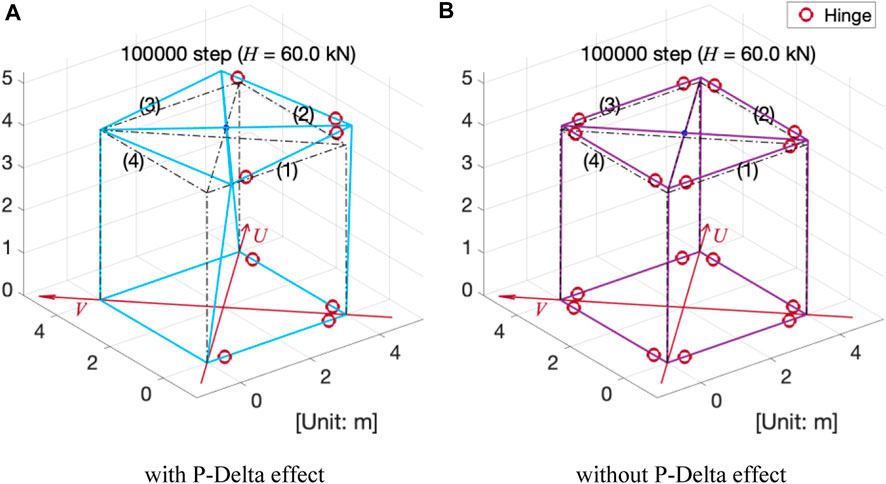

Figure 11 compares the overall deformation of the MRF at the end of the analysis (

**FIGURE 11**. Comparison of the overall deformation (**(A)** with P-Delta effect **(B)** without P-Delta effect.

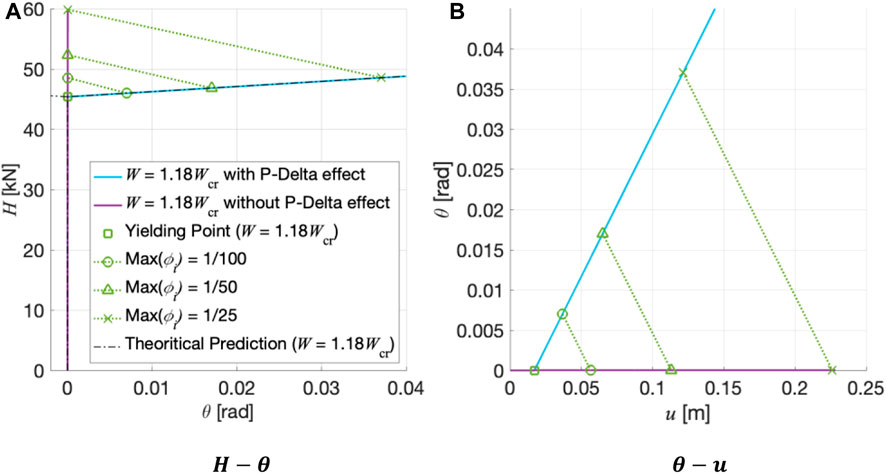

**FIGURE 12**. **(A)** **(B)**

## 5 Conclusion

This article presented the inelastic torsional buckling theory for a simple three-dimensional MRF model. The torsional buckling examined in this study was different from the torsional behavior caused by the eccentricity of the weight and/or stiffness in a structure or Q-Delta resonance.

The MRF examined in this study was designed such that the yielding of the beam ends preceded that of the columns following structural design practices. It was theoretically elucidated that a simple three-dimensional MRF, which was perfectly symmetric and had no eccentricity, suffered large torsional deformation when subjected to a horizontal force acting on the center of gravity of the structure in a diagonal direction. Similar to Shanley’s theory for the inelastic buckling of a column, bifurcation could occur without strain reversal in all beam-end hinges, and therefore, the critical vertical load that causes torsional buckling could be predicted assuming that all beam-end hinges were in the loading state, acting as comparison hinges.

An analytical example was used to validate the buckling load and post buckling force–deformation relationship predicted by the proposed theory. The analytical model yielded torsional deformation that did not occur when not considering the P-Delta effect and only occurred when it was considered. Further, the maximum interstory drifts of the frames were found to be larger than those when they were not considered.

Designing a steel MRF such that the yielding of the beam ends precedes that of the columns is a common practice to ensure ductility in the case of a severe seismic event. However, this study suggests that the lower part of a high-rise MRF can still suffer torsional buckling, thereby losing ductility despite the design intention when all beams end in the longitudinal and transverse frames yield owing to the bi-directional horizontal forces. The prediction of column axial force that can cause torsional buckling presented in this study is useful in deciding if the P-Delta effect should be considered.
