Data Enrichment for Semantic Segmentation of Point Clouds for the Generation of Geometric-Semantic Road Models

David Crampen^1,2*Joerg Manfred Blankenbach^1,2

• ¹RWTH Aachen University, Aachen, Germany
• ²Geodetic Institute and Chair for Computing in Civil Engineering & GIS, Civil Engineering Department, RWTH Aachen University, Aachen, Germany

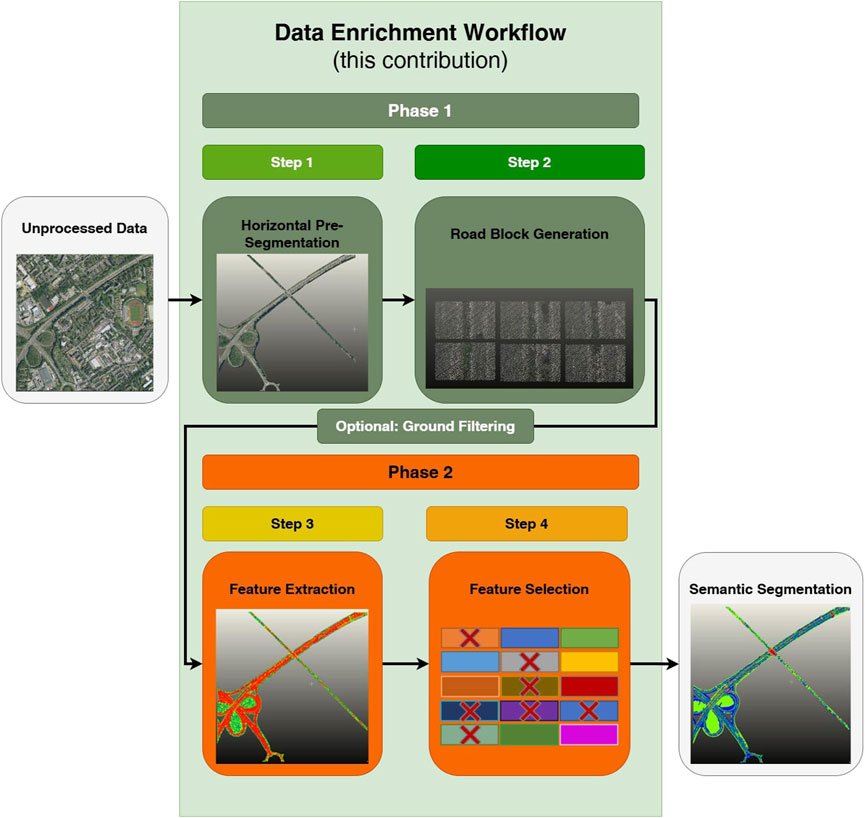

Digitalizing highway infrastructure is gaining interest in Germany and other countries due to the need for greater efficiency and sustainability. The maintenance of the built infrastructure accounts for nearly 30% of greenhouse gas emissions in Germany. To address this, Digital Twins are emerging as tools to optimize road systems. A Digital Twin of a built asset relies on a geometric-semantic as-is model of the area of interest, where an essential step for automated model generation is the semantic segmentation of reality capture data. While most approaches handle data without considering real-world context, our approach leverages existing geospatial data to enrich the data foundation through an adaptive feature extraction workflow. This workflow is adaptable to various model architectures, from deep learning methods like PointNet++ and PointNeXt to traditional machine learning models such as Random Forest. Our four-step workflow significantly boosts performance, improving overall accuracy by 20% and unweighted mean Intersection over Union (mIoU) by up to 43.47%. The target application is the semantic segmentation of point clouds in road environments. Additionally, the proposed modular workflow can be easily customized to fit diverse data sources and enhance semantic segmentation performance in a model-agnostic way.
