Abstract
The adhesion properties between warm-mix recycled asphalt and aggregates are a key bottleneck limiting the application of warm-mix recycled asphalt. To investigate the effects of aging, warm mix agent, and rejuvenator on the adhesion properties of SBS-modified asphalt and aggregates, this study used atomic force microscopy (AFM) to examine the surface microstructure of asphalt and aggregates. The classical Johnson-Kendall-Roberts and Derjaguin-Muller-Toporov mechanical models were chosen to characterize the micromechanics of asphalt with aggregates, and the influence of aging effects, rejuvenator, and warm mixe agents on the adhesion behavior at the asphalt-aggregate interface was explored using the Fowkes surface energy theory. Molecular dynamics (MD) methods were used to investigate the interaction energy between asphalt and aggregates, and the adhesion work between asphalt and aggregates at the molecular level was calculated. A one-dimensional linear equation between AFM and MD is proposed, and a cross-scale relationship between AFM and MD is established. The research findings indicate that the aging process increases the roughness and adhesion of the asphalt surface through the formation of polar groups, while rejuvenators and warm mix agents counteract these effects through component supplementation and crystallization. The adhesion properties of asphalt with limestone are much higher than the adhesion properties of asphalt with granite, which is the fruit of the combined effect of van der Waals and electrostatic forces. AFM and MD have a good univariate linear functional relationship, the decidability coefficient R2 > 0.9. These findings provide foundational insights for optimizing asphalt-aggregate combinations in pavement engineering.
1 Introduction
Asphalt materials undergo progressive aging when exposed to multiple environmental and mechanical stressors, including oxidative conditions, thermal fluctuations, ultraviolet radiation, and traffic loading. This degradation process leads to the deterioration of pavement performance, manifesting as surface cracking, raveling, and other distress modes (). The rehabilitation of aged pavements generates substantial quantities of reclaimed asphalt pavement (RAP) materials. Conventional disposal approaches, such as uncontrolled stockpiling or landfilling, present significant environmental challenges and represent inefficient utilization of valuable resources (). Consequently, the development of sustainable RAP recycling technologies has become a critical focus in pavement engineering, aiming to simultaneously address resource conservation and environmental protection objectives.
The hot recycling technology has long been recognized as one of the effective means of fully recovering RAP. However, high temperatures can lead to the production of large amounts of harmful gases during the recycling process, which are not only harmful to people’s health, but also pollute the environment. Thus, warm mix agent was created. Numerous studies have shown that warm mixes can reduce the production temperature of asphalt by 30°C–50°C, which can significantly reduce pollutant emissions (; ). Warm mix recycled asphalt technology represents a significant advancement in sustainable pavement construction by effectively addressing environmental concerns and re-source conservation. The adhesion properties between warm mix recycled asphalt and aggregates are a key factor in ensuring the long-term stability of their asphalt mixtures (; ; ). Currently, warm mix recycled asphalt is limited in its application due to its multi-phase complexity, which leads to unclear adhesion mechanism with aggregates.
Currently, atomic force microscopy (AFM) and molecular dynamics (MD) methods are widely used for their ability to well characterize the adhesion behavior between asphalt and aggregate. evaluated the micromorphology and adhesion properties of interfacial and noninterfacial regions in cold recycled asphalt mixes using AFM. Zhang et al. used AFM to investigate the relationship between asphalt chemical composition and micromechanics (Zhang E. et al., 2022). In addition, some scholars have used AFM to quantitatively characterize the adhesion between asphalt and aggregate, and the results show that asphalt microform and aggregate type are important factors affecting the adhesion between asphalt and aggregate (Zhang M. et al., 2024; ; ; ). In addition, some researchers have explored the adhesion mechanism between asphalt and aggregate from a molecular point of view. Cui et al. found a strong correlation between the adhesion properties obtained from MD simulations and AFM tests (). , used MD to investigate the effect of aggregate mineral composition on the adhesion properties of asphalt and aggregate. The above studies have shown that the adhesion properties between asphalt and aggregate can be effectively evaluated using AFM and MD. Therefore, this paper was able to evaluate the effects of aging effects, rejuvenators and warm mixes on the adhesion properties of asphalt and aggregates using AFM and MD.
In this study, to investigate the effect of aging effect, rejuvenator and warm mix agent on the adhesion properties between SBS modified asphalt and aggregate, AFM test and molecular dynamics simulation were used in this paper to explore the adhesion properties between asphalt and aggregate. The adhesion force between asphalt and aggregate was tested separately using AFM and the adhesion work between asphalt and aggregate was calculated based on contact mechanics. The interaction energy and adhesion work between asphalt and aggregate were calculated using molecular dynamics method. A linear relationship between the two scales was established. The results of the study will be important for the application of warm mix recycled asphalt.
2 Materials and methods
2.1 Materials
2.1.1 SBS modified asphalt

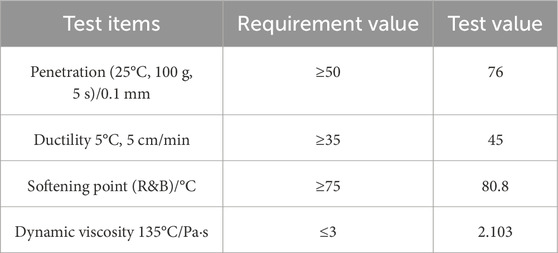

The basic properties of SBS modified asphalt are shown in Table 1, and the SBS modifier content is 4.7% of the asphalt mass.
TABLE 1
| Test items | Requirement value | Test value |
|---|---|---|
| Penetration (25°C, 100 g, 5 s)/0.1 mm | ≥50 | 76 |
| Ductility 5°C, 5 cm/min | ≥35 | 45 |
| Softening point (R&B)/°C | ≥75 | 80.8 |
| Dynamic viscosity 135°C/Pa·s | ≤3 | 2.103 |
Physical indicators of SBS-modified asphalt.
2.1.2 Rejuvenator

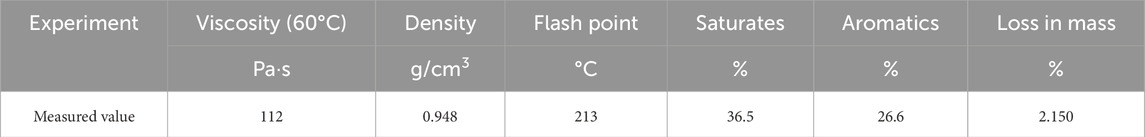

The basic physical properties of the rejuvenator are shown in Table 2. The rejuvenator consists of a vegetable oil, viscosity builder, and plasticizer. The content of the rejuvenator in the recycled asphalt binder was established at 10 wt%.
TABLE 2
| Experiment | Viscosity (60°C) | Density | Flash point | Saturates | Aromatics | Loss in mass |
|---|---|---|---|---|---|---|
| Pa·s | g/cm3 | °C | % | % | % | |
| Measured value | 112 | 0.948 | 213 | 36.5 | 26.6 | 2.150 |
Physical indicators of rejuvenator.
2.1.3 Warm-mix agent
The basic physical properties of the WMA are shown in Table 3. The WMA content is 3 wt% of the mass of asphalt.
TABLE 3
| Appearance | Viscosity (Pa·s) | Density (g/cm3) | Optimal content (%) |
|---|---|---|---|
| Milky white particles | 12.2 × 10−3 | 0.96 | 3 |
Physical indicators of WMA.
2.1.4 Aggregate
In this experimental investigation, two distinct categories of mineral aggregates specifically, alkaline limestone and acidic granite-were carefully selected as representative specimens to systematically examine the influence of aggregate mineralogy on interfacial adhesion characteristics within asphalt-aggregate systems.
2.1.5 Preparation of asphalt samples
2.1.5.1 Preparation of aged SBS modified asphalt
Considering the limitations of the test conditions, this paper used the 270 min RTFOT () to simulate the long-term aging of asphalt, which has been proven to be feasible (Zhang M. et al., 2024).
2.1.5.2 Preparation of warm mixed recycled SBS modified asphalt binder
The preparation process of asphalt is shown in Figure 1.
FIGURE 1
2.2 Test methods
2.2.1 Atomic force microscopy (AFM) test
2.2.1.1 AFM test for asphalt binder
The surface topography and nanomechanical properties of bituminous materials were characterized using atomic force microscopy (Bruker Dimension Icon AFM) to investigate micro structural features and interfacial interactions at the nanoscale. The AFM analysis employed a dual-mode approach: 1) light-tapping mode for high-resolution topographic imaging and 2) contact mode for quantitative force measurements. All experiments were conducted under strictly controlled conditions, maintaining an ambient 25°C (±0.5°C). The scanning parameters included a 10 × 10 μm2 analysis area, 2 Hz scan rate, and 256 × 256 pixel resolution, ensuring consistent measurement conditions across all specimens. A calibrated RFESPA-75 silicon probe (nominal tip radius = 8 nm, spring constant = 3 N/m) was used for all measurements, with each sample undergoing triplicate testing to ensure data reproducibility.
2.2.1.2 AFM test for aggregate
The nanoscale characterization of aggregate surfaces was performed using a Bruker Dimension Icon atomic force microscopy (AFM) following standardized analytical protocols. To ensure optimal resolution of surface features, the scanning area was reduced to 5 × 5 μm2 compared to asphalt specimens, while maintaining identical environmental conditions. Prior to AFM analysis, aggregate surfaces underwent precision polishing to achieve a surface roughness below 5 μm, a critical preparation step for obtaining reliable micro structural and force interaction data.
2.2.1.3 Evaluation of asphalt-aggregate micro-adhesion force
The adhesion characteristics at the asphalt-aggregate interface were quantitatively assessed through analysis of force-distance measurements, with representative profiles displayed in Figure 2a and typical interaction curves shown in Figure 2b. These experimental data were interpreted using two complementary theoretical frameworks from contact mechanics: the Johnson-Kendall-Roberts (JKR) formulation Equation 1 (Zhang Z. et al., 2024), appropriate for describing interactions with deformable asphalt surfaces, and the Derjaguin-Muller-Toporov (DMT) approach Equation 2 (), more suitable for modeling contacts with rigid mineral substrates.Where, Was-p and Wag-p are the asphalt-probe and aggregate-probe adhesion work, respectively. Fas-p and Fag-p are the asphalt-probe and aggregate-probe adhesion force, respectively, and the value corresponds to the lowest point in the withdrawal curve (see point E in Figure 2b). Ras-p and Rag-p are the probe-asphalt contact area and probe-aggregate contact area, respectively, Ras-p = Rag-p = 8 nm. The interfacial bonding capacity between asphalt binder and mineral aggregate can be quantitatively assessed through Fowkes’ surface energy theory, with the corresponding adhesion work calculations expressed in the following theoretical framework (Equations 3–5):Where, γas is the surface free energy of the asphalt binder. γag is the surface free energy of the aggregate. γp is the surface free energy of the silica probe, and γp is 38,213 mJ/m2. Was-ag is the adhesion work between the asphalt and aggregate.
FIGURE 2
2.2.2 Molecular dynamics (MD) simulation
2.2.2.1 Virgin asphalt molecular

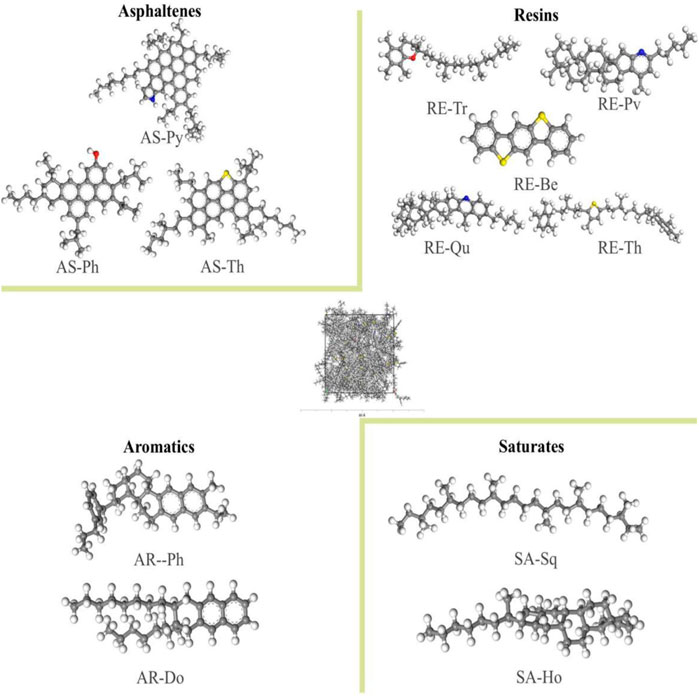

In this paper, the 12 components proposed by Li and Greenfield were used as the molecular model of virgin asphalt, as shown in Figure 3 (). The AAA-1 model represents the molecular model of asphalt ().
FIGURE 3
2.2.2.2 Aged asphalt molecular

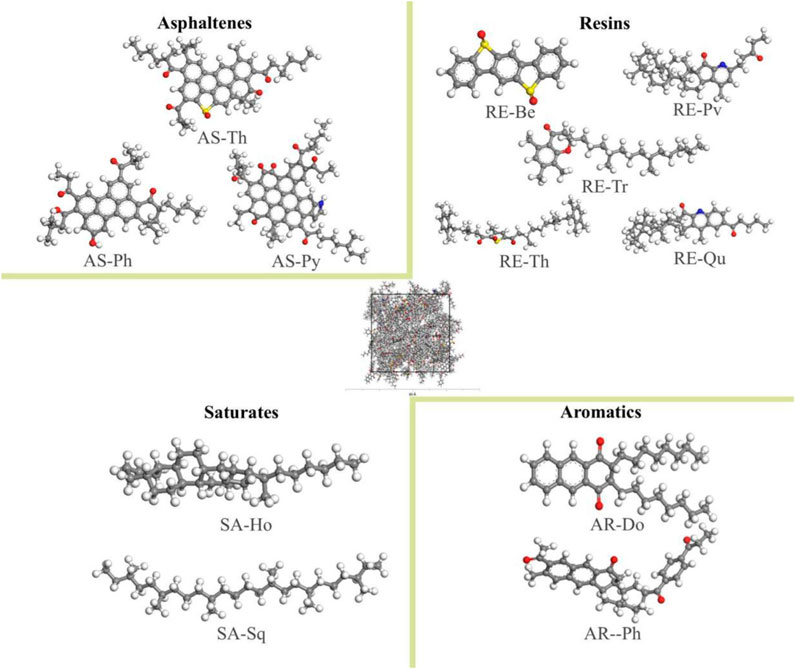

Aged asphalt contains a large number of oxygenated polar functional groups (C=O and S=O) (). The molecular model of aged asphalt used in this paper is shown in Figure 4 ().
FIGURE 4
2.2.2.3 SBS molecular

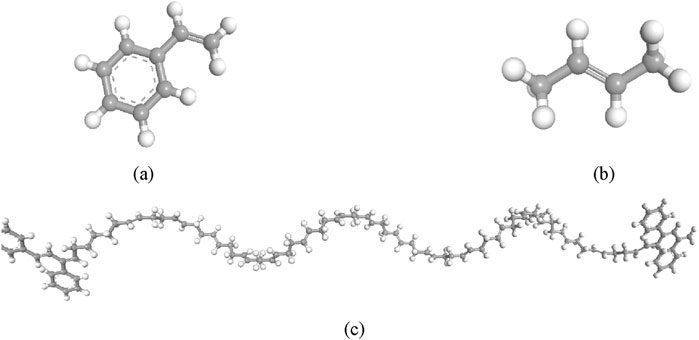

SBS is a block copolymer with a specific ratio of styrene and butadiene monomers. The SBS modifier molecular model used in this paper is composed of 2 styrene, 18 butadiene, and 2 styrene as shown in Figure 5.
FIGURE 5

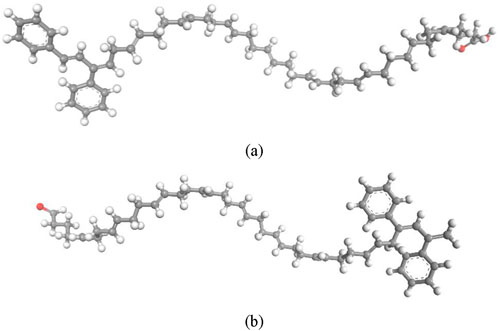

It was shown that the aging products of SBS are SB- and BS- obtained by oxidative breakage of double bonds, as shown in Figure 6 ().
FIGURE 6
2.2.2.4 Rejuvenator molecular

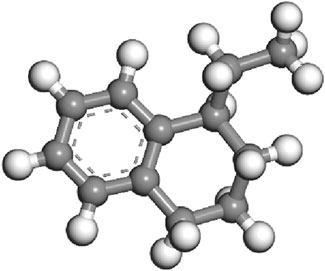

The chemical composition of the rejuvenator employed in this investigation was characterized by a specific molecular configuration, as illustrated in Figure 7, featuring a hydrocarbon structure with the molecular formula C12H16. This molecule has been shown to represent asphalt rejuvenator well.
FIGURE 7
2.2.2.5 Construction of asphalt molecular model

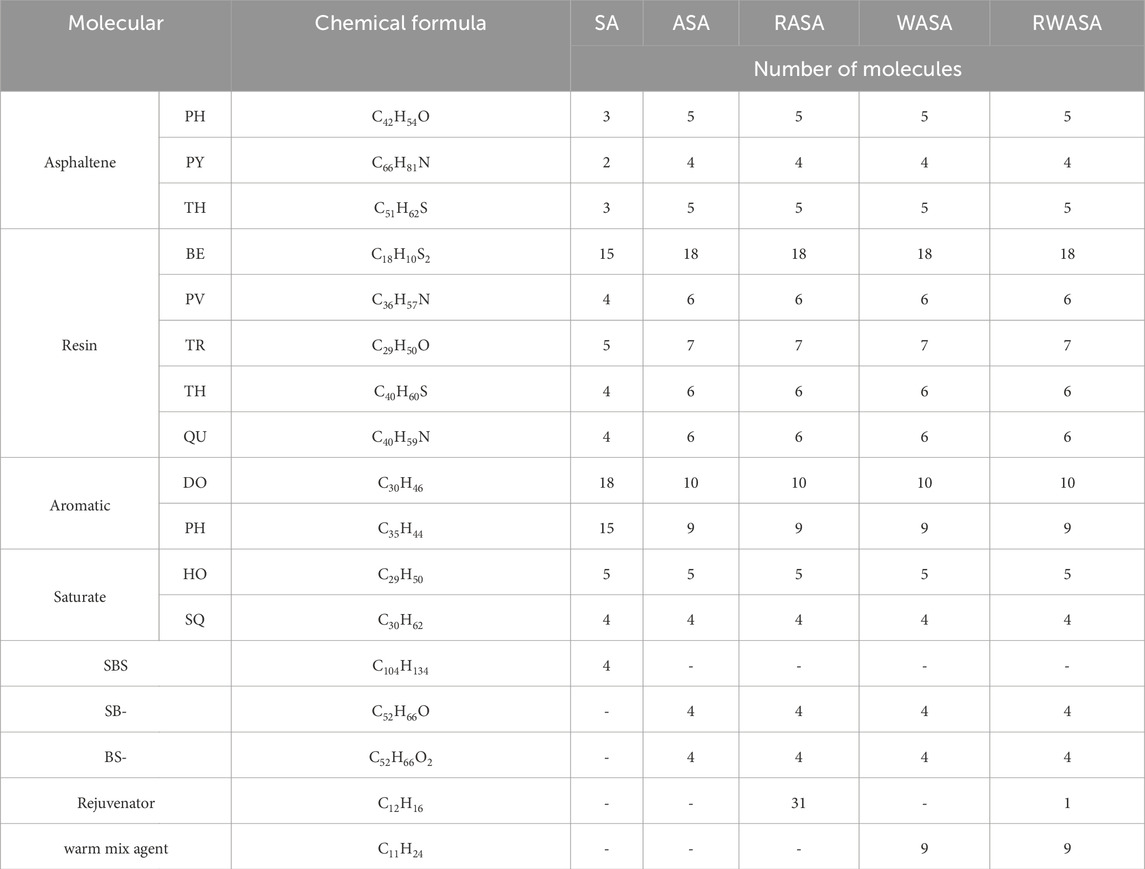

This paper utilized the amorphous cell module of MS software to construct molecular models of asphalt based on the number of molecules listed in Tables 4 (; ). The number of SBS, rejuvenator, and warm mix agent molecules were determined by calculation to be 4, 31,and 9, respectively.
TABLE 4
| Molecular | Chemical formula | SA | ASA | RASA | WASA | RWASA | |
|---|---|---|---|---|---|---|---|
| Number of molecules | |||||||
| Asphaltene | PH | C42H54O | 3 | 5 | 5 | 5 | 5 |
| PY | C66H81N | 2 | 4 | 4 | 4 | 4 | |
| TH | C51H62S | 3 | 5 | 5 | 5 | 5 | |
| Resin | BE | C18H10S2 | 15 | 18 | 18 | 18 | 18 |
| PV | C36H57N | 4 | 6 | 6 | 6 | 6 | |
| TR | C29H50O | 5 | 7 | 7 | 7 | 7 | |
| TH | C40H60S | 4 | 6 | 6 | 6 | 6 | |
| QU | C40H59N | 4 | 6 | 6 | 6 | 6 | |
| Aromatic | DO | C30H46 | 18 | 10 | 10 | 10 | 10 |
| PH | C35H44 | 15 | 9 | 9 | 9 | 9 | |
| Saturate | HO | C29H50 | 5 | 5 | 5 | 5 | 5 |
| SQ | C30H62 | 4 | 4 | 4 | 4 | 4 | |
| SBS | C104H134 | 4 | - | - | - | - | |
| SB- | C52H66O | - | 4 | 4 | 4 | 4 | |
| BS- | C52H66O2 | - | 4 | 4 | 4 | 4 | |
| Rejuvenator | C12H16 | - | - | 31 | - | 1 | |
| warm mix agent | C11H24 | - | - | - | 9 | 9 | |
Number of molecules in the different asphalt.

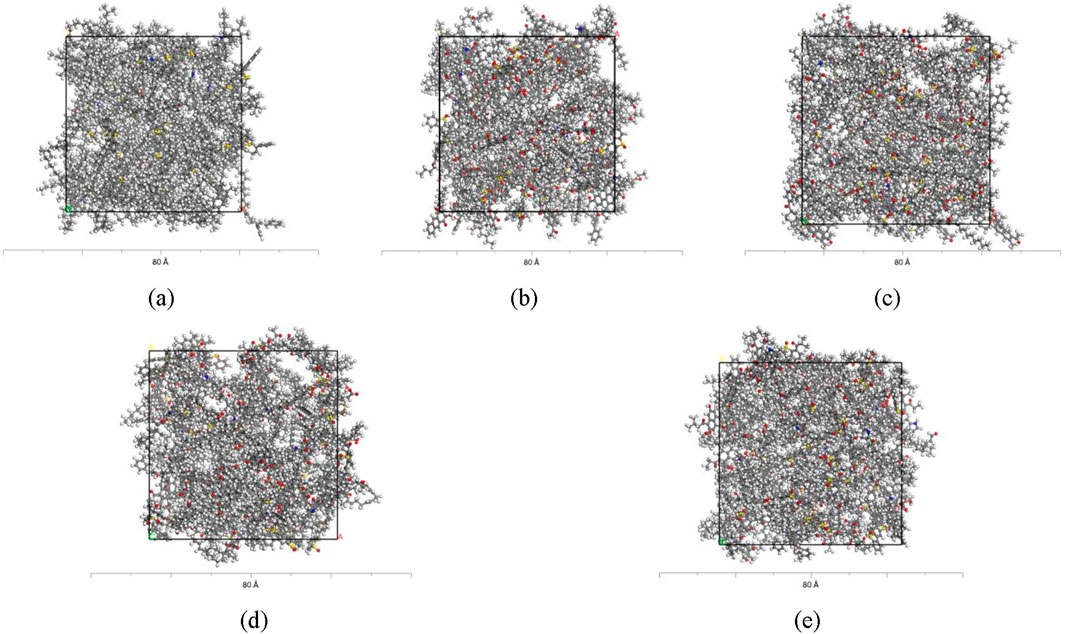

The molecular models of SA, ASA, RASA, WASA, and RWASA were built based on the number of molecules in each asphalt model in Table 3. The initial density of the asphalt molecular model was set to 0.8 g/cm3 to reduce the cross overlap between asphalt molecular chains. The molecular dynamics simulation flow of this study is shown in Figure 8.
FIGURE 8
2.2.2.6 Construction of the asphalt-aggregate interface molecular model
In this study, SiO2 and CaCO3 were chosen to represent common granite aggregates and limestone aggregates, respectively. The crystal models of SiO2 and CaCO3 are shown in Table 5.

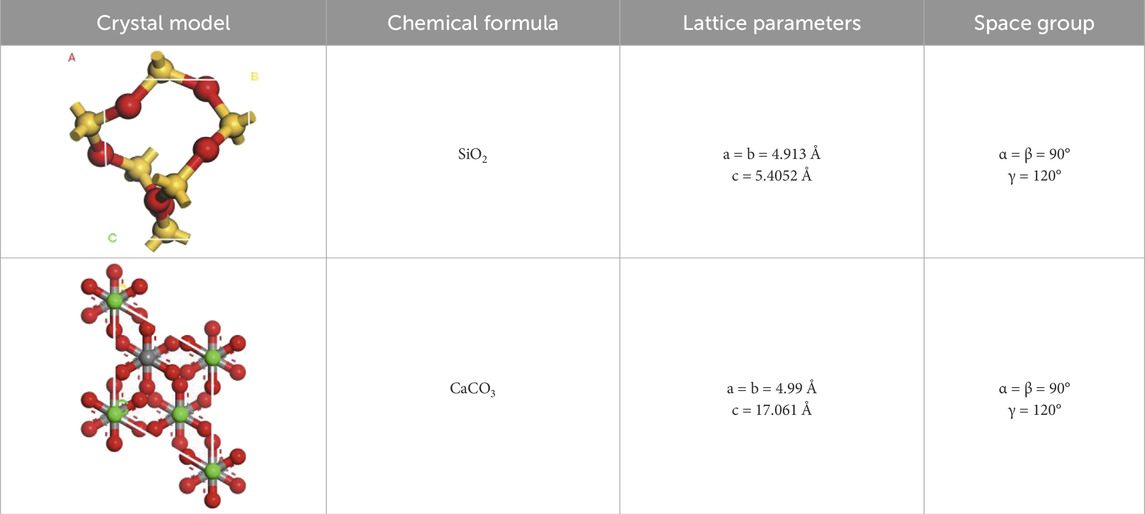

TABLE 5
| Crystal model | Chemical formula | Lattice parameters | Space group |
|---|---|---|---|
 | SiO2 | a = b = 4.913 Å c = 5.4052 Å | α = β = 90° γ = 120° |
 | CaCO3 | a = b = 4.99 Å c = 17.061 Å | α = β = 90° γ = 120° |
Crystal parameters of SiO2 and CaCO3.
To create orthogonal aggregate layers, γ in the SiO2 and CaCO3 crystal models must be transformed to 90°. In this paper, the [0, 0, 1] crystal facets of the SiO2 model and the [1, 0, 4] crystal facets of the CaCO3 model were selected for the granite aggregate model and the limestone aggregate model. It is important to note that after the SiO2 is cleaved, the model needs to be saturated by adding “H” or “-OH”. Finally, the aggregate layer model is obtained by expanding the cell. The construction process of the aggregate layer is illustrated in Figure 9.
FIGURE 9

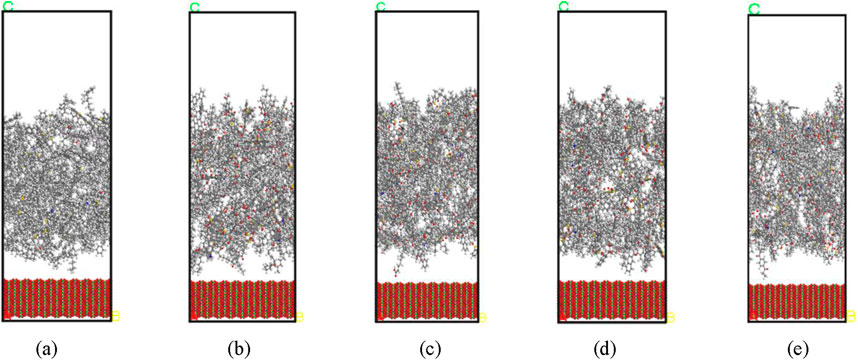

The interface models between SA, ASA, RASA, WASA, and, RWASA with the aggregates were established by using the “Build Layers” function in MS software, as shown in Figures 10, 11.
FIGURE 10
FIGURE 11
2.2.2.7 Simulation methodology
Molecular dynamics simulations were conducted using Materials Studio 2021 software to investigate the interfacial interactions in the study. The computational analysis employed the COMPASS II force field (), which has been widely recognized for its reliability in modeling complex material systems. All simulations were performed in the NVT ensemble with the following parameters: 1) a total simulation time of 1000 picoseconds, including 500 ps for system equilibration; 2) constant temperature maintenance at 298 K using the Nose-Hoover thermostat method; 3) periodic boundary conditions applied in three dimensions.
2.2.2.8 Evaluation indicators
2.2.2.8.1 Interaction energy
The interfacial interaction energy (Ei) serves as a fundamental thermodynamic parameter for evaluating the adhesive strength between dissimilar materials, representing the work required to separate two substances at their interface. This energy metric directly correlates with the fracture resistance and debonding behavior of material interfaces. In the current investigation, Ei was employed as a quantitative indicator of the bonding characteristics between asphalt binders and aggregate surfaces. The computational determination of Ei followed established methodology (), with the specific calculation expressed by Equation 6:Where, Ei is the interaction energy between asphalt and aggregate, EAggregate is the potential energy of the aggregate, EAS is the potential energy of the asphalt; EAggregate+AS is the potential energy at the interface of the asphalt and the aggregate.
2.2.2.8.2 Adhesion work
To alleviate the effect of interfacial dimensions on the adhesion at the asphalt-aggregate interface (), this paper utilizes the adhesion work (Wag, as shown in Equation 7) to evaluate the adhesion performance between asphalt and aggregate ().Where, A is the contact area between the asphalt and the aggregate.
3 Results and discussion
3.1 AFM results analysis
3.1.1 Asphalt surface micro-morphology and micro-mechanics
3.1.1.1 Micro-morphological analysis of asphalt
To investigate the effect of aging, rejuvenator and warm mix agent on the surface micro-morphology of asphalt, this paper used AFM to test the surface morphology of SA, ASA, RASA, WASA, and, RWASA, as shown in Figure 12. Figure 12 shows the 3D microscopic morphology of SA, ASA, RASA, WASA, and, RWASA, respectively.
FIGURE 12
The 3D microscopic morphology of the aged asphalt ASA is shown in Figure 12b. The number of peaks in the ASA is significantly increased compared to the virgin asphalt SA. This substantial morphological alteration indicates a greater abundance and larger dimensions of columnar structures in ASA, primarily resulting from the accumulation of polar molecules during the aging process. The enhanced molecular aggregation can be attributed to two key factors: 1) the increased quantity of polar molecules in aged asphalt, and 2) the elevated polarity of SBS molecules following polymer degradation, which intensifies intermolecular interactions (). This is attributed to the fact that the degradation of SBS increases the number of oxygen-containing groups at its termini, which increases the polarity of the molecule. These findings corroborate existing research on asphalt aging mechanisms (; ; ).
The introduction of rejuvenator produces notable changes in the asphalt morphology, as evidenced in Figure 12c. The treatment effectively reduces both the density of columnar structures and their peak heights, a phenomenon explained by the replenishment of light components and consequent decrease in relative polar component concentration (). When warm mix asphalt WASA additives are incorporated, the surface morphology undergoes further transformation, developing larger and more irregularly distributed needle-like crystalline structures (Figures 12d,e). This distinctive pattern arises from the presence of wax components in the WASA formulation, which promotes the sedimentation and adhesion of various substances (including RE, SA, and AR) onto the surface of raw asphalt RWASA, ultimately forming characteristic “island” structures.
3.1.1.2 Micromechanical analysis of asphalt
To investigate the effect of rejuvenator and warm mix agent on the adhesion force between asphalt and probe, the force-curve test of AFM was used in this paper to obtain the withdrawal curve and approach curve between asphalt and probe, respectively, as shown in Figure 13.
FIGURE 13
From Figure 13b, it is found that the adhesion force between the aged asphalt and the probe is significantly higher than the adhesion force between the virgin asphalt and the probe. Compared to the virgin asphalt, the adhesion force between the aged asphalt and the probe increased by 49.96 nN.The results indicate that the aging effect increased the microscopic adhesion force between the SBS-modified asphalt and the silicon probe. This is mainly due to the aging of SBS and asphalt matrix to form a large number of polar functional groups, these polar functional groups are able to form hydrogen bonding interactions or acid-base interactions with the hydroxyl groups in SiO2, thus increasing the adhesion between the SBS modified asphalt and the probe. This is mainly due to the fact that asphalt generates oxygenated polar groups that are acidic upon aging. The silica hydroxyl groups on the surface of SiO2, on the other hand, are weakly basic. The adhesion between SiO2 and asphalt is enhanced by acid-base interaction. Furthermore, after aging of SBS-modified asphalt, components such as asphaltene and resin aggregated on the surface of the asphalt and interacted strongly with SiO2, thus enhancing the adhesion between the asphalt and the silicon probe. Compared to ASA, the adhesion force between RASA and silicon probe was reduced by 22.45 nN, as shown in Figure 13c. This means that the incorporation of regenerator weakened the adhesion force between aged SBS-modified asphalt and silicon probe. This is mainly attributed to the fact that the rejuvenator replenishes the lighter components of the aged asphalt and reduces the relative content of the polar components, weakening the interaction between the asphalt and the silica probes. The warm mix agent was able to weaken the adhesion force between the aged SBS-modified asphalt and the probe, as shown in Figure 13d. Compared to ASA, the adhesion force between WASA and silicon probe was reduced by 11.27 nN. The results showed that the warm mix agent was able to reduce the adhesion between the asphalt and the probe. This may be due to the fact that the warm mix crystallises at room temperature and inhibits the interaction between the polar functional groups in the bitumen and the silica, which reduces the adhesion between the aged SBS modified asphalt and the silica probe. The adhesion force between the RWASA and the silicon probe was drastically reduced, as shown in Figure 13e. Compared to ASA, the adhesion force between RWASA and silicon probe was significantly reduced by 59.88 nN. There are two main reasons for this phenomenon, one of which is that the rejuvenator dilutes the concentration of the polar component of the aged asphalt, weakening the interaction force between the polar component of the asphalt and the silicon probe. The second is because the warm mix agent will crystallize at room temperature, hindering the contact between the polar component and the silicon probe, reducing the adhesion between the asphalt and the silicon probe.
3.1.2 Aggregate micromechanical analysis

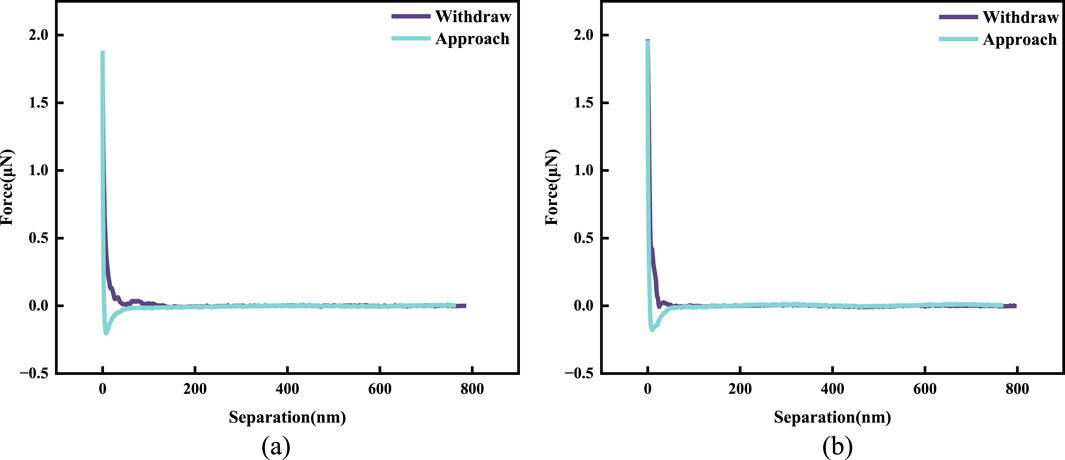

This study plotted the force profiles of limestone and Granite, as shown in Figure 14.
FIGURE 14
Using atomic force microscopy with silicon probes, this study quantitatively characterized the interfacial adhesion properties between asphalt and different mineral aggregates. Experimental data revealed that the limestone-asphalt system exhibited an interfacial adhesion force of 205.1 nN, significantly higher than the 177.5 nN measured for the granite-asphalt system (representing a 16.6% relative increase). This difference arises mainly from the synergistic effects of interfacial interaction forces, i.e., van der Waals, electrostatic and capillary forces ().
From a materials chemistry point of view, limestone consists mainly of calcite (CaCO3), while granite consists mainly of silica (SiO2). This fundamental difference in chemical composition directly leads to their distinct adhesion performance in asphalt systems. The test results not only validate the structure-activity relationship between aggregate chemical composition and interfacial adhesion, but more importantly, provide theoretical basis for scientific aggregate selection in asphalt mixture design. These findings show strong consistency with existing research conclusions on interfacial behavior of mineral materials ().
3.1.3 Adhesion properties of asphalt-aggregate interface

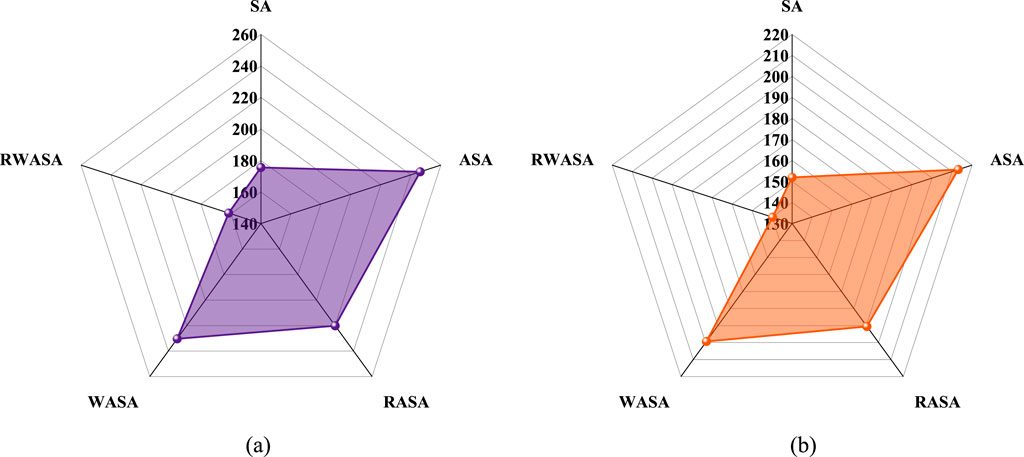

The data from 3.1.1 to 3.1.2 are brought into Equations 3–5 to obtain the asphalt-aggregate interfacial adhesion work Was-ag, as shown in Figure 15. Figure 15a shows the results of the calculation of the interfacial adhesion work between the five asphalts SA, ASA, RASA, WASA, and RWASA with limestone. Figure 15b shows the results of the calculation of the interfacial adhesion work between the five asphalts SA, ASA, RASA, WASA, and RWASA with limestone. The interfacial adhesion work between the five asphalts SA, ASA, RASA, WASA, and RWASA and the granite are illustrated in Figure 15b. From Figure 15, it can be seen that the trend of the adhesion work between asphalt and aggregate is consistent with the trend in Section 3.1.1. The mechanistic explanation is also consistent with Section 3.1.1. In addition, it is clear from Figure 15a,b that the adhesion work of asphalt with limestone is much higher than that of asphalt with granite. For example, the work of adhesion of SA to limestone is 175.57 mJ/m2, while the work of adhesion of SA to granite is 151.94 mJ/m2. This result is consistent with the findings of previous studies (; ; ). This depends on the chemical composition of the limestone and granite components. The main mineral composition of limestone is CaCO3 and the main mineral composition of granite is SiO2 (; ). This is due to the fact that CaCO3 is a negatively charged alkaline oxide, which can generate large interaction forces with positively charged asphalt, resulting in a greater adhesion work between asphalt and limestone than between asphalt and granite (Zhu et al., 2024).
FIGURE 15
3.2 Molecular dynamics results analysis
3.2.1 Interaction energy
Figure 16 illustrates the interaction energy between bitumen and oxidised minerals. Figure 16a shows the interaction energy between asphalt with CaCO3 and Figure 16b shows the interaction energy between asphalt with SiO2.
FIGURE 16
As illustrated in Figure 16, the interfacial adhesion between SBS-modified asphalt and aggregates is predominantly governed by non-bonding interactions, with minimal contribution from chemical bonding. This suggests that the primary mechanism of adhesion is physical adsorption, particularly driven by van der Waals forces, rather than chemical reactions. These findings align with prior research (; ), further supporting the conclusion that intermolecular forces play a decisive role in the asphalt-aggregate bonding behavior.
3.2.2 Adhesion work

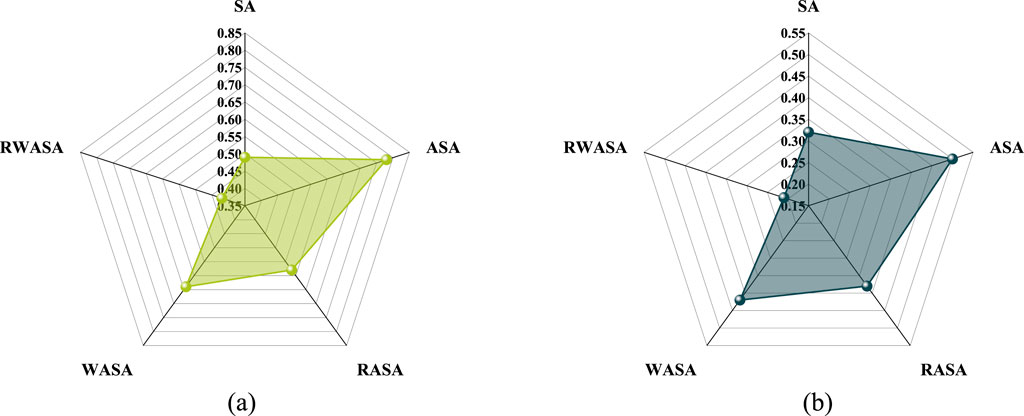

In order to gain more insight into the adhesion properties of the asphalt-aggregate interface on a molecular scale, the binding energy was calculated using Equation 7. The results, presented in Figure 17, reveal key trends in the interaction mechanisms between SBS-modified asphalt and mineral aggregates.
FIGURE 17
Figure 17 demonstrates a significant enhancement in interfacial adhesion work for aged asphalt-aggregate systems relative to unaged samples, with this trend being consistently observed across different aggregate compositions. The observed improvement principally results from oxidative aging-induced generation of polar functional groups (particularly carbonyl and sulfoxide moieties) (; ; ), which substantially strengthen both van der Waals forces and electrostatic interactions at the interface, as evidenced in Figure Figure17. Notably, Figure 17 reveals that asphalt-CaCO3 systems exhibit significantly stronger interfacial adhesion than asphalt-SiO2 systems, a result that aligns with existing knowledge in asphalt-aggregate interface science.
The differential adhesion behavior originates from fundamental differences in aggregate surface chemistry (; ). While SiO2, as an acidic oxide with inherent oleophobicity, forms weaker bonds with asphalt, CaCO3’s ionic crystal structure–featuring Ca2+ cations and CO32- anions–creates numerous active surface sites. The Ca2+ ions particularly facilitate stronger electrostatic attraction with asphalt molecules, accounting for limestone’s superior adhesion performance compared to granite. Moreover, the warm mix agent and rejuvenator altered the adhesion energy between SBS-modified asphalt and aggregate mainly by adjusting the van der Waals forces, as shown in Figure 17. This is due to the fact that the addition of warm mix agent and rejuvenator weakened the interaction energy between the polar functional groups in the aged asphalt and CaCO3 and SiO2.
3.3 Correlation analysis

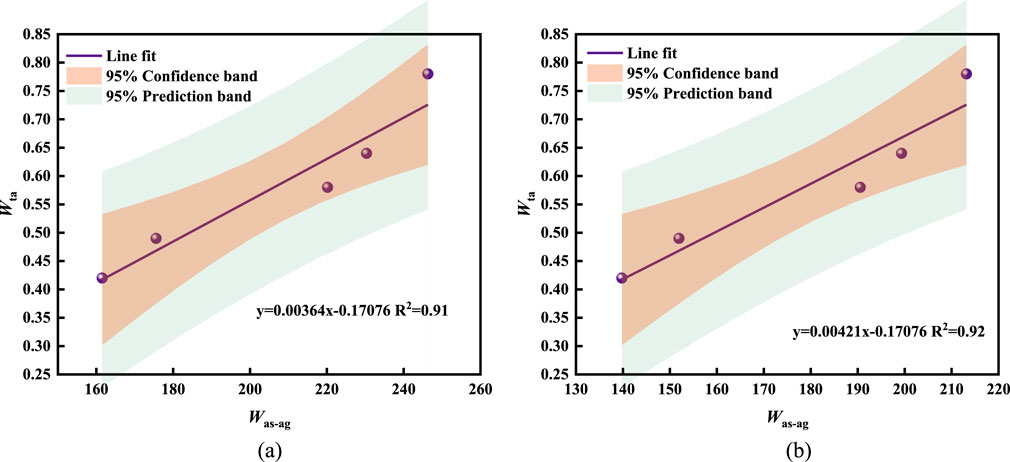

To further investigate the aging effect, rejuvenator and warm mix on the adhesion mechanism between SBS-modified asphalt and aggregate, a linear fitting equation between AFM and MD was developed, as shown in Figure 18.
FIGURE 18
The results in Figure 18 show that there is a significant positive correlation between the interfacial adhesion work calculated by AFM and the adhesion work calculated by MD. The correlation coefficient, R2 > 0.9. In addition, this study confirms the consistency between AFM and MD in evaluating the interfacial state.
4 Conclusion
This study used atomic force microscopy (AFM) to examine the surface microstructure of asphalt and aggregates. The adhesion work between asphalt and aggregate was calculated based on the contact mechanics JKR and DMT models. Molecular dynamics (MD) methods were used to investigate the interaction energy between asphalt and aggregates, and the adhesion work between asphalt and aggregates at the molecular level was calculated. A linear relationship between the AFM and MD scales was established. The main conclusions are as follows:
(1) Aging causes a significant increase in the number of asphalt columnar structures, which are knots of accumulated polar molecules. Whereas rejuvenators restore the asphalt morphology by supplementing the light component, warm mix agents increase the columnar structure.
(2) Aging increases asphalt-probe adhesion by 49.96 nN through polar group formation, while rejuvenators and warm-mix additives reduce adhesion by 22.45 nN and 11.27 nN respectively via component replenishment and crystallization effects.
(3) Compared to the granite-asphalt system, the limestone-asphalt system has a stronger interfacial adhesion, which is a result of the synergistic effect of van der Waals interactions and acid-base electrostatic forces. This trend persists across all asphalt types, validating the dominant role of aggregate mineralogy in adhesion performance.
(4) The asphalt-aggregate interface is primarily governed by physical adsorption rather than chemical bonding, with aged asphalt showing enhanced adhesion due to oxidative generation of polar groups. Limestone (CaCO3) exhibits superior adhesion to asphalt compared to granite (SiO2) because its ionic surface enables stronger electrostatic interactions, while rejuvenators and warm-mix agents modulate adhesion by altering interfacial van der Waals forces.
(5) The strong positive correlation (R2 > 0.9) between AFM-measured and MD-calculated adhesion work validates both methods for interfacial evaluation, demonstrating their consistency in characterizing asphalt-aggregate interactions.
