Polymeric bio-based nanodispersed admixtures for the production of hydrophobic Portland cement mortars

A current trend in the construction industry involves the development and employment of eco-friendly, durable, and sustainable materials. Numerous admixtures, including various polymers, are used to modify the properties of cement. Nonetheless, their effectiveness and environmental impacts are still a matter of discussion. In this context, this work was focused on the application of innovative vegetable oil-based polymeric nanodispersed admixtures, synthesized following green chemistry principles, such as using water as a solvent. The synthesized bio-based latex admixtures were incorporated with 30 wt% of vegetable oil-based monomers derived from camelina, linseed, and rapeseed oils. The produced ordinary Portland cement fine-grained mortars, containing 0.1 wt% of each bio-based latex admixture, were thoroughly examined using several instrumental methods, such as isothermal calorimetry and scanning electron microscopy, to gain a comprehensive understanding of the roles of bio-based latex admixtures on the physical, mechanical, and microstructural properties of the examined specimens. It was found that the addition of bio-based latex admixtures led to changes in the hydration process, mineralogical composition, and liquid water transport. For example, the water absorption coefficient was found to be approximately 40% lower compared to cement mortars produced using a reference latex additive without the vegetable oil-based component. Moreover, cement mortars with a bio-based latex admixture containing camelina oil exhibited comparable compressive strength to those produced solely from ordinary Portland cement. Thus, the newly developed bio-based polymeric nanodispersion represents a new class of environmentally friendly admixtures that may be effectively utilized for water-loaded structures.

1 Introduction

Cement-based materials are commonly used in construction due to their economic viability, durability, and versatility, which enable the shaping of diverse objects through casting (Barbhuiya et al., 2025). This quality differentiates them from other construction materials (Li G. et al., 2021). However, ordinary cementitious objects are heterogeneous and brittle materials with flaws, such as poor toughness, flexibility, and volume change (Van Tittelboom and De Belie, 2013; Fan et al., 2023). Various methods were proposed to address the drawbacks mentioned above and extend the overall service life of cement-based structures, such as the use of polymer admixtures (Ramli and Akhavan Tabassi, 2012). Polymer modification of cement-based materials was usually done by adding a film-forming polymer latex as a re-dispersible powder or by blending cement with an aqueous polymer dispersion. Modification was achieved through a combination of cement hydration and the formation of a polymer film (Liu Q. et al., 2023). Finally, a composite matrix consists of inorganic phases formed during cement hydration and an organic phase, such as a polymer film (Wagner, 1965; Ohama, 1998).

Polymer latexes comprise a large group of materials that are widely used to positively influence various properties of cementitious materials, including workability, adhesion, crack resistance, durability, and water transport (Jenni et al., 2006; Kong et al., 2013; Ali et al., 2021; Bilal et al., 2021). Various synthetic polymer latexes were used as cement modifiers. Styrene-butadiene (SBR) latex was found to have a positive effect on the workability of fresh-state mortar and the flexural strength of the hardened composites (Barluenga and Hernández-Olivares, 2004; Ukrainczyk and Rogina, 2013; Baueregger et al., 2015; Sun et al., 2019). Portland cement mortars modified with SBR latex exhibited improved long-term impermeability to water and carbon dioxide (Eren et al., 2017). Polyacrylic ester (PAE) latex provided better abrasion resistance and durability of cement mortars (Jiang et al., 2018). Styrene-acrylic ester copolymer (SAE) latex (Wang and Wang, 2010) enhanced the mortar’s toughness, shrinkage resistance, and water impermeability. SAE and SBR were also found to reduce the fluidity loss rate and prolong the setting time of cement pastes (Shi et al., 2021). Ethylene-vinyl acetate (EVA) latexes were also widely used for the modification of concrete and mortar. Their application influenced the hydration kinetics of Portland cement (Silva et al., 2002; Betioli et al., 2012). Epoxy latexes were used to improve the flexural strength of hardened Portland cement concrete (Li P. et al., 2021).

Hardened cementitious materials comprise tiny pores and cracks, which decrease their lifespan in corrosive environments. Common mechanisms of degradation, including chemical degradation caused by chloride and sulfate ions or freeze-thaw cycles, were found to be related to the transport of external water in the porous network of the cementitious structure (Zhang et al., 2017; Shah et al., 2021; Haq et al., 2022). Thus, various latex admixtures were used to modify cement mortar and concrete in terms of their water permeability. Liu Z. et al. (2023) developed hydroxylated hexagonal boron nitride/isobutyltriethoxysilane hybrid latexes to modify cement composites, decreasing their water absorption coefficient. Wu et al. (2023); Wu et al. (2024) used PAE latex admixture in cement grout which led to the eliminating of macropores and reducing the presence of mesopores and micropores. Zhang et al. (2019) investigated the impact of SAE latex on the mechanical properties and microstructure of various Portland cement mortars, finding that the SAE polymer film adhered the hydration products and filled the pores, thereby reduced water absorption.

Synthetic latexes are produced by emulsion polymerisation, an eco-friendly and efficient technique that generates aqueous dispersion of spherical polymer particles with diameters ranging from 0.05 to 0.50 μm. This process involves free radical polymerisation in an aqueous environment, beginning with the dispersion of monomers in water using an emulsifier, followed by the initiation of polymerisation of the monomers with a water-soluble initiator. The benefit of the emulsion polymerisation technique lies in the design variability of the final polymer particles, which can be easily modified by adjusting the monomer composition, particle size, or cross-link density (Wiley-VCH, 2002; Chern, 2006; Saldívar-Guerra and Vivaldo-Lima, 2013; Machotová et al., 2021). A wide variety of monomers can be used in emulsion polymerisation, most of which are petroleum-based, including styrene, vinyl acetate, and various esters of acrylic and methacrylic acids (Guerrero-Santos et al., 2013). Increasing environmental concerns and the finite nature of fossil resources were prompted research into new materials and strategies aimed at sustainable development, ultimately reducing the environmental impact (Lathi and Mattiasson, 2007; Yao and Tang, 2013; Biswas and Roy, 2015; Laurentino et al., 2018; Allasia et al., 2022). Among these research efforts, vegetable oils were proposed as a suitable alternative to fossil fuels due to their sustainability and abundance (Mecking, 2004; Ragauskas et al., 2006; Williams and Hillmyer, 2008). They consist of triglycerides of higher fatty acids and vary in their degree of unsaturation (Teramoto, 2011; Quirino et al., 2015). However, the double bonds in their molecules are not reactive enough to be used successfully in emulsion polymerisation, so they must be modified by introducing more reactive groups. Epoxidation and subsequent acrylation are two possible approaches (Ferreira et al., 2015; Moreno et al., 2015). Many vegetable oils were utilised in polymer synthesis, including soybean (Wu and Li, 2018), rapeseed (Ho et al., 2022), linseed (Wuzella et al., 2012), or camelina oil (Balanuca et al., 2015). However, the use of vegetable oil-based monomers in emulsion polymerisation remains a challenge due to their natural hydrophobicity, although successful attempts have been reported (Bunker and Wool, 2002; Delatte et al., 2014; Demchuk et al., 2016; Neves et al., 2018).

In our previous papers (Kolář et al., 2023b; Kolář et al., 2023a), a synthesis of acrylated vegetable oil-based monomers from various vegetable oils and their successful copolymerization with standard petroleum-based acrylic monomers via emulsion polymerisation, yielding partially vegetable oil-based film-forming latexes, were demonstrated. The increased water resistance of the resulting coating films with vegetable oil-based monomer contents ranging from 20 to 30 wt% was observed, which motivated this work. The presented paper, therefore, deals with partially vegetable oil-based film-forming latexes (vegetable oil-based monomer/petroleum-based monomers in the weight ratio of 30/70) and their application as cement admixtures to improve the properties of Portland cement mortars. The effect of copolymerized vegetable oil-based monomer type (given by the nature of the vegetable oil, namely, camelina, linseed, and rapeseed oil) on cementitious materials' physical, chemical, mechanical, and water transport properties was evaluated and compared.

2 Materials and methods

2.1 Materials

Partially vegetable oil-based latexes were synthesised from (i) petroleum-based monomers, specifically, methyl methacrylate (MMA, Sigma-Aldrich, Schnelldorf, Germany), butyl acrylate (BA, Synthomer, Sokolov, Czech Republic), and methacrylic acid (MAA, Sigma-Aldrich, Schnelldorf, Germany); (ii) laboratory-synthesised vegetable oil-based monomers; (iii) emulsifier, specifically, Disponil FES 993 (BASF, Prague, Czech Republic); (iv) initiator, namely, ammonium persulfate (Lach-Ner, Brno, Czech Republic). 2-Amino-2-methyl-1-propanol (AMP 95, Sigma-Aldrich, Schnelldorf, Germany) was used for neutralising the latex. Vegetable oil-based monomers were synthesized from the following materials: linseed oil (V_LO, Hb-Lak, Ústí nad Labem, Czech Republic), camelina oil (V_CO, The National Agricultural and Food Center, Pstruša, Slovakia), rapeseed oil (V_RO, Preol, Lovosice, Czech Republic), hydrogen peroxide (30%, technical grade, Lach-Ner, Brno, Czech Republic), potassium hydroxide (Lach-Ner, Brno, Czech Republic), potassium carbonate (Lach-Ner, Brno, Czech Republic), methanol (Penta, Prague, Czech Republic), formic acid (Penta, Prague, Czech Republic), hydroquinone (Penta, Prague, Czech Republic), ethyl acetate (Lach-Ner, Brno, Czech Republic), and sodium carbonate (Lach-Ner, Brno, Czech Republic), acrylic acid (Sigma-Aldrich, Schnelldorf, Germany), chromium (III) 2-ethyl hexanoate (ThermoFisher, Kandel, Germany). All chemicals were used as obtained.

The cement composite specimens were prepared using the ordinary Portland cement 42.5 R grade (CEM I), produced by Heidelberg Materials CZ, Corp., Czech Republic, and meeting the requirements specified in EN 197-1 (2013). The chemical composition and physical properties of CEM I are given in our previous study (Zárybnická et al., 2023). As a filling material, a natural silica aggregate mixture (SAM, Filtrační písky, Ltd., Czech Republic), composed of three fractions (0.0/0.5 mm, 0.5/1.0 mm, and 1.0/2.0 mm) and mixed in equal weight ratios, was used.

2.2 Preparation and characterisation of latex admixtures

First, the vegetable oil-based monomers with the chemical character of methyl esters of acrylated higher fatty acids derived from the respective vegetable oil V_CO, V_LO, and V_RO (see Figure 1a) were synthesised using procedures described in detail in references (Kolář et al., 2023b; Kolář et al., 2023a). In a simplified way, the synthesis of vegetable oil-based monomers was performed according to a 3-step procedure: (i) transesterification of vegetable oil (210 g) using methanol (46 g) and potassium hydroxide (1.85 g) as a catalyst at 60 °C for 90 min; (ii) epoxidation of the transesterification intermediate (210 g) using hydrogen peroxide (172.5 g) and formic acid (30.15 g) as a catalyst at 60 °C for 3 h (potassium carbonate was used to stop the reaction); (iii) acrylation of epoxidized intermediate (50 g) using acrylic acid (17 g), chromium (III) 2-ethyl hexanoate (0.5 g) as a catalyst, and hydroquinone (0.15 g) as an inhibitor (of acrylic acid homopolymerization) at 100 °C for 6 h. Sodium bicarbonate was used to neutralise the excess amount of acrylic acid, and a mixture of ethyl acetate with water (1:1 w/w) and sodium carbonate was utilised for the purification and desiccation of the final product, respectively. A detailed procedure of the synthesis pathway leading to vegetable oil-based monomers is presented in the Supplementary Material.

Figure 1

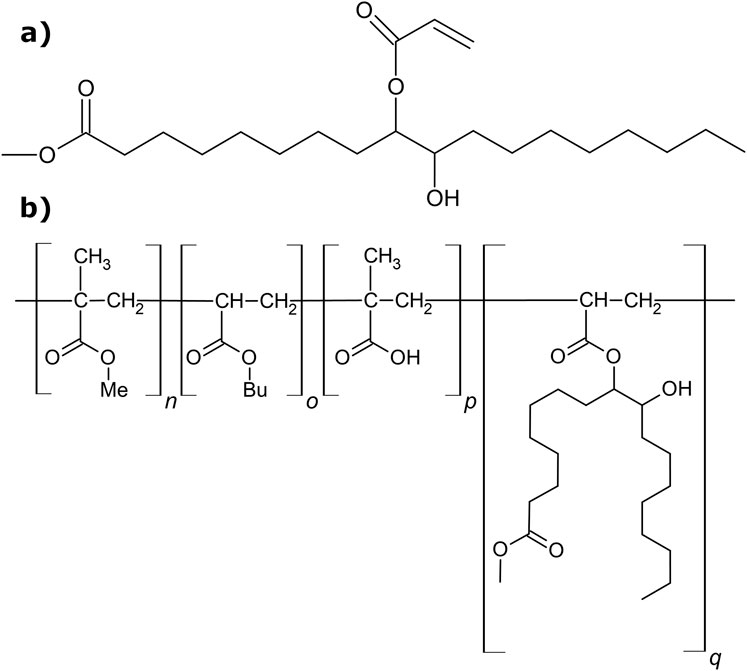

Figure 1. Schematic structures, (a) vegetable oil-based monomer represented by methyl ester of acrylated oleic acid, (b) copolymer chain composed of MMA (n), BA (o), MAA (p), and vegetable oil-based monomer (q) represented by methyl ester of acrylated oleic acid.

A semi-continuous, non-seeded emulsion polymerisation technique was employed to synthesise three partially vegetable oil-based latex admixtures, labelled CO, LO, and RO (reflecting the vegetable oil type V_CO, V_LO, and V_RO, respectively). In these latexes, the respective vegetable oil-based monomer (30 wt% in the total monomer mixture) was copolymerized with commercial petroleum-based monomers MMA, BA, and MAA (see Table 1). A reference latex (REF) was also synthetised without introducing a vegetable oil-based monomer. The monomer composition of all synthesized latexes maintained a constant MMA/BA ratio of 21/28 (w/w) to ensure film-formation of latex films at usual ambient temperatures (using the Fox equation (Fox and Flory, 1950), the glass transition temperature (T_g) was calculated to be approximately 0 °C for the MMA/BA/MAA (42/56/2 by weight) reference copolymer) and also to show the plasticizing effect of the vegetable oil-based monomer type. In all latex compositions, a constant content (2 wt%) of MAA was introduced to provide colloidal stability to the latexes through carboxyl functionalities. A schematic structure of a latex copolymer is shown in Figure 1b.

Table 1

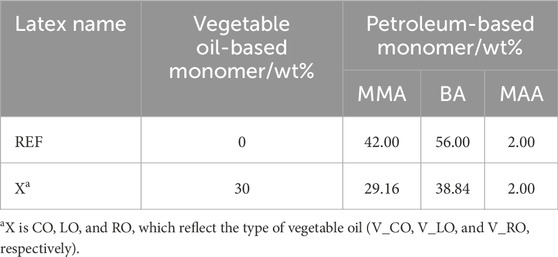

Table 1. Monomeric composition of latex polymer admixtures.

The latexes were synthesised in a 500 mL glass vessel at 85 °C under a nitrogen atmosphere. 32.5 g of demineralised water, 0.25 g of Disponil FES 993, and 0.35 g of ammonium persulfate were weighed into the glass vessel and heated to the polymerisation temperature. The monomer emulsion consisting of 100 g of the monomer mixture (Table 1), 115 g of demineralised water, 7.4 g of Disponil FES 993, and 0.7 g of ammonium persulfate was then dosed into the reactor during 2 h. After that, the reaction mixture was allowed to polymerise for 2 h. After cooling, the latex was filtered to remove the coagulum formed during the synthesis. Finally, the pH of the latex was adjusted to 10 using AMP 95 (50% aqueous solution). The reaction flow chart graphically summarizing individual synthesis steps of latex nanodisperisons (including vegetable oil-based monomer synthesis) is shown in the Supplementary Material as Supplementary Figure S1.

The solid content was determined according to EN 3251 (2003). The test details are described in detail in the Supplementary Material. The apparent viscosity was measured at 25 °C using a Brookfield LVDV-E Viscometer (Brookfield Engineering Laboratories, USA) at 100 rpm according to the standard EN 2555 (2018). The average particle size (hydrodynamic diameter) and the zeta potential of the latex particles dispersed in water were detected at 25 °C by dynamic light scattering (DLS) using a Litesizer 500 instrument (Anton Paar, Austria). The concentration of a solid polymer in the water phase was 0.01 wt% in all DLS measurements. The minimum film-forming temperature (MFFT) was measured according to the standard ISO 2115 (1996) using an MFFT-60 instrument (Rhopoint Instruments, UK). The testing of colloidal stability against alkaline pH and CaCl₂ electrolyte (i.e., ionic strength) was carried out by dropping a small amount (2–3 drops) of the latex into a NaOH solution of a specific pH (10.5, 11.0, 11.5, 12.0, 12.5, 13.0, 13.5, and 14.0) and CaCl₂ solution of a particular concentration (1.0, 1.5, 2.0, 2.5, and 3.0 wt%), respectively. If there was no precipitation, the latex was considered stable at the given pH or CaCl₂ concentration.

Free-standing films with a thickness of approximately 0.7 mm were prepared by pouring the latexes into silicone molds to determine the dry latex polymer´s chemical composition, T_g, gel content, and cross-link density. The films were dried at ambient temperature (22 °C ± 1 °C) for 1 month. The chemical composition was characterized by Fourier transform infrared spectroscopy (FTIR). Infrared (IR) spectra were recorded on a Nicolet iS50 FTIR spectrometer (Thermo Fisher Scientific, Waltham, MA, United States), equipped with a built-in diamond attenuated total reflection (ATR) crystal, in the region of 4,000–400 cm^–1 (data spacing = 0.5 cm^–1). The T_g was determined by differential scanning calorimetry (DSC) on a Pyris 1 DSC instrument (Perkin-Elmer, Waltham, MA, United States). The measurements were performed under an inert (nitrogen) atmosphere at a heating rate of 10 °C^.min⁻¹ from −50 °C to 120 °C, and the T_g value was determined from the second heating curve.

The gel content was determined according to EN 6427 (2014). Approximately 1 g of a dried polymer film was extracted in tetrahydrofuran for 24 h using a Soxhlet extractor.

The cross-link density, expressed as moles of cross-links per cm³ of a polymer network, was determined through swelling experiments on dry latex film specimens (approximately 0.3 g) submerged in toluene at 40 °C for 14 days. The calculations using a set of equations (Vandenburg et al., 1999) based on the Flory and Rehner (1943) are described in more detail in the Supplementary Material. Calculations were performed for the MMA/BA/MAA (42/56/2 by weight) copolymer using density and solubility parameter literature data for poly (MMA), poly (BA), and poly (MAA) homopolymers (Vandenburg et al., 1999; Tobing and Klein, 2001).

2.3 Preparation and characterization of portland cement mortars

The mixing ratios of the components used to produce the reference mortar mix (OPC) and the latex-modified mortar mixes are shown in Table 2. The mortar specimens are designated OPC and CM_y, where y denotes the latex type (REF, CO, LO, and RO). The standard OPC mix consisted of Portland cement, SAM, and water, with a weight ratio of these components of 1.0:3.0:0.5. The influence of latex admixture was investigated in a series of mortars, where a specific latex admixture was added at a level of 0.1 wt% based on the weight of the Portland cement. After mixing the latex admixture with water, the resulting aqueous phase was combined with the remaining mortar composition. The same water-to-cement (w/c) ratio of 0.5 was maintained in all the mortar mixes prepared to ensure the materials were comparable. It is essential to note that the water contained in the latex admixture was subtracted from the initial water added to the batch in the case of the latex-based mortars. According to EN 196-6 (2010), a laboratory mixer that meets all requirements was used to prepare fine OPC and latex-modified mortars. Specimens in the shape of prisms with sizes of 40 × 40 × 160 mm³ from fresh OPC and latex-modified mortars were cast. The casting and curing processes are described in detail elsewhere (Pokorný et al., 2021a). The prepared hardened mortar specimens were immersed in water for 24 h, as recommended, to prevent elution of the polymer from the cement matrix (Ferreira et al., 2015). At least 18 replicates were casted for each mix.

Table 2

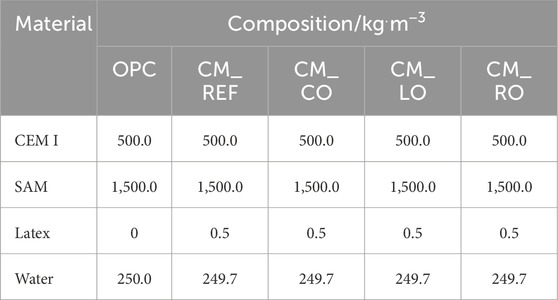

Table 2. Proportions of components for the preparation of OPC and cement composite mortar mixes.

Isothermal conduction calorimetry (ICC) using a TAM-Air (TA Instruments, Germany) was employed to track the heat signal during the setting reaction of powder and liquid starting components of the same composition, as reported in Table 2. Specimens were equilibrated at a measurement temperature of 25 °C, the slurry was mixed for 120 s, and heat flow was recorded over 7 days. A minimum of two replicates was used. The spread values of the produced specimens were measured following the recommendations described in EN 1015-3 (2000).

Following the 28-day hardening period, a series of analyses were conducted on the produced specimens, as described in the following text. X-ray powder diffraction (XRPD) patterns were collected with a Bragg–Brentano θ-θ diffractometer [Bruker D8 Advance, United States, Cu Kα radiation (λ = 1.5418 Å)] at 40 kV and 40 mA in the angular range 5°–60°. 2θ counting was set to 0.4 s for each step of 0.0102°. Quantitative phase analysis (QPA) was conducted using the TOPAS 4.2 software (Bruker AXS) with Rietveld refinement. The amorphous phase was quantified using an internal standard method, with zinc oxide added to the specimens at a concentration of 10 wt%.

The microstructures of the specimens were observed using scanning electron microscopy (SEM) with a Quanta 450 FEG (FEI, Czech Republic) and a secondary electron detector. An acceleration voltage of 20 kV was used to observe the 10 nm gold-coated fracture surfaces. The pore size distribution was measured using mercury intrusion porosimetry (MIP) using an Autopore IV 9500 (Micrometrics, United States). Ultrasonic pulse velocity (UPV) and transit time were measured using a Pundit Lab device (Proceq, Switzerland) with a frequency of 250 kHz. The measuring uncertainty was 1.8°%. The flexural and compressive strengths were determined and calculated according to the methodology outlined in EN 1015-11 (1999), using a hydraulic press Servo Plus Evolution (Matest, S.p.A., Italy) with loading capacity up to 300 kN. The expanded combined uncertainty of strength properties assessment was in maximum 2.2%. Water transport measurements of vertical suction were conducted following the procedure outlined in the standard EN 1015-18 (2003). The exact description of liquid transport measurements is provided elsewhere (Pokorný et al., 2021b; Zárybnická et al., 2023). The combined uncertainty of the absorption coefficient (kg^.m⁻²⋅s^−1/2) and apparent moisture diffusivity (m²⋅s⁻¹) did not exceed 10.0%.

3 Results and discussion

3.1 Vegetable oil-based latex characterization

The characteristic properties of the prepared liquid latex admixtures are listed in Table 3. The solids content of all partially vegetable oil-based latex admixtures was lower than the solids content of the REF latex, which is a result of the increased coagulum formation during the synthesis of the partially vegetable oil-based latexes; 4.5–5.6 wt% of the coagulum (based on total solids) was formed when synthesizing the vegetable oil-based latexes, whereas approximately 0.1 wt% of the coagulum was collected after the synthesis of the REF latex. All latex admixtures exhibited low viscosities, suggesting favorable application and processing properties. The diameters of polymer particles were found not to be affected significantly by the type of vegetable oil-based monomer. They reached values typical for latex polymer products used in building industry applications (Scrivener et al., 2019). On the contrary, the zeta potentials were shown to be affected pronouncedly by the vegetable oil-based monomer used. The zeta potential, which is the electric potential at the boundary of the double layer surrounding the colloidal particle, represents the degree of electrostatic stabilization by repulsive forces between ionically charged colloidal particles. The REF latex admixture showed the lowest zeta potential (in absolute value), suggesting decreased colloidal stability. In contrast, the vegetable oil-based latexes exhibited higher zeta potential values, indicating stability even in harsher conditions (e.g., increased ionic strength, which can occur in the environment of mortar mixes). The MFFT values of all latex admixtures were found to be near or below 0 °C, which suggests the favorable adhesion and binding capability of latex polymer particles among mortar constituents, even at low application temperatures (Zarybnicka et al., 2021).

Table 3

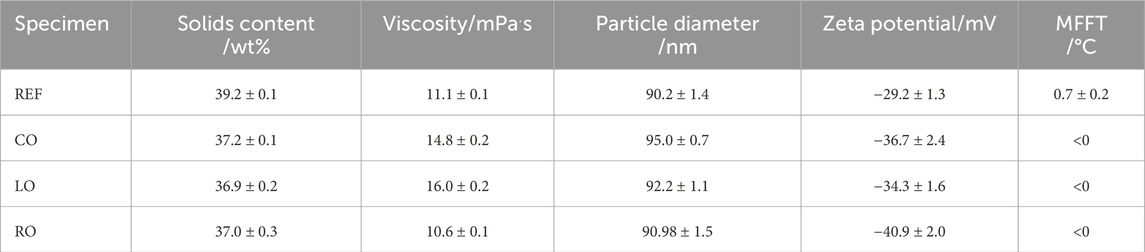

Table 3. Characteristic properties of liquid latex admixtures.

The testing of colloidal stability against alkaline pH revealed that all latex admixtures remained stable up to pH = 13.5 (see Table 4). Since the pH of the Portland cement mortar environment is below 14 (Sumra et al., 2020), the risk of destabilization (premature aggregation of polymer particles) due to increased pH may be eliminated for all latex admixtures in the preparation process of cement composites. The testing of colloidal stability against CaCl₂ electrolyte revealed differences between the latex admixtures (see Table 4). In accordance with the results of zeta potential measurements, the REF latex was found to be the least stable (coagulation occurred at a CaCl₂ electrolyte concentration of 1.5 wt%), whereas the vegetable oil-based latexes withstood even the highest tested CaCl₂ electrolyte concentration (3.0 wt%). This fact indicates stronger adsorption of the utilized anionic emulsifier to polymer particles in the vegetable oil-based latex formulations, which may result in decreased/slower/gradual desorption of emulsifier molecules in aqueous solutions of electrolytes at higher concentrations, e.g., in a fresh-mixed mortar environment. Note that adsorbed ionic emulsifier molecules typically represent a significant amount of charge on the surface of polymer particles, thus providing their sufficient electrostatic repulsion (Hellgren et al., 1999). In addition, the increased electrolyte stability of the vegetable oil-based latex admixtures can also prevent premature aggregation (flocculation) of latex polymer particles in the intended mortar application, which should result in increased/uniform distribution of latex polymer in the cement composite and its higher binding ability.

Table 4

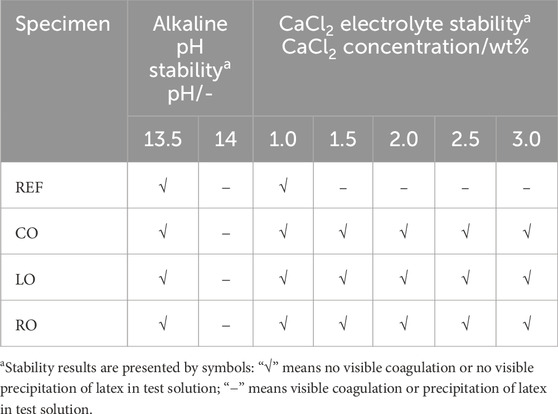

Table 4. Results of colloidal stability tests of liquid latex admixtures against alkaline pH and CaCl₂ electrolyte.

The prepared latex admixtures were also investigated from the point of view of their chemical structure and the level of cross-linking expressed by the parameters of gel content and cross-link density (see Table 5). The chemical structure of latex admixtures in terms of the vegetable oil incorporation was characterized by FTIR spectroscopy. The IR spectra of the vegetable oil-based latex admixtures (Figure 2) exhibit increased intensity of the C–H stretching bands of the methylene groups at 2,933 and 2,857 cm^–1 (ν_a (C–H; CH₂ and ν_s (C–H); CH_2, respectively), which documents the successful incorporation of the vegetable oil-based monomers into the acrylic polymer chains.

Table 5

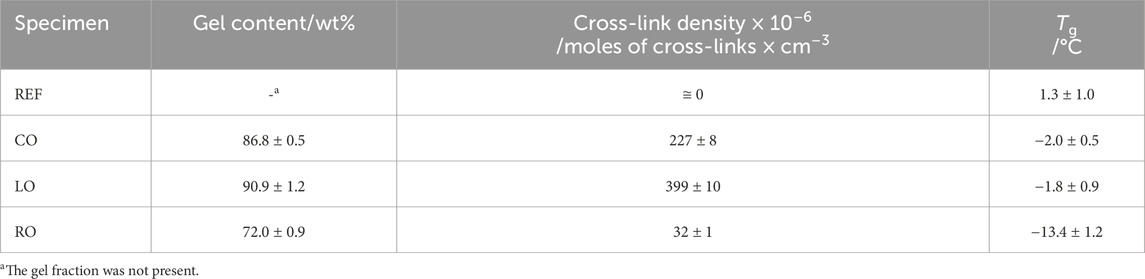

Table 5. Characteristic properties of dry latex polymers.

Figure 2

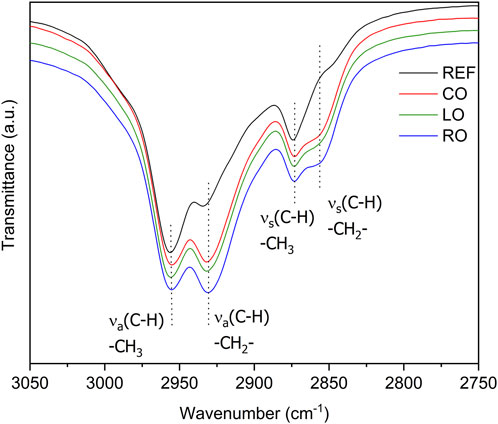

Figure 2. IR spectra of the latex admixtures modified with different vegetable oil-based monomers.

Cross-linking of latex polymers may affect their applicability and final properties, e.g., mechanical and chemical resistance may be improved due to toughening of the polymer structure. However, on the other hand, adhesion and coalescence can deteriorate due to loss of polymer particle deformability (Machotova et al., 2016). In our previous works on the synthesis of vegetable oil-based latexes for coating applications (Kolář et al., 2023a; Kolář et al., 2023b), it was demonstrated that cross-linking occurred within the individual latex polymer particles due to copolymerizing the vegetable oil-based monomers containing multi-acrylated ingredients derived from polyunsaturated higher fatty acids (the detailed representation of higher fatty acids in utilized vegetable oils is provided in Supplementary Table S1 in the Supplementary Material). This phenomenon was also confirmed in this study, showing the significant amount of gel fraction and measurable values of cross-link density for all partially vegetable oil-based latex polymers, among which the LO polymer exhibited the highest level of cross-linking and the RO polymer was the least cross-linked, suggesting the most favorable sintering and adhesion of the RO latex admixture to mineral parts of the mortar.

The prepared latex admixtures were also investigated from the point of view of polymer T_g (see Table 5). This parameter expresses the mobility of polymer chains. It is also related to the deformability, adhesion, and binding capability of spherical latex polymer particles to mineral components of the mortar, thus affecting the cohesion and mechanical performance of the final cement composite material. It was found that the vegetable oil-based latex polymers exhibited lower T_g values in comparison with the REF latex polymer. A significantly reduced T_g was found for the RO latex polymer, indicating increased deformability of the polymer particles and better adhesive and bonding ability of the RO latex admixture.

3.2 Monitoring of the hydration process of portland cement mortars

The recorded heat and heat flow curves are depicted in Figure 3. The pre-induction phase is not reported as it was of a relatively brief duration (approximately 10–15 min), and this period is solely represented by the wetting of the cement grains. Subsequently, the initial reactions with the clinker minerals occurred. A quantity of hydration heat was released, accompanied by the dissolution of aluminates and sulfates and the formation of portlandite [CH, Ca(OH)₂] (Lothenbach and Winnefeld, 2006). A comparison of the measured records indicates that the behavior of all types of mortars is comparable. The next phase is distinguished by a gradual release of hydration heat, an increase in viscosity (indicative of the beginning of cement solidification), and the formation of nuclei for calcium silicate hydrate (C-S-H) and CH crystals (Beaudoin and Odler, 2019). The formation of ettringite (AFt; calcium trisulfoaluminate hydrate) persists, accompanied by the penetration of water into the cement grains and the formation of new hydration products. The second phase of the induction period is completed approximately one to 2 hours after mixing. Then, the rate of hydration was increased, with the maximum at around 12 h. During this cement hydration phase, the individual mortars’ behavior remained comparable, with a slightly higher curve for the CM_CO mortar.

Figure 3

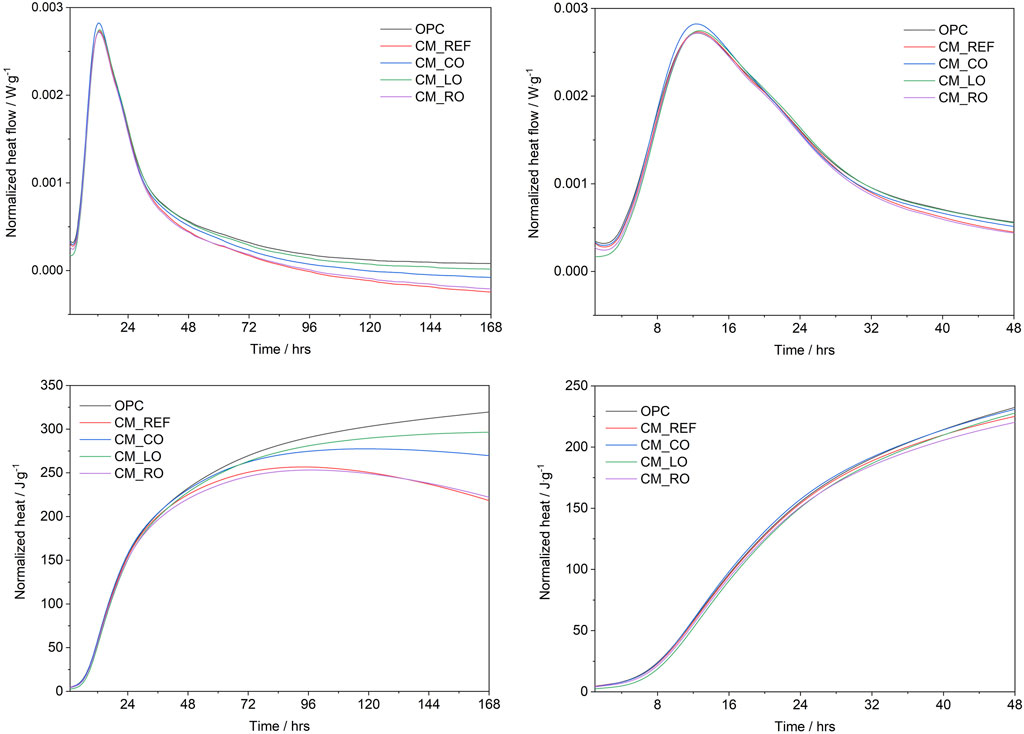

Figure 3. Isothermal calorimeter records for all mortars.

The next step is characterized by the rapid reaction of Alite (C₃S, tricalcium silicate) and formation of long-fiber silicate C-S-H and CH crystals. The cement grains are approached by each other because of the growth of crystals of hydration products (Scrivener et al., 2019). During this period, the fundamental structures of cement are established (Brown et al., 1984). The fine-fiber C-S-H is formed in the following phase of the hydration process, and AFt gradually transforms into monosulfate (AFm), belite (C₂S) undergoes hydration, and the generation of heat decreases. Diffusion then controls the hydration reactions. After approximately 30 h of hydration, a distinct change in heat flow curves was observed in the CM_RO and CM_REF mortars, characterized by reduced heat generation. The process of hydration of the CM_CO, CM_LO, and OPC mortars was comparable up to 48 h, after which a decrease in heat generation was observed compared to OPC. The total heat of hydration was measured after 7 days, with the highest values determined for OPC (339 J^.g⁻¹), CM_LO (297.5 J^.g⁻¹), and CM_CO (277.4) J^.g⁻¹. The lowest values were calculated for CM_RO (253.2 J^.g⁻¹) and CM_REF (256.7 J^.g⁻¹). Concerning the testing of mechanical properties, it was found that the mortars with the highest total heat demonstrated the optimal performance, a finding substantiated in the following text. The shape and progress of detected heat and heat flow curves of cement hydration processes, as well as total heat, were found to be comparable with previously described isocalorimetric measurements of cement composites produced using different types of admixtures like e.g., acrylic latexes (Zárybnická et al., 2023; Machotová et al., 2025) and/or latex copolymer of carboxylate styrene-butadiene (Baueregger et al., 2015).

3.3 Mineralogical composition of hardened portland cement mortars

From a qualitative point of view, quartz (Si, SiO₂), CH, calcite (CC̄, CaCO₃) together with its metastable polymorphs – aragonite and vaterite (both CaCO₃), gypsum (CSH₂, CaSO₄.2H₂O), unreacted clinker phases (C₃S, C₂S) and Aft, the product of the reaction between C₃S and CSH₂ during cement hydration, were detected. The quantitative mineralogical analysis of the collected XRPD patterns, including quantification of the amorphous phase, is summarized in Table 6.

Table 6

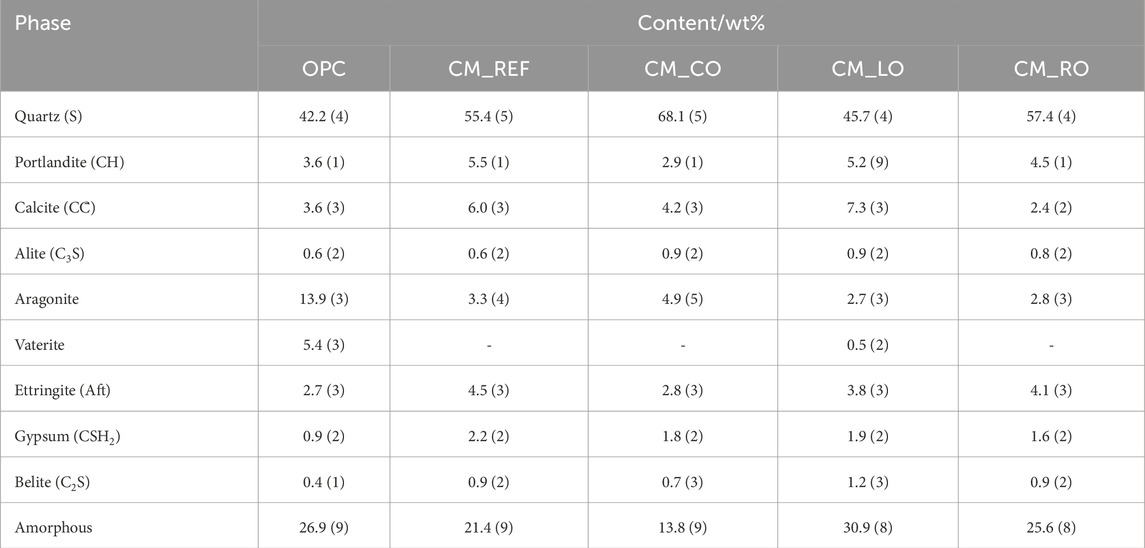

Table 6. The mineralogical composition of selected 28-day hardened mortars as determined using Rietveld refinement.

In contrast to our previous works focused solely on the petroleum based polymeric admixtures (Zárybnická et al., 2023; Machotová et al., 2025), no or only a negligible amount of vaterite phase was detected in hardened CM specimens, probably as a consequence of the modification of hydration and/or carbonation pathways due to the effects of the different chemical nature of applied latexes. Generally, the presence of CaCO₃ may be explained by the partial release of Ca²⁺ ions from amorphous C-S-H phases (Sevelsted and Skibsted, 2015) or due to the carbonation reaction (Liang et al., 2024). To highlight the effects of incorporated vegetable oil-based derivatives in latexes, the results of the quantitative phase analysis were recalculated, excluding quartz that was detected in the specimens due to the used aggregate fraction, and the graphical output is visualized in Figure 4.

Figure 4

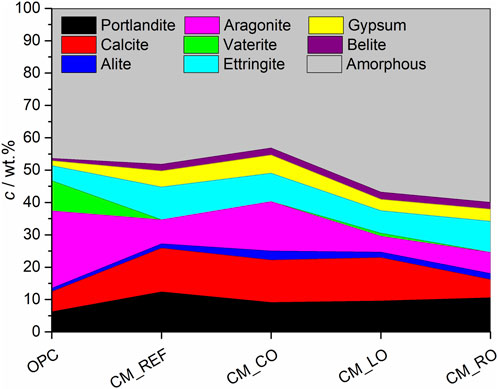

Figure 4. Recalculated phase concentrations in hardened mortar specimens after removing the quartz content.

As visible in Figure 4, the significant difference between vegetable oil-based latex mortar specimens and OPC and CM_REF specimens was found to be in the amount of CaCO₃ and amorphous phases. Compared to CM_REF, specimens containing vegetable oil-based latex admixtures with linseed (CM_LO) and, especially, rapeseed oil (CM_RO) showed lower concentrations of CaCO₃ and higher amounts of amorphous phase – assumed to be mainly composed of C-S-H (Bullard et al., 2011). On the contrary, the opposite trend was detected for specimens with the vegetable oil-based latex admixture containing camelina oil (CM_CO). The tremendous effects of various admixtures and admixtures on the reaction kinetics and pathways of both hydration and carbonation reactions in cementitious and lime-based systems are well documented (Cheung et al., 2011; Rodriguez-Navarro et al., 2023).

3.4 Microstructure of hardened portland cement mortars

The gallery of SEM micrographs collected on fractured mortar specimens is depicted in Figure 5. All specimens have shown well-compacted dense internal microstructure, including OPC, which was already reported in our previous work (Zárybnická et al., 2023). In Figure 5a, long needle-like AFt crystals (Tosun and Baradan, 2010) attached to hydrated clinker phases are visible. As reported in the work on petroleum-based acrylic latexes (Ševčík et al., 2023; Zárybnická et al., 2023), also the partially vegetable oil-based latexes exhibited sufficient bridging capability, for example, the bridge between the cement matrix and silica aggregate is depicted in Figure 5b (area highlighted by the inserted arrow) and in Figure 5e, in which the exact location (delaminated in a white rectangle) is shown at higher magnification. In CM_LO, a porous space partially filled with a polymer film was detected (Figure 5c, highlighted by an arrow). Observation at higher magnification (see Figure 5f in which cracks formed due to radiation damage by electron beam are visible inside the area highlighted by a white rectangle) confirmed the presence of latex polymer material. Moreover, in the central part of Figure 5d, C-S-H-phases (Chiang et al., 2014) in close connection with plate-like CH (Cizer et al., 2012) and Aft crystals is well visible.

Figure 5

Figure 5. Microstructure of 28-day hardened specimens, (a) CM_REF; (b) CM_CO; (c) CM_LO; (d) CM_RO; (e) detail CM_CO; (f) detail CM_LO.

Unfortunately, the application of latex admixtures in cement mortar and concrete is often associated with a bubble-forming effect, resulting in increased porosity of hardened cementitious materials. This phenomenon was ascribed to the desorption of emulsifiers from polymer particles, which subsequently entrain air during mortar mixing (Wang and Wang, 2011). Therefore, MIP analysis was performed (see Table 7; Figure 6). All specimens comprising the vegetable oil-based latex admixture, regardless of its type, reported a higher rate of open porosity in comparison with OPC and CM_REF. Compared with CM_REF, the porosity was found to be 13.9, 19.0, and 20.4% higher for CM_CO, CM_LO, and CM_RO, respectively. An increased porosity of hardened latex-based composites is related to the foamy effect of latex admixtures in fresh mixes (Łaźniewska-Piekarczyk, 2013; Zárybnická et al., 2023). In previous works (Zárybnická et al., 2023; Machotová et al., 2025), the increased amount of added petroleum/based admixtures into cement composites resulted in the gradual increase of total porosity and increased pore volumes in all three pores diameters regions: gel pores, capillaries and macropores. As demonstrated in Figure 6, showing a graphical representation of the results of the size pore distribution for all specimens, it can be summarized that the CM_LO and CM_RO specimens exhibited a higher content of capillaries and macropores than the OPC specimen. Conversely, the content of capillaries was lower for the CM_REF and CM_CO specimens than for OPC. Gel pores were detected at higher quantities in cement composite specimens comprising the vegetable oil-based latex admixtures, while the OPC and CM_REF specimens were comparable.

Table 7

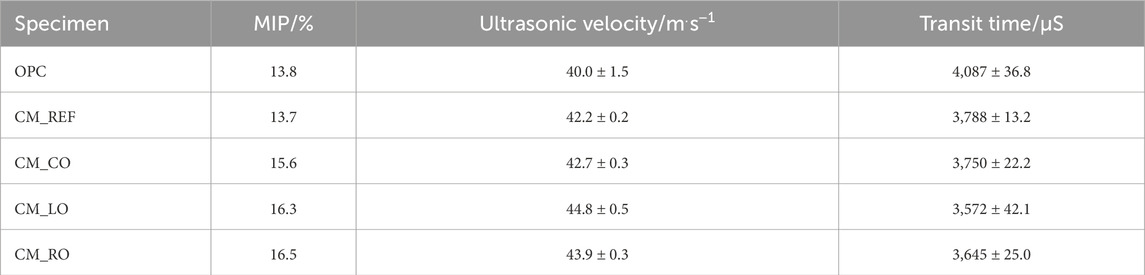

Table 7. Porosity (MIP) and ultrasonic characteristics of 28-day hardened OPC and cement composite specimens.

Figure 6

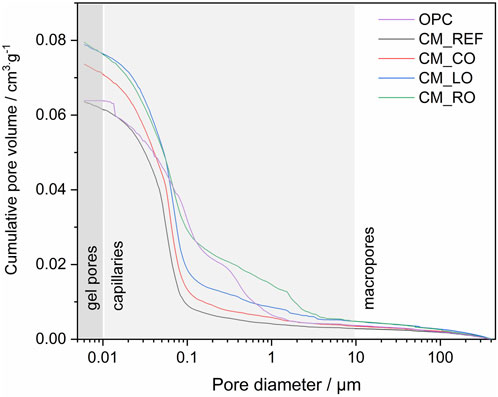

Figure 6. Pore size distribution for the hardened mortar specimens.

Upon examining the information regarding MIP with the stability testing and zeta potentials of the prepared latex admixtures (Tables 3, 4), it can be assumed that in more stable latexes (the RO latex was found to be the most stable, while the REF latex was the least stable) the desorption of the emulsifier from polymer particles in the fresh mortar mix occurred, but more slowly. To draw the following conclusion, these assumptions must be taken into account: (i) the desorbed emulsifier, which in the fresh mortar mix functions as a surfactant (reducing the interfacial tension between liquid and gas), captures air, stabilizes, and also retains air bubbles in the fresh mortar mixture, (ii) large bubbles have a greater chance of escaping from the cement material during the mortar vibrating period. With delayed desorption of the emulsifier, the air present in the mortar mix will still be captured, however, it will probably be present in the form of a higher number of fine bubbles, which, however, will remain trapped in the cement material due to their small size and the advanced stage of mortar hardening.

3.5 Physical-mechanical properties of hardened portland cement mortars

Ultrasonic waves are primarily employed to predict the strength of mortar and concrete (Abo-Qudais, 2005), however, this method can also be utilized to identify internal defects, such as cracks (Malhotra and Carino, 2003). It can be assumed that an increase in transit time and a reduction in ultrasonic velocity result in a more compact structure formation with a lower abundance of internal defects. As reported in Table 7, the most compact specimen appeared to be OPC, which showed the lowest ultrasonic velocity value and, at the same time, the highest transit time value. CM specimens could be sorted into two groups with comparable values represented by CM_REF and CM_CO specimens with values of ultrasonic velocity and transition time around 42.3 m^.s⁻¹ and 3,775 µS, respectively, and other two specimens (CM_LO and CM_RO) with ca. 5% higher velocities values, and, simultaneously, 5% lower transition time values. As discussed in the following text, the ultrasonic characteristics of mortar specimens are closely associated with compressive strength values (Fǎcǎoaru, 1970).

The results of the mechanical characteristics, namely, the compressive and flexural strengths, are listed in Table 8. In the case of compressive strength, produced specimens could be, as in the case of ultrasonic wave tests, divided into 3 groups: (i) the highest compressive strength - OPC, CM_REF and CM_CO of; (ii) the moderate compressive strength - CM_LO; (iii) the lowest compressive strength - CM_RO. Regarding the vegetable oil-based latex admixture type, negligible differences in compressive strength values were detected for CM_CO compared to OPC. On the contrary, CM_LO and, especially, CM_RO showed lower compressive strength values (reduction of 15.4% for CM_RO versus OPC). An explanation of this compressive behavior could be related to the increased porosity of specimens produced using vegetable oil-based latex admixtures, as discussed above. Looking closely at the flexural strength, specimens containing vegetable oil-based latex admixtures showed comparable values with no significant differences. In previous papers (Ismail et al., 2011; Zárybnická et al., 2023), latex concentration was found to play a major role in the flexural strength of cement-based materials, most probably as a consequence of altered air entrapment during the mixing procedure. As possible method to reduce negative impact of the polymeric admixtures on compressive strengths of produced cement composites, a partial substitution of cement with fly ash was proposed (Liu et al., 2020).

Table 8

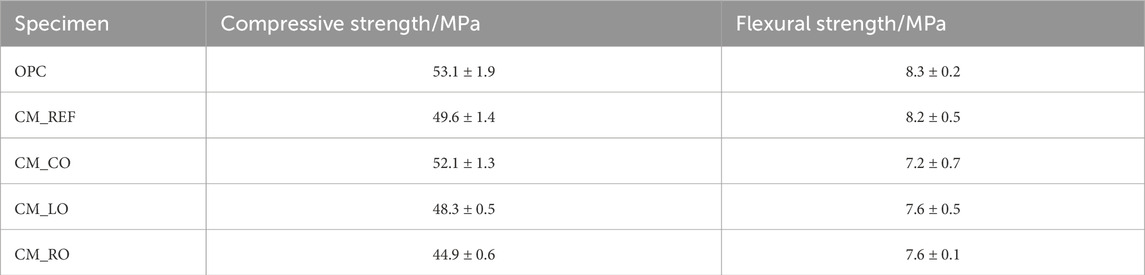

Table 8. Mechanical characteristics for 28-day hardened mortar specimens.

The compactness of the inner structure of hardened mortar specimens is also related to properties that describe the transport of liquid water into the cementitious matrix. In general, water constitutes a suitable solvent medium that allows the penetration of different harmful substances (salts, acids, etc.) into the porous structure of cementitious building materials, causing negative impacts in long-term periods (Luo et al., 2024). The detected characteristics of the liquid water transport results of the produced mortar specimens are summarized in Table 9. The positive effect of vegetable oil-based latex admixtures on mitigating liquid water-related transport through the structure of the produced mortars was observed. For example, the positive effect on the permeability of the produced cement composites were observed also for applications of styrene-butadiene rubber latex, polyacrylic ester emulsion and organic silicon waterproof agent (Liu et al., 2020). The intensity of the water suction of mortar specimens indicated by the absorption coefficient values showed the minimal effect of the REF latex admixture – 5.0% (vs. OPC). On the other hand, specimens comprising the vegetable oil-based latexes were found to be very effective in reducing water suction: in contrast to CM_REF, the absorption coefficient was reduced by 27.8% for CM_LO and 38.9% for both CM_CO and CM_RO, probably as a consequence of their increased effectivity in formation of hydrophobic films inside cement matrix (see Figure 5) that substantially hindered water transport (Knapen and Van Gemert, 2015). The higher porosity of these specimens is responsible for higher capillary saturated water content, but despite that, apparent moisture diffusivity is significantly mitigated from 1.51 × 10⁻⁸ (OPC) up to 0.27 × 10⁻⁸ m²⋅s⁻¹ (CM_RO). The positive effect of the vegetable oil-based latex admixtures can be attributed mainly to the influence of the polymer’s T_g which was significantly lower in the case of the RO latex polymer compared with CO and LO polymers (see Table 5). The low T_g makes latex polymer particles more deformable, enhancing their ability to coalesce and form a continuous, cohesive polymer film within the pores of the cement mortar. This film effectively coats and seals the inner structure, acting as a hydrophobic barrier that lines the pores that would otherwise serve as pathways for water ingress. Moreover, the LO and CO polymer particles exhibited significantly higher levels of internal cross-linking (see Table 5), which made their particles more rigid. The lower level of cross-linking within individual polymer particles of the RO latex enhanced the polymers' flexibility, provided by its low T_g, further promoting its sintering and adhesion to the mortar constituents. Thus, the RO latex with the lowest T_g and cross-linking level coated and sealed the inner structure of the cementitious material to the greatest extent, resulting in reduced water ingress. These findings suggest the high effectiveness of the newly produced vegetable oil-based latex admixtures, particularly the RO type, in hindering water penetration into the porous structure of mortar and concrete.

Table 9

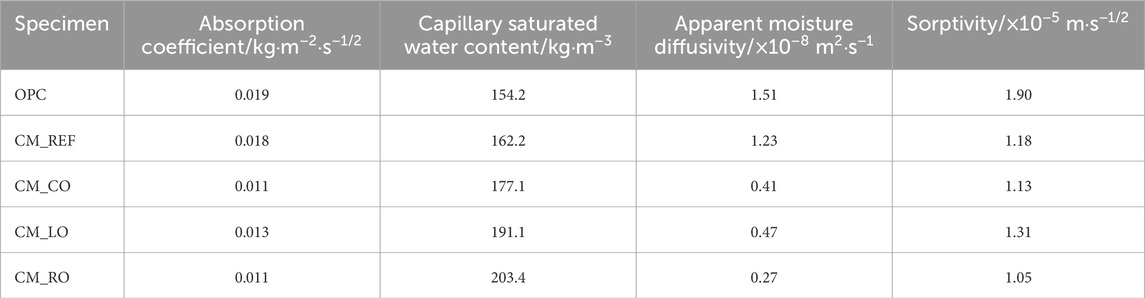

Table 9. Liquid water transport characteristics and open porosity of 28-day hardened mortar specimens.

In Figure 7 and Supplementary Figure S2 in the Supplementary Material, the radar charts are depicted, illustrating the significant changes in the selected properties of the produced specimens. The close relation of porosity to some properties is visible. For example, the higher porosity values were found to be reflected in the higher values of capillary saturated water content and ultrasonic velocity and lower values of flexural strength. The trends are not so straightforward in the case of compressive strength and, e.g., apparent moisture diffusivity, where the type of the synthesized vegetable oil-based latex admixture considerably influenced the detected values, as already mentioned above. The CO latex admixture seems to be good candidate for the preparation and testing of Portland cement-based mortars intended for structures where high compressive strengths with reduced water transport properties and/or greater durability against weathering (Pang et al., 2025) are needed. In general, water transport properties of the produced mortar specimens were found to be most affected by the application of the RO latex admixture, however, at the cost of the highest decrease in compressive strength. Nevertheless, a decrease in the sorptivity of cementitious materials has been identified as a crucial parameter to predict their lifetime (Tukimat et al., 2017). However, to determine the long-term behavior of produced composites using polymeric bio-based nanodispersed admixtures will need to be comprehensively evaluated, for example, using for accelerated aging tests.

Figure 7

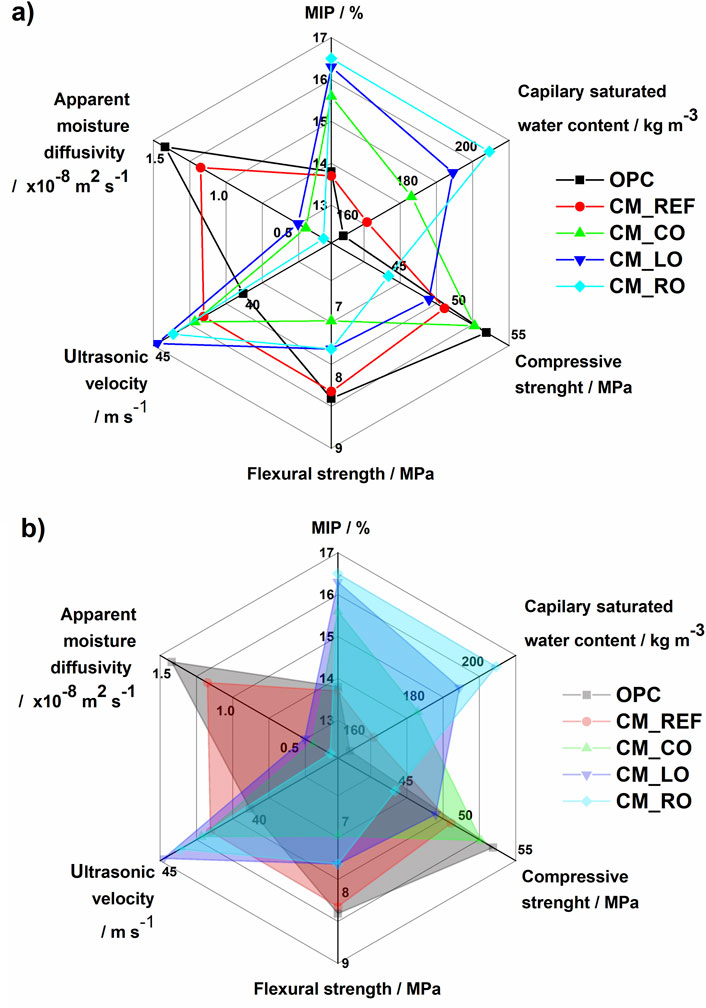

Figure 7. Comparative radar charts [(a) using lines; (b) using area to highlight the changes] illustrating the influence of the type of latex admixture on mortar properties.

4 Conclusion

This work dealt with novel vegetable oil-based latex admixtures synthesized from derivatives of vegetable oils – camelina, linseed, and rapeseed. The role of these bio-based admixtures in modifying chemical, physical, and mechanical properties of Portland cement mortars were investigated. According to the obtained experimental data using a combination of instrumental techniques, the following conclusions were found.

The vegetable oil-based latexes exhibited pH stability up to 13.5 and, compared to the standard latex without the vegetable oil-based component, the better colloidal stability in CaCl₂ electrolyte, increased cross-link density, and lower glass transition temperatures were detected.

The hydration process of the mortars was found to be significantly affected by the incorporation of the vegetable oil-based latexes after 7 days, with the lowest values of total heat being achieved by specimens CM_REF and CM_RO. In contrast, the highest levels of heat development were recorded for the reference specimen OPC.

The application of latex admixtures in mortars resulted in the reduced formation of metastable CaCO₃ polymorphs and, especially in the case of CM_RO, increased abundance of the amorphous phase.

SEM observations revealed good bridging capability and pores filling capacity of the vegetable oil-based admixtures.

The open porosity of mortar specimens containing vegetable oil-based latex admixtures was found to be around 14%–20% higher, most probably due to increased air entrainment during the mixing procedure.

The increased porosity of mortar specimens with vegetable oil-based latex admixtures was reflected in decreased mechanical performance, except for the CM_CO specimen, in which compressive strength was found to be comparable to OPC.

Water transport was significantly reduced in the mortar specimens produced with the vegetable oil-based latex admixtures. The absorption coefficient was 30–40% lower versus OPC and CM_REF. The vegetable oil-based latex admixtures, according to their increased effectivity to alter liquid water transport, could be sorted as RO > CO > LO.

It can be concluded, that bio-based polymeric nanodispersion represents a novel, environmentally friendly, class of cement admixtures that may find utilization in case of structures that are strongly loaded with water and/or water soluble salts.
