Abstract
Executive function is traditionally conceptualized as a set of abilities required to guide behavior toward goals. Here, an integrated theoretical framework for executive function is developed which has its roots in the notion of hierarchical mental models. Further following Duncan (,), executive function is construed as a hierarchical recursive system of test-operation-test-exit units (Miller et al., ). Importantly, it is shown that this framework can be used to model the main regional prefrontal syndromes, which are characterized by apathetic, disinhibited and dysexecutive cognition, and behavior, respectively. Implications of these considerations for the neuropsychological assessment of executive function are discussed.
Prelude
The neuropsychological assessment of executive function is based on unsatisfactory experimental methods and clinical materials, even decades after the pioneering work by Luria (). One of the major difficulties of executive assessment is the paradox that was smartly described by Lezak (): the clinician has to structure a more or less formal situation “… in which patients can show whether and how well they make structure for themselves” (p. 651). Many of the examination techniques (Strauss et al., ) which are thought to be sensitive to executive, or frontal lobe, disorders (Wood and Grafman, ; Miller and Cummings, ; Banich, ; Levine and Craig, ; Stuss, ) clearly allow the subject insufficient room toward self-induced problem structuring, decision making, and goal setting. Yet, it is immediately evident that these processes are main components of executive behavior, as revealed by Luria's, Lezak's, and many others' detailed descriptions of behavioral disturbances after frontal lobe damage.
The need for problem structuring is of particular importance in situations where executable behavioral and cognitive chunks are not readily available to the subject, or where their execution does not proximately lead to the aimed-for goal. Those situations enforce what Freud had called Probehandeln (mental action sampling) 100 years ago (Freud, ). Following Craig (), if the organism carries a mental model of “… external reality and its own possible actions within its head, it is able to try out various alternatives, conclude which is the best of them, react to future situations before they arise, utilize the knowledge of the past events in dealing with the present and the future, and in every day to react in a much fuller, safer, and more competent manner to the emergencies which face it” (p. 61). Some claims about the structure, the functionality, and the neuroanatomical distribution of mental models, including their potential relationships to frontal lobe damage, are presented below1.
The hierarchical structure of mental models
Here, I develop the idea of hierarchically organized mental models which draws heavily on predictive coding theories of the perceptual system (Friston, ). Perception is considered as an active process of inference about underlying states of the world. Specifically, it is conjectured that perceptual analysis follows fundamentally an inversion purpose since it aims at retrieving the causes, i.e., the parameters of the generative mechanism, from the effects, i.e., the observed sensory data. In other words, when observing a sensory phenomenon directed by any parameter θ, perceptual analysis allows inducing from these observations inferences about θ (Helmholtz, ). When the analysis generalizes over space and time, a prediction of future phenomena of similar nature becomes available, simply by exploiting the redundancy within the probability structure of θ (Barlow, ).
Suppose a human observer is exposed to a rapidly changing environment where multiple states coexist (either sequentially through time or simultaneously through space). When confronted with this kind of fast-changing environments, the observer should ideally infer the state probabilities, implying that he or she represents the probability structure of the environment hierarchically. In order to do so, he or she needs to learn a state hyper-parameter τ, and to differentiate between state-specific parameters (i.e., θ1 and θ2 in the case of two coexisting states; see Figure 1). The capability to form such hierarchical generative models of fast-changing environments will greatly enhance the predictive performance of the observer.

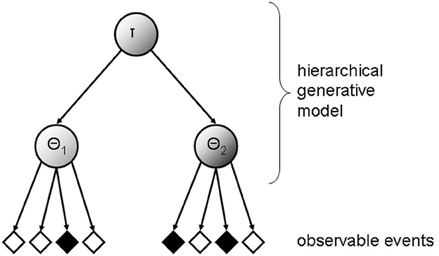

Figure 1
Note that according to this analysis, inference, and prediction are operations on the same hierarchical data structure. This view is compatible with predictive coding theories of cortical function (Friston, ). Predictive coding theories posit that the perceptual system is structured as hierarchically organized generative models with increasingly more general nodes (parameters) at higher levels. Further, predictive coding theories propose that an internal representation of the world (i.e., the mental model) generates predictions that are compared with stimulus-driven activity to calculate the residual error between the prediction and the sensory evidence. The residual error is then used to update the internal representation of the world so as to minimize the residual error imposed by future stimuli.
Another implication of this analysis lies in the fact that the brain remembers the past to predict the future (Bar, ). The close relationship between experience and memory, as stored in mental models, on one hand and prediction and anticipation on the other is paralleled by the recently discovered fact that episodic memory and episodic future thinking share a common neural substrate in cerebral cortex (Schacter et al., ). This led researchers to ask whether time in the brain is a one-directional variable, as psychologically experienced, or whether the brain is actually capable to travel back and forth through time (Suddendorf et al., ).
This analysis portrayed the perceptual system as being composed of hierarchically organized generative models. In what follows I will conceptualize executive function, required to guide intentional behavior toward goals, as a hierarchically organized test-retest system, an idea which draws heavily on Miller et al. (). Note that, while the analysis moves from the perceptual system to the executive system, it retains the idea of hierarchically organized mental models. Specifically, recursive activation of self-terminating operating units lies at the core of the suggested model of executive function.
The behavioral functionality of mental models
Frontal lobe damage often disrupts the patient's capacity for intentional behavior, it leads in many cases to the appearance of stimulus-bound behavior and inflexible responding, and it sometimes limits the ability to initiate behavior at all (Duffy and Campbell, ). The fundamental conjecture of this paper is that these behavioral syndromes which result from frontal lobe damage may be considered as observable effects of deficient mental models, as detailed below.
Lashley () had argued long ago that behavior is hierarchically structured, and Miller et al. () introduced the “test-operate-test-exit” (TOTE) unit to cognitive psychology just a few years later. When selected, a TOTE unit would test a particular environmental state and, if a specified condition was not met, would execute a specific operation until the condition became true. Miller et al. () suggested that all kinds of behavior are controlled by TOTE units and used the everyday example of hammering a nail. The unit consists of a test-operator [Is the nail down? (Is the goal state achieved?)], an operation [hammering (and return to test)], and an exit-operator [to be executed if the goal state has been achieved (see test-operator)]. Crucially, the operation of a TOTE unit could be to select another TOTE unit, allowing for hierarchical structuring based on recursive processing (Corballis, ), i.e., by running a series of nested TOTE units. Details of the idea of recursive activation of self-terminating operating units are illustrated in Figure 2. Inspection of Figure 2 reveals that mental models may be considered as hierarchical structures of self-terminating operating units, each capable of activating otherwise comparable units at sub-ordinate levels of the hierarchical structure (Botvinick, ; Duncan, ,). Notice that the multiple-demand system framework (Duncan, ,) provides partly similar accounts of the crucial features of internal models guiding sequential behavior in complex situations. Specifically, both views share the idea of hierarchically organized internal models (see also Miller et al., ). The view which is presented here is oriented toward the manifold behavioral disturbances which usually follow frontal lobe lesions and which were shortly foreshadowed above, whereas Duncan's model (Duncan, ,) is focused more on the neurocognitive mechanisms of complex problem solving and (fluid) intelligence.

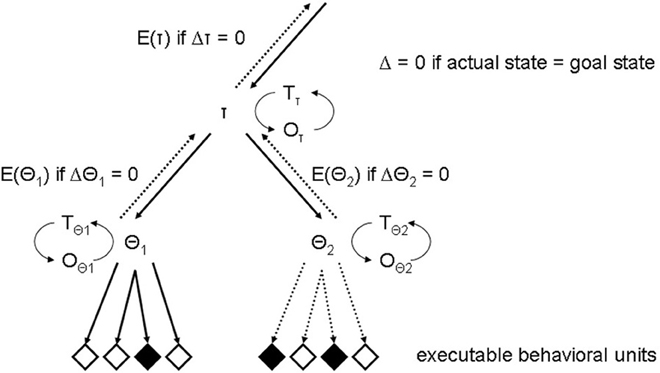

Figure 2
The formation of such recursive mental TOTE models constitutes the cognitive basis for executive behavior, this being characterized by the constant occurrence of intentional, goal-directed, and well-organized units of behavior (Shallice,
Mental models and frontal lobe damage
Duffy and Campbell (
The medial prefrontal syndrome is easiest to conceptualize. The common behavioral symptom of apathy, or in the most severe cases of akinetic mutism, could be viewed as resulting from a disconnection between otherwise intact recursive mental TOTE models and executable behavioral units (see Figure 3A). Consequently, patients with superior medial damage are usually slower on tasks that require speeded responses, a behavioral deficit which has been described as a failure of energization, that is, the process of initiating any response (Stuss,

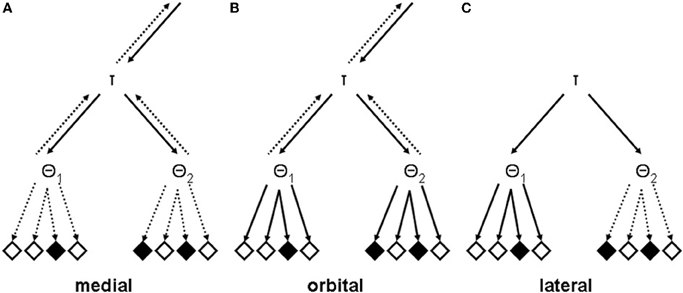

Figure 3

Analytically lesioned recursive mental TOTE models. (A) A potential lesion that might underlie the medial syndrome with predominantly apathetic symptoms. Note that the connections between both units at the lowest level of the hierarchical structure, θ1 and θ2, and executable behavioral units are inactive (dashed arrows). (B) A potential lesion that might underlie the orbital syndrome with predominantly disorganized symptoms. Note that the connections between both units at the lowest level of the hierarchical structure, θ1 and θ2, and executable behavioral units are active (solid arrows). (C) Potential lesions that might underlie the lateral syndrome with predominantly dysexecutive symptoms. There are two putative lesion effects: First, they may impair the functionality of the exit-operators, as detailed in the text. Second, they may destroy units at any level of the hyper-planes (this is solely adumbrated here by cancelling topmost arrows). It should be noticed that the various types of lesion effects are not mutually exclusive. They may occur together in one patient, in various degrees, depending on the nature, the locus, and the extension of his or her brain lesion (Duffy and Campbell,
Disinhibited behavior is the cardinal feature of the orbital prefrontal syndrome which might express itself as increased distractibility on complex tasks and as environmental dependency in social situations (Lhermitte,
The lateral prefrontal syndrome has always been the least tractable of all prefrontal syndromes, due to the complexities of the cognitive and behavioral disturbances that are characteristic for this syndrome. Yet, within the framework which I presented above, the lateral syndrome starts to loose its chimeric character. Figure 3C illustrates the effects that lateral prefrontal lesions might have on the recursive mental TOTE models. Notice that primarily transitions from sub-ordinate to super-ordinate levels of the hierarchy became impossible in the lesioned model. A brief look back to Figure 2 reveals that these bottom-up transitions are produced by the exit-operators within the recursive mental TOTE models. Thus, the hypothesis states simply that lateral prefrontal lesions impair the exit-operators of the recursive mental TOTE models.
The impairment of bottom-up transitions might be brought into being by two dissociable processes. First, lateral prefrontal lesions might impair the functionality of the exit-operators, rendering them unable to actually produce the required transitions. Second, lateral prefrontal lesions (Petrides,
Impaired exit-operators and impaired state monitoring render the behavior of patients with lateral prefrontal lesions perseverative, i.e., they are expected to show a tendency to repeat previous actions over and over, albeit these are not appropriate any more. To illustrate let us take the example depicted in Figure 3C. There are three TOTE units, one at the higher level (τ), representing the goal state of the problem at hand, and two at the lower (θ1, θ2), representing subgoals. If τ passed control to θ1 (which, however, cannot be exited any more, due to the effects of lateral prefrontal lesions), its assigned behavioral units will be repeatedly executed, whereas the solution to the problem at hand requires to pass control first to θ1 and afterwards to θ2, via τ. In other words, these patients will appear stuck-in-set, unable (a) to flexibly adapt to actual requirements and (b) to solve problems smoothly. Whereas patients suffering from impaired exit-operators may be aware of the inappropriateness of their perseverative tendencies, patients suffering from impaired state monitoring may be characterized by a lack of awareness of their perseverative behavior, mainly because these patients should be generally unable to compare the results of actions with the intended goals.
However, there remains still another possibility how lateral prefrontal lesions might impair the functionality of recursive mental TOTE models. Instead of impairing exit-operators, these lesions may destroy units at super-ordinate levels of the hierarchically structured models (as depicted in Figure 3C). An organism will have difficulty whenever it is confronted with problems that require contributions of the lesioned units for their solution. Specifically, eminently novel, complex, and abstract problems may fall into this range of tasks (Goel,
Further, Fuster (
Sequelae
There are a number of corollaries of the considerations which I presented here. First, a reduced output on fluency tasks, impaired organization and monitoring of material to be remembered, and of the subject's own responses, are among the major cognitive deficits after frontal lobe damage (Milner and Petrides,
Conflict of interest statement
The author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Statements
Conflict of interest
The author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Footnotes
1.^The term “mental model” which is used here should not be confused with the mental model theory which is a theory of reasoning proposing that deductive and inductive reasoning depend on spatially organized mental models (Johnson-Laird,
2.^The formation of hierarchically structured recursive mental models, the abilities to sample mental actions and to predict their environmental consequences in order to select the best alternative for the true course of actions introduces the teleological idea of final causes into human behavior. To put it in Ernst Mayr's words: “Intentional, purposeful human behavior is, almost by definition, teleological …. If teleological means anything, it means goal-directed …. Goal-directed behavior is extremely widespread in the organic world …. The occurrence of goal-directed processes is perhaps the most characteristic feature of the world of living systems” (E. Mayr; downloaded 3-15-2011 from http://faculty.washington.edu/lynnhank/Mayr3.pdf).
3.^Eling et al. (
References
1
BadreD. (2008). Cognitive control, hierarchy, and the rostro–caudal organization of the frontal lobes. Trends Cogn. Sci. 12, 193–200. 10.1016/j.tics.2008.02.004
2
BadreD.HoffmanJ.CooneyJ. W.D'EspositoM. (2009). Hierarchical cognitive control deficits following damage to the human frontal lobe. Nat. Neurosci. 12, 515–522. 10.1038/nn.2277
3
BadreD.KayserA. S.D'EspositoM. (2010). Frontal cortex and the discovery of abstract action rules. Neuron66, 315–326. 10.1093/cercor/bhr117
4
BanichM. T. (2009). Executive function. The search for an integrated account. Curr. Dir. Psychol. Sci. 18, 89–94.
5
BarM. (2011). Predictions in the Brain: Using Our Past to Generate a Future. Oxford: Oxford University Press.
6
BarlowH. (2001). Redundancy reduction revisited. Netw. Comput. Neural Syst. 12, 241–253.
7
BehrensT. E. J.WoolrichM. W.WaltonM. E.RushworthM. F. S. (2007). Learning the value of information in an uncertain world. Nat. Neurosci. 10, 1214–1221. 10.1038/nn1954
8
BisharaA. J.KruschkeJ. K.StoutJ. C.BecharaA.McCabeD. P.BusemeyerJ. R. (2010). Sequential learning models for the Wisconsin card sort task: assessing processes in substance dependent individuals. J. Math. Psychol. 54, 5–13. 10.1016/j.jmp.2008.10.002
9
BotvinickM. M. (2008). Hierarchical models of behavior and prefrontal function. Trends Cogn. Sci. 12, 201–208. 10.1016/j.tics.2008.02.009
10
CorballisM. C. (2011). The Recursive Mind: The Origins of Human Language, Thought, and Civilization. Princeton, NJ: Princeton University Press.
11
CraigK. J. W. (1943). The Nature of Explanation (Reprinted 1952). Cambridge: Cambridge University Press.
12
DamasioA. R.AndersonS. W. (2003). “The frontal lobes,” in Clinical Neuropsychology, 4th Edn, eds HeilmanK. M.ValensteinE. (New York, NY: Oxford University Press), 431–446.
13
DuffyJ. D.CampbellJ. J. (2001). “Regional prefrontal syndromes,” in The Frontal Lobes and Psychiatric Illness, eds SallowayD. P.MalloyP. F.DuffyJ. D. (Washington, DC: American Psychiatric Publishing Inc), 113–123.
14
DuncanJ. (2010a). How Intelligence Happens. New Haven, CT: Yale University Press.
15
DuncanJ. (2010b). The multiple-demand (MD) system of the primate brain: mental programs for intelligent behaviour. Trends Cogn. Sci. 14, 172–179. 10.1016/j.tics.2010.01.004
16
ElingP.DerckxK.MaesR. (2008). On the historical and conceptual background of the Wisconsin card sorting test. Brain Cogn. 67, 247–253. 10.1016/j.bandc.2008.01.006
17
FellowsL. K. (2011). Orbitofrontal contributions to value-based decision making: evidence from humans with frontal lobe damage. Ann. N.Y. Acad. Sci. 1239, 51–58. 10.1111/j.1749-6632.2011.06229.x
18
FreudS. (1911). Formulierungen über die zwei Prinzipien des psychischen Geschehens. Gesammelte Werke, Band VIII. Frankfurt a.M.: Fischer, 230–238.
19
FristonK. (2002). Beyond phrenology: what can neuroimaging tell us about distributed circuitry?Annu. Rev. Neurosci. 25, 221–250. 10.1146/annurev.neuro.25.112701.142846
20
FusterJ. M. (2008). The Prefrontal Cortex, 4th Edn. San Diego, CA: Academic Press.
21
GoelV. (2010). Neural basis of thinking: laboratory problems versus real-world problems. WIREs Cogn. Sci. 1, 613–621.
22
HazyT. E.FrankM. J.O'ReillyR. C. (2007). Towards an executive without a homunculus: computational models of the prefrontal cortex/basal ganglia system. Philos. Trans. R. Soc. Lond. B Biol. Sci. 362, 1601–1613. 10.1098/rstb.2007.2055
23
HeatonR. K.CheluneG. J.TalleyJ. L.KayG. G.CurtisG. (1993). Wisconsin Card Sorting Test Manual: Revised and Expanded. Odessa, FL: Psychological Assessment Resources. 10.1016/j.neuropsychologia.2005.12.011
24
HelmholtzH. von. (1867). Handbuch der Physiologischen Optik. Leipzig: Voss.
25
HinzA. M.KostovA.KneißlF.SürerF.DanekA. (2009). A mathematical model and a computer tool for the tower of Hanoi and tower of London puzzles. Inf. Sci. 179, 2934–2947.
26
Johnson-LairdP. N. (1983). Mental Models: Toward a New Science of Language, Inference, and Consciousness. Cambridge: Cambridge University Press.
27
KoechlinE.OdyC.KouneiherF. (2003). The architecture of cognitive control in the human prefrontal cortex. Science302, 1181–1185. 10.1126/science.1088545
28
KoppB.WesselK. (2011). Dissociating proactively and retroactively cued task switching: a route towards neuropsychological analyses of cognitive control. Neuropsychol. Trends10, 55–70.
29
KouneiherF.CharronS.KoechlinE. (2009). Motivation and cognitive control in the human prefrontal cortex. Nat. Neurosci. 12, 939–945. 10.1038/nn.2321
30
LashleyK. S. (1951). “The problem of serial order in behavior,” in Cerebral Mechanisms in Behavior: The Hixon Symposium, ed JeffressL. A. (Oxford: Wiley), 112–146.
31
LevineB.CraigF. I. M. (2011). Mind and the Frontal Lobes: Cognition, Behavior, and Brain Imaging. New York, NY: Oxford University Press.
32
LezakM. D. (1995). Neuropsychological Assessment, 3rd Edn. New York, NY: Oxford University Press.
33
LhermitteF. (1986). Human autonomy and the frontal lobes. Part II: patient behavior in complex and social situations: the “environmental dependency syndrome”. Ann. Neurol. 19, 335–343. 10.1002/ana.410190405
34
LhermitteF.PillonB.SerdaruM. (1986). Human autonomy and the frontal lobes. Part I: Imitation and utilization behavior: a neuropsychological study of 75 patients. Ann. Neurol. 19, 326–334. 10.1002/ana.410190404
35
LuriaA. R. (1966). Higher Cortical Functions in Man. New York, NY: Basic Books. 10.1016/j.neuropsychologia.2009.06.005
36
MillerB. L.CummingsJ. L. (2007). The Human Frontal Lobes: Functions and Disorders, 2nd Edn. New York, NY: Guilford Press.
37
MillerG. A.GalanterE.PribramK. A. (1960). Plans and the Structure of Behavior. New York, NY: Holt, Rinehart and Winston.
38
MilnerB.PetridesM. (1984). Behavioural effects of frontal-lobe lesions in man. Trends Neurosci. 7, 403–407.
39
NyhusE.BarcelóF. (2009). The Wisconsin card sorting test and the cognitive assessment of prefrontal executive functions: a critical update. Brain Cogn. 71, 437–451. 10.1016/j.bandc.2009.03.005
40
PetridesM. (2005). Lateral prefrontal cortex: architectonic and functional organization. Philos. Trans. R. Soc. Lond. B Biol. Sci. 360, 781–795. 10.1098/rstb.2005.1631
41
Ribas-FernandesJ. J. F.SolwayA.DiukC.McGuireJ. T.BartoA. G.NivY.BotvinickM. M. (2011). A neural signature of hierarchical reinforcement learning. Neuron71, 370–379. 10.1016/j.neuron.2011.05.042
42
RidderinkhofK. R.UllspergerM.CroneE. A.NieuwenhuisS. (2004). The role of medial frontal cortex in cognitive control. Science306, 443–447. 10.1126/science.1100301
43
RobbinsT. W. (2007). Shifting and stopping: fronto-striatal substrates, neurochemical modulation and clinical implications. Philos. Trans. R. Soc. Lond. B Biol. Sci. 362, 917–932. 10.1098/rstb.2007.2097
44
RushworthM. F. S.NoonanM.-A. P.BoormanE. D.WaltonM. E.BehrensT. E. (2011). Frontal cortex and reward-guided learning and decision-making. Neuron70, 1054–1069. 10.1016/j.neuron.2011.05.014
45
SchacterD. L.AddisD. R.BucknerR. L. (2008). Episodic simulation of future events: concepts, data, and applications. Ann. N.Y. Acad. Sci. 1124, 39–60. 10.1196/annals.1440.001
46
ShalliceT. (1988). From Neuropsychology to Mental Structure. Cambridge: Cambridge University Press.
47
ShalliceT.CooperR. P. (2011). The Organisation of Mind. Oxford: Oxford University Press. 10.1080/02643294.2012.679919
48
ShalliceT.StussD. T.PictonT. W.AlexanderM. P.GillinghamS. (2008). Mapping task switching in frontal cortex through neuropsychological group studies. Front. Neurosci. 2, 79–85. 10.3389/neuro.01.013.2008
49
StraussE.ShermanE. M. S.SpreenO. (2006). A Compendium of Neuropsychological Tests: Administration, Norms and Commentary, 3rd Edn. New York, NY: Oxford University Press. 10.1016/j.acn.2006.09.002
50
StussD. T. (2011). Functions of the frontal lobes: relation to executive functions. J. Int. Neuropsychol. Soc. 17, 759–765. 10.1017/S1355617711000695
51
SuddendorfT.AddisD. R.CorballisM. C. (2009). Mental time travel and the shaping of the human mind. Philos. Trans. R. Soc. Lond. B Biol. Sci. 364, 1317–1324. 10.1098/rstb.2008.0301
52
TolmanE. C. (1948). Cognitive maps in rats and men. Psychol. Rev. 55, 189–208.
53
WoodJ. N.GrafmanJ. (2003). Human prefrontal cortex: processing and representational perspectives. Nat. Rev. Neurosci. 4, 139–147. 10.1038/nrn1033
