Front. Med., 09 October 2023
Sec. Gene and Cell Therapy
Volume 10 - 2023 |

Case report: Dendritic cell-cytokine induced killer cell therapy in subjects with chronic lymphocytic leukemia and peritoneal cancer

Brian Mehling1 DongCheng Wu2 Ellen O’Gorman1 Daniel Sheridan1 Doreen Santora1* Renata Mihályová3
  • 1BHI Therapeutic Sciences Inc., Hackensack, NJ, United States
  • 2Department of Biochemistry and Molecular Biology, Wuhan University School of Basic Medical Sciences, Wuhan, China
  • 3Blue Horizon International, Bratislava, Slovakia

This study aimed to characterize the safety and efficacy of DC-CIK therapy in two patients with previously treated chronic lymphocytic leukemia or peritoneal cancer, respectively. Participants had received conventional chemotherapy treatment for their specific cancers, and in addition, 1–2 treatments of DC-CIK therapy were administered to subjects over the course of 1 year. Subject A received an initial dosage of 3 intravenous infusions of DC-CIK therapy on three successive days and a repeat dosage 6 months later. Subject B received an initial dosage of 3 intravenous infusions of DC-CIK therapy on three successive days and received further chemotherapy after approximately 1 year. No treatment-related adverse events were reported, and both patients experienced favorable outcomes from the treatment, including enhanced treatment response, increased chemotherapy tolerance, and prolonged survival in comparison to typical 5-year survival rates.

1. Introduction

Dendritic cells (DCs) are antigen-presenting cells of the immune system. Their functions are to capture and process tumor antigens, express lymphocyte costimulatory molecules, and secrete cytokines to initiate immune responses (1, 2). Cytokine-induced killer (CIK) cells represent a unique population of cytotoxic T lymphocytes (CTL) with the characteristic CD3 + CD56 + phenotype (3). CIK cells activated by dendritic DC stimulation show increased anti-tumor activity, and several studies indicate that DC/CIK therapy has potential benefits for subjects with various forms of cancer with no apparent side effects (2).

Clinical trials have suggested that DC-CIK therapy can work as an adjunct alongside chemotherapy to support the production of tumor-reducing cytokines and subsequently slow tumor progression (46). Meta-analysis of the clinical application of DC-CIK in various malignancies has demonstrated promising results across a range of cancers, and a systematic review of 17 randomized clinical studies, including 1,172 patients with advanced cancer, highlighted how DC-CIK treatment improved the median survival time, progression-free survival and time to progression when delivered in conjunction with chemotherapy (2, 7). Specific to leukemia, Zheng et al. investigated the clinical efficacy and safety of DC-CIK therapy combined with chemotherapy in eliminating minimal residual leukemia (8). Patients with acute leukemia received either chemotherapy only or combined DC-CIK therapy and chemotherapy. The combined group experienced a 45.8% rate of molecular biological remission in comparison to a mere 8% in the chemotherapy-only group. In another trial, patients with acute myeloid leukemia who received DC-CIK infusions every 3 months for 2–4 cycles demonstrated a 5-year overall survival rate of 90.5% with a relapse-free survival rate of 65.2% (9).

With the preclinical trial evidence, alongside the clinical trial data available, we hypothesized that treatment with DC-CIK immunotherapy as an adjunct to chemotherapy would improve patient outcomes in two forms of cancer: peritoneal cancer, and chronic lymphocytic leukemia. This is the first recorded DC-CIK treatment of either cancer available in the current literature.

2. Case presentations

Two female subjects were treated at Nemocnica Malacky Hospital (Malacky, Slovakia) for differing cancer diagnoses between April 2016-May 2020. Informed consent was obtained through the signature of an informed consent form from both patients during the enrollment stage of the study, with written consent obtained from each subject to publish the potentially identifiable data contained in the report. The study was approved by the Institutional Review Board of the Institute of Regenerative and Cellular Medicine (IRCM-2021-308). All procedures followed were in accordance with the ethical standards of the responsible committee on human experimentation (institutional and national) and with the Helsinki Declaration of 1975, as revised in 2000.

Both subjects received DC-CIK as an adjunct to traditional therapy. The subject’s mononuclear cells, including DC and T-cells, were expanded in vitro following treatment with GM-CSF, IL-4, and TNFα cytokines. The expanded DC-CIK cell population was subsequently cultured with the patient-specific tumor antigen to immunologically prime the DC-CIK therapy to target the patient’s cancer.

2.1. Subject A

Subject A was an 89 year old female diagnosed with classic chronic lymphocytic leukemia (CLL) of the B-cell series in July 2017 (Table 1). The patient presented at Binet Stage C, with anemia, thrombopenia, and bone marrow infiltration over 80%. Blood marker testing demonstrated deranged leukocyte numbers measuring over 200,000 cells per microliter. Two weeks later, the patient underwent chemotherapy with 56 mg of Bendamustine/Rituximab. Due to the tumor load and to preserve cytokine reaction, the first cycle was completed without Rituximab. Following this, the patient provided the necessary blood donation to develop the immunotherapy treatment. The patient then received three intravenous infusions of DC-CIK therapy on three successive days. Each dose was 50 mL and contained 5.59 × 107 cells per 5 mL, 8.65 × 107 cells per 5 mL, and 1.4 × 108 cells per 5 mL, respectively. Weekly laboratory blood tests were completed for 4 weeks to monitor for change. Leukocyte numbers dropped significantly post-treatment and remained in the 20,000–30,000-figure range until a gradual increase began in December 2017 (Figure 1). There were no adverse effects reported directly related to the immunotherapy administration. The subject received one intravenous infusion of umbilical cord-derived mesenchymal stem cells at a dose of 1.3 × 109 cells per 5 mL. Collection, isolation of MSCs from human umbilical cord blood, and quality control testing were performed according to methods described by Mehling et al. (10). Following this, leukocyte numbers continued to rise until June 2018, when the patient underwent a further 6 sessions of chemotherapy. Immediately post-chemotherapy, the patient’s leukocyte numbers declined by half and proceeded to drop within the normal range for several months before settling just outside the upper end of the normal range. As of 2022, the patient is still alive without recurrence of the disease.

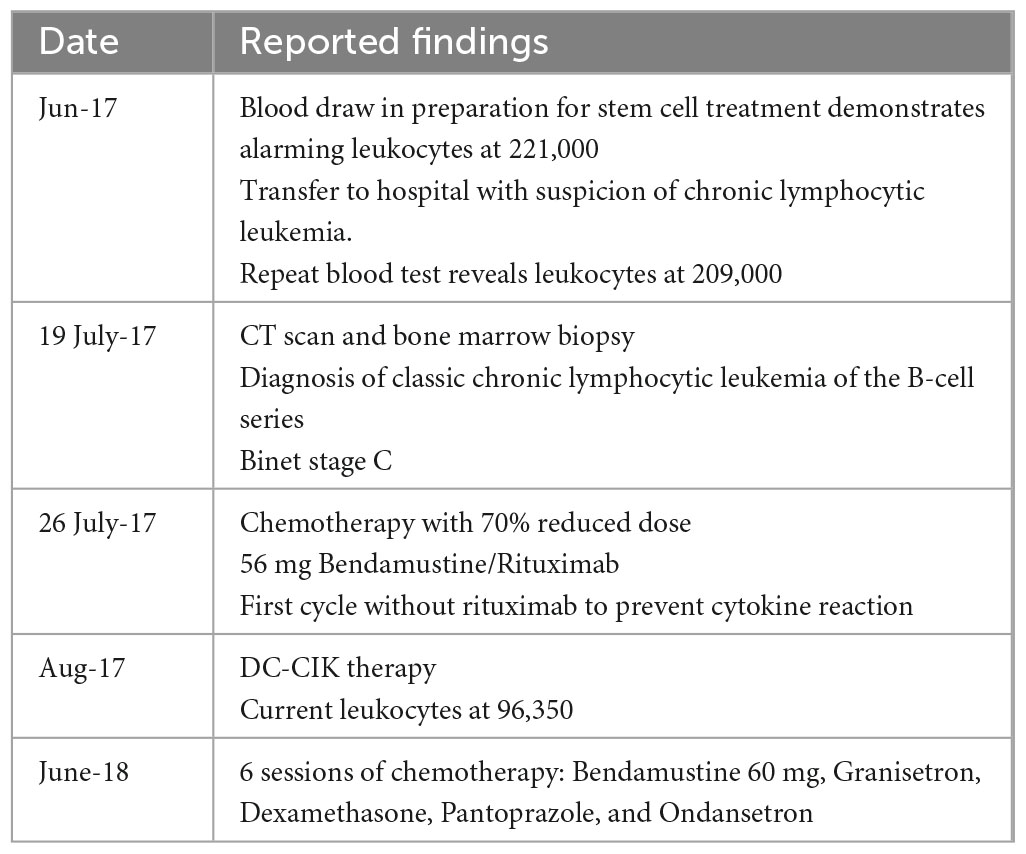

Table 1. Table detailing clinical course of Subject A.

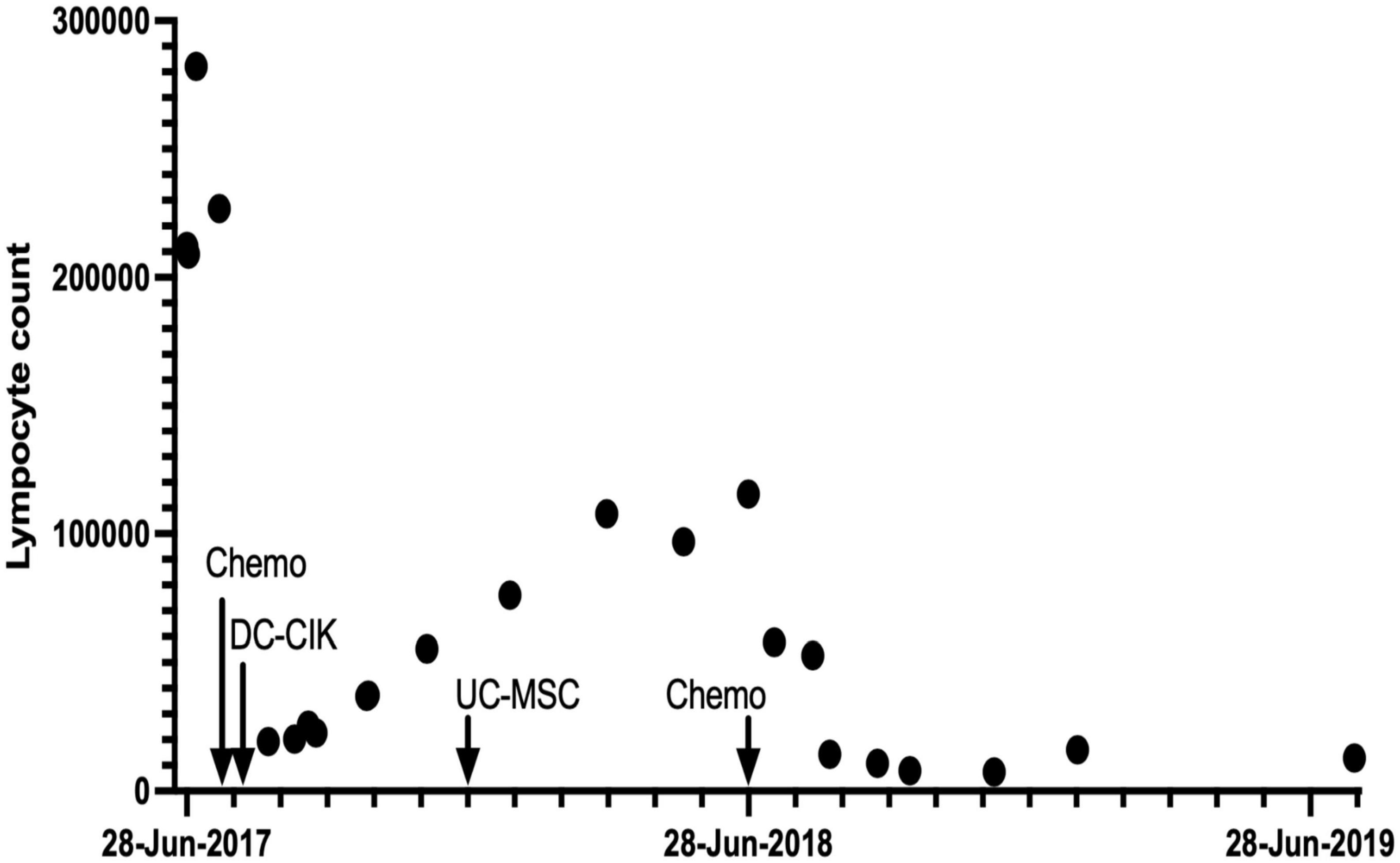

Figure 1. Leukocyte counts/mL for Patient A over a 24-month period.

2.2. Subject B

Subject B was 70 years of age when diagnosed with secondary-malignant neoplasm of retroperitoneum and peritoneum in November 2015 (Table 2). CT and colonography confirmed peritoneal carcinoma and ovaries with extensive pathological changes of the peritoneum, indicating metastatic disease. Furthermore, there was free fluid in the abdomen and pathological infiltrates pressing on the lower part of the colon transversum. The patient underwent four cycles of chemotherapy from January to March 2016. In April, the patient provided the required blood donation to prepare the DC-CIK therapy infusions. The patient then received three intravenous infusions of DC-CIK therapy on three successive days. Cell dosage consisted of 2.3 × 109, 2.54 × 109, and 2.58 × 109 cells per 5 mL, respectively, delivered in a 50 cc saline infusion. There were no adverse effects reported related to the immunotherapy administration.

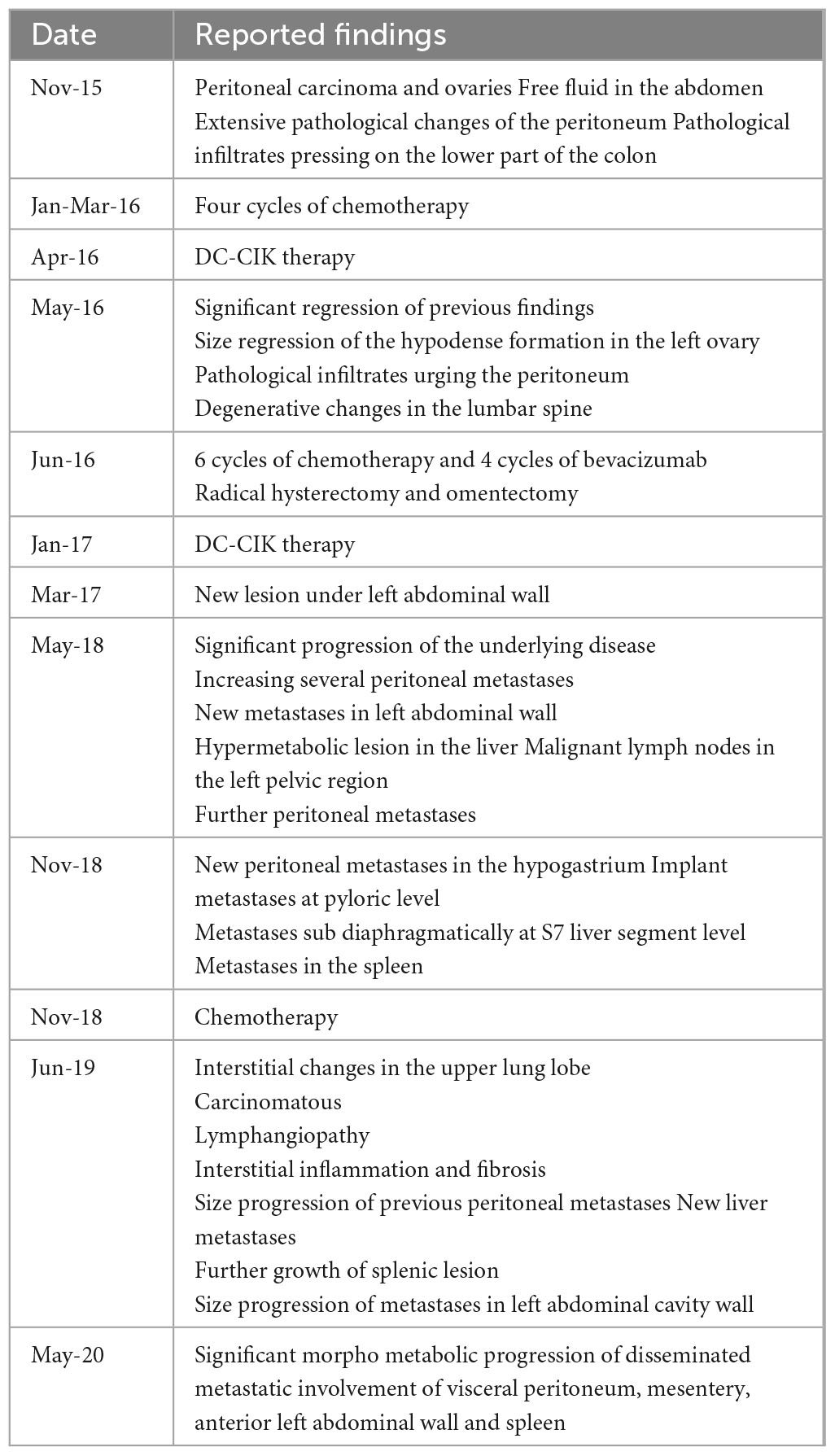

Table 2. Table detailing clinical course of Subject B including reported CT.

In May, the patient underwent blood testing, CT, and oncological review by the treating medical team. Blood counts remained unchanged, and CT findings included significant regression of findings, including size regression of the hypodense formation in the left ovary. The patient then underwent six cycles of chemotherapy and four cycles of bevacizumab. It was reported that Subject B tolerated chemotherapy better with fewer side effects and, as a result, was able to undergo further surgery. In August, a radical hysterectomy and omentectomy were completed alongside further chemotherapy. The patient received a follow-up dosing regimen of DC-CIK therapy in January 2017. Cell dosage consisted of 4.08 × 108, 2.71 × 108, and 3.35 × 108 cells per 5 mL, respectively. Over the following months, repeated CT imaging demonstrated a gradual progression of the underlying disease with increasing peritoneal metastases, malignant lymph nodes in the left pelvis, and further metastases in the spleen. It is important to note that at this stage in treatment, it was reported that the treating oncologist discouraged the patient from engaging in the trial further due to misconceptions and a lack of confidence in the immunotherapy treatment. In June 2019, there were interstitial changes in the upper lung lobes with a differential diagnosis of carcinomatous lymphangiopathy with interstitial inflammation and fibrosis. Following a diagnosis of a new hypermetabolic focus in the tail of the pancreas, the patient declined further active treatment, and a palliative care pathway was initiated. However, as of late 2022, almost 5 years after the initial diagnosis, Subject B remains alive.

3. Diagnostic assessment

Prior to treatment, subjects underwent screening and baseline assessments (inclusion/exclusion criteria, physical examination) and examination of medical records. Prior to scheduling, the subject’s medical history and records were examined by the investigator. Once enrolled, the EORTC QLQ-C30 questionnaire, disease-specific questionnaires, serological tumor markers test, the percentage of Treg cells in the peripheral blood, ultrasound, or X-ray, were administered.

Subjects were tracked for 3 years to assess the safety of DC-CIK therapy and to evaluate its effect on cancer therapy. At the end of 3rd-year final questionnaires and tests (EORTC QLQ-C30 and disease-specific questionnaires, serological tumor markers, and the percentage of Treg cells in the peripheral blood, X-ray, or ultrasound) will be administered to assess the overall safety of DC-CIK therapy and effect on cancer therapy.

4. Discussion

The case report describes two patients with different forms of cancer who achieved positive results when treated with a combination of chemotherapy and DC-CIK immunotherapy. As far as we are aware, this is the first report of DC-CIK therapy for CLL and peritoneal cancer, respectively. The use of DC-CIK as an adjunct to standard cancer treatments has piqued the interest of oncologists due to convincing results reported by preclinical and clinical trials in several different cancer types (9, 1114). Research investigating a combination of DC-CIK immunotherapy and chemotherapy in different cancer types has revealed significant variations in cell dosage. A consistent, standardized dosage has not been identified. In this study, the number of cells per 5 mL varied even across each intravenous administration, with the patients receiving a range from 5.59 × 107 to 2.58 × 109 per dose. Other studies have utilized a range of dosages and treatment regimens such as four treatments of 1.3 × 109 cells intervals of a month (15, 16), 1.2 × 1010 for 18 cycles (15) or 1.27 × 107 every second day for 6 days (17). With varying degrees of success across different trials alongside the promising results achieved in this trial with varying doses, further investigation into a standardized dosing regime is warranted.

Subject B notably experienced a reduction in chemotherapy side effects and increased tolerability of the chemotherapy, which further allowed her to undergo significant surgery with curative intent. This has been a trend reported in DC-CIK immunotherapy trials whereby the adverse effects of chemotherapy can be significantly reduced by this treatment. It is thought that the treatment reduced leukopenia, peripheral neuritis, gastrointestinal side effects, liver dysfunction, and myelosuppression (2, 7, 13). With a myriad of side effects and often high levels of toxicity, there is a high degree of balancing between efficacy and toxicity that must be considered by oncologists (1820). Apart from severe adverse effects and generalized weakening of the patient, the patient’s immune response can even go as far as limiting the tumor-targeting effects of the treatment through systemic or localized responses (18). Undeniably, a reduction in adverse effects associated with chemotherapy greatly improves the quality of life of cancer patients and thus provides a strong case for the incorporation of DC-CIK therapy into the treatment regimen of cancer patients.

There is a significant pathophysiological difference between the cancer of the two subjects, specifically the contrast between solid and liquid cancers. Both the solid and liquid cancer subjects in this trial experienced positive outcomes in their overall cancer treatment, echoing results demonstrated by previous research in both groups (9, 11, 13, 14). Notably, in this trial and in numerous other aforementioned systematic reviews and meta-analyses of DC-CIK clinical trials, there have been no severe adverse effects reported related to the DC-CIK immunotherapy. This supports the safety and tolerability of utilizing this therapy as an adjunct to all cancer treatments.

However, the significant disparities between the two patients in this study also present a limitation to the work. It is difficult to ascertain specific trends or model the generalizability of this treatment on either solid or liquid cancers due to the heterogeneity of the cancer types. In addition, it is challenging to isolate the contribution of the DC-CIK therapy to the therapy when dealing with diverse cancer types. Other factors related to the cancer type should be considered, such as its aggressiveness, stage, and response to standard treatments.

Only around 65% of patients over 80 years are expected to survive for 5 years or more after a diagnosis of CLL (20, 21). This number drops further with increasing Binet Stage of disease, with survival figures decreasing further with Stage B or C disease. Some literature estimates the survival time as 2–3 years for patients with Stage C CLL (22, 23). Crucially, in this study, Subject A was considered very high risk due to her age and disease severity at Stage C. Despite this, at the time of writing, Subject A was disease-free for 4 years post-treatment. It is difficult to ascertain the specific impact of the DC-CIK on the patient’s recovery. However, considering the expected prognosis that the patient has exceeded, alongside the risk factors and severe disease, it is reasonable to assume that the DC-CIK therapy had some enhancing effects on the treatment.

As we are aware, this is the first reported case of the treatment of peritoneal cancer with DC-CIK. Although Subject B’s primary tumor was considered peritoneal, she also suffered from ovarian, pancreatic, and liver metastases, all of which have demonstrated promising results when treated with DC-CIK in previous research (17, 24, 25). Notably, a recent clinical trial comparing a combination of DC-CIK with chemotherapy or chemotherapy alone for the treatment of ovarian cancer demonstrated greatly enhanced clinical efficacy, enhanced immune function, and reduced levels of serum tumor markers in the DC-CIK group (25). Although there is a paucity of research specific to peritoneal cancer, the clinical trajectory of Subject B fits with the benefits and success achieved in previous trials for other solid cancer types.

In this report, we describe the case of two female patients with previously treated lymphocytic leukemia or peritoneal cancer, respectively, who received DC-CIK immunotherapy. The patients presented with different manifestations of cancer yet experienced similar outcomes on their treatment journey. Neither patient experienced adverse effects directly related to the DC-CIK therapy, and one patient reported significantly fewer side effects from chemotherapy post-immunotherapy administration. Subject A exceeded the 5-year survival rate for patients with her degree of disease despite being markedly older in age. Subject B is the first reported case of DC-CIK treatment for primary peritoneal cancer, and despite initiating a palliative care pathway in 2017, she remains alive 5 years later. In line with previous research, this case report supports the usage of DC-CIK immunotherapy in conjunction with standard cancer treatment and chemotherapy and highlights the need for further research and development of accessible DC-CIK therapy.

Data availability statement

The original contributions presented in this study are included in this article/supplementary material, further inquiries can be directed to the corresponding author.

Ethics statement

Written informed consent was obtained from each subject to publish the potentially identifiable data contained in the report.

Author contributions

BM conceived, designed the study, and treatment protocol. RM set up the study, obtained the ethical approval, managed the patients, and collected data. EO’G and DoS analyzed the data, interpreted the results, and wrote the manuscript. All authors read and approved the final version of the manuscript.


This retrospective study was funded by BHI Therapeutic Sciences, including patient fees for treatment.


We are grateful to all the individuals participating in this study. The study would not have been possible without the cooperation of the patients and their families, the donors, and the assistance of the doctors and nurses. We thank Dr. Vicky Yamamoto for critically reviewing the manuscript.

Conflict of interest

BM, DaS, and RM are employed by Blue Horizon Therapeutic Sciences. EO’G and DoS are paid contractors of Blue Horizon Therapeutic Sciences.

The remaining author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

The authors declare that this study received funding from BHI Therapeutic Sciences. The funder had the following involvement in the study; study design, patient recruitment and treatment. The funder was not involved in the data analysis, interpretation of data, or the writing of this article.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.


1. Smits ELJM, Anguille S, Cools N, Berneman ZN, Van Tendeloo VFI. Dendritic cell-based cancer gene therapy. Hum Gene Ther. (2009) 20:1106–1118. doi: 10.1089/hum.2009.145

PubMed Abstract | CrossRef Full Text | Google Scholar

2. Wang S, Wang X, Zhou X, Lyerly HK, Morse MA, Ren J. DC-CIK as a widely applicable cancer immunotherapy. Expert Opin Biol Ther. (2020) 20:601–607. doi: 10.1080/14712598.2020.1728250

PubMed Abstract | CrossRef Full Text | Google Scholar

3. Zhang Y, Schmidt-Wolf IGH. Ten-year update of the international registry on cytokine-induced killer cells in cancer immunotherapy. J Cell Physiol. (2020) 235:9291–9303. doi: 10.1002/jcp.29827

PubMed Abstract | CrossRef Full Text | Google Scholar

4. Hui KM. CIK cells–current status, clinical perspectives and future prospects–the good news. Expert Opin Biol Ther. (2012) 12:659–661. doi: 10.1517/14712598.2012.676037

PubMed Abstract | CrossRef Full Text | Google Scholar

5. Mohsenzadegan M, Peng RW, Roudi R. Dendritic cell/cytokine-induced killer cell-based immunotherapy in lung cancer: what we know and future landscape. J Cell Physiol. (2020) 235:74–86. doi: 10.1002/jcp.28977

PubMed Abstract | CrossRef Full Text | Google Scholar

6. Xu K, Meng Z, Mu X, Sun B, Chai Y. One single site clinical study: to evaluate the safety and efficacy of immunotherapy with autologous dendritic cells, cytokine-induced killer cells in primary hepatocellular carcinoma patients. Front Oncol. (2020) 10:581270. doi: 10.3389/fonc.2020.581270

PubMed Abstract | CrossRef Full Text | Google Scholar

7. Wang ZX, Cao JX, Wang M, Li D, Cui YX, Zhang XY, et al. Adoptive cellular immunotherapy for the treatment of patients with breast cancer: a meta-analysis. Cytotherapy. (2014) 16:934–945. doi: 10.1016/j.jcyt.2014.02.011

PubMed Abstract | CrossRef Full Text | Google Scholar

8. Zheng Z, Yuna Z, Huimin Z, Liu Q, Ma Y, Wu W, et al. Clinical Study Of DC-CIK (dendritic cells and cytokine-induced killer cells) Eliminate Minimal Residual Leukemia. Blood. (2013) 122:1450. doi: 10.1182/blood.V122.21.1450.1450

CrossRef Full Text | Google Scholar

9. Zhang X, Yang J, Zhang G, Song L, Su Y, Shi Y, et al. 5 years of clinical DC-CIK/NK cells immunotherapy for acute myeloid leukemia – a summary. Immunotherapy. (2020) 12:63–74. doi: 10.2217/imt-2019-0108

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Mehling BM, Quartararo L, Manvelyan M, Wang P, Wu DC. Safety Study of Intravenously Administered Human Cord Blood Stem Cells in the Treatment of Symptoms Related to Chronic Inflammation. Int J Med Health Sci. (2015) 9:573–576. doi: 10.4172/2157-7633.1000297

CrossRef Full Text | Google Scholar

11. Xiao X, Ye X, Xu C, Huang J. Successful alternative treatment for relapsed adult acute lymphoblastic leukemia with dendritic cells-cytokine-induced killer cells combined with a rituximab-based regimen. OncoTargets Ther. (2018) 11:7555–7558. doi: 10.2147/OTT.S177503

PubMed Abstract | CrossRef Full Text | Google Scholar

12. Zhou Z, Qin H, Weng L, Ni Y. Clinical efficacy of DC-CIK combined with sorafenib in the treatment of advanced hepatocellular carcinoma. J BUON Off J Balk Union Oncol. (2019) 24:615–621.

PubMed Abstract | Google Scholar

13. Yuan X, Zhang AZ, Ren YL, Wang XL, Jiang CH, Yang L, et al. Cytokine-induced killer cells/dendritic cells and cytokine-induced killer cells immunotherapy for the treatment of esophageal cancer: a meta-analysis. Medicine (Baltimore). (2021) 100:e24519. doi: 10.1097/MD.0000000000024519

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Liu G, Chen D, Zhao X, You X, Huang C, Cheng Z, et al. Efficacy of DC-CIK immunotherapy combined with chemotherapy on locally advanced gastric cancer. J Oncol. (2022) 2022:5473292. doi: 10.1155/2022/5473292

PubMed Abstract | CrossRef Full Text | Google Scholar

15. Li H, Wang C, Yu J, Cao S, Wei F, Zhang W, et al. Dendritic cell-activated cytokine-induced killer cells enhance the anti-tumor effect of chemotherapy on non-small cell lung cancer in patients after surgery. Cytotherapy. (2009) 11:1076–1083. doi: 10.3109/14653240903121252

PubMed Abstract | CrossRef Full Text | Google Scholar

16. Song MJ, Pan QZ, Ding Y, Zeng J, Dong P, Zhao JJ, et al. The efficacy and safety of the combination of axitinib and pembrolizumab-activated autologous DC-CIK cell immunotherapy for patients with advanced renal cell carcinoma: a phase 2 study. Clin Transl Immunol. (2021) 10:e1257. doi: 10.1002/cti2.1257

PubMed Abstract | CrossRef Full Text | Google Scholar

17. Qiao G, Wang X, Zhou L, Zhou X, Song Y, Wang S, et al. Autologous dendritic cell-cytokine induced killer cell immunotherapy combined with S-1 plus cisplatin in patients with advanced gastric cancer: a prospective study. Clin Cancer Res. (2019) 25:1494–1504. doi: 10.1158/1078-0432.CCR-18-2360

PubMed Abstract | CrossRef Full Text | Google Scholar

18. Shaked Y. Balancing efficacy of and host immune responses to cancer therapy: the yin and yang effects. Nat Rev Clin Oncol. (2016) 13:611–626. doi: 10.1038/nrclinonc.2016.57

PubMed Abstract | CrossRef Full Text | Google Scholar

19. Mauro FR, Caputo MD, Rosati S, Pepe S, De Benedittis D, De Luca ML, et al. Balancing efficacy and toxicity of targeted agents currently used for the treatment of patients with chronic lymphocytic leukemia. Expert Rev Hematol. (2018) 11:601–611. doi: 10.1080/17474086.2018.1495557

PubMed Abstract | CrossRef Full Text | Google Scholar

20. Rajendra A, Noronha V, Joshi A, Patil VM, Menon N, Prabhash K. Palliative chemotherapy in head and neck cancer: balancing between beneficial and adverse effects. Expert Rev Anticancer Ther. (2020) 20:17–29. doi: 10.1080/14737140.2020.1708197

PubMed Abstract | CrossRef Full Text | Google Scholar

21. Cancer Research UK. Chronic lymphocytic leukaemia (CLL) mortality statistics [Internet]. Cancer Research UK. (2015). Available online at: (accessed September 14, 2022).

Google Scholar

22. Binet JL, Leporrier M, Dighiero G, Charron D, Vaugier G, Beral HM, et al. A clinical staging system for chronic lymphocytic leukemia. Prognostic significance. Cancer. (1977) 40:855–864. doi: 10.1002/1097-0142(197708)40:2<855::AID-CNCR2820400239>3.0.CO;2-1

CrossRef Full Text | Google Scholar

23. Lee S. Survival statistics for chronic lymphocytic leukemia [Internet]. Canadian Cancer Society. (2022). Available online at: (accessed September 14, 2022).

Google Scholar

24. Qin J, Huang T, Sheng X, Zhang M, Yin P, Li Q. Effects of sorafenib combined with dendritic cells and cytokine induced killer cells on the growth and invasion and metastasis of hepatocellular carcinoma. Chin J Dig Surg. (2014) 13:364–8.

Google Scholar

25. Gao Y, Hao Y, Jia Y. Clinical efficacy analysis of dendritic cell-cytokine induced killer cell immunotherapy combined with paclitaxel-cisplatin chemotherapy in patients with advanced ovarian cancer. J BUON Off J Balk Union Oncol. (2021) 26:553–560.

PubMed Abstract | Google Scholar

Keywords: immunotherapy, cancer, dendritic cells, cytokine-induced killer cells, leukemia, peritoneal cancer

Citation: Mehling B, Wu D, O’Gorman E, Sheridan D, Santora D and Mihályová R (2023) Case report: Dendritic cell-cytokine induced killer cell therapy in subjects with chronic lymphocytic leukemia and peritoneal cancer. Front. Med. 10:1240330. doi: 10.3389/fmed.2023.1240330

Received: 14 June 2023; Accepted: 11 September 2023;
Published: 09 October 2023.

Edited by:

Ian James Martins, The University of Western Australia, Australia

Reviewed by:

Jifeng Yu, The First Affiliated Hospital of Zhengzhou University, China
Ze Xiang, Zhejiang University, China
Lu Han, Henan Provincial Cancer Hospital, China

Copyright © 2023 Mehling, Wu, O’Gorman, Sheridan, Santora and Mihályová. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Doreen Santora,
