Post-stroke inflammation and the potential efficacy of novel stem cell therapies: focus on amnion epithelial cells
- 1Vascular Biology and Immunopharmacology Group, Department of Pharmacology, Monash University, Clayton, VIC, Australia
- 2The Ritchie Centre, Monash Institute of Medical Research, Clayton, VIC, Australia
- 3School of Biomedical Sciences, University of Queensland, Brisbane, QLD, Australia
Ischemic stroke is a debilitating disease for which there are currently no effective treatments besides the clot-buster, tissue plasminogen activator (t-PA), which is administered to less than 10% of patients due to a limited (4.5 h) time window of efficacy. Thus, there is an urgent need for novel therapies that can prevent or reverse the effects of stroke-induced brain injury. Recent encouraging reports have revealed that stem cells derived from human tissue, including embryonic, induced pluripotent, neural, and mesenchymal cells, can rescue injured brain tissue and improve functional recovery in experimental models of stroke. However, there are potentially major limitations to each of these types of stem cells that may ultimately prevent or restrict their use as viable mainstream treatment options for stroke patients. Conversely, stem cells derived from the placenta, such as human amnion epithelial cells (hAECs), appear to have several important advantages over other stem cell lineages, in particular their non-tumorigenic and non-immunogenic characteristics. Surprisingly, so far hAECs have received little attention as a potential stroke therapy. This brief review will firstly describe the inflammatory response and immune cell involvement following stroke, and then consider the potential for hAECs to improve stroke outcome given their unique characteristics. These actions of hAECs may involve a reduction of local inflammation and modulation of the immune response, promotion of neural recovery, differentiation into neural tissue, re-innervation of lost connections, and secretion of necessary cytokines, growth factors, hormones and/or neurotransmitters to restore cellular function.
Stroke occurs following a sudden disruption of blood flow to the brain, thereby starving the tissue of oxygen and nutrients and initiating neuronal death within minutes (Broughton et al., 2009). This crippling disease is the world's second leading cause of death, with approximately 15 million strokes occurring each year, and accounting for 9.5% (i.e., 6 million) of all deaths per annum (WHO, 2002). Alarmingly, the incidence of stroke more than doubles each successive decade for people over the age of 55. Thus, with the annual number of strokes increasing due to the ageing population, an increasingly greater financial and social burden will be caused to survivors and to the community. Thus, major advances to prevent and treat stroke are of paramount importance.
Treatment of Ischemic Stroke
Ischemic stroke, which occurs when the blood supply to the brain is obstructed by an embolus or a thrombus, accounts for approximately 87% of all stroke cases (WHO, 2002). It is most disappointing that still the only available “pharmacological” intervention to reduce brain damage after stroke is the “clot-buster,” tissue plasminogen activator (t-PA). t-PA is an enzyme that works by catalyzing the conversion of plasminogen to plasmin which can then break down either the embolus or thrombus causing cerebral ischemia (Sloan, 1987). However, t-PA can only be administered within 4.5 h of the onset of ischemia and only after a CT scan has verified that the stroke is due to a thrombus rather than a hemorrhage (Del Zoppo et al., 2009). After 4.5 h, there is no evidence for a net beneficial effect of t-PA due to the increased risk of hemorrhagic transformation. Consequently, only 2–8% of stroke patients currently receive this treatment (based on United States statistics) (Reeves et al., 2005; Kleindorfer et al., 2008). At best, t-PA can only restore blood flow, and it cannot target mechanisms of cellular injury or others that promote healing. Other treatment options for ischemic stroke include anti-coagulants, such as heparin that inhibits clot formation, and anti-platelet agents, such as aspirin, that reduce the risk of platelet aggregation. However, these treatments have no effect on stroke outcome and are mainly used in the prevention of a secondary stroke. Although a plethora of neuroprotective compounds have shown promise in animal models of stroke, no other treatment has achieved efficacy in clinical trials (Dirnagl, 2006). Therefore, new therapies that may protect neural tissue from post-ischemic damage and/or promote functional recovery are desperately needed to reduce mortality and long-term neurological deficits in stroke victims. An important step in this process will be to understand the key mechanisms that contribute to injury following stroke.
Activation of the Immune System and Brain Inflammation After Stroke
It is now understood that the immune system plays an integral role in the pathogenesis of ischemic stroke and it contributes to infarct formation (Iadecola and Anrather, 2011). In the post-stroke acute phase (minutes to hours), microglia and cerebral endothelial cells within the affected zone are activated by hypoxia, shear stress, and the production of reactive oxygen species (ROS) (Jin et al., 2010). This causes the expression of adhesion molecules such as intercellular adhesion molecule-1 (ICAM-1), vascular adhesion molecules (VCAMs), selectins (in particular, P-selectin and E-selectin), and integrins (in particular, Mac-1 and LFA-1), on endothelial cells, leukocytes, and platelets (Yilmaz and Granger, 2010). Adhesion molecule expression is also induced on circulating leukocytes. Simultaneously, oxidative stress and locally-derived pro-inflammatory mediators (cytokines and chemokines) produced by the injured tissue alter the permeability of the blood brain barrier (BBB). As the ischemic cascade progresses, cell death leads to a new phase of the inflammatory response. Dying and dead cells release “danger signals” that activate the immune system (Iadecola and Anrather, 2011; Magnus et al., 2012). Some of these signals, such as the nucleotides adenosine triphosphate (ATP) and uridine triphosphate (UTP) and high-mobility group protein B1 (HMGB1), are released by cells under stress when the cell membrane is still intact, and thereby set the stage for the subsequent immune response. A result of these processes is a time-dependent infiltration of immune cells (Figure 1). These immune cells include neutrophils, macrophages, dendritic cells, and T and B lymphocytes (Stevens et al., 2002; Gelderblom et al., 2009, 2012; Brait et al., 2010; Jin et al., 2010; Kleinschnitz et al., 2010, 2012). Neutrophils, which are thought to be the first immune cell to enter the brain post-stroke, undergo granule exocytosis to release a variety of pro-inflammatory molecules such as large quantities of nitric oxide (NO) derived from inducible NO synthase, nicotinamide adenine dinucleotide phosphate (NADPH) oxidase-derived ROS, and matrix metalloproteinases (MMPs) (Yilmaz and Granger, 2010). Both CD4+ and CD8+ T lymphocytes contribute to brain injury by producing pro-inflammatory mediators, such as the potent cytokines interferon-γ (IFN-γ), interleukin-6 (IL-6), IL-17, and tumor necrosis factor (TNF) (Kleinschnitz et al., 2010, 2012; Brait et al., 2012; Gelderblom et al., 2012). T lymphocytes contribute further to the state of oxidative stress by also producing NADPH oxidase-derived superoxide (Brait et al., 2010). In addition, CD8+ T lymphocytes induce apoptosis in already compromised neuronal cells following stroke (Barry and Bleackley, 2002; Brait et al., 2012), and both macrophages and activated microglia produce a number of pro-inflammatory cytokines and ROS to exert neurotoxic effects (Jin et al., 2010).

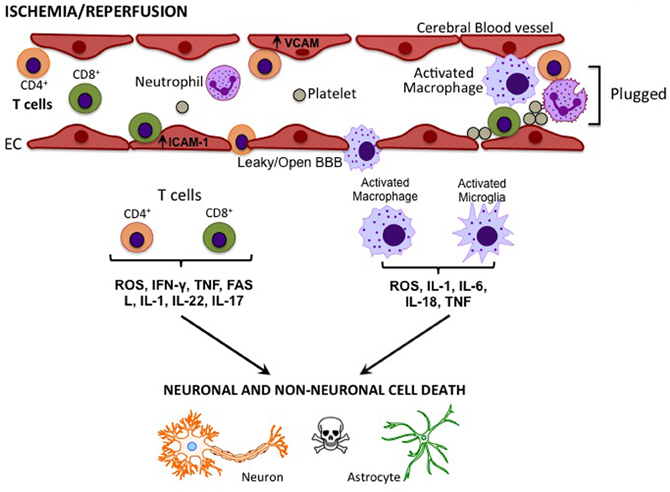

Figure 1. Cytokines/effector molecules involved in post-stroke inflammation in the brain. Following cerebral ischemia-reperfusion, elevated levels of adhesion molecules, such as ICAM-1 and VCAM in vascular endothelial cells (EC), attract circulating T cells and macrophages. These immune cells may cross the compromised blood-brain barrier (BBB) to infiltrate the injured tissue and cause cell death via the release of various cytokines and effector molecules.
Interestingly, the spleen appears to play an important role in the acute influx of immune cells into the brain after stroke. For example, splenectomy prior to experimental stroke reduces infarct size (Ajmo et al., 2008). Moreover, these authors showed that splenectomy-induced neuroprotection following stroke correlated with a decrease in activated microglia, macrophages, and neutrophils in the ischemic hemisphere, thus suggesting that the spleen is a possible source of detrimental immune cells following stroke (Ajmo et al., 2008). In addition, Offner et al. found that T lymphocytes derived from blood and lymph nodes secreted increased levels of pro-inflammatory mediators, and expressed elevated levels of chemokine receptors post-stroke (Offner et al., 2006). More recently, it was shown that the spleen contributes to neurodegeneration following stroke through IFN-γ signaling (Seifert et al., 2012).
The Systemic Immune Response Following Stroke
The immune response following stroke is not restricted to the brain, as effects on immune function are also seen in the periphery. While both innate and adaptive immune cells contribute to early post-stroke neuronal injury, the circulating levels of these cells are then rapidly reduced. For example a profound systemic immunodepression—or “stroke-induced immunodeficiency syndrome”—occurs as early as 12 h after ischemic stroke (Gendron et al., 2002; Prass et al., 2003). This phenomenon is triggered by hyperactivity of the sympathetic nervous system and the hypothalamic–pituitary–adrenal axis due to post-stroke brain damage, which leads to reduced numbers of T and B lymphocytes and also of NK cells within the spleen, thymus, bone marrow, and lymph nodes (Gendron et al., 2002; Prass et al., 2003; Offner et al., 2006; Liesz et al., 2009). This leads to increased apoptosis and increased release of immune cells from these primary and secondary lymphoid organs, resulting in tissue atrophy and this consequently predisposes patients to infection (e.g., commonly resulting in pneumonia or sepsis), a major determinant of stroke morbidity and mortality.
Interestingly, although the liver is not a secondary lymphoid organ, a recent publication investigated the effect stroke had on invariant natural killer T (iNKT) cells within that organ (Wong et al., 2011). Wong and colleagues showed that cerebral ischemia-reperfusion slowed the migration of resident hepatic iNKT cells and increased the expression of the immunosuppressive cytokine, IL-10, in association with an increased susceptibility to bacterial infection. In support of these findings, the onset of bacterial infection occurred much earlier in iNKT cell-deficient mice subjected to stroke, whereas brain infarct size was unchanged. This indicated that iNKT cells play a key role in systemic protection against infection after stroke. Furthermore, those researchers found that the increased release of noradrenergic neurotransmitters from sympathetic nerves innervating the liver following stroke can undermine systemic immunity by a direct inhibitory effect on hepatic iNKT cells. Thus, the authors suggested that blockade of stress pathways could improve outcomes in stroke patients by helping to protect systemic immune function and thereby preventing infections. Collectively, evidence suggests that various components of the immune system in the brain as well as in secondary lymphoid and visceral organs may play critical roles in the development of post-stroke damage and mortality.
The Potential for Stem Cell Therapy Following Stroke
Given the complex nature of post-ischemic brain injury and the failure of effective stroke treatments targeting single molecular pathways, ultimately successful approaches may include cell-based therapies that have the potential to target multiple injury mechanisms and cell types when administered at an appropriate time(s) after the stroke event. Hence, there is now considerable interest in stem cell therapy as a possible treatment for stroke. Stem cells are undifferentiated cells capable of self-renewal and are broadly classified as being of embryonic, fetal, or adult origin (Yu et al., 2009).
Embryonic stem cells (ESCs) are pluripotent, meaning that they can give rise to all cell types of the organism, whereas fetal and adult stem cells are multipotent, such that they can give rise to cells of multiple, but limited number of lineages. A variety of stem cells, including embryonic, bone marrow, neural, and induced pluripotent stem cells (iPSCs) have been shown to improve stroke outcome (Daadi et al., 2008; Schwarting et al., 2008; Hicks et al., 2009; Kawai et al., 2010). As a result of such promising studies, the first fully regulated clinical trial (PISCES study—Pilot Investigation of Stem Cells in Stroke) using ESCs to treat stroke patients has recently commenced in Glasgow. Unfortunately however, there tends to be major limitations with the use of most stem cell types, which may offset their use as a clinical treatment for stroke patients.
Limitations and Benefits of Stem Cell Lineages for Transplantation into the CNS
ESCs were expected to have broad potential due to their pluripotent capabilities, and transplantation of human ESC neural derivatives into a rodent model of stroke has been reported to improve functional outcome (Daadi et al., 2008; Hicks et al., 2009). Nevertheless, several problems exist regarding human ESCs, including ethical/political issues (i.e., due to the destruction of human embryos), immune rejection, and their fetal “age” (i.e., they lack key functional characteristics of adult cells) (Xi et al., 2010). Moreover, ESCs may form teratomas (developmental tumors) following transplantation (Knoepfler, 2009).
iPSCs were first derived in 2006 (Takahashi and Yamanaka, 2006) by re-programming mouse and human fibroblasts into pluripotent ESC-like cells. Since then, many types of iPSCs have been created using diverse cell types (Kiskinis and Eggan, 2010). iPSCs possess most of the key properties of ESCs but avoid the ethically controversial issues surrounding embryo destruction. These cells have been used to treat central nervous system (CNS) injuries such as spinal cord injury and stroke in rodents (Kawai et al., 2010; Tsuji et al., 2010), but in both cases tumor formation from iPSCs was observed.
Fetal neural stem cells (NSCs) are derived from human fetal brains (isolated from aborted material) and are capable of differentiating into neurons, astrocytes, or oligodendrocytes (Lindvall and Kokaia, 2011). Because of the invasive nature of obtaining autologous adult human neural cells, fetal NSCs have been evaluated as an alternative expandable source of neural cells. Although NSCs also involve ethical issues, these cells were considered to be safer than human ESCs regarding tumor formation after transplantation, however, brain and spinal cord tumors have been reported to develop following fetal NSC treatment (Dirks, 2001; Schmidt et al., 2005; Amariglio et al., 2009).
Mesenchymal stem cells (MSCs), derived from bone marrow or umbilical cord blood, can differentiate into neuronal-like cells, astrocytes, or endothelial cells, and their administration can reduce infarct volume and improve functional outcome in experimental stroke (Wu et al., 2008; Liu et al., 2009). Transplantation of MSCs can also reduce apoptosis and promote endogenous cellular proliferation after stroke, and long-term follow-up data have revealed improved survival in patients that received bone marrow MSCs compared with controls (Lee et al., 2010). Similar to ESCs, however, concerns and limitations associated with MSC use in stroke include poor cell survival and engraftment after transplantation, no direct evidence of functional neuronal differentiation, limited sources, and the fact that their extraction from bone marrow requiring invasive procedures, although they do not appear to form tumors after transplantation (Zimmermann et al., 2003).
Human Amnion Epithelial Cells
While the above stem cell types may certainly have therapeutic potential if their respective issues can be addressed, currently those limitations seriously offset their likely routine use in clinical stroke. An alternative stem cell lineage that is gaining interest as a potential stem cell therapeutic is the human amnion epithelial cell (hAEC). hAECs are derived from the amniotic sac, a thin avascular tissue that encloses the fetus and is attached to the placenta. The amnion consists of an inner layer of epithelial cells that is in direct contact with the amniotic fluid, referred to as the amniotic epithelium. Directly beneath the epithelial layer is the amniotic mesoderm, which includes a compact stromal layer and also a fibroblast layer. These two cell types have a different embryological origin. hAECs are derived from the embryonic ectoderm and amniotic mesodermal cells originate from the embryonic mesoderm (Parolini et al., 2008). Whilst amniotic mesodermal cells are also a potential cell-based therapy for stroke, this review will limit its focus to the potential of hAEC therapy.
A considerable advantage of hAECs over other stem cell lineages is that they possess very few of the limitations of other stem cell types outlined above (see Table 1). hAECs are easily obtained from separating the amnion sac from the term placenta, which are usually discarded after birth (Miki et al., 2005). As such, hAECs are readily available, they require no invasive procedure for harvesting, and they largely lack ethical barriers to their use (Yu et al., 2009). Furthermore, native hAECs do not express the polymorphic antigens HLA-A, HLA-B and HLA-C (class IA), and HLA-DR (class II), on their surfaces (Akle et al., 1981; Terada et al., 2000) but express the non-polymorphic, non-classical human leukocyte antigen G (HLA-G) (Houlihan et al., 1995), which does not elicit an immune response but rather suppresses it. Thus, hAECs are considered to be immunologically inert and would thus be expected to have a very low risk of rejection upon transplantation. These properties are, of course, consistent with the functions of the amnion to protect the fetus from the mother's immune system and to secrete various nutritive factors (Liu et al., 2008). Moreover, hAECs have low tumorigenicity (Miki et al., 2005) because they lack telomerase, an enzyme that preserves chromosomal sequences commonly lost during successive cell division (Hiyama and Hiyama, 2007). It would therefore be expected that hAECs are unlikely to promote tumor formation in the recipient.
Due to the fact that amnion epithelial cells originate from the epiblast, from which they separate early in embryonic development (day 8), hAECs possess a high level of pluripotency. For example, hAECs can differentiate into all three germ layers: endoderm, ectoderm, and mesoderm (Toda et al., 2007). Notably, they can generate clinically relevant cell types, such as myocytes (including cardiomyocytes), osteocytes, adipocytes, pancreatic cells, hepatocytes, as well as neural, and astrocytic cells (Toda et al., 2007). These latter cell types are, of course, of particular importance for treating stroke. More specifically, hAECs may express markers of glial and neuronal progenitor cells and display multiple neuronal functions, such as synthesis and release of acetylcholine, catecholamines, and neurotrophic factors (Elwan and Sakuragawa, 1997; Bailo et al., 2004). Recent studies have shown that hAECs can facilitate neuroregeneration in CNS disorders such as Parkinson's disease (Kakishita et al., 2000). Thus, there is good reason to predict that hAECs may exert a neuroprotective effect if administered after stroke, but they have so far received little attention as a potential stroke therapy. Before further considering this potential, we will briefly summarise the known effects of hAECs in CNS diseases.
hAECs in the treatment of CNS diseases
In animal models of CNS disorders, accumulating evidence suggests that hAECs can exert neuroprotection and facilitate neuroregeneration. For example, hAECs transplanted into the striatum of a rat model of Parkinson's disease were found to not only survive but were functional (i.e., producing dopamine) and prevented neuronal degeneration (Kakishita et al., 2000, 2003). In addition, after injection of hAECs into the transection cavities of a primate model of spinal cord injury, those cells survived for up to 60 days during which there was no evidence of inflammation, suggesting that the cells can avoid immunological rejection within the CNS (Sankar and Muthusamy, 2003). Furthermore, improved performance in locomotor tests was observed in hAEC-treated animals compared to lesion control animals, suggesting neuroprotection and improved function of the motor neuron tracts controlling locomotion. It has also been reported that administration of hAECs assists in the penetration of host axons, and completely abolishes glial scar formation in rats with spinal cord injury (Wu and Hui, 2006). More recently, McDonald et al. reported preliminary findings that intraperitoneal injection of hAECs can suppress clinical symptoms, as well as decrease CNS inflammation, demyelination and axonal degeneration in the spinal cord and brain of a experimental autoimmune encephalomyelitis (EAE) mouse model of multiple sclerosis (McDonald et al., 2011). These authors also found that hAECs can reduce proliferation of myelin oligodendrocyte glycoprotein-specific T cells, and also decrease their secretion of pro-inflammatory cytokines, IFNγ, and TNF. Interestingly, these data point to a possible immunomodulatory mechanism by which amnion epithelial cells can suppress the development of EAE. Consistent with these findings, Liu et al. recently reported that intravenously administered hAECs reduced infiltration of T lymphocytes and monocyte/macrophages, and consequently attenuated demyelination, within the CNS of an EAE mouse (Liu et al., 2012). These authors demonstrated that this effect was due to the secretion of transforming growth factor-β and prostaglandin E2 from hAECs to suppress splenocyte proliferation. As a further example of the beneficial neuroprotective effects of hAECs, conditioned media collected from these cells has been found to be neurotrophic for rat cortical cells (Uchida et al., 2000), and to support the survival of chicken neural retinal cells (Tcheng et al., 1994). Overall, there is mounting evidence that hAECs may have substantial protective and regenerative properties that could be amenable to the treatment of neurological diseases.
hAECs in the treatment of stroke
Thus far, only one published study has tested the effect of hAECs on ischemic stroke outcome (Liu et al., 2008). It found that direct intra-cerebral (i.c.) injection of hAECs, 24 h after middle cerebral artery occlusion (MCAO) in rats, resulted in a reduced infarct volume and improved behavioral and neurological outcomes at 16 days post-stroke. Furthermore, apoptosis—as detected via cleaved caspase-3 levels—was reduced in the vicinity of the transplanted cells. It is worth noting that the same research group has also reported that i.c. injection of human amnion mesenchymal cells can similarly improve stroke outcome in rats (Tao et al., 2012). In analogous studies to those in ischemic stroke, intraventricular injection of hAECs was reported to reduce brain edema and to improve motor deficit in a rat model of i.c. hemorrhage (Dong et al., 2010). Moreover, intra-cerebroventricular transplantation of amniotic fluid-derived stem cells at 3 days post-MCAO resulted in the attenuation of stroke-associated cognitive deficits (Rehni et al., 2007).
Despite these very promising early experimental findings, i.c. injection of stem cells still seems unlikely to become a feasible routine method of delivery for stroke patients. Reasons for this include the fact that i.c. injections would require routine access to suitable imaging facilities and surgical expertise, and in any case they may involve significant adverse effects, such as the breakdown of the BBB and a heightened inflammatory response within the brain (McCluskey et al., 2008). Furthermore, any protective effects from i.c. injection of stem cells will presumably be localized to the immediate region of brain and would not also target the detrimental systemic/immunological effects of stroke. Therefore, future studies would ideally employ a less invasive and more clinically amenable delivery route of stem cells, such as intravenous (i.v.) injection.
As i.v. administration is a minimally invasive procedure, it poses a substantially lower risk of adverse clinical events when compared to i.c. transplantation. In fact, Tarjiri and colleagues have reported that i.v. administration of amniotic fluid-derived stem cells at 35 days post-stroke significantly reduces infarct damage and behavioral deficits as assessed at 60–63 days after MCAO (Tajiri et al., 2012). There is therefore great scope to further explore the ability of hAECs to limit injury and/or promote tissue repair and functional recovery when administered systemically following stroke.
Potential mechanisms of action by hAECs in the treatment of stroke
There are various possible mechanisms by which hAECs might exert therapeutic effects following stroke. Firstly, hAECs could secrete neurotrophic factors that promote neuronal recovery of damaged cells in the penumbra (Lindvall and Kokaia, 2004; Liu et al., 2008). Such factors could also promote synaptogenesis to re-innervate lost connections. Secondly, as hAECs have pluripotent properties, they could differentiate into a neuronal phenotype and replace damaged or dead cells (Lindvall and Kokaia, 2004; Liu et al., 2008). Thirdly, hAECs could act as “biological minipumps” within the CNS, secreting necessary cytokines, growth factors, hormones, and/or neurotransmitters to restore cellular function. Lastly, hAECs could potentially improve stroke outcome by modulating the inflammatory response that contributes to brain injury (Lindvall and Kokaia, 2004; Meisel and Meisel, 2011). Included in this mechanism is the protection of neurons from immune cell-mediated apoptosis (see Figure 2).

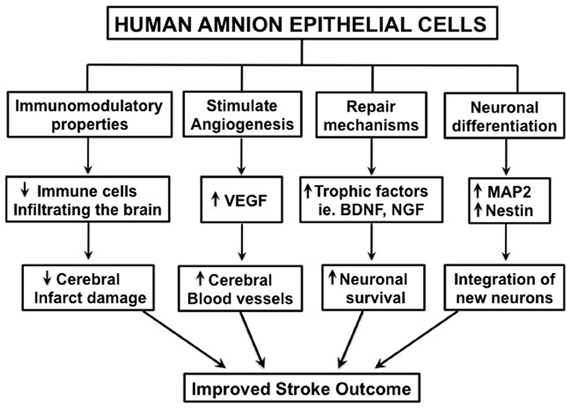

Figure 2. Schematic diagram illustrating the potential mechanisms by which human amnion epithelial cells may improve stroke outcome. “↑” = increased; “↓” = decreased.
Immunomodulatory properties of hAECs
hAECs can exert immunomodulatory actions by actively suppressing T lymphocyte proliferation, reducing the expression of the potent pro-inflammatory cytokines IL-1α and IL-1β (Solomon et al., 2001), and via producing inhibitors of MMPs and proteolytic enzymes associated with inflammatory reactions. In addition, although expression of HLA-G on hAECs enables their evasion of the immune system, this protein has also been shown to be anti-inflammatory by inducing apoptosis of activated CD8+ T lymphocytes and inhibiting CD4+ T lymphocyte proliferation (Banas et al., 2008). Furthermore, hAECs transplanted to the ocular surface can create a local environment that reduces the surrounding inflammatory response (Hori et al., 2006). This effect is thought to be due to hAECs reducing infiltration of major histocompatibility complex class II antigen-presenting cells into the inflamed cornea. Moreover, we have demonstrated that hAECs transplanted into a bleomycin-induced lung injury model reduces the immune response, preventing lung fibrosis and loss of function (Moodley et al., 2010; Murphy et al., 2011). These results were associated with an in vivo reduction in the pro-inflammatory cytokines, TNF, IFNγ and IL-6, and an increase in the anti-inflammatory cytokine, IL-10 (Murphy et al., 2011). As a consequence of these actions of hAECs on the immune system, there is a reduction in the infiltration of immune cells to the area of damage.
hAECs are believed to secrete a number of immunomodulatory factors. In fact, supernatant from hAEC culture can inhibit both innate and adaptive immune cells (Li et al., 2005). For example, hAECs produce alpha-fetoprotein, a protein that reduces immune cell reactivity and suppresses neuroinflammation in a mouse model of multiple sclerosis (Irony-Tur-Sinai et al., 2009). Furthermore, hAECs secrete macrophage inhibitory factor, which inhibits neutrophil and macrophage migration and natural killer cell-mediated cytolysis (Li et al., 2005). Fas ligand and TNF-related apoptosis-inducing ligand are both members of the TNF family that are produced by hAECs, can regulate the immune response through apoptosis of lymphocytes (Li et al., 2005). Moreover, hAECs express transforming growth factor-β, which suppresses immune cell numbers through apoptosis as well (Li et al., 2005). Overall, the immunomodulatory properties of hAECs lead us to speculate that these stem cells may be able to limit the inflammatory response that contributes to infarct formation following stroke.
Migration of intravenously injected hAECs after stroke
Due to the acute nature of stroke onset, an i.v. injection is ideal so that therapeutics can be administered quickly after the event. However, i.v. administration of stem cells has two initial obstacles that must be overcome: (1) the ability of the cell to pass through the extensive capillary network of the lungs; and (2) whether the cells can effectively home to stroke-affected regions of tissue in sufficient numbers to provide efficacy. Whether this may occur remains to be tested, but the relatively small diameter of hAECs (8–15 μm) probably increases the likelihood of these cells passing through the lungs, compared with larger stem cell lineages, such MSCs, which do not easily passage across the lungs (Fischer et al., 2009). Indeed, we have reported that only a minor percentage of i.v.-injected hAECs persist in the lungs of control mice, and even in mice in which lung injury has been induced using bleomycin (Moodley et al., 2010). Thus, it is conceivable that i.v.-administered hAECs may have minimal impact on lung function and that a substantial proportion of these cells can pass into the systemic circulation.
Stem cells communicate with each other and their environment via paracrine signaling (Burns et al., 2009). In order to understand why and how cells migrate to their target organs, the relevant chemotactic signal(s) must be identified. While very little is known about the chemotaxis response involved in hAEC migration from the circulation following i.v. transplantation, several studies have defined the mechanisms that attract other types of stem cells to injured sites following stroke. For example, it has been shown that there is an increase in levels of stromal cell-derived factor-1α (SDF-1α) in brains of experimental animal models of stroke (Hill et al., 2004; Robin et al., 2006) and a subsequent decrease in stem cell migration after the addition of an antagonist of the chemokine receptor type 4 (CXCR4) (Robin et al., 2006; Wang et al., 2008). SDF-1α is a growth factor produced by multiple types of mouse and human neural cells, and which functions as a chemokine that is thought to be important for neural progenitor migration during development. It is well-documented that the chemokine interaction between SDF-1α and CXCR4, its cognate receptor commonly expressed on the surface of stem cells, plays a major role in stem cell migration (Robin et al., 2006; Wang et al., 2008). More research is required to clarify whether CXCR4 and/or other factors play a role in hAEC homing and signaling pathways.
Ability of hAECs to engraft and differentiate and/or promote neuronal repair
Stem cell therapy was initially considered to be an opportunity for treating stroke patients by ultimately replacing dead neurons with new neurons in the post-stroke infarcted brain. As indicated, hAECs can indeed differentiate toward a neural lineage, which may ultimately add to their potential for post-stroke therapy (Elwan and Sakuragawa, 1997; Bailo et al., 2004; Yu et al., 2009). In fact, i.c. injections of hAECs in rats at 24 h after MCAO were found to migrate to ischemic areas and to then express astrocyte (glial fibrillary acidic protein) and neuronal markers (microtubule-associated protein 2 and nestin) (Liu et al., 2008). Correlating with these observations, the hAEC-treated rats showed improved behavioral and neurological outcomes, as well as reduced infarct damage. Thus, the authors postulated that the functional improvement following hAEC treatment may have been partially due to the newly differentiated neuron-like cells re-establishing connections with surviving host neurons. Similarly, in a hemorrhagic stroke model, hAECs transplanted into the brain were found to express neuron-specific antigens and to improve motor deficits after 4 weeks (Dong et al., 2010). As a further example, i.v. administration of amniotic fluid-derived stem cells resulted in an increased number of cells expressing microtubule-associated protein 2, and the cell proliferation marker, Ki67, in the dentate gyrus and in the subventricular zone of stroked animals, indicating increased neurogenesis (Tajiri et al., 2012). Collectively, the existing evidence supports the concept that hAECs can undergo neural differentiation in vivo. Future studies must identify if these newly formed neurons are functional and might be able to integrate within the existing network of cells to substantially replace dead tissue.
As indicated above, secreted paracrine factors may play a key role in hAEC-mediated recovery after stroke. If administered as a delayed post-stroke treatment, it is postulated that hAECs could improve long-term stroke outcome via the release of factors that promote re-innervation, thus restoring synaptic transmitter release to stimulate plastic responses, orchestrating rescue and repair processes, and improving or preserving survival and function of existing neurons. Indeed, it has been shown that hAECs can secrete trophic factors such brain-derived neurotrophic factor, neurotrophin-3, nerve growth factor (Sakuragawa et al., 1996; Meng et al., 2007), and novel epidermal growth-like factors (Venkatachalam et al., 2009). Whilst repair of stroke-induced damaged neurons has yet to be described, hAECs have shown an ability to promote recovery of injured tissue and facilitate functional plasticity in other diseases of the CNS. For example, transplanted hAECs produce neurotrophic substances and stimulate repair and regeneration of host neurons in a primate model of spinal cord injury (Sankar and Muthusamy, 2003). In addition, hAECs transplanted into the cerebral lateral ventricle of a transgenic mouse model of Alzheimer's disease were found to rescue damaged cholinergic neurons (Xue et al., 2012). The authors reported that hAEC treatment increased the number of cholinergic neurons, as well as the level of acetylcholine produced by these cells, which was suggested to be largely responsible for the reversal of cognitive decline in this animal model. Thus, in such a manner, hAECs may possess an ability to both repair and replace lost neuronal tissue and, together with their other anti-inflammatory characteristics, they may represent a promising cell-based clinical therapy for neurodegenerative diseases, including stroke.
In summary, hAECs appear to have several advantages over other stem cell lineages as a cell-based therapy, particularly their non-immunogenic and non-tumorigenic properties. There is now evidence that hAECs can cross the BBB where they can engraft, survive for up to 60 days, differentiate into neurons, reduce inflammation and promote regeneration of damaged CNS tissue in animal models of neurological diseases. We suggest that a future concerted experimental focus to characterise the efficacy of post-stroke hAEC therapy may yield valuable information that could be routinely applied in the clinical setting.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Brad R. S. Broughton is supported by a Foundation for High Blood Pressure Research Postdoctoral Fellowship, Thiruma V. Arumugam has a Future Fellowship funded by the Australian Research Council, and Grant R. Drummond and Christopher G. Sobey are NHMRC Senior Research Fellows.
Amariglio, N., Hirshberg, A., Scheithauer, B. W., Cohen, Y., Loewenthal, R., Trakhtenbrot, L., et al. (2009). Donor-derived brain tumor following neural stem cell transplantation in an ataxia telangiectasia patient. PLoS Med. 6:e1000029. doi: 10.1371/journal.pmed.1000029
Bailo, M., Soncini, M., Vertua, E., Signoroni, P. B., Sanzone, S., Lombardi, G., et al. (2004). Engraftment potential of human amnion and chorion cells derived from term placenta. Transplantation 78, 1439–1448.
Banas, R. A., Trumpower, C., Bentlejewski, C., Marshall, V., Sing, G., and Zeevi, A. (2008). Immunogenicity and immunomodulatory effects of amnion-derived multipotent progenitor cells. Hum. Immunol. 69, 321–328.
Brait, V. H., Arumugam, T. V., Drummond, G. R., and Sobey, C. G. (2012). Importance of T lymphocytes in brain injury, immunodeficiency, and recovery after cerebral ischemia. J. Cereb. Blood Flow Metab. 32, 598–611.
Brait, V. H., Jackman, K. A., Walduck, A. K., Selemidis, S., Diep, H., Mast, A. E., et al. (2010). Mechanisms contributing to cerebral infarct size after stroke: gender, reperfusion, T lymphocytes, and Nox2-derived superoxide. J. Cereb. Blood Flow Metab. 30, 1306–1317.
Daadi, M. M., Maag, A. L., and Steinberg, G. K. (2008). Adherent self-renewable human embryonic stem cell-derived neural stem cell line: functional engraftment in experimental stroke model. PLoS ONE 3:e1644. doi: 10.1371/journal.pone.0001644
Del Zoppo, G. J., Saver, J. L., Jauch, E. C., and Adams, H. P. Jr. (2009). Expansion of the time window for treatment of acute ischemic stroke with intravenous tissue plasminogen activator: a science advisory from the American Heart Association/American Stroke Association. Stroke 40, 2945–2948.
Dong, W., Chen, H., Yang, X., Guo, L., and Hui, G. (2010). Treatment of intracerebral haemorrhage in rats with intraventricular transplantation of human amniotic epithelial cells. Cell Biol. Int. 34, 573–577.
Fischer, U. M., Harting, M. T., Jimenez, F., Monzon-Posadas, W. O., Xue, H., Savitz, S. I., et al. (2009). Pulmonary passage is a major obstacle for intravenous stem cell delivery: the pulmonary first-pass effect. Stem Cells Dev. 18, 683–692.
Gelderblom, M., Weymar, A., Bernreuther, C., Velden, J., Arunachalam, P., Steinbach, K., et al. (2012). Neutralization of the IL-17 axis diminishes neutrophil invasion and protects from ischemic stroke. Blood 120, 3793–3802.
Gendron, A., Teitelbaum, J., Cossette, C., Nuara, S., Dumont, M., Geadah, D., et al. (2002). Temporal effects of left versus right middle cerebral artery occlusion on spleen lymphocyte subsets and mitogenic response in Wistar rats. Brain Res. 955, 85–97.
Hicks, A. U., Lappalainen, R. S., Narkilahti, S., Suuronen, R., Corbett, D., Sivenius, J., et al. (2009). Transplantation of human embryonic stem cell-derived neural precursor cells and enriched environment after cortical stroke in rats: cell survival and functional recovery. Eur. J. Neurosci. 29, 562–574.
Hill, W., Hess, D. C., Martin-Studdard, A., Carothers, J. J., Hale, D., Maeda, M., et al. (2004). SDF-1 (CXCL12) is upregulated in the ischemic penumbra following stroke: association with bone marrow cell homing to injury. J. Neuropathol. Exp. Neurol. 63, 84–96.
Houlihan, J. M., Biro, P. A., Harper, H. M., Jenkinson, H. J., and Holmes, C. H. (1995). The human amnion is a site of MHC class Ib expression: evidence for the expression of HLA-E and HLA-G. J. Immunol. 154, 5665–5674.
Irony-Tur-Sinai, M., Grigoriadis, N., Tsiantoulas, D., Touloumi, O., Abramsky, O., and Brenner, T. (2009). Immunomodulation of EAE by alpha-fetoprotein involves elevation of immune cell apoptosis markers and the transcription factor FoxP3. J. Neurol. Sci. 279, 80–87.
Kakishita, K., Elwan, M. A., Nakao, N., Itakura, T., and Sakuragawa, N. (2000). Human amniotic epithelial cells produce dopamine and survive after implantation into the striatum of a rat model of Parkinson's disease: a potential source of donor for transplantation therapy. Exp. Neurol. 165, 27–34.
Kakishita, K., Nakao, N., Sakuragawa, N., and Itakura, T. (2003). Implantation of human amniotic epithelial cells prevents the degeneration of nigral dopamine neurons in rats with 6-hydroxydopamine lesions. Brain Res. 980, 48–56.
Kawai, H., Yamashita, T., Ohta, Y., Deguchi, K., Nagotani, S., Zhang, X., et al. (2010). Tridermal tumorigenesis of induced pluripotent stem cells transplanted in ischemic brain. J. Cereb. Blood Flow Metab. 30, 1487–1493.
Kleindorfer, D., Lindsell, C. J., Brass, L., Koroshetz, W., and Broderick, J. P. (2008). National US estimates of recombinant tissue plasminogen activator use: ICD-9 codes substantially underestimate. Stroke 39, 924–928.
Kleinschnitz, C., Kraft, P., Dreykluft, A., Hagedorn, I., Göbel, K., Schuhmann, M. K., et al. (2012). Regulatory T cells are strong promoters of acute ischemic stroke in mice by inducing dysfunction of the cerebral microvasculature. Blood. doi: 10.1182/blood-2012-04-426734. [Epub ahead of print].
Kleinschnitz, C., Schwab, N., Kraft, P., Hagedorn, I., Dreykluft, A., Schwarz, T., et al. (2010). Early detrimental T-cell effects in experimental cerebral ischemia are neither related to adaptive immunity nor thrombus formation. Blood 115, 3835–3842.
Lee, J. S., Hong, J. M., Moon, G. J., Lee, P. H., Ahn, Y. H., and Bang, O. Y. (2010). A long-term follow-up study of intravenous autologous mesenchymal stem cell transplantation in patients with ischemic stroke. Stem Cells 28, 1099–1106.
Li, H., Niederkorn, J. Y., Neelam, S., Mayhew, E., Word, R. A., McCulley, J. P., et al. (2005). Immunosuppressive factors secreted by human amniotic epithelial cells. Invest. Ophthalmol. Vis. Sci. 46, 900–907.
Liesz, A., Hagmann, S., Zschoche, C., Adamek, J., Zhou, W., Sun, L., et al. (2009). The spectrum of systemic immune alterations after murine focal ischemia: immunodepression versus immunomodulation. Stroke 40, 2849–2858.
Liu, T., Wu, J., Huang, Q., Hou, Y., Jiang, Z., Zang, S., et al. (2008). Human amniotic epithelial cells ameliorate behavioral dysfunction and reduce infarct size in the rat middle cerebral artery occlusion model. Shock 29, 603–611.
Liu, Y. H., Vaghjiani, V., Tee, J. Y., To, K., Cui, P., Oh, D. Y., et al. (2012). Amniotic epithelial cells from the human placenta potently suppress a mouse model of multiple sclerosis. PLoS ONE 7:e35758. doi: 10.1371/journal.pone.0035758
Liu, Y. P., Seckin, H., Izci, Y., Du, Z. W., Yan, Y. P., and Baskaya, M. K. (2009). Neuroprotective effects of mesenchymal stem cells derived from human embryonic stem cells in transient focal cerebral ischemia in rats. J. Cereb. Blood Flow Metab. 29, 780–791.
McCluskey, L., Campbell, S., Anthony, D., and Allan, S. M. (2008). Inflammatory responses in the rat brain in response to different methods of intra-cerebral administration. J. Neuroimmunol. 194, 27–33.
Moodley, Y., Ilancheran, S., Samuel, C., Vaghjiani, V., Atienza, D., Williams, E. D., et al. (2010). Human amnion epithelial cell transplantation abrogates lung fibrosis and augments repair. Am. J. Respir. Crit. Care Med. 182, 643–651.
Murphy, S., Lim, R., Dickinson, H., Acharya, R., Rosli, S., Jenkin, G., et al. (2011). Human amnion epithelial cells prevent bleomycin-induced lung injury and preserve lung function. Cell Transplant. 20, 909–923.
Offner, H., Subramanian, S., Parker, S. M., Wang, C., Afentoulis, M. E., Lewis, A., et al. (2006). Splenic atrophy in experimental stroke is accompanied by increased regulatory T cells and circulating macrophages. J. Immunol. 176, 6523–6531.
Parolini, O., Alviano, F., Bagnara, G. P., Bilic, G., Buhring, H. J., Evangelista, M., et al. (2008). Concise review: isolation and characterization of cells from human term placenta: outcome of the first international workshop on placenta derived stem cells. Stem Cells 26, 300–311.
Prass, K., Meisel, C., Hoflich, C., Braun, J., Halle, E., Wolf, T., et al. (2003). Stroke-induced immunodeficiency promotes spontaneous bacterial infections and is mediated by sympathetic activation reversal by poststroke T helper cell type 1-like immunostimulation. J. Exp. Med. 198, 725–736.
Reeves, M. J., Arora, S., Broderick, J. P., Frankel, M., Heinrich, J. P., Hickenbottom, S., et al. (2005). Acute stroke care in the US: results from 4 pilot prototypes of the Paul Coverdell National Acute Stroke Registry. Stroke 36, 1232–1240.
Rehni, A. K., Singh, N., Jaggi, A. S., and Singh, M. (2007). Amniotic fluid derived stem cells ameliorate focal cerebral ischaemia-reperfusion injury induced behavioural deficits in mice. Behav. Brain Res. 183, 95–100.
Robin, A. M., Zhang, Z. G., Wang, L., Zhang, R. L., Katakowski, M., Zhang, L., et al. (2006). Stromal cell-derived factor 1alpha mediates neural progenitor cell motility after focal cerebral ischemia. J. Cereb. Blood Flow Metab. 26, 125–134.
Schmidt, N. O., Przylecki, W., Yang, W., Ziu, M., Teng, Y., Kim, S. U., et al. (2005). Brain tumor tropism of transplanted human neural stem cells is induced by vascular endothelial growth factor. Neoplasia 7, 623–629.
Seifert, H. A., Leonardo, C. C., Hall, A. A., Rowe, D. D., Collier, L. A., Benkovic, S. A., et al. (2012). The spleen contributes to stroke induced neurodegeneration through interferon gamma signaling. Metab. Brain Dis. 27, 131–141.
Solomon, A., Rosenblatt, M., Monroy, D., Ji, Z., Pflugfelder, S. C., and Tseng, S. C. (2001). Suppression of interleukin 1alpha and interleukin 1beta in human limbal epithelial cells cultured on the amniotic membrane stromal matrix. Br. J. Ophthalmol. 85, 444–449.
Stevens, S. L., Bao, J., Hollis, J., Lessov, N. S., Clark, W. M., and Stenzel-Poore, M. P. (2002). The use of flow cytometry to evaluate temporal changes in inflammatory cells following focal cerebral ischemia in mice. Brain Res. 932, 110–119.
Tajiri, N., Acosta, S., Glover, L. E., Bickford, P. C., Jacotte Simancas, A., Yasuhara, T., et al. (2012). Intravenous grafts of amniotic fluid-derived stem cells induce endogenous cell proliferation and attenuate behavioral deficits in ischemic stroke rats. PLoS ONE 7:e43779. doi: 10.1371/journal.pone.0043779
Tao, J., Ji, F., Liu, B., Wang, F., Dong, F., and Zhu, Y. (2012). Improvement of deficits by transplantation of lentiviral vector-modified human amniotic mesenchymal cells after cerebral ischemia in rats. Brain Res. 1448, 1–10.
Tsuji, O., Miura, K., Okada, Y., Fujiyoshi, K., Mukaino, M., Nagoshi, N., et al. (2010). Therapeutic potential of appropriately evaluated safe-induced pluripotent stem cells for spinal cord injury. Proc. Natl. Acad. Sci. U.S.A. 107, 12704–12709.
Uchida, S., Inanaga, Y., Kobayashi, M., Hurukawa, S., Araie, M., and Sakuragawa, N. (2000). Neurotrophic function of conditioned medium from human amniotic epithelial cells. J. Neurosci. Res. 62, 585–590.
Wang, Y., Deng, Y., and Zhou, G. Q. (2008). SDF-1alpha/CXCR4-mediated migration of systemically transplanted bone marrow stromal cells towards ischemic brain lesion in a rat model. Brain Res. 1195, 104–112.
WHO. (2002). World Health Report [Online]. Avaiable online at: http://www.who.int/whr/en/.%5D. [Accessed September 30, 2012].
Wu, J., Sun, Z., Sun, H. S., Weisel, R. D., Keating, A., Li, Z. H., et al. (2008). Intravenously administered bone marrow cells migrate to damaged brain tissue and improve neural function in ischemic rats. Cell Transplant. 16, 993–1005.
Xi, J., Khalil, M., Shishechian, N., Hannes, T., Pfannkuche, K., Liang, H., et al. (2010). Comparison of contractile behavior of native murine ventricular tissue and cardiomyocytes derived from embryonic or induced pluripotent stem cells. FASEB J. 24, 2739–2751.
Xue, S., Chen, C., Dong, W., Hui, G., Liu, T., and Guo, L. (2012). Therapeutic effects of human amniotic epithelial cell transplantation on double-transgenic mice co-expressing APPswe and PS1DeltaE9-deleted genes. Sci. China Life Sci. 55, 132–140.
Keywords: stem cells, human amnion epithelial cells, stroke, immune cells, inflammation, cerebral ischemia, therapy
Citation: Broughton BRS, Lim R, Arumugam TV, Drummond GR, Wallace EM and Sobey CG (2013) Post-stroke inflammation and the potential efficacy of novel stem cell therapies: focus on amnion epithelial cells. Front. Cell. Neurosci. 6:66. doi: 10.3389/fncel.2012.00066
Received: 14 November 2012; Paper pending published: 12 December 2012;
Accepted: 17 December 2012; Published online: 17 January 2013.
Edited by:Clare Parish, Florey Neuroscience Institute, Australia
Reviewed by:Christoph Kleinschnitz, University of Würzburg, Germany
Mathias Gelderblom, University Hospital Hamburg Eppendorf, Germany
Copyright © 2013 Broughton, Lim, Arumugam, Drummond, Wallace and Sobey. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits use, distribution and reproduction in other forums, provided the original authors and source are credited and subject to any copyright notices concerning any third-party graphics etc.
*Correspondence: Christopher G. Sobey, Vascular Biology and Immunopharmacology Group, Department of Pharmacology, Monash University, Clayton, VIC 3800, Australia. e-mail: firstname.lastname@example.org
