Original Research ARTICLE
Comparison of unitary exocytic events in pituitary lactotrophs and in astrocytes: modeling the discrete open fusion-pore states
- 1Laboratory of Biophysics, Faculty of Electrical Engineering, University of Ljubljana, Ljubljana, Slovenia
- 2Laboratory of Neuroendocrinology-Molecular Cell Physiology, Faculty of Medicine, Institute of Pathophysiology, University of Ljubljana, Ljubljana, Slovenia
- 3Celica Biomedical Center, Ljubljana, Slovenia
- 4Departamento de Biologia e CESAM, Universidade de Aveiro, Aveiro, Portugal
- 5Department of Biology, Biotechnical Faculty, University of Ljubljana, Ljubljana, Slovenia
In regulated exocytosis the merger between the vesicle and the plasma membranes leads to the formation of an aqueous channel (a fusion-pore), through which vesicular secretions exit into the extracellular space. A fusion pore was thought to be a short-lived intermediate preceding full-fusion of the vesicle and the plasma membranes (full-fusion exocytosis). However, transient exocytic events were also observed, where the fusion-pore opens and closes, repetitively. Here we asked whether there are different discrete states of the open fusion-pore. Unitary exocytic events were recorded by the high-resolution cell-attached patch-clamp method in pituitary lactotrophs and brain astrocytes. We monitored reversible unitary exocytic events, characterized by an on-step, which is followed by an off-step in membrane capacitance (Cm), a parameter linearly related to the membrane area. The results revealed three categories of reversible exocytic events (transient fusion-pore openings), which do not end with the complete integration of the vesicle membrane into the plasma membrane. These were categorized according to the observed differences in the amplitude and sign of the change in the real (Re) parts of the admittance signals: in case I events (Re ≈ 0) fusion pores are relatively wide; in case II (Re > 0) and case III (Re < 0) events fusion pores are relatively narrow. We show that case III events are more likely to occur for small vesicles, whereas, case II events are more likely to occur for larger vesicles. Case III events were considerably more frequent in astrocytes than in lactotrophs.
In regulated exocytosis the fusion between the vesicle and the plasma membrane is important not only for the secretion of signaling molecules, such as hormones and transmitters, but is also key for the membrane recycling and for the translocation of membrane receptors and other proteins to the plasma membrane (White, 1992; Jahn et al., 2003; Vardjan et al., 2009). The membrane fusion process is an energetically unfavorable event, since it consists of bringing close to each other negatively charged opposing membranes, and involves the bending of a lipid-bilayer into a highly curved structure, which is assembled by different proteins and lipids (Kozlov and Markin, 1983). Following the merger of the two membranes, an important step in regulated exocytosis is the formation of a fusion-pore, an aqueous channel connecting the vesicle lumen and the exterior of the cell (reviewed in Chernomordik and Kozlov, 2008).
The nature of this structure can be studied by the electrophysiological patch-clamp membrane capacitance (Cm) technique, which allows monitoring interactions of a single vesicle with the plasma membrane (Neher and Marty, 1982; Lindau and Neher, 1988; Lollike et al., 1995), and the dynamics of an individual fusion-pore. In addition to simple discrete step increases in Cm, which were considered to represent full-fusion exocytic events (Neher and Marty, 1982), some of the unitary exocytic events are transient in nature, characterized by repetitive discrete on-steps (increases) followed by an equal amplitude off-steps (decreases) in Cm. The increment and the ensuing decrement step in Cm are considered to be due to a transient fusion-pore opening of a fused vesicle (Heuser and Reese, 1973; Alvarez de Toledo et al., 1993; Vardjan et al., 2007). These events were also termed transient or reversible exocytic events, also »kiss-and-run« exocytosis. Transient fusion-pore openings are considered physiologically relevant, since the fusion-pore is not formed upon each round of exocytosis (Ceccarelli et al., 1972; Kozlov and Markin, 1983). Moreover, a narrow fusion-pore, once it is established, appears to be energetically relatively favorable (Jorgačevski et al., 2010, 2011).
These conclusions were made on the basis of monitoring repetitive unitary exocytic events in which the narrowness of the fusion-pore can be determined from optical and electrophysiological measurements (Vardjan et al., 2007; Jorgačevski et al., 2008). In electrophysiological measurements specifically, by determining fusion-pore conductance (Gp) and vesicle capacitance (Cv) from admittance measurements (Lindau, 1991; Lollike and Lindau, 1999). In these recordings, changes observed in the imaginary (ΔIm) and in the real (ΔRe) parts of admittance signals reflect changes in Cv and Gp, which can be used to determine vesicle diameter and fusion pore diameter (Lindau, 1991; Rosenboom and Lindau, 1994). Occasionally, the admittance traces associated with a transient fusion-pore opening exhibit an incremental or a decremental cross-talk in the Re signal (Breckenridge and Almers, 1987; Lindau, 1991; Henkel et al., 2000). However, the underlying mechanisms responsible for these non-zero projections in the Re signal are not fully understood.
In previous studies, the equivalent circuit of the fusion pore was reported (Lindau and Neher, 1988; Scepek and Lindau, 1993; Lollike et al., 1995). It was shown analytically that the incremental cross-talk projection on the Re signal could be due to the fusion-pore opening devoid of complete vesicle membrane integration into the plasma membrane (Lindau, 1991; Henkel et al., 2000). By studying pituitary lactotrophs, an ideal cell preparation to study secretory activity at the single vesicle level (Stenovec et al., 2004; Vardjan et al., 2007), and astrocytes which release gliotransmitters (Parpura et al., 1994) by likely employing regulated exocytosis (Parpura and Zorec, 2010), we compared the properties of unitary exocytic events. Using equivalent circuit analysis, we here demonstrate that the decremental cross-talk projection on the Re signal depends on the Gp as well as on the size of the fused vesicle. Moreover, these results indicate the existence of a very narrow, nearly closed, open fusion-pore state in pituitary lactotrophs and in astrocytes.
Materials and Methods
Primary lactotroph and astrocyte cultures were prepared from adult male (lactotrophs) and 2–3 days old female Wistar rats as described previously (Schwartz and Wilson, 1992; Ben-Tabou et al., 1994; Jorgačevski et al., 2008). After the isolation we plated cells on poly-L-lysine-coated coverslips and maintained them in high-glucose DMEM (Invitrogen) medium, supplemented with 10% newborn calf serum and 2 mM L-glutamine in an atmosphere of humidified air (95%) and CO2 (5%). We cared for the experimental animals in accordance with the International Guiding Principles for Biomedical Research Involving animals, developed by the Council for International Organizations of Medical Sciences, and the Directive on Conditions for Issue of License for Animal Experiments for Scientific Research Purposes (Official Gazette of the Republic of Slovenia 40/85 and 22/87). The procedures using animals were approved by the Veterinary Administration of the Republic of Slovenia (approval no. 34401-29/2009/2).
Cell-attached capacitance measurements on isolated rat lactotrophs and astrocytes were performed with a dual-phase lock-in patch-clamp amplifier (SWAM IIC and SWAM CELL, Celica, Ljubljana, Slovenia) as described (Kreft and Zorec, 1997; Vardjan et al., 2007; Jorgačevski et al., 2010). Briefly, a sine wave voltage (1591 or 6400 Hz, 111 mV) was applied to the pipette, while holding the pipette potential at 0 mV. The phase of the lock-in amplifier was adjusted to nullify the changes in Re. A 10 fF calibration pulse was manually generated every 10 s to ensure correct phase angle settings. We used thick-walled, fire polished glass pipettes, which were heavily coated with a resin (Sylgard®184) and had a resistance of 2–5 MΩ.
The Equivalent Circuit of a Transient Fusion Pore
A patch-clamp configuration could be approximated by the series combination of the membrane and the access resistance (RA) of the pipette tip through the patch (Figure 1A). The membrane included a parallel setup of the whole-cell Cm and the membrane conductance (GM). When a small vesicle fused with the patch region, the patch-clamp system could detect the fusion event by the observed changes in the admittance measurement. It has been previously confirmed that the fusion of a vesicle was accompanied by an increase in the measured Cm (Neher and Marty, 1982). The equivalent circuit of the patch-configuration with a fused vesicle is shown in Figure 1B. The vesicle Cm is denoted by Cv, and the fusion-pore conductance is denoted by Gp.

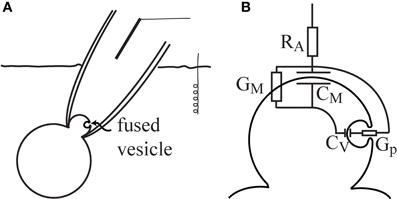

Figure 1. The equivalent circuit of a patched membrane with a fused vesicle. The cell-attached patch-clamp configuration enables the detection of vesicle fusion in the patched membrane region (A). In the equivalent circuit, the fusion of a vesicle is considered in parallel to the patch membrane (B). Note that RA is the access resistance, Cm is the whole-cell membrane capacitance, GM is the membrane conductance, Cv is the vesicle membrane capacitance, and Gp is the fusion-pore conductance.
In the present analysis, all the parameters except Gp were held constant. It was assumed that Cv << Cm or ωCv << 1/RA, which are reasonable assumptions, since the vesicle Cm (vesicle surface area) is considerably smaller than the cell Cm (cell surface area), and the patch resistance is considerably greater than the capacitor load of the vesicle (ωCv). The admittance change (ΔY) describes the change in the admittance between the open and nearly closed state of the fusion pore. According to the equivalent circuit, the admittance difference is (Lindau, 1991):
where T2(ω) stands for the factor T2 (ω) = 1/(1 + RAGM + iωCmRA)2 = |T(ω)|2 · eiθ, and i is . The admittance change (ΔY) is an imaginary number, in which the first term in the parenthesis is the ΔRe, and the second term in the parenthesis is the ΔIm. For the sake of simplicity, the fusion pore state is denoted as fully open or incompletely open. In the fully open state, the Gp is infinite (Gp → ∞), and the ΔRe in Equation (1) vanishes, which gives ΔY = iT2 (ω)ωCv. On the other hand, when there is incomplete fusion, the Gp can be on the same scale as ωCv. As a result, both the ΔRe and ΔIm have a finite value, which can be used for the calculation of the unknown Gp (Breckenridge and Almers, 1987). The Cv and the Gp can be obtained from the real and imaginary parts (Lindau, 1991; Lollike and Lindau, 1999), as follows:
Admittance Measurements of the Three Cases of Transient Exocytic Events
The admittance measurements of repetitive opening and closure of fusion-pores were obtained in lactotrophs (Figures 2Ai,ii) and in astrocytes (Figures 2Biii,iv), where representative transient exocytic events are shown, denoted as cases I, II, and III on Figure 2. The asterisks in these recordings indicate calibration pulses which were used to adjust the phase of the lock-in amplifier. The events in panels Figures 2A,B were recorded in the same membrane patch of a lactotroph and an astrocyte, respectively. Using Equation (2), the corresponding vesicle surface area in fF is calculated by incorporating ΔIm and ΔRe estimated for each event from the admittance records. On Figure 2A (recorded in lactotrophs) the Cv in case I, case II, and case III, was 0.9, 4, and 1.2 fF, respectively. Whereas, on Figure 2B, where representative recordings in astrocytes are shown, the Cv was in case I (0.3 fF), case II (1.6 fF), and case III (0.6 fF). One can note that the amplitude in Im, reflecting Cv, appears larger in events of case II in comparison with case I events. Case I events exhibit an incremental change in Im trace and are devoid of projection on the Re trace. In case II events and increment in Im trace is associated with an incremental projection on the Re trace, whereas, in case III events an increment in Im trace is associated with a decremental projection on the Re trace. In Figure 2C the three cases of transient exocytic events are diagrammatically presented as pre-fused vesicles with an initial narrow fusion-pore (narrower than the detection limit of the recording system), which can reversibly widen to a larger diameter—a state that can be detected electrophysiologically.

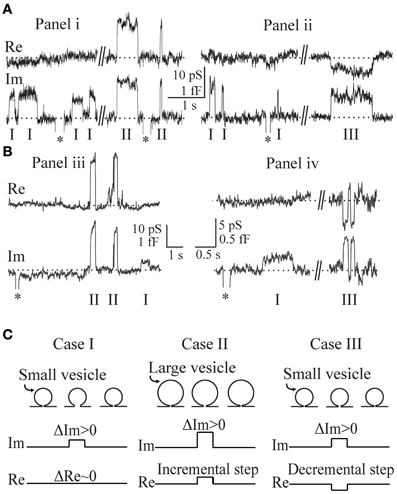

Figure 2. Representative admittance measurements recorded in lactotrophs (Ai,ii) and astrocytes (Biii,iv) revealing a zero projection (case I), an incremental projection (case II), and a decremental projection (case III), on the Re part of the admittance signal. The asterisks in these recordings indicate calibration pulses. The recordings in (Ai,ii) and (Biii,iv) are recorded in the same patch of a lactotroph and an astrocyte, respectively. By incorporating the estimated ΔIm and ΔRe into the Equation (2), the corresponding vesicle capacitance amplitudes are determined for each event from the admittance records. For the recording in lactotrophs (Ai,ii), the vesicle capacitance of case I, case II, and case III, is 0.9 fF, 4.0 fF, and 1.2 fF, and for the astrocytes (Biii,iv), it is 0.3 fF, 1.6 fF, and 0.6 fF, respectively. Note the larger vesicle capacitance of case II when compared to case I. A schematic representation of the three cases as pre-fused vesicles with an initial narrow fusion-pore (C).
The experimental datasets used in our analysis, include ΔRe and ΔIm of cases I–III obtained in lactotrophs (Figures 3A–D) and astrocytes (Figures 3E–H). The Gp of each event is calculated from ΔRe and ΔIm of cases II (ΔRe incremental) and III (ΔRe decremental). Figures 3A–H shows scatter plots of ΔRe and ΔIm as a function of Gp. The relationships between ΔIm versus ΔRe are plotted for the datasets of incremental and decremental ΔRe projections. A strong linear relationship (r = 0.79 in Figure 3C; r = 0.75 in Figure 3G) was revealed between ΔIm and ΔRe in the incremental ΔRe projection group (Figures 3C,G). The slope of this relationship in astrocytes is smaller than one (Figure 3G), however that in lactotrophs is close to unity (Figure 3C), suggesting that ΔRe and ΔIm are of similar size. The non-zero ΔRe can be attributed to the incomplete opening of the fusion-pore, which is accompanied by the increased fusion-pore resistance, whereas, the fully open fusion-pore exhibit a negligible resistance. On the other hand, in the decremental ΔRe projection datasets, a weak correlation between ΔIm and ΔRe was revealed (r = 0.49 in Figure 3D; r = 0.08 in Figure 3H). We noted that the datasets of decremental Re projections are clustered more in the range of small Gp (Figures 3B,F).

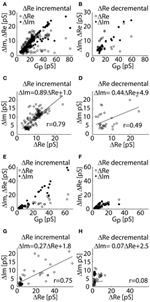

Figure 3. The experimental datasets of ΔRe and ΔIm of admittance measurements recorded in lactotrophs (A–D) and astrocytes (E–H) incremental (case II) and decremental (case III) ΔRe projections. The distributions of ΔRe and ΔIm as a function of Gp for the datasets of incremental ΔRe (A,E) and for the decremental ΔRe (B,F) datasets. A scatter plot of ΔIm against ΔRe reveals a strong linear relationship in the incremental ΔRe datasets of projections (C,E), and a weak linear correlation in the dataset of decremental ΔRe projections (D,H).
Reproducing the Three Cases of Admittance Measurements
Next, we considered the mechanisms responsible for the incremental and decremental ΔRe projections in the admittance measurements of the two cell types. According to the equivalent electrical circuit, the change in the real (ΔRe) and imaginary (ΔIm) parts of admittance signals can be employed for the calculation of Cv and Gp (Lindau, 1991; Lollike and Lindau, 1999).
In Figure 4, ΔRe and ΔIm are plotted as a function of Gp calculated for intermediate (Cv = 1.2 fF), large (Cv = 4 fF), and small (Cv = 0.5 fF) vesicles, representing events of case I, II, and III, respectively. The fact that in case I there is no projection on the Re trace can be reproduced by a change from a fully closed fusion-pore state (Gp = 0 pS) to a fully open fusion-pore state (e.g., Gp > 500 pS in lactotrophs and Gp > 70 pS in astrocytes) or by a change from a nearly closed fusion-pore state (e.g., Gp = 5 pS in lactotrophs and Gp = 2 pS in astrocytes) to an incompletely open fusion-pore state (e.g., Gp = 30 pS) (Figure 4A). The positive projection in case II can be due to fusion-pore opening from a fully closed state, or a nearly closed state, to an incompletely open state (Figure 4B). On the other hand, the negative projection in case III can be reproduced only when the pre-fused state is nearly closed (Figure 4C), which suggests the possible existence of a nearly closed state of the fusion-pore. The underlying hypothesis for the different transient exocytic event cases is that the incremental and decremental projections to the Re trace are due to differences in the fused vesicle size and its nearly closed fusion-pore state. According to the presented equivalent circuit, small vesicles will tend to exhibit decremental ΔRe projections when their initial fused state is nearly closed. In Figure 4D, the relationships of ΔRe as a function of Gp of a small and a large vesicle are demonstrated. The overlay of the two relationships reveals that the maximum of ΔRe is at a lower Gp (Gp = 5 pS) for the small vesicle than the counterpart (Gp = 20 pS) in the case of the large vesicle. Assuming that initial vesicle fusion status arises from the same nearly closed state (e.g., Gp = 5 pS), the incomplete opening of the fusion pore would lead to a positive projection in the case of the large vesicle and a decremental projection in the ΔRe in the case of the small vesicle (Figure 4D).
Figure 4. The relationships of ΔRe (solid lines) and ΔIm (dahsed lines) as a function of Gp calculated for intermediate (Cv = 1.2 fF; case I), large (Cv = 4 fF; case II), and small (Cv = 0.5 fF; case III) vesicle size. Note that the change in ΔRe and ΔIm are drawn by a full and an open arrow, respectively. The zero projection on the Re part is reproduced by a change from a fully closed state to a fully open fusion-pore state (see inset) or by a change from a nearly closed state to an incompletely open fusion-pore state (A). The incremental projection in case II is reproduced by a change from nearly closed to incompletely open state (B). The decremental projection in case III can be reproduced, only when the pre-fused state is nearly closed (C). In addition, the change in ΔRe can be considerably larger than the change in ΔIm (see inset). Overlay of ΔRe (Gp) of cases I and III reveals the effect of vesicle size on the projection type (D). By having the same pre-fused state (i.e., the same fusion pore conductance), the incomplete fusion-pore opening of a large vesicle size leads to an incremental projection, whereas, the same incomplete opening of a small vesicle causes a decremental projection in Re.
In the present paper, we analyzed the discrete open fusion-pore states as well as the conditions under which these states existed. Three different cases are categorized, in which the transitions between discrete states of the fusion-pore do not end with the complete fusion (i.e., exocytosis) of a vesicle and the plasma membrane.
These cases are evident from the changes in the real (ΔRe) and imaginary (ΔIm) parts of admittance measurements (Figure 2). In the first case (denoted as case I), the event is characterized by a step increase in ΔIm and an approximately zero ΔRe. In the second case (denoted as case II), both ΔIm and ΔRe are exhibiting a step increase. The third case (denoted as case III) has an incremental ΔIm and a decremental ΔRe. The underlying assumption of our model is that the non-zero ΔRe is due to an incomplete vesicle fusion-pore opening, and that the initial status of the fused vesicle may exhibit a non-zero Gp (Figure 2). The equivalent circuit of a patch-clamp configuration was constructed, in which the fused vesicle is considered in parallel to the cell plasma membrane (Figure 1). The fused vesicle is assumed to be connected to the cell membrane via an aqueous channel (the fusion-pore). The Cv and the Gp are derived from the imaginary (ΔIm) and real (ΔRe) parts of the admittance measurements. The experimental data of ΔRe and ΔIm are obtained from admittance measurements in lactotrophs and astrocytes (Figure 2). In case II, a strong linear relationship between ΔRe and ΔIm suggests that the fusion-pore opening of a vesicle is incomplete (Figures 3C,G). In case III, there is a weak correlation between ΔRe and ΔIm (Figures 3D,H). According to the relationships of ΔRe and ΔIm as a function of Gp, it is demonstrated that the decremental Re projection is more likely to occur for small vesicles (Figure 4C). Finally, the present calculations reveal that while the incomplete opening of the fusion-pore may be accompanied by the same change in fusion-pore conductance, the resulted projection is predicted to be decremental for the relatively small vesicle and incremental for the large vesicle (Figure 4D).
The high bending energy during the formation of a fusion-pore can be overcome by the assembly of curvature membrane constituents (proteins and lipids) (Kozlov and Markin, 1983; Jorgačevski et al., 2010; Kabaso et al., 2012; Jesenek et al., 2012). The stability of the fusion-pore of a fused vesicle can be due to anionic lipids of negative spontaneous curvature, modulating the formation of the fusion pore (Coorssen and Rand, 1990; Chen and Rand, 1997; Churchward et al., 2008; Rituper et al., 2012). It is then possible that the density of these curvature membrane constituents can affect the Gp of the nearly closed fusion-pore state as well as the projection type and amplitude. The possible incomplete fusion-pore state opens a communication venue, in which the passage of small molecules such as ions may be facilitated continuously through the narrow pore. However, larger molecular weight molecules are unable to exit the narrow fusion pore.
What appears interesting is that in both cell types, electrically excitable (pituitary lactotrophs) and electrically non-excitable (brain astrocytes), fusion-pore properties appear to be shared. While vesicles in the lactotrophs exhibit larger diameters and are therefore more accessible to experimentation (Stenovec et al., 2004; Vardjan et al., 2007), secretory vesicles in astrocytes appear to exhibit relatively large and relatively small diameters. The latter ones can be revealed by the higher-resolution cell-attached patch-clamp measurements (Kreft and Zorec, 1997). Interestingly, it is the smaller ones that exhibit fusion-pores with extremely narrow fusion-pore diameters (Figure 4). The probability of observing an increment in Im trace, associated with a decremental change in Re trace, indicates that a relatively large fraction of vesicles, which are already fused with the plasma membrane, exhibit a very narrow fusion pore. These may pass protons as has been reported previously by using a pH-sensitive vesicle luminal fluorophore in lactotrophs (Vardjan et al., 2007) and in astrocytes (Malarkey and Parpura, 2011). However the relatively large abundance of these events recorded in astrocytes, may not mean that fusion-pore openings mediate a productive release of gliotransmitters. A Gp of less than 5 pS means that the fusion pore diameter is less than 0.2 nm, too narrow to pass even glutamate or acetylcholine (Vardjan et al., 2007). These results are consistent with the view that fusion-pores, when they are established, are relatively stable structures (Jorgačevski et al., 2010). The regulation of exocytotic release of hormones and transmitters, thus involves also the regulation at the fusion-pore level, at the level, when the fusion-pore has been already established, but is too narrow to functionally contribute to the exit of secretions form the vesicle lumen. In the present paper we have revealed that fusion-pores may exhibit distinct fusion-pore diameters and the future work will have to address question of how these open fusion-states transit to a release productive state.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
This work was supported by grants P3 0310 0381 and J3-3632-1683-10 from the Ministry of Higher Education, Sciences and Technology of the Republic of Slovenia.
Churchward, M. A., Rogasevskaia, T., Brandman, D. M., Khosravani, H., Nava, P., Atkinson, J. K., et al. (2008). Specific lipids supply critical negative spontaneous curvature - an essential component of native Ca2+-triggered membrane fusion. Biophys. J. 94, 3976–3986.
Coorssen, J. R., and Rand, R. P. (1990). Effects of cholesterol on the structural transitions induced by diacylglycerol in phosphatidylcholine and phosphatidylethanolamine bilayer systems. Biochem. Cell Biol. 68, 65–69.
Jesenek, D., Perutková, S., Kralj-Iglič, V., Kralj, S., and Iglič, A. (2012). Exocytotic fusion pore stability and topological defects in the membrane with orientational degree of ordering. Cell Calcium 52, 277–282.
Kabaso, D., Calejo, A. I., Jorgačevski, J., Kreft, M., Zorec, R., and Iglič, A. (2012). Fusion pore diameter regulation by cations modulating local membrane anisotropy. ScientificWorldJournal 2012:983138. doi: 10.1100/2012/983138
Malarkey, E. B., and Parpura, V. (2011). Temporal characteristics of vesicular fusion in astrocytes: examination of synaptobrevin 2-laden vesicles at single vesicle resolution. J. Physiol. 589, 4271–4300.
Neher, E., and Marty, A. (1982). Discrete changes of cell membrane capacitance observed under conditions of enhanced secretion in bovine adrenal chromaffin cells. Proc. Natl. Acad. Sci. U.S.A. 79, 6712–6716.
Rosenboom, H., and Lindau, M. (1994). Exo-endocytosis and closing of the fission pore during endocytosis in single pituitary nerve terminals internally perfused with high calcium concentrations. Proc. Natl. Acad. Sci. U.S.A. 91, 5267–5271.
Keywords: capacitance measurements, equivalent circuit, transient fusion-pore, modeling, astrocytes
Citation: Kabaso D, Jorgačevski J, Calejo AI, Flašker A, Guček A, Kreft M and Zorec R (2013) Comparison of unitary exocytic events in pituitary lactotrophs and in astrocytes: modeling the discrete open fusion-pore states. Front. Cell. Neurosci. 7:33. doi: 10.3389/fncel.2013.00033
Received: 24 January 2013; Accepted: 14 March 2013;
Published online: 04 April 2013.
Edited by:Keith Murai, McGill University, Canada
Copyright © 2013 Kabaso, Jorgačevski, Calejo, Flašker, Guček, Kreft and Zorec. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits use, distribution and reproduction in other forums, provided the original authors and source are credited and subject to any copyright notices concerning any third-party graphics etc.
*Correspondence: Robert Zorec, Laboratory of Neuroendocrinology-Molecular Cell Physiology, Medical Faculty, University of Ljubljana, Zaloška cesta 4, SI-1000 Ljubljana, Slovenia. e-mail: firstname.lastname@example.org
