Original Research ARTICLE

Front. Cell. Neurosci., 27 August 2014 | https://doi.org/10.3389/fncel.2014.00255

KATP channels modulate intrinsic firing activity of immature entorhinal cortex layer III neurons

  • 1Institute of Physiology and Pathophysiology, Heidelberg University, Heidelberg, Germany
  • 2Institute of Higher Nervous Activity and Neurophysiology, Russian Academy of Sciences, Moscow, Russia
  • 3Division of Signalling and Functional Genomics, German Cancer Research Center, Heidelberg, Germany
  • 4Bernstein Center for Computational Neuroscience Heidelberg/Mannheim, Heidelberg, Germany

Medial temporal lobe structures are essential for memory formation which is associated with coherent network oscillations. During ontogenesis, these highly organized patterns develop from distinct, less synchronized forms of network activity. This maturation process goes along with marked changes in intrinsic firing patterns of individual neurons. One critical factor determining neuronal excitability is activity of ATP-sensitive K+ channels (KATP channels) which coupled electrical activity to metabolic state. Here, we examined the role of KATP channels for intrinsic firing patterns and emerging network activity in the immature medial entorhinal cortex (mEC) of rats. Western blot analysis of Kir6.2 (a subunit of the KATP channel) confirmed expression of this protein in the immature entorhinal cortex. Neuronal activity was monitored by field potential (fp) and whole-cell recordings from layer III (LIII) of the mEC in horizontal brain slices obtained at postnatal day (P) 6–13. Spontaneous fp-bursts were suppressed by the KATP channel opener diazoxide and prolonged after blockade of KATP channels by glibenclamide. Immature mEC LIII principal neurons displayed two dominant intrinsic firing patterns, prolonged bursts or regular firing activity, respectively. Burst discharges were suppressed by the KATP channel openers diazoxide and NN414, and enhanced by the KATP channel blockers tolbutamide and glibenclamide. Activity of regularly firing neurons was modulated in a frequency-dependent manner: the diazoxide-mediated reduction of firing correlated negatively with basal frequency, while the tolbutamide-mediated increase of firing showed a positive correlation. These data are in line with an activity-dependent regulation of KATP channel activity. Together, KATP channels exert powerful modulation of intrinsic firing patterns and network activity in the immature mEC.

Introduction

Neuronal networks express highly organized multi-neuronal activity patterns which are believed to mediate specific behavioral and cognitive functions. During ontogenesis, coherent patterns develop from distinct, less synchronized forms of network activity (Khazipov and Luhmann, 2006; Egorov and Draguhn, 2013). These immature patterns, on the other hand, might be involved in brain maturation, including neuronal growth, synapse formation and network wiring (Ben-Ari, 2002; Kasyanov et al., 2004; Mohajerani and Cherubini, 2006). Early network patterns are highly diverse depending on brain structures and developmental stages (Feller et al., 1996; Leinekugel et al., 1997; Kandler and Katz, 1998; Dupont et al., 2006; Crepel et al., 2007; Allène et al., 2008). Distinct mechanisms underlying immature activity patterns include electrical coupling between neurons, excitatory actions of GABA, synchronous activation of glutamatergic synapses as well as intrinsic neuronal bursting (Garaschuk et al., 2000; Sipilä et al., 2005; Zheng et al., 2006; Crepel et al., 2007; Allène et al., 2008; Sheroziya et al., 2009).

Neuronal excitability strongly depends on cellular energy metabolism. Lack of energy is particularly damaging during the prenatal and early postnatal periods, resulting in lasting neurological deficits throughout life (Nelson, 1989; Erecinska et al., 2004). ATP-sensitive K+ channels (KATP channels) provide a unique link between cellular energy state and electrical activity. KATP channels are inwardly rectifying K+-selective ion channels that are inhibited by intracellular ATP. A decrease of submembrane ATP levels and accompanying rise in ADP triggers KATP channel opening (Seino, 1999; Haller et al., 2001). KATP channels exist in many excitable cells, including cardiac myocytes, skeletal muscle cells, pancreatic β-cells (Ashcroft and Ashcroft, 1990) and neurons (Karschin et al., 1997; Dunn-Meynell et al., 1998; Zawar et al., 1999). In excitable tissues, these channels act as metabolically controlled “excitation brakes” by hyperpolarizing cells in conditions of low ATP supply. KATP channels are composed of four pore-forming Kir6 subunits, and four regulatory sulfonylurea receptor (SUR) subunits (Aguilar-Bryan and Bryan, 1999; Nichols, 2006). While KATP channels appear to play an important role in protecting neurons against ischemic or anoxic injury (Fujimura et al., 1997; Yamada et al., 2001; Sun et al., 2007) they are also activated in normal network states, e.g., during burst firing in respiratory neurons (Haller et al., 2001). In hippocampal granule cells open probability of single KATP channels transiently increases in response to modest firing activity (Tanner et al., 2011).

The entorhinal cortex (EC) constitutes the major interface between the hippocampus and parahippocampal areas and plays a crucial role in spatial cognition and memory processing (Squire et al., 2004; van Strien et al., 2009; Buzsáki and Moser, 2013). Principal neurons of EC layer III (LIII) provide direct input to the apical dendritic tuft of hippocampal CA1 pyramids (Witter and Amaral, 2004) which is an important pathway for temporal association memory and fear learning (Suh et al., 2011; Kitamura et al., 2014; Lovett-Barron et al., 2014). In adult rats, medial EC (mEC) LIII principal neurons are regularly firing cells that do not discharge in bursts (Dickson et al., 1997; Gloveli et al., 1997; Yoshida and Alonso, 2007). In contrast, during early postnatal maturation a fraction of mEC LIII principal neurons spontaneously generates prolonged Ca2+ – and voltage-dependent intrinsic bursting activity (Sheroziya et al., 2009). These burst discharges involve the Ca2+-sensitive non-specific cationic current (ICAN), persistent Na+ current (INap), and – for termination – Ca2+-activated K+ current (IAHP; Sheroziya et al., 2009).

Given that increased firing frequency or bursts can elicit opening of KATP channels (Haller et al., 2001; Tanner et al., 2011), we investigated the role of KATP channels for cellular and network activity in the immature mEC.

We report that excitability of immature neurons and early patterns of network oscillations are powerfully modulated via KATP channels. These findings indicate that neuronal ATP consumption and energy demand might have important consequences for postnatal activity-dependent maturation of neurons and networks in the mEC.

Materials and Methods

Ethical Approval

All experimental protocols were performed in accordance with the National Institutes of Health Guide for the Care and Use of Laboratory Animals and were approved by the ethical committee of the Institute of Higher Nervous Activity and Neurophysiology, Russian Academy of Sciences (IHNA RAS) or by the state government of Baden-Württemberg, Germany. All efforts were made to minimize animal suffering and to reduce the number of animals used.

Preparation of Brain Slices

Horizontal brain slices (350–600 μm thick) containing the hippocampus, entorhinal and parts of perirhinal cortices were obtained from Wistar rats at postnatal day (P) 6–13 using standard procedures. P0 was taken as the day of birth. Rats were purchased from Charles River Laboratories (Sulzfeld, Germany) or from the local veterinary service (INHA RAS, Russia). Animals were decapitated, brains were rapidly removed and placed in cold (1–4°C) oxygenated artificial cerebrospinal fluid (ACSF) containing (in mM): 124 NaCl, 3 KCl, 1.6 CaCl2, 1.8 MgSO4, 26 NaHCO3, 1.25 NaH2PO4, and 10 glucose (for recordings in interface-type chambers) or 130 NaCl, 3.5 KCl, 1.2 NaH2PO4, 25 NaHCO3, 1.3 MgCl2, 1 or 2 CaCl2, and 25 glucose (for recordings in submerged conditions). Solutions were saturated with 95% O2 and 5% CO2 (pH 7.4 at 37°C). Brain slices were cut using a Vibratome (Leica VT1000S, Germany or Campden Instruments, Loughborough, UK). For extracellular fp recordings, slices were transferred into a Haas-type interface chamber, maintained at 34 ± 1°C and superfused with ACSF at a rate of 1.5–2 ml/min. Prior to electrophysiological recordings, slices were allowed to recover for at least two hours. For whole-cell patch-clamp recordings under submerged conditions, slices were stored at 34 ± 1°C for 10 min in a holding bath containing ACSF, before cooling down to room temperature. After incubation for at least 1 h at room temperature, individual slices were transferred into a recording chamber, superfused with oxygenated ACSF at a rate of 3–6 ml/min and maintained at 33 ± 1°C.

Recording Procedures

Whole-cell patch-clamp recordings were performed under visual guidance using an Olympus microscope fitted with infrared differential interference contrast optics (Olympus BX51WI). We preferentially recorded pyramidal neurons located in the deep part of LIII in order to exclude potential recording from LII pyramidal cells. The lamina dissecans, a distinct cell-free zone (sometimes referred to as layer IV), was used as a reference to identify the border between LIII and layer V. Current-clamp recordings were performed with an Axopatch 1D patch-clamp amplifier (Axon Instruments, Foster City, CA, USA) or ELC-03XS amplifier (npi electronics, Tamm, Germany). Patch electrodes were backfilled with the following solution (in mM): 115 K-gluconate, 20 KCl, 10 disodium phosphocreatine, 10 HEPES, 4 MgATP, and 0.3 GTP or 135 K-gluconate, 20 NaCl, 10 HEPES, 3.95 Mg-gluconate, 0.05 MgATP, and 0.3 GTP (tip resistance of 5–7 MΩ). The electrode solutions were adjusted to pH 7.3 with 1 M KOH. Data were low-pass filtered at 1–2 kHz, digitized at 5–10 kHz (Digidata 1322A, Molecular Devices), and stored on a personal computer using the AxoScope software package (Molecular Devices). Extracellular fp recordings were performed with an EXT 10-2F amplifier (npi electronics, Tamm, Germany). Signals were amplified 100×, low-pass filtered at 2 kHz and high-pass filtered at 0.3 Hz, digitized at 20 kHz with an analog-to-digital converter (Cambridge Electronic Design (CED) MICRO 1401 mkll, Cambridge, UK) and saved on a computer using Spike2 software (CED, Cambridge, UK) for offline analysis. Fp recordings were obtained with ACSF-filled borosilicate glass electrodes (tip diameter 3–5 μm) placed in LIII of the mEC. In the interface chamber, we identified the EC and its layers with a dissecting microscope.

Chemicals

Tolbutamide (300 μM), glibenclamide (1–10 μM) and diazoxide (100–400 μM) were obtained from Sigma-Aldrich (Taufkirchen, Germany) and NN414 (5–25 μM) was ordered from Axon Medchem (Groningen, Netherlands). All drugs were bath-applied at the desired concentrations from stock solutions made in DMSO. The final concentration of DMSO in ACSF was ≤0.1%. Control experiments revealed no measurable effects of DMSO on cellular properties or network events (n = 4). Block of ionotropic glutamate- and GABAA-receptor mediated neurotransmission was performed with a cocktail of kynurenic acid (2 mM) and picrotoxin (100 μM) obtained from Sigma-Aldrich (Taufkirchen, Germany).

Western-Blots Analysis

For Western-blots analysis horizontal brain slices (600–700 μm thick) were obtained from Wistar rats at P8 and P13 using standard procedures as described above. Areas of interest (hippocampal CA1 and EC, including lateral and medial areas) were dissected from individual slices under visual control, placed into Eppendorf tubes, and stored at -20°C. Then, tissue was treated with Lysis Buffer (20 mM Tris–HCl pH 7.4, 130 mM NaCl, 10% Glycerol (w/v), 2 mM EDTA), supplemented with 1% Triton-X-100 and complete mini protease inhibitor (Roche) according to manufacturer’s instructions. Lysates were separated on NuPage 4–12% Gels (Invitrogen) using MOPS buffer, and blotted on Hybond ECL membranes (GE Healthcare). Separation of proteins was checked using Ponceau S solution. We then applied the Qentix Western Blot Signal Enhancer (Perboi/Thermo Fisher, #21050) according to the protocol, and then blocked the membrane with 5% milk for 1 h before incubation with primary rabbit anti-Kir6.2 polyclonal antibodies (1:10,000; AB5495, Millipore, Temecula, USA) at 4°C overnight. Secondary anti-rabbit antibodies (VWR, NA934) were applied for 1 h at 1:10,000 dilution. The membrane was stripped and blotted with actin antibodies (1:20,000; Abcam, AC-15, ab6276) for 1 h and then incubated with secondary anti-mouse (VWR, NA931) for 1 h. Specificity of Kir6.2 antibody was tested by siRNA silencing of this gene in HEK293T cells (DMEM, Invitrogene, +10% FBS). HEK293T cells were reverse transfected with RNAImax (Invitrogene, 13778150) and 5 nM of KCNJ11/Kir6.2 (Ambion/Life technologies, s7761 CCTGTACTGGGTTATTTTT) or negative control#1 (Ambion/Life technologies) for 72 h. Knock-down efficiency of more than 75% was controlled by RT-qPCR. RNA was isolated with the help of RNeasy Mini Kit (Qiagen), cDNA was synthetized using RevertAid H Minus First Strand cDNA kit (Thermo Fisher Scientific) and qPCR was performed using Roch Applied Science Universary probe system with forward 5′-agcagtgttgtgtgaacttgc-3′, reverse 5′-cagcaagaaaagcccagagt-3′ primers and probe#8 and UBC as housekeeping gene control (forward 5′-ctgatcagcagaggttgatcttt-3′, reverse 5′-tctggatgttgtagtcagacagg-3′ and probe #11).

Immunohistochemistry

For fluorescence staining, 450 μm thick slices were fixed in 4% paraformaldehyde (PFA) in phosphate buffer (PB) for at least 12 h (4°C). They were then embedded in 4% agar, re-sliced at 70 μm thickness (VT 1000S, Leica, Germany), mounted on superfrost plus microscope slides (Menzel-Gläser, Braunschweig, Germany) and stored at -20°C. For staining, slices were permeated in methanol for 10 min at -20°C, rehydrated in phosphate buffered saline (PBS, room temperature) and incubated for 10 min in 0.3 M glycine in PBS to minimize background fluorescence. Slices were then pretreated for 1 h in blocking buffer (10% goat serum, 1% Triton X-100 in PBS). Antibodies were diluted in antibody solution (1% goat serum, 0.3% Triton X-100 in PBS) and incubated overnight (>16 h) for primary antibodies and 2 h for secondary antibodies at room temperature. Rabbit anti-Kir6.2 primary antibodies (1:500; AB5495, Millipore, Temecula, CA, USA) and secondary Alexa Fluor 488 IgG goat against rabbit (1:1000; Invitrogen, Eurgene, OR, USA) were used for immunochemical staining. DAPI (1:10,000; Invitrogen, Eugene, OR, USA), was used as nuclear stain to visualize topology.

Data Analysis

Electrophysiological data were analyzed off-line using Spike2 software (CED, Cambridge, UK) and Clampfit (Molecular Devices). Fp activity was analyzed from primary data sections lasting at least 10 min. Duration of fp-bursts was measured from the onset of negative potential deflection until the peak of positivity before the field waveform return to baseline level. The amplitude of fp-bursts was calculated as the difference between baseline and the negative peak of the fp transient. Whole-cell recordings were typically started 10–15 min after break-in, when balance between intracellular millieue and patch-solution was established. When depolarizing current injections were needed to induce bursting, recording was delayed for at least 5 min after onset of stable bursting. Bursting neurons were recorded in standard bicarbonate-based ACSF containing 1 mM Ca2+, and regularly firing cells in ACSF containing 1 or 2 mM Ca2+. Spontaneous intrinsic bursting activity was analyzed from at least 3 min of recordings. Burst duration was calculated as the time between the first and the last spike within a burst. Regular firing was induced by depolarizing current steps (11 or 35 s duration, +9 to +80 pA), with intervals between pulses of 19 or 55 s, respectively. Regular firing frequency was analyzed from the 10 s of a depolarizing step (averaged data from three current pulses) under control conditions, in the presence of drugs and after washout. For statistical evaluation of drug effects, baseline values were compared to the latest phase of the interval with drugs present (at least 30 min for fp recordings/interface-type and 15 min for whole-cell recordings/submerged-type).

Statistical Analysis

Averaged data are given as mean ± SEM. Statistical analysis was performed using GraphPad (InStat, San Diego, CA, USA) software. Fp parameters and part of single cell data were compared by a one-way repeated-measures ANOVA followed by appropriate post hoc tests, depending on parametric or non-parametric data distribution. Paired two-tailed Student’s t-test or Wilcoxon matched pairs signed ranks test was used for statistical comparison of the remaining single cell data. A p value <0.05 was regarded as significant. For all data: p < 0.05, ∗∗p < 0.01, ∗∗∗p < 0.001, ns, not significant.

Results

We first analyzed expression of Kir6.2 (a major subunit of the KATP channel) within the second postnatal week. We found that Kir6.2 is extensively expressed in the EC at the protein level, suggesting the presence of KATP channels in this structure during an early developmental stage (Figure 1A). Specificity of antibodies was shown in HEK293T cells upon silencing of Kir6.2 expression by siRNA (Figure 1B; for details, see Materials and Methods). Immunocytochemical experiments revealed Kir6.2 expression across all layers of the immature rat mEC (Figure 1C). Kir6.2 immunoreactivity was predominately detected on somata and proximal dendrites of individual cells located in layers II, III, and V.

FIGURE 1
www.frontiersin.org

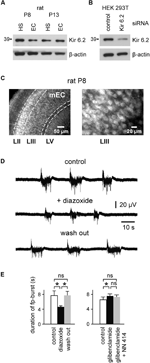

FIGURE 1. Expression of the KATP channel-forming Kir6.2 subunits and modulation of spontaneous fp-bursts by KATP channels in the immature EC. (A) Western blot analysis of Kir6.2 protein expression in the hippocampus (HS; area CA1) and entorhinal cortex (EC) of rats at P8 and P13. Results are representative for three independent experiments. (B) Determination of Kir6.2 antibody specificity. Western blots of HEK293T cell lysate after reverse transfection with control- or Kir6.2-siRNA, respectively, for 72 h. β-actin served as the loading control (bottom panels in A,B). (C) Micrographs of Kir6.2 immunoreactivity in the rat mEC at P8. Layers II, III, and V are indicated at the bottom. Right panel shows magnification of layer III. (D) Decrease of spontaneous field potential (fp) bursts by the KATP channel opener diazoxide (400 μM). (E) Left: effects of diazoxide on fp-burst duration (n = 8). Right: effect of the KATP channel blocker glibenclamide (10 μM) and further adding of the KATP channel opener NN414 (25 μM) on fp-burst duration (n = 14). Averaged data are given as mean ± SEM. ANOVA followed by Bonferroni’s post hoc test, *p < 0.05, ns, not significant.

In order to address the functional role of KATP channels at such early stages, we investigated network- and single-cell activity in the mEC. Fp recordings within layer III of slices from rats at P10–P13 revealed spontaneous repetitive bursts. These glutamate receptor-mediated events were characterized by prolonged fp shifts (duration 6.9 ± 0.7 s, peak amplitude 0.056 ± 0.004 mV, n = 22 slices), superimposed by fp fluctuations at ∼15–30 Hz and multiple unit discharges, as previously reported by Sheroziya et al. (2009). Importantly, the KATP channel opener diazoxide (400 μM) reversibly reduced the duration of fp-bursts from 7.7 ± 1.3 s to 4.6 ± 0.3 s (n = 8, p < 0.05, ANOVA Bonferroni’s post hoc; Figures 1D,E). The KATP channel blocker glibenclamide (10 μM) had opposite effects and slightly prolonged fp-bursts (control vs. glibenclamide; 6.5 ± 0.8 s vs. 7.6 ± 0.5 s, n = 14, p < 0.05, ANOVA Bonferroni’s post hoc; Figure 1E). The effect of glibenclamide was not reversible after washout of the drug (tested in five slices). Indeed, fp-burst duration showed a further increase following washout of the substance. We therefore opted to antagonize the effect of the KATP channel blocker glibenclamide with the SUR1-specific KATP channel opener NN414 (Dabrowski et al., 2003; 25 μM). This led to a slight decrease of fp-burst duration which, however, did not reach significance (glibenclamide vs. NN414; 7.6 ± 0.5 vs. 7.2 ± 0.6 s, n = 14, p > 0.05, ANOVA Bonferroni’s post hoc; Figure 1E). Frequency of fp-bursts (i.e., burst occurrences per minute) was slightly reduced in the presence of diazoxide (control vs. diazoxide; 3.6 ± 0.4 vs. 2.4 ± 0.3, p < 0.05, ANOVA Bonferroni’s post hoc), and was not affected by glibenclamide (control vs. glibenclamide; 3.6 ± 0.4 vs. 3.7 ± 0.3, p > 0.05, ANOVA Bonferroni’s post hoc). Amplitude of fp-bursts was not significantly affected by both drugs (control vs. diazoxide; 0.061 ± 0.008 vs. 0.055 ± 0.005 mV, control vs. glibenclamide; 0.054 ± 0.005 vs. 0.05 ± 0.004 mV, p > 0.05 for both drugs, ANOVA Bonferroni’s post hoc). Together, these results suggest that activity of KATP channels regulates the generation and duration of spontaneous fp-bursts in the developing mEC.

We next tested whether the intrinsic firing pattern of principal neurons in the immature mEC LIII is directly controlled by KATP channels. For these recordings, synaptic transmission was suppressed with kynurenic acid (2 mM) and picrotoxin (100 μM). We focused on the most prominent patterns of intrinsic neuronal firing activity at this stage, namely prolonged bursting and regular firing activity (Sheroziya et al., 2009). The percentage of bursting neurons depends on the extracellular concentration of Ca2+ (i.e., lowering [Ca2+]o increases the tendency to generate bursts), and considerably changes during postnatal maturation. At 1 mM [Ca2+]o, prolonged bursts are found in ∼50, 80, and 30% of LIII neurons at P5–P7, P8–P10, and P11–P13, respectively (Sheroziya et al., 2009). In a first set of experiments, we examined the effect of KATP channel openers on intrinsic firing. Whole-cell recordings were performed with standard intracellular solution containing 4 mM ATP. Resting membrane potential (RMP) of bursting neurons was -64.9 ± 0.9 mV (n = 29). In order to minimize effects of voltage on burst duration we manually adjusted membrane potential of all bursting neurons to ∼60 mV (-59.5 ± 0.4 mV, n = 29). Under these conditions, duration of prolonged bursts was 4.4 s (median, first quartile: 3.6 s and third quartile: 9.9 s, n = 29). The KATP channel opener diazoxide strongly suppressed prolonged bursting activity in LIII neurons (Figures 2A,B). At 100 μM diazoxide, burst duration was significantly decreased from 7.8 ± 2.1 s to 3.1 ± 0.8 s (n = 6, p = 0.031, Wilcoxon test). Action potential frequency within bursts and occurrence of bursts (i.e., number of bursts per minute) were slightly, but not significantly, reduced (control vs. diazoxide; 3.5 ± 0.4 vs. 3.0 ± 0.4 Hz for frequency within bursts, p = 0.380; 3.4 ± 0.4 vs. 2.3 ± 0.4 for number of bursts per minute, p = 0.073, n = 6, t-test for both parameters). However, at 400 μM, diazoxide significantly suppressed all of these parameters (n = 6; Figure 2B). Burst duration decreased from 6.2 ± 2.0 to 2.3 ± 0.4 s (p = 0.031, Wilcoxon test), frequency within bursts from 4.5 ± 0.6 Hz to 2.85 ± 0.65 Hz (p = 0.028, t-test), and number of bursts per minute from 4.2 ± 0.7 to 0.8 ± 0.2 (p = 0.006, t-test).

FIGURE 2
www.frontiersin.org

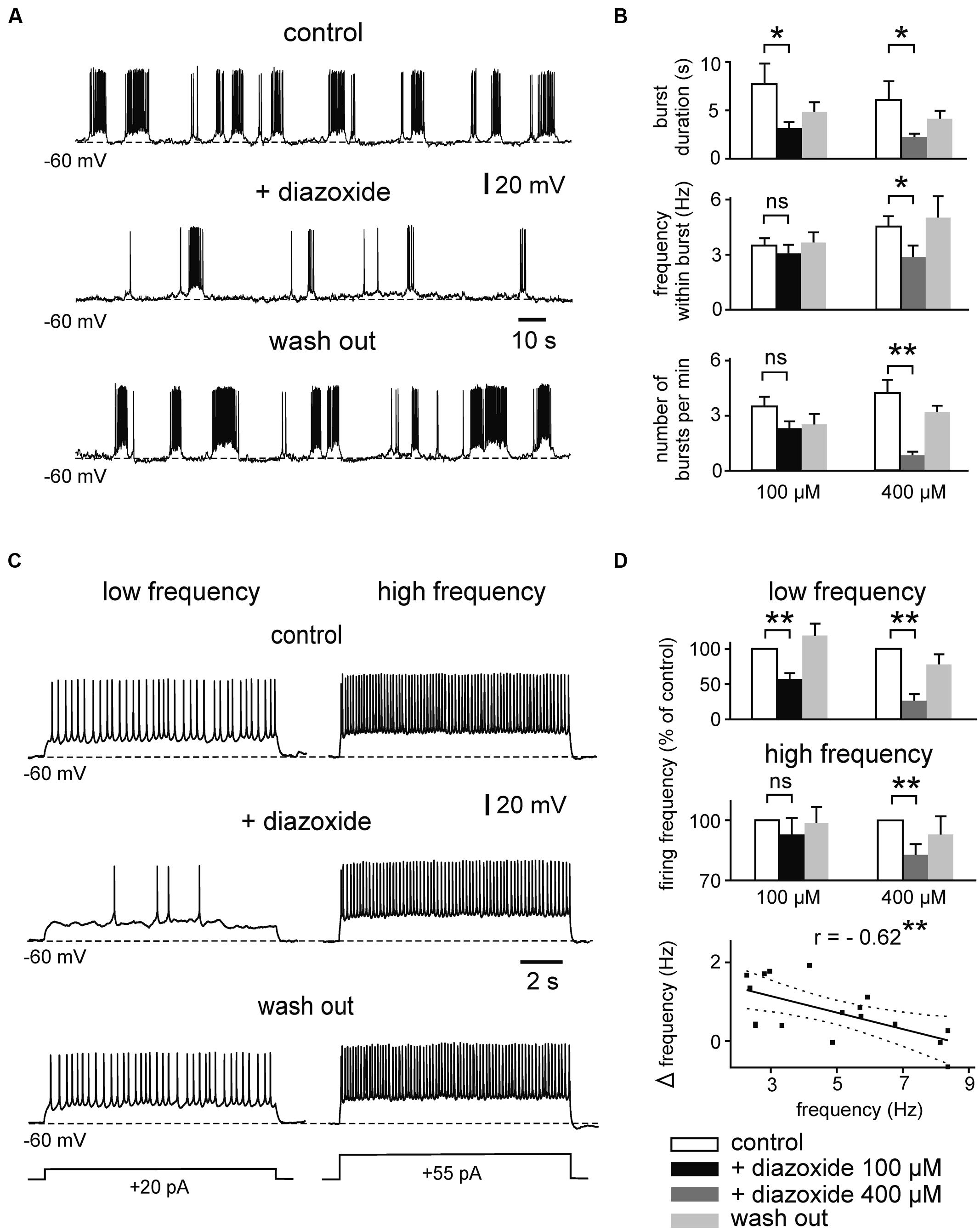

FIGURE 2. Effects of the KATP channel opener diazoxide on bursting and regular firing activity of immature mEC layer III neurons. (A) Example traces showing the reduction of prolonged bursts after activation of KATP channels by diazoxide (100 μM). (B) Mean effect of diazoxide on different burst parameters (left panel: 100 μM, n = 6; right panel: 400 μM, n = 8). White bars: control; black/dark gray: diazoxide; light gray: washout. (C) Activity-dependent effects of diazoxide (100 μM) on regular firing. A neuron firing at low rate (left) is more sensitive to diazoxide than the same cell firing at high frequency (right). (D) Bar diagrams showing normalized spike frequency under control conditions, in the presence of diazoxide (left panel 100 μM, n = 8; right panel 400 μM, n = 8 for low frequency, n = 6 for high frequency). Averaged data are given as mean ± SEM. Paired t-test or Wilcoxon test, *p < 0.05, **p < 0.01, ns, not significant. Bottom: correlation between basal firing frequency and diazoxide-mediated reduction of firing (Δfrequency = frequency in control - frequency under 100 μM diazoxide). Solid line indicates linear correlation (**two-tailed p < 0.01). Dashed lines indicate 95% confidence interval. Recordings were performed in the presence of kynurenic acid and picrotoxin and with pipette solution containing 4 mM ATP.

We next tested effects of diazoxide on regularly firing neurons, i.e., neurons which were silent at RMP (-63 ± 0.76 mV, n = 25) and showed regular spiking following membrane depolarization. The open state probability of KATP channels depends strongly on ATP concentration within submembrane domains which can vary depending on activity. We therefore performed experiments using depolarizing current pulses at different intensity (range 9–80 pA, duration 11 s) yielding “low” (∼1–3 Hz) and “high” (∼6–10 Hz) firing frequency, respectively. Indeed, as illustrated in Figures 2C,D, diazoxide (100 μM) supressed low frequency regular firing from 2.9 ± 0.2 to 1.7 ± 0.3 Hz (57%, n = 8, p = 0.002, t-test), while firing at higher frequencies was largely resistant to the drug (control vs. diazoxide; 6.8 ± 0.5 vs. 6.4 ± 0.7 Hz, n = 8, p = 0.075, t-test). At 400 μM, however, dizoxide reduced both, low and high frequency firing (control vs. diazoxide; 3.2 ± 0.4 vs. 0.9 ± 0.3 Hz, n = 8, p = 0.002, (low frequency) and 9.8 ± 0.9 vs. 8.2 ± 0.8 Hz (high frequency), n = 6, p = 0.001, t-test for both frequencies). In line with the activity-dependence of effects, reduction of firing frequency by the KATP opener diazoxide correlated negatively with control frequency (Pearson’s r = -0.62, p = 0.008; Figure 2D, bottom panel). RMP of regularly firing neurons was not significantly changed under diazoxide (p = 0.881 for 100 μM and p = 0.153 for 400 μM, t-test for both concentrations).

Similar effects were observed for the KATP channel opener NN414 (Figure 3). Thus, NN414 (25 μM) supressed burst duration from 7.1 ± 1.3 to 3.6 ± 0.9 s (n = 7, p = 0.015, t-test), and reduced the occurrence of bursts from 3.5 ± 0.8 to 2.0 ± 0.5 per minute (n = 7, p = 0.026, t-test; Figures 3A,B). Lower concentrations of NN414 (5–10 μM) induced apparent reductions of burst duration and burst occurrence, which were, however, not significant (n = 8, p = 0.174 and p = 0.480 respectively, t-test for both parameters; Figure 3B). In contrast, 5–10 μM of NN414 effectively reduced regular firing at low frequency (control vs. NN414; 3.1 ± 0.6 vs. 1.3 ± 0.5 Hz, n = 6, p = 0.013, t-test; Figures 3C,D). Higher firing frequency was slightly, but significantly reduced in the presence of the drug (control vs. NN414; 8.9 ± 1.0 vs. 6.6 ± 0.9 Hz, n = 6, p = 0.031, Wilcoxon test). In summary, these data suggest that KATP channel openers effectively suppress prolonged bursting and regular firing activity in immature mEC LIII neurons.

FIGURE 3
www.frontiersin.org

FIGURE 3. The KATP channel opener NN414 suppresses intrinsic firing activity. (A) Example trace showing suppression of prolonged bursting activity after activation of KATP channels with NN414 (25 μM). (B) Mean burst parameters under control conditions, in the presence of NN414 (left panel 5/10 μM, n = 8; right panel 25 μM, n = 7) and after wash out. (C) Effects of NN414 (5/10 μM) on regular spiking activity at low firing rate (left) and at high frequency (right; example traces from same cell). (D) Normalized regular firing frequency under control conditions, in the presence of NN414 (5/10 μM, n = 6) and after wash out. All recordings were made in the presence of kynurenic acid and picrotoxin. Patch pipette solution containing 4 mM ATP. Data are given as mean ± SEM. Paired t-test or Wilcoxon test, *p < 0.05, ns, not significant.

We then investigated effects of KATP channel blockers on intrinsic firing activity (Figures 4 and 5). We first determined effects of tolbutamide (300 μM) on prolonged bursts using similar experimental conditions (4 mM ATP intracellularly). We found that tolbutamide extends burst duration from 3.8 ± 0.9 to 9.5 ± 2.3 s (n = 4; p < 0.05, ANOVA, Dunn’s post hoc), while frequency within bursts and number of bursts per minute were unaffected (n = 4, p > 0.05 for both parameters, ANOVA, Dunn’s post hoc; Figure 4B). ATP inhibits opening of KATP channels with an IC50 of ∼25 μM (Nichols et al., 1991). We therefore repeated our experiments with a lower intracellular concentration of ATP (50 μM) to avoid saturating effects on channel gating. Under these conditions RMP of bursting neurons was -67.6 ± 0.6 mV (n = 19) and RMP of regularly firing neurons was -65.5 ± 0.9 mV (n = 18). Membrane potential was manually adjusted to -61 ± 0.7 mV, resulting in spontaneous burst duration of 5.4 ± 0.5 s (n = 21). As illustrated in Figures 4A,B, tolbutamide (300 μM) significantly affected all tested parameters in experiments with reduced intracellular ATP concentration (control vs. tolbutamide; burst duration: 4.6 ± 1.0 vs. 13.5 ± 4.0 s, p = 0.030; frequency within burst: 4.6 ± 0.7 vs. 5.5 ± 0.7 Hz, p = 0.034; number of bursts per minute: 5.0 ± 1.3 vs. 3.6 ± 1.3, p = 0.004, n = 7, t-test for all values).

FIGURE 4
www.frontiersin.org

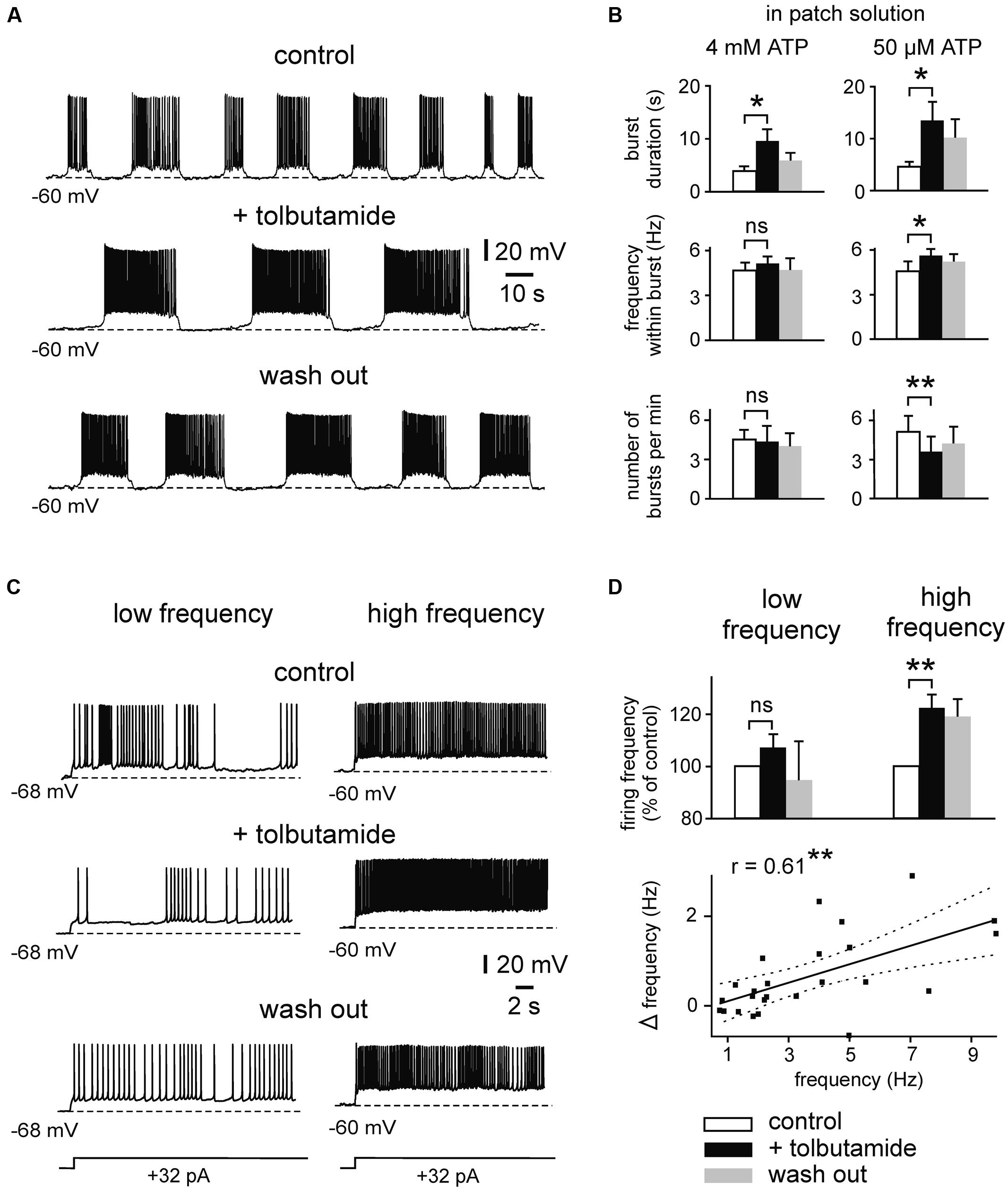

FIGURE 4. Effects of the KATP channel blocker tolbutamide on intrinsic spiking activity. (A) Example trace showing prolonged bursting activity under control conditions, in the presence of tolbutamide (300 μM) and after wash out. Recording was performed with pipette solution containing 50 μM ATP. (B) Mean burst parameters under control conditions, in the presence of tolbutamide and after wash out. Patch solutions containing 4 mM ATP (n = 4; left) and 50 μM (n = 7; right). (C) Example trace showing effects of tolbutamide (300 μM) on regular firing activity. At low firing rate (left) discharges are less sensitive to tolbutamide than at higher firing rate (right). (D) Normalized spike frequency under control conditions, in the presence of tolbutamide and after wash out (top panel; n = 12 for low frequency, n = 7 for high frequency). Averaged data are given as mean ± SEM. ANOVA followed by Dunn’s post hoc test (for B; 4 mM ATP) or Paired t-test, *p < 0.05, **p < 0.01, ns, not significant. Bottom: correlation between basal firing frequency and tolbutamide-mediated increase of firing (Δ frequency = frequency under 300 μM tolbutamide - control frequency). Solid line indicates linear correlation (**two-tailed p < 0.01). Dashed lines indicate 95% confidence interval. All recordings were obtained in the presence of kynurenic acid and picrotoxin.

FIGURE 5
www.frontiersin.org

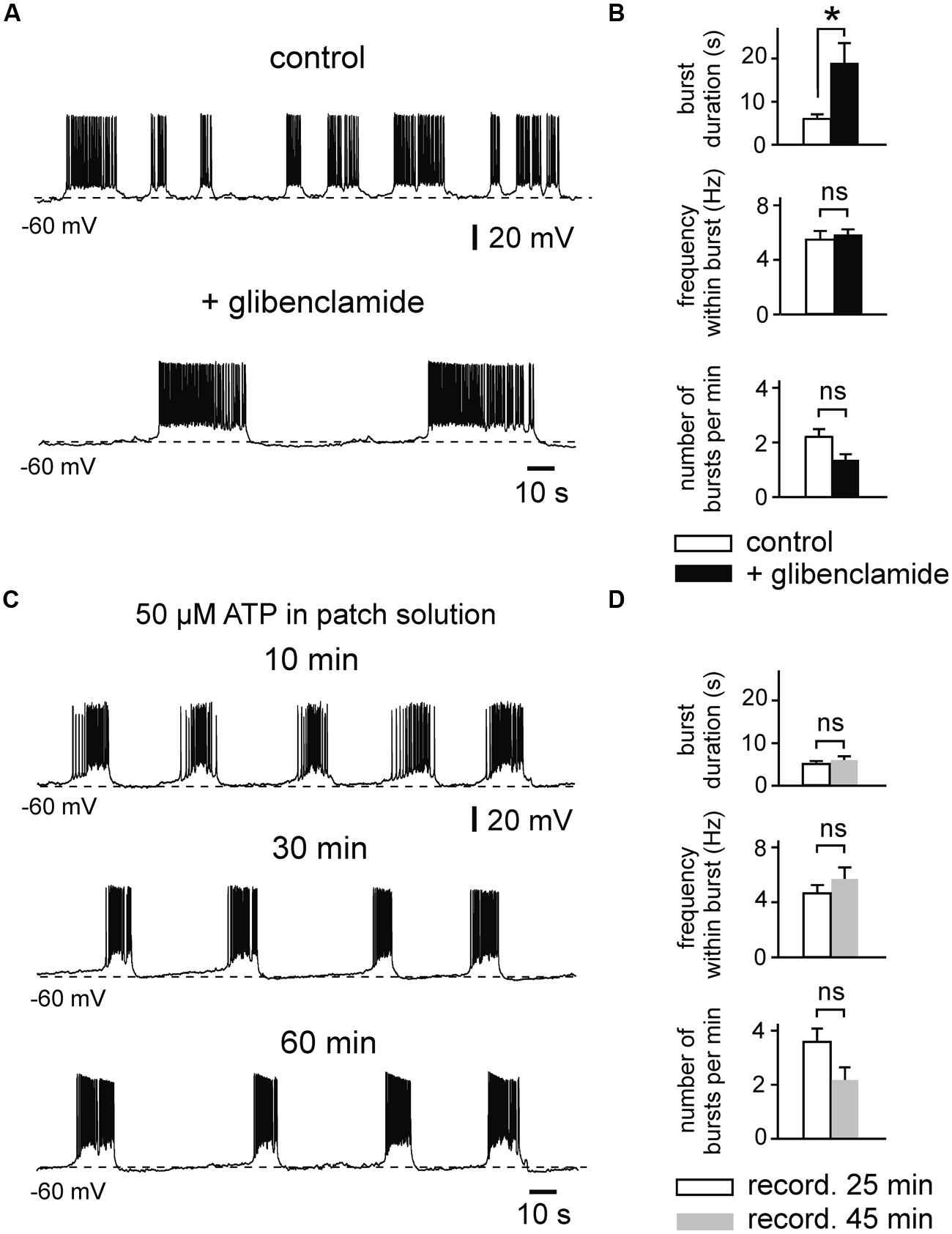

FIGURE 5. Effects of the KATP channel blocker glibenclamide on prolonged bursting activity. (A) Glibenclamide (1 μM) evokes prolongation of burst duration (example trace). (B) Changes of mean burst parameters by glibenclamide (n = 8). Patch pipette solution containing 50 μM ATP. (C) Example trace showing stable intrinsic bursting activity during prolonged whole-cell recording with pipette solution containing 50 μM ATP. (D) Burst parameters during prolonged recordings (n = 6). Note that there are no significant changes over 25–45 min. All recordings were obtained in the presence of kynurenic acid and picrotoxin. Averaged data are given as mean ± SEM. Paired t-test, *p < 0.05, ns, not significant.

Likewise, tolbutamide increased firing frequency of regularly firing neurons when these were strongly activated (Figures 4C,D). Adding tolbutamide enhanced high frequency firing from 7.1 ± 0.8 to 8.6 ± 0.9 Hz (121%, n = 7, p = 0.004, t-test). However, tolbutamide was not effective at low frequency firing (control vs. tolbutamide; 1.8 ± 0.2 vs. 2.0 ± 0.3 Hz, n = 12, p = 0.095, t-test). In line with these activity-dependent effects, tolbutamide-mediated elevation of firing frequency correlated positively with control frequency (Pearson’s r = 0.61, p = 0.001; Figure 4D, bottom panel). RMP of regularly firing neurons was not affected by tolbutamide (n = 12, p = 0.397, t-test). In addition, in 4 out of 16 recording neurons, tolbutamide switched neuronal activity from regular firing into bursting mode. It has been reported that the widely used KATP channel blocker tolbutamide does also affect several Ca2+ – and voltage-dependent K+ currents in adult hippocampal neurons, including IM, IAHP, and D-type K+ currents (Crépel et al., 1993; Erdemli and Krnjević, 1996). We therefore tested effects of a second KATP channel blocker, glibenclamide, on intrinsic bursts of immature LIII neurons (Figures 5A,B). Similar to tolbutamide, glibenclamide (1 μM) strongly enhanced duration of bursts (control vs. glibenclamide; 6.1 ± 0.9 vs. 19.0 ± 4.7 s, n = 8, p = 0.017, t-test), whereas no significant effects were found for frequency within bursts (5.5 ± 0.7 vs. 5.8 ± 0.5 Hz, p = 0.341, t-test) and for occurrence of bursts (2.2 ± 0.3 vs. 1.4 ± 0.2, p = 0.078, t-test). The effect of glibenclamide was, however, not reversible after washout of the drug. As a control, we therefore measured stability of burst parameters during prolonged recordings without drugs (50 μM ATP in the patch electrode). We did not find any significant changes during time-matched control recordings (n = 6, burst duration: p = 0.430, frequency within bursts: p = 0.101, number of bursts per minute: p = 0.119, t-test for all values; Figures 5C,D), indicating that the irreversible effects of glibenclamide were indeed specifically induced by the drug. These data show that KATP channel blockers efficiently enhance intrinsic firing activity. In summary, KATP channels exert powerful modulation of intrinsic bursting and regular firing activity as well as spontaneous early network oscillations in the immature mEC.

Discussion

We show that KATP channels are strongly involved in the modulation of spontaneous network oscillations and intrinsic firing activity in the immature rat mEC in vitro. Based on extracellular and intracellular recordings in the presence of KATP-affecting drugs we report that these channels efficiently modulate electrical activity in layer III of the developing mEC.

KATP channel openers reduced the duration of spontaneous fp-bursts and suppressed intrinsic neuronal firing activity, including both prolonged bursting and regular firing patterns. In contrast, KATP channel blockers slightly prolonged fp-bursts and strongly enhanced the duration of intrinsic bursts as well as firing frequency of regularly firing neurons. In this latter case, effects at the cellular level seemed to be stronger than effects at the network (fp) level. Indeed, intrinsic bursts of single neurons contribute to, but not fully reflect the spontaneous fp-bursts, which arise from complex interactions between excitatory and inhibitory transmission as well as intrinsic neuronal properties. Termination of fp-bursts in immature EC is likely partly associated with activation of fast spiking GABAergic interneurons, as it has been reported for adult animals (Tahvildari et al., 2012). Indeed, a selective blockade of GABAA-receptors always elicited paroxysmal field discharges in the immature EC (Sheroziya et al., 2009). It is thus possible, that KATP channel blockers increase activity of fast spiking interneurons that restricts prolongation of fp-bursts.

Importantly, regular firing activity was modulated in a frequency-dependent manner, with strongest effects of the KATP channel blocker tolbutamide on highly active neurons, and strongest effects of the KATP channel opener diazoxide on slowly firing cells. These correlations might reflect transient changes in intracellular (submembrane) ATP concentration during electrical activity (Howarth et al., 2012). High-frequency firing activity might significantly reduce local ATP levels and, therefore, increase opening of KATP channels. In this situation, blockers of KATP are highly efficient while drugs increasing channel opening lose effect. At low firing frequencies, higher intracellular ATP levels would exert opposite effects.

Prolonged intrinsic bursting activity is a characteristic feature of developing, but not mature, rat mEC LIII neurons (Sheroziya et al., 2009). The ionic mechanisms underlying the generation of burst firing include activation of various currents: Ca2+-sensitive non-specific cationic current (ICAN), persistent Na+ current (INap) and Ca2+-activated K+ current (IAHP, BK-current; Sheroziya and Egorov, 2008; Sheroziya et al., 2009). Our present data show that ATP-sensitive K+ current is also involved in the generation of prolonged intrinsic bursts. Number and frequency of spikes during prolonged bursts appear to be more than enough to induce opening of KATP channels, that, together with IAHP, finally mediate burst termination.

Effects of the KATP channel blocker tolbutamide were prominent at low intracellular concentrations of ATP (50 μM). However, the drug was effective even at high ATP concentrations in the patch electrode (4 mM), as frequently used in whole-cell recordings. This value is much higher than the half-maximal inhibitory concentration of ATP for KATP channels (∼25 μM; Nichols et al., 1991). Thus, our data support the proposal that open probability of KATP channels reflects activity-dependent fluctuations of ATP/ADP concentrations within local submembrane domains which are not entirely controlled by the solution in the patch pipette (Haller et al., 2001; Mollajew et al., 2013). It is likely that such local changes in ADP/ATP ratio represent submembrane ATP consumption during increased Na+-K+-ATPase activity (Haller et al., 2001).

In the adult rat hippocampus, the KATP channel blocker tolbutamide also affects several Ca2+ – and voltage-dependent K+ currents, including M-type K+ current and IAHP (Crépel et al., 1993; Erdemli and Krnjević, 1996). We can not exclude that such mechanisms do also play some role in the immature mEC. It has been reported, however, that KATP channels themselves participate in the slow afterhyperpolarization (sAHP) in hippocampal dentate granule cells of juvenile mice, and thereby affect neuronal excitability following elevated firing (Tanner et al., 2011). The role of M-currents in immature neuronal excitability seems to be not significant. For example, the Kv7/M channel blocker linopirdine has only a minor effect on neonatal activity, in contrast to juvenile CA3 pyramidal neurons (Safiulina et al., 2008).

In addition, the hyperpolarization-activated current (Ih) plays an important role in modulation of excitability of adult LIII neurons (Shah et al., 2004; Huang et al., 2009). Altered expression of Ih underlying hyperpolarization-activated cyclic nucleotide-gated (HCN) channel subunits has been reported from models of temporal lobe epilepsy where it affects seizure threshold (Shah et al., 2004). Expression of HCN1 subunits in EC LIII neurons is, however, dominant in distal dendrites, and is quite moderate in somata of these cells, particular at early stages (Vasilyev and Barish, 2002). Nevertheless, we do not exclude a contribution of Ih to prolonged burst firing of immature LIII neurons.

Our results are also in line with previous reports showing that KATP channel can be activated in response to ATP consumption during normal (i.e., physiological) levels of neuronal activity. The open state probability of KATP channel augments in response to ATP consumption during moderate neuronal firing (Haller et al., 2001; Tanner et al., 2011) or via prolonged activation of glutamate receptors (Mollajew et al., 2013). KATP channel are strongly involved in the modulation of various neurophysiological functions. In dopaminergic neurons of the medial substantia nigra, activity of KATP channels enables burst firing in vitro and in vivo, thereby controlling novelty-induced exploratory behavior (Schiemann et al., 2012). In hypothalamic neurons expressing pro-opiomelanocortin (POMC) the age-dependent up-regulation of KATP channels causes hyperpolarization and neuronal silencing, contributing to obesity of aged animals (Yang et al., 2012). KATP channel are also involved in pathologically altered network activity such as epileptic seizures (Hernández-Sánchez et al., 2001; Yamada et al., 2001).

In the immature EC, spontaneous fps and large-scale propagating oscillatory calcium transients mediated by ionotropic glutamate (but not GABA) receptors have been reported (Jones and Heinemann, 1989; Garaschuk et al., 2000; Sheroziya et al., 2009; Namiki et al., 2013). At mature stages, mEC neurons can generate slow-wave network oscillations (Dickson et al., 2003), which are initiated by selective activation of GluR5 kainate receptors in a recurrent network, and terminated by activation of KATP channels in active neurons (Cunningham et al., 2006). This example illustrates the tight coupling between neuronal activity and energy homeostasis. In the immature mEC, however, network oscillations are generated by different mechanisms, including the joined activation of both NMDA and AMPA/kainate receptors (Sheroziya et al., 2009). Moreover, in contrast to the observations in adult rats, in our hands the KATP channel opener diazoxide suppressed, but never completely blocked fp-bursts. This finding indicates a differential impact of ATP-sensitive K+ currents on immature network activity versus mature sleep-related slow-wave oscillations in the mEC. Importantly, it has been shown that LIII principal neurons are critically involved in the processes of initiation, propagation, termination, and reflection of synchronized traveling calcium waves in the immature EC (Namiki et al., 2013). This mechanism may be related to the ability of these neurons to generate prolonged intrinsic bursting activity at early postnatal stages.

The functional significance of prolonged intrinsic bursts in immature EC networks are still unknown. They may well contribute to the functional maturation of the EC and anatomically connected areas. Recurrent excitatory connections and electrical coupling between EC LIII pyramidal neurons have been demonstrated in adult rats using paired intracellular recordings (Dhillon and Jones, 2000). Intralaminar excitatory recurrent connections within LIII of juvenile rats have been recently shown using scanning photostimulation (Beed et al., 2010). Thus, activity of immature LIII neurons feeds back onto neurons within the same layer, and therefore may contribute to the activity-dependent maturation of this local network in the EC. In addition, EC LIII neurons provide direct input to the apical dendrites of CA1 pyramids. Therefore, bursts of LIII neurons may induce dendritic spikes in CA1 pyramidal neurons that could then propagate to the soma and trigger action potentials (Jarsky et al., 2005). Strong firing of LIII neurons can also contribute to the distal dendritic enrichment of HCN1 channels in CA1 pyramids (Shin and Chetkovich, 2007). In adult animals, excitatory input from EC LIII to CA1 is essential for the formation of temporal association memory and fear learning (Suh et al., 2011; Kitamura et al., 2014; Lovett-Barron et al., 2014).

To conclude, our results show that activation of KATP channels plays an important, limiting role for network activity and intrinsic neuronal firing in the immature mEC. This finding provides new insights into the mechanisms of activity-dependent maturation of neurons and networks in the EC. In addition, the key role of KATP channels constitutes an important link between neuronal activity and neurometabolic state in this important area of the medial temporal lobe.
