Cortical excitability in human somatosensory and visual cortex: implications for plasticity and learning – a minireview
Hubert R. Dinse
Oliver Höffken
Martin Tegenthoff†- Department of Neurology, BG Universitätsklinikum Bergmannsheil, Ruhr University Bochum, Bochum, Germany
The balance of excitation and inhibition plays a key role in plasticity and learning. A frequently used, reliable approach to assess intracortical inhibition relies on measuring paired-pulse behavior. Moreover, recent developments of magnetic resonance spectroscopy allows measuring GABA and glutamate concentrations. We give an overview about approaches employed to obtain information about excitatory states in human participants and discuss their putative relation. We summarize paired-pulse techniques and basic findings characterizing paired-pulse suppression in somatosensory (SI) and (VI) visual areas. Paired-pulse suppression describes the effect of paired sensory stimulation at short interstimulus intervals where the cortical response to the second stimulus is significantly suppressed. Simultaneous assessments of paired-pulse suppression in SI and VI indicated that cortical excitability is not a global phenomenon, but instead reflects the properties of local sensory processing. We review studies using non-invasive brain stimulation and perceptual learning experiments that assessed both perceptual changes and accompanying changes of cortical excitability in parallel. Independent of the nature of the excitation/inhibition marker used these data imply a close relationship between altered excitability and altered performance. These results suggest a framework where increased or decreased excitability is linked with improved or impaired perceptual performance. Recent findings have expanded the potential role of cortical excitability by demonstrating that inhibition markers such as GABA concentrations, paired-pulse suppression or alpha power predict to a substantial degree subsequent perceptual learning outcome. This opens the door for a targeted intervention where subsequent plasticity and learning processes are enhanced by altering prior baseline states of excitability.
Introduction
When the basics of adult cortical plasticity had been established in the early eighties of the last century, two basic types of explanation had been proposed. Besides the idea that new connections are created by growth of axons and/or dendrites, it was suggested that changes of inhibition and excitation result in reorganization of previously ineffective connections which in turn activates neurons previously inactive (Kaas et al., 1983). This has been substantiated by numerous studies showing that GABA (γ-aminobutyric acid) is a major player modulating and shaping neural excitation. Most importantly, during plasticity and learning, GABAergic mechanisms are crucial for maintaining a precise balance between excitation and inhibition (Abbott and Nelson, 2000; Turrigiano and Nelson, 2000; Feldman, 2009; Carcea and Froemke, 2013; Barron, 2021).
Measuring paired-pulse suppression
To measure signatures of excitation and inhibition in human subjects, the assessment of paired-pulse behavior has become a standard procedure. It consists of application of pairs of stimuli in close succession (paired-pulse stimulation), which can be used as a marker of intracortical excitability in sensory cortices. This approach is somewhat equivalent to paired-pulse transcranial magnetic stimulation (TMS), which is widely used to assess plastic changes in human motor cortex (Kujirai et al., 1993; Reis et al., 2008).
When applied in sensory areas, paired-pulse suppression describes the outcome of stimulation with very short interstimulus intervals (ISI) that the cortical responses to the second stimulus are significantly suppressed compared to the first stimulus. Paired-pulse suppression is quantified by calculating the ratio of the amplitude of the second response divided by the amplitude of the first response. Small amplitude ratios indicate strong paired-pulse suppression, while large ratios indicate little paired-pulse suppression which is taken as a marker for enhanced excitation. In studies of the paired-pulse behavior in the hand and finger representations of somatosensory primary cortex (SI), often electrical stimulation of the median nerve is employed (Figure 1). Typically, ISIs in the range of 30 ms produce reliable paired pulse suppression (Allison, 1962; Höffken et al., 2007, 2010, 2013a; Lenz et al., 2012).

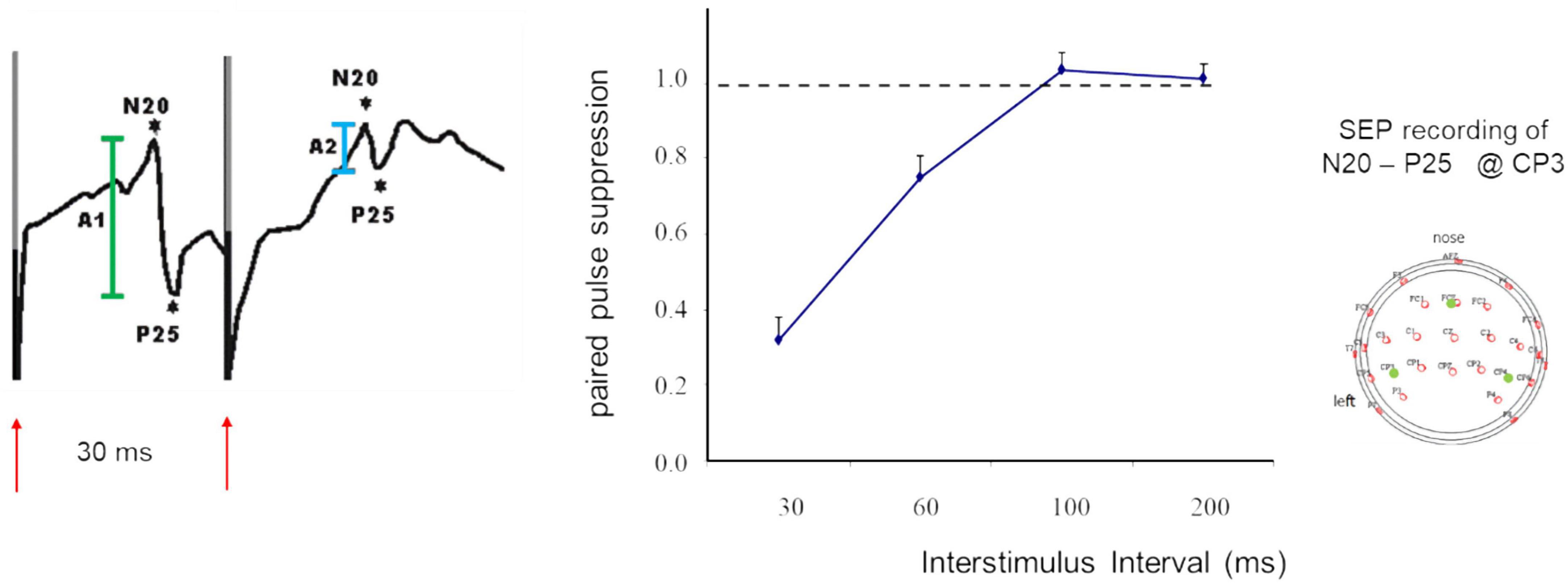

Figure 1. SEP recordings made in SI following paired-median nerve stimulation at an ISI of 30 ms (left). Shown are the N20 P25 components (first response in green, second response in light blue), red arrows indicate timing of stimulation and stimulus artifacts. Paired-pulse suppression as a function of ISI (middle). Recording sites according to the 10-20 system (right). Modified according to Höffken et al. (2007).
To measure paired-pulse behavior in analogy to investigations in the visual cortex (VI) we applied a recently established approach consisting of recording VEPs following patterned paired visual stimulation (Höffken et al., 2008, 2009). Due to the different sensory pathways in touch and vision, and due to different types of subcortical processing, response latencies differ markedly in both modalities, which affects paired-pulse behavior. Therefore, in VI, significant suppression can be recorded at ISIs in the range of 100 ms (Höffken et al., 2008, 2009). However, some differences in methodology should be emphasized. In contrast to studies in SI, which use electrical stimulation of the median nerve and recordings of the N20/P25 component in the SEPs, VI studies employ visual pattern stimulation with recordings of the P100 VEP component. The resulting broad VEP responses make it impossible to use shorter ISIs than around 80 ms, as the response peaks tend to melt into each other at shorter ISIs. It is therefore conceivable that the paired-pulse behavior is more similar in both systems. This possibility is supported by the fact that the suppression ratio in SI at ISIs of 30 ms is in the range of <0.4 (Höffken et al., 2007), while suppression ratios in VI measured at ISIs of 80 ms are in the range of >0.6 (Höffken et al., 2008); cf. chapter “Paired-pulse behavior as an inhibition marker” and “Inhibition markers as predictors of subsequent performance changes.”
Reflect measurements of cortical excitability of somatosensory and visual cortex a global state?
While there is a clear role of cortical excitability in plasticity and learning, little emphasis has been put on the aspect of how global an individually assessed level of excitability is. Is it limited to within a small cortical representational zone, is it the same across hemispheres and across different sensory modalities? Individual paired-pulse suppression obtained from recordings made within a few minutes after each other in left somatosensory (SI) and primary visual cortex (VI) were comparable although differing in absolute values (Schloemer et al., 2020). However, according to a linear correlation analysis, the amount of paired-pulse suppression measured in SI and VI was unrelated (p = 0.951, r = −0.012). According to these data, in SI and VI high and low levels of excitability can co-exist in individual participants. The data imply that paired-pulse behavior reflect the properties of sensory processing in local patches of cortex. This high locality might have important implications for crossmodal learning experiments. More important, these data support the view that cortical excitability measured by paired-pulse techniques can be used as a reliable marker characterizing the currently prevailing excitatory state within a circumscribed patch of cortex (Schloemer et al., 2020).
Paired-pulse behavior as an inhibition marker
Paired-pulse behavior is a reliable marker for obtaining information about the inhibition-excitation status in cortical areas. Therefore, measuring paired-pulse behavior is widely used in animal models, and in particular in human studies because of the non-invasive nature. However, the mechanisms that underlie paired-pulse behavior are not fully understood. Often, the phenomenon of paired-pulse suppression has been subsumed as short-term plasticity (Zucker and Regehr, 2002). Whole-cell recordings made in rat auditory cortex demonstrated that at short ISIs GABAA receptor-mediated inhibition most likely contributes to forward suppression, while at longer ISIs other mechanisms such as synaptic depression appear to play a major role (Wehr and Zador, 2005). However, GABAB receptors have been shown to similarly control paired-pulse suppression (Porter and Nieves, 2004). Earlier work suggested that not only inhibitory transmitter systems, but also metabotropic glutamate receptors are involved in regulating paired-pulse behavior (von Gersdorff et al., 1997). In addition, Zucker and Regehr (2002) had shown that vesicle depletion of calcium buffers and accompanying changes of release probabilities of excitatory synapses are implicated in paired-pulse behavior. Finally, the application of GABAA agonists such as lorazepam in studies of human motor cortex (Ziemann et al., 1996; Werhahn et al., 1999) and somatosensory cortex (Huttunen et al., 2008; Stude et al., 2016) have provided rather direct evidence that GABAergic mechanisms are crucial for controlling paired-pulse behavior.
Paired-pulse suppression as a cortical phenomenon
Paired-pulse behavior differs fundamentally between cortical and subcortical neurons, with little paired-pulse suppression found subcortically. It has therefore been argued that the profound cortical paired-pulse suppression is unlikely a consequence of the temporal thalamic response properties (Wehr and Zador, 2005). Comparing the temporal response properties along the sensory pathway of the auditory system supported the view that paired-pulse suppression is most likely generated at a cortical level (Creutzfeldt et al., 1980; Miller et al., 2002). Multichannel SEP-recordings made in human somatosensory system following paired median nerve stimulation showed that paired-pulse suppression is present at least upstream to the brainstem nuclei (Höffken et al., 2010, 2013a). Together these findings support the view that the mechanisms mediating paired-pulse suppression operate most likely in primary cortices and beyond.
Other markers of excitation-inhibition
There are many markers used in human research that are utilized to obtain information about the role and amount of inhibitory processes. Magnetic resonance spectroscopy (MRS) is a relatively novel technique that allows measuring GABA levels reliably in humans in vivo (Puts and Edden, 2012). MRS is a non-invasive neuroimaging technique to detect the concentration of metabolites in a specific brain region, including glutamate, glutamine, GABA, and others (Puts and Edden, 2012). Employing this method, over the last years, fascinating insight has been obtained in the involvement of GABAergic mechanisms in learning, cognition, behavior and disease (Li et al., 2022). A particular advantage of the in vivo nature of this technique is to study GABA concentrations during development and across the lifespan (Saleh et al., 2020; Porges et al., 2021).
In a recent study utilizing MRS glutamate and GABA concentrations were measured to obtain insight into possible differences of visual perceptual training-induced learning and perceptual changes induced by high-frequency rTMS application. It was found that the time courses of the changes of GABA and glutamate differed as well as the contribution of both transmitters suggesting different underlying mechanisms, although both approaches involve changes in excitation and inhibition (Lin et al., 2023).
When transcranial magnetic stimulation is applied over the occipital lobe, it evokes brief light sensations, so-called phosphenes. Therefore, thresholds of phosphene induction can be measured and expressed as relative stimulator outputs, which has been used as a simple, non-invasive method to assess excitability in human visual cortex (Kammer, 1999; Sparing et al., 2005). Measuring phosphene thresholds by means of TMS has been employed in many studies addressing altered excitability in human visual cortex. For example, enhanced excitability levels were reported in patients suffering from migraine (Afra et al., 1998; Aurora et al., 2003; Gerwig et al., 2005), after medical treatment with anticonvulsants (Artemenko et al., 2008; Palermo et al., 2009) and light deprivation (Boroojerdi et al., 2000; Pitskel et al., 2007). Interestingly, there is a significant correlation between the individual phosphene threshold and paired-pulse suppression recorded in central VI indicating a significant link between both measures (Höffken et al., 2013b).
In addition, the absolute amplitudes of VEPs have been used as an indicator of changes of cortical excitability (Kaneda et al., 1997; Yilmaz et al., 1998; Bohotin et al., 2002; Avitabile et al., 2007). Besides the difficulties in obtaining reproducible response amplitudes in VEPs there is a major difference between EPs recorded following a single stimulus and the paired-pulse suppression. The suppression ratio between the first and the second response is a relative measure and thus more independent against noise. Most importantly, changes of paired pulse suppression are due to alterations of the suppression of the second response with no or little changes of the response amplitude of the first (cf. Figure 2). This can be interpreted that changes of the suppression reflects intracortical processing, while changes of the first response amplitude rather reflect changes of the afferent input.

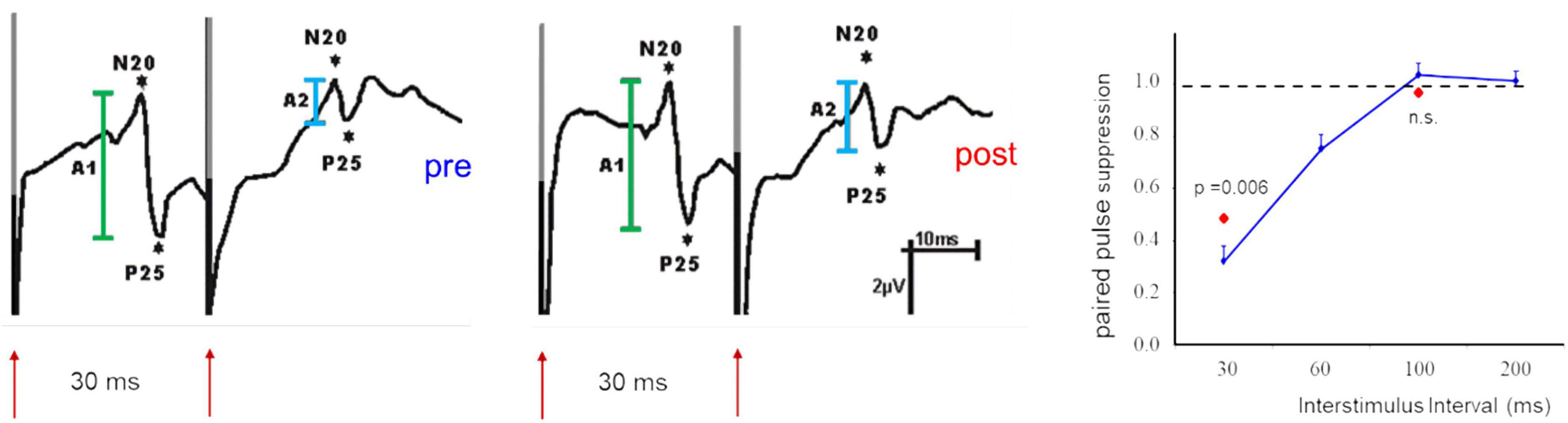

Figure 2. Example of paired-pulse suppression recorded after paired-median nerve stimulation in SI before (pre, left) and after (post, middle) application of a facilitatory stimulation protocol. Shown are SEP components of the N20//P25 complex (first response in green, second response in light blue). Note that the response amplitudes of the first stimulus are not affected. The recovery curve (right) illustrates the dependence of paired-pulse suppression from the ISI used. The second response remains also unaffected when long ISIs (100 ms) are used. Changes of paired-pulse suppression are limited to short ISIs and are exclusively due to changes of the second response amplitude [modified from Höffken et al. (2007)].
Alpha oscillations in the range of 10 Hz typically found in visual or somatosensory cortex play a critical role in gating information processing by suppressing irrelevant information (Klimesch et al., 2007; Jensen and Mazaheri, 2010; Haegens et al., 2011a,b; Jensen et al., 2014; Zrenner et al., 2018). Alpha oscillations can be recorded either in occipital areas referred to as visual alpha, or in somatosensory cortex, referred to as mu-rhythm. Independent of location, higher alpha power is associated with better performance, excitability or evoked activity suggesting that the increased alpha activity is a signature of top down inhibitory control known as “gating by inhibition” (Pfurtscheller and Lopes da Silva, 1999; Klimesch et al., 2007; Jensen and Mazaheri, 2010).
For example, involvement in a difficult working memory task has been demonstrated to be associated with higher alpha power levels in cortical regions not engaged in the task (Klimesch et al., 1999). Similarly, somatosensory alpha power fluctuations on a trial by trial bases have been observed in association with the allocation of neural resources. As a result, alpha power could be shown to influences and to predict tactile task performance (Linkenkaer-Hansen et al., 2004). Pre-stimulus alpha oscillations of low to intermediate power that were recorded in cortical areas engaged in behavioral tasks were shown to enhance performance (Ai and Roy, 2014; Baumgarten et al., 2016). Furthermore, during a visual training task, not only pre-stimulus alpha but also alpha desynchronization increased significantly with training (Bays et al., 2015). These findings support the view that the regulation of pre-stimulus alpha levels serves as a recruiting mechanism optimizing efficient processing.
Animal models allow for a more invasive way of analysis of inhibitory processes such as recording of membrane potential changes, or assessment by immunohistochemical or chromatographic methods. A particular phenomenon reflecting intracellular inhibition was revealed by real-time optical imaging using voltage-sensitive dyes (Sharon and Grinvald, 2002). When presenting visual stimuli with different orientation a small transient drop in the rate at which the evoked response increased coincided with maximal selectivity to the stimulus. This deceleration and subsequent acceleration termed evoked deceleration-acceleration (DA) notch has been interpreted as a signature of a temporary suppression (Sharon and Grinvald, 2002; Kozyrev et al., 2014).
While all these markers reflect inhibitory processes, their relationship is far from being clear, and substantial research is required to unravel their potential interrelationship.
Bidirectional changes of paired-pulse suppression parallel changes of perceptual performance
Insight into the role of inhibitory processes and on the emergence of plasticity and learning requires simultaneous assessment of inhibition-excitation markers and of perceptual performance. Transcranial magnetic stimulation (TMS) approaches were first used in studies exploring effects of TMS on cortical excitability (Kujirai et al., 1993) and motor learning. It was found that muscle training of the flexor policis brevis improved force and acceleration of movement, which was associated with an increase in motor evoked potential (MEP) amplitudes (Liepert et al., 1998; Muellbacher et al., 2001). Most notable, using low-frequency repetitive TMS (rTMS) reduced motor cortex excitability (Muellbacher et al., 2000). These early studies showed for the first time a link between excitability and performance, as well as between different TMS frequencies and excitability. Recent studies using entorhinohippocampal slice cultures showed that application of 10-Hz rTMS reduced GABAergic synaptic strength (Lenz et al., 2016). For a review of potential cellular mechanisms see Siebner et al. (2022), and Bolognini et al. (2009), Fricke et al. (2011), Polanía et al. (2018), Antal et al. (2022) for reviews about motor cortex plasticity and methods of non-invasive brain stimulation.
Somatosensory cortex and tactile perception
Studies exploring plastic changes of somatosensory cortical excitability and tactile perception have similarly employed low- or high frequency rTMS. Application of high-frequency 10 Hz rTMS to the finger representation of primary SI improved tactile spatial discrimination performance of the index finger that outlasted the stimulation period for several hours (Tegenthoff et al., 2005). These data were the first demonstrating an improvement in human sensory performance by direct stimulation of the brain from outside. The changes in performance were accompanied by an enlargement of the cortical map representing the index finger. Moreover, the changes in the cortical map correlated with the individually observed gain in performance induced by rTMS. Separate experiments using paired-pulse stimulation techniques in combination with recording SEPs had shown that application of 5 Hz rTMS reduced paired-pulse suppression indicative for enhanced excitability in SI (Ragert et al., 2004; Gatica Tossi et al., 2013a,b). Comparable findings were observed after application of intermittent theta burst rTMS over human primary somatosensory cortex, where tactile discrimination improved parallel to enhanced cortical excitability (Ragert et al., 2008a).
In contrast, low frequency ∼1 Hz rTMS applied over SI finger representation had been found to impair tactile perception of the hand (Knecht et al., 2003; Satow et al., 2003; Tegenthoff et al., 2006). The impairment of tactile spatial discrimination performance outlasted the period of stimulation for a few hours and was accompanied by an enhancement of paired-pulse suppression indicating reduced excitability in SI (Tegenthoff et al., 2006). These data showed that application of rTMS at low or high frequencies induce lasting bidirectional changes in excitability and in tactile perceptual performance.
In daily live, human learning is driven by practicing and repetition. In contrast, in laboratory in vitro studies learning is induced merely by electrical stimulation in the absence of attention and motivation. Under these conditions, timing and temporal structure of pulse trains play a crucial role resulting in the induction of long-term potentiation and long-term depression - LTP and LTD (Bliss and Collingridge, 1993; Lynch, 2004; Malenka and Bear, 2004). To close the gap between these extremes a approach has been developed that translates protocols that very effectively evoke plastic changes in vitro into sensory stimulation protocols that can be applied in human participants. These so-called long-term potentiation-like or long-term depression-like sensory stimulation protocol alter persistently human perceptual performance in parallel to changes of neural processing. Most importantly, these changes are evoked without explicit task training and without attention (see review: Dinse and Tegenthoff, 2019). Recordings made in the hand representation of SI during the 30 min of application showed that each train of stimuli evokes a transient series of SEPs which after about 500 ms reach a 20 Hz steady-state response. This response pattern is maintained during the entire 2-s-train, with no evoked activity during the inter-train period. Most notably, there is no evidence for a response habituation over the 40 min of stimulation (Brickwedde et al., 2020). When this type of repetitive sensory stimulation is applied to the fingers of a hand, the tactile acuity, i.e., the spatial tactile discrimination performance of the stimulated finger is improved (Godde et al., 2000) as well as haptic performance (Dinse et al., 2005). The neural substrates underlying these perceptual changes include map reorganization in the hand representation in primary and secondary somatosensory cortex (Pleger et al., 2001, 2003; Dinse et al., 2003), changes of cortical excitability (Höffken et al., 2007), and changes in gray matter volume (Schmidt-Wilcke et al., 2018). In all cases, neural changes correlated with the amount of improvement in tactile acuity, such as increased BOLD (blood oxygenation level dependent) signals or cortical map changes implicating a strong link between perceptual changes and those observed a neural level (Pleger et al., 2001, 2003; Dinse et al., 2003; Höffken et al., 2007; Schmidt-Wilcke et al., 2018).
In contrast to the application of 30 min of a high-frequent intermittent finger stimulation protocol, which improved tactile acuity (Ragert et al., 2008b), the application of a low-frequency (1 Hz) protocol impaired tactile discrimination (Ragert et al., 2008b). Simultaneous assessment of paired-pulse suppression in SI revealed an overall reduction of paired-pulse suppression. This increase in excitability correlated positively with the individual gain in performance, indicating higher excitability in good learners (Höffken et al., 2007). The opposite observation was made when a low-frequency stimulation protocol was used. In this case, paired-pulse suppression was increased parallel to impaired tactile discrimination (Gatica Tossi and Dinse, 2008). The general property of changes of paired-pulse suppression following a facilitatory stimulation protocol are illustrated in Figure 2.
The similar pattern of parallel changes of performance and excitability observed independent of the type of evoking plastic changes provides strong evidence for a fundamental role excitability appears to play during plastic changes and changes in perceptual performance (Figure 3).

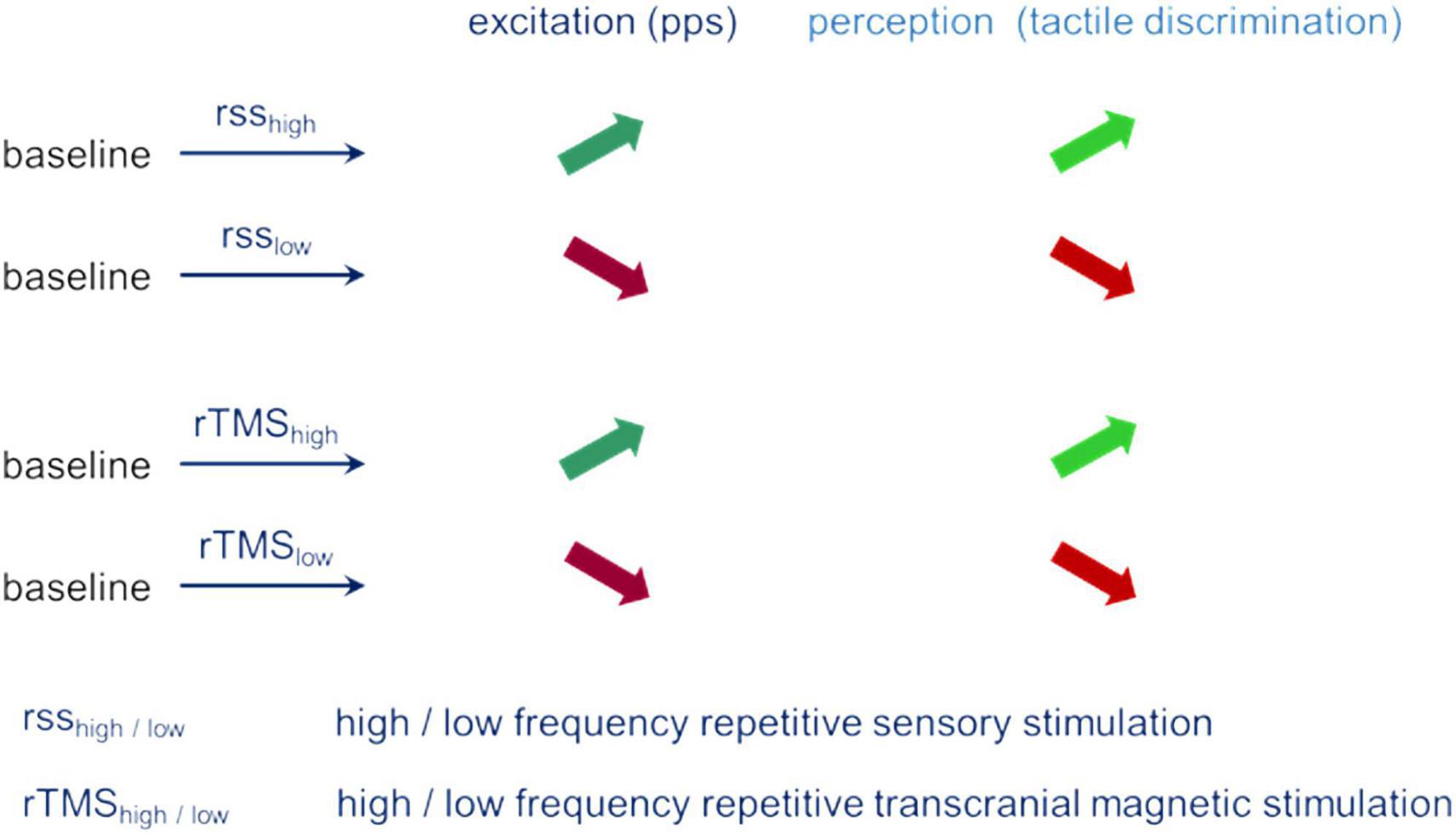

Figure 3. Parallel changes of excitation (pps – paired-pulse suppression) and perception (tactile spatial discrimination) for different stimulation conditions.
This view is further supported by a study that combined the application of high-frequency rTMS with application of repetitive tactile stimulation (Ragert et al., 2003). Both types of interventions are known to increase excitability, therefore, if high levels of excitability are linked to high perceptual gain, an even stronger gain in perceptual improvement could be expected. This is exactly what happened: Combined application boosted the gain in improvement (22% vs. 15%). Most notable, this boost in performance after combined application depended on the effectiveness of the repetitive tactile stimulation protocol when applied alone. Participants, who improved only little in tactile performance after the single application, showed the largest improvement after combined application. This observation suggests that the effects seen after combined application were specific for poor learners (Ragert et al., 2003).
Visual cortex and visual perception
Compared to SI and the sense of touch, less human data are available about the combined assessment of changes of visual cortical excitability and visual perceptual performance. However, by putting together the findings from different studies related to plasticity, perceptual learning and excitability changes a very similar pattern emerges as described for the sense of touch and somatosensory plasticity processes.
While there are abundant reports about visual perceptual learning, few addressed the link to excitability changes (Seitz and Dinse, 2007; Sagi, 2010; Sasaki et al., 2010). Neary et al. (2005) showed that training of oriented lines over several days improved discrimination performance. This typical perceptual learning effect was accompanied by a reduction of the amount of TMS suppression indicative of reduced inhibition, or enhanced excitation in visual cortex. Other studies showed that using non-invasive brain stimulation protocols improve visual perceptual performance without concomitant visual input in a way similar to that described for somatosensory system (Tegenthoff et al., 2005). For example, applying 10 Hz rTMS over visual cortex improved visual orientation discrimination (Klaes et al., 2003). A similar finding was obtained when anodal transcranial direct current stimulation (tDCS) was applied over 4 consecutive days over visual cortex (Sczesny-Kaiser et al., 2016). Orientation discrimination improved, but not for kathodal tDCS. Most importantly, the discrimination improvement was paralleled by a decrease in paired-pulse suppression of VEPs and of phosphene thresholds, both supporting that the visual learning was associated with an increase of visual cortical excitability.
Repetitive sensory stimulation was also used for studies of the plasticity of the visual system. Here, instead of repetitive stimulating the index finger, visual patterned stimulation was applied (Marzoll et al., 2018, 2022). When for 40 min a low-frequency 1 Hz stimulation was applied, visual orientation discrimination was impaired, while a 20 Hz, intermittent stimulation improved orientation discrimination (Marzoll et al., 2018). These bidirectional changes in performance resemble those observed in somatosensory cortex (Ragert et al., 2008b). While for the somatosensory system, parallel changes of de- and increased excitability had been reported, comparable studies are missing so far for the visual system.
Brain stimulation techniques have also been used in animal studies addressing plastic changes of orientation preference maps (OPMs) in primary visual cortex and potential mechanisms underlying these plastic changes. Intracortical high-frequency micro-stimulation has been shown to reliably drive plastic changes of receptive fields and of cortical maps within a few hours (Nudo et al., 1990). Applying this technique in visual cortex demonstrated that the layout of OPM could be selectively altered (Godde et al., 2002). Further insight into the plastic processes induced by high-frequency stimulation was provided by a study combining real-time optical imaging and TMS. It was found that single pulse TMS large portion of cortical regions were strongly suppressed, while 10 Hz rTMS lead to enhanced spontaneous activity accompanied by wide-spread reduction of inhibition. Importantly, subsequent visual stimulation showed signs of long-term potentiation (Kozyrev et al., 2014). Furthermore, this state of enhanced excitability appears to facilitate plastic reorganization. When a given orientation was presented during this state, OPMs were altered in way that the normally balanced representation of all orientations were shifted toward the stimulated orientation (Kozyrev et al., 2018).
Taken together, the available data from the visual system demonstrate that different forms of inhibition-excitation markers are altered during the development of plastic processes consistent with the view that improved perceptual abilities emerge during states of enhanced excitability. The apparent similarity to the observations made in the somatosensory system makes it conceivable that these processes therefore might reflect a general property of sensory plastic processes underlying perceptual learning.
Excitability changes during aging
During aging, brains change in numerous ways. A prominent characteristic is the overall decline in inhibitory mechanisms that go in parallel to a deterioration of perceptual and cognitive performance (Schmolesky et al., 2000; Poe et al., 2001; Leventhal et al., 2003; Hua et al., 2006). In fact, paired-pulse suppression in SI has been found to be reduced in aged rats (David-Jürgens and Dinse, 2010), and motor cortex in elderly healthy participants (Peinemann et al., 2001; Oliviero et al., 2006; Smith et al., 2009). A study in SI in elderly participants combining measurement of paired-pulse suppression with assessment of tactile acuity demonstrated that age-related reduction of paired-pulse suppression was correlated with the age-related decline in spatial discrimination performance (Lenz et al., 2012). These data showed that age-related enhanced excitability was associated with poor perceptual performance, seemingly contradicting the observations summarized above for young adults.
To reconcile these findings made in young adult and elderly participants computer simulations using a mean-field model of cortical activation (Wilson and Cowan, 1973) was used (Pleger et al., 2016). In this model, cortical population activity depends on two factors, the distance between inputs, here the skin, and Mexican-hat-type interactions mediated by local excitation and broad inhibition (Wilson and Cowan, 1973). The presence of either uni- or bimodal field-responses was regarded as an equivalent of the “one” or “two” response perceptual decisions in the psychophysical assessment. Learning and plasticity processes as seen in young adults were modeled by a decreased amount of inhibitory interaction. In contrast, effects of aging were simulated by a broadening of the inhibitory interaction. In the simulations, both “young” and “old” models give rise to a net increase in excitability in line with the empirical data, but the resulting performance differs: While in the young model the interaction leads to focused, spatially circumscribed activations allowing fine spatial discrimination, the old model results in broad, smeared distributions of activation hindering discrimination. According to these simulations, the structure of intracortical excitatory and inhibitory interaction is differentially affected by aging and learning processes explaining the size of cortical representation, the amount of cortical excitability, as well as the outcome of perceptual tasks.
Inhibition markers as predictors of subsequent performance changes
It is common wisdom that there are good and poor learners, but the reasons that individuals are characterized by a tremendous learning variability remains to a large extent unclear (Fahle and Henke-Fahle, 1996). In addition to attention and motivation (Dayan and Balleine, 2002; Ahissar and Hochstein, 2004), other features have been found that predict large fractions of learning variability such as genetic polymorphisms (Kleim et al., 2006; Cheeran et al., 2008) or cortical gray matter thickness (Conde et al., 2012).
Recent studies have shown that also the excitatory state prior to learning can predict a substantial amount of variability. According to these studies, high levels of baseline inhibition as measured immediately before the induction of perceptual learning is associated with largest perceptual improvements (Figure 4). This property ascribes another important function to excitation-inhibition processes in plasticity and perceptual learning.

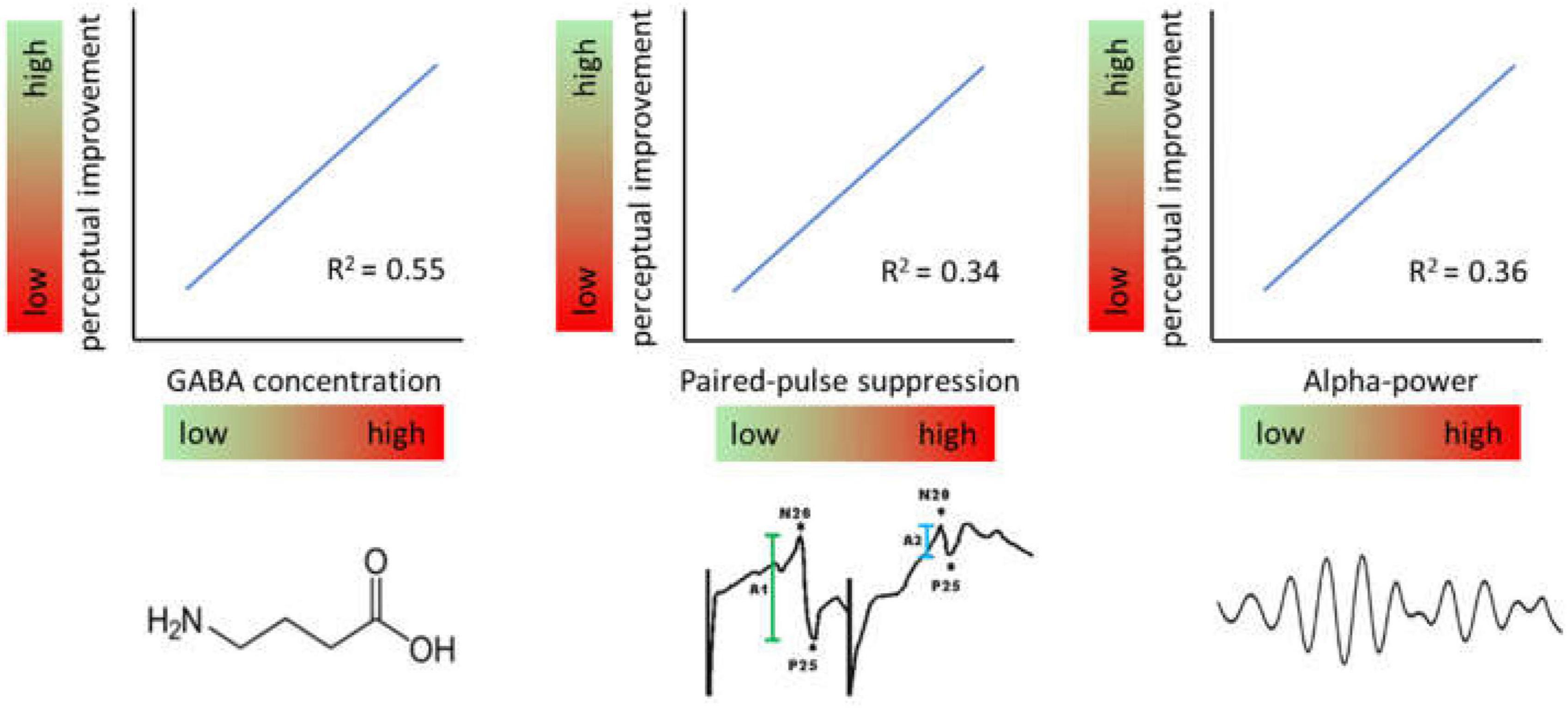

Figure 4. Effects of baseline levels of different markers of inhibition. Generally, high levels of inhibition measured immediately prior to induction of a learning protocol predict high levels of perceptual improvement and vice versa.
In a study measuring the time course of GABA concentrations by MRS in a voxel located in hand representation of SI, participants with the highest GABA concentrations showed largest gain in learning outcome (Heba et al., 2016). By that about 50% of the entire learning variance was explained. A related observation had been made in respect to baseline somatosensory alpha oscillations which have been implicated in gating information processing by suppressing irrelevant information. Recordings of ongoing EEG over the hand representation in SI showed that maximal improvement in a subsequent learning tasks was correlated with individual highest alpha power predicting 35% of the learning outcome (Freyer et al., 2013). Interestingly, the analysis of other frequency bands such as the beta and lower gamma band revealed no comparable dependencies suggesting a special role for alpha frequencies. More recently it was shown that paired-pulse suppression in SI is a similar predictor. Low excitability, i.e., high paired-pulse suppression was associated with high learning outcome explaining around 30% of the variability (Höffken et al., in preparation).
These findings raise two interesting questions. First, the fact that the inhibition markers described explain more than 100% of the total learning variability suggest that they might to some extent be interrelated and rely on rather similar or even identical cellular mechanisms. For example it is presently not clear in how far paired-pulse suppression is linked to GABA concentrations or alpha oscillations. Interestingly, a recent study combined measuring paired-pulse suppression in SI with measuring GABA levels using magnetic resonance spectroscopy (Cheng et al., 2017). They found no correlation between suppression and GABA concentrations, which might indicate that a possible link between both might be more complex. However, due to methodological differences in paired-pulse assessment (using of P35 SEP components, ISI of 500 ms) these data are difficult to reconcile with the technical approach followed in the Höffken et al. (2008) studies.
Second, if it is true that a given inhibition marker predicts up to 50% of the learning variance, and if there is a causal relationship, it is conceivable that manipulating this marker should result in even better learning outcome. This hypothesis had been tested in respect to somatosensory alpha oscillations.
Brain oscillations such as alpha are subject to targeted modification through neurofeedback techniques (Gruzelier et al., 2006; Salari et al., 2012). In the past, neurofeedback (NF) training has been employed to improve cognitive abilities and working and episodic memory performance (Hanslmayr et al., 2005; Zoefel et al., 2011; Hsueh et al., 2016). Also, NF training is used in the treatment of ADHD and epileptic seizures (Sterman, 1981; Egner and Sterman, 2006). Therefore, to make an argument that tactile perceptual learning is indeed caused by changes in individual alpha power, a newly developed neurofeedback protocol was used to up- or down regulate somatosensory alpha within a few sessions (Brickwedde et al., 2019). In brief, these data showed that the largest learning outcome was observed in individuals with highest increase in alpha power (Figure 5).

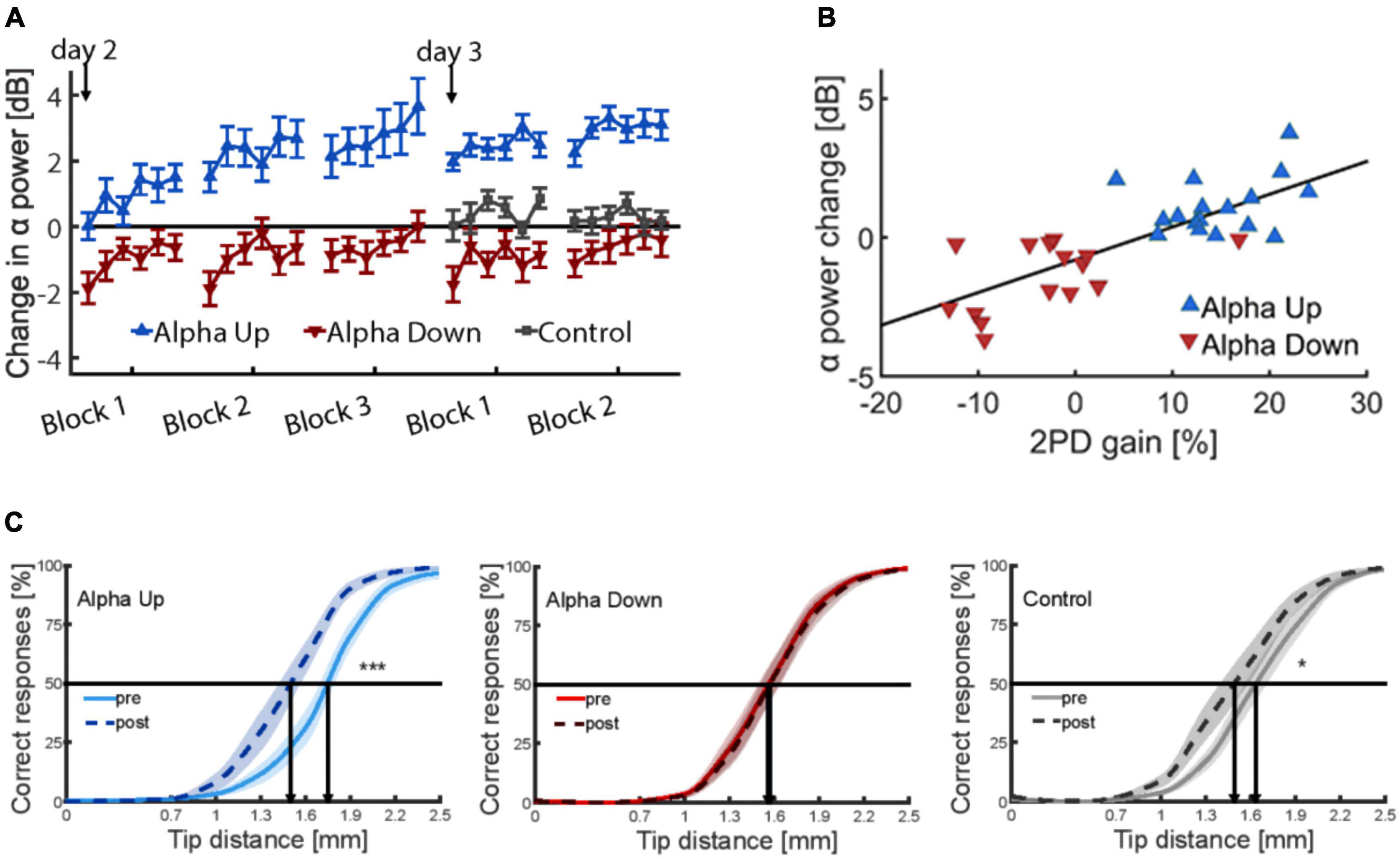

Figure 5. (A) Time course of alpha power changes in somatosensory cortex (mu rhythm) on both training days, relative to the first baseline measure on day one (0 dB), revealing considerable training effects of alpha. (B) Correlation between neurofeedback-induced changes of alpha-power and percent changes in discrimination performance explaining 59% of the variance. (C) Psychometric curves depicting tactile acuity before and after 20 min of repetitive sensory stimulation. Learning effects are indicated by a shift of the curve to the left. Data are presented as mean ± SEM. *p < 0.05; ***p < 0.001. The alpha-up group shows significant enhancement of improvement compared to controls, while participants of the alpha-down group show no improvement (Brickwedde et al., 2019).
In contrast, participants who were trained in the alpha down group to decrease their alpha power, were not able to improve discrimination performance implying that learning processes had been blocked in this group. The results of a control group were in between. As a main result, baseline alpha power before learning predicted 59% of the interindividual learning variability (Brickwedde et al., 2019). In contrast, under spontaneous conditions, alpha power explained only 35% of the variance (Freyer et al., 2013) indicating a substantial advantage through the NF training.
Conclusion
The balance of inhibition and excitation plays a fundamental role in stabilizing brain processing and is critically involved in plasticity and learning. We here addressed the role of excitatory states and inhibition in somatosensory and visual cortex during various forms of perceptual learning. Generally, studies in human participants requires indirect and non-invasive approaches to assess states of excitation and inhibition. We summarized different approaches used such as the assessment of paired-pulse behavior, GABA concentrations by MRS, phosphene induction by TMS or the measurement of alpha oscillations. We emphasize that the interrelatedness of the different excitation-inhibition markers is currently poorly understood requiring substantial research. Simultaneous recordings of paired-pulse behavior in SI and Vi imply that cortical excitability characterizes the currently prevailing excitatory state within a circumscribed patch of cortex. We reviewed the available evidence for parallel and simultaneous changes of excitability and perceptual performance following various approaches that can alter perception in a specific way. We demonstrated that in both SI and VI improved perceptual abilities are accompanied by enhanced excitation, while impaired perception is associated with enhanced inhibition. In addition, recent findings demonstrated that the baseline states of excitation and inhibition measured immediately before a perceptual learning protocol can predict the learning outcome to a considerable degree. This bears important implications for targeted interventions aiming at enhancing learning outcome by altering baseline states of excitation. We summarize first attempts that successfully employed neurofeedback training to up- and down-regulate alpha power prior to learning, which resulted in a significant enhancement of learning. High learning efficacy is an essential requirement for successful clinical rehabilitation measures and in school education. Accordingly, neurofeedback training or other interventions targeting baseline states of excitation could be prime candidates to enhance learning capabilities not only under laboratory conditions but also in everyday life situations.
Author contributions
HD wrote the first draft of the manuscript. All authors performed the conceptualization, methods, data collection and analysis, commented on previous versions of the manuscript, contributed to the study conception and design, and read and approved the final manuscript.
Funding
This work was supported by the Deutsche Forschungsgemeinschaft (DFG; German Research Foundation), project no. 122679504 - SFB 874 to HD (A5), and OH (A5), and MT (A1).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
