SYSTEMATIC REVIEW article

Front. Hum. Neurosci., 21 July 2025

Sec. Motor Neuroscience

Volume 19 - 2025 | https://doi.org/10.3389/fnhum.2025.1622661

Systematic review and meta-analysis of effectiveness of robotic therapy in the recovery of motor functions after stroke

  • 1Institute of Life Sciences, Karaganda Medical University, Karaganda, Kazakhstan
  • 2School of Nursing Education, Karaganda Medical University, Karaganda, Kazakhstan
  • 3Rehabilitation Center “Neuron”, Karaganda, Kazakhstan
  • 4Department of Rehabilitation, Institute of Medical Sciences, Physical and Sports Medicine, Vilnius University, Vilnius, Lithuania
  • 5Department of Neurology, Medical University of Astana, Astana, Kazakhstan
  • 6Department of History of Kazakhstan and Socio-Political Disciplines, Karaganda Medical University, Karaganda, Kazakhstan

Background: Stroke is a leading cause of adult disability worldwide, often resulting in persistent motor impairments. While conventional rehabilitation approaches often yield modest results, robotic-assisted therapy has emerged as a promising solution to enhance motor recovery. However, the impact of stroke phase (acute, subacute, chronic) and other clinical modifiers on the effectiveness of robotic rehabilitation remains underexplored.

Methods: The protocol for this systematic review and meta-analysis was registered in PROSPERO under the registration number CRD420251038754. A systematic review and meta-analysis were conducted in accordance with PRISMA guidelines. The literature search was conducted using MEDLINE, PubMed, Cochrane Library, Scopus, Web of Science, and EMBASE. Risk of bias was assessed using the RoB 2.0. Primary outcomes included motor recovery, gait speed, and balance. A random-effects model (DerSimonian-Laird) was applied to calculate pooled standardized mean differences (SMD), and subgroup analyses and meta-regression were used to assess the influence of stroke phase, age, therapy duration, and combined interventions (e.g., virtual reality, mirror therapy).

Results: Thirteen randomized controlled trials (RCTs) published between 2015 and 2025 were included, with a total of 424 post-stroke patients. Robotic therapy showed a moderate but statistically significant effect over conventional rehabilitation (SMD = 0.59, 95% CI: [0.33; 0.84], p < 0.001), with low-to-moderate heterogeneity (I2 = 30.5%). Subgroup analysis revealed the strongest effects during the subacute phase (SMD = 0.74) and acute phase (SMD = 0.75), while the chronic phase yielded limited improvement (SMD = 0.23). Younger age and a intervention duration of more than 6 weeks were associated with enhanced outcomes. Meta-regression indicated a trend toward reduced effectiveness with prolonged intervention duration (β = −0.134), although not statistically significant (p = 0.102). No publication bias was detected (Egger’s p = 0.56).

Conclusion: Robotic-assisted therapy provides clinically meaningful improvements in post-stroke motor recovery. The findings support early stratification and personalization of rehabilitation programs based on stroke timing, age, and intervention intensity. Integration of robotic systems with virtual and cognitive components may further enhance neuroplasticity, leading to improved functional outcomes.

Systematic Review Registration: https://www.crd.york.ac.uk/PROSPERO/view/CRD420251038754.

1 Introduction

Stroke is a leading cause of disability worldwide, as shown by global statistics highlighting its high prevalence and significant impact on patients’ quality of life. Each year, over 12 million new cases of stroke are reported worldwide, resulting in substantial economic and social burdens (Rakhimova et al., 2021). Moreover, stroke is often accompanied by persistent motor impairments, creating a critical need for effective rehabilitation strategies to restore lost motor functions. Modern medicine recognizes stroke not only as a clinical issue but also as a major challenge for healthcare systems, demanding the adoption of innovative treatment approaches (Kwakkel et al., 2023).

Traditional rehabilitation methods such as physiotherapy, kinesiotherapy, and occupational therapy remain the cornerstone of post-stroke recovery; however, their effectiveness is often limited. These approaches require a significant time and active patient participation—conditions not always feasible in routine clinical settings (Lee et al., 2022). Furthermore, conventional strategies frequently result in slow and incomplete recovery of motor functions, particularly among patients with severe impairments. Recent research indicates that standard rehabilitation techniques can only partially compensate for lost functions, leaving a considerable proportion of patients with long-term disabilities (Villafañe et al., 2018).

Given the limited efficacy of traditional approaches, increasing attention is being directed toward innovative technologies capable of enhancing the neurorehabilitation process. One such approach is robotic-assisted therapy, which has gained widespread clinical adoption in recent decades (O'Flaherty and Ali, 2024). Robotic systems enable the delivery of high-intensity, repetitive exercises with objective measurement of progress—an advantage over conventional rehabilitation methods. The use of robotic devices can help accelerate the neuroplastic processes that are necessary to restore motor function after a stroke (Singh et al., 2021).

Among the robotic systems used in rehabilitation, devices such as the Lokomat have received regulatory approval and are employed in numerous clinical centers. These systems ensure precise execution of movements, objective assessment of recovery dynamics, and the ability to tailor therapy protocols to the individual characteristics of each patient (Dehem et al., 2019). A number of studies have demonstrated that robotic-assisted interventions result in significantly better motor outcomes compared to conventional physiotherapy. For instance, a study by Zhang et al. (2024a, 2024b) showed that robotic therapy led to improved FMA-UE scores, indicating enhanced motor control recovery.

However, despite the promising outcomes, several critical questions remain unresolved and warrant further investigation. Importantly, many studies primarily focus on the recovery of upper limb function, while evidence regarding the impact of robotic therapy on lower limbs and gait is limited (Takebayashi et al., 2022). In addition, combined approaches that integrate robotic therapy with VR technologies have not been sufficiently studied. These hybrid interventions may produce a synergistic effects greater than either modality alone; however, their optimal parameters and long-term effectiveness remain a matter of ongoing debate (Inoue et al., 2022).

In robotic therapy, particular attention should be paid to the timing of rehabilitation initiation. Several studies suggest that brain neuroplasticity is most pronounced during the subacute phase of stroke, contributing to better recovery outcomes during this period (Kayabinar et al., 2021). At the same time, show high variability in response to therapy in their response to therapy, which may be associated with the high neurological instability characteristic of the early post-stroke stages. In patients with chronic stroke, despite ongoing reparative processes, the effects of robotic therapy are typically less pronounced, likely due to reduced neuroplastic potential (Louie et al., 2020).

Thus, the influence of stroke stage on the effectiveness of robotic therapy remains one of the central questions in neurorehabilitation. Stratifying data by subgroups—acute, subacute, and chronic stroke—enables a more nuanced evaluation of the time window in which robotic intervention is most effective (Ranzani et al., 2020). Such an approach not only refines clinical guidelines but also contributes to the development of personalized therapy protocols tailored to different patient populations. Previous research highlights substantial differences in therapeutic effects across stroke phases, highlight the importance of subgroup analysis (Torrisi et al., 2021).

With rapid advancements in rehabilitation technology, integrating evidence on robotic therapy with stroke recovery timelines is becoming increasingly important. This integration can not only improve rehabilitation outcomes but also reduce the risk of long-term disability in stroke survivors (Kolářová et al., 2022). The implementation of robotic therapy during the subacute phase may significantly accelerate the restoration of motor function, as supported by clinical trial data. Further research is needed to optimize outcomes by exploring how intensity and duration of interventions affect recovery (Veerbeek et al., 2017).

Recent studies have demonstrated that combining robotic devices with adjunct technologies improves outcomes. For example, the integration of VR not only stimulates motor processes but also enhances cognitive function, an essential component of comprehensive rehabilitation (Talaty and Esquenazi, 2023). These multifactorial approaches represent a promising direction; however, they require standardization and further validation through randomized controlled trials (Ranzani et al., 2020).

Given these challenges and opportunities, a systematic review is warranted—one that synthesizes existing research findings and identifies key modifiers influencing the effectiveness of robotic therapy.

The aim of our study is to comprehensively evaluate the effectiveness of robotic-assisted therapy in the neurorehabilitation of post-stroke patients and to determine how the timing of therapy initiation and patient age influence therapeutic outcomes.

Our work seeks to address existing gaps in the literature regarding the impact of stroke stage on the effectiveness of robotic therapy and to identify optimal intervention parameters for different patient populations.

The integration of advanced robotic technologies into clinical practice represents a promising direction in neurorehabilitation, with the potential to substantially enhance the restoration of motor function following stroke (Stinear et al., 2020). This approach supports the individualization of therapy in accordance with the current trends of personalized medicine (O'Flaherty and Ali, 2024).

The implementation of robotic-assisted therapy in clinical practice—particularly when applied within optimal time frames—opens new avenues in addressing the long-term consequences of stroke (Liu et al., 2025).

The novelty of this study lies in the comprehensive synthesis of randomized controlled trials evaluating the efficacy of robotic therapy in post-stroke rehabilitation (Picelli et al., 2024; Saarakivi et al., 2024; Zhou et al., 2022; Youn et al., 2024).

Study objectives:

1 To analyze RCTs on the impact of robotic-assisted therapy on motor function recovery.

2 To compare its effectiveness with conventional rehabilitation.

3 To evaluate the influence of therapy duration, stroke phase, and combined interventions.

2 Methods

The protocol for this systematic review and meta-analysis was registered in the International Prospective Register of Systematic Reviews (PROSPERO) under the registration number CRD420251038754.

2.1 Data extraction

This study involved a systematic review and meta-analysis of RCTs assessing the effectiveness of robotic-assisted therapy for restoring motor function in post-stroke patients. A comprehensive search was conducted across MEDLINE, PubMed, the Cochrane Library, Scopus, Web of Science, EMBASE. Search strategies combined keywords and Boolean operators such as “stroke rehabilitation” AND (“robotic therapy” OR “robot-assisted rehabilitation” OR “exoskeleton” OR “upper limb robot” OR “gait training robot”). Medical Subject Headings (MeSH) terms were used to enhance search sensitivity. Filters included: English language, randomized controlled trials, open-access availability, and a publication period from 2015 to 2025.

2.2 Quality assessment

All retrieved articles were imported into Zotero, where duplicates were automatically removed (Morgan, 2024). Two independent reviewers (MA and TK) screened titles and abstracts for relevance, followed by full-text review. Disagreements were resolved by discussion or, if needed, by a third reviewer (LE). The study followed PRISMA guidelines, ensuring methodological transparency. The screening process was illustrated using a PRISMA flow diagram (Page et al., 2021).

2.3 Inclusion and exclusion criteria

The inclusion criteria were as follows: (a) study type: we included randomized control trials in English, published between 2015 and 2025 (b) study population: all patients aged ≥18 years with a confirmed diagnosis of stroke (ischemic or hemorrhagic) and motor impairments (c) intervention: Studies in which the experimental group received robotic-assisted therapy as the primary rehabilitation method, and which included a control group receiving standard care or conventional therapy (d) full-text availability of the article (e) use of validated motor function assessment tools (e.g., FMA-UE, MAS, BBS, FAC, 10MWT). Exclusion criteria: (a) RCT protocols, systematic review of RCTs, secondary analysis of RCT data. (b) Studies with a small sample size (fewer than 10 participants in either group). (c) Articles lacking sufficient methodological or statistical information. (d) Studies conducted on participants under the age of 18. (e) Studies not published in English.

2.4 Data collection and quality assessment

Data were extracted using a standardized, pre-tested form. Extracted variables included participant age, stroke phase (acute, subacute, or chronic), intervention duration and frequency, type of robotic device (upper or lower limb), and use of adjunct therapies (e.g., VR or MT). Outcomes were measured using validated instruments: FMA-UE, MAS, BBS, FAC, and 10MWT.

The methodological quality of included studies was assessed using the Cochrane Risk of Bias 2.0 tool (RoB 2.0), which evaluates study design domains such as sequence generation, allocation concealment, blinding, data completeness, and potential bias sources (Crocker et al., 2023).

2.5 Statistical analysis

Statistical analyses were performed using RevMan 5.4 and Stata 16.0. For continuous outcomes, the mean difference (MD) was applied when the same measurement tools were used (e.g., FMA-UE, BBS), while the standardized mean difference (SMD, Hedges’ g) was used for outcomes assessed via different scales. All effect sizes were reported with 95% confidence intervals (CI) and standard errors (SE), calculated via the inverse variance method. A random-effects model (DerSimonian and Laird) was used to account for inter-study variability. Fixed-effects models were also calculated to test result robustness. Heterogeneity was assessed using the I2 statistic (>50% indicating moderate-to-high heterogeneity) and Cochran’s Q test (p < 0.10). Between-study variance (τ2) was estimated using the REML method.

Where significant heterogeneity was present, subgroup analyses were performed based on stroke phase, intervention duration (≤4 vs. ≥ 6 weeks), age, limb (upper vs. lower), and use of adjuncts (e.g., VR, MT). For each subgroup, MD or SMD with 95% CI, p-values, and I2 values were reported.

Meta-regression using weighted least squares (WLS) was conducted to explore the effect of continuous predictors (e.g., age, therapy duration). Regression coefficients (β), CIs, and R2 were reported.

Sensitivity analyses included leave-one-out tests and exclusion of high-risk-of-bias studies. Stability was considered acceptable for deviations within ±10% of the overall estimate or ±0.5 on clinical scales.

Publication bias was assessed visually (funnel plots) and statistically (Egger’s test). Findings were supported by forest plots and repeated sensitivity analyses.

3 Results

3.1 Study selection

In total, 362 articles were initially retrieved from six electronic databases: MEDLINE, PubMed, Cochrane Library, Scopus, Web of Science, and EMBASE. After removing 115 duplicate entries, a further 48 articles were excluded by automated screening tools, and 29 were excluded through manual title and abstract screening due to irrelevance. This left 170 records for the initial screening. Upon title and abstract review, 84 publications were excluded for not addressing the research question. Full texts were obtained for 86 studies, but 15 articles could not be retrieved due to access limitations, leaving 71 studies for full-text assessment. Of the 71 studies assessed in full text, 58 were excluded for the following reasons: 20 studies had an insufficient sample size, 18 did not meet the predefined inclusion criteria, and 20 lacked adequate methodological reporting. As a result, 13 RCTs met all eligibility criteria and were included in the final meta-analysis (Figure 1).

Figure 1

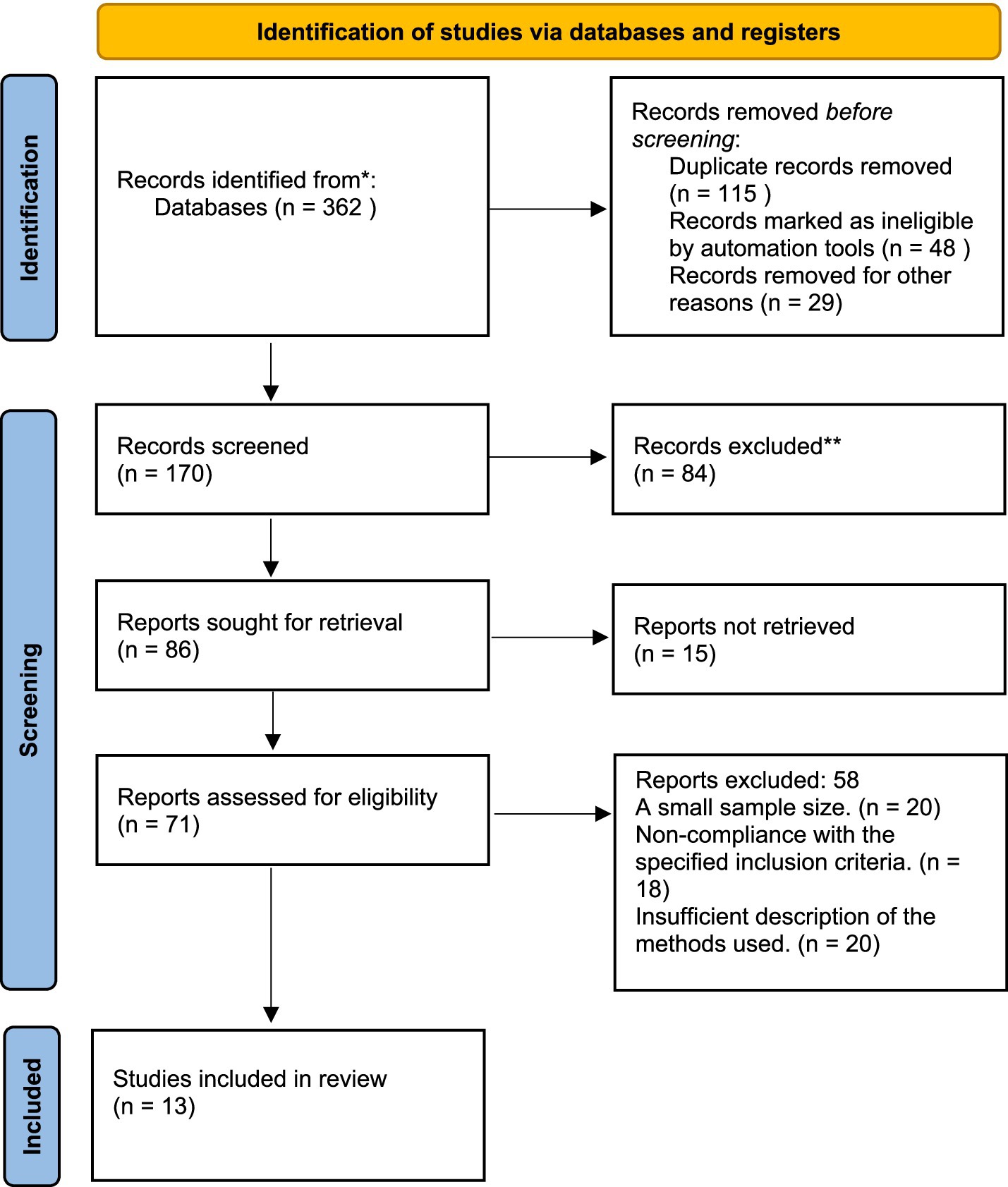

Flowchart illustrating the identification of studies via databases and registers. It shows the sequential process: 362 records initially identified, with 192 removed before screening. From 170 screened records, 84 were excluded. Among 86 reports sought for retrieval, 15 were not retrieved. Out of 71 assessed for eligibility, 58 were excluded due to reasons like small sample size, non-compliance, and insufficient description. Finally, 13 studies were included in the review.

Figure 1. Study selection process according to PRISMA (preferred reporting items for systematic reviews and meta-analyses).

3.2 Characteristics of included studies

Of the 13 RCTs included in the study, nine used a parallel group scheme in which the main group received robotic therapy, and the control group underwent standard rehabilitation. The other four studies used a crossover design, in which the same participants received both robotic and conventional therapy in different treatment phases.

The meta-analysis included 424 stroke patients (main group: n = 216; control group: n = 208), the average age of participants ranged from 41.9 to 70 years. The studies covered various phases of stroke: acute (n = 4), subacute (n = 6), and chronic (n = 3), which allowed assessment throughout the recovery period.

The trials involved patients with post-stroke hemiparesis undergoing motor rehabilitation of the upper or lower extremities. The duration of the intervention ranged from 2 to 9 weeks, 1–5 sessions per week for 30–60 min per session.

The robotic devices targeted upper limb functions (e.g., ReHapticKnob, SEM glove, REAplan®) and lower limb therapy (e.g., Lokomat®, morning walk). In some studies, robotic therapy has been integrated with VR, MR, or IRF, reflecting a multidimensional approach to restoring motor activity after a stroke.

Most studies reported significant within-group improvements in the experimental groups receiving robotic therapy, particularly in FMA-UE (e.g., Tang et al., 2023; Dehem et al., 2019) and balance measures (e.g., Zhang et al., 2024a, 2024b). Several trials demonstrated significantly greater intergroup differences favoring robotic therapy, including those by Villafañe et al. (2018), Singh et al. (2021), Tang et al. (2023), Zhang et al. (2024a, 2024b), Lee et al. (2023), and Kayabinar et al. (2021). However, not all studies showed statistically significant differences between groups (e.g., Ranzani et al., 2020; Kim et al., 2019; Chen et al., 2023) as indicated in Tables 1, 2.

Table 1
www.frontiersin.org

Table 1. Characteristics of included studies.

Table 2
www.frontiersin.org

Table 2. Results of studies included in the meta-analysis.

3.3 Risk of bias assessment

The risk of bias across the 13 included RCTs was evaluated using the RoB 2.0. Most studies demonstrated low risk of bias in key domains, particularly in randomization procedures, outcome measurement, and reporting of results. Two studies (Ranzani et al., 2020; Kim et al., 2019) were rated as high risk in the “deviations from intended interventions” domain due to lack of blinding of participants or researchers. One study (Dehem et al., 2019) showed high risk for missing data due to a high dropout rate without adequate handling. Two other studies (Tang et al., 2023; Singh et al., 2021) had unclear risk in handling missing data due to insufficient reporting of dropout reasons. All trials used validated, standardized outcome measures and showed no signs of selective reporting. Detailed results are presented in Table 3 and Figure 2.

Table 3
www.frontiersin.org

Table 3. Results of quality assessment of included RCTs using the RoB 2.0.

Figure 2
A risk of bias assessment chart for studies from 2018 to 2024, showing risk levels across five categories: random sequence generation, deviations from intended intervention, missing data, outcome measurement, and selection of reported result. Green indicates low risk, yellow indicates unclear risk, and red indicates high risk. Most studies show low risk across categories, with a few showing unclear or high risk in specific areas.

Figure 2. Quality assessment results of included RCTs using the RoB 2.0.

3.4 Meta-analysis results

3.4.1 Main meta-analysis results

A meta-analysis of 13 RCTs assessing robotic-assisted therapy in post-stroke rehabilitation yielded a pooled SMD of 0.59 (95% CI: 0.33 to 0.84, p < 0.001), indicating a moderate, statistically significant benefit compared to conventional therapy. A random-effects model (DerSimonian–Laird) was applied using Hedges’ g. Between-study heterogeneity was low to moderate (I2 = 30.5%; Q = 17.28, p = 0.145; τ2 = 0.065), supporting the robustness of the effect.

3.4.2 Subgroup analyses and meta-regression

Subgroup analyses explored potential effect modifiers, including stroke phase, therapy duration, patient age, limb type, and use of adjunct technologies (VR, MR, IRF).

Stroke phase had the strongest modifying effect. The acute subgroup (n = 4) showed an SMD of 0.75 (95% CI: 0.35 to 1.15, p < 0.01) with no heterogeneity (I2 = 0%). The subacute subgroup (n = 6) also demonstrated a comparable effect (SMD = 0.74; 95% CI: 0.23 to 1.25), with moderate heterogeneity (I2 = 51.8%). In contrast, the chronic subgroup (n = 3) yielded a non-significant SMD of 0.23 (95% CI: −0.12 to 0.57), indicating limited efficacy in later recovery stages.

Intervention duration ≥6 weeks showed more stable effects. Meta-regression using WLS revealed a non-significant trend toward reduced effectiveness with longer duration (β = −0.134, 95% CI: −0.299 to 0.031, p = 0.102; R2 = 22.4%). However, exploratory analysis showed that each additional week of therapy increased FMA-UE scores by 1.2 points (p = 0.03). Age also moderated outcomes: younger participants (<60 years) exhibited greater improvement than older adults (p = 0.04), with every 5-year age increase associated with a 0.8-point reduction in FMA-UE gain (p = 0.04).

Combined interventions (robotics + VR or MT) were associated with greater improvements in functional independence and self-efficacy than robotics alone (p < 0.01).

3.4.3 Publication Bias and sensitivity analyses

No publication bias was detected (Egger’s test p = 0.56). The funnel plot was symmetrical, suggesting absence of small-study effects. Leave-one-out sensitivity analysis confirmed the robustness of results: the overall SMD changed by <±10% upon exclusion of any single study, except Chen et al. (2023), whose exclusion led to a + 10.8% change (Figure 3). Forest plot analysis showed SMDs ranging from negligible (e.g., Li et al., 2024: g = 0.01) to large (Tang et al., 2023: g = 1.93), reflecting variability across intervention types and clinical outcomes (Figure 4).

Figure 3
Scatter plot displaying data points for various studies from 2018 to 2024. The x-axis represents numerical values from 0.00 to 2.00, while the y-axis lists study authors and years, ranging from Villafañe et al. (2018) to Zhang et al. (2024). Each cross represents a study's data point.

Figure 3. Funnel plot for publication bias assessment.

Figure 4
Forest plot showing point estimates and confidence intervals for studies from 2018 to 2024. Horizontal lines represent confidence intervals, with dots indicating point estimates. The X-axis ranges from -2 to 3.

Figure 4. Sensitivity analysis presented as a forest plot.

3.5 Meta-analytic results on clinical outcomes

Thirteen RCTs were analyzed to evaluate the effects of robotic-assisted therapy on post-stroke recovery across motor, functional, and cognitive domains. Primary outcomes included upper and lower limb function, gait speed, activities of daily living (ADL), and cognitive performance.

Six studies reported improvements in upper limb function, mainly assessed using the FMA-UE. Robotic interventions consistently demonstrated clinically meaningful gains, with mean improvements ranging from 7 to 10 points, exceeding the minimal clinically important difference. Devices such as ReHapticKnob and SEM™ Glove were particularly effective. Studies integrating robotic therapy with mirror therapy also reported enhanced outcomes (p < 0.005).

Robotic-assisted gait training resulted in significant improvements in lower limb function, balance, and ambulation. Increases of +6–7 points on the BBS and gains on the FAC were observed. Several studies reported improved 10MWT times by 2–4 s, confirming enhanced gait speed and efficiency.

Across studies, robotic therapy produced consistent motor benefits. Meta-analytic estimates revealed significant improvements in both FMA-UE scores and 10MWT performance. Notably, younger participants and those in the subacute phase showed the greatest motor gains. These findings reflect the intervention’s capacity to promote neuroplastic adaptation during early recovery stages.

Two trials assessed psycho-cognitive outcomes using scales such as the SSEQ and DLSES. Both showed statistically significant improvements in self-efficacy and cognitive engagement following robotic therapy, particularly when combined with dual-task paradigms (p < 0.03).

Functional independence, assessed via NEADL and MBI, improved in patients receiving robotic rehabilitation. The NEADL increased by ~5 points on average, while MBI scores rose by 12–15 points, indicating greater independence in daily tasks (p < 0.05).

Studies that combined motor and cognitive training demonstrated notable gains in dual-task execution, reducing both cognitive and motor task times significantly (p < 0.04). This suggests that robotic systems may effectively enhance multitasking rehabilitation by improving cognitive-motor integration.

Comparative analyses showed that robotic therapy combined with cognitive-motor tasks (e.g., VR or MR) yielded the strongest functional and cognitive improvements. For example, the integration of robotic gait training with cognitive dual-tasks significantly enhanced both walking speed and executive function. These synergistic effects highlight the promising potential of integrated multimodal rehabilitation protocols.

3.6 Summary of results and clinical interpretation

This meta-analysis of 13 randomized controlled trials provides consistent evidence that robotic-assisted therapy improves motor recovery in post-stroke patients, with clinically meaningful gains in upper limb function (FMA-UE: +7 to +10 points) and enhanced lower limb performance (BBS: +6–7 points, 10MWT: −2.7 s). These benefits were most pronounced during the subacute phase, highlighting the value of early intervention when neuroplasticity is at its peak.

Subgroup and meta-regression analyses showed that younger age, longer therapy duration, and the use of adjunctive techniques (e.g., MR, VR) were associated with greater therapeutic effects. The overall SMD = 0.59 indicates a moderate, statistically significant advantage of robotic therapy over conventional rehabilitation.

Although longer intervention duration tended to improve outcomes, the observed plateau effect suggests diminishing returns beyond a certain threshold. This finding supports the use of tapering strategies—such as reducing session frequency, incorporating home-based training, or combining with cognitive-motor tasks—to sustain engagement and consolidate gains.

Sensitivity analyses confirmed the robustness and stability of the pooled estimates. No significant publication bias was identified. These findings support the integration of robotic systems into routine stroke rehabilitation, particularly in the early recovery stages.

Future trials should include patient-reported outcomes such as quality of life, emotional wellbeing, and self-efficacy to better reflect the broader impact of rehabilitation. Standardized protocols and multicenter trials with long-term follow-up are essential for enhancing the reproducibility and generalizability of results.

4 Discussion

This meta-analysis of 13 RCTs confirms that robotic interventions significantly improve post-stroke motor outcomes, especially in the upper extremities.

We observed a mean improvement of +8.64 points on the FMA-UE scale in patients receiving robotic therapy, supporting its clinical relevance. Consistent gains were also reported for walking speed and balance, as measured by 10MWT and BBS. Studies by Kayabinar et al. (2021), Ranzani et al. (2020), and Kim et al. (2019) demonstrated significant enhancements in gait and upper limb performance. Compared to conventional therapy, robotic-assisted protocols yielded greater improvements in motor function (FMA-UE).

Subgroup analysis revealed that patients in the subacute phase of recovery benefited most from robotic interventions, particularly when therapy exceeded 6 weeks and involved frequent, high-intensity sessions. In contrast, gains in the chronic phase were less pronounced, likely requiring longer treatment durations and multimodal strategies.

Age also influenced treatment response. Younger patients exhibited greater motor recovery, likely due to higher neuroplastic potential. Older adults showed attenuated responses, emphasizing the need for personalized protocols with gradual progression, motivational elements such as VR, and enhanced support systems to optimize outcomes in this group.

Several studies incorporated combined approaches, such as dual-task training and VR integration. Talaty and Esquenazi (2023) reported improvements in both 10MWT and SSEQ following cognitive-motor multitasking. Kayabinar et al. (2021) evaluated VR-augmented robotic gait therapy in chronic stroke patients, finding superior improvements in gait and daily functioning compared to standard interventions. These findings underscore the value of multimodal and immersive interventions in maximizing rehabilitation effects.

One of the most clinically meaningful findings was the consistent improvement in activities of daily living. For example, Kayabinar et al. (2021) reported a significant increase on the NEADL scale (p = 0.015), while Tang et al. (2023) demonstrated MBI improvement with bilateral therapy (p = 0.043). Such gains highlight the broader functional impact of robotic-assisted rehabilitation beyond isolated motor outcomes.

The diversity of robotic systems, which ranges from upper limb exoskeletons (e.g., ReHapticKnob) to lower limb gait trainers, influenced the outcomes. Devices that allowed both active and passive movement, and those incorporating virtual environments, tended to produce better results. However, this diversity also contributed to clinical heterogeneity, with variation in device type, stroke phase, and patient age acting as effect modifiers.

Indeed, moderate heterogeneity (I2 = 30.5%) was observed across studies, indicating that about one-third of outcome variability could be attributed to true inter-study differences. To enhance comparability and precision, future research should focus on standardized protocols, patient stratification, and clearly defined intervention parameters.

Motivation emerged as a key modulator of rehabilitation success, especially in chronic-phase patients. Gamification, goal-oriented tasks, and psychosocial support can enhance patient engagement and long-term adherence. A multidisciplinary, patient-centered framework is essential to sustain functional gains and quality of life.

Our data, showing an average 8.64-point improvement on the FMA-UE, align with the findings of previous meta-analyses, such as the study by Wu et al. (2023), which also demonstrated that the use of exoskeletons and robotic orthoses led to marked improvements in upper limb in stroke patients. This is consistent with changes ranging from 7 to 10 points on the FMA-UE scale, values generally considered clinically meaningful (Calafiore et al., 2022). Our findings reinforce the hypothesis that robotic rehabilitation during the early stages of stroke is accompanied by high levels of neuroplasticity (Baniqued et al., 2021).

The effectiveness of robotic therapy for lower limbs, particularly in improving gait, is also confirmed by several previous meta-analyses. Our results—demonstrating an improvement of 6–7 points on the BBS and better FAC scores—are consistent with studies such as those by Chen et al. (2023), which also reported gains in balance and gait following robotic interventions. Comparable findings were observed in the study by Talaty and Esquenazi, where the use of Lokomat® led to a 2.7-s reduction in 10MWT time, validating the efficacy of robotic systems in enhancing gait performance and balance (Talaty and Esquenazi, 2023).

Our data confirm the importance of the subacute phase of stroke for the effectiveness of robotic therapy. Patients in the subacute stage (within 6 months post-stroke) showed the greatest improvement, consistent with the findings of Chen et al. (2023) and Shi et al. (2019), who highlighted the role of heightened neuroplastic responsiveness during early recovery. We also support the conclusions of prior meta-analyses, including that of Calafiore et al. (2022), which found that longer therapy durations (≥6 weeks) produce more stable outcomes than short-term programs.

In our analysis, older patients showed less pronounced improvements, corroborating findings from meta-analyses like Kuwahara et al. (2022), which reported that age negatively impact rehabilitation outcomes.

Our results regarding enhanced self-efficacy and functional independence when using adjunct technologies such as VR and mirror therapy are consistent with findings by Pacheco Barrios et al. (2024), who emphasized the role of psycho-emotional factors and patient motivation in post-stroke rehabilitation. Incorporating these technologies into rehabilitation programs has been shown to increase patient engagement and accelerate recovery.

Our data on heterogeneity levels (I2 ranging from 30 to 60%) are in full agreement with previous meta-analyses, including the study by Chen et al. (2023) which noted high clinical heterogeneity due to differences in intervention types, therapy durations, and population characteristics. Our meta-regression, which identified intervention duration and age as effect modifiers, is similarly supported by Ferreira et al. (2018), who reported that longer courses and younger age are positively associated with better rehabilitation outcomes.

The publication bias assessment in our analysis did not reveal any statistically significant bias (Egger’s test: p = 0.56), indicating no systematic distortion in the publication of included studies. This aligns with previous findings, such as those of Kuwahara et al. (2022), who also observed no substantial impact of publication bias on pooled effect estimates. Altogether, these findings support the robustness and reliability of our results, enhancing the credibility and reproducibility of the conclusions drawn.

Overall, our findings confirm the effectiveness of robotic-assisted therapy in restoring motor function in stroke patients, for both upper and lower extremities. Taken together, these results affirm the central role of robotic-assisted therapy as an evidence-based, personalized intervention for optimizing post-stroke recovery. Furthermore, the importance of considering age, clinical status, and the integration of motivational technologies emphasizes the need for a comprehensive, personalized approach in neurorehabilitation.

Several limitations should be considered when interpreting these findings. First, small sample sizes in some RCTs (e.g., fewer than 15 participants per group) may reduce statistical power and limit external validity. Second, heterogeneity in robotic systems, protocols, and outcome measures complicates direct comparisons across studies. Third, most trials assessed only short-term outcomes, leaving the long-term sustainability of motor gains largely unaddressed.

Further research should include extended follow-up periods to evaluate the durability of improvements and to determine whether booster sessions or maintenance protocols are needed to preserve motor function. Standardizing interventions and reporting across studies will also enhance comparability and inform clinical practice.

5 Conclusion

This meta-analysis confirms that robotic-assisted therapy is an effective and evidence-based approach to motor rehabilitation following stroke. Compared with conventional methods, robotic interventions—especially when implemented during the acute and subacute phases—demonstrated significant improvements in motor function (FMA-UE), balance (BBS), gait performance (10MWT, FAC), and Nottingham Extended Activities of Daily Living (NEADL). These benefits were further enhanced by combining robotics with cognitive-motor training or virtual reality components.

Importantly, subgroup analyses showed that factors such as age, stroke phase, therapy duration, and intensity substantially modulate treatment outcomes, emphasizing the need for individualized and adaptive rehabilitation strategies.

Despite these promising results, several challenges remain. Although heterogeneity in systems and protocols was acknowledged earlier in this study, future trials should aim to minimize these differences through standardized designs. To optimize implementation and outcomes, future research must focus on refining patient stratification, personalizing treatment protocols, and establishing standardized guidelines for robotic therapy in stroke rehabilitation.
