Abstract
Background: Anterior cruciate ligament reconstruction (ACLR) is a common treatment for anterior cruciate ligament (ACL) injury. However, after ACLR, a significant proportion of patients do not return to pre-injury levels. Research on muscle function during movement has important implications in rehabilitation.
Methods: Sixty patients with unilateral ACL injury were recruited for this study and assigned into three groups: group A, individuals with an ACL injury before 6 months; group B, individuals with ACLR from 6 months to 1 year; and group C, individuals with ACLR 1 year later. Surface electromyography (SEMG) signals were collected from the bilateral rectus femoris (RF), vastus medialis (VM), vastus lateralis (VL), biceps femoris (BF), and semitendinosus (ST). The tasks performed during the experiment included straight leg raising (SLR) training at 30°, SLR training at 60°, ankle dorsiflexion, walking, and fast walking.
Results: In the maximum muscle strength test, the affected side of the BF in group A (199.4 ± 177.12) was significantly larger than in group B (53.91 ± 36.61, p = 0.02) and group C (75.08 ± 59.7, p = 0.023). In the walking test, the contralateral side of the RF in group B (347.53 ± 518.88) was significantly greater than that in group C (139.28 ± 173.78, p = 0.029). In the SLR training (60°) test, the contralateral side of the RF in group C (165.37 ± 183.06) was significantly larger than that in group A (115.09 ± 62.47, p = 0.023) and smaller than that in group B (226.21 ± 237.17, p = 0.046); In the ankle dorsiflexion training test, the contralateral side of the RF in group B (80.37 ± 87.9) was significantly larger than that in group C (45.61 ± 37.93, p = 0.046).
Conclusion: This study showed the EMG characteristics of patients with ACL injury helped to determine which muscle requires more training and which exercise model would be best suited for intervention.
1 Introduction
Anterior cruciate ligament reconstruction (ACLR) is a common treatment option for patients with anterior cruciate ligament (ACL) injuries (Van Melick et al., 2016). It is estimated that up to 200,000 ACLRs are performed annually in the United States (Fryer et al., 2019). Patient success rate for primary ACLR is approximately 75%–97% (Kim et al., 2018). However, after ACLR, a significant proportion of patients do not return to their pre-injury levels. A systematic review and meta-analysis by Ardern et al. showed that 69 studies found 81% of individuals reported returning to sports after ACLR. In contrast, only 65% reported returning to the pre-injury level of sports participation (Ardern et al., 2014). Recent research shows that 35% of athletes do not return to the pre-injury sports level within 2 years after ACLR, and half reported their ACL injury as the primary reason for a lower activity level (Ardern et al., 2011; Ardern et al., 2012; Ardern et al., 2014). The prevalence of these adverse outcomes underscores the importance of rehabilitation after ACLR, so further research is warranted on how to improve the effectiveness of rehabilitation.
In addition to restoring joint stability, ACLR surgery aims to restore knee joint function and muscle strength (Kim et al., 2015). An appropriate rehabilitation program was incorporated into routine preoperative and postoperative care to maximize surgical outcomes and improve functional recovery. Impaired knee function associated with ACL injury includes instability in dynamic movements and weakness of the quadriceps (Kim et al., 2018). Quadriceps muscle weakness, critical to dynamic joint stability, eventually leads to decreased knee function and poor exercise performance and can contribute to the early onset of osteoarthritis (Muaidi et al., 2007). Thus, the function of the muscles around the knee joint, especially the quadriceps femoris (QF), is the main training target and serves as an indicator for monitoring functional recovery after ACLR surgery (Slemenda et al., 1997). After ACLR, most patients have lower extremity muscle strength deficits on the affected and contralateral sides. Specifically, between-limb QF muscle strength symmetry is recommended as an important clinical benchmark to determine whether an athlete is ready for sports after ACLR (Logerstedt et al., 2017).
An increasing number of studies have focused on evaluating the primary ACLR surgery method, joint stability, muscle strength, and knee function (Muaidi et al., 2007; Kim et al., 2015). Jong et al. reported that lower extremity muscle atrophy and weakness after ACLR represent a difficult and unresolved problem (De Jong et al., 2007). Unresolved post-operative muscle strength deficits might be associated with knee osteoarthritis that is present years after surgery (Keays et al., 2010). Investigators have also reported post-operative strength deficits ranging from 5% to 40% for the quadriceps and from 9% to 27% for the hamstrings (De Jong et al., 2007; Hiemstra et al., 2007; Karanikas et al., 2009). However, limited studies have assessed muscle strength recovery after revision ACLR surgery during different sports modes.
Limited recovery of lower extremity muscle function may be related to the current rehabilitation program. Most studies have described current time-based rehabilitation protocols that are mainly based on the remodeling process of the graft (Czuppon et al., 2014). However, there is still uncertainty regarding the schedule of the human remodeling process, and more experts are considering incorporating functional goal-based criteria into the rehabilitation protocol (Howells et al., 2011). In addition, there were individual differences in neuromotor learning and flexibility after ACLR. These findings underscore the importance of a change from time-based rehabilitation to goal-based rehabilitation with neuromuscular goals and criteria to manage the rehabilitation process. Österberg et al. (2013) suggested that these goals for progression to the next phase and description of interventions during each phase should be based on the International Classification of Functioning, Disability, and Health, which may be more suitable for the rehabilitation of patients. Among these studies on rehabilitation after ACLR, few studies have focused on the evaluation of quality of movement. However, the relevance of focusing more on the quality of movement is underlined by the fact that altered neuromuscular function and biomechanics after ACLR could be risk factors for a second ACL injury (Hiemstra et al., 2009).
Surface electromyography (SEMG) has the advantages of non-invasion, real-time, and multitarget measurement, and is a method that has received increasing attention due to its ability to quantitatively analyze neuromuscular activity in static and dynamic motion states (Rasool et al., 2017). SEMG has been used to assess normal and abnormal muscle activation in some patients with ACL injury to guide rehabilitation strategies (Zebis et al., 2019). Nevertheless, it is rarely used to assess muscle activation at different stages of rehabilitation.
After ACL injury and reconstruction, lower extremity muscle strength has been reported to decrease not only in the quadriceps but also in the hamstrings, usually continuing after the postoperative rehabilitation period. In vigorous dynamic movements, coactivation of the hamstring tendons is important to provide dynamic stability of the knee and prevent excessive shear forces of the ACL. Kim et al. found that after an ACL injury and subsequent reconstruction, deficits in quadriceps muscle strength were significant (Kim et al., 2015). Bade et al. showed that in early high intensity and low intensity rehabilitation after total knee, quadriceps and hamstring strength and quadriceps activation improved beyond baseline performance in both groups (Bade et al., 2017). Thus, we performed this study to assess lower muscle functional recovery before and after ACLR surgery at different periods using different sports modes. We aimed to 1) compare the recovery of knee extensor muscle function (rectus femoris [RF], vastus medialis [VM], vastus lateralis [VL]) and flexor muscle (biceps femoris [BF] and semitendinosus [ST]) before and after ACLR and 2) compare the functional outcomes of different sports modes. We hypothesized that patients with ACL injury would exhibit different characteristics of SEMG in different rehabilitation phases and in different training tasks.
2 Methods
2.1 Recruitment of participants
In this study, based on literature reports and previous research data, using G*Power software (3.1.9.7) calculated sample size, sixty patients with unilateral ACL injuries were recruited. Patients who met the following criteria were included: 1) age >18 years; 2) diagnosed as ACL injury by magnetic resonance imaging and clinical examination or had received ACLR surgery using the all-soft tissue quadriceps tendon. The excluded criteria were the following: 1) patients with previous ACLR surgery and recurrence of ACL injury. 2) patients with cognitive impairment unable to complete experimental procedures; 3) patients with a history of other neurological diseases or disorders, lower extremity surgery, or fracture. Patients eligible for enrolment were divided into three groups according to the time of injury and the time to surgery. All patients completed routine preoperative rehabilitation. Individuals with ACL injury less than half a year were recruited as Group A (16 men and 4 women, average age: 33.5 ± 11.77 years; height: 171 ± 5.36 cm; weight: 70.1 ± 13.71 kg); Individuals with ACLR for less than half a year were recruited as Group B (13 men and 7 women, average age: 32.35 ± 9.4 years; height: 171.85 ± 8.46 cm; weight: 75.98 ± 17.49 kg); Individuals with ACLR more than half a year and less than 1 year were recruited as Group C (14 men and 6 women, average age: 31.45 ± 8.02 years; height: 171.35 ± 7.81 cm; weight: 71.88 ± 12.25 kg). Patients with knee disorders, anatomical abnormalities, or a history of surgery were excluded. The Medical Ethics Committee of Binzhou Medical University Hospital approved this study (2021-S019-01). A signed consent form was obtained from each participant before the test was performed.
2.2 Measurement process
Surface electromyography (SEMG) was performed using a Noraxon wireless dynamic electromyography tester (Noraxon, Scottsdale, AZ, USA). The sampling frequency was 1,200 Hz. After scraping, abrading, and alcohol cleaning, the electrodes were fixed onto the patient’s skin (Figure 1). SEMG signals were collected from the RF, VM, VL, BF, and ST. The signals were sampled at 1,200 Hz with a bandpass filter of 20–500 Hz. The root mean square (RMS) was used to assess muscular activity. The tasks performed during the experiment included straight leg raising (SLR) training at 30°, SLR training at 60°, ankle dorsiflexion, walking, and fast walking.
FIGURE 1
2.3 Data collection
Before the experiment began, we explained in detail what the participants needed to accomplish. Maintaining the stability of the knee while spinning is an important function of ACL (Markatos et al., 2013; Van Melick, et al., 2022); thus, we chose it as a walking task. The patient walked continuously on an elliptical curve for 5 min at the most comfortable speed. The width of the examination room was 6 meters, and the length was 8 meters. We separately acquire bilateral lower limbs EMG signals. And the middle 3 min EMG signal was used for analysis during the walking process. Similarly, when walking quickly, the patient was required to walk for 5 min at the fastest speed and the analysis test process was carried out for 3 min in the middle. The patient laid supine on the bed, baseline SEMG signals were measured during a state of muscle relaxation, then raised the leg 30° or 60° and dorsiflexed of the ankle, and maintained this position for 10 s (Li et al., 2020; Mitchell et al., 2022; Molina-Cárdenas et al., 2022). The experiment was repeated three times. The test is considered successful to see if the SEMG signal increases to more than 3 times the baseline signal with the active contraction movement of the muscle. The above tests are performed first on the contralateral side and then on the affected side. In the test of the maximum muscle strength of the quadriceps femoris, the patient performs a knee extension exercise in the supine position, keeping the calf hanging at the end of the bed and applying resistance at the lower end of the calf. The maximum muscle strength of the BF and ST was applied by having the patient bend the knee in the prone position and apply resistance to the crus (Dixit et al., 2022). The movement of the maximum muscle strength test is also a training exercise in the rehabilitation program. We performed an sEMG signal test on the muscle surface at maximum muscle strength to assess muscle activation during the movement, which was useful for us to evaluate the effectiveness of the activity in the rehabilitation program. The doctors and nurses accompanied the patients to ensure safety during the test.
2.4 Data process
SEMG signals were processed and analyzed using EMGworks Analysis and MATLAB R2020a (MathWorks, 3 Apple Hill Dr, Natick, MA 01760-2098). The sampling frequency was 1,200 Hz. The root mean square (RMS) value was analyzed and used to evaluate muscle activity.
2.5 Statistical methods
All data were analyzed using SPSS software (version 19.0). Data are presented as mean ± standard deviation (M±SD). The Shapiro–Wilk normality test was performed to examine the normality distribution of the data. One-way ANOVA and post-hoc Least-Significant Difference tests were used to detect statistically significant differences of the variables. Statistical significance was established at p < 0.05.
3 Results
In the maximum strength test, there were differences between groups in the RMS values of BF and ST on the affected side, and group A was significantly higher than group B and Group C (Table 1; Figure 2).
TABLE 1
| Groups | Mean ± SD | Groups | P-value | ||
|---|---|---|---|---|---|
| Affected side -RF | A | 329.98 ± 236.46 | A | B | 0.515 |
| B | 210.03 ± 110.6 | A | C | 0.924 | |
| C | 314.63 ± 402.42 | B | C | 0.518 | |
| Contralateral side -RF | A | 400.3 ± 326.11 | A | B | 0.201 |
| B | 155.27 ± 122.3 | A | C | 0.916 | |
| C | 417.73 ± 381.76 | B | C | 0.123 | |
| Affected side -VL | A | 531.33 ± 653.88 | A | B | 0.074 |
| B | 134.77 ± 58.04 | A | C | 0.176 | |
| C | 272.36 ± 223.1 | B | C | 0.465 | |
| Contralateral side -VL | A | 329.33 ± 130.88 | A | B | 0.104 |
| B | 121.21 ± 92.71 | A | C | 0.674 | |
| C | 375.18 ± 277.15 | B | C | 0.028 | |
| Affected side -VM | A | 182.3 ± 163.28 | A | B | 0.347 |
| B | 122.5 ± 84.99 | A | C | 0.798 | |
| C | 168.13 ± 78.7 | B | C | 0.413 | |
| Contralateral side -VM | A | 353.63 ± 299.69 | A | B | 0.053 |
| B | 127.25 ± 81.33 | A | C | 0.312 | |
| C | 253.36 ± 155.73 | B | C | 0.207 | |
| Affected side -BF | A | 199.4 ± 177.12 | A | B | 0.02 |
| B | 53.91 ± 36.61 | A | C | 0.023 | |
| C | 75.08 ± 59.7 | B | C | 0.681 | |
| Contralateral side -BF | A | 205.18 ± 201.7 | A | B | 0.91 |
| B | 184.1 ± 260.93 | A | C | 0.825 | |
| C | 169.05 ± 384.54 | B | C | 0.927 | |
| Affected side -ST | A | 446.4 ± 435.73 | A | B | 0.014 |
| B | 93.25 ± 91.91 | A | C | 0.003 | |
| C | 59.07 ± 61.64 | B | C | 0.77 | |
| Contralateral side -ST | A | 260.42 ± 243.44 | A | B | 0.252 |
| B | 53.05 ± 49.4 | A | C | 0.613 | |
| C | 181.01 ± 393.31 | B | C | 0.418 | |
SEMG values of maximum muscle strength test between different groups.
That the bold values indicates the statistical significance was established.
FIGURE 2
In the walking test, there were differences between groups in the RMS values of RF, VM, and BF. The RF of the contralateral side in group B was significantly higher than that in group C; the VM of the contralateral side in group A was significantly higher than that in group B. The BF of the affected side in group C was significantly higher than that in group A and group B (Table 2; Figure 3).
TABLE 2
| Groups | Mean ± SD | Groups | P-value | ||
|---|---|---|---|---|---|
| Affected side -RF | A | 162.16 ± 154.37 | A | B | 0.527 |
| B | 120.09 ± 114.12 | A | C | 0.416 | |
| C | 114.09 ± 181.05 | B | C | 0.906 | |
| Contralateral side -RF | A | 109.58 ± 82.28 | A | B | 0.055 |
| B | 347.53 ± 518.88 | A | C | 0.784 | |
| C | 139.28 ± 173.78 | B | C | 0.029 | |
| Affected Side -VL | A | 219.27 ± 166.07 | A | B | 0.705 |
| B | 194.95 ± 152.2 | A | C | 0.062 | |
| C | 111.09 ± 155.7 | B | C | 0.093 | |
| Contralateral side -VL | A | 145.72 ± 126.89 | A | B | 0.423 |
| B | 109.09 ± 59.27 | A | C | 0.833 | |
| C | 154.26 ± 123.45 | B | C | 0.199 | |
| Affected side -VM | A | 173.25 ± 96.18 | A | B | 0.853 |
| B | 131.67 ± 95.65 | A | C | 0.458 | |
| C | 321.24 ± 717.19 | B | C | 0.273 | |
| Contralateral Side -VM | A | 292.86 ± 192.94 | A | B | 0.038 |
| B | 111.61 ± 64.62 | A | C | 0.133 | |
| C | 177.78 ± 250.88 | B | C | 0.315 | |
| Affected Side -BF | A | 99.45 ± 34.28 | A | B | 0.561 |
| B | 137.07 ± 86.54 | A | C | 0.017 | |
| C | 240.03 ± 198.78 | B | C | 0.042 | |
| Contralateral side -BF | A | 127.68 ± 43.97 | A | B | 0.958 |
| B | 136.57 ± 72.78 | A | C | 0.264 | |
| C | 297.65 ± 546.23 | B | C | 0.221 | |
| Affected side -ST | A | 172.25 ± 81.63 | A | B | 0.368 |
| B | 135.52 ± 80.08 | A | C | 0.34 | |
| C | 137.63 ± 110.93 | B | C | 0.946 | |
| Contralateral side -ST | A | 169.74 ± 76.27 | A | B | 0.997 |
| B | 169.55 ± 60.07 | A | C | 0.423 | |
| C | 211.25 ± 178.38 | B | C | 0.352 | |
SEMG values of different groups during walking.
That the bold values indicates the statistical significance was established.
FIGURE 3
In the fast-walking test, there were differences between groups in the RMS values of RF and VL. The RF of both sides in group B were significantly higher than that in group C. The VL of the affected side in group A was significantly higher than that in group C (Table 3; Figure 4).
TABLE 3
| Groups | Mean ± SD | Groups | P-value | ||
|---|---|---|---|---|---|
| Affected side -RF | A | 241.22 ± 274.33 | A | B | 0.993 |
| B | 240.71 ± 188.02 | A | C | 0.079 | |
| C | 141.08 ± 99.02 | B | C | 0.044 | |
| Contralateral side -RF | A | 391.95 ± 430.19 | A | B | 0.557 |
| B | 500.38 ± 828.46 | A | C | 0.257 | |
| C | 199.96 ± 227.7 | B | C | 0.042 | |
| Affected side -VL | A | 306.77 ± 324.57 | A | B | 0.324 |
| B | 248.57 ± 128.09 | A | C | 0.007 | |
| C | 158.12 ± 67.57 | B | C | 0.055 | |
| Contralateral side -VL | A | 171.33 ± 86.88 | A | B | 0.281 |
| B | 210.73 ± 92.93 | A | C | 0.233 | |
| C | 211.24 ± 111.1 | B | C | 0.986 | |
| Affected side -VM | A | 276.23 ± 154.71 | A | B | 0.825 |
| B | 235.61 ± 214.4 | A | C | 0.44 | |
| C | 406.61 ± 692.31 | B | C | 0.243 | |
| Contralateral side -VM | A | 362.23 ± 182.44 | A | B | 0.31 |
| B | 217.02 ± 195.37 | A | C | 0.783 | |
| C | 326.33 ± 522.64 | B | C | 0.333 | |
| Affected side -BF | A | 245.77 ± 143.18 | A | B | 0.661 |
| B | 280.05 ± 282.65 | A | C | 0.756 | |
| C | 267.97 ± 198 | B | C | 0.845 | |
| Contralateral side -BF | A | 215.38 ± 125.05 | A | B | 0.924 |
| B | 215.38 ± 196.95 | A | C | 0.24 | |
| C | 371.69 ± 537.51 | B | C | 0.175 | |
| Affected side -ST | A | 171.4 ± 81.42 | A | B | 0.108 |
| B | 341.97 ± 465.56 | A | C | 0.417 | |
| C | 249.48 ± 199.2 | B | C | 0.267 | |
| Contralateral side -ST | A | 222.96 ± 111.68 | A | B | 0.547 |
| B | 262.21 ± 203.31 | A | C | 0.945 | |
| C | 218.91 ± 186.31 | B | C | 0.404 | |
SEMG values during fast walking.
That the bold values indicates the statistical significance was established.
FIGURE 4
In the SLR training (30°) test, there were differences between groups in the RMS values of the RF, VL, VM and BF. RMS values of Group C was significantly higher than group A and Group B. VL of the contralateral side of VL in group B was significantly decreased when compared with that in group C (Table 4; Figure 5).
TABLE 4
| Groups | Mean ± SD | Groups | P-value | ||
|---|---|---|---|---|---|
| Affected side -RF | A | 157.88 ± 116.82 | A | B | 0.495 |
| B | 87.37 ± 51.52 | A | C | 0.34 | |
| C | 249.72 ± 444.73 | B | C | 0.078 | |
| Contralateral side -RF | A | 137.04 ± 60.52 | A | B | 0.546 |
| B | 98.91 ± 65.06 | A | C | 0.049 | |
| C | 254.45 ± 269.72 | B | C | 0.007 | |
| Affected side -VL | A | 157.11 ± 93.6 | A | B | 0.28 |
| B | 98.22 ± 58.74 | A | C | 0.036 | |
| C | 264.84 ± 223.52 | B | C | 0.001 | |
| Contralateral side -VL | A | 144.71 ± 40.56 | A | B | 0.39 |
| B | 104.77 ± 63.17 | A | C | 0.137 | |
| C | 209.4 ± 195.43 | B | C | 0.013 | |
| Affected side -VM | A | 131.68 ± 71.9 | A | B | 0.777 |
| B | 149.79 ± 311.9 | A | C | 0.997 | |
| C | 131.88 ± 96.41 | B | C | 0.751 | |
| Contralateral side -VM | A | 73.94 ± 41.95 | A | B | 0.794 |
| B | 65.86 ± 81.77 | A | C | 0.049 | |
| C | 131.37 ± 114.17 | B | C | 0.019 | |
| Affected side -BF | A | 24.36 ± 6.32 | A | B | 0.401 |
| B | 39.43 ± 33.75 | A | C | 0.001 | |
| C | 94.44 ± 73.88 | B | C | 0.001 | |
| Contralateral side -BF | A | 45.18 ± 32.69 | A | B | 0.22 |
| B | 66.56 ± 82.5 | A | C | 0.575 | |
| C | 36.13 ± 23.32 | B | C | 0.051 | |
| Affected side -ST | A | 148.64 ± 252.89 | A | B | 0.244 |
| B | 84.9 ± 157.34 | A | C | 0.121 | |
| C | 69.38 ± 61.13 | B | C | 0.746 | |
| Contralateral side -ST | A | 84.97 ± 64.26 | A | B | 0.909 |
| B | 92.37 ± 146.48 | A | C | 0.096 | |
| C | 186.66 ± 255.54 | B | C | 0.104 | |
SEMG values during straight leg raising training (30°).
That the bold values indicates the statistical significance was established.
FIGURE 5
In the SLR training (60°) test, there were differences in RMS values for RF, VL, BF, and ST between groups. The contralateral RF in group C was shown to be significantly larger than that in group A and smaller than that in group B. The contralateral VL in group C was significantly larger than that in group A and smaller than that in group B. The VL of the affected side in group A was significantly decreased when compared with that in group C. The ST of contralateral side in group B was significantly larger than that in group C. The VL of the affected side in group A was significantly decreased when compared with that in group C. The contralateral BF in group B was significantly decreased when compared with that in group A and group C (Table 5; Figure 6).
TABLE 5
| Groups | Mean ± SD | Groups | P-value | ||
|---|---|---|---|---|---|
| Affected side -RF | A | 94.67 ± 42.27 | A | B | 0.959 |
| B | 91.06 ± 52.67 | A | C | 0.277 | |
| C | 163.19 ± 247.96 | B | C | 0.208 | |
| Contralateral side -RF | A | 115.09 ± 62.47 | A | B | 0.658 |
| B | 226.21 ± 237.17 | A | C | 0.023 | |
| C | 165.37 ± 183.06 | B | C | 0.046 | |
| Affected side -VL | A | 113.1 ± 58.84 | A | B | 0.586 |
| B | 165.13 ± 125.92 | A | C | 0.035 | |
| C | 135.28 ± 100.54 | B | C | 0.092 | |
| Contralateral side -VL | A | 126.08 ± 51.23 | A | B | 0.566 |
| B | 201.71 ± 131.8 | A | C | 0.006 | |
| C | 159.89 ± 107.75 | B | C | 0.019 | |
| Affected side -VM | A | 144.16 ± 186.39 | A | B | 0.186 |
| B | 133.62 ± 69.74 | A | C | 0.229 | |
| C | 126.64 ± 112.94 | B | C | 0.766 | |
| Contralateral side -VM | A | 74.36 ± 54.74 | A | B | 0.733 |
| B | 140.77 ± 154.8 | A | C | 0.208 | |
| C | 111.37 ± 118.88 | B | C | 0.074 | |
| Affected side -BF | A | 32.92 ± 39.15 | A | B | 0.908 |
| B | 109.87 ± 194.94 | A | C | 0.094 | |
| C | 70.75 ± 145.23 | B | C | 0.088 | |
| Contralateral side -BF | A | 90.96 ± 106.28 | A | B | 0.017 |
| B | 40.21 ± 34.47 | A | C | 0.695 | |
| C | 52.68 ± 66.19 | B | C | 0.012 | |
| Affected side -ST | A | 65.13 ± 67.45 | A | B | 0.826 |
| B | 85.7 ± 89.89 | A | C | 0.593 | |
| C | 76.95 ± 75.57 | B | C | 0.391 | |
| Contralateral side -ST | A | 45.9 ± 33.91 | A | B | 0.579 |
| B | 153.91 ± 225.5 | A | C | 0.214 | |
| C | 108.37 ± 171.34 | B | C | 0.043 | |
The SEMG values during straight leg raising training (60°).
That the bold values indicates the statistical significance was established.
FIGURE 6

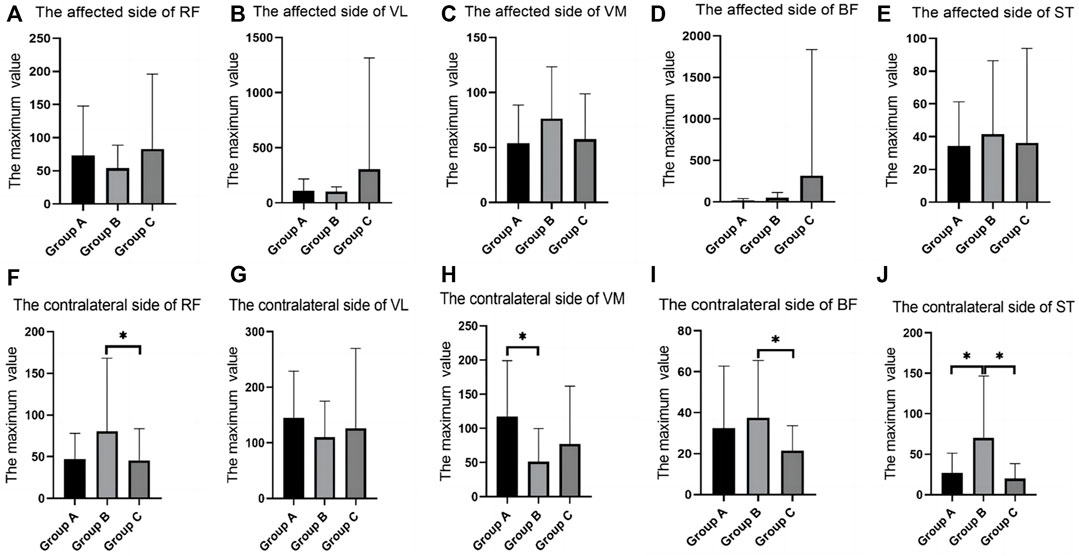

In the ankle dorsiflexion training test, there were differences between groups in the RMS values of RF, BF, and ST on the contralateral side, and group B was significantly higher than group C. The RMS value of contralateral side of VM in group A was significantly larger than that in group C (Table 6; Figure 7).
TABLE 6
| Groups | Mean ± SD | Groups | P-value | ||
|---|---|---|---|---|---|
| Affected side -RF | A | 73.5 ± 74.03 | A | B | 0.524 |
| B | 53.79 ± 35 | A | C | 0.739 | |
| C | 83.23 ± 112.88 | B | C | 0.249 | |
| Contralateral side-RF | A | 47.17 ± 30.8 | A | B | 0.115 |
| B | 80.37 ± 87.9 | A | C | 0.936 | |
| C | 45.61 ± 37.93 | B | C | 0.046 | |
| Affected side -VL | A | 109.87 ± 107.15 | A | B | 0.975 |
| B | 102.26 ± 42.8 | A | C | 0.403 | |
| C | 305.52 ± 1,010.29 | B | C | 0.32 | |
| Contralateral side -VL | A | 144.67 ± 84.18 | A | B | 0.388 |
| B | 110.07 ± 64.73 | A | C | 0.624 | |
| C | 126.2 ± 143.91 | B | C | 0.624 | |
| Affected side -VM | A | 53.85 ± 34.8 | A | B | 0.141 |
| B | 76.24 ± 47.07 | A | C | 0.8 | |
| C | 57.44 ± 41.33 | B | C | 0.133 | |
| Contralateral side -VM | A | 116.9 ± 82.15 | A | B | 0.016 |
| B | 51.34 ± 48.33 | A | C | 0.115 | |
| C | 77.12 ± 84.58 | B | C | 0.239 | |
| Affected side -BF | A | 18.17 ± 22.04 | A | B | 0.935 |
| B | 48.49 ± 63.91 | A | C | 0.394 | |
| C | 316.47 ± 1,517.49 | B | C | 0.381 | |
| Contralateral side -BF | A | 32.34 ± 30.36 | A | B | 0.523 |
| B | 37.54 ± 27.98 | A | C | 0.157 | |
| C | 21.41 ± 12.21 | B | C | 0.019 | |
| Affected side -ST | A | 34.32 ± 27.06 | A | B | 0.678 |
| B | 41.53 ± 44.89 | A | C | 0.909 | |
| C | 36.19 ± 57.71 | B | C | 0.709 | |
| Contralateral side -ST | A | 27.15 ± 24.15 | A | B | 0.013 |
| B | 69.93 ± 76.6 | A | C | 0.652 | |
| C | 20.01 ± 18.16 | B | C | 0.001 | |
SEMG values during ankle dorsiflexion training.
That the bold values indicates the statistical significance was established.
FIGURE 7
4 Discussion
This study explored the muscles’ SEMG characteristics of patients with ACL injuries in different rehabilitation phases. The results showed that the maximum muscle strength has a significant tendency to decrease, and the attenuation of each muscle during different movements was also different. However, muscle strength recovery in BF and ST are significantly poorer. Although muscle strength and symmetry of the bilateral lower extremities play an important role in patient recovery, muscle atrophy is common in patients who require local fixation. Factors related to muscle size and strength loss after ACLR remain unclear. The decrease in the maximum muscle strength of the BF and ST may be due to the influence of the operation. Furthermore, some studies have been conducted on age, preoperative and postoperative activity levels, the time elapsed since surgery, ACL grafts, rehabilitation programs, concurrent operative procedures, and other methods have been used to define muscle size and function. Muscle atrophy appears to occur regardless of the type of graft used to reconstruct the ACL and often occurs bilaterally (Papannagari et al., 2006). The pattern of muscle strength decline is not the same for different muscles, Li et al. showed that Among the VL, VM, and RF, the recovery rate of VL is the slowest (Li et al., 2020). Kim et al. also found significant differences in the recovery rates of extensor muscles and flexor muscles of knee (Kim et al., 2015).
Changes in the biomechanics of the lower extremities are also important factors that lead to muscle changes. Surgery cannot completely achieve the anatomical reduction of the ACL, which can lead to a change in torque. The symmetry of both legs changes due to the change in torque, especially during contralateral movements. Numerous studies have evaluated the effect of common musculoskeletal impairments after ACLR on lower-extremity movement asymmetries. Some studies have suggested that patients with high quadriceps strength symmetry demonstrated lower limb movement symmetry and greater functional performance than those with low quadriceps strength symmetry (Lewek et al., 2002; Palmieri-Smith and Lepley, 2015). Moreover, many studies have found that the biomechanical characteristics of both lower extremities are still inconsistent after ACLR. Roewer et al. (2011) reported asymmetric knee angles and moments after ACLR in participants with symmetrical quadriceps strength.
Additionally, Curran et al. (2018) reported that although quadriceps strength improved after reconstruction, there were still asymmetric biomechanical parameters of the knee. Shi et al. (2019) reported that the isometric quadriceps strength of the injured leg was significantly lower than that of the uninjured leg. Knee flexion angles and knee extension moments were smaller in the injured leg than in the uninjured leg during the loading response and mid-stance phases. Asymmetry in the maximum knee flexion angle during the loading response and mid-stance phases was significantly correlated with asymmetry in the isometric quadriceps strength. Isometric quadriceps strength was also significantly correlated with the asymmetry in the peak knee extension moment during the midstance phase. The authors believed that individuals receiving ACLR demonstrate asymmetry in knee movement in the sagittal plane. Isometric quadriceps strength asymmetry was significantly correlated with the asymmetry in knee flexion angles during the early stance phase and with the knee extension moments during the midstance phase. Palmieri-Smith and Lepley (2015) also suggested that decreased QF strength is associated with altered trunk biomechanics of the lower extremity and sagittal plane during landing tasks after ACLR. However, the relationship between QF muscle strength and lateral trunk control after ACLR during landing has not been examined. Furthermore, weakness in the hip abductor (HA) muscles is often associated with a dynamic valgus of the knee during landing activities, a pattern of motion associated with both primary and secondary risks of ACL injury (Petersen et al., 2014). Therefore, rehabilitation programs should emphasize eccentric exercise to improve neuromuscular control.
This study showed that different muscles exhibited an obvious decrease in muscle activation under different exercise conditions, which closely related to the patient’s sports ability. For example, the muscle strength of the contralateral side of the RF, the contralateral side of the VM, and the affected side of the BF changed during normal walking and that of the affected side of the RF, the contralateral side of the RF, and the affected side of the VL changed during a fast walking movement. ACL structures also contain mechanoreceptors, injuries of which cause afferent block-mediated dysregulation of motor control of the spine and spinal cord, directly affecting neuromuscular control of the knee. ACL injury can cause changes in biomechanical function, proprioceptive function, and strategy of motor control (Van Melick et al., 2016). Begalle et al. (2012) quantified the activity level of VM, VL, MH, and BF muscles by SEMG. In exercises such as the single-limb squat, the transverse-lunge, lateral-lunge, etc, the extensor and flexor muscles of the knee show a marked difference. Therefore, the muscle training method must refer to the target motion modes and evaluate the quality of movement. The focus on quality evaluation of movement is not only a risk factor for a second ACL injury, but also an important factor for motor rehabilitation.
5 Limitation
Only 60 patients participated in this study, and the limited sample size reduced the informative value of the study. The lack of follow-up also reduces the representativeness of the results. Therefore, we will continue to expand the sample size of this study, achieve long-term follow-up of patients, and provide more evidence to validate the results.
6 Conclusion
Overall, the muscle activation of various muscles differ in several movements. Therefore, according to the test results under different exercise conditions, we may find which muscle requires more training and improves the functional status of patients after surgery. We suggest developing a rehabilitation program based on target orientation. At different phases of rehabilitation, testing the activation of muscles under different training tasks, and the training tasks and the intensity of the training tasks are selected based on this. We speculate that there will be better rehabilitation.
Statements
Data availability statement
The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.
Ethics statement
The studies involving human participants were reviewed and approved by the Medical Ethics Committee of Binzhou Medical University Hospital approved this study (2021-S019-01). The patients/participants provided their written informed consent to participate in this study.
Author contributions
WL and SQ provided the conception/design, and SW, HZ, ZC, XW, and YZ performed the experiments and assembled the data. HC and ZC conducted the data analysis and interpretation. HC and ZC wrote the manuscript, and WL and SQ revised it. HC, ZC, SW, HZ, ZC, XW, YZ, SQ, and WL finally approved the manuscript. All authors read and approved the final version of the manuscript.
Funding
The Shandong Natural Science Foundation (ZR2022MH063), Shandong Medical and Health Technology Development Plan (202020010886), Shandong Medical and Health Technology Development Plan (202120011007), and Capital Medical Development and Research Foundation (No. 2020-2-2251) partly supported this work.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
1
ArdernC. L.TaylorN. F.FellerJ. A.WebsterK. E. (2014). Fifty-five per cent return to competitive sport following anterior cruciate ligament reconstruction surgery: An updated systematic review and meta-analysis including aspects of physical functioning and contextual factors. Br. J. Sports Med.48, 1543–1552. 10.1136/bjsports-2013-093398
2
ArdernC. L.TaylorN. F.FellerJ. A.WebsterK. E. (2012). Return-to-sport outcomes at 2 to 7 years after anterior cruciate ligament reconstruction surgery. Am. J. Sports Med.40, 41–48. 10.1177/0363546511422999
3
ArdernC. L.WebsterK. E.TaylorN. F.FellerJ. A. (2011). Return to sport following anterior cruciate ligament reconstruction surgery: A systematic review and meta-analysis of the state of play. Br. J. Sports Med.45, 596–606. 10.1136/bjsm.2010.076364
4
BadeM. J.StruesselT.DaytonM.ForanJ.KimR. H.MinerT.et al (2017). Early high-intensity versus low-intensity rehabilitation after total knee arthroplasty: A randomized controlled trial. Am. J. Arthritis Care Res. Hob.69, 1360–1368. 10.1002/acr.23139
5
BegalleR. L.DistefanoL. J.BlackburnT.PaduaD. A. (2012). Quadriceps and hamstrings coactivation during common therapeutic exercises. J. Athl. Train.47 (4), 396–405. 10.4085/1062-6050-47.4.01
6
CurranM. T.LepleyL. K.Palmieri-SmithR. M. (2018). Continued improvements in quadriceps strength and biomechanical symmetry of the knee after postoperative anterior cruciate ligament reconstruction rehabilitation: Is it time to reconsider the 6-month return-to-activity criteria?J. Athl. Train.53, 535–544. 10.4085/1062-6050-478-15
7
CzupponS.RacetteB. A.KleinS. E.Harris-HayesM. (2014). Variables associated with return to sport following anterior cruciate ligament reconstruction: A systematic review. Br. J. Sports Med.48, 356–364. 10.1136/bjsports-2012-091786
8
De JongS. N.van CaspelD. R.van HaeffM. J.SarisD. B. F. (2007). Functional assessment and muscle strength before and after reconstruction of chronic anterior cruciate ligament lesions. Arthroscopy23, 21–28, 28.e1-3. 10.1016/j.arthro.2006.08.024
9
DixitA.PrakashR.YadavA. S.DwivediS. (2022). Comparative study of adductor canal block and femoral nerve block for postoperative analgesia after arthroscopic anterior cruciate ligament tear repair surgeries. J. Cureus.14 (4), e24007. 10.7759/cureus.24007
10
FryerC.IthurburnM. P.McNallyM. P.ThomasS.PaternoM. V.SchmittL. C. (2019). The relationship between frontal plane trunk control during landing and lower extremity muscle strength in young athletes after anterior cruciate ligament reconstruction. Clin. Biomech.62, 58–65. 10.1016/j.clinbiomech.2018.11.012
11
HiemstraL. A.HeardS. M.SasyniukT. M.BuchkoG. L.ReedJ. G.MonteleoneB. J. (2009). Knee immobilization for pain control after a hamstring tendon anterior cruciate ligament reconstruction: A randomized clinical trial. Am. J. Sports Med.37, 56–64. 10.1177/0363546508322896
12
HiemstraL. A.WebberS.MacDonaldP. B.KriellaarsD. J. (2007). Contralateral limb strength deficits after anterior cruciate ligament reconstruction using a hamstring tendon graft. Clin. Biomech. (Bristol Avon)22, 543–550. 10.1016/j.clinbiomech.2007.01.009
13
HowellsB. E.ArdernC. L.WebsterK. E. (2011). Is postural control restored following anterior cruciate ligament reconstruction? A systematic review. Knee Surg. Sports Traumatol. Arthrosc.19, 1168–1177. 10.1007/s00167-011-1444-x
14
KaranikasK.ArampatzisA.BrüggemannG. P. (2009). Motor task and muscle strength followed different adaptation patterns after anterior cruciate ligament reconstruction. Eur. J. Phys. Rehabil. Med.45, 37–45.
15
KeaysS. L.NewcombeP. A.Bullock-SaxtonJ. E.BullockM. I.KeaysA. C. (2010). Factors involved in the development of osteoarthritis after anterior cruciate ligament surgery. Am. J. Sports Med.38, 455–463. 10.1177/0363546509350914
16
KimD. K.HwangJ. H.ParkW. H. (2015). Effects of 4 weeks preoperative exercise on knee extensor strength after anterior cruciate ligament reconstruction. J. Phys. Ther. Sci.27, 2693–2696. 10.1589/jpts.27.2693
17
KimD. K.ParkG.KadirK. B. H. M. S.KuoL. T.ParkW. H. (2018). Comparison of knee stability, strength deficits, and functional score in primary and revision anterior cruciate ligament reconstructed knees. Sci. Rep.8, 9186. 10.1038/s41598-018-27595-8
18
LewekM.RudolphK.AxeM.Snyder-MacklerL. (2002). The effect of insufficient quadriceps strength on gait after anterior cruciate ligament reconstruction. Clin. Biomech. (Bristol Avon)17, 56–63. 10.1016/s0268-0033(01)00097-3
19
LiW.LiZ.QieS.LiJ.XiJ. N.GongW. J.et al (2020). Biomechanical evaluation of preoperative rehabilitation in patients of anterior cruciate ligament injury. J. Orthop. Surg.12 (2), 421–428. 10.1111/os.12607
20
LogerstedtD. S.ScalzittiD.RisbergM. A.EngebretsenL.WebsterK. E.FellerJ.et al (2017). Knee stability and movement coordination impairments: Knee ligament sprain revision 2017. J. Orthop. Sports Phys. Ther.47, A1–A47. 10.2519/jospt.2017.0303
21
MarkatosK.KasetaM. K.LallosS. N.KorresD. S.EfstathopoulosN. (2013). The anatomy of the ACL and its importance in ACL reconstruction. Eur. J. Orthop. Surg. Traumatol.23, 747–752. 10.1007/s00590-012-1079-8
22
MitchellU. H.LeeH.DennisH. E.SeeleyM. K. (2022). Quality of knee strengthening exercises performed at home deteriorates after one week. J. BMC Musculoskelet. Disord.23 (1), 164. 10.1186/s12891-022-05120-3
23
Molina-CárdenasÁ.Álvarez-YatesT.García-GarcíaO. (2022). Predicting hamstring strains in soccer players based on ROM: An analysis from a gender perspective. J. Res. Q. Exerc Sport. Apr8, 1–7. 10.1080/02701367.2021.2011091
24
MuaidiQ. I.NicholsonL. L.RefshaugeK. M.HerbertR. D.MaherC. G. (2007). Prognosis of conservatively managed anterior cruciate ligament injury: A systematic review. Sports Med.37, 703–716. 10.2165/00007256-200737080-00004
25
ÖsterbergA.KvistJ.DahlgrenM. A. (2013). Ways of experiencing participation and factors affecting the activity level after nonreconstructed anterior cruciate ligament injury: A qualitative study. J. Orthop. Sports Phys. Ther.43, 172–183. 10.2519/jospt.2013.4278
26
Palmieri-SmithR. M.LepleyL. K. (2015). Quadriceps strength asymmetry after anterior cruciate ligament reconstruction alters knee joint biomechanics and functional performance at time of return to activity. Am. J. Sports Med.43, 1662–1669. 10.1177/0363546515578252
27
PapannagariR.GillT. J.DefrateL. E.MosesJ. M.PetruskaA. J.LiG. (2006). In vivo kinematics of the knee after anterior cruciate ligament reconstruction: A clinical and functional evaluation. Am. J. Sports Med.34, 2006–2012. 10.1177/0363546506290403
28
PetersenW.TaheriP.ForkelP.ZantopT. (2014). Return to play following ACL reconstruction: A systematic review about strength deficits. Arch. Orthop. Trauma. Surg.134, 1417–1428. 10.1007/s00402-014-1992-x
29
RasoolG.AfsharipourB.SureshN. L.RymerW. Z. (2017) Spatial analysis of multichannel surface EMG in hemiplegic stroke. IEEE Trans. Neural Syst. Rehabil. Eng.25, 1802–1811. 10.1109/TNSRE.2017.2682298
30
RoewerB. D.Di StasiS. L. D.Snyder-MacklerL. (2011). Quadriceps strength and weight acceptance strategies continue to improve two years after anterior cruciate ligament reconstruction. J. Biomech.44, 1948–1953. 10.1016/j.jbiomech.2011.04.037
31
ShiH.HuangH.RenS.YuY.LiangZ.WangQ.et al (2019). The relationship between quadriceps strength asymmetry and knee biomechanics asymmetry during walking in individuals with anterior cruciate ligament reconstruction. Gait Posture73, 74–79. 10.1016/j.gaitpost.2019.07.151
32
SlemendaC. W.BrandtK. D.HeilmanD. K.MazzucaS. A.BraunsteinE. M.KatzB. P.et al (1997). Quadriceps weakness and osteoarthritis of the knee. Ann. Intern. Med.127, 97–104. 10.7326/0003-4819-127-2-199707150-00001
33
Van MelickN.van CingelR. E. H.BrooijmansF.NeeterC.van TienenT.HullegieW.et al (2016). Evidence-based clinical practice update: Practice guidelines for anterior cruciate ligament rehabilitation based on a systematic review and multidisciplinary consensus. Br. J. Sports Med.50, 1506–1515. 10.1136/bjsports-2015-095898
34
Van MelickN.Van der WeegenW.Van der Horst (2022). Quadriceps and hamstrings strength reference values for athletes with and without anterior cruciate ligament reconstruction who play popular pivoting sports, including soccer, basketball, and handball: A scoping review. J. J. Orthop. Sports Phys. Ther.52 (3), 142–155. 10.2519/jospt.2022.10693
35
ZebisM. K.SørensenM. H.LauridsenH. B.BenckeJ.AndersenC. H.CarlsbækJ. B.et al (2019). Electromyography evaluation of bodyweight exercise progression in a validated anterior cruciate ligament injury rehabilitation program: A cross-sectional study. Am. J. Phys. Med. Rehabil.98, 998–1004. 10.1097/PHM.0000000000001232
Summary
Keywords
anterior cruciate ligament injury, surface electromyography, rehabilitation, muscle function, muscle strength
Citation
Cui H, Cao Z, Wang S, Zhang H, Chen Z, Wu X, Zhao Y, Qie S and Li W (2023) Surface electromyography characteristics of patients with anterior cruciate ligament injury in different rehabilitation phases. Front. Physiol. 14:1116452. doi: 10.3389/fphys.2023.1116452
Received
05 December 2022
Accepted
13 March 2023
Published
27 March 2023
Volume
14 - 2023
Edited by
Qipeng Song, Shandong Sport University, China
Reviewed by
Lawrence Tien, University of East-West Medicine, United States
Cui Zhang, Shandong Institute of Sport Science, China
Updates
Copyright
© 2023 Cui, Cao, Wang, Zhang, Chen, Wu, Zhao, Qie and Li.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Wei Li, yishengliwei@163.com; Shuyan Qie, 13810510280@163.com
†These authors have contributed equally to this work
This article was submitted to Exercise Physiology, a section of the journal Frontiers in Physiology
Disclaimer
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
