Abstract
Granular soils, e.g., sand, ballast, and rockfill, usually experience dynamic loads in the field. Traditional constitutive models for monotonic loading conditions cannot be used for advanced characterization of the complex loading behavior of granular soils. In this study, a simple fractional plastic model is developed, based on the generalized fractional plastic flow rule which considers the loading and unloading differences under triaxial compression and extension conditions. The model is further validated against a series of cyclic loading behavior of different granular soils, where a good predicting performance is observed.
Introduction
According to many experimental (Aursudkij et al., ; Nimbalkar et al., ; Nimbalkar and Indraratna, ; Sun et al., , ) and numerical (de Bono and McDowell, ; McDowell and Li, ; Li et al., ) studies, it is widely recognized that granular soils, including sand, ballast and rockfill, usually exhibit complex strength and deformation behavior, such as contraction accompanied by strain hardening and dilation accompanied by strain softening, when subjected to static and dynamic loads. Correct representation of such complex behavior of granular soils is the key factor for the design and safe operation of engineering facilities, for example, railroad and retaining wall (Nimbalkar and Choudhury, ; Nimbalkar et al., ). Hence, a number of different approaches, e.g., elastoplasticity, viscoplasticity, damage-plasticity, and bounding surface plasticity has been proposed. The models can be divided into three categories: (i) models that did not consider state dependence; (ii) models that cannot reflect non-associated flow; (iii) models that were not suitable for cyclic loading. For category (i), a number of constitutive methods can be found, for example, the disturbed state concept by Desai and Toth () which was adopted for constitutive modeling of rockfills (Varadarajan et al., 2006) under different confining pressures; the damage-plasticity concept (Einav et al., ; Sun et al., 2015a), the diffuse failure models by Daouadji et al. (), the micromechanical models by Yin et al. (2010, 2017), the fractional cumulative models (Sun et al., 2015b, 2016a,b), the bounding surace models (Dafalias, ; Sun et al., 2014, ; Sun and Shen, ). Some other models captured the state dependence but fall within category (ii), for example, the elastoplastic models by Sun et al. (, ,). In addition, most monotonic models cannot appropriately simulate the cyclic behavior of soil without modification on material flow and hardening, and thus fall within category (iii), for example, the state-dependent plastic models (Gajo and Muir Wood, ; Li and Dafalias, ; Einav et al., ; Sun and Xiao, 2017; Sun et al., , ).
To capture the state-dependent non-associated plastic behavior of sand, Been and Jefferies () firstly suggested the concept of state dependence for sands, which was then promptly developed in various constitutive models (Li and Dafalias, ; Yang and Li, 2004; Sun et al., ,,, ). However, most of these models usually assumed a plastic flow rule that was only suitable for monotonic loads. For more complex loading conditions, for example, the cyclic loading case, more work needs to be carried out. In addition, classical constitutive models (Gajo and Muir Wood, ; Imam et al., ; Collins et al., ) were usually dependent on the assumption of an additional plastic potential function, in order to correctly capture the non-associated stress-strain behavior of granular soils under either monotonic or cyclic loads. Is there a possible way to capture the state-dependent non-associated behavior of granular soils without using additional plastic potential? Sumelka (,) suggested the incorporation of fractional-order derivatives into classical associated plasticity, from which a non-associated plastic flow rule can be achieved, without using additional plastic potential. However, the approach did not consider the physical practice in geomaterials, thus cannot reflect the underlying strength and deformation mechanisms of granular soil, unless proper modifications have been made. By connecting the state-dependent stress-dilatancy phenomenon with fractional plastic flow rule, a family of fractional plasticity models has been developed and applied in characterizing the non-associated stress-strain behavior of granular soil (Sun et al., 2017c, ,,,, ,). As demonstrated, the directions of plastic flow are no longer necessarily normal to the yielding or potential surfaces. However, these models did not consider the flow and hardening differences between loading, unloading and reloading, thus cannot properly capture the cyclic behavior of granular soils.
In fact, unlike the integer order derivative usually used in classical plasticity, the fractional order derivatives are non-local which induces a strong memory of the loading stress σ. Therefore, by using fractional derivative, the plastic flow of a material point was not only determined by the current stress state but also by its loading history. The size of the history and collection of yielding information are dependent on the employed definition of the derivative, for example, the Riesz-Caputo definition used by Sumelka and Nowak () and the Riemann-Liouville definition used by Sun et al. (2016b). The choice of whatever fractional operator should rely on the specific physical issues is to be taken into consideration.
However, the present fractional plasticity models were mainly based on monotonic fractional flow rule, and cannot be used for capturing the cyclic behavior of granular soils, without possible modifications. Unlike monotonic models (Gajo and Muir Wood, ; Li, ; Yang and Li, 2004), the plastic flow behavior and hardening/softening behavior loading, unloading and reloading should be different. Thus, the previous fractional plasticity model cannot properly capture the cyclic behavior of granular soils. To extend the fractional plasticity approach, a possible extension of the previous fractional plastic flow rule and hardening modulus for monotonic loading should be carried out. In contrast to previous works (Sun et al., , ), this paper presents a simplified fractional-order elastoplastic model for granular soils subjected to cyclic loads, based on a general fractional plastic flow rule suitable for both monotonic and cyclic loads, which is the main innovation of this study. The study is structured as follows: section Definition of Fractional Derivative presents the basic definition of the fractional derivatives, while section Constitutive Model presents the basic constitutive relations; section Calibration of Model Parameters discusses how to identify each model parameters, while section Model Performance validates the proposed model; section Conclusions concludes the study by summarizing several main findings.
Definition of Fractional Derivative
To begin, it is necessary to present a clear definition of the fractional derivative being used. According to the theory of fractional calculus, the fractional derivatives of the loading and unloading dynamic processes are different. In previous studies (Sun and Shen, ; Sun and Xiao, 2017), only the triaxial behavior of granular soils subjected to monotonic loading was considered. Therefore, only the left-sided Caputo fractional derivative with moving upper terminal (loading stress, σ′) and fixed lower terminal (initial stress state, ) was introduced in constitutive modeling. However, in this study, both the loading and unloading behaviors in triaxial tests will be addressed. The left-sided fractional derivative is suitable for describing the loading and unloading states of a material under triaxial compression where the deviator stress q > 0, while the right-sided fractional derivative is an operator performed on the loading and unloading states of a material subjected to triaxial extension where the deviator stress q < 0. Therefore, in this study, both the left-sided and right-sided Caputo's fractional derivatives (Agrawal, ) of a function f are used, such that:
where D means derivation; Γ denotes the gamma function, defined as . a and b are the lower and upper terminals used for integration. x is an independent variable and is designated as loading stress, σ, in this study. The fractional order, α , ranges from n−1 to n, where n = 1 or 2. Clearly, the fractional derivative is defined on an interval that is contrary to the integer order differential operators defined at a single point. Therefore, due to this non-locality, fractional approach in this study would intrinsically memorize the cyclic loading history.
Constitutive Model
In this study, only homogeneous and isotropic materials loaded under triaxial stress conditions are under consideration, where compressive stress and strain are regarded as positive. All the stresses used for derivation are effective stresses unless otherwise specified. Therefore, the following triaxial stress notations can be given:
where ε indicates strain tensor for triaxial loading while the superscripts, e and p, indicate elastic and plastic components, respectively. The total volumetric (εv) and shear (εs) strains can be, respectively, defined as:
where and are the first and third principal strains, respectively. The total strain tensor ε = εe+εp, while the effective stress tensor, σ′, can be expressed as:
where the mean effective principal and deviator stresses can be, respectively, defined as:
in which and are the first and third effective principal stresses, respectively. In this study, calculation of the elastic stress and strain response is based on the traditional theory of elasticity. However, the plastic strain is determined by using fractional plasticity (Sun and Xiao, 2017). A fundamental difference between classical and fractional plasticity is the calculation of the incremental plastic strain. In classical plasticity, the incremental plastic strain tensor, , is obtained by:
where a superimposed dot indicates increment. Λ is the plastic multiplier and f often denotes the plastic potential or yielding function, depending on the flow rule that is chosen. Due to the equivalence between the first-order derivative and the classical differentiation of a point, the derivative interval in Equation (10) is omitted for clarity. As can be expected from Equation (10), the direction of plastic flow is fixed at each stress point once the function f is given. However, the plastic flow of granular soil varies with soil types. A plastic flow rule without considering the varied plastic flow was usually not able to unified modelling of the constitutive behavior of granular soils. Therefore, a flow rule for granular soils modified by using fractional-order differential operator was proposed (Sun and Shen, ; Sun and Xiao, 2017) where the incremental plastic strain tensor, , can be determined by:
where the modified Cambridge (Schofield and Wroth, ) relation (f ) is used in this study for simplification:
where is the intercept of f with the abscissa. M = 6sinφc/(3t−sinφc), is the critical-state stress ratio under triaxial compression. t = +1 for compressive loading whereas t = −1 for extensive loading. According to Sun and Xiao (2017), the plastic strain can be expressed as:
where the generalized flow direction (n) can be expressed as:
in which nv and ns are the flow directions induced by compression and shearing, respectively. Due to the distinct formulae of the fractional derivatives in describing loading and unloading, a generalized plastic flow rule suitable for both cases can be derived by substituting Equation (12) into Equations (1) and (2) (Sun et al., ), such that:
where the gradient, ||Dαf(σ′)||, is defined as:
The stress-dilatancy relationship for loading and unloading can be therefore obtained by using Equations (16) and (17), where the classical modified Cam-clay stress-dilatancy relationship can be also achieved by using α = 1. Detailed derivations of Equations (15) and (16) can be found in Sun et al. () and thus not repeated here for simplicity. In addition, the loading tensor m is assumed to be the same as the flowing tensor, such that:
where the dilatancy ratio d can be defined as:
The hardening modulus Πshould satisfy the following conditions according to Li (): (i) Π= +∞ when the stress ratio η = q/p′ = 0, (ii) Π= 0 when specimens are at the critical and drained peak stress states. Therefore, the loading plastic modulus Πcan be expressed as:
where m is a model constant; the shear modulus (G) is defined as:
in which G0 is the elastic modulus of the material and
where h1 and h2 are hardening parameters. The state parameter ψ is defined as
where e is the current void ratio; ec is the critical-state void ratio that can be expressed as (Li and Wang, ):
where λ , eΓ, and ξ are critical state parameters, describing the critical state line in the e−p′ξ plane. It should be noted that the current model does not explicitly consider the particle breakage behavior of granular soil. But, as evidenced by laboratory tests (Bandini and Coop, ; Ghafghazi et al., ; Yu, 2017a,b), the influence of particle breakage on the mechanical behavior of granular soil was reflected by shifting the critical state line in the e−ln p′ plane. To capture this behavior, numerous critical state lines incorporating particle breakage in the e−ln p′ plane were proposed. However, as suggested in Li and Wang (), a linear representation of the critical state line in the e−p′ξ plane can be simply used to implicitly consider the particle breakage, which had been used by a number of researchers, including Gajo and Muir Wood (,) and Dafalias and Taiebat (), etc.
Moreover, a slight difference of the hardening parameter is found between the current and previous study (Sun and Xiao, 2017) where hL was correlated to the initial ψ0 and e0 rather than the evolution of the current ψ and e. However, one may not be able to know the initial ψ0 and e0 of soils that have been already sheared. In such cases, the modification shown in Equation (23) works. ηp is the virtual peak stress ratio, which can be correlated to the state parameter as:
For reloading, the plastic modulus can be further expressed as:
where , is the densification factor, considering accumulation of strain caused by loading and reloading; and n and r are material constants, which are only used for capturing cyclic loading. For undrained loading condition, εv = 0, the plastic modulus is not affected by hC , as suggested by Ling and Yang (). Hence, the dependence of material hardening on the material density occurs via its dependence on ψ .
To characterize the unloading behavior of granular soils, the unloading plastic modulus by Ling and Yang () is used:
where hU and ϑ are model parameters. ηU is the stress ratio at which the unloading occurs. For tests with |M/ηU| ≤ 1, ϑ = 0
To consider the elastic deformation during loading and unloading, the hyperelasticity is used to determine the elastic incremental strain, such that:
where Ce is the elastic compliance tensor:
where the bulk modulus (K) can be defined as:
where ν is the Poisson's ratio, describing the lateral deformation capability of the material. Thus, a complete description of the elastoplastic stress-strain behavior of granular soils under cyclic loads can be achieved, by using Equations (13) and (29).
Calibration of Model Parameters
There are in total 14 model parameters, i.e., four critical state parameters (φc, λ, eΓ, ξ), one fractional order (α), seven hardening parameters (h1, h2, m, hU, r, n, ϑ) and two elastic constants (G0, ν). Details of how to determine the model parameters are described as follows.
The critical state parameters (φc, λ, eΓ, ξ) define the critical state of the material, which can be determined by fitting the critical state points in the p′−q and e−p′ planes. For most granular soils, the critical state friction parameters are independent of the loading state.
The fractional order, α, determines the plastic flow directions of the material. Therefore, it can be determined by using the least-squares method to fit the stress-dilation relationship as shown in Figures 1, 2. To be compatible with the critical state soil mechanics, α is equal to unit when the critical state void ratio is reached.
Figure 1
Figure 2
The hardening parameters, h1 and h2, determine the hardening and softening behavior of the material, which can be determined by fitting the εs−η relationship of specimens under different initial monotonic test conditions, as discussed in Sun and Shen (). The peak failure constant, m, can be calibrated from the stress points at peak failure state by using:
where ψp and ηp are two values of ψ and η at the peak stress state. The peak stress decreases as k increases. There are four hardening parameters (hU, θ, r, n) for describing the unloading/reloading behavior of the material. hUsb can be determined by fitting the slope of the first unloading stress-strain curve while ϑ can be determined from the rate of change of the slope of the first unloading curve. r is determined by fitting the hysteretic loops in the stress-strain curve. n can be obtained by fitting the first reloading stress-strain curve of the material. Detailed discussions on determining the hardening parameters for cyclic loads can be found in Ling and Yang () and thus not repeated here.
The elastic constant, G0, mainly determines the elastic characteristics of the material, which can be obtained by rearranging Equation (19):
The Poisson ratio, ν, usually ranges between 0.05 and 0.35 for most granular soils. It defines the lateral deformation ability that can be determined by:

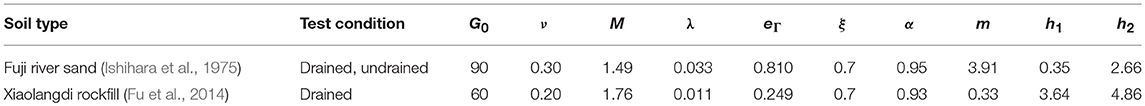

Detailed values of the model parameters of each material simulated in this study can be found in Table 1.
Table 1
| Soil type | Test condition | G0 | ν | M | λ | eΓ | ξ | α | m | h1 | h2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Fuji river sand (Ishihara et al., ) | Drained, undrained | 90 | 0.30 | 1.49 | 0.033 | 0.810 | 0.7 | 0.95 | 3.91 | 0.35 | 2.66 |
| Xiaolangdi rockfill (Fu et al., ) | Drained | 60 | 0.20 | 1.76 | 0.011 | 0.249 | 0.7 | 0.93 | 0.33 | 3.64 | 4.86 |
Model parameters related to monotonic loading.
Model Performance
In this section, the proposed fractional order elastoplastic model is validated by simulating the drained and undrained triaxial behaviors of different granular soils, including sand and rockfill. Specifically, Figures 1–3 present the model simulations of the monotonic and cyclic behavior of Fuji River sand (Ishihara et al., ). The model simulations of the drained triaxial behavior of rockfill (Li, ; Fu et al., ) are shown in Figures 4–6.
Figure 3
Figure 4

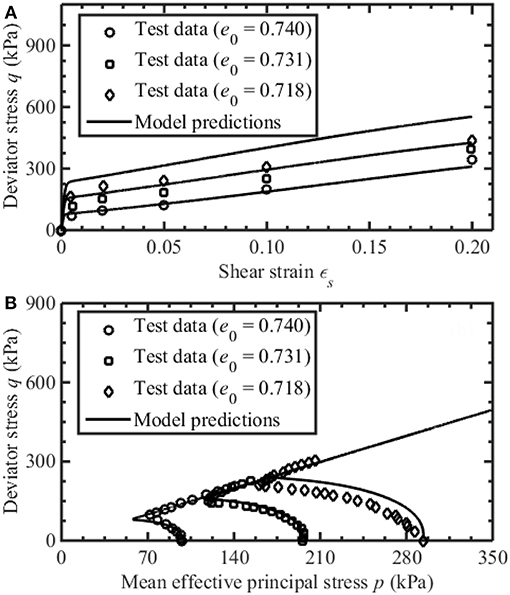

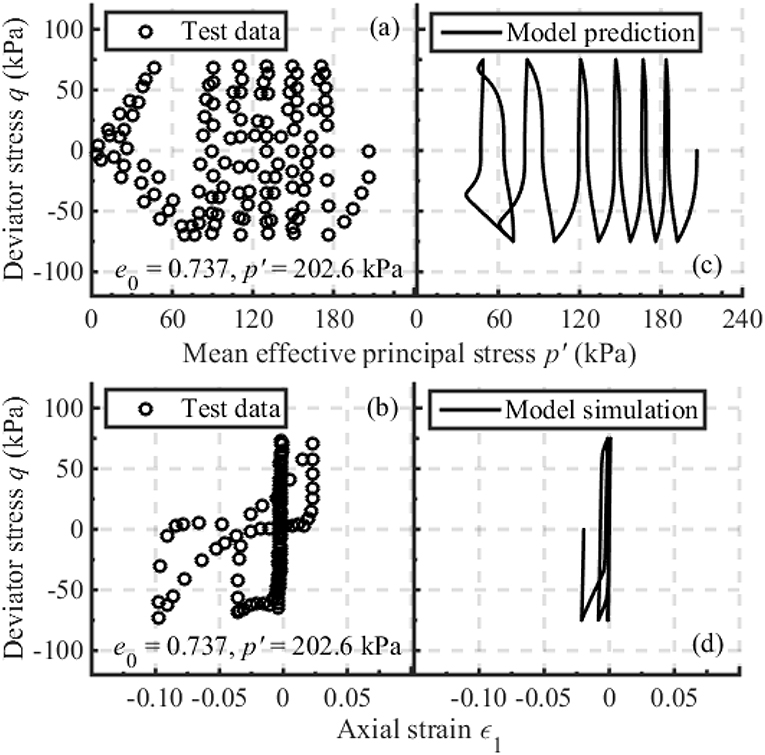

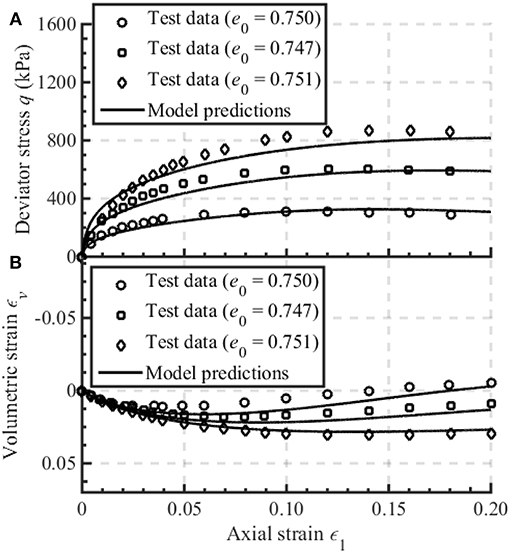

Figures 1–3 present the model predictions of the drained and undrained triaxial behavior of Fuji River sand (Ishihara et al., ). The material primarily consisted of sub-angular aggregates with d50 of 0.22 mm and Cu of 2.21. Samples of 50 mm in diameter and 100 mm in height were prepared by pluviating fresh sand into the molds which were filled with deaired water. The e0 used for simulating undrained tests are 0.740, 0.731, and 0.718, with the corresponding equal to 98, 196, and 294 kPa, respectively. The e0 for simulating drained monotonic tests are 0.750, 0.747, and 0.751, with the corresponding equal to 98, 196, and 294 kPa, respectively. It can be observed in Figures 1, 2 that the undrained and drained monotonic stress-strain relationship of Fuji River sand with various initial conditions can be well-captured by using α = 0.95. The initial contraction and the subsequent dilation of the samples (Figure 2) are well-simulated, highlighting the rationality of the adopted fractional flow rule. Moreover, the simulated deviator stress increases rapidly until reaching a critical state, which agrees well with the experimental results shown in Figure 2. The undrained cyclic performance of Fuji River sand with e0 = 0.737 and = 206.5 kPa is simulated in Figure 3, by using the additional model parameters: hL = 0.5, hU = 0.1, r = 130, n = 1, ϑ = 4. It is found that the model simulation of the stress path is in reasonable agreement with the corresponding test results prior to liquefaction. However, the simulation result of the variation of deviator stress vs. axial strain is less favorable as strain increases.

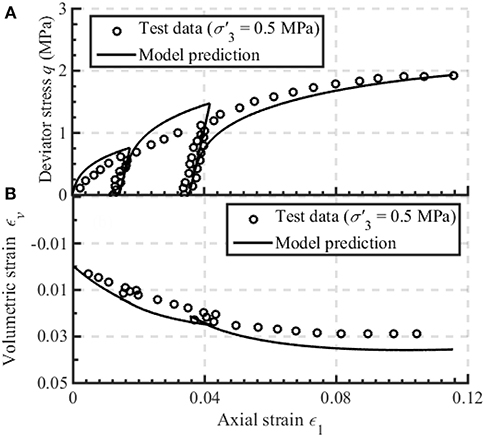

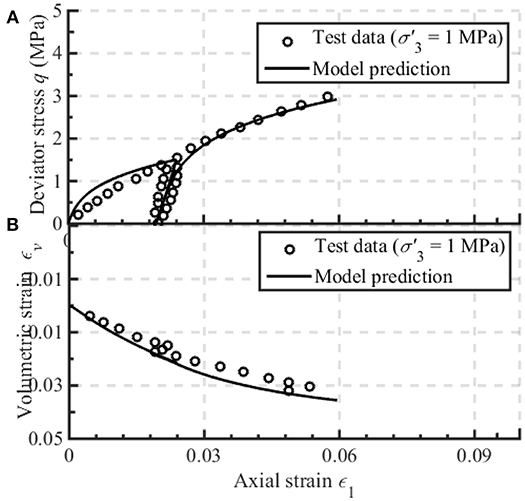

Monotonic and cyclic test results of Xiaolangdi rockfill reported by Fu et al. () and Li () are simulated in Figures 4–6. The material primarily consisted of slightly weathered sandstones. The e0 equal to 0.199 was used for all the tests. Figure 4 shows the model prediction of the monotonic stress-strain behavior of Xiaolangdi rockfill (Fu et al., ). Concordance between the model simulations and corresponding test results can be observed by using α = 0.93. More specifically, the material hardening and softening accompanied by volumetric contraction at high confining pressure and dilation at relatively low confining pressure are well-characterized. Figures 5, 6 show the model simulations of the cyclic behavior of rockfill. The initial = 0.5 and 1 MPa while the additional model parameters used for model simulation are: hL = 0.2, hU = 8, r = 10, n = 2, ϑ = 3.3. It can be observed that the loading and unloading stress-strain responses can be reasonably simulated by the proposed fractional-order model.
Figure 5
Figure 6
Conclusions
A fractional-order plastic flow rule was suggested in previous studies. However, due to the limitations induced by the mathematical definitions of the (left-sided) fractional derivative, the suggested fractional-order flow rule can only be applied to model the monotonic stress-strain response of granular soils. To solve this problem, a new cyclic fractional plasticity model was developed in this study. The main conclusions can be drawn as:
A generalized fractional flow rule for both monotonic and cyclic loading conditions was proposed in this study by using the left-sided and right-sided Caputo fractional derivatives.
Then, a fractional plasticity model for granular soils under cyclic loads was proposed in this study. The proposed model contained fourteen parameters that can be all obtained from triaxial tests.
The proposed model was further validated by simulating a variety of test results for different granular soils, e.g., sand, ballast, and rockfill subjected to monotonic and cyclic loads. It was found that the simulation results were in good agreement with corresponding experimental data. The model was able to characterize the key features, for example, loading/unloading stress-dilatancy behavior, strain hardening and softening as well as monotonic and cyclic liquefactions, of granular soils.
However, it should be noted that only limited cyclic test conditions, e.g., undrained test with constant stress amplitudes and drained test without extension, were examined by the proposed model in this study. A more comprehensive application of the proposed model to simulate the cyclic performance of granular soils under a number of different test conditions needs to be conducted in future.
