ORIGINAL RESEARCH article

Front. Cell. Neurosci., 12 December 2017
Sec. Cellular Neurophysiology
This article is part of the Research Topic Cellular Mechanisms of Ototoxicity View all 23 articles

Inhibition of Mitochondrial Division Attenuates Cisplatin-Induced Toxicity in the Neuromast Hair Cells

  • 1Department of Otolaryngology—Head and Neck Surgery, University Hospitals Cleveland Medical Center, Cleveland, OH, United States
  • 2Department of Biology, Case Western Reserve University, Cleveland, OH, United States
  • 3Department of Neurosciences, Case Western Reserve University, Cleveland, OH, United States
  • 4Department of Genetics and Genome Sciences, Case Western Reserve University, Cleveland, OH, United States

Cisplatin and other related platinum antineoplastic drugs are commonly used in the treatment of a variety of cancers in both adults and children but are often associated with severe side effects, including hearing loss. Cisplatin’s ototoxic effects are multifaceted, culminating in irreversible damage to the mechanosensory hair cells in the inner ear. Platinum drugs act on cancerous cells by forming nuclear DNA adducts, which may initiate signaling leading to cell cycle arrest or apoptosis. Moreover, it was reported that cisplatin may induce mitochondrial DNA damage in non-cancerous cells. Therefore, protecting mitochondria may alleviate cisplatin-induced insult to non-proliferating cells. Thus, it is important to identify agents that shield the mitochondria from cisplatin-induced insult without compromising the anti-tumor actions of the platinum-based drugs. In this study we tested the protective properties of mitochondrial division inhibitor, mdivi-1, a derivative of quinazolinone and a regulator of mitochondrial fission. Interestingly, it has been reported that mdivi-1 increases the apoptosis of cells that are resistant to cisplatin. The ability of mdivi-1 to protect hair cells against cisplatin-induced toxicity was evaluated in a fish model. Wild-type (Tübingen strain), cdh23 mutant, and transgenic pvalb3b::GFP zebrafish stably expressing GFP in the hair cells were used in this study. Larvae at 5–6 days post fertilization were placed in varying concentrations of cisplatin (50–200 μM) and/or mdivi-1 (1–10 μM) for 16 h. To evaluate hair cell’s viability the number of hair bundles per neuromast were counted. To assess hair cell function, we used the FM1-43 uptake assay and recordings of neuromast microphonic potentials. The results showed that mdivi-1 protected hair cells of lateral line neuromasts when they were challenged by 50 μM of cisplatin: viability of hair cells increased almost twice from 19% ± 1.8% to 36% ± 2.0% (p < 0.001). No protection was observed when higher concentrations of cisplatin were used. In addition, our data were in accord with previously reported results that functional mechanotransduction strongly potentiates cisplatin-induced hair cell toxicity. Together, our results suggest that mitochondrial protection may prevent cisplatin-induced damage to hair cells.

Introduction

Cisplatin and other related platinum drugs are common antineoplastic agents that are used in the treatment of a variety of cancers in both adults and children (for a review see Jamieson and Lippard, 1999). However, these drugs are associated with various side effects including nephrotoxicity and ototoxicity (for review see Rybak et al., 2009; Schacht et al., 2012; Karasawa and Steyger, 2015; Francis and Cunningham, 2017). Although nephrotoxicity can be managed to some extent (Cornelison and Reed, 1993; Wong and Giandomenico, 1999), mitigating ototoxicity in patients treated with cisplatin remains an unmet medical need (Brock et al., 2012; Schacht et al., 2012; Karasawa and Steyger, 2015). The platinum drugs act on cancerous cells mainly by forming adducts within the DNA (Huang et al., 1995; Jamieson and Lippard, 1999) and, possibly, by increasing reactive oxygen species (ROS) levels (Kopke et al., 1997; Rybak et al., 1999; Devarajan et al., 2002). In addition, cisplatin leads to cytotoxicity in normal cells that are not actively proliferating, inducing mitochondrial DNA damage and ROS elevation (Marullo et al., 2013; Wisnovsky et al., 2013).

Platinum-based antineoplastics irreversibly damage the cochlear hair cells starting in the basal turn—the outer hair cells appear to be more susceptible to this class of drug than other cell types in the cochlear duct, including the inner hair cells (Hinojosa et al., 1995; Li et al., 2004; Rybak et al., 2007). However, cisplatin-induced insult could extend beyond the hair cells and damage cells of the stria vascularis, a critical organ within the cochlea that is essential for maintaining the endocochlear potential and function of the cochlea (Laurell and Engstrom, 1989; Laurell et al., 2007). Although, damage to mostly outer hair cells is observed when low doses of cisplatin are used in rodents (Laurell and Engstrom, 1989; Cardinaal et al., 2000; Laurell et al., 2000; Park et al., 2002).

Routes of cisplatin entry into the hair cell could include the organic cation transporter Oct2 or the influx copper transporter Ctr1 (Riedemann et al., 2007; Ciarimboli et al., 2010; More et al., 2010; Xu et al., 2012). In addition, it was reported that in the absence of hair cell mechanotransduction (MET) cisplatin-induced hair cell death is reduced in zebrafish neuromast (Thomas et al., 2013; Stawicki et al., 2014). Gentamicin, which is bigger in size and weight than cisplatin, is known to permeate MET channels (Marcotti et al., 2005; Alharazneh et al., 2011; Vu et al., 2013); similarly, it is possible that cisplatin can permeate hair cell MET channels, although other routes could exist (Thomas et al., 2013). Using the zebrafish lateral line system, we test whether cisplatin affects hair cell MET currents, which might implicate its interaction with MET channels.

Attempts to find and develop otoprotective strategies for platinum-based drugs have been ongoing. One area of interest is antioxidant molecules. These include N-acetyl-cysteine (Feghali et al., 2001), alpha-lipoic acid (Kim et al., 2014), D-methionine (Lorito et al., 2011) and sodium thiosulfate (Muldoon et al., 2000). The most important consideration is to find a protection method or a drug that does not compromise the anti-tumor actions of the platinum-based drugs. For that reason, using mdivi-1, an inhibitor of the mitochondrial fission protein Drp1, could be a promising strategy to mitigate cisplatin-induced ototoxicity (Qian et al., 2015). One interesting aspect of mdivi-1 is that it has been reported to increase the apoptosis of tumor cells that are resistant to cisplatin (Qian et al., 2014). In general, mitochondrial dynamics were found to modulate antineoplastic activity of cisplatin (Qian et al., 2015; Han et al., 2017). Interestingly, cisplatin-induced tubular cell apoptosis and acute kidney injury were reduced by mdivi-1 (Brooks et al., 2009). Some recent work has shown promise for mdivi-1 in ameliorating the adverse effects of ototoxic aminoglycosides on hair cells of the inner ear (Nuttall et al., 2015). Here we test whether mdivi-1 could protect hair cells against cisplatin toxicity using the zebrafish lateral line system.

Materials and Methods

Animals

Experiments were conducted using the Tübingen strain of zebrafish of either sex provided by the McDermott zebrafish core facility. Transgenic zebrafish stably expressing GFP in the hair cell body (pvalb3b::GFP) were previously generated (McDermott et al., 2010), and cdh23tj264a mutant (Söllner et al., 2004) was a kind gift from Dr. Teresa Nicolson (Oregon Health and Science University). Fish were maintained and bred at 28°C according to standard procedures (Nüsslein-Volhard and Dahm, 2002). This study was carried out in accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health and animal welfare guidelines of the Committee of Case Western Reserve University (CWRU), USA. The protocol was approved by the Institutional Animal Care and Use Committee at CWRU (Protocol Number: 2012-0187).

Cisplatin Treatment

Zebrafish larvae at days post fertilization (dpf) 5–6, were placed in varying concentrations of cisplatin (50–200 μM, ThermoFisher Scientific, Waltham, MA, USA) and/or mdivi-1 (1–10 μM, Enzo Life Sciences, Farmingdale, NY, USA) overnight for 16 h. The next day, the larvae were transferred to another dish, anesthetized with MS-222 (Sigma-Aldrich, St. Louis, MO, USA), and secured in a recording chamber using strands of dental floss tie downs (Ricci and Fettiplace, 1997) and placed under the microscope, an upright Olympus BX51WI microscope equipped with 100× 1NA objective for observation. To assess viability, blood flow and heart rate were visually monitored. Images were observed with a Grasshopper3 CMOS camera (Point Grey, Richmond, BC, Canada) and captured with manufacturer provided software. Starting with the eye neuromasts and moving caudal, the number of hair bundles were counted in approximately 10 neuromasts per fish.

FM1-43 Labeling and Image Analyses

After overnight treatment with cisplatin and/or Mdivi-1, fish were placed into wells containing FM1-43 (ThermoFisher Scientific, Waltham, MA, USA) in fish water. After 30 s, fish were transferred to fish solution containing MS-222 and BSA. The larvae were then secured in a recording chamber and placed under the microscope for imaging as described above. Approximately 3–4 neuromasts were imaged, and maximal projection images were generated using ImageJ (NIH, Bethesda, MD, USA). For lateral line neuromasts, raw images were gathered using an Olympus BX51WI microscope and a Grasshopper3 CMOS camera as described above. Fluorescence measurements were obtained using ImageJ. A region of interest was used to obtain measurements from the cells in each neuromast (Icell) and an area without cells (Ibackground) in the same image. Fluorescence intensity of FM1-43FX (Iload) for each neuromast was normalized (Iload = Icell − Ibackground).

Recordings of Neuromast Microphonic Potential in Zebrafish

We anesthetized zebrafish larvae (5–7 dpf) using MS-222 dissolved in a standard bath solution containing (in mM): NaCl (120), KCl (2), HEPES (10), CaCl2 (2), NaH2PO4 (0.7), adjusted to pH ~7.2. The larvae were secured in a recording chamber and placed under the microscope for observation as described above. Viability, blood flow and heart rate of larvae were visually monitored. Images were observed with a Grasshopper3 CMOS camera and captured with manufacturer provided software. We recorded from posterior neuromasts; kinocilia tufts were deflected with a fluid jet (Nicolson et al., 1998; Trapani and Nicolson, 2010) delivered via a glass pipette with a diameter of approximately 5–7 μm and controlled by HSPC-1 (ALA Scientific Instruments, Farmingdale, NY, USA). Fluid jet pipette was placed approximately 75 μm near the neuromast and used to deliver sinusoidal stimuli of 50 Hz frequency. The microphonic potentials were recorded at room temperature (22°C). We used borosilicate glass electrodes with a resistance of 3–6 MΩ, which were filled with standard bath solution and placed near the apical edges of the lateral line neuromasts. We recorded microphonic potentials using a PC-505B amplifier (Warner Instruments, Hamden, CT, USA) and a PCI-6221 digitizer (National Instruments, Austin, TX, USA). Microphonic potentials were amplified by 20 (SIM983, Stanford Research, Sunnyvale, CA, USA), measured by a jClamp (Scisoft, Yale University, New Haven, CT, USA) in a current-clamp mode, and low-pass filtered at 100 Hz. All records represent an average of at least 500 trials.

Statistics

All statistical analyses were performed using GraphPad Prism 7. Data are reported as mean ± SEM. Comparisons between groups were analyzed by ANOVA with Tukey post hoc testing.

Results and Discussion

Mechanotransduction Potentiates Cisplatin-Induced Hair Cell Death

Our data show that functional MET potentiate cisplatin-induced hair cell toxicity in lateral line neuromasts in a zebrafish (Figure 1), in accordance with published reports (Thomas et al., 2013; Stawicki et al., 2014). cdh23tj264a/tj264a mutant zebrafish do not have functional MET in hair cells, because Cdh23 is an integral part of mechanosensitive stereocilia bundles in hair cells (Siemens et al., 2004; Söllner et al., 2004; Kazmierczak et al., 2007; Indzhykulian et al., 2013). Notably, cdh23 mutants have smaller numbers of hair cells per neuromast in comparison to wild-type or heterozygous fish (Figure 1). Despite the fact that treatment with 50 μM of cisplatin did not significantly change the number of hair cells in neuromasts of cdh23tj264a/tj264a zebrafish, whereas in wild-type fish this dose of cisplatin considerably reduced the number of hair cells (Figure 1A). This result indicates that MET channels may be involved in cisplatin entry into the hair cell. Alternatively, cisplatin entry into the hair cell is largely independent of the MET channel, but the ion flow carried out by functional MET potentiates cisplatin-induced damage.

FIGURE 1
www.frontiersin.org

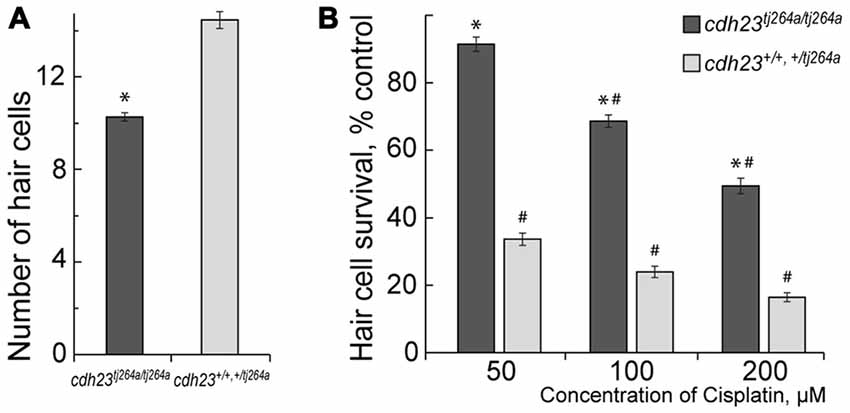

Figure 1. Mechanotransduction (MET) potentiates cisplatin-induced hair cell death. (A) Untreated cdh23tj264a/tj264a have fewer hair cells per neuromast when compared to wild-type and heterozygous fish. (B) When treated with increasing concentrations of cisplatin, cdh23 mutants, which do not have functional MET, have significantly greater hair cell survival in comparison to wild-type or heterozygous animals, which have normal MET. Data are mean, error bars indicate SEM. *p < 0.001, in comparison to wild-type and normal heterozygous larvae within the same treatment concentration. #p < 0.001, in comparison to untreated controls within larvae of the same genotype (see Supplementary Table S1).

Cisplatin and Mechanotransduction in Neuromast Hair Cells

If cisplatin enters hair cells via MET channels, it could interact with the channel directly and attenuate ion flow through the channel. To test this hypothesis, the microphonic potentials of neuromast hair cells (Figures 2A,B) were measured with and without application of 50 μM or 100 μM of cisplatin. The microphonic potential is an evoked electrical potential elicited by hair bundle deflections. The microphonic potential results from modulation of the cationic current flowing into stimulated hair cells via functional MET channels. Our results show that microphonic potentials were not affected by cisplatin application (Figures 2A,B). An alternate approach using FM1-43FX was also employed to test the hypothesis. FM1–43FX is a derivative of FM1-43, an amphipathic styryl dye that is known to rapidly accumulate in sensory hair cells via the MET channels that are partially open at rest in non-stimulated hair bundles (Gale et al., 2001; Meyers et al., 2003). Loading of FM1-43FX in live hair cells of lateral line neuromasts of controls and after 100-μM-cisplatin was not significantly different (Figures 2C,D). Our results did not reveal any evidence that cisplatin enters hair cells via MET channels. It is known that aminoglycosides enter hair cells via MET channels and are permeant blockers of these channels. Our results, however, do not rule out the possibility cisplatin may enter hair cells via the MET channel but this amount may not be sufficient to affect measured microphonic potentials.

FIGURE 2
www.frontiersin.org

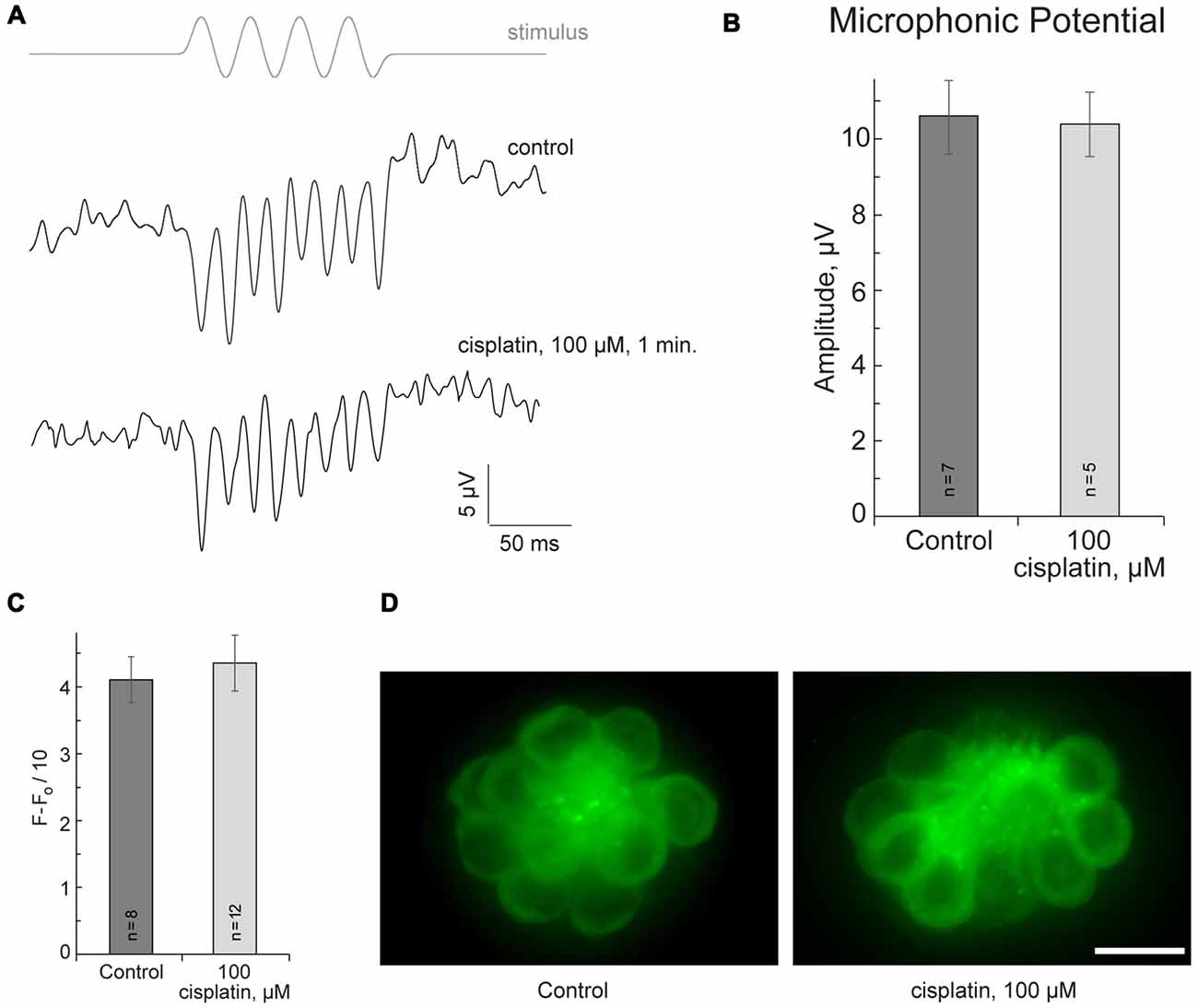

Figure 2. Cisplatin does not affect MET in neuromast hair cells. (A) Neuromast microphonic potentials are not affected after 100-μM-cisplatin application. The top trace shows pressure applied to the stimulating puff pipette. (B) Summary of microphonic potential peak-to-peak amplitudes at twice the stimulus frequency obtained from lateral line neuromasts (controls and after 100-μM-cisplatin application). (C) Summary of fluorescent signal of FM1-43FX in live lateral line neuromasts of control and after 100-μM-cisplatin application. (D) Representative maximum-intensity projection images of FM1-43FX-treated live neuromasts: control and after 100-μM-cisplatin. Data are mean, error bars indicate SEM. n = 5–12 larvae (noted on bar graphs, from three to six clutches) per data point. Scale bar: 10 μm.

When MET is functional, substantial amounts of calcium can enter hair cells through MET channels. Intracellular calcium balance is critical for hair cell function; it was found that calcium homeostasis is rapidly disrupted following ototoxic aminoglycoside exposure (Esterberg et al., 2014). It is possible that hair cell mitochondria continuously buffer calcium entering cell via functional MET channels, causing hair cells to become more vulnerable to toxic insult. Drugs that could reduce mitochondrial stress and/or protect mitochondria in other ways, may potentially increase hair cell viability when faced with ototoxic drugs.

Mitochondrial Division Inhibitor 1 Protects against Cisplatin-Induced Hair Cell Death

Here we tested whether mdivi-1 can protect hair cells against cisplatin induced toxicity in neuromast hair cells. Mdivi-1 is an inhibitor of mitochondrial division that selectively attenuates dynamin-related protein 1 activity, a fission protein that involved in the constriction and cleavage of mitochondria (Cassidy-Stone et al., 2008). First, we tested different doses of mdivi-1 for neuromast hair cell toxicity. High doses of mdivi-1, more than 10 μM, were toxic to the 5–6 dpf larvae (Figure 3A); therefore, we used lower doses of mdivi-1, 3 and 7 μM. Our data show that these doses of mdivi-1 protected hair cells of lateral line neuromast against toxicity of 50 μM of cisplatin (Figures 3B,C). These data demonstrated that modulating mitochondria dynamics may increase viability of hair cells against cisplatin toxicity in a zebrafish model. This finding is interesting also because it is known that mdivi-1 assists the abilities of cisplatin to trigger apoptosis in certain platinum-resistant tumor cells (Qian et al., 2014). Future studies, incorporating mammalian models, will be of further value in corroborating our results and revealing the mechanism of mdivi-1-mediated protection.

FIGURE 3
www.frontiersin.org

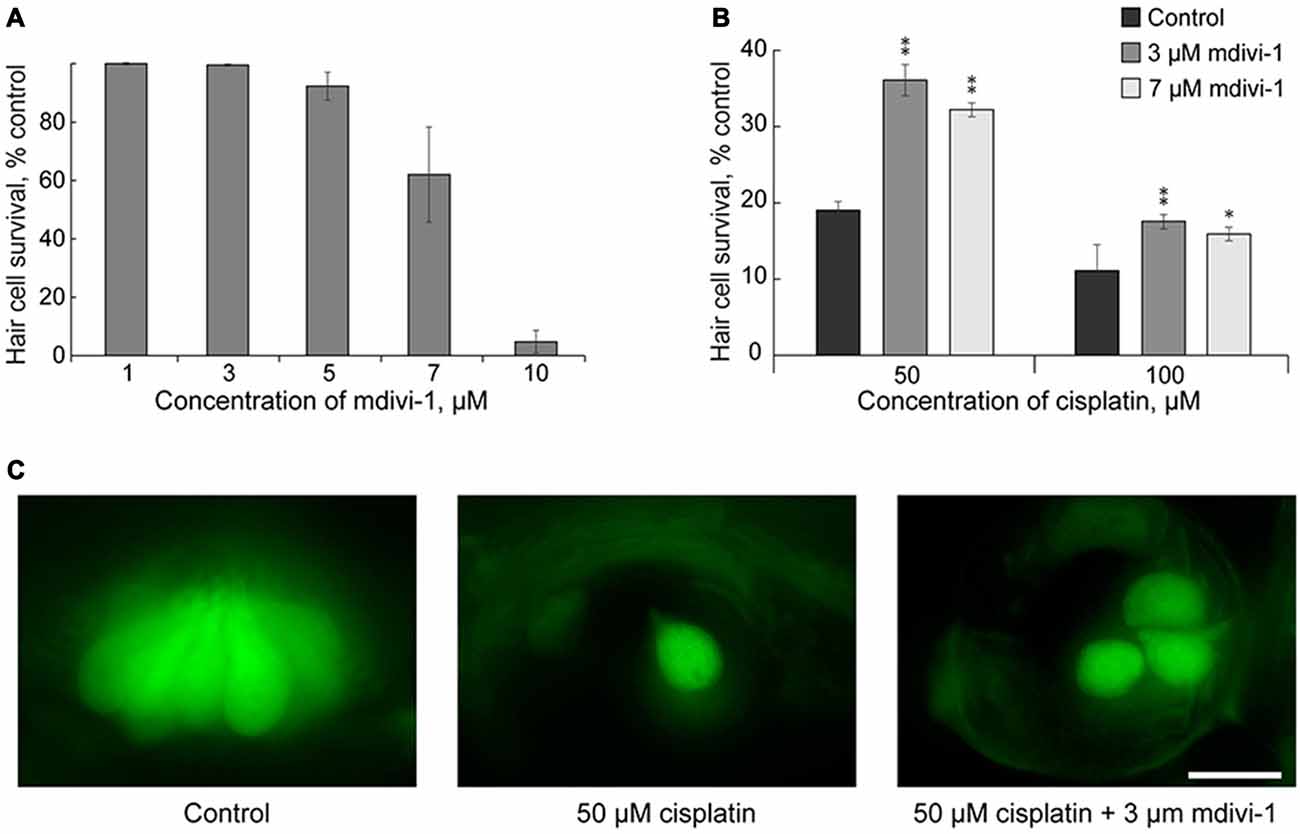

Figure 3. Mdivi-1 protects against cisplatin-induced hair cell death. (A) Concentrations of mitochondrial division inhibitor mdivi-1 between 1–5 μM are well tolerated by zebrafish; whereas 10 μM of mdivi-1 is toxic to hair cells (n = 5 larvae per data point, from three clutches). (B) Application of 3 or 7 μM of mdivi-1 allowed significantly more hair cells to survive treatment with 50 and 100 μM of cisplatin. (C) Representative maximum-intensity projection images of pvalb3b::GFP neuromast hair cells treated with 50-μM-cisplatin and/or 50-μM-mdivi-1 (middle and right images). Data are mean, error bars indicate SEM. **p < 0.001 and *p < 0.05, in comparison to no mdivi-1 treatment within the same cisplatin concentration (see Supplementary Table S1). Scale bar: 10 μm.

Conclusion

MET potentiates cisplatin-induced damage of neuromast hair cells. However, cisplatin, in contrast to aminoglycosides, does not affect MET of neuromast hair cells. Our data suggests that mitochondrial protection may prevent cisplatin-induced damage to hair cells.

Author Contributions

JWV and RS: conceived and designed the experiments and wrote the article. JWV, RS and SNW: performed the experiments and analyzed the data. JWV, SNW, SRG, ARD, BMM, KNA and RS: discussion and contributed reagents, materials, animal work.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

The authors thank Carol Fernando and members of Brian McDermott Laboratory for their help with zebrafish core facility. We thank Joseph Santos-Sacchi, Yale University, for providing us with the license to run jClamp. This research was supported by NIH grants DC015016 (RS) and DC009437 (BMM).

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fncel.2017.00393/full#supplementary-material
