Enhancing Our Understanding of Ladybirds in Ireland – A Case Study of the Use of Citizen Science

  • 1. Fota Wildlife Park, Carrigtwohill, Ireland

  • 2. School of Biological, Earth and Environmental Sciences, University College Cork, Cork, Ireland

Abstract

Citizen science is increasingly recognised as a useful approach to contribute to biodiversity awareness while generating data and creating meaningful interactions among citizens and professional scientists. In a number of countries, academic institutions have led the way in developing ladybird projects, incorporating citizen science, to increase distributional data on the species, as well as a greater understanding of ladybird ecology. The current research evaluates the role of citizen science campaigns in collecting biological distributional data in Ireland, using ladybirds as a case example, examining if citizen science records and the use of photographs can provide a valuable insight into our understanding of ladybird ecology. From April 2020 to June 2021, a citizen science programme engaged with the wider public, via social media networks to increase the number of ladybird records and assist in establishing national data baselines, since ladybird rcording is a relatively new phenomenon in Ireland. This case study finds that citizen science projects using social media can increase the number of records of ladybirds and provide useful information on species distribution patterns. There were a disproportionate number of records from areas of high human population, resulting in a bias towards urban centres. Photographs submitted by members of the public provided a limited amount of information on food plants but indicated that ladybirds are valued as a species of interest to the public. These images can also help to increase records of the less common species, especially as members of the public may not be able to easily distinguish between different species of ladybirds.

Introduction

The term ‘citizen science’ (or ‘community science’) has increasingly been featured in academic research over the last two decades and involves the participation of the public by collecting and providing data (; ; ; ; ). It is evident from scientific literature that citizen science has been used in the tracking of environmental trends to increase numbers of biological records and therefore increase our understanding of ecological trends (; ; ).

The data that can be collected by scientists depends on a range of factors, such as available funds, sample size and well-designed protocols (; (; (; ). Nevertheless, when few resources are available for research that requires data on the geographical distribution of species, citizen science is considered to be invaluable (), however, it has also been noted that in some cases, such as public outreach, citizen science projects can require lead-in time to gain momentum and awareness (). Citizen science, however, is a relatively new approach to dealing with data collection and scientific research. recognised that there are tradeoffs in citizen science and that there are also spatial bias factors to consider. However, a growing body of publications suggest that accurate data can be produced for a diverse range of projects, if designed with a clear set of goals and appropriate methodologies ().

Social media is an increasingly popular way of petitioning for records, offering free and open platforms (). Social media can impact the number of records submitted () by reaching a wider audience. examined the use of social media in citizen science projects and included “Irish Ladybirds” (the name of the social media page for this research) as one of the 42 citizen science projects in Ireland with over 1000 followers. highlighted the time required to set out the social media timeframes, posts, and analysis on the social media platforms but concluded that such platforms can be highly beneficial to biodiversity projects (). Furthermore, technological advances in smartphones, with good image capturing abilities, GPS co-ordinates are revolutionising citizen science and now enable records to be quickly shared ().

A number of studies have used citizen science approaches in ladybird research. These have included projects that have extended from the Americas to Europe and Africa ((; : ; ; (, ; ; ). Citizen science has contributed to our knowledge on ladybirds—including new species records () and the spread of the globally invasive ladybird Harmonia axyridis (; (; ; ).

Recording of ladybirds on a national scale is relatively new in Ireland, and numbers of records have been increasing, greatly assisted by the establishment of the National Biodiversity Data Centre in 2007 (). Datasets can be compared, by a system of cross-referencing data, with other data sources, linking to local weather at the time or recording, habitat types and the experience of the recorder ((). The use of photographs can be invaluable for assessing relative abundances of rarer, less frequently recorded species, but also may reflect information on habitat associations ((). However, the collection of data from photographs can also be influenced by patterns of human behaviour. concluded that volunteers were often attracted towards particular schemes where they could identify species easily and where little effort was required.

In 2020–2021, we ran a citizen science programme in Ireland to increase the number of ladybird records, review distributional information, and evaluate if the collection of photo-records is a useful tool to gather information on the habitat and species present in Ireland.

Methods

The study was based upon promotions using two Facebook platforms: (i) Fota Wildlife Park (a highly interactive page of 157,000 likes) which covers wildlife species in the park and other projects that are managed by Fota Wildlife Park and (ii) the research project Facebook page Irish Ladybirds (5699 likes). The Irish Ladybird project was promoted between April 2020 to June 2021, and records collected by email. The Irish Ladybird social media Facebook page was regularly updated, at a minimum on a weekly basis, with regular posts and a photographic competition held between April and September 2020. Promotional posts were incorporated into the work of Fota Wildlife Park which comprised of single postings. Records were collected via two email accounts. Information requested from members of the public included: (a) location (postcode/address/geo-coordinates) and (b) photographs of the ladybirds that were observed. Urban locations were identified as towns and villages with a human population more than 1500 (). The photographs were examined to identify ladybirds and to collect habitat information. Photographic information was classified using criteria in Table 1.

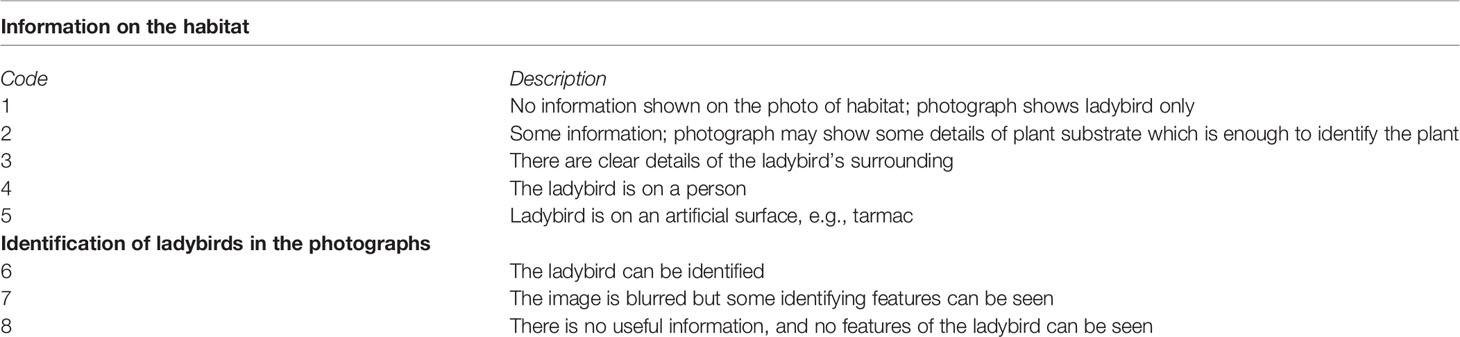

Table 1

Information on the habitat
CodeDescription
1No information shown on the photo of habitat; photograph shows ladybird only
2Some information; photograph may show some details of plant substrate which is enough to identify the plant
3There are clear details of the ladybird’s surrounding
4The ladybird is on a person
5Ladybird is on an artificial surface, e.g., tarmac
Identification of ladybirds in the photographs
6The ladybird can be identified
7The image is blurred but some identifying features can be seen
8There is no useful information, and no features of the ladybird can be seen

Criteria used for assessment of photographs of ladybirds submitted by members of the public.

Results

A total of 924 records were submitted with 56% collected via the Irish Ladybirds Facebook page and 44% from the Fota Wildlife Facebook page ((). A total of 100 posts were posted on both Facebook platforms and from 2 to 16 posts per month (mean = 6.6, standard deviation = 4.1) with no significant relationship between the number or records and posts during the study period (r = -0.06516, p > 0.05). The largest number of people (38,000) viewed the original Facebook post on April 16, 2020. Social media engagement was enhanced by promotional activities as online posters encouraged the public to submit records of ladybirds in gardens and other local places. These were uploaded to the Irish Ladybird Facebook page on March 3, 2021, and consequently reached 11,300 people with 69 records submitted. To further encourage involvement a photo competition on the Irish Ladybirds Facebook page ran from April to September 2020 and elicited a total of 171 records.

Figures 1, 2 show the number of records submitted from areas where human population was less than 1500 and above 1500, respectively. The largest number of citizen science records were submitted from urban areas (>1500 human population) and furthermore from centres of high human populations (Dublin City and Cork City urban areas. The number of ladybird records submitted was highest in urban areas (> 1500 human population) (Figure 2). Note that out of the 924, total records, 28 records did not provide locality detail for mapping. The majority (84%) of records were submitted by one person for one location (Table 2). As a result, 685 people submitted records but only 16% of these submitted more than one record (Table 3). Monthly data indicate that records were higher in April, May, June, and July 2020 and for March and April 2021. The lowest numbers of records were submitted during the winter months (Figure 3).

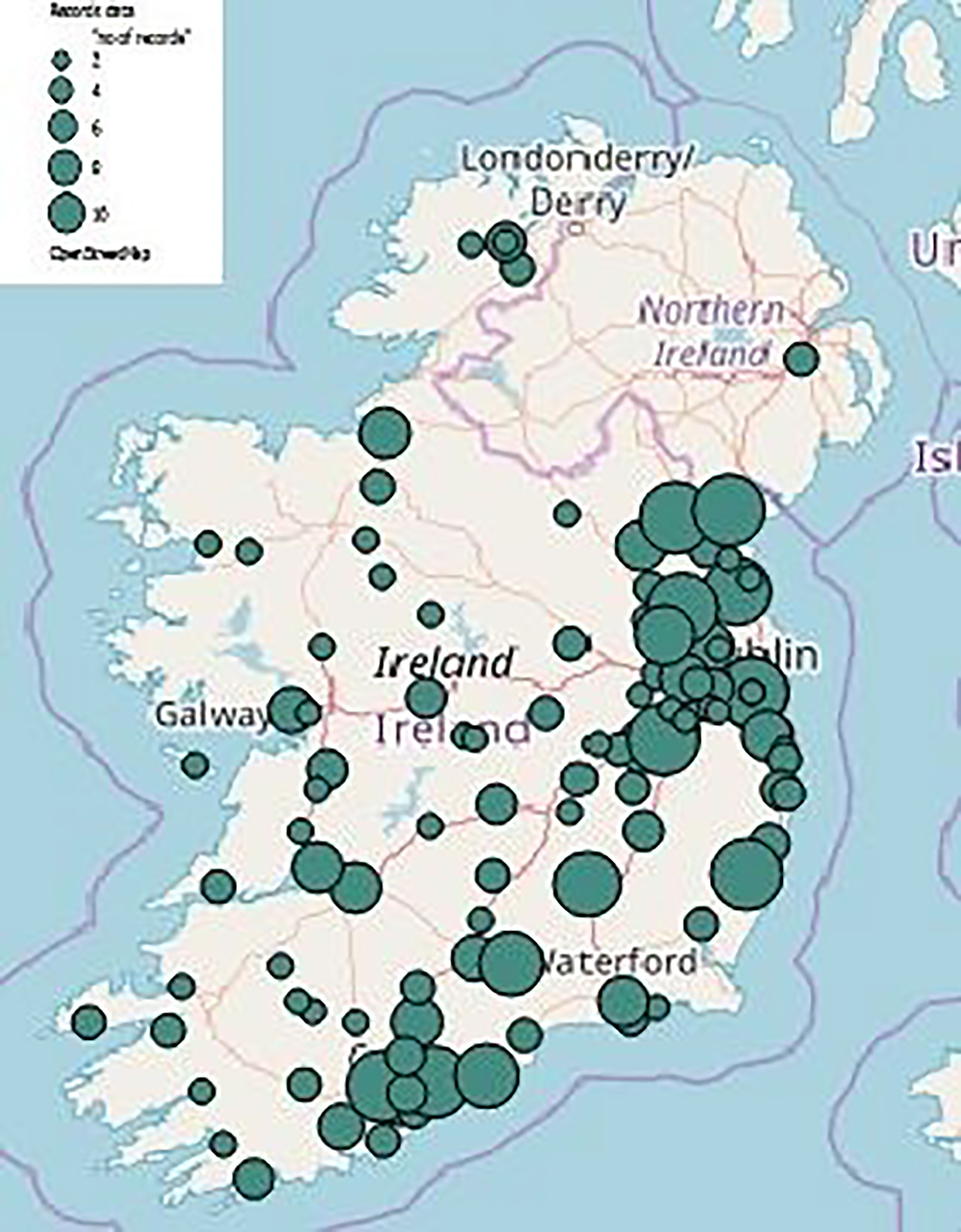

Figure 1

). Circle size reflects the number of records (total n=290).

Figure 2

). Circle size reflects the number of records (total n=606).

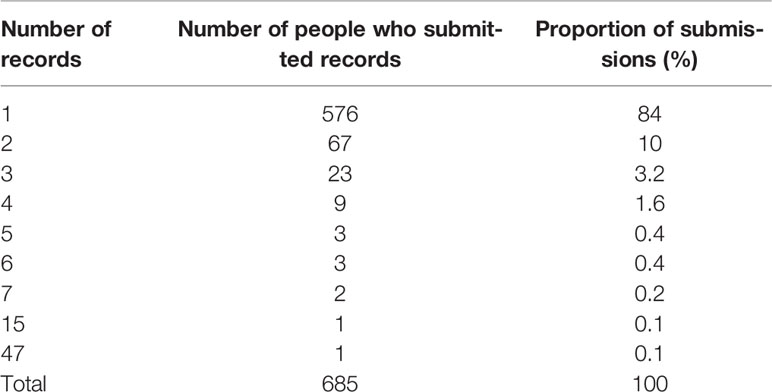

Table 2

Number of recordsNumber of people who submitted recordsProportion of submissions (%)
157684
26710
3233.2
491.6
530.4
630.4
720.2
1510.1
4710.1
Total685100

Number of ladybird records, no of people who submitted records and proportions of submissions (n = 685).

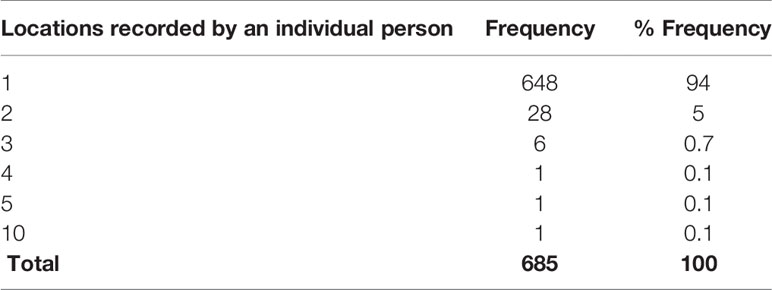

Table 3

Locations recorded by an individual personFrequency % Frequency
164894
2285
360.7
410.1
510.1
1010.1
 Total685100

Locations recorded by an individual person, frequency, and percentage of frequency (n = 685).

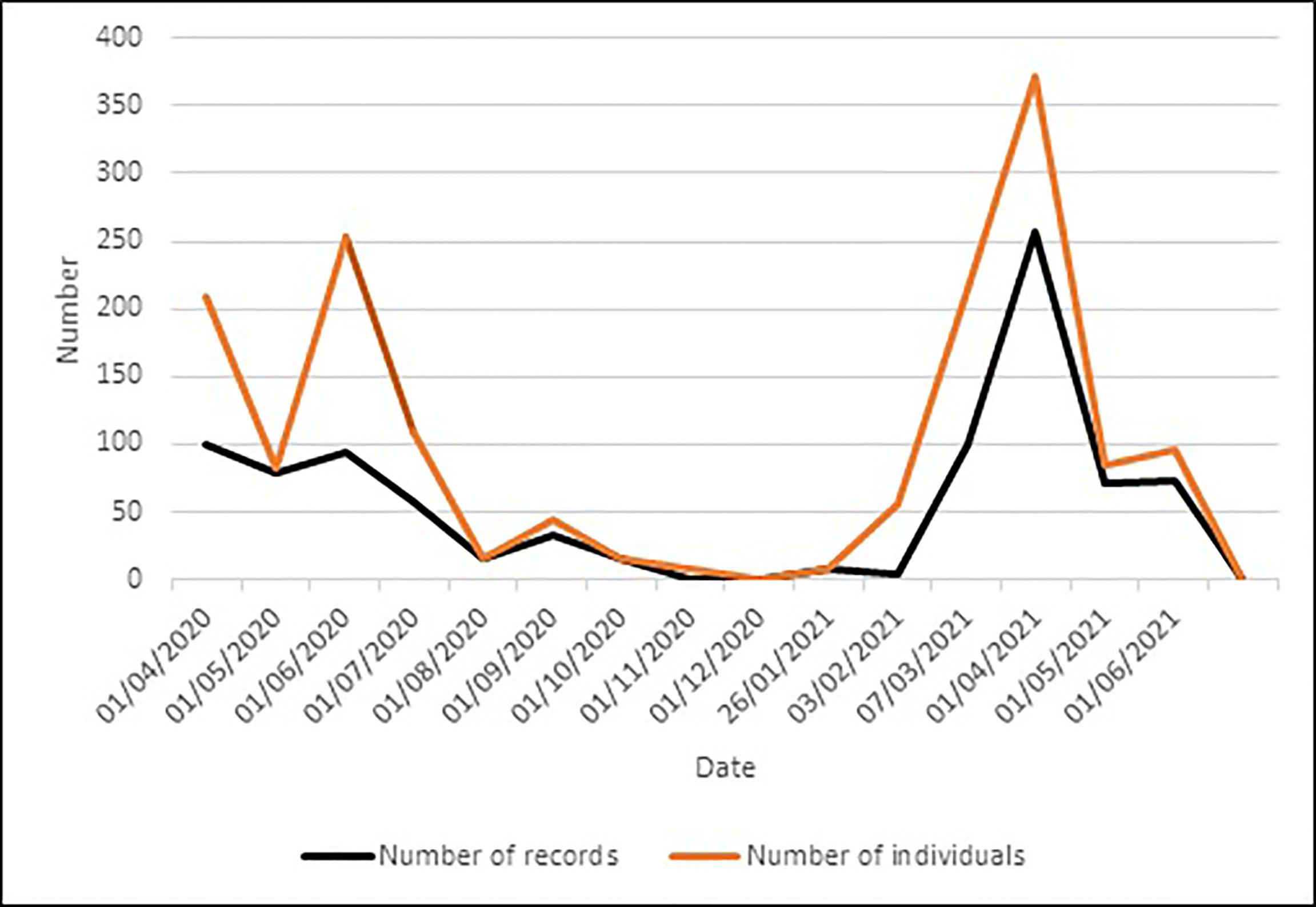

Figure 3

We developed criteria to classify photographs in terms of identification of species and substrate. The majority of photographs (88%) gave a clear image of the ladybird, allowing accurate species identification. Of all photographs, 20% showed the ladybird only, whereas 20% gave a reasonable view of the substrate and surroundings. Ladybirds were mostly recorded on plant substrates, including Poacea spp. (grasses), Urtica spp. (nettles), and dead wood. A total of 30% of plant substrates in the photographs could not be identified, due to lack of detail or to the fact that only the ladybird was visible with no detail of surroundings. There was a common trend for recorders to pick up ladybirds and photograph them on their hand or arm.

Eleven species of ladybird were recorded in the survey (Table 4) representing 45% of the Irish ladybird biota. The most recorded species was Coccinella septempunctata (n = 1264 individuals), followed by the invasive Harmonia axyridis (n = 122). Our work has contributed to the number of records of two poorly known species, Calvia quatuordecimguttata and Chilocorus renipustulatus (Figure 4). Between April 2020 and June 2021, we recorded 36 records for these two species compared to 69 records reported by the national data base. Most of the species submitted to this research were generalist species that have a broad niche and can adapt to many environmental conditions. Specialist ladybirds have a narrower niche, e.g., Chilocorus renipustulatus is most often found on deciduous trees ().

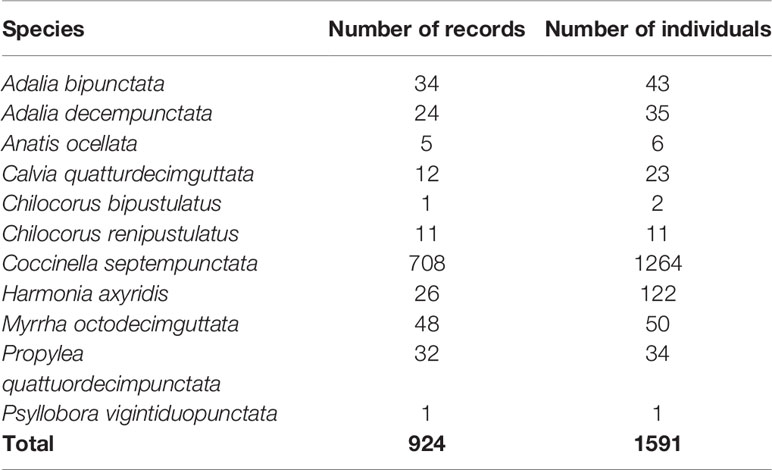

Table 4

SpeciesNumber of recordsNumber of individuals
Adalia bipunctata3443
Adalia decempunctata2435
Anatis ocellata56
Calvia quatturdecimguttata1223
Chilocorus bipustulatus12
Chilocorus renipustulatus1111
Coccinella septempunctata7081264
Harmonia axyridis26122
Myrrha octodecimguttata4850
Propylea quattuordecimpunctata3234
Psyllobora vigintiduopunctata11
Total9241591

Number of species and records of ladybirds recorded between April 2020 to June 2021 during our citizen science campaign in Ireland.

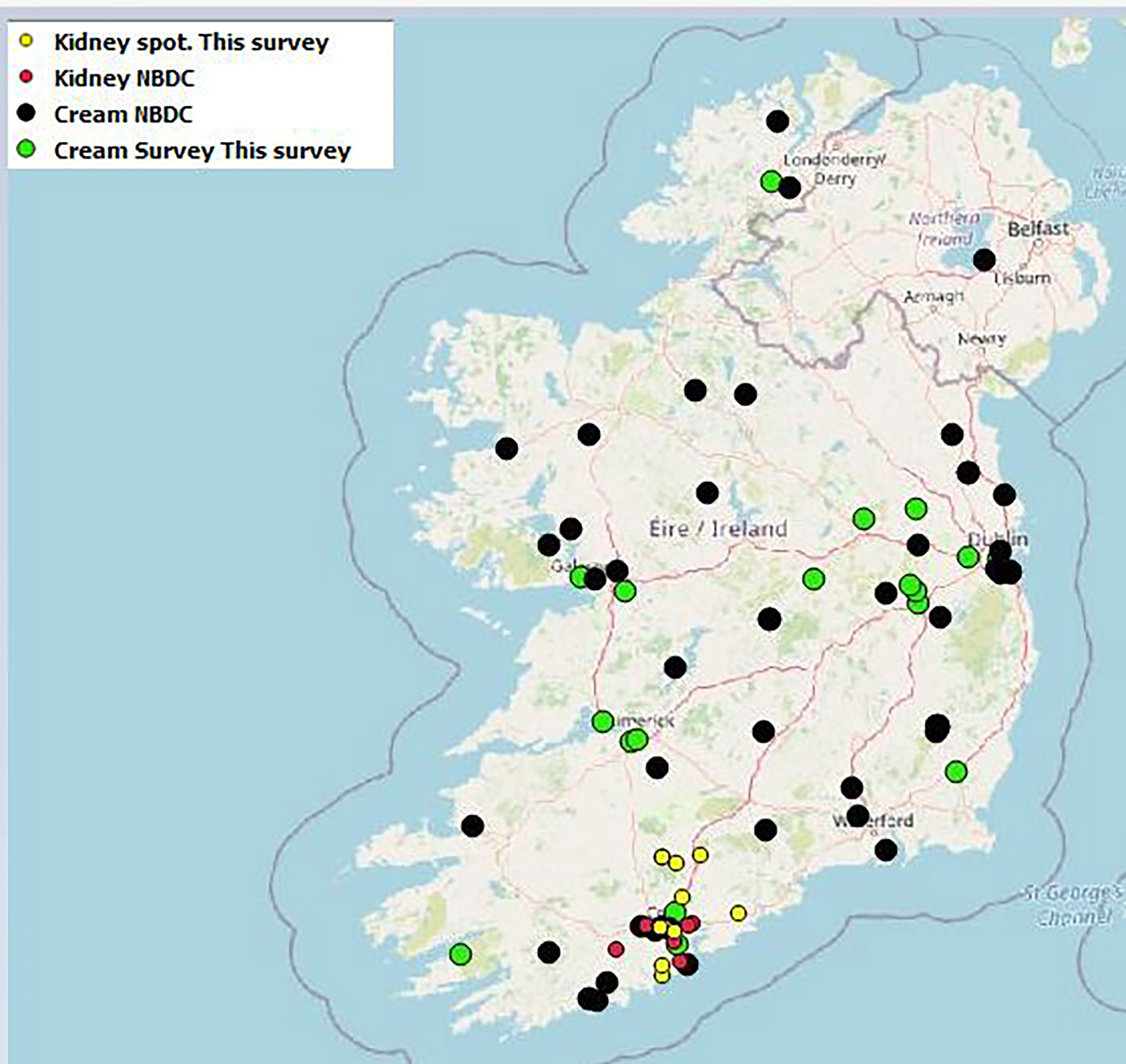

Figure 4

Discussion

A considerable number of records were submitted as a result of a citizen science campaign in Ireland that ran for more than 15 months. There was a temporal trend in the submission of the records with a peak in late spring-early summer both years, with the emergence of ladybirds early in the year. Temporal trends have been observed by other citizen science research (; () and attributed by () to predator and prey trends.

The pattern of human settlement across the country is reflected in the geographic distribution of records, with the majority of records submitted from small areas with large human populations. Most records were submitted from the two largest cities in Ireland, Cork, and Dublin. Nearly two-thirds of the Irish population live in urban areas (; ) and the trend towards urbanisation of land in Ireland is among the highest in Europe, yet the proportion of urban to rural land cover remains at just below 2% (). The current finding that most records came from areas of high human populations is reflected within citizen science research (; ; ). Other research where citizen science has been used for ladybirds has revealed similar observations; records are higher in densely populated urban areas (; ; )

studied the relationship between aphids and ladybirds in urban gardens and concluded that increases in urban land cover do not favour ladybirds as urban garden habitats. There continues to be large gaps in data relating to our knowledge of the distribution and habitats of many species, and increased numbers of records in highly populated urban areas will give information on the distribution of only a small number of species ().

Surveys on rural habitats are not common. Distribution maps created from other larger citizen science surveys, such as the UK Ladybird Survey with currently over 48,510 records (). Recording of ladybirds in Ireland is a relatively recent activity and, while numbers have increased since the launch of the National Biodiversity Data Centre in 2007, the current survey has shown there are some species of ladybirds that are still under recorded. These include Aphidecta obliterata, Chilocorus renipustulatus, Coccinella hieroglyphica, and Myrrha octodecimguttata that are specialist species, in addition to being smaller in size and less well recognised as ladybirds by the public.

In this study, an increased number of records provided new information on the distribution and abundance of some ladybird species. Coccinella septempunctata was by far the most reported, followed by Harmonia axyridis and Psyllobora vigintiduopunctata. Species such as Chilocorus renipustulatus have been found to be more common in Ireland than anticipated. The first recorded sighting of this species was in Cork in 2011 (), and records from the current citizen science campaign have shown its distribution to extend further out into the northern, southern, eastern, and western parts of County Cork. Eleven species of ladybird were recorded during the survey, representing two thirds of the total number of species recorded in Ireland (Table 4) (National Biodiversity Data Centre, pers. comm.). New knowledge relating to ladybirds can indeed be gained from citizen science data (; ; ; ). Although this survey produced a large number of records, the results highlight further gaps in ladybird distribution in Ireland that need to be addressed. The research identified not only spatial biases in a country with a widely spread rural population, but also that participation may reflect the motivation of the population to submit records. Ladybirds, being tiny can often be difficult to observe and this has been suggested to account for higher records of the larger more colorful ladybird species ().

The first Irish record for Harmonia axyridis was made in 2007 in Antrim (). This invasive alien species is now established in Cork, Dublin, and Wexford (; ). The rate of spread of Harmonia axyridis is lower in Ireland and other countries of northern Europe ((), a pattern that could be explained by lower populations and climatic conditions (). Despite a broad adaptability of H. axyridis, here are limitation as to where it can invade (e.g., ; ; ).

Social media is an invaluable tool for promoting awareness of topics and dissemination of information and can influence the number and quality of records submitted (; Ellwood et al., 2017; ). Social media platforms are now commonly used for citizen science. Continuous engagement and eye-catching, colorful articles were found to increase the reach and interest from the Facebook posts on the ladybird project pages, a trend also noted by . Social media can be effective in targeting audiences () if they have a clear message. The current research found that asking for help to build up knowledge towards the protection of ladybirds resulted in considerable investment from the public. This could also be attributed to the likeability of ladybirds in part (). It is unlikely that as many photographs would have been submitted if the taxonomic subject of the citizen science campaign was less appealing ().

It was interesting to note that many of the records (n = 104) included a photo of a ladybird on the arm or hand of a person or child. This familiarity with ladybirds is reflective of the benign attitude that people have towards them. The connectivity between the natural world and humans has been frequently highlighted and (() attributes this to experience and teaching of children by family members. Humans, especially children, clearly identify with ladybirds. There is a fascination with ladybirds due to their colour, importance in the garden for predating on plant pests and that the ladybird is associated with good luck in many myths and legends (; (). There is undoubtedly more to be discovered about why people like ladybirds, and to explain why they are recognised, as a charismatic and popular species (; ; ).

Photographs are perceived as an invaluable analytical tool for collecting data (), and can be important for identifying species for research on estimating distribution (). Photographs from the 924 records were assessed for their ability to identify ladybirds and a classification system was used to establish their usefulness. Photos were found to be sometimes valuable in identifying ladybirds but did not always reflect the background characters required to identify the habitat or species of plant on which the ladybird was resting. Information on the immediate surrounding may be useful, e.g., wildflower areas, artificial substrates, et cetera. However, photographs submitted by the public were more often than not of little use in providing accurate substrate or habitat information. Citizen science has emerged as a useful tool for collecting data that are not otherwise recorded (). Verification of records using photographs is an important essential part of citizen science (). suggested that the larger number of samples collected through direct citizen science may compensate for reduced accuracy depending on the types of data collected, but with clear identifiable photographs that can improve accuracy (). Citizen science-based research can also reveal sightings of invasive species which were previously unnoticed and provide valuable information where resources may be limited (; ).

Conclusions

Citizen science is undoubtedly a useful tool in increasing our knowledge of ladybird distribution. Ladybirds are charismatic species and the public readily engages in providing information on these species. However, this study demonstrated that data provided by the public in response to a non-targeted social media campaign was predominantly urban in origin and centred on large cities resulting in a geographic bias in submitted records. While additional records extended the known distribution of some seldom recorded species, this citizen science campaign did not contribute records of ladybirds from across large areas of the country or from common habitats outside of cities. A substantial increase in effort is required to acquire the data that will fill these knowledge gaps.

Funding

This research was funded by the Irish Research Council Enterprise Partnership Scheme (Postgraduate) and the Fota Wildlife Park.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Statements

Data availability statement

The datasets presented in this article are not readily available because of privacy concerns. Requests to access the datasets should be directed to the corresponding author, .

Author contributions

GW designed the survey, undertook data collection, analyzed data and drafted the manuscript. FB assisted in the drafting and revision of the manuscript. SM provided research facilities. All authors contributed to the article and approved the submitted version.

Acknowledgments

The authors would like to thank the staff at Fota Wildlife Park for their support with the research, Dr. Ruth Ramsay (University College Cork) for help with the manuscript, and the many members of the public who gave their time to send in photographs of ladybirds.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
