A review on the recent mechanisms investigation of PFAS electrochemical oxidation degradation: mechanisms, DFT calculation, and pathways

Per- and polyfluoroalkyl substances (PFAS) have drawn public concern recently due to their toxic properties and persistence in the environment, making it urgent to eliminate PFAS from contaminated water. Electrochemical oxidation (EO) has shown great promise for the destructive treatment of PFAS with direct electron transfer and hydroxyl radical (⋅OH)-mediated indirect reactions. One of the most popular electrodes is Magnéli phase titanium suboxides. However, the degradation mechanisms of PFAS are still unsure and are under investigation now. The main methodology is the first-principal density functional theory (DFT) computation, which is recently used to explore the degradation mechanisms and interpret by-product formation during PFAS mineralization. From the literature review, the main applications of DFT computation for studying PFAS degradation mechanisms by EO include bond dissociation energy, absorption energy, activation energy, and overpotential η for oxygen evolution reactions. The main degradation mechanisms and pathways of PFAS in the EO process include mass transfer, direct electron transfer, decarboxylation, peroxyl radical generation, hydroxylation, intramolecular rearrangement, and hydrolysis. In the recent 4 years, 11 papers performed DFT computation to explore the possible PFAS degradation mechanisms and pathways in the EO process. This paper’s objectives are to: 1) summarize the main degradation mechanisms of PFAS degradation in EO; 2) review the application of DFT computation for studying PFAS degradation mechanisms during EO; process; 3) review the possible degradation pathways of perfluorooctane sulfonoic acid (PFOS) and per-fluorooctanoic acid (PFOA) during EO process.

1 Introduction

Per- and polyfluoroalkyl substances (PFAS) have drawn public concern recently due to their toxic properties and environmental persistence (Rozen and Filler, 1985). PFAS substances are a broad class of emerging environmental contaminants used heavily by the industrial, commercial, and manufacturing sectors in previous decades, like surface coating, lubricants, and firefighting foams (Crone et al., 2019; Rahman et al., 2014). PFAS are highly persistent and bioaccumulated in the environment within biota and humans. Because of this, PFAS species have been consistently detected within the environment, in food products, and in humans (Hori et al., 2004). Various potential health effects have been attributed to PFAS exposure, particularly PFOS and PFOA, which are highly toxic and suspected carcinogens (Wanninayake, 2021).

It is urgent to eliminate PFAS from the contaminated water. The occurrence of PFAS is in many water bodies, including wastewater treatment plants, surface water, groundwater, and drinking water treatment plants (Wang et al., 2022a). PFAS is disposed of in water and wastewater sources at high levels, up to 120 μg/L (Vo et al., 2020). However, the remediation and treatment of PFAS-contaminated water are challenging because of its highly stable spiral structure and carbon−fluorine (C-F) bonds (106–124 kcal/mol) (Lin et al., 2018).

Many studies have recently shown the promise of EO for the destructive treatment of PFAS (Schaefer et al., 2017; Wang Z. et al., 2025; Zhao et al., 2025). It is increasingly recognized favorably as a next-generation water treatment technology for a few advantages, such as easy operation under ambient conditions, high degradation efficiency of the contaminants, and ease of manipulation and automation. Electrochemical treatments utilize electrolytic cell composed of at least one anode, one cathode, and a source of electrons (Figure 1) (Ryan et al., 2021). Oxidation reactions occur on the anode and reduction reactions occur on the cathode, with the type of electrode materials determining the specific reactions occurring. Sufficient thermodynamic energy (e.g., working electrode potential) must be available for these reactions to occur (Ryan et al., 2021). Some important parameters in EO influence the degradation efficiency of PFAS, such as the anode material, current density, solution pH, initial PFAS concentration, electrolyte, plate distance and electrical connectors in the EO system (Mirabediny et al., 2023; Wang Y. et al., 2025).

Figure 1

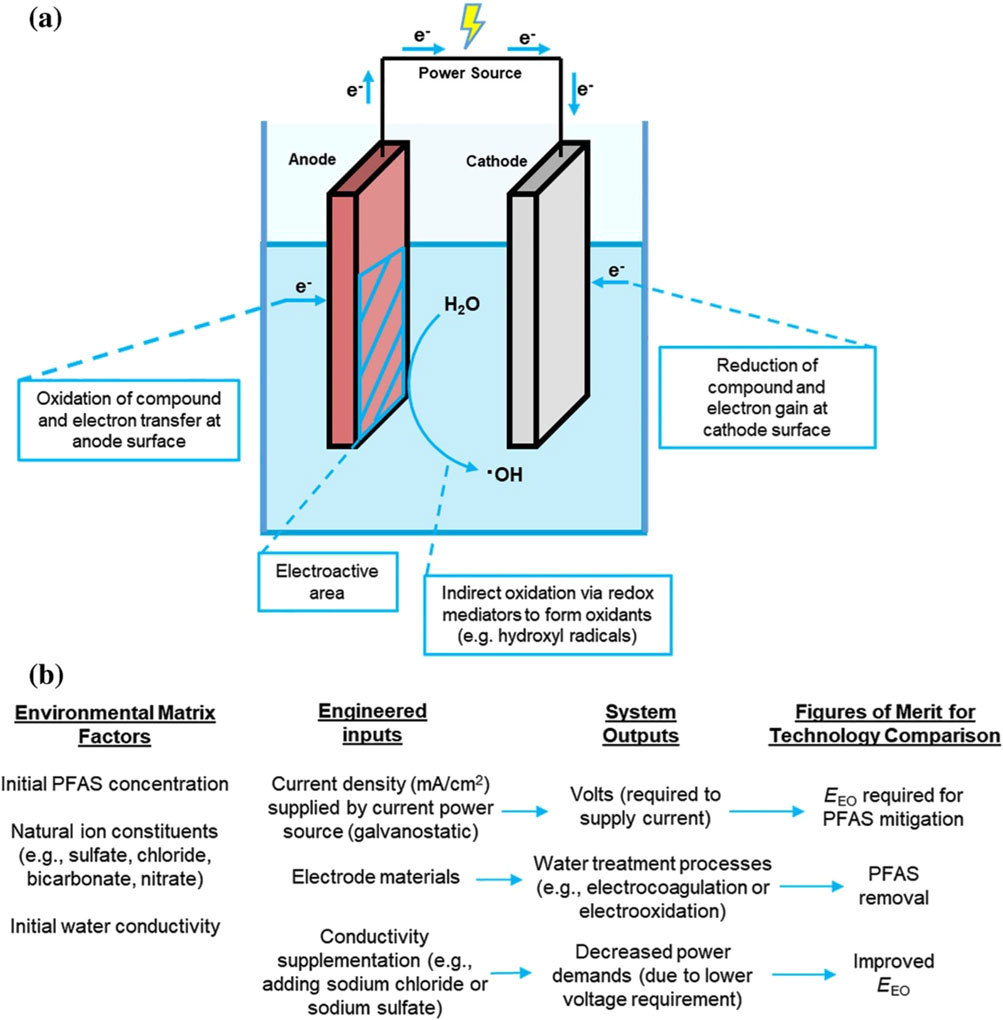

Figure 1. (a) Electrolytic cell schematic for electrochemical water treatment reactors. In these cells, oxidation reactions occur at the anode and electrons flow to the cathode, where reduction reactions occur. In these systems, the current density (mA/cm²) is determined by the amount of current (mA) that passes through the electroactive surface area. (b) Additional information is provided for environmental inputs to the electrolytic cell, in addition to engineered inputs and corresponding system outputs and figures of merit for comparing technology. E_EO = electrical energy per order (Ryan et al., 2021).

To date, there are various electrode materials available, including boron-doped diamond (BDD), Magnéli phase titanium suboxides (TSO), lead dioxide (PbO₂), and stannous dioxide (SnO₂) (Wang et al., 2022b). Of note, electrode materials such as SnO₂ and PbO₂ may not have feasible applications for drinking water treatment due to the potential risk of secondary metal contamination (such as lead), which is recommended to be excluded from water infrastructure. Several studies also investigated how to improve the degradation efficiency by doping, such as Ce³⁺ -doped Ti₄O₇ electrode (Lin et al., 2021), Pd -doped Ti₄O₇ electrode (Huang et al., 2020), and Nb-doped TiO₂ electrode (Ko et al., 2021). Furthermore, reactive electrochemical membrane (REM) systems of TSO are also developed to break the limitation of mass transfer (Wang et al., 2022b). Also, Ma et al. demonstrated a hybrid electrocatalyst of Magnéli phase titanium oxide (Ti₄O₇)/Ti₃C₂T_x MXene for degrading PFOA and Perfluorobutanoic acid (PFBA) with EO (Ma et al., 2024).

The first principal DFT calculations are useful computational tools for exploring the degradation mechanism and interpreting certain by-product formation during PFAS mineralization (Yamijala et al., 2022). From 2013 to 2025, a decade, there are around twenty papers investigating the mechanism and pathway of PFAS degradation by the EO process. Most focus on PFOA, PFOS, and Perfluorobutanesulfonic acid (PFBS). Among these studies, 11 papers performed density functional theory (DFT) calculations to explore the possible chemical reactions and pathways of PFASs in the aqueous and on anodes (Chen et al., 2021; Cheng et al., 2021; Wang C. et al., 2022). DFT is recently used to calculate parameters such as, the bond dissociation energy (BDE) of PFAS chains, the adsorption energy of PFAS ion on anodes, the activation energy of PFAS radical, hydroxyl radical, and C-S breaking, as well oxygen evolution reactions (OER) for water splitting (Eslamibidgoli and Eikerling, 2015). Therefore, these DFT calculation parameters can be used as indicators to explore the degradation mechanism and interpret the formation of certain by-products during PFAS mineralization. Several review papers on removing PFAS with electrochemical techniques have recently been published (Ryan et al., 2021; Zhou et al., 2024). Specifically, some reviews discussed the recent advancements in EO, the PFAS degradation mechanisms, and the key factors that influence PFAS removal efficiency, such as anode material, current density, electrolyte, pH, initial PFAS concentration, and other coexisting pollutants (Alalm and Boffito, 2022; Zhou et al., 2024). However, to the best of our knowledge, no existing review has comprehensively examined how density functional theory (DFT) calculations contribute to understanding PFAS degradation mechanisms. This review aims to bridge that gap by synthesizing insights from both experimental studies and DFT calculations to provide a more mechanistic understanding of PFAS degradation. By integrating theoretical modeling with empirical findings, this work offers a deeper perspective on degradation pathways and reaction mechanisms, particularly for PFOA and PFOS in the EO process. This approach not only complements existing studies but also enhances predictive capabilities for optimizing PFAS removal strategies.

2 PFAS degradation mechanism by electrochemical oxidation

The underlying PFAS destruction mechanism for EO is proposed as a combination of the direct electron transfer (DET) and hydroxyl radical (⋅OH)-mediated indirect reactions (Wang et al., 2022b). In the direct path, the direct electron withdrawal from the organics to the electrode is also the same as the oxidation of organics by holes (h+) on the electrode surface. Some research has supported this mechanism by comparing experimentally measured kinetics to activation barriers calculated using density functional theory (DFT) (Chen et al., 2022b; Shi et al., 2019). In the ⋅OH -mediated indirect oxidation process, the ⋅OH is also initiated by the DET of H₂O oxidation on the electrode surface. During EO, the ⋅OH is produced at the anode surface that can only diffuse in a thin layer (<1 μm) near the anode surface due to its short lifespan. In contrast, the DET reaction occurs directly on the electrode surface. Also, many reactions happen during the degradation in the EO process, such as mass transfer of PFAS to anodes, decarboxylation of PFCAs, hydroxylation and hydrolysis of by-products, intramolecular rearrangement, and peroxyl radical participated oxidation.

2.1 Mass transfer

Degradation via the electrochemical advanced oxidation process is constrained by the mass transfer of PFAS from the bulk solution to the anode surface, which occurs only at or near the anode surface (Trellu et al., 2018). The mass transfer coefficients can be affected by electricity current, the reactive surface area, flow rate at consistent temperature and pressure. To overcome the mass transfer limitation, a reactive electrochemical membrane operation was suggested, which has improved inter-phase mass transfer through the filtration of polluted samples using porous material that functions simultaneously as a membrane and anode (Liu and Vecitis, 2012). Consequently, even a single run of water through the membrane can enhance the overall electrochemical oxidation proficiency for treating PFAS.

It has been shown that the most promising way to avoid diffusion, overcome mass transfer limitations, and to increase the electroactive surface area is by using porous electrodes in flow-through configurations (Wang Y. Y. et al., 2022). experimented and compared the PFOS adsorption in REM operation with the batch reactor. The results indicated PFOS adsorption in REM operation was stronger than in the batch reactor because the inner pore surfaces were made available for PFOS adsorption during REM operation. Furthermore, the adsorption of PFOS in the micro-Ti₄O₇ (10 MPa) material was much stronger than that in the nano-Ti₄O₇ (10 MPa) material. It was suggested that the pores of 2–4 nm are most favorable for PFOS diffusion and adsorption because the molecular length of PFOS is 1.32 nm. (Deng et al., 2015). The surface area of the pores in the micro-Ti₄O₇ (10 MPa) anode within the range of 2–4 nm is 0.355 m² g⁻¹, while pores of this range are absent in the nano-Ti₄O₇ (10 MPa) anode.

2.2 Direct electron transfer

In the direct path, the direct electron withdrawal from the organics to the electrode is also the same as the oxidation of organics by electron holes (h⁺) on the electrode surface. During the EO process, electron holes destabilize PFCAs (perfluoroalkyl carboxylic acids) and PFSAs (perfluoroalkyl sulfonic acids) into radicals by direct electron transfer Equations 1, 2 Some research has supported this mechanism by comparing experimentally measured kinetics to activation barriers calculated using DFT (Chen et al., 2022b; Shi et al., 2019). The DET that causes the transformation of PFCAs or PFSAs ion to a free radical via losing an electron to the anode surface was proposed to be the rate-limiting step in their degradation.

At the same time, water in the solution can also be also oxidized by electron holes (h⁺) with DEF to form hydroxyl radical (∙OH) and hydrogen ion (Equation 3).

${\text{PFCAs}}^{-}+h^{+}\to {\text{PFCAs}}^{·}(1)$

${\text{PFSAs}}^{-}+h^{+}\to \text{\hspace{0.17em}PFSAs}·(2)$

$H_{2}O+h^{+}\to ·OH+H^{+}(3)$

2.3 Decarboxylation

For PFCAs, direct defluorination through nucleophilic substitution is very difficult due to the strong C−F bond. Decarboxylation is a main PFCA degradation process, in which removes a carboxyl group and releases carbon dioxide (CO₂). Usually, decarboxylation refers to a reaction of carboxylic acids, removing a carbon atom from a carbon chain. Previous studies indicated that perfluoroalkyl acids (PFAAs), such as the oxidative degradation of PFOA and PFOS, began in the elimination of the end group. The electron transfer process of carboxylic acid occurred on the anode first, which belongs to the electrochemical process and generates carboxylic radical (${C_n{F}_{2n+1}COO}^{·}$). Then the decarboxylation reaction generated perfluoroalkyl radical ($C_n{F}_{2n+1}$⋅) and CO₂ (Equation 4) via the transition state (Niu et al., 2013).

${C_n{F}_{2n+1}COO}^{·}\to {C_n{F}_{2n+1}}^{·}+{CO}_2(4)$

2.4 Peroxyl radical generation

Apart from ·OH, the ${C_n{F}_{2n+1}}^{·}$ could also react with other substances in the electrolyte due to its high activity. A large number of O₂ would be generated at the anode in the electrolysis process. The ${C_n{F}_{2n+1}}^{·}$ could react with O₂ to generate peroxide (Equation 5). The O-O bond in peroxides and hydroperoxides is often relatively weak. In most organic hydroperoxides, O-O BDE is 201 ± 8.5 kJ/mol (Sonntag’s book). The resulting perfluoroalkyl peroxyl radical can react with another peroxyl radical as shown by Equation 6. Then ${C_n{F}_{2n+1}O}^{·}$ decomposes into perfluoro radical and carbonyl fluoride (Equation 7) (Niu et al., 2013).

${C_n{F}_{2n+1}}^{·}+O_2\to {C_n{F}_{2n+1}OO}^{·}(5)$

${C_n{F}_{2n+1}OO}^{·}+{RCOO}^{·}\to {C_n{F}_{2n+1}O}^{·}+{RCO}^{·}+O_2(6)$

${C_n{F}_{2n+1}O}^{·}\to {C_{n-1}{F}_{2n-1}}^{·}+{COF}_2(7)$

2.5 Hydroxylation

Hydroxyl radical (⋅OH) is a strong oxidative radical that plays an important role in reacting with PFAS degradation by-products and contribute to PFAS mineralization. Though ⋅OH is not strong enough to break the C-F bond, the attack of ⋅OH is essential to PFAS degradation (radical chain propagation), otherwise PFAS⋅ may react with water to revert to PFAS (H. Shi et al., 2019).

Furthermore, after losing a CF₂ unit, the new perfluoro radical (${C_{n-1}{F}_{2n-1}}^{·}$) is subjected to hydroxylation by the hydroxyl radicals on the anode or in the solution (Equation 8).

${C_{n-1}{F}_{2n-1}}^{·}+·OH\to C_{n-1}{F}_{2n-1}OH(8)$

The rate-limiting step in the indirect path is assumed to be the electrochemical production of hydroxyl free radicals (⋅OH) at the electrode surface as an intermediate of water oxidation, which then reacts with organic contaminants in water. Essentially, the ⋅OH -mediated indirect oxidation process is also initiated by the DET of H₂O oxidation on the electrode surface.

2.6 Intramolecular rearrangement

Defluorination can also be caused by intramolecular rearrangement (Equation 9).

$C_{n-1}{F}_{2n-1}OH\to C_{n-1}{F}_{2n-3}OF+HF(9)$

2.7 Hydrolysis

Hydrolysis plays an important role in the degradation of some small molecules in the EO processes (Li et at., 2004). Since H₂O was the dominant species in the solution, hydrolysis might also contribute to the destruction of organic pollutants. For PFCAs, after ${{\mathrm{C}}_{\mathrm{n}}{\mathrm{F}}_{2\mathrm{n}+1}\mathrm{O}}^{·}$ decomposes into perfluoro radical and carbonyl fluoride (Equation 7), carbonyl fluoride COF₂ would further be hydrolyzed to carbon dioxide CO₂ and hydrofluoric acid HF (Equation 10). Also, after ${\mathrm{C}}_{\mathrm{n}-1}{\mathrm{F}}_{2\mathrm{n}-3}\text{OF}$ was formed, it would undergo hydrolysis reaction to generate ${{\mathrm{C}}_{\mathrm{n}-1}{\mathrm{F}}_{2\mathrm{n}-3}\text{COO}}^{-},{\mathrm{H}}^{+}$ and HF by hydrolysis (Equation 11), which also forms a shorter-chain PFCAs with a less CF₂. ${{\mathrm{C}}_{\mathrm{n}-1}{\mathrm{F}}_{2\mathrm{n}-3}\text{COO}}^{-}$ would repeat DET (Equation 1), decarboxylation (Equation 4), and form shorter-chain PFCAs until complete mineralization (Chen et al., 2022b).

${COF}_2+H_{2}O\to {CO}_2+HF(10)$

$C_{n-1}{F}_{2n-3}OF+H_{2}O\to {C_{n-1}{F}_{2n-3}COO}^{-}+H^{+}+HF(11)$

3 DFT computation applications for PFAS degradation mechanisms investigation

DFT computation has gained significant attention in investigating PFAS degradation mechanisms due to its ability to provide detailed insights into molecular structures, energetics, intermediates, and reaction pathways. The electronic structure is assessed using a potential acting on the system electrons in modern DFT techniques. This DFT potential is created by adding the exterior potentials, which are completely governed by the system’s structure and elemental makeup representing interelectronic interactions. DFT can accurately predict the molecular structures of PFAS compounds, including their bond lengths, angles, and electronic configurations. This information is crucial for understanding the reactivity and stability of PFAS molecules during degradation processes. DFT calculations can determine the energetics of various degradation reactions involved in PFAS transformation, such as hydrolysis, photolysis, and oxidative degradation. By calculating reaction energies, activation barriers, and reaction pathways, DFT helps identify the most favorable degradation pathways and mechanisms.

DFT-based simulations have frequently been performed for applications relating to bond dissociation energy (BDE) of PFAS chains, the activation energy of chemical degradation and the adsorption energy for PFAS mass transfer on anodes (Chen et al., 2022a; Jinyu Gao et al., 2023; Li et al., 2021; Wang Y. Y. et al., 2022) (Figure 2). The bonds with lower BDE are more likely to be cleaved by ROS than those with higher BDE (Bentel et al., 2019; Chen et al., 2022a). Higher adsorption energy of PFAS ions on anodes is favorable for mass transfer (Li et al., 2021). Lower activation energy of PFAS direct oxidation indicates the PFAS⁻ would be easily oxidized on the surface during the direct electron transfer (Wang et al., 2022b). Higher overpotential η for OER means it will be harder to oxide ⋅OH, hence suppressing OER and holding more ⋅OH during the indirectly oxidation for PFAS.

Figure 2

Figure 2. DFT quantification descriptors for electrodes and PFAS degradation mechanism.

3.1 Adsorption energy

The adsorption energy is one of the most basic parameters for understanding the behavior of a molecule on a surface. It can be defined as the energy changing when a molecule is adsorbed on a solid surface. The formula used to calculate the adsorption energy of PFAS^–on an anode supercell during the EO process is described as follows:

$E_{PFAS-}=E\left(Anode+{PFAS}^{-}\right)-(E\left(\text{Anode}\right)-E\left({PFAS}^{-}\right)$

where $E\left(Anode+{PFAS}^{-}\right)$, $E\left(\text{Anode}\right)$, and $E\left({PFAS}^{-}\right)$ are the total energies for anode with a PFAS^–adsorbed, anode surface energy, and energy of an isolated PFAS^–, respectively.

The adsorption energy of a hydroxyl radical (⋅OH) on anode supercell during the EO process ($E_{HO·}$) is usually calculated as Equation below:

$E_{HO·}=E\left(\text{Anode}+·\text{OH\hspace{0.17em}}\right)-E\left(Anode\right)-E\left(·OH\right)$

where, $E\left(\text{Anode}+·OH\right)$, $E\left(Anode\right)$, and $E\left(·OH\right)$ are the total energies of an anode surface with ⋅OH, anode surface energy, and energy of an isolated ⋅OH, respectively.

Table 3 shows some reported DFT adsorption energy calculations for PFOA, PFOS, and PFBS degradation in EO process. Higher adsorption energy indicates stronger adsorption on the anode (Li et al., 2021). calculated the adsorption energy on the Ti₄O₇ cluster surface with DolM3. The results decrease in the following order: ⋅OH > C₄F₉SO₃−(PFBS⁻) ∼ C₈F₁₇SO₃−(PFOS⁻) > H₂O. This suggests that ⋅OH formed from water oxidation strongly adsorbs on the Ti₄O₇ cluster surface. The adsorption energies of ⋅OH on a Ti₄O₇ surface are much larger than that of H₂O on a Ti₄O₇ surface. This illustrates that hydroxyl radicals, once formed by water oxidation, are more likely bound on a Ti₄O₇ surface rather than diffusing into the bulk solution or reacting with PFOS⁻.

The adsorption energy of different anodes can also be compared. Higher chemical adsorption energies on the anode indicate that the anode drives a much stronger affinity towards the chemical, thus favoring its electrochemical degradation on the anode surface (Wang et al., 2022b). performed and compared the adsorption energies with DolM3 of PFOS on the Ti₄O₇ cluster (∼-2.5 eV) and on the Ti₉O₁₇ cluster (−1.5 eV∼0.2 eV). The greater adsorption energies of PFOS on the Ti₄O₇ cluster indicate that the Ti₄O₇ cluster drives a much stronger affinity towards PFOS, thus favoring its electrochemical degradation that occurs on the anode surface.

(Wang et al., 2020) also performed molecular simulation based on density functional theory (DFT) using VASP to specifically probe the interactions of Cl atom and OH moieties on Ti₄O₇ (110) and BDD (001), thus providing insights into the formation of Cl⋅ and HO⋅ radicals on these anodes (Wang et al., 2020). calculated the adsorption energy of Cl atom and OH moieties adsorbed on Ti₄O₇ (110) and BDD (001) surfaces during PFOS degradation with VASP.

The value of the OH adsorbate on the Ti₄O₇ electrode is −5.13 eV, considerably lower than those on BDD (−7.89 eV) in Table 3. Generally, a lower adsorption energy means a higher tendency of desorption to form radicals. Thus, the OH on the Ti₄O₇ electrode has a higher reactivity than those on the BDD. This contributes to the higher PFOS removal rate on Ti₄O₇ than on BDD, since HO⁻ plays an important role on its degradation. The data in Table 3 also show that the adsorption energy of Cl and OH adsorbates are close to Ti₄O₇ (110). However, on BDD (001), Cl adsorbate shows significantly lower adsorption energy (−4.16/-3.85 eV) than OH adsorbate (−7.891/-8.80 eV). This suggests that Cl⁻ is more easily released than HO⁻ on BDD (001).

3.2 Density of state

The density of states (DOS) is one of the most important concepts for understanding the physical properties of materials because it provides a simple way to characterize complex electronic structures. Key aspects that underlie electrical and optical properties of materials are visually apparent from the DOS, including the band gap and effective masses of carriers. Density functional theory is a powerful and effective tool that can be used for predicting the density of state of a material. Density functional theory is widely used to predict and calculate the electronic properties of crystal structures with good accuracy (Bharti et al., 2021). The assumption of DFT that the energy of a system can be calculated using the function of the electronic density rather than solving the complex many-body Schrodinger equations reduces the computational difficulty and time significantly.

The density of states (DOS) plays a crucial role in electron transfer processes. A higher DOS implies more available states for electrons to occupy, facilitating electron transfer by providing a larger pool of states near the Fermi level for electron donation and acceptance. In summary, the density of states directly affects electron transfer by influencing the availability of electronic states, energy level alignment, interface properties, activation energies, and charge carrier transport in materials. Understanding and controlling DOS profiles are essential for optimizing electron transfer rates, designing functional materials, and developing advanced electronic and optoelectronic devices. In semiconductors and metals, the DOS near the conduction band (CB) and valence band (VB) significantly influence electron transfer. A higher DOS near the CB promotes electron conduction and transport, while a higher DOS near the VB facilitates hole conduction and valence band transitions.

Ma et al. first calculated the DOS for Ti₄O₇ and the composite structure of Ti₄O₇/MXene surface in order to compare the electron transport properties of these two electrodes (Ma et al., 2024). Figure 3a shows that the Ti₄O₇ conduction band parts are constructed by mainly Ti d states and a small part of O p states (Ma et al., 2024). The Ti₄O₇ valence bonding is constructed by mostly O p states and a small part of Ti d states, in agreement with previous DFT simulations of the electronic construction for a Magnéli phase TiO₂ (Ma et al., 2024). Figure 3b shows that both the conduction band position and valence band position of Ti₄O₇/MXene moved down significantly, which narrowed the band gap and thus enhanced electrical conductivity and interfacial electron transfer (Ma et al., 2024). This demonstrates that the charge transfer to the PFAS are more favorable on Ti4O7/MXene (Ma et al., 2024).

Figure 3

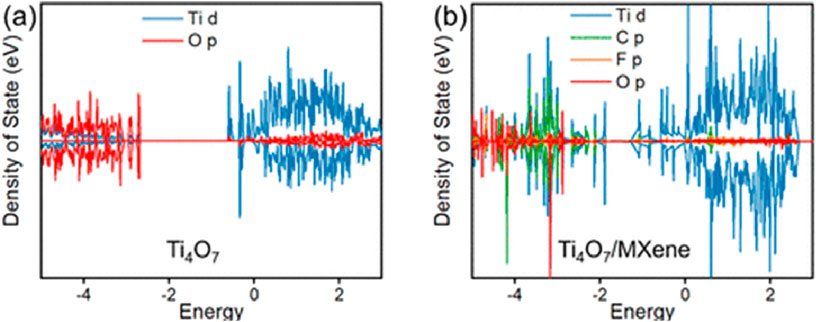

Figure 3. Density of states (DOS) of (a) Ti4O7 and (b) Ti4O7/MXene surface (Ma et al., 2024).

3.3 Overpotential for oxygen evolution reaction (OER)

In the EO process, the rate-limiting step in the indirect path is assumed to be the electrochemical production of hydroxyl free radicals (⋅OH) at the electrode surface as an intermediate of water oxidation, which then reacts with organic contaminants in water. Essentially, the ⋅OH mediated indirect oxidation process is also initiated by the DET of H₂O oxidation on the electrode surface.

Overpotential η for OER (⋅OH ↔ O⋅ + H⁺ + e⁻) can be an indicator. Higher η means it will be harder to oxidize ⋅OH, hence suppressing OER and holding more ⋅OH during the indirect PFAS oxidation (Man et al., 2011). The descriptor ΔG_O − ΔG_OH has been verified to well describe the trend of OER activities on various metal oxide surfaces (Huang et al., 2019).

DFT calculations are used to estimate the overpotential η for OER for different materials as simulated above. Using the previously validated relationship for a wide range of oxide surfaces, η in V relative to SHE for each material as a function of the descriptor G_O∗ − G_⋅OH: ${\mathrm{ƞ}}^{OER}=\Delta \mathrm{G}/e-1.23V$

$∆\mathrm{G}=∆\neg {\mathrm{G}}_{\mathrm{O}*}-∆{\neg \mathrm{G}}_{·\text{OH}}=E_{O*}^{DFT}-E_{·\text{OH}}^{DFT}+\frac{1}{2}{E}_{H2}+\left(∆\text{ZPE}-{\text{TS}}^0\right)$

3.2 eV is the average value of ΔG_HOO∗ - ΔG_HO∗ of OER on oxide surfaces in university (Man et al., 2011). For the ideal case, ΔG_HO∗ is 1.23 eV at pH = 0 and T = 298 K. The descriptor ΔG represents the difference in binding free energies of the critical intermediate species O* and ⋅OH. This is calculated based on total energies of systems consisting of the O* or ⋅OH species bound to each material surface as determined by DFT. The theoretical overpotential is independent of the pH or the potential values. Therefore, the calculations/analysis performed for the free energies is at standard conditions (pH = 0, T = 298.15 K) and U = 0.

The results of DFT calculations were reported to compare Ti₄O₇, TiO_2, and Nb-doped TiO₂ materials for effective ⋅OH production with Quantum Espresso version 6.6 (Ko et al., 2021). They simulated the Ti₄O₇ (120), TiO₂ (110), and 12.5 at% Nb-doped TiO₂ (110) anode supercell. Ti₄O₇ anode had the highest overpotential η for OER, 2.0 V. Overpotential η for OER of 12.5 at% Nb-doped TiO₂ anode (1.4 ± 0.49 V) is higher than TiO₂ (1.3 V) (Table 1).

Table 1

Table 1. Overpotential η for OER calculated for anodes in EO process by DFT computation.

3.4 Bond-dissociation energy

The bond-dissociation energy is one measure of the strength of a chemical bond. For PFAS degradation, several studies performed C-F BDE and C-C BDE calculations. Theoretical calculations on the C-F BDE of PFAS structures can reveal relationships among the rate of decay defluorination, the position and number of C−F bonds with low BDE, and fluoroalkyl chain length (Bentel et al., 2019). The bonds with lower BDE are more likely to be cleaved by ROS than those with higher BDE. Therefore, it also can be used to suggest and interpret the formation of certain by-products during PFAS mineralization.

Bentel et al. calculated BDEs for all of the C−F BDEs (kcal mol−1) for PFCAs (C2-C12) using the GAUSSIAN 09 software package with DFT in conjunction with an SDM polarizable continuum model. As expected, BDEs of all primary C−F bonds (i.e., bonds on the terminal −CF₃; 117.8–123.4 kcal mol⁻¹) are higher than all secondary C−F bonds (i.e., bonds on −CF₂−; 106.4–113.6 kcal mol⁻¹) (Table 2). In general, lower BDEs for both primary and secondary C−F bonds are observed in PFAS with longer fluoroalkyl chains. This trend may explain why the rate of parent compound degradation was faster for the longer chain PFCAs and PFSAs, where more −CF₂− functional groups in the middle of the fluoroalkyl chains have low BDEs (typically ≤107.5 kcal mol⁻¹) (Bentel et al., 2019).

Table 2

Table 2. C-F BDEs for C₇F₁₅COO⁻ (Note: The first C-F is on the terminal −CF₃.).

BDE calculations can also help explore the primary pathway. Past studies revealed that C₇F₁₅COO⋅ easily underwent a decarboxylation reaction to form C₇F₁₅ ⋅. To test whether it was the primary pathway (Chen et al., 2022b), calculated and compared the C−C BDEs and C−F BDEs for both C₇F₁₅COO⁻ and C₇F₁₅COO⋅ to get the change for BDEs after C₇F₁₅COO⁻ lost one electron using Gaussian 16 with M06-2X-D3 (0)/6–311+G (d,p). Their results showed all C−F bonds (108.7–125.6 kcal mol⁻¹) were much higher than those for C−C bonds (86.3–92.6 kcal mol⁻¹) (Table 2). This indicated that C−F bonds were much harder to break than C−C bonds, and the cleavage of C−F bonds should not be the primary pathway. So, decarboxylation of C₇F₁₅COO⋅ may be the primary pathway. After C₇F₁₅COO⁻ lost one electron to form C₇F₁₅COO⋅, the BDEs for all of the C−C bonds were lower, and bond 1 (with functional group COO⁻) had the lowest BDE (−25.7 kcal mol⁻¹). This suggested that all of the C−C bonds significantly weakened after C₇F₁₅COO⁻ lost one electron, and the cleavage of bond 1 was most likely to occur. Bond 1 had a BDE of −25.7 kcal mol⁻¹. A negative BDE indicated that bond 1 was remarkably unstable and would easily dissociate to release CO₂ and form C₇F₁₅ ⋅.

3.5 Activation energy

In chemistry, activation energy is the minimum amount of energy that must be provided for compounds to result in a chemical reaction. Table 3 also shows some reported DFT activation energy calculations for PFOA, PFOS, or PFBS degradation in the EO process. It is found that the activation energies of PFBS degradation by possible hydroxyl radical attacks were prohibitively high (Carter and Farrell, 2008), while those of direct electron transfer (DET) were lower and comparable to experimentally measured values. The density functional simulations were performed to calculate the reaction energies and activation barriers for PFBS oxidation by hydroxyl radicals and by direct electron transfer on BDD anode (Liao and Farrell, 2009). The activation energy determined from the transition state was 1.275 eV by the reaction of hydroxyl radicals at different sites on the PFBS molecule. The activation energy determined was 0.0964 ± 0.0311 eV with the experimental temperature dependence of the PFBS reaction rates method. The low activation energy of PFAS direct oxidation indicates the PFAS⁻ would be easily oxidized on the surface during direct electron transfer.

Table 3

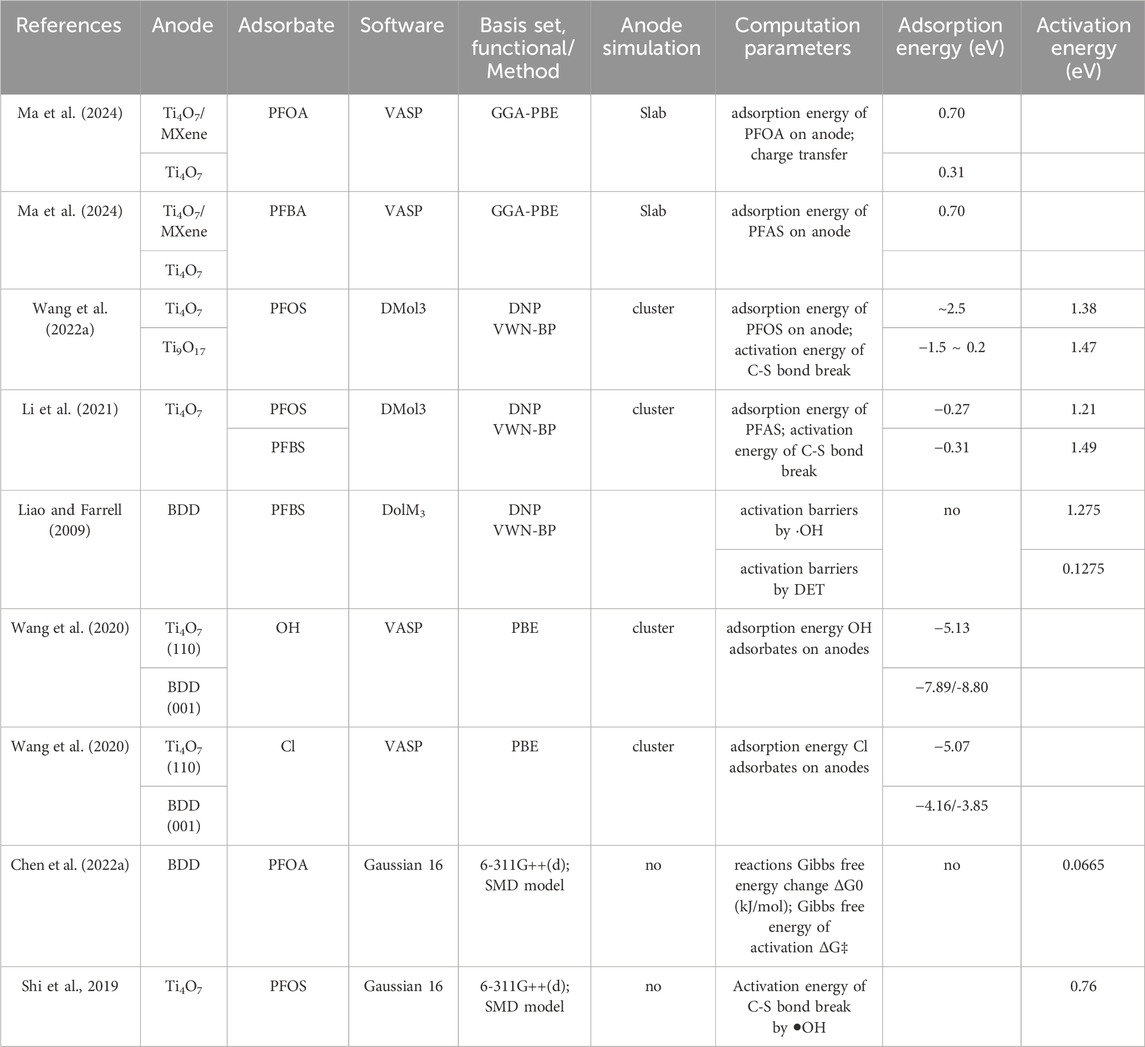

Table 3. Adsorption energy and activation energy reported for PFOA, PFOS, and PFBS degradation during EO process with DFT computation.

Some studies also calculated the activation energy of PFOS by hydroxyl radicals. Shi et al. (2019) contacted DFT simulation of PFOS on an inert anode by calculating its activation energy as a function of anodic potential. It indicates that the DET of PFOS occurs at 3.67 V/SHE without an activation barrier, higher than that for water oxidation (2.74 V/SHE) reported in an earlier study. Therefore, the DET reaction of PFOS would be slower and weaker than water oxidation on an inert anode such as titanium suboxide or BDD. Their calculation revealed that C₈F₁₇SO₃^• may react with water to form C₈F₁₇SO₃⁻ via an energetically favorable reaction. Therefore, once C₈F₁₇SO₃^• is formed by PFOS oxidation during EO via DET, it can spontaneously transform back to C₈F₁₇SO₃⁻ in water solution. It is proposed that C₈F₁₇SO₃^• tends to undergo desulfurization, accompanied by a reaction with ⋅OH to form C₈F₁₇OH.

3.6 Limitations of the DFT calculation

While DFT calculations provide invaluable insights into PFAS degradation mechanisms in electrochemical oxidation, they are subject to several limitations that must be considered when interpreting results.

One key limitation of DFT is the accuracy of its exchange-correlation functionals. Standard generalized gradient approximation (GGA) functionals, such as PBE or B3LYP, may introduce errors in calculating bond dissociation energies (BDEs) and reaction barriers, particularly for complex reaction systems involving radical intermediates. Hybrid functionals and dispersion-corrected methods can improve accuracy, but their computational cost is significantly higher.

Another major limitation is the treatment of solvation effects. PFAS degradation occurs in aqueous environments, yet many DFT studies employ implicit solvation models (e.g., SMD), which approximate solvent effects rather than explicitly modeling solute-solvent interactions. This can lead to inaccuracies in adsorption energy predictions and reaction barrier calculations. Explicit solvation models, while more accurate, demand significantly higher computational resources.

DFT calculations also struggle with modeling dynamic reaction pathways. Most studies rely on static energy calculations to infer degradation mechanisms, but the actual reaction process involves multiple intermediate steps, solvent interactions, and surface effects that are best captured by molecular dynamics (MD) simulations or hybrid quantum mechanics/molecular mechanics (QM/MM) approaches. For example, the interaction between PFAS radicals and hydroxyl radicals (⋅OH) on an anode surface is highly dynamic and influenced by local electrochemical conditions, which are difficult to model with standard DFT methods.

Moreover, the choice of computational parameters, such as basis sets and pseudopotentials, can introduce systematic errors. Small basis sets may underestimate binding energies, while large basis sets increase computational demand without always improving accuracy. Similarly, pseudopotential selection can affect the accuracy of adsorption energy calculations on metal-oxide anode surfaces, impacting the predicted reactivity of PFAS species.

Finally, scaling DFT findings to real-world electrochemical conditions presents challenges. Experimental electrochemical oxidation occurs under varying pH, electrode potential, and ionic strength conditions, which influence reaction kinetics and pathways. However, most DFT studies are conducted at fixed oxidation states and vacuum or simplified solvated conditions, making direct comparison with experimental data difficult.

To address these limitations, future research should incorporate higher-level post-DFT methods, such as coupled-cluster theory for improved energy accuracy, and hybrid approaches integrating molecular dynamics simulations to capture solvent effects and reaction kinetics more realistically. Additionally, experimental validation through spectroscopic techniques, such as in situ Raman spectroscopy or X-ray photoelectron spectroscopy (XPS), can provide critical benchmarks for refining computational predictions (Chen et al., 2024).

By acknowledging these limitations and refining computational approaches, DFT calculations can continue to play a crucial role in elucidating PFAS degradation mechanisms while improving their predictive reliability for practical electrochemical treatment application.

4 Degradation pathways of some PFAS species

4.1 PFOA degradation pathways

Based on the literature review, three possible PFOA degradation pathways in the EO process have been proposed: pathways a), b) and c) in Figure 4. These three possible pathways have two common initial steps. The first common step involvesthe direct oxidation of C₇F₁₅COO⁻ to generate C₇F₁₅COO⋅ (Equation 12) as C₇F₁₅COO⁻ remains the dominant PFOA species in the solution throughout the electrolysis. The second step is the decarboxylation of C₇F₁₅COO⋅ to form C₇F₁₅⋅ (Equation 13), which is supported by the C-C BDEs DFT calculations by Chen et al. (in 2.1 BDE section).

${C_7{F}_{15}COO}^{-}+h^{+}\to {C_7{F}_{15}COO}^{·}(12)$

${C_7{F}_{15}COO}^{·}\to {C_7{F}_{15}}^{·}{+CO}_2(13)$

Figure 4

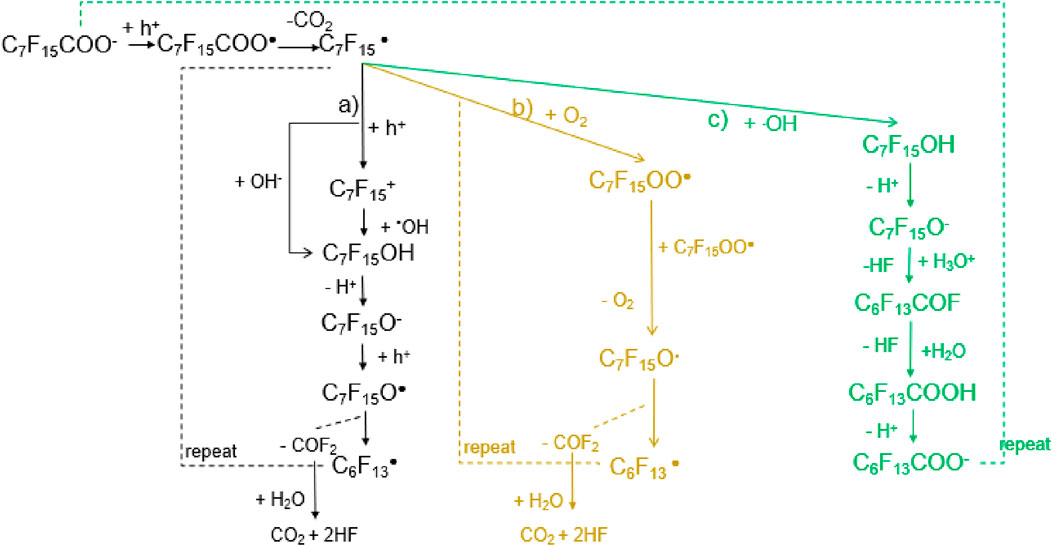

Figure 4. The possible PFOA degradation pathways on the anode in the EO proces. (a) Direct hydroxylation pathway (black): This involves hydroxyl radical attack, leading to sequential transformations, including the formation of alcohol (C₇F₁₅OH), ketone (C₇F₁₅O^•), and further fragmentation to shorter-chain perfluorinated species. (b) Oxygenation pathway (yellow): In the presence of molecular oxygen (O₂), perfluoroalkyl peroxy radicals (C₇F₁₅OO^•) form, which subsequently degrade into smaller perfluorinated fragments through oxidative cleavage. (c) Hydroxyl radical-mediated pathway (green): The introduction of hydroxyl radicals promotes successive transformations, leading to the formation of carboxylic acids (C₆F₁₃COOH) and ultimately mineralization into carbon dioxide (CO₂) and fluoride ions (HF).

Pathway a) is widely considered the primary route for PFOA mineralization in the EO process (Chen et al., 2022b). DFT calculations of the reactions’ standard Gibbs free energy change (ΔG₀) and Gibbs free energy of activation (ΔG^‡) indicate that the reaction of C₇F₁₅^⋅ with ^⋅OH to form C₇F₁₅OH (Equation 14) is highly favorable, with a barrierless reaction and a ΔG₀ of −419.1 kJ/mol. Alternatively, the direct oxidation of C₇F₁₅^⋅ to C₇F₁₅⁺ (Equation 15) followed by its reaction with OH⁻ to form C₇F₁₅OH (Equation 16) is also energetically feasible. Given the significantly exergonic nature of both pathways (ΔG0 of −459.9 kJ/mol for Equation 16), hydroxylation appears to be the dominant mechanism.

${C_7{F}_{15}}^{·}+·OH\to C_7{F}_{15}OH(14)$

$\Delta {\mathrm{G}}_0=-419.1\text{\hspace{0.17em}kJ}/\text{mol},\text{no\hspace{0.17em}barrier}$

${C_7{F}_{15}}^{·}+h^{+}\to {C_7{F}_{15}}^{+}(15)$

$\Delta {\mathrm{G}}_0=-83.1\text{ kJ}/\text{mol},\Delta {\mathrm{G}}^{‡}=0.97\text{\hspace{0.17em}kJ}/\text{mol}$

${C_7{F}_{15}}^{+}+·OH\to C_7{F}_{15}OH(16)$

$\Delta {\mathrm{G}}_0=-459.9\text{kJ}/\text{mol},\text{no\hspace{0.17em}barrier}$

OnceC₇F₁₅OH formed, it dissociates into C₇F₁₅O⁻ can due to the low pKa (∼2) in the solution (Zhang et al., 2019). Accordingly, the majority of C₇F₁₅OH species would become C₇F₁₅O⁻ in the solution. In the subsequent degradation process, C₇F₁₅O⁻ can react with h⁺, H₂O, and HO^•. Chen et al. found that the formation of C₇F₁₅O^• via hole oxidation (Equation 17) is favorable due to its low activation energy (ΔG^‡ = 5.11 kJ/mol). C₇F₁₅O^• then undergoes cleavage to form C₆F₁₃^• and COF₂ (Equation 18), a reaction with a ΔG₀ of −90.6 kJ/mol and a low activation energy (ΔG^‡ = 13.3 kJ/mol), making it a highly likely step in the overall degradation process. C₆F₁₃^• subsequently undergoes similar reactions, leading to sequential cleavage until complete mineralization to CO₂ and HF through hydrolysis.

${C_7{F}_{15}O}^{-}+h^{+}\to {C_7{F}_{15}O}^{.}(17)$

$\Delta {\mathrm{G}}_0=-11\text{ kJ}/\text{mol},\Delta {\mathrm{G}}^{‡}=5.11\text{kJ}/\text{mol}$

${C_7{F}_{15}O}^{.}\to {C_6{F}_{13}}^{.}+{COF}_2(18)$

$\Delta {\mathrm{G}}_0=-90.6\text{\hspace{0.17em}kJ}/\text{mol},\Delta {\mathrm{G}}^{‡}=13.3\text{kJ}/\text{mol}$

Pathway b), proposed by Niu et al. (2013), suggests that C₇F₁₅^• reacts with O₂ to form C₇F₁₅OO^• (Equation 19), which then decomposes into C₇F₁₅O^• and O₂ (Equation 20) (Niu et al., 2013). Since electrolysis generates a significant amount of O₂ at the anode, this reaction could occur in competition with the hydroxylation pathway in pathway a). However, the competition between these two routes is influenced by reaction kinetics and the relative concentrations of reactive oxygen species (ROS) and molecular oxygen. Although the formation of peroxides provides an alternative route for C₇F₁₅O^• generation, it is unclear whether this mechanism is dominant under typical electrochemical conditions.

${C_7{F}_{15}}^{·}+O_2\to {C_7{F}_{15}OO}^{.}(19)$

${C_7{F}_{15}OO}^{.}+{C_7{F}_{15}OO}^{.}\to {2C_7{F}_{15}O}^{.}+O_2(20)$

Pathway c), as shown in Figure 4, proposes that C₇F₁₅O⁻ can react with H₃O⁺ to form C₆F₁₃COF and release HF (Equation 21). The relatively low ΔG₀ (−63.6 kJ/mol) suggests that this reaction is thermodynamically feasible and could compete with the hole oxidation pathway (Equation 17). However, the subsequent hydrolysis of C₆F₁₃COF to C₆F₁₃COOH (Equation 22) has a high activation energy (ΔG^‡ = 159.8 kJ/mol), making it less favorable compared to the sequential cleavage mechanism in pathway a). This suggests that while pathway c) may occur in parallel, it is unlikely to be the primary mineralization pathway due to its slower reaction kinetics.

${C_7{F}_{15}O}^{-}+{H_{3}O}^{+}\to C_6{F}_{13}COF+HF+H_{2}O(21)$

$\Delta {\mathrm{G}}_0=-63.6\text{\hspace{0.17em}kJ}/\text{mol},\Delta {\mathrm{G}}^{‡}=14.3\text{\hspace{0.17em}kJ}/\text{mol}$

$C_6{F}_{13}COF+H_{2}O\to C_6{F}_{13}COOH(22)$

$\Delta {\mathrm{G}}_0=-41.4\text{\hspace{0.17em}kJ}/\text{mol},\Delta {\mathrm{G}}^{‡}=159.8\text{\hspace{0.17em}kJ}/\text{mol}$

While all three pathways contribute to PFOA degradation, pathway a) is likely the dominant route due to its lower energy barriers and strong exergonic reactions. The direct interaction of C₇F₁₅^• with ^•OH is particularly favorable, given the abundance of hydroxyl radicals in electrochemical oxidation. Pathway b), involving O₂, may become more significant under conditions where hydroxyl radical production is limited or oxygen concentration is high. Pathway c) is less favorable for complete mineralization due to the high activation energy of its hydrolysis step, though it may still contribute to intermediate transformation.

In practical applications, the dominant pathway will depend on operational factors such as anode material, applied potential, pH, and the presence of competing oxidants. Higher anode potentials and catalytic surfaces that enhance hydroxyl radical production will likely favor pathway a), whereas systems with high oxygen evolution may shift the balance toward pathway b). Further experimental validation is needed to quantify the relative contributions of each pathway under real-world conditions.

4.2 PFOS degradation pathways

There are two proposed possible PFOS degradation pathways on the anode in the EO process by Shi et al. (2019), Pierpaoli et al. (2021) in Figure 5. However, we found the second pathway proposed by Pierpaoli et al. unreasonable.

Figure 5

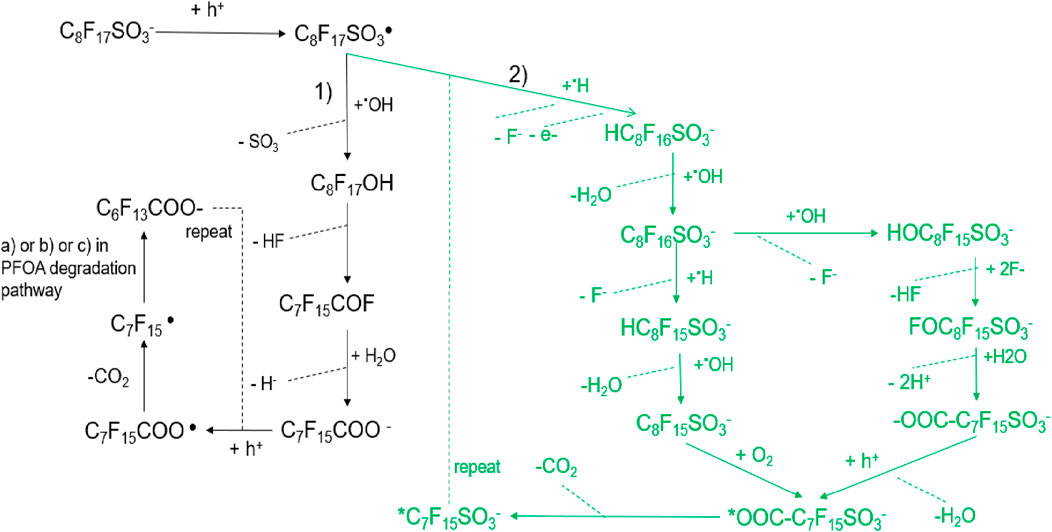

Figure 5. The possible PFOS degradation pathways on the anode in the EO process. 1) Oxidative Decay Pathway (Black, Left Side): PFOS ion (C₈F₁₇SO₃⁻) undergoes direct electron transfer, forming the perfluorinated sulfonyl radical (C₈F₁₇SO₃^•); The radical can lose a sulfonate SO₃) group, generating C₈F₁₇OH; Further transformations through dehydrofluorination and hydrolysis produce ketone (C₇F₁₅COF) and shorter perfluorinated carboxylates (C₇F₁₅COO⁻), which follow similar degradation steps as observed in PFOA breakdown; The cycle repeats until the perfluorinated chains are broken down into smaller fragments, eventually forming CO₂ and HF. 2) Reductive and Hydroxylation Pathway (Green, Right Side): PFOS undergoes direct electron transfer and hydrogenation, leading to the formation of partially fluorinated sulfonates (HC₈F₁₆SO₃⁻); Hydrolysis and hydroxyl radical (^•OH) attack further drive defluorination, forming species like C₈F₁₆SO₃⁻ and HOC₈F₁₅SO₃⁻; Successive F- and HF eliminations lead to oxidative fragmentation, producing perfluorinated carboxylates (-OOC-C₇F₁₅SO₃⁻) and eventually mineralized products CO₂, HF and H₂O.

Shi et al. (2019) ’s study explored PFOS degradation with DFT calculations in the EO process and they found the role of hydroxyl free radicals in PFOS. Combining the experiment analysis and DFT theoretical studies they proposed the 1) PFOS degradation pathways in Figure 2. By DFT calculations, they also found the role of hydroxyl free radicals in PFOS degradation (Equation 23) during EO that C₈F₁₇SO₃⋅ may react with water to form C₈F₁₇SO₃⁻ via an energetically favorable reaction (Equation 24). Therefore, once C₈F₁₇SO₃⋅ is formed by PFOS oxidation during EO via DET, it can transform back to C₈F₁₇SO₃⁻ spontaneously in water solution. It is proposed that C₈F₁₇SO₃⋅ tends to undergo desulfurization, accompanied by a reaction with ⋅OH to form C₈F₁₇OH (Equation 25). It is proposed that C₈F₁₇OH formed in Equation 25 decomposes to C₇F₁₅CFO (Equation 26), and then rapidly hydrolyze to C₇F₁₅COO⁻ (Equation 27). C₇F₁₅COO⁻ may further go through the decarboxylation cycle stepwise like PFOA degradation pathways (a, b or c pathways in Figure 4), leading to rip off of a CF₂ unit each step until complete mineralization.

${C_8{F}_{17}{SO}_3}^{-}\to {C_8{F}_{17}{SO}_3}^{.}+e^{-}(23)$

${C_8{F}_{17}{SO}_3}^{.}+2H_{2}O\to {C_8{F}_{17}{SO}_3}^{-}+·OH+H_3{O}^{+}(24)$

${C_8{F}_{17}{SO}_3}^{.}+·OH\to C_8{F}_{17}OH+{SO}_3(25)$

$C_8{F}_{17}OH\to C_7{F}_{15}CFO+HF(26)$

$C_7{F}_{15}CFO+H_{2}O\to {C_7{F}_{15}COO}^{-}+HF+H^{+}(27)$

However Pierpaoli et al. (2021), proposed a free hydrogen radical eliminates a fluoride atom from PFSAs or sulfonated radicals by H-F substitution followed by the transformation to new sulfonated products by hydrogen abstraction, based on the identification of by-product with the UHPLC-ESI-MS technique. They observed the perfluooroheptyl sulphate ion and radical (C₇F₁₅SO₃⁻, ⋅ C₇F₁₅SO₃⁻), as well C₆F₁₃COO-, C₅F₁₁COO−, and C₄F₉COO−.The 2) pathway in Figure 5 includes radical reaction, decarboxylation, hydrolysis, and hydroxylation for PFOS anodic degradation as follows. The elimination of two fluoride ions giving the observed ${C_7{F}_{15}{SO}_3}^{-}$ may be a result of consecutive radical reactions according to the following reactions (Equations 28–31):

${C_8{F}_{17}{SO}_3}^{-}+H·\to {C_8{HF}_{16}{SO}_3}^{-}+F^{-}+e^{-}(28)$

${C_8{HF}_{16}{SO}_3}^{-}+·OH\to .{C_8{F}_{16}{SO}_3}^{-}+H_{2}O(29)$

$.{C_8{F}_{16}{SO}_3}^{-}+H·\to {C_8{HF}_{15}{SO}_3}^{-}+F^{-}(30)$

${C_8{HF}_{15}{SO}_3}^{-}+·OH\to {{·C}_8{F}_{15}{SO}_3}^{-}+H_{2}O(31)$

At the same time, the $·{C_8{F}_{16}{SO}_3}^{-}$ radical may also react with hydroxyl radical (Equations 32, 33):

$·{C_8{F}_{16}{SO}_3}^{-}+·OH\to {{HOC}_8{F}_{15}{SO}_3}^{-}+F^{-}(32)$

${{HOC}_8{F}_{15}{SO}_3}^{-}+2F^{-}\to {{FOC}_8{F}_{15}{SO}_3}^{-}+HF(33)$

However, only after hydrolysis of the formed product (${{FOC}_8{F}_{15}{SO}_3}^{-}$) and followed by the Kolbe decarboxylation reaction (Equation 17) the perfluooroheptyl sulphate radical is observed (${C_7{F}_{15}{SO}_3}^{-}$).

However, the proposed PFOS degradation pathway by Pierpaoli has been critiqued for issues related to charge balance, as noted in their study. Some of the reactions are not balanced such as there are three negative charges on the right side and only one on the left in reaction Equation 28. Furthermore, the formation of hydrogen radical is not mentioned in this paper. There may be some wandering hydrogen radicals in the system, but it’s doubtful that the hydrogen radicals are reactive enough to eliminate a fluoride atom from PFSA. So, it is not a reasonable possible pathway for PFOS degradation. While the authors did not analyze in depth the rationale behind their pathway proposal or potential directions for its improvement. Further exploration is necessary to refine the mechanistic understanding and address the rationality of the proposed transformations.

5 Comparative analysis of electrode materials

A comparative analysis of electrode materials is essential for understanding the effectiveness of electrochemical oxidation (EO) in PFAS degradation. Various anode materials, including boron-doped diamond (BDD), Magnéli phase titanium suboxides (TSO), lead dioxide (PbO₂), and stannous dioxide (SnO₂), have been extensively studied. Each material offers distinct advantages and limitations in terms of degradation efficiency, selectivity, energy consumption, and potential secondary contamination.

BDD electrodes are widely regarded as one of the most effective materials for PFAS degradation due to their high oxygen evolution potential, which minimizes competition from side reactions. This allows for the generation of hydroxyl radicals (⋅OH) that can efficiently break down PFAS molecules. However, BDD electrodes are expensive to manufacture and have limited scalability for large-scale water treatment applications.

TSO electrodes, particularly Ti₄O₇, have gained attention as a cost-effective alternative to BDD. Studies have shown that Magnéli phase Ti₄O₇ anodes provide a high degree of PFAS mineralization while maintaining good stability. Additionally, the porous structure of TSO electrodes enhances mass transfer, which can improve degradation kinetics. However, their lower oxidation potential compared to BDD can result in partial degradation and the formation of persistent byproducts.

PbO₂ and SnO₂ electrodes have also been investigated for PFAS degradation due to their strong oxidizing properties. PbO₂ anodes demonstrate high degradation efficiency but pose a significant environmental risk due to potential lead leaching, making them unsuitable for drinking water applications. SnO₂ electrodes, particularly when doped with elements like antimony (Sb-SnO₂), have shown promise in PFAS treatment. However, their long-term stability remains a concern, as SnO₂-based electrodes tend to degrade over extended operation times.

Recent advancements in electrode materials include doping strategies and hybrid electrode systems. For example, Nb-doped TiO₂ has been explored as a means to enhance the electrochemical activity of Ti-based electrodes while maintaining stability. Similarly, composite materials, such as Ti₄O₇/MXene hybrids, have been shown to improve electrical conductivity and PFAS adsorption, leading to more efficient degradation pathways.

From an application standpoint, the choice of electrode material depends on the specific treatment objectives. For high-efficiency mineralization with minimal byproduct formation, BDD remains the gold standard, albeit at a higher cost. For scalable and cost-effective alternatives, TSO electrodes provide a balance between efficiency and affordability. PbO₂ and SnO₂ electrodes, while effective, require careful consideration of stability and potential secondary contamination. Hybrid and doped materials represent promising directions for future research, offering opportunities to optimize both performance and economic feasibility.

Future studies should focus on optimizing electrode surface properties, enhancing long-term stability, and integrating EO with complementary treatment technologies. Additionally, life cycle assessments comparing the environmental and economic impacts of different electrode materials would provide valuable insights for real-world implementation.

6 Practical implications

The insights presented in this study have significant implications for the development of more effective electrochemical oxidation (EO) systems for PFAS remediation. Understanding the mechanistic pathways of PFAS degradation allows for the strategic optimization of electrode materials, operational conditions, and system design to enhance treatment efficiency.

• Optimization of Electrode Materials–The findings highlight the critical role of electrode composition in PFAS degradation. Electrodes with high overpotential for oxygen evolution, should be prioritized to promote direct electron transfer and hydroxyl radical generation. Future research should focus on doping strategies and surface modifications to improve electrocatalytic performance and stability.

• Operational Condition Enhancement–The study suggests that electrolyte composition, current density, and applied potential significantly influence PFAS degradation efficiency (Wang Y. et al., 2025). Maintaining optimal current densities while avoiding excessive energy consumption is crucial. Further research on pH adjustments, electrolyte additives, and pulsed voltage application could improve selectivity and degradation rates.

• System Design Considerations–The integration of EO with complementary treatment processes, such as adsorption or photochemical oxidation, could enhance PFAS removal efficiency (Gomri et al., 2025). Reactor design modifications, including flow cell optimization and electrode spacing adjustments, may further improve mass transfer and degradation kinetics. Pilot-scale testing should be prioritized to assess scalability and long-term performance.

By translating these mechanistic insights into practical design and operational strategies, this study provides a foundation for advancing EO systems as a viable technology for PFAS remediation in groundwater and wastewater treatment applications.

7 Conclusion and insights for future study

This review elucidates the primary PFAS degradation mechanisms during the EO process, highlighting the critical role of density functional theory (DFT) calculations in understanding reaction pathways. The applications of DFT in mechanism investigation are demonstrated, including bond dissociation energy, adsorption energy of PFAS, activation energy of PFAS and hydroxyl radicals, and the overpotential of oxygen evolution reactions. Furthermore, possible PFOA and PFOS degradation pathways are discussed in detail.

From the literature review, the main PFAS degradation mechanisms in the EO process include mass transfer, direct electron transfer, decarboxylation, peroxyl radical generation, hydroxylation, intramolecular rearrangement, and hydrolysis. While previous studies demonstrate that EO is highly effective for PFAS degradation, significant challenges remain that hinder its large-scale application. These challenges include high energy consumption, the generation of persistent intermediate byproducts, competition between degradation pathways, and the influence of anode material properties on reaction kinetics. To address these limitations, the following targeted recommendations are proposed:

7.1 Optimizing anode materials to enhance degradation efficiency and reduce energy consumption

The choice of anode material significantly affects EO efficiency by influencing hydroxyl radical generation, electron transfer rates, and energy demands. Future research should focus on developing high-activity, low-cost anode materials with improved selectivity for PFAS oxidation. Boron-doped diamond (BDD) electrodes have demonstrated high oxidation potential but are costly, while mixed metal oxide (MMO) anodes are more affordable but less efficient. Novel composite anodes, such as doped Ti/IrO₂ or graphene-modified electrodes, could be explored to achieve a balance between efficiency and cost-effectiveness. Additionally, optimizing the anode surface structure to enhance reactive species generation and reduce overpotentials could further improve performance.

7.2 Enhancing electrolyte conditions and reactor design for energy efficiency

The energy consumption of EO is strongly influenced by electrolyte composition and reactor design. Future studies should investigate the impact of electrolyte pH, ionic strength, and the presence of co-contaminants on PFAS degradation kinetics. Electrolytes with lower resistivity can reduce energy losses, while buffer systems could help maintain optimal reaction conditions. Furthermore, novel reactor designs, such as flow-through electrochemical cells or gas-diffusion electrodes, could enhance mass transfer and improve energy efficiency. The integration of EO with complementary processes, such as adsorption or membrane filtration, could also help reduce overall treatment energy costs by concentrating PFAS before EO treatment.

7.3 Expanding investigations beyond PFOA and PFOS to other PFAS species

Most research has focused on PFOA and PFOS degradation pathways, but short-chain PFAS and emerging alternatives may exhibit different electrochemical behavior. Future studies should systematically examine the degradation kinetics of a broader range of PFAS compounds and explore whether short-chain PFAS require different operational conditions or anode materials.

7.4 Combining DFT calculations with experimental studies for more accurate mechanistic insights

DFT calculations are valuable for predicting reaction pathways, but experimental validation is essential for practical implementation. Future research should focus on integrating computational models with real-time electrochemical experiments to refine degradation pathway predictions. This could involve in situ spectroscopic techniques, such as Raman spectroscopy, to track PFAS degradation intermediates and confirm theoretical predictions.

In conclusion, while EO remains a promising approach for PFAS degradation, addressing energy consumption, optimizing electrode materials, and refining mechanistic understanding are critical for its large-scale application. Future research should focus on material innovations, reactor optimization, and hybrid treatment approaches to enhance both efficiency and feasibility.

Author contributions

GL: Data curation, Investigation, Writing – original draft, Formal Analysis. MP: Writing – review and editing, Conceptualization, Data curation, Formal Analysis. QH: Supervision, Writing – review and editing, Conceptualization. C-HH: Supervision, Writing – review and editing. YC: Supervision, Writing – review and editing. GH: Supervision, Writing – review and editing. KL: Conceptualization, Formal Analysis, Methodology, Supervision, Writing – review and editing.

Funding

The author(s) declare that financial support was received for the research and/or publication of this article. This study was supported in part by U.S. Environmental Protection Agency Grant R840080.

Acknowledgments

It has not been formally reviewed by EPA. EPA does not endorse any products or commercial services mentioned in this publication.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

The author(s) declared that they were an editorial board member of Frontiers, at the time of submission. This had no impact on the peer review process and the final decision.

Generative AI statement

The author(s) declare that no Generative AI was used in the creation of this manuscript.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Author disclaimer

The views expressed in this document are solely those of the authors and do not necessarily reflect those of the Agency.

References

Bentel, M., Yu, Y. C., Xu, L. H., Li, Z., Wong, B., Men, Y. J., et al. (2019). Defluorination of per- and polyfluoroalkyl substances (PFASs) with hydrated electrons: structural dependence and implications to PFAS remediation and management. Abstr. Pap. Am. Chem. Soc. 258. doi:10.1021/acs.est.8b06648

PubMed Abstract | CrossRef Full Text | Google Scholar

Bharti, , Ahmed, G., Kumar, Y., and Sharma, S. (2021). DFT computation of quantum capacitance of pure and doped niobium nitrides for supercapacitor applications. Ceram. Int. 47 (13), 18948–18955. doi:10.1016/j.ceramint.2021.03.237

CrossRef Full Text | Google Scholar

Carter, K. E., and Farrell, J. (2008). Oxidative destruction of perfluorooctane sulfonate using boron-doped diamond film electrodes. Environ. Sci. and Technol. 42 (16), 6111–6115. doi:10.1021/es703273s

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, C., Ma, Q. Q., Liu, F. Z., Gao, J. A., Li, X. Y., Sun, S. B., et al. (2021). Photocatalytically reductive defluorination of perfluorooctanoic acid (PFOA) using Pt/La2Ti2O7 nanoplates: experimental and DFT assessment. J. Hazard. Mater. 419, 126452. doi:10.1016/j.jhazmat.2021.126452

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, Y., Yang, Y., Cui, J., Zhang, H., and Zhao, Y. (2024). Decoding PFAS contamination via Raman spectroscopy: a combined DFT and machine learning investigation. J. Hazard. Mater. 465, 133260. doi:10.1016/j.jhazmat.2023.133260

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, Z. F., Wang, X. J., Feng, H. L., Chen, S. H., Niu, J. F., Di, G. L., et al. (2022a). Electrochemical advanced oxidation of perfluorooctanoic acid: mechanisms and process optimization with kinetic modeling. Environ. Sci. and Technol. 56, 14409–14417. doi:10.1021/acs.est.2c02906

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, Z. F., Wang, X. J., Feng, H. L., Chen, S. H., Niu, J. F., Di, G. L., et al. (2022b). Electrochemical advanced oxidation of perfluorooctanoic acid: mechanisms and process optimization with kinetic modeling. Environ. Sci. and Technol. 56 (20), 14409–14417. doi:10.1021/acs.est.2c02906

PubMed Abstract | CrossRef Full Text | Google Scholar

Cheng, Z. W., Chen, Q. C., Liu, Z. K., Liu, J. Y., Liu, Y. W., Liu, S. Q., et al. (2021). Interpretation of reductive PFAS defluorination with quantum chemical parameters. Environ. Sci. and Technol. Lett. 8 (8), 645–650. doi:10.1021/acs.estlett.1c00403

CrossRef Full Text | Google Scholar

Crone, B. C., Speth, T. F., Wahman, D. G., Smith, S. J., Abulikemu, G., Kleiner, E. J., et al. (2019). Occurrence of per- and polyfluoroalkyl substances (PFAS) in source water and their treatment in drinking water. Crit. Rev. Environ. Sci. Technol. 49 (24), 2359–2396. doi:10.1080/10643389.2019.1614848

PubMed Abstract | CrossRef Full Text | Google Scholar

Deng, S. B., Nie, Y., Du, Z. W., Huang, Q., Meng, P. P., Wang, B., et al. (2015). Enhanced adsorption of perfluorooctane sulfonate and perfluorooctanoate by bamboo-derived granular activated carbon. J. Hazard. Mater. 282, 150–157. doi:10.1016/j.jhazmat.2014.03.045

PubMed Abstract | CrossRef Full Text | Google Scholar

Eslamibidgoli, M. J., and Eikerling, M. H. (2015). Electrochemical Formation of reactive oxygen species at Pt (111)-A density functional theory study. Acs Catal. 5 (10), 6090–6098. doi:10.1021/acscatal.5b01154

CrossRef Full Text | Google Scholar

Gao, J., Liu, Z., Chen, Z., Rao, D., Che, S., Gu, C., et al. (2023). Photochemical degradation pathways and near-complete defluorination of chlorinated polyfluoroalkyl substances. Nat. water 1, 381–390. doi:10.1038/s44221-023-00046-z

CrossRef Full Text | Google Scholar

Gar Alalm, M., and Boffito, D. C. (2022). Mechanisms and pathways of PFAS degradation by advanced oxidation and reduction processes: a critical review. Chem. Eng. J. 450, 138352. doi:10.1016/j.cej.2022.138352

CrossRef Full Text | Google Scholar

Gomri, C., Makhoul, E., Koundia, F. N., Petit, E., Raffy, S., Bechelany, M., et al. (2025). Electrochemical advanced oxidation combined to electro-Fenton for effective treatment of perfluoroalkyl substances “PFAS” in water using a Magnéli phase-based anode. Nanoscale Adv. 7 (1), 261–268. doi:10.1039/d4na00626g

PubMed Abstract | CrossRef Full Text | Google Scholar

Hori, H., Hayakawa, E., Einaga, H., Kutsuna, S., Koike, K., Ibusuki, T., et al. (2004). Decomposition of environmentally persistent perfluorooctanoic acid in water by photochemical approaches. Environ. Sci. and Technol. 38 (22), 6118–6124. doi:10.1021/es049719n

PubMed Abstract | CrossRef Full Text | Google Scholar

Huang, D., Wang, K., Niu, J., Chu, C., Weon, S., Zhu, Q., et al. (2020). Amorphous Pd-loaded Ti4O7 electrode for direct anodic destruction of perfluorooctanoic acid. Environ. Sci. Technol. 54 (17), 10954–10963. doi:10.1021/acs.est.0c03800

PubMed Abstract | CrossRef Full Text | Google Scholar

Huang, X., Wang, J., Tao, H. B., Tian, H., and Xu, H. (2019). An essential descriptor for the oxygen evolution reaction on reducible metal oxide surfaces. Chem. Sci. 10 (11), 3340–3345. doi:10.1039/c8sc04521f

PubMed Abstract | CrossRef Full Text | Google Scholar

Ko, J. S., Le, N. Q., Schlesinger, D. R., Zhang, D. J., Johnson, J. K., and Xia, Z. Y. (2021). Author Correction: novel niobium-doped titanium oxide towards electrochemical destruction of forever chemicals. Sci. Rep. 11 (1), 19014. doi:10.1038/s41598-021-98715-0

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, L., Wang, Y., and Huang, Q. (2021). First-principles study of the degradation of perfluorooctanesulfonate and perfluorobutanesulfonate on a Magnéli phase Ti₄O₇ anode. ACS ES&T Water 1 (8), 1737–1744. doi:10.1021/acsestwater.1c00086

CrossRef Full Text | Google Scholar

Liao, Z. H., and Farrell, J. (2009). Electrochemical oxidation of perfluorobutane sulfonate using boron-doped diamond film electrodes. J. Appl. Electrochem. 39 (10), 1993–1999. doi:10.1007/s10800-009-9909-z

CrossRef Full Text | Google Scholar

Lin, H., Niu, J., Liang, S., Wang, C., Wang, Y., Jin, F., et al. (2018). Development of macroporous Magnéli phase Ti4O7 ceramic materials: as an efficient anode for mineralization of poly- and perfluoroalkyl substances. Chem. Eng. J. 354, 1058–1067. doi:10.1016/j.cej.2018.07.210

CrossRef Full Text | Google Scholar

Lin, H., Xiao, R., Xie, R., Yang, L., Tang, C., Wang, R., et al. (2021). Defect engineering on a Ti4O7 electrode by Ce(3+) doping for the efficient electrooxidation of perfluorooctanesulfonate. Environ. Sci. Technol. 55 (4), 2597–2607. doi:10.1021/acs.est.0c06881

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, H., and Vecitis, C. D. (2012). Reactive transport mechanism for organic oxidation during electrochemical filtration: mass-transfer, physical adsorption, and electron-transfer. J. Phys. Chem. C 116 (1), 374–383. doi:10.1021/jp209390b

CrossRef Full Text | Google Scholar

Ma, Q. Q., Gao, J. A., Cheng, K. Y., Young, J., Zhao, M. Q., Ronen, A., et al. (2024). Electrooxidation of perfluorocarboxylic acids by an interfacially engineered Magnéli phase titanium oxide (Ti₄O₇) electrode with MXene. ACS ES&T Eng. 4, 1102–1112. doi:10.1021/acsestengg.3c00571

CrossRef Full Text | Google Scholar

Man, I. C., Su, H. Y., Calle-Vallejo, F., Hansen, H. A., Martinez, J. I., Inoglu, N. G., et al. (2011). Universality in oxygen evolution electrocatalysis on oxide surfaces. Chemcatchem 3 (7), 1159–1165. doi:10.1002/cctc.201000397

CrossRef Full Text | Google Scholar

Mirabediny, M., Sun, J., Yu, T. T., Akermark, B., Das, B., and Kumar, N. (2023). Effective PFAS degradation by electrochemical oxidation methods-recent progress and requirement. Chemosphere 321, 138109. doi:10.1016/j.chemosphere.2023.138109

PubMed Abstract | CrossRef Full Text | Google Scholar

Niu, J. F., Lin, H., Gong, C., and Sun, X. M. (2013). Theoretical and experimental insights into the electrochemical mineralization mechanism of perfluorooctanoic acid. Environ. Sci. and Technol. 47 (24), 14341–14349. doi:10.1021/es402987t

PubMed Abstract | CrossRef Full Text | Google Scholar

Phong Vo, H. N., Ngo, H. H., Guo, W. S., Hong Nguyen, T. M., Li, J. X., Liang, H., et al. (2020). Poly?and perfluoroalkyl substances in water and wastewater: a comprehensive review from sources to remediation. J. Water Process Eng. 36, 101393. doi:10.1016/j.jwpe.2020.101393

CrossRef Full Text | Google Scholar

Pierpaoli, M., Szopińska, M., Wilk, B. K., Sobaszek, M., Łuczkiewicz, A., Bogdanowicz, R., et al. (2021). Electrochemical oxidation of PFOA and PFOS in landfill leachates at low and highly boron-doped diamond electrodes. J. Hazard. Mater. 403, 123606. doi:10.1016/j.jhazmat.2020.123606

PubMed Abstract | CrossRef Full Text | Google Scholar

Rahman, M. F., Peldszus, S., and Anderson, W. B. (2014). Behaviour and fate of perfluoroalkyl and polyfluoroalkyl substances (PFASs) in drinking water treatment: a review. Water Res. 50, 318–340. doi:10.1016/j.watres.2013.10.045

PubMed Abstract | CrossRef Full Text | Google Scholar

Rozen, S., and Filler, R. (1985). α-Fluorocarbonyl compounds and related chemistry. Tetrahedron, 41(7), 1111–1153. doi:10.1016/S0040-4020(01)96514-7

CrossRef Full Text | Google Scholar

Ryan, D. R., Mayer, B. K., Baldus, C. K., Mcbeath, S. T., Wang, Y., and Mcnamara, P. J. (2021). Electrochemical technologies for per- and polyfluoroalkyl substances mitigation in drinking water and water treatment residuals. AWWA Water Sci. 3 (5). doi:10.1002/aws2.1249

CrossRef Full Text | Google Scholar

Schaefer, C. E., Andaya, C., Burant, A., Condee, C. W., Urtiaga, A., Strathmann, T. J., et al. (2017). Electrochemical treatment of perfluorooctanoic acid and perfluorooctane sulfonate: insights into mechanisms and application to groundwater treatment. Chem. Eng. J. 317, 424–432. doi:10.1016/j.cej.2017.02.107

CrossRef Full Text | Google Scholar

Shi, H., Wang, Y., Li, C., Pierce, R., Gao, S., and Huang, Q. (2019). Degradation of perfluorooctanesulfonate by reactive electrochemical membrane composed of magneli phase titanium suboxide. Environ. Sci. Technol. 53 (24), 14528–14537. doi:10.1021/acs.est.9b04148

PubMed Abstract | CrossRef Full Text | Google Scholar

Trellu, C., Chaplin, B. P., Coetsier, C., Esmilaire, R., Cerneaux, S., Causserand, C., et al. (2018). Electro-oxidation of organic pollutants by reactive electrochemical membranes. Chemosphere 208, 159–175. doi:10.1016/j.chemosphere.2018.05.026

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, C., Zhang, T. N., Yin, L. F., Ni, C. S., Ni, J. P., and Hou, L. A. (2022d). Enhanced perfluorooctane acid mineralization by electrochemical oxidation using Ti3+ self-doping TiO2 nanotube arrays anode. Chemosphere 286, 131804. doi:10.1016/j.chemosphere.2021.131804

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, L., Lu, J., Li, L., Wang, Y., and Huang, Q. (2020). Effects of chloride on electrochemical degradation of perfluorooctanesulfonate by Magneli phase Ti4O7 and boron doped diamond anodes. Water Res. 170, 115254. doi:10.1016/j.watres.2019.115254

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, Y., Kim, J., Huang, C.-H., Hawkins, G. L., Li, K., Chen, Y., et al. (2022a). Occurrence of per- and polyfluoroalkyl substances in water: a review. Environ. Sci. Water Res. and Technol. 8 (6), 1136–1151. doi:10.1039/d1ew00851j

CrossRef Full Text | Google Scholar

Wang, Y., Li, L., Wang, Y., Shi, H., Wang, L., and Huang, Q. (2022b). Electrooxidation of perfluorooctanesulfonic acid on porous Magnéli phase titanium suboxide Anodes: impact of porous structure and composition. Chem. Eng. J. 431, 133929. doi:10.1016/j.cej.2021.133929

CrossRef Full Text | Google Scholar

Wang, Y., Wang, Y., Dong, S., and Huang, Q. (2025a). The impact of anions on electrooxidation of perfluoroalkyl acids by porous Magnéli phase titanium suboxide anodes. Plos One 20 (1), e0317696. doi:10.1371/journal.pone.0317696

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, Y. Y., Pierce, R., Shi, H. N., Li, C. G., and Huang, Q. G. (2022c). Electrochemical degradation of perfluoroalkyl acids by titanium suboxide anodes (vol 6, pg 144, 2020). Environ. Science-Water Res. and Technol. 8 (2), 443. doi:10.1039/d1ew90044g

CrossRef Full Text | Google Scholar

Wang, Z., You, X., Lan, L., Huang, G., Zhu, T., Tian, S., et al. (2025b). Electrocatalytic oxidation of hexafluoropropylene oxide homologues in water using a boron-doped diamond electrode. Environ. Technol. 46 (8), 1280–1291. doi:10.1080/09593330.2024.2382937

PubMed Abstract | CrossRef Full Text | Google Scholar

Wanninayake, D. M. (2021). Comparison of currently available PFAS remediation technologies in water: a review. J. Environ. Manag. 283, 111977. doi:10.1016/j.jenvman.2021.111977

PubMed Abstract | CrossRef Full Text | Google Scholar

Yamijala, S. S. R. K. C., Shinde, R., Hanasaki, K., Ali, Z. A., and Wong, B. M. (2022). Photo-induced degradation of PFASs: excited-state mechanisms from real-time time-dependent density functional theory. J. Hazard. Mater. 423, 127026. doi:10.1016/j.jhazmat.2021.127026

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhang, Y. Y., Moores, A., Liu, J. X., and Ghoshal, S. (2019). New insights into the degradation mechanism of perfluorooctanoic acid by persulfate from density functional theory and experimental data. Environ. Sci. and Technol. 53 (15), 8672–8681. doi:10.1021/acs.est.9b00797

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhao, L., Pu, R., Deng, S., Lin, L., Mantzavinos, D., Naidu, R., et al. (2025). Enhanced electrochemical degradation of per-and polyfluoroalkyl substances (PFAS) by activating persulfate on boron-doped diamond (BDD) anode. Sep. Purif. Technol. 359, 130459. doi:10.1016/j.seppur.2024.130459

CrossRef Full Text | Google Scholar

Zhou, X. D., Zhong, Y. S., Tian, X. C., and Zhao, F. (2024). Electrochemical oxidation of perfluoroalkyl and polyfluoroalkyl substances: mechanisms, implications, and challenges. Sci. China-Technological Sci. 67 (10), 2972–2990. doi:10.1007/s11431-023-2626-7

CrossRef Full Text | Google Scholar
